Product type	Hand blender with multiple attachments
Brand	Electrolux
Model	Explore 5
Power consumption	700 W
Voltage	220-240 V, 50-60 Hz
Beaker capacity	600 ml
Food processor bowl capacity	500 ml
Chopper bowl capacity	200 g
Material	Stainless steel mixing foot, plastic body
Speed settings	Variable speed selector + Turbo button
Continuous operation time	60 seconds (normal load), 30 seconds (heavy load)
Cool-down time	1 minute before restarting
Attachments included	Mixing foot, whisk, chopper, potato masher, food processor with multi knife and shredding discs
Dishwasher safe parts	Yes (except motor unit, whisk holder, chopper bowl lid, storage lids)
Safety features	Automatic stop, locked assembly, non-slip ring
Cord length	1.2 m
Weight	1.2 kg
Dimensions (hand blender)	40 x 8 x 8 cm
Warranty	2 years (subject to country)

Frequently Asked Questions - Explore 5 ELECTROLUX

How do I attach the mixing foot to the handheld part?

Insert the mixing foot into the handheld part, turn it clockwise and lock into position.

What is the maximum operating time for the blender?

For normal load, you can use it continuously for 60 seconds. For heavy load, max 30 seconds. Allow the appliance to cool for 1 minute before restarting.

Can I chop ice with the chopper attachment?

Yes, but only with the chopper attachment and using pulse mode (5-10 pulses of 3 seconds ON, 2 seconds OFF). Do not use the blender for hard substances without the correct accessory.

How do I clean the handheld part and attachments?

The handheld part, whisk holder, and chopper bowl lid should be cleaned with a soft damp cloth only. Never immerse them in water. Other parts can be washed in warm soapy water or on the top rack of the dishwasher.

What should I do if the blades are not turning?

This may be due to too much food or large chunks. Reduce the quantity or cut food smaller. Also check if food is stuck around the blades and gently remove it with a spatula.

Can I use the blender for hot liquids?

Yes, but allow the mixing foot to cool down after processing hot ingredients. Be careful of splashes and do not overfill.

How do I use the food processor attachment?

Place the spindle on the spigot, then add the desired disc or multi knife. Close the lid and lock it. Insert the handheld part into the lid opening and turn clockwise. Press ON/OFF or TURBO to start.

What is the TURBO button for?

The TURBO button provides maximum speed for extra power when blending tough ingredients or when you need quick results.

Can I wash the chopper bowl in the dishwasher?

Yes, the chopper bowl can be washed on the top rack of the dishwasher. However, always rinse it with clean water immediately after use to prevent crazing from acidic ingredients.

What does the speed selector do?

The speed selector adjusts the normal speed. Move it left for lower speed and right for higher speed. It works in conjunction with the ON/OFF and TURBO buttons.

USER MANUAL Explore 5 ELECTROLUX

Line drawing of a kitchen brush and a glass, with an inset showing a close-up of the brush's tip (no text or symbols)

E5HB1-57GG

Technical line drawing of a mechanical component with no visible text or symbols

E5HB1-57GG

E5HB1-59GG

Line drawings of various kitchen utensils including a blender, beaker, whisker, candle holder, and kitchen sink (no text or labels)

Illustration of various household appliances including a blender, filter, and washing machine (no text or symbols)

	E5HB1-51GG	E5HB1-57GG	E5HB1-57GG	E5HB1-59GG
[27T6]	√ √	√ √
	√ √	√ √
	√ √	√ √
			√	√
				√
		√

HOW TO USE THE PRODUCT

Illustration of a faucet and a glass with a drop, no text or symbols present

Illustration of a wall socket connected to a plug, with a blue arrow indicating the cable attachment (no text or symbols present)

Illustration of a pipette dispensing liquid into a test tube (no text or symbols)

Illustration of a plug with a cable and a circular socket, showing a blue arrow indicating direction (no text or symbols)

Line drawing of a glass and a small cylindrical object with a side lamp, accompanied by a small icon (no text or symbols)

Illustration of a faucet with a water drop symbol above and a plastic container with a hook below (no text or labels)

Illustration of a plug inserted into a wall socket with a blue arrow indicating the cable (no text or symbols)

Illustration of a laboratory filtration setup with a pipette and beaker (no text or symbols)

Illustration of a plug with a cable and a circular socket, showing a blue arrow indicating direction (no text or symbols)

Illustration of kitchen utensils including a pot, handle, and lid (no text or symbols)

HOW TO USE THE PRODUCT

Illustration of a faucet with a blue circular icon showing a faucet and water droplet (no text or symbols)

Illustration of a plug inserted into a socket with a blue arrow indicating the cable (no text or symbols)

Illustration of a pipette dispensing liquid into a pot (no text or symbols)

Illustration of a plug connecting a socket to a cable, with a blue arrow indicating the cable's direction (no text or symbols present)

Illustration of kitchen utensils including a blender, a madder, and a plate with a spoon (no text or symbols)

HOW TO USE THE PRODUCT

INSTRUCTION MANUAL

Graphics and drawings in this manual are solely for illustration purposes and are subject to variations from actual product.

Read all instructions carefully before using the appliance for the first time.

Keep this manual for future reference.

COMPONENTS

A. ON/OFF button

B. TURBO button

C. Speed selector

D. Handheld part

E1. Stainless steel mixing foot

E2. Blade assembly

F. Power cord

G1. Beaker*

G2. Beaker storage lid*

H1. Whisk holder*

H2. Whisk*

II. Chopper bowl lid*

1. Chopper blade*

2. Chopper bowl*

3. Chopper bowl storage lid*

J1. Potato masher*

J2. Masher blades*

K1. Feed tower*

K2. Feed tower pusher*

K3. All-purpose bowl lid*

K4. All-purpose bowl*

K5. Multi knife*

K6. Fine shredding/cutting disc*

K7. Coarse shredding/cutting disc*

K8. Spindle*

* Specifications vary by model (please refer to page 4 for details)

SAFETY ADVICE

• Remove and safely discard any packaging materials before using the appliance.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instructions concerning the use of the appliance by a person responsible for their safety.
• Keep the appliance and its power cord out of reach of children. Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and maintenance should not be performed by children unless they are supervised.
• The appliance can only be connected to a power supply which voltage and frequency comply with the specifications on the rating plate.
• Never use or pick up the appliance if the power cord is damaged and/or housing is damaged.
• If the appliance or the power cord is damaged, it must be replaced by Electrolux or its service agent in order to avoid hazard.
• Do not immerse the appliance, its power cord or plug in water or any other liquid.
• Do not use or place the appliance near the edge of the table or counter, near hot gas, stove, electric burner or heated oven.
  • Always place the appliance on a flat, level and dry surface.
• Always switch off the appliance and disconnect it from the power supply if it is left unattended and before changing of the accessories, cleaning or maintenance.
• The blades and inserts are very sharp. Danger of injury. Care shall be taken when changing accessories, after use and during cleaning and maintenance.
• Never touch the blades or inserts with your hand or any utensils while the appliance is connected with power supply and/or during operation.
• Do not attempt to remove the blade assembly.
• Keep hands and utensils away from the appliance during operation to avoid the risk of severe injury to persons or damage to the appliance.
• Do not operate the appliance without food or liquid in the chopper or the beaker.
• Never operate the chopper without the lid.

• The appliance and accessories may become hot during operation. It is recommended that the appliance be allowed to cool down before cleaning or storage.

• Do not use the appliance continuously for more than 30 seconds when processing heavy load. Do not use the appliance continuously for more than 60 seconds in normal use. Allow the appliance to cool down before restarting.

• The appliance cannot be used for chopping ice or blending hard and dry substances, such as nuts or candy; except with specific accessories provided with the appliance, otherwise the blade could be blunt.
• Do not use this appliance to stir paint. Danger, could result in an explosion!
• Do not let the power cord come into contact with hot surfaces or hang over the edge of a table or counter.
• Never use accessories or parts made by other manufacturers not recommended or sold by Electrolux as it may cause a risk of injury to persons.
  • This appliance is for indoor use only.
• This appliance is intended for domestic use only. Electrolux will not accept any liability for possible damage caused by improper or incorrect use.

BEFORE FIRST USE

Before using your appliance, remove all packing material, plastic, labels, stickers or tags that may be attached to the motor base, bowls or attachments. Clean the product before using it for the first time. (Please refer to "CLEANING AND CARE" section for cleaning instructions.

USING THE MIXING FOOT

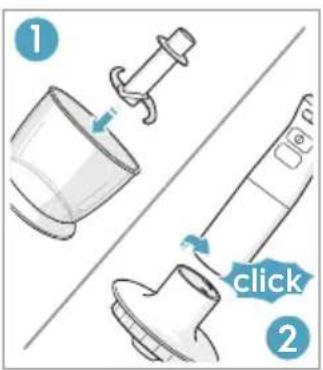

2 Insert the mixing foot to handheld part, turn the handheld part clockwise and lock into position.
3 Insert the stick mixer deep into the beaker, plug in to mains outlet and press ON/OFF button or TURBO button to start. Make sure the beaker is no more than 2/3 full. If you do not use the beaker, do not immerse the mixing foot more than 2/3 of its length. Move stick mixer lightly up and down to ensure best processing of content.
4 Adjust the normal speed, by moving the speed selector left (for a lower speed) or right (for a higher speed). Release the ON/OFF or TURBO button to stop mixing. When processing normal load, the appliance can be used continuously for 60 seconds. Allow the appliance to cool for 1 minute before restarting. To disassemble, turn the handheld part anti-clockwise.

CAUTION! Allow the mixing foot to cool down after processing hot ingredients or liquid.

USING THE CHOPPER\*

5 Place the chopper bowl on a clean, level surface. Put the chopper blade into the shaft at the base of the chopper bowl.
6 Place food into the chopper bowl. Amount of food to be chopped cannot exceed the maximum amount as indicated on the chopper bowl. Close the chopper bowl lid.
7 Insert the handheld part into the chopper bowl lid and turn clockwise (A) to lock into position. Plug into power outlet and press ON/OFF button or TURBO button to start. Release to stop. To disassemble, turn the handheld part anti-clockwise.

USING THE WHISK\*

8 Attach the whisk to the whisk holder and then assemble the whisk assembly with the handheld part. Turn the handheld part clockwise to lock in position. Plug into power outlet and press ON/OFF button or TURBO button to start. Release to stop. To disassemble, turn the handheld part anti-clockwise.

USING THE POTATO MASHER\*

9 Insert the masher blades into the potato masher. Attach the potato masher to the handheld part, and turn clockwise until locked into position. Plug into power outlet and press ON/OFF button or TURBO button to start. Release to stop. To disassemble, turn the handheld part anti-clockwise.

Note: Boiled potatoes should be smashed at maximum speed for 60 seconds.

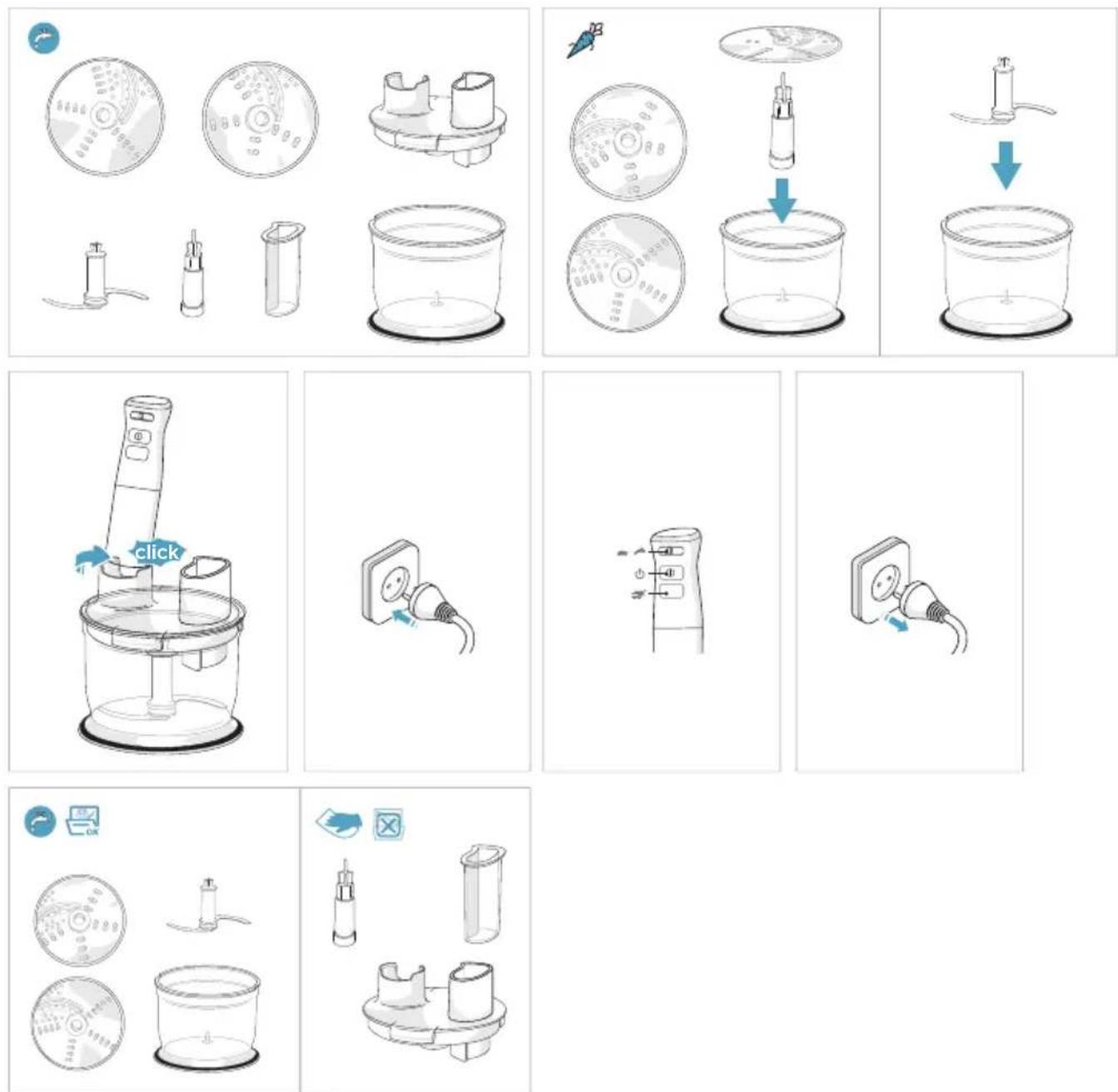

USING THE FOOD PROCESSOR\*

10 Place the food processor bowl on a flat surface. Make sure that the non-slip ring is properly placed.
11 Using shredding/cutting discs: Place the spindle on the spigot in the centre of the all-purpose bowl. Select desired shredding/cutting disc and place it on the spindle.

Using the multi knife: Fit the multi knife over the spigot inside the all-purpose bowl.

Caution: The blades and inserts are very sharp!

12 Put the ingredients in the bowl. (Do not exceed the maximum filling volume: 500 ml.) Close the lid and lock into position and insert the feed tower pusher into the feed tower. It is recommended to put smaller food through the feed tower in order to avoid sticking/ blocking under the multi knife.
13 Insert the handheld part into the opening of the lid and lock into position. Plug into mains outlet, select the speed by moving the sliding speed selector. Press the ON/OFF button to start and release to stop. For extra power, press the TURBO button. To remove the handheld part from the all-purpose bowl, press the release button.

Caution: Never remove the lid before the blades and inserts have completely stopped.

14 Further ingredients can be added during operation through the feed tower. Close the feed tower immediately after, to avoid splashing. Use the feed tower pusher exclusively to compress the cutting items!

CLEANING AND CARE

15 Before cleaning, switch off the appliance and wait till the appliance have stopped completely before unplugging from the mains outlet.
16 Wash all parts, except for the motor base, in warm soapy water. All parts, except for the whisk holder, chopper bowl lid and storage lid, can be washed on the top rack of your dishwasher. Dry each part thoroughly before use. (you may place the multi knife in an upright position with blades facing downwards to allow it to drain thoroughly.)

Warning! Never immerse the handheld part, plug, cord, whisk holder and chopper bowl lid inwater or any other fluid.

17 The handheld part, whisk holder and chopper bowl lid should only be cleaned with a soft damp cloth, then dried with a cloth.

Note: Do not use abrasive cleansers or scouring pads to clean the surfaces of your appliance. Ensure that all parts of the appliance are clean and completely dry before storage.

To avoid crazing of the chopper bowl, always rinse the chopper bowl with only clean water right after usage. This is to prevent acids or essential oils from the ingredients that may attack the plastic material. After rinsing the chopper bowl, it can be washed by hand with detergent, or placed into the dishwasher for cleaning.

Avoid leaving the ready dishes (e.g. soup, smoothie, juice) in the chopper bowl for a long time, especially when acidic ingredients (e.g. lime, lemon) is processed.

Always rinse the chopper bowl thoroughly with only clean water before placing it to the dishwasher. However, if crazing would appear, the effect is purely cosmetic and it does not have any impact the integrity of the chopper bowl.

PROCESSING QUANTITIES AND PROCESSING TIMES

ACCESSORY: METAL MIXING FOOT AND BEAKER

RECIPE INGREDIENTS QUANT	TY TIME SPEED
Pineapple-apricots Smoothie	Pineapple in slices 250 g		60 sec Turbo
	Dried Apricots 40 g
	Yoghurt 300 g
Raspberries Smoothie	Frozen raspberries 250 g		60 sec Turbo
	Banana 12 pcs
	Water	100 g
	Caster sugar	1 Tbs
		300 g

WHISKING/WHIPPING QUANTITIES AND PROCESSING TIMES

ACCESSORY: WHISK*

INGREDIENTS	QUANTITY	TIME	SPEED
Cream	500 g	50-70 sec	Turbo
Egg whites	4 units	60 sec	Turbo
Note: It is possible to use the whisk for whipping cream in the beaker, as long as the temperature of the cream is between 4 and 8 Degree Celcius. For whisking eggs, please use a 1.5 Litre bowl.

CHOPPING QUANTITIES AND PROCESSING TIMES

ACCESSORY: CHOPPER*

INGREDIENTS	QUANTITY	QUALITY	TIME	QUALITY	TIME	QUALITY	TIME	SPEED
Carrots	100-200 g	Coarse	-	Medium	5-10 sec	Fine	10-20 sec	Turbo
Onions	100-200 g		3-5 sec		5-10 sec		10-20 sec
Almonds	100-200 g		3-5 sec		7-10 sec		10-20 sec
Meat	100-200 g		-		-		5 sec
Ice	100-200 g		-		5 Pulses ON for 3 sec, OFF for 2 sec		10 Pulses ON for 3 sec, OFF for 2 sec
Red dates + honey	Red dates (sliced) 60 g Honey 120 g		30 sec		-		-
Note: We recommend to use fresh honey at room temperature. Do not use chilled honey.

MASHING QUANTITIES AND PROCESSING TIMES

ACCESSORY: POTATO MASHER*

INGREDIENTS QUANTITY TIME SPEED
Cooked-potato pieces, cooked-pumpkin pieces (size 20 x 20 x 20 mm)	300 g 30 sec		High speed

PROCESSING QUANTITIES AND PROCESSING TIMES

ACCESSORY: FOOD PROCESSOR WITH MULTI KNIFE*

INGREDIENTS	QUANTITY	QUALITY	TIME	QUALITY	TIME	QUALITY	TIME SPEED
Bread crumbs	50-100 g	Coarse	10 sec	20 secMediumsec 30 sec	20 sec	Fine	30 sec
Almonds	100-200 g		- 10 sec
	200-400 g		10 sec 20
Meat (Beef)	200 g		10 sec 20	sec 30 sec

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE SOLUTION
The blades are not turning when the appliance is in operation.	There are too much food in the beaker.	Split the food into 2 batches or more.
	The size of the food is too big. Reduce the size of the food.
	There are food stuck around the blades.	Use a spatula to gently scrap away the food around the blade.
The chopper does not work.	The chopper lid is not correctly fastened.	Ensure that the chopper bowl bowl lid and the chopper bowl are properly assembled.
The mixing foot/whisk assembly does not work.	The mixing foot/whisk assembly is not correctly assembled.	Ensure that the mixing foot/whisk assembly is correctly assembled and locked in position.
The appliance sounds like it is not able to process the load.	The speed may be incorrect.	Please refer to the processing guide of the respective accessories.
Slices are slanted or uneven.	The food is light, it jumps during slicing.	Load food in the filler hole. Place stopper onto food and apply pressure. Then start.
Some food remained on the disc after processing.	It is normal for small pieces to remain after processing.	Always clear any blocked food from shredding/cutting disc manually.
The motor slows down when using the multi knife.	Amount of meat may exceed maximum capacity.	Remove the meat and process in two batches.
	Too much fat in the meat	Note that for best result trim the meat of fat before processing.
The motor does not work.	The appliance is not connected to the mains outlet.	Make sure to plug in the appliance before operation.
The appliance vibrates/ moves during operation.	The non-slip ring is wet.	Make sure the non-slip ring at the bottom of the all-purpose bowl or the blender jug is clean and dry.

DISPOSAL

Recycle the materials with the symbol 📋. Put the packaging in applicable containers to recycle it. Help protect the environment and human health and to recycle waste of electrical and electronic appliances.

Do not dispose appliances marked with the symbol — with the household waste. Return the product to your local recycling facility or contact your municipal office.

CUSTOMER CARE AND SERVICE

When contacting Service, ensure that you have the following data available: Model, PNC, Serial Number. The information can be found on the rating plate.

Due to the Electrolux policy of continual product development; specifications, colours, and details of our products and those mentioned in this manual are subject to change without notice.

說明手冊

Electrolux Korea limited

9F, Pine Avenue B,

100 Euljiro, Jung-gu, Seoul, Korea 04551

Korea

Tel: [phone]

Fax: [phone]

Customer Care Services : [phone]

Email: [e-mail]

Website: www.electrolux.co.kr

INDONESIA

Electrolux Philippines, Inc.

10th Floor. W5th Avenue Building

5th Avenue Corner 32nd Street

Bonifacio Global City,

Taguig Philippines 1634

Trunkline: [phone]

Domestic Toll Free: 1 800 10 845 care 2273

Customer Care Services: +63 2 845 care 2273

Email: [e-mail]

Website: www.electrolux.com.ph

THAILAND

Electrolux Thailand Co Ltd

Electrolux Building

14th Floor 1910 New Petchburi Road

Bangkapi, Huay Kwang

Bangkok 10310

Thailand

Tel: [phone]

Fax: [phone]

Customer Care Services: [phone]

Email: [e-mail]

Website: www.electrolux.co.th

VIETNAM

Electrolux Vietnam Ltd

Floor 9th, A&B Tower

76 Le Lai Street

Ben Thanh Ward - District 1

Ho Chi Minh City

Vietnam

Tel: [phone]

Fax: [phone]

Customer Care Services: 1800-58-8899

Email: [e-mail]

Website: www.electrolux.vn

MALAYSIA

Electrolux Home Appliances Sdn Bhd

Lot C6, No. 28, Jalan 15/22,

Taman Perindustrian Tiong Nam,

40200 Shah Alam, Selangor

Malaysia

Customer Care Services Tel: [phone]

Customer Care Services Fax: [phone]

Email: [e-mail]

Website: www.electrolux.com.my

SINGAPORE

Electrolux SEA Pte Ltd

1 Fusionopolis Place, Galaxis

07-10 (West Lobby)

Singapore 138522

Customer Care Services: [phone]

Fax: [phone]

Email: [e-mail]

Website: www.electrolux.com.sg

AUSTRALIA

Electrolux Home Products Pty Ltd

ABN 51 004 762 341

163 O'Riordan Street, Mascot, NSW 2020, Australia

Customer Service Phone: [phone]

Website: www.electrolux.com

NEW ZEALAND

Electrolux Small Appliances

A division of Electrolux (NZ) Limited

3-5 Niall Burgess Road, Mt. Wellington, Auckland,

New Zealand

Phone: [phone]

Customer Service Phone: [phone]

Website: www.electrolux.com

HONG KONG

大昌貿易行有限公司

電器維修中心

香港九龍灣啟祥道20號

大昌行集團大廈5樓

Abstract geometric design with three white petal-like shapes on a black background (no text or symbols)

Share more of our thinking at www.electrolux.com
