HG04763 - Uncategorized CRIVIT - Free user manual and instructions

Product Type	Folding Trolley
Brand	Crivit
Model Number	HG04763
Dimensions (Unfolded)	Approx. 98 x 49 x 110 cm (L x W x H)
Platform Size	Approx. 92 x 49 x 32 cm (L x W x H)
Pack Size	Approx. 75 x 26 x 45 cm
Maximum Load	50 kg
Intended Use	Transport of camping equipment and similar items
Scope of Delivery	Carrier bag, removable floor, folding trolley, instructions
Brakes	Yes, on front wheels with lock/unlock symbols
Handle Lock	Locking clip when stationary
Assembly Required	Yes, simple unfolding and strap adjustments
Cleaning	Damp, lint-free cloth
Warranty	3 years from date of purchase
Service Contact (UK)	Tel: [phone], Email: [e-mail]
Safety Warning	Not for children, not to transport people/animals, max load 50 kg

Frequently Asked Questions - HG04763 CRIVIT

How do I unfold the Crivit folding trolley?

Remove the removable floor from the carrier bag, release the velcro strap, remove the carrier bag, loosen the long strap, and unfold the trolley. Then unfold the handle and secure it with the locking clip. Refer to assembly steps A-D.

What is the maximum weight capacity of this trolley?

The maximum load is 50 kg. Never exceed this limit to avoid tipping or damage.

Can I use this trolley to transport people or animals?

No, it is strictly not permitted to transport people or animals. Doing so may cause injury or damage.

How do I fold the trolley for storage?

Remove the removable floor, pull up the lock cap, fold the handle down, remove velcro straps from wheels, pull the middle strap, tighten with velcro, cover with carrier bag, and place the floor in the side pocket. See steps F-H.

Does the trolley have brakes?

Yes, there are brakes on the front wheels. Step on the lock symbol to engage, step on the unlock symbol to release. Always apply the brake when stationary.

How should I clean the folding trolley?

Use a damp, lint-free cloth to clean the product. Do not use harsh chemicals or submerse in water.

What is the warranty period?

The product has a 3-year warranty from the date of purchase. Keep the original sales receipt as proof of purchase.

Can the trolley be used on slopes or stairs?

Do not place the trolley near stairs, steep ground, or pools. It may tip over. Always pull slowly around corners.

Where can I get spare parts or replacement instructions?

Contact the service department. In case of discoloration or fading of synthetic components, they must be replaced. Contact information: Tel. [phone] (UK) or [e-mail].

Is the trolley suitable for children?

No, this product should not be used by children. It is not a toy or climbing frame. Keep children away during assembly and use.

USER MANUAL HG04763 CRIVIT

Black-and-white photo of a portable outdoor cart filled with various household items including a tennis paddle, basketball, and a large bag (no text or symbols visible)

FOLDING TROLLEY

GB

FOLDINGTROLLEY

Assembly, operating and safety instructions

DE AT CH

BOLLERWAGEN

GB Assembly, operating and safety instructions Page 5

SI Navodila za montažo, uporabo in varnostna navodila Stran 11

Two identical mechanical device diagrams with wheels and a directional arrow, labeled 'B' (no text or symbols on the devices themselves)

GB

IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY!

SI

POMEMBNO, SHRANITE ZA POZNEJŠO UPORABO: NATANČNO PREBERITE!

DE AT CH

Scope of delivery and parts description......Page 6

Technical data Page 6

General safety notes......Page 6

Assembly / Disassembly......Page 7

Fold the trolley....Page 9

Cleaning and care ......Page 9

Disposal Page 9

Warranty Page 9

Warranty claim procedure Page 10

Service......Page 10

Folding trolley

- Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. Familiarise yourself with the product before using it for the first time. In addition, please carefully refer to the operating instructions and the safety advice below. Only use the product as instructed and only for the indicated field of application. Keep these instructions in a safe place. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intendeduse

This product is a trolley which is designed to transport camping equipment, etc. amounting to a weight of max. 50 kg. This product should not be used by children. It is only intended for private use and is not intended for commercial use.

- Scope of delivery and parts description

1 Carrier bag 1
1 Removable floor 2
1 Folding trolley 3
1 Set of instructions

●Technicaldata

Dimensions: approx. 98 x 49 x 110 cm (L x W x H)

Platform size: approx. 92 x 49 x 32 cm (L x W x H)

Pack size: approx. 75 x 26 x 45 cm

Max.load:50 kg

General safety notes

PLEASE READ THESE INSTRUCTIONS FOR USE CAREFULLY. KEEP ALL SAFETY NOTES AND INSTRUCTIONS IN A SAFE PLACE FOR FUTURE REFERENCE! FAILURE TO OBSERVE THESE INSTRUCTIONS WILL POSE A HAZARD TO YOU AND YOUR CHILD.

WARNING!

RISK OF DEATH AND

ACCIDENTS FOR TODDLERS

AND CHILDREN! Never

leave children unsupervised

with the packaging material.

There is a danger of suffocation.

WARNING!

the product has been assembled properly before use.

WARNING!

all closing mechanisms of the product have snapped into place before use.

Make sure that the product is only assembled by persons who know how to do so.

Please ensure that the product is in good working condition before each use.

WARNING!

children unattended! The product is not a climbing frame or toy! Make sure that nobody climbs or leans on the product, particularly children. The product may otherwise become unbalanced and tip over. This may result in injury and/or damage.

The product may only be used by an adult.

Never place a load of more than 50 kg on the

product.

Do not place the product near stairs, steep ground or swimming pools.

WARNING!

it to transport people or animals.

This may result in injury and / or damage.

Pull the product slowly around corners.

It is not permitted to use this product as a trailer for vehicles of any kind.

This product is not suitable for attaching to a vehicle.

Place objects in the centre of the product to transport them.

WARNING!

the side wall. Danger of tipping.

Note: In case of discoloration / fading of supporting synthetic components they shall be exchanged.

assembly / Disassembly

WARNING!

Crushing and

shearing points are present during assembly and disassembly.

Unfold the trolley:

1. Take out removable floor 2 from carrier bag 1, see fig. A.

2. Release the velcro strap of the carrier bag and remove the carrier bag 1 from the trolley 3, see fig. B.

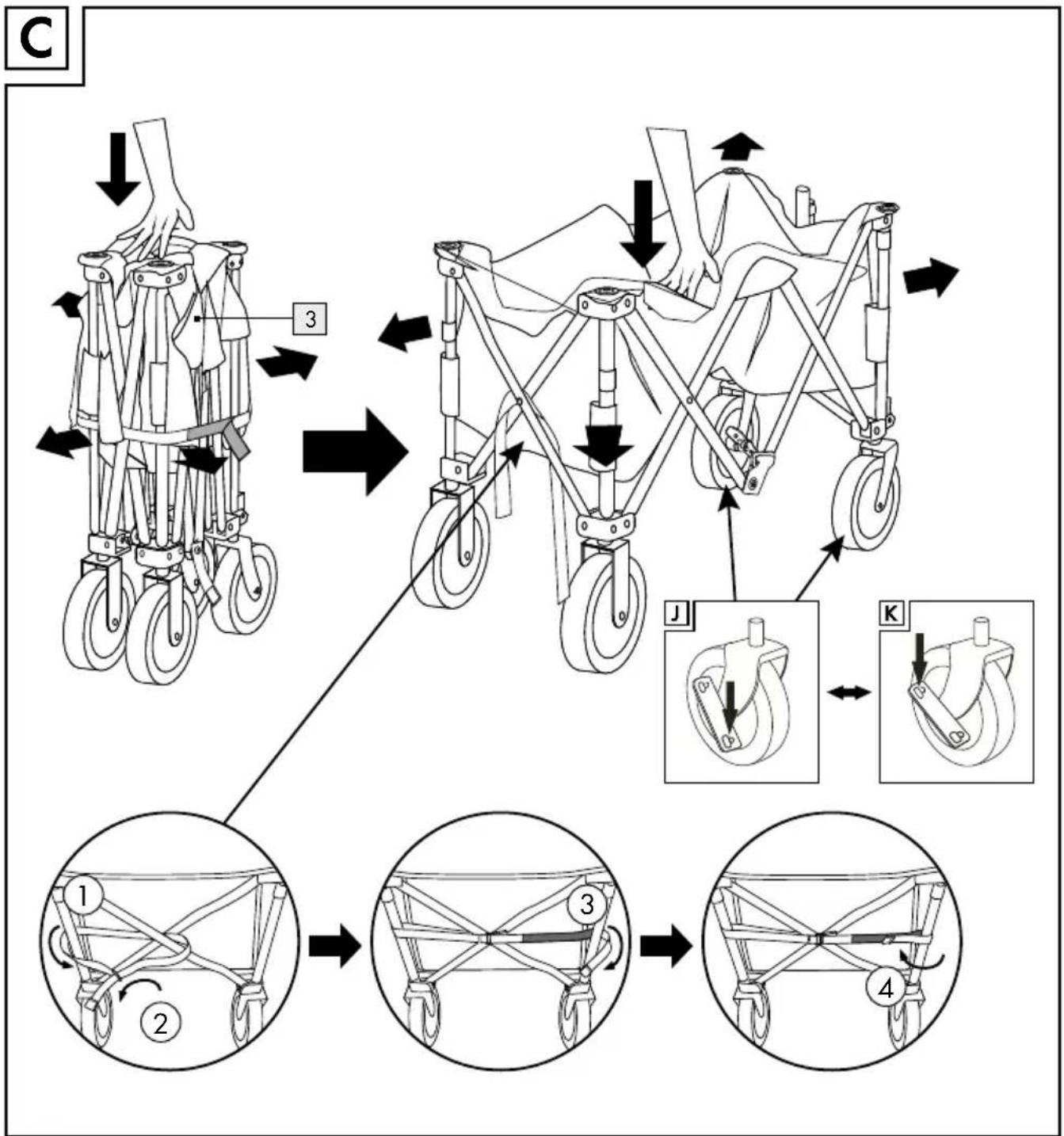

3. Loosen the velcro on the long strap surrounding the trolley 3 and unfold the trolley 3 (see fig. C).

4. Tie the velcro strap according to figure C to prevenent the velco strap fall to the floor.

5. First, the strap with buckle pass through the shaft.

6. Then insert strap with velcro into the buckle.

7. Strap with velcro pass through another shaft.

8. Lastly stick the velcro together to secure the strap on the shaft.

9. Unfold the handle in front of trolley 3 (see fig. D.1), turn the lock cap toward the lower part of the handle shaft. Push the lock cap downward and cover the lower part of the handle shaft.

10. Insert the middle joint of trolley frame into the cover at left and right side (see fig. D).

! When the WARNING!

trolley is stationary or not in use the handle must be secured with the locking clip (see fig. D, picture4).

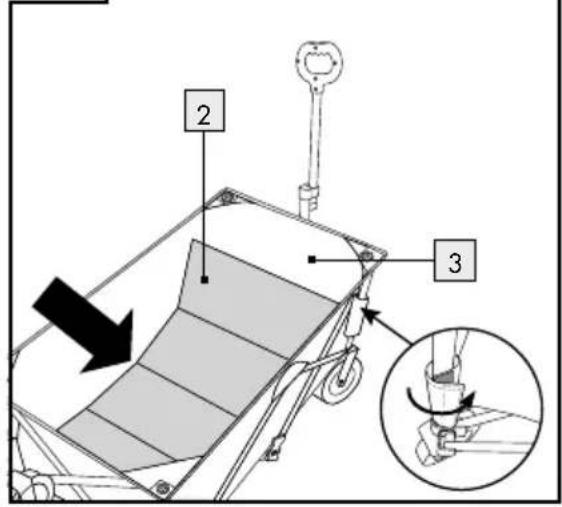

1. Place removable floor 2 to the folding trolley 3, see fig. E. Fix the velcro strap on the folding trolley 3 to the shaft of the front and rear wheels.

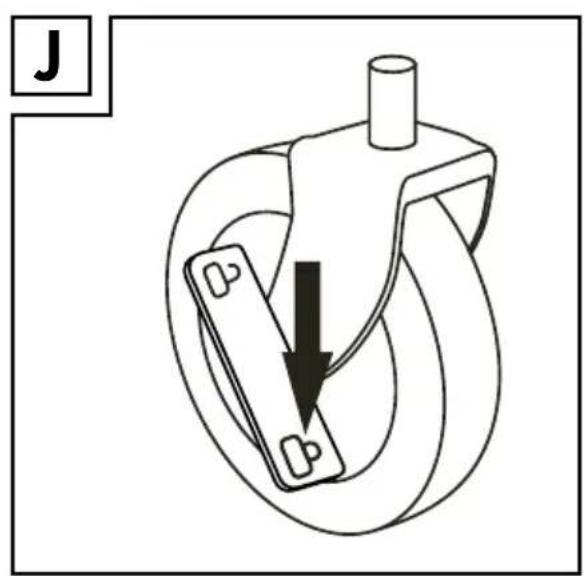

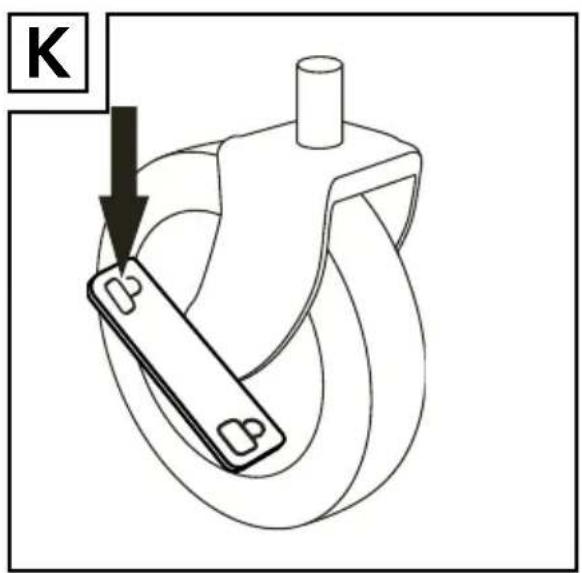

☐ Brakes are included with this product, located on the wheels below the handle (see fig. C items J and K). User can initiate brake located in front wheels according to fig. J, user can unlock the brake according to fig. K.

Lock Symbol: User can step on the lock symbol to lock the brake.

Unlock symbol: User can step on the unlock symbol to unlock the brake.

Trolley symbol:

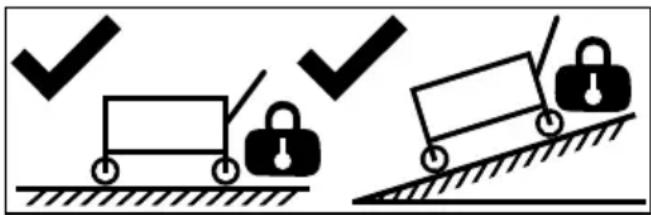

CAUTION: Initiate the brake when the product is left in a stationary position.

Fold the trolley

1. Remove the removable floor 2 from folding trolley 3.

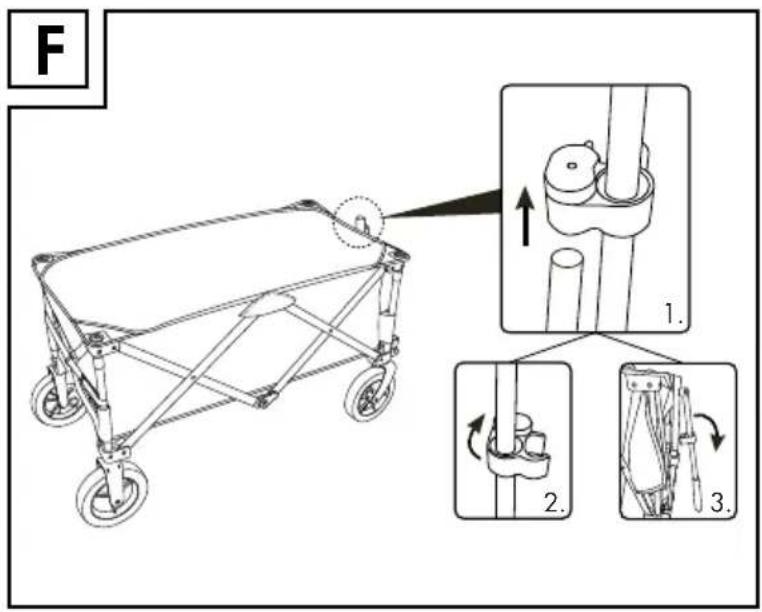

2. Pull up the lock cap from handle shaft (see fig. F1), turn the locking position toward the handle shaft, and fold the upper part of handle shaft downward.

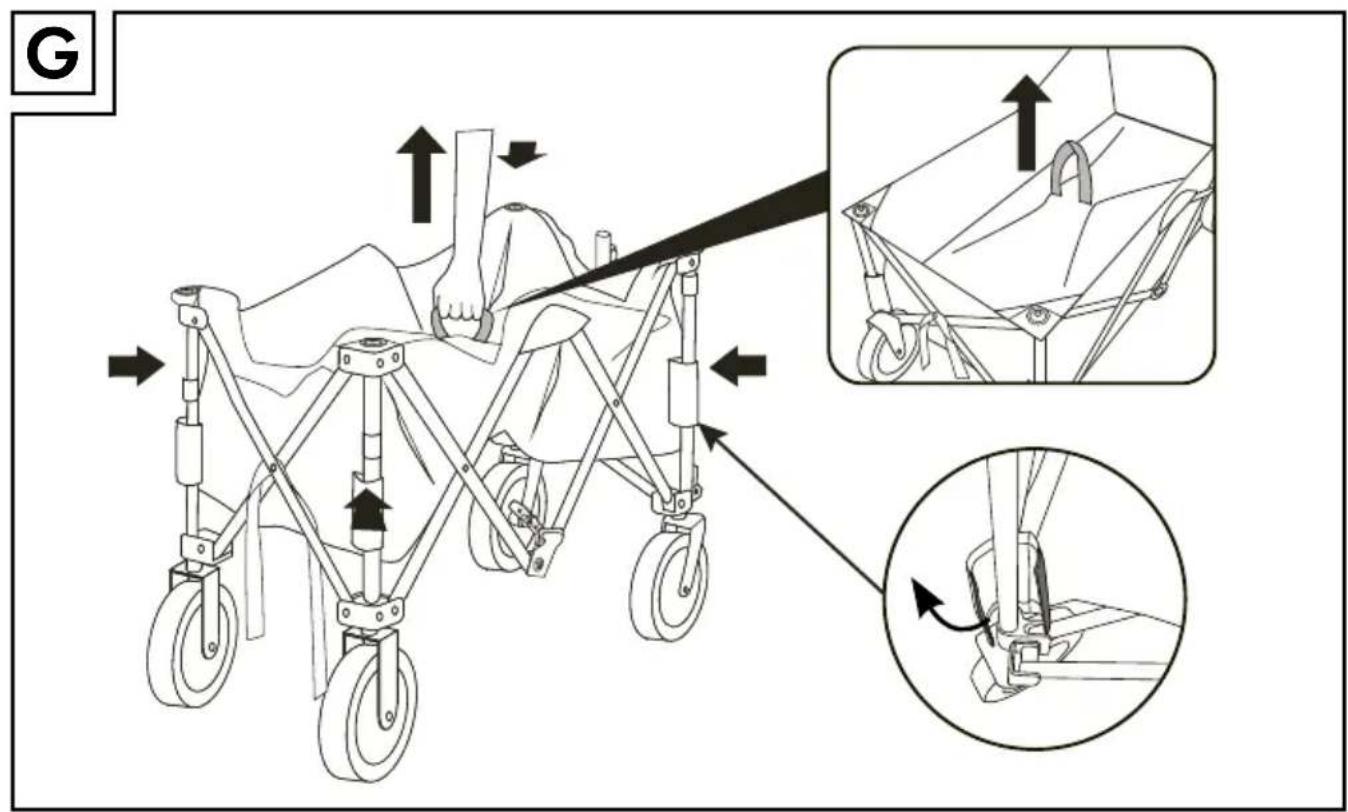

3. Remove the velcro strap from the front and rear wheel shafts, than pull the strap in the middle of the folding trolley (see fig. G)
4. Tighten the folded trolley with velcro strap.

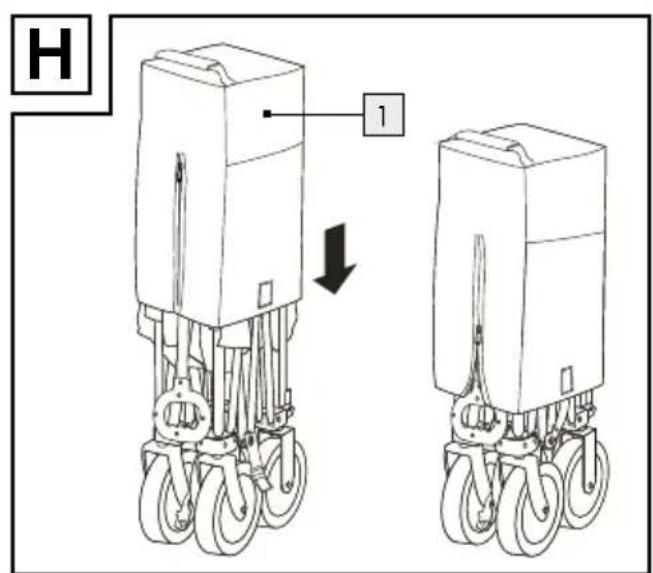

5. Cover the trolley with carrier bag 1, and fixing the carrier bag to trolley by velcro strap (see fig. H)

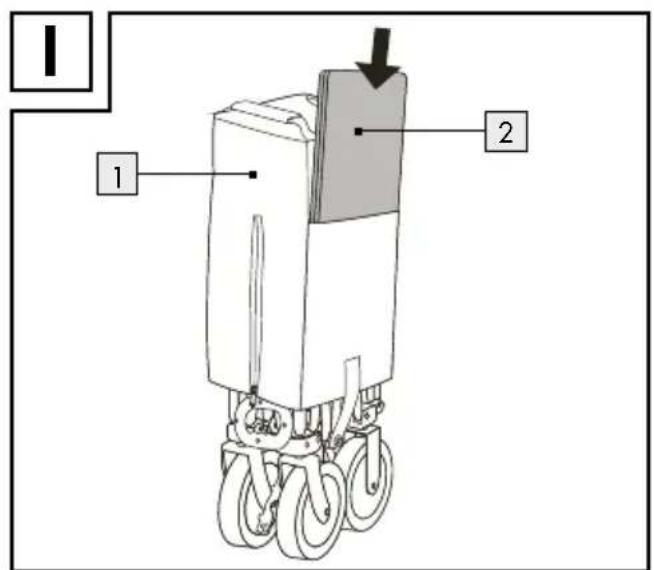

6. Insert the removable floor 2 to the side pocket of carrier bag 1 (see fig. 1)

- Cleaning and care

☐ Use a damp, lint-free cloth to clean the product.

- Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

- Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase.

Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you. This warranty becomes void if the

product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

Service

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

- Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (e.g. IAN

123456_7890) available as proof of purchase.

You will find the item number on the rating plate, an engraving on the front page of the instructions for use (bottom left), or as a sticker on the rear or bottom of the product. If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service

Uvod....Stran 12

Predvidena uporaba .... Stran 12

Obseg dobave in opis delov....Stran 12

Tehnični podatki .... Stran 12

Mere: pribl. 98 x 49

$$ \times 1 1 0 \mathrm{cm} $$

$$ (D \times \check {S} \times V) $$

Nakladalna

Simbol transportnega vozička:

PREVIDNO: Pritisnite zavoro, ko se izdelek zaustavi.

Sklapljanje

transportnega vozička

Pooblaščeni serviser:

OWIM GmbH & Co. KG

Stiftsbergstraße 1

74167 Neckarsulm

Nemčija

Bollerwagensymbol:

E

Mechanical diagram of a wheel with a pull rod and arrow indicating force or motion (no text or symbols)

Mechanical diagram of a wheel with a handle and load, showing motion direction (no text or symbols)

OWIM GmbH & Co. KG

Stiftsbergstraße 1

74167 Neckarsulm

GERMANY

Model no.: HG04763

Version: 01 / 2022

Last Information Update · Stanje informacij
