Product Type	Heated car seat cushion
Model	IAN 115062
Brand	ULTIMATE SPEED
Power Supply	12 V vehicle connector (cigarette lighter)
Current Consumption	Max. 2.6 A
Power Consumption	Approx. 31 W
Heating Function	On/Off switch with two positions (I/0)
Indicator	Power LED
Mounting	Securing straps over headrest
Fuse	Type F5AL 250 V, replaceable
Safety Features	Do not use on helpless persons; avoid moisture; do not kink; no sharp objects
Cleaning	Wipe with a lightly moistened cloth and mild detergent
Storage	Dry place, not folded sharply, no objects on top
Disposal	WEEE compliant, do not dispose with household waste
Warranty	3 years
Manufacturer	KOMPERNASS HANDELS GMBH, Burgstrasse 21, 44867 Bochum, Germany
Intended Use	Warming the body while driving a car (private use only)

Frequently Asked Questions - IAN 115062 ULTIMATE SPEED

How do I install the heated seat cushion?

Place the cushion on the car seat and pull the securing straps over the head restraint. Fasten the straps securely. If your vehicle has side airbags, ensure straps only go over head restraint supports, not the top of the seat.

How do I turn on the seat cushion?

Plug the 12 V connector into the cigarette lighter. The Power LED will light up. Turn the on/off switch to 'I' to turn on, and to '0' to turn off.

Can I leave the seat cushion plugged in overnight?

No, the cushion consumes power even in standby. Disconnect it from the vehicle after use to avoid draining the battery.

How do I replace the fuse?

Open the 12 V connector by turning the fluted screw insert counterclockwise. Remove the connector tip, take out the old fuse, and insert a new fuse of type F5AL 250 V. Reassemble in reverse order.

Is it safe to use while sleeping?

No, do not fall asleep while using the seat cushion. Prolonged use at high heat can cause burns.

Can I use this cushion for a baby or a person insensitive to heat?

No, it is not suitable for babies, infants, helpless persons, or those insensitive to heat (e.g., diabetics). It may cause burns.

How do I clean the seat cushion?

Always disconnect power before cleaning. Wipe with a lightly moistened cloth and mild detergent. Do not submerge in water or use harsh chemicals. Let it dry completely before reconnecting.

What should I do if the cushion stops working?

First, check the fuse in the 12 V connector and replace if necessary. If it still doesn't work, contact the service hotline.

Can I use the cushion on any car seat?

Yes, but ensure the securing straps do not interfere with side airbags. If your seat has side airbags, follow the alternative mounting shown in the manual.

What is the warranty period?

The warranty is 3 years from the date of purchase. Keep your receipt as proof. Contact customer service for warranty claims.

USER MANUAL IAN 115062 ULTIMATE SPEED

SUPERFÍCIE DE ASSENTO AQUECÍVEL UASB 12 A1

PT

SUPERFÍCIE DE ASSENTO AQUECÍVEL

Operating instructions

DE AT CH

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

DE AT CH

índice

Introdução....2

Fig. 1 Fig. 2

PERIGO

Technical line drawing of a mechanical component with labeled parts (A, B, C) and connection points (no text or symbols beyond labels)

NOTA

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Table of contents

Introduction....14

Copyright 14

Limitation of liability 14

Intended use 14

Warnings used 15

Safety....16

Basic safety instructions 16

Initial operation 19

Items supplied and transport inspection. 19

Disposal of packaging 19

Before initial use 19

Product description....19

Handling and use 20

Securing the seat cushion 20

Operating the seat cushion 21

Replacing the fuse 21

Cleaning 22

Storage 22

Disposal 22

Appendix 23

Technical details. 23

Notes on the Declaration of Conformity 23

Warranty 24

Service 24

Importer 24

Introduction

Congratulations on the purchase of your new product.

You have decided to purchase a high-quality product. The operating instructions are a constituent of this product, and contain important information with regard to safety, use and disposal. Before using the product, familiarise yourself with all operating and safety instructions. Use this product only as described and only for the specified areas of application. Retain these instructions for future reference. Please also pass these operating instructions on to any future owner(s).

Copyright

This documentation is subject to copyright protection.

Any copying or reproduction, including extracts thereof, and the reproduction of images (even in an modified state), is only permitted with the written authorisation of the manufacturer.

Limitation of liability

All technical information, data and information for installation, connection and operation contained in these operating instructions was up to date at time of printing and, to the best of our knowledge, take into account our previous experience and know-how.

No claims can be derived from the details, illustrations and descriptions in these instructions.

The manufacturer assumes no responsibility for damage caused by failure to observe these instructions, improper use, incompetent repairs, making unauthorised modifications or for using unapproved replacement parts.

Intended use

This seat cushion is intended for warming the human body whilst driving a car (for private use only). This seat cushion is not intended for use in hospitals or for commercial applications. It is particularly unsuitable for warming babies, infants, persons who are helpless or insensitive to heat, and animals. Any usage other than that described above or modifications to the seat cushion is not permitted and may result in injury and/or damage to the seat cushion. The manufacturer accepts no liability for damage caused by improper application or usage. The user is the sole bearer of the risk.

Warnings used

The following warnings are used in these operating instructions:

DANGER

A warning at this risk level indicates an imminently hazardous situation.

If the hazardous situation is not avoided, it could lead to death or serious physical injury.

▶ Follow the instructions in this warning to avoid a fatality or serious personal injury.

CAUTION

A warning of this risk level indicates potential damage to property.

Failure to avoid this situation could result in damage to property.

▶ Follow the instructions in this warning to prevent damage to property.

NOTE

▶ A note indicates additional information that will assist you in handling the product.

Safety

IMPORTANT NOTES! KEEP FOR FUTURE REFERENCE!

This section provides you with important safety information regarding the handling of the product. Incorrect usage can lead to personal injury and property damage.

Basic safety instructions

For safe handling of the product, follow the safety information below:

ad the instructions!

Before using the product, familiarise yourself with all operating and safety instructions.

■ Check product for visible external damage before use.

Do not use products that have been damaged or dropped.

■ To avoid possible risks, arrange for damaged cables or connectors to be exchanged by an authorised specialist or the Customer Service Department.

This product may be used by children of the age of 8 years or more and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised or have been instructed in the safe use of the product and understand the potential risks. Children must not play with the product. Cleaning and user maintenance by children should not be carried out without supervision.

■ Do not use the seat cushion for helpless persons, babies or persons who are insensitive to heat (e.g. people with diabetes, people with illness-related skin changes or scarred areas of skin in the usage area, or after ingesting pain relieving drugs or alcohol).

■ Do not operate the seat cushion unsupervised.

■ Have all repairs carried out by authorised specialist companies or the Customer Service department. Improper repairs can pose significant risks to the user. Warranty claims also become void.

■ Defective components must always be replaced with original replacement parts. It can only be guaranteed that safety requirements are complied with if original replacement parts are used.

■ Protect the seat cushion from moisture and liquid penetration. Never submerge the product in water and do not place objects filled with liquids (such as flower vases) on the product.

Do not insert needles or other sharp pointed objects into the seat cushion.

■ The product must not be used in the vicinity of heat sources, naked flames (e.g. candles) or in direct sunlight in order to avoid overheating.

■ When the product is being used in vehicles, it must be ensured that safety equipment is not adversely affected, particularly the side airbags. Please refer to the operating instructions for your vehicle or ask your workshop if you have any questions regarding airbags.

■ Please ensure that you do not fall asleep when using the seat cushion. Using the product for too long can cause burns.

■ Do not use the seat cushion on areas of the body that are inflamed, injured or swollen. If in doubt, obtain medical advice before using the product. Otherwise the inflammation, injury or swelling may be aggravated.

■ During operation, always ensure that the 12 V connector is firmly plugged into the 12 V connection and the socket is free of soiling. If there is insufficient contact between the connector and the socket, vehicle vibration may cause the power supply to switch on and off at short intervals. This can result in overheating.

■ Please ensure that you:

• only connect the seat cushion to the voltage specified in the technical information,
• do not switch the seat cushion on when it is folded or crumpled up,
• do not kink the seat cushion sharply,
• do not place any objects such as cases or washing baskets on the seat cushion whilst it is switched on. Otherwise the seat cushion could become damaged.

Initial operation

Items supplied and transport inspection

This product is supplied with the following components as standard:

- Heated seat cushion

• This operating manual

NOTE

▶ Check the contents for completeness and for signs of visible damage.
If the contents are incomplete or damaged due to defective packaging or through transportation, contact the Service Hotline (see chapter Service).

Disposal of packaging

The packaging protects the product from transport damage. The packaging materials have been selected in accordance with their environmental friendliness and disposal attributes, and are therefore recyclable.

Returning the packaging to the material cycle conserves raw materials and reduces the amount of waste that is generated. Dispose of packaging material that is no longer needed in accordance with applicable local regulations.

Before initial use

■ Remove all packaging materials and all transport securing products from the product.

DANGER

Risk of suffocation!

▶ Packaging material must not be used as a play thing since it poses a risk of suffocation.

Product description

1 Seat cushion
2 Securing straps
3 On/off switch
4 12 V vehicle connector
5 Power LED
6 Securing straps

Handling and use

This section provides you with important information on handling and using the product.

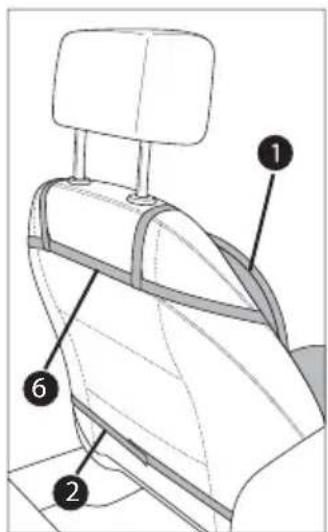

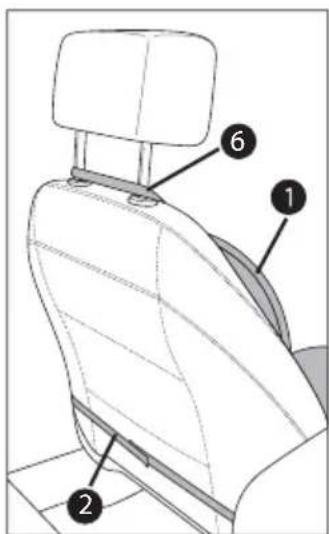

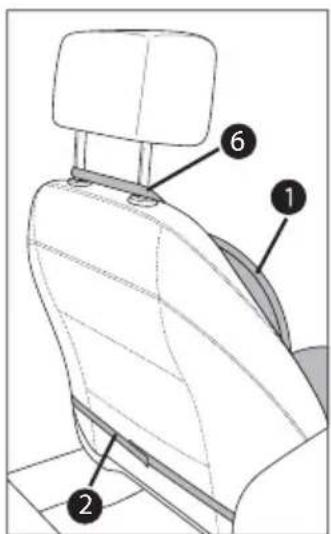

Securing the seat cushion

◆ Place the seat cushion 1 on the car seat.
◆ Pull the seat cushion① securing straps ⑥ over the head restraint of the car seat.
- Secure the seat cushion① carefully using the securing straps ② (see Fig. 1).

NOTE

It is not always necessary to use every strap ^6 /2. Work out the best way of securing the seat cushion to your seat. Use the following illustrations for assistance.
▶ If the backrest is extremely high or wide, secure the seat cushion as shown in Fig. 2.

Fig. 1 Fig. 2

DANGER

If your vehicle is equipped with side airbags, please ensure that the securing straps ⑥ are only pulled over the head restraint supports and not over the top part of the car seat when securing the seat cushion ① (see Fig. 2). Otherwise the side airbag may be affected!

Operating the seat cushion

◆ Plug the 12 V vehicle connector④ into the cigarette lighter. The Power LED⑤ illuminates.

Turn the on/off switch 3 into position "I" to switch the seat cushion 1n.

Turn the on/off switch 3 into position "0" to switch the seat cushion 1 off.

After using the seat cushion, disconnect the 12 V vehicle connector from the cigarette lighter.

NOTE

The seat cushion ^1 also consumes power in standby mode and therefore must be disconnected from the on-board power supply after use! Otherwise, depending on the vehicle type, the battery will be discharged if the motor is switched off.

Replacing the fuse

There is a fuse in the 12 V vehicle connector 4 for protecting the vehicle's on-board power supply. If the product no longer works, check the fuse and replace if necessary.

◆ Open the 12 V vehicle connector ^4 by gently turning the fluted screw insert © anticlockwise (using pliers if necessary) and remove it.

Now remove the connector tip® from the fuse A and remove the fuse A.

Now place a new fuse of type F5AL 250 V into the 12 V vehicle connector ④, place the plug tip Ⓑ onto the slightly protruding end of the fuse and screw the previously removed screw insert Ⓒ back in.

Technical line drawing of a mechanical component with labeled parts (A, B, C), no readable text or symbols present.

NOTE

▶ If the product still does not function, or the fuse blows again immediately, there is a defect. Please then contact the Service Hotline (see chapter Service).

Cleaning

GB MT

CAUTION

Possible damage to product!

▶ Always disconnect the power supply before cleaning.
▶ Protect the seat cushion 1 from moisture and liquid penetration.
▶ To avoid irreparable damage to the product, never submerge the seat cushion ① water.
▶ Do not use chemical cleaners or scouring agents to clean the seat cushion ^1 .
Do not hang up the seat cushion 1 to dry using clothes pegs or similar.
▶ Do not re-connect the seat cushion 1 to the power supply until it is completely dry.

■ Clean the seat cushion ^1 with a lightly moistened cloth and a mild detergent.

Storage

If the seat cushion 1 is not going to be used for a long period, keep in the original packaging in a dry place without anything placed on top.
Do not place any objects on top the seat cushion ^1 during storage in order to prevent the seat cushion ^1 om being sharply kinked.

Disposal

Disposal of the product

Never dispose of the product in the normal domestic waste. This product is subject to the provisions of European Directive 2012/19/EU WEEE (Waste Electrical and Electronic Equipment).

Dispose of the product through an approved disposal centre or at your community waste facility. Please observe the currently applicable regulations.

Please contact your waste disposal centre should you be in any doubt.

Appendix

Technical details

Seat cushion
Input voltage 12 V	==
Current consumption max. 2.6 A
Power consumption approx. 31 W

GB MT

Notes on the Declaration of Conformity

This product satisfies the fundamental requirements and other relevant regulations of EMC Directive on electromagnetic compatibility 2004/108/EC.

The full original Declaration of Conformity is available from the importer.

CE

Warranty

The warranty for this appliance is for 3 years from the date of purchase. The appliance has been manufactured with care and meticulously examined before delivery.

Please retain your receipt as proof of purchase. In the case of a warranty claim, please make contact by telephone with our Customer Service Department. Only in this way can a post-free despatch for your goods be assured.

NOTICE

The warranty covers only claims for material and manufacturing defects, but not for transport damage, wearing parts or for damage to fragile components, e.g. buttons or batteries.

This product is for domestic use only and is not intended for commercial use. The warranty is void in the case of abusive and improper handling, use of force and internal tampering not carried out by our authorised service branch.

Your statutory rights are not restricted in any way by this warranty. The warranty period is not extended by repairs made under the warranty. This applies also to replaced and repaired parts.

Damages and defects extant at the time of purchase must be reported immediately after unpacking, resp. no later than two days after the date of purchase.

Repairs made after the lapse of the warranty period are subject to charge.

Service

GB Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

E-Mail: [e-mail]

IAN 115062

MT Service Malta

Tel.: [phone]

E-Mail: [e-mail]

IAN 115062

Hotline availability: Monday to Friday 08:00 - 20:00 (CET)

Importer

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com
