Product Type	LED Light Strip, decorative indoor lighting
Model Numbers	14137100L, 14137206L (IAN 340320)
Length	3 m
Operating Voltage	230–240 V ~ 50 Hz
Power Consumption	Max. 6 W
Number of LEDs	96 (14137100L) / 90 (14137206L)
Protection Class	II (double insulation)
Protection Type	IP20 (indoor use only)
Dimmable	No, not suitable for dimmers or electronic switches
LED Replaceable	No, non-replaceable; replace entire strip at end of life
Scope of Delivery	1 LED strip, 2 connectors, 4 end caps, 2 cable holders, 1 adhesive strip, 1 instruction manual
Cuttable	Yes, at marked cutting points between poles
Installation	Self-adhesive backing; clean, dry, grease-free surface required
Cleaning	Disconnect from power; wipe with dry lint-free cloth. No solvents
Safety Transformer	Short-circuit proof, separate control unit
Warranty	36 months from date of purchase
Intended Use	Indoor decorative lighting only; not for room illumination or night light
Approximate Weight	200 g

Frequently Asked Questions - IAN 340320 Livarno Lux

Can I cut the LED strip to a shorter length?

Yes, you can cut the LED strip at the marked cutting points (between the plus and minus poles, indicated by a black line). Ensure the strip is disconnected from power before cutting.

How do I connect two strips together?

Use the supplied connectors to join strips. Ensure correct polarity (+ to +, - to -) and press the strip onto the displacement contacts. Cover open ends with end caps.

Is this LED strip dimmable?

No, the installed LEDs are not suitable for dimmers or electronic switches. Using a dimmer may damage the strip.

Can I use this strip outdoors?

No, this product is rated IP20 and designed for indoor use in dry, enclosed spaces only.

How do I clean the LED strip?

Disconnect from the power supply. Use a dry, lint-free cloth to wipe the strip. Do not use solvents, benzene, or water.

What should I do if the LEDs stop working?

Since the LEDs are non-replaceable, the entire strip must be replaced. Check if the power adapter is functioning. If under warranty, contact the service center.

Can I install the strip on a painted wall?

Yes, but ensure the surface is clean, dry, and grease-free for proper adhesion. Avoid installing on damp or conductive surfaces.

Is the strip safe for use around children?

Yes, but children should be supervised. The strip operates at safety extra-low voltage (SELV) after the adapter. However, do not allow children to play with the packaging or small parts.

What is the warranty period?

The product comes with a 36-month warranty from the date of purchase, covering material and manufacturing defects. Excludes wear parts and damage from improper use.

How do I dispose of the LED strip?

Do not dispose of it in household waste. Take it to a local recycling facility for electronic waste. Packaging is recyclable.

USER MANUAL IAN 340320 Livarno Lux

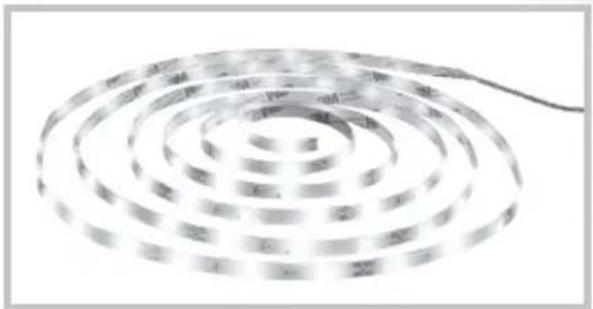

Concentric metallic spiral pattern with star-like highlights, no text or symbols present

Circular metallic strip with concentric rings, no visible text or symbols

3M LED LIGHT STRIP

GB

3M LED LIGHT STRIP

Assembly, operating and safety instructions

RS

LED SVETLOSNA TRAKA, 3 M

LED SVJETLEĆA TRAKA, 3 M

Upute za montažu, uporabu i sigurnost

RO

BANDĂ LUMINOASĂ CU LED, 3 M

Before reading, unfold both pages containing illustrations and familiarise yourself with all functions of the device.

HR

GB Assembly, operating and safety instructions Page 5

HR Upute za montažu, uporabu i sigurnost Stranica 11
        E["1."]
        F["2."]
        G["3."]
        H["4."]
        I["5."]
    end
    subgraph Section D
        J["4"]
        K["8"]
    end

List of pictograms used....Page 6

Introduction......Page 6

Intended use....Page 6

Scope of delivery Page 7

Parts description Page 7

Technical data......Page 7

Safety Page 7

Safety instructions....Page 7

Initial use....Page 8

Trimming / connecting the LED tape....Page 8

Installing the LED strip....Page 9

Maintenance and cleaning......Page 9

Disposal Page 9

Warranty and service....Page 9

Warranty Page 9

Service address......Page 10

Declaration of conformity....Page 10

Manufacturer......Page 10

List of pictograms used
	Please read the operating instructions! For	safety
	This light is only suitable for indoor use in dry and enclosed spaces.		Ambient temperature
	Do not use this light as room lighting or as a night light.		Housing temperature at stated point
	Volt (AC)		Polarity of the power supply
	Hertz (frequency)		Danger to life and risk of accidents for infants and children!
	Watt (effective power) LED operating life
	Protection class II		Direct current
	Protection type		Safety extra-low voltage
	Observe the warnings and safety notices!		Milliampere
	The packaging is made from 100 % recycled paper.		Short-circuit proof safety transformer
	Dispose of the packaging and device in an environmentally friendly manner!		Separate control unit
	Warning!Risk of electric shock!		Serbian mark of conformity
	The light bulbs used are not dimmable.

3m LED light strip

- Introduction

Please be sure to carefully read the complete instructions for use. These instructions are part of the product and contain im-

important information on setup and handling. Always follow all safety instructions. Before using this product for the first time verify the correct voltage and that all parts are properly installed. If you have any questions or you are unsure about operating the product, please contact the distributor or service

centre. Please keep these instructions in a safe place and pass them on to third parties if necessary.

Intendeduse

This luminaire is only suitable for indoor use, in dry and enclosed rooms. This device is only intended for use in a private

domestic environment, not for commercial use. Any use other than that described above is prohibited and will result in product damage. It is further associated with dangers, e.g. short circuit, fire, electric shock, etc.

Only for 14137100L:

This is a specialist product, as the chromaticity coordinates lie outside the ranges stated in brackets.

Chromaticity coordinates: (x < 0.270 or x > 0.530);

(y < -2.3172x^2 + 2.3653x - 0.2199 or y > -2.3172x^2

+ 2.3653 x -0.1595)

Only for 14137100L:

This product is a decorative light. Do not use this as room lighting or as a night light.

Scope of delivery

Check immediately after unpacking that the parts are complete and that the product is in proper condition.

1 LED Light Strip

2 connectors

4 end caps

2 cable holder

1 adhesive strip

1 set of instructions for use

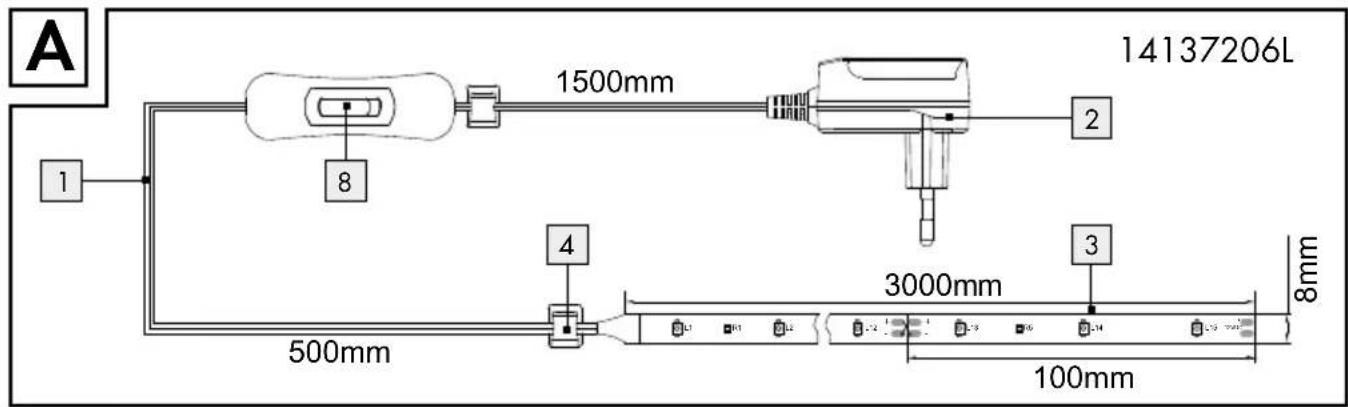

Partsdescription

1 Mains cable
2 Mains adapter
3 LED strip
4 Cable holder
5 Plug connection
6 End cap
7 Adhesive strip
8 In-line switch

- Technicaldata

Item No.: 14137100L and 14137206L

LED Strip:

Operating voltage: 230-240V \~ 50Hz

14137100L: max. 6 W, 96 LED,

max. length 3 m

14137206L: max. 6 W, 90 LED,

max. length 3 m

Protection class: II /

Protection type: IP20

LED non-replaceable

Safety

Safety instructions

Damage due to failure to comply with these instructions for use will void the warranty! We assume no liability for consequential damages! We assume no liability for property damage or personal injury due to improper handling or failure to comply with the safety instructions!

DANG RANING!

LIFE AND RISK OF ACCIDENTS FOR INFANTS AND CHILDREN!

Never leave children unsupervised with the packaging material. The packaging material poses a suffocation hazard. Children frequently underestimate the dangers.

This device may be used by children aged 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or those lacking experience and/or knowledge, so long as they are supervised or instructed in the safe use of the device and understand the associated risks. Do not allow children to play with the device. Cleaning and user maintenance must not be performed by children without supervision.

Avoid the risk of fatal injury from electric shock

- Check the LED strip for damage before every use. Never use the LED strip if any damage is detected.

WARNING!

A damaged mains cable poses a risk of fatal injury from electrical shock. In the case of damage, repairs or other problems, please contact the service centre or a qualified electrician.

The supply cable of this appliance cannot be replaced. If the cable is damaged, the appliance must be disposed of. The appliance contains no parts which may be serviced by the consumer.

■ Make sure before use that the available supply voltage corresponds to the required operating
voltage corresponds to the required operating voltage of the item (see "Technical data").
■ Never allow the live power leads and contacts to come into contact with water or other liquids.
■ Never open any of the components of the electrical equipment or insert any objects into the same components. This will pose a risk of fatal injury from electric shock.
- Do not install the lamp on damp or conductive surfaces.
This LED strip must not be connected electronically with other LED strips.
The light source in this light cannot be replaced. If the light source has reached the end of its operating life, the entire light must be replaced.
- Avoid excessive bending of the LED strip.
- Protect the product from sharp edges, mechanical loads and hot surfaces.
- Do not secure with sharp staples or nails.
■ Always unplug the mains plug from the socket before assembly, disassembly or cleaning.
- Never catch hold of the mains plug or the LED strip with wet hands.
■ Only use the individual parts supplied, otherwise all warranty claims will become invalid.
- Never connect the LED strip to the power supply while it is in the packaging. Lay out the item completely before you connect it to the power supply.
- Do not open or cut open/slit open the light strip.
- Do not use the LED strip if it is covered with objects or is inlaid in a surface.

Prevent fire and injury hazards

This product does not contain any parts that can be serviced by the user. The LEDs cannot be replaced.
If the LEDs cease to function at the end of their operational life, the entire item must be replaced.

■ The installed LEDs are not suitable

for dimmers or electronic switches.

Do not look into the LED from a close distance during operation.
Do not look at the LED with an optical instrument (e.g. magnifier).

Safe working

Do not leave the LED strip or packaging material lying unattended. The packaging material presents a suffocation hazard and there is a risk of loss of life from strangulation.
- Install the light so that it is protected from dirt and excessive heating.
■ Always be attentive! Always pay attention to what you are doing and use common sense. Never use the LED strip if you are having difficulty concentrating or do not feel well.
Before use, familiarise yourself with all the instructions and diagrams in these instructions, as well as with the LED strip itself.
To completely disconnect the LED strip from the power supply, the mains adapter must be removed from the mains socket.

- Initial use

☐ Remove all packaging materials before first use.
☐ Never connect the LED strip to the mains power supply whilst in the packaging.

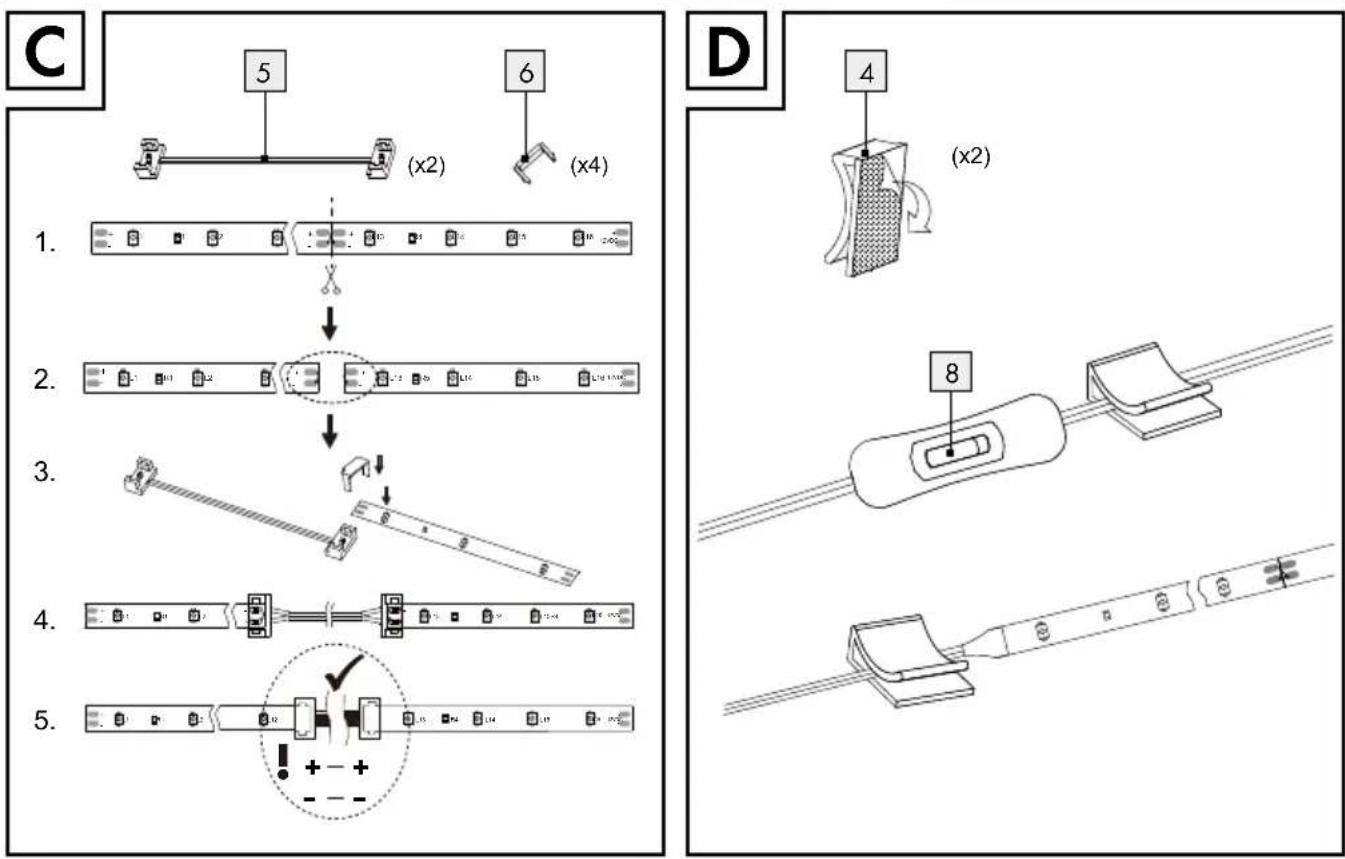

• Trimming / connecting the LED tape

The LED tape may be trimmed to size or connected.

WARNING! DANGER TO LIFE BY ELECTRIC SHOCK!

Disconnect the lights from the power supply before performing any work on the LED strip 3. Unplug the mains adapter 2 from the socket to do so.

☐ Choose the desired LED strip length.

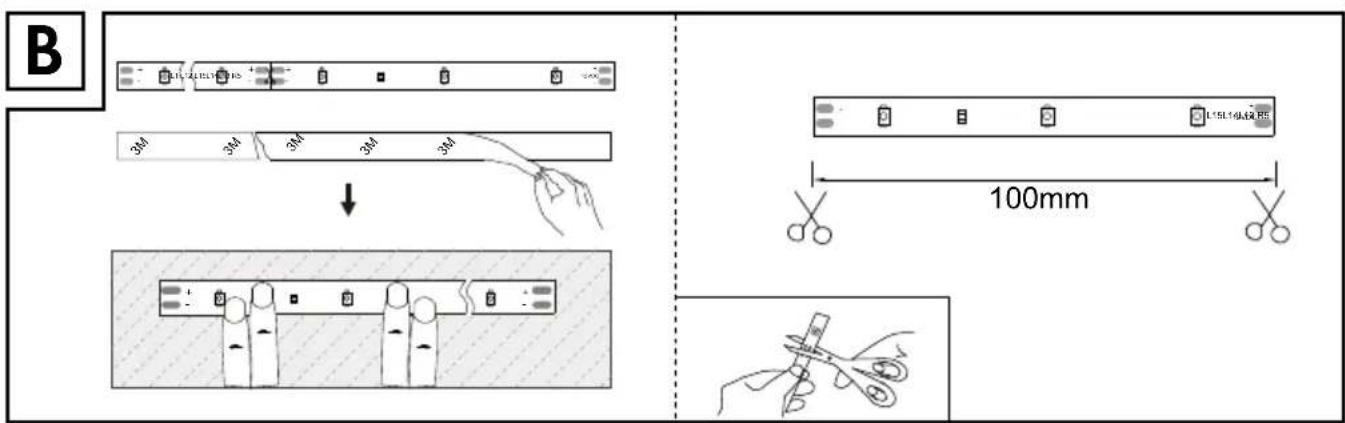

Note: Ensure that you cut the LED strip at the right place. The cutting point lies exactly between

... / Installing ... / Maintenance and cleaning / Disposal / Warranty and service

the plus and minus pole and is marked with a black line (see Fig. B).

☐ Shorten the LED strip 3 using a pair of scissors.

☐ Then press both ends of the LED strip 3 onto the displacement contact of the plug connection 5 (see Fig. C).

Ensure the correct polarity (+ to + / - to -) here.

☐ Then press one end cap 6 at a time onto the ends of the plug connection 5 (see Fig. C).

☐ Check the correct positioning.

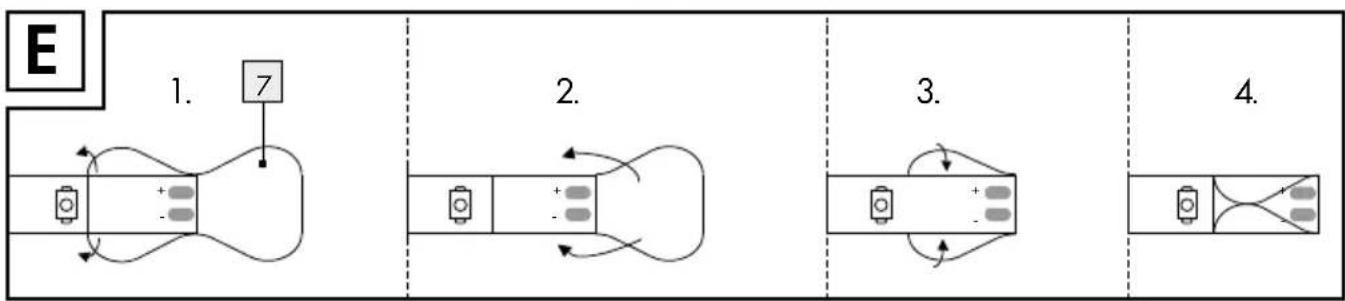

☐ Be sure to cover the open end of the LED tape 3 with the adhesive strip 7 if you do not wish to connect the end after trimming the tape (see Fig. E).

- Installing the LED strip

Note: Ensure that the installation area is clean, grease-free and dry. Otherwise the functionality of the adhesive strip may be impaired.

Note: Ensure that a plug socket is located in close proximity to the installation area.

☐ Choose a suitable installation area (window etc.).

☐ Remove the protective foil from the reverse side of the LED strip 3.

Note: Be sure to start removing the protective film at the supply cable end. When removing the protective film, be careful not to remove the adhesive film.

☐ Stick the LED strip 3 with the adhesive strip onto the installation area and press it on firmly.

☐ Remove the protective foil from the reverse side of the cable hold 4 (see Fig. D).

☐ Stick the cable hold 4 onto the desired position.

☐ Squeeze the mains cable 1 into the cable hold 4.

☐ Insert the mains adapter ☐ into the plug socket.

☐ Switch the light on or off using the in-line switch 8.

Your light is now ready to use.

● Maintenance and cleaning

WARNING! DANGER TO LIFE BY ELECTRIC SHOCK!

Disconnect the lights from the power supply before performing any work on the LED strip 3.

Unplug the mains adapter 2 from the socket to do so.

- Do not use solvents, benzene or similar substances. They could damage the light.

☐ Use a dry, lint-free cloth to clean the LED strip 3.

- Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics / 20–22: paper and fibre-board / 80–98: composite materials.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

- Warranty and service

Warranty

You receive a 36 month warranty on this product, valid from the date of purchase. The appliance has been carefully produced under strict quality control. Within the warranty period we shall rectify without charge all material and manufacturing defects. In the event of a defect during the warranty period, please send the appliance to the listed Service

Warranty and service

Centre address, referencing the following item

number: 14137100L/14137206L.

Wear parts (such as bulbs) and damage caused by improper handling, non-observance of the operating instructions or unauthorised interference are excluded from the warranty. The performance of services under the warranty does not extend or renew the warranty period.

Serviceaddress

Please have your receipt and the product number (e.g. IAN 123456_7890) available for all queries as proof of purchase.

- Declaration of conformity €

This product fulfils the requirements of the applicable European and national directives. Conformity has been demonstrated. The relevant declarations and documents are held by the manufacturer.

Serbian mark of conformity

Manufacturer
