DVB-T2 154 - Digital decoder Vivax - Free user manual and instructions

Product Type	Digital Terrestrial Decoder
Brand	Vivax
Model	DVB-T2 154
Standards Supported	DVB-T2 / DVB-T, MPEG-4 / H.264
Resolution	Full HD 1080p
Dimensions (W x D x H)	120 x 80 x 30 mm
Weight	150 g
Power Supply	5V DC, 1A (USB)
Power Consumption	5 W (max)
Video Output	HDMI, Composite (AV)
Audio Output	HDMI, RCA (L/R)
USB Port	1 x USB 2.0 for media playback and recording
Supported Media Formats	MP4, AVI, MKV, MP3, JPEG
Recording Function	USB PVR (time shift and recording)
Electronic Program Guide (EPG)	7-day EPG supported
Parental Control	Yes, channel lock
Remote Control	Infrared, included
Antenna Input	F-type connector, 75 Ohm
Operating Temperature	0°C to 40°C
Maintenance	Clean with a soft, dry cloth; do not use liquids
Spare Parts Availability	Remote control and power adapter available from Vivax service
Repairability Index	Not rated (limited user serviceable parts)

Frequently Asked Questions - DVB-T2 154 Vivax

How do I connect the DVB-T2 154 to my TV?

Connect the decoder to your TV using an HDMI cable (recommended) or composite AV cable. Then connect the antenna to the RF IN port. Finally, plug in the power adapter.

Why can't I find any channels after auto-scan?

Ensure your antenna is properly connected and positioned. Go to Menu > Installation and select Auto Scan. Make sure the correct country is selected. If still no channels, try a manual scan with specific frequencies.

Can I record TV programs with this decoder?

Yes, you can record programs to a USB flash drive or external HDD (formatted as FAT32 or NTFS). Press the REC button on the remote to start recording. Timed recordings can be set via the EPG.

How do I update the firmware?

Download the latest firmware from the Vivax support website to a USB stick. Insert the USB into the decoder, go to Menu > Setup > Upgrade, and select the firmware file. Do not power off during the update.

The remote control is not working. What should I do?

First, check the batteries and ensure they are correctly inserted. Point the remote directly at the decoder's sensor. If still not working, try resetting the decoder by unplugging it for 10 seconds. If the issue persists, the remote may need replacement.

Can I play media files from a USB drive?

Yes, the decoder supports playback of video, audio, and photo files. Insert a USB drive, press the USB button on the remote, and navigate to your files. Supported formats include MP4, AVI, MKV, MP3, and JPEG.

How do I set parental controls?

Go to Menu > Setup > Parental Control. Enter the default PIN (usually 0000) and set a new PIN. You can then lock specific channels or set age restrictions.

What is the difference between DVB-T and DVB-T2?

DVB-T2 is the newer standard offering higher efficiency and capacity, allowing more channels and HD broadcasts. The Vivax DVB-T2 154 supports both, but for T2 channels, you need a DVB-T2 compatible antenna.

The decoder keeps restarting or freezing. How to fix?

Try a factory reset via Menu > Setup > Factory Reset. Also check that the power adapter is securely connected and the decoder has adequate ventilation. If the problem continues, contact Vivax support.

How to clean and maintain the decoder?

Unplug the device before cleaning. Use a soft, dry cloth to wipe the exterior. Do not use water, solvents, or abrasive cleaners. Keep the ventilation slots free of dust.

USER MANUAL DVB-T2 154 Vivax

Symbolic illustration of a candle crossed with a flame, no text or labels present

Three schematic diagrams showing a rectangular object with rotation arrows, and two curved shapes with arrows indicating movement or force (no text or symbols)

1.[OSD Language - OSD jezik] pritisnite tipku DESNO/LIJEVO za odabir jezika prikaza informacija na zaslonu.

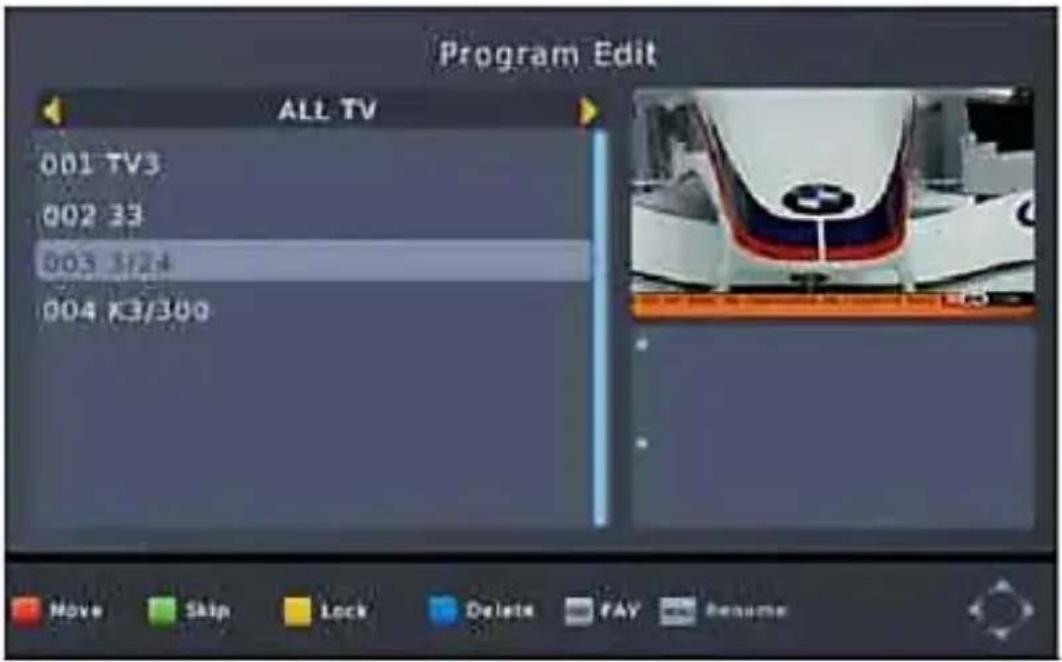

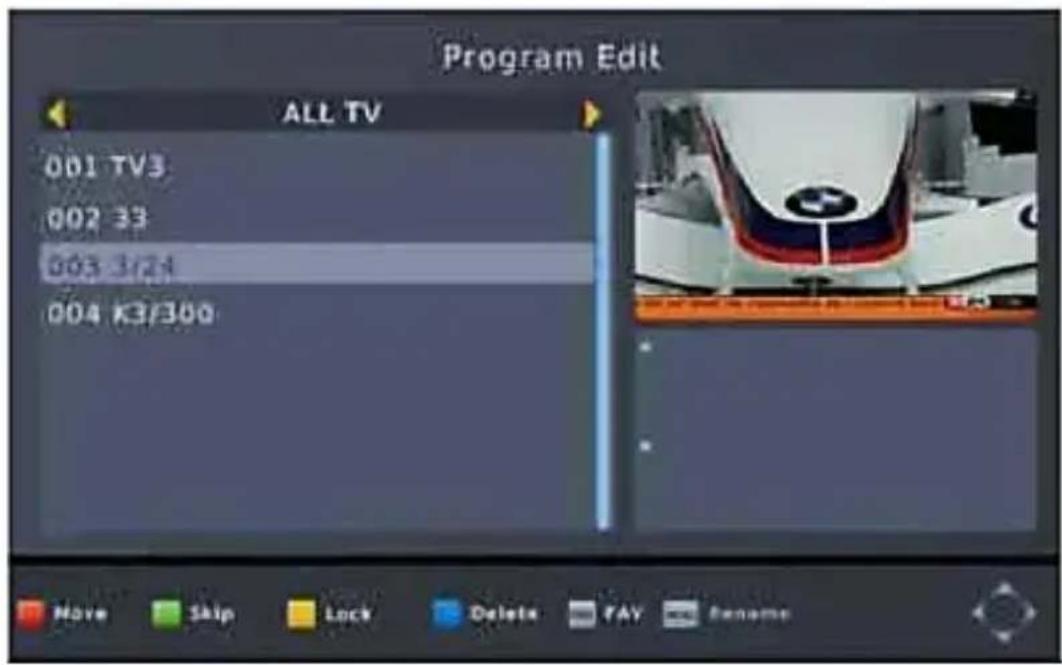

Program Edit - Uređivanje programa

Kako bi uredili preference programa (zaključavanje, preskakanje, omiljeni, premještanje ili brisanje), potrebno je pristupiti izborniku za uređivanje programa (Program Edit). Ovaj izbornik zahtijeva lozinku za pristup.

Unesite dodijeljenu lozinku '000000'. Glavna tvornička lozinka za otključavanje je '888888'.

FAV - Postavljanje omiljenih kanala

Delete - Brisanje TV ili radio program

1. Odaberite program i potom pritisnite PLAVU tipku, prikazati će se poruka upozorenja za brisanje, pritisnite OK za potvrdu brisanja programa.
2. Ponovite prethodni korak kako bi odabrali više Programa za brisanje.

Skip - Preskakanje TV ili radio kanala

1. Odaberite program koji želite preskočiti i pritisnite ZELENU tipku, prikazuje se simbol za preskakanje i program je označen za preskakanje.
2. Ponovite prethodni korak kako bi preskočili više Programa.
   3.Za pohranu postavki i izlazak iz izbornika, pritisnite tipku EXIT.

Onemogućavanje funkcije preskakanja kanala:

Odaberite preskakanje kanala (SKIP) i pritisnite ZELENU tipku na daljinskom upravljaču za otkazivanje.

Move - Premještanje TV ili radio programa

1. Odaberite željeni kanal i potom pritisnite CRVENU tipku. Pojavljuje se simbol za premještanje.
2. Pritisnite GORE/DOLJE da biste premjestili program.
3. Pritisnite OK da biste potvrdili.
4. Ponovite gore navedene korake za premještanje više Programa.

Lock - Zaključavanje TV ili radio programa:

1. Odaberite željeni Program i potom pritisnite ŽUTU tipku. Prikazuje se simbol lokota. Kanal je sada označen kao zaključan.
2. Ponovite prethodni korak da biste odabrali više programa.
   3.Za potvrdu postavki i napuštanje izbornika, pritisnite tipku EXIT.

3. Pritisnite ŽUTU tipku kako bi onemogućili funkciju zaključavanja programa.

4. Za gledanje zaključanih programa potrebno je unijeti ili dodijeljenu lozinku '000000' ili Vašu zadnju ugođenu lozinku. Glavna tvornička lozinka je '888888'.

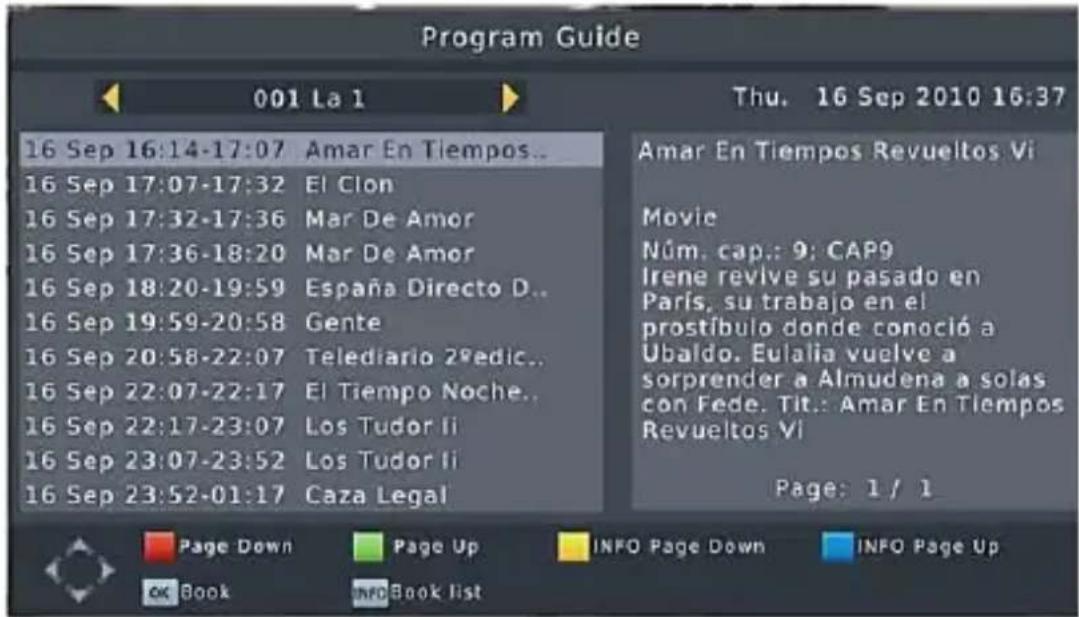

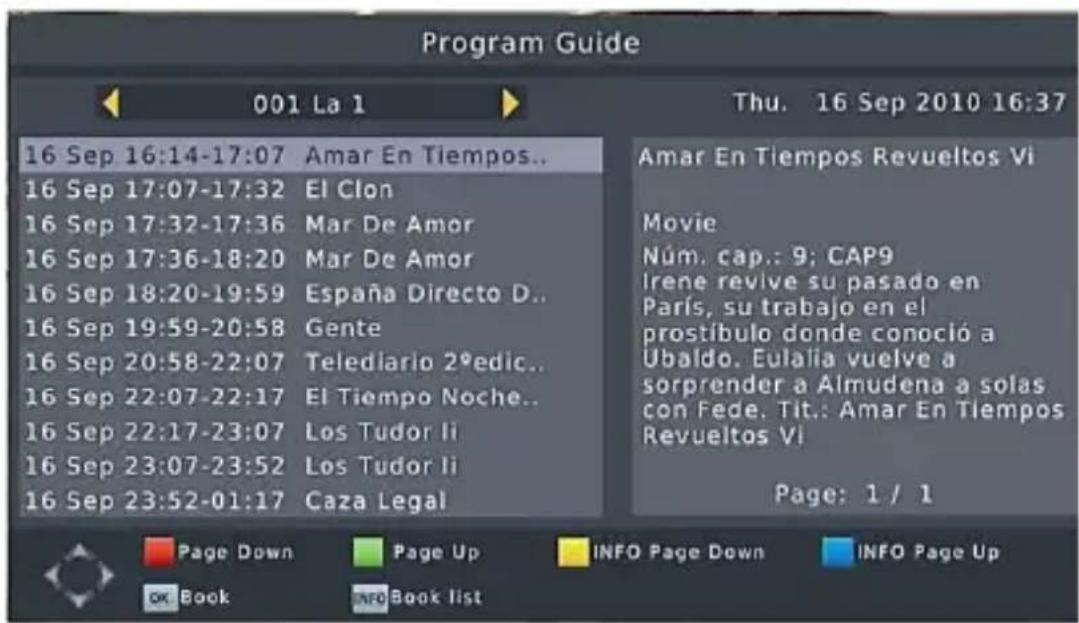

EPG (elektronski programski vodič)

Ova opcija prikazuje informacije o TV programima za svaki program za narednih 7 dana. Obično, kada je EPG otvoren, prikazuju se informacije o trenutnom programu. Za pregled informacija drugih programa pritisnite strelice LIJEVO i DESNO. Zaslon prikazuje tipke koje je potrebno pritisnuti za kretanje naprijed ili natrag u prikazu.

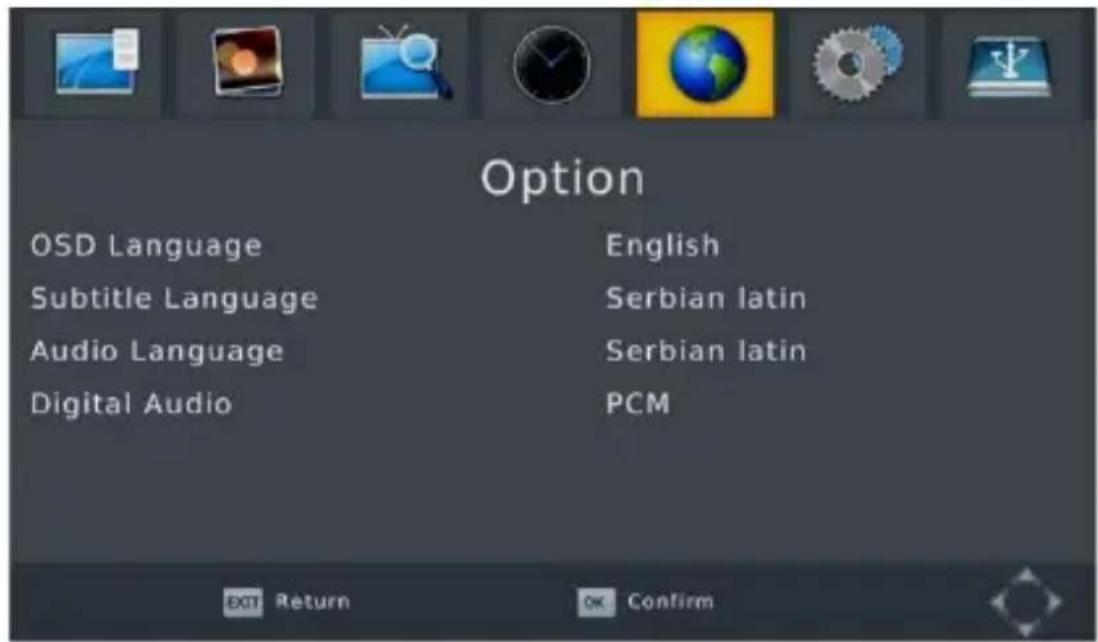

OSD Language - OSD jezik (jezik prikaza na zaslonu)

Odaberite OSD jezik.

Subtitle Language - Jezik podnaslova

Odaberite željeni jezik titlova.

Audio language - Audio jezik

Photo Configure - Postavke fotografija:

-Vrijeme prikaza: Postavite interval slikokaza na 1\~8 sekundi.

-Način prikaza: Postavite efekt prikaza kao način 0-59 ili nasumično.

-Omjer: [Zadrži]: Prikazivanje slike u originalnom omjeru.

[Odbaci]: Prikazivanje slike u načinu punog zaslona.

Movie Configure - Postavke filmova:

■ Omjer širine i visine slike:

[Zadrži]: Prikazivanje filma u originalnom omjeru.

[Odbaci]: Prikazivanje filma u načinu punog zaslona.

Svojstva titlova:

[Mali]: Prikazuje podnaslove u maloj veličini.

[Normalni]: Prikazuje podnaslove u normalnoj veličini.

Symbolic illustration of a candle crossed with a flame, no text or labels present

Ne postavljajte uređaj u blizini otvorenog plamena, kao što je plamen sveće ili u blizini grejalica.

KADA NE UPOTREBLJAVAJTE UREĐAJ

- Postavite uređaj u STANDBY mod ili isključite kabl napajanja. Obavezno isključite kabl napajanja ukoliko uređaj

nećete da upotrebljavate duži vremenski period.

ZAŠTITA UZEMLJENJEM

Three technical diagrams showing a rectangular object with rotation arrows, a curved arrow inside, and a rectangular object with an arrow indicating rotation (no text or symbols present)

1.[OSD Language - OSD jezik] pritisnite taster DESNO/LEVO za izbor jezika prikaza informacija na ekranu.
2. [Country - Zemlja] pritisnite taster DESNO/LEVO za izbor pokrajine/područja gde instalirate uređaj.
3.[Ant. Power - Napajanje antene] pritisnite taster DESNO/LEVO da biste uključili ili isključili napajanje antene.
4.[Channel No - Broj kanala] pritisnite taster DESNO/LEVO za izbor kanala koji želite da podesite.
5. Kada je podešavanje kanala završeno, možete započeti sa gledanjem TV programa.

Osnovni postupci

Program

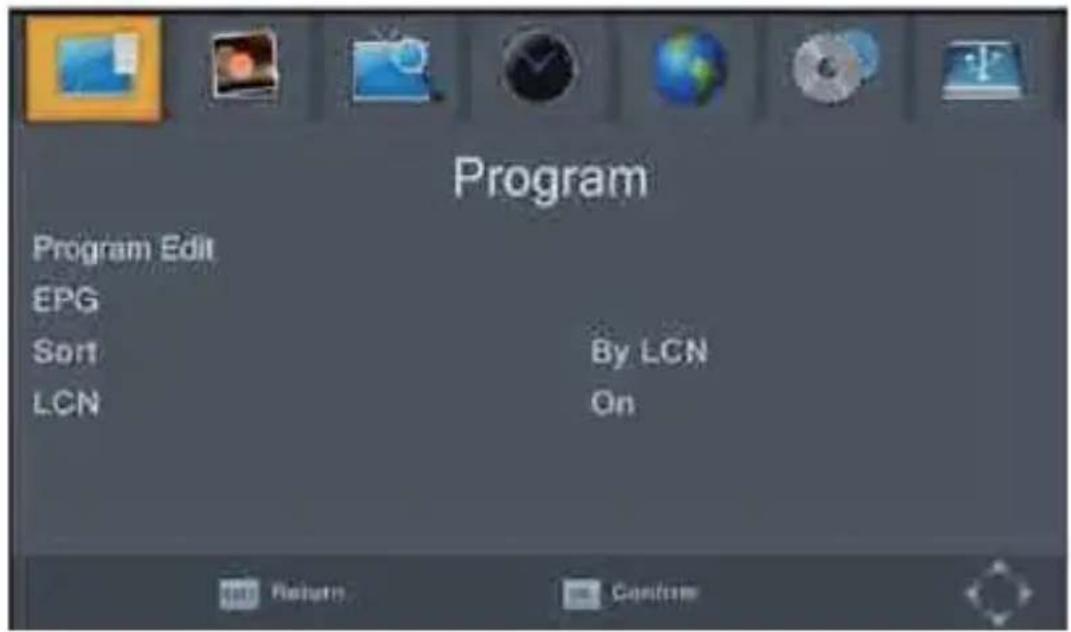

Za pristup meniju, pritisnite taster MENU i izaberite [Program], upotrebljavajući tastere DESNO/LEVO za kretanje kroz meni.

Meni omogućava podešavanja upravljanja programom. Izaberite opciju i pritisnite OK ili taster DESNO za podešavanje.

Pritisnite taster EXIT za izlazak iz menija

Program Edit - Uređivanje programa

FAV - Podešavanje omiljenih kanala

Delete - Brisanje TV ili radio program

1. Izaberite program i pritisnite PLAVI taster, prikazaće se poruka upozorenja za brisanje, pritisnite OK za potvrdu brisanja programa.
2. Ponovite prethodni korak kako biste izabrali više programa za brisanje.

Skip - Preskakanje TV ili radio kanala

1. Izaberite program koji želite preskočiti i pritisnite ZELENI taster, prikazuje se simbol za preskakanje i program je označen za preskakanje.
2. Ponovite prethodni korak kako biste preskočili više Programa.
   3.Za čuvanje podešavanja i izlazak iz menija, pritisnite taster EXIT.

Onemogućavanje funkcije preskakanja kanala:

Izaberite preskakanje kanala (SKIP) i pritisnite ZELENI taster na daljinskom upravljaču za otkazivanje.

Move - Premeštanje TV ili radio programa

1. Izaberite željeni kanal i zatim pritisnite CRVENI taster. Pojavljuje se simbol za premeštanje.
2. Pritisnite GORE/DOLE da biste premestili program.
3. Pritisnite OK da biste potvrdili.
4. Ponovite gore navedene korake za premeštanje više programa.

Prvo podešavanje

Lock - Zaključavanje TV ili radio programa:

1. Izaberite željeni program i zatim pritisnite ŽUTI taster. Prikazuje se simbol lokota. Kanal je sada označen kao zaključan.

2. Ponovite prethodni korak da biste izabrali više programa.
   3.Za potvrdu podešavanja i napuštanje menija, pritisnite taster EXIT.

3. Pritisnite ŽUTI taster kako biste onemogućili funkciju zaključavanja programa.

4. Za gledanje zaključanih programa potrebno je unijeti ili dodeljenu lozinku '000000' ili Vašu zadnju ugođenu lozinku. Glavna fabrička lozinka je '888888'.

EPG (elektronski programski vodič)

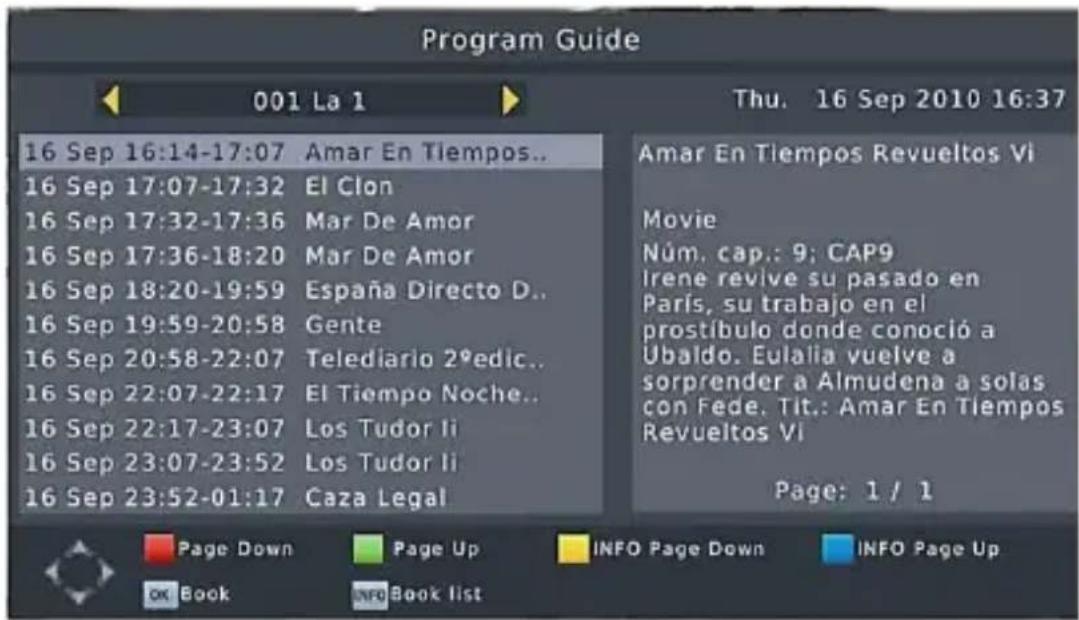

Ova opcija prikazuje informacije o TV programima za svaki program za narednih 7 dana. Obično, kada je EPG otvoren, prikazuju se informacije o trenutnom programu. Za pregled informacija drugih programa pritisnite strelice LEVO i DESNO. Ekran prikazuje tastere koje je potrebno pritisnuti za kretanje napred ili nazad u prikazu.

Photo Configure - Podešavanja fotografija:

-Vreme prikaza: Postavite interval prikaza na 1\~8 sekundi.

-Način prikaza: Postavite efekt prikaza kao način 0-59 ili nasumično.

Symbolic illustration of a flame and candle crossed by two intersecting lines (no text or labels)

Simple line drawing of a rectangular object with an arrow indicating rotation (no text or symbols)

Abstract diagram with dotted lines and a black arrow pointing downward (no text or symbols)

Simple line drawing of a rectangular object with an arrow indicating rotation (no text or symbols)

Program Manage Rregullime

Program Edit

EPG (Electronic Programming Guide)

LCN (Logical channel number)

Kyçni ose shkyçni LCN.

Aspect ratio - Raporti

Ndërroni raportin e Video. [Auto], [16:9 PillarBox], [16:9 Pan&Scan], [4:3 LetterBox], [4:3 Pan&Scan], [4:3 Full], [16:9 WideScreen]

Resolution - Rezolucioni

Power On/Off - Kyçje/Shkyçje

OSD (On Screen Display) Gjuhë

Mediaplayer - Multimedia:

Photo Configure - Foto konfigurim:

Safety Instructions 2

Front and Rear Panel 9

Remote Control. 10

Connecting to a Television 13

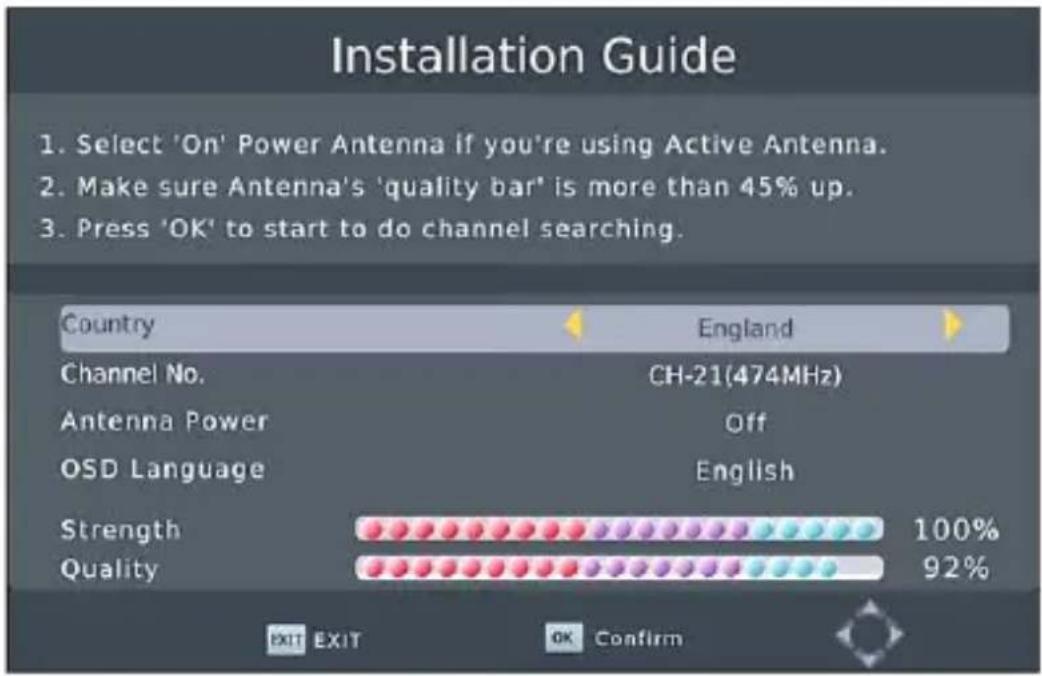

First Time installation 14

Basic Operation 15

USB 27

Time Shift 31

Troubleshooting 32

Technical specifications 33

Disposal of the old unit 34

EU DoC 34

Caution: To avoid the danger of electric shock, do not open the cabinet.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

The flash with the symbol of arrowhead, inside an equilateral triangle alerts the user about the presence of a dangerous tension not isolated inside the product which can be sufficiently powerful to constitute a risk of electrocution.

The point of exclamation inside an equilateral triangle alerts the user about the presence of important operating instructions and maintenance in the document enclosed in the package.

Main plug is used as the disconnect device, the disconnect device shall remain ready for operating.

Incorrect replacement of the battery may lead to the risk, including the replacement of another similar or the same type. Do not expose batteries to heat such as sun or fire or something like that.

The device should not be exposed to dripping and spraying and it can not be placed under objects filled with liquids.

Please read the following safeguards for your TV and retain for future reference. Always follow all warnings and instructions marked on the television.

- Touching the internal parts of the device can cause electrical shock or damage to the device! Do not insert your fingers or other objects into the slots or remove the cover of the device.

Warning:

- To avoid the risk of fire and electric shock, do not expose the unit to rain or moisture;

To avoid the risk of fire and electrical shock, use only the recommended accessories;

• The power cord must be easily accessible to disconnected from the power supply.
• Remote control batteries should not be exposed to direct sunlight or fire.
• Power supply and other data's are located on the rating label located on the bottom of the device;
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of knowledge and experience to use the appliance, unless they are supervised by a person who is responsible for their safety or you're not received training on the use of appliances.
• Before using the device, please carefully read the precautions:

OVERLOADINGS:

- Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock

CLEANINGS:

- Before cleaning, disconnect the device from power. To clean, use a dry or slightly damp cloth (without strong chemicals cleaners). After cleaning, wipe the unit with a soft, dry cloth.

VENTILATION:

- Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation and to protect it from overheating. Do not cover the ventilation openings in the.

CONNECTIONS:

- Before connecting or disconnecting the device from an antenna or TV unit, unplug the power cord to avoid any damage. To connect the devices, use only the recommended accessories and equipment.

POWER CABLE PROTECTION:

Power cord and Plug should be easily accessible. Do not put a device or furniture on the power cord. A damaged power cord or plug can cause fire or electric shock. Do

not bend or squeeze the power cord. Unplug your device from main supply to hold the plug and pull it from the power outlet. Never pull the power cord. Never touch a power cord / plug with wet hands, it could cause a short circuit or electric shock. Never make a knot in the cord or tie it with other cables

PLACING THE UNIT:

• Avoid installing the product on the following locations:
• Locations with direct sunlight, near devices that produce heat such as radiators and oven; Do not place the unit in the high temperatures (over 35°C), where in the air high humidity (over 90%) or where there is a lot of dust.
• Where is the strong magnetic and static electricity?
• Place exposed to vibration can affect the damage of internal parts of the device.

Symbolic illustration of a candle crossed with a flame, representing fire or smoke (no text or numbers present)

The device should not be placed near open flames and sources of intense heat, such as, electric heaters.

WHEN YOU ARE NOT USING DEVICE

- Place unit into STANDBY mode or disconnect the device from main power supply. Unplug the device when it is not used for a long time.

GROUND PROTECTION

The unit has a double insulation (Class II Protection), and no need additional grounding, but Areal TV antenna must be earthed according to your local standards and technical requirements.

SERVICING

Do not attempt to service this TV yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

Damage Requiring Service

Unplug the TV from the wall outlet and refer servicing to qualified service personnel under the following conditions:

-When the power-supply cord or plug is damaged.

• If liquid has been spilled, or objects have fallen into the unit.
• If the unit has been exposed to rain or water.
• If the unit operates abnormally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the unit to its normal operation.
• If the unit has been dropped or the cabinet has been damaged.

For more Information, please contact the local authority or your retailer where you purchased product.

Front and Rear panel

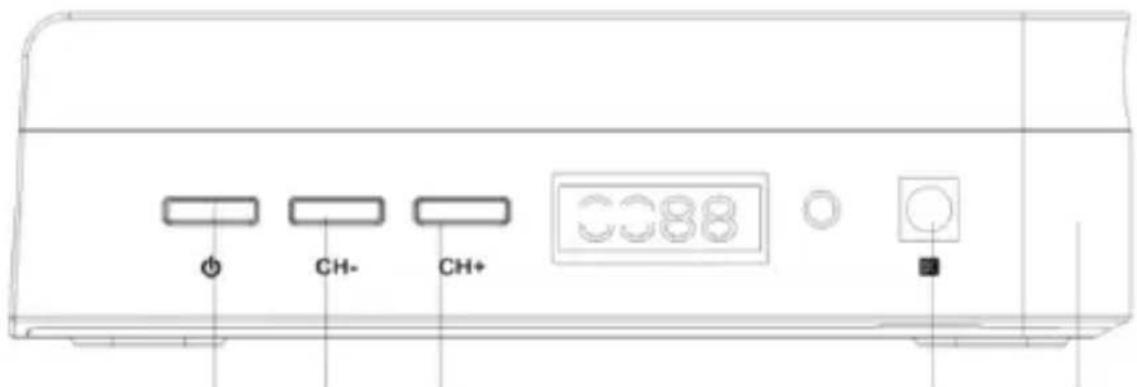

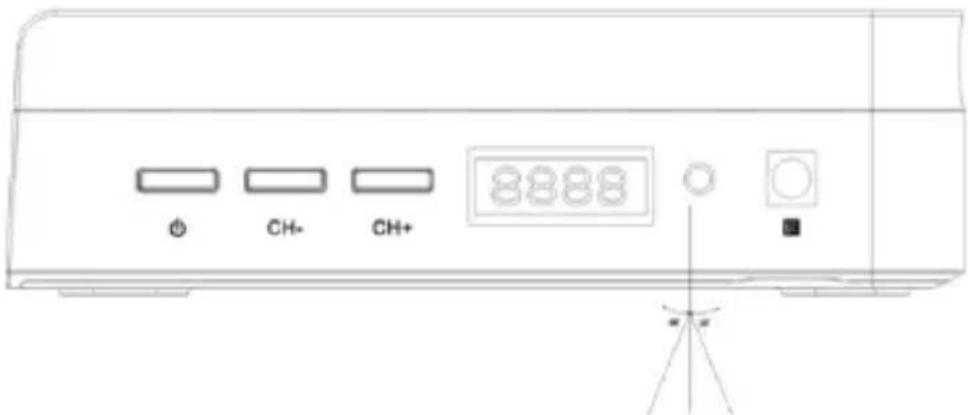

1 Front Panel

1 2 3 4 5

1. POWER Work / Standby mode
   2.CH- Channel Down
   3.CH+ Channel Up
   4.IR IR Sensor
   5.USB (side) USB PVR slot

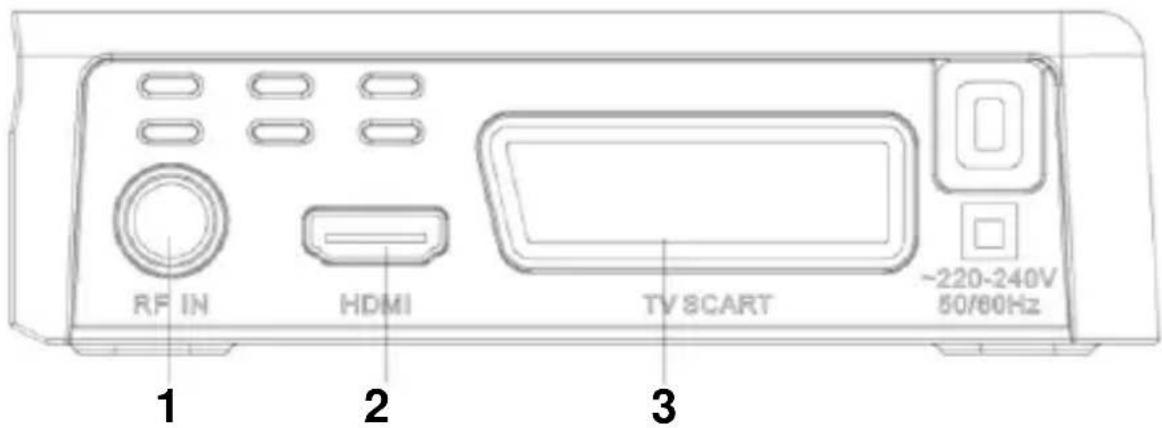

1 Rear Panel

1. RF IN Areal Antenna connection
2. HDMI Digital High Definition Video/Audio output
3. SCART RGB or Composite Video/Audio output

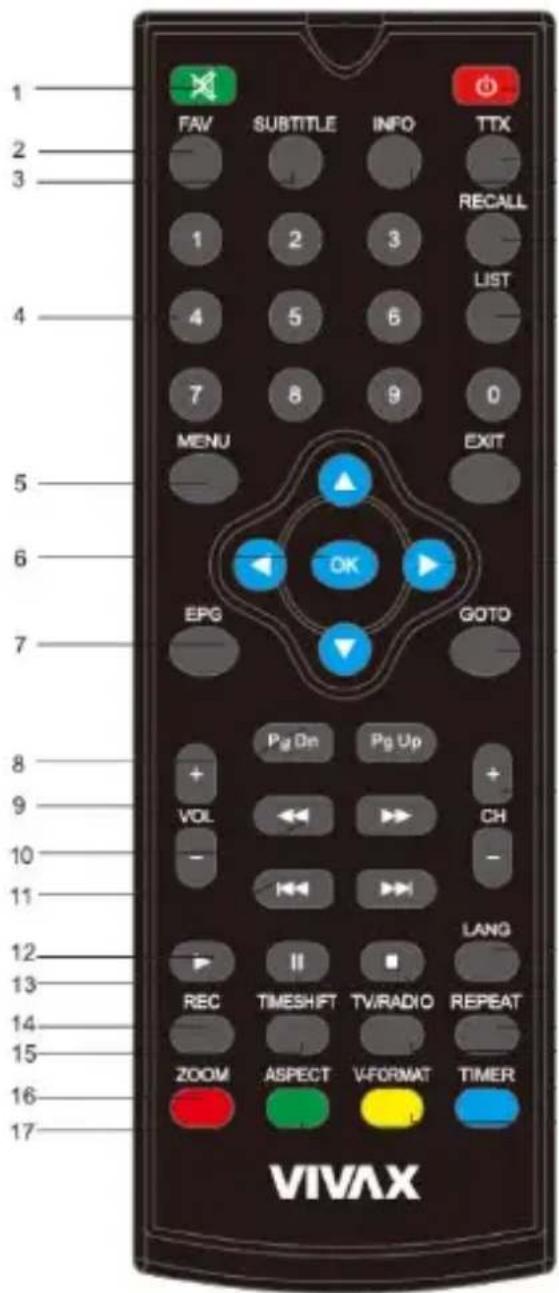

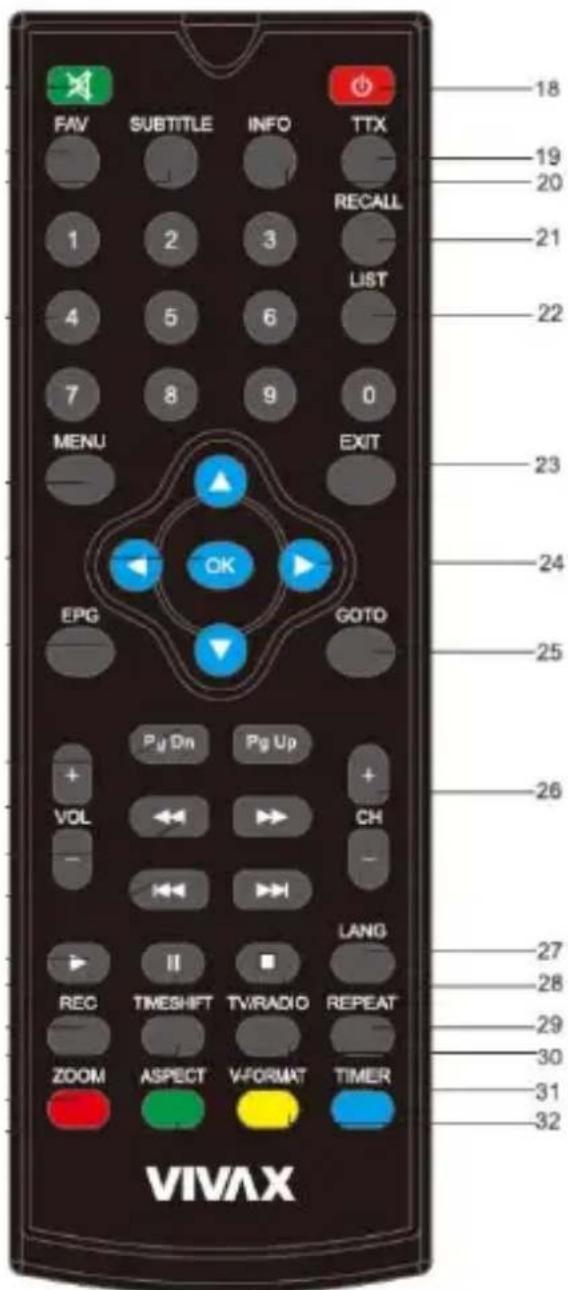

Remote control

1. MUTE: Disable and Enable the sound.
2. FAV: Displays your favorite channels list.
3. SUBTITLE: Display subtitle options (depends on the channel service).
4. <0>-<9>: Numeric keys.
5. MENU: Display Main Menu, Press again to Exit
6. OK: To confirm current setting, or display Prog. list in Prog. view mode.
7. EPG: Shows the EPG (Electronic Program Guide).
8. PAGE+/PAGE -: To navigate inside the Menus.
9. VOL-/ VOL+: Sound volume adjustment
10. REV/FWD: Fast backward / Fast forward.
11. PREV/NEXT: Skip backward/Fast forward.
12. PLAY
13. PAUSE
14. REC: Record button

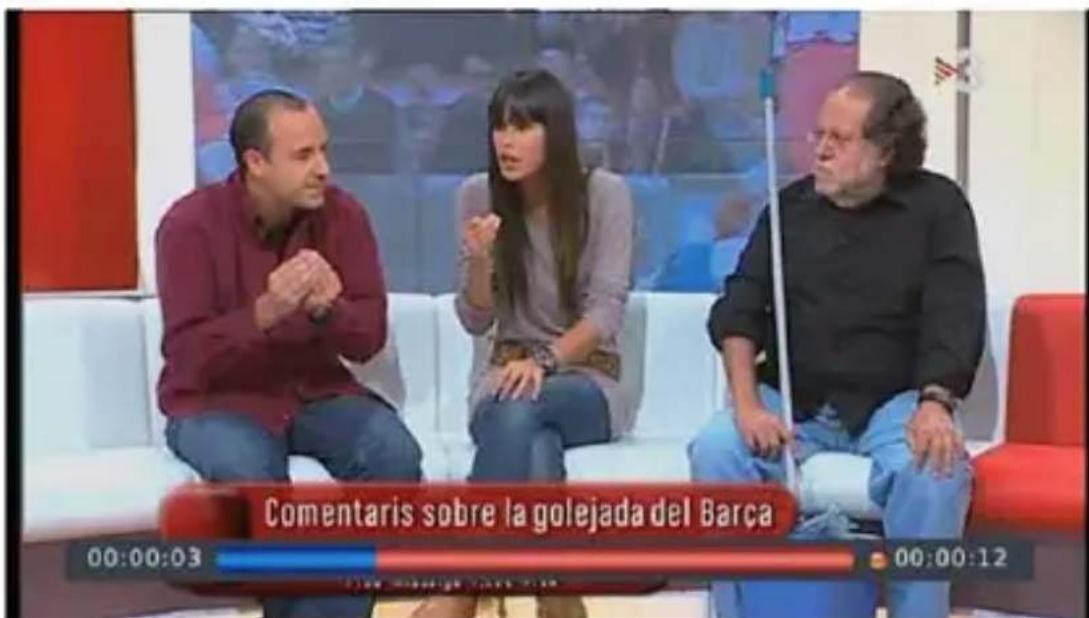

15. TIMESHIFT: Start TimeShift play (If USB is attached)

16. ASPECT:Switch 4:3/16:9 Aspect ratio

17. ZOOM: Increases the size of the image.

1. POWER: Switch On/Standby mode.

2. TTX: Show Teletext (if current channel has this option), use EXIT key to quit Teletext.

3. INFO: Display information about the current channel.

4. RECALL: Go back to the previous viewed channel.

5. LIST: PVR LIST

6. EXIT: Exit from the current menu.

7. :▲/▼/◄/► Press to move the cursor

8. GOTO: Select time.

9. CH-/CH+: Program Up/Down

10. LANG: Change the Audio language and Left/Right channel (depends on the channel).

11. STOP: Interrupt Media Play / TimeShift Play

12. REPEAT: Repeat Play.

13. TV/RADIO: Switch between Digital Radio and DVB-T modes.

14. TIMER: Access to the Timer.

15. V-FORMAT: Switch the HDMI 720P and 1080P

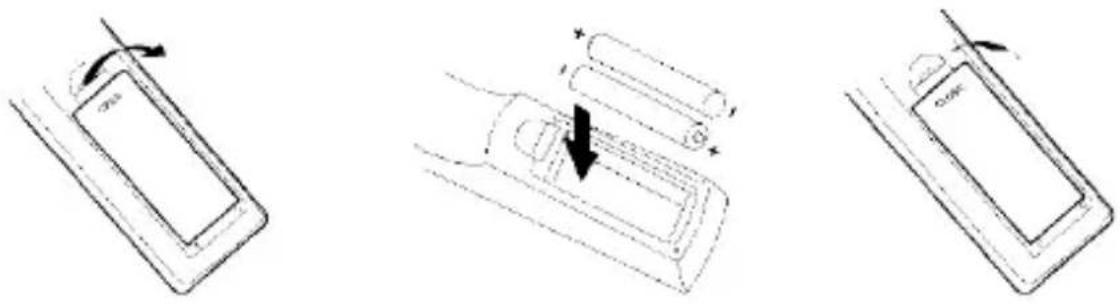

Installing the Batteries

Remove the battery cover from the rear of the Remote Control and place 2xAAA size batteries inside the compartment. Please make sure the battery polarities match the polarity markings inside the compartment

1. Open the cover 2. Install bateries 3. Close the cover

Using the Remote Control

To use the Remote Control, point it towards the front of the Digital Set Top Box. The Remote Control has a range of up to 7 metres from the Set Top Box at an angle of up to 60 degrees

The Remote Control will not operate if its path is blocked

Sunlight or very bright light will decrease the sensitivity of the Remote Control.

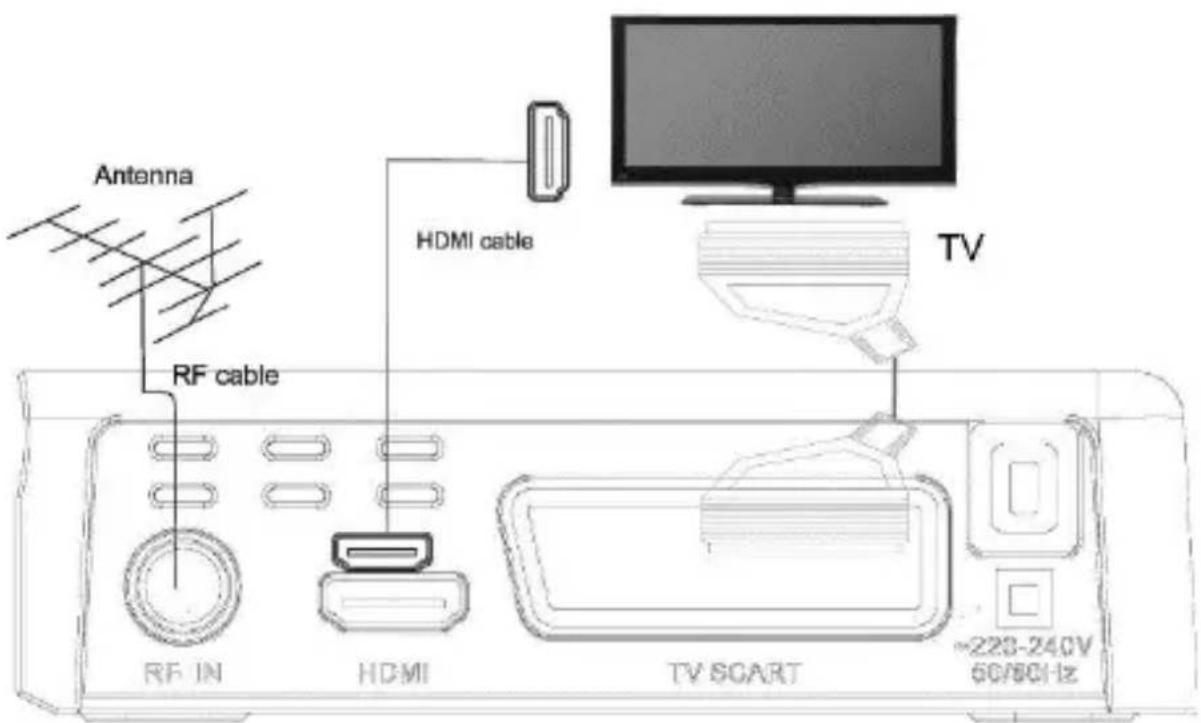

Connecting to a Television

For a basic connection from your Set Top Box to the television, use the SCART Composite connection outlined below.

For a higher quality connection, use the SCART RGB Video connection.

For the highest quality connection use Digital HDMI Video/Audio connection.

Note:

How to setup and adjust RGB/Composite or HDMI connection, please check chapter: PICTURE

Antenna Connection

Plug Antenna cable RF Plug into RF IN. If your antenna ia active and require power supply, you can switch on power 5V in Channel Search.

Note:

Do not keep Antenna Power option active (On) if your antenna is regular passive type. It will cause a short circuit!

Installation Guide

After all connections have been made properly, switch on TV and make sure the units connected to the Main Power.

Press Power button to switch the unit on.

If you are using the unit for the first time or have restored the unit to factory default, the installation guide menu will appear on your TV screen.

Select 'On' Power Antenna if you're using Active Antenna.

Make sure Antenna's 'quality bar' is more than 45% up.

Press 'OK' to start to do channel searching

1.[OSD Language] press RIGHT/LEFT key to select a language.
2.[Country] press RIGHT/LEFT key to select your province/area of residence.
3.[Antenna Power] press RIGHT/LEFT key to select antenna power on or off.
4.[Channel No.] press RIGHT/LEFT key to select a channel.
5. Once channel tuning is complete, you can start watching TV programs.

Basic Operation

Program Manage Settings

To access the Menu, press the MENU button and select [Program], using the RIGHT/LEFT keys to navigate through the menu.

The Menu provides option to adjust the Program Manage Settings. Select an option and press OK or RIGHT to adjust that setting.

Press the EXIT button to exit the Menu

Program Edit

To edit your program preferences (lock, skip, favourite, move or delete), you will need to enter the Program Edit Menu. This Menu requires a password to access.

Enter the default password '000000'. The master unlock password is '888888'

Set Favourite Channels

You can create a short list of favorite programs that you can easily access. Set Favorite TV or Radio program:

1. Select your desired channel then press the FAVOURITE button. A heart-shaped symbol will appear and the channel is marked as a favourite.
2. Repeat the previous step to select more Favourite channels.
3. To confirm and exit the Menu, press the EXIT key.

Disable Favourite TV or Radio channel:

Select the Favorite channel and press Favorite button on the remote control to cancel. View Favourite Channel:

1. While in normal viewing mode, press favourite button and the favourite menu will appear.

2. Press UP/DOWN to browse through your favorite channels.

3. Press OK to select your favorite channel.

Delete a TV or radio program

1. Select the program and then press the BLUE button, a warning message will appear, press OK to delete the channel.
2. Repeat the previous step to select more channels to delete.

Skip TV or radio channel

1. Select the channel you would like to skip and press the green button, a skip symbol is displayed the channel is marked as s skip.
2. Repeat the previous step to skip more channels.
3. To save your settings and exit the menu, press exit key.

Disable the skip channel function:

Select the skip channel and press the green button on the remote control to cancel.

Move a TV or Radio Program

1. Select the preferred channel then press the RED button. A move symbol will appear.
2. Press UP/DOWN to move the channel.
3. Press OK to confirm.
4. Repeat the above steps to move more channels

First Time Installation

Lock a TV or Radio channel :

1. Select the preferred channel then press the YELLOW button. A lock-shaped symbol is displayed. The channel is now marked as locked.
2. Repeat the previous step to select more channels.
3. To confirm your settings and exit the menu, press the EXIT button.
4. Press the YELLOW button to disable the locked channels function.
5. To view the locked channels, you will be required to enter either the default password '000000' or your last set password. The master unlock password is '888888'.

EPG (Electronic Programming Guide)

This feature shows the TV program listings for each channel for the following 7 days. By default, when the EPG is opened, the current channel's listings are shown. To view listings for other channels, press the LEFT and RIGHT arrow keys.

The display shows the buttons to press to go forward or backward in the programs listing.

Red/Green: event list Page Down/Page Up Yellow/Blue: Detail Info page Down/page Up

Note: Please see section "Scheduling" to learn how to schedule program recordings and channel preview.

Preview Channel:

To set the receiver to change to a channel at a specific time (e.g. at the start of your favorite program) while you are watching another channel, please follow these steps:

• Press EPG to open the full listings.
• Select the TV channel using the LEFT / RIGHT arrow keys.
• Select the TV program you want to watch later.
• Press OK. On the window that pops up, you are able to modify the channel, date and time, as well as optionally selecting to repeat this action on a regular basis.
• Select "View" in the "Mode" option.

- Press EXIT

A few seconds before changing channels, a warning message with a count-down is displayed on screen, which will change to the programmed channel when the count-down ends.

Sort

Sort your channels from the following options:

[By LCN] - Sort the channels in ascending order.

[By Service Name] - Sort the channels in alphabetical order.

[By Service ID] - Sort the channels according to the station.

[By ONID] - Sort the channels according to ONID.

LCN (Logical channel number)

Set LCN on or off.

The Yellow and Blue buttons in EPG have the function of "PAGE UP" and "PAGE Down" for Details EPG information on the right side

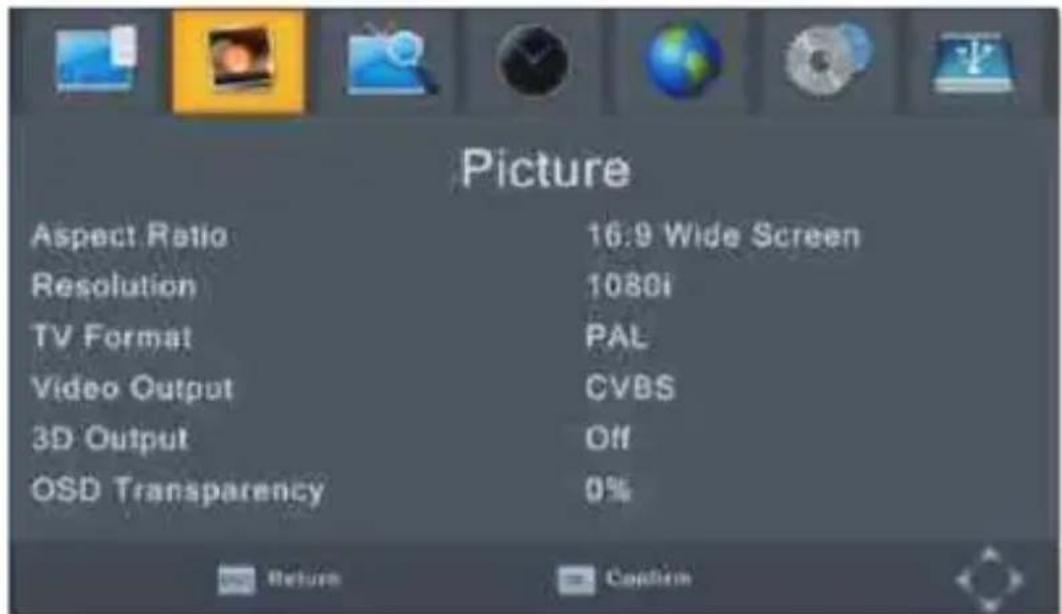

Picture Setting

To access the Menu, press MENU then select [Picture] using the RIGHT/LEFT key.

The Menu provides options to adjust the video settings.

Press UP/DOWN to select an option and press RIGHT/LEFT to adjust that setting. Press EXIT to exit the menu.

Aspect Ratio

Change the aspect ratio of Video. [Auto], [16:9 PillarBox], [16:9 Pan&Scan], [4:3 LetterBox], [4:3 Pan&Scan], [4:3 Full], [16:9 WideScreen]

Resolution

You can change this setting if the picture resolution does not appear to be correct. This setting is to match the most common setting for HDMI.

[480P]: for NTSC TV system.

[480i]: for NTSC TV system

[576P]: for PAL TV system.

[576i]: for PAL TV system.

[720P]: for NTSC or PAL TV system.

[1080i]: for NTSC or PAL TV system.

[1080P(50HZ)]: for NTSC or PAL TV system.

[1080P(60HZ)]: for NTSC system.

TV Format

If the picture does not appear to be correct you can change this setting. This should match the most common setting for TVs in your country.

[NTSC]: for NTSC system TV.

[PAL]: for PAL system TV.

Video Output

Change the video output. [CVBS], [RGB]

3D Output (option)

Change 3D Output Setting.

[OFF] : Set 3D Output Off

[Side by Side]: Set 3D Output format SBS [Auto] Set 3D

Output

Auto [Top/Bottom]: Set 3D Output format T/B

OSD Transparency

Change OSD Transparency. [0%], [20%], [40%], [60%], [80%].

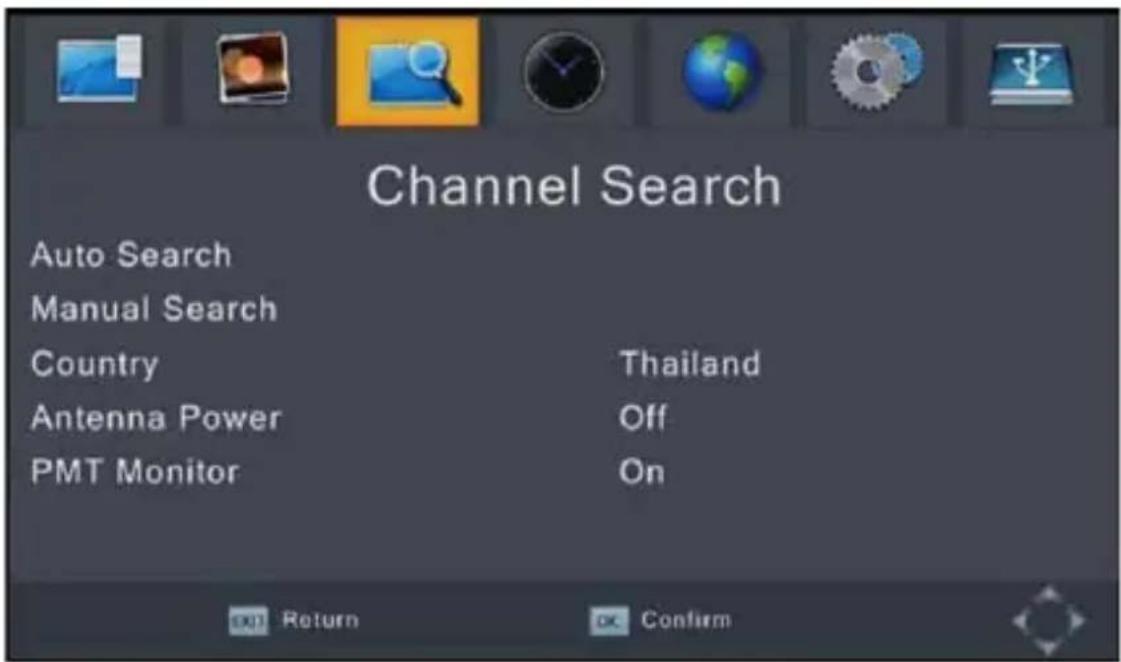

Channel Search

To access the menu, press MENU and select [Search

Channel] using the RIGHT/LEFT keys.

This menu provides options to adjust the search channel settings.

Press UP/DOWN to select an option and press RIGHT/LEFT to adjust the setting.

Press EXIT to exit the menu.

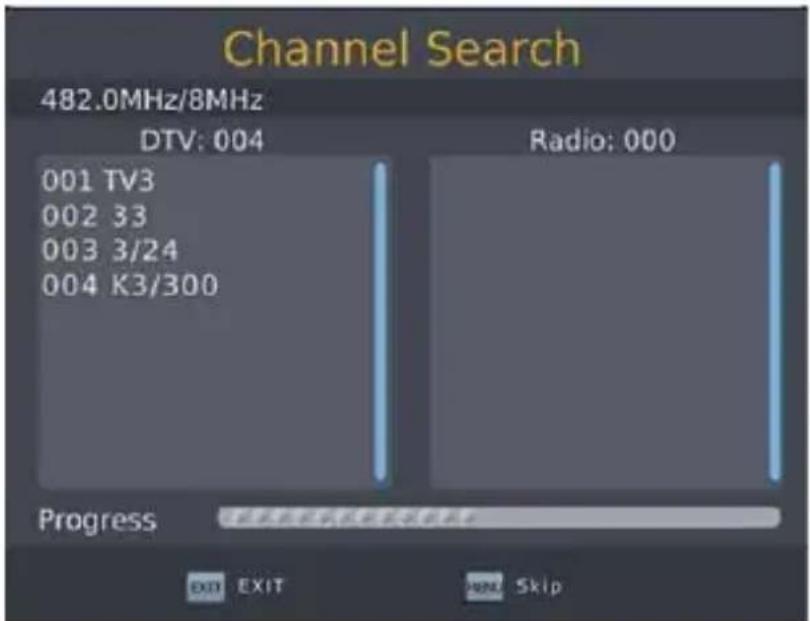

Auto Search

This option will automatically search for channels and save them once the scanning is complete. All previously saved channels and settings will be deleted.

1. Select [Auto Search] and press OK or RIGHT to start channel search.

2. To cancel channel search, press EXIT. Any channels that have been found will be saved

Manual Search

This option allows you to scan for new channels without deleting previously saved channels and settings.

1. Select [Manual Search] then press OK or RIGHT. The channel search screen will appear.
2. Press the RIGHT/LEFT key to select the channel frequency.
3. Press OK to start searching channels.

If a channel is found, it is saved and added to the channels list. If channels cannot be found during searching, the unit will exit automatically.

Country

Select your country of residence.

Antenna Power

Enable Antenna Power if an external active antenna is connected.

PMT Monitor

Enable PMT Monitor if you need.

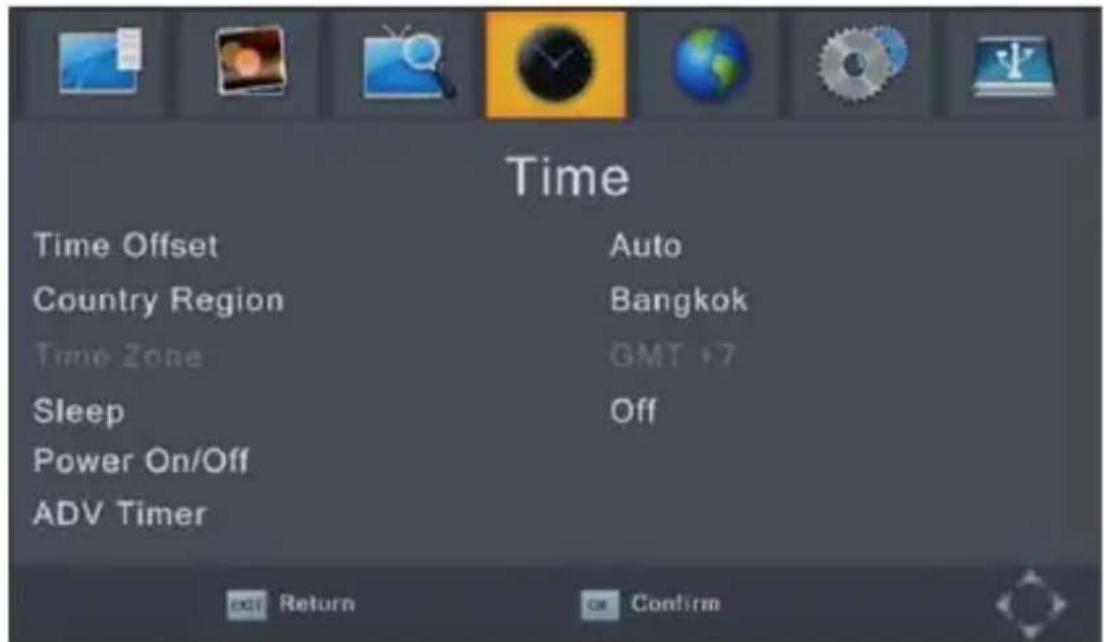

Time Setting

To access the menu, press MENU then select [Time] using the RIGHT/LEFT keys. The menu provides options to adjust the time settings.

Press UP/DOWN to select an option and press RIGHT/LEFT to adjust the settings, press EXIT to exit the menu.

Time offset

Select auto or manual for GMT offset adjustments.

Country Region

Select the Country Region when [Time Offset] is set to Auto.

Time Zone

Select the Time Zone Offset when [TimeOffset] is set to Manual

Sleep

Set Auto Stanby Timer.

[Off], [1 Hour], [2 Hour], [3 Hour], [4 Hour], [5 Hour], [6 Hour], [7 Hour], [8 Hour], [9 Hour], [10 Hour], [11 Hour], [12 Hour]

Power On/Off

Enable Power On or Off.

ADV Timer Schedule a Recording.

Option

To access the menu, press MENU select [Option] using the RIGHT/LEFT keys.

The menu provides options to adjust the OSD Language, Subtitle Language and Audio Language. Select an option and press RIGHT/LEFT to adjust the setting.

Press EXIT to exit the menu.

OSD (On Screen Display) Language

Select an OSD language.

Subtitle Language

Select the preferred subtitle language.

Audio Language

Select the preferred audio language for watching TV channels. If the language is not available, the default program language will be used.

Digital Audio

Select the digital audio for watching TV channels. [PCM], [RAW HDMI ON], [RAW HDWI OFF], [Off].

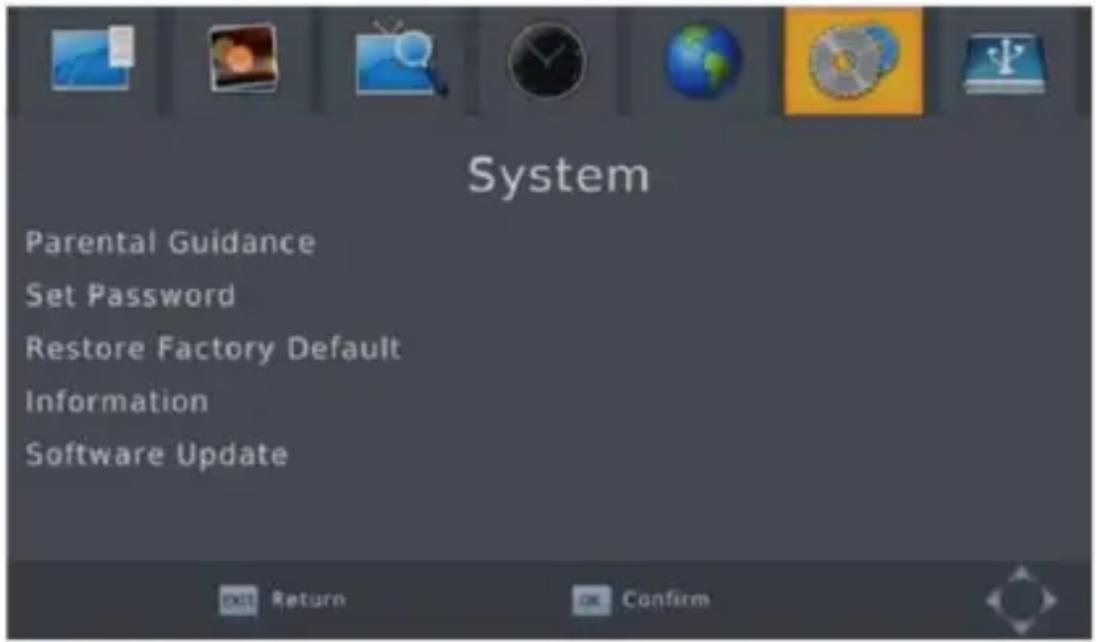

System Setting

To access the menu, press MENU and select [System] using the RIGHT/LEFT keys. The menu provides options to adjust the system settings.

Press the UP/DOWN key to select an option and press RIGHT/LEFT to adjust the setting.

Press EXIT to exit the menu.

Set Password

Set or change the password for locked programs. Enter your old password or the default password '000000'. You will then be asked to enter your new password. Press OK button to confirm your new password.

Once it is confirmed, press EXIT to exit the Menu. The master unlock password is '888888'.

Reset your Set Top Box to the Default Factory Settings.

In Main Menu select [Restore Factory Default] using the RIGHT/LEFT keys and press OK or RIGHT to select.

Enter your password or the default password '000000' and press OK to confirm. This option will delete all preset channels and settings. The master unlock password is '888888'.

Information

View model, hardware and software information.

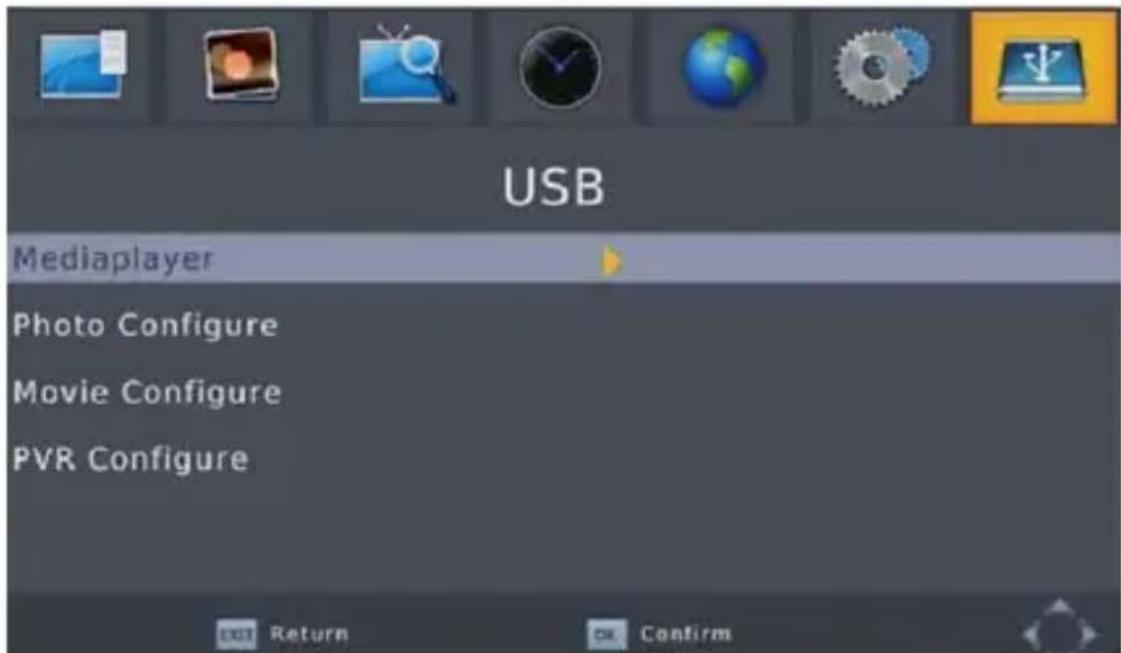

USB

To access the Menu, press the MENU button and select [USB] using the RIGHT/LEFT keys. The menu provides options to Playback Music, Photo and Multimedia files.

It can support AVI, MP3, JPEG and BMP formats.

Note: The unit will only support USB device with FAT32 / NTFS file system

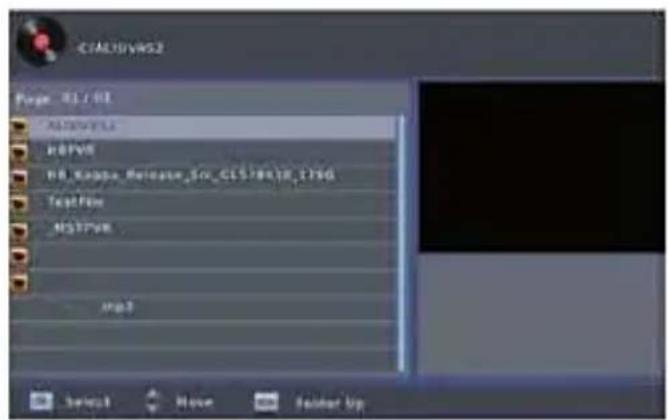

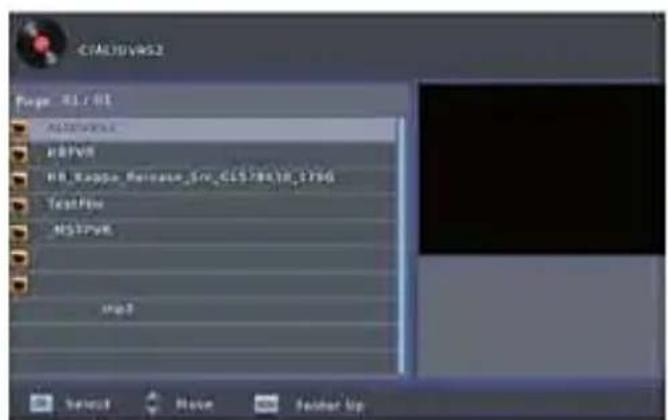

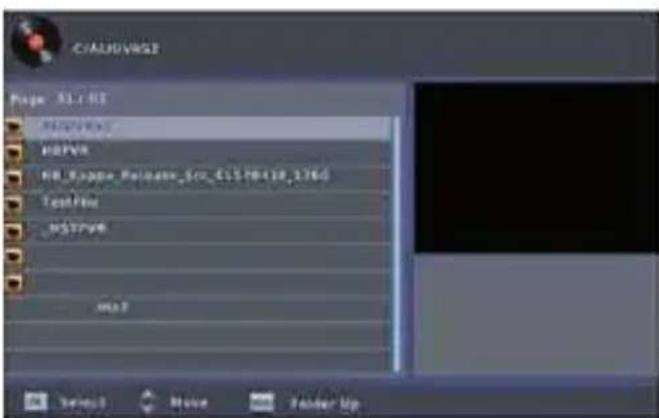

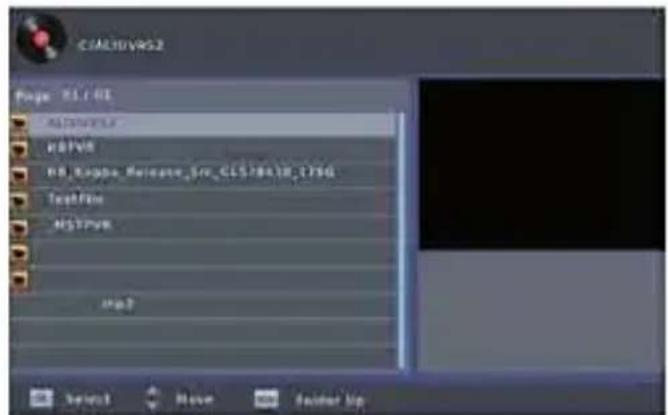

MediaPlayer -Multimedia:

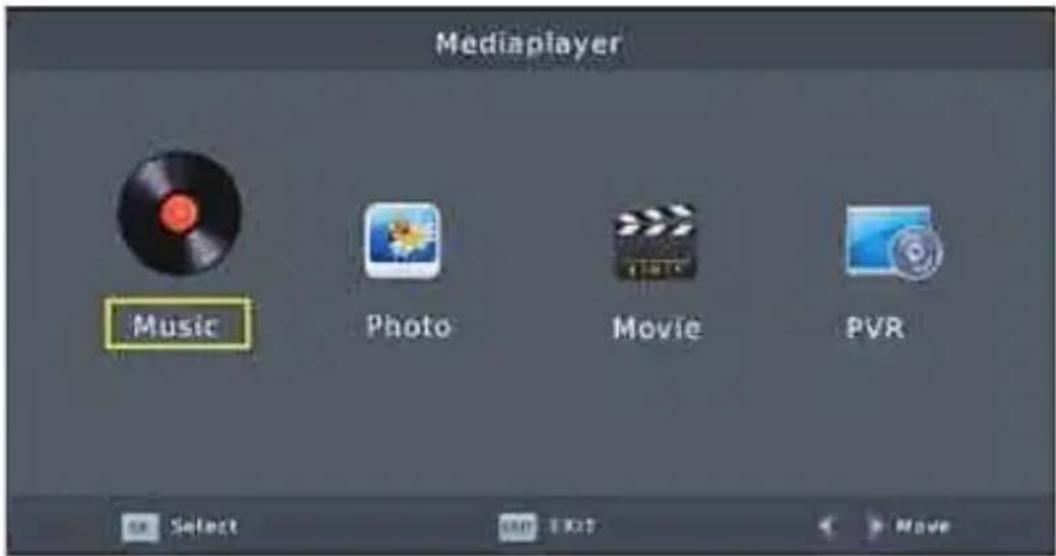

When a USB device is attached you can select from the Music, Photo or Movie options in this menu using the RIGHT/LEFT keys and OK to select.

Note: If a USB device is not connected, the warning message "No USB device is Found" will appear.

Photo configure:

• Slide Time: Adjust slide show interval to 1\~8 seconds.
• Slide Mode: Adjust slide show effect as mode 0-59 or random.
• Aspect Ratio: [Keep]: Play picture in its original aspect. [Discard]: Play picture in full screen mode.

Movie Configure:

■ Aspect Ratio:

[Keep]: Play movie in its original aspect.

[Discard]: Play movie in full screen mode.

Subtitle Specific:

[Small]: Displays the subtitle as small.

[Normal]: Displays the subtitle as normal

[Big]: Displays the subtitle as big size.

Subtitle BG:

[White], [Transparent], [Grey], [Yellowgreen]: Displays the subtitle in correspondent background color.

Subtitle Font Color:

[Red], [Blue], [Green]: Displays Subtitle in correspondent font color.

USB RECORDING

This function is available only when a USB storage device is connected to the receiver. Instant recording:

If you want to start recording a live show, which is currently being broadcast, go to the desired channel and press the REC button.

Press again to Stop recording.

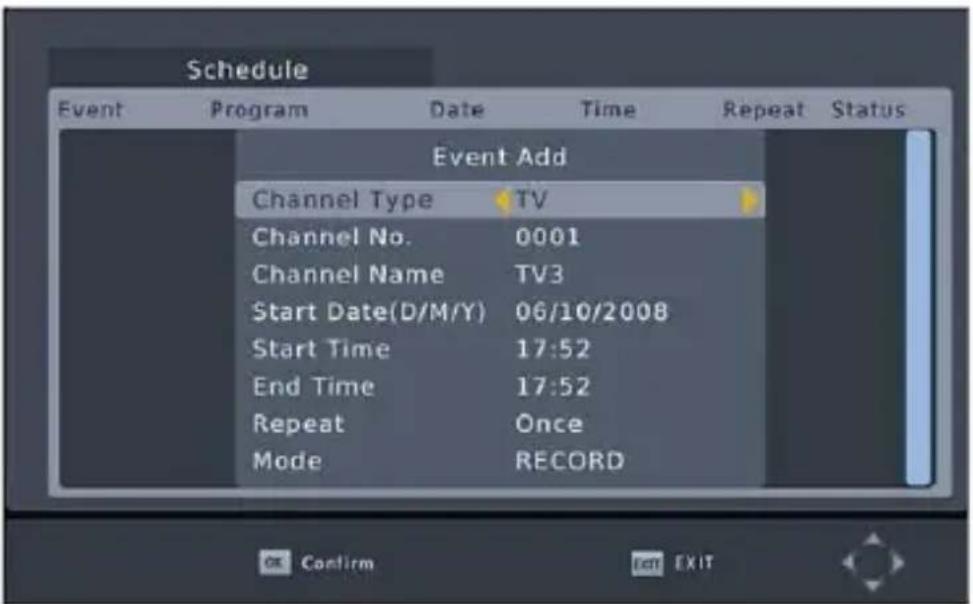

Schedule a Recording:

To schedule a recording before broadcast (e.g. record your favorite show while you're out), follow these steps:

• Press EPG to open the full listings.
• Select the TV channel using the LEFT / RIGHT arrow keys.
• Select the TV show you want to record.
• Press OK. On the window that pops up, you are able to modify the channel, date, recording start -time and recording end-time, as well as optionally selecting to repeat this action on a regular basis

Select "OTHER RECORDING" in the "Mode" option.

- Press EXIT.

A few seconds before starting to record, a warning message with a count-down is displayed on screen, which will change to the programmed channel when the count-down ends. Once the recording has finished, a confirmation message appears on screen.

To View the scheduled events, press the Blue button.

To Delete a scheduled event, select the event and press the Blue button.

The recording files can be deleted on this unit, you can go to the PVR and press Yellow button to delete it.

The TV program is recorded to file at PVR format, which can be play back on this unit and PC using a suitable player, but cannot be played on DVD or PDVD.

Note: For recording the high definition TV programs, the version of USB device should be 2.0 or above, otherwise the unit may cannot record the HD programs correctly.

When recording to USB stick or external hard disc on this model, you have to wait a few seconds before pushing REC button after inserting the media. Otherwise the unit can freeze in the signal.

If that happens, then please take off power and connect again to fix this.

Scheduled recording only works when the unit power is on, it can not work when the unit is standby.

Note:

• We cannot guarantee compatibility (operation and/or bus power) with all USB mass storage devices and assume no responsibility for any loss of data that may occur when connected to this unit.
• With large amounts of data, it may take longer for the system to read the contents of a USB device.
• Some USB devices may not be properly recognized.
• Even when they are in a supported format, some files may not play or display depending on the content.

Timeshift

When you are playing the program, you can insert the USB, and at any time you can press the [Time shift] button, the frame will be paused, and you may press the [PLAY] button after a second, it will start to Timeshift now.

You may press the PLAY button to return the normal program playing, and the Timeshift is continuing, you may see from the below picture's bottom which is showing the time shift status. In this case, you may make the unit to play the recorded program from the start.

Press [Info] key to see time shift information as below:

INFO
PVR Mode	RECORD
Total Disk Space	3.60 GB
Disk Free Space	1.68 GB
File System	FAT32
Cluster Size	4 KB
File Name	timeshift ts
Max Record Size	1.73 GB
Max Record Time	00:53.56
Record Bitrate	559 KB/S
Cur Play Size	0 KB
Cur Record Size	43.72 MB

You can press [Fast forward]/[Fast back] to move the slide to left or right of the current recording.

Note: Time Shifting will only be available when USB HDD is connected to the system and read/write speed is high enough to do that.

Press [Stop] button to end the Timeshift, and it will back to the normal playing of the program

Troubleshooting

Problem No picture	Potential Reasons Power isn't connected The power switch is not on	What to do Connect the power Switch on the power
Screen shows "No Signal"	DVB-T or DVB-T2 cable not connected	Plug in the DVB-T or DVB-T2 cable
	Aerial cable is faulty	Check aerial cable and connections
No sound from speaker	No or incorrect connection with audio cable	Connect the audio cable correctly
	Sound on mute	Turn off mute function
Only sound, no image on the screen	No or incorrect connection with AV cable	Make sure cables are connected correctly
	The program is a radio program	Press <TV/RADIO> key to shift into TV mode
Remote Control is not responding	The battery is exhausted	Change battery
	Remote Control is not facing or close enough to the Set Top Box	Adjust the position of the Remote Control and move closer to the unit
Picture is breaking up	The signal is too weak	Check aerial cable and connections

Technical Specification

Item	Sub Item	Parameter
Tuner	Input Frequency	170~230MHz470~860MHz
	RF Input level	-78~-20dBm
	1 F Band width	6MHz/7MHz/8MHz
	Modulation	QPSK,16QAM,64QAM.
Video	Decoder Format	MPEG4 AVC/H.264HP@L4 MPEG2MPO.ML.HL
	Output Format	576P.720P, 1080ì,1080P, 4:3 and 16:9
	Output Port	HDMI, SCART
Audio	Decoder Format	MPEG-1 (layer1&2&3)
	Audio output	L/R
USB 2.0	Supported Capacity	2T
	Supported Media	MP3, JPEG, BMP, AVI
Power	Supply Voltage	-220-240V 50/60HZ
	Max Power Consumption	MAX 6W
	Standby Power Consumption	<0,5W
Weight	0.24 kg
Size	125 x 75 x 30 mm

Information on Disposal for Users of Waste Electrical & Electronic Equipment (private households)

This symbol on the product(s) and / or accompanying documents means that used electrical and electronic products should not be mixed with general household waste. For proper treatment, recovery and recycling, please take this product(s) to designated collection

points where it will be accepted free of charge. Alternatively, in some countries you may be able to return your products to your local retailer upon purchase of an equivalent new product. Disposing of this product correctly will help save valuable resources and prevent any potential negative effects on human health and the environment, which could otherwise arise from inappropriate waste handling. Please contact your local authority for further details of your nearest designated collection point. Penalties may be applicable for incorrect disposal of this waste, in accordance with your national legislation.

Disposal of waste batteries

Check local regulations for disposal of waste batteries or call your local customer service in order to get instructions on the disposal of old and used batteries. The batteries in this product should not be disposed of with household waste. Be sure to dispose

of old batteries in special places for disposal of used batteries that are found in all retail shops where you can buy batteries.

EU Declaration of Conformity

Hereby, M SAN Grupa d.d. declares that the radio equipment type DVB-T setup box is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: www.msan.hr/dokumentacijaartikala

POŠTOVANII

Zahvaljujemo na kupnji Vivax uređaja. i nadamo se da čete biti zadovoljni odabirom. Ako u jamstvenom roku bude potreban popravak proizvoda, molimo savjelujte se sa ovlaštenim prodavaćem koji Vam je proizvod prodao ili nas kontaktirajte na dolje navedene brojeve i adrese. MOLIMO VAS DA PRIJE UPORABE PROIZVODA PAŽLJIVO PROČITATE UPUTE PRILOŽENE UZ PROIZVOD!

JAMSTVENI LIST

VIVAX

HR

MODEL UREDAJA

DVB-T2 154

SERIJSKI BROJ

DATUM PRODAJE

BROJ RAČUNA PRODAVATELJA

POTPIS I PEČAT PRODAVATELJA

1. Ovim jamstvom M SAN Grupa kao davatelj jamstva u Republici Hrvatskoj jamči besplatan popravak istog u skladu s važećim propisima i u skladu s uvjetima opisanim u ovom jamstvenom listu. Ovim jamstvom jamčimo da će predmet ovog jamstva raditi bez pogreške uzrokovane eventuainom lošom izradom ili lošim materijalom izrade. Svi, eventualno nastal, kvarovi biti će besplatno otklonjeni u ovlaštenom servisu u jamstvenom roku.
2. UVJETI JAMSTVA Jamstveni rok počinje od dana kupnje proizvoda i traje 12 mjeseci, osim za Vivax Imago televizere (CRT, LCD, PDP) za koje jamstvo traje 24 mjeseca.
3. U slučaju kvara na proizvodu koji je predmet ovog jamstva, obvezujemo se da čemo isti popraviti u najkračem mogučem roku, a najkasnije u roku od 45 dana. Ako se proizvod ne može popraviti ili se ne popravi u roku od 45 dana, biti će zamijenjen novim. Jamstvo će biti produženo za vrijeme trajanja popravka.
4. Jamstvo se priznaje samo uz račun o kupnji, te uz ovaj jamstveni list koji mora bit ispravno popunjen odnosno mora sadržavaši datum prodaje, pečat i potpis prodavatelja.
5. JAMSTVO NE OBUHVAĆA

POTPIS I PEČAT PRODAVATELJA

DVB-T2 154

1. Ovom garancijom garantira proizvođač proizvoda, preko KIM TEC d.o.o., kao uvoznka i davatelja garancije u Republici Bosni Hercegovini besplatan popravak isteg u skladu s važećim propisima i u skladu s uvojetima opisanim u ovom garantnom listu. Ovom garancijom garantiramo da će predmet ove garancije raditi bez greške uzrokovane eventualnom lošom izradom i lošim materijalom izrade. Svi eventualno nastali kvarovi biti će besplatno otklorjeni u ovlašenom servisu u garantnom roku.

2. UVJETI GARANCIJE Garantni rok počinje teči od dana kupnje proizvoda i traje 12 mjeseci, osim za Vivax Imago televizere (CRT, LCD, PDP) za koje jamstvo traje 24 mjeseca.

3. U slučaju kvara na proizvodu koji je predmet ove garancije, obavezujemo se da ćemo isti popraviti u najkraćem mogućem roku, a najkasnije u roku od 45 dana. Ako se proizvod ne može popraviti ili se ne popraviti u roku od 45 dana, bili će zamijenjen novim. Ako popravak proizvoda traje duže od 10 dana, garancija će se produžiti za vrijeme trajanja popravka.

4. Garancija se priznaje samo uz račun o kupnji, te uz ovaj garantri list koji mora biti ispravno popunjen odnosno mora sadržavati datum prodaje, pečat i potpis prodavatelja.

5. Davalac garancije osigurava servis i rezervne djelove 7 godina od datuma kupnje.

12. GARANCUJA NE OBUHVAĆA

Kosova Electronic Service Center

Kosova Electronic Service Center

-VIVAX Air Conditions; White Goods and Small Home Appliances

TÉ NDERUARI
