WDF-1408D615BS - Washing machine Vivax - Free user manual and instructions

Product Type	Freestanding washing machine with drying function
Model	WDF-1408D615BS
Brand	Vivax
Dimensions (W x D x H)	595 x 475 x 850 mm
Net Weight	65 kg
Rated Voltage	220-240 V ~ 50 Hz
Rated Current	10 A
Rated Power	1900 W
Water Pressure Range	0.05 - 1 MPa
Washing Capacity	8.0 kg
Drying Capacity	6.0 kg
Maximum Spin Speed	1400 rpm
Energy Efficiency Class	A (for non-EU countries)
Wash Programmes	Cotton, Synthetic, Mix, 20°C, ECO 40-60, Quick 15', 1 Hour W/D, Wool, Sport Wear, Jeans, Wash & Dry, Dry Only, Rinse & Spin, Spin Only, Intensive
Additional Functions	Delay Start (0-24h), Temperature Adjustment, Spin Speed Adjustment, Child Lock, Buzzer Mute, My Cycle Memory
Drying Levels	Normal Dry, Extra Dry, Timed Dry (30/60/90/120/180 min)
Control Panel	LED display, rotary program selector, touch buttons

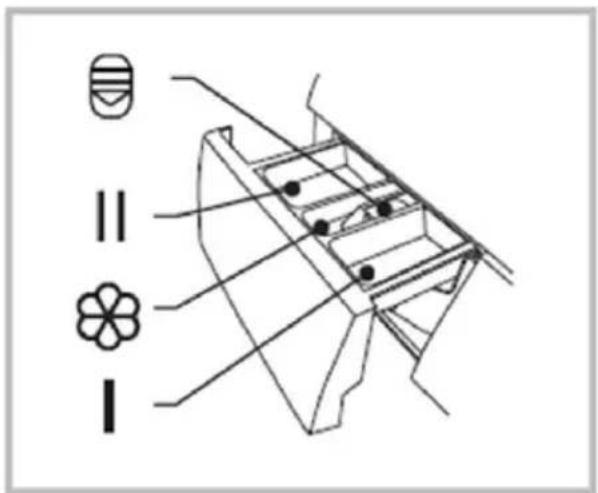

Detergent Drawer	3 compartments: pre-wash, main wash, fabric softener
Cleaning and Maintenance	Clean drum, door gasket, detergent drawer, drain pump filter, inlet filter
Safety Features	Child lock, door lock, overfill protection, foam control, unbalanced load detection
Spare Parts Availability	Minimum 10 years after last unit placed on market

Frequently Asked Questions - WDF-1408D615BS Vivax

How do I install the washing machine?

Remove all packaging and transport bolts from the back. Place the machine on a firm, level surface. Connect the water inlet hose to a cold water tap and the drain hose to a suitable outlet. Adjust the feet for stability. Plug into a grounded outlet. For full details, refer to the Installation chapter in the manual.

What should I do before first use?

Run a complete cycle without laundry to calibrate the machine. Press [Delay] and [Speed] simultaneously for 10 seconds until 't19' appears, then press Start. This optimizes performance and energy consumption.

Why is the door not opening after a cycle?

The safety mechanism locks the door during operation and for a few minutes after the cycle ends. Wait until 'End' appears on the display and the door unlocks automatically. If still locked, disconnect power and restart.

How do I clean the drain pump filter?

Open the lower cover cap, turn the filter counterclockwise, and remove any debris. Place a shallow tray underneath as water may leak. Clean the filter thoroughly, then reinstall and close the cover. Perform this every 6 months or if drainage issues occur.

What does error code E30 mean?

Error code E30 indicates a door lock problem. Check that the door is properly closed and not obstructed by clothing. If the issue persists, restart the machine. If still present, contact customer service.

Can I dry clothes in this washing machine?

Yes, it has a drying function. Select a drying programme (Normal Dry, Extra Dry, or Timed Dry). Maximum drying capacity is 6.0 kg. Note that some fabrics like wool or silk are not suitable for machine drying.

How do I activate the child lock?

Press [Temp] and [Speed] simultaneously for 3 seconds until the buzzer sounds. The display will show 'CL'. To deactivate, press the same buttons again for 3 seconds. Child lock locks all buttons except power.

What is the recommended detergent dosage?

Use a suitable detergent for machine washing. Adjust dosage based on load size, soil level, and water hardness. For heavily soiled cotton, use a heavy-duty detergent. For delicate fabrics, use a mild detergent. Avoid overfilling the drawer.

How do I clean the detergent drawer?

Press the release button to pull out the drawer. Remove the softener cover by pressing the arrow location. Wash all parts with water, clean the recess with an old toothbrush, reassemble, and push back into place. Do not use solvents.

What spare parts are available and for how long?

Spare parts such as door, hinges, seals, door locking assembly, and detergent dispensers are available for a minimum of 10 years after the last unit is placed on market. Contact the distributor M SAN Grupa d.d. or MR Servis.

USER MANUAL WDF-1408D615BS Vivax

Close-up of a mechanical component with a wrench and circular dial, no visible text or symbols

Close-up of a mechanical component with an arrow indicating direction (no visible text or symbols)

Abstract grayscale image with a dark circular shape and an arrow pointing to it, partially overlaid by a striped pattern (no text or symbols)

Upozorenje!

☐ Prije početka uporabe, obavezno pročitajte odlomak „Instalacija“ unutar ove upute!

Sadržaj

■ Sigurnosna upozorenja 3
Instalacija

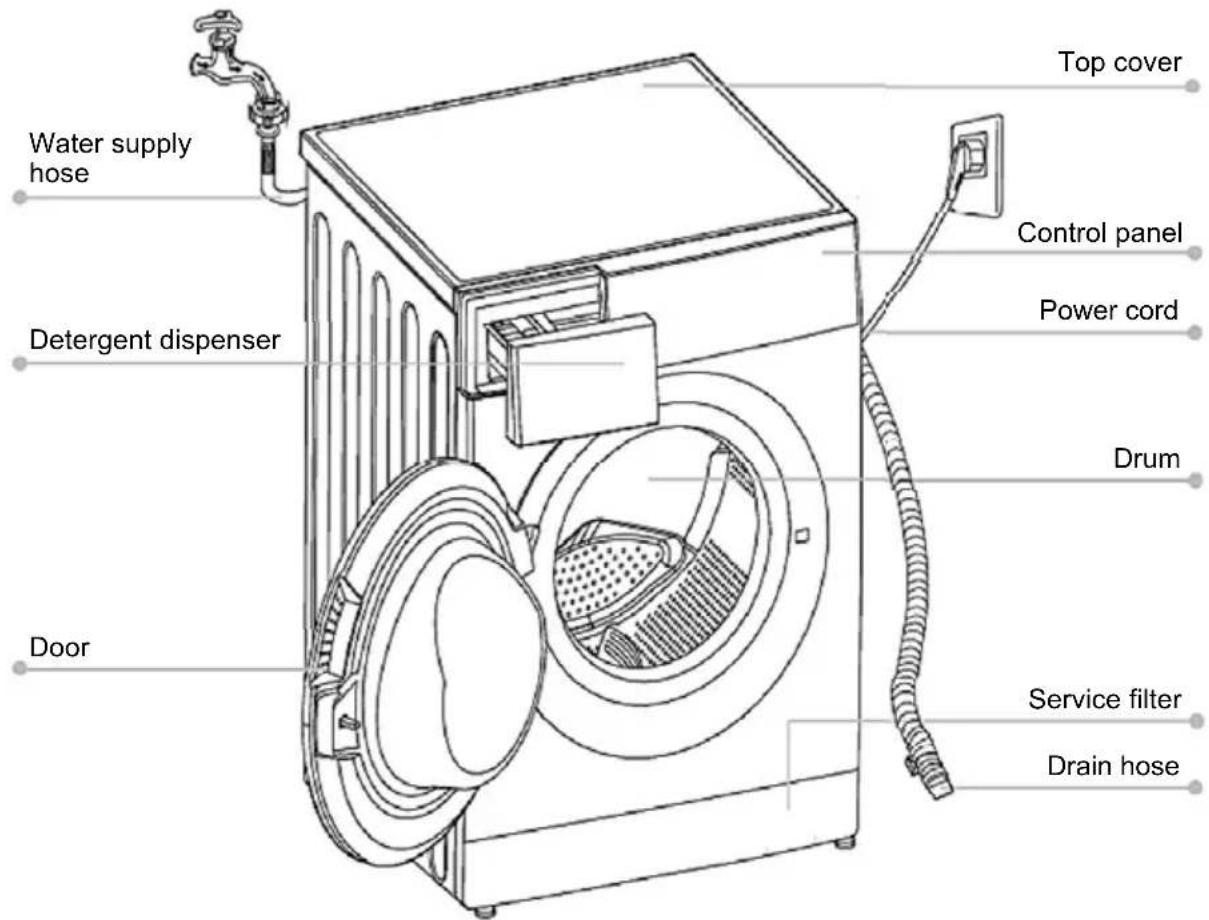

Opis uređaja 11

Instalacija 12

Uporaba

Brzi početak uporabe 17

Prije svakog pranja 18

Ladica za Deterdžent 19

Kontrolna ploča 22

Programi pranja 23

Dodatne funkcije 27

Čišćenje i održavanje 30
■ Uklanjanje problema 34
■ Techničke specifikacije 36
Odlaganje istrošenog uređaja, EU Izjava o sukladnosti 37
■ Informacijski list 37

UPOZORENJE: Molimo pažljivo pročitajte upute za uporabu prije nego što počnete koristiti uređaj! Držite upute za uporabu pri ruci za kasniju uporabu.

Ako se uređaj prodaje ili predaje dalje, osigurajte da novi vlasnik uvijek dobije ove upute za uporabu.

OPREZ: VRUĆA POVRŠINA!

OPREZ: OPASNOST OD POŽARA!

SIGURNOSNA UPOZORENJA

Značenje sigurnosnih simbola i simbola upozorenja

Simbol Upozorenja

Ovaj znak označava upute koje se obavezno trebaju poštivati i strogo slijediti. Nepoštivanje tih uputa može dovesti do oštećenja proizvoda ili ugroziti osobnu sigurnost korisnika.

Simbol Opreza

Three-panel line drawing showing four objects: two with circular patterns, a magnifying glass, and an open book (no text or symbols)

Poklopci otvora za transportne vijke

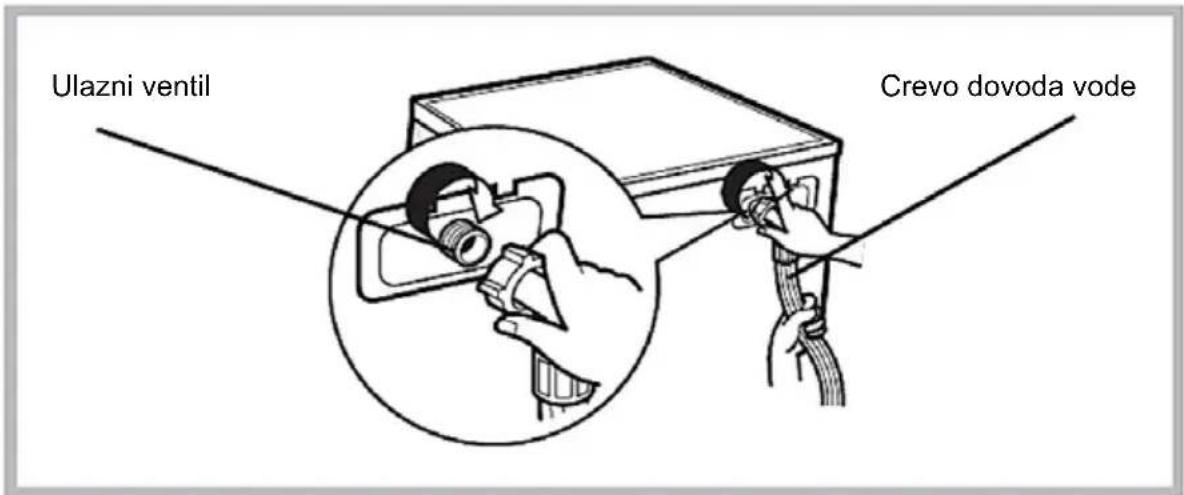

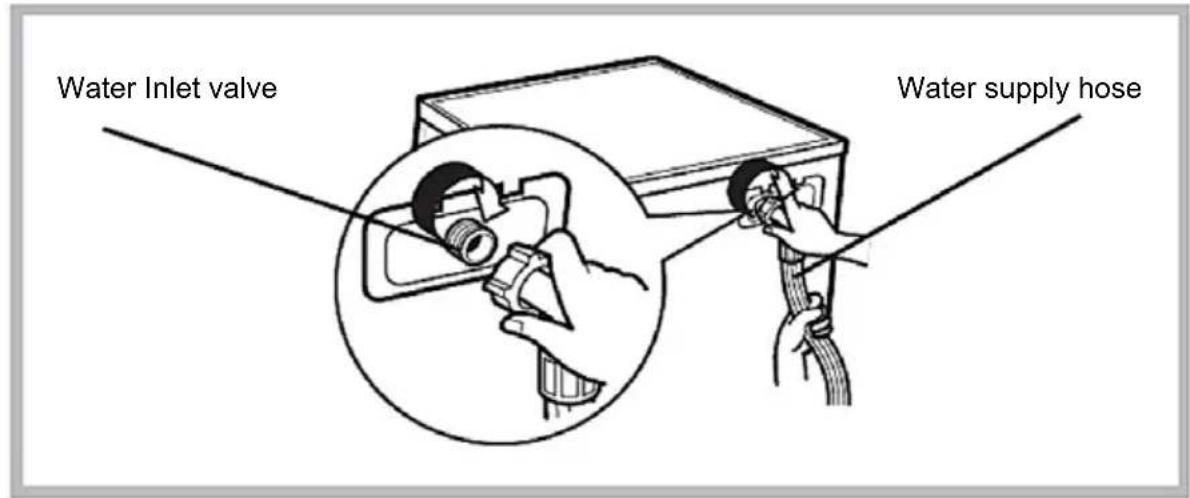

Crijevo dovoda hladne vode

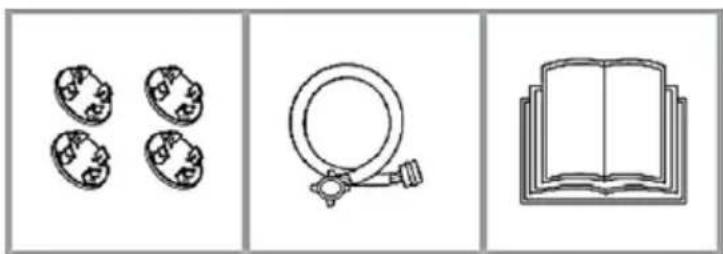

Upute za uporabu s jamstvenom izjavom

INSTALACIJA

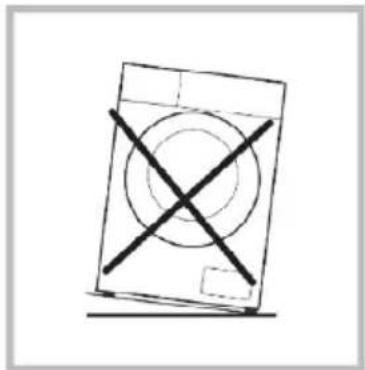

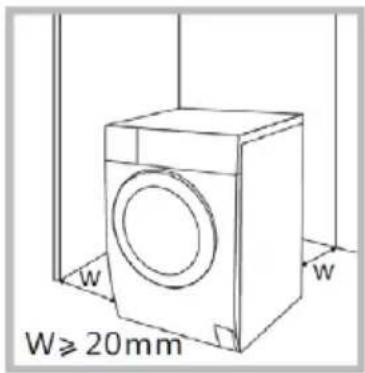

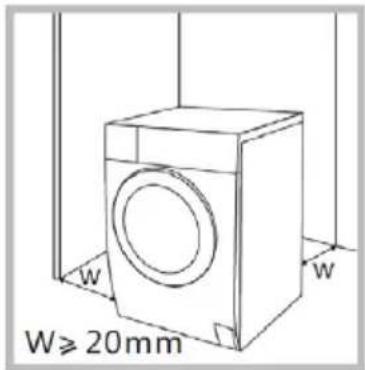

Mjesto instalacije

Upozorenje

Simple line drawing of a box with a cross mark on the front face (no text or symbols)

Raspakiravanje mašine

Upozorenje

Diagram showing a box being inserted into a base with an inset magnified view of a ship's hull (no text or symbols present)

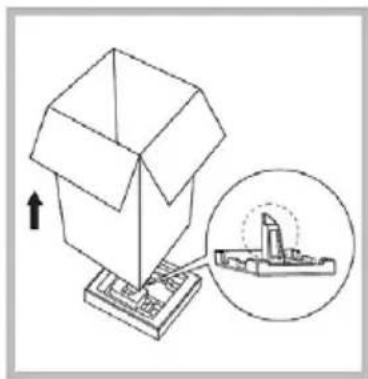

1. Izvadite kartonsku kutiju i ambalažu od stiropora.
2. Podignite perilicu rublja i uklonite donji dio stiropor pakiranja. Obratite pažnju da ste zajedno s donjim stiroporom uklonili i izbočinu od stiropora.
3. Uklonite traku kojom je pričvršćen kabel napajanja i odvodno crijevo.
4. Uklonite crijevo dovoda vode i ostali pribor iz bubnja.

Uklanjanje transportnih vijaka

Upozorenje

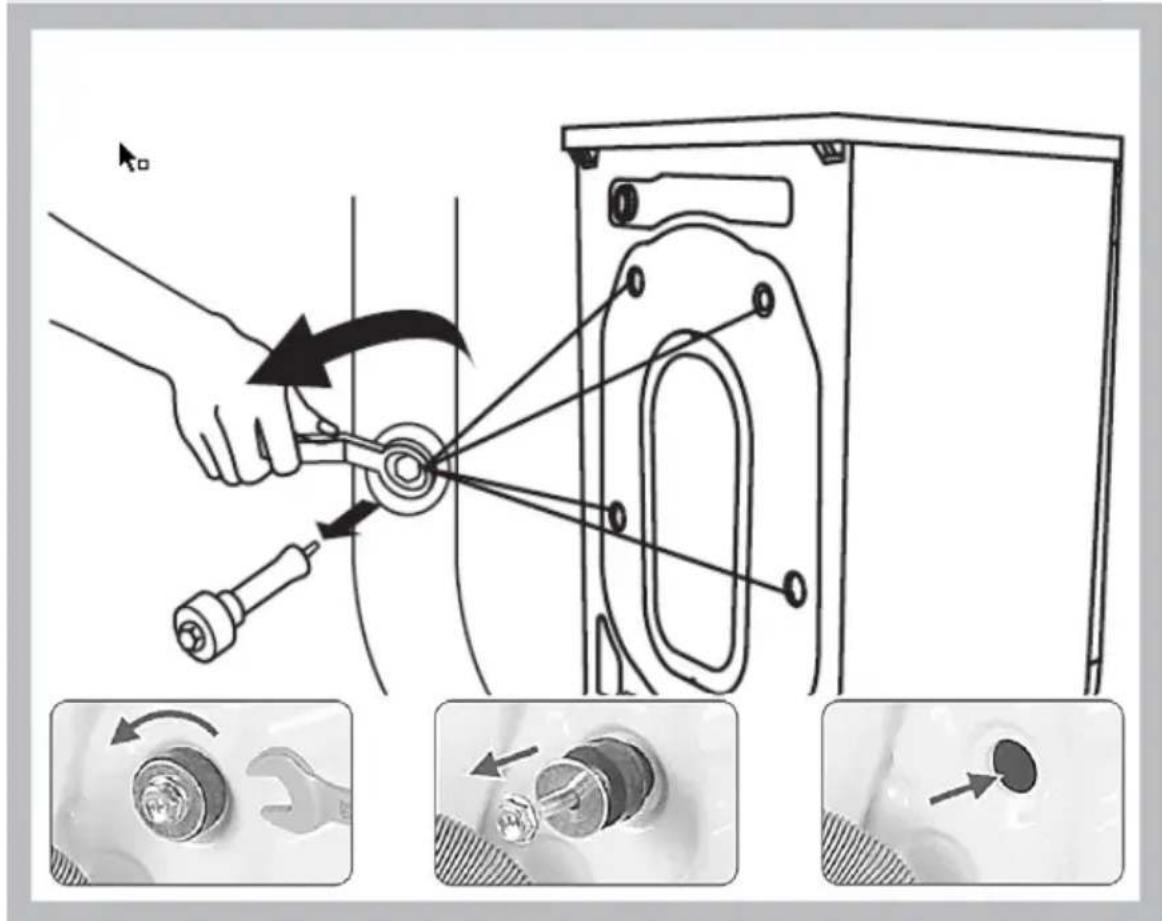

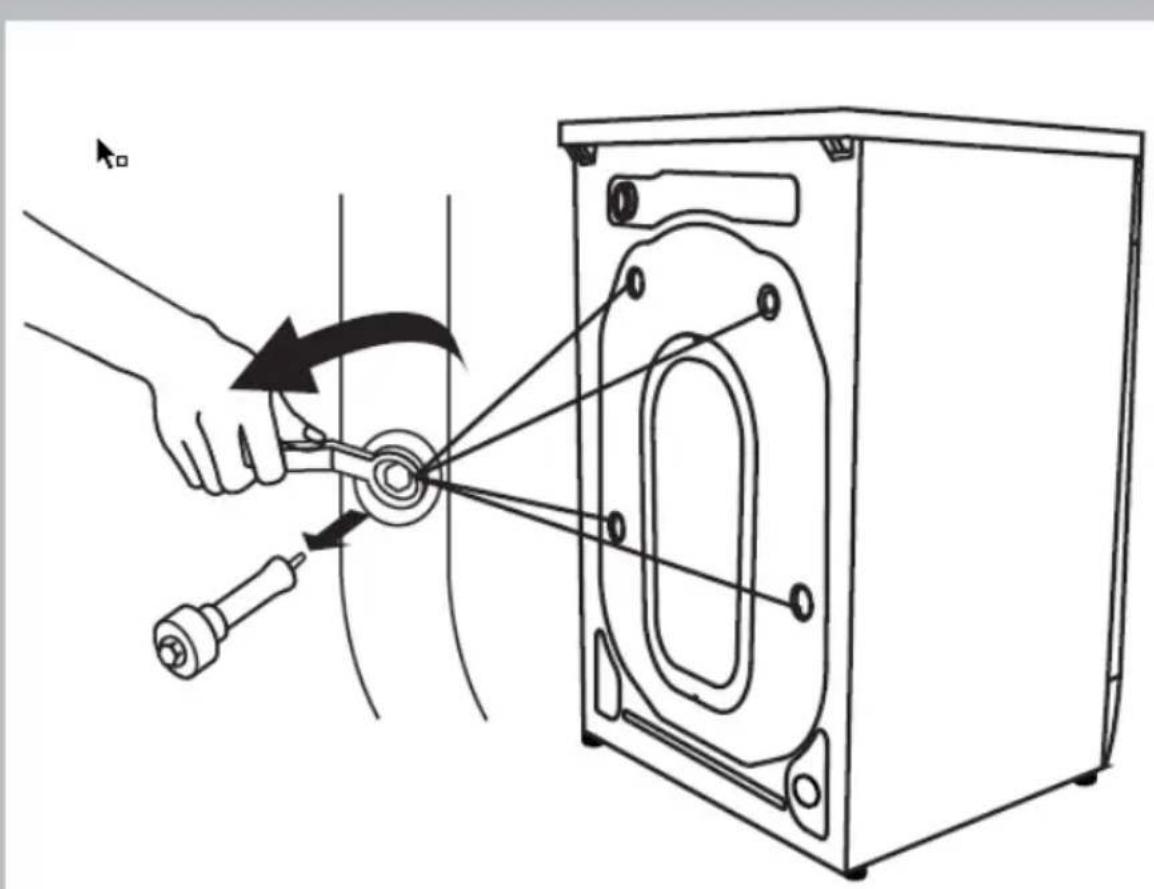

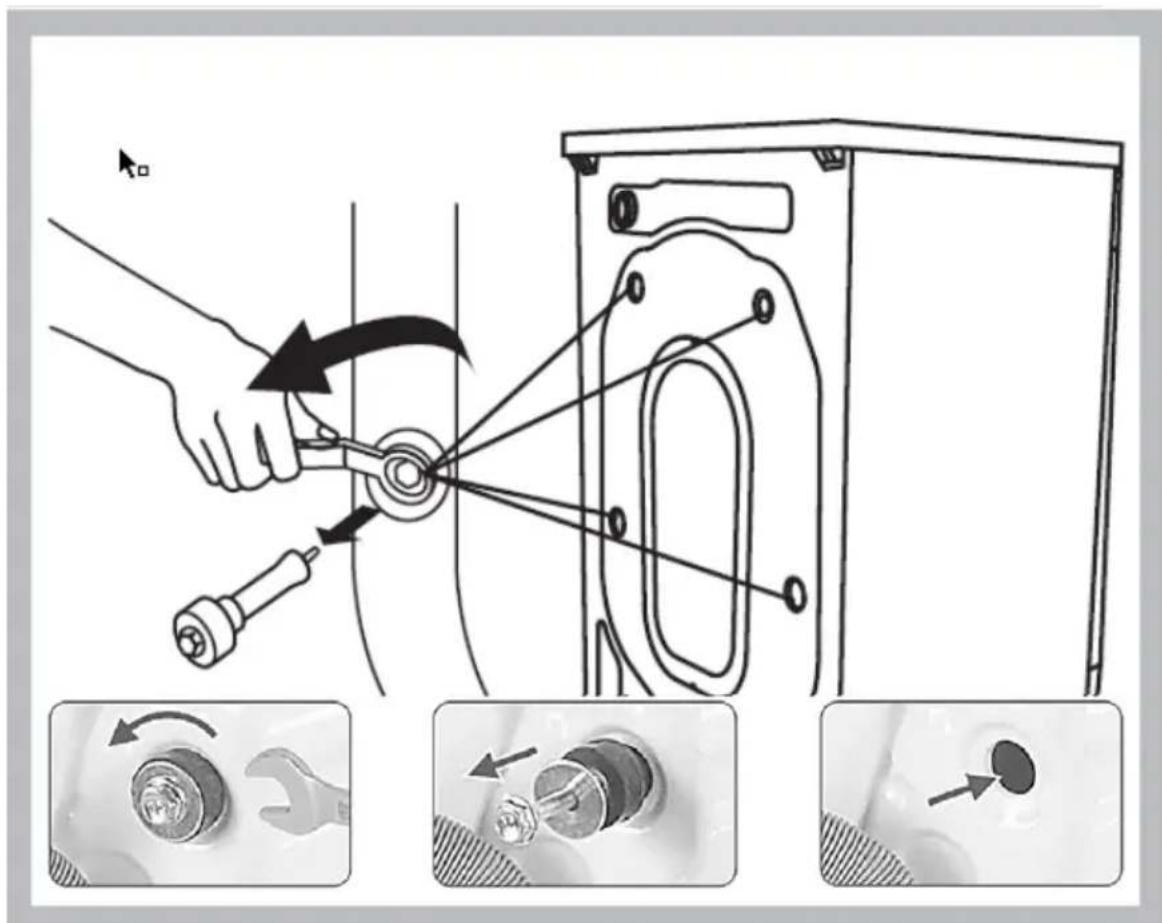

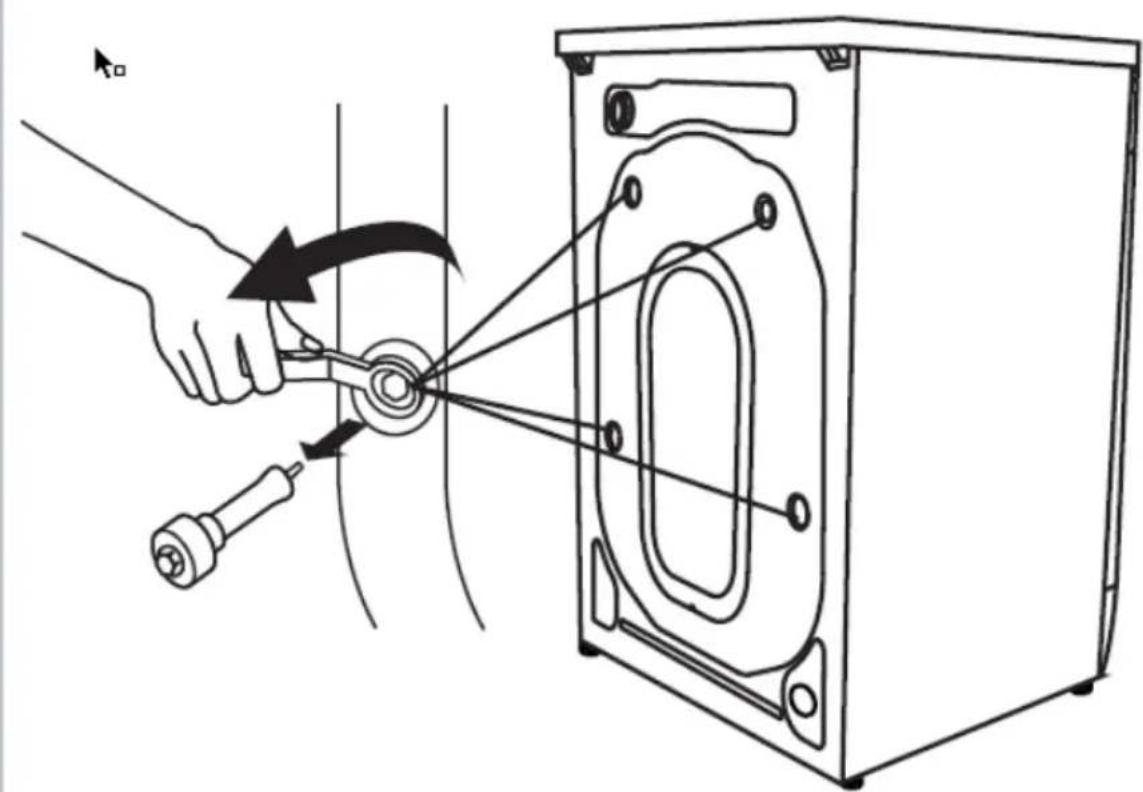

• Prije početka uporabe obavezno treba ukloniti transportne vijke smještene sa stražnje strane!
• Ako transportirate perilicu, potrebno je ponovno postaviti transportne vijke. Pohranite vijke na znano mjesto u slučaju ponovne uporabe.
  ■ Jamstvo ne pokriva oštećenja uzrokovana time što transportni vijci nisu bili uklonjeni!

Line drawing of a washing machine with front panel and side legs, showing no text or symbols

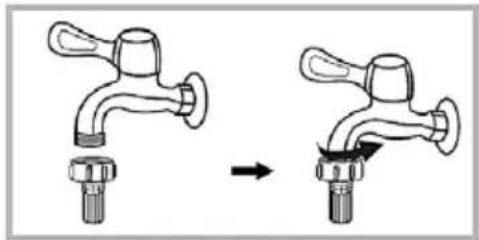

Diagram showing two faucet fittings before and after change, with no text or symbols present.

Bilješka

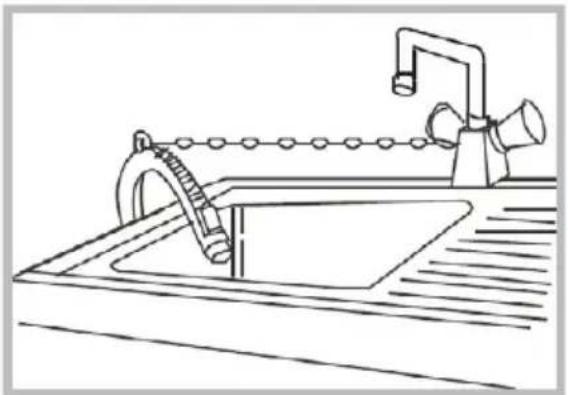

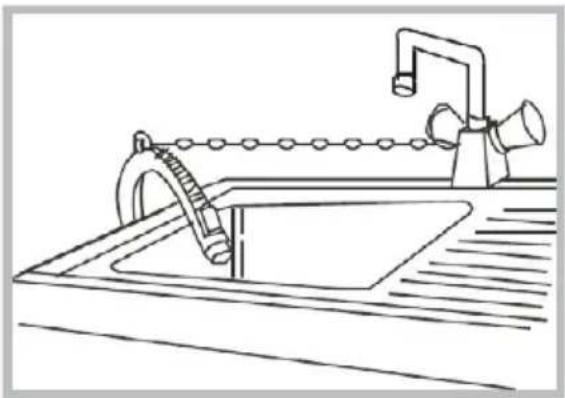

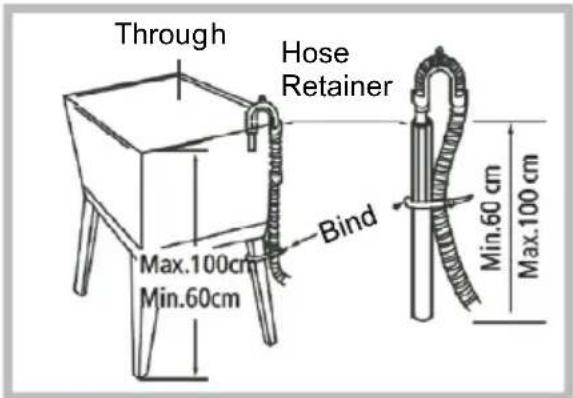

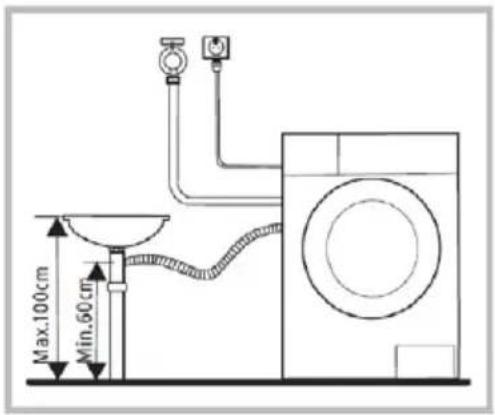

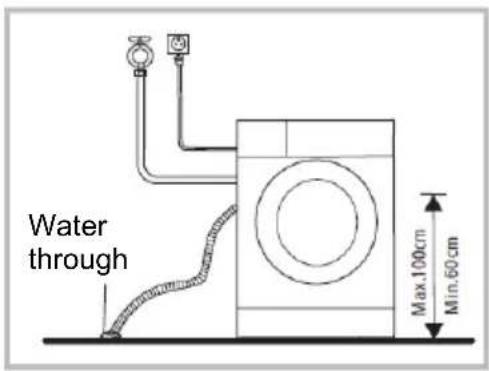

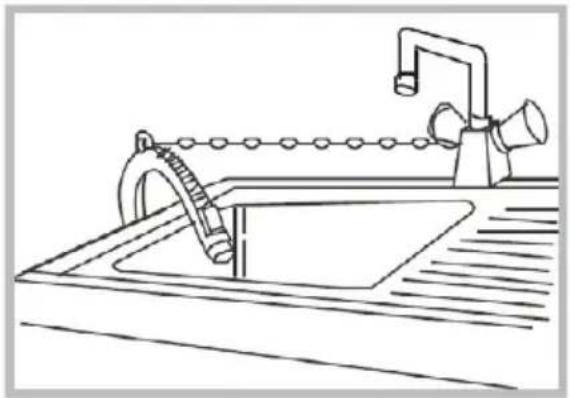

- Ako mašina u priboru ima podršku za odvodno crijevo, postavite kraj odvoda na sljedeći način.

Line drawing of a kitchen sink with faucet and chain, no text or symbols present

Upozorenje

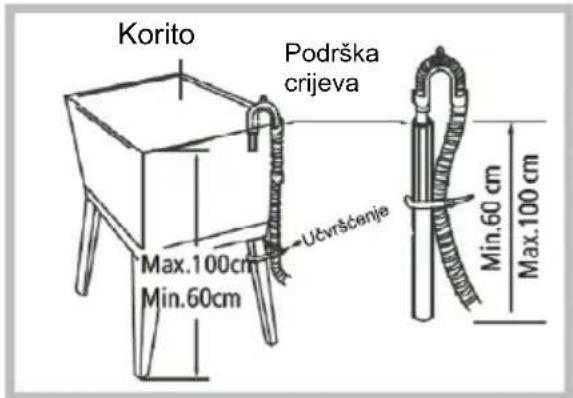

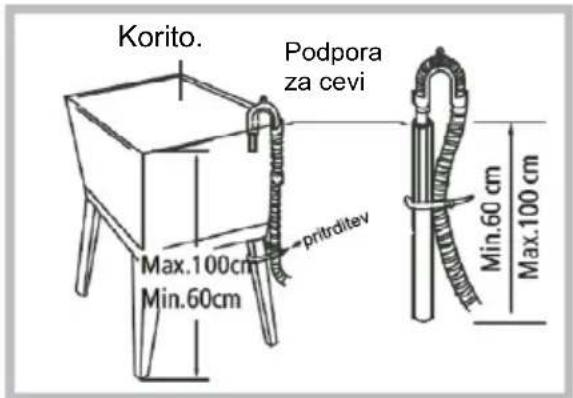

• Pri postavljanju odvodnog crijeva pravilno ga učvrstite.
• Ako je odvodno crijevo predugo, nemojte ga stavljati u perilicu rublja jer to može uzrokovati probleme u radu ili izbacivanju vode.

Čestitamo!

Vaša nova perilica sada je spremna za uporabu!

BRZI POČETAK

Oprez!

Hand holding a tool applying material to an electrical outlet (no text or symbols visible)

Line drawing of a faucet with a handle and valve (no text or symbols)

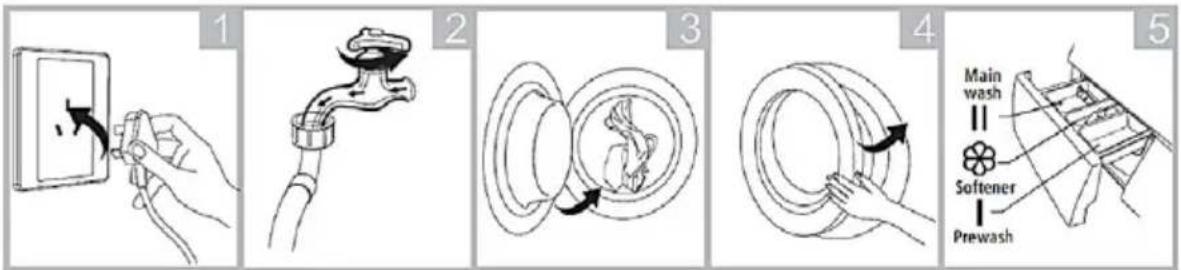

Otvorite slavinu dovoda vode

Diagram of a mechanical or biological assembly with concentric rings and a central component, no visible text or symbols

Napunite rublje

Hand holding a coiled rope with an arrow indicating rotation (no text or symbols)

Zatvorite vrata

Dodajte deterdžent

Bilješka

- Ako ste odabrali funkciju pretpranja, deterdžent treba dodati u „odjeljak I“ (za pretpranje) i „odjeljak II“ (glavno pranje) (za perilice koje posjeduju ovu funkciju).

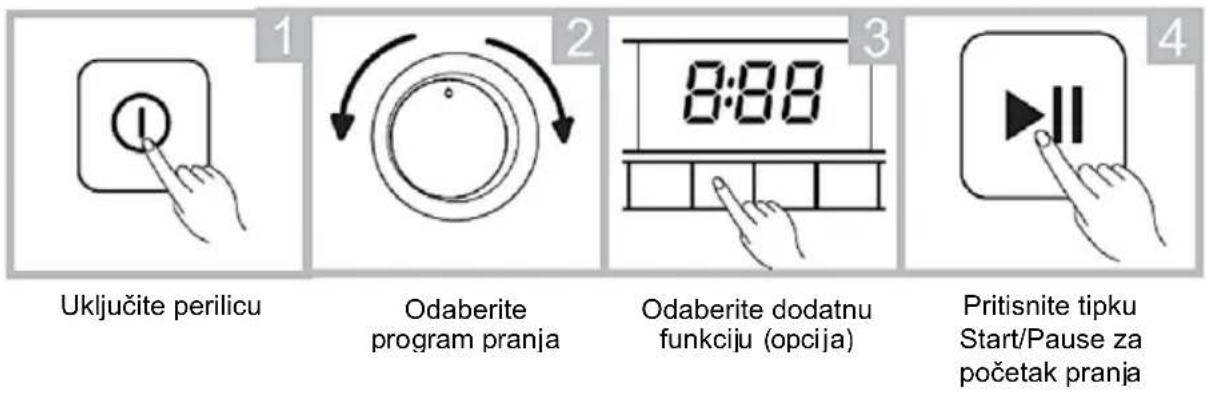

2. Pranje

Bilješka

• Korak 3 je opcionalan i može se preskočiti.
• Crteži su informativni, vaš proizvod može se neznatno razlikovati, ali funkcionalnost ostaje ista

3. Nakon pranja

Kad je program pranja završen, perilica će se oglasiti kratkim zvučnim signalom i na LED zaslonu biti će prikazana poruka "End".

PRIJE SVAKOG PRANJA i SUŠENJA

Simple line drawing of a sweater with a tag and abstract pattern (no text or symbols)

Simple line drawing of a shirt with buttons and a hand gesture, no text or symbols present

Odstranite sve strane predmete iz džepova

Two handbags with circular designs, one upright and one closed, shown in line drawing style (no text or symbols)

Simple line drawing of a bag with a patterned design (no text or symbols)

Psotavite manje komade odječe u vreču za pranje.

Line drawing of a patterned shirt with two sleeves and a collar (no text or symbols)

Simple line drawing of a box with an arrow indicating rotation or movement (no text or symbols)

Oprez!

- Deterdžent treba staviti u odjeljak "I".samo ako ste odabrali program pranja s funkcijom Predpranja.

Program	I II		Program	I II
Quick 15' (Brzo 15')		● ○	Cotton (Pamuk)		● ○
20°C		● ○	Synthetic (Sintetika)		● ○
Sport Wear (Sportka odjeća)		● ○	Mix (Šareno rublje)		● ○
Jeans (Traperice)		● ○	Wash & Dry (Pranje i Sušenje)		● ○
Wool (Vuna)		● ○	Dry Only (Samo Sušenje)
ECO 40-60		● ○	Rinse & Spin (Ispiranje i Centrifuga)		○
Intensive (Intenzivno)		● ○	Spin Only (Samo centrifuga)
1 Hour W/D (1 sat Pranje/Sušenje)		● ○

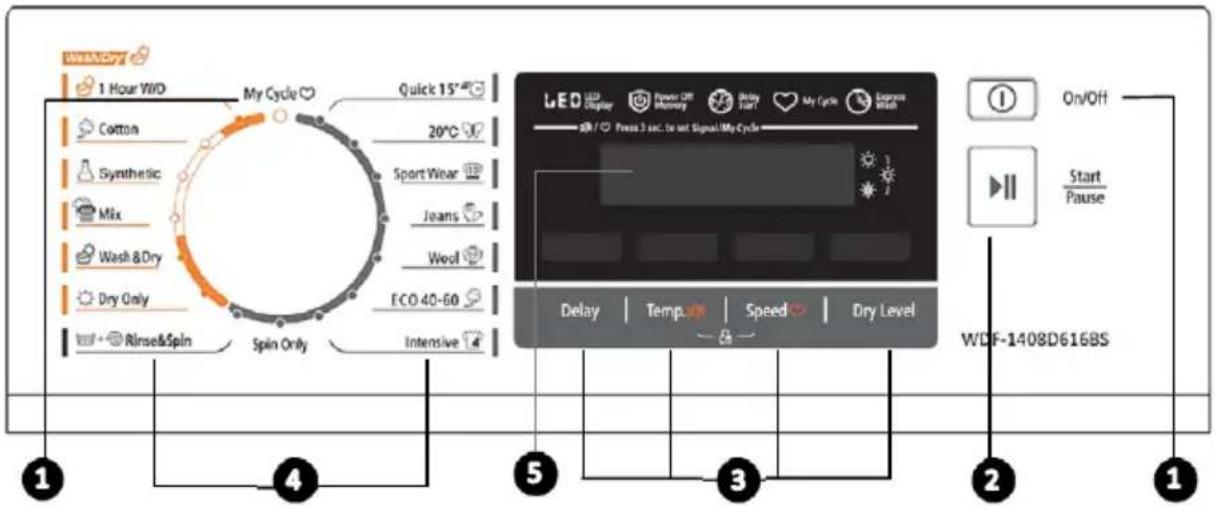

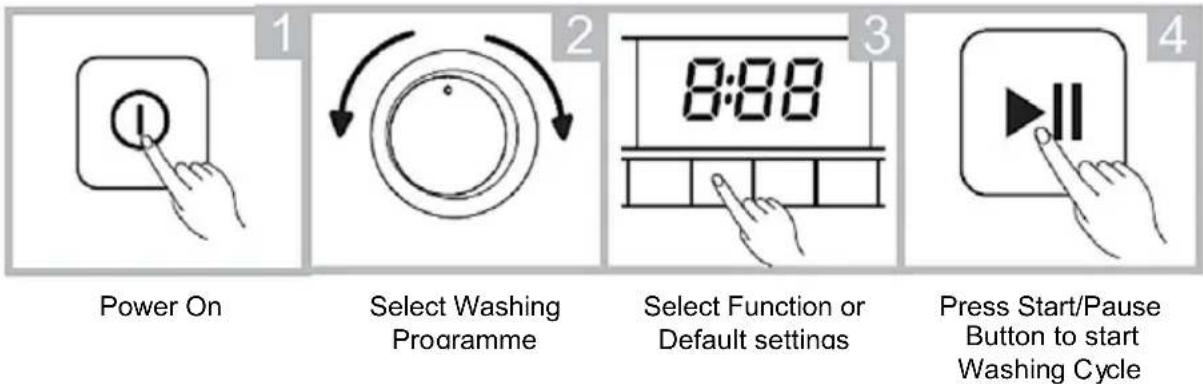

1. ON/ OFF (UKLJUČENO/ISKLJUČENO)

Program	Punjenje Pranje / Sušenje(kg)	Postavljena Temp. (C)	Vrijeme trajanja (h)
Quick 15' (Brzo 15')	2,0 Hladno	0:15
20°C	4,0 20	1:01
Sport Wear (Sportska odjeća)	4,0 20	0:45
Jeans (Traperice)	8,0 30	1:35
Wool (Vuna)	2,0 40	1:07
ECO 40-60	8,0	-	3:35
Intensive (Intenzivno)	8,0 40	3:48
1 Hour W/D (1 sat Pranje/Sušenje)	1,0 / 1,0	Hladno 0:58
Cotton (Pamuk)	8,0 / 6,0	40	3:39
Synthetic (Sinetetika)	4,0 / 4,0	40	3:18
Mix (Šareno rublje)	8,0 / 6,0	40	1:20
Wash & Dry (Pranje i Sušenje)	6,0 / 6,0	40	5:04
Dry Only (Samo Sušenje)	- / 6,0	-	4:14
Rinse & Spin (Ispiranje i Centrifuga)	8,0	-	0:20
Spin Only (Samo Centrifuga)	8,0	-	0:12

Program	Normalni kapacitet (kg)	Postavka temperature	Vrijeme trajanja h:min	Potrošnja energije kWh/ciklus	Potrošnja vode L/ciklus	Najviša temperatura vode.°C ^1	Preostala vlaga u % / brzina centrifuge okretaja ^2
Eco 40-60 ^3	8.0 -	3:38 0.871 64,0 3	8 53% / 1400
	4.0 -	2:48 0.530 46,3 3	8 53% / 1400
	2.0 -	2:48 0.205 33,4 2	1 53% / 1400
20°C 4.0 20	1:01 0.183 44	20 65% / 1000
Cotton (60°C) Pamuk (60°C)	8.0 60 3:44	1.498 70 60	55% / 1400
Mix Šareno	8.0 40 1:20	0.754 71 40	65% / 1000
Quick 15' Brzo 15'	2.0 Cold 0:15	0.030 31	Cold 75% / 800

Intensive Intenzivno	8.0 40 3:48 1.013 71 40 70% / 800
Wash and Dry (Pranje i Sušenje)	6.0 40 9:30 4.400 108,4 39 3% / 1400
	3.0 - 6:40 2.400 63,5 27 3% / 1400

Napomena

- Parametri u ovoj tablici su samo za referencu korisnika. Stvarni parametri pranja mogu se razlikovati od parametara u gore prikazanoj tablici, ovisno o stvarnim uvjetima (temperatura vode, težina rublja i temperatura okoline).

• Gore navedeni podaci su samo za referencu, a podaci se mogu mijenjati zbog različitih stvarnih uvjeta uporabe.
• Podaci dani za programe koji nisu programi ECO 40-60 i Wash & Dry (Pranje i Sušenje) samo su indikativni.
• Samo za države van EU:

Uredba (EU) br. 1061/2010, Razred energetske učinkovitosti je: A

Program energetskog ispitivanja: Intenzivno / Samo Sušenje, Brzina: Najveća brzina; Temperatura 60°C,

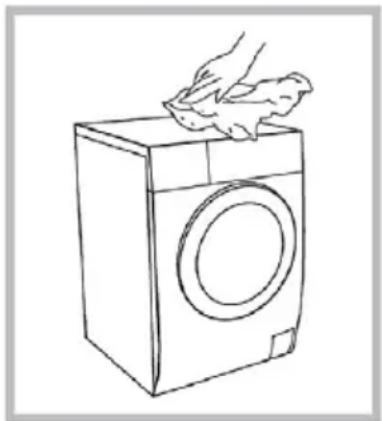

Line drawing of a hand cleaning a washing machine with a cloth (no text or symbols)

električne izolacije i ostalih dijelova. Koristite lagano navlaženu krpu, a zatim suhu krpu za čišćenje prednje kontrolne ploče.

Bilješka

- Za čišćenje nemojte koristiti kiseline, razređivače i druga nagrizajuća otapala poput alkohola i nagrizajućih kemijskih proizvoda.

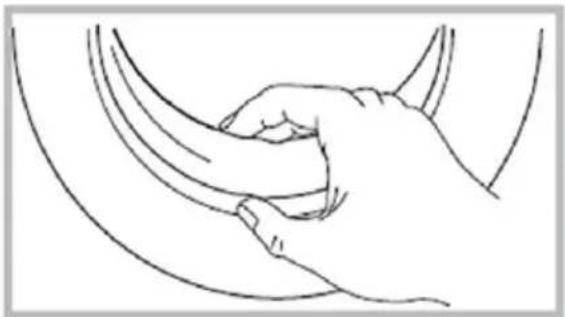

Čišćenje bubnja

Line drawing of a hand holding a curved object, possibly a tool or device (no text or symbols present)

Diagram of a faucet with rotating arrows indicating flow or movement (no text or symbols)

Line drawing of a hand holding a microphone with a tool extending from it (no text or symbols)

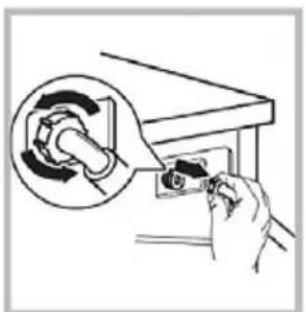

Čišćenje filtera na ulazu u perilicu:

Hand holding a small mechanical component with a magnified inset showing rotational arrows (no text or symbols)

Simple line drawing of a hand holding a tool near a table with a magnified inset showing the tool (no text or symbols)

Bilješka

• Flter možete očistiti odvojeno, da ga odvojite s priključka, operete i vratite na priključak;
• Ponov o priključite crijevo, otvorite ulaznu slavinu i provjerite da li postoji curenje.

Čišćenje ladice za deterdžent:

1. Pritisnite plastični dio u odjeljku za omekšivač, označen strelicom na donjem crtežu.
2. Podignite ladicu prema gore i izvadite ladicu. Temeljito operite sve pretince ladice vodom, uključujući i plastični umetak omekšivača.
3. Vratite umetak omekšivača i gurnite ladicu na svoje mjesto.

Technical line drawing of a mechanical device with a cylindrical component inserted (no text or symbols)

Pritisnite tipku za oslobađanje ladice za deterđent

Line drawing of a mechanical device with a lever and internal compartments (no text or symbols)

Očistite ladicu tekućom vodom

Line drawing of a hand inserting a small object into a container (no text or symbols)

Technical line drawing of a mechanical component with internal channels and a central shaft (no text or symbols)

Vratite ladicu u odjeljak perilice

Napomena

- Za čišćenje nemojte koristiti kiseline, razređivače i druga nagrizajuća otapala poput alkohola i nagrizajućih kemijskih proizvoda.

Simple line drawing of a mechanical component with a circular feature and an arrow indicating rotation (no text or symbols)

Otvorite poklopac s donje prednje strane

Hand holding a button with an arrow indicating rotation around a screen (no text or symbols)

Izvadite filter okrečući ga obrnuto od kazaljke na satu.

Otklonite prljavštinu ili strane predmete.

Technical line drawing of a mechanical assembly with rotating components (no text or symbols)

Vratite filter na mjesto i zatvorite poklopac.

Upozorenje

■ Budite pažljivi jer voda u perilici može biti vrela!
- Pričekajte da se voda unutar perilice ohladi.
- Prije čišćenja odspojite perilicu s napajanja kako biste izbjegli rizik od strujnog udara.
- Filter odvodne pumpe može filtrirati sitne strane tvari iz pranja, ali veći predmeti mogu se zaglaviti u filteru i blokirati pumpu ili odvod vode.
- Povremeno očistite filter kako bi perilica mogla nesmetano funkcionirati.

Oprez!

WDF-1408D616BS

SR BiH CG

Korisničko uputstvo

Upozorenje!

■ Pre početka upotrebe obavezno treba ukloniti transportne šrafove smeštene sa zadnje strane!
- Garancija ne pokriva oštećenja uzrokovana time što transportni šrafovi nisu bili uklonjeni!

Close-up of a mechanical component with a wrench and circular dial, no visible text or symbols

Close-up of a mechanical switch or knob with a black arrow pointing to the knob area (no visible text or symbols)

Close-up of a textured surface with a dark circular object and an arrow pointing to it, partially overlaid by a striped pattern (no text or symbols)

Upozorenje!

- Pre početka upotrebe, obavezno pročitajte deo „Instalacija“ unutar ovog uputstva!

Sadržaj

■ Sigurnosna upozorenja 3
Instalacija

Opis uređaja 11

Instalacija 12

Korišćenje

Brzi početak 17

Pre svakog pranja 18

Fioka za Deterdžent 19

Kontrolna tabla 22

Programi pranja 25

Dodatne funkcije 27

Čišćenje i održavanje 30
■ Uklanjanje problema 34
■ Tehničke specifikacije 36
Odlaganje istrošenog uređaja, EU Izjava o saobaznosti 37
■ Informacioni list 37

UPOZORENJE: Molimo pažljivo pročitajte uputstva za upotrebu pre nego krenete koristiti uređaj! Držite uputstva za upotrebu pri ruci za eventualnu potrebu.

Three-panel line drawing showing dental implants, a magnifying glass, and an open book (no text or symbols)

Poklopci otvora za transportne vijke
Crevo dovoda hladne vode
Upute za uporabu s Izjavom o saobraznosti i garancijom

INSTALACIJA

Mesto instalacije

Upozorenje

• Stabilnost mašine je vrlo važna kako bi se sprečilo pomeranje i klizanje mašine!
• Pazite da proizvod ne stoji ili ne prignječuje kabl napajanja!

Simple line drawing of a box with a diagonal X mark and circular cutouts, no text or symbols present.

Raspakivanje mašine

Upozorenje

• Ambalažni materijal (npr. folije, plastične kese, stiropor) može da bude opasan za decu.
  ■ Postoji opasnost od gušenja! Svu ambalažu odložite dalje od dece

Diagram showing a 3D box with an upward arrow and a magnified inset of a ship's hull (no text or symbols)

1. Izvadite kartonsku kutiju i ambalažu od stiropora.
2. Podignite veš mašinu i uklonite donji deo stiropor pakovanja. Obratite pažnju da ste zajedno s donjim stiroporom uklonili i izbočinu od stiropora.
3. Uklonite traku kojom je pričvršćen kabl napajanja i odvodno crevo.
4. Uklonite crevo dovoda vode i ostali pribor iz bubnja.

Line drawing of a washing machine with front panel and side legs, showing internal components (no text or symbols)

Diagram of a mechanical component with rotating shaft and base, no text or symbols present

Povišenje

Simple line drawing of a mechanical component with three blades and a rotating arrow (no text or symbols)

Sniženje

Diagram showing two hands operating a faucet with a screw base, before and after change (no text or symbols)

2. Priključite drugi kraj creva na ulazni ventil na zadnjoj strani mašine i čvrsto ga zategnite u smeru kazaljke na satu.

Crevo odvoda vode

Upozorenje

■ Nemojte savijati ili izravnavati odvodno crevo.
- Ispravno postavite odvodno crevo, u protivnom može doći do izlivanja vode iz veš mašine

Postoje dva načina postavljanja kraja odvodnog creva:

Beleška

- Uglovna podrška za crevo nije uključena uz uređaj. Po potrebi, držač potražite u vašoj lokalnoj prodavnici.

Line drawing of a kitchen sink with faucet and chain (no text or symbols)

Upozorenje

• Pri postavljanju odvodnog creva pravilno ga učvrstite.
• Ako je odvodno crevo predugo, nemojte ga stavljati veš mašinu jer to može uzrokovati probleme u radu ili izbacivanju vode.

Čestitamo!

Hand holding a compass needle pointing to a wall-mounted switch (no text or symbols visible)

Line drawing of a faucet with a handle and valve (no text or symbols)

Otvorite slavinu dovoda vode

Simple line drawing of a mechanical component with a circular housing and a central component, no text or symbols present.

Napunite veš

Hand holding a coiled rope with an arrow indicating rotation (no text or symbols)

Zatvorite vrata

Dodajte deterdžent

Beleška

Simple line drawing of a sweater with a tag and a small icon (no text or symbols)

Proverite deklaracije na odeći

Simple line drawing of a shirt with buttons and a handle, no text or symbols present

Odstranite sve strane predmete iz džepova

Two handbags with circular designs, one wrapped in a blanket and the other with a bow (no text or symbols)

Simple line drawing of a bag with a grid pattern (no text or symbols)

Line drawing of a traditional East Asian garment with patterned sleeves and shoulder detail (no text or symbols)

Okrenite osetljvi veš na suprotnu stranu

Simple line drawing of two stacked objects with arrows indicating rotation (no text or symbols)

Odvojite različite vrste veša za odvojeno pranje

FIOKA ZA DETERĐENT

| Prostor za deterdžent - Predpranje
II Prostor za deterdžent - Glavno pranje
Prostor za omekšivač
Pritisnite dugme za izvlačenje fijoke

Oprez!

- Deterdžent treba staviti u odeljak " I ".samo ako ste odabrali program pranja s funkcijom Pretpranja.

Program	I II		Program	I II
Quick 15' (Brzo 15')		● ○	Cotton (Pamuk)		● ○
20°C		● ○	Synthetic (Sintetika)		● ○
Sport Wear (Sportka odeća)		● ○	Mix (Šareni veš)		● ○
Jeans (Farmerke)		● ○	Wash & Dry (Pranje i Sušenje)		● ○
Wool (Vuna)		● ○	Dry Only (Samo Sušenje)
ECO 40-60		● ○	Rinse & Spin (Ispiranje i Centrifuga)		○
Intensive (Intenzivno)		● ○	Spin Only (Samo centrifuga)
1 Hour W/D (1 sat Pranje/Sušenje)		● ○

1. OFF (ISKLJUČENO)

Mašina je isključena.

2. Pause / Start (Pauza/Početak pranja)

Pritisnite taster za početak pranja ili pauziranje pranja.

3. Tasteri dodatnih funkcija

Moguć je odabir dodatne funkcije uz standardno odabrani program pranja i kao potvrda dodatne funkcije svetleće oznaka.

4. Dugme za odabir programa pranja

Odabir programa pranja zavisno o vrsti veša.

5. Ekran

Na ekranu biće prikazane informacije vezane uz program pranja, postavke, procenjeno preostalo vreme trajanja programa, opcije i poruke o stanju vaše mašine.

Odaberite Program pranja

Postavite vreme odgode

Start

Line drawing of a washing machine with a hand cleaning it (no text or symbols)

Beleška

- Za čišćenje nemojte koristiti kiseline, razređivače i druga nagrizajuća sredstva poput alkohola i nagrizajućih hemijskih proizvoda.

Čišćenje bubnja

Usled povećane vlage i kontakta metalnih delova na odeći i bubnja, može da se dogodi da se na bubnju pojave mrlje od rđe. Preporuka je da se takve mrlje odmah očiste deterdžentom koji nije na bazi hlora. Nikada nemojte koristiti abrativna sredstva i krpe koje imaju abrazivna svojstva, npr. čeličnu vunu.

Beleška

Line drawing of a hand holding a curved object, possibly a tool or device (no text or symbols present)

Proverite utore na bravi i ukoliko pronađete strane predmete kao što su novčići, dugmad i drugi predmeti obavezno ih odstranite.

Diagram of a faucet with rotating arrows indicating clockwise motion (no text or symbols)

Line drawing of a hand holding a microphone with a tool extending from it (no text or symbols)

Čišćenje filtera na ulazu u mašinu:

1. Zatvorite ulaznu slavinu
2. Uklonite (odvijte) priključno crevo sa priključka na mašini.
3. Očistite filter na priključku.
4. Ponovo priključite crevo na mašinu, otvorite slavinu i proverite da li kojim slučajem postoji curenje.

Hand holding a small mechanical component with a magnified inset showing rotational motion (no text or symbols)

Diagram of a hand holding a tool inside a circular component, with no visible text or symbols

Beleška

• Flter možete očistiti odvojeno, da ga odvojite s priključka, operete i vratite na priključak;
• Ponovo priključite crevo, otvorite ulaznu slavinu i proverite da li postoji curenje.

Čišćenje fioke za deterdžent:

1. Pritisnite plastični deo u odeljku za omekšivač, označen strelicom na donjem crtežu.
2. Podignite fioku prema gore i izvadite fioku. Temeljno operite sve delove fioke vodom, uključujući i plastični umetak omekšivača.
3. Vratite umetak omekšivača i gurnite fioku na svoje mesto.

Technical line drawing of a mechanical device with no visible text or symbols

Izvucite fioku deterdženta tako da pritisnete na taster

Line drawing of a mechanical device with a lever and handle (no text or symbols)

Očistite fioku tečnom vodom

Hand holding a tool interacting with a container (no text or symbols visible)

Očistite unutrašnjost odeljka fioke

Technical line drawing of a mechanical component with no visible text or symbols

Vratite fioku u odeljak mašine

Beleška

- Za čišćenje nemojte koristiti kiseline, razređivače i druga nagrizajuća sredstva poput alkohola i nagrizajućih hemijskih proizvoda.

Technical line drawing of a mechanical component with a circular feature and rotation arrow (no text or symbols)

Otvorite poklopac s donje prednje strane

Illustration of a hand pressing a button on a device (no text or symbols visible)

Uklonite filter okretanjem u smeru suprotnom od kazaljke na satu.

Otklonite prljavštinu ili strane predmete.

Technical line drawing of a mechanical assembly with rotating components (no text or symbols)

Vratite filter na mesto i zatvorite poklopac.

Upozorenje

• Budite pažljivi jer voda u mašini može biti vrela!
• Pričekajte da se voda unutar mašine ohladi.
• Pre čišćenja isključite mašinu s napajanja kako biste izbegli rizik od strujnog udara.
• Filter odvodne pumpe može filtrirati sitne strane stvari iz pranja, ali veći predmeti mogu se zaglaviti u filteru i blokirati pumpu ili odvod vode.
• Povremeno očistite filter kako bi mašina mogla nesmetano da funkcioniše.

Upozorenje!

• Postavite plitku posudu ispod otvora filtera pumpe, jer kad uklonite Filter moguće je da će početi da curi voda koja se nalazi u instalaciji mašine.
• Kad se mašina koristi i zavisno o odabranom programu, u pumpi može biti vruća voda. Nikada nemojte uklanjajti poklopac pumpe tokom ciklusa pranja! Pričekajte da mašina završi ciklus i da je prazna. Prilikom vraćanja Filtera, osigurajte da je filter čvrsto pritegnut, kako bi sprečili curenje vode.

Transport

WDF-1408D616BS

SLO

Navodila za uporabo

Opozorilo!

Close-up of a mechanical component with a wrench and circular dial, no visible text or symbols

Close-up of a mechanical component with a curved arrow pointing to a circular feature, no visible text or symbols.

Close-up of a textured surface with a dark oval and an arrow pointing to it, no visible text or symbols.

Opozorilo!

- Pred uporabo obvezno preberite razdelek »Namestitev« v tem priročniku!

Vsebina

Four-panel image showing icons: four circular objects, a magnifying glass, and an open book (no text or symbols)

Simple line drawing of a box with a cross mark on the front face, no text or symbols present.

Razpakiranje stroja

Opozorilo

Illustration of a computer with an open box and a magnified inset showing a 3D model (no text or symbols)

Line drawing of a washing machine with front panel and side legs, showing internal components (no text or symbols)

Diagram of a mechanical component with rotating arrows indicating motion (no text or symbols)

Povišanje

Diagram of a mechanical component with rotating blades and a central shaft (no text or symbols)

Znižanje

Priključek cevi za dovod vode

Opozorilo

• Da preprečite uhajanje vode ali poškodbe na cevi, sledite navodilom v tem poglavju.
• Ne upogibajte, ne lomite, ne spreminjajte ali odstranjujte cevi za dovod vode
• Pri modelih z dvema priključkoma priključite eno cev na pipo za toplo vodo, drugo pa na priključek za hladno vodo. Tako se bo poraba energije na nekaterih programih pranja zmanjšala.

Diagram showing two hands performing a valve adjustment, one with a bolt and the other with a handle (no text or symbols)

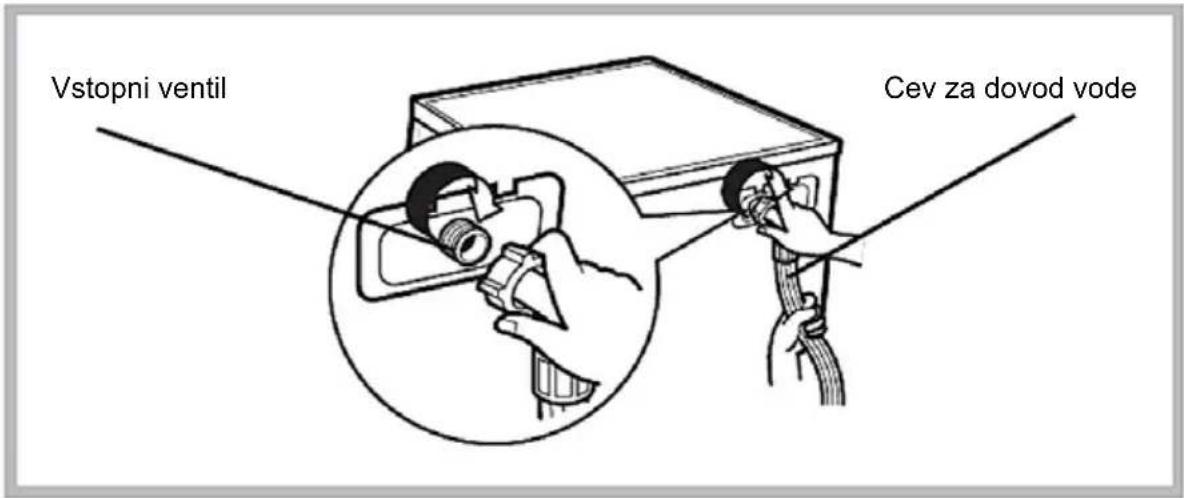

2. Drugi konec cevi pritrdite na dovodni ventil na zadnji strani stroja in ga zategnite v smeri urinega kazalca.

Line drawing of a kitchen sink with faucet and faucet (no text or symbols)

Opozorilo

Hand holding a compass needle pointing to a wall-mounted switch (no text or symbols visible)

Priklopite napajanje.

Line drawing of a faucet with a handle and spout (no text or symbols)

Simple line drawing of a mechanical component with a central part and an arrow indicating rotation (no text or symbols)

Napolnite perilo

Hand holding a coiled roller with an arrow indicating rotation (no text or symbols)

Zaprite vrata. Dodajte detergent

Opomba

Simple line drawing of a sweater with a tag and a small bag beside it (no text or symbols)

Preverite nalepke na oblačilih

Simple line drawing of a shirt with buttons and a handle, no text or symbols present

Two handbags with circular designs, one wrapped in a blanket and the other with a belt (no text or symbols)

Zavežite trakove, zaprite zadrge

Simple line drawing of a bag with a grid pattern and handle (no text or symbols)

Line drawing of a traditional-style jacket with patterned fabric and shoulder detail (no text or symbols)

Simple line drawing of two folded paper sheets in baskets, one moving and the other moving, with no text or symbols present.

! Pozor!

1. ON/ OFF (IZKLJUČENO)

Line drawing of a hand washing a washing machine with a cloth (no text or symbols)

Opomba

Line drawing of a hand gripping a curved object (no text or symbols)

Diagram of a valve mechanism with rotating arrows indicating flow direction (no text or symbols)

Line drawing of a hand holding a microchip with a probe inserted (no text or symbols)

Hand holding a small mechanical component with a magnified inset showing rotational motion (no text or symbols)

Illustration of a hand holding a tool inside a circular inset showing a meshed object (no text or symbols)

Opomba

Technical line drawing of a mechanical device with a component inserted (no text or symbols)

S pritiskom na točko A izvlecite predal za detergent

Line drawing of a mechanical device with a lever and handle (no text or symbols)

Očistite predal s tekočo vodo

Line drawing of a hand inserting a small object into a container (no text or symbols)

Očistite notranjost oddelka predala

Technical line drawing of a mechanical component with internal channels and a handle (no text or symbols)

Vrnite predal v oddelek pralnega stroja

Opomba

Simple line drawing of a mechanical component with a circular feature and rotation arrow (no text or symbols)

Illustration of a hand pressing a button on a device with a circular arrow indicating rotation (no text or symbols)

Odstranite filter tako, da ga zavrtite v smeri urinega kazalca

Odstranite umazanijo ali tujke.

Diagram of a mechanical assembly with rotating components and directional arrows (no text or labels)

Ponovno namestite filter in zaprite pokrov

Opozorilo

WDF-1408D616BS

EN

Instruction manual

Warning!

■ Before the first usage, you must remove the transport bolts from the backside!
- The warranty does not cover damages caused by not removing the transport bolts!

Close-up of a mechanical component with a wrench and circular knob, no visible text or symbols

Close-up of a mechanical component with a curved arrow indicating direction (no visible text or symbols)

Close-up of a circular object with an arrow pointing to it, partially overlaid on a textured surface (no text or symbols visible)

Warning!

1. Before the first usage, please carefully read „Installation“ chapter in this Manual!

Contents

■ Safety warnings 3
Installation

Product Description 11

Installation 12

Operations

Quick Start 17

Before Each Washing 18

Detergent Dispenser 19

Control Panel 22

Programmes 23

Extra Functions 27

■ Cleaning and Care 30
■ Trouble Shooting 34
■ Technical Specifications 36
■ Disposal, EU Declaration of Conformity 37
Product Fiche info 37

WARNING: Please read Instruction manual carefully before you start to use appliance! Keep the operation instructions handy for later use.

If the appliance is sold or passed on then ensure that the new owner always receives these operation instructions.

CAUTION: HOT SURFACE!

CAUTION: RISK OF FIRE!

SAFETY WARNINGS

Meaning of safety warning symbols

The symbols indicate matters to pay attention to, and these behaviors shall be specially noted. Due precautions are needed or serious or moderate injuries or damages of the product will be caused.

The symbols indicate prohibited matters, and those behaviors are forbidden. Non-compliance with the instructions may result in product damages or endanger the personal safety of users.

The symbols indicate matters that must be followed, and those behaviors must be strictly executed in line with the operation requirements. Non-compliance with the instructions may result in product damages or endanger the personal safety of users.

WARNING!

The Electric Shock!

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• The new hose-sets supplied with the appliance are to be used and that old hose-sets should not be reused.
• Before any maintenance the device, unplug the appliance from the mains.
• Always unplug the machine and turn off the water supply after use. The max. inlet water pressure, in pascals. The min. inlet water pressure, in pascals.

• To ensure your safety, power plug must be inserted into an earthed three-pole socket. Check carefully and make sure that your socket is properly and reliably earthed.

• Make sure that the water and electrical devices must be connected by a qualified technician in accordance with the manufacturer's instructions and local safety regulations.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Risk to Children!

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children shall not play with appliance.
• Children should be supervised that they do not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• Do not climb or sit on the appliance.
• Children of less than 3 years should be kept away unless continuously supervised.
• Animals and children may climb into the machine. Check the machine before every operation.
• Glass door may be very hot during the operation. Keep kids and pets far away from the machine during the operation
• Do not place machine into very wet rooms as well as in the rooms with explosive or caustic gas.
• Remove all packages and transport bolts before using the appliance. Otherwise, serious damage may result.
• Plug must be accessible after installation.

Risk of Explosion!

• Do not wash or dry articles that have been cleaned in, washed in, soaked in, or dabbed with combustible or explosive substances (such as wax, oil, paint, gasoline, degreasers, dry-cleaning solvents, kerosene, etc.) This may result in fire or explosion.
• Before hand thoroughly rinse items of washing by hand.

CAUTION!

Installing the Product!

• All washing and additional substances are to be kept in a safe place out of the reach of children.
• Do not install the machine on a carpet floor. The obstruction of the openings by a carpet can damage the machine.
• Keep the appliance clear from heating sources and direct sunlight to avoid plastic and rubber parts to corrode.
• Do not use the appliance in humid environments or rooms containing explosive or caustic gas. In case of water leakage or water splashes let the appliance dry in the open air.
• The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the washing machine.
• Do not operate the machine in rooms with a temperature of below 5°C. This can cause damages to parts of it. If it is unavoidable, make sure to drain the water completely from the appliance after every use (see „Maintenance - Cleaning of drain pump filter“) to avoid damages caused by frost.

• Never use flammable sprays or substances in the immediate proximity of the appliance.

• This washing machine is for indoor use only.

• It isn't intended to be built-in using.
• The washing machine with single inlet valve only can be connected to the cold water supply. Plug must be accessible after installation.
• The power cord should be firmly contacted with the socket or else fires might be caused. Do not pull or band power cable.
• Remove all packages and transport bolts before using the appliance. Otherwise, serious damage may result.

Operating the appliance!

• Before washing the clothes at first time, the product shall be operated in one round of the whole procedures without the clothes inside.
• Before using the washing machine, the product shall be calibrated.
• Do not put any excessively heavy objects on the appliance, like water containers or heating devices.
• The new hose-sets supplied with the appliance are to be used and that old hose-sets should not be reused.
• Max. Inlet water pressure 1 MPa. Min. inlet water pressure 0.05 MPa.
• Flammable and explosive or toxic solvents are forbidden.
• Gasoline and alcohol etc. shall not be used as detergents.
• Please only select the detergents suitable for machine washing, especially for drum.
• Make sure that all pockets are emptied. Sharp and rigid items such as coin, brooch, nail, screw or stone etc. may cause serious damages to this machine.

• Please check whether the water inside the drum has been drained before opening its door. please do not open the door if there is any water visible.

• Be careful of burning when the product drains hot washing water.

• Never refill the water by hand during washing.
• After the program is completed, please wait for two minutes to open the door.

The unit must stand upright and in the plane of the floor. Use two adjustable feet to adjust the device.

IMPORTANT: Machine must be placed that all feet firmly lying on the ground.

Please leave enough space to ensure easible door opening and drawer removal.

Electrical connection

• Make sure the supply cable is not trapped by the machine, it can get damaged.
• Connect the product to a grounded outlet protected by a fuse complying with the values in the “Technical specifications” table.
• The grounding installation has to be made by a qualified electrician.
• Ensure that the machine is installed in accordance with the local regulations.
• Water and electrical connections must be carried out by a qualified technician in accordance with the manufacturer's instructions and local safety regulations.

Warning!

• Don't use multiple plugs or extension cords.
• The appliance must not have an external switching device such as a timer or connected to a circuit that is regularly switched on and off.
• Do not pull the plug out of the mains outlet if there is flammable gas around.
  ■ Never pull out power plug with wet hands.
  ■ Always pull at the plug, not at the cable.
  ■ Always unplug the appliance if it is not being used.

Water connections

• Check the connections of the water inlet tubes, the water tap and the outlet hose for possible problems due to changes of water pressure. If the connections loosen or leak close the water tap and get it repaired. Do not use the appliance before the pipes and hoses are installed properly by qualified persons.
• Glass door may become very hot during the operation. Keep children and pets far away from the machine while it is operating.
• The water inlet and outlet hoses have to be safely installed and remain undamaged. Otherwise, water leakage can occur.
• Do not remove the drain pump filter while there is still water in the appliance. Big quantities of water can leak out, and there is a risk of scalding due to hot water.

Operation and Maintenance

Warning!

• Never stop the washer dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat can dissipate.

• The washer dryer is not to be used if industrial chemicals have been used for cleaning. Risk of explosion.

• Never use any flammable, explosive or toxic solvents. Do not use gasoline and alcohol etc. as detergents. Only select detergents that are suitable for machine washing.

• Make sure that all pockets are emptied. Sharp and rigid items such as coins, brooches, nails, screws, stones etc. may cause serious damages to this machine.
• Remove all objects from pockets such as lighters and matches before use the appliance.
• Thoroughly rinse items that have been washed by hand.
• Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, wax and wax removers should be washed in hot with an extra amount of detergent before being dried in the appliance.
• Items containing foam rubber (latex foam), shower caps, water proof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the machine.
• Fabric softeners or similar products should be used as recommended in their instructions.
• Never try to open the door forcefully. The door will unlock shortly after the end of a cycle.
• Please do not close the door with excessive force. If it is

found difficult to close the door, please check if the clothes are properly inserted and distributed.

• Always unplug the appliance and close the water tap before cleaning and maintenance and after each use.
• Never pour water over the appliance for cleaning purpose. Risk of electric shock!

- Repairs shall only be carried out by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. The producer will not be responsible for damages caused by the intervention of not authorized persons.

Intended use

The product is intended only for home use and for textiles in household amounts suitable for machine washing and drying. This appliance is for indoor use only and not intended for built in use.

Only use according to these instructions. The appliance is not intended for commercial use.

Any other use is considered as improper use. The producer is not responsible for any damage or injuries that may result of it.

This appliance is intended to be used in household and similar applications such as:

• Staff kitchen areas in shops, offices and other working environments;
• Farm houses;
• By clients in hotels, motels and other residential type environments;
• Bed and breakfast type environments;
• Areas for communal use in blocks of flats or in launderettes.

PRODUCT DESCRIPTION

Warning

■ Stability is important to prevent the product from wandering!
■ Make sure that the product should not stand on the power cord

Note

■ The product line chart is for reference only, please refer to real product as standard

Accessories!

Three-panel image showing icons: four circular objects, a magnifying glass, and an open book (no text or symbols)

Transport hole plugs
Supply hose cold water
User manual

INSTALLATION

Installation area

Warning

■ Stability is important to prevent the product from wandering!
■ Make sure that the product should not stand on the power cord

Before installing the machine, the location characterized As follows shall be selected:

1. Rigid, dry, and level surface
2. Avoid direct sunlight
3. Sufficient ventilation
4. Room temperature is above 0^ C
5. Keep far away from the heat resources such as coal or gas.

Simple line drawing of a box with a cross mark on the front page, no text or symbols present.

Unpacking the Washing Machine

Warning

• Packaging material (e.g. Films, Styrofoam) can be dangerous for children.
• There is a risk of suffocation! Keep all packaging well away from children

Diagram showing a box being inserted into a base with an inset magnified view of a ship's hull (no text or symbols present)

1. Remove the cardboard box and styrofoam packing.
2. Lift the washing machine and remove the base packing. Make sure the small triangle foam is removed with the bottom one together. If not, lay the unit down with side surface, then remove the small foam from the unit bottom manually.
3. Remove the tape securing the power supply cord and drain hose.
4. Remove the inlet hose from the drum.

Remove transport bolts

Warning

• You must remove the transport bolts from the backside before using the product.
• You’ll need the transport bolts again if you move the product, so make sure you keep them in a safe place.
• The warranty does not cover damages caused by not removing the transport bolts!

Please take the following steps to remove the bolts:

1. Loosen 4 bolts with spanner and then remove them.
2. Stop the holes with transport hole plugs.
3. Keep the transport bolts properly for future use.

Levelling the washing machine

Warning

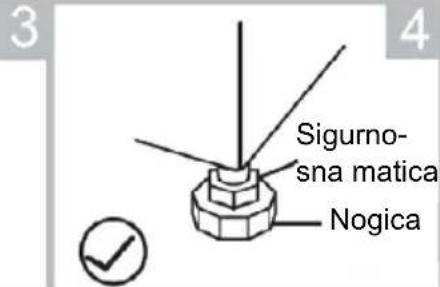

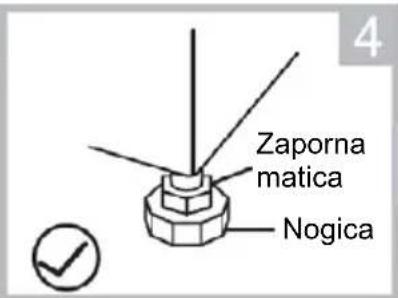

■ The lock nuts on all four feet must be screwed tightly against the housing

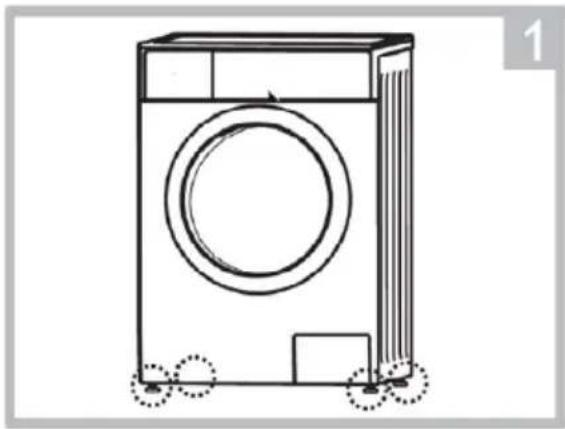

1. Check if the legs are closely attached to the cabinet. If not, please turn them to their original positions tighten the nuts.
2. Loosen the lock nut turn the feet until it closely contacts with the floor.
3. Adjust the legs and lock them with a spanner, make sure the machine is steady

Line drawing of a washing machine with front panel and side legs, showing internal components (no text or symbols)

Diagram of a mechanical component with three blades and a base, labeled 'r' (no text or symbols beyond label)

Connect Water Supply Hose

Warning

• To prevent leakage or water damage, follow the instructions in this chapter
• Do not kink, crush, modify or sever water inlet hose

• For the model equips hot valve, connect it to hot water tap with hot water supply hose. Energy consumption will decrease automatically for some program.

• Connection water tap on inlet hose.

Tap with threads and inlet hose

Diagram showing two hands performing a valve adjustment, one before and after (no text or symbols)

1. Connect the other end of inlet pipe to the inlet valve at the backside of product and fasten the pipe tightly clockwise.

Drain Hose

Warning

■ Do not kink or protract the drain hose.
- Position drain hose properly, otherwise damage might result of water leakage.

There are two ways to place the end of drain hose:

1. Put it into the water trough

2. Connect it to the branch drain pipe of the trough.

The trough height: Min 60cm Max: 100cm

Note

• If the machine has drain hose support, please install it like the following.
• Hose retainer is not part of the accessories. If you need it, please ask in your local shop.

Line drawing of a kitchen sink with faucet and chain (no text or symbols)

Warning

• When installing drain hose, fix it properly with a rope.
• If drain hose is too long, do not force it into washing machine as it will cause abnormal noses.

Congratulations!

Now, your new machine is ready for the first use!

QUICK START

Caution!

Before washing, please make sure it's installed properly.
■ Before washing at first time, the washing machine shall be operated in one round of the whole procedures without clothes in as follows

Calibration!

It's recommended to calibrate the washing machine, so that provide the best performance.
- The appliance is able to detect the amount of laundry loaded. This function is optimizing the product performance by minimizing energy and water consumption, saving you money and time. For this reason it's recommended to calibrate the appliance for best use.
1- Remove all accessories from the drum and close the door;
2- Insert the mains plug to the socket;
3- Switch on the washing machine and press "Delay" and "Speed" simultaneously for 10 seconds until "t19" is displayed;
4- Press [ ▷ || ] to start the appliance and wait till “ * * * * ” is displayed.

1. Before Washing

Plug in Open water tap
Load Loundries
Close the door Add Detergent

Note

- Detergent need to be added in „compartment I“ (Prewash) and „compartment II) (main wash), after selecting pre-washing (for machines with this function).

2. Washing

Note

■ If default is selected, step 3 can be skipped.

3. After Washing

When the washing program is complete, you will hear "Buzzer" beep or on the Display will appear message: "End".

BEFORE EACH WASHING or DRYING

• The working condition of the washer should be (0-40)°C. If used under 0°C, the inlet valve and draining system may be damaged. If the machine is placed under condition of 0°C or less, then it should be transferred to normal ambient temperature to ensure the water supply hose and drain hose are not frozen before use.
• Please check the labels and the explanation of using detergent before wash. Use non-foaming or less-foaming detergent suitable for machine washing properly.

Warning

• When washing a single clothes, it may easily cause great eccentricity and give alarm due to great unbalance. Therefore it is suggested to add one or two more clothes to be washed together so that draining can be done smoothly.
• Do not wash or dry articles that have been cleaned in, washed in, soaked in, or dabbed with combustible or explosive substances like wax, oil, paint, gasoline, alcohol, kerosene, and other flammable materials.

Simple line drawing of a sweater with a tag and a small triangular symbol (no text or labels)

Check the Label

Illustration of a shirt with cutouts and accessories, no text or symbols present

Take all the items out of the pockets

Two handbags with circular designs, one wrapped in a blanket and the other in a patterned case (no text or symbols)

Knot the long strips, zip or button

Simple line drawing of a bag with a grid pattern (no text or symbols)

Put small clothes into the pillow slip.

Line drawing of a traditional East Asian-style garment with long sleeves and patterned fabric (no text or symbols)

Turn easy-pilling and long-pile fabric inside out

Simple line drawing of a box with two boxes and an arrow indicating rotation or folding (no text or symbols)

Separate clothes with different textures

DETERGENT DRAWER

Pre wash detergent compartment

11 Main wash detergent compartment

Softener compartment

Release button to pull out the dispenser

Caution!

- Detergent only need to be added in "case I "after selecting pre-washing for machines with this function.

Programme	I II		Programme	I II
Quick 15'		● ○	Cotton		● ○
20°C		● ○	Synthetic		● ○
Sport Wear		● ○	Mix		● ○
Jeans		● ○	Wash & Dry		● ○
Wool		● ○	Dry Only
ECO 40-60		● ○	Rinse & Spin		○
Intensive		● ○	Spin Only
1 Hour W/D		● ○

● Fill Detergent compartment Fill Detergent compartment as Option

Detergent Recommendation

Recommended washing detergent	Wash cycles	Washing temp.	Type of laundry and textile
Heavy-duty detergent with bleaching agents and optical brighteners	Cotton ECO 40-60 Mix Intensive	20 / 30 40 / 60	White laundry made from boil-proof cotton or linen
Colour detergent without bleaching agent and optical brighteners	Cotton ECO 40-60 Mix Intensive 20°C	Cold / 20 / 30 / 40	Coloured laundry made from cotton or linen
Color or mild detergent without optical brighteners	20°C Synthetic	Cold / 20 / 30 / 40	Coloured laundry made from easy care fibres or synthetic materials
Mild washing detergent	Synthetic 20 / 30	Delicate textiles, silk, viscose
Special wool detergent	Wool 20 / 30 Wool

Note

• As for the agglomerated or ropy detergent or additive, before they are poured into the detergent box, it is suggested to use some water for dilution to prevent the inlet of detergent box from being blocked and overflowing while filling water.
• Please choose suitable type of detergent for the various washing temperature to get the best washing performance with less water and energy consumption.
• To achieve the best cleaning result a proper detergent dosing is important.
• Use a reduced detergent amount if the drum is not filled completely.
  ■ Always adjust the amount of detergent to the water hardness, if your tap water is soft, use less detergent.
• Dose according to how dirty your laundry is, less dirty clothes require less detergent.
• Highly concentrated (compact detergent) requires particularly accurate dosing.

Following symptoms are a sign of detergent overdosing:

• heavy foam formation
• poor washing and rinsing result

Following symptoms are a sign of detergent underdosing:

• laundry turns grey
• built-up of limescale deposits on the drum, the heating element and/or the laundry

CONTROL PANEL

1. ON/OFF

Washing machine is switched On/ Off.

2. Start/ Pause

Press the button to Start or Pause the washing cycle.

3. Option

This allows you to select an additional function and will light when selected.

4. Washing Programmes

Select available washing programmes according to the laundry type.

5. Display

The display shows the settings, estimated time remaining, options, and status messages for your washing machine.

The display will remain on through the cycle

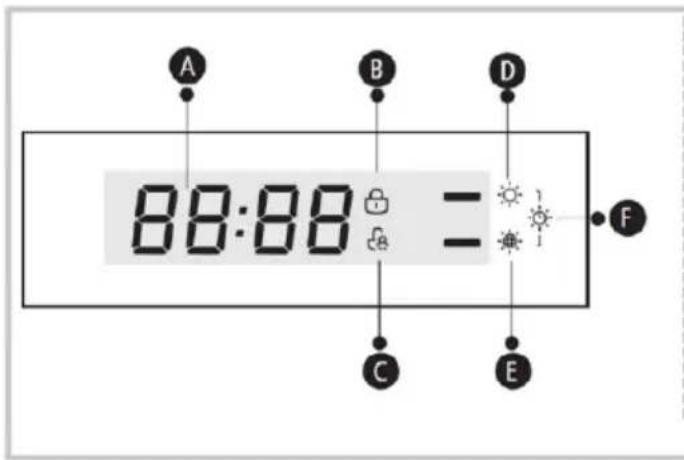

A Display
Wash Time	Delay Time
125	2h
Speed	Error
100	E30
End	Temp.
End	30
B Door Lock	C Child Lock
D Normal Dry	E Extra Dry
F Time Dry

PROGRAMMES

Program	Punjenje Pranje / Sušenje(kg)	Postavljena Temp. (C)	Vrijeme trajanja (h)
Quick 15'	2,0 Cold 0:15
20°C	4,0 20 1:01
Sport Wear	4,0 20 0:45
Jeans	8,0 30 1:35
Wool	2,0 40 1:07
ECO 40-60	8,0 - 3:35
Intensive	8,0 40 3:48
1 Hour W/D	1,0 / 1,0 Cold	0:58
Cotton	8,0 / 6,0 40 3	39
Synthetic	4,0 / 4,0 40 3	18
Mix	8,0 / 6,0 40 1	20
Wash & Dry	6,0 / 6,0 40 5	04
Dry Only	- / 6,0 - 4:14
Rinse & Spin	8,0 - 0:20
Spin Only	8,0 - 0:12

Cycle	Normal capacity (kg)	Temperature settings	Cycle Duration h:min	Energy Consumption in kWh/cycle	Water consumption L/cycle	Highest water temp. ^^1	Residual moisture in % / Spin speed in rpm ^2
Eco 40-60 ^3	8.0 -	3:38 0.871	64,0 38	53%	/ 1400
	4.0 -	2:48 0.530	46,3 38	53%	/ 1400
	2.0 -	2:48 0.205	33,4 21	53%	/ 1400
20°C	4.0	20	1:01	0.183	44	20	65% / 1000
Cotton (60°C)	8.0	60	3:44	1.498	70	60	55% / 1400
Mix	8.0	40	1:20	0.754	71	40	65% / 1000
Quick 15'	2.0	Cold	0:15	0.030	31	Cold	75% / 800
Intensive	8.0	40	3:48	1.013	71	40	70% / 800
Wash and Dry ^4	6.0	40	9:30	4.400	108,4	39	3% / 1400
	3.0 -	6:40 2.400	63,5 27	3%	/ 1400

Note

- The parameters in this table are only for user's reference. The real washing parameters may be different with the parameters in above mentioned table, depends about real conditions (temperature of the water, laundry weight and environment temperature).

- The above data is for reference only, and the data may change due to different actual use conditions.

- The valves given for programmes other than the ECO 40-60 programme and the Wash and Dry cycle are indicative only.

• For NON EU Countries:

Concerning to Regulation(EU) No 1061/2010, The EU energy efficiency class is: A Energy test program: Intensive / Dry Only, Speed: The highest speed; Temperature 60°C, Other as the default.

Dry Only: dry level: ✅-Extra dry, Other as the default.

Dry load for 8.0Kg machine: 6.0Kg.

- For EU Countries:

Concerning to EN 60456:2016/prA2019 With (EU)2019/2014, (EU)2019/2023, The EU energy efficiency class is: E

Energy test program: ECO 40-60. Other as the default.

Half load for 8.0Kg machine:4.0Kg.

Quarter load for 8.0Kg machine:2.0Kg.

Energy test program: Wash & Dry, Dry Level: ✉-, Extra Dry, Other as the default.

Dry load for 8,0kg machine: 6,0kg.

Half load for 8.0kg machine: 3.0kg.

1) The highest temperature reached by the laundry in the wash cycle for at least 5 minutes.
2) Residual moisture after the wash cycle in water content percent and the spin speed at which this was achieved.
3) The ECO 40-60 programme is able to clean normally soiled cotton laundry declared to be washable at 40^ C or 60^ C, together in the same cycle. This programme is used to assess the compliance with the regulation (EU) 2019/2023.
4) The Wash and Dry programme, dry level setting “☐” Extra Dry is able to clean normally soiled cotton laundry declared to be washable at 40^ C or 60^ C, together in the same cycle, and to dry it in such a way that it can be immediately stored in a cupboard. This programme is used to assess the compliance with the regulation (EU) 2019/2023.

The most efficient programmes in terms of energy consumption are generally those that perform at lower temperatures and longer duration.

Loading the household washing machine up to the capacity indicated for the respective programmes will contribute to energy and water savings.

Noise and remaining moisture content are influenced by the spinning speed: the higher the spinning speed in the spinning phase, the higher the noise and the lower the remaining moisture content.

Caution!

- If there is any break in the power supply while the machine is operating, a special memory stores the selected programme and when the power is restarted, the program will continue.

Programmes

You can choose a different Washing programmes, depends about the laundry type, level of dirty and laundry weight.

Programmes Description
Cotton	Hard-wearing textiles, heat-resistant textiles made of cotton or linen.
Synthetic	Wash synthetic articles, for example: shirts, coats, blending. While washing the knitting textiles, detergent quantity shall be reduced due to its loose string construction and easily forming bubbles.
Mix	Mixed load consisting of textiles made of cotton and synthetics.
20°C	20°C default program, can choose cold water. Washing brightly colored clothes, it can protect the colors better.
ECO 40-60	Default 40°C, not selectable,suitabale for laundry washing at about 40°C-60°C
Quick 15'	Extra short programme approx. suitable for lightly soiled washing as a small amounts of laundry.
1Hour W/D	For small synthetic clothes or shirts, load limitation is 1 kg (about 4 shirts).
Wool	Hand or machine-washable wool or rich wool textiles. Especially gentle wash programme to prevent shrinkage, longer programme pauses (textiles rest in wash liquor).

Rinse & Spin Extra Rinse with Spin.

Spin Only Extra Spin.
Intensive	To increase the washing effects, washing time is increased.
Dry Only	Select it to dry clothes, the temperature is different .The drying time according to the load

Wash & Dry The standard energy program.

Sport Wear Washing the active Sport wear

Jeans Special program for Jeans

Options

Cycle	Default Temp. (°C)	Default spin speed in rpm	Additional functions
Quick 15'	Cold 800		➊
20°C	20 1000		➊
Sport Wear	20 800		➊
Jeans	30 800		➊
Wool	40 600		➊
ECO 40-60	- 1400		➊
Intensive	40 800		➊
Spin Only	- 1000		➊
Rinse & Spin	- 1000		➊
Dry Only	- 1400		➊,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁
Wash & Dry	40 1400		➊,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁
Mix	40 1000		➊,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁
Synthetic	40 1200		➊,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁	➊,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁
Cotton	40 1400		➊,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁,➁	➊,➁,➁,➁
1 Hour W/D	Cold 1400		➊,➁,➁

Note

• For the maximum spin speed, program time, and other details of the ECO 40-60 program, please refer to the content on the Product Fiche page by scanning QR Code at the last page of this user manual or scanning QR code on Energy label or visit www.vivax.com..
• The table shows which cycle offers which options for adjustment.

EXTRA FUNCTIONS

Optional Functions

Delay: Delay

Set the Delay function:

1. Select a programme
2. Press the Delay button to choose the time (the delaying time is 0-24h.)
3. Press [Start/Pause] to commence the delay operation

Choose the programme Set Delay Time Start

Cancel the Delay function:

Press the [Delay] button until the display show 0H.

It should be pressed before starting the programme.

If the programme already started, press the [On/Off] button to reset the programme.

Caution!

- If there is any break in the power supply while the machine is operating, a special memory stores the selected programme and when the power is restarted, the program will continue.

My Cycle:

To memory the frequently used programme.

After choosing the programme and setting the options, press [Speed] 3 sec.

before start to wash. The default setting course is Cotton

Temp: Temp

Press the button to adjust the water temperature (Cold, 20°C, 30°C, 40°C, 60°C, 90°C)

Spinning: Speed

Press the button to change the spin speed.

1400 rpm model: 0-400-600-800-1000-1200-1400

Dry:

Press the Dry button continuously to choose the dry level: Normal Dry(Normal) / Extra Dry and Time Dry.

Normal Dry(Normal): Clothes are ready for storing in the wardrobe.

Extra Dry: Clothes are dried complete to be worn directly.

Timed Dry: Drying your laundry and finish within given time.

(30/60/90/120/180 minutes)

Note!

- Drying hints.

■ Thoroughly spin you laundry before drying.
- To ensure proper drying, please sort your laundry according to the fabric type and drying temperature

- Clothes not suitable for drying

■ Particularly delicate items such as synthetic curtains, woolen and silk, clothes with metal inserts, nylon stockings, bulky clothes, such as anoraks, bedcovers, quilts, sleeping bags and duvets must not be dried.
- Clothes padded with foam-rubber or materials similar to foam-rubber must not be machine dried.
- Fabrics containing residues of setting lotions or hair sprays, nail solvents or similar solutions must not be machine dried in order to avoid the formation of harmful vapours.

Child Lock:

To avoid mis operation by children:

The child lock indicator switches on

Press [Temp.] and [Speed] 3 sec. till buzzer beep.

Caution!

• When the Child Lock is activated, the display will alternately show "CL" and the remaining time.
• Pressing any other button will cause the Child Lock indicator to flash for 3 sec.
• When the program ends, “CL” and “END” will alternate on the display for 10 sec, then the indicator will flash for 3 sec.
• Press the two button [Temp.] and [Speed] 3sec. can deactivate the Child Lock.
• The Child Lock will lock all the buttons except ON/OFF button.
• Cut off the power supply, the Lock function will be released.
• The child lock will remain effective when the power is resumed for some mode.
• Please deactivate the Child Lock before selecting a new program!

Buzzer Mute:

Mute the buzzer:

Choose the Programme

Press the [Temp.] button for 3sec. the buzzer is mute.

To turn on the buzzer function, press the button again for 3 seconds. The setting will be kept until the next reset.

Caution!

■ After Muting the buzzer function, the sounds will not be activated any more.

CLEANING AND CARE

Warning

■ Before your maintenance starts, please unplug the machine and close the tap.

Cleaning the Cabinet

Proper maintenance on the washing machine can extend its working life. The surface can be cleaned with diluted nonabrasive neutral detergents when necessary.

If there is any water overflow, use the wet cloth to wipe it off immediately.

Do not use hard brushes, clean steel balls, wire brushes, abrasives, such as toothpastes, organic solvents (such as alcohol, acetone, banana oil, etc.), boiling water, acid or alkaline items.

Do not rinse with water so as not to affect the electrical insulation properties. Please use a dry cloth

Line drawing of a hand cleaning a washing machine with a cloth (no text or symbols)

when cleaning lighting lamps, temperature control knob and electrical components.

Note

- Formic acid and its diluted solvents or equivalent are forbidden, such as alcohol, solvents or chemical products etc.

Cleaning the Drum

The rusts left inside the drum by the metal articles shall be removed immediately with chlorine-free detergents. Never use steel wool.

Note

- Don't put laundry in the washing machine during the drum cleaning.

Cleaning the Door Gasket and Glass

Wipe the glass and seal after each wash to remove lint and stains. If lint builds up it can cause leaks.

Remove any coins, buttons and other objects from the seal after each wash.

Line drawing of a hand holding a curved object, possibly a tool or device (no text or symbols present)

Cleaning the Inlet Water Filter

Note

- Inlet filter must be cleaned if inlet water flow decrease.

Washing the filter in the tap:

1. Close the tap.
2. Remove the water supply hose from the tap.
3. Clean the filter.
4. Reconnect the water supply hose.

Diagram of a valve mechanism with rotating arrows indicating flow direction (no text or symbols)

Line drawing of a hand holding a microphone with a tool inserted (no text or symbols)

Washing the filter in washing machine:

1. Close the tap.
2. Screw off the inlet pipe from the backside of the machine.
3. Pull out the filter with long nose pliers and reinstall it back after being washed.
4. Use the brush to clean the filter

Hand holding a small electronic component with a magnified inset showing rotational arrows (no text or symbols)

Illustration of a hand using a tool to insert a component into a device (no text or symbols visible)

1. Reconnect, turn on the tap and check that no water leakage.

Note

If the brush is not clean, you can pull out the filter washed separately;
■ Reconnect, turn on the tap.

Cleaning the Detergent Drawer:

1. Press down the arrow location on softener cover inside the drawer.
2. Lift the clip up and take out softener cover and wash all grooves with water.
3. Restore the softener cover and push the drawer into position.

Technical line drawing of a mechanical device with an arrow pointing to a component (no text or symbols present)

Press the release and pull out the dispenser drawer

Line drawing of a mechanical device with a lever and handle (no text or symbols)

Clean the dispenser drawer under water

Line drawing of a hand using a tool to clean or store contents inside a container (no text or symbols)

Clean inside the recess with an old toothbrush

Technical line drawing of a mechanical component with no visible text or symbols

Insert the dispenser drawer

Note

- Do not use alcohol, solvents or chemical products to clean the machine.

Cleaning the Drain Pump Filter:

Simple line drawing of a mechanical component with a circular feature and an arrow indicating rotation (no text or symbols)

Open the lower cover cap

Hand holding a circular object with rotational arrow, placed on a rectangular base (no text or symbols)

Open the filter by turning the counter clockwise

Remove extraneous matter

Technical line drawing of a mechanical assembly with rotating components (no text or symbols)

Close the lower cover cap

Warning

■ Be careful of the hot water!
- Allow water inside the machine to cool down.
■ Unplug the machine to avoid electrical shock before cleaning.
- Drain pump filter can filter the small foreign matters from the washing but bigger particles can stuck in the filter and block water drain.
- Clean the filter periodically every 6 months or if you find that filter is blocked, to ensure the normal operation of washing machine.

Caution!

• Please insert drain plate aligning to hole to collect drain water when you remove Fileter because water may leak after you remove the Filter cap;
• When the appliance is in use and depending on the programme selected there can be hot water in the pump. Never remove the pump cover during a wash cycle, always wait until the appliance has finished the cycle, and is empty. When replacing the cover, ensure it is securely re-tightened.

Transport

• Before Transport:
• Bolts shall be reinstalled to the machine by a specialized person
• Accumulated water shall be drained out of the machine
• This appliance is heavy. Transport with care. Never hold any protruding part of the machine when lifting. The machine door cannot be used as a handle.
• The appliance should be transported in its original box and partitions or as wrapped with a soft cloth.
• Incorrect packaging may cause damage to the outer surface of the appliance.
• Hold the unit around its sides or base when moving it. Under no circumstances should it be lifted by holding the edges of the top surface.
• Do not turn upside, horizontally place or vibrate the machine,

NOTE:

Any malfunction or damage caused during loading, unloading or transport after the delivery of product to the customer is not covered by the warranty.

Switching Off for Long Periods of Time

When the unit is not in use for a long period of time, disconnect machine from the mains supply, empty the drum, close the water tap.

Keep the door open to avoid the bad odor.

Do not store the machine in the room where temperature may be lower than 0^ C. The water freezing may damage parts of the machine.

TROUBLE SHOOTING

Note

- The following simple issues can be handled by the user. Please call the after-sale service department if the issues are not settled.

Description Reason	Solution
Washing machine cannot start up	·Door is not closed properly	·Restart after the door is closed ·Check if the clothes is stuck
Door can't be open	·This is normal. ·The safety protection mechanism is active. Please wait a few minutes.	·Wait that Program Cycle is finished. After washing program is finished, a few minutes later door will be unlocked. ·Disconnect the power, restart the product
Water leakage	·The connection between inlet pipe or outlet hose is not tight ·The Filter cap is not tight.	·Check and fasten water pipes and Drain Pump Filter cap. ·Clean up outlet hose and Drain Pump Filter.
Detergent residues in the box	·Detergent is dampened or agglomerated	·Clean and wipe the detergent box
Indicator or display does not light	·Disconnect the power PC board or harness has connection problem	·Check if the power is shut down and the power plug is connected correctly
Abnormal noise	·	·Check if the fixing (bolts) have been removed ·Check it's installed on a solid and level floor

Error Code description

In case of some malfunction, Button lights will flash.

To solve a problem, please refer on below table:

Display Reason	Solution
	Door is not closed properly	Restart after the door is closedCheck if the clothes is stuck
	Water inlet problem	Check if the water pressure is too lowStraighten the water pipeDeck if the inlet valve filter is blocked
	Water overflow in the drum	Check and fasten water pipes and Drain Pump Filter cap.Clean up outlet hose and Drain Pump Filter.
	Overtime water draining	Check if the drain hose is blocked.Drain Water Pump is blocked-Clean Drain Pump Filter
	Others	Please try again first, call up service line if there are still troubles

Note

■ After the check, activate the appliance.
- If the problem occurs again, please contact the authorized service.

TECHNICAL SPECIFICATIONS

Model: WDL-1408D616BS
Rated Voltage:	220-240V, 50Hz
Rated Current	10A
Rated power	1900W
Standard Water pressure	0,05-1Mpa
Washing / Drying Capacity	8,0 / 6,0kg
Dimension (WxDxH)	595*475*850 mm
Net weight	65 kg

CUSTOMER SERVICE

Spare part for your appliance are available for a minimum period of 10 years after placing the last unit of the model on the market.

In case of questions please contact our customer service at attached service network or your distributor: M SAN Grupa d.d., Buzinski prilaz 10, Zagreb, Croatia,

A following spare parts are available at distributor M SAN Grupa d.d. or MR Servis:

Door, Door hinge and seals, other seals, Door locking assembly and plastic peripherals such as Detergent Dispensers.

Warning!

Risk of electric shock

Never try repair an appliance which is defective of presumed to be defective.

You may put your own and future users' lives in danger. Only authorised specialists are allowed to carry out this repair work.

Improper repair will void the warranty and subsequent damages can't be recognised!

Disposal, EU Declaration of Conformity

Disposal of electrical and electronic equipment

To protect our environment and to recycle the raw materials used as completely as possible, the consumer is asked to return unserviceable equipment to the public collection system for electrical and electronic.

The symbol of the crossed indicates that this product must be returned to the collection point for electronic waste to feed it by recycling the best possible raw material recycling.

By ensuring this product you will prevent possible negative effects on the environment and human health, which could otherwise be caused due to improper disposal of that product. The recycling of materials from this product, you will help to preserve a healthy environment and natural resources.

For detailed information about the collection of EE products contact the dealer where you purchased the product.

This device is manufactured in accordance with the applicable European standards and in accordance with all applicable Directives and Regulations.

EU declaration of conformity can be downloaded from the following link: www.msan.hr/dokumentacijaartikala

Product information sheet (EU) 2019/2014)

Product Information sheet data entered into the EPREL database

For more info and Product Information sheet, please scan QR code or visit Vivax web site: www.vivax.com

JAMSTVENI LIST HR

VIVAX

MODEL UREĐAJA

SERIJSKI BROJ

DATUM PRODAJE

BROJ RAČUNA PRODAVATELJA

POTPIS I PEČAT PRODAVATELJA

POTPIS I PEČAT PRODAVATELJA

GARANCIJSKA IZJAVA

1. Ovom garancijom garantira proizvođač proizvoda, preko KIM TEC d.o.o., kao uvoznika i davatelja garancije u Bosni i Hercegovini besplatan popravak istog u skladu s važećim propisima i u skladu s uvjetima opisanim u ovom garantnom listu. Ovom garancijom garantiramo da će predmet ove garancije raditi bez greške uzrokovane eventualnom lošom izradom i lošim materijalom izrade. Svi eventualno nastali kvarovi biti će besplatno otklonjeni u ovlaštenom servisu u garantnom roku.

2. UVJETI GARANCIJE: Garantni rok počinje teći od dana kupnje proizvoda i traje:

60 MJESECI (5 godina)	HLADNJACI,VERTIKALNE I HORIZONTALNE ŠKRINJE
36 MJESECI (3 godine)	ŠTEDNJACI, PERILICE I SUŠILICE RUBLJA, PERILICESUĐA, KUHINJSKE NAPE, UGRADBENE PEĆNICE IPLOČE, GRIJALICE VODE

1. U slučaju kvara na proizvodu koji je predmet ove garancije, obavezujemo se da ćemo isti popraviti u najkraćem mogućem roku, a najkasnije u roku od 45 dana. Ako se proizvod ne može popraviti ili se ne popravi u roku od 45 dana, biti će zamijenjen novim.
2. Garancija se priznaje samo uz račun o kupnji, te uz ovaj garantni list koji mora biti ispravno popunjen odnosno mora sadržavati datum prodaje, pečat i potpis prodavatelja.
3. Davalac garancije osigurava servis i rezervne dijelove 7 godina od datuma kupnje.

GARANCIJA NE OBUHVAĆA:
