TFN-109225 - Fan Emerio - Free user manual and instructions

Product Type	Tower Fan
Brand	Emerio
Model	TFN-109225
Power Supply	220-240 V ~ 50/60 Hz
Power Consumption	45 W
Max Fan Flow Rate (F)	5.27 m³/min
Fan Power Input (P)	40.88 W
Service Value (SV)	0.13 (m³/min)/W
Standby Power Consumption	0.03 W
Fan Sound Power Level (LWA)	53.60 dB(A)
Maximum Air Velocity (c)	3.90 m/s
Speed Settings	3 (Low, Medium, High)
Timer	Yes, countdown timer (0-120 minutes)
Oscillation	Yes, with oscillation button
Assembly Required	Yes, base and body assembly with screws
Cleaning	Wipe with damp cloth; do not immerse in water
Safety Features	Overheating protection? (not specified); fan guards prevent finger insertion
Usage Environment	Household and similar indoor areas
Contact Information	BAYTRONIC HandelsgmbH, Harterfeldweg 4A-4481 Asten, Austria

Frequently Asked Questions - TFN-109225 Emerio

How do I assemble the Emerio TFN-109225 tower fan?

First, fasten the two parts of the base together by inserting the pillars into the opposite part and secure with the small screws. Place the power cord through the hole in the base. Then attach the four pillars on the bottom of the fan body into the screw holders on the base and secure firmly with the provided screws.

How do I operate the fan speed and timer?

Rotate the ON/OFF/TIMER switch to ON and press one of the speed control buttons: 1 (Low), 2 (Medium), or 3 (High). To set the timer, rotate the switch to the desired countdown time (in minutes) between 0 and 120; the fan will turn off after that time.

Can I use two speed buttons at the same time?

No. Press only one speed control button at a time. Pressing two or more simultaneously may cause permanent damage to the switch housing.

How do I start or stop oscillation?

Press the oscillation button on the control panel to start or stop the fan oscillating.

How should I clean the fan?

Always unplug the fan before cleaning. Wipe the plastic parts with a mild soap and a damp cloth or sponge. Never immerse the appliance in water. Dry carefully before use.

Is it safe to leave the fan unattended?

No. Do not leave the fan unattended while in use. Always unplug it when not in use. Also keep the appliance and cord out of reach of children under 8 years.

What should I do if the power cord is damaged?

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or a similarly qualified person to avoid hazard. Do not use the fan until repaired.

Can I use the fan outdoors?

No. The fan is intended for indoor household use only. Do not operate or store it in open air or damp areas to avoid electric shock.

What is the maximum airflow of this fan?

The maximum fan flow rate is 5.27 m³/min, with a maximum air velocity of 3.90 m/s. The fan sound power level is 53.60 dB(A).

How do I dispose of the fan at the end of its life?

Do not dispose of the fan with household waste. Follow local regulations for electronic waste recycling. Return it to a collection point or contact the retailer for environmentally safe recycling.

USER MANUAL TFN-109225 Emerio

White vertical shelf tower with grid pattern and control panel (no visible text or symbols)

Tower Fan (EN)

Tower-Ventilator (DE)

Ventilator v stolpastem ohišju (SI)

CE

Content – Inhalt – Vsebina

Instruction manual – English ...... - 2 -

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

2. Children shall not play with the appliance.

3. Cleaning and user maintenance shall not be made by children without supervision.

4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

5. This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environment; bed and breakfast type environments.

6. Incorrect operation and improper handling can lead to faults on the device and injuries to the user.

7. In the event of improper use or incorrect handling, no liability can be accepted for any damage that may occur.

8. Before you put the plug into the socket, please check that the type of current and mains voltage correspond to the instructions on the nameplate on the underside of the appliance.

9. Do not immerse the unit or mains plug in water or other liquids. There is danger to life due to electric shock! However, if this should occur, remove the mains plug immediately and then have the unit checked by an expert before using it again.

10. Do not operate the device if the mains cable or the mains

plug show signs of damage, if the device has fallen on the floor or has been otherwise damaged. In such cases take the device to a specialist for checking and repair, if necessary.

1. Never remove the mains plug from the socket by pulling on the mains cable, or with wet hands.

2. Ensure that the mains cable does not hang over sharp edges or allow it to become trapped.

3. Keep the appliance away from damp, and protect from splashes.

4. Keep the appliance away from hot objects (e.g. hotplates) and open flames.

5. Keep the appliance and its cord out of reach of children less than 8 years.

6. The machine should not be operated by means of an external timer-switch or by means of a separate system with remote control.

7. Use the appliance on a flat, dry and heat resistance surface.

8. Never leave the device in unattended during use.

9. Do not store or operate the appliance in the open air.

10. Keep the appliance in a dry place, inaccessible to children (in its packaging).

11. Never put fingers or any other objects through the fan guards when the fan is running.

12. Never operate the product without the fan guards in place, as serious personal injury may result.

13. The appliance must be assembled completely before use.

14. Watch out for long hair! It can be caught in the fan owing to the air turbulence.

15. Do not point the air flow to the people for a long time.

16. The rotor guard shall not be disassembled/ opened to clean the rotor blades.

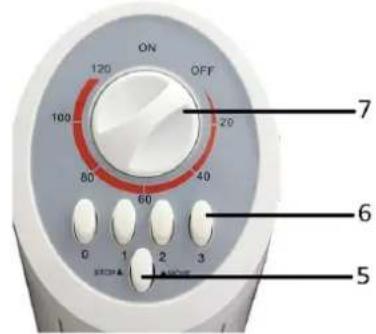

PARTS DESCRIPTION

1. Control panel
2. Body
3. Front cover
4. Base
5. Oscillation button
6. Speed control buttons
7. On/off & timer switch

ASSEMBLY

1. Fasten the two parts of the base together. Insert the protruded pillars on one part of the base into the other part of the base at the diameter line. Fix them with the two small screws provided.
2. Place the power cord in the hole of the base.
3. Attach the four pillars on the bottom of the body into the four screw holders on the base. Secure firmly with the screws provided.

OPERATING INSTRUCTIONS

CAUTION: Press only one of the speed control buttons at a time. Permanent damage to the switch housing may result if two or more of the buttons are pressed simultaneously.

1. Always operate the product on a flat, level, steady, and stable surface to avoid it overturning.
2. Plug the product into a standard electrical outlet.
3. To turn the fan on, rotate the ON/OFF/TIMER switch to the ON position and push the speed control button (0-OFF, 1-LOW, 2-MEDIUM, 3-HIGH), as desired.
4. To turn the fan off, rotate the ON/OFF/TIMER switch to the OFF position.
5. To set the fan timer, rotate the ON/OFF/TIMER switch to the desired countdown timer (in minutes). The fan will turn off after the time on the timer has elapsed.
6. To start or stop fan oscillating, press the oscillation button.
7. Unplug the product from the electrical outlet when it is not in use or is left unattended. Do not leave this product unattended while it is in use.

CARE AND CLEANING

CAUTION: ALWAYS UNPLUG THE PRODUCT FROM THE ELECTRICAL OUTLET PRIOR TO CLEANING IT.

1. Do not use the product in oily or dirty areas, as the air vents may become blocked.
2. Clean the plastic parts with a mild soap and a damp cloth or sponge.
3. Never immerse the appliance in water (danger of short-circuit). To clean the appliance, only wipe it down with a damp cloth and then dry it carefully. Always take out the mains plug first.
4. Periodically check the screws on the product to ensure they are securely tightened.
5. Store the product in a cool, dry place.

TECHNICAL DATA

Supply voltage: 220-240V \~ 50/60Hz

Power consumption: 45W

Eco design requirements
Product information requirements
Maximum fan flow rate (F)	5.27 m3/min
Fan power input (P)	40.88 W
Service value (SV)	0.13(m^3/min)/W
Measurement standard for service value	ISO 5801-2007EN 50564: 2011EN 60704-2-7: 1998EN 60704-1: 2010
Standby power consumption (PSB)	0.03 W
Fan sound power level (LWA)	53.60 dB(A)
Maximum air velocity (c)	3.90 meters/sec
Contact details for obtaining more information	BAYTRONIC HandelsgmbHHarterfeldweg 4A-4481 AstenAustria

ENVIRONMENT FRIENDLY DISPOSAL

Recycling

This marking indicates that this product should not be disposed with other household wastes throughout the 2012/19-EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material

resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.
