Product Type	Tower Fan
Brand	Emerio
Model	TFN-110129
Power Supply	220-240V ~ 50/60Hz
Power Consumption	50 W
Fan Power Input	40.88 W
Maximum Fan Flow Rate	5.27 m³/min
Service Value	0.13 (m³/min)/W
Standby Power Consumption	0.03 W
Sound Power Level	53.60 dB(A)
Maximum Air Velocity	3.90 m/s
Number of Speeds	3 (Low, Medium, High) + Oscillation
Control Type	Rotary knob (OFF, 1, 2, 3, 1+Osc, 2+Osc, 3+Osc)
Oscillation	Yes
Assembly Required	Yes (base with screws)
Usage	Indoor household use
Cleaning Method	Unplug, wipe with damp cloth
Safety Features	No immersion, keep away from water, children 8+ with supervision, don't operate without guards
Color	White with black grid
Contact for Information	BAYTRONIC HandelsgmbH, Harterfeldweg 4A-4481 Asten, Austria

Frequently Asked Questions - TFN-110129 Emerio

How many speed settings does the Emerio TFN-110129 tower fan have?

The fan has three speed settings (Low, Medium, High) and also an oscillation mode that can be combined with any speed.

Does this fan have an oscillation function?

Yes, by turning the control knob to the positions marked with an oscillation symbol (1←2←3----Fan+Oscillation), the fan will oscillate left and right.

How do I assemble the fan?

First, fasten the two base parts together using the two small screws. Then pass the power cord through the hole in the base. Attach the fan body to the base aligning the four pillars with the screw holders and secure with the four provided screws. Finally, fix the cord using the plastic grip and two small screws.

Can I use this fan outdoors?

No, the fan is intended for indoor household use only. Do not operate it in open air or damp environments.

How should I clean the fan?

Always unplug the fan first. Clean the exterior with a damp cloth and dry it carefully. Never immerse the appliance in water or use abrasive cleaners.

What is the noise level of this fan?

The sound power level is 53.60 dB(A), which is typical for a tower fan at medium to high speed.

Is it safe to leave the fan running unattended?

No, the manual advises not to leave the fan unattended while it is in use. Always unplug when not in use.

What should I do if the power cord is damaged?

The cord must be replaced by the manufacturer, its service agent, or a similarly qualified person to avoid hazard. Do not attempt to repair it yourself.

What is the power consumption of this fan?

The fan has a power consumption of 50 W (fan power input 40.88 W) and a standby power consumption of only 0.03 W.

Can children use this fan?

Children aged 8 years and above can use the fan if given supervision and instruction. Children should not play with the appliance or clean it without supervision.

USER MANUAL TFN-110129 Emerio

White vertical cylindrical device with black grid pattern and 'NABO' branding on top (no visible text or symbols on body)

Tower Fan (EN)

Tower-Ventilator (DE)

Ventilator v stolpastem ohišju (SI)

Content – Inhalt – Vsebina

Instruction manual – English ...... - 2 -

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance.
3. Cleaning and user maintenance shall not be made by children without supervision.
4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
5. This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environment; bed and breakfast type environments.
6. Incorrect operation and improper handling can lead to faults on the device and injuries to the user.
7. In the event of improper use or incorrect handling, no liability can be accepted for any damage that may occur.
8. Do not immerse the unit or mains plug in water or other liquids. There is danger to life due to electric shock! However, if this should occur, remove the mains plug immediately and then have the unit checked by an expert before using it again.
9. Never remove the mains plug from the socket by pulling on the mains cable, or with wet hands.
10. Ensure that the mains cable does not hang over sharp edges or allow it to become trapped.

11. Keep the appliance away from hot objects (e.g. hotplates) and open flames.

12. The machine should not be operated by means of an external timer-switch or by means of a separate system with remote control.

13. Use the appliance on a flat, dry and heat resistance surface.
14. Never leave the device unattended during use.
15. Do not store or operate the appliance in the open air.
16. Keep the appliance in a dry place, inaccessible to children (in its packaging).
17. Never put fingers or any other objects through the fan guards when the fan is running.
18. Never operate the product without the fan guards in place, as serious personal injury may result.
19. The appliance must be assembled completely before use.
20. Watch out for long hair! It can be caught in the fan owing to the air turbulence.
21. Do not point the air flow to the people for a long time.
22. The rotor guard shall not be disassembled/ opened to clean the rotor blades.

PARTS DESCRIPTION

1. Control knob
2. Body
3. Front cover
4. Base

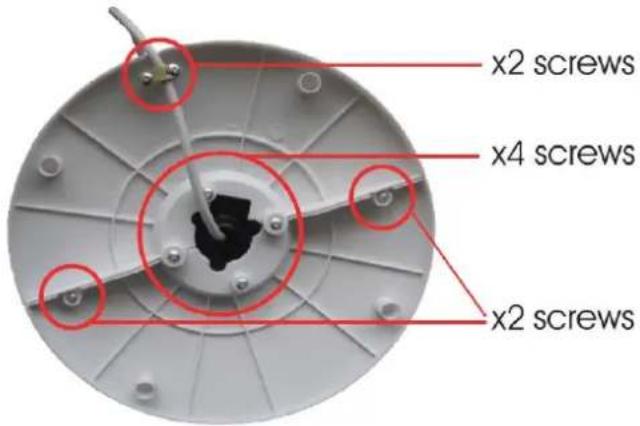

ASSEMBLY

1. Fasten the two parts of the base together. Insert the protruded pillars on one part of the base into the other part of the base at the diameter line. Fix them with the two small screws provided.
2. Pass the power cord through the hole of the base.
3. Attach the four pillars on the bottom of the fan body into the four screw holders on the base. Secure firmly with the screws provided.
4. Fix the cord on the base using the plastic grip and the two small screws provided.

ENSURE THAT YOU SCREW ALL SCREWS WHEN ASSEMBLING THE BASE.

CONTROL KNOB

OFF: Stop

1: Fan with low speed
2: Fan with medium speed
3: Fan with high speed

1←2←3----Fan + Oscillation

OPERATING INSTRUCTIONS

1. Always operate the product on a flat, level, steady, and stable surface to avoid it overturning.
2. Plug the product into a standard electrical outlet.
3. Rotate the control knob to choose your desired speed setting / oscillation function.
4. Unplug the product from the electrical outlet when it is not in use or is left unattended. Do not leave this product unattended while it is in use.

CARE AND CLEANING

CAUTION: ALWAYS UNPLUG THE PRODUCT FROM THE ELECTRICAL OUTLET PRIOR TO CLEANING IT.

1. Do not use the product in oily or dirty areas, as the air vents may become blocked.
2. Never immerse the appliance in water (danger of short-circuit). To clean the appliance, only wipe it down with a damp cloth and then dry it carefully. Always take out the mains plug first.
3. Periodically check the screws on the product to ensure they are securely tightened.
4. Store the product in a cool, dry place.

TECHNICAL DATA

Supply voltage: 220-240V \~ 50/60Hz

Power consumption: 50W

Eco design requirements
Product information requirements
Maximum fan flow rate (F)	5.27 m^3/min
Fan power input (P)	40.88 W
Service value (SV)	0.13( m^3/min )/W
Measurement standard for service value	ISO 5801-2007EN 50564: 2011EN 60704-2-7: 1998EN 60704-1: 2010
Standby power consumption (PSB)	0.03 W
Fan sound power level (LWA)	53.60 dB(A)
Maximum air velocity (c)	3.90 meters/sec
Contact details for obtaining more information	BAYTRONIC HandelsgmbHHarterfeldweg 4A-4481 AstenAustria

ENVIRONMENT FRIENDLY DISPOSAL

Recycling

This marking indicates that this product should not be disposed with other household wastes throughout the 2012/19-EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material

resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.
