IAN 279694 - Uncategorized Livarno Lux - Free user manual and instructions

Product Type	Table Lamp
Brand	Livarno Lux
Model	IAN 279694
Item Numbers	54568, 54569, 54571, 54572
Operating Voltage	220-240 V ~
Frequency	50/60 Hz
Bulb Type (Included)	LED, E14, 4 W
Max Rated Power	40 W
Protection Class	II
Dimensions (Height)	Max. approx. 46 cm
Dimensions (Base)	∅ approx. 12 cm (54572: 12 x 12 cm)
Shade Dimensions (Model 54568)	Top edge length approx. 16.5 cm, bottom edge length approx. 25 cm, height approx. 17 cm
Shade Dimensions (Model 54569)	Top ∅ approx. 19.5 cm, bottom ∅ approx. 25.5 cm, height approx. 17 cm
Shade Dimensions (Model 54571)	∅ approx. 18 cm, height approx. 18 cm
Shade Dimensions (Model 54572)	Top ∅ approx. 18.5 cm, bottom ∅ approx. 29.5 cm, height approx. 17.5 cm
Indoor Use Only	Yes
Dimmable	No
In-line Switch	ON+OFF
Scope of Delivery	1 Table Lamp, 1 LED lamp, 1 Lamp shade, 1 Socket ring, 1 Instruction manual with warranty card
Warranty	3 years
Manufacturer	Edi Light GmbH, Heiligkreuz 22, A-6136 Pill, Austria
Service Address (Great Britain)	EGLO UK Ltd., Unit 12 Cirrus Park, Lower Farm Road, Moulton Park Industrial Estate, Northampton NN3 6UR, Tel: [phone], Email: [e-mail]

Frequently Asked Questions - IAN 279694 Livarno Lux

How do I assemble the table lamp?

Remove packaging and protective film from the shade. Unscrew the socket ring counter-clockwise, remove the shade, turn it over and reattach it with the mounting side down. Screw the socket ring back on clockwise. Insert the bulb using a clean, lint-free cloth and screw it clockwise.

What type of bulb does the lamp use?

The lamp comes with an LED bulb (E14, 4 W) included. You can also use bulbs with a maximum rated power of 40 W, only E14 base, and suitable for indoor use.

Can I use a dimmer switch with this lamp?

No, this lamp is not dimmable. Using a dimmer may damage the lamp or pose a safety hazard.

Is the lamp safe for outdoor use?

No, this lamp is only suitable for indoor use in dry and enclosed spaces. Do not expose it to moisture or outdoor elements.

How do I replace the bulb?

First, unplug the lamp from the mains. Allow the lamp to cool for at least 15 minutes. Turn the defective bulb counter-clockwise to remove it. Use a clean, lint-free cloth to handle the new bulb and screw it clockwise into the socket. Refer to the technical data for compatible bulbs.

What should I do if the lamp doesn't turn on?

Check that the mains plug is properly inserted. Ensure the bulb is firmly screwed in and not defective. If the lamp still doesn't work, inspect the mains cable for damage. If damaged, the cable cannot be replaced; contact the service centre.

How do I clean the lamp?

Always unplug the lamp before cleaning. Allow it to cool completely. Use a duster or soft brush for dusting. Do not use harsh detergents, solvents, or immerse in water. Avoid contact with liquids.

What is the warranty period and how do I claim?

The lamp comes with a 3-year warranty from the date of purchase. For warranty claims, return the product carefully packaged to the service address specified in the manual, along with your receipt and the item number (e.g., IAN 279694).

Where can I get service or support in Great Britain?

The service address for Great Britain is EGLO UK Ltd., Unit 12 Cirrus Park, Lower Farm Road, Moulton Park Industrial Estate, Northampton NN3 6UR. Phone: [phone], Email: [e-mail]. Provide your receipt and item number when contacting.

Can I use a higher wattage bulb?

No, the maximum rated power is 40 W. Using a bulb with higher wattage may cause overheating and fire risk. Always use bulbs that comply with the specifications.

USER MANUAL IAN 279694 Livarno Lux

Operation and Safety Notes

DE AT CH

TISCHLEUCHTE

GB

Before reading, unfold both pages containing illustrations and familiarise yourself with all functions of the device.

RO

GB Operation and Safety Notes Page 5

54569

54571

54572

List of pictograms used......Page 6

Introduction......Page 7

Intended use......Page 7

Scope of delivery....Page 7

Parts Description...... Page 8

Technical Data Page 8

Safety Page 9

Safety Notices....Page 9

Operation Page 11

Mounting the light......Page 11

Using the lamp ...... Page 12

Insert and replace the bulb ...... Page 12

Maintenance and Cleaning......Page 12

Disposal Page 13

Declaration of Conformity ...... Page 14

Warranty / Service centre ...... Page 14

Warranty Page 14

Service address......Page 15

Warranty card...... Page 16

List of pictograms used
	Read the instructions!
	Safety instructionsInstructions for use
	This light is only suitable for indoor use in dry and enclosed spaces.
	Volt (AC)
	Hertz (mains frequency)
	Watt (effective power)
	Safety class II
	Observe the warnings and safety notices!
	Accident hazard and risk of fatal injury for infants and children!
	Warning! Risk of electric shock!
	Warning - Hot surfaces!
	Not dimmable
	Dispose of the packaging and the product in an environmentally friendly manner!
	Before replacing the bulb always remove the mains plug from the socket.

Table Lamp

Introduction

Congratulations on the purchase of your new product. You have chosen a high-quality product. Please be sure to carefully read all the instructions for use. Fold out the page with illustrations. These instructions are part of the product and contain important information on setup and handling. Always observe all safety instructions. Before using this product for the first time, verify that the correct voltage is present and that all parts are properly mounted. If you have any questions or are unsure about operating the product, please contact your distributor or the service centre. Please keep these instructions in a safe place and pass them on to third parties if necessary.

Intendeduse

This light is only suitable for indoor use in dry and enclosed spaces. This product is only intended for private household use.

- Scope of delivery

Check that all the parts are present and that the appliance is in perfect condition immediately after unpacking.

1 Table Lamp

1 LED lamps

1 Lamp shade

1 Socket ring

1 Instructions for use incl.

warranty card

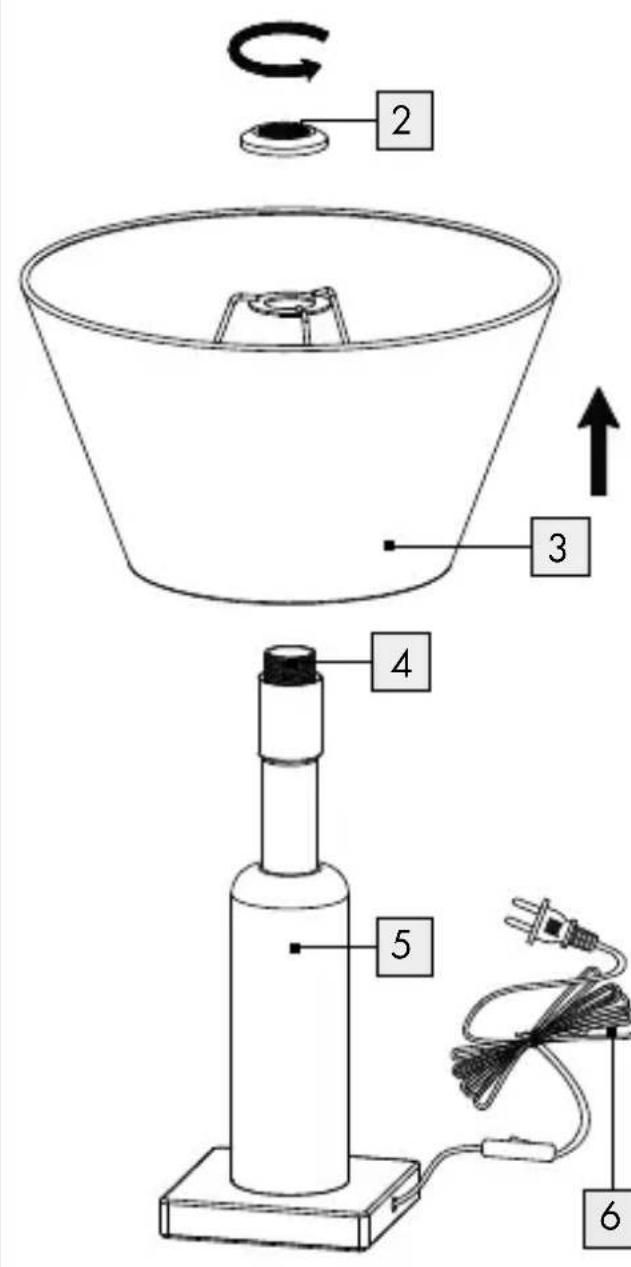

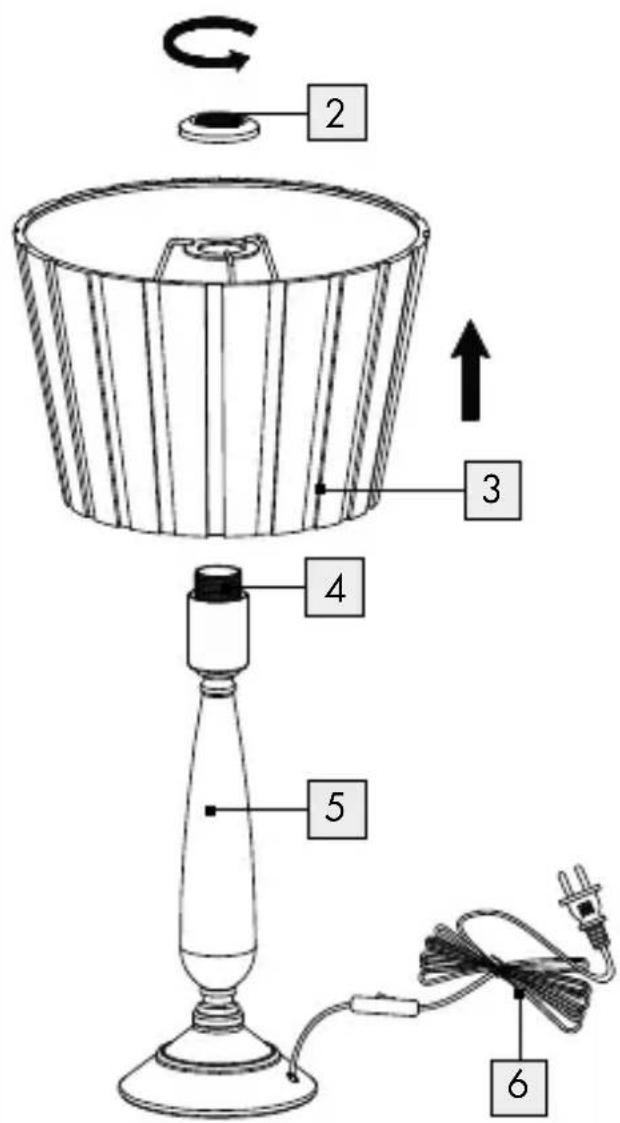

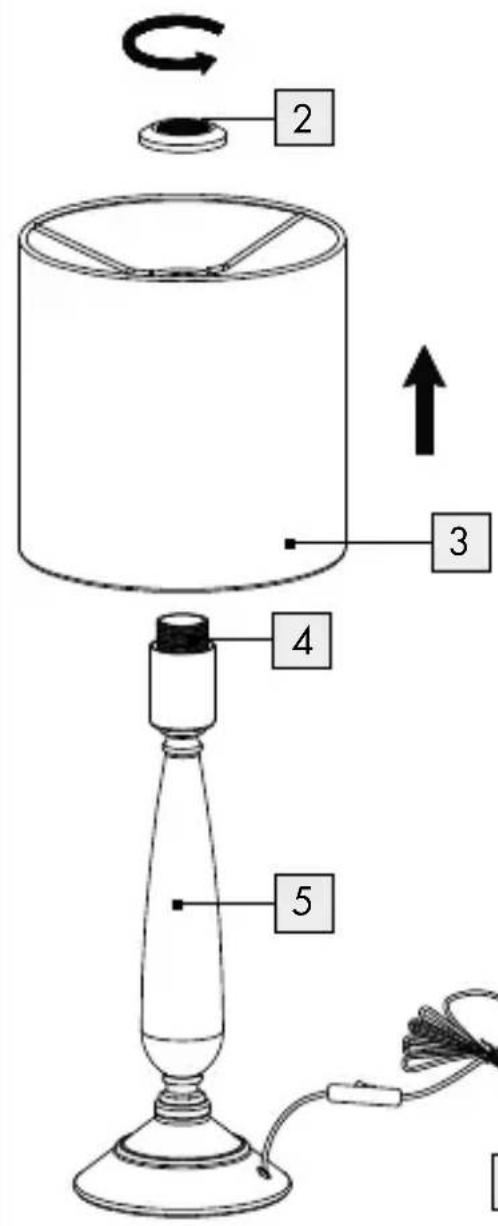

PartsDescription

1 Light bulb
2 Socket ring
3 Lamp shade
4 Socket

5 Base
6 Mains cable with
ON+OFF in line switch

- TechnicalData

Item number: 54568 / 54569 / 54571 / 54572

Operating voltage: 220-240V\~50/60Hz

Bulb: LED, E14, 4 W

Rated power max.: 40 W

Protection class: II/

Dimensions: Height: max. approx. 46 cm,

Base: ∅ approx. 12 cm

(54572: approx. 12 x 12 cm)

54568: Lamp shade: Edge length top

approx. 16.5 cm/Edge length bottom

approx. 25 cm/Height approx. 17 cm

54569: Lamp shade: ∅ top approx. 19.5 cm/

∅ bottom approx. 25.5 cm/Height

approx. 17 cm

54571: Lamp shade: ∅ approx. 18 cm/

Height approx. 18 cm

54572: Lamp shade: ∅ top approx. 18.5 cm

∅ bottom approx. 29.5 cm/Height

approx. 17.5 cm

Distributor:

Edi Light GmbH, Heiligkreuz 22, A-6136 Pill, www.edi-light.com

●Safety

Safety Notices

Damage due to failure to comply with these operating instructions will invalidate the warranty! We assume no liability for consequential damage! We assume no liability for property damage or personal injury due to improper handling or failure to observe the safety notices!

RISK OF VACCIDENT AND DAN- GER TO LIFE FOR INFANTS AND CHILDREN!

This device may be used by children aged 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or those lacking experience and / or knowledge, as long as they are supervised or instructed in the safe use of the device and they understand the associated risks. Do not allow children to play with the device. Cleaning and user maintenance must not be performed by children without supervision.

- Do not leave the light or packaging material lying unattended. Plastic film or bags, plastic parts, etc. can turn into dangerous toys for children.

Avoid the risk of fatal injury from electric shock

We assume no liability for property damage or personal injury due to improper handling or failure to observe the safety notices!

■ Never use the light if any defects have been identified.
■ Always check the lamp and the mains cable with the plug for any damage before connecting it to the mains.
■ Ensure that the light does not come into contact with water or other liquids under any circumstances.
■ Never open any of the components of the electrical equipment or insert any objects into the same components. This will pose a risk of fatal injury from electric shock.
■ Touch only the insulated part of the plug when connecting to or disconnecting from the mains supply!
To avoid hazards the connection cable for this lamp cannot be replaced without damaging or destroying the lamp!
Before use, verify the available mains voltage matches the voltage required for operating the light (220-240 V\~, 50/60 Hz).

Preventing fire and injury hazards

CAUTION! RISK OF BURNS DUE TO HOT SUR-

FACES! Ensure the light has been switched off and has cooled down before touching it to avoid burns. Lamps become very hot.

Check each bulb for damage immediately after unpacking.

Replace defective bulbs with new ones immediately. Before replacing the bulb always remove the mains plug from the socket.

Allow the lamp to cool for at least 15 minutes before replacing a defective bulb.

Do not cover the lamp with objects. Fire can result from excessive heat development.

Position the lamp so it is protected from moisture and dirt.

■ Never leave the light unattended whilst in operation. Excessive heat can result in a fire.

The LED light is not dimmable.

Do not look directly into the light source (lamp, LED, etc.). Do not look into the light source (lamp, LED, etc.) with an optical instrument (e.g. magnifier).

Operation

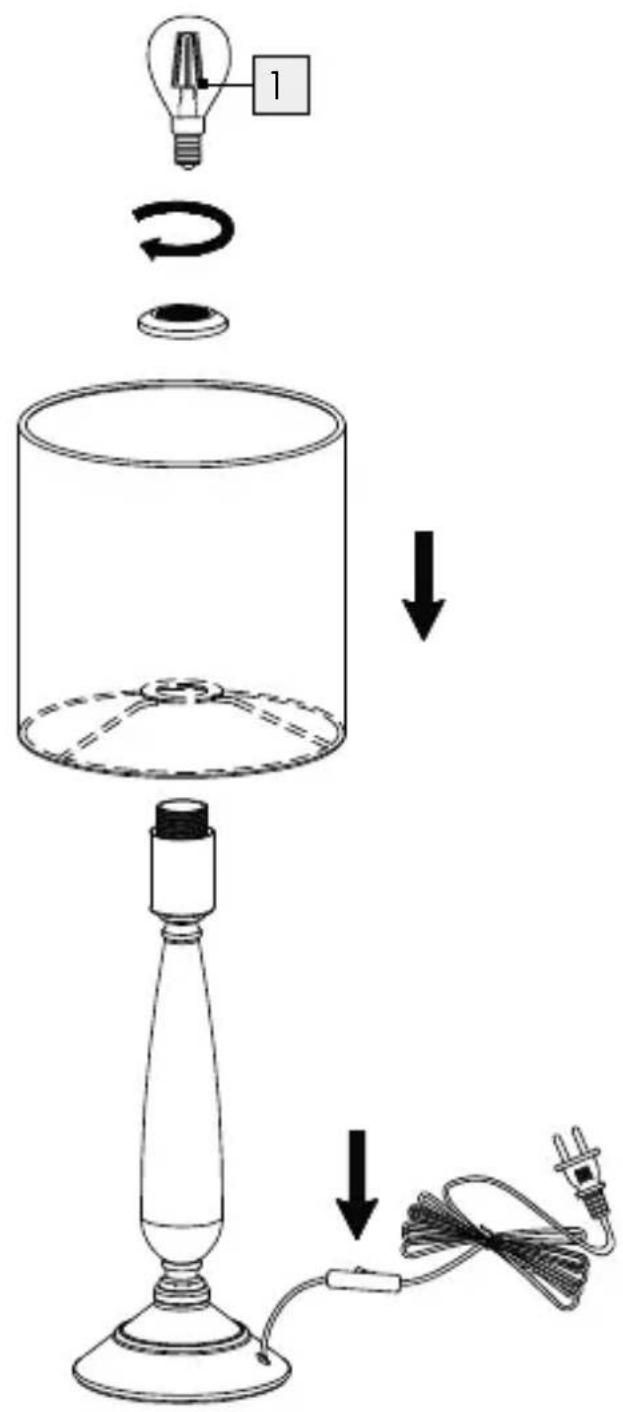

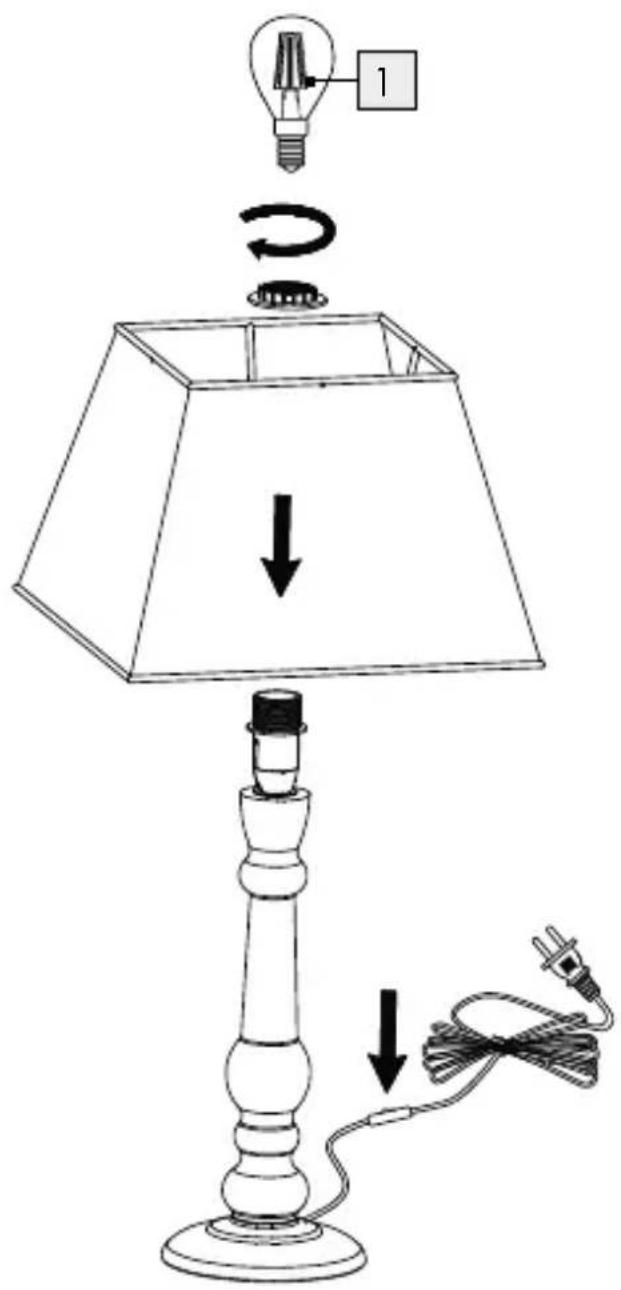

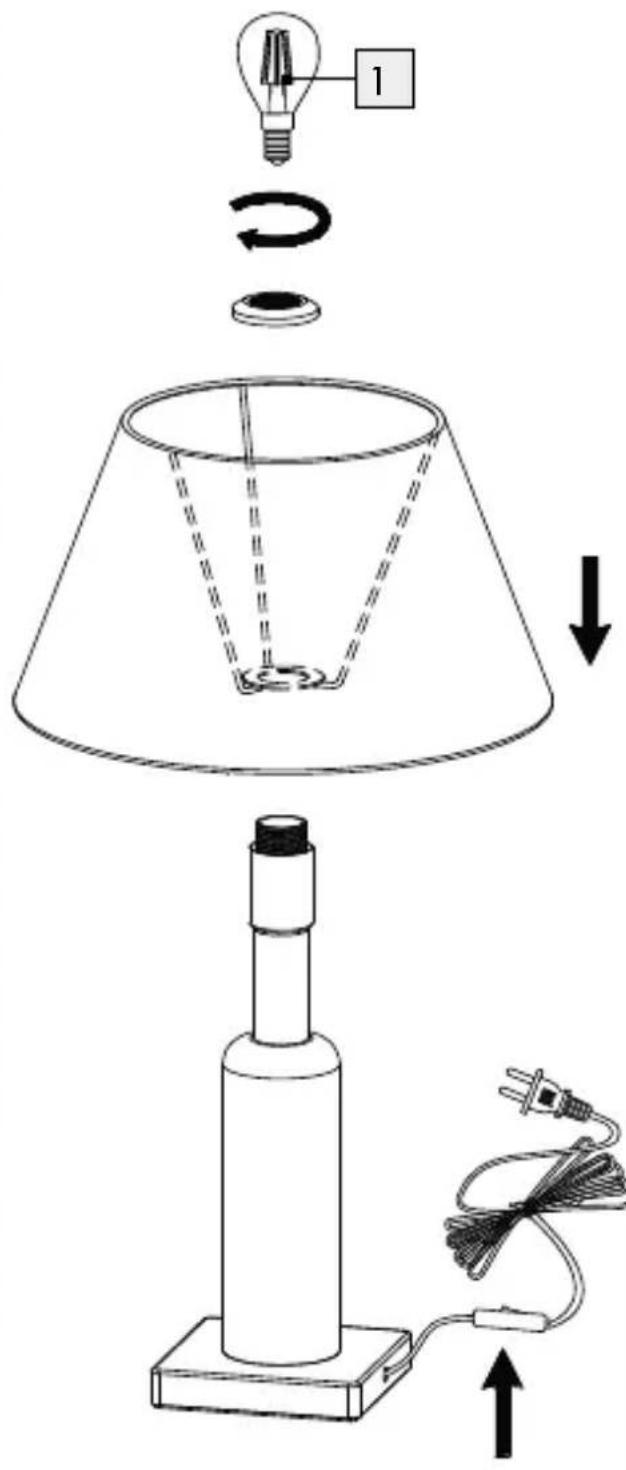

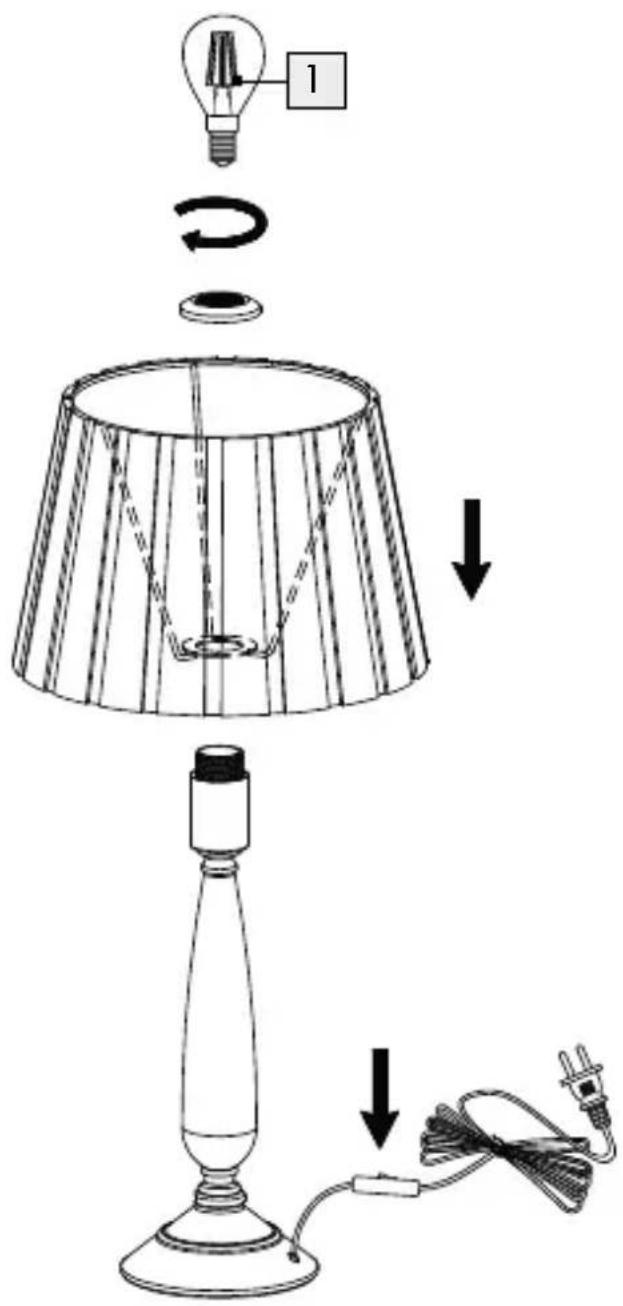

- Mounting the light

Remove the packaging materials and protective film from the shade.
□ Unscrew the socket ring 2 from the socket 4, turning counter-clockwise.
☐ Remove the lamp shade 3 from the socket 4, turn over and reattach to the socket 4, mount side down.
□ Now screw the socket ring 2 onto the socket 4, turning clockwise.
Use a clean, lint-free cloth to insert the bulb.
□ Screw the light bulb 1 clockwise into the socket 4.

Your lamp is now ready to use.

Using the lamp

□ Completely unwrap the power cord 6.
☐ Insert the mains plug into the socket.
☐ Turn the lamp on and off using the ON+OFF in line switch.

- Insert and replace the bulb

WARNING! RISK OF ELECTRIC SHOCK! Unplug the mains plug from the socket.

CAUTION! RISK OF BURNS DUE TO HOT SURFACES! Allow the light to cool down completely.

☐ Turn the defective bulb 1 carefully anticlockwise out of the bulb socket 4.
☐ Use a clean, lint-free cloth to replace a bulb.
☐ Screw the lamp 1 clockwise into the socket 4.
☐ Please refer to the chapter "Technical Data" to see which bulbs are required for the respective model.

● Maintenance and Cleaning

WARNING! RISK OF ELECTRIC SHOCK! Remove the mains plug from the socket before you clean the lamp.

WARNING! RISK OF ELECTRIC SHOCK! For electrical safety reasons do not clean the lamp with harsh detergents and never immerse it in water.

CAUTION! RISK OF BURNS DUE TO HOT SUR- FACES! Allow the light to cool down completely.

• Do not use solvents such as petrol and the like, as they could damage the lamp.
  ☐ Use a duster or brush when cleaning if necessary.

●Disposal

The packaging is made of entirely recyclable materials, which you may dispose of at local recycling facilities. Contact your local community or municipal administration for more details on how to dispose of your worn-out product.

The symbol of the wheelie bin with a line through it means that the product has to be disposed of in a separate refuse collection within the European Union. This applies to the product and to all components bearing this symbol. Do not dispose of products bearing this symbol in your normal household waste, but instead take them to be recycled at a collection site for electrical and electronic appliances. Recycling helps to reduce the consumption of raw materials and protects the environment.

● Declaration of Conformity

This product fulfils the requirements of the applicable European and national directives. The relevant declarations and documents are held by the manufacturer. This product meets

the requirements of the German Equipment and Product Safety Act.

We reserve the right to make technical and visual changes to the product in the interest of product improvement. Typographical and printing errors excepted.

● Warranty / Service centre

Warranty

We provide a 3 year warranty from the date of purchase.

Our products are manufactured using modern production methods and are subject to precise quality control. We guarantee this product is of good quality. During the warranty period any defects in material or manufacture will be replaced free of charge In the event of an unexpected defect, please return the carefully packaged product to the service address specified.

The warranty does not extend to damage due to improper handling as well as wear items and consumables. These can be ordered from the telephone number listed for a charge.

Repairs not covered by the warranty (e.g. light bulb) may also be requested at cost from the service address listed.

The product will be repaired at the specified service location. Timely processing and return can only be ensured by sending the product directly to this address.

For additional product information, to order accessories or have a question about the service process, please contact our Customer Service Department at the telephone number specified. Please include the item number (see Technical Data) when inquiring about the product.

Serviceaddress

Great Britain

EGLO UK Ltd.

Unit 12 Cirrus Park

Lower Farm Road

Moulton Park Industrial Estate

Northampton NN3 6UR

T: [phone]

E: [e-mail]

IAN 279694

Please have your receipt and item number (e.g. IAN 12345) ready as your proof of purchase when enquiring about the product.

Warrantycard

Return address:

Name/First name:

Country/Postal code/City/Street address:

Phone:

Item number/Description:

Purchase date/Point of purchase:

Description of the defect:

Date/Signature:

Non-warranty cases:

Please provide pricing. Repair the product against charge.

Legenda pictogramelor utilizate......Pagina 18

Introducere ......Pagina 19

Utilizare conform destinatiei......Pagina 19

EDI Light Service Center

c / o RTS Service Solutions

Halle 17-1

EDI Light Service Center

Heiligkreuz 22

AT-6136 Pill / AUSTRIA

E-Mail: [e-mail]

Telefon: [phone]

IAN 279694
