USER MANUAL IAN 114388 Livarno Lux

Operation and Safety Notes

HR

SET LED SVJETLOSNIH LETVICA

SET BARE LUMINOASE CU LED

GB / CY Operation and Safety Notes Page 5

HR Upute za posluživanje i za Vašu sigurnost Stranica 17

Introduction

Intended use......Page 6

Description of parts......Page 6

Technical details......Page 7

Included items ......Page 7

Safety

information......Page 8

Safety advice

for installation......Page 11

Installation......Page 12

Mounting the product

on a cupboard ......Page 13

Mounting the product

on a wall......Page 13

Operation ......Page 14

Cleaning

and care ......Page 14

This product is suitable for use indoors. This product is intended for use in private, domestic environment only and not for commercial purposes. Other uses or modification of the product shall be considered as improper use and could lead to injury or damage. The manufacturer accepts no liability for loss or damage arising from improper use.

• Description of parts

1 LED light strip
2 Connection lead
3 Fastening clip
4 Dowel
5 Screw
6 Connector
7 In-line switch
8 Mains adapter

- Technical details

LED light strip:

Operating

voltage:12V = 2.3W

Bulbs per strip: 9 × 3 V = 20 mA,

0.06 W (per LED)

Note: the bulbs

cannot be replaced

Protection class:

LED light strip (Model No.

114388-15-01) TÜV/GS tested.

Mains adapter:

Nom. voltage,

primary:100-240V\~,

50-60Hz

Nom. voltage,

secondary:12V

0.25A, 3W

Protection class: □

Mains adapter (Model No.

YNQST120025VL) TÜV/GS

tested.

Total power

consumption

(including

adaptor): 3 W

Included items

3 LED light strip sets

1 Mains adapter

3 Interconnection cables

6 Dowels

6 Fastening clips

6 Screws

6 Double-sided adhesive tapes

1 End cap
1 Operating instructions

Safety information

In the case of damage resulting from non-compliance with these operating instructions the guarantee claim becomes invalid! No liability is accepted for consequential damage! In the case of material damage or personal injury caused by incorrect handling or non-compliance with the safety instructions, no liability is accepted!

WARNING!

DANGER OF DEATH AND

ACCIDENTS FOR TODDLERS

AND CHILDREN! Never

leave children unsupervised with the packaging material. The packaging material represents a danger of suffocation. Children frequently underestimate the dangers. Please keep children away from the device at all times.

This device is not a toy and should not be played with by children. Children are not able to understand the dangers that can occur when handling this device.
This appliance can be used by children aged from 8 years and above and persons with reduced

physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

■ Ensure that the product is installed by suitably experienced or qualified persons only.
Check before installation that the supporting surface is suitable for the fastenings and the weight of the lighting product. If you have any questions about the product or are unsure about any of its aspects, please seek the advice of an electrical equipment specialist.
Do not pull on the product lead. Ensure that it is positioned to avoid creating a trip hazard.
The product can be used on all surfaces officially classified as being of "normal flammability".
- Do not attach any other objects to the product.
■ After use store the light fitting in its original packaging to avoid causing unintentional damage.
■ Ensure that the light fitting does not present a trip hazard.

CAUTION! RISK OF OVERHEATING! Do not operate

the light fitting while it is still in the packaging or rolled up.

This lamp is only intended for use indoors.

Avoid the danger of death from electric shock!

Before use, ensure that the mains voltage available is the same as the required operating voltage for the device (100-240V\~).
Before connecting to the mains, always check the product for any damage.
■ Never use the product if you find damage of any kind.
The connecting cable cannot be repaired! If the cable is damaged, the product must be taken out of use and disposed of in the proper way.
This article does not contain any parts which can be serviced by the user. The bulbs cannot be replaced.
■ Never open any of the electrical parts or insert any kind of object into them.
■ Protect the product from sharp edges, mechanical loads and hot surfaces.
Do not install with sharp fasteners or nails.

■ Always remove the mains plug from the socket before installing, dismantling or cleaning.
■ Never touch the mains plug or the product with moist or wet hands.
■ Only connect the light strip to supply adaptor.
■ Use the lighting product with only the components described in these operating instructions.
■ Disconnect the lighting product from the mains if you intend not to use it for an extended period (e.g. holiday).
■ LED light strip should only be replaced with the same type of light strip which is supplied with this product.
The product is only suited for use with the included mains adapter (YNQST120025VL).
Please note that the power adapter continues to draw a small amount of power even if the lamp is turned off as long as the power adapter is plugged into a power outlet. To switch the device off completely, unplug the power adapter from the socket.

●Safety advice for installation

■ The product can be mounted with the supplied fastenings on to all

surfaces officially classified as being of "normal flammability".

CAUTION! RISK OF ELECTRIC SHOCK! Ensure that you do not strike any electrical cables, gas or water pipes in the vicinity of where you are drilling. If necessary, check the area using a suitable detector before you drill.

Before installation, check whether the substrate is suitable for the fastenings and can support the weight of the product. If you are unsure about any aspects of this step, please seek the advice of an electrical equipment specialist.
- Do not use any sharp and / or pointed objects, such as wire, nails or clamps, to fasten the product in place.
- Avoid bending the product. Otherwise the insulation could be damaged.

Installation

The LED strip light 1 can be connected using a connection cable 2 (Fig. B) or without a connection cable (Fig. C).

- Mounting the product on a cupboard

Note: Thoroughly clean the surface on to which you intend to install the product. The surface must be clean, dry and free of grease. Otherwise the self-adhesive foil may not stick properly.

1. Using a pencil, mark the position on the wall on to which you intend to attach the LED light strip 1. If necessary, use a spirit level as a guide.
2. Stick the double-sided adhesive tape onto the LED light strip 1. Then pull the paper from the self- adhesive foil on the back of the LED light strip 1.
3. Position the self-adhesive foil on the markings and press to fix it firmly into place (Fig. D).

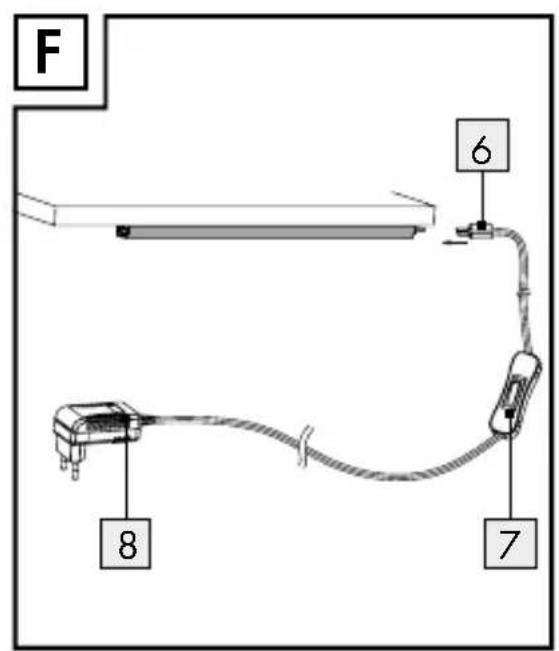

4. Connect the LED light strip 1 to the mains adapter 8 (Fig. F) or connect the LED light strip 1 to the connection lead 2 to connect it to an additional light (Fig. B).

- Mounting the product on a wall

1. Drill the fastening holes (Fig. E).

CAUTION! Ensure that you do not damage any cables in the wall.

1. Insert the dowels 4 into the drilled holes (Fig. E).
2. Fix the fastening clips 3 to the wall with the screws 5.
3. Connect the LED light strip 1 to the mains adapter 8 (Fig. F) or connect the LED light strip 1 to the connection lead 2 to connect it to an additional light (Fig. B).

Operation

☐ Insert the mains adapter 8 into the mains socket.
☐ Press the ON / OFF switch on the in-line switch 7 to switch on the lights (Fig. F).
☐ Press the ON / OFF switch on the in-line switch 7 to switch off the lights.

- Cleaning and care

CAUTION! RISK OF ELECTRIC SHOCK!

First remove the mains

plug from the socket.

• Do not use any solvents, petrol or similar items. This would damage the device.
  ☐ Only a dry, lint-free cloth should be used for cleaning.

●Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

- Warranty

The device has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this device is 3 years from the date of purchase. Should this device show any fault in

materials or manufacture within 3 years from the date of purchase, we will repair or replace it - at our choice - free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the device has been damaged or improperly used or maintained.

The warranty applies to faults in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

CE
