Vitaly - Juicer FAKIR - Free user manual and instructions

Product Type	Slow Juicer (Masticating)
Brand	Fakir
Model	Vitaly
Power Consumption	200W
Voltage / Frequency	220-240 V ~ 50/60 Hz
Rotation Speed	60 RPM
Maximum Continuous Operation	20 minutes
Required Cool-down Period	10 minutes
Juicing Mechanism	Slow Squeezing System (masticating and pressing)
Feed Ports	Big-caliber (for whole apple) and small feed port
Control Switches	Forward (ON) and Reverse (R)
Safety Features	Dual-switch design, microswitch, overload reverse function
Materials	Food-grade plastics and stainless steel (filter)
Cleaning	Hand wash with included cleaning brush; main body wiped with damp cloth
Included Accessories	Juice cup, marc cup, cleaning brush, pushing rod, washing rack
Certifications	CE (2014/30/EU, 2014/35/EU)
Intended Use	Household only
Warranty	Refer to manufacturer

Frequently Asked Questions - Vitaly FAKIR

How do I assemble the Fakir Vitaly juicer?

First, install the rubber pad at the bottom of the squeezing cup. Then attach the squeezing cup to the main body aligning the trim strips and rotate clockwise. Insert the washing rack, then the filter (aligning the ▲ marks), then the auger (aligning hexagonal shafts). Finally, install the inlet tube and juice/marc cups.

What should I do if the juicer stops suddenly?

Turn off the juicer and press the Reverse (R) button for 2-3 seconds to clear the jam. Then switch to Forward (ON) again. Repeat up to 3 times. If it still doesn't work, disassemble and clean the squeezing cup.

How long can I use the juicer continuously?

The maximum continuous operation time is 20 minutes. After that, let the juicer cool down for at least 10 minutes before using it again.

Can I juice leafy greens like wheatgrass?

Yes, the slow squeezing system is designed to extract juice from leafy greens, wheatgrass, and soy. Use the small feed port for long, fibrous vegetables.

How do I clean the juicer?

Disassemble all parts (except main body). Wash with clean water and use the included brush to clean the filter mesh. Do not use abrasive cleaners. Wipe the main body with a wrung soft cloth. Never immerse the main body in water.

Why is my juice yield low?

Use fresh fruits and vegetables. If produce is stored too long in the refrigerator, soak it in cold water for 10 minutes before juicing. Also ensure the rubber pad at the bottom of the squeezing cup is properly installed to prevent leakage.

Can I put whole apples into the juicer?

Yes, the big-caliber feed port can accommodate whole apples. For larger or irregular-shaped fruits, cut them into smaller pieces. Remove kernels and hard seeds first.

What does the Reverse button do?

The Reverse button rotates the auger counterclockwise to push stuck ingredients back up. Use it when the juicer jams or slows down. Hold the inlet tube gently during reverse operation.

Is the juicer safe for children?

The juicer should not be used by children under 8 years old without supervision. Children aged 8+ can operate only under adult supervision. Keep the appliance and cord out of reach of children under 8.

What should I do if parts are missing or damaged?

Contact Fakir customer service. Do not use the juicer if the power cord, plug, or safety features are damaged. Only qualified professionals should repair the appliance.

USER MANUAL Vitaly FAKIR

Black and white photo of a Fakir brand square juice maker with clear glass top and control knobs (no visible text or symbols on the device body)

VITALY

Slow Juicer

EN Fruit and Vegetable Extractor

Two simple line drawings of mechanical components or tools, one with a curved tool and the other with a cylindrical component (no text or symbols)

Two identical line drawings of a mechanical or architectural component, possibly a lamp or support structure, with no text or symbols present.

Schritt 6

Technical line drawing of a mechanical component with no visible text or symbols

Simple line drawing of a balance scale with an arrow indicating direction (no text or symbols)

Simple line drawing of a fruit and a bowl with a spoon (no text or symbols)

ACHTUNG!

Simple line drawing of a mechanical device with a circular base and handle (no text or symbols)

Line drawing of a kitchen mixer with directional arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a portable kitchen appliance with a handle and side panel (no text or symbols)

③

Simple line drawing of a two-cylinder container with an upward arrow indicating motion (no text or symbols)

④

Three-step diagram showing a cylindrical container being inserted into a wooden basket, with an upward arrow indicating motion (no text or symbols)

⑤

Simple line drawing of a cylindrical container with a handle and an arrow pointing to it (no text or symbols)

Simple line drawing of a cylindrical object with a handle and a separate vertical rod (no text or symbols)

Line drawing of a washing machine with a hand cleaning it (no text or symbols)

Fehlerbehebung

Information about the operating instructions 21

Liability 21

Safety is important....21

Notices in the operating instructions.... 21

CE Declaration of Conformity 22

Usage Area 22

Unauthorized Use.... 23

Overview....24

Technical Specification 24

Important Safeguards 24

Assembly Method 25

Instructions for use 27

Notes for use 29

Disassembly Method 30

Cleaning and Maintenance.... 31

Cleaning method 32

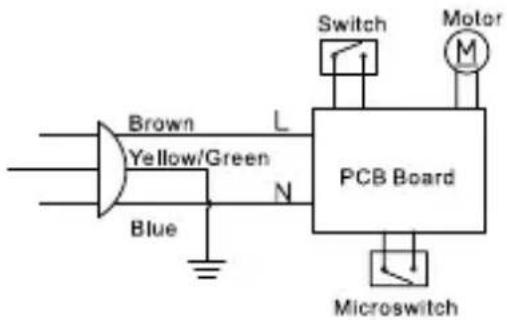

Circuit diagram.... 33

Problem solving 33

Waste Disposal 34

Dispatch.... 34

Accessories

Pictures are for reference only.

Dear Customer,

We hope you'll enjoy your product and we thank you for choosing Fakir Hausgeräte, who has its signature on innovative technologies.

We hope you to get the best out of Fakir VITALY Slow Juicer /Fruit and Vegetable Extractor produced with high quality and technology. Therefore, before using the product, we kindly ask you to read this User Guide carefully and keep it for future reference.

Information about the operating instructions

These operating instructions are intended to enable the safe and proper handling and operation of the appliance. Read these operating instructions carefully before using the appliance for the first time.

Keep the operating instructions in a safe place. Include these operating instructions when passing the appliance on to another user.

Liability

Fakir Elektrikli Ev Aletleri Dış Tic. A.Ş. will accept no liability for damages resulting from failure to comply with the operating instructions and cannot assume any liability in case the appliance is used for other purposes than its intended use or handled, repaired or serviced improperly.

Safety is important

For yours and others safety please read the instructions before using the appliance. Please keep this instruction in a safe place for the further use. If you pass the appliance on, pass on the instructions too. Remove all packaging, but keep it until you are satisfied that the appliance is working.

Notices in the operating instructions

WARNING!

Indicates notices which, if ignored, can result in risk of injury or death.

ATTENTION!

Indicates notices of risks that can result in damage to the appliance.

NOTICE!

Emphasizes tips and other useful information in the operating instructions.

CE Declaration of Conformity

This appliance is fully compatible with Europe Union's 2014/30/EU Electromagnetic Compliance and 2014/35/EU Voltage Directives. The appliance bears the CE mark on the rating plate. Fakir Elektrikli Ev Aletleri Dış Tic. A.Ş. reserves the right to change the design and equipment.

Usage Area

This product designed for just household use. It is not suitable for Business and industry type. Otherwise it will be accepted as “out of warranty conditions” by Fakir Authorised Services.

WARNING!

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children should not play with this appliance
• Cleaning and maintenance shall not be carried out by children without supervision.
• Keep the packing materials away from the children. Choking risk!
• Children under 3 years old must be kept away from the appliance if they are continuously unattended.
• This appliance may be used by persons (including children) with limited physical, sensory or mental capabilities, or with limited experience and/or knowledge, only under the supervision of a person responsible for their safety, or in accordance with the instructions of that person.
  • Children shall be supervised to ensure that they do not play with the appliance.
• This appliance shall not be used for play.
• Children older than 3 years and younger than 8 years may switch the appliance on and off only if they are under supervision or are informed of the safe use of the appliance and if they understand the hazards that may be caused by the appliance. In this respect, it is a prerequisite for the appliance to be in normal usage position or that it is installed properly.
• Children older than 3 years and younger than 8 years shall not plug the appliance to the electrical outlet, adjust the appliance, and do not perform any cleaning or maintenance operations.
• The appliance shall not be used without supervision.

Unauthorized Use

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

Keep the appliance and its cord out of reach of children less than 8 years.

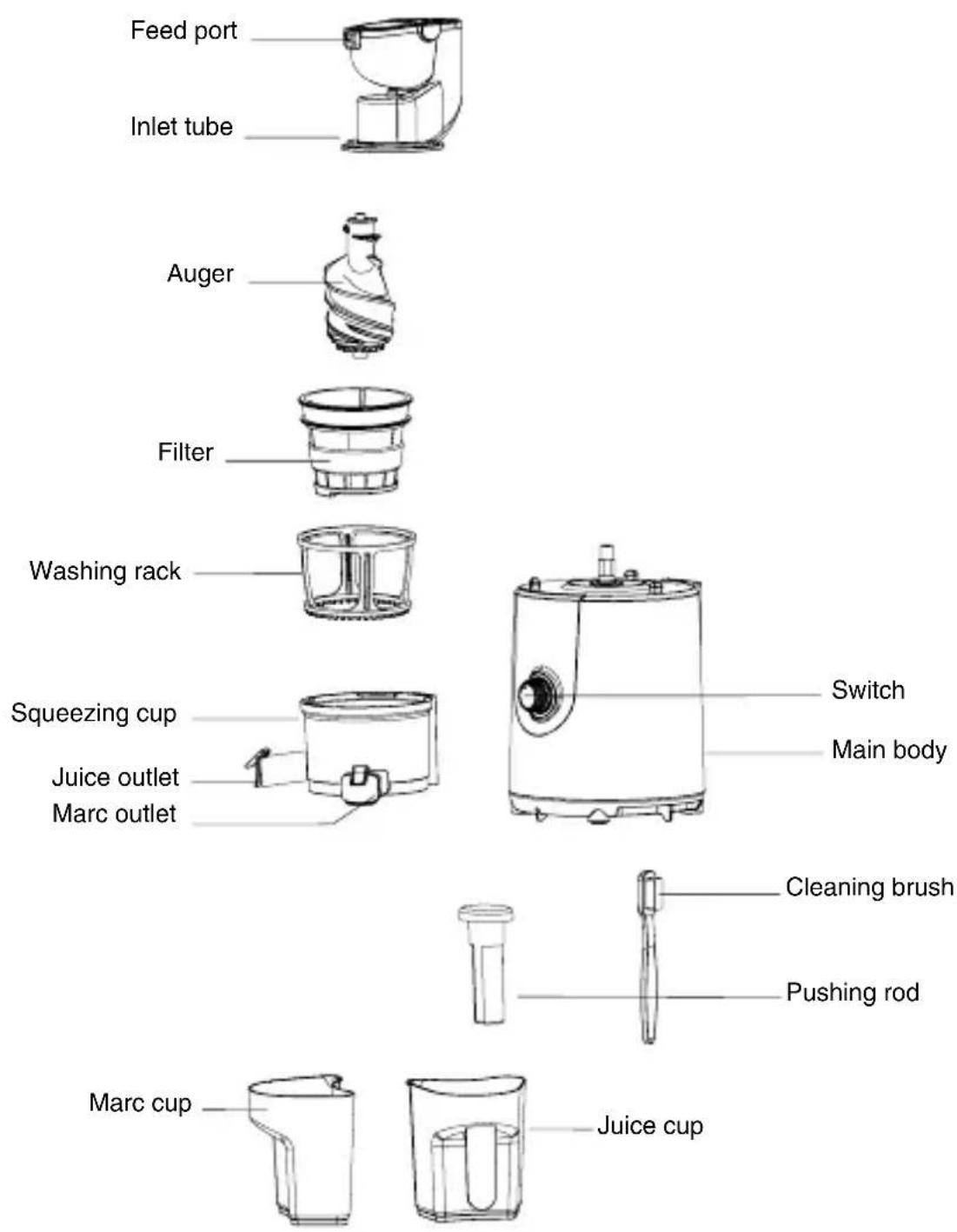

Overview

Fakir VITALY Slow Juicer is a juice extractor that uses a patented Slow Squeezing System (SSS).

It is called a “Slow Juicer” because it operated at only 60 RPM and uses a mere 200 Watts of energy, instead of 1,000-24,000 RPM and 500-1,500 Watts of energy like a typical centrifugal “Slow Speed” juicer. But don’t let the name fool you. The Slow Juicer actually extracts juice faster than most typical juicers and expels a much higher yield with much drier pulp.

The method of extractions is masticating and pressing, using the screw-like auger like a mortar and pestle. The action tears open the food's cell membranes and releases its deep-seated nutrients and enzymes. It also breaks up more of the phytonutrients, resulting in a richer colored juice that retains more vitamins and minerals. The slow RPM ensures that the cellular structure of fruits and vegetables is kept intact, eliminating oxidations and separation. Thus, it preserves the precious enzymes and nutrients that are closest to their natural form, even from wheatgrass, soy, and leafy greens.

The squeezing cup may be separated with the mainframe, and it is convenient to clean. For better use and optimal results, please follow the instructions carefully.

Dual-switch design makes the product safer (make the squeezing cup installed onto the mainframe; apply the front cover of squeezing body, and then turn on the switch to make the juicer run).

Please refer to the instruction manual if you are having technical difficulties or are unsure of usage of the appliance.

Technical Specification

Nominal voltage N	o m i n a l frequency	Nominal power Nominal time
220-240V 50/60Hz 2	00W 20min

Important Safeguards

• Please do not make the machine share the same power supply with other high-power electric appliances, and the product shall be used with 30 mA leakage circuit breaker installed.
• To prevent electric leakage and other hazards, please use the machine according to the instruction book.
• It is forbidden to make the machine power line and plug immersed into water or other liquids.
• Be careful to watch it during operation of the machine.
• If the parts or product structure is found to be damaged (particularly, the safety

protection device and power line are damaged), please do not use the machine. Do not attempt to repair it by yourself, and it shall be repaired by professionals.

• Please do not make the product used on or beside high-temperature gas or electric stove.
• It is forbidden to use finger, spoon or chopstick to push fruits/ vegetables into the feed inlet of the machine.
• Please do not touch or move any moving part during operation of the machine.
• Please do not make metal sheet or other conducting material inserted into the juicer, so as to prevent fire or short circuit.
• Before the machine is cleaned, moved or it is not used, please pull out the plug.
• Be sure not to put the machine near inflammable goods.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid accident.
• Be sure to hold the plug with hands when the plug is pulled out, and it is forbidden to pull the power line or touch the wire with wet hands.
• Please be sure that the juicer is put on a firm plane before it is used.
• Please be sure to pull out the power plug after the use.
• Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.
• Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
• This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.

WARNING!

Keep packaging films away from children - danger of suffocation!

Assembly Method

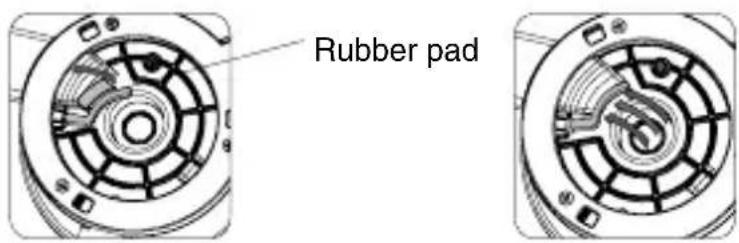

1. Before the juice cup

is installed, please confirm whether the rubber pad of the marc outlet at the bottom of the juice cup is properly installed.

1.1. Make the rubber pad of marc outlet inserted into the rectangular slot.

1.2. Make the rubber pad of marc outlet properly inserted.

NOTICE!

The rubber pad must be properly installed, otherwise leakage phenomenon may occur.

EN

2. Cover for Installation juice outlet

The cover of the juice outlet is separately packed during the packaging process. Before use, first it touches one side, then press it with some power on the other side.

Two simple line drawings of mechanical components or tools, one with a curved tool and the other with a cylindrical component (no text or symbols)

3. Cover for Installation marc outlet

The cover of the marc outlet is separately packed during the packaging process. Before use, make the aligning column on the fixing piece of the cover of marc outlet align with the fixing groove on the outlet and inserted.

Two identical line drawings of mechanical components or tools, possibly a valve or bracket, with no visible text or symbols.

4. Assembly of complete machine

    subgraph Steps 1
        A --> B --> C --> D --> E
    end

    subgraph Steps 2
        A --> E
    end

    subgraph Steps 3
        E --> F
    end

    subgraph Steps 4
        C --> D --> E
    end

    subgraph Steps 5
        B --> C
    end

    subgraph Steps 6
        A --> B --> C --> D --> E
    end

Step 6

Make the juice cup and marc cup is respectively installed to outlet.

Step 5

Make the inlet tube installed to the squeezing cup.

See the figure, make the mark “ ▲ on the inlet tube and the mark “ ▲ ” on the squeezing cup aligned and perform installation downwards, and then rotate it at clockwise direction.

Step 4

Make the filter installed into the squeezing cup. See the figure. Make the mark “▲” on the juicing filter

and the mark " ▲ on the squeezing cup aligned and perform installation downwards.

Step 3

Make the auger installed into the filter. Make the hexagonal axis in the spiral propeller align with the outer hexagonal axis of motor and perform installation downwards, and then rotate it at clockwise direction.

Step 2

Make the filter installed into the washing rack. Step 1

Make the squeezing cup installed on to the main body. See the figure. Make the trim strip

on the squeezing cup align with the trim strip on the main body and perform installation downwards, and then rotate it at clockwise direction.

Instructions for use

1. Turn on the switch

Forward("ON"): Make fruits and vegetables pushed downwards for squeezing.

Reverse("R"): Fruits and vegetables return upwards

WARNING!

Please don't operate switch with wet hand.

2. Use method of cover:

Simple line drawing of a helmet or safety helmet with no text or symbols

Push the button leftwards, and the swiveling cover will bounce automatically.

Simple line drawing of a balance scale with an arrow indicating direction (no text or symbols)

Press the swiveling cover downwards, and then push the button rightwards to lock it.

3. Juicing method:

3.1 Use method of big-caliber inlet tube feed port: Push the cover-opening button leftwards and the swiveling cover will bounce automatically, and the feed port will appear.

3.1.1 The whole apple may be put into the feed port, rotate and press the swiveling cover until the apple enters into the squeezing chamber.

3.1.2 The pushing rod may be used for assistance during the squeezing process.

Simple line drawing of a toilet with an apple and handle (no text or symbols)

ATTENTION!

- The fruits and vegetables with the diameter of over 75 mm or irregular shapes shall be put into the machine after being cut into small size, so as to prevent unsmooth feeding.

- Much fiber vegetable should be cut less 2cm length.

3.2 Use method of small feed port:

3.2.1 Make the swiveling cover rotated to be horizontal, and then push the cover-opening button rightwards to lock the swiveling cover.

3.2.2 Make clean fruits and vegetables (big-sized fruits and vegetables shall be cut into proper size) put into the feed port, and push them inwards by using the pushing rod.

Simple line drawing of a toilet with handle and cup (no text or symbols)

Small feed port: carrots, celery etc.

NOTICE!

Please use fresh fruits and vegetables to make the juice. The stale fruits and vegetables that have been stored in refrigerator for a long time shall be used after being immersed in cold water for over 10min.

* The kernel of fruits must be removed.

If the machine stops suddenly during operation, turn it off firstly, and then turn on "reverse" button to make the materials go upwards; and then turn on "ON" button (repeat the process for about 3 times).

*During reverse course, please use hands to hold the inlet tube slightly (prevent loosening).

*If the juicer still does not run after the operation, please disassemble the squeezing cup for cleaning, and then try the juicer again.

*The hard materials (such as carrot) must be cut into strips, otherwise the juicer may be damaged.

After the squeezing process is completed, please turn the switch off, and pull out the power plug

NOTICE!

Please do not store the squeezed juice for a long time.

Technical line drawing of a kitchen mixer and a circular control knob (no text or symbols)

The machine is inapplicable to crush grains (motor clamp and mechanical failure are liable to be caused).

Notes for use

* Please read the following contents before use.

1. The materials shall be put into the juicer slowly one by one, and new materials shall be put into it after the previous materials have been squeezed.

2. The hard materials(such as carrot) shall be put into the machine after being cut into the blocks about 10-20mm. (The materials with particularly strong fiber shall be put into the machine slowly after being cut into the strip of about 20mm length).

3. When the carrot that have been stored at low temperature for over 1 week, it is unsuitable making juice;

4. The juice amount will be small if the materials are not fresh. When dry materials stored in refrigerator are used for squeezing, the materials shall be squeezed after

EN

being immersed in clear water for sufficient water absorption, so that the effect will be better.

1. Some Hard and much fiber materials are not applicable to make juice (such as kudzu, sugarcane, etc).

2. There will be certain friction noise when carrot (hard flesh) or apple(hard peel) is used for squeezing, but this has no impact on the product.

3. Juice will be splash from the feed inlet when such materials as cherries tomatoes and grapes are used for squeezing. when use soft fruit to make juice, please mix some apple or pear together, it will be better to get more juice and marc will go out more smoothly.

NOTICE!

This juicer continuous working max time is 20 mins, please cool down the juicer for about 10 mins and restart it.

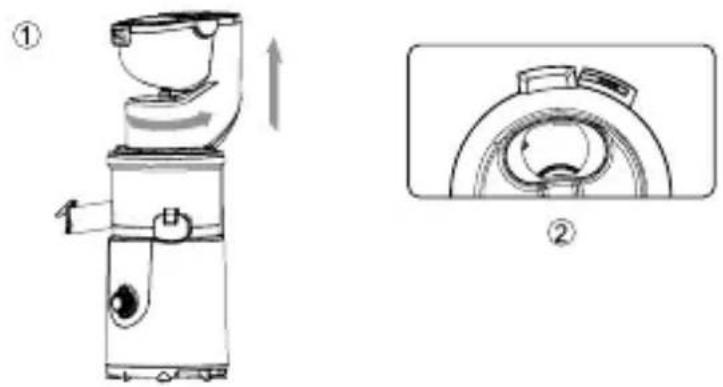

Disassembly Method

1. Stop the machine and pull out the plug.

2. Grip the cover of juice cup by hands, and rotate the cup of juice cup (see figure 1 at counter clockwise direction to the position indicated on figure 2 and then take out the cover of inlet tube upwards.

1. Grip the juice outlet on the squeezing cup, and take it upwards for separation (see figure 3).

2. Take out the auger + filter+ washing rack from squeezing cup.

(see figure 4).

1. Respectively disassemble auger, fiter and washing rack(see figure 5).

Line drawing of a portable oven with a side-mounted door and top handle, showing airflow direction (no text or symbols)

③

Diagram of a two-tiered kitchen appliance with an upward arrow indicating motion (no text or symbols)

④

Diagram showing three stages of a mechanical device: top view with spiral component, middle view with wooden cup, and bottom view with cylindrical base (no text or symbols)

⑤

Cleaning and Maintenance

1. Cleaning before use

A. After the complete machine is assembled, make the cover of juice outlet and the cover of marc outlet respectively installed to the juice outlet and marc outlet of the squeezing cup, and it shall be at closed status.
B. Connect the power. Add 500 ml water into the squeezing cup from the feed port; switch on the machine will perform about 30 seconds.

Simple line drawing of a vertical cylindrical object with a small protrusion on the right side (no text or symbols)

Cover of marc outlet is at closed status

Simple line drawing of a cylindrical object with a handle, no text or symbols present

Cover of marc outlet is at open status

2. Cleaning after use

Clean the disassembled parts with clear water, and please clean them with brush if meshes are blocked by marc.

Cleaning after use

NOTICE!

Please do not use iron wire brush abradant or sharp cleaning is for cleaning.

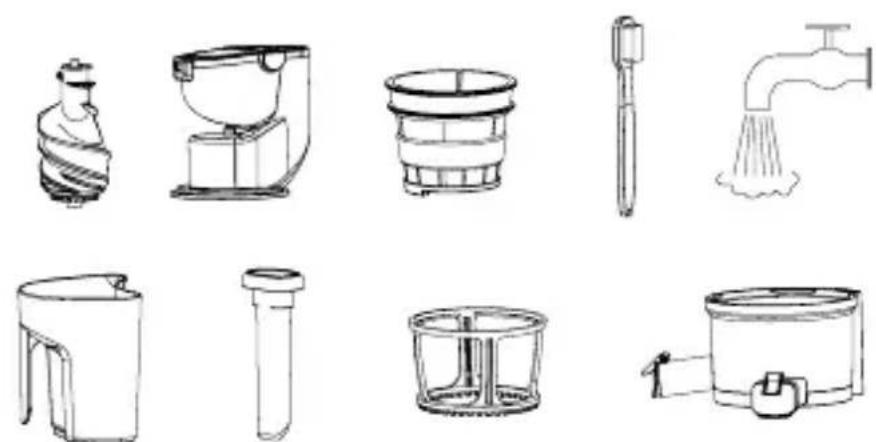

Cleaning method

ATTENTION!

Wash the disassembled parts with flowing water; if the meshes are blocked up by dreg, please use the cleaning brush for the cleaning.

Line drawings of various kitchen appliances including a blender, blender, water dispenser, and washing machine (no text or labels)

1. Do not make the main body put into water for cleaning; and be sure to use wringed soft cloth to clean it.

Line drawing of a washing machine with a hand cleaning it (no text or symbols)

1. After cleaning, please dry the cleaned parts and store them in a clean and ventilating place.

NOTICE!

The rubber pad at the bottom of the squeezing cup may be washed.

Circuit diagram

Problem solving

Problem Cause Solution method
The running machine stops suddenly	1. Whether the power plug is inserted properly2. The quantity of materials put into the machine is too much3. Hard fruits and vegetables are not cut;	1. Make the plug inserted into the socket.2. Firstly, press “R” for 2-3s to make the materials return upwards; then press the “ON” button (repeat the process for about 3 times). If the machine still does not run please clean the machine and then use it.3. Hard fruits and vegetables (such as carrot) shall be squeezed after being cut into strips.
The juice amount is small or juice flows out of the mainframe	1. Materials stored in refrigerator are too long2. The rubber pad at the bottom of squeezing cup is not installed properly	1. The juice amount will be increased if the materials are squeezed after being immersed in clear water for sufficient water absorption.2. Please reinstall the squeezing rubber pad by referring to the installation method.3. Use fresh fruit.
There is abnormal noise 1. Accessories are not properly installed2. The machine is put on oblique ground3. Parts cause extrusion sound during squeezing		1. Inspect whether the accessories are properly installed after the machine stops2. Please put the machine on a plane3. The sound caused byextrusion of fruits and vegetables, and please do not worry about it.
The container and accessories are dyed after use	1. Dreg attaches to the container2. The container and accessories are liable to be dyed when materials with pigment (such as carrot, spinach etc.) are used for squeezing.	1. Clean the machine in time after use2. Clean the machine with detergent after it is wiped with edible oil.

Waste Disposal

If the service life of the device has ended, in particular if functional disturbances occur, make the worn-out device unusable by cutting through the power cable.

Dispose of the device according to the environmental regulations applicable in your country.

Electrical waste must not be disposed of together with household waste. Bring the worn-out device to a collection center. The packaging of the device consists of recycling-capable materials. Place these, sorted out according to material, in the collectors provided, so that recycling can be carried out on them. For advice on recycling, refer to your local authority or your dealer.

The device complies with WEEE Regulation.

Dispatch

Carry the appliance in the original package or a similar, well-padded package to prevent damage to the appliance.

Türkçe

TR

Technical diagram of a mechanical component with concentric rings and mounting holes (no text or labels)

Lastik ped

Cross-sectional diagram of a mechanical component with no visible text or symbols

Simple line drawing of a hand holding a tool, no text or symbols present

Simple line drawing of a cylindrical object with a separate rectangular block and a diagonal line extending from it (no text or symbols)

Simple line drawing of a hand holding a cylindrical object (no text or symbols)

Simple line drawing of a mechanical component or bracket (no text or symbols)

Step 6

Step 5

Step 4

Step 3

Step 2

Step 1

6. Adim

Simple line drawing of a helmet or cap with no text or symbols

Simple line drawing of a mechanical device with an arrow indicating direction (no text or symbols)

Simple line drawing of a hand holding an apple and a ring, no text or symbols present

DİKKAT!

Simple line drawing of a toilet or sink with handle and outlet (no text or symbols)

Technical line drawing of a kitchen mixer and a showerhead (no text or symbols)

Line drawing of a kitchen mixer with directional arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a portable water heater with directional arrow indicating motion (no text or symbols)

③

Line drawing of a kitchen appliance with a basket and handle, no text or symbols present

④

Three-step diagram showing a straw bulb, a wooden barrel, and a basket with a handle (no text or symbols)

⑤

Temizlik ve Bakım

Simple line drawing of a cylindrical container with a handle and a separate small object beside it (no text or symbols)

Simple line drawing of a cylindrical object with a handle and base, no text or symbols present

Line drawings of various household appliances including a blender, blender, brush, and water dispenser (no text or labels)

Line drawing of a washing machine with a hand cleaning it (no text or symbols)

Sorun giderme

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Simple line drawing of a helmet or dial with no text or symbols

Line drawing of a mechanical device with an arrow indicating direction (no text or symbols)

Simple line drawing of a hand holding an apple and a bowl, with no text or symbols present.

ВНИМАНИЕ!

Simple line drawing of a toilet or sink with handle and outlet (no text or symbols)

Line drawing of a kitchen mixer with handle and side arm (no text or symbols)

Technical line drawing of a kitchen mixer and a circular control knob (no text or symbols)

Line drawing of a kitchen mixer with directional arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a portable water heater with directional arrow indicating motion (no text or symbols)

③

Simple line drawing of a two-part container with an upward arrow indicating motion (no text or symbols)

④

Three-step diagram showing a straw feeding into a wooden barrel, with an arrow indicating upward motion (no text or symbols)

⑤

Simple line drawing of a cylindrical container with a handle and an arrow pointing to it (no text or symbols)

Simple line drawing of a cylindrical object with a handle and a small protrusion (no text or symbols)

Line drawings of various household appliances including a blender, blender, water dispenser, and washing machine (no text or labels)

Line drawing of a washing machine with a hand cleaning it (no text or symbols)

Technical line drawing of a mechanical component with concentric circular features and mounting holes (no text or symbols)

السنادات المطاطية

Circular mechanical component with concentric rings and mounting holes (no visible text or symbols)

Simple line drawing of a mechanical component or tool (no text or symbols)

Simple line drawing of a cylindrical object with a handle and a separate rectangular block, no text or symbols present.

Simple line drawing of a mechanical component or tool interacting with a cylindrical body (no text or symbols)

Simple line drawing of a mechanical joint or bracket (no text or symbols)

1. retirement pharmacية بالكامل

6 alخطوة

Simple line drawing of a helmet or dial (no text or symbols)

Simple line drawing of a mechanical device with an arrow indicating direction (no text or symbols)

Simple line drawing of a mechanical device with a central knob and handle (no text or symbols)

[Unreadable]

ميليمتر أو الفواكه

Simple line drawing of a mechanical device with no text or symbols

Technical line drawing of a kitchen blender and its side view (no text or symbols)

ملاحظات قبل استخدام

Line drawing of a kitchen blender with directional arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a portable kitchen blender with handle and side arm (no text or symbols)

③

Diagram of a kitchen appliance with a side view showing internal components and a person interacting with the lid (no text or symbols)

④

Three-step diagram showing a spiral-shaped container, a wooden basket, and a wire holder (no text or symbols)

⑤

Line drawing of a portable water heater with handle and control knob (no text or symbols)

③

Diagram of a cooking pot with a side panel and a side-mounted tool, showing no text or symbols.

④

Three-step diagram showing a spiral-shaped container, a wooden basket, and a wire-wrapped container (no text or symbols)

⑤

التنظيف والصيانة

1. التنظيف قبل استخدام

Simple line drawing of a cylindrical container with a handle and an arrow pointing to it (no text or symbols)

Simple line drawing of a cylindrical container with a handle, next to a rectangular block (no text or symbols)

Line drawing of a washing machine with a hand cleaning it (no text or symbols)

حل مشكلات

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Fakir customer service/

Kundenservice:

Rights to make changes are reserved.

Subject to revision

92 13 994 - 9911
