USER MANUAL RHC 650 PN ROSIERES

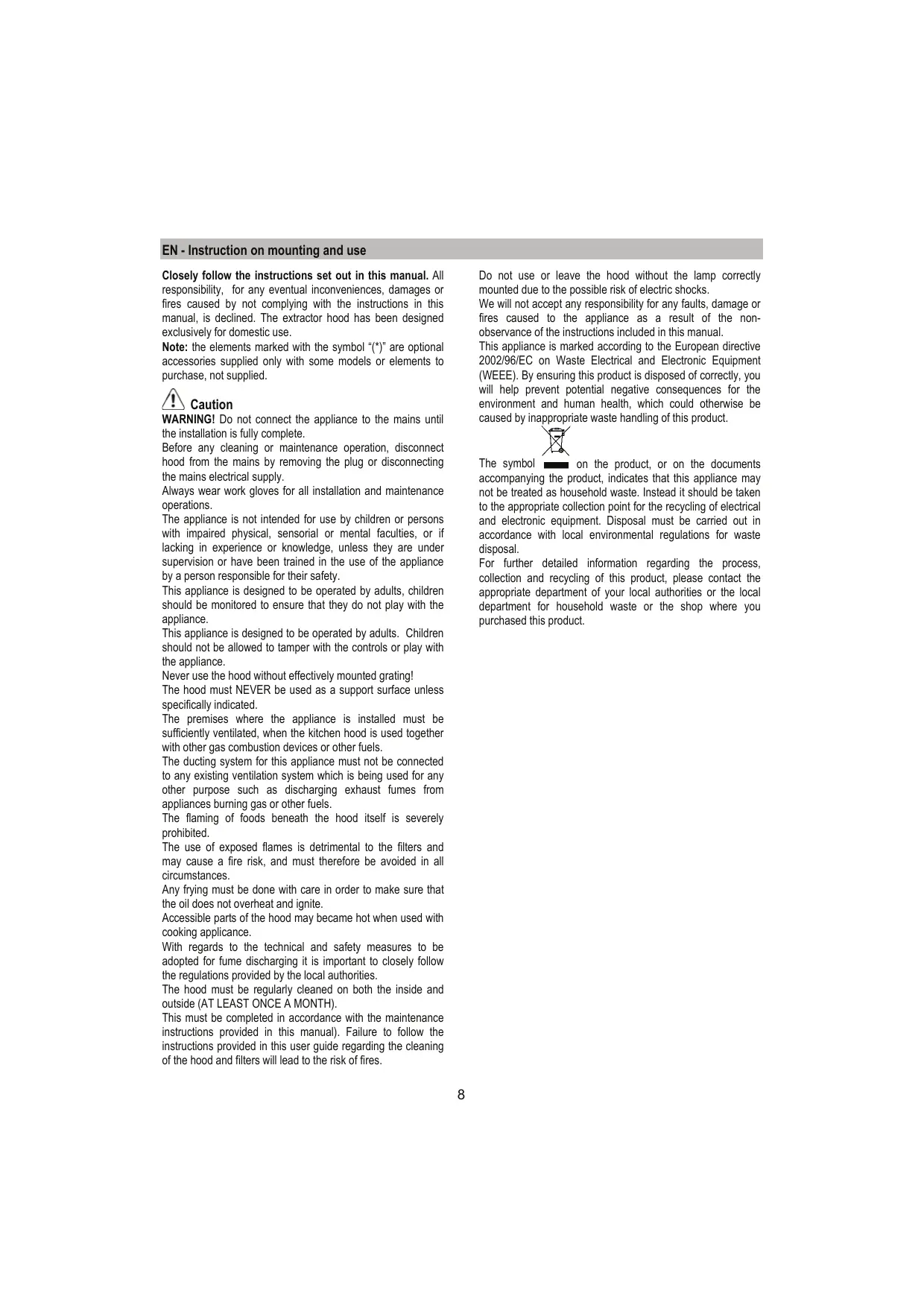

EN Instruction on mounting and use

EN - Instruction on mounting and use

Closely follow the instructions set out in this manual. All responsibility, for any eventual inconveniences, damages or fires caused by not complying with the instructions in this manual, is declined. The extractor hood has been designed exclusively for domestic use.

Note: the elements marked with the symbol (^*) are optional accessories supplied only with some models or elements to purchase, not supplied.

Caution

WARNING! Do not connect the appliance to the mains until the installation is fully complete.

Before any cleaning or maintenance operation, disconnect hood from the mains by removing the plug or disconnecting the mains electrical supply.

Always wear work gloves for all installation and maintenance operations.

The appliance is not intended for use by children or persons with impaired physical, sensorial or mental faculties, or if lacking in experience or knowledge, unless they are under supervision or have been trained in the use of the appliance by a person responsible for their safety.

This appliance is designed to be operated by adults, children should be monitored to ensure that they do not play with the appliance.

This appliance is designed to be operated by adults. Children should not be allowed to tamper with the controls or play with the appliance.

Never use the hood without effectively mounted grating!

The hood must NEVER be used as a support surface unless specifically indicated.

The premises where the appliance is installed must be sufficiently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels.

The ducting system for this appliance must not be connected to any existing ventilation system which is being used for any other purpose such as discharging exhaust fumes from appliances burning gas or other fuels.

The flaming of foods beneath the hood itself is severely prohibited.

The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances.

Any frying must be done with care in order to make sure that the oil does not overheat and ignite.

Accessible parts of the hood may became hot when used with cooking appliance.

With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities.

The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH).

This must be completed in accordance with the maintenance instructions provided in this manual). Failure to follow the instructions provided in this user guide regarding the cleaning of the hood and filters will lead to the risk of fires.

Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks.

We will not accept any responsibility for any faults, damage or fires caused to the appliance as a result of the non-observation of the instructions included in this manual.

This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For further detailed information regarding the process, collection and recycling of this product, please contact the appropriate department of your local authorities or the local department for household waste or the shop where you purchased this product.

Use

The hood is designed to be used either for exhausting or filter version.

Ducting version

The cooker hood has an upper air duct B1 and an optional rear air duct B2^* for external fumes exit.

Select the suitable air duct and apply the flange C supplied, ensure to close the unused hole duct with cap D^* supplied if provided.

Note: in some models upper hole B1 is supplied closed: Press firmly to detach the detachable part that closes the outlet hole and remove it.

Attention! The detachable part cannot be mounted in position again. Carry out this operation only if you are sure of the type of installation to make.

Caution! In some models the rear hole duct is not easily accessible, even when the tap (if mounted) is removed, in this case remove the plastic piece E1 or E2 that is blocking the hole duct, by unwinding using pliers and cutter. Check that the filter/suction selector (inside the cooker hood) G is in the suction (A) position.

Filter version

In the case where it is not possible to discharge the cooking fumes externally, the cooker hood may be used in the filter version by fixing a carbon filter, the fumes and vapours are recycled via the anterior grill placed above the control panel.

Check that the filter/suction selector (inside the cooker hood) G is in the filter (F) position.

The models with no suction motor only operate in ducting mode, and must be connected to an external suction device (not supplied).

The connecting instructions are supplied with the peripheral suction unit.

Installation

The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be not less than 60cm from electric cookers and 75cm from gas or mixed cookers.

If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.

Electrical connection

The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug connect the hood to a socket in compliance with current regulations and positioned in an accessible area, after installation. If it not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area, after installation, apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III, in accordance with installation instructions.

Warning! Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled.

Warning! Power cable replacement must be undertaken by the authorised service assistance centre or similar qualified person.

Mounting

The cooker hood may be installed on the wall or on the base of a cabinet; if supplied, use the hole gauge H to drill the correct distance, otherwise lean the cooker hood on the wall or on the base of the cabinet and mark the holes with a pencil.

Wall mounting - Insert the wall screw anchors J in the drilled holes and the two K screws in the upper drill holes, remove the grill and hook the cooker hood to the 2 screws, finally from the inside, insert the third screw L and lock them all in.

Cabinet fixing - Affix the cooker hood with the 4 M screws from inside the cabinet.

Operation

The hood is fitted with a control panel with aspiration speed selection control and a light switch to control cooking area lights.

Use the high suction speed in cases of concentrated kitchen vapours. It is recommended that the cooker hood suction is switched on for 5 minutes prior to cooking and to leave in operation during cooking and for another 15 minutes approximately after terminating cooking.

Always open the vapour catcher N^

If your product is provided with an electrically or mechanically activated valve, the keys and/or the buttons and/or the handles available are for controlling the lights and for opening and closing the valve.

Maintenance

ATTENTION! Before performing any maintenance operation, isolate the hood from the electrical supply by switching off at the connector and removing the connector fuse. Or if the appliance has been connected through a plug and socket, then the plug must be removed from the socket.

Cleaning

The cooker hood should be cleaned regularly (at least with the same frequency with which you carry out maintenance of the fat filters) internally and externally. Clean using the cloth dampened with neutral liquid detergent. Do not use abrasive products. DO NOT USE ALCOHOL!

WARNING: Failure to carry out the basic cleaning recommendations of the cooker hood and replacement of the filters may cause fire risks.

Therefore, we recommend observing these instructions.

The manufacturer declines all responsibility for any damage to the motor or any fire damage linked to inappropriate maintenance or failure to observe the above safety recommendations.

Grease filter

Traps cooking grease particles.

If situated inside the support grill, it may be one of the following types:

Paper filter must be replaced once a month or if colouring appears on upper side, in such cases the colouring is evident through the grill openings.

Sponge filter should be washed with hot soapy water once a month and replaced every 5 to 6 washes.

Metallic filter must be cleaned once a month, with non abrasive detergents, by hand or in dishwasher on low temperature and short cycle.

When washed in a dishwasher, the grease filter may discolour slightly, but this does not affect its filtering capacity.

In order to remove the grease filter open the grill via the P hooks and free the R1 or R2 stoppers.

The self-supporting metal filter does not include a support grill, in order to remove the filter - pull the release springs P4 backwards and slide the filter downwards.

Charcoal filter (filter version only)

It absorbs unpleasant odours caused by cooking.

The saturation of the charcoal filter occurs after more or less prolonged use, depending on the type of cooking and the regularity of cleaning of the grease filter.

In any case it is necessary to replace the cartridge at least every four months.

The charcoal filter may NOT be washed or regenerated.

It may be one of the following types:

Rectangular S1 or S2 or S3:

Mounting (S1 or S2): insert the rear side T and hook further to the front (U).

Mounting (S3): Remove the cover W by rotating the O knobs to 90^ , fit the filter inside and lock in place with the central knob O, then close the cover.

Proceed in the inverse for dismounting.

Circular (V1-V2-V3-variouss models):

Bayonet mount position the filter in the middle of the motor protection grill covering ensuring that the reference to X1 or X2 or X3 on the carbon filter match the Y1 or Y2 references on the conveyor, then turn clockwise; in case of dismounting turn anticlockwise, if provided with a Z tape remember to gently lift first.

Replacing lamps

Disconnect the hood from the electricity.

Warning! Prior to touching the light bulbs ensure they are cooled down.

Replacing lightbulbs 40W - Unscrew the damaged light bulb and replace with an incandescent oval light bulb with a maximum of 40W E14. Remove the grill in order to reach the light bulb area.

Replacing the halogen bulbs - Access the light compartment - extract the lamp cover by levering it off with a small screwdriver or similar tool.

Replace the damaged light bulb. Only use halogen bulbs of 20W max (G4), making sure you do not touch them with your hands. Close the lamp cover (it will snap shut).

If the lights do not work, make sure that the lamps are fitted properly into their housings before you call for technical assistance.

Rechthoekig S1 of S2 of S3:

Circular (V1-V2-V3- various modelos):

Montagem (S3): Remove a tampa W girando as manoplas O de 90^ .

Insetir o elemento filtrante de carvão activado no interior do

Circular(V1-V2-V3-varios models):

BbITrIbAeMbI Bo3DyH He DoJXeH BbIbpaCbBaTbC HApYxUyepe3 Bo3DyXoBOD, NcIOJIb3yEmi IINB BbIbPoCa DbIMOB OTnpIbOpOB C Ra3ObBIM CxNraHnEM MIn C PNTaHnEM DpyrIMNTopOuMn.

Kateropnueckn 3anpeaetcra roTOBn6bnoa "noi nIamHeM"POCKoJIbky CBO6OdHoe IINAMr MOKeT NOBpeNTb fNtbpI N CTaT PnUHHo NOKapa; N03TOMY, BO3depXJBaIteCb OT 3TO R B LIObOM cJyae.

KapeHb B 60JbWOM KOJIuYeCTBe Macla DOnJIxHO npOu3BOuNTbCn IOI NOCToRrHbIM KOHTpOJeM, IMeB BVNu, yTO nepepeToe MaCIO MoKET BoCNJaMeHrTcR.

HE IPIPIMEHJTE CnHPT!

BhimaHne: He co6nIOeHne npabIN nIcSTKn npi6Opa n3aMeHbI pInIbTPOB MOKET npiBeCTN K pNCKy BO3HMKHOBeHnroKapa. I03ToMpyekOMeHNdyem CO6JIoDAtb npiBeDeHHbIe INHCTpyKUIN.

CHINMaTeCJIIO6aIOTBETCTBeHHOCTb B CBA3N C BO3MOXbIMN IOBpeXdEHNMAI DnIgAteJIY N C NOKApAMN, BO3HNIKUIMN BCNeIcDCTBHe HeIpaBUNbHOrO peMOHTa INI HecO6JIIOJeHNH BblIeONICAHbIx NpIeDyIpexDeHIn.

ΦnIbTpbl 3aIepKKn Knpa

YdepKnBaET qactnCbI Jnpa, NcXoJaune Oe OT JInTbI.

IpyToro,TO6bI DOCTaTB QINbTp OT KINPOB,Heo6XoDMO OTKpbITpeWETKY C NOMOJIbKPOHOB P INCHrTB WtntObl

R1 mR2.

Camahecuu Meannuecku funbmp He cah6xhen HeCyuepeWetKo;IaN CHTNAero,TRHbTe FIKCaTopbP4 K3aDn N BbHbTe FmNbTp KNH3y.

YrOJIbHbI ΦnIbTp (TOnbKO BpeXnme peuRpyJau

YdaIaIeHT HnpeTbIe 3anax KxHn.

HacbIeHHe yOrlbHoroФINbTpa npOxCoDnT no IcTeYeHnB 60bee mN MeHee dInITelbHoro nepHOa 3KcPiNyatauH, npDeOpnepeJemero TnOM KxHN n PepNOdHuOCTbU 3adepkXn kipa. B JIObOM cnCyae, ZamEnyte naTPOH no KpainHe Mepe uepe3 kXkbie 4 Mecaqa.

YroIbHbI ΦnIbTp HE noIeJnxT MoKe nIu pereHepaun. IMeETcB CJeDyUoNx BapnaHTax :

PrrpoyroIbHbI S1 nIe S2 nIe S3:

YctahOBka (S1 nnn S2): BCTaBnTB TbIbHyO CTOpOH T npKpeHn Ha nepeDneu Yactn (U).

YctaHOBka (S3): BbIbTe KOJInak W, NOBepHyB Ha 90° pyKoTkn O.

BCTaBBTe CmEHbI yrOJIbHbI 3JIeMeHT BHyTpB COOTBETCTByUOSeI NOIOCTN,3aФИKcIpyTe erO, NOBepHyBa 90e pykoTKe O,3aKpOte BHObKoIInak.

Дя ChЯТЯ, BыINONHTe onepaUNo B obpaTHO nocneIOBATEJIbHOCTN.

Kpyrlb (V1-V2-V3-pa3hIe moJeIN):

YctahOBITE fNbTp Nocpei 3aunTHoH peWeTkn BHyTpeHrero MecAnm3Ma n npobepitne, YTO6bl X1 nnX2 nnX3 Ha yOJbHOM fNtBpTe COBnAin C Y1 nnY2 Ha 3OHTE, 3aTEM NOpobauNBAte No YacOBoC tCPenke; dnn DeMOHTaxa pni HauNMe Detanu (ra3bUka) Z noDNHMaTe ee n 3aTEM NOpobauNBAte npOTNB YACOBO CTPNK.

3aMeHaJamn

OTKlnouHTe np6op ot 3JNeKTpocetm.

BhImaHne!PpeJe HeM npKacatbcs K JAmnam yEeNTecb B TOM, YTO OHN OCTbIN.

3aMeHa lamnoyek: OTBnHTnte NOBpeXeHHyI lamnoyky 3aMeHHTe Ha lamnoyky HakaJIbIBAHIN OaJIbHoi fOpMbIOuHocTbO 40W E14. Ipy toro, YTO6bl DoCTaTb lamnoyKn Heo6xOJIMo CHrTb peWetKy.

3aMeHa ranoreHnoi lambl:OTKPOITe IIOIOCTb IOIaMnTy, BbIbTe 3aUHTBthI 3IeMENT PnI NOMOUI MEJIKOHOXeBOI OTBePTKn INI NIOO6HORIO HCHTPMEnTa.

3amehnte neperopebuyu namny.

IcnoJIb3yIte JINbIraIIOReHnHbIe IaMnIbHa 20BTMaKc.(G4), He pInkacacBc K HmpykAm. 3aKpOte BHOBb 3aUHTbIy 3IeMeHT (DfIKCaIg 3aUeJIko).

Ecnn cnCTema nOcBETKn He pa6oTaet, npOBepbTe KoppeKTHyU yCTaHOBKy lamn B rHe3dax, npExe Yem 6pbTbCBy B cHTp TEXHnuecko NMOu.
