VP S3010 - Vacuum Cleaner ECG - Free user manual and instructions

Product Type	Canister Vacuum Cleaner
Model	VP S3010
Brand	ECG
Suction Power	180 W
Nominal Input Power	700 W
Voltage	220-240 V ~ 50-60 Hz
Dust Bag Capacity	3 L
Operating Radius	7.5 m
Noise Level	< 75 dB
Filtration System	Motor filter, HEPA H11, washable cloth bag
Automatic Cord Rewind	Yes
Full Dust Bag Indicator	Yes
Telescopic Tube	Metal, telescopic
Wheels	Rubber coated
Suction Power Regulation	Yes (on handle)
Included Accessories	Telescopic metal tube, floor nozzle with pull-out brush, parquet nozzle with PP bristles, mini PET turbo brush, combined crevice tool and dust brush
Replacement Dust Bags	KOMA ECG VP 3163 S or SWIRL Y 12
Motor Filter Cleaning	Wash with warm water, dry thoroughly, replace if damaged
Output Filter Cleaning	Shake off dust, replace if damaged

Frequently Asked Questions - VP S3010 ECG

How do I change the dust bag?

When the indicator turns red, press the lock to open the front cover, remove the holder with the full bag, fit a new bag (model KOMA ECG VP 3163 S or SWIRL Y 12), and return the holder.

How often should I clean the motor filter?

Clean the motor filter twice a year. Open the front cover, remove the dust bag, take out the filter, wash it in warm water, and dry thoroughly before reuse.

What should I do if the suction power decreases?

Check for a full dust bag, clogged hose or tube, or dirty filters. Replace the bag, clear obstructions, and clean or replace filters.

Can I use the vacuum cleaner on hardwood floors?

Yes, use the parquet nozzle with PP bristles or the floor nozzle set for hard floors. The floor nozzle has a pull-out brush suitable for different surfaces.

How do I rewind the power cord?

Press the cable rewind button on the vacuum cleaner. The cord will automatically retract. Never pull the cord beyond the red mark.

What does the red indicator mean?

The full dust bag indicator turns red when the dust bag is full or suction paths are blocked. Replace the bag or check for clogs.

Is the vacuum cleaner safe to use on stairs?

Yes, but use extra care. Ensure the vacuum is stable and the cord does not pose a tripping hazard.

What type of filter does the VP S3010 have?

It has a motor filter, a HEPA H11 filter, and a washable cloth bag. The HEPA filter is suitable for allergy sufferers.

Can I use the vacuum without a dust bag?

No, never use the vacuum cleaner without an inserted dust bag, motor filter, and exhaust filter. It may cause damage or reduce performance.

What should I do if the vacuum cleaner stops working?

Check the power cord and outlet. If it still doesn't work, contact an authorized service centre. Do not attempt to repair yourself.

USER MANUAL VP S3010 ECG

White and black ECG vacuum cleaner with green handle and control buttons (no visible text or symbols on device body)

VP S 3010

VACUUM CLEANER

INSTRUCTION MANUAL

BODENSTAUBSAUGER

BEDIENUNGSANLEITUNG

PODLAHOVÝ VYSAVAČ

NÁVOD K OBSLUZE

PÕRANDATOLMUIMEJA

KASUTUSJUHEND

USISAVAČ

UPUTE ZA UPORABU

GRĪDAS PUTEKLSŪCĒJS

ROKASGRÂMATA

GRINDU DULKIŲ SIURBLYS

INSTRUKCIJU VADOVAS

PADLÓPORSZÍVÓ

HASZNÁLATI ÚTMUTATÓ

ODKURZACZ PODŁOGOWY

INSTRUKCJA OBSŁUGI

ASPIRATOR DE PODEA

INSTRUCTIUNI DE UTILIZARE

PODLAHOVÝ VYSÁVAČ

NÁVOD NA OBSLUHU

TALNI SESALNIK

NAVODILA

USISIVAČ

UPUTSTVO ZA UPOTREBU

ΗΛΕΚΤΡΙΚΗ ΣΚΟΥΠΑ

ΕΓΧΕΙΡΙΔΙΟ ΟΔΗΓΙΩΝ

ПИЛОСОС

Read carefully and save for future use!

Warning: The safety measures and instructions, contained in this manual, do not include all conditions and situations possible. The user must understand that common sense, caution and care are factors that cannot be integrated into any product. Therefore, these factors shall be ensured by the user/s using and operating this appliance. We are not liable for any damages caused during shipping, by incorrect use, voltage fluctuation or the modification or adjustment of any part of the appliance.

To protect against a risk of fire or electric shock, basic precautions shall be taken while using electrical appliances, including the following:

1. Read all instructions before using the appliance.
2. Make sure the voltage in your outlet corresponds to the voltage provided on the appliance label and that the socket is properly grounded. The outlet must be installed according to valid safety instructions.
3. Do not use the vacuum cleaner if the power cord is damaged. All repairs, including cord replacements, must be carried out at a professional service centre! Do not remove the protective covers from the appliance; there is a risk of electric shock!
4. Protect the vacuum cleaner from direct contact with water and other liquids, do not place on it containers with liquids to prevent electric shock.
5. Do not use the vacuum cleaner in upright position. Never use the vacuum cleaner without inserted dust bag, motor filter and exhaust filter.
6. Do not leave the plugged in vacuum cleaner unattended. Disconnect the cord from the electrical outlet prior to any maintenance. When unplugging the appliance, hold the power cord by the plug. Do not pull the cable.
7. Do not use the vacuum cleaner outdoors or in a damp environment. Risk of electric shock.
8. Do not allow children to play with the vacuum cleaner. A vacuum cleaner is not a toy. Be more attentive if you are using the vacuum cleaner near children.
9. Use only attachments and accessories approved by the manufacturer.
10. If the vacuum cleaner does not work properly; if the vacuum cleaner fell (eg dropped into water); if it is damaged or has been forgotten outside, have it checked by an authorized service center.
11. Do not hold the vacuum cleaner by the power cord when moving it. Make sure that the power cord is not broken or bent over sharp objects and edges. When working with the vacuum cleaner, do not drive over the power cord. Keep the power cord away from heat sources.
12. Do not touch the power cord or the vacuum cleaner with wet hands.
13. Do not insert any objects into the vacuum cleaner openings. Do not use the vacuum cleaner if the openings are blocked in any way. Make sure that the vacuum cleaner is clean, without dirt and any debris, which can reduce the suction power of the vacuum cleaner.
14. Keep hair, loose clothing, hands and other parts of the body away from openings or moving parts of the vacuum cleaner.
15. Do not use the vacuum cleaner on the following objects, which could result in damaging the device or injury:
16. sharp objects like glass, screws, coins, nails, etc.
17. hot or smouldering objects like embers, cigarettes or flammable and volatile liquids
18. wet surfaces, water and other liquids.
19. Use extra care when cleaning stairs.
20. Use the vacuum cleaner only in accordance with the instructions in this manual. This vacuum cleaner is designed for home use only. The manufacturer is not liable for any damage caused by the improper use of this appliance.
21. This appliance is intended for use by children 8 years of age and older and persons with reduced physical or mental abilities or lack of experience and knowledge, provided they are under supervision or given instructions concerning use of the appliance in a safe manner and understand the potential hazards. Children shall not play with the appliance. Cleaning and maintenance by the user must not be done by

children unless they are older than 8 years old and under supervision. Children under 8 years of age must keep away from the appliance and its power supply.

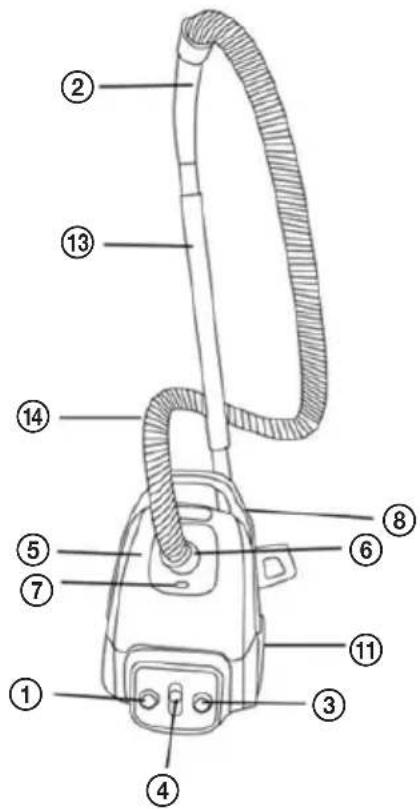

DESCRIPTION OF THE VACUUM CLEANER

Close-up of a black cylindrical device with numbered callouts (16, 17, 1) pointing to its top edge (no visible text or symbols on the device itself)

Close-up of a black hairbrush tool with textured grip (no text or symbols visible)

Black ECG vacuum cleaner handle with cylindrical port (no text or symbols visible)

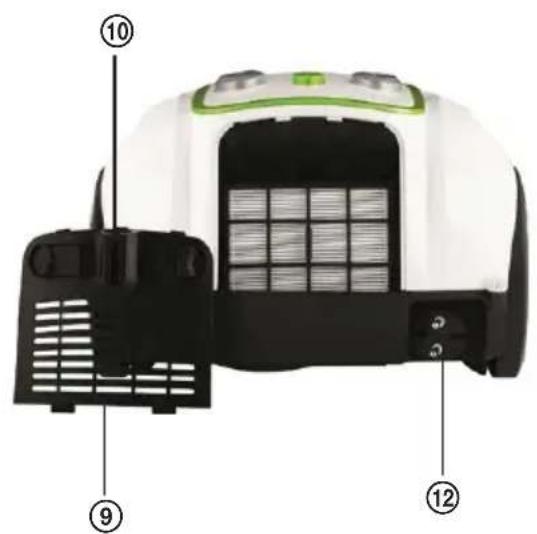

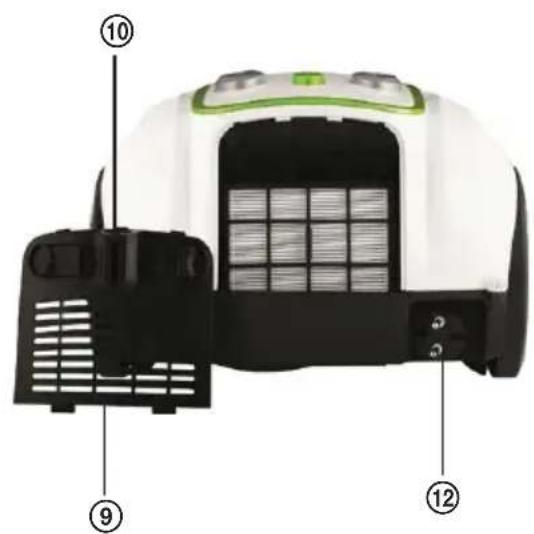

List of parts

1. ON/OFF button
2. Hose handle
3. Cable rewind button
4. Suction power regulation
5. Front cover
6. Opening for inserting the hose
7. The full dust bag indicator
8. Bottom holder

9. Output filter cover grille

10. Tube holder

11. Wheels
12. Power cord
13. Telescopic tube
14. Hose

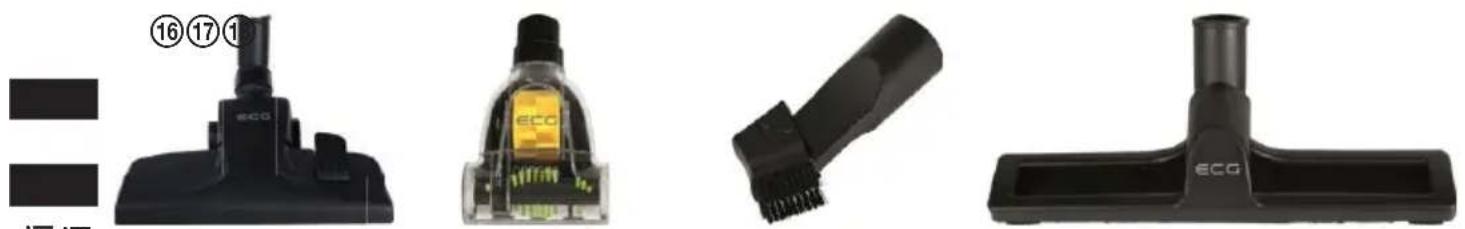

15. Floor nozzle with pull-out brush
16. Mini PET turbo brush
17. Combined crevice tool and dust brush
18. Parquet nozzle with PP bristles

USING THE VACUUM CLEANER

The vacuum cleaner must be switched off and disconnected from power before you start to assemble it!

1. Insert the end of the hose into the opening in front of the vacuum cleaner and secure it.

2. Connect the other end of the hose with curved ending to the tube.

3. Attach to the tube accessories suitable for the flooring type. Switch the floor nozzle for carpets or for hard floors according to the type of floor. The combined nozzle is designed for cleaning narrow spaces and difficult to reach areas in the corners or between the furniture. Mini PET turbo brush is suitable for vacuuming animal hair.

4. Starting the vacuum cleaner: plug the power cable in the electrical outlet whose parameters correspond to the data in the type tag of the vacuum cleaner and press the power button to start the vacuum cleaner.
5. Pulling and rewinding the cord: Grasp the plug and pull out the power cord. Press the retractor button, the power cord rewinds back in the vacuum cleaner.

Note: Never pull out the power cord beyond the red mark located on the cord. The yellow mark shows the optimum length of the power cord.

Note: When carrying the appliance from one room to another unplug the power cord and carry it by the handle. Never move the vacuum cleaner by pulling the power cord.

After use

Switch off the vacuum cleaner and unplug it from the electrical outlet. Press the retractor button, the power cord rewinds back in the vacuum cleaner. Before attaching any accessories or before cleaning the appliance, always switch off the vacuum cleaner and unplug the power cord from the outlet. To disconnect the vacuum cleaner hose, press the hose attachment at the marked points and pull out the hose.

Issues

Do not use an appliance showing any signs of damage. A damaged power cord has to be replaced in an authorized service centre. Only this way can you prevent safety risks.

See the troubleshooting guide if your vacuum cleaner does not operate correctly. Refer to an authorized service centre if you are not able to resolve an issue yourself.

Full dust bag indicator

The vacuum cleaner is equipped with an indicator, which changes colour to red if the dust bag is full or if the suction paths are otherwise blocked. If the full dust bag indicator remains red even after inserting a new bag, switch off the vacuum cleaner, unplug it from the outlet and check if the hose or the tube of the vacuum cleaner are not clogged. If the indicator still remains red, contact an authorized service centre or your vendor. To prevent overheating of the vacuum cleaner and subsequent damage, check the following parts of the vacuum cleaner:

• All connections between the hose, telescopic tube and floor brush
• Opening for connecting the hose
• Brush throughput
• Exhaust filter
• Motor filter
• Dust bag

CLEANING AND MAINTENANCE

Warning:

Always unplug the power cord from the outlet before any maintenance and cleaning.

1. Changing the dust bag: When the colour of the dust bag indicator changes to red, it is time to change or empty the dust bag.

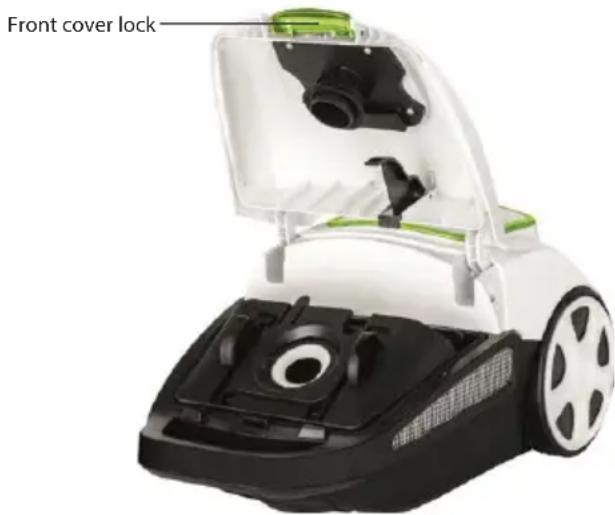

2. Press the lock in front to open the front cover.

3. Remove the holder with the full dust bag.
4. Fit the new bag into the holder and return the holder.

1. Clean the motor filter twice a year: Open the front cover, take out the dust bag, remove the filter, wash it in warm water and dry it thoroughly prior to next use. If the filter is damaged replace it with a new one.
2. Clean the output filter regularly: Open and remove the cover grill of the output filter. Shake to remove the accumulated dust. If the filter is damaged replace it with a new one.
3. Cleaning of the appliance surface: To clean use a soft cloth slightly moistened with a few drops of mild detergent. Never use a solvent or any abrasive scouring cleaners. Never immerse vacuum cleaner in water or any other liquid and do not clean it under running water.

Warning:

Replacement filter bags for the VP S 3010 vacuum cleaner can be found under the name KOMA ECG VP 3163 S, SWIRL Y 12.

TROUBLESHOOTING

Before contacting the service, check the following list of common problems and possible remedies.

Problem Possible cause Solution
The motor will not start.	The vacuum cleaner is not powered.	Check the power cord and the electrical outlet. If the device still does not work, contact an authorized service centre.
The suction power is reduced.	Full dust bag, clogged hose or tube or dirty filters.	Replace the dust bag, remove foreign objects from the hose or tube, replace the filters.

TECHNICAL DATA

Suction power 180 W

Telestopic metal tube

Rubber coated wheels for easy transport

Automatic rewind

Full dustbag indicator

Volume of the dust bag - 3 l

Operating radius 7.5 m

Filters: motor filter, HEPA filter H11, washable cloth bag

Accessories:

• telescopic metal tube
  • floor nozzle with pull -out brush
  • parquet nozzle with PP bristles
• mini PET turbo brush,
  • combined crevice tool and dust brush

Nominal voltage: 220–240 V\~ 50–60 Hz

Nominal input power: 700 W

Noise level: < 75 dB

USE AND DISPOSAL OF WASTE

Wrapping paper and corrugated cardboard - hand in for paper garbage collection. Wrapping foil, PE bags, plastic parts – to plastics collection containers.

DISPOSAL OF PRODUCTS AT THE END OF LIFETIME

Disposal of electric and electronic equipment (valid in EU member countries and other European countries with an implemented recycling system)

The represented symbol on the product or package means the product shall not be treated as domestic waste. Hand over the product to the specified location for recycling electric and electronic equipment. Prevent negative impacts on human health and the environment by properly recycling your product. Recycling contributes to preserving natural resources. For more information on the recycling of this product, refer to your local authority, domestic waste processing organization or store, where you purchased the product.

This product complies with EU directives on electromagnetic compatibility and electrical safety.

The operating instructions are available at www.ecg-electro.eu. Changes of text and technical parameters reserved.

08/05

SICHERHEITSHINWEISE

Close-up of a black EC5 brush head with numbered callouts (16, 17, 1) pointing to the tip and base (no text or symbols on the object itself)

Close-up of a black plastic connector with textured tip and threaded base (no text or symbols visible)

Black T-shaped cleaning tool with a cylindrical tube and 'ECO' label (no additional text or symbols visible)

Stückliste

Close-up of a black vacuum cleaner's head with numbered callouts (16, 17, 18) and no visible text or symbols on the device itself.

Close-up of a black mechanical component with textured tip and protrusions (no visible text or symbols)

Black T-shaped cleaning tool with a cylindrical tube and 'ECG' label (no additional text or symbols)

Seznam součástí

Close-up of a black textured object with numbered annotations (16, 17, 1) pointing to its top edge (no readable text or symbols on the object itself)

Close-up of a black hairbrush tool with textured tip (no text or symbols visible)

Black T-shaped cleaning tool with a cylindrical inlet and 'ECG' label (no additional text or symbols)

Osade loetelu

Close-up of a black cylindrical device with numbered callouts (16, 17, 1) and no visible text or symbols on the body.

Close-up of a black plastic connector with threaded tip (no text or symbols visible)

Black T-shaped cleaning tool with a cylindrical handle and 'ECG' label (no additional text or symbols visible)

Popis dijelova

1. Tipka ON/OFF
2. Ručka za crijevo
3. Tipka za namatanje kabela
4. Regulator snage usisivanja
5. Prednji poklopac
6. Otvor za crijevo
7. Indikator napunjenosti vrećice za prašinu
8. Donja ručka

9. Zaštitna mrežica poklopca izlaznog filtra

10. Držač za umetanje cijevi

11. Kotač
12. Kabel za napajanje
13. Teleskopska cijev
14. Crijevo
15. Podna mlaznica s četkom na izvlačenje
16. Mini PET turbo četka
17. Kombinirani uski nastavak i četka za prašinu
18. Nastavak za parket s PP četkom

KORIŠTENJE USISIVAČA

Prije sastavljanja, usisivač mora biti isključen i odvojen od izvora električne struje!

Close-up of a black cylindrical device with numbered callouts (16, 17, 1) pointing to its top surface (no text or symbols on the device itself)

Close-up of a black mechanical component with textured tip and threaded base (no visible text or symbols)

Black T-shaped cleaning tool with a cylindrical tube and 'ECG' label (no additional text or symbols)

Dalu saraksts

Close-up of a black cylindrical device with numbered callouts (16, 17, 1) pointing to its top edge (no visible text or symbols on the device itself)

Close-up of a black mechanical component with threaded end (no visible text or symbols)

Black T-shaped cleaning tool with a cylindrical tube and 'ECG' label (no additional text or symbols)

Dalių sąrašas

Magyar

Close-up of a black mechanical component with numbered callouts (16, 17, 1) and no visible text or symbols on the body.

Close-up of a black mechanical component with textured base and protrusions (no visible text or symbols)

Black T-shaped cleaning tool with a cylindrical tube and 'ECG' label (no additional text or symbols)

A készülék részei

Close-up of a black industrial vacuum cleaner head with numbered callouts (16, 17, 1) and no visible text or symbols on the component itself.

Close-up of a black plastic tool with textured tip and threaded base (no visible text or symbols)

Black ECG-branded hair accessory with a cylindrical tube (no text or symbols visible)

Lista elementów

Close-up of a black vacuum cleaner's head with numbered callouts (16, 17, 1) and no visible text or symbols on the device itself.

Close-up of a black mechanical component with threaded end (no visible text or symbols)

Black T-shaped cleaning tool with a cylindrical tube and 'ECG' label (no additional text or symbols visible)

Listă de componente

Close-up of a black hairbrush tool with textured grip (no visible text or symbols)

Black T-shaped cleaning tool with a cylindrical tube and 'ECG' label (no additional text or symbols)

Zoznam súčastí

Close-up of a black vacuum cleaner's head with numbered callouts (16, 17, 18) pointing to the top part.

Close-up of a black mechanical component with threaded end (no visible text or symbols)

Black T-shaped cleaning tool with a cylindrical tube and 'ECG' label (no additional text or symbols)

BEZBEDNOSNA UPUTSTVA

Product photo of a black ECG vacuum cleaner with labeled parts (no text or symbols on main body)

Lista delova

1. Dugme ON/OFF
2. Ručka za crevo
3. Dugme za namotavanje kabla
4. Regulator snage usisivanja
5. Prednji poklopac
6. Otvor za crevo
7. Indikator napunjenosti kese za prašinu
8. Donja ručka
9. Zaštitna mrežica poklopca izlaznog filtra

Two black vacuum cleaner components: one with a brush tip and the other a handle (ECG) on a rectangular base (no text or symbols visible)

1. Držač za umetanje cevi
2. Točkić
3. Kabl za napajanje
4. Teleskopska cev
5. Crevo
6. Podna mlaznica sa četkom na izvlačenje
7. Mini PET turbo četka
8. Kombinovani uski nastavak i četka za prašinu
9. Nastavak za parket sa PP četkom

KORIŠĆENJE USISIVAČA

Pre sastavljanja, usisivač mora biti isključen i odvojen od izvora električne struje!

1. Kraj creva umetnite u otvor u prednjem delu usisivača i učvrstite.

2. Drugi kraj creva savijenim krajem spojite na cev.

3. Na cev spojite nastavak koji odgovara tipu poda. Nastavke za usisivanje poda koristite za tepihe ili tvrde podove prema vrsti poda. Uska cev je namenjena čišćenju teško dostupnih mesta u uglovima ili između nameštaja. Mini PET turbo četka pogodna je za usisivanje životinjske dlake.

4. Pokretanje usisivača: uključite mrežni utikač u električnu utičnicu čiji parametri odgovaraju podacima na tipskoj pločici usisivača i pokrenite usisivač pritiskom na tipku za uključivanje / isključivanje.
5. Povlačenje i namatanje kabla: Uhvatite vilicu i povucite kabl. Pritisnite taster za uvlačenje i kabl će se namotati u usisivaču.

Napomena: Nikada nemojte povlačiti kabl za napajanje dalje od crvene oznake na kabeu. Žutom bojom je označena optimalna dužina izvučenog kabla.

Napomena: Prilikom transporta uređaja iz sobe u sobu, odvojite ga od napajanja i nosite prihvaćanjem za ručku. Usisivač nikada ne povlačite potezanjem kabla.

Nakon korišćenja

Isključite usisivač, a zatim ga isključite i iz električne mreže. Pritisnite taster za uvlačenje i kabl će se namotati u usisivaču. Pre svakog postavljanja bilo kog nastavka i pre čišćenja, usisivač obavezno isključite i izvucite utikač iz utičnice. Da biste odspojili crevo usisivača, pritisnite nastavak za crevo na označenim mjestima i izvucite crevo.

U slučaju kvara

Close-up of a black EC53 vacuum cleaner with labeled parts (16, 17, 1), no visible text or symbols beyond labels.

Close-up of a black mechanical component with textured surface (no visible text or symbols)

Black T-shaped cleaning tool with a cylindrical handle and 'ECO' label (no additional text or symbols visible)

Λίστα εξαρτημάτων

Close-up of a black mechanical component with numbered callouts (16, 17, 1) and no visible text or symbols on the body.

Close-up of a black mechanical component with textured base and protrusions (no visible text or symbols)

Black T-shaped cleaning tool with a cylindrical tube and 'ECG' label (no additional text or symbols visible)

Перелік частин
