40ATA6000-F - Television Allview - Free user manual and instructions

Product Type	LED TV
Screen Size	40 inches (101.6 cm)
Resolution	1920 x 1080 (Full HD)
Smart TV Platform	Android TV with Google Assistant
Recommended Distance	At least 10 cm from walls for ventilation
Power Consumption	Approximately 75 W (typical for 40" LED)
Weight (without stand)	Approximately 7 kg
Dimensions (without stand)	Approximately 90 x 55 x 10 cm
Wall Mount VESA	200 x 200 mm, M6 screws
Accessories Included	Remote control (2 AAA batteries), base stands, screws, power cord, quick start guide
Connectivity	HDMI, USB, RF, Ethernet, Wi-Fi, Bluetooth
Cleaning Instructions	Use a dry cloth only
Operating Environment	Avoid direct sunlight, damp, or dusty areas
Safety Note	Do not remove back cover; no user-serviceable parts
Disposal	Follow WEEE directive; do not dispose with household waste

Frequently Asked Questions - 40ATA6000-F Allview

How do I set up the TV?

Open the package, remove the TV, attach the base stands using the included screws, connect the power cord, and follow the quick start guide for initial setup.

Can I mount this TV on the wall?

Yes, it supports VESA 200x200 mm wall mounts with M6 screws. Remove the stand first. Ensure the wall is solid and perpendicular to the floor. Use a qualified installer if needed.

How do I use the remote control?

Install two AAA batteries matching the polarity. Point the remote at the sensor on the TV. Press the SOURCE button to select input, use HOME for smart features, and VOL +/– for volume.

How do I pair the Bluetooth remote?

Press and hold the HOME and left arrow (◀) buttons together until pairing mode is activated. Then follow on-screen instructions or ensure external Bluetooth devices are in pairing mode.

What should I do if the TV has no picture?

Check the power cord is connected, ensure the TV is turned on, verify the correct input source is selected, and check if the remote sensor works (point directly). If problem persists, unplug for a minute and try again.

How do I clean the TV screen?

Use a soft, dry cloth. Do not use water, chemicals, or abrasive cleaners. Disconnect the power before cleaning.

How can I reset the TV to factory settings?

Go to Settings > Device Preferences > Reset (exact path may vary). Confirm the reset to restore default settings. This will erase all personalized data.

Can I connect external devices like a game console?

Yes, use HDMI ports for best quality. The TV has multiple HDMI inputs. Select the corresponding source from the SOURCE button.

How do I access Google Assistant?

Press the voice button (microphone icon) on the remote control. Speak your command. The TV must be connected to the internet and Google services enabled.

How do I dispose of the TV when it is no longer usable?

Do not dispose with regular household waste. Take it to a designated recycling center or contact local authorities for proper disposal under the WEEE directive.

USER MANUAL 40ATA6000-F Allview

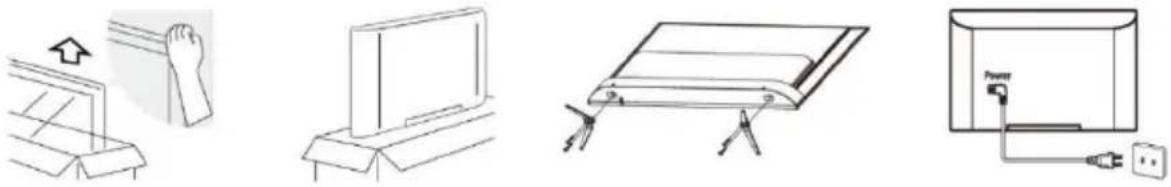

Disassembly and Installation

Note: The pictures are only for reference.

Illustration of four different household appliances: a hand holding a door, a flat-screen monitor, a flat-screen TV, and a power cord connected to a plug (no text or symbols present)

1. Open the package.
2. Take out the TV.
3. Install the TV stands.
4. Connect the power cord.

Accessories

Note: The pictures are only for reference.

Batteries-2 Remote Control Quick Start Guide Base Stands-2

Screws-4

Power Cord

WARNING AND PRECAUTION

Read all of the instructions before operating the set. Keep these instructions well for later use.

Important Safety Instructions

• Read these instructions — All the safety and operating instructions should be read before this product is operated.
• Keep these instructions — The safety and operating instructions should be retained for future reference.
• Heed all warnings — All warnings on the appliance and in the operating instructions should be adhered to.
• Follow all instructions — All operating and usage instructions should be followed.
• Do not use this device near water — The appliance should not be used near water or in damp environments — for example, in a wet basement or near a swimming pool, and the like.
• Clean only with dry cloth.
• Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
• Do not ignore the safety purpose of the polarized or grounding plug. A polarized plug has two blades with one wider than the other. A grounding plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
• Protect the power cord from being walked on or pinched particularly at the plugs, convenience receptacles, and at the point where they exit from the apparatus. Only use attachments/accessories specified by the manufacturer.

• Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the device. When a cart or rack is used, use caution when moving the cart/apparatus combination to avoid injury from tipping-over.
• Unplug the device during lightning storms or when unused for long periods of time.
• Refer all servicing to qualified personnel. Servicing is required when the device has been damaged in any way, such as the power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the device, it has been exposed to rain or humidity, does not operate normally, or has been dropped.
• CAUTION: These servicing instructions are for use only by qualified service personnel. To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions, unless you are qualified to do so.
• Do not install this equipment in a confined or built-in space such as a book case or a similar unit, and keep proper ventilation conditions at open site. The ventilation should not be impeded by covering the ventilation openings with items such as newspaper, table-cloths, curtains etc.
• Please refer the information on rear enclosure for electrical and safety information before installing or operating the device.
• To prevent electric shock hazard, replace grille.
  • To reduce the risk of fire or electric shock, do not expose this device to rain or humidity.
• The device shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on it.
• The terminals marked with the symbol “ z ” may be of sufficient magnitude to constitute a risk of electric shock. The external wiring connected to the terminals requires installation by an instructed person.
• To prevent injury, use the stand/wall-mount bracket to securely install this device on the table/wall in accordance with the installation instructions.

• Danger of explosion if the battery is incorrectly replaced. Replace only with the same or equivalent type.

• The battery (battery or batteries or battery pack) shall not be exposed to excessive heat such as sunshine, fire or the like.

• Excessive sound pressure from earphones and headphones can cause hearing loss. Listening to music at high volume levels and for extended durations can damage one's hearing. In order to reduce the risk of damage to hearing, one should lower the volume to a safe, comfortable level, and reduce the amount of time listening at high levels.
• The appliance coupler is used to disconnect the device. It shall remain readily operable. When not in use and during movement, please take care of the power cord set, e.g. tie up the power cord set with a cable tie or something similar. Protect it from sharp edges and the like that can cause abrasion to the power cord set. When put into use again, please make sure the power cord set is not damaged. If any damages are found, please contact the service person to replace the power cord set specified by the manufacturer or have the same characteristics as the original one.
• Please respect the environmental aspects of battery disposal.

- Protective grounding terminal. The apparatus should be connected to a mains socket outlet with a protective grounding connection. (Only for Class I appliance)

• No naked flame sources, such as lit candles, should be placed on the device. To prevent the spreading of fire, keep candles or other open flames away from the device at all times.
• Warning: We take no responsibility for situations where the device is used other than as provided in the manual. Our company reserves the right to make changes in the content of the manual without making this public. These changes will be posted on the company website to the product it amends. The contents of this manual may be different from that in the product. In this case, the first one will be taken into consideration.
• If the device has the symbol ☐ in its rating label and the power cord has two pins, it means that the equipment is a Class II or double insulated electrical appliance. It has been designed in such a way that it does not require a safety connection to electrical grounding. (Only for Class II appliance)
• If the apparatus don't have the symbol ☐ in its rating label and its power cord has three pins, it means protective grounding connection is needed. The apparatus should be connected to a mains socket outlet with a protective grounding connection. (Only for Class I appliance)
  • The following information is recommended to be included as far as applicable, where applicable:

\~ Refers to alternating current(AC).
... Refers to direct current(DC).
☐ Refers to Class II equipment.
Refers to stand-by.

1 Refers to power ON.

§ Refers to dangerous voltage.

- Warning for devices containing COIN/BUTTON CELL BATTERIES (The instructions below are only used for the apparatus containing a user-replaceable coin/button cell battery)

Do not ingest the battery, Chemical Burn Hazard

The remote control supplied with this product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. Keep new and used batteries away from children.

If the battery compartment does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

- WEEE Directive

Correct Disposal of this product. This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use

the return and collection systems or contact the retailer from where the product was purchased. It can take this product for environmental safe recycling.

• This lightning flash with an arrowhead symbol within an equilateral triangle is intended to alert the user of the presence of a non-insulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock.
• To reduce the risk of electric shock, do not remove cover (or back). No user serviceable parts inside. Refer to qualified service personnel.
• The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance instructions in the literature accompanying the appliance.

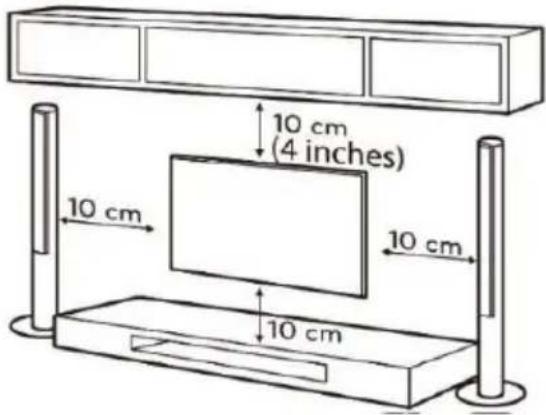

Positioning the TV

- Install the device on a solid, horizontal surface such as a table or desk. For ventilation, leave a space of at least 10cm all around the set. To prevent any injuries or unsafe situations, please do not place any objects on top of the set. This device can be used in tropical and/or moderate climates. Fix the rear enclosure to wall (only for some countries).

Note: The picture is only for reference.

• Warning: Never place a television set in an unstable location. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:
• Using cabinets or stands recommended by the manufacturer of the television.
• Only using furniture that can safely support the television.
• Ensuring the television is not overhanging the edge of the supporting furniture.
• Not placing the television on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support.
• Not placing the television set on cloth or other materials that may be located between the television set and supporting furniture.
• Educating children about the dangers of climbing on furniture to reach the television or its remote control.

If your existing television set is being retained and relocated, the same considerations as above should be applied. (Only for the TV with mass exceed 7 kg)

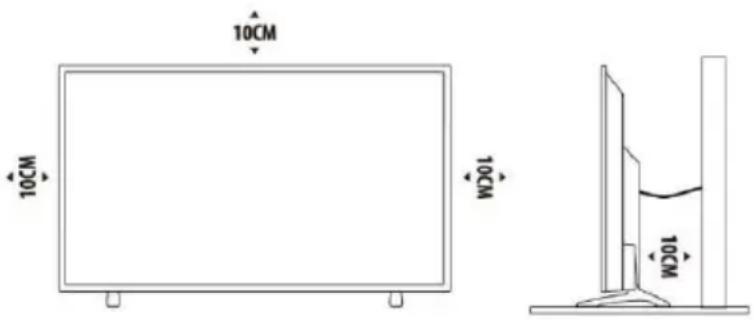

Wall-hanging bracket

- An optional wall mount can be used with your television. Consult with your local retailer to purchase the recommended wall mount bracket. Carefully attach the wall mount bracket at the rear of the TV. Install the wall mount bracket on a solid wall perpendicular to the floor. If you are attaching the TV to other building materials, please contact qualified personnel to install the wall mount. Detailed instructions will be included with the wall mount. Please use a wall mount bracket where the device is adequately secured to the wall with enough space to allow connectivity to external devices.

Note: The picture is only for reference.

• Disconnect the power before moving or installing the TV. Otherwise, electric shock may occur.
• Remove the stand before installing the TV on a wall mount by performing the stand attachment in reverse.
• If you install the TV on a ceiling or slanted wall, it may fall and result in severe injury. Use an authorized wall mount and contact the local retailer or qualified personnel. Otherwise it is not covered by the warranty.
• Do not over tighten the screws as this may cause damage to the TV and void your warranty.
• To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation instructions.
• Use the screws and wall mounts that meet the following specifications. Any damages or injuries buy misuse or using an improper accessory are not covered by the warranty.

Model Size: 40”			Top	Down
Screw	Diameter(mm) „E”		M6	M6
	Depth(mm) „D”	Max	38	38
		Min	27	27
	Quantity		2	2
A*B*C			200*200*200

Note:

1. The pictures are for reference only.
2. For the TV sets with terminals towards the wall, in order to leave enough space to use the terminals, a gasket is needed together with each screw to fix the wall mount. It is a small hollow pillar whose internal diameter is 8mm, external diameter is 18mm and height is 30 mm.
3. The information in this document is subject to change without notice. The manufacturer accepts no liability for damage resulting directly or indirectly from faults, incompleteness or discrepancies between the user manual and the product described. The latest version can be found on www.allviewmobile.com.
4. In a dry environment due to static electricity, the product may restart and return to the main OSD interface, USB player interface or the previous source mode. It is normal and please continue to operate the TV as you will.

Operating Environment

• Do not install this equipment in a confined space such as a bookcase or similar unit.
• Do not use the set near damp and cold areas, and protect the set from overheating.
• Keep away from direct sunlight.
• Do not use the set near a dusty place.
• Do not attach candles to accessible opening areas, to avoid flammable foreign material from entering the TV.

Precautions for using Remote Control

• Use the remote control by pointing it towards the remote sensor. The items between the remote control and the remote sensor will interfere with its normal operation.
• Do not shake violently the remote control. Also, do not splash liquid on the remote control, and do not put the remote control in high humidity places.
  • Do not place remote control under direct sunlight. It will cause deformation of the unit by heat.
• When the remote sensor is under direct sunlight or strong lighting, the remote control will not work. If so please change the lighting or the TV's position, or operate the remote control closer to the remote sensor.
• Before Bluetooth searching, please make sure you have turned external Bluetooth devices in the pairing mode. For the remote control, you can press and HOME button together to open its pairing mode. For other Bluetooth devices, please read their own instruction manuals for opening the pairing mode.

Precautions for using battery

Improper use of the battery will cause leakage. So please follow the methods below and use carefully.

• Please note the batteries' polarity, to avoid short circuit.
• When the battery's voltage is insufficient and affects the use range, you should replace it with a new battery. Remove the batteries from the remote control unit if you do not intend to use it for a long time.
• Do not use different types of batteries (for example, Manganese and Alkaline batteries) together.
• Do not put the battery into fire and charge or decompose the battery.
• Please dispose batteries abiding by relevant environmental protection regulation.
• WARNING: The batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.

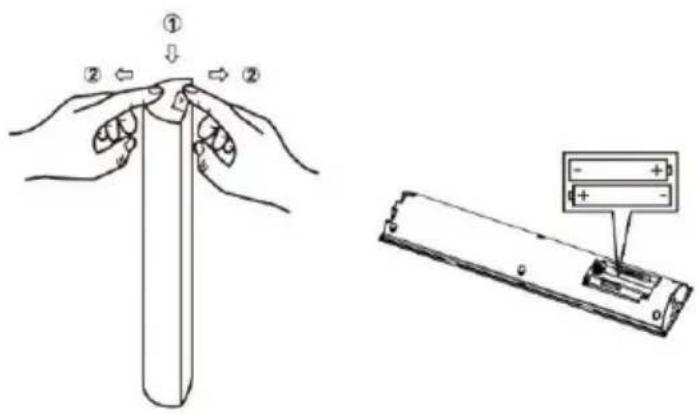

Install Remote Control Battery

Place two AAA size batteries in the remote control's battery compartment, making sure to match the polarity markings inside the compartment.

Note: The picture is only for reference.

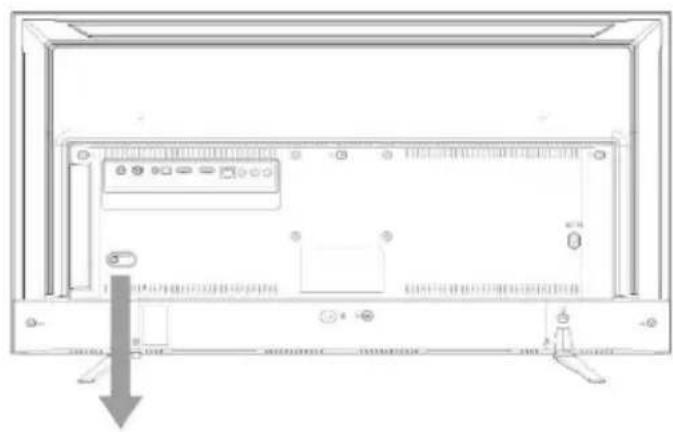

TV Control Button

Diagram of a flat-screen TV rear panel with indicator lights and buttons, showing no text or symbols on the screen itself.

TV Control Button

Note: The picture is only for reference.

1. In standby mode, press it to turn on the TV.

2. In working status:

3. Short press it to access the source menu.

4. Short press it again to select the desired source.
5. Long press it to turn the TV to standby.

Note:

1). The picture is only for reference.
2). Some buttons may not be available for some models or some regions.
3). Press HOME and ◀buttons together to start pairing the bluetooth remote control.

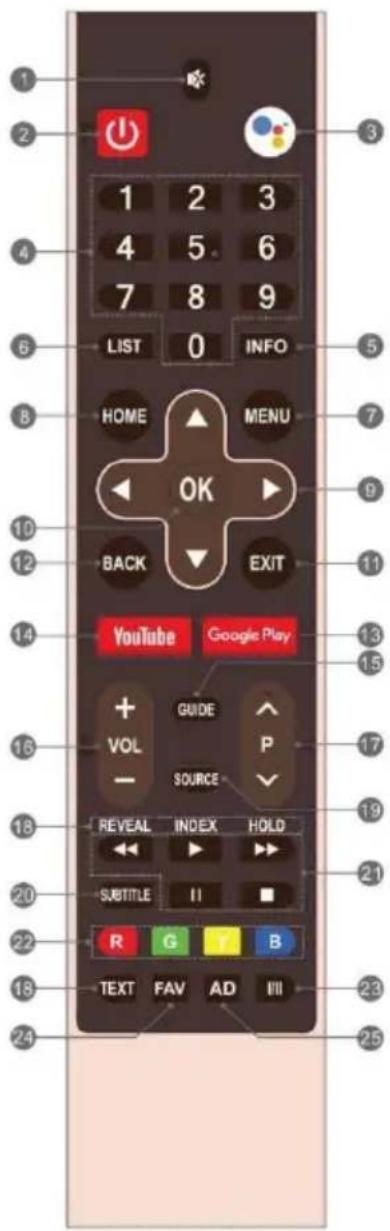

1. MUTE (☒): Mute or restore the sound.

2. POWER ⏻: Turn the TV on or standby.

3. VOICE (●): Start talking to Google Assistant of the TV.

4. Number Buttons (0\~9): Choose the channel directly or input a number.

5. INFO: Show the detailed information.

6. LIST: Access the channel list.

7. MENU: Access the main menu.

8. HOME: Enter the home page.

9. UP/DOWN/LEFT/RIGHT (▲ / ▼ / ◀ / ▶): Navigate the menu to select the content you need.

10. OK: Confirm or enter the selected content.

11. EXIT: Exit the current operation.

12. BACK: Exit the current menu.

13. Google Play: Access the application of Google Play.

14. YouTube: Access the application of YouTube.

15. GUIDE: Access the EPG interface in DTV mode.

16. Volume Up/Down (VOL +/-): Increase or decrease the sound volume.

17. Program Up/Down (P ∧/∨) Change to next or previous program.

18. Teletext Buttons

• TEXT: Access or exit the teletext menu.
  • REVEAL: Display the concealed information.
  • INDEX: Access the index page.
• HOLD: Hold the teletext page on screen without update and changes.
• SOURCE: Select the input source.
• Subtitle: Open or close the subtitle.

21. USB Play Control Buttons

• Pause (I): Pause the playback, or enable Time-shift function in DTV mode.
• Play (▶): Start the playback.
• Stop (■): Stop the playback.
• Fast Backward (◄◄): Fast backward the playback.
• Fast Forward (▶): Fast forward the playback.

22. Color Buttons (RED/GREEN/YELLOW/BLUE) Execute the prompt function in specific mode.

1. I/II: Select the sound output type depending on the broadcasting program.
2. FAV: Access the list of favorite programs.
3. AD: Turn on or turn off the function of audio description.

PREGĂTIRE

Dimensiune Model: 40”			Sus	Jos
Şurub	Diametru(mm) „E”		M6	M6
	Adâncime(mm) „D”	Max	38	38
		Min	27	27
	Cantitate		2	2
A*B*C			200*200*200

Notă:

Illustration of four different household appliances: a hand washing a door, a flat-screen monitor, a flat-screen board with a clip, and a connected TV panel with a plug (no text or symbols present)

Line drawing of a flat-screen TV rear panel with buttons and a control panel, showing no text or symbols on the panel itself.

TV Control Button

Android and Google Assistant are trademarks of Google LLC;

Oreo is a trademark of Mondelez International, Inc. group.

Romanian (ro)
