Product Type	LED TV
Screen Size	32 inches (32")
VESA Mount	200 x 200 mm (screw size M4, depth 6-9 mm)
Power Supply	AC 100-240V, 50/60Hz (typical)
Power Cord	Included, detachable
Accessories Included	Remote control, 2 x AAA batteries, 2 base stands, 2 screws, power cord, warranty card, quick start guide
Connections	ANTENNA IN, USB, Digital Audio Out (SPDIF), HDMI, AV IN (RCA), LAN, CI card slot
Remote Control Functions	Power, Mute, Number keys (0-9), Info, List, Menu, Home, Navigation (▲/▼/◀/▶), OK, Exit, Back, Netflix, Guide, Program Up/Down, Volume Up/Down, Source, Teletext, USB playback controls, Subtitle, Color buttons (RED/GREEN/YELLOW/BLUE), FAV, I/II, AD
Built-in Features	E-Manual, Audio Description, Subtitle support, Teletext, Netflix button
Safety Features	Tip-over prevention instructions, battery safety warnings, WEEE compliance, double insulation (Class II)
Operating Environment	Indoor, dry, well-ventilated; avoid direct sunlight, heat sources, moisture
Cleaning Instructions	Clean only with a dry cloth
Warranty	Warranty card included; specific terms not detailed in manual

Frequently Asked Questions - 32ATS5500-HN Allview

How do I set up the TV for the first time?

Unpack the TV, install the base stands using the provided screws, connect the power cord, and insert batteries into the remote control. Then press the Power button on the remote to turn on the TV and follow the on-screen setup instructions.

What should I do if the remote control does not work?

Check that the batteries are inserted correctly (polarity) and have sufficient voltage. Remove any obstacles between the remote and the TV's sensor. If the problem persists, replace the batteries with new ones of the same type.

Why is there no picture or sound?

Ensure the TV is plugged into a working outlet and turned on. Check the input source (e.g., HDMI, AV) and make sure the connected device is powered on. If using an antenna, verify the coaxial cable is securely connected. Try another channel or source.

How can I connect external devices like a DVD player or game console?

Use the HDMI or AV IN ports on the back of the TV. For HDMI, simply plug in the cable. For AV, use a composite cable (yellow for video, red/white for audio). Then press the SOURCE button on the remote to select the corresponding input.

How do I access the E-Manual?

Press the MENU button on the remote, navigate to the 'SETUP' submenu using ▲/▼ buttons, press ▶ to enter, then select 'E-Manual' and press OK. Use the number buttons to go to a specific page, or the ◀/▶ buttons to turn pages.

Can I mount the TV on a wall?

Yes, the TV supports VESA 200x200 mm wall mounts. Remove the base stands before mounting. Use the specified screws (M4, depth 6-9 mm) and ensure the wall can support the TV's weight. Follow the wall mount bracket's instructions for safe installation.

How do I replace the batteries in the remote control?

Open the battery compartment on the back of the remote. Remove old batteries and insert two new AAA batteries, matching the + and - markings. Close the compartment securely. Do not mix old and new or different types of batteries.

What should I do if the picture quality is poor or there is no color?

Adjust the color settings in the picture menu. Ensure the TV is not too close to other electronic devices that may cause interference. Try a different channel to rule out broadcast issues. If the signal is weak, check the antenna connection and try fine-tuning the channel.

How do I clean the TV screen?

Turn off the TV and unplug it. Use a soft, dry cloth to gently wipe the screen. Do not use water, chemicals, or abrasive materials. For stubborn dirt, slightly dampen the cloth with water and wipe gently, then dry immediately.

What are the safety precautions I should follow?

Place the TV on a stable, level surface. Keep ventilation slots clear (at least 10 cm around). Avoid exposure to rain, moisture, direct sunlight, and heat sources. Do not insert objects into the vents. Unplug during storms. Refer all servicing to qualified personnel.

USER MANUAL 32ATS5500-HN Allview

Disassembly and Installation

Note: The pictures are only for reference.

1. Open the package.
2. Take out the TV.
3. Install the TV stands.
4. Connect the power cord.

Accessories

Note: The pictures are only for reference.

Batteries-2 Remote Control

Quick Start Guide

Base Stands-2

Screws-2 Warranty Card

Power Cord

Base Installation Manual

WARNING AND PRECAUTION

Read all of the instructions before operating the set. Keep these instructions well for later use.

Important Safety Instructions

• Read these instructions — All the safety and operating instructions should be read before this product is operated.
• Keep these instructions — The safety and operating instructions should be retained for future reference.
• Heed all warnings — All warnings on the appliance and in the operating instructions should be adhered to.
• Follow all instructions — All operating and usage instructions should be followed.
• Do not use this device near water — The appliance should not be used near water or in damp environments — for example, in a wet basement or near a swimming pool, and the like.
• Clean only with dry cloth.
• Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
• Do not ignore the safety purpose of the polarized or grounding plug. A polarized plug has two blades with one wider than the other. A grounding plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
• Protect the power cord from being walked on or pinched particularly at the plugs, convenience receptacles, and at the point where they exit from the apparatus. Only use attachments/accessories specified by the manufacturer.

- Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the device. When a cart or rack is used, use caution when moving the cart/apparatus combination to avoid injury from tipping-over.

- Unplug the device during lightning storms or when unused for long periods of time.

- Refer all servicing to qualified personnel. Servicing is required when the device has been damaged in any way, such as the power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the device, it has been exposed to rain or humidity, does not operate normally, or has been dropped.

- CAUTION: These servicing instructions are for use only by qualified service personnel. To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions, unless you are qualified to do so.

- Do not install this equipment in a confined or built-in space such as a book case or a similar unit, and keep proper ventilation conditions at open site. The ventilation should not be impeded by covering the ventilation openings with items such as newspaper, table-cloths, curtains etc.

- Please refer the information on rear enclosure for electrical and safety information before installing or operating the device.

- To prevent electric shock hazard, replace grille.

• To reduce the risk of fire or electric shock, do not expose this device to rain or humidity.

- The device shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on it.

- The terminals marked with the symbol “ 1/2 ” may be of sufficient magnitude to constitute a risk of electric shock. The external wiring connected to the terminals requires installation by an instructed person.

- To prevent injury, use the stand/wall-mount bracket to securely install this device on the table/wall in accordance with the installation instructions.

- Danger of explosion if the battery is incorrectly replaced. Replace only with the same or equivalent type.

- The battery (battery or batteries or battery pack) shall not be exposed to excessive heat such as sunshine, fire or the like.

- Excessive sound pressure from earphones and headphones can cause hearing loss. Listening to music at high volume levels and for extended durations can damage one's hearing. In order to reduce the risk of damage to hearing, one should lower the volume to a safe, comfortable level, and reduce the amount of time listening at high levels.

- The appliance coupler is used to disconnect the device. It shall remain readily operable. When not in use and during movement, please take care of the power cord set, e.g. tie up the power cord set with a cable tie or something similar. Protect it from sharp edges and the like that can cause abrasion to the power cord set. When put into use again, please make sure the power cord set is not damaged. If any damages are found, please contact the service person to replace the power cord set specified by the manufacturer or have the same characteristics as the original one.

- No naked flame sources, such as lit candles, should be placed on the device. To prevent the spreading of fire, keep candles or other open flames away from the device at all times.

- Warning: We take no responsibility for situations where the device is used other than as provided in the manual. Our company reserves the right to make changes in the content of the manual without making this public. These changes will be posted on the company website to the product it amends. The contents of this manual may be different from that in the product. In this case, the first one will be taken into consideration.

- If the device has the symbol ☐ in its rating label and the power cord has two pins, it means that the equipment is a Class II or double insulated electrical appliance. It has been designed in such a way that it does not require a safety connection to electrical grounding. (Only for Class II appliance)

• The following information is recommended to be included as far as applicable, where applicable:

\~ Refers to alternating current(AC).

... Refers to direct current(DC).

☐ Refers to Class II equipment.

Refers to stand-by.

1 Refers to power ON.

4 Refers to dangerous voltage.

- Warning for devices containing COIN/BUTTON CELL BATTERIES (The instructions below are only used for the apparatus containing a user-replaceable coin/button cell battery)

Do not ingest the battery, Chemical Burn Hazard

The remote control supplied with this product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. Keep new and used batteries away from children.

If the battery compartment does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

- WEEE Directive

Correct Disposal of this product. This marking indicates that this product should not be disposed in other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable use of material resources. To return your used device, please use the return and collection items or contact the retailer from where the product was purchased. It can take this product for environmental safe recycling.

This lightning flash with an arrowhead symbol within an equilateral triangle is intended to alert the user of the presence of a non-insulated “dangerous voltage” within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

- To reduce the risk of electric shock, do not remove cover (or back). No user serviceable parts inside. Refer to qualified service personnel.

- The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance instructions in the literature accompanying the appliance.

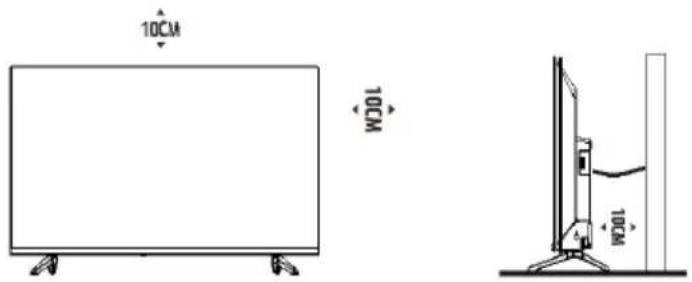

Positioning the TV

- Install the device on a solid, horizontal surface such as a table or desk. For ventilation, leave a space of at least 10cm all around the set. To prevent any injuries or unsafe situations, please do not place any objects on top of the set. This device can be used in tropical and/or moderate climates. Fix the rear enclosure to wall (only for some countries).

Note: The picture is only for reference.

- Warning: Never place a television set in an unstable location. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

• Using cabinets or stands recommended by the manufacturer of the television.
• Only using furniture that can safely support the television.
• Ensuring the television is not overhanging the edge of the supporting furniture.
• Not placing the television on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support.
• Not placing the television set on cloth or other materials that may be located between the television set and supporting furniture.
• Educating children about the dangers of climbing on furniture to reach the television or its remote control.

If your existing television set is being retained and relocated, the same considerations as above should be applied. (Only for the TV with mass exceed 7 kg)

Wall-hanging bracket

- An optional wall mount can be used with your television. Consult with your local retailer to purchase the recommended wall mount bracket. Carefully attach the wall mount bracket at the rear of the TV. Install the wall mount bracket on a solid wall perpendicular to the floor. If you are attaching the TV to other building materials, please contact qualified personnel to install the wall mount. Detailed instructions will be included with the wall mount. Please use a wall mount bracket where the device is adequately secured to the wall with enough space to allow connectivity to external devices.

Note: The picture is only for reference.

• Disconnect the power before moving or installing the TV. Otherwise, electric shock may occur.
- Remove the stand before installing the TV on a wall mount by performing the stand attachment in reverse.
- If you install the TV on a ceiling or slanted wall, it may fall and result in severe injury. Use an authorized wall mount and contact the local retailer or qualified personnel. Otherwise it is not covered by the warranty.
- Do not over tighten the screws as this may cause damage to the TV and void your warranty.
- To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation instructions.
- Use the screws and wall mounts that meet the following specifications. Any damages or injuries buy misuse or using an improper accessory are not covered by the warranty.

Model Size: 32"			Top	Down
Screw	Diameter(mm) „E”		M4	M4
	Depth(mm) „D”	Max	9	9
		Min	6	6
	Quantity		2	2
VESA (A*B*C)			200*200*200

Notes:

1. The pictures are for reference only.
2. For the TV sets with terminals towards the wall, in order to leave enough space to use the terminals, a gasket is needed together with each screw to fix the wall mount. It is a small hollow pillar whose internal diameter is 8mm, external diameter is 18mm and height is 30 mm.
3. The information in this document is subject to change without notice. The manufacturer accepts no liability for damage resulting directly or indirectly from faults, incompleteness or discrepancies between the user manual and the product described. The latest version can be found on www.allviewmobile.com.
4. In a dry environment due to static electricity, the product may restart and return to the main OSD interface, USB player interface or the previous source mode. It is normal and please continue to operate the TV as you will.

Operating Environment

• Do not install this equipment in a confined space such as a bookcase or similar unit.
• Do not use the set near damp and cold areas, and protect the set from overheating.
• Keep away from direct sunlight.
• Do not use the set near a dusty place.
• Do not attach candles to accessible opening areas, to avoid flammable foreign material from entering the TV.

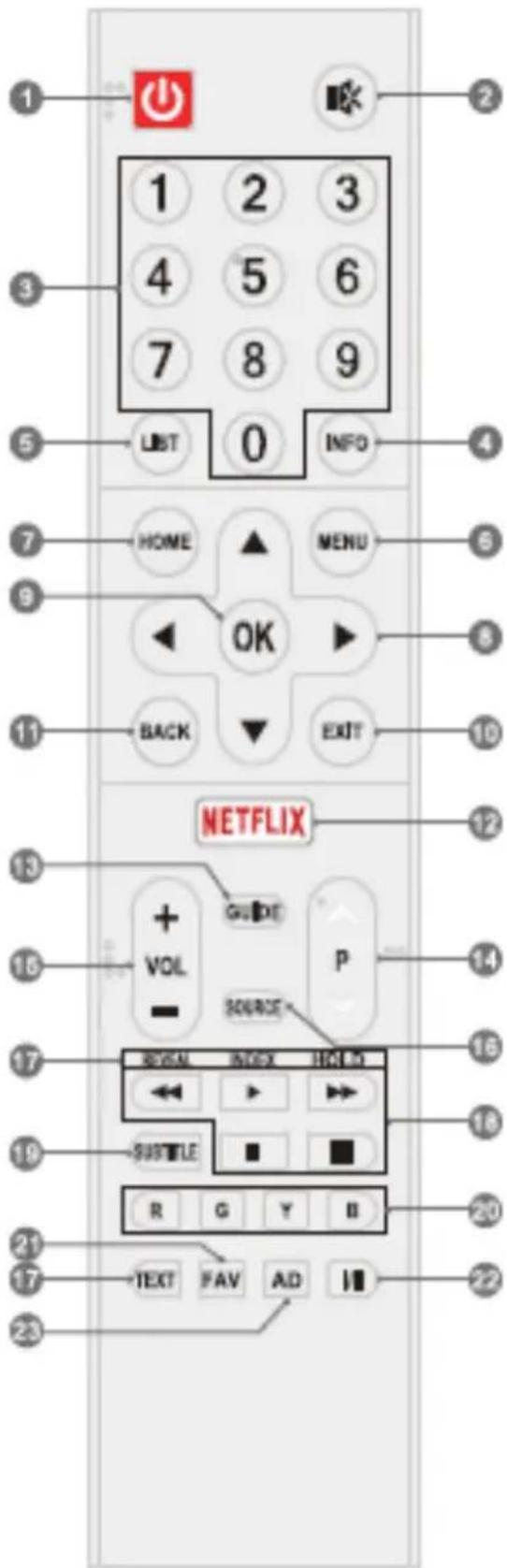

Precautions for using Remote Control

- Use the remote control by pointing it towards the remote sensor. The items between the remote control and the remote sensor will interfere with its normal operation.

•

•

•

.

•

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

Improper use of the battery will cause leakage. So please follow the methods below and use carefully.

- Please note the batteries' polarity, to avoid short circuit.

- When the battery's voltage is insufficient and affects the use range, you should replace it with a new battery. Remove the batteries from the remote control unit if you do not intend to use it for a long time.

• Do not use different types of batteries (for example, Manganese and Alkaline batteries) together.

- Do not put the battery into fire and charge or decompose the battery.

- Please dispose batteries abiding by relevant environmental protection regulation. - WARNING: The batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.
