IAN 346371 - Uncategorized CRIVIT - Free user manual and instructions

Product Type	Kids' Skating Helmet
Brand	Crivit
Model Number	IAN 346371 / Delta-SportNr. KH-7178, KH-7179
Intended Use	Skateboarding, inline skating, roller skating, and similar activities
Helmet Shell Material	ABS plastic
Ventilation	2 ventilation holes
Size Adjustment	Continuous rotary knob for headband size adjustment
LED Light Modes	On, flash simultaneous, flash alternate, off
Power Supply	1 x 3V CR2032 battery (included)
Safety Class	III
Certification	EN 1078:2012+A1:2012
Notified Body	TÜV Rheinland LGA Products GmbH (0197)
Liner Treatment	HeiQ Fresh Tech (antibacterial, odour-inhibiting with silver)
Inner Pad Cleaning	Hand wash below 30°C, air dry at room temperature
Storage	Dry, well-ventilated, room temperature, avoid heat sources
Disposal	Do not dispose with household waste; recycle at collection points
Battery Disposal	Recycle pursuant to Directive 2006/66/EC
Warranty	3 years from date of purchase
Service Contact (UK)	Tel. [phone], Email: [e-mail]
Manufacturer	Delta-Sport Handelskontor GmbH, Hamburg, Germany
Date of Manufacture	11/2020
Lifespan	Replace 5 years after manufacture date at latest
Replacement Parts	Use only original replacement parts

Frequently Asked Questions - IAN 346371 CRIVIT

What is the intended use of this helmet?

This helmet is designed for skateboarding, inline skating, roller skating, and similar activities. It is not suitable for cycling, motorcycling, or climbing.

How do I adjust the size of the helmet?

Use the continuously adjustable rotary knob: turn right to tighten, left to loosen. Ensure the helmet fits snugly and the chin strap is securely fastened. The skin on your temples should move with the helmet.

How does the LED light work?

Press the LED on/off button (4) repeatedly to cycle through modes: one press = steady on, two presses = flash simultaneously, three presses = flash alternately, four presses = off. Note: the LED is not a safety aid for traffic.

How do I change the battery?

Set the size adjustment to medium, pull out the rotary knob, remove the three screws under it, take off the base, and carefully replace the CR2032 battery in the holder. Ensure correct polarity (+/-). Reassemble by reversing steps.

Can I wear anything under the helmet?

No, do not wear any head cover under the helmet. The helmet must fit directly on the head for proper protection and ventilation.

How should I clean the helmet?

Use a pH-neutral detergent diluted with clear water and a soft cloth. Wipe dry with a lint-free cloth. The inner padding can be hand-washed below 30°C with mild soap and a soft brush. Do not use solvents or petroleum-based products.

When should I replace the helmet?

Replace the helmet immediately after any impact, even if no damage is visible. Also replace it at the latest 5 years after the date of manufacture (here: 11/2020).

What safety certifications does the helmet have?

The helmet complies with EN 1078:2012+A1:2012 and meets requirements of EU Regulation 2016/425 on personal protective equipment. It is certified by TÜV Rheinland LGA Products GmbH.

Is the helmet suitable for cycling or motorcycling?

No, this helmet is not suitable for cycling, motorcycling, or any activity requiring different impact protection. It is designed only for skateboarding, inline skating, and roller skating.

What is the warranty period and how do I claim service?

The product comes with a 3-year warranty from the date of purchase. For service in the UK, call 0800 404 7657 or email [e-mail]. Keep your receipt.

USER MANUAL IAN 346371 CRIVIT

DELTA-SPORT HANDELSKONTOR GMBH

Wragekamp 6 • DE-22397 Hamburg

GERMANY

Delta-SportNr.: KH-7178, KH-7179

08.11.2020 / AM 10:24

KIDS' SKATING HELMET

GB

KIDS'

SKATING HELMET

Instructions for use

SE

SKATEHJÄLM, BARN

Bruksanvisning

LV

BĚRNU KIVERE

SLIDOŠANAI

Before reading, fold out the illustration page and get to know all of the functions of your unit.

SE

Pure diagram of a mechanical or electrical component with no text, numbers, or symbols

Circular diagram with concentric rings and marked points, no text or symbols present

GB

Parts description

1 ABS helmet shell
2 Ventilation holes
3 Rotary knob
4 LED on and off button
5 Size adjustment system
6 Strap divider
7 Clip closure
8 Chin strap

SE

Benämning

Warnings on batteries ..... 10 - 11

Changing the battery ..... 11 - 12

Switching the light on and off ... 12

HeiQ® Fresh Tech ..... 12 - 13

Selecting the helmet size ..... 13

Adjusting the chin strap ..... 13

Adjusting the headband size .... 13

Maintenance and care ..... 14

Storage 14

Disposal 14 - 15

Notes on the guarantee and service handling ..... 15 - 16

SE

Benämning 5

Viktig information ..... 17 - 18

You have chosen to purchase a high-quality product. Familiarise yourself with the product before using it for the first time.

Read the following instructions for use carefully.

Use the product only as described and only for the given areas of application. Store these instructions for use carefully. When passing the product on to third parties, please also hand over all accompanying documents.

Important information

Please read the following instructions and information carefully before using your new helmet for the first time. This helmet was developed for use with skateboards, inline skates, roller skates and similar groups, and manufactured according to state of the art.

Despite maximum safety standards, serious accidents may result in injuries. In some cases, the impact may be so strong the helmet does not effectively protect the rider from head injuries.

Compliance with the requirements of Regulation (EU) 2016/425 on personal protective equipment (PPE) as well as those of harmonizing technical standard EN 1078:2012 +A1 :2012 was certified by the issuing authority TÜV Rheinland LGA Products GmbH, Tillystr. 2, D-90431 Nürnberg, Germany, Notified Body No 0197.

DELTA-SPORT HANDELSKONTOR GmbH hereby declares this product to comply with the following basic requirements and other relevant regulations:

2014/30/EU - EMC Directive

2011/65/EU - RoHS Directive

(EU) 2016/425 - PPE Regulation Personal Protective Equipment

Full conformity declaration is available at

http://www.conformity.delta-sport.com/

Scope of delivery

1 x Kids' Skating Helmet
1 x Battery (3V=CR2032) (included in article
1 x Instructions for use

Technical data

Power supply: 1 x 3V=CR2032

= Safety class III

Date of manufacture (month/year): 11/2020

Correct use

This article is made for skateboarders, inline skaters, rollerbladers, and similar groups. It is not suitable for other sports or for motorcyclists.

Safety notices

• This helmet should not be used by children for climbing or other activities where there is a risk of strangulation or of catching should the child get caught with the helmet.
• The helmet must fit snugly and the chin strap must be securely fastened.
• Do not push the helmet to the back of your neck as this means that your forehead is not protected.
• Do not wear any head cover under the helmet.
• Please ensure that air continues to circulate.
• No modifications may be made to the helmet, its structure, or individual components.

• The helmet may not be painted and/or decorated with stickers or labels.

• The protective effect of the helmet can be seriously impaired by the effects of paints, stickers, cleaning fluids, or other solvents.

• The helmet should protect your head in the event of an impact. This protection is no longer provided even after a single impact (even if it is light). Therefore the helmet must be replaced immediately after an accident even if there is no visible damage.
• Never use solvents or scouring agents that contain petroleum to clean the helmet, either on the outside or the inside. Always use a detergent that is pH neutral and diluted with clear water; rub the article carefully with a soft cloth. Then wipe it dry with a lint-free cloth. The padding can be cleaned with a little soap and a soft brush.
• Only use original replacement parts for your helmet.
• The LED light is not a safety aid and on no account replaces the specific devices that are compulsory in accordance with traffic regulations.
• The lifespan of the article depends on its use. However the article must be replaced five years after the date of manufacture (version: 11/2020) at the latest.

Warnings on batteries!

• Remove the batteries if they are empty or if the product is not going to be used for an extended period.
• Do not use different battery types or brands, new and used batteries in combination, or batteries with different capacities, as they leak and can thus cause damage.
• Observe the polarity (+/-) when inserting batteries.
• Change all batteries at the same time and dispose of the old batteries properly.
• Warning! Batteries may not be charged or reactivated in any way. They may not be dismantled, thrown into fire, or short-circuited.

• Always keep batteries out of the reach of children.
- Do not use rechargeable batteries!
- The cleaning and user-maintenance may not be carried out by children without supervision.
- Clean the batteries and the device contacts as necessary and before inserting the batteries.
- Do not expose the batteries to extreme conditions (e.g. radiators or direct sunlight). Otherwise there is an increased risk of leaks.
- Batteries can endanger life if swallowed. Keep batteries out of the reach of small children for this reason. Seek medical help immediately if a battery is swallowed.

Danger!

• Handle a damaged or leaking battery with extreme care and dispose of it properly and immediately. Wear gloves to handle the battery.
• If you come into contact with battery acid then wash the affected area with soap and water. If battery acid gets in your eye rinse it out with water and seek medical help immediately!
• Do not short-circuit the terminals.

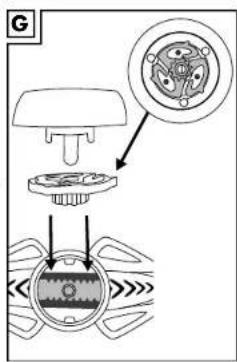

Changing the battery

CAUTION! Follow these instructions in order to avoid mechanical and electrical damage.

Danger!

The article contains a battery. If the battery stops working it can be changed. 1. Set the size adjustment system to a medium size. Pull the rotary knob out of the size adjustment system and remove the small thread wheel.

1. Loosen the three screws under the rotary knob using a suitable screwdriver (not included in the scope of delivery) (figure E).

Remove the base and take the battery compartment out.

Carefully remove the empty battery from the battery holder (figure F).

1. Exchange it for a new battery.

Note: Pay attention to the plus and minus poles on the battery and that it is inserted correctly. The battery must be fitted entirely inside the battery holder.

1. Replace the battery holder in the rotary knob. Replace the base and tighten the three screws. Place the thread wheel on the rotary knob as shown. Please ensure that the three pins on the rotary knob are positioned in the slots on the thread wheel (figure G).

Insert the rotary knob back on the size adjustment system.

Important: When you insert the rotary knob please ensure that the size adjustment system is set to a medium size as it is not possible to re-attach the rotary knob otherwise (figure G).

Switching the light on and off (figure. A)

Different light settings are available to you if you press on the on and off button (4):

Press once: lights on

Press twice: lights flash at the same time

Press three times: lights flash alternately

Press four times: lights off

HeiQ® Fresh Tech

odour-free all day lang.

Textile freshness

Experience the feeling of lasting freshness through the power of silver, keeping you

The helmet liner contains a biocide agent (HeiQ® Fresh Tech) for an anti-bacterial, odour-inhibiting lining treatment. Active ingredient: silver adsorbed to silicon dioxide (nano).

Selecting the helmet size

• Measure the size of your head and select the appropriate size. Try several helmets on before making your decision. The size is ideal if the skin on your temples moves with the article when you are wearing the helmet.
• Please ensure that the helmet does not move freely on your head, even without tightening the chin strap.
• The chin strap must be securely closed to ensure a secure fit. The fit is correct if it is difficult to insert your finger under the chin strap. However you must always be able to breathe, swallow, and turn your head comfortably.
• The helmet fits correctly if it is snug but still comfortable on your head. Do not push the helmet towards the back of your neck as this means that your forehead will not be protected (figure B).
• If the helmet is too big (it is loose and cannot be adjusted tightly enough) or too small (presses on your head, leaves your forehead free), please choose the next smallest or biggest size.
• If it is not possible to adjust the helmet correctly then you may not use it.

Adjusting the chin strap (figure C)

The general length of the chin strap can be adjusted with the loop.

You may also use the strap divider clip to adjust the length of the chin strap.

Please ensure that the strap divider does not bother you, the straps do not cover your ears, and the fastener does not rest on your chin.

Adjusting the headband size (figure D)

Use the continuously adjustable rotary knob to fit your helmet to your head circumference to ensure the optimum fit. Turn the knob to the right to make the helmet headband smaller and to the left to enlarge the headband.

Maintenance and care

Regular maintenance and care contribute to the safety and durability of the helmet.

• Always use a detergent that is pH neutral and diluted with clear water; rub the article carefully with a soft cloth. Then wipe it dry with a lint-free cloth.
• The padding can be cleaned with a little soap and a soft brush.

Inner pads

- Hand wash below 30^ C .

30 °C/86 °F

- Allow to dry at room temperature.

Storage

Store the helmet in a dry, well ventilated location at room temperature when not in use. Avoid heat sources.

Disposal

In the interest of protecting the environment, do not throw your product into the household waste once you are finished with it, but rather take it to a specialty disposal facility. Find out about collection sites and their hours of operation from your local authority.

Defective or used batteries must be recycled pursuant to Directive 2006/66/EC and changes to it. Return batteries and/or the product via the collecting sites provided. Packaging materials, such as plastic bags, must be kept away from children. Keep the packaging materials out of reach of children.

Environmental damage caused by improper disposal of batteries! Batteries may not be disposed of with household waste. They may contain toxic heavy metals and are subject to hazardous waste treatment. The chemical symbols of the heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. Dispose of used batteries at a municipal collection site.

Dispose of the product and packaging in an environmentally friendly manner.

Note the label on the packaging materials when separating waste, as these are labelled with abbreviations (a) and numbers (b) with the following meaning: 1–7: plastics/20–22: paper and cardboard/80–98: composite materials.

The product and the packaging materials can be recycled, dispose of them separately for better treatment of waste. The Triman logo only applies to France. Find out how to dispose of the used product from your municipal or city administration.

Notes on the guarantee and service handling

The product was produced with great care and under constant supervision. You receive a three-year warranty for this product from the date of purchase. Please retain your receipt.

The warranty applies only to material and workmanship and does not apply to misuse or improper handling. Your statutory rights, especially the warranty rights, are not affected by this warranty.

With regard to complaints, please contact the following service hotline or contact us by e-mail. Our service employees will advise as to the subsequent procedure as quickly as possible.

We will be personally available to discuss the situation with you. Any repairs under the warranty, statutory guarantees or through goodwill do not extend the warranty period. This also applies to replaced and repaired parts. Repairs after the warranty are subject to a charge.

IAN: 346371_2004

Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]
