Seicento G40013 - Iron G3 Ferrari - Free user manual and instructions

Product Type	Dry Iron
Brand	G3 Ferrari
Model	Seicento G40013
Power Supply	AC 230V~50Hz
Power Consumption	900W
Weight	1.67 kg
Protection Class	Class I (earthed)
Soleplate Material	Metal (iron)
Temperature Control	Adjustable thermostat with indicator light
Temperature Settings	Low (synthetics), Medium (silk/wool), High (cotton/linen)
Indicator Light	Lights up during heating, turns off when ready, cycles to maintain temperature
Cord Length	Not specified (estimated ~1.8 m)
Cord Storage	Wrap around back of body
Storage Position	Upright on heel rest
Cleaning Method	Damp cloth with neutral detergent; do not immerse
Safety Features	Thermal cut-out? (not specified), heat-resistant handle, stable base
Usage Restriction	Household use only; not for outdoor or commercial use
Included Accessories	None (iron only)
Repairability	Contact authorized service center; no user-serviceable parts
Certification	CE marked

Frequently Asked Questions - Seicento G40013 G3 Ferrari

How do I set the temperature on my G3 Ferrari Seicento G40013 iron?

Turn the temperature control knob (3) to align the desired symbol (Low for synthetics, Medium for silk/wool, High for cotton/linen) with the mark on the base. Plug in the iron and wait for the temperature control light (1) to turn off, indicating the soleplate has reached the set temperature.

Why does the indicator light stay on or cycle during ironing?

The indicator light is normal; it lights up when the soleplate is heating and turns off when the set temperature is reached. During use, the light may cycle on and off as the thermostat maintains the temperature.

What fabrics can I iron at low temperature?

Low temperature is suitable for synthetic fabrics such as acrylic and nylon. Always check the clothing label for ironing instructions.

How should I clean the iron soleplate?

Unplug the iron and let the soleplate cool completely. Wipe the soleplate with a damp cloth or use a non-abrasive detergent. Do not use abrasive sponges or metal objects that could scratch the surface.

How do I store the iron after use?

Unplug the iron and allow the soleplate to cool down. Wrap the power cord around the back of the body and store the iron upright on its heel rest in a dry place.

Can I use the iron if the power cord is damaged?

No. If the power cord or plug is damaged, do not use the iron. Contact an authorized service center for repair. Using a damaged cord poses an electric shock risk.

What should I do if the iron smokes when first used?

This is normal. The protective film on the soleplate and residual protective oil may cause slight smoke during initial use. The smoke will disappear after a few uses.

Is the iron suitable for use in bathrooms or outdoors?

No. The iron is designed for indoor household use only. Do not expose it to rain, moisture, or extreme weather conditions to avoid electric shock.

Can children use this iron?

Children aged 8 years and above can use the iron if supervised and instructed on safe use. Keep the iron and its cord out of reach of children under 8. Cleaning and maintenance should not be done by children without supervision.

Where can I get replacement parts or service for my iron?

For repairs or spare parts, contact an authorized service center. You can call 0541 694246, fax [phone], or email [e-mail]. Using unauthorized parts may void the warranty.

USER MANUAL Seicento G40013 G3 Ferrari

Technical model: DHG-5QB

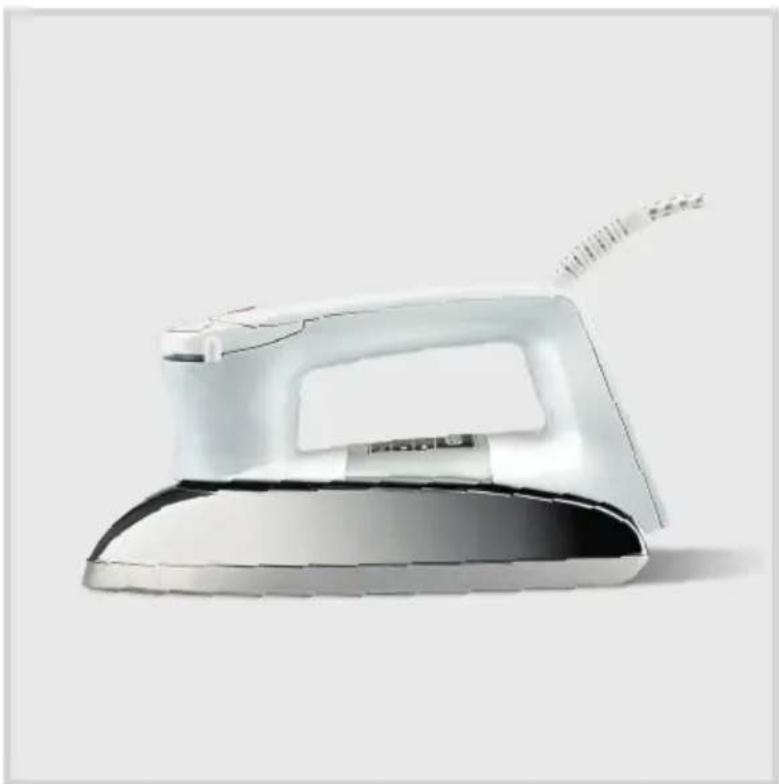

Modern white iron iron with a glossy finish, no visible text or symbols

Ferro da stiro a secco - Dry iron - Hierro seco Seicento

ITA: INDICE

Simbologia.... p. 2

Safety instructions.... p. 7

General information.... p. 10

G40013.... p. 10

Setting the temperature....p. 10

Cleaning.... p. 11

Before storing....p. 11

Technical features....p. 11

Waste of electric and electronic equipment (WEEE

Directive)....p. 17

ESPAÑOL......p. 11

CLASSI DI PROTEZIONE / PROTECTION CLASSES

ATTENZIONE RISCHIO DI SCOSSE ELETTRICHE NON ESPORRE A PIOGGIA E UMIDITA'

WARNING ELECTRIC SHOCK RISK DO NOT EXPOSE TO RAIN OR MOISTURE

ATTENZIONE: NON APRITE L'APPARECCHIO. ALL'INTERNO NON VI SONO COMANDI MANIPOLABILI DALL'UTENTE NE' PARTI DI RICAMBIO. PER TUTTE LE OPERAZIONI DI SERVIZIO RIVOLGERSI AD UN CENTRO DI ASSISTENZA AUTORIZZATO.

This symbol warns the user that un-insulated dangerous voltage inside the system may cause an electrical shock. Do not open the case.

Class I Appliance symbol. This means the appliance must have the chassis connected to electrical earth/ground by an earth conductor.

Caution: this symbol reminds the user to read carefully the important operations and maintenance instructions in this owner's guide.

AVVERTENZE DI SICUREZZA

ENGLISH: SAFETY INSTRUCTIONS

The following are important notes on the installation, use and maintenance; save this instruction manual for future reference; use the equipment only as specified in this guide; any other use is considered improper and dangerous; therefore, the manufacturer cannot be held responsible in the event of damages caused by improper, incorrect or unreasonable use.

Before use, ensure the equipment is undamaged; if in doubt, do not attempt to use it and contact the authorized service center; do not leave packing materials (i.e. plastic bags, polystyrene foam, nails, staples, etc.) within the reach of children as they are potential sources of danger; always remember that they must be separately collected.

Make sure that the rating information given on the technical label are compatible with those of the electricity grid; the installation must be performed according to the manufacturer's instructions considering the maximum power of the appliance as shown on the label; an incorrect installation may cause damage to people, animals or things, for which the manufacturer cannot be considered responsible thereof.

If it is necessary to use adapters, multiple sockets or electrical extensions, use only those that comply with current safety standards; in any case do not exceed the power consumption limits indicated on the electrical adapter and / or extensions, as well as the maximum power shown on multiple adaptor.

Do not leave the unit plugged; better to remove the plug from the mains when the device is not in use. Always disconnect from power supply if you leave it unattended. Cleaning operations should be carried out after unplugging the unit.

If the unit is out of order and you do not want to fix it, it must be made inoperable by cutting power cord.

- Do not allow the power cord to get closer to sharp objects or in contact with hot surfaces; do not pull it to disconnect the plug.

- Do not use the appliance in the event of damage to the power cord, plug, or in case of short circuits; to repair the product only address an authorized service center.

- Do not handle or touch the appliance with wet hands or bare feet. Do not expose the appliance to harmful weather conditions such as rain, moisture, frost, etc.. Always store it in a dry place.

- This appliance can be used by children of 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge

if they received supervision or instruction concerning use of the appliance in a safe way and understand hazards involved; children shall not play with the appliance; cleaning and user maintenance shall not be made by children without supervision.

• Children must not play with the appliance.
• Keep the appliance and its cord out of reach of children less than 8 years.

If the power cord is damaged, or in case of failure and / or malfunction do not tamper with the unit. The reparation must be done by manufacturer or by service center authorized by the manufacturer in order to prevent any risk. Failure to comply with the above may compromise the unit safety and invalidate the warranty.

WARNING: This appliance includes heating function. Surfaces, other than functional surfaces may develop high temperatures. Since temperatures are perceived differently by different people, this device should be used with CAUTION. Hold the appliance exclusively to grip surfaces intended to be touched.

• This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; by clients in hotels, motels and other residential type environments; farm houses, bed and breakfast type environments.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.
• Before every use, unroll the power cord.
• Use original spare parts and accessories only.
• Do not subject the product to strong impacts, serious damages may result.
• Do not use near or under flammable materials (like curtains), heat, cold spots and steam.

GENERAL INFORMATION

At first use, remove the protective film of the plate; due to the presence of a protective oil and residues left over from the film, the plate could emit some smoke. After few uses, the smoke will disappear.

When not in use, the iron must be stored upright. Keep the power cord free from knots and tangles, do not wrap the power cord around the iron, either before or after use. The iron must be used and rested on a stable surface. Do not use the ironing system as a heating unit.

Always unplug the appliance before cleaning.

Always select the most suitable temperature according to the fabric to be ironed.

When placing the iron on its iron stand, make sure that the surface is stable.

Iron should not be used if dropped, if there are visible signs of damage, or if it loses water during operations.

CAUTION: iron plate gets hot during use, be careful not to touch it, serious risk of burns.

DESCRIPTION G40013

(1) Temperature control light (2) Base

(3) Temperature control knob (4) Iron plate (5) Handle

TEMPERATURE SETTING

The following table provides a guideline on how to adjust the thermostat according to the international symbols printed on the clothing labels or according to the type of fabric.

- It is recommended ironing clothes that require low temperatures first and then medium and high temperatures. This operation allows to save time since the ironing plate heats faster than it cools down.

LABEL	FABRIC	TEMPERATURE
	Synthetic (Acrylic, nylon...)	Low temperature
	silk – wool	Medium temperature
	cotton – linen	High temperature
	Do not iron

• When you do not know the composition, it is recommended to iron a non-visible part of the it, starting from the lowest temperature to find the most suitable temperature.
• Sometimes clothing becomes shiny, in this case you need to iron it on the inside not to ruin it. When ironing at temperature (MAX), it is recommended to place a cloth between the ironing plate and the fabric.

Setting the temperature

1) Place the iron vertically. Plug the device to the electrical outlet.
2) Select the temperature regulator (3) according to the symbols shown on the previous page. The chosen symbol has to be aligned with the mark placed on the tank. The iron plate temperature control light (1) shows that the iron plate (4) is warming up. Wait until the light turns off to start ironing.

Caution: While ironing, the control light lights up periodically indicating that the temperature is constant. If you lower the thermostat, do not start ironing until the iron temperature control light turns off.

CLEANING

Before cleaning any part of the product, ensure that the unit is unplugged from the electrical outlet and the ironing plate isn't hot anymore.

Any leftovers on the ironing plate can be removed with a damp cloth or with a non-abrasive detergents. Do not scrape the ironing plate with iron sponge or metal objects.

The plastic parts can be cleaned with a damp cloth and neutral detergent, then wiped with a dry cloth. Do not immerse the unit in water.

BEFORE STORING

• Unplug the system from the outlet.
- Allow the plate to cool down completely.
- Wrap the power cord in the back of the body.
- Leave the electric iron vertically.

TECHNICAL FEATURES

• Power supply: AC 230V\~50 Hz.
- Power: 900W
• Weight: 1,67kg

The product is made of non-biodegradable and potentially polluting substances if not properly disposed of; other parts can be recycled. It’s our duty to contribute to the ecological health of the environment following the correct procedures for disposal. The crossed out wheelie bin symbol indicates the product complies with the requirements of the new directives introduced to protect the environment (2002/96/EC, 2003/108/EC, 2002/95/EC, 2012/19/EC) and must be properly disposed at the end of its lifetime. If you need further information, ask for the dedicated waste disposal areas at your place of residence. Who does not dispose of the product as specified in this section shall be liable according to the law.

To find the nearest service center, please call the telephone number 0541 694246, fax number 0541 756430 or contact us at [e-mail] asking for the service centers supervisor.

Appliance is conform to the pertinent European regulation and is therefore marked with the CE mark.

C€

www.g3ferrari.it TREVIDEA S.r.l.

TREVIDEA S.R.L. – Strada Consolare Rimini – San Marino n. 62 – 47924 – RIMINI (RN) - ITALY

MADE IN CHINA
