Product Type	Meat grinder with vegetable shredder/grater
Brand	MPM
Model	MMM-A/03M
Intended Use	Household use only
Power Cord	Retractable, stored in motor housing
Attachments Included	4 graters: vegetable slicing, grinding, large hole, small hole
Pusher Included	Yes
Assembly/Disassembly	Detachable from mincer; lid with lock
Cleaning Method	Hand wash with lukewarm water and detergent; not dishwasher safe
Material	Plastic (white)
Voltage Requirement	Must match mains voltage (check label on appliance)
Safety Features	Auto shut-off not specified; always unplug when not in use
Child Safety	Keep out of reach of children under 8 years
Maintenance	Graters do not require regeneration
Disposal	Do not dispose with household waste; follow WEEE guidelines
Food Types	Meat and vegetables; do not shred stone fruits
Operation	Always use pusher; never feed by hand
Warning	Do not immerse motor unit in water

Frequently Asked Questions - MMM-A/03M MPM

How do I attach the grater to the meat grinder?

Detach the mincing chamber from the MMM-03 meat mincer and attach the shredder casing in its place. Then place the desired grater face-up and close the lid until it locks.

Can I grind bones with this meat grinder?

No, this appliance is intended for soft foods like meat and vegetables. Do not grind bones or stone fruits.

Is the grater attachment dishwasher safe?

No, it is not recommended to wash the grater parts in a dishwasher. Clean them by hand with lukewarm water and detergent.

What voltage does the MPM MMM-A/03M need?

The appliance must match your mains voltage. Check the rating label on the device for exact voltage specifications.

How do I clean the meat grinder?

Always unplug and detach the shredder before cleaning. Wash all parts with lukewarm water and detergent, rinse, and dry. Do not immerse the motor housing in water.

Can children use this appliance?

This appliance is not intended for use by children under 8 years of age. Children should be supervised if using it, and cleaning should be done by adults.

What should I do if the power cord is damaged?

Do not use the appliance. Return it to an authorized service center for repair. Never try to replace the cord yourself.

How do I store the appliance?

Rewind the power cord into the motor housing. Store the appliance and its cord out of reach of children under 8 years.

Can I use the grater for other purposes?

The graters are designed for vegetables and fruit. Do not use them for hard items like nuts or ice. Only use the pusher provided.

Why does the grater lid not lock?

Ensure the grater is placed face-up and the lid is pressed down firmly. The lid can be unlocked by pressing the bottom of the shredder casing near the latch.

USER MANUAL MMM-A/03M MPM

Product assembly of a white plastic kitchen tool, showing multiple cylindrical and rectangular components with cutouts (no text or symbols visible)

Since you will be using the shredding set with MMM-03M meat mincer it is necessary that you follow the instructions below regarding safe use.

▶ Please read all instructions before using.
Always unplug the appliance from a power outlet when not in use and before cleaning.
Before first use, make sure that the mains voltage matches the voltage shown on the appliance.

Do not let the power cord hang over sharp edges or touch hot surfaces.

Never pull on the power cord to unplug the appliance.

Never leave the appliance unattended when in use.

Take special precautions when using the appliance near children.

Do not use the appliance if it appears to be faulty.

Do not use the appliance if the power cord or plug is damaged. In such case, return the appliance to an authorised service centre.

Using attachments not recommended by the manufacturer may result in damage to the appliance and/or personal injury.

Do not immerse the appliance, power cord or plug in water or other liquids. The power cord and plug must be dry at all times.

The appliance must only be used for its intended purpose.

This appliance is intended for household use only.

▶Always disconnect the appliance from a power outlet before assembly/disassembly.

When moving the appliance, always hold the motor housing with both hands.

▶ Never feed food into the appliance by hand. Always use the pusher.

When finished mincing, rewind the power cord into the motor housing.

This appliance is not intended for use by children under 8 years of age and individuals with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be carried out by children without supervision.

Make sure that children do not play with the appliance.

- Store the appliance and its cord out of reach of children under 8 years of age.

Do not put the unit on hot surfaces.

The unit is not designed to be used outdoors.

Before you start working with the unit, make sure all elements of the unit are correctly fastened.

▶ Never put the unit next to other electric units, burners, cookers, ovens etc.
Do not pull the plug by holding the power cord.
Do not connect the power plug with wet hands.
In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
WARNING! Do not allow small children to play with the foil as there is a danger of suffocation!

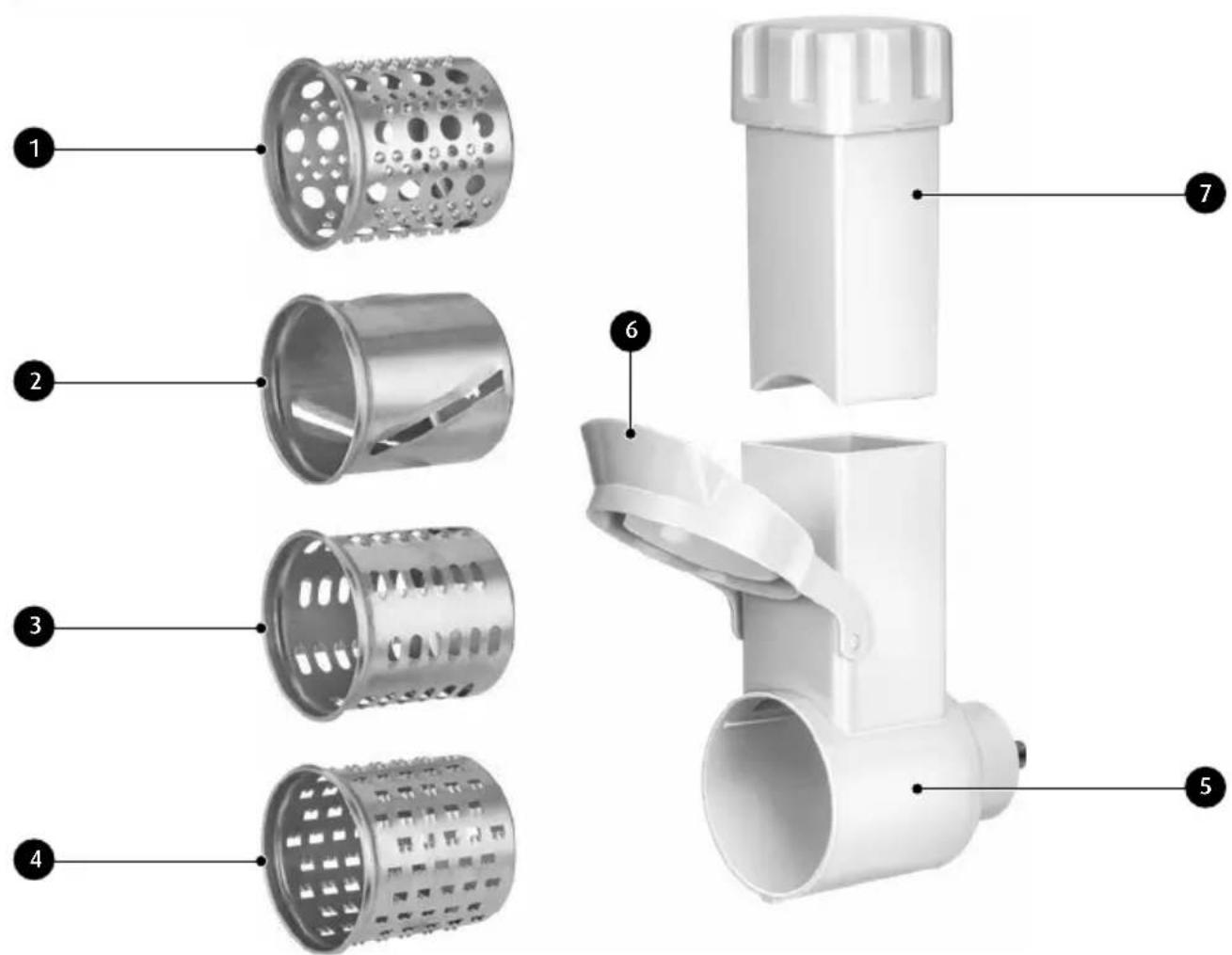

DESCRIPTION OF THE DEVICE

1. Vegetable slicing grater
2. Grinding grater

3. Large hole grater for vegetables and fruit

4. Small hole grater for vegetables and fruit

5. Shredder casing

6. Grater lock

7. Pusher

ASSEMBLING AND USING THE GRATER

CAUTION! Before first use, clean all the elements of the grater in warm water with a detergent, then rinse and dry.

1. Detach the mincing chamber from your MMM-03 meat mincer and attach the shredder casing (5) in its place.
2. Attach an appropriate grater (1), (2), (3) or (4), onto the shredder casing (5), face-up, and close the lid of the grater lock (6). Make sure the lid is properly fastened in place. The lid can be unlocked by pressing the bottom of the shredder casing, near the latch.
3. Connect the mincer to mains outlet and turn it on with the switch.
4. Cut the products into pieces small enough to fit into the chamber. Do not shred stone fruits. Push the products with the pusher while operating the shredder (7).
5. After use, turn the mincer off, unplug it from the mains and detach the shredder from the mincer just like the mincing chamber.
6. Clean all parts of the shredder.

CLEANING AND MAINTENANCE

CAUTION! The shredder must be detached from the mincer before cleaning. Do not clean the shredder still attached to the mincer. Do not immerse the meat mincer in water.

CAUTION! Take extreme care while cleaning the graters. Cutting risk.

1. Wash all parts of the shredder with lukewarm water and a detergent, rinse clean with water, and leave to dry.
2. Washing the shredder parts in a dishwasher is not recommended.
3. Graters do not require regeneration procedures.

CAUTION! MPM agd S.A. may change the technical features of the product without notice.

PROPER DISPOSAL OF THE PRODUCT (waste electrical and electronic equipment)

This symbol on the product indicates that the product, after its lifetime, should not be disposed with other household wastes. To avoid harmful influence on the environment and human health due to uncontrolled waste disposal, dispose the waste device to the service point of waste household appliances or report collecting it from home. In order to obtain detailed information about the location and how to dispose the waste electrical and electronic equipment in a safe way, contact your retailer or local Department of Environmental Protection. Do not dispose the device with other municipal waste.

We wish you satisfaction from using the product and invite you to check a wide range of other MPM appliances
