MCZ-67 - Water dispenser MPM - Free user manual and instructions

Brand	MPM
Model	MCZ-67
Product Type	Countertop Water Dispenser
Dimensions (H x W x D)	50 cm x 30 cm x 30 cm
Weight	5 kg
Power Supply	220-240 V ~ 50/60 Hz
Power Consumption	500 W (heating) / 100 W (cooling)
Water Tank Capacity	1.5 L (hot) / 3 L (cold)
Hot Water Temperature	≥ 90 °C
Cold Water Temperature	≤ 10 °C
Functions	Hot and cold water dispensing, child safety lock, drip tray
Safety Features	Overheat protection, auto shut-off, child lock
Material	ABS plastic, stainless steel heating element
Energy Class	A
Noise Level	< 40 dB
Cable Length	1.2 m
Maintenance	Descale every 3 months, clean drip tray weekly
Cleaning Instructions	Use mild detergent and soft cloth; do not immerse
Spare Parts Availability	Drip tray, water tank, heating element (contact support)
Warranty	2 years
Manual Languages	EN, DE, LT, PL, RU

Frequently Asked Questions - MCZ-67 MPM

How do I dispense hot water?

Press the hot water button and wait for the indicator light. Ensure the child lock is disengaged. Always use a cup and avoid touching hot surfaces.

What should I do if the water doesn't heat?

Check if the power is on and the heating switch is activated. If the problem persists, the heating element may need replacement. Contact customer support.

How often should I descale the dispenser?

Descale every 3 months using a descaling solution or white vinegar mixed with water. Follow the manual's instructions to avoid damage.

Can I use the dispenser with a water bottle?

Yes, the MCZ-67 is designed for standard 5-gallon water bottles. Ensure the bottle cap is pierced and the bottle is properly seated.

Is the child lock feature automatic?

The child lock must be manually activated. Press the lock button to prevent accidental hot water dispensing.

Why is there no cold water?

Check the cooling switch. If the compressor is noisy or not running, let it rest for 10 minutes. Persistent issues may require service.

What is the maximum hot water temperature?

The dispenser heats water to approximately 90°C. Do not use for baby formula without cooling first.

How do I clean the drip tray?

Remove the tray, wash with warm soapy water, and rinse. Dry before reinserting. Clean weekly to prevent mold.

Can I use tap water in the dispenser?

It is recommended to use bottled or filtered water. Tap water may cause scaling and affect performance.

Where can I find spare parts?

Contact MPM customer service or authorized dealers. Common parts like drip trays and tanks are available online.

USER MANUAL MCZ-67 MPM

Black and maroon model of a black and red water heater with control buttons and MPM branding (no visible text or symbols on the device itself)

INSTRUCTIONS ASSOCIATED WITH USE SAFETY

Before use thoroughly read the operation manual. Extreme care is required in case of children presence in vicinity of the appliance!

Do not use your appliance for any other purpose except of its assignment.
Do not immerse the appliance, its cord and plug in water or any other fluids.
Do not leave the appliance without supervision in course of its operation.

▶Always pull out the plug from the socket unless the appliance is used or before its cleaning.

Do not use the appliance in case of its damage, also if its cord or plug is damaged – in such case the appliance should be handed over to an authorized service shop for repair.

Do not use the appliance outdoors.
Do not hang the cord on any sharp edges and prevent any contact with hot surfaces.
Never fill the jar above the maximum level nor under the minimum level – boiling water splashes are possible in case of overfilled kettle

Before the kettle is placed on the base, make sure it is switched off.

The kettle lid must be closed in course of water boiling.
Use the kettle with its associated base exclusively.

Do not stand the appliance in vicinity of electric and gas cookers, burners, ovens etc.

▶ Use the kettle for water boiling only.
Do not touch the enclosure surfaces in course of water boiling, this surface may be hot
▶ Use the kettle with its associated filter only.

The appliance should be connected into the socket with grounding pin

The device is intended for domestic use only.

This appliance is not intended for use by children under 8 years of age and individuals with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be carried out by children without supervision.

▶ Ensure that children do not play with the appliance.

• Store the appliance and its cord out of reach of children under 8 years of age.
  Do not remove the plug from the mains by pulling by the cord.

If water gets into any electric elements inside the kettle or onto the base, carefully dry these elements before plugging the kettle to the mains.

Do not operate the kettle when empty.

The appliance is not intended to be operated by means of an external timer or separate remote-control system

Do not plug the power cord with wet hands.

- Allow the kettle to cool completely before cleaning.

Keep your children safe: do not leave any parts of the pack aging readily accessible (i.e. plastic bags, cardboard boxes, polystyrene inserts, etc.).

WARNING! Never let children play with plastic film or bags. Choking/asphyxiation hazard!

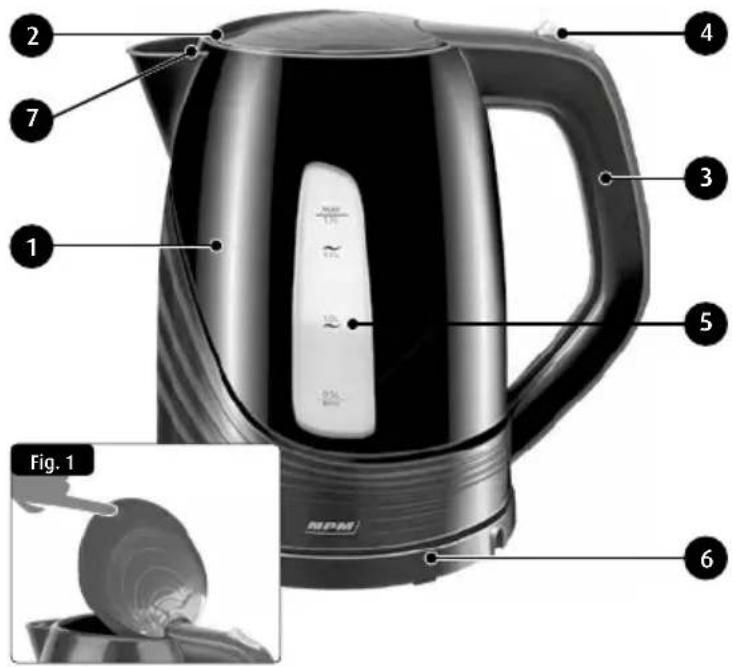

APPLIANCE DESCRIPTION

1. Kettle's body
2. Automatic hinged lid
3. Kettle's holder
4. Illuminated switch (on/off)
5. Double-side water level indicator with scale
6. Rotating base 360 °
7. Replaceable filter

Capacity min/max 0,5/1,71

Concealed heating element

BEFORE USE

1. The kettle should be placed upright of flat, stable and dry surfaces.
2. Prior to the first use, fi ll the kettle with water to max level, boil it, then empty and rinse with fresh water. Rep
3. The kettle will turn off automatically after water boiling. However it may be turned off by the user at any time by moving the "on/off" switch (4) to the off position, if necessary.
4. After water has been boiled or the kettle has been switched off, wait several seconds before switching it on again.
5. The empty kettle will be automatically turned off by its overheating protection system. In such case the kettle should be allowed to cool for 15 minutes before its refilling.

HOW TO USE THE KETTLE

1. Remove the kettle from its base before filling it with water (6).

2. Open the kettle's cover (Fig. 1), pour water to a desired level (however, not less than 0,5 l and do not exceed the level of 1,7 l).

3. Pushing the button close the cover (2) accurately.

4. Place the kettle on the base (6).
5. Switch the kettle by means of the switch (4). When the water comes to a boil the kettle will turn off automatically.

IMPORTANT NOTE! The kettle may be used with its base delivered in the scope of purchased model. Do not ever open the kettle lid in course of water boiling.

CLEANING AND MAINTENANCE

NOTE! The kettle should be regularly descaled in accordance with the instructions included below. Always unplug cord of power base before cleaning and allow the jar to cool down.

1. Fill the jar with water mixed with vinegar or lemon juice (citric acid) or special descaling agent available in the shops selling the household equipment.
2. Let the mixture soak in the kettle for an hour and boil the water thereafter.
3. Empty the kettle and rinse the inside thoroughly with cold.
4. Repeat this action up to three times, if necessary.
5. In order to eliminate the smell of vinegar, boil and remove water several times.
6. Wipe the jar inside and outside with a cloth.
7. Failure to descale your kettle may result in its damage.

WARNING! Never immerse the device or the base in water or other liquids. This may result in electric shock or fire.

CAUTION! Do not use any wire brush or other abrasive objects. Do not use any acidic or abrasive detergents.

TECHNICAL DATA

The technical parameters are given on the data plate of the product. Power cord length: 0,55 m

CE

ATTENTION! MPM agd S.A. reserves its rights to modify the technical data.

PROPER DISPOSAL OF THE PRODUCT (waste electrical and electronic equipment)

Poland

This symbol on the product indicates that the product, after its lifetime, should not be disposed with other household wastes. To avoid harmful influence on the environment and human health due to uncontrolled waste disposal, dispose the waste device to the service point of waste household appliances or report collecting it from home. In order to obtain detailed information about the location and how to dispose the waste electrical and electronic equipment in a safe way, contact your retailer or local Department of Environmental Protection. Do not dispose the device with other municipal waste.

We wish you satisfaction from using the product and invite you to check a wide range of other MPM appliances
