MBL-22 - Blender MPM - Free user manual and instructions

Product Type	Blender
Brand	MPM
Model	MBL-22
Power Consumption	400 W
Capacity	1.5 L
Jar Material	Plastic (Tritan or similar)
Blade Material	Stainless Steel
Speed Settings	2 speeds + Pulse
Functions	Blending, Mixing, Crushing Ice
Safety Lock	Yes, jar must be properly locked to operate
Non-Slip Feet	Yes
Dishwasher Safe Parts	Jar and lid are dishwasher safe (top rack)
Cord Length	1.0 m
Dimensions (H x W x D)	40 x 20 x 20 cm
Weight	2.0 kg
Noise Level	< 85 dB
Overheat Protection	Yes, automatic shut-off
BPA Free	Yes
Warranty	2 years
Accessories Included	Blender jar, lid, measuring cap

Frequently Asked Questions - MBL-22 MPM

How do I clean the blender?

After use, fill the jar halfway with warm water and a drop of dish soap. Run the blender on pulse for 30 seconds. Rinse thoroughly and dry. The jar and lid are dishwasher safe (top rack).

Can I crush ice with this blender?

Yes, the MBL-22 is designed to crush ice. Use the pulse function for best results. Add ice cubes and pulse a few times until desired consistency.

What is the maximum capacity for blending hot liquids?

Do not blend hot liquids above 60°C (140°F) to avoid pressure buildup. Let liquids cool before blending.

Why does the blender not start?

Ensure the jar is properly locked onto the base. The blender has a safety lock that prevents operation if not correctly assembled. Also check power connection.

How do I remove the blades for cleaning?

The blade assembly is fixed to the jar and should not be removed. Clean by blending soapy water as described. Do not immerse the base in water.

What is the warranty period?

The MPM MBL-22 comes with a 2-year warranty against manufacturing defects. Retain your purchase receipt.

Can I blend nuts to make nut butter?

Yes, but use the pulse function and scrape down sides. Do not run continuously for more than 1 minute to avoid overheating.

The blender leaks from the bottom. What should I do?

Check that the sealing ring under the jar is properly seated and not damaged. If the leak persists, contact MPM customer service for a replacement part.

Is the jar BPA-free?

Yes, the jar is made from BPA-free plastic, safe for food contact.

How do I use the pulse function?

Press and hold the pulse button for short bursts. Release to stop. This gives you control over texture and prevents over-processing.

USER MANUAL MBL-22 MPM

Illustration of a MPM blender with a splash of orange liquid, no text or symbols present.

BLENDER

model: MBL-22

PL INSTRUKCJA OBSŁUGI....3

GB USER MANUAL 8

RU ИНСТРУКЦИЯ ПО ОБСЛУЖИВАНИЮ....13

SPECIAL SAFETY INSTRUCTIONS FOR THIS MACHINE

Read the manual carefully before use.
▶ Never hold the appliance with wet hands.
Do not immerse the appliance, power cable and plug in water or other liquids.
Be extremely careful when children are near the appliance!
Do not hang the cable on sharp edges and do not allow it to touch hot surfaces.
Before work make sure you have not accidentally left any sharp tool (e.g. spoon, spatula) in the blender bottle, as it may permanently damage the device or cause bodily injury.
Before starting the device make sure that the bottle is properly secured on the blender body.
Before removing the blender accessories, wait until the motor stops completely.
- Disconnect the blender from the mains before cleaning.
- Handle the blades with extreme care when removing them from the appliance or cleaning them.
Do not submerge the blender casing in water and other liquids!
Do not exceed the maximum volume indicated on the blender container.
- Wait for hot ingredients to cool before you process them.
Do not use the appliance when damaged and/or its power cord or plug is damaged; have an Authorised Service repair it for you.
Always make sure that all parts of the appliance have been properly attached before turning on the power.
Use of any accessories not recommended by the manufacturer may cause injury, fire and/or damage to this appliance.
▶ Never leave the device on without supervision!
Do not put the device on hot surfaces!
Do not use this appliance outdoors.
Place the appliance on a dry, flat and stable surface.
The appliance is suitable for domestic use only.
When using the appliance, keep your hands away from movable parts.
▶ Use this appliance only as intended.
- Never put the appliance near other electrical appliances or equipment, burners, cookers, ovens, etc.
- Keep in mind that children must never play with this appliance.
Do not pull the plug from the mains socket by pulling on the cable.
Do not connect the plug to the socket with wet hands.

Before replacing the movable parts or getting near them during operation, switch off the equipment and disconnect it from the power supply.

Always disconnect the device from the power supply when it is left without supervision as well as before assembly, disassembly or cleaning.

• Store the device and its cable in a place inaccessible to children below 8.
  This device may be used by children of at least 8, and by people with impaired physical or mental capacity, or people with no experience and knowledge of the equipment, if there they are supervised or trained as regards using the equipment in a safe manner, so that relevant hazards are understood. Children should not perform cleaning or maintenance of the device without supervision.

Before the first use, clean all the attachments and containers.

To keep your children safe, do not leave any parts of the packaging readily accessible (e.g. plastic bags, cardboard boxes, polystyrene inserts, etc.).

WARNING! Never let children play with plastic film or bags. Choking/asphyxiation hazard!

CAUTION: The blades are very sharp; avoid physical contact while emptying and cleaning the device, as you may injure yourself severely.

BEFORE THE FIRST USE

• While mixing, do not insert objects in the blender to avoid bodily injuries and damage to the appliance.
• The blender blades are very sharp. To avoid injury never attach the blades without properly attaching the blender bottle on them.
• Firmly tighten the bottle base ring.
• Always use the blender with the bottle attached.
• Always hold the bottle while mixing.

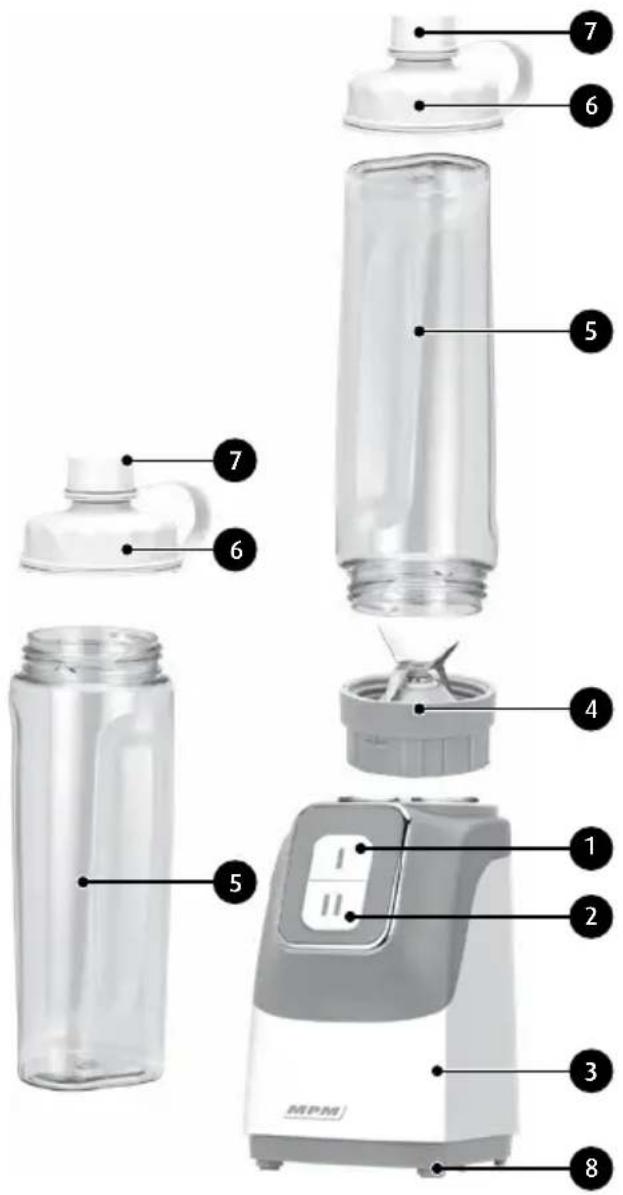

APPLIANCE DESCRIPTION

1. Switch button – low speed
2. Switch button – high speed
3. Blender housing
4. Bottle base ring with knife
5. Blender bottles vol. 600 ml (2 pcs.)
6. Bottle cap (2 pcs.)
7. Closed opening
8. Non-slip feet

INSTALLATION OF THE BLENDER BOTTLE

1. Select the bottle (5), then rotate it so that the hole for tightening the base is on top.
2. Put the bottle base ring (4) on the bottle (5) so that the knife blades are inside the bottle; then, tighten it to the max, making sure that the thread is properly matched.

In case of the disassembly of the blender knife, follow the above steps in the reverse order.

WARNING! The device knife is sharp.. Handle with care.

BLENDER USE

The device is equipped with two interchangeable bottles (5), each 600 ml for making and storing fresh cocktails of fruits and vegetables as well as milk and protein shakes. Bottles are made of top-quality plastic which does not contain BPA. Bottles are equipped with hermetic caps (6) with a closed opening for drinking (7).

1. Place the blender casing (3) on a dry, stable and flat surface.
2. Before use check if the sealing rings in the cap (6) and in the bottle base ring (4) are properly fixed.
3. Cut the products into smaller ones so that they crumble more easily.
4. Put the ingredients in the bottle and firmly tighten the base ring with the knives (4) to the bottle (5), making sure that the thread is matched properly.

WARNING! Do not fill the bottle up with liquid above the 600 ml marking. If the ingredients are producing lots of foam, do not fill the bottle up excessively. Decrease the volume accordingly.

CAUTION! To achieve the optimum efficiency, put the required ingredients into the bottle in the following order: liquids, fresh ingredients, yoghurt and ice cream.

1. Put the bottle upside down and place it with the bottle base ring on the device body so that the two tabs from the base ring are inserted in the holes in the blender base, then press the bottle downwards and tighten it clockwise to the max.

WARNING! The device knives are sharp. Handle with care.

In case of the disassembly of the bottle, follow the above steps in the reverse order.

WARNING! Do not use the appliance if the container is empty.

1. Plug the power cord into the wall socket.
2. Start the device by pushing and holding the button (1) low speed or (2) high speed..
3. After mixing the bottle contents, switch the device off by releasing the button (1) or (2) and remove the plug of the power supply cable from the mains socket.
4. Remove the bottle (5) with the base ring (4) from the blender casing (3).
5. Turn the bottle (5) to its normal position.
6. Loosen the bottle base ring (4).
7. Put the cap (6) on the bottle top (5), making sure that the thread is matched properly. Both caps have the same size and can be used interchangeably.
8. Tilt the plug (7) in the bottle cap (6) fill the bottle up; push the plug to close the bottle and store its contents

CAUTION! Do not run the motor for more than 60 s as it may overheat. After 60 s switch the device off until the motor cools down.

USE-RELATED NOTES

1. Cooked vegetables and brew should cool down before you pouring them into the blender.
2. The blender is not intended for the following actions:

- grating potatoes

- beating eggs or products for replacing dairy

- mincing raw meat

- beating or mixing heavy dough, as it can lead to forming a lump which may damage the appliance

- draining juice off fruits and vegetables

- cracking ice or frozen foodstuffs.

1. Every few seconds check the consistency of ingredients being mixed.
2. Do not exceed the maximum permissible operating time of the appliance specified in its user manual.
3. If the motor stops, immediately stop the mixing or decrease the number of ingredients in the bottle.

CAUTION! Do not remove the bottle from the casing when the device is on.

CLEANING AND MAINTENANCE

1. The blender elements are resistant to corrosion and easy to clean.

2. Disassemble the blender elements before and after each use, thoroughly wash them with warm water mixed with a detergent, rinse them down and dry them.

3. The blender elements are not intended for cleaning in dishwashers.

4. Periodically check all the live parts of the device before their assembly. If the blender blades are stuck or hardly rotate, do not use the blender. Check their operation by rotating them clockwise. Be careful so that you do not hurt yourself. The blades should rotate freely.
5. If the blender bottle is damaged, leaky, cracked, incomplete or scratched, do not use the appliance. Further use may cause it to crack during its operation.
6. In order to clean the blender enclosure unplug the appliance from the mains and wipe the enclosure with a damp cloth. If water enters the device, it will exit through the drain under the casing.
7. The blender motor does not require any further maintenance. Never use rough or caustic cleaning agents, objects for scrubbing or steel wool, which damage the appliance.

CAUTION! Do not submerge the device in water and other liquids! The device knives are sharp. Handle with care.

SPECIFICATIONS

See the product's nameplate for technical specifications.

Max. operating time: KB Max = 1 min.

Noise: L_WA=85 dB

Length of the network cable: 1.00 m

CAUTION! MPM agd S.A. may change the technical features of the product without notice.

PROPER DISPOSAL OF THE PRODUCT (waste electrical and electronic equipment)

Poland

This symbol on the product indicates that the product, after its lifetime, should not be disposed with other household wastes. To avoid harmful influence on the environment and human health due to uncontrolled waste disposal, dispose the waste device to the service point of waste household appliances or report collecting it from home. In order to obtain detailed information about the location and how to dispose the waste electrical and electronic equipment in a safe way, contact your retailer or local Department

of Environmental Protection. Do not dispose the device with other municipal waste.
