MBL-20 - Blender MPM - Free user manual and instructions

Product Type	Blender
Brand	MPM
Model	MBL-20
Dimensions (approx.)	25 x 17 x 25 cm
Weight (approx.)	1.5 kg
Power Supply	AC 220-240V, 50/60Hz
Rated Power	500 W
Capacity (Jug)	1.5 L
Jug Material	Plastic (Tritan or similar)
Blade Material	Stainless Steel
Number of Speeds	2 speeds + Pulse
Functions	Blending, crushing ice, smoothies, soups
Care Instructions	Hand wash; jug and lid are dishwasher safe (top rack)
Safety Features	Non-slip base, lid lock, overload protection
Included Accessories	Jug, lid, measuring cap, blade unit
Repairability	Spare parts available; blade unit replaceable

Frequently Asked Questions - MBL-20 MPM

How do I clean the blender after use?

Fill the jug halfway with warm water and a drop of dish soap. Run the blender on low for 30 seconds, then rinse thoroughly. The jug and lid are dishwasher safe (top rack). Dry all parts before reassembly.

Can I blend hot liquids?

No, do not blend hot liquids above 60°C. Let them cool first to avoid pressure buildup and potential splashing.

What is the maximum capacity for blending?

The maximum liquid capacity is 1.5 L, but for thick mixtures like smoothies, do not exceed 1 L. Overfilling may cause leakage or motor strain.

The blender won't start. What should I check?

First, ensure the jug is properly locked onto the base. Check the power cord and outlet. If it still doesn't start, the thermal overload may have tripped; unplug and wait 15 minutes before retrying.

How do I crush ice?

Use the Pulse function in short bursts. Add ice cubes gradually and do not fill above the max line. Dry ice works best.

Can I replace the blade unit?

Yes, the blade unit is replaceable. Contact MPM customer service for the correct part. To remove, unscrew the blade base from the jug.

Is the blender suitable for making nut butters?

This blender is not designed for heavy-duty tasks like nut butters. It may overheat. Use a food processor instead.

What does the Pulse function do?

Pulse provides short bursts of power for controlled blending. Press and hold the Pulse button; release to stop. Ideal for chopping or mixing.

The lid leaks during blending. What's wrong?

Ensure the lid is securely locked and the measuring cap is properly inserted. Check the lid gasket for damage; replace if worn.

How long is the warranty?

The MPM MBL-20 typically comes with a 2-year warranty. Keep your receipt for service.

USER MANUAL MBL-20 MPM

White MPM blender with green handle and white liquid, splashing orange liquid (no text or symbols visible)

BLENDER

model: MBL-20

PL INSTRUKCJA OBSŁUGI....3

GB USER MANUAL 8

RU ИНСТРУКЦИЯ ПО ОБСЛУЖИВАНИЮ....13

Circular grayscale image with a curved arrow and label 'ys. 2' (no readable text or symbols)

Read carefully this manual before using the appliance.
Do not touch the appliance with wet hands.
Do not immerse the appliance, its cord and plug in water or any other liquids.
- Close supervision is necessary when using the appliance near children.
Do not place the cord over sharp edges and keep it away from hot surfaces.
Before use always make sure that no tool (e.g. spoon, spatula) is left in the jug or bottle, because it may cause damage to the appliance or body injury.

Before starting the appliance make sure the bottle is properly mounted on the base.

Before disassembly wait until the motor stops completely.

Before cleaning the appliance, unplug it from the power outlet!

Before disassembly wait until the motor stops completely. Before cleaning the appliance, unplug it from the power outlet!

Take extreme care when touching cutting blades, especially when removing them for cleaning.

Do not immerse the blender in water or any other liquids.

Do not exceed the maximum capacity indicated on the blender container.

- Wait until hot ingredients cool down before processing them.

Wash the jug before using the appliance for the first time.

- Wait until hot ingredients cool down before processing them. - Wash the jug before using the appliance for the first time.

Do not use the appliance if it is damaged, also if the power cord or plug is damaged - return the appliance for repair to an authorized service centre.

Before use always make sure that all parts of the appliance are properly installed.

- Do not use the appliance if it is damaged, also if the power cord or plug is damaged - return the appliance for repair to an authorized service centre. - Before use always make sure that all parts of the appliance are properly installed.

To avoid the risk of damage, fire or injury, always use the attachments recommended by the manufacturer.

Do not leave the operating appliance unattended.

Do not place the appliance on hot surfaces.

Do not use the device outdoors.

Place the appliance on a dry, flat and stable surface.

This appliance has been designed for domestic use only.

During operation keep your hands away from moving parts.

- Do not leave the operating appliance unattended. - Do not place the appliance on hot surfaces. - Do not use the device outdoors. - Place the appliance on a dry, flat and stable surface. - This appliance has been designed for domestic use only. - During operation keep your hands away from moving parts.

Do not use the appliance for the purposes different than it was designed for.

Do not place the appliance in vicinity of electric and gas cookers, burners, ovens, etc.

Children should be supervised to ensure that they do not play with the appliance.

Do not place the appliance in vicinity of electric and gas cookers, burners, ovens, etc. Children should be supervised to ensure that they do not play with the appliance.

Do not pull the plug by holding the power cord.

Do not connect the power plug with wet hands.

Do not remove the bottle when the appliance is running.

- Do not pull the plug by holding the power cord. - Do not connect the power plug with wet hands. - Do not remove the bottle when the appliance is running.

▶Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.

- Switch off and unplug the appliance before you exchange the accessories or approach the parts moving during operation - Store the appliance and its cord out of reach of children under 8 years of age.

This appliance is not intended for use by children under 8 years of age and individuals with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be carried out by children without supervision.

Clean all attachments and containers before using the appliance for the first time.

Keep your children safe: do not leave any parts of the pack aging readily accessible (i.e. plastic bags, cardboard boxes, polystyrene inserts, etc.).

WARNING! Never let children play with plastic film or bags. Choking/asphyxiation hazard!

NOTE: The cutting blades are very sharp, avoid touching them while emptying or cleaning the appliance - it may result in serious injury.

BEFORE FIRST USE

• To avoid injury and damage do not put hands or any items into the appliance when mixing. If it is necessary to remove food residues, first switch off and unplug the blender and then use a rubber or plastic spatula.
• The blades are very sharp. To avoid injury never place blades before correctly assembling bottle first.
• Tighten the bottle mounting base.
• Always use the blender with bottle.
• Always hold the bottle during mixing.

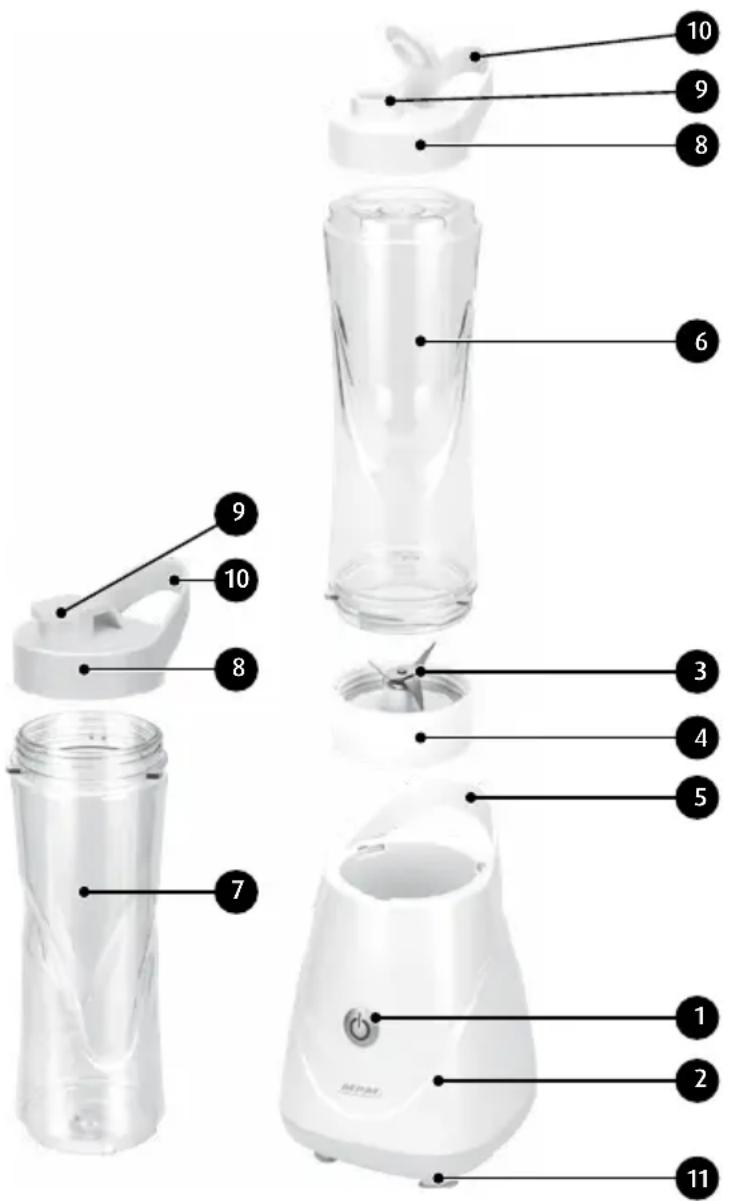

DESCRIPTION OF THE APPLIANCE

1. Power ON/OFF button
2. Blender housing
3. Stainless steel knife
4. Bottle mounting base
5. Blender holder
6. Blender bottle (600 ml)
7. Second blender bottle (600ml)
8. Bottle cap
9. Closable opening
10. Holder
11. Non-slip feet

INSTALLATION OF THE BLENDER

1. Select a bottle (6) or (7), then rotate it so that the hole for screwing in the base is present on the top side.
2. Put the bottle base ring (4) with the knife (3) on the bottle (6) or (7), then screw it up to a stop, ensuring that the thread is correctly aligned.

In case of uninstallation of the blender knife, act in a reverse order.

WARNING! The device knife is sharp. Handle with care.

USING BLENDER

The appliance is equipped with two replaceable bottles of 600ml each (6), (7) for preparing and storing fresh fruit and vegetable cocktails, as well as milk and protein cocktails. Bottles are made of top quality BPA free plastic. They have airtight caps (8) with a closable hole for drinking (9) and a handle for carrying (10).

1. Place the blender housing (2) on a dry, hard and even surface.
2. Before use check the sealing rings in the cap (8) and the bottle base, (4) and make sure they are correctly installed.
3. Cut the products into smaller parts to make mixing easier.
4. Put the ingredients into the bottle and tighten the mounting base with knives (4) paying attention to the proper adjustment of the thread.

ATTENTION! Do not fill the bottle above the mark of (max). If the ingredients will produce a lot of foam, do not put too much into the bottle. Suitably reduce the capacity.

NOTE! To maximize efficiency put ingredients into the bottle in the following order: liquids, fresh ingredients, yoghurt and ice cream.

1. Put the bottle upside down and place it with the bottle base ring on the device body so that three tabs from the bottle take place in holes in the blender base, then press the bottle downwards and rotate clockwise up to a stop (Fig. 2).

Circular grayscale image showing a curved object with an arrow, labeled 'Fig. 2.' (no text or symbols on the object itself)

ATTENTION! Knives of the appliance are sharp. Handle them carefully.

To disassemble the blender bottle reverse the assembly procedure.

ATTENTION! Do not use the appliance with an empty container!

1. Plug the appliance into the power supply socket.
2. Switch the device on by pressing and holding down the button (1).
3. After mixing the bottle contents, switch the device off by releasing the button (1) and remove the plug of the power supply cable from the mains socket.
4. Remove the bottle together with the base (4) from the blender housing (2).
5. Turn the bottle back into its normal position.
6. Twist off the bottle mounting base with knives (4).
7. Put the cap (8) on top of the bottle (6) or (7). Both caps have the same size and can be used interchangeably.
8. Open the plug in the bottle cap to use it and press it back to close and store.

NOTE! Do not start the motor for more than 30 seconds, because it may become overheated. After these 30 seconds stop the appliance and wait until it cools down.

INSTRUCTIONS FOR USE

1. Boiled vegetables and fruit should cool down before putting them into the blender bottle.
2. Blender is not designed for the following:
3. grating potatoes
4. whipping eggs or dairy products substitutes
5. mincing raw meat
6. whipping or kneading dough (danger of forming a ball of dough which may damage the appliance)
7. juicing vegetables and fruit

8. mixing ice and frozen food.

9. Every few seconds check the consistency of the mixed ingredients.

10. Do not exceed the maximum permitted working time of the appliance given in the user manual.
11. If the motor stops, immediately finish mixing or reduce the amount of ingredients in the jug.
12. Do not remove the bottle from the housing when the appliance is in use.

CLEANING AND MAINTENANCE

1. Blender components are corrosion-proof and easy to clean.
2. Each time before and after using, disassemble the appliance and wash its parts in warm water with detergent, rinse and dry them thoroughly.
3. They should not be used in washing machines.
4. Periodically check all operating components of the appliance before using them. Do not use the blender if the blades got stuck or rotate with difficulty. Turn them counter-clockwise to check if they operate properly. Be careful no to get injured. The blades should rotate easily.
5. Do not use the appliance if the bottle gets damaged, leaks or has fractures of cracks. Otherwise it may crack while in use.
6. In order to clean the blender housing unplug the appliance and then wipe it with a damp cloth. If water gets to the top of the appliance, it will go down and through the drain hole under the housing.
7. The motor does not require any additional maintenance. Do not clean the appliance using harsh or abrasive cleaning agents, materials or steel wool, which may cause damage.

NOTE! Do not immerse the blender body in water or any other liquids. Knives of the appliance are sharp. Handle them carefully.

TECHNICAL DATA

Technical parameters are indicated on the product nameplate.

Maximum time of operation: KB Max = 30 sec

Noise level: L_WA = 78 dB

Length of power cord: 0,95 m

NOTE! MPM agd S.A. reserves its right to modify the technical data.

PROPER DISPOSAL OF THE PRODUCT (waste electrical and electronic equipment)

Poland

This symbol on the product indicates that the product, after its lifetime, should not be disposed with other household wastes. To avoid harmful influence on the environment and human health due to uncontrolled waste disposal, dispose the waste device to the service point of waste household appliances or report collecting it from home. In order to obtain detailed information about the location and how to dispose the waste electrical and electronic equipment in a safe way, contact your retailer or local Department

of Environmental Protection. Do not dispose the device with other municipal waste.

Circular grayscale image showing a curved object with an arrow, labeled 'рис. 2' in the top-left corner (no other text or symbols)

NUTZUNG DES MIXERS

Circular grayscale abstract shape with a curved arrow, no text or symbols present

We wish you satisfaction from using the product and invite you to check a wide range of other MPM appliances
