| Product Type | DVD Player / Video Cassette Recorder (VCR) Combo |
| Model | V641MK (LG) |
| Dimensions (approx.) | 430 x 97.5 x 293 mm (16.9 x 3.9 x 11.5 inches) |
| Weight (approx.) | 4.8 kg (10.58 lbs) |
| Power Requirements | AC 110-240V, 50/60 Hz |
| Power Consumption | 23W |
| Signal System | NTSC |
| Region Code (DVD) | 4 (or ALL) |
| Playable Discs | DVD, Video CD, Audio CD, MP3, WMA, JPEG, Kodak Picture CD, SVCD |
| VCR Head System | Four head helical scan azimuth system |
| VCR Tape Speeds | SP, LP, SLP (33.35, 16.67, 11.12 mm/sec) |
| Maximum Recording Time (T-120) | SP: 2 hours, SLP: 6 hours |
| Timer Recording | Up to 8 programs within 1 year; repeat (once, weekly, daily) |
| Copy (DVD to VCR) | One-touch copying from DVD deck to VCR deck (copy-protected discs not supported) |
| Audio Features | VHS Hi-Fi stereo, MTS stereo/SAP decoding, Dolby Digital/DTS output via coaxial |
| Video Outputs | Composite, S-Video, Component (Y Pb Pr) |
| Digital Audio Output | Coaxial (PCM, Dolby Digital, DTS) |
| Maintenance | Clean cabinet with dry cloth; clean disc from center out; avoid volatile liquids |
| Safety Features | Laser class 1; do not open enclosure; auto power-off after tape end; moisture protection |
| Spare Parts / Repairability | No user-serviceable parts; refer servicing to qualified personnel |
Frequently Asked Questions - V641MK LG
User questions about V641MK LG
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your DVD Player / VCR in PDF format for free! Find your manual V641MK - LG and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. V641MK by LG.
USER MANUAL V641MK LG
DVD Player+ Video Cassette Recorder OWNER'S MANUAL
MODEL : V-641M
Before connecting, operating or adjusting this product, please read this instruction booklet carefully and completely.
CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
ATTENTION: POUR ÉVITER LES CHOC ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU'AU FOND.
WARNING: Do not install this equipment in a confined space such as a book case or similar unit.
NOTE TO CABLE/TV INSTALLER: This reminder is provided to call the cable TV system installer's attention to Article 820-40 of the National Electric Code (U.S.A.). The code provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of the cable entry as practical.
CAUTION:
This DVD+VCR employs a Laser System.
To ensure proper use of this product, please read this owner's manual carefully and retain for future reference should the unit require maintenance, contact an authorized service location.
Use of controls, adjustments, or the performance of procedures other than those specified herein may result in hazardous radiation exposure.
To prevent direct exposure to laser beam, do not try to open the enclosure. Visible laser radiation when open. DO NOT STARE INTO BEAM.
CAUTION: The apparatus should not be exposed to water (dripping or splashing) and no objects filled with liquids, such as vases, should be placed on the apparatus.
FCC WARNING: This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.
REGULATORY INFORMATION: FCC Part 15
This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the product is operated in a residential installation. This product generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the product and receiver.
- Connect the product into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
OTES ON COPYRIGHTS:
It is forbidden by law to copy, broadcast, show, broadcast via cable, play in public, or rent copyrighted material without permission.
This product uses copyright protection developed by Macrovision. Copy protection signals are recorded on some discs. When recording and playing the pictures of these discs on a VCR, picture noise will appear.
This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.
SERIAL NUMBER: The serial number is found on the back of this unit. This number is unique to this unit and not available to others. You should record requested information here and retain this guide as a permanent record of your purchase.
Model No. ____
Serial No.
IMPORTANT SAFETY INSTRUCTIONS
CAUTION: PLEASE READ AND OBSERVE ALL WARNINGS AND INSTRUCTIONS IN THIS OWNER'S MANUAL. AND THOSE MARKED ON THE PRODUCT. RETAIN THIS BOOKLET FOR FUTURE REFERENCE.
This product has been designed and manufactured to assure personal safety. Improper use can result in electric shock or fire hazard. The safeguards incorporated in this product will protect you if you observe the following procedures for installation, use, and servicing.
This product does not contain any parts that can be repaired by the user.
DO NOT REMOVE THE CABINET COVER, OR YOU MAY BE EXPOSED TO DANGEROUS VOLTAGE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL ONLY.
-
Read these instructions. - All these safety and operating instructions should be read before the product is operated.
-
Keep these instructions. - The safety, operating and use instructions should be retained for future reference.
-
Heed all warnings. - All warnings on the product and in the operating instructions should be adhered to.
-
Follow all instructions. - All operating and use instructions should be followed.
-
Do not use this product near water. – For example: near a bath tub, wash bowl, kitchen sink, laundry tub, in a wet basement; or near a swimming pool; and other areas located near water.
-
Clean only with dry cloth. – Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners.
-
Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. - Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from over-heating. The openings should never be blocked by placing the product on a bed, sofa, rug or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.
-
Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
-
Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
-
Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the product.
-
Only use attachments/accessories specified by the manufacturer.
Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with apparatus. When a cart is used, use caution when moving the cart/product combination to avoid injury from tip-over.
-
Unplug this product during lightning storms or when unused for long periods of time.
-
Refer all servicing to qualified service personnel. Servicing is required when the product has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the product, the product has been exposed to rain or moisture, does not operate normally, or has been dropped.
Introduction
Safety Precautions 2
IMPORTANT SAFETY INSTRUCTIONS ..... 3
Table of Contents 4
Before Use 5-6
Playable Discs....5
Precautions 6
Notes on Discs 6
About Symbols 6
Selecting the Viewing Source....6

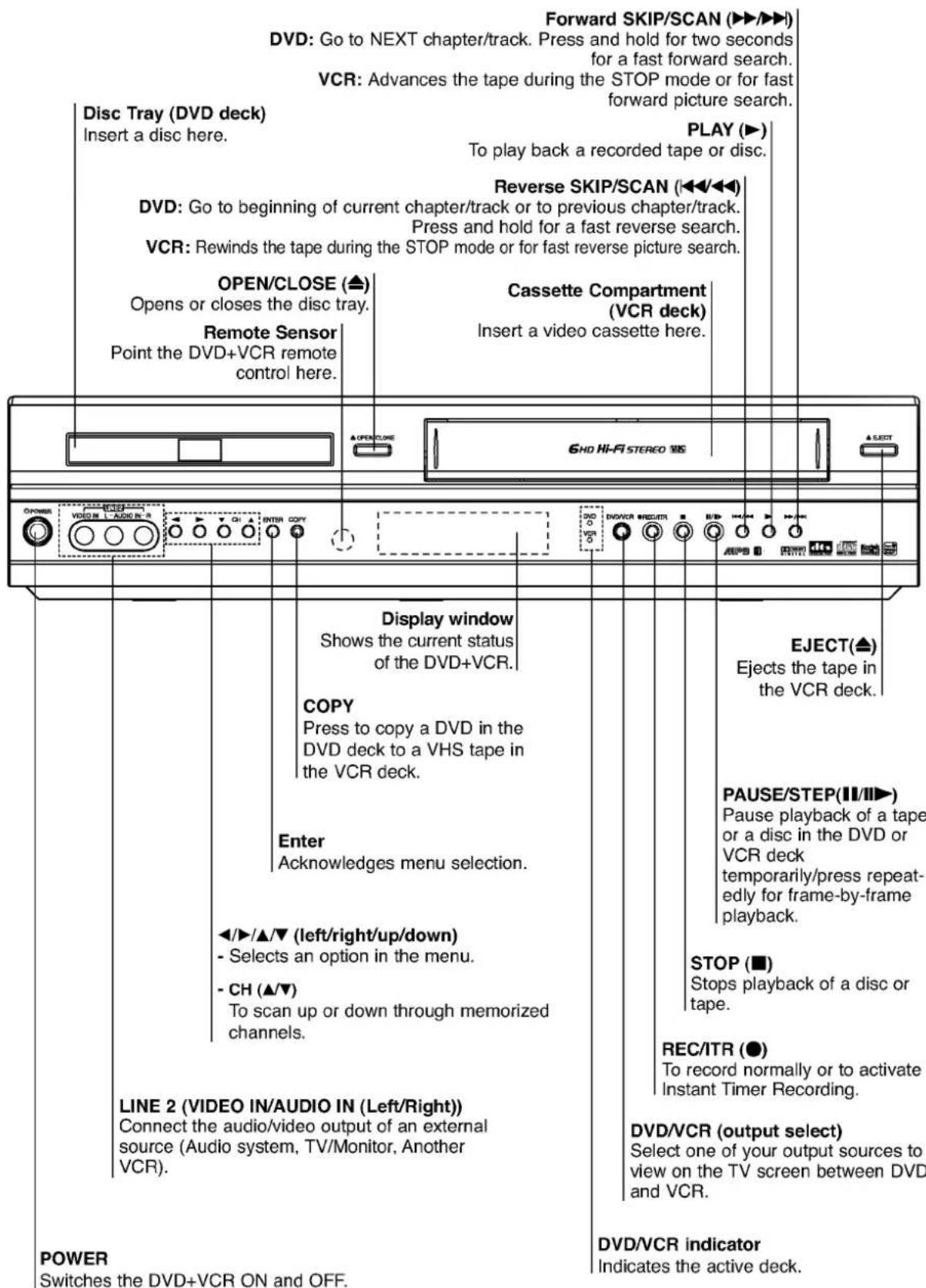

Front Panel Controls....7

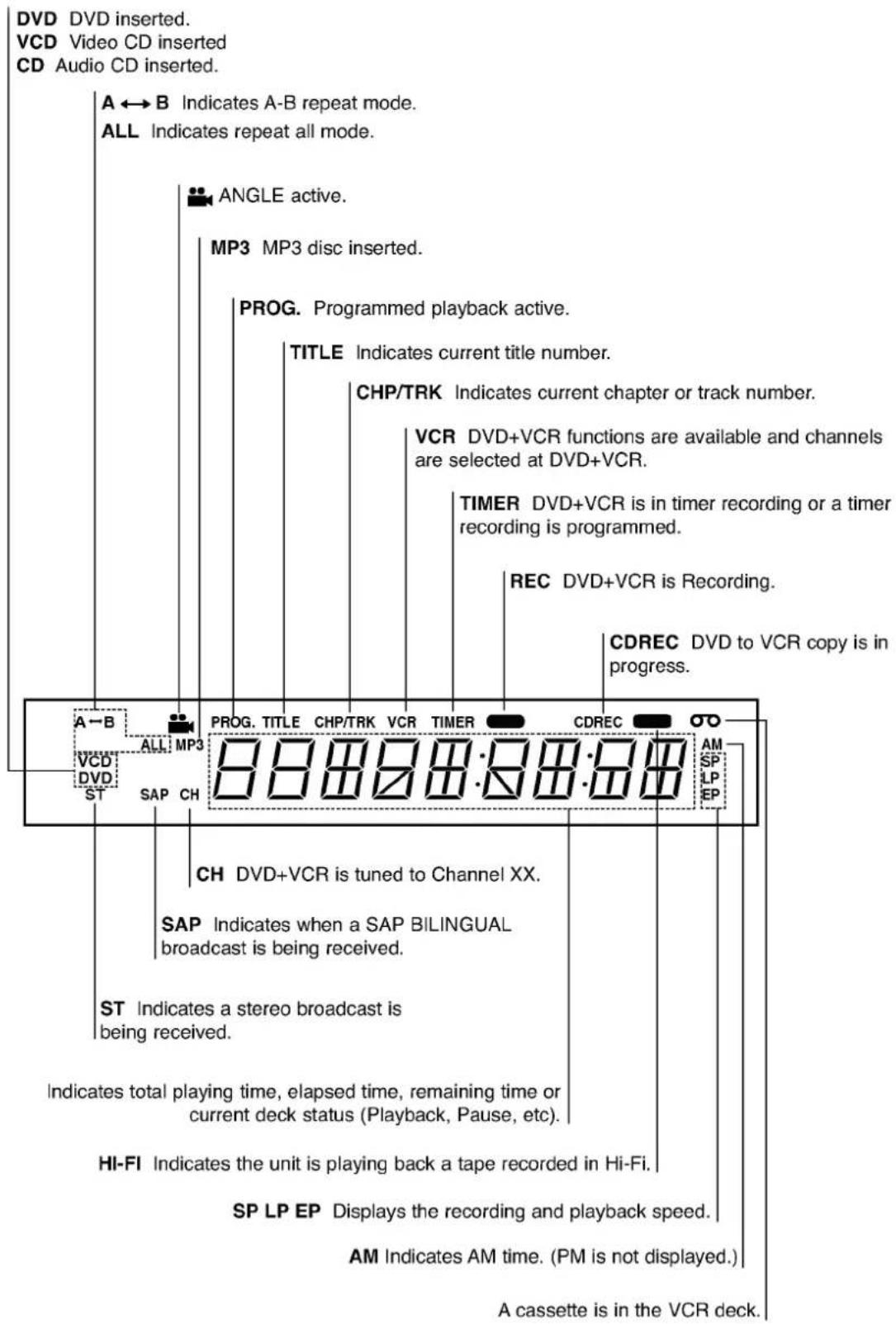

Display Window....8

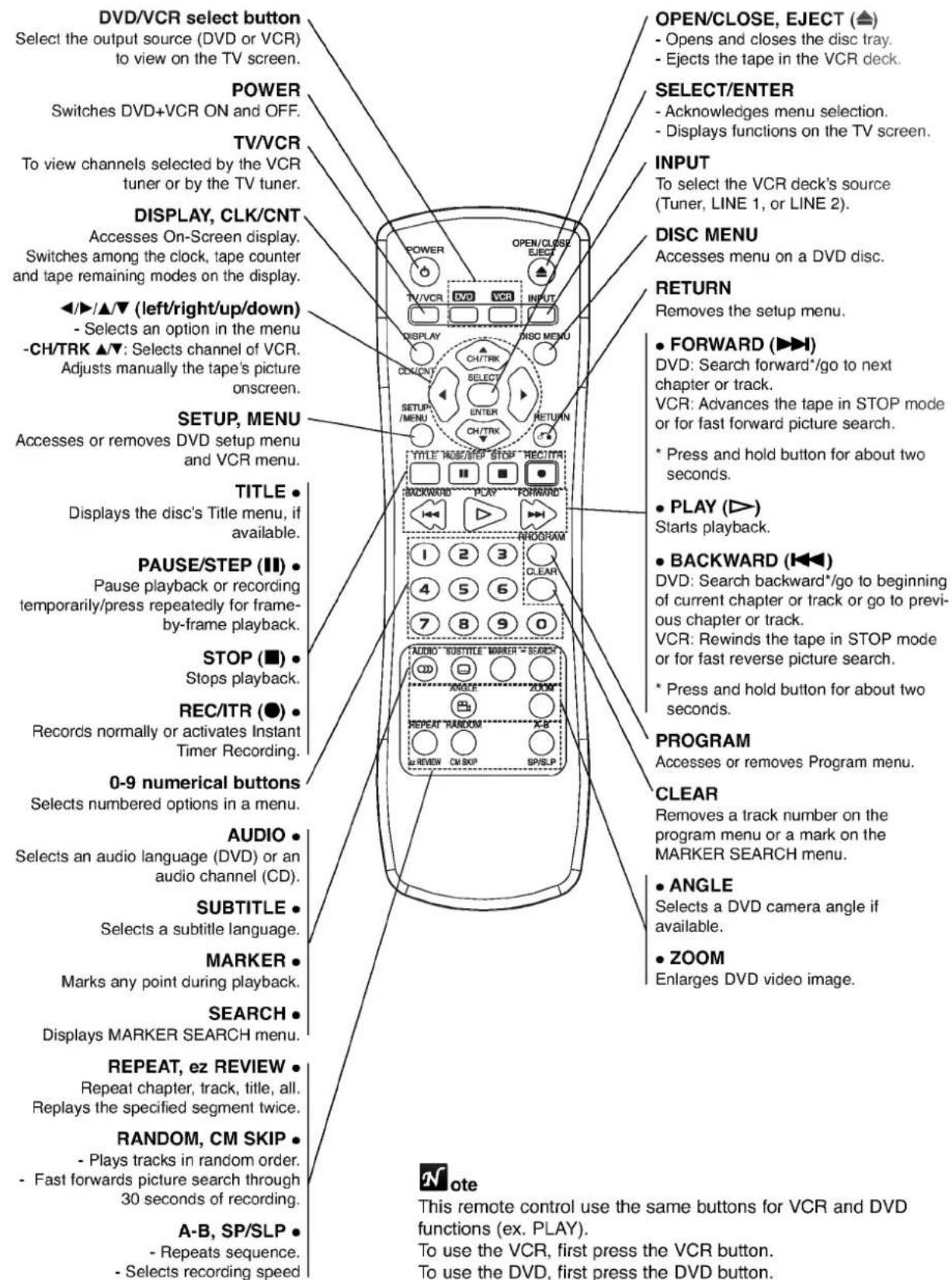

Remote Control....9

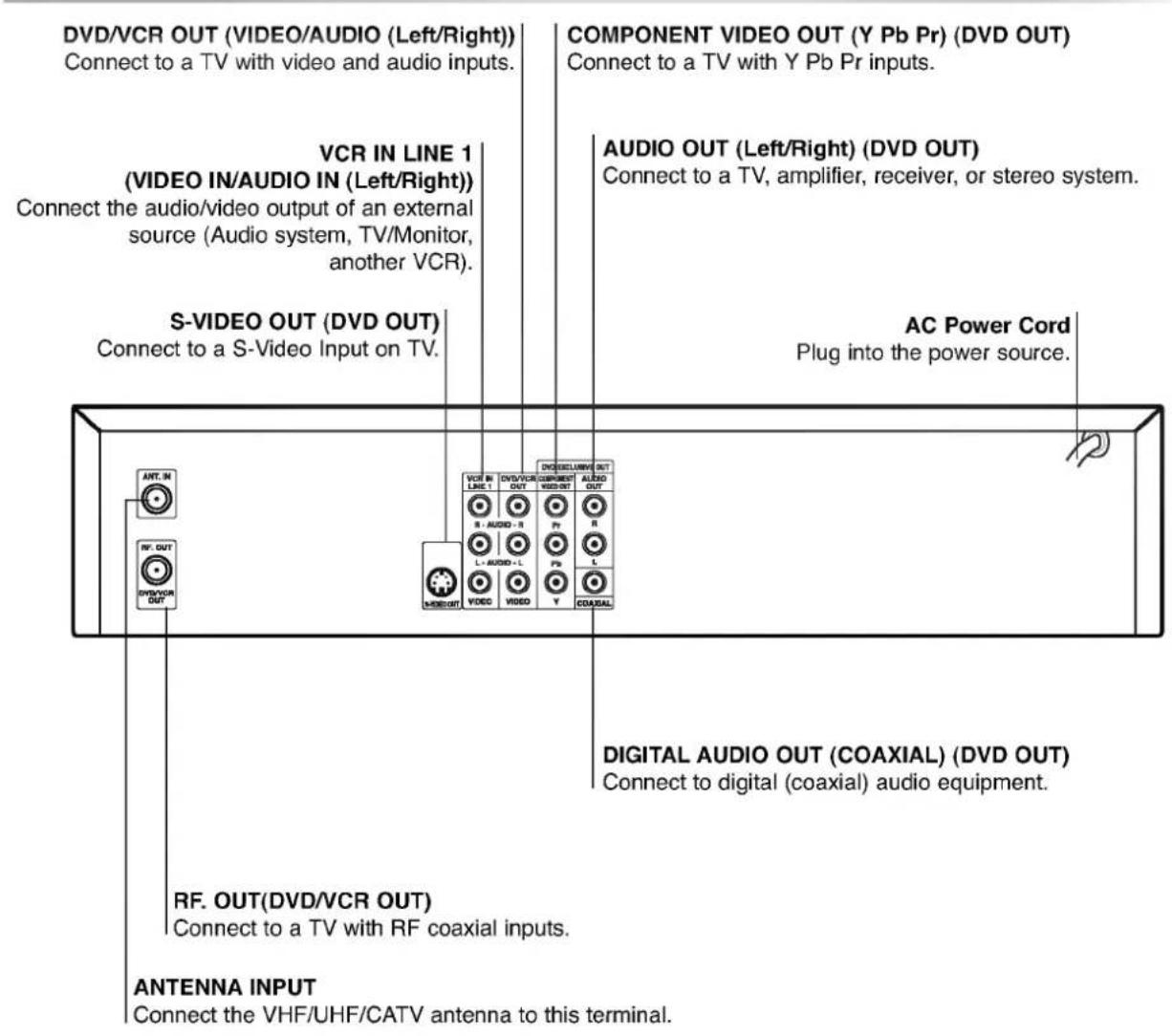

Connections Panel 10
Preparation
Connections 11-13

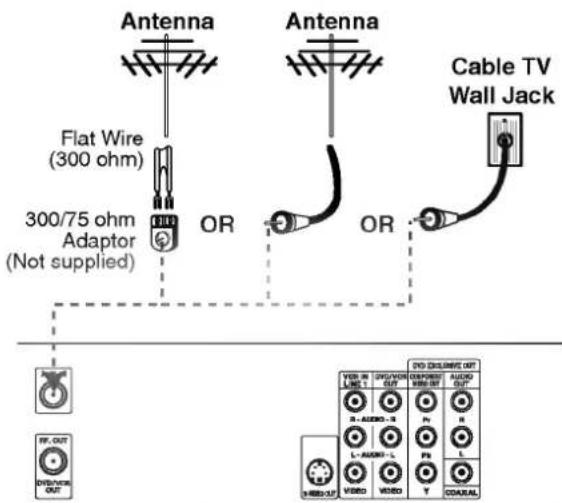

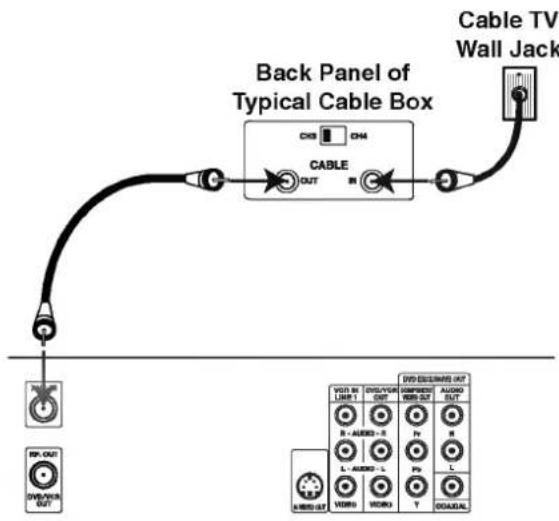

Connecting Antenna/Cable TV to DVD+VCR ... 11
Basic TV Connections 12
Optional, Preferred TV Connections ..... 12-13
Before VCR Operation 14-16

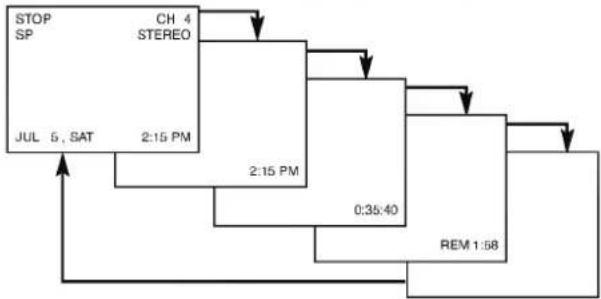

On-Screen Display(OSD)....14

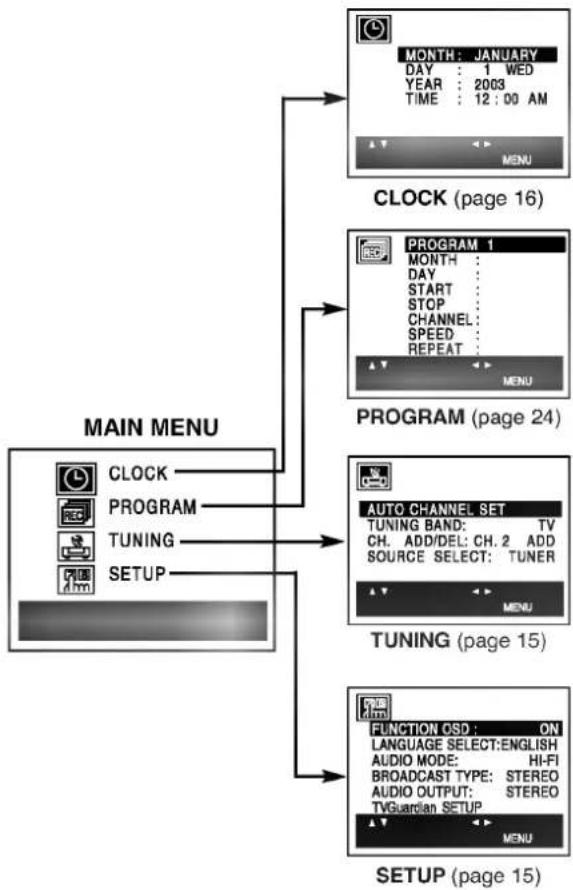

On-Screen Menus Setup 14
Setting the VCR Setup Menu 15

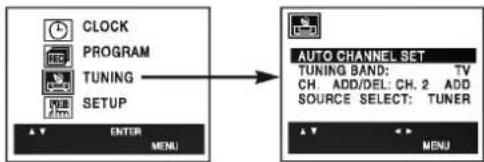

Channel Selection 15
Setting the Clock 16
Before DVD Operation 17-20
General Explanation....17
On-Screen Display....17
Initial Settings 18-20
• General Operation 18
• Language 18
• Picture 18
• Sound 19
- Others 19
- Parental Control....20
Operation
Tape Operation....21-26
Normal Playback 21
Special Effect Playbacks 21
- Search....21
• Still Picture and Frame-by-Frame Playback . 21
- Slow Motion....21
• CM Skip (Commercial Skip) 21
• EZ (EASY) Review. 21
Normal Recording 22

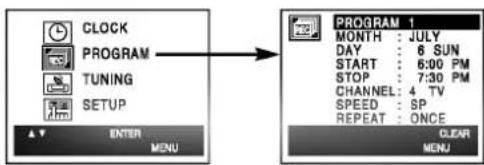

Timer Recording 22-23
Instant Timer Recording 24
Dubbing and Editing....24
Copying from DVD to VCR. 24
VHS Hi-Fi Stereo System/MTS Broadcast ..... 25
Tape Counter Memory Feature....26
Additional Information 26
DVD and Video CD Operation 27-29
Playing DVDs and Video CD 27
General Features....27
- Moving to another TITLE 27
- Moving to another CHAPTER/TRACK ..... 27
- Slow Motion 27
• Still Picture and Frame-by-Frame Playback . 28
- Search....28
• Random....28
- Repeat....28
- Repeat A-B 28
• Time Search 28
• 3D Surround 28
- Zoom 29
- Marker Search 29
Special DVD Features 29
- Checking the contents of DVD Video discs: Menus . 29
• Title Menu 29
• Disc Menu 29
- Camera Angle 29
- Changing the Audio Language ..... 29
- Changing the Audio Channel ..... 29
- Subtitles....29
- Last condition Memory 29
Operation with Audio CD and MP3/WMA Disc .. 30
Playing an Audio CD and MP3/WMA Disc ..... 30
Notes on MP3/WMA Recordings 30
- Pause 31
- Moving to another Track 31
- Repeat Track/ All/ Off. 31
- Search....31
- Random 31
- Repeat A-B 31
• 3D Surround .... 31
- Changing the Audio Channel .... 31
Operation with JPEG Disc. 32
Viewing a JPEG disc 32
- Moving to another File 32
- Still Picture 32
- To flip the picture 32
- To rotate picture.... 32
- Notes on JPEG Recordings .... 32
Programmed Playback 33
Programmed Playback with Audio CD and
MP3/WMA Disc 33
Programmed Playback with Video CD 33
- Repeat Programmed Tracks 33
- Erasing a Track from Program List....33
- Erasing the Complete Program List ..... 33
Reference
Troubleshooting 34-35
Language Code List 36
Country Code List....37
Specifications 38
About the symbols for instructions
⚠ Indicates hazards likely to cause harm to the unit itself or other material damage.
N Indicates special operating features of this unit.
Indicates tips and hints for making the task easier.
Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. Confidential unpublished works. Copyright 1992-1997 Dolby Laboratories. All rights reserved.
DTS and DTS Digital Out are trademarks of Digital Theater Systems, Inc.
playable Discs
| DVDVIDEO ^TM | DVD(8 cm/12 cm disc) |
| Video CD (VCD)(8 cm / 12 cm disc) | |
| Audio CD(8 cm/12 cm disc) |
In addition, this unit can play a SVCD, Kodak PICTURE CD, and CD-Rs or CD-RWs that contains audio titles, MP3, JPEG or WMA files.
otes
- Depending on the conditions of the recording equipment or the CD-R/RW disc itself, some CD-R/RW discs cannot be played on the unit.
- The unit cannot play discs that contain data other than MP3 and CD-DA data.
- Do not attach any seal or label to either side (the labeled side or the recorded side) of a disc.
- Do not use irregularly shaped CDs (e.g., heart-shaped or octagonal). The unit may malfunction.
otes on DVDs and Video CDs
Some playback operations of DVDs and Video CDs may be intentionally fixed by software manufacturers. As this unit plays DVDs and Video CDs according to disc content designed by the software manufacturer, some playback features of the unit may not be available or other functions may be added. Refer also to the instructions supplied with the DVDs and Video CDs. Some DVDs made for business purposes may not be played on the unit.
Regional code of this DVD+VCR and DVDs
This DVD+VCR is designed and manufactured for playback of Region 4 encoded DVD software. The region code on the labels of some DVD discs indicate which type of DVD+VCR can play those discs. This unit can play only DVD discs labeled 4 or ALL. If you try to play any other discs, the message "Check Regional Code" will appear on the TV screen. Some DVD discs may not have a region code label even though their playback is prohibited by area limits.
ote on DTS-encoded CDs
When playing DTS-encoded CDs, excessive noise may be exhibited from the analog stereo output. To avoid possible damage to the audio system, turn down the volume before playing back such discs, adjust the volume gradually, and keep the volume level low. To enjoy DTS Digital Surround™ playback, an external 5.1 channel Digital Surround™ decoder system must be connected to the digital output of the unit.
Disc-related Terms
Title (DVD only)
The main film content or accompanying feature content or music album.
Each title is assigned a title reference number enabling you to locate it easily.
Chapter (DVD only)
Sections of a picture or a musical piece that are smaller than titles. A title is composed of one or several chapters. Each chapter is assigned a chapter number to enable you to locate the chapter you want. Depending on the disc, chapters may not be recorded.
Track (Video CD and audio CD only)
Sections of a picture or a musical piece on a video CD or an audio CD. Each track is assigned a track number, enabling you to locate the track you want.
Scene
On a video CD with PBC (Playback control) functions, moving pictures and still pictures are divided into sections called "Scenes". Each scene is displayed in the menu screen and assigned a scene number, enabling you to locate the scene you want.
A scene is composed of one or several tracks.
Types of video CDs
There are two types of video CDs:
Video CDs equipped with PBC (Version 2.0)
PBC (Playback control) functions allow you to interact with the system via menus, search functions, or other typical computer-like operations. Moreover, still pictures of high resolution can be played if they are included in the disc.
Video CDs not equipped with PBC (Version 1.1)
Operated in the same way as audio CDs, these discs allow playback of video pictures as well as sound, but they are not equipped with PBC.
Remote Control Battery Installation
Detach the battery cover on the rear of the remote control, and insert two R03 (size AAA) batteries with + and - aligned correctly.
Caution
Do not mix old and new batteries. Never mix different types of batteries (standard, alkaline, etc.).
Remote Control Operating Range
Point the remote control at the remote sensor and press the buttons.
- Distance: About 23 ft (7 m) from the front of the remote sensor
- Angle: About 30^ in each direction of the front of the remote sensor
Precautions
Handling the unit
When shipping the unit
The original shipping carton and packing materials come in handy. For maximum protection, re-pack the unit as it was originally packaged at the factory.
When setting up the unit
The picture and sound of a nearby TV, VCR, or radio may be distorted during playback. In this case, position the unit away from the TV, VCR, or radio, or turn off the unit after removing the disc.
To keep the surface clean
Do not use volatile liquids, such as insecticide spray, near the unit. Do not leave rubber or plastic products in contact with the unit for a long period of time. They will leave marks on the surface.
Cleaning the unit
To clean the cabinet
Use a soft, dry cloth. If the surfaces are extremely dirty, use a soft cloth lightly moistened with a mild detergent solution. Do not use strong solvents such as alcohol, benzine, or thinner, as these might damage the surface of the unit.
To obtain a clear picture
The DVD+VCR is a high-tech, precision device. If the optical pick-up lens and disc drive parts are dirty or worn, the picture quality will be poor.
Regular inspection and maintenance are recommended after every 1,000 hours of use. (This depends on the operating environment.)
For details, please contact your nearest dealer.
Notes on Discs
Handling discs
Do not touch the playback side of the disc.
Hold the disc by the edges so that fingerprints will not get on the surface.
Do not stick paper or tape on the disc.
Storing discs
After playing, store the disc in its case.
Do not expose the disc to direct sunlight or sources of heat, or leave it in a parked car exposed to direct sunlight, as there may be a considerable temperature increase inside the car.
Cleaning discs
Fingerprints and dust on the disc can cause poor picture quality and sound distortion. Before playing, clean the disc with a clean cloth. Wipe the disc from the center out.
Do not use strong solvents such as alcohol, benzine, thinner, commercially available cleaners, or anti-static spray intended for older vinyl records.
About Symbols
About the ⊙ symbol display
" ⊗ " may appear on the TV screen during operation. This icon means the function explained in this owner's manual is not available on that specific DVD video disc.
About the disc symbols for instructions
A section whose title has one of the following symbols are applicable only to those discs represented by the symbol.
DVDs
Video CDs with the PBC (playback control) function.
Video CDs without the PBC (playback control) function.
Audio CDs.
MP3 Discs.
WMA Discs.
JPEG Discs.
Selecting the Viewing Source
You must select one of your output sources (DVD or VCR) to view on the TV screen.
• If you want to view DVD deck output source:
Press DVD on the remote or DVD/VCR on the front panel until DVD indicator in the display window lights and output source of DVD deck is viewed on the TV screen.
- If you want to view VCR deck output source:
Press VCR on the remote or DVD/VCR on the front panel until VCR indicator in the display window lights and output source of VCR deck is viewed on the TV screen.
Notes
- If you insert a disc while the DVD+VCR is in the VCR mode, the DVD+VCR will switch to DVD mode automatically.
- If you insert a cassette tape without prevention tab while the DVD+VCR is in the DVD mode, the DVD+VCR will switch to VCR mode automatically.
Do not touch the inner pins of the jacks on the rear panel. Electrostatic discharge may cause permanent damage to the unit.
ips
- Depending on your TV and other equipment you wish to connect, there are various ways you could connect the DVD+VCR. Use connections described on pages 11-13.
- Please refer to the manuals of your TV, VCR, Stereo System or other devices as necessary to make the best connections.
- For better sound reproduction, connect the DVD+VCR's DVD/VCR AUDIO OUT jack to the audio in jacks of your amplifier, receiver, stereo or audio/video equipment. See Optional, Preferred TV Connections on pages 12-13.
Caution
- Make sure the DVD+VCR is connected directly to the TV. Tune the TV to the correct video input channel.
- Do not connect the DVD+VCR's DVD/VCR AUDIO OUT jack to the phono in jack (record deck) of your audio system.
- Do not connect your DVD+VCR via your VCR. The DVD image could be distorted by the copy protection system.
Connecting Antenna/Cable TV to
DVD+VCR
1 Disconnect the antenna leads from the rear of the TV.
2 Identify the type of cable from your antenna. If it is a round cable as illustrated, it is a 75 ohm coaxial antenna cable. This cable will connect directly to the jack marked ANT.IN on your DVD+VCR.
ip
If your antenna lead wire is a flat type antenna cable, connect it to a Antenna Adaptor (300-ohm to 75-ohm) (not supplied) and slip the Adaptor onto the ANT.IN jack. The Adaptor does not screw on to the DVD+VCR, it just slips over the jack.
Rear of DVD+VCR
Without Cable Box
If your cable wire is connected to your TV without a converter or descrambler box, unscrew the wire from your TV and attach it to the ANT.IN jack on the DVD+VCR. Use the supplied round coaxial cable to connect between the DVD+VCR's RF.OUT jack and the 75 ohm antenna input jack on the TV. With this connection, you can receive all midband, super band, and hyperband channels.
With Cable Box
If a converter is required in your cable system, follow the instruction below:
The cable hookup permits both TV and DVD+VCR operation.
To view or record CATV channel
1 Tune the TV to the DVD+VCR output channel (CH 3 or 4).
2 Set the DVD+VCR channel selector to the output channel of the Cable Converter box by using the CH (▲/▼) or number (0-9) of your DVD+VCR. (Example: CH3)
3 Select the channel to view at the Cable Converter Box.
otes
- With this connection, you CANNOT record one program while viewing another.
- If you are using a cable box to tune channels, it is not necessary to do Auto Channel Programming as indicated on page 15.
Rear of DVD+VCR
Basic TV Connections
- Make one of the following connections, depending on the capabilities of your existing equipment.

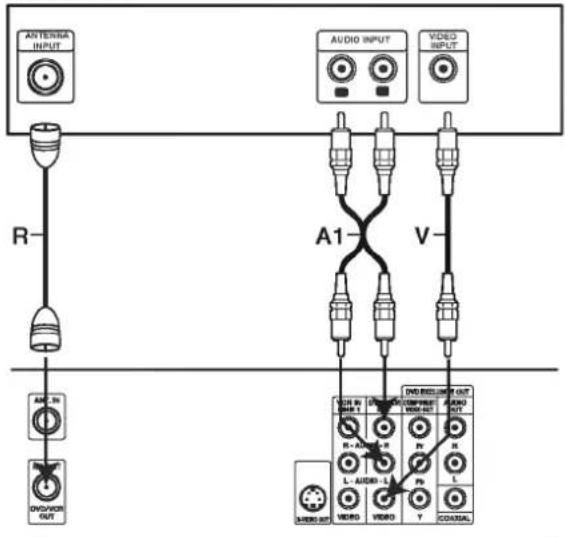

RF coaxial connection
Connect the RF.OUT jack on the DVD+VCR to the antenna in jack on the TV using the 75-ohm Coaxial Cable supplied (R).
Note
If you use this connection, tune the TV to the DVD+VCR's RF output channel (CH 3 or 4).
How to set the DVD+VCR's RF output channel
- While the DVD+VCR is turned off, press and hold CH (▲/▼) on the front panel for about five seconds. The unit will turn itself on and "RF 03" or "RF 04" appears in the display window.
- Use CH (▲/▼) on the front panel or CH/TRK(▲/▼) on the remote control to change the RF output channel (CH 03 or CH 04).
- Turn off and on the DVD+VCR.
Audio/Video connection
1 Connect the DVD/VCR VIDEO OUT jack on the DVD+VCR to the video in jack on the TV using the video cable supplied (V).
2 Connect the Left and Right DVD/VCR AUDIO OUT jacks on the DVD+VCR to the audio left/right in jacks on the TV (A1) using the supplied audio cables.
Note
If you use this connection, set the TV's source selector to VIDEO.
Rear of TV
Rear of DVD+VCR
Optional, Preferred TV Connections
Notes
- You can ONLY watch and listen to DVD playback through the connections shown below.
S-Video connection
1 Connect the S-VIDEO OUT jack on the DVD+VCR to the S-Video in jack on the TV using the optional S-Video cable (S).
2 Connect the Left and Right AUDIO OUT jacks of the DVD+VCR to the audio left/right in jacks on the TV using the supplied audio cables (A2).

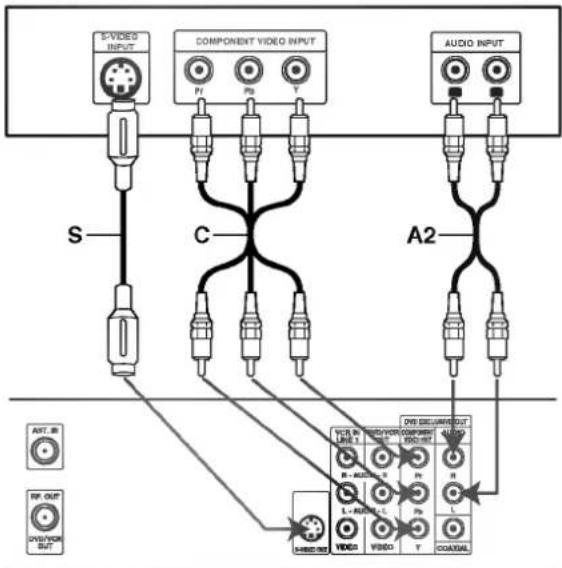

Component Video (Color Stream®) connection
1 Connect the COMPONENT VIDEO OUT jacks on the DVD+VCR to the corresponding in jacks on the TV using an optional Y Pb Pr cable (C).
2 Connect the Left and Right AUDIO OUT jacks of the DVD+VCR to the audio left/right in jacks on the TV (A2) using the supplied audio cables.
Rear of TV
Rear of DVD+VCR
Optional, Preferred TV Connections
ote
You can ONLY listen to DVD playback using COAXIAL (X) and AUDIO OUT (A2) connections. The tuner and VCR will still be heard through the RF.OUT (R) or DVD/VCR AUDIO OUT (A1) jack. (See page 12.)

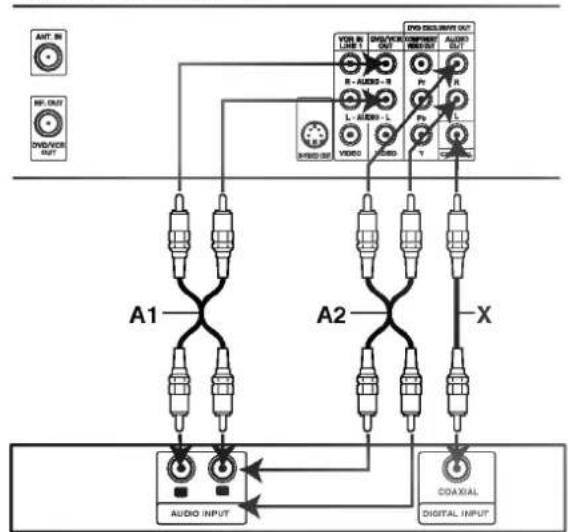

Connecting to an amplifier equipped with two channel analog stereo or Dolby Surround
Connect the Left and Right AUDIO OUT (or DVD/VCR AUDIO OUT) jacks on the DVD+VCR to the audio left and right in jacks on your amplifier, receiver, or stereo system using the audio cables (for A1 or A2 connection) supplied.
Connecting to an amplifier equipped with two channel digital stereo (PCM) or to an Audio/Video receiver equipped with a multi-channel decoder (Dolby Digital™, MPEG 2, or DTS)
1 Connect one of the DVD+VCR's DIGITAL AUDIO OUT jacks (COAXIAL X) to the corresponding in jack on your amplifier. Use an optional digital (coaxial X) audio cable.
2 You will need to activate the DVD+VCR's digital output. (See "Digital Audio Output" on page 19).
Digital Multi-channel sound
A digital multi-channel connection provides the best sound quality. For this you need a multi-channel Audio/Video receiver that supports one or more of the audio formats supported by your DVD+VCR (MPEG 2, Dolby Digital and DTS). Check the receiver manual and the logos on the front of the receiver.
Caution:
Due to the DTS Licensing agreement, the digital output will be in DTS digital out when DTS audio stream is selected.
otes
- If the audio format of the digital output does not match the capabilities of your receiver, the receiver will produce a strong, distorted sound or no sound at all.
– Six Channel Digital Surround Sound via digital connection can only be obtained if your receiver is equipped with a Digital Multi-channel decoder. - To see the audio format of the current DVD in the on-screen display, press AUDIO.
Rear of DVD+VCR
Amplifier (Receiver)
Accessory Audio/Video (A/V) Connections to DVD+VCR

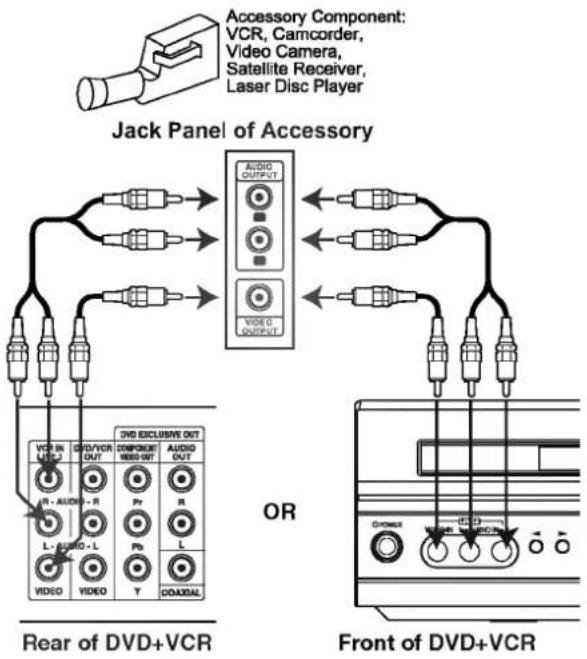

Connect the VCR IN LINE 1 or LINE 2 jacks on the DVD+VCR to the audio/video out jacks on your accessory component, using the optional audio/video cables.
On-Screen Display (OSD)
Some of these functions will be displayed every time the VCR is operated.
① TAPE SPEED DISPLAY
Shows the current tape speed.
② FUNCTION DISPLAY
Indicates the function in progress.
③ HI-FI DISPLAY
Indicates when this unit is playing back tape recorded with Hi-Fi.
④ CHANNEL DISPLAY
Indicates the selected channel (or LINE1, LINE2).

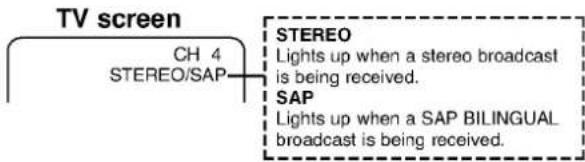

⑤ STEREO/SAP DISPLAY (MONO is not displayed)
Shows the type of audio signal received by the VCR tuner.
⑥ DATE DISPLAY
Shows the current date. (Month/Date/Day of the week format)
⑦ CLOCK/COUNT/REMAIN DISPLAY
Shows the current time, the tape counter and remaining time on the tape.
Each press of the SELECT/ENTER changes the TV on-screen displays in the following sequence.
Notes
- The function displays can be seen displayed on the TV screen for 5 seconds.
- The clock (or tape counter, tape remaining) mode will continue until you press SELECT/ENTER.
- The tape counter and the remaining tape length indicator appear only when a cassette is inserted. Also, the remaining tape length indicator appears after any tape operation.
On-Screen Menus Setup
The DVD+VCR on-screen menu system provides convenient access to Clock, Program, Tuning, and Setup options.
Menu Selection
Your VCR allows remote control adjustment of several features.
1 Press MENU and the MAIN menu will appear.
2 Select the desired menu with ▲/▼ button and then press SELECT/ENTER.
Note
Menus remain on-screen for 3 minutes.
3 Press MENU when finished.
Setting the VCR Setup Menu
1 Press MENU and the MAIN menu will appear.

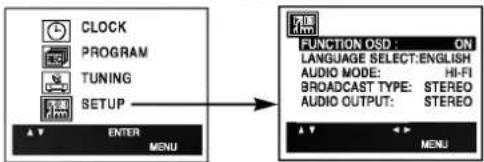

2 Press ▲▼ to select the SETUP menu, then press SELECT/ENTER.
The SETUP menu will appear.
3 Press ▲▼ to choose a desired option on the SETUP menu. Then press ◀/▶ to choose a desired setting.
FUNCTION OSD
The on-screen display of this DVD+VCR can be turned on or off.
- FUNCTION OSD can be switched between ON and OFF by pressing ◀/▶.
LANGUAGE SELECT
The on-screen programming of this DVD+VCR can be displayed in either English, Spanish, or French.
- LANGUAGE SELECT can be switched among ENGLISH, SPANISH and FRENCH by pressing ◀/▶.
AUDIO MODE
The DVD+VCR has two separate audio playback systems, the high quality VHS Hi-Fi system and standard NORMAL mono system. The same audio is generally recorded on both systems. The VHS Hi-Fi system plays on separate (left and right) channels, and the NORMAL system plays monaural sound. The normal track is always played so the cassette can be played on a DVD+VCR that does not have VHS Hi-Fi.
- AUDIO MODE can be switched between HI-FI and NORMAL by pressing ◀/▶.
BROADCAST TYPE (STEREO/SAP/MONO)
Multichannel Television Sound (MTS) carries stereo and/or Second Audio Program (SAP) bilingual signals. Set this display to the desired position when both MTS stereo and SAP signals are received. When only one of the MTS signal is received, the DVD+VCR automatically selects the corresponding receiving mode (Stereo or SAP) regardless of the selected position. For normal operation, the display should be in the STEREO position. The DVD+VCR will then record a STEREO program when available, and record a mono program IF the program is NOT IN STEREO. For weak STEREO and/or SAP broadcasts, changing the display to mono may give clearer sound.
- BROADCAST TYPE can be switched among STEREO, SAP, and MONO by pressing ◀/▶.
Used during playback [when AUDIO MODE (HI-FI/NORMAL) is in HI-FI position] for selecting the audio output signals from the AUDIO OUT terminals (L ch and R ch), and RF.OUT.
This display setting should normally be left in the stereo position, so that when a stereo tape is played, the stereo sound will be heard through the left and right channels. If a mono tape is played and the audio output is set to stereo, the same mono sound will be heard from both left and right channels.
- AUDIO OUTPUT can be switched among STEREO, LEFT, and RIGHT by pressing ◀/▶.
4 Press MENU when finished.
Channel Selection
This DVD+VCR is equipped with a frequency synthesized tuner capable of receiving up to 181 channels. These include VHF channels 2-13, UHF channels 14-69 and CATV channels 1-125.
Preparation:
- Connect the DVD+VCR to the desired type of antenna or cable TV system, as shown in Connecting Antenna/Cable TV to DVD+VCR on page 11.
AUTO CHANNEL PROGRAMMING
1 Press MENU and the MAIN menu will appear.
2 Press ▲▼ to select the TUNING menu, then press SELECT/ENTER.
The TUNING menu will appear.
3 Press ▼ to choose the SOURCE SELECT option, then press ◀ to select TUNER.
Press ◀/▶ repeatedly to switch among TUNER, LINE1 and LINE2.
4 Press ▲▼ to choose the AUTO CHANNEL SET option, then press ◀▶ to set the channel.
The tuner will automatically cycle through all available channels in the area and place them in the tuner's memory.
5 After the AUTO CHANNEL SET PROCEEDING is complete, make sure the TUNING BAND is set appropriately (TV or CATV) by pressing ▲▼ and choosing the correct TUNING BAND (TV or CATV) by pressing ◀/▶ using the TUNING menu.
Remember, TV is for the air antenna reception, CATV is for cable or wireless cable connection.
6 Press MENU to return to the TV screen.
7 Use CH/TRK (▲/▼) or CH (▲/▼) on the front panel to cycle the DVD+VCR through the channels in memory.
TO ADD OR ERASE CHANNELS FROM MEMORY
This feature allows you to add or erase channels from memory manually.
1 Press ▼ to choose the CH. ADD/DEL option on the TUNING menu. Press ◀/▶ to select a channel to add or erase.
2 Press SELECT/ENTER to add or erase the channel. Repeat steps 1 and 2 to add or erase channels.
3 Press MENU to return to the TV screen.
Setting the Clock
- The clock uses the 12-hour system. (Be sure to set AM and PM correctly.) (AM does not appear.)
• The initial Clock Setting is JANUARY 1, 2003, 12:00 AM.
1 Press MENU and the MAIN menu will appear.

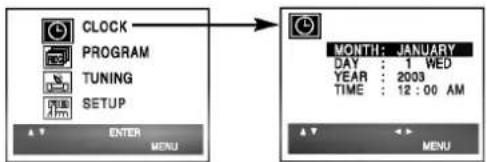

2 Use ▲▼ to choose the CLOCK menu. Press SELECT/ENTER and the CLOCK menu will appear.
3 Use ◀/▶ to choose the month.
4 Use ▼ to choose the DAY option. Use ◀/▶ to choose the date.
The day of the week will display automatically.
5 Use ▼ to choose the YEAR option. Use ◀/▶ to choose the year.
6 Use ▼ to choose the TIME option. Use ◀/▶ to choose the time.
Press and hold ◀/▶ to advance clock continuously.
7 Press MENU when finished.
General Explanation
This manual gives the basic instructions for operating the DVD+VCR. Some DVDs require specific operation or allow only limited operation during playback. When this occurs, the symbol ⊗ appears on the TV screen, indicating that the operation is not permitted by the DVD+VCR or is not available on the disc.
On-Screen Display
The general playback status can be displayed on the TV screen. Some options can be changed on the menu.
On-screen display operation
Press DISPLAY during playback.
Use ▲▼ to select an option. The selected option will be highlighted.
Use ◀/▶ to change the setting of an option. The number buttons can be also be used for setting numbers (e.g., title number). For some functions, press SELECT/ENTER to execute the setting.
Temporary Feedback Field Icons
Repeat Title(DVD)
Repeat Chapter(DVD)
Repeat Track (non-PBC Video CDs only)
Repeat All Tracks (non-PBC Video CDs only)
Repeat A-B
Repeat Off
Resume play from this point
Action prohibited or not available
otes
- Some discs may not provide all of the features on the on-screen display example shown below.
- If no button is pressed for 10 seconds, the on-screen display disappears.
| Options | Function (Use ▲▼ to select desired option) | Selection Method | |
| Title Number | Shows the current title number and total number of titles, and skips to the desired title number. | ◀▶, orNumeric, SELECT/ENTER | |
| Chapter Number | Shows the current chapter number and total number of chapters, and skips to the desired chapter number. | ◀▶, orNumeric, SELECT/ENTER | |
| Time search | Shows the elapsed playing time, and searches the point by the elapsed time directly. | Numeric, SELECT/ENTER | |
| Audio language and Digital Audio Output mode | Shows the current audio soundtrack language, encoding method, and channel number, and changes the setting. | ◀▶, AUDIO | |
| Subtitle language | Shows the current subtitles language, and changes the setting. | ◀▶, SUBTITLE | |
| Angle | Shows the current angle number and total number of angles, and changes the angle number. | ◀▶, ANGLE | |
| Sound | Shows the current sound mode, and changes the setting. | ◀▶ | |
| Items | Function (Press ▲/▼ to select desired item) | Selection Method | |
| Track Number |  | Shows the current track number, total number of tracks and PBC On mode, and skip to the desired track number. | ◀ / ▶, or Numbers, SELECT/ENTER |
| Time | Shows the elapsed playing time (Display only) | - | |
| Audio Channel |  | Shows the audio channel, and changes the audio channel. | ◀ / ▶, or AUDIO |
| Sound |  | Shows the current sound mode, and changes the setting. | ◀ / ▶ |
Initial Settings
You can set your own Personal Preferences on the DVD+VCR.
General Operation
1 Press SETUP. The setup menu appears.
2 Use ▲▼ to select the desired option.
The screen will show the current setting for the selected option, as well as alternate setting(s).
3 While the desired option is selected, press ▶, then ▲▼ to select the desired setting.
4 Press SELECT/ENTER to confirm your selection. Some options require additional steps.
5 Press SETUP, RETURN, or PLAY (▷) to exit the setup menu.
Language
Disc Language
Select a language for the disc's Menu, Audio, and Subtitle.
Original : The original language set for the disc is selected.
Other : To select another language, use number buttons to enter the corresponding 4-digit number according to the language code list on page 36. If you enter the wrong language code, press CLEAR.
Note
Disc Language selection may not work for some DVDs.
Menu Language
Select a language for the Setup menu. This is the menu you see when you press SETUP.
TV Aspect
4:3 Letterbox: Select when a standard 4:3 TV is connected. Displays theatrical images with masking bars above and below the picture.
4:3 Panscan: Select when a standard 4:3 TV is connected. Displays pictures cropped to fill your TV screen. Both sides of the picture are cut off.
16:9 Wide: Select when a 16:9 wide TV is connected.
Sound
Digital Audio Output
Each DVD disc has a variety of audio output options. Set the DVD+VCR's Digital Audio Output according to the type of audio system you use.
DOLBY DIGITAL/PCM: Select DOLBY DIGITAL/PCM if you have connected the DVD+VCR's DIGITAL AUDIO OUT jack to a Dolby Digital decoder (or an amplifier or other equipment with a Dolby Digital decoder).
Stream/PCM: Select Stream/PCM if you have connected the DVD+VCR's DIGITAL AUDIO OUT jack to an amplifier or other equipment with a DTS decoder, Dolby Digital decoder or MPEG decoder.
PCM: Select when connected to a 2 channel digital stereo amplifier. The DVD+VCR outputs sounds in the PCM 2ch format when you play a DVD video disc recorded with a Dolby Digital, MPEG1, or MPEG2 recording system.
Sample Frequency
To change the Sample Frequency setting, first select the desired Digital Audio Output as indicated as above. If your receiver or amplifier is NOT capable of handling 96KHz signals, select 48KHz. When this choice is made, this unit will automatically convert any 96KHz signals to 48KHz so your system can decode them. If your receiver or amplifier is capable of handling 96KHz signals, select 96KHz. When this choice is made, this unit will pass each type of signal through without any further processing.
Others
The DRC, Vocal, PBC and Auto Play settings can be changed.
- Use ▲/▼ to select the desired option and press SELECT/ENTER. The setting of the selected option is changed between On and Off.
Dynamic Range Control (DRC)
With the DVD format, you can hear a program's soundtrack in the most accurate and realistic presentation possible, thanks to digital audio technology. However, you may wish to compress the dynamic range of the audio output (the difference between the loudest sounds and the quietest ones). Then, you may listen to a movie at a lower volume without losing clarity of sound. Set DRC to On for this effect.
Vocal
Set Vocal to On only when a multi-channel karaoke DVD is playing. The karaoke channels on the disc will mix into normal stereo sound.
PBC
Set Playback Control (PBC) to On or Off.
On: Video CDs with PBC are played according to the PBC.
Off: Video CDs with PBC are played the same way as Audio CDs.
Auto Play
You can set up the DVD Player so a DVD disc automatically starts playing whenever the DVD is inserted. If Auto Play mode is set to On, this DVD player will search a title that playback time is long most and then play back the title automatically.
On: Auto Play function is activated.
Off: Auto Play function is not activated.
The Auto Play function may not work for some DVDs.
Parental Control
Rating
Movies on DVDs may contain scenes not suitable for children. Therefore, discs may contain Parental Control information that applies to the complete disc or to certain scenes on the disc. These scenes are rated from 1 to 8, and alternatively, more suitable scenes are available for selection on some discs. Ratings are country dependent. The Parental Control feature allows you to prevent discs from being played by your children or to have certain discs played with alternative scenes.
1 Select Rating on the Setup menu using ▲▼ buttons.
2 While Rating is selected, press ▶.
3 When you have not entered a password yet. Enter a 4-digit password using the numbered buttons to create a personal 4-digit security password, then press SELECT/ENTER. Enter the 4-digit password again and press SELECT/ENTER to verify. When you have already entered a password; Enter a 4-digit password using the numerical buttons to confirm the personal 4-digit security password, then press SELECT/ENTER.
If you make a mistake before pressing SELECT/ENTER, press CLEAR and enter 4-digit security password again.
4 Select a rating from 1 to 8 using ▲▼ buttons. One (1) has the least playback restrictions. Eight (8) has the most playback restrictions.
Unlock: If you select Unlock, Parental Control is not active. The disc will play in full.
Ratings 1 to 8: Some discs contain scenes not suitable for children. If you set a rating for the DVD+VCR, all disc scenes with the same rating or lower will be played. Higher rated scenes will not be played unless an alternative scene is available on the disc. The alternative must have the same rating or a lower one. If no suitable alternative is found, playback will stop. You must enter the 4-digit password or change the rating level in order to play the disc.
5 Press SELECT/ENTER to confirm your rating selection, then press SETUP to exit the menu.
Country Code
Enter the code of a country whose standards were used to rate the DVD video disc, referring to the list (See "Country Code List", page 37.).
1 Select the Country Code option using the ▲/▼ buttons on the setup menu.
2 While Country Code is selected, press ▶.
3 Follow step 3 of "Rating" on left.
4 Select the first character using the ▲/▼ buttons.
5 Press ▶ to shift to second character and select the second character using ▲/▼ buttons.
6 Press SELECT/ENTER to confirm your Country Code selection, then press SETUP to exit the menu.
Note
Confirmation of the 4-digit password is necessary when the password is changed (see "Changing the 4-digit password" below).
Changing the 4-digit password
1 Follow Steps 1-2 as shown above to the left (Rating).
2 Enter the old password, then press SELECT/ENTER.
3 Select Change using ▲/▼ buttons then press SELECT/ENTER.
4 Enter the new 4-digit password, then press SELECT/ENTER.
5 Enter exactly the same password a second time and verify by pressing SELECT/ENTER.
6 Press SETUP to exit the menu.
If you forget your 4-digit password
If you forget your password, to clear the current password follow the procedure below.
1 Press SETUP to display the setup menu.
2 Enter the 6-digit number 210499 and then press SELECT/ENTER.
The 4-digit password is cleared.
3 Enter a new password as shown above to the left (Rating).
Normal Playback
Preparation:
- Turn on the TV.
- Tune the TV to the DVD+VCR output channel (CH 3 or 4) or set the TV's source selector to VIDEO.
- If a direct VIDEO/AUDIO connection is made between the DVD+VCR and the TV, set the TV's source selector to VIDEO.
- Set the Output Source to VCR as shown in "Setting the Viewing Source" on page 6.
1 Insert a prerecorded video cassette.
The indicator will light and the DVD+VCR will power-up automatically.
- Make sure that the TIMER indicator in the display window is not lighted. If it is, press POWER once.
- If a tape without a safety tab is inserted, the unit will start playback automatically.
Press PLAY (▷) once.
PLAY appears on the TV screen.
- It is not necessary to select the tape speed for playback. It will be automatically selected by the DVD+VCR.
- In playback, the TV/VCR selector switches to VCR mode automatically.
Press STOP (■) to stop playback.
STOP appears on the TV screen.
- If the tape reaches the end before STOP (■) is pressed, the DVD+VCR will automatically stop, rewind and eject the tape, and it will turn itself off.
Tracking Control
Auto Tracking
The automatic tracking function adjusts the picture to remove snow or streaks.
The AUTO TRACKING function works in the following cases:
• A tape is played back for the first time.
- Tape speed (SP, LP, SLP) changes.
- Streaks or snow appear because of scratches on the tape.
Manual Tracking
If noise appears on the screen during playback, press either CH/TRK ▲▼ on the remote control or CH (▲▼) on the front panel until the noise on the screen is reduced.
- In case of vertical jitter, adjust these controls very carefully.
- Tracking is automatically reset to normal when the tape is ejected or the power cord is unplugged for more than 3 seconds.
Special Effect Playbacks
Special effects playback notes
- Horizontal lines (noise bars) will appear on the TV screen. This is normal.
- The audio is automatically muted during special effect modes, so there is no sound during search.
- During high-speed picture search mode, a short period is needed to stabilize tape speed when re-entering the PLAY mode. Slight interference may be observed during this period.
Search
This function lets you quickly and visually search for a desired tape section in either direction: forward or reverse.
1 Press BACKWARD (◀◀) or FORWARD (▶▶▶) during playback.
The DVD+VCR will be activated in the SEARCH mode.
- If the DVD+VCR is left in the SEARCH mode for more than 3 minutes, the DVD+VCR will automatically enter the PLAY mode, to protect the tape and video heads.
2 To return to playback, press PLAY (▷).
Still Picture and Frame-by-Frame Playback
1 Press PAUSE/STEP (III) during playback. Still picture will appear on the TV screen.
- If a still picture vibrates vertically, stabilize it using CH/TRK (▲/▼) on the remote control.
- If the DVD+VCR is left in the STILL mode for more than 5 minutes, the DVD+VCR will automatically enter the STOP mode to protect the tape and video heads.
2 Press PAUSE/STEP (III) repeatedly to advance the video picture one frame at a time while viewing a still picture.
3 To return to playback, press PLAY (▷).
Slow Motion
1 While in still mode, press FORWARD (▶▶I).
The tape will be played back at a speed 1/19 times slower than the normal speed.
- During slow playback, use CH/TRK (▲/▼) on the Remote Control to minimize noise bands.
- If slow motion mode continues for more than 3 minutes, the DVD+VCR will automatically change to playback mode.
2 To return to playback, press PLAY (▷).
CM Skip (Commercial Skip)
This is useful for skipping commercials or short program segments.
1 Press CM Skip during playback. The tape will fast forward picture search through 30 seconds of recording.
- Skipping time can be extended by pressing CM Skip repeatedly.
- Subsequent presses result in advancing the fast forward picture search time by 30-second increments (maximum 3 minutes).
2 When the search is complete, the DVD+VCR will go into playback mode automatically.
EZ (EASY) Review
You can replay a specified segment twice.
1 During playback, press and hold ez REVIEW for more than 3 seconds at the end of the segment and your VCR will start reverse search.
2 Release EZ REVIEW at the beginning of the segment. The segment is replayed twice automatically.
To return to normal play, press PLAY (▷) during easy review playback.
Normal Recording
Preparation:
- Turn on the power of both the DVD+VCR and TV.
- Tune the TV to the DVD+VCR output channel (CH 3 or 4) or set the TV's source selector to VIDEO.
- If a direct VIDEO/AUDIO connection is made between the DVD+VCR and the TV, set the TV's source selector to VIDEO.
1 Insert a video cassette with the safety tab intact.
2 Select the desired channel by using CH/TRK (▲▼).
- If you are recording from another source via audio/video input jacks (at the Rear or Front panel), select the LINE1 or LINE2 by pressing INPUT.
3 Set the desired recording speed (SP or SLP) with SP/SLP.
- This DVD+VCR is not designed to record in LP mode.
4 Set the MTS mode as desired (See page 15, 25).
5 Press REC/ITR (●) once.
Recording will start. (The REC indicator will light in the display window.)
- REC indicator appears only when the Output Source is set to VCR.
- If a cassette with no safety tab is loaded, the cassette will be ejected automatically.
Press STOP (■) to stop recording.
If the tape reaches the end before STOP (■) is pressed, the DVD+VCR will automatically stop, rewind, eject the tape and turn itself off.
To pause recording
1 Press PAUSE/STEP (Ⅱ) to pause the tape during recording.
The REC indicator will flash in the display window.
2 When you want to continue recording, press PAUSE/STEP (II) or press REC/ITR (●).
- After 5 minutes in pause mode, the tape will be stopped automatically to protect the tape and the video heads.
To record one TV program while watching another
1 Use TV/VCR to select the TV mode during recording. The TV indicator appears.
2 Using the TV, select the channel to be viewed.
Tips
Always use PAUSE/STEP (Ⅲ) for best results when making changes during recording.
For example: To change channels during recording, first press PAUSE/STEP (Ⅱ) to put the unit in pause mode. Then select the desired channel on the DVD+VCR, and press PAUSE/STEP (Ⅱ) again to resume recording.
Timer Recording
This DVD+VCR can be programmed to record up to 8 programs within a period of 1 year. For unattended recording, the timer needs to know the channels to be recorded and the starting and ending times.
- If you try to set the program timer before setting the clock, PLEASE SET THE CLOCK appears for a moment and then CLOCK menu appears on the TV screen. Set the time and date before proceeding.
- Make sure a tape is in the DVD+VCR and the safety tab is in place or the tape will be automatically ejected.
Preparation:
- Turn on the power of both the DVD+VCR and the TV.
- Be sure the TV is set to the DVD+VCR output channel (3 or 4).
- Make sure the TUNING BAND in the TUNING menu is set appropriately (TV or CATV).

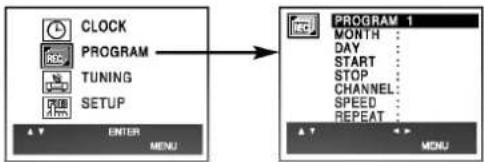

1 Press MENU and the MAIN menu will appear.
2 Use ▲▼ to choose the PROGRAM menu.
3 Press SELECT/ENTER to go to the PROGRAM menu.
The PROGRAM menu will appear.
- If all 8 programs have been entered, FULLY PROGRAMMED message will appear for a moment and then PROGRAM 1 will appear on the TV screen.
4 Use ◀▶ to choose the PROGRAM No. (1-8).
5 Use ▼ to choose the MONTH option. Use ◀/▶ to choose the desired month.
6 Use ▼ to choose the DAY option. Use ◀/▶ to choose the desired day.
7 Use ▼ to choose the START option. Use ◀/▶ to choose the desired start time.
8 Use ▼ to choose the STOP option. Use ◀/▶ to choose the desired stop time.
9 Use ▼ to choose the CHANNEL option. Use ◀/▶ to choose the desired channel (Channel, LINE1 or LINE2).
Cable Users: If you have CABLE TV and used Cable Box in Connecting Antenna/Cable TV to DVD+VCR (page 11), using a cable box converter, you must set the channel in this step to match the cable box output channel (usually CH 3 or 4). Change channels on the cable box instead of with the DVD+VCR.
Use ▼ to choose the SPEED option. Use ◀/▶ to choose the desired recording speed (AUTO, SP or SLP).
- AUTO mode determines how much tape is left and switches speed from SP to SLP, if necessary, to complete recording the program. There will be some picture and sound distortion at the point of the speed change.
Use ▼ to choose the REPEAT option. Use ◀/▶ to choose the desired repeat (ONCE, WEEKLY or DAILY).
ONCE event....for recording up to 8 programs on a single day or over the days within a period of 1 year. WEEKLY event....for recording up to 8 programs on a certain day of every week. DAILY event....for recording up to 8 programs at the same time(s) Monday through Friday.
If the input data is wrong, use ▲ to select the data and correct it using ◀/▶.
Press MENU, the program will be memorized by the DVD+VCR.
• TIMER indicator lights in the display window.
- If the program preset time has past, the PAST TIME PROGRAMMED message will appear on the TV screen. Return to the incorrect program and program it with the correct time.
- If you had entered a past date, timer recording will be performed on that date of the next year.
- Additional programs may be entered by repeating steps 1-12.
Cable Users: If your cable hookup is via a TV converter box, you can program multiple recordings only on the converter box output channel. This is because the converter determines what channel you view through your DVD+VCR.
are finished programming and you want to set the ICR to record the programs you have entered,
MAKE SURE YOU HAVE INSERTED A TAPE INTO THE DVD+VCR. The DVD+VCR is now set to record the preset programs.
If the power fails or the DVD+VCR is unplugged from the AC outlet, the correct clock time and timer settings are kept in memory for approximately 3 seconds. After 3 seconds, the clock and program timer must be reset when power is restored. Reset the clock according to instructions.
After setting up a timer recording, recording will start if no other timer recordings are scheduled to occur at the same time (see "Program Priority" at right).
Checking (Erasing) Timer Record Programming
Programming can be checked whenever the DVD+VCR is turned on.
1 Press MENU and the MAIN menu will appear.
2 Use ▲/▼ to choose the PROGRAM menu. Press SELECT/ENTER and the PROGRAM menu will appear.
3 Use ◀/▶ to select a program you want to check or erase. If you want to erase the program, press CLEAR.
4 Press MENU to return to the TV screen.
Program Priority
If the starting and ending times of two or more timer recordings overlap on the same day, priority is given to the earliest recording. For example, in the diagram at left Program number 2 will not be recorded until
Program number 1 is finished. The first part of Program number 2 will not be recorded. Likewise, Program number 3 will not be recorded until Program number 2 is finished, and so on.
Instant Timer Recording
Instant Timer Recording allows you to make a recording easily of a preset length without using the program timer.
Preparation:
- Turn on the power of both the DVD+VCR and the TV.
- Be sure the TV is tuned to the DVD+VCR output channel (3 or 4).
- If a direct VIDEO/AUDIO connection is made between the DVD+VCR and the TV, set the TV's source selector to VIDEO.
1 Insert a video cassette with the safety tab intact.
2 Select the desired channel with CH/TRK(▲/▼) or number (0-9).
The channel number appears on the TV screen.
- If you are recording from another source via audio/video input jacks (at the Rear or Front panel), select LINE1 or LINE2.
3 Select the desired recording speed (SP or SLP) with SP/SLP.
The tape speed will appear on the TV screen.
Press REC/ITR (●) twice.
The menu as illustrated, will appear on the TV screen.
- Recording will start. (The TIMER indicator will light)
5 Press REC/ITR (●) repeatedly to select the recording time length.
At the end of the recording, the DVD+VCR will stop recording and shut off.
- During Instant Timer Recording, changing the channel on the DVD+VCR will not be possible.
- You can stop the recording by pressing STOP (■).
INSTANT TIMER RECORD MENU
| INSTANT TIMER RECORD | |
| CHANNEL | 2 |
| SPEED | SP |
| START | NOW |
| LENGTH | 0H30M |
Checking the Recording Time
Press REC/ITR (●) once to check the recording time. The recalled setting will automatically return to the TV screen after 6 seconds.
To extend the Recording Time
The recording time can be extended anytime by pressing REC/ITR (●).
Subsequent presses result in advancing the recording time by 30-minute increments.
Notes
- If you press PAUSE/STEP (Ⅲ) during instant timer recording, the DVD+VCR will enter the recording pause mode. Instant timer recording is cancelled.
- If the DVD+VCR is set to "0H00M", the DVD+VCR goes to normal recording mode.
Dubbing and Editing
You can easily edit or dub camcorder/VCR recordings to the DVD+VCR via the front/rear panel audio/video jacks. These direct A/V jacks provide better picture results than using the RF jack on the rear panel.
1 Connect the camcorder's (or another VCR's) A/V outputs to your DVD+VCR as illustrated on page 13.
2 Set the input channel "LINE2". (use INPUT to select LINE2.)
- If you have connected your DVD+VCR to the A/V input jacks on the rear of DVD+VCR, you should select the input channel LINE1 by pressing INPUT twice.
3 Play the tape in the camcorder (or another VCR). If you have a TV attached to your DVD+VCR, you can see the video playing.
4 When you desire the recording to begin, press DVD+VCR's REC/ITR (●) once to start.
Note
Before recording, please confirm the recording start position.
Copying from DVD to VCR
This unit allows you to copy the contents of a DVD to a VHS tape.
Note
If the DVD you are attempting to copy is copy protected, you will not be able to copy the disc. It is not permitted to copy Macrovision encoded DVDs. "Lock" is displayed in the display window.
1 Insert Disc Insert the disc you wish to copy in the DVD deck and close the disc tray.
2 Insert VHS Tape Insert a blank VHS video tape into the VCR deck.
3 Press the COPY button on the unit front panel. The DVD will go into Play mode and the VCR will go into Record mode.
- If the DVD disc menu appears, you may need to press PLAY (▶) manually to begin copying.
• "COPY" indicator will light.
Stop the Copy Process
When the DVD is finished playing, press the VCR on the remote control and then press STOP (■) to end the copy. You must stop the Copy process manually when the DVD movie ends, or the unit may replay and record over and over again.
Note
When you stop the DVD playback during copying, the VCR recording mode stops automatically.
VHS Hi-Fi Stereo System/ MTS Broadcast
This DVD+VCR is equipped with the VHS Hi-Fi audio sound system for recording and playback. The information below gives a brief description of Hi-Fi audio and how to record and play a tape in the Hi-Fi audio mode.
Playback with Hi-Fi Stereo Audio Sound
A stereo TV with AUDIO/VIDEO input jacks or a stereo audio system is required for true stereo playback. To experience the full and rich stereo sound available with Hi-Fi recorded tapes, we recommend the connection of this unit to a home stereo audio system.
1 Set the AUDIO MODE option to HI-FI on the SETUP menu.
2 Set the AUDIO OUTPUT option to STEREO position.
(STEREO) POSITION: The left channel sound (L) is heard from the left speaker and the right channel sound (R) is heard from the right speaker.
(LEFT) POSITION: The left channel sound (L) is heard from both speakers.
(RIGHT) POSITION: The right channel sound (R) is heard from both speakers.
3 Press MENU.
4 Insert a cassette and press PLAY (▷). Adjust volume at your stereo system.
MTS (Multi-Channel TV Sound)
This DVD+VCR will decode MTS stereo and bilingual (SAP) off-the-air broadcast sound signals. It also decodes stereo TV sound from local cable companies, as long as they operate on assigned cable frequencies and use the EIA-recommended MTS stereo/bilingual TV sound system.
Multichannel TV Sound Indicator (MTS)
Shows onscreen as illustrated below when SELECT/ENTER is pressed.
- One or both of the indicators will light, depending on the MTS broadcast.
If only STEREO appears on the TV screen.
The DVD+VCR can record in stereo onto the VHS Hi-Fi audio tracks when the BROADCAST TYPE option is in the STEREO position. The DVD+VCR will also record mono audio onto the mono audio track.
If only SAP appears on the TV screen.
Set the BROADCAST TYPE option to SAP.
If STEREO/SAP appears on the TV screen
Use the BROADCAST TYPE option to select the desired recording mode (STEREO or SAP).
SAP (Second Audio Program) Recording
Some stations transmit a Second Audio Program, which is used for a second language or additional information. When the station broadcasts a Second Audio Program, follow the procedure below to record the SAP.
1 Insert a video cassette with the safety tab intact.
2 Set the BROADCAST TYPE option to SAP (SETUP menu).
Do this if only the SAP appears on the TV screen or you know the program will use the SAP.
3 Press MENU.
4 Select the desired recording speed (SP or SLP) with the SP/SLP button.
5 Select the desired channel. SAP should appear on the TV screen.
Press REC/ITR (●) once
You are now recording the program you see and hear on the TV.
7 Press STOP (■) to stop recording.
Tape Counter Memory Feature
Real-Time Counter
Shows length of tape run in hours, minutes, and seconds. Press CLK/CNT to select the real-time counter display.
Every press of CLK/CNT changes the TV screen as illustrated below.
- Counter changes to "0:00:00" when the cassette is ejected.
- The real-time counter does not operate if nothing is recorded on the tape.
- The real-time counter will not work unless a tape is inserted.
Counter Memory Function
This is useful if there is a section of tape you want to view immediately after recording or if you want to return to the same point several times.
1 Begin recording or playing a tape.
2 Press CLK/CNT repeatedly to display the real-time counter on the TV screen.
3 At the point that you want locate later, reset the real-time counter to "0:00:00" by pressing CLEAR.
4 Continue to play or record.
5 Press STOP (■) when recording or playback finishes.
6 Press BACKWARD (◀◀). The tape automatically stops when the tape counter returns to about "0:00:00".
Tape Remaining
This function allows the time of the remaining tape to be displayed during recording or playback.
Press CLK/CNT until the REM indicator displays on the TV screen during recording or playback.
Note
The remaining tape length indicator may not be displayed correctly depending on the condition of the tape and the kind of the tape (T-140, T-160, or T-210 etc)
Additional Information
- In manual recording, Timer recording, Instant Timer Recording, playback, or fast forward modes, the DVD+VCR automatically starts rewinding the tape at the end of the tape. The cassette will stop at the beginning of the tape and be ejected, and the DVD+VCR will turn itself off.
- After you have finished using the DVD+VCR, rewind, eject, and remove the cassette. Place the cassette in its protective sleeve to protect it from dust. It is not necessary to rewind the cassette before removing it, but if you do, it will be ready to play or record the next time you use it.
- Be sure the DVD+VCR Channel Selector is on the correct channel you wish to record. The channel that is being recorded can always be checked by tuning the television to the DVD+VCR channel (3 or 4) and pressing the TV/VCR selector to turn the DVD+VCR's TV indicator off.
- Do not attempt to hook up more than one television set to the DVD+VCR for either recording or playback.
Auto Play System
This DVD+VCR features automatic playback. Load a cassette (with the safety tab removed).
• The Output Source is changed to VCR mode automatically.
• The power turns on automatically and playback begins.
- At the end of the tape, the DVD+VCR stops, then rewinds.
- The cassette is ejected after rewinding and the DVD+VCR turns itself off automatically.
Note
Auto power off does not function during regular DVD play mode. (DVD+VCR power stays on.)
S-VHS Quasi Playback (SQPB)
- This DVD+VCR can play back S-VHS recorded tapes, however, it cannot make recordings using S-VHS format tapes.
- SQPB is an abbreviation for S-VHS Quasi Playback.
Playing DVDs and Video CD
Playback Setup
- Turn on the TV and select the video input source connected to the DVD+VCR.
- Audio system: Turn on the audio system and select the input source connected to the DVD+VCR.
- Set the Output Source to DVD as shown in "Selecting the Viewing Source" on page 6.
Press OPEN/CLOSE (▲) to open the disc tray.
Load your chosen disc in the tray, with the label facing up.
When a double-sided DVD is inserted, make sure the side you want to play is facing down.
Press OPEN/CLOSE (▲) to close the tray.
"LOAd" appears in the display window, and play-back starts automatically. If playback does not start, press PLAY (▷). In some cases, the disc menu might appear instead.
If a menu screen is displayed
The menu screen may be displayed first after loading a DVD or Video CD which contains a menu.
Use ◀/▶/▲/▼ buttons to select the title/chapter you want to view, then press SELECT/ENTER to start playback.
Press TITLE or DISC MENU to return to the menu screen.
- Use the number buttons to select the track you want to view. Press RETURN to return to the menu screen.
- Menu setting and the exact operating procedures for using the menu may differ depending on the disc. Follow the instructions on the each menu screen. You also may set PBC to Off under setup. See page 19.
otes
- If Parental Control is set and the disc is not within the Rating settings (not authorized), the 4-digit password must be entered and/or the disc must be authorized (see "Parental Control", on page 20).
• DVDs may have a Region Code. - Your DVD+VCR will not play discs that have a Region Code different from your DVD+VCR. The Region Code for this DVD+VCR is 4 (four).
- Do not keep a fixed image displayed on the screen for a long time.
Screen Saver
The screen saver picture appears when you leave the DVD+VCR in stop mode for about five minutes.
General Features
ote
Unless stated otherwise, all operations described use the remote control. Some features may also be available on the Setup menu.
Moving to another TITLE
When a disc has more than one title, you can move to another title as follows:
- Press DISPLAY, then press the appropriate numbered button (0-9) to select a title number.
Moving to another CHAPTER/TRACK
When a title on a disc has more than one chapter or a disc has more than one track, you can move to another chapter/track as follows:
- Press BACKWARD (I◄◄) or FORWARD (►►I) briefly during playback to return to the beginning of the current chapter/track or to select the next chapter/track.
- Press BACKWARD (◀◀) twice briefly to step back to the previous chapter/track.
- To go directly to any chapter/track during playback, press DISPLAY. Use ▲▼ to select Chapter/track icon. Then, enter the chapter/track number with the number buttons (0-9). Then, press SELECT/ENTER.
Slow Motion
1 Press PAUSE/STEP (Ⅲ) during playback. The DVD+VCR will now go into PAUSE m
2 Press BACKWARD (I◄◄) or FORWARD (►►I) during pause mode.
The DVD+VCR will enter SLOW mode.
3 Use BACKWARD (I◀◀) or FORWARD (▶▶I) to select the required speed: ◀ 1/16, ◀ 1/8, ◀ 1/4, ◀ 1/2 (backward), or ▶ 1/16, ▶ 1/8, ▶ 1/4, ▶ 1/2 (forward).
With a Video CD, the Slow motion speed changes: ▶ 1/16, ▶ 1/8, ▶ 1/4 (forward only).
4 To return to playback, press PLAY (▷).
ote
Slow motion playback in reverse is not applicable for Video CD.
General Features (continued)
Still Picture and Frame-by-frame playback
1 Press PAUSE/STEP (III) during playback. The DVD+VCR will now go into PAUSE mode.
2 With a DVD, you can advance the picture frame by frame by pressing PAUSE/STEP (II) repeatedly on the remote control.
3 To return to playback, press PLAY (▷).
Search
1 Press and hold BACKWARD (I◀◀) or FORWARD (▶▶I)
for about two seconds during playback.
The DVD+VCR will now go into SEARCH mode.
2 Press and hold BACKWARD (I◀◀) or FORWARD (▶▶I) repeatedly to select the required speed: ◀◀X2, ◀◀X4, ◀◀X16, ◀◀X100 (backward) or ▶▶X2, ▶▶X4, ▶▶X16, ▶▶X100 (forward).
With a Video CD, the Search speed changes: ◀◀X2, ◀◀X4, ◀◀X8 (backward) or ▶▶X2, ▶▶X4, ▶▶X8 (forward).
3 To return to playback, press PLAY (▷).
Random
1 Press RANDOM during playback or in Stop mode. The unit automatically begins Random Playback and "RANDOM" appears on the TV screen.
2 To return to normal playback, press RANDOM until "NORMAL" appears on the TV screen.
By pressing BACKWARD (I◀◀) or FORWARD (▶▶▶) during Random playback, the unit selects another title (track) and resumes Random playback.
- This function only works with DVD Karaoke discs and video CD without PBC.
- On a Video CD with PBC, you must set PBC to Off on the setup menu to use the Random function. See page 19.
Repeat
DVD Video Discs - Repeat Chapter/Title/Off
1 To repeat the currently playing chapter, press REPEAT.
The Repeat Chapter icon appears on the TV screen.
2 To repeat the title currently playing, press REPEAT a second time.
The Repeat Title icon appears on the TV screen.
3 To exit Repeat mode, press REPEAT a third time. The Repeat Off icon appears on the TV screen.
Video CDs - Repeat Track/All/Off
1 To repeat the track currently playing, press REPEAT. The Repeat Track icon appears on the TV screen.
2 To repeat the disc currently playing, press REPEAT a second time.
The Repeat All icon appears on the TV screen.
3 To exit Repeat mode, press REPEAT a third time. The Repeat Off icon appears on the TV screen.
On a Video CD with PBC, you must set PBC to Off on the setup menu to use the Repeat function. See page 19.
Repeat A-B
To repeat a sequence in a title:
1 Press A-B at your chosen start point. "A * " appears briefly on the TV screen.
2 Press A-B again at your chosen end point.
"A B" appears briefly on the TV screen, and the repeat sequence begins ("A←→B" appears the display window).
3 To cancel the sequence, press A-B.
Time Search
The Time Search function allows you to start playing at any chosen time on the disc.
1 Press DISPLAY during playback. The on-screen display appears on the screen.
The Time Search box shows the elapsed playing time of the current disc.
2 Within 10 seconds, use ▲/▼ to select the Time Search icon in the on-screen display.
The “-:-:-” appears in the Time Search box.
3 Within 10 seconds, use the numbered buttons to enter the required start time. Enter hours, minutes and seconds from left to right in the box.
If you enter the wrong numbers, press CLEAR to remove the numbers you entered. Then enter the correct numbers.
4 Within 10 seconds, press SELECT/ENTER.
Playback starts from the selected time on the disc. If you enter an invalid time, playback will continue from the current point.
3D Surround
This unit can produce a 3D Surround effect, which simulates multi-channel audio playback from two conventional stereo speakers, instead of the five or more speakers normally required to listen to multi-channel audio from a home theater system.
1 Press DISPLAY during playback.
2 Use ▲/▼ to select the sound icon. The sound option will be highlighted.
3 Use ◀/▶ to to select "3D SUR".
To turn off the 3D Surround effect, select "NORM.".
General Features (Continued)
Zoom
The Zoom function allows you to enlarge the video image and to move through the enlarged image.
1 Press ZOOM during playback or still playback to activate the Zoom function.
If you press ZOOM repeatedly, the magnification level increases up to six steps.
2 Use ◀/▶/▲/▼ buttons to move through the zoomed picture.
3 Press CLEAR to resume normal playback or return to the paused image.
Note
- The zoom function may not work for some DVDs.
- The zoom function may not work on multi-angle scenes.
Marker Search
You can start playback from a memorized point. Up to nine points can be memorized.
To enter a mark, follow these steps.
1 During disc playback, press MARKER when playback reaches the spot that you want to memorize. The Marker icon will appear on the TV screen briefly.
2 Repeat step 1 to enter up to nine Marker points on a disc.
To Recall a Marked Scene
1 During disc playback, use SEARCH.
The Marker Search menu will appear on the screen.
2 Within 10 seconds, use ◀ or number button to select a Marker number that you want to recall.
3 Press SELECT/ENTER.
Playback will start from the Marked scene.
4 To remove the MARKER SEARCH menu, press SEARCH.
To Clear a Marked Scene
1 During disc playback, press SEARCH.
The Marker Search menu will appear on the screen.
2 Within 10 seconds, use ◀/▶ or number button to select a Marker number that you want to erase.
3 Press CLEAR.
The Marker number will be erased from the list.
4 Repeat steps 2 and 3 to erase additional Marker numbers.
5 To remove the MARKER SEARCH menu, press SEARCH.
Note
All markers are erased when the disc is ejected.
Special DVD Features
Checking the contents of DVD Video discs: Menus
DVDs may contain menus that allow you to access special features. To use the disc menu, press DISC MENU. Then, press the appropriate number button to select an option. Or, use ◀/▶/▲/▼ buttons to highlight your selection, then press SELECT/ENTER.
Title Menu
1 Press TITLE.
If the current title has a menu, the menu will appear on the screen. Otherwise, the disc menu may appear.
2 The menu can list camera angles, spoken language and subtitle options, and chapters for the title.
3 To remove the title menu, press TITLE again.
Disc Menu
1 Press DISC MENU.
The disc menu is displayed.
2 To remove the disc menu, press DISC MENU again.
Camera Angle
If the disc contains scenes recorded at different camera angles, you can change to a different camera angle during playback.
- Press ANGLE repeatedly during playback to select a desired angle.
The number of the current angle appears on the display.
Changing the Audio Language
Press AUDIO repeatedly during playback to hear a different audio language or audio track.
Changing the Audio Channel
Press AUDIO repeatedly during playback to hear a different audio channel (STER., LEFT or RIGHT).
Subtitles
Press SUBTITLE repeatedly during playback to see the different subtitle languages.
Note
If ⊗ appears, the feature is not available on the disc.
Last Condition Memory
This player memorizes the user settings for the last disc that you have viewed. Settings remain in memory even if you remove the disc from the player or switch off the player. If you load a disc that has its settings memorized, the latest stop position is automatically recalled.
Notes
- Settings are stored in memory for use any time.
- This player does not memorize settings of a disc if you switch off the player before commencing to play it.
Playing an Audio CD and MP3/WMA Disc
The DVD+VCR can play MP3/WMA formatted recordings on CD-ROM, CD-R or CD-RW discs. Before playing MP3/WMA recordings, read the notes on MP3/WMA Recordings on right.
1 Insert a disc and close the tray. Audio CD; Audio CD menu appears on the TV screen go to step 4. MP3/WMA disc; The MP3/WMA-JPEG choice menu appears on the TV screen. Go to step 2
2 Use ▲▼ to select the MP3/WMA then press SELECT/ENTER.
The MP3/WMA menu appears on the TV screen. Press RETURN to move to the MP3/WMA-JPEG choice menu.
3 Use ▲▼ to select a folder, and SELECT/ENTER. A list of files in the folder appears.
4 Use ▲▼ to select a track then press PLAY (▷) or SELECT/ENTER.
Playback starts.
During playback, the current track's elapsed playing time will appear on the display window and menu. Playback will stop at the end of the disc.
Press TITLE to move to the next page.
Press DISC MENU to move to the previous page.
Audio CD menu
MP3/WMA menu
Tip
If you are in a file list and want to return to the Folder list, use the ▲▼ to highlight ■- and press SELECT/ENTER to return to the previous menu screen.
5 To stop playback at any other time, press STOP (■).
Notes on MP3/WMA Recordings
About MP3
- An MP3 file is audio data compressed by using the MPEG1 audio layer-3 file-coding scheme. We call files that have the ".mp3" file extension "MP3 files".
- The player can not read an MP3 file that has a file extension other than ".mp3".
About WMA(Window Media Audio)
- An WMA file is a Microsoft audio compression technology.
- WMA(Windows Media Audio) offers double the audio compression of the MP3 format.
MP3/WMA Disc compatibility with this player is limited as follows:
- Sampling Frequency / only at 44.1kHz (MP3), 22.05 - 44.1kHz (WMA)
- Bit rate / within 32 - 320kbps (MP3), 32 - 128kbps (WMA)
- CD-R physical format should be "ISO 9660"
- If you record MP3/WMA files using the software which cannot create a FILE SYSTEM, for example "Direct-CD" etc., it is impossible to playback MP3/WMA files. We recommend that you use "Easy-CD Creator", which creates an ISO9660 file system.
- A single session disc requires MP3/WMA files in the first track. If there is no MP3/WMA file in the 1st track, it cannot playback MP3/WMA files. If you wish to playback MP3/WMA files, format all the data in the disc or use a new one.
- File names should be named using 8 letters or less and must incorporate ".mp3" or ".wma" extension e.g. "*******.MP3" or "*******.WMA".
- Do not use special letters such as "/ : * ? " <> " etc.
- Total number of files on the disc should be less than 650.
This DVD+VCR requires discs/recordings to meet certain technical standards in order to achieve optimal playback quality. Pre-recorded DVDs are automatically set to these standards. There are many different types of recordable disc formats (including CD-R containing MP3 or WMA files). That require certain pre-existing conditions (see above) to insure compatible playback.
Customers should also note that permission is required in order to download MP3/WMA files and music from the Internet. Our company has no right to grant such permission. Permission should always be sought from the copyright owner.
Pause
1 Press PAUSE/STEP (Ⅲ) during playback.
2 To return to playback, press PLAY (▷) or press PAUSE/STEP (■) again.
Moving to another Track
- Press BACKWARD ◀◀◀ or FORWARD ▶▶▶ I briefly during playback to go to the next track or to return to the beginning of the current track.
- Press BACKWARD ◀◀ twice briefly to step back to the previous track.
- In case of audio CD, to go directly to any track, enter the track number using the numbered buttons (0-9) during playback.
Repeat Track/All/Off
1 To repeat the track currently playing, press REPEAT. The Repeat icon and "TRACK" appears on the menu screen.
2 To repeat all tracks on a disc, press REPEAT a second time.
The Repeat icon and "ALL" appears on the menu screen.
3 To cancel Repeat mode, press REPEAT a third time. The Repeat icon and "OFF" appears on the menu screen.
Search
1 Press and hold BACKWARD ◀◀ or FORWARD ▶▶I for about two seconds during playback.
The player will now go into SEARCH mode.
2 Press and hold BACKWARD I◀◀ or FORWARD ▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶>
◀◀X4, ◀◀X8 (backward) or ▶▶X2, ▶▶X4, ▶▶X8 (forward).
Search speed and direction are indicated on the menu screen.
3 To exit SEARCH mode, press PLAY (▷).
Random
1 Press RANDOM during playback or when playback is stopped.
The unit automatically begins Random Playback and RANDOM or "RAND." appears on the display window and menu screen.
2 To return to normal playback, press RANDOM repeatedly until RANDOM or "RAND." disappears on the display window and menu screen.
Repeat A-B
To repeat a sequence.
1 During disc playback, press A-B at your chosen starting point. The Repeat icon and "A * " appears on the menu screen.
2 Press A-B again at your chosen end point.
The Repeat icon and "A B" appears on the menu screen, and the sequence begins to play repeatedly.
3 To exit the sequence and return to normal play, press A-B again.
The Repeat icon and "OFF" appears on the menu screen.
3D Surround
This unit can produce a 3D Surround effect, which simulates multi-channel audio playback from two conventional stereo speakers, instead of the five or more speakers normally required to listen to multi-channel audio from a home theater system.
1 Press DISPLAY or AUDIO during playback.
2 Use ◀/▶ to select the Sound icon.
The Sound icon will be highlighted.
3 Use ▲/▼ to select "NORM.", or "3D SUR".
Changing the Audio Channel
Press AUDIO repeatedly during playback to hear a different audio channel (STER., LEFT, or RIGHT).
Viewing a JPEG disc
This DVD+VCR can play discs with JPEG files and Kodak picture CD. Before playing JPEG recordings, read the notes on JPEG Recordings on right.
1 Insert a disc and close the tray. The MP3/WMA-JPEG choice menu appears on the TV screen.
2 Use ▲▼ to select the JPEG then press SELECT/ENTER.
The JPEG menu appears on the TV screen.
3 Use ▲▼ to select a folder, and SELECT/ENTER. A list of files in the folder appears. Press RETURN to move to the MP3/WMA-JPEG choice menu.
If you are in a file list and want to return to the Folder list, use the ▲▼ buttons on the remote to highlight "■--" and press SELECT/ENTER to return to the previous menu screen.
4 If you want to view a particular file, press ▲▼ to highlight a file and press SELECT/ENTER or PLAY (▷).
Viewing the file proceeding starts.
During viewing a file, press RETURN to move to the previous menu (JPEG menu).
Press TITLE to move to the next page.
Press DISC MENU to move to the previous page.
There are three viewing Slide Speed options: Fast, Normal, Slow, and Off. Press ◀▶ to highlight the Slide Speed then press ▲/▼ to select the option you want to use, and press SELECT/ENTER.
5 To stop viewing at any other time, press STOP (■). The JPEG menu appears.
Moving to another File
Press BACKWARD ◀◀ or FORWARD ▶▶ once during viewing a picture to advance to the next file or to the previous file.
Still Picture
1 Press PAUSE/STEP (III) during slide show. The player will now go into PAUSE mode.
2 To return to the slide show, press PLAY (▷) or press PAUSE/STEP (■) again.
To flip the picture
Press ▲▼ during showing a picture to flip the picture horizontally or a vertically.
To rotate picture
Press ◀▶ during showing a picture to rotate the picture clockwise or counter clockwise.
Notes on JPEG Recordings
- Depending upon the size and number of the JPEG files, it could take a long time for the DVD player to read the disc's contents. If you don't see an on-screen display after several minutes, some of the files are too big — reduce the resolution of the JPEG files to less than 2 mega pixels and burn another disc.
- Total number of files and folders on the disc should be less than 650.
- Some disc may be incompatible due to different recording format or condition of disc.
- When you are using software such as "Easy CD Creator" to burn the jpeg files into the CD-R, ensure that all the selected files have the ".jpg" extensions when copying into the CD layout.
- If the files have ".jpe" or ".jpeg" extensions, please rename them as ".jpg" files.
- File names without ".jpg" extension will not be able to be read by this DVD+VCR. Even though the files are shown as JPEG image files in windows explorer.
Programmed Playback with Audio CD and MP3/WMA Disc
The Program function enables you to store your favorite tracks from any disc in the player memory.
Program can contain 30 tracks.
1 Press PROGRAM during playback or in the stop mode to enter the Program Edit mode.
The E mark will appear to the right of the word Program on the right side of the menu screen.
Note
Press PROGRAM to exit the Program Edit mode; the E mark will disappear.
2 Select a track, then press SELECT/ENTER to place the selected track on the Program list.
3 Repeat step 2 to place additional tracks on the Program list.
Audio CD menu
MP3/WMA menu
4 Press ▶. The progra
The programmed track you selected last is highlighted on the program list.
5 Press ▲▼ to select the track you want to start playing.
Press TITLE to move to the next page. Press DISC MENU to move to the previous page.
Press PLAY (▷) to start.
Playback begins in the order in which you programmed the tracks and "PROG." appears on the menu screen. Playback stops after all of the tracks on the Program list have played once.
7 To resume normal playback from programmed playback, press PROGRAM.
Select a track of CD (or MP3/WMA) list and then press SELECT/ENTER.
"PROG." indicator disappears in the display window.
Note
The programmed tracks/files are cleared when the power is turned off or the disc is removed.
Programmed Playback with Video CD
Note
On a Video CD with PBC, you must set PBC to Off on the setup menu to use the Program function. See page 19.
1 Insert Video CD and close the tray.
2 Press PROGRAM while playback is stopped. The VCD Program menu will appear.
Note
Press RETURN or PROGRAM to exit the Program menu.
3 Follow steps 2-6 of "Programmed Playback with Audio CD and MP3/WMA disc" on left.
4 To resume normal playback from programmed playback, press PROGRAM.
"PROG." indicator disappears in the display window.
Repeat Programmed Tracks
- To repeat the track currently playing, press REPEAT. The Repeat icon and "TRACK" appears on the menu screen.
- To repeat all tracks on the program list, press REPEAT a second time.
The Repeat icon and "ALL" appears on the menu screen. - To cancel Repeat mode, press REPEAT a third time. The Repeat icon and "OFF" appears on the menu screen.
Erasing a Track from Program List
1 Press PROGRAM during playback (Audio CD and MP3/WMA disc only) or in the stop mode to enter the Program Edit mode.
The E mark will appear.
2 Press ▶ to move to the Program list.
3 Use ▲▼ to select the track that you wish to erase from the Program list.
4 Press CLEAR.
The track will be erased from the Program list.
Erasing the Complete Program List
1 Follow steps 1-2 of "Erasing a Track from Program List" as above.
2 Use ▲▼ to select "Clear All", then press SELECT/ENTER.
The complete Program for the disc will be erased.
The programs are also cleared when the disc is removed.
Check the following guide for the possible cause of a problem before contacting service.
| Symptom | Cause | Correction |
| No power. | The power cord is disconnected. | Plug the power cord into the wall outlet securely. |
| The power is on, but the DVD+VCR does not work. | No disc is inserted.No tape is inserted. | Insert a disc or tape. (Check that the disc or tape indicator in the display window is lit.) |
| No picture. | The TV is not set to receive DVD+VCR signal output. | Select the appropriate video input mode on the TV so the picture from the DVD+VCR appears on the TV screen. |
| TV/VCR mode for DVD+VCR is set to TV. | Press the TV/VCR button on the remote control repeatedly to choose VCR mode. TV indicator disappears in the display window. | |
| The video cable is not connected securely. | Connect the video cable securely. | |
| The connected TV power is turned off. | Turn on the TV. | |
| No sound. | The equipment connected with the audio cable is not set to receive DVD+VCR signal output. | Select the correct input mode on the audio receiver so you can listen to the sound from the DVD+VCR. |
| The audio cables are not connected securely. | Connect the audio cable securely. | |
| The power of the equipment connected with the audio cable is turned off. | Turn on the equipment connected with the audio cable. | |
| The Digital Audio Output is set to the wrong position. | Set the Digital Audio Output to the correct position, then turn on the DVD+VCR again by pressing POWER. | |
| The playback picture is poor. | The disc is dirty. | Clean the disc. |
| Tape heads are dirty. | Clean video heads. | |
| Tape is a rental or was recorded on another VCR. | Use CH/TRK (▲▼) for manual tracking adjustment while tape is playing. | |
| The DVD+VCR does not start playback. | No disc is inserted.No tape is inserted. | Insert a disc or tape. (Check that the disc or tape indicator in the display window is lit.) |
| An unplayable disc is inserted. | Insert a playable disc. (Check the disc type, color system, and Regional code.) | |
| The disc is placed upside down. | Place the disc with the playback side down. | |
| The disc is not placed within the guide. | Place the disc on the disc tray correctly inside the guide. | |
| The disc is dirty. | Clean the disc. | |
| The Rating level is set. | Cancel the Rating function or change the rating level. | |
| The remote control does not work properly. | The remote control is not pointed at the remote sensor of the DVD+VCR. | Point the remote control at the remote sensor of the DVD+VCR. |
| The remote control is too far from the DVD+VCR. | Operate the remote control within 23 ft (7 m). | |
| There is an obstacle in the path of the remote control and the DVD+VCR. | Remove the obstacle. | |
| The batteries in the remote control are dead. | Replace the batteries with new ones. | |
| This remote control use the same buttons for VCR and DVD functions (ex. PLAY). | When using a VCR, first press the VCR button. When using a DVD, first press the DVD button. | |
| Some channels are skipped over when using CH/TRK (▲/▼) | Those channels were deleted with the CH. ADD/DEL option. | Use CH. ADD/DEL to restore channels. See “Channel Selection” on page 15. |
| Picture and sound of broadcasting channel are weak or missing. | Antenna or cables are loose. | Tighten connections or replace cable. |
| Wrong TUNING BAND option is being used. | Try all TUNING BAND options. See “Channel Selection” on page 15 for details. | |
| Camcorder image is not shown. | Camcorder is off. | Turn camcorder on and operate properly. |
| Camcorder image via A/V input to DVD+VCR is not shown on TV screen. | DVD+VCR SOURCE SELECT is not set to LINE1 or LINE2. | Press INPUT to select LINE input channel (LINE1 or LINE2). |
| Timer recording is not possible. | Clock in DVD+VCR is not set to correct time. | Set clock to correct time. See “Setting the Clock” on page 16. |
| Timer has been programmed incorrectly. | Reprogram Timer. See “Timer Recording” on pages 22 and 23. | |
| TIMER indicator does not appear after programming timer. | Reprogram Timer. | |
| TIMER indicator appears after DVD+VCR is turned off. | DVD+VCR is in Timer Recording mode. | This is the normal indication that the DVD+VCR is in TIMER mode. |
| Stereo Audio Record and/or Playback is not present. | TV is not Stereo-compatible. | No action is possible. |
| Broadcast program is not in stereo format. | No action is possible. | |
| DVD+VCR A/V Out jacks are not connected to TV A/V In jacks. | Make A/V connections. Stereo is available only via A/V output from DVD+VCR. | |
| DVD+VCR Audio/Video Out is not selected for viewing at the TV. | Select AUX or A/V source as TV input. | |
| DVD+VCR BROADCAST TYPE mode is set to SAP or MONO. | Set BROADCAST TYPE mode to STEREO. See “Setting the VCR Setup Menu” on page 15. |
Moisture Condensation
| Moisture condensation can occur: | In locations where moisture condensation may occur: |
| When the DVD+VCR is moved from a cold place to a warm place.Under extremely humid conditions. | Keep the DVD+VCR plugged into an AC power outlet with POWER On. This will help prevent condensation.When condensation has occurred, wait a few hours for the DVD+VCR to dry before using it. |
Enter the appropriate code number for the initial settings "Disc Audio", "Disc Subtitle" and/or "Disc Menu" (See page 18).
| Language | Code | Language | Code | Language | Code | Language | Code |
| Abkhazian | 6566 | Fiji | 7074 | Lingala | 7678 | Singhalese | 8373 |
| Afar | 6565 | Finnish | 7073 | Lithuanian | 7684 | Slovak | 8375 |
| Afrikaans | 6570 | French | 7082 | Macedonian | 7775 | Slovenian | 8376 |
| Albanian | 8381 | Frisian | 7089 | Malagasy | 7771 | Somali | 8379 |
| Amharic | 6577 | Galician | 7176 | Malay | 7783 | Spanish | 6983 |
| Arabic | 6582 | Georgian | 7565 | Malayalam | 7776 | Sudanese | 8385 |
| Armenian | 7289 | German | 6869 | Maltese | 7784 | Swahili | 8387 |
| Assamese | 6583 | Greek | 6976 | Maori | 7773 | Swedish | 8386 |
| Aymara | 6588 | Greenlandic | 7576 | Marathi | 7782 | Tagalog | 8476 |
| Azerbaijani | 6590 | Guarani | 7178 | Moldavian | 7779 | Tajik | 8471 |
| Bashkir | 6665 | Gujarati | 7185 | Mongolian | 7778 | Tamil | 8465 |
| Basque | 6985 | Hausa | 7265 | Nauru | 7865 | Tatar | 8484 |
| Bengali; Bangla | 6678 | Hebrew | 7387 | Nepali | 7869 | Telugu | 8469 |
| Bhutani | 6890 | Hindi | 7273 | Norwegian | 7879 | Thai | 8472 |
| Bihari | 6672 | Hungarian | 7285 | Oriya | 7982 | Tibetan | 6679 |
| Breton | 6682 | Icelandic | 7383 | Panjabi | 8065 | Tigrinya | 8473 |
| Bulgarian | 6671 | Indonesian | 7378 | Pashto, Pushto | 8083 | Tonga | 8479 |
| Burmese | 7789 | Interlingua | 7365 | Persian | 7065 | Turkish | 8482 |
| Byelorussian | 6669 | Irish | 7165 | Polish | 8076 | Turkmen | 8475 |
| Cambodian | 7577 | Italian | 7384 | Portuguese | 8084 | Twi | 8487 |
| Catalan | 6765 | Japanese | 7465 | Quechua | 8185 | Ukrainian | 8575 |
| Chinese | 9072 | Javanese | 7487 | Rhaeto-Romance | 8277 | Urdu | 8582 |
| Corsican | 6779 | Kannada | 7578 | Romanian | 8279 | Uzbek | 8590 |
| Croatian | 7282 | Kashmiri | 7583 | Russian | 8285 | Vietnamese | 8673 |
| Czech | 6783 | Kazakh | 7575 | Samoan | 8377 | Volapūk | 8679 |
| Danish | 6865 | Kirghiz | 7589 | Sanskrit | 8365 | Welsh | 6789 |
| Dutch | 7876 | Korean | 7579 | Scots Gaelic | 7168 | Wolof | 8779 |
| English | 6978 | Kurdish | 7585 | Serbian | 8382 | Xhosa | 8872 |
| Esperanto | 6979 | Laothian | 7679 | Serbo-Croatian | 8372 | Yiddish | 7473 |
| Estonian | 6984 | Latin | 7665 | Shona | 8378 | Yoruba | 8979 |
| Faeroese | 7079 | Latvian, Lettish | 7686 | Sindhi | 8368 | Zulu | 9085 |
Enter the appropriate code number for the initial setting "Country Code" (See page 20).
| Code | Country | Code | Country | Code | Country | Code | Country |
| AD | Andorra | ER | Eritrea | LC | Saint Lucia | SC | Seychelles |
| AE | United Arab Emirates | ES | Spain | LI | Liechtenstein | SD | Sudan |
| AF | Afghanistan | ET | Ethiopia | LK | Sri Lanka | SE | Sweden |
| AG | Antigua and Barbuda | FI | Finland | LR | Liberia | SG | Singapore |
| AI | Anguilla | FJ | Fiji | LS | Lesotho | SH | Saint Helena |
| AL | Albania | FK | Falkland Islands | LT | Lithuania | SI | Slovenia |
| AM | Armenia | FM | Micronesia | LU | Luxembourg | SJ | Svalbard and Jan Mayen Islands |
| AN | Netherlands Antilles | FO | Faroe Islands | LV | Latvia | ||
| AO | Angola | FR | France | LY | Libya | SK | Slovak Republic |
| AQ | Antarctica | FX | France (European Territory) | MA | Morocco | SL | Sierra Leone |
| AR | Argentina | MC | Monaco | SM | San Marino | ||
| AS | American Samoa | GA | Gabon | MD | Moldavia | SN | Senegal |
| AT | Austria | GB | Great Britain | MG | Madagascar | SO | Somalia |
| AU | Australia | GD | Grenada | MH | Marshall Islands | SR | Suriname |
| AW | Aruba | GE | Georgia | MK | Macedonia | ST | Saint Tome and Principe |
| AZ | Azerbaidjan | GF | French Guyana | ML | Mali | SU | Former USSR |
| BA | Bosnia-Herzegovina | GH | Ghana | MM | Myanmar | SV | El Salvador |
| BB | Barbados | GI | Gibraltar | MN | Mongolia | SY | Syria |
| BD | Bangladesh | GL | Greenland | MO | Macau | SZ | Swaziland |
| BE | Belgium | GM | Gambia | MP | Northern Mariana Islands | TC | Turks and Caicos Islands |
| BF | Burkina Faso | GN | Guinea | MQ | Martinique (French) | TD | Chad |
| BG | Bulgaria | GP | Guadeloupe (French) | MR | Mauritania | TF | French Southern Territories |
| BH | Bahrain | GQ | Equatorial Guinea | MS | Montserrat | ||
| BI | Burundi | GR | Greece | MT | Malta | TG | Togo |
| BJ | Benin | GS | S. Georgia & S. Sandwich Isls. | MU | Mauritius | TH | Thailand |
| BM | Bermuda | MV | Maldives | TJ | Tadjikistan | ||
| BN | Brunei Darussalam | GT | Guatemala | MW | Malawi | TK | Tokelau |
| BO | Bolivia | GU | Guam (USA) | MX | Mexico | TM | Turkmenistan |
| BR | Brazil | GW | Guinea Bissau | MY | Malaysia | TN | Tunisia |
| BS | Bahamas | GY | Guyana | MZ | Mozambique | TO | Tonga |
| BT | Bhutan | HK | Hong Kong | NA | Namibia | TP | East Timor |
| BV | Bouvet Island | HM | Heard and McDonald Islands | NC | New Caledonia (French) | TR | Turkey |
| BW | Botswana | NE | Niger | TT | Trinidad and Tobago | ||
| BY | Belarus | HN | Honduras | NF | Norfolk Island | TV | Tuvalu |
| BZ | Belize | HR | Croatia | NG | Nigeria | TW | Taiwan |
| CA | Canada | HT | Haiti | NI | Nicaragua | TZ | Tanzania |
| CC | Cocos (Keeling) Islands | HU | Hungary | NL | Netherlands | UA | Ukraine |
| CF | Central African Republic | ID | Indonesia | NO | Norway | UG | Uganda |
| CG | Congo | IE | Ireland | NP | Nepal | UK | United Kingdom |
| CH | Switzerland | IL | Israel | NR | Nauru | UM | USA Minor Outlying Islands |
| CI | Ivory Coast | IN | India | NU | Niue | ||
| CK | Cook Islands | IO | British Indian Ocean Territory | NZ | New Zealand | US | United States |
| CL | Chile | OM | Oman | UY | Uruguay | ||
| CM | Cameroon | IQ | Iraq | PA | Panama | UZ | Uzbekistan |
| CN | China | IR | Iran | PE | Peru | VA | Vatican City State |
| CO | Colombia | IS | Iceland | PF | Polynesia (French) | VC | Saint Vincent & Grenadines |
| CR | Costa Rica | IT | Italy | PG | Papua New Guinea | ||
| CS | Former Czechoslovakia | JM | Jamaica | PH | Philippines | VE | Venezuela |
| CU | Cuba | JO | Jordan | PK | Pakistan | VG | Virgin Islands (British) |
| CV | Cape Verde | JP | Japan | PL | Poland | VI | Virgin Islands (USA) |
| CX | Christmas Island | KE | Kenya | PM | Saint Pierre and Miquelon | VN | Vietnam |
| CY | Cyprus | KG | Kyrgyzstan | PN | Pitcairn Island | VU | Vanuatu |
| CZ | Czech Republic | KH | Cambodia6 | PR | Puerto Rico | WF | Wallis and Futuna Islands |
| DE | Germany | KI | Kiribati | PT | Portugal | WS | Samoa |
| DJ | Djibouti | KM | Comoros | PW | Palau | YE | Yemen |
| DK | Denmark | KN | Saint Kitts & Nevis Anguilla | PY | Paraguay | YT | Mayotte |
| DM | Dominica | KP | North Korea | QA | Qatar | YU | Yugoslavia |
| DO | Dominican Republic | KR | South Korea | RE | Reunion (French) | ZA | South Africa |
| DZ | Algeria | KW | Kuwait | RO | Romania | ZM | Zambia |
| EC | Ecuador | KY | Cayman Islands | RU | Russian Federation | ZR | Zaire |
| EE | Estonia | KZ | Kazakhstan | RW | Rwanda | ZW | Zimbabwe |
| EG | Egypt | LA | Laos | SA | Saudi Arabia | ||
| EH | Western Sahara | LB | Lebanon | SB | Solomon Islands |
General
| Power requirements | AC 110-240V, 50/60 Hz |
| Power consumption | 23W |
| Dimensions (approx.) | 430 X 97.5 X 293 mm (16.9 x 3.9 x 11.5 inches) (w x h x d) |
| Mass (approx.) | 4.8 kg (10.58 lbs) |
| Operating temperature | 5°C to 40°C (41°F to 104°F) |
| Operating humidity | 5 % to 90 % |
| Signal system | NTSC |
Inputs
| ANTENNA IN | Antenna or CATV input, 75 ohms |
| VHS VIDEO IN | 1 Vp-p 75 ohms, sync negative, RCA jack x 2 |
| VHS AUDIO IN | -6.0 dBm more than 47 ohms, RCA jack (L, R) x 2 |
Outputs
| VIDEO OUT | 1 Vp-p 75 ohms, sync negative |
| S-VIDEO OUT | (Y) 1.0 V (p-p), 75 ohms, negative sync, Mini DIN 4-pin x 1(C) 0.3 V (p-p) 75 ohms |
| COMPONENT VIDEO OUT | (Y) 1.0 V (p-p), 75 ohms, negative sync, RCA jack x 1(Pb)/(Pr) 0.7 V (p-p), 75 ohms, RCA jack x 2 |
| Audio output (digital audio) | 0.5 V (p-p), 75 ohms, RCA jack x 1 |
| Audio output (analog audio) | 2.0 Vrms (1 KHz, 0 dB), 330 ohms, RCA jack (L, R) x 1 |
| RF OUT | Channel 3 or 4 |
VCR Specifications
| Head system | Four head helical scan azimuth system |
| Timer | 12-hour display type with AM, PM |
| Tape speed | SP: 33.35 mm/sec, LP: 16.67 mm/sec, SLP: 11.12 mm/sec |
| Tape width | 12.7 mm |
| Maximum recording time | SP: 2 HOURS (T-120), SLP: 6 HOURS (T-120)/8 HOURS (T-160) |
| Rewind time | About 3 minutes (T-120) |
| Antenna | 75 ohms (VHF/UHF) |
| VHF output signal | Channel 3 or 4 (Switchable) |
| Channel coverage | VHF: 2-13, UHF: 14-69, CATV: 1-125 (4A, A-W, W+1 - W+84, A-5 - A-1) |
| Frequency range | 20Hz to 20kHz |
| Signal-to-noise ratio | More than 43dB |
| Dynamic range | More than 88 dB |
| Channel separation | More than 60 dB |
DVD Specifications
| Laser system | Semiconductor laser, wavelength 650 nm |
| Frequency response | DVD (PCM 96 kHz): 8 Hz to 44 kHz, DVD (PCM 48 kHz): 8 Hz to 22 kHzCD: 8 Hz to 20 kHz |
| Signal-to-noise ratio | More than 100dB (ANALOG OUT jacks only) |
| Harmonic distortion | Less than 0.008% |
| Dynamic range | More than 95 dB (DVD/CD) |
Accessories:
Video cable x 1, Audio cable x 1, RF 75-ohm Coaxial Cable x 1, Remote control x 1, Batteries (AAA) x 2
- Design and specifications are subject to change without prior notice.
LG Electronics Inc.
- DVD Player+ Video Cassette Recorder OWNER'S MANUAL
- CAUTION
- CAUTION:
- REGULATORY INFORMATION: FCC Part 15
- OTES ON COPYRIGHTS:
- IMPORTANT SAFETY INSTRUCTIONS
- Introduction
- Preparation
- Operation
- Reference
- About the symbols for instructions
- otes
- otes on DVDs and Video CDs
- Regional code of this DVD+VCR and DVDs
- ote on DTS-encoded CDs
- Disc-related Terms
- Title (DVD only)
- Chapter (DVD only)
- Track (Video CD and audio CD only)
- Scene
- Types of video CDs
- Video CDs equipped with PBC (Version 2.0)
- Video CDs not equipped with PBC (Version 1.1)
- Remote Control Battery Installation
- Remote Control Operating Range
- Precautions
- Handling the unit
- When shipping the unit
- When setting up the unit
- To keep the surface clean
- Cleaning the unit
- To clean the cabinet
- To obtain a clear picture
- Notes on Discs
- Handling discs
- Storing discs
- Cleaning discs
- About Symbols
- About the ⊙ symbol display
- About the disc symbols for instructions
- Selecting the Viewing Source
- Notes
- ips
- Connecting Antenna/Cable TV to
- DVD+VCR
- ip
- Without Cable Box
- With Cable Box
- To view or record CATV channel
- Basic TV Connections
- RF coaxial connection
- Note
- How to set the DVD+VCR's RF output channel
- Audio/Video connection
- Optional, Preferred TV Connections
- S-Video connection
- Component Video (Color Stream®) connection
- ote
- Connecting to an amplifier equipped with two channel analog stereo or Dolby Surround
- Connecting to an amplifier equipped with two channel digital stereo (PCM) or to an Audio/Video receiver equipped with a multi-channel decoder (Dolby Digital™, MPEG 2, or DTS)
- Digital Multi-channel sound
- Accessory Audio/Video (A/V) Connections to DVD+VCR
- On-Screen Display (OSD)
- ① TAPE SPEED DISPLAY
- ② FUNCTION DISPLAY
- ③ HI-FI DISPLAY
- ④ CHANNEL DISPLAY
- ⑤ STEREO/SAP DISPLAY (MONO is not displayed)
- ⑥ DATE DISPLAY
- ⑦ CLOCK/COUNT/REMAIN DISPLAY
- On-Screen Menus Setup
- Menu Selection
- Press MENU when finished.
- Setting the VCR Setup Menu
- FUNCTION OSD
- LANGUAGE SELECT
- AUDIO MODE
- BROADCAST TYPE (STEREO/SAP/MONO)
- Channel Selection
- Preparation:
- AUTO CHANNEL PROGRAMMING
- TO ADD OR ERASE CHANNELS FROM MEMORY
- Setting the Clock
- Press MENU and the MAIN menu will appear.
- Use ▲▼ to choose the CLOCK menu. Press SELECT/ENTER and the CLOCK menu will appear.
- Use ◀/▶ to choose the month.
- Use ▼ to choose the DAY option. Use ◀/▶ to choose the date.
- Use ▼ to choose the YEAR option. Use ◀/▶ to choose the year.
- Use ▼ to choose the TIME option. Use ◀/▶ to choose the time.
- Press MENU when finished.
- General Explanation
- On-Screen Display
- On-screen display operation
- Temporary Feedback Field Icons
- Initial Settings
- General Operation
- Language
- Disc Language
- Menu Language
- Picture
- TV Aspect
- Sound
- Digital Audio Output
- Sample Frequency
- Others
- Dynamic Range Control (DRC)
- Vocal
- PBC
- Auto Play
- Parental Control
- Rating
- Country Code
- Changing the 4-digit password
- If you forget your 4-digit password
- Normal Playback
- Insert a prerecorded video cassette.
- Press PLAY (▷) once.
- Press STOP (■) to stop playback.
- Tracking Control
- Auto Tracking
- Manual Tracking
- Special Effect Playbacks
- Special effects playback notes
- Search
- Still Picture and Frame-by-Frame Playback
- Slow Motion
- CM Skip (Commercial Skip)
- EZ (EASY) Review
- Normal Recording
- To pause recording
- To record one TV program while watching another
- Timer Recording
- Checking (Erasing) Timer Record Programming
- Program Priority
- Instant Timer Recording
- INSTANT TIMER RECORD MENU
- Checking the Recording Time
- To extend the Recording Time
- Dubbing and Editing
- Copying from DVD to VCR
- VHS Hi-Fi Stereo System/ MTS Broadcast
- Playback with Hi-Fi Stereo Audio Sound
- MTS (Multi-Channel TV Sound)
- Multichannel TV Sound Indicator (MTS)
- SAP (Second Audio Program) Recording
- Tape Counter Memory Feature
- Real-Time Counter
- Counter Memory Function
- Tape Remaining
- Additional Information
- Auto Play System
- S-VHS Quasi Playback (SQPB)
- Playing DVDs and Video CD
- Playback Setup
- Press OPEN/CLOSE (▲) to open the disc tray.
- Load your chosen disc in the tray, with the label facing up.
- Press OPEN/CLOSE (▲) to close the tray.
- If a menu screen is displayed
- Screen Saver
- General Features
- Moving to another TITLE
- Moving to another CHAPTER/TRACK
- General Features (continued)
- Random
- Repeat
- DVD Video Discs - Repeat Chapter/Title/Off
- Video CDs - Repeat Track/All/Off
- Repeat A-B
- Time Search
- 3D Surround
- Zoom
- Marker Search
- To Recall a Marked Scene
- To Clear a Marked Scene
- Special DVD Features
- Checking the contents of DVD Video discs: Menus
- Title Menu
- Disc Menu
- Camera Angle
- Changing the Audio Language
- Changing the Audio Channel
- Subtitles
- Last Condition Memory
- Playing an Audio CD and MP3/WMA Disc
- Use ▲▼ to select the MP3/WMA then press SELECT/ENTER.
- Use ▲▼ to select a track then press PLAY (▷) or SELECT/ENTER.
- Tip
- Notes on MP3/WMA Recordings
- About MP3
- About WMA(Window Media Audio)
- MP3/WMA Disc compatibility with this player is limited as follows:
- Pause
- Moving to another Track
- Repeat Track/All/Off
- Viewing a JPEG disc
- Moving to another File
- Still Picture
- To flip the picture
- To rotate picture
- Notes on JPEG Recordings
- Programmed Playback with Audio CD and MP3/WMA Disc
- Press PROGRAM during playback or in the stop mode to enter the Program Edit mode.
- Select a track, then press SELECT/ENTER to place the selected track on the Program list.
- Repeat step 2 to place additional tracks on the Program list.
- Press ▶. The progra
- Press ▲▼ to select the track you want to start playing.
- Press PLAY (▷) to start.
- To resume normal playback from programmed playback, press PROGRAM.
- Programmed Playback with Video CD
- Insert Video CD and close the tray.
- Press PROGRAM while playback is stopped. The VCD Program menu will appear.
- Follow steps 2-6 of "Programmed Playback with Audio CD and MP3/WMA disc" on left.
- To resume normal playback from programmed playback, press PROGRAM.
- Repeat Programmed Tracks
- Erasing a Track from Program List
- Erasing the Complete Program List
- Accessories:
Brand : LG
Model : V641MK
Category : DVD Player / VCR
