| Product Type | DVD Player / VCR Combo |
| Brand | LG |
| Model | VC8706P1K |
| Dimensions (W x H x D) | 430 mm x 95 mm x 280 mm |
| Weight | 3.5 kg |
| Power Supply | 110-240 V AC, 50/60 Hz |
| Power Consumption | 15 W (typical) |
| Playback Formats | DVD, DVD±R/RW, CD, CD-R/RW, VHS (NTSC/PAL) |
| Video Outputs | Composite Video, S-Video, Component Video (Y,Pb,Pr) |
| Audio Outputs | Analog Stereo (RCA), Digital Coaxial |
| Recording Functions | VHS recording, Timer recording, One-touch recording |
| Remote Control | Included (IR) |
| Disc Loading | Tray load |
| VCR Mechanism | 4-head helical scan |
| Laser Class | Class 1 (DVD) |
| Safety | Automatic power-off after idle, child lock |
| Cleaning | Use a soft, dry cloth for exterior; lens cleaning disc for optical pickup |
| Spare Parts | Remote control (model: AKB74875301), power cord |
| Warranty | 1 year (depending on region) |
Frequently Asked Questions - VC8706P1K LG
User questions about VC8706P1K LG
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your DVD Player / VCR in PDF format for free! Find your manual VC8706P1K - LG and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. VC8706P1K by LG.
USER MANUAL VC8706P1K LG
Before connecting, operating or adjusting this product, please read this instruction booklet carefully and completely.
FOR THE GUARANTEE TERMS & CONDITIONS, PLEASE BE REFER TO BACK COVER OF THIS MANUAL.
Safety Precautions / Important notes on controlling this unit
CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation mark within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.
CAUTION:
This Digital Video Disc Player employs a Laser System.
To ensure proper use of this product, please read this owner's manual carefully and retain for future reference, should the unit require maintenance, contact an authorized service location-see service procedure.
Use of controls, adjustments or the performance of procedures other than those specified herein may result in hazardous radiation exposure.
To prevent direct exposure to laser beam, do not try to open the enclosure. Visible laser radiation when open. DO NOT STARE INTO BEAM.
CAUTION: The apparatus shall not be exposed to water, dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
This product is manufactured to comply with the radio interference requirements of EEC DIRECTIVE 89/336/EEC, 93/68/EEC and 73/23/EEC.
Notes on copyrights:
It is forbidden by law to copy, broadcast, show, broadcast via cable, play in public, or rent copyright material without permission.
This product features the copy protection function developed by Macrovision. Copy protection signals are recorded on some discs.
This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.
SERIAL NUMBER: The serial number is found on the back of this unit. This number is unique to this unit and not available to others. You should record requested information here and retain this guide as a permanent record of your purchase.
Model No.
Serial No.
Features:
- Complete versatility to play DVD, VCDs, audio CDs or VHS Tapes.
- Watch a DVD while recording a TV show to the VCR.
- Remote controls both DVD and VCR decks.
- Records from DVD to VHS (unless DVD is copy protected with Macrovision).
• Hi-Fi Stereo VCR.
POWER: This unit operates on a mains supply of 200-240V\~, 50Hz.
WIRING: This unit is supplied with a BSI 1363 approved 13 amp mains plug, fused at 5 amp. When replacing the fuse always use a 5 amp BS 1362, BSI or ASTA approved type. Never use this plug with the fuse cover omitted. To obtain a replacement fuse cover contact your dealer or "LG Electronics U.K.Ltd." If the type of plug supplied is not suitable for the mains sockets in your home, then the plug should be removed and a suitable type fitted. Please refer to the wiring instructions below:
WARNING: A mains plug removed from the mains lead of this unit must be destroyed. A mains plug with bared wires is hazardous if inserted in a mains socket.
Do not connect either wire to the earth pin, marked with the letter E or with the earth symbol 12 or coloured green or green and yellow.
If any other plug is fitted, use a 5 amp fuse, either in the plug, or at the distribution board.
IMPORTANT: The wires in this mains lead are coloured in accordance with the following codes:
- BLUE: NEUTRAL, BROWN: LIVE - As the colours of the wires in the mains lead of this unit may not correspond with the coloured marking indentifying the terminals in your plug, proceed as follows: The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.
Contents
Introduction
Safety Precautions 2
Table of Contents 3
Before Use 4-5
Playable Discs 4
Precautions 5
Notes on Discs 5
About Symbols 5
Front Panel and Display Window 6
Remote Control....7
Rear Panel....8
Preparation
Connections 9-10
Connecting to a TV & Decoder (or Satellite) ..... 9
Connecting to Optional Equipment....10
Important notes on controlling this unit ..... 10
Before Operation - VCR part ..... 11-16
Tuning in a video channel on your TV....11
Using your unit for the very first time ..... 12
Setting the clock Manually 13
To set the colour system 13
How to using the main menu 14
Tuning in TV Stations Automatically ..... 14
Tuning in TV Stations Manually 15
Changing the order of TV Stations ..... 16
Deleting TV stations....16
Before Operation - DVD part ..... 17-20
General Explanation....17
On-Screen Display....17
Initial Settings 18-20
- Initial Settings General Operation....18
- Language 18
- Picture....18
- Sound 19
- Others 19
- Parental Control. 20
Operation
Operation with Tape 21-23
Playing a tape 21
- CM (Commercial Message) Skip....21
- OPR (Optimum Picture Response) ..... 21
Instant Timer Recording (ITR) 22
Timer recording using On Screen Display.....23
Operation with DVD and Video CD ..... 24-26
Playing a DVD and Video CD....24
General Features....24
- Moving to another TITLE 24
- Moving to another CHAPTER/TRACK ..... 24
- Slow Motion....24
- Still Picture and Frame-by-Frame Playback .... 25
- Search. 25
- Random 25
- Repeat 25
- Repeat A-B 25
• Time Search 25
• 3D Surround ..... 25
- Zoom. 26
- Marker Search....26
Special DVD Features 26
- Title Menu 26
- Disc Menu 26
- Camera Angle 26
- Changing the Audio Language....26
- Changing the Audio Channel ..... 26
- Subtitles 26
Operation with Audio CD and MP3/WMA Discs. . 27-28
Playing an Audio CD and MP3/WMA Discs ..... 27
• Note on MP3/WMA Recordings ..... 27
- Pause 28
- Moving to another Track 28
- Repeat Track/All/Off. 28
- Search....28
- Random 28
- Repeat A-B 28
• 3D Surround ..... 28
- Changing the Audio Channel ..... 28
Operation with JPEG Disc....29
Viewing a JPEG disc 29
- Moving to another file 29
- Still Picture 29
• To flip the picture ..... 29
- To rotate picture....29
- Notes on JPEG Recordings....29
Programmed Playback 30
Programmed Playback with Audio CD and
MP3/WMA Disc 30
Programmed Playback with Video CD 30
- Repeat Programmed Tracks .... 30
- Erasing a Track from Program List.....30
- Erasing the Complete Program List ..... 30
Additional Operation - VCR part ..... 31-32
On Screen Display....31
Tape Counter Memory Stop 31
Lock (Child Lock)....31

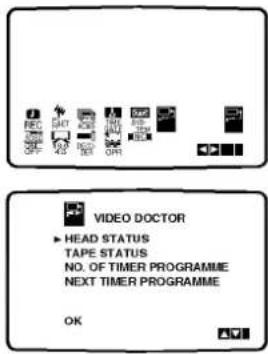

Video Doctor (Self-Diagnosis) 31
Hi-Fi Stereo Sound System 32
Wide Screen Compatibility 16:9 32
To set the decoder 32
Additional Operation - DVD part....33
Last Condition Memory 33
Screen Saver....33
Special Recording 34
Copying from DVD to VCR....34
Recording from another video recorder ..... 34
Reference

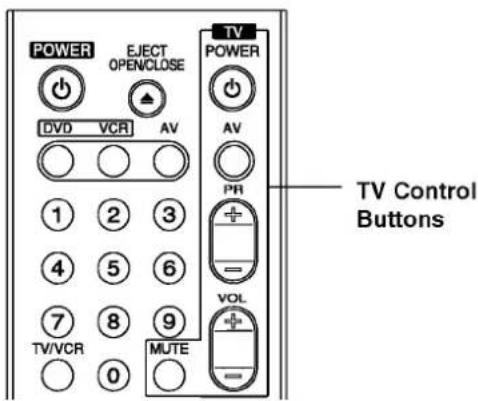

Controlling Your TV with the Supplied Remote
Control 35
Troubleshooting 36
Language Code List 37
Country Code List....38
Specification 39
About the symbols for instructions
⚠️ Indicates hazards likely to cause harm to the unit itself or other material damage.
Indicates special operating features of this unit.
Indicates tips and hints for making the task easier.
Before Use
playable Discs
 | DVD(8 cm / 12 cm disc) |
 | Video CD (VCD)(8 cm / 12 cm disc) |
 | Audio CD(8 cm / 12 cm disc) |
In addition, this unit can play a DVD±R, DVD±RW, Kodak PICTURE CD and CD-R or CD-RW that contains audio titles, MP3, WMA or JPEG files and SVCD also.
Notes
- Depending on the conditions of the recording equipment or the CD-R/RW (or DVD±R/±RW) disc itself, some CD-R/RW (or DVD±R/±RW) discs cannot be played on the unit.
- Do not attach any seal or label to either side (the labeled side or the recorded side) of a disc.
- Do not use irregular shaped CDs (e.g., heart-shaped or octagonal). It may result in malfunctions.
Notes on DVDs and Video CDs
Some playback operations of DVDs and Video CDs may be intentionally fixed by software manufacturers. As this unit plays DVDs and Video CDs according to disc content designed by the software manufacturer, some playback features of the unit may not be available, or other functions may be added. Refer also to the instructions applied with the DVDs and Video CDs. Some DVDs made for business purposes may not be played on the unit.
Regional code of the DVD player and DVDs
This DVD player is designed and manufactured for playback of region "2" encoded DVD software. The region code on the labels of some DVD discs indicates which type of player can play those discs. This unit can play only DVD discs labeled "2" or "ALL". If you try to play any other discs, the message "Check Regional Code" will appear on the TV screen. Some DVD discs may not have a region code label even though their playback is prohibited by area limits.
Disc-related terms
Title (DVD only)
The main film content or accompanying feature content or additional feature content, or music album. Each title is assigned a title reference number enabling you to locate it easily.
Chapter (DVD only)
Sections of a picture or a musical piece that are smaller than titles.
A title is composed of one or several chapters. Each chapter is assigned a chapter number, enable you to locate the chapter you want. Depending on the disc, no chapters may be recorded.
Track (Video CD and audio CD only)
Sections of a picture or a musical piece on a video CD or an audio CD. Each track is assigned a track number, enabling you to locate the track you want.
Scene
On a video CD with PBC (Playback control) functions, moving pictures and still pictures are divided into sections called "Scenes". Each scene is displayed in the menu screen and assigned a scene number, enabling you to locate the scene you want.
A scene is composed of one or several tracks.
Types of video CDs
There are two types of video CDs:
Video CDs equipped with PBC (Version 2.0)
PBC (Playback control) functions allow you to interact with the system via menus, search functions, or other typical computer-like operations. Moreover, still pictures of high resolution can be played if they are included in the disc.
Video CDs not equipped with PBC (Version 1.1)
Operated in the same way as audio CDs, these discs allow playback of video pictures as well as sound, but they are not equipped with PBC.
Before Use (Cont'd)
Precautions
Handling the unit
When shipping the unit
The original shipping carton and packing materials come in handy. For maximum protection, re-pack the unit as it was originally packed at the factory.
When setting the unit
The picture and sound of a nearby TV or radio may be distorted during playback. In this case, position the unit away from the TV or radio, or turn off the unit after removing the disc.
To keep the surface clean
Do not use volatile liquids, such as insecticide spray, near the unit. Do not leave rubber of plastic products in contact with the unit for a long period of time. They will leave marks on the surface.
Cleaning the unit
To clean the cabinet
Use a soft, dry cloth. If the surfaces are extremely dirty, use a soft cloth lightly moistened with a mild detergent solution. Do not use strong solvents, such as alcohol, benzine, or thinner, as these might damage the surface of the unit.
To obtain a clear picture
The DVD player is a high-tech, precision device. If the optical pick-up lens and disc drive parts are dirty or worn down, the picture quality will be poor. Regular inspection and maintenance are recommended after every 1,000 hours of use. (This depends on the operating environment.) For details, please contact your nearest dealer.
Notes on Discs
Handling discs
Do not touch the playback side of the disc.
Hold the disc by the edges so that fingerprints will not get on the surface.
Do not stick paper or tape on the disc.
Storing discs
After playing, store the disc in its case. Do not expose the disc to direct sunlight or sources of heat, or leave it in a parked car exposed to direct sunlight, as there may be a considerable temperature increase inside the car.

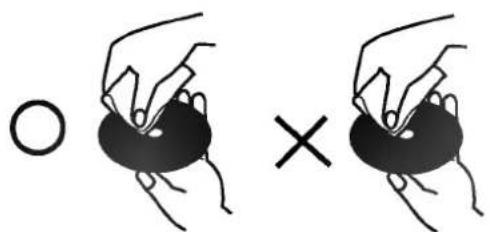

Cleaning discs
Fingerprints and dust on the disc can cause poor picture quality and sound distortion. Before playing, clean the disc with a clean cloth. Wipe the disc from the center out.
About Symbols
About the ⊙ symbol display
“ ⊗ ” may appear on the TV screen during operation. This icon means the function explained in this owner's manual is not available on that specific DVD video disc.
About the disc symbols for instructions
A section whose title has one of the following symbol is applicable only to the disc represented by the symbol.
- DVD
Video CDs with the PBC ( playback control) function. - Video CDs without the PBC (playback control) function.
- Audio CDs.
- MP3 disc.
- WMA disc.
- JPEG disc.

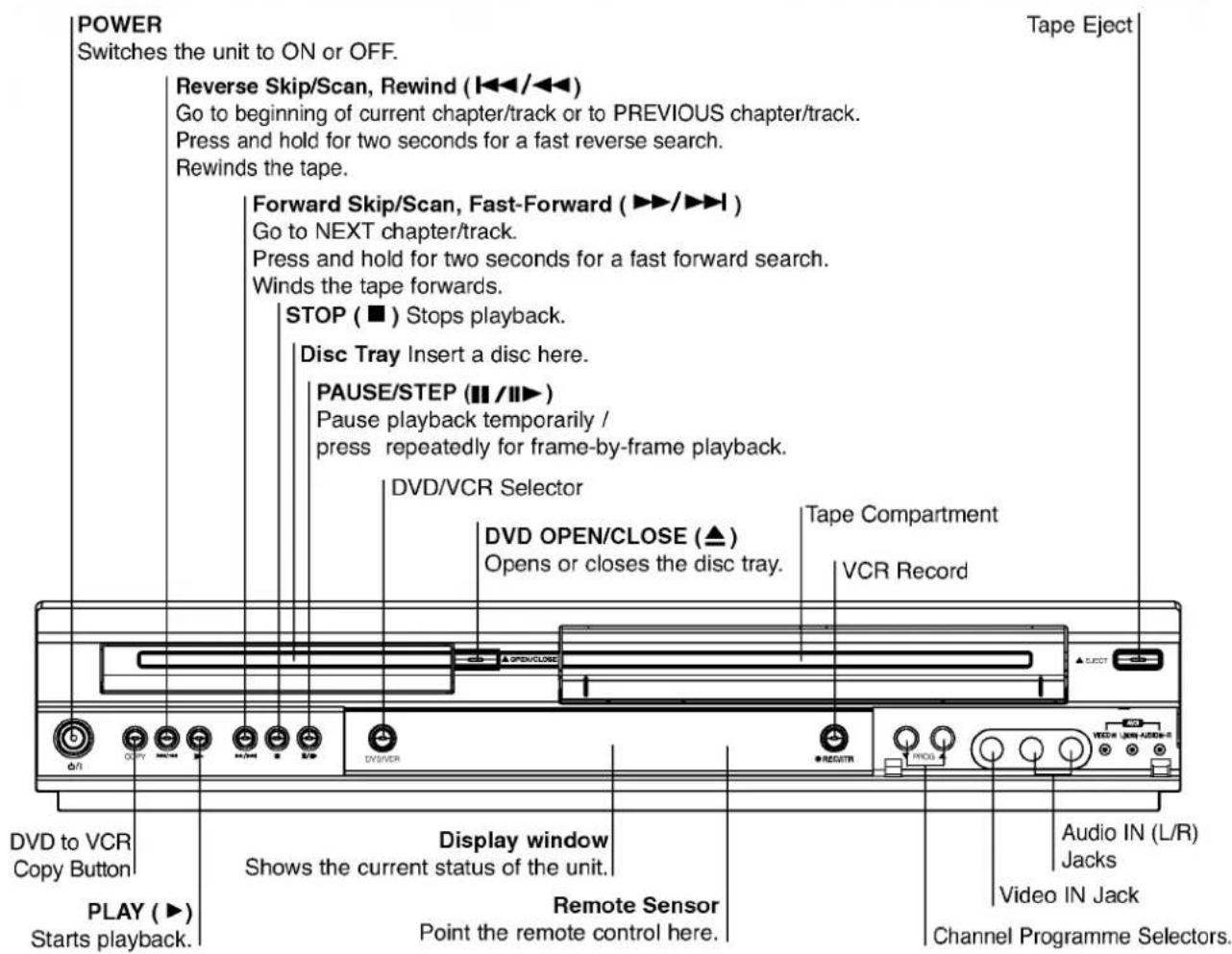

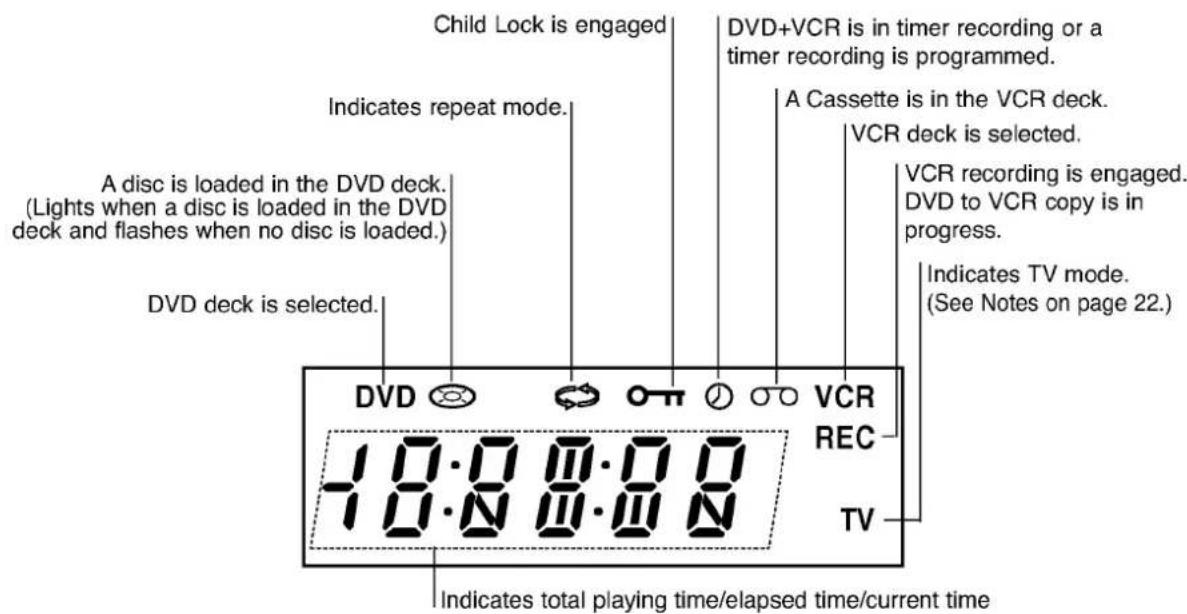

Front Panel and Display Window

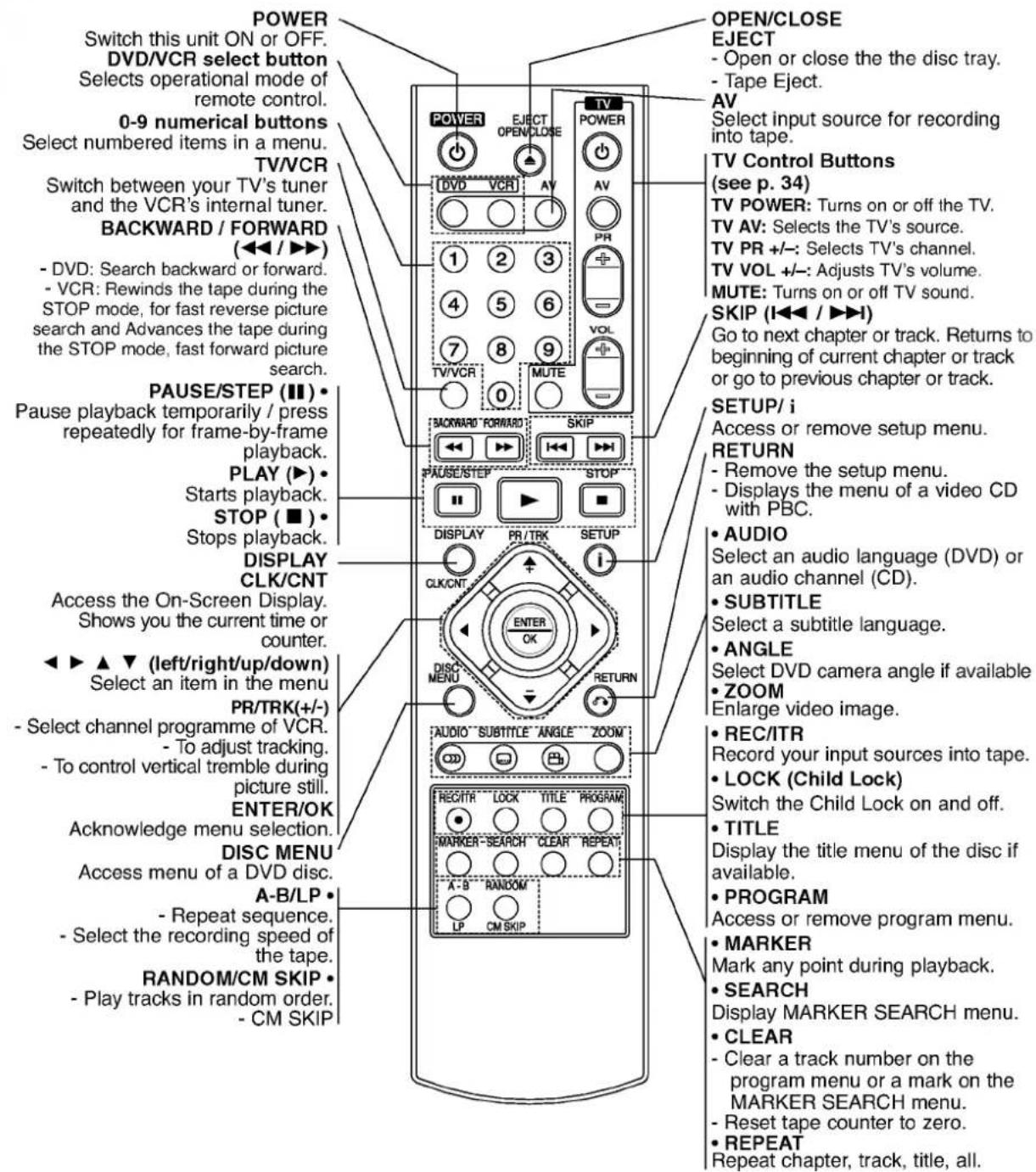

Remote Control
Remote Control Operation Range
Point the remote control at the remote sensor and press the buttons.
- Distance: About 23 ft (7 m) from the front of the remote sensor
- Angle: About 30^ in each direction of the front of the remote sensor
Remote control battery installation
Detach the battery cover on the rear of the remote control, and insert two R03 (size AAA) batteries with + and - aligned correctly.
Caution
Do not mix old and new batteries. Never mix different types of batteries (standard, alkaline, etc.).

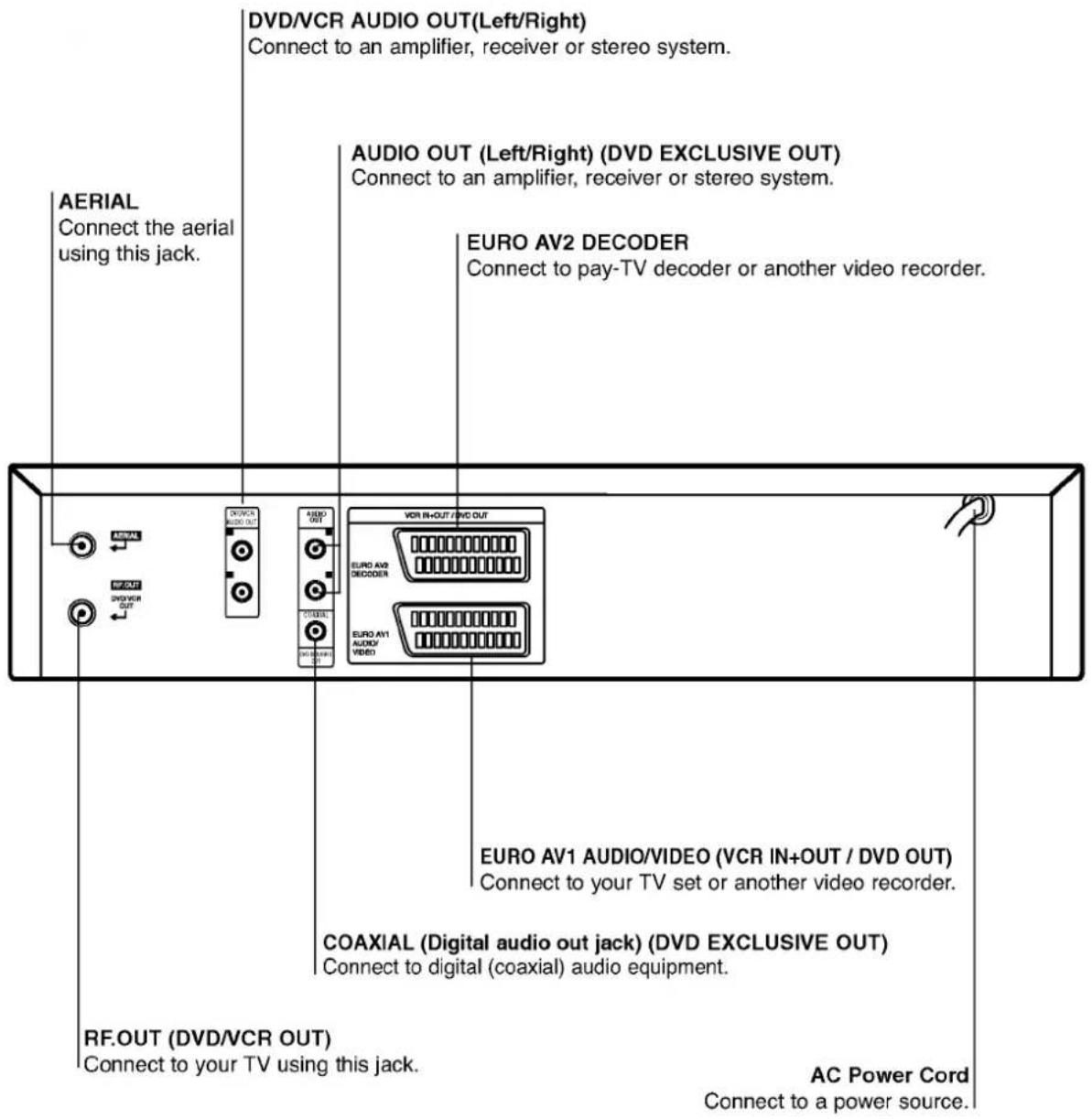

Rear Panel
Do not touch the inner pins of the jacks on the rear panel. Electrostatic discharge may cause permanent damage to the unit.
Connections
Tips
- Depending on your TV and other equipment you wish to connect, there are various ways you could connect the unit.
- Please refer to the manuals of your TV, Stereo System or other devices as necessary to make the best connections.
- For better sound reproduction, connect this unit's AUDIO OUT jacks to the audio in jacks of your amplifier, receiver, stereo or audio/video equipment. See "Connecting to optional equipment" on page 10.
Caution
- Make sure this unit is connected directly to the TV. Set the TV to the correct video input channel.
- Do not connect this unit's AUDIO OUT jack to the phono in jack (record deck) of your audio system.

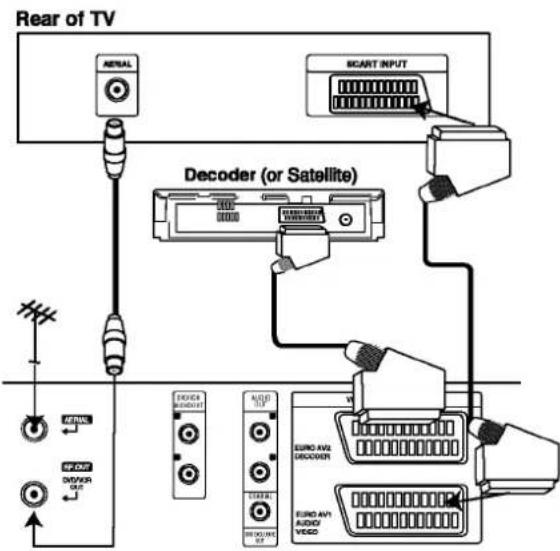

Connecting to a TV & Decoder
(or Satellite)
- Make one of the following connections, depending on the capabilities of your existing equipment.
Basic connection (AV)
1 Connect the EURO AV1 AUDIO/VIDEO on the rear panel of this unit to the SCART input socket on the TV using a SCART lead.
2 Some TV broadcasters transmit encoded television signals which you can only see with a purchased or rented decoder. You can connect such a decoder (descrambler) to this unit.
Basic connection (RF)
1 Connect the RF antenna cable from your indoor/outdoor antenna to AERIAL jack on the rear panel of this unit.
2 Connect the supplied RF cable from the RF.OUT jack on the rear panel of this unit to your television's Antenna Input.
Rear of DVD+VCR (Basic connection)
Connections (Cont'd)/Important notes on controlling this unit

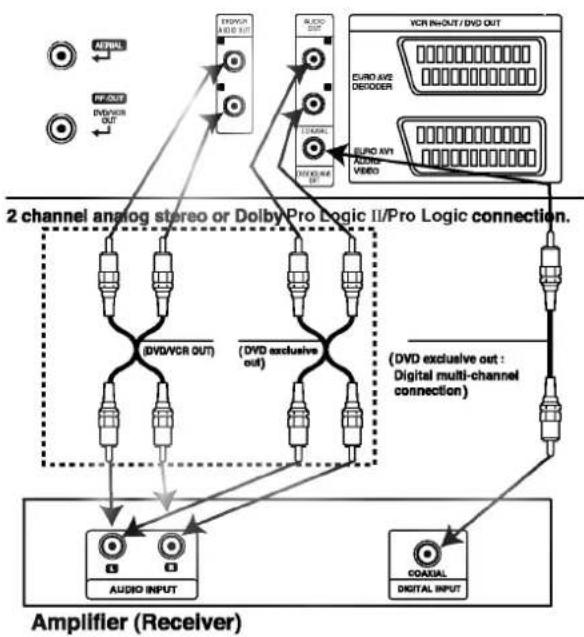

Connecting to Optional Equipment
Connecting to an amplifier equipped with two channel analog stereo or Dolby Pro Logic II/Pro Logic
Connect the Left and Right AUDIO OUT jacks on this unit to the audio left and right in jacks on your amplifier, receiver or stereo system, using the audio cables.
Connecting to an amplifier equipped with two channel digital stereo (PCM) or to an Audio/Video receiver equipped with a multi-channel decoder (Dolby Digital™, MPEG 2 or DTS)
1 Connect this unit's DIGITAL AUDIO OUT jack (COAXIAL) to the corresponding in jack on your amplifier. Use an optional coaxial audio cable.
2 You will need to activate this unit's digital output. (See "Digital Audio Output" on page 19).
Digital Multi-channel sound
A digital multi-channel connection provides the best sound quality. For this you need a multi-channel Audio/Video receiver that supports one or more of the audio formats supported by your unit (MPEG 2, Dolby Digital and DTS). Check the receiver manual and the logos on the front of the receiver.
Warning:
Due to the DTS Licensing agreement, the digital output will be in DTS digital out when DTS audio stream is selected.
Rear of DVD+VCR
Notes
- If the audio format of the digital output does not match the capabilities of your receiver, the receiver will produce a strong, distorted sound or no sound at all.
- To see the audio format of the current DVD in the On-Screen Display, press AUDIO.
Important notes on controlling this unit
This unit uses one set of controls to operate both DVD and VCR. The following buttons are helpful in successfully controlling each part.
1 POWER Button
Press the POWER button on the remote control or front panel to turn on this unit.
2 DVD Button
Press DVD button on the remote control when you want to control the DVD.
The DVD indicator will light on the front panel display to show that the DVD is selected.
3 VCR Button Press the VCR button on the remote control when you want to control the VCR. The VCR indicator will light on the front panel display to show that the VCR is selected.
4 DVD/VCR Button Press the DVD/VCR button on the front panel to toggle control between the DVD and the VCR.
Before Operation - VCR part
Tuning in a video channel on your TV
Notes
- The output frequency of this video recorder (VCR) is set at UHF channel 36. If channel 36 is already used by another TV station, or if the picture is distorted, you can change the transmitter channel of your VCR. Stages 5 \~ 8 will show you how to change the output frequency of your VCR.
- Your TV receives signals from the video recorder (VCR) like another TV station. You have to select a channel number on your TV and tune it in so that you may watch video tapes. If you have used a SCART cable then your TV should already have a dedicated video channel built into it, usually called AV.
1 Make sure that you have correctly installed your VCR as described earlier in this book. Press POWER to turn on your VCR. Turn on your TV.
2 Insert a pre-recorded video tape into your VCR and press PLAY on the remote control. Select a TV channel number on which you wish to watch video's.
Don't worry if you don't have a video-tape to play at this stage! If you switch your VCR on and continue stages 3 \~ 4, instead of seeing video playback tune your TV until you see a bright blue screen.
3 Tune this channel until the video picture is sharp and the sound is clear.
If you have used a SCART cable you will not have to tune your TV, simply select the AV channel. The AV channel is already pre-tuned for optimum video playback on your TV.
4 Store this channel on your TV. You will need to look at the TV instruction book if you do not know how to do this.
5 Only carry out stages 5 \~ 8 if you cannot obtain clear video playback as described in stages 1 \~ 4. Select a TV channel number on which you wish to watch videos.
Make sure that your VCR is in standby pressing POWER on the remote control (Only the clock will be displayed.).
6 Press PROG. ▲ or ▼ on the front of your VCR for more than 4 seconds.
RF36 will appear in the display window.
The following picture will be displayed on the TV screen.
7 Press PROG. ▲ or ▼ to select another video channel. You may select any channel number between 22 and 68.
You can also set it to "OFF" if there is any interference when your TV is connected to the VCR with a SCART lead.
8 Select a TV channel number on which you wish to watch videos.
Press ⏻/1 on the front of your VCR when you have finished.
Tune this channel so that a bright blue screen appears.
Store this channel on your TV.
Notes
Make sure that you have correctly installed your VCR and successfully tuned in a dedicated video channel on your TV. If you do not tune in a dedicated video channel on your TV you will be unable to view and record video tapes!
Before Operation - VCR part
Using your unit for the very first time
Notes
- For the following steps we assume that you have just connected your video recorder for the very first time. To make tuning TV stations an easy task your VCR incorporates the Automatic Channel Memory System (ACMS). This system will automatically tune and store TV channels to your VCR. While this is happening the clock (date & time) in the video recorder will be set automatically.
- The ACMS system relies on signals transmitted by the TV Station, for auto clock setting and station identification. If the TV broadcast signal is weak or fluctuates your VCR may not detect the necessary information and will be unable to identify station names and sort them correctly. To overcome this problem please turn to the MANUAL TUNING section of this book on page 15.
Make sure that you have correctly installed your VCR and tuned a video channel on your TV as described earlier in this book.
Press POWER to turn on your VCR.
If you have a satellite receiver make sure that it is connected to your VCR, switched on and Sky News has been selected.
(Initial Menu Screen)
If the initial Menu Screen doesn't appear on screen, make sure that you have tuned your TV to a video channel. Or if this is correct it may mean that your VCR is already tuned.
Press OK to start the automatic tuning process.
The TV station table will appear when tuning is complete.
Press i to store your TV stations and remove the TV station table.
Before Operation - VCR part
Setting the clock Manually
The clock in your VCR controls time and date settings for your VCR.
Your VCR's clock is checked continually against Teletext information broadcast by most TV stations. The clock is set automatically during ACMS (Automatic Channel Memory System) when your VCR detects a channel that broadcasts a Teletext signal. If the broadcast signal is weak the clock will not be set and will require setting manually.
1 Press i.
Press ◀ or ▶ to select TIME DATE.
Press OK.
The auto adjust mode can be set to "OFF" by pressing ▲ or ▼ if you want to set the time manually. Press OK.
2 Use the numbered buttons on the remote control to alter the HOURS, MINUTES, DAY, MONTH and YEAR.
Please note your VCR uses a 24 hour clock. e.g. 1pm will be displayed as 13:00.
When entering singles numbers a 0 must be added first, for example 1 must be entered as 01, 2 as 02 etc.
The day of the week will appear automatically when you enter the date.
3 If you make a mistake press ◀ or ▶ and enter the correct details.
4 Press i.
To set the colour system
Your VCR is equipped with dual colour standard, you can play back a tape in PAL and MESECAM. During playback your VCR detects the colour system automatically.
It there are colour problem please select the colour system manually.
1
Press i.
2
The main menu will appear on the TV screen.
3
Press ◀ or ▶ to select the SYSTEM and press OK.
4
Press ▲ or ▼ to select according to the COLOUR system used.
AUTO: automatic colour selection, PAL: PAL recordings, MESECAM: MESECAM recordings.
5
Press ◀ or ▶ to select the RF AUDIO.
Press ▲ or ▼ to select according to the RF AUDIO used.
6
Press i to remove the menus from the TV screen.
Before Operation - VCR part

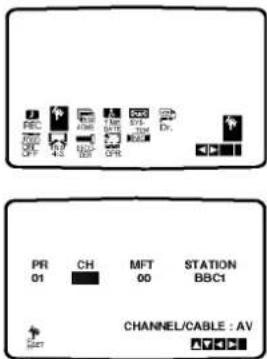

How to using the main menu
This VCR can easily be programmed by using the menus displayed on screen.
The menus are controlled from the Remote Control Handset.
1 Turn on your TV set and video recorder by pressing the POWER button.
2 Press i button. The main menu will appear on the TV screen.
- REC - Timer recording setting (see p. 23).
- PR SET - Manual tuning setting (see p. 15).
- ACMS - ACMS (Automatic Channel Memory System) (see p. 14).
• TIME DATE - Date & clock setting (see p. 13). - SYSTEM - To set the Colour TV System (see p. 13).
RF AUDIO - To select the channel of audio output according to your TV type ("B/G" for PAL B/G TV, "D/K" for PAL D/K TV, "I/I" for PAL I/I TV) (see p. 13).
- Dr. - To check a problem with your VCR (see p. 31).
- F.OSD ON/OFF - To display the operational mode of your VCR (see p. 31).
- 16:9/4:3 - To select the aspect ratio of your TV (see p.32).
- DECODER - To use a pay-TV decoder (or Satellite) with your VCR (see p. 32).
- OPR - To improve the playback picture (see p. 21).
- NIC - To activate or deactivate the NICAM digital sound (see p. 32).
Tip
You can change the menu language on the DVD setup menu. (See the Menu Language on page 18.)
3 Press ◀ and ▶ to select the desired menu.
Press OK and press ▲ or ▼ to select the sub menu.
4 Press "i" to remove the menu.
Tuning in TV Stations Automatically
The guidance given on page 12 is for first time use of your VCR.
Should you wish to perform the Automatic Channel Memory System (ACMS) again please follow the guidance given on this page. You may tune up to 88 TV stations into your VCR.
1 Press POWER to turn on your VCR.
If you have a satellite receiver make sure that it is connected to your VCR, switched on and Sky News has been selected.
2 Press i button.
The main menu will appear on the TV screen.
Press ◀ or ▶ to select the ACMS.
Press OK.
3 Press OK again to start the automatic tuning process. The TV station table will appear when tuning is complete.
4 Please note currently only a limited number of TV companies transmit the Programme Delivery Control (PDC) signal which enables your VCR to successfully identify and store them. If your VCR has difficulty in identifying a TV station please turn the page to find out how to manually tune in and name a TV station.
While automatic tuning is taking place the time and date will set automatically.
If - - :- appears in the VCR display it means that the broadcast signal is weak and the clock was not set. Please turn to CLOCK SET section of this book on page 13.
Before Operation - VCR part
Tuning in TV Stations Manually
In certain areas of the country broadcast signals may be too weak for your VCR's automatic tuning process to find or assign TV stations correctly. You must tune in these weaker broadcast stations manually in order for your VCR to store them.
1 Press i.
The main menu will appear on the TV screen.
Press ◀ or ▶ to select the PR SET.
Press OK.
Press i.
The station table will appear.
Press ▲ or ▼ to select the programme number that you want to tune (for example, PR 06).
Press OK.
Press AV to select C (Standard stations) or S (Cable stations):
C02 - C69, S01 - S41.
Enter the channel number of station that you want to tune with the numbered buttons or use ▲ or ▼ to find the required station.
4 Searching will stop when it locates a station. If the station transmits PDC, the station name will be added automatically.
Press ▶ to select MFT.
Control the fine tuning of the station by pressing ▲ or ▼.
5 Press ▶ to select STATION so that you may name your TV station.
Press OK.
The TV station name list will appear.
6 Press ▲ or ▼ to select a station name from the list. Press OK to select it.
7 You can change a TV station name manually rather than using the "standard" names.
Press ▶
Press ▲ or ▼ to select letters and numbers for the new station name.
Press ◀ or ▶ to move back and forth between characters.
Press OK.
8 Press i, confirm the station placement. Press i again.
Your new TV station has now been tuned into your VCR. If you wish to manually tune other stations repeat stages 1 - 8.
Changing the order of TV Stations
After tuning TV stations into your VCR you may wish to change the order in which they are stored without having to retune them against! The instructions given on this page will show you how you can simply move them into your desired order.
1 Press i. The main menu will appear on the TV screen. Press ◀ or ▶ to select the PR SET. Press OK.
2 Press i. Press ▲ or ▼ to select the programme number you want to move (for example, PR 03). Press ▶.
3 Press ▲ or ▼ to place the cursor line at the position where to insert the selected programme. (for example, PR 05)
4 Press OK. The selected programme will be moved to the new programme number. If you wish to move other TV stations repeat stages 2 - 4. Press i to remove the menus from the TV screen.
Deleting TV Stations
After tuning TV stations into your VCR you may wish to delete a station. The instructions given on this page will show you how easily delete any unwanted TV stations.
1 Press i. The main menu will appear on the TV screen. Press ◀ or ▶ to select the PR SET. Press OK.
2 Press i. Press ▲ or ▼ to select the programme number you want to delete. (for example, PR 01)
3 Press ◀. After a short while, the selected station will be deleted. The following stations are resorted automatically.
4 If you wish to delete other TV stations repeat stages 2 - 3. Press i to remove the menus from the TV screen.
How to selecting Stored TV stations:
Stored TV stations can be selected in either of two ways. Press PROG. ▲ or ▼ to select different stations that are tuned into your VCR. You may also directly select stations using the numbered buttons on the remote control.
Before Operation - DVD part
General Explanation
This manual gives the basic instructions for operating this unit. Some DVDs require specific operation or allow only limited operation during playback. When this occurs, the symbol ⊙ appears on the TV screen, indicating that the operation is not permitted by this unit or is not available on the disc.
On-Screen Display
The general playback status can be displayed on the TV screen. Some items can be changed on the menu.
On-screen display operation
Press DISPLAY during playback.
Press ▲ or ▼ to select an item. The selected item will be highlighted.
Press ◀ or ▶ to change the setting of an item. The number buttons can be also be used for setting numbers (e.g., title number). For some functions, press ENTER to execute the setting.
Temporary Feedback Field Icons
Repeat Title
Repeat Chapter
Repeat Track (non-PBC Video CDs only)
Repeat All Tracks (non-PBC Video CDs only)
Repeat A-B
Repeat Off
Resume play from this point
Action prohibited or not available
Notes
- Some discs may not provide all of the below On-Screen Display.
- If no button is pressed for 10 seconds, the On-Screen Display disappears.
| Items | Function (Press ▲/▼ to select desired item) | Selection Method | ||
| Title Number | [ZZOT] | 1 /3 | Shows the current title number and total number of titles, and skips to the desired title number. | ◀ / ▶, or Numbers, ENTER |
| Chapter Number | [TYWV] | 1 /12 | Shows the current chapter number and total number of chapters, and skips to the desired chapter number. | ◀ / ▶, or Numbers , ENTER |
| Time search | [YACK] | Shows the elapsed playing time, and searches the point by the elapsed time directly. | Numbers , ENTER | |
| Audio language and Digital Audio Output mode |  | 1 ENG D□D 5.1 CH | Shows the current audio soundtrack language, encoding method, and channel number, and changes the setting. | ◀ / ▶, or AUDIO |
| Subtitle language | [YSAA] | Shows the current subtitles language, and changes the setting. | ◀ / ▶, or SUBTITLE | |
| Angle | [DHZO] | Shows the current angle number and total number of angles, and changes the angle number. | ◀ / ▶, or ANGLE | |
| Sound | [HOWT] | NORM. | Shows the current sound mode, and changes the setting. | ◀ / ▶ |
| Items | Function (Press ▲/▼ to select desired item) | Selection Method | ||
| Track Number | [0YZH] | 1 /4 | Shows the current track number, total number of tracks and PBC On mode, and skip to the desired track number. | ◀ / ▶, or Numeric, ENTER |
| Time | [62WH] | Shows the elapsed playing time (Display only) | - | |
| Audio Channel |  | STER. | Shows the audio channel, and changes the audio channel. | ◀ / ▶, or AUDIO |
| Sound |  | NORM. | Shows the current sound mode, and changes the setting. | ◀ / ▶ |
Before Operation (Continued) - DVD part
Initial Settings
You can set your own Personal Preferences on this unit.
Initial Settings General Operation
Press SETUP.
The setup menu appears.
2 Press ▲/▼ to select the desired item.
The screen will show the current setting for the selected item, as well as alternate setting(s).
3 While the desired item is selected, press ▶, then ▲/▼ to select the desired setting.
4 Press ENTER to confirm your selection. Some items require additional steps.
5 Press SETUP, RETURN or PLAY to exit the setup menu.
Language
Disc Language
Select a language for the disc's Menu, Audio, and Subtitle.
Original : The original language set for the disc is selected. Other : To select another language, press number buttons to enter the corresponding 4-digit number according to the language code list on page 37. If you enter the wrong language code, press CLEAR.
Menu Language
Select a language for the setup menu. This is the menu you see when you press SETUP.
TV Aspect
4:3 Letterbox: Select when a standard 4:3 TV is connected. Displays theatrical images with masking bars above and below the picture.
4:3 Panscan: Select when a conventional TV set is connected. The video material formatted in the Pan & Scan style is played back in that style (Both sides of the picture are cut off).
16:9 Wide: Select when a 16:9 wide TV is connected.
Before Operation (Continued) - DVD part
Sound
Digital Audio Output
Each DVD disc has a variety of audio output options. Set the player's Digital Audio Output according to the type of audio system you use.
DOLBY DIGITAL/PCM: Select "DOLBY DIGITAL/PCM" if you connected this unit's DIGITAL OUT jack to a Dolby Digital decoder (or an amplifier or other equipment with a Dolby Digital decoder).
Stream/PCM: Select "Stream/PCM" if you connected this unit's DIGITAL OUT jack to an amplifier or other equipment with a DTS decoder, Dolby Digital decoder or MPEG decoder.
PCM: select when connected to a 2-channel digital stereo amplifier. This unit outputs sounds in the PCM 2ch format when you play a DVD video disc recorded on the Dolby Digital, MPEG1, or MPEG2 recording system.
Sample Frequency
To change the Sample Frequency setting, first select the desired Digital Audio Output as indicated as above. If your receiver or amplifier is NOT capable of handling 96KHz signals, select 48KHz. When this choice is made, this unit will automatically convert any 96KHz signals to 48KHz so your system can decode them. If your receiver or amplifier is capable of handling 96KHz signals, select 96KHz. When this choice is made, this unit will pass each type of signal through without any further processing.
Others
The DRC, Vocal, PBC and Auto Play settings can be changed.
- Press ▲▼ to select the desired item and press ENTER. The setting of the selected item is changed between On and Off.
Dynamic Range Control (DRC)
With the DVD format, you can hear a program's soundtrack in the most accurate and realistic presentation possible, thanks to digital audio technology. However, you may wish to compress the dynamic range of the audio output (the difference between the loudest sounds and the quietest ones). Then, you may listen to a movie at a lower volume without losing clarity of sound. Set DRC to On for this effect.
Vocal
Set Vocal to On only when a multi-channel karaoke DVD is playing. The karaoke channels on the disc will mix into a normal stereo sound.
PBC
Set Playback Control (PBC) to On or Off.
On: Video CDs with PBC are played according to the PBC.
Off: Video CDs with PBC are played the same way as Audio CDs.
Auto Play
You can set up the DVD Player so a DVD disc automatically starts playing whenever the DVD is inserted. If Auto Play mode is set to On, this DVD player will search a title that playback time is long most and then play back the title automatically.
On: Auto Play function is activated.
Off: Auto Play function is not activated.
Note
The Auto Play function may not work for some DVDs.
Parental Control
Rating
Movies on DVDs may contain scenes not suitable for children. Therefore, discs may contain Parental Control information that applies to the complete disc or to certain scenes on the disc. These scenes are rated from 1 to 8, and alternatively, more suitable scenes are available for selection on some discs. Ratings are country-dependent. The Parental Control feature allows you to prevent discs from being played by your children or to have certain discs played with alternative scenes.
1 Select "Rating" on the Setup menu using the ▲ and ▼ buttons.
2 While "Rating" is selected, press ▶.
3 When you have not entered a password yet. Enter a 4-digit password using the numbered buttons to create a personal 4-digit security password, then press ENTER. Enter the 4-digit password again and press ENTER to verify.
When you have already entered a password; Enter a 4-digit password using the numbered buttons to confirm the personal 4-digit security password, then press ENTER.
If you make a mistake before pressing ENTER, press CLEAR and enter 4-digit security password again.
4 Select a rating from 1 to 8 using the ▲▼ buttons. One (1) has the least playback restrictions. Eight (8) has the most playback restrictions. Unlock: If you select Unlock, Parental Control is not active. The disc will play in full.
Ratings 1 to 8: Some discs contain scenes not suitable for children. If you set a rating for the player, all disc scenes with the same rating or lower will be played. Higher rated scenes will not be played unless an alternative scene is available on the disc. The alternative must have the same rating or a lower one. If no suitable alternative is found, playback will stop. You must enter the 4-digit password or change the rating level in order to play the disc.
5 Press ENTER to confirm your rating selection, then press SETUP to exit the menu.
Country Code
Enter the code of a country/area whose standards were used to rate the DVD video disc, referring to the list (See "Country Code List", page 38.).
1 Select Country Code using the ▲▼ buttons on the setup menu.
2 While Country Code is selected, press ▶.
3 Follow step 3 of "Rating" on left.
4 Select the first character using the ▲▼ buttons.
5 Shift the cursor using ◀▶ buttons and select the second character using ▲▼ buttons.
6 Press ENTER to confirm your country code selection, then press SETUP to exit the menu.
Note
Confirmation of the 4-digit password is necessary when the code is changed (see "Changing the 4-digit code" below).
Changing the 4-digit code
1 Follow Steps 1-2 as shown above to the left (Rating).
2 Enter the old code, then press ENTER.
3 Select "Change" using the ▲▼ buttons then press ENTER.
4 Enter the new 4-digit code, then press ENTER.
5 Enter exactly the same code a second time and verify by pressing ENTER.
6 Press SETUP to exit the menu.
If you forget your 4-digit code
If you forget your password, to clear the current password, follow the procedure below.
1 Press SETUP to display the setup menu.
2 Use the Number buttons to enter the 6-digit number "210499".
The 4-digit password is cleared.
3 Enter a new code as shown above to the left (Rating).
Operation with tape
Playing a tape
You will only be able to load and eject video cassettes when your VCR is plugged into the mains. Your VCR may also playback recordings from NTSC tapes (on PAL TV).
Getting a better picture
When a cassette is inserted and playback started, the automatic tracking function works to get the best possible picture automatically. If the quality of the recording is poor, repeatedly press TRK + or - on the remote control to manually adjust the tracking until any distortions have been removed. Press numbered 0 on the remote control to switch automatic tracking back on again.
Picture search will only continue for about 3 minutes, after which your VCR will return to normal playback. During picture search, logic search, and CM Skip the sound is mute and there will be some noise streaks on the picture.
1 Make sure that you have correctly connected your VCR as described earlier in this book.
Turn on your TV and select the video channel for video playback.
Press POWER to turn on your VCR.
Insert the video cassette into your VCR.
The video cassette should have the window side facing up and the arrow facing away from you.
2 Press PLAY to start playing your tape. If you load a video cassette which has had its record protection tab removed, playback of the cassette will start automatically.
AUTO TRACKING
Your VCR will automatically adjust the tracking to give the best picture quality.
3 Press PAUSE/STEP to pause a picture.
Press PAUSE/STEP repeatedly to advance the still picture frame by frame.
If you press FORWARD, the picture will be slowed down at about 1/19 times the normal playback.
Tapes can be paused for up to 5 minutes. After 5 minutes your VCR will stop the tape to prevent damaging the tape or your VCR.
Press TRK + or - to reduce the vertical tremble during still picture.
4 Press PLAY to continue playing your tape. Picture search:
During playing back press either FORWARD or BACKWARD and this will enable you to rapidly wind the tape (7 times normal playback speed) and see where you are on the tape.
Logic search:
During fast forwarding or rewinding press and hold FORWARD or BACKWARD the picture will be played back at 7 times normal playback speed.
5 Slow motion playback, Shuttle :
During playing back or still picture press ◀ or ▶. You can reach the following playback speeds.
(-7xplay, -3xplay, -play, still, 1/19 slow, play, 2xplay, 7xplay)
To switch off the slow motion and shuttle, press the desired function.
During slow motion and shuttle, the noise bars may appear on the picture according to the status of tape.
If distortions can be seen in the picture, reduce them with TRK + or -.
6 Press STOP to end playback. Press EJECT.
If the end of the tape is reached, your VCR will stop playback automatically, rewind, stop, eject the tape.
CM (Commercial Message) Skip:
This feature enables you during playback of a tape to skip a commercial break in a few seconds, then resume normal playback.
While tape is playing press CM SKIP on the remote control to skip commercial (or another programme material).
Repeatedly press CM SKIP to skip:
1 Press 30 seconds
2 Press 60 seconds
3 Press 90 seconds
4 Press 120 seconds
5 Press 150 seconds
6 Press 180 seconds
1 Press 30 seconds
2 Press 60 seconds
3 Press 90 seconds
4 Press 120 seconds
5 Press 150 seconds
6 Press 180 seconds
OPR (Optimum Picture Response)
This feature automatically improves playback picture quality by adjusting your VCR to the condition of the tape.
1 Press i.
2 Press ◀ or ▶ to select OPR.
3 Press OK.
4 Press ▲ or ▼ repeatedly to select: OFF, SOFT or SHARP.
Please note you may only set OPR when playing a tape.
5 Press i to remove the menus.
Instant Timer Recording (ITR)
Your VCR allows you to make recordings using a variety of simple methods:
Instant Timer Recording (ITR) start recording immediately for a set period of time or until the video cassette runs out.
Timer Recording you may record at a later time (up to 1 month from the present). Up to 7 of these automatic recordings may be set.
Your VCR incorporates Long Play (LP) which enables you to record up to twice the amount of time on a video cassette. For example an E-180 will record up to 180 minutes using Standard Play (SP); using LP you will be able to record up to 360 minutes. Please note there will be a slight loss in picture and sound quality when using LP.
1 Make sure that you have correctly connected your VCR as described earlier in this book.
Turn on your TV and select the channel that you set up for video playback.
Press POWER to turn on your VCR.
2 Insert a video cassette with protection tab into your VCR.
The video cassette should have the window side facing up and the arrow facing away from you.
3 Press PR + or - to select the programme number you wish to record.
You may also directly select programme number using the numbered buttons on the remote control.
4 If you wish to record directly from the SCART or RCA sockets repeatedly press AV until the socket you wish to record from is displayed.
AV 1 Sound and Picture recording using the lower SCART socket on the back of your VCR.
AV 2 Sound and Picture recording using the upper SCART socket on the back of your VCR.
AV 3 for recording from VIDEO IN and AUDIO IN (Left & Right) sockets on the front of your unit.
5 Press LP if you wish to record in Long Play or Standard Play. SP will produce improved picture and sound quality, however LP will provide twice as much recording time as SP. SP or LP will be displayed in your VCR display to let you know which you have selected.
6 Press REC/ITR to start recording. RECORD will appear on the TV screen. Press REC/ITR several times. Each successive press will increase the record time by 30 minutes until you reach a maximum of 9 hours.
7 Press PAUSE/STEP to avoid recording unwanted scenes. Press PAUSE/STEP to continue recording. If you press PAUSE/STEP during ITR, this unit will enter the record pause mode and ITR is cancelled. Tapes can be paused for up to 5 minutes; RECP will be displayed when a tape is paused. After 5 minutes your VCR will stop recording to prevent damaging the tape or your VCR.
8 Press STOP to end recording. Press EJECT. EJECT will appear on the TV screen for a few seconds. If the end of the tape is reached, your VCR will stop recording automatically, rewind, stop, eject the tape.
Notes
- If you do not wish to record on a tape (this can happen quite easily by accident!) remove the protection tab on the back edge of the video cassette.
- It is possible to record on a video cassette with the record protection tab removed by covering the hole with self adhesive tape.
- Remember you can record one programme while watching another by starting your instant recording, press TV/VCR to appear TV indicator in the display window and then selecting a different channel on your TV.
Operation with tape
Timer recording using On Screen
Display
You may set up to seven timer record events within one month of the current date.
Note
Before setting the timer make sure that you have set the VCR clock correctly and you know which stations you have tuned TV stations on your VCR.
1 Insert a video cassette with protection tab into your VCR. The video cassette should have the window side facing up and the arrow facing away from you.
Press i.
Press ◀ or ▶ to select REC. Press OK.
3 Press OK to start setting the timer record event. If all timer record events are full press ▲ or ▼ to select the event that you wish to remove and replace.
Press ◀ to delete the event.
4 Press the numbered buttons to enter the station that you wish to record.
When selecting stations 1 - 9, press 0 first, then the channel number; for example PR No. 1 as 01. You may also select programme numbers by pressing ▲ or ▼. Once selected press ▶.
If you wish to record from AUDIO IN (L/R) and VIDEO IN on the front or from the EURO SCART sockets on the back of your unit, repeatedly press AV to select for correct display (AV1, AV2 or AV3).
5 Press the numbered buttons to enter the date of the programme.
If you press OK before entering the date you may select one of the following automated recording features. Press ◀ or ▶ to select, then press OK to confirm.
DLY To record every day (except Saturday and Sunday) at the same time.
SU\~SÁ To record at the same time every week.
6 Press the numbered buttons to enter the recording start and end times of the programme that you wish to record. Please note your VCR uses a 24 hour clock. e.g. 1pm will be displayed as 13:00. You may also select the start and end times by pressing ▲ or ▼.
7 Press ▲ or ▼ to switch PDC on or off. If you are recording from stations that do not broadcast PDC switch PDC off! (* symbol will disappear on the TV screen).
Press ▶ to select the recording speed.
Press ▲ or ▼ to select the desired tape speed (SP, IP, or LP).
IP mode determines how much tape is left and switches speed from SP to LP, if necessary, to complete recording the program. IP mode is not selected when PDC is ON.
Check that the timer event details are correct. Press i to save your settings.
If PLEASE CHECK is displayed, you have entered incorrect and will need to re-enter the data. If you want to make other Timer recordings repeat stages 3 - 8. Press i again to remove the menus. Press POWER to switch your VCR Standby.
∅ will appear in the display window while your VCR waits to make the recording. To watch a DVD during timer recording standby mode, press POWER and DVD to switch to DVD mode. Press STOP to end recording.
Notes
- If at a later date you wish to delete or change any of the settings in timer event memory you may do so without having to enter all the timer event information again. Simply display the timer event screen. Press ▲ or ▼ to select the event that you wish to delete or change. Press ◀ to delete the event.
Press OK to change; then press ◀ or ▶ to select; Station, Date, Start and End times and LP. Press ▲ or ▼ to enter the correct information.
- If Timer record events Overlap...
Make sure that the preset times of the timer recording events do not overlap. If they do, the earlier programme will always be given priority.
Example:
Programme 1 is programmed to start at 16:00 and end at 17:00. Programme 2 is programmed to start at 16:30 and end at 17:30. (In this case, Programme 1 will be recorded in its entirety, but only the last 30 minutes of Programme 2 will be recorded.)
- The Programme Delivery Control (PDC) system adjusts the start and end times of a timer record event. This can be particularly useful with sports events which may run over into extra time. The PDC signal is transmitted by the broadcaster and this controls your video recorder's timer. Currently only a limited number of TV companies transmit PDC signals.
Please make sure that when recording from channels that do not broadcast PDC that you turn PDC OFF.
Playing a DVD and Video CD
Playback Setup
- Turn on the TV and select the video input source connected to the DVD player.
- Audio system: Turn on the audio system and select the input source connected to the DVD player.
Press OPEN/CLOSE to open the disc tray.
Load your chosen disc in the tray, with the label facing up.
When a double-sided DVD is inserted, make sure the side you want to play is facing down.
Press OPEN/CLOSE to close the tray.
READING appears on the TV screen, and playback starts automatically. If playback does not start, press PLAY. In some cases, the disc menu might appear instead.
If a menu screen is displayed
The menu screen may be displayed first after loading a DVD or Video CD which contains a menu.
Use the ◀▶ ▲▼ buttons to select the title/chapter you want to view, then press ENTER to start playback. Press TITLE or DISC MENU to return to the menu screen.
- Use the number buttons to select the track you want to view. Press RETURN to return to the menu screen.
- Menu setting and the exact operating procedures for using the menu may differ depending on the disc. Follow the instructions on the each menu screen. You also may set PBC to Off under setup. See page 19.
Notes
- If Parental Control is set and the disc is not within the Rating settings (not authorized), the 4-digit code must be entered and/or the disc must be authorized (see "Parental Control", on page 20).
– DVDs may have a region code. - Your player will not play discs that have a region code different from your player. The region code for this player is 2 (two).
- To watch a DVD during timer recording standby mode, press POWER and DVD to switch to DVD mode.
General Features
Note
Unless stated otherwise, all operations described use the remote control. Some features may also be available on the Setup menu.
Moving to another TITLE
When a disc has more than one title, you can move to another title as follows:
- Press DISPLAY, then press the appropriate numbered button (0-9) to select a title number.
Moving to another CHAPTER/TRACK
When a title on a disc has more than one chapter or a disc has more than one track, you can move to another chapter/track as follows:
- Press I◄◄ or ►►I briefly during playback to select the next chapter/track or to return to the beginning of the current chapter/track.
- Press ◀◀ twice briefly to step back to the previous chapter/track.
- To go directly to any chapter during DVD playback, press DISPLAY. Then, press ▲▼ to select the chapter/track icon. Then, enter the chapter/track number using the numbered buttons (0-9).
Note
For two-digit numbers, press the numbered buttons (0-9) in rapid succession.
Slow Motion
1 Press ◀◀ or ▶▶ during pause.
The player will enter SLOW mode.
2 Use the ◀◀ or ▶▶ to select the required speed: ◀1/16, ◀1/8, ◀1/4 or ◀1/2 (backward), or ▶1/16, ▶1/8, ▶1/4 or ▶1/2 (forward).
3 To exit slow motion mode, press PLAY.
Note
Slow motion playback in reverse is not applicable for Video CD.
Operation with DVD and Video CD
General Features (continued)
Still Picture and Frame-by-frame playback
1 Press PAUSE/STEP during playback. The player will now go into pause mode.
2 You can advance the picture frame-by-frame by pressing PAUSE/STEP repeatedly on the remote control.
Search
1 Press ◀◀ or ▶▶ during playback.
The player will now go into SEARCH mode.
2 Press ◀◀ or ▶▶ repeatedly to select the required speed: ◀◀X2, ◀◀X4, ◀◀X16, ◀◀X100 (backward) or ▶▶X2, ▶▶X4, ▶▶X16, ▶▶X100 (forward). With a Video CD, the Search speed changes: ◀◀X2, ◀◀X4, ◀◀X8 (backward) or ▶▶X2, ▶▶X4, ▶▶X8 (forward).
3 To exit SEARCH mode, press PLAY.
Random
1 Press RANDOM during playback or in stop mode. The unit automatically begins Random Playback and "RANDOM" appears on the TV screen.
2 To return to normal playback, press RANDOM until "NORMAL" appears on the TV screen.
Tip
By pressing ▶▶I during Random playback, the unit selects another title (track) and resumes Random playback.
Notes
- This function only works with DVD Karaoke discs and video CD without PBC.
- On a Video CD with PBC, you must set PBC to Off on the setup menu to use the Random function. See page 19.
Repeat
DVD Video Discs - Repeat Chapter/Title/Off
1 To repeat the currently playing chapter, press REPEAT.
The Repeat Chapter icon appears on the TV screen.
2 To repeat the title currently playing, press REPEAT a second time.
The Repeat Title icon appears on the TV screen.
3 To exit Repeat mode, press REPEAT a third time. The Repeat Off icon appears on the TV screen.
Video CDs - Repeat Track/All/Off
1 To repeat the track currently playing, press REPEAT. The Repeat Track icon appears on the TV screen.
2 To repeat the disc currently playing, press REPEAT a second time.
The Repeat All icon appears on the TV screen.
3 To exit Repeat mode, press REPEAT a third time. The Repeat Off icon appears on the TV screen.
Note
On a Video CD with PBC, you must set PBC to Off on the setup menu to use the Repeat function. See page 19.
Repeat A-B
To repeat a sequence in a title:
1 Press A-B at your chosen starting point. A* appears briefly on the TV screen.
2 Press A-B again at your chosen end point.
A B appears briefly on the TV screen, and the repeat sequence begins.
3 To cancel the sequence, press A-B.
Time Search
The Time Search function allows you to start playing at any chosen time on the disc.
1 Press DISPLAY during playback. The on-screen display appears on the screen.
The Time Search box shows the elapsed playing time of the current disc.
2 Within 10 seconds, press ▲▼ to select the Time Search icon in the on-screen display.
The “-:-:-” appears in the Time Search box.
3 Within 10 seconds, use the number buttons to enter the required start time. Enter hours, minutes, and seconds from left to right in the box.
If you enter the wrong numbers, press CLEAR to remove the numbers you entered. Then enter the correct numbers.
4 Within 10 seconds, press ENTER to confirm the start time.
Playback starts from the selected time on the disc. If you enter an invalid time, playback will continue from the current point.
3D Surround
This unit can produce a 3D Surround effect, which simulates multi-channel audio playback from two conventional stereo speakers, instead of the five or more speakers normally required to listen to multi-channel audio from a home theater system.
1 Press DISPLAY during playback.
2 Press ▲▼ to select "NORM." or "3D SUR".
3 Press ◀ repeatedly until the desired sound is selected.
General Features (continued)
Zoom
The Zoom function allows you to enlarge the video image and to move through the enlarged image.
1 Press ZOOM during playback or still playback to activate the Zoom function.
If you press ZOOM repeatedly, the magnification level increases up to six times.
2 Use the ◀▶▲▼ buttons to move through the zoomed picture.
3 Press CLEAR to resume normal playback or return to the paused image.
Note
- The zoom function may not work for some DVDs.
- The zoom function may not work on multi-angle scenes.
Marker Search
You can start playback from a memorized point. Up to nine points can be memorized. To enter a mark, follow these steps.
1 During disc playback, press MARKER when playback reaches the spot that you want to memorize.
The Marker icon will appear on the TV screen briefly.
2 Repeat step 1 to enter up to nine Marker points on a disc.
To Recall a Marked Scene
1 During disc playback, press SEARCH.
The MARKER SEARCH menu will appear on the screen.
2 Within 10 seconds, press ◀▶ to select a Marker number that you want to recall.
3 Press ENTER.
Playback will start from the Marked scene.
4 To remove the MARKER SEARCH menu, press SEARCH.
To clear a Marked Scene
1 During disc playback, press SEARCH.
The MARKER SEARCH menu will appear on the screen.
2 Press ◀/▶ to select the Marker number that you want to erase.
3 Press CLEAR.
The Marker number will be erased from the list.
4 Repeat steps 2 and 3 to erase additional Marker numbers.
5 To remove the MARKER SEARCH menu, press SEARCH.
Special DVD Features
Checking the contents of DVD Video discs: Menus
DVDs may contain menus that allow you to access special features. To use the disc menu, press DISC MENU. Then, press the appropriate number button to select an option. Or, use the ◀/▲/▼ buttons to highlight your selection, then press ENTER.
Title Menu
1 Press TITLE. If the current title has a menu, the menu will appear on the screen. Otherwise, the disc menu may appear.
2 The menu can list camera angles, spoken language and subtitle options, and chapters for the title.
3 To remove the title menu, press TITLE again.
Disc Menu
1 Press DISC MENU.
The disc menu is displayed.
2 To remove the disc menu, press DISC MENU again.
Camera Angle
If the disc contains scenes recorded at different camera angles, you can change to a different camera angle during playback.
- Press ANGLE repeatedly during playback to select a desired angle.
The number of the current angle appears on the display.
Changing the Audio Language
Press AUDIO repeatedly during playback to hear a different audio language or audio track.
Changing the Audio Channel
Press AUDIO repeatedly during playback to hear a different audio channel (STER., LEFT or RIGHT).
Subtitles
Press SUBTITLE repeatedly during playback to see the different subtitle languages.
Note
Note
If ⊗ appears, the feature is not available on the disc.
Operation with Audio CD and MP3 Discs
Playing an Audio CD and MP3/WMA Discs
The DVD Player can play MP3/WMA formatted recordings on CD-ROM, CD-R or CD-RW discs. Before playing MP3/WMA recordings, read the notes on MP3/WMA Recordings on right.
1 Insert a disc and close the tray.
Audio CD; Audio CD menu appears on the TV screen go to step 4.
MP3/WMA disc; The MP3/WMA-JPEG choice menu appears on the TV screen. Go to step 2
2 Press ▲▼ to select the MP3/WMA then press ENTER.
The MP3/WMA menu appears on the TV screen. Press RETURN to move to the MP3/WMA-JPEG choice menu.
3 Press ▲▼ to select a folder, and ENTER. A list of files in the folder appears.
4 Press ▲▼ to select a track then press PLAY or ENTER.
Playback starts.
During playback, the current track's elapsed playing time will appear on the display window and menu. Playback will stop at the end of the disc.
Press TITLE to move to the next page.
Press DISC MENU to move to the previous page.
Audio CD menu
MP3/WMA menu
Tip
If you are in a file list and want to return to the Folder list, use the ▲▼ to highlight ▶-- and press ENTER to return to the previous menu screen.
5 To stop playback at any other time, press STOP.
Notes on MP3/WMA Recordings
About MP3
- An MP3 file is audio data compressed by using the MPEG1 audio layer-3 file-coding scheme. We call files that have the ".mp3" file extension "MP3 files".
- The player can not read an MP3 file that has a file extension other than ".mp3".
About WMA(Window Media Audio)
- An WMA file is a Microsoft audio compression technology.
- WMA(Windows Media Audio) offers double the audio compression of the MP3 format.
MP3/WMA Disc compatibility with this player is limited as follows:
-
Sampling Frequency / only at 44.1 kHz (MP3), 22.05-44.1 kHz (WMA)
-
Bit rate / within 32-320 kbps (MP3), 32-128 kbps (WMA)
-
CD-R physical format should be "ISO 9660"
-
If you record MP3/WMA files using the software which cannot create a FILE SYSTEM, for example "Direct-CD" etc., it is impossible to playback MP3/WMA files. We recommend that you use "Easy-CD Creator", which creates an ISO9660 file system.
-
A single session disc requires MP3/WMA files in the first track. If there is no MP3/WMA file in the 1st track, it cannot playback MP3/WMA files. If you wish to playback MP3/WMA files, format all the data in the disc or use a new one.
-
File names should be named using 8 letters or less and must incorporate ".mp3" or ".wma" extension e.g. "*******.MP3" or "*******.WMA".
-
Do not use special letters such as "/ : * ? " <> " etc.
-
Total number of files on the disc should be less than 650.
This DVD player requires discs/recordings to meet certain technical standards in order to achieve optimal playback quality. Pre-recorded DVDs are automatically set to these standards. There are many different types of recordable disc formats (including CD-R containing MP3 or WMA files). That require certain pre-existing conditions (see above) to insure compatible playback.
Customers should also note that permission is required in order to download MP3/WMA files and music from the Internet. Our company has no right to grant such permission. Permission should always be sought from the copyright owner.
Pause
1 Press PAUSE/STEP during playback.
2 To return to playback, press PLAY or press PAUSE/STEP again.
Moving to another Track
- Press I◀◀ or ▶▶ briefly during playback to go to the next track or to return to the beginning of the current track.
- Press ◀◀ twice briefly to step back to the previous track.
- In case of audio CD, to go directly to any track, enter the track number using the numbered buttons (0-9) during playback.
Repeat Track/All/Off
1 To repeat the track currently playing, press REPEAT. The Repeat icon and "TRACK" appears on the menu screen.
2 To repeat all tracks on a disc, press REPEAT a second time.
The Repeat icon and "ALL" appears on the menu screen.
3 To cancel Repeat mode, press REPEAT a third time. The Repeat icon and "OFF" appears on the menu screen.
Search
1 Press ◀◀ or ▶▶ during playback.
The player will now go into SEARCH mode.
2 Press ◀◀ or ▶▶ repeatedly to select the required speed: ◀◀X2, ◀◀X4, ◀◀X8 (backward) or ▶▶X2, ▶▶X4, ▶▶X8 (forward).
Search speed and direction are indicated on the menu screen.
3 To exit SEARCH mode, press PLAY ▶.
Random
1 Press RANDOM during playback or when playback is stopped.
The unit automatically begins Random Playback and "RAND." appears on the menu screen.
2 To return to normal playback, press RANDOM repeatedly until "RAND." disappears on the menu screen.
Repeat A-B
To repeat a sequence.
1 During disc playback, press A-B at your chosen starting point.
The Repeat icon and "A*" appears on the menu screen.
2 Press A-B again at your chosen end point.
The Repeat icon and "A B" appears on the menu screen, and the sequence begins to play repeatedly.
3 To exit the sequence and return to normal play, press A-B again.
The Repeat icon and "OFF" appears on the menu screen.
3D Surround
This unit can produce a 3D Surround effect, which simulates multi-channel audio playback from two conventional stereo speakers, instead of the five or more speakers normally required to listen to multi-channel audio from a home theater system.
1 Press DISPLAY or AUDIO during playback.
2 Press ◀▶ to select "NORM." or "3D SUR".
3 Press ▲▼ repeatedly until the desired sound is selected.
Changing the Audio Channel
Press AUDIO repeatedly during playback to hear a different audio channel (STER., LEFT, or RIGHT).
Operation with JPEG Disc
Viewing a JPEG disc
This DVD Player can play discs with JPEG files and Kodak picture CD. Before playing JPEG recordings, read the notes on JPEG Recordings on right.
1 Insert a disc and close the tray. The MP3/WMA-JPEG choice menu appears on the TV screen.
2 Press ▲▼ to select the JPEG then press ENTER. The JPEG menu appears on the TV screen.
3 Press ▲▼ to select a folder, and ENTER. A list of files in the folder appears. Press RETURN to move to the MP3/WMA-JPEG choice menu.
Tip
If you are in a file list and want to return to the Folder list, use the ▲▼ buttons on the remote to highlight "■- " and press ENTER to return to the previous menu screen.
4 If you want to view a particular file, press ▲/▼ to highlight a file and press ENTER or PLAY. Viewing the file proceeding starts. During viewing a file, press RETURN to move to the previous menu (JPEG menu). Press TITLE to move to the next page. Press DISC MENU to move to the previous page.
There are three viewing Slide Speed options: Fast, Normal, Slow, and Off. Press ◀/▶ to highlight the Slide Speed then press ▲/▼ to select the option you want to use, and press ENTER.
5 To stop viewing at any other time, press STOP. The JPEG menu appears.
Moving to another File
Press ◀◀◀ or ▶▶▶ once during viewing a picture to advance to the next file or to the previous file.
Still Picture
1 Press PAUSE/STEP during slide show. The player will now go into PAUSE mode.
2 To return to the slide show, press PLAY or press PAUSE/STEP again.
To flip the picture
Press ▲▼ during showing a picture to flip the picture horizontally or a vertically.
To rotate picture
Press ◀/▶ during showing a picture to rotate the picture clockwise or counter clockwise.
Notes on JPEG Recordings
- Depending upon the size and number of the JPEG files, it could take a long time for the DVD player to read the disc's contents. If you don't see an on-screen display after several minutes, some of the files are too big — reduce the resolution of the JPEG files to less than 2 mega pixels and burn another disc.
- Total number of files and folders on the disc should be less than 650.
- Some disc may be incompatible due to different recording format or condition of disc.
- When you are using software such as "Easy CD Creator" to burn the jpeg files into the CD-R, ensure that all the selected files have the ".jpg" extensions when copying into the CD layout.
- If the files have ".jpe" or ".jpeg" extensions, please rename them as ".jpg" files.
- File names without ".jpg" extension will not be able to be read by this DVD player. Even though the files are shown as JPEG image files in windows explorer.
Programmed Playback with Audio CD and MP3/WMA Disc
The Program function enables you to store your favorite tracks from any disc in the player memory.
Program can contain 30 tracks.
1 Press PROGRAM during playback or in the stop mode to enter the Program Edit mode.
The E mark will appear to the right of the word Program on the right side of the menu screen.
Note
Press PROGRAM to exit the Program Edit mode; the E mark will disappear.
2 Select a track, then press ENTER to place the selected track on the Program list.
3 Repeat step 2 to place additional tracks on the Program list.
Audio CD menu
MP3/WMA menu
4 Press ▶. The progr
5 Press ▲▼ to select the track you want to start playing.
Press TITLE to move to the next page. Press DISC MENU to move to the previous page.
Press PLAY to start.
Playback begins in the order in which you programmed the tracks and "PROG." appears on the menu screen. Playback stops after all of the tracks on the Program list have played once.
7 To resume normal playback from programmed playback, press PROGRAM to exit the Program Edit mode; the E mark will disappear and select a track of CD (or MP3/WMA) list and then press ENTER.
"PROG." indicator disappears on the menu screen.
Programmed Playback with Video CD
Note
On a Video CD with PBC, you must set PBC to Off on the setup menu to use the Program function. See page 19.
1 Insert Video CD and close the tray.
2 Press PROGRAM while playback is stopped. The VCD Program menu will appear.
Note
Press RETURN or PROGRAM to exit the Program menu.
3 Follow steps 2-6 of "Programmed Playback with Audio CD and MP3/WMA disc" on left.
4 To resume normal playback from programmed playback, press PROGRAM.
"NORMAL" appears on the TV screen.
Repeat Programmed Tracks
- To repeat the track currently playing, press REPEAT. The Repeat icon and "TRACK" appears on the menu screen.
- To repeat all tracks on the program list, press REPEAT a second time. The Repeat icon and "ALL" appears on the menu screen.
- To cancel Repeat mode, press REPEAT a third time. The Repeat icon and "OFF" appears on the menu screen.
Erasing a Track from Program List
1 Press PROGRAM during playback (Audio CD and MP3/WMA disc only) or in the stop mode to enter the Program Edit mode.
The E mark will appear.
2 Press ▶ to move to the Program list.
3 Use ▲▼ to select the track that you wish to erase from the Program list.
4 Press CLEAR.
The track will be erased from the Program list.
Erasing the Complete Program List
1 Follow steps 1-2 of "Erasing a Track from Program List" as above.
2 Use ▲▼ to select "Clear All", then press ENTER.
The complete Program for the disc will be erased.
The programs are also cleared when the disc is removed.
Additional Operation - VCR part
On Screen Display
You may easily display the current time or tape counter, amount of tape left, day, month, year, day of week, programme channel, tape speed and operational mode of your VCR will appear on the TV screen. If a recording is taking place these On Screen Displays will not be recorded onto the tape.
1 Press CLK/CNT to display.
Press CLK/CNT repeatedly to cycle through the display options. The tape counter and amount of tape left will appear if there is a tape loaded.
2 After 3 seconds the majority of the On Screen Displays will clear leaving only the clock or tape counter and the amount of tape left on the screen. Press CLK/CNT again to remove all displays from the TV screen.
Tape Counter Memory Stop
The Digital Tape Counter can be displayed on the display window instead of the time by pressing CLK/CNT on the remote control. The Digital Tape Counter indicates the relative positions of recordings on the tape.
1 Press CLK/CNT.
Press CLEAR to set the counter to 0:00:00.
Press PLAY or start recording.
The tape counter will display the actual play time in hours, minutes and seconds.
2 Press STOP when playback or recording is complete. Press BACKWARD.
The tape will rewind and automatically stop when the counter returns to 0:00:00.
Lock (Child Lock)
The control buttons on the front of the unit can be switched off so that your unit can only be operated using the remote control.
1 Press LOCK.
on and SAFE will appear in the display window. None of the buttons on the front of your unit will work.
If any buttons on the front of your unit are pressed SAFE will flicker in the display window for a few seconds.
2 Press LOCK again to switch off the child lock. OFF will appear in the display window.
Video Doctor (Self-Diagnosis)
This feature informs you that there is a problem with your VCR. These error messages will appear on the TV screen.
1 Press i. Press ◀ or ▶ to select Dr. Press OK.
2 Press ▲ or ▼ to check a problem. HEAD STATUS
- PLEASE CLEAN: Clean your video heads.
TAPE STATUS ● NOT RECORDABLE: Insert a tape with its protection tab in place
NO. OF TIMER PROGRAMME
● 2 Shows the number of timer recording.
NEXT TIMER PROGRAMME ● BBC1 26 10:00\~11:00 SP Shows the current status of timer recording.
3 Press i.
Hi-Fi Stereo Sound System
Your VCR will record and playback Hi-Fi stereo sound. In addition it has a stereo NICAM digital stereo sound decoder. This allows you to record and playback the sound in several different ways. Video cassettes recorded on your VCR will have a normal mono audio track and two VHS Hi-Fi stereo audio tracks. These stereo tracks allow you to make audio recordings in Hi-Fi stereo or bilingual mode from a TV broadcast, stereo audio system, video disc or another Hi-Fi VCR.
1 Your VCR's NICAM digital sound decoder allows you to enjoy broadcasts with NICAM sound, as well as standard stereo, bilingual and mono sound. The particular type of sound received or that recorded will be briefly displayed on the TV screen for a couple of seconds:
STEREO NICAM
Sound is automatically recorded on the Hi-Fi stereo and mono tracks of the video tape.
BIL NICAM
Both audio channels will be recorded on the Hi-Fi stereo tracks. The primary language channel (left) will be recorded on the mono track of the video tape.
MONO
The sound is recorded on the Hi-Fi tracks and the mono track of the video tape without any separation.
2 Press AUDIO repeatedly until the desired audio mode appears.
3 The choice is STEREO, LEFT, RIGHT and MONO. In BIL NICAM playback the primary language is output on the left channel and the secondary channel is output simultaneously from the right channel when audio output is set to STEREO. The primary language will be output from both channels when the audio setting is MONO.
Please note that when adjusting the tracking control Hi-Fi stereo sound may revert to MONO.
Wide Screen Compatibility 16:9
Your VCR can record and play back wide screen aspect ratio programmes (16:9). To record a wide screen format programme successfully the correct type of wide screen signal must be broadcast by the TV station.
1 Switch on your VCR. Press i.
Press ◀ or ▶ to select 16:9/4:3.
Press OK.
2 Press ▲ or ▼ repeatedly to select: AUTO, 4:3 or 16:9.
AUTO:
Automatically plays back Wide-Screen programmes as Wide-Screen and Normal programmes as normal.
4:3
Only for playing back and recording Normal format recordings (4:3).
16:9:
Only for playing back and recording Wide-Screen format recordings (16:9).
3 Press i to remove the menus from the TV screen. To enjoy Wide-Screen playback you must connect your VCR to the TV using a SCART cable.
To set the decoder
We have already described, how to connect a decoder for pay-TV station as CANAL+ or PREMIERE on page 9. For the recording of an encoded station you do not have to control anything. You just select the station and wait shortly until the decoding will start.
1 Press i. The main menu will appear on the TV screen. Press ◀ or ▶ to select the DECODER. Press OK.
2 Press ▲ or ▼ to select. ON: When the decoder is connected to the AV2 socket. OFF: When another VCR is connected to the AV2 socket.
3 Press i to remove the menus from the TV screen.
Additional Operation - DVD part
Last Condition Memory
This player memorizes the last condition for the last disc you have watched. Settings remain in memory even if you remove the disc from the player or switch off the player. If you load a disc that has its settings memorized, the latest stop position is automatically recalled.
Notes
- Settings are stored in memory for use any time.
- This player does not memorize settings of a disc if you switch off the player before commencing to play it.
Screen Saver
The screen saver picture appears when you leave the DVD Player in stop mode for about five minutes.
Special Recording
Copying from DVD To VCR
This unit allows you to copy the contents of a DVD to a VHS tape with a press of the COPY button.
Note
- If the DVD you are attempting to copy is copy protected, you may not be able to copy the disc.
Insert Disc
Insert the disc you wish to copy in the DVD deck and close the disc tray.
Insert VHS Tape
Insert a blank VHS videotape into the VCR deck.
Copy the DVD to VHS Tape
Press the COPY button or REC/ITR button on the unit front panel.
- The DVD will go into Play mode and the VCR will go into Record mode.
- If the DVD disc menu appears, you may need to press the Play button manually to begin copying.
Stop the Copy Process
When the DVD is finished playing, press STOP to end the copy.
- You must stop the Copy process manually when the DVD movie ends, or the unit may replay and record over and over again.
Recording from another video
recorder
With this video recorder you can make recordings from an external source, such as copying from another video recorder or a camcorder.
Note
In the following description, this video recorder will be one used for recording and will be referred to as VCR B. The other appliance will be used for playback and will be referred to as VCR A.
VCR A should be connected to the SCART socket on the rear panel of your unit or the AV sockets on the front panel of your unit.
Insert the recorded tape into VCR A and a blank tape into VCR B.
Press AV until the socket you wish to record from is display. (VCR B)
AV 1 Sound and Picture recording using the lower SCART socket on the back of your VCR. AV 2 Sound and Picture recording using the upper SCART socket on the back of your VCR. AV 3 for recording from VIDEO IN and AUDIO IN (Left & Right) sockets on the front of your unit.
To start recording, press the REC/ITR on VCR B and PLAY on VCR A.
When you want to finish copying, press the STOP on both video recorders.
Controlling Your TV with the Supplied Remote Control
You can control the sound level, input source, and power switch of your LG TV with the supplied remote control.
You can control your TV using the buttons below.
| By pressing | You can |
| TV POWER | Turns the TV on or off. |
| TV AV | Switch the TV's input source between the TV and other input sources. |
| TV PR +/- | Scans up or down through memorized channels. |
| TV VOL +/- | Adjust the volume of the TV. |
| MUTE | Turns on or off TV sound |
Controlling other TVs with the remote control
You can control the sound level, input source, and power switch of non-LG TVs as well. If your TV is listed in the table below, set the appropriate manufacturer code.
-
While holding down TV POWER button, press the number buttons to select the manufacturer code for your TV (see the table below).
-
Release TV POWER button.
Code numbers of controllable TVs
If more than one code number is listed, try entering them one at a time until you find the one that works with your TV.
| Manufacturer | Code Number |
| LG / GoldStar | 1 (Default), 2 |
| Zenith | 1, 3, 4 |
| Samsung | 6, 7 |
| Sony | 8, 9 |
| Hitachi | 4 |
Notes
- Depending on your TV, some or all buttons may not function on the TV, even after entering the correct manufacturer code.
- If you enter a new code number, the code number previously entered will be erased.
- When you replace the batteries of the remote, the code number you have set may be reset to the default setting. Set the appropriate code number again.
Troubleshooting
Check the following guide for the possible cause of a problem before contacting service.
| Symptom | Cause | Correction |
| DVD or VCR do not work properly. | · DVD or VCR button is not switched properly. | · Refer to page 10. |
| No power. | · The power cord is disconnected. | · Plug the power cord into the wall outlet securely. |
| The power is on, but the DVD player does not work. | · No disc is inserted. | · Insert a disc. |
| No picture. | · The TV is not set to receive DVD signal output. | · Select the appropriate video input mode on the TV so the picture from the DVD player appears on the TV screen. |
| · The video cable is not connected securely. | · Connect the video cable into the jacks securely. | |
| No sound. | · The equipment connected with the audio cable is not set to receive DVD signal output. | · Select the correct input mode of the audio receiver so you can listen to the sound from the DVD player. |
| · The audio cables are not connected securely. | · Connect the audio cable into the jacks securely. | |
| · The power of the equipment connected with the audio cable is turned off. | · Turn on the equipment connected with the audio cable. | |
| · The Digital Audio Output is set to the wrong position. | · Set the Digital Audio Output to the correct position, then turn on the DVD player again by pressing POWER. | |
| The picture is poor. | · The disc is dirty.· The TV channels are not tuned in properly. | · Clean the disc.· Check tuning, carry out tuning again. |
| The DVD player does not start playback. | · An unplayable disc is inserted. | · Insert a playable disc. (Check the disc type and Regional code.) |
| · The disc is placed upside down. | · Place the disc with the playback side down. | |
| · The disc is not placed within the guide. | · Place the disc on the disc tray correctly inside the guide. | |
| · The disc is dirty. | · Clean the disc. | |
| · The Rating level is set. | · Cancel the Rating function or change the rating level. | |
| The remote control does not work properly. | · There is an obstacle in the path of the remote control and this unit. | · Remove the obstacle. |
| · The batteries in the remote control are exhausted. | · Replace the batteries with new ones. | |
| Video tape cannot be inserted. | · Is the cassette compartment empty? | · Eject the tape in. |
| No Hi-Fi sound | · Audio mode is not set properly. | · Select “STEREO” by repeatedly pressing “AUDIO” on the remote control. |
| No NICAM sound recording | · NICAM mode is not set properly. | · Make sure NICAM in the menu is set to AUTO for the station to be recorded. |
Video Head Cleaning
Whenever a video cassette is inserted into or ejected from your VCR the video head is automatically cleaned. This should mean that additional head cleaning should not be necessary. However dirt accumulating on the head after a long period of time can cause the playback picture to become blurred or broken up. High quality video cassette tapes will not normally deposit dirt onto the video head, but old or damaged tapes might.
Language Code List
Enter the appropriate code number for the initial settings "Disc Audio", "Disc Subtitle" and/or "Disc Menu" (See page 18).
| Code | Language | Code | Language | Code | Language | Code | Language |
| 6566 | Abkhazian | 7074 | Fiji | 7678 | Lingala | 8373 | Singhalese |
| 6565 | Afar | 7073 | Finnish | 7684 | Lithuanian | 8375 | Slovak |
| 6570 | Afrikaans | 7082 | French | 7775 | Macedonian | 8376 | Slovenian |
| 8381 | Albanian | 7089 | Frisian | 7771 | Malagasy | 8379 | Somali |
| 6577 | Ameharic | 7176 | Galician | 7783 | Malay | 6983 | Spanish |
| 6582 | Arabic | 7565 | Georgian | 7776 | Malayalam | 8385 | Sudanese |
| 7289 | Armenian | 6869 | German | 7784 | Maltese | 8387 | Swahili |
| 6583 | Assamese | 6976 | Greek | 7773 | Maori | 8386 | Swedish |
| 6588 | Aymara | 7576 | Greenlandic | 7782 | Marathi | 8476 | Tagalog |
| 6590 | Azerbaijani | 7178 | Guarani | 7779 | Moldavian | 8471 | Tajik |
| 6665 | Bashkir | 7185 | Gujarati | 7778 | Mongolian | 8465 | Tamil |
| 6985 | Basque | 7265 | Hausa | 7865 | Nauru | 8484 | Tatar |
| 6678 | Bengali; Bangla | 7387 | Hebrew | 7869 | Nepali | 8469 | Telugu |
| 6890 | Bhutani | 7273 | Hindi | 7879 | Norwegian | 8472 | Thai |
| 6672 | Bihari | 7285 | Hungarian | 7982 | Oriya | 6679 | Tibetan |
| 6682 | Breton | 7383 | Icelandic | 8065 | Panjabi | 8473 | Tigrinya |
| 6671 | Bulgarian | 7378 | Indonesian | 8083 | Pashto, Pushto | 8479 | Tonga |
| 7789 | Burmese | 7365 | Interlingua | 7065 | Persian | 8482 | Turkish |
| 6669 | Byelorussian | 7165 | Irish | 8076 | Polish | 8475 | Turkmen |
| 7577 | Cambodian | 7384 | Italian | 8084 | Portuguese | 8487 | Twi |
| 6765 | Catalan | 7465 | Japanese | 8185 | Quechua | 8575 | Ukrainian |
| 9072 | Chinese | 7487 | Javanese | 8277 | Rhaeto-Romance | 8582 | Urdu |
| 6779 | Corsican | 7578 | Kannada | 8279 | Rumanian | 8590 | Uzbek |
| 7282 | Croatian | 7583 | Kashmiri | 8285 | Russian | 8673 | Vietnamese |
| 6783 | Czech | 7575 | Kazakh | 8377 | Samoan | 8679 | Volapūk |
| 6865 | Danish | 7589 | Kirghiz | 8365 | Sanskrit | 6789 | Welsh |
| 7876 | Dutch | 7579 | Korean | 7168 | Scots Gaelic | 8779 | Wolof |
| 6978 | English | 7585 | Kurdish | 8382 | Serbian | 8872 | Xhosa |
| 6979 | Esperanto | 7679 | Laothian | 8372 | Serbo-Croatian | 7473 | Yiddish |
| 6984 | Estonian | 7665 | Latin | 8378 | Shona | 8979 | Yoruba |
| 7079 | Faroese | 7686 | Latvian, Lettish | 8368 | Sindhi | 9085 | Zulu |
Country Code List
Enter the appropriate code number for the initial setting "Country Code" (See page 20).
| Code | Country | Code | Country | Code | Country | Code | Country |
| AD | Andorra | ER | Eritrea | LC | Saint Lucia | SC | Seychelles |
| AE | United Arab Emirates | ES | Spain | LI | Liechtenstein | SD | Sudan |
| AF | Afghanistan | ET | Ethiopia | LK | Sri Lanka | SE | Sweden |
| AG | Antigua and Barbuda | FI | Finland | LR | Liberia | SG | Singapore |
| AI | Anguilla | FJ | Fiji | LS | Lesotho | SH | Saint Helena |
| AL | Albania | FK | Falkland Islands | LT | Lithuania | SI | Slovenia |
| AM | Armenia | FM | Micronesia | LU | Luxembourg | SJ | Svalbard and Jan Mayen Islands |
| AN | Netherlands Antilles | FO | Faroe Islands | LV | Latvia | ||
| AO | Angola | FR | France | LY | Libya | SK | Slovak Republic |
| AQ | Antarctica | FX | France (European Territory) | MA | Morocco | SL | Sierra Leone |
| AR | Argentina | MC | Monaco | SM | San Marino | ||
| AS | American Samoa | GA | Gabon | MD | Moldavia | SN | Senegal |
| AT | Austria | GB | Great Britain | MG | Madagascar | SO | Somalia |
| AU | Australia | GD | Grenada | MH | Marshall Islands | SR | Suriname |
| AW | Aruba | GE | Georgia | MK | Macedonia | ST | Saint Tome and Principe |
| AZ | Azerbaidjan | GF | French Guyana | ML | Mali | SU | Former USSR |
| BA | Bosnia-Herzegovina | GH | Ghana | MM | Myanmar | SV | El Salvador |
| BB | Barbados | GI | Gibraltar | MN | Mongolia | SY | Syria |
| BD | Bangladesh | GL | Greenland | MO | Macau | SZ | Swaziland |
| BE | Belgium | GM | Gambia | MP | Northern Mariana Islands | TC | Turks and Caicos Islands |
| BF | Burkina Faso | GN | Guinea | MQ | Martinique (French) | TD | Chad |
| BG | Bulgaria | GP | Guadeloupe (French) | MR | Mauritania | TF | French Southern Territories |
| BH | Bahrain | GQ | Equatorial Guinea | MS | Montserrat | ||
| BI | Burundi | GR | Greece | MT | Malta | TG | Togo |
| BJ | Benin | GS | S. Georgia & S. Sandwich Isls. | MU | Mauritius | TH | Thailand |
| BM | Bermuda | MV | Maldives | TJ | Tadjikistan | ||
| BN | Brunei Darussalam | GT | Guatemala | MW | Malawi | TK | Tokelau |
| BO | Bolivia | GU | Guam (USA) | MX | Mexico | TM | Turkmenistan |
| BR | Brazil | GW | Guinea Bissau | MY | Malaysia | TN | Tunisia |
| BS | Bahamas | GY | Guyana | MZ | Mozambique | TO | Tonga |
| BT | Bhutan | HK | Hong Kong | NA | Namibia | TP | East Timor |
| BV | Bouvet Island | HM | Heard and McDonald Islands | NC | New Caledonia (French) | TR | Turkey |
| BW | Botswana | NE | Niger | TT | Trinidad and Tobago | ||
| BY | Belarus | HN | Honduras | NF | Norfolk Island | TV | Tuvalu |
| BZ | Belize | HR | Croatia | NG | Nigeria | TW | Taiwan |
| CA | Canada | HT | Haiti | NI | Nicaragua | TZ | Tanzania |
| CC | Cocos (Keeling) Islands | HU | Hungary | NL | Netherlands | UA | Ukraine |
| CF | Central African Republic | ID | Indonesia | NO | Norway | UG | Uganda |
| CG | Congo | IE | Ireland | NP | Nepal | UK | United Kingdom |
| CH | Switzerland | IL | Israel | NR | Nauru | UM | USA Minor Outlying Islands |
| CI | Ivory Coast | IN | India | NU | Niue | ||
| CK | Cook Islands | IO | British Indian Ocean Territory | NZ | New Zealand | US | United States |
| CL | Chile | OM | Oman | UY | Uruguay | ||
| CM | Cameroon | IQ | Iraq | PA | Panama | UZ | Uzbekistan |
| CN | China | IR | Iran | PE | Peru | VA | Vatican City State |
| CO | Colombia | IS | Iceland | PF | Polynesia (French) | VC | Saint Vincent & Grenadines |
| CR | Costa Rica | IT | Italy | PG | Papua New Guinea | ||
| CS | Former Czechoslovakia | JM | Jamaica | PH | Philippines | VE | Venezuela |
| CU | Cuba | JO | Jordan | PK | Pakistan | VG | Virgin Islands (British) |
| CV | Cape Verde | JP | Japan | PL | Poland | VI | Virgin Islands (USA) |
| CX | Christmas Island | KE | Kenya | PM | Saint Pierre and Miquelon | VN | Vietnam |
| CY | Cyprus | KG | Kyrgyzstan | PN | Pitcairn Island | VU | Vanuatu |
| CZ | Czech Republic | KH | Cambodia | PR | Puerto Rico | WF | Wallis and Futuna Islands |
| DE | Germany | KI | Kiribati | PT | Portugal | WS | Samoa |
| DJ | Djibouti | KM | Comoros | PW | Palau | YE | Yemen |
| DK | Denmark | KN | Saint Kitts & Nevis Anguilla | PY | Paraguay | YT | Mayotte |
| DM | Dominica | KP | North Korea | QA | Qatar | YU | Yugoslavia |
| DO | Dominican Republic | KR | South Korea | RE | Reunion (French) | ZA | South Africa |
| DZ | Algeria | KW | Kuwait | RO | Romania | ZM | Zambia |
| EC | Ecuador | KY | Cayman Islands | RU | Russian Federation | ZR | Zaire |
| EE | Estonia | KZ | Kazakhstan | RW | Rwanda | ZW | Zimbabwe |
| EG | Egypt | LA | Laos | SA | Saudi Arabia | ||
| EH | Western Sahara | LB | Lebanon | SB | Solomon Islands |
Specification
General
| Power requirements | AC 200-240V, 50 Hz |
| Power consumption | 19W |
| Dimensions (approx.) | 430 X 78.5 X 270 mm (w/h/d) |
| Mass (approx.) | 4.2 kg |
| Operating temperature | 5°C to 35°C (41°F to 95°F) |
| Operating humidity | 5 % to 90 % |
| Timer | 24 hours display tape |
| RF Modulator | UHF 22 - 68 (Adjustable) |
System
| Laser | Semiconductor laser, wavelength 650 nm |
| Video Head system | Double azimuth 4 heads, helical scanning. |
| Signal system | PAL |
| Frequency response | DVD (PCM 96 kHz): 8 Hz to 44 kHzDVD (PCM 48 kHz): 8 Hz to 22 kHzCD: 8 Hz to 20 kHz |
| Signal-to-noise ratio | More than 100dB (ANALOG OUT connectors only) |
| Harmonic distortion | Less than 0.008% |
| Dynamic range | More than 100 dB (DVD)More than 95 dB (CD) |
Inputs (VCR)
| Audio | -6.0dBm, more than 10 kohms (SCART) |
| -6.0dBm, more than 47 kohms (RCA) | |
| Video | 1.0 Vp-p, 75 ohms, unbalanced (SCART/RCA) |
Outputs (DVD)
| Audio output (digital audio) | 0.5 V (p-p), 75 Ω, RCA jack x 1 |
| Audio output (analog audio) | 2.0 Vrms (1 KHz, 0 dB), 600 Ω, RCA jack (L, R)x2/SCART (TO TV) |
Outputs (VCR)
| Audio | -6.0dBm, less than 1 kohms (SCART) |
| Video | 1.0Vp-p, 75 ohms, unbalanced (SCART) |
- Design and specifications are subject to change without notice.
Manufactured under license from Dolby Laboratories. "Dolby", "Pro Logic", and the double-D symbol are trademarks of Dolby Laboratories.
"DTS" and "DTS Digital Out" are trademarks of Digital Theater Systems, Inc.
LG
Technology with the human touch
GUARANTEE
● LG Electronics U.K. Ltd. will provide the following services in order to expedite this Guarantee.
- All faulty components which fail due to defective manufacture will be replaced free of charge for a period of 12 months from the original date of purchase.
- The dealer (or his service agent) who sold the product will be reimbursed for any labour provided in the repair of this LG equipment, for a period of 12 months from the original date of purchase. These claims must be made in accordance with the published scale of service charges and relevant claims procedure.
PLEASE NOTE:
A. The dealer may restrict the guarantee to the original purchaser.
B. The dealer is not obliged to carry out service under guarantee if unauthorized modifications are made to the apparatus, or if non standard components are used or if the serial number of the apparatus is removed, defaced, misused, or altered.
C. Any claims made under guarantee must be directed to the dealer from whom the equipment was originally purchased. The dealer may, before carrying out service under guarantee, require a receipted account as evidence of the date of purchase.
D. We respectfully point out that your dealer is not obligated to replace batteries if they become exhausted or worn in use.
E. Aerial alignment and consumer control adjustments are not covered by this guarantee.
This guarantee does not affect your statutory rights.
● REQUIREMENTS TO MAINTAIN WARRANTY COVERAGE:
RETAIN YOUR RECEIPT TO PROVE DATE OF PURCHASE. A COPY OF YOUR RECEIPT MUST BE SURRENDERED AT THE TIME GUARANTEE SERVICE IS PROVED.
● Product Registration Card :
It is helpful to complete at least your name, address, phone, model & serial numbers and return it. This will enable LG to assist you in the future should you lose your receipt, your units be stolen, or should modifications be necessary.
● To obtain information or assistance: Call 01753 500470 Monday-Friday 9.00am-4.30pm
| MODEL NO.* | SERIAL NO.* | DATE OF PURCHASE.* |
* Please complete for your own record
- CAUTION
- CAUTION:
- Notes on copyrights:
- Features:
- Contents
- Introduction
- Preparation
- Operation
- Reference
- About the symbols for instructions
- Before Use
- Notes
- Notes on DVDs and Video CDs
- Regional code of the DVD player and DVDs
- Disc-related terms
- Title (DVD only)
- Chapter (DVD only)
- Track (Video CD and audio CD only)
- Scene
- Types of video CDs
- Video CDs equipped with PBC (Version 2.0)
- Video CDs not equipped with PBC (Version 1.1)
- Before Use (Cont'd)
- Precautions
- Handling the unit
- When shipping the unit
- When setting the unit
- To keep the surface clean
- Cleaning the unit
- To clean the cabinet
- To obtain a clear picture
- Notes on Discs
- Handling discs
- Storing discs
- Cleaning discs
- About Symbols
- About the ⊙ symbol display
- About the disc symbols for instructions
- Remote Control
- Remote Control Operation Range
- Remote control battery installation
- Connections
- Tips
- Connecting to a TV & Decoder
- (or Satellite)
- Basic connection (AV)
- Basic connection (RF)
- Connections (Cont'd)/Important notes on controlling this unit
- Connecting to Optional Equipment
- Digital Multi-channel sound
- Warning:
- Important notes on controlling this unit
- Before Operation - VCR part
- Tuning in a video channel on your TV
- Using your unit for the very first time
- Setting the clock Manually
- To set the colour system
- How to using the main menu
- Tip
- Tuning in TV Stations Automatically
- Tuning in TV Stations Manually
- Changing the order of TV Stations
- Deleting TV Stations
- How to selecting Stored TV stations:
- Before Operation - DVD part
- General Explanation
- On-Screen Display
- On-screen display operation
- Temporary Feedback Field Icons
- Before Operation (Continued) - DVD part
- Initial Settings
- Initial Settings General Operation
- Language
- Disc Language
- Menu Language
- Picture
- TV Aspect
- Sound
- Digital Audio Output
- Sample Frequency
- Others
- Dynamic Range Control (DRC)
- Vocal
- PBC
- Auto Play
- Note
- Parental Control
- Rating
- Country Code
- Changing the 4-digit code
- If you forget your 4-digit code
- Operation with tape
- Playing a tape
- Getting a better picture
- AUTO TRACKING
- Logic search:
- Slow motion playback, Shuttle :
- CM (Commercial Message) Skip:
- OPR (Optimum Picture Response)
- Instant Timer Recording (ITR)
- Timer recording using On Screen
- Display
- Example:
- Operation with DVD and Video CD
- Playing a DVD and Video CD
- Playback Setup
- Press OPEN/CLOSE to open the disc tray.
- Load your chosen disc in the tray, with the label facing up.
- Press OPEN/CLOSE to close the tray.
- If a menu screen is displayed
- General Features
- Moving to another TITLE
- Moving to another CHAPTER/TRACK
- Slow Motion
- General Features (continued)
- Still Picture and Frame-by-frame playback
- Search
- Random
- Repeat
- DVD Video Discs - Repeat Chapter/Title/Off
- Video CDs - Repeat Track/All/Off
- Repeat A-B
- Time Search
- 3D Surround
- Zoom
- Marker Search
- To Recall a Marked Scene
- To clear a Marked Scene
- Special DVD Features
- Checking the contents of DVD Video discs: Menus
- Title Menu
- Disc Menu
- Camera Angle
- Changing the Audio Language
- Changing the Audio Channel
- Subtitles
- Operation with Audio CD and MP3 Discs
- Playing an Audio CD and MP3/WMA Discs
- Insert a disc and close the tray.
- Press ▲▼ to select the MP3/WMA then press ENTER.
- Press ▲▼ to select a track then press PLAY or ENTER.
- Notes on MP3/WMA Recordings
- About MP3
- About WMA(Window Media Audio)
- MP3/WMA Disc compatibility with this player is limited as follows:
- Operation with Audio and MP3/WMA Discs (Continued)
- Pause
- Moving to another Track
- Repeat Track/All/Off
- Operation with JPEG Disc
- Viewing a JPEG disc
- Moving to another File
- Still Picture
- To flip the picture
- To rotate picture
- Notes on JPEG Recordings
- Programmed Playback
- Programmed Playback with Audio CD and MP3/WMA Disc
- Programmed Playback with Video CD
- Repeat Programmed Tracks
- Erasing a Track from Program List
- Erasing the Complete Program List
- Additional Operation - VCR part
- On Screen Display
- Tape Counter Memory Stop
- Lock (Child Lock)
- Video Doctor (Self-Diagnosis)
- Hi-Fi Stereo Sound System
- STEREO NICAM
- BIL NICAM
- MONO
- Wide Screen Compatibility 16:9
- AUTO:
- 4:3
- 16:9:
- To set the decoder
- Additional Operation - DVD part
- Last Condition Memory
- Screen Saver
- Special Recording
- Copying from DVD To VCR
- Insert Disc
- Insert VHS Tape
- Copy the DVD to VHS Tape
- Stop the Copy Process
- Recording from another video
- recorder
- Controlling Your TV with the Supplied Remote Control
- Controlling other TVs with the remote control
- Code numbers of controllable TVs
- Troubleshooting
- Video Head Cleaning
- Language Code List
- Country Code List
- Specification
- LG
- Technology with the human touch
- GUARANTEE
- PLEASE NOTE:
Brand : LG
Model : VC8706P1K
Category : DVD Player / VCR
