USER MANUAL KH62-3INOX Exquisit

Simple line drawing of a lamp with a flame inside, emitting smoke from a beaker (no text or symbols)

Simple line drawing of a house with a pot and fire extinguisher, no text or symbols present

Pure diagram of a mechanical bracket with multiple cylindrical components and no text or symbols

Optie	Schouw	X
1	400+0	/
2	400+300	410-650
3	400+390	410-740
4	500+490	510-940

Technical line drawing of a mechanical component with no visible text or symbols

Bovenste schouwdeel

Diagram showing a door opening and a cylindrical component mounted on a stand, with an inset close-up of the door (no text or symbols present)

GEBRUIK

Bedieningsknoppen

Illustration of a hand holding a tablet device with a scroll, enclosed in a circular frame (no text or symbols)

ACTIEVE KOOLSTOFFILTER (LUCHTCIRCULATIE)

Technical line drawing of a mechanical fan assembly (no text or symbols)

Technical line drawing of a mechanical device with internal components and an inset view (no text or symbols)

https://www.exquisitbenelux.nl

domestic and professional appliances

MULTIBRAND SALES & SERVICES

INSTRUCTION MANUAL

KH62-3INOX

KH92-3INOX

The instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance.

INSTALLATION

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing.
• Connect the extractor to the exhaust flue through a pipe of minimum diameter 120mm.
  The route of the flue must be as short as possible.
  The air must not be discharged into a flue that is used for exhausting fumes from
• appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).
  If the supply cord is damaged, it must be replaced by the manufacturer or
• its service agent or a similarly qualified person in order to avoid a hazard.
  The minimum distance between the supporting surface for the cooking vessels on
• the hob and the lowest part of the range hood. (When the range hood is located above a gas appliance, this distance shall be at least 65 cm. If the instructions for installation for the gas hob specify a greater distance, this has to be taken into account. The distance of 65 cm can be reduced for .non-combustible parts of range hoods, and .parts operating at safety extra low voltage provided these parts do not give access to live parts if deformed)
  ● Regulations concerning the discharge of air have to be fulfilled.
  ● This appliance is for indoor household use only.
  ● To protect against the risk of electrical shock, do not immerse the unit, cord or plug in water or other liquid.
• Please unplug before cleaning and maintenance the appliance. Use a soft cloth moisten with mild soap, and then use a dry cloth to wipe it again.

Simple line drawing of a lamp heating a steaming cup (no text or symbols)

USE

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
  ● Never use the hood for purposes other than for which it has been designed.
  ● Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  ● Children should be supervised to ensure that they do not play with the appliance.
• There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).
• There is a fire risk if cleaning is not carried out in accordance with the instructions.

• Do not flame under the range hood.
• "CAUTION: Accessible parts may become hot when used with cooking appliances".
• Extension sockets are forbidden.
• Please cut off the power before maintenance.
  ● This appliance has been designed for home use only, and may cause danger if used in special occasions.

MAINTENANCE

● The cooker hood and its filter should be cleaned regularly according to the instruction.
- Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.
● Clean the hood using a damp cloth and a neutral liquid detergent.
● The appliance uses 4 hob elements at most.

Simple line drawing of a house with a chimney and fire, no text or symbols present

The symbol ■ is packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

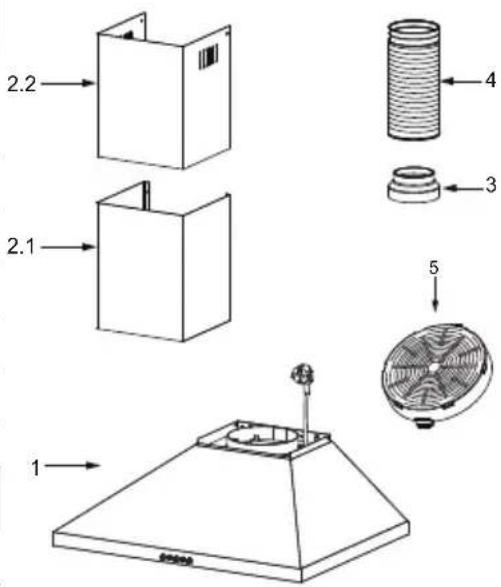

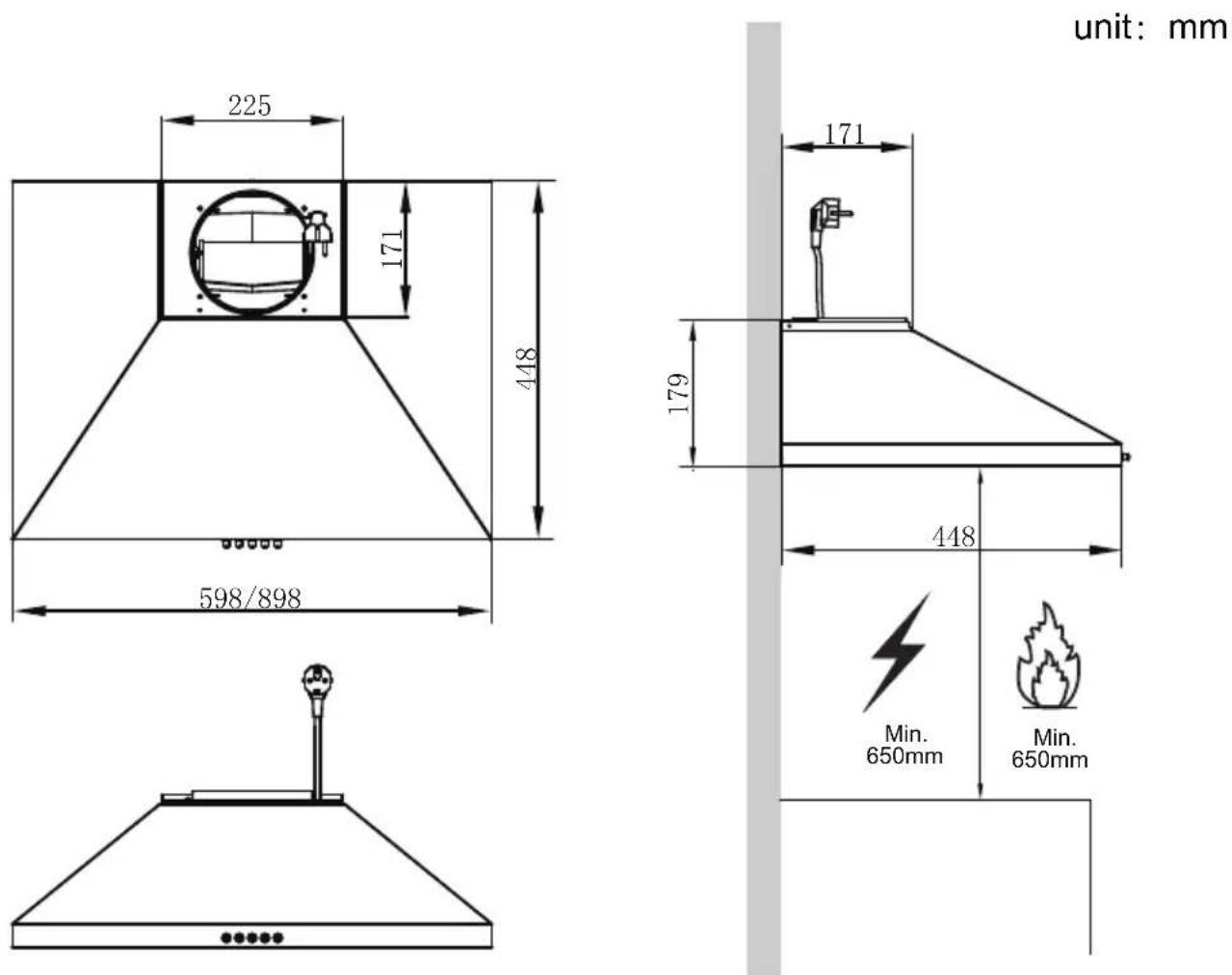

COMPONENTS

Ref. Qty. Product Components

1	1 Hood Body, complete with: Controls, Light, Blower, Filter.
2.1 1	Lower Decorative Chimney
2.2 1	Upper Decorative Chimney (optional)
3	1 Flange (optional)
4	1 Exhaust Pipe (optional)
5	2 The Activated Charcoal filter (optional)

Qty. Documentation

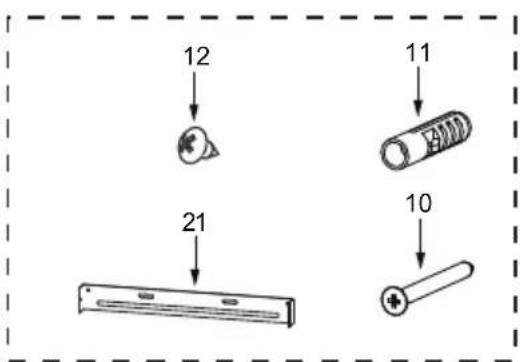

Ref.	Qty	Installation Components
10	7	Screws 5 x 50
11	7	Wall Plugs
12 6		Screws 4,2 x 9,5 / Screws 4 x8
21 1		Chimney fixing bracket (optional)

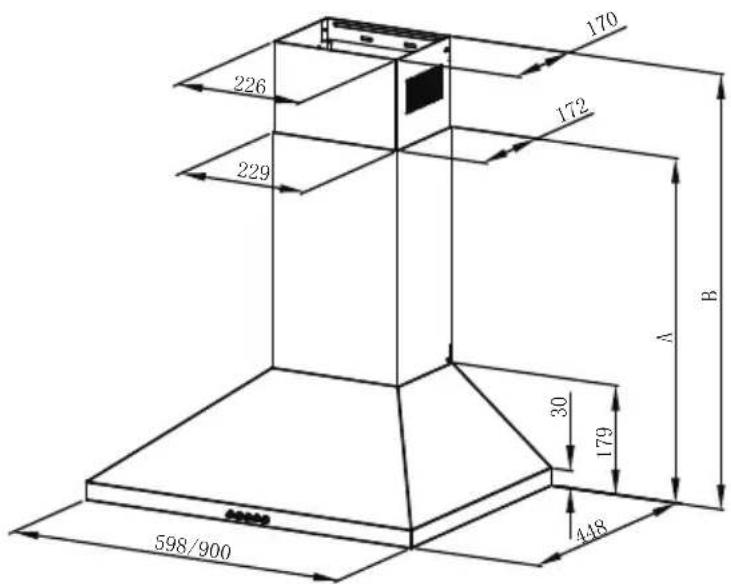

Option	Chimney	A	B
1	400+0	569	/
2	400+300	569	610-850
3	400+390	569	610-940
4	500+490	669	710-1140

Pure diagram of a mechanical bracket with multiple cylindrical components and mounting holes, no text or symbols present

Option	Chimney	X
1	400+0	/
2	400+300	410-650
3	400+390	410-740
4	500+490	510-940

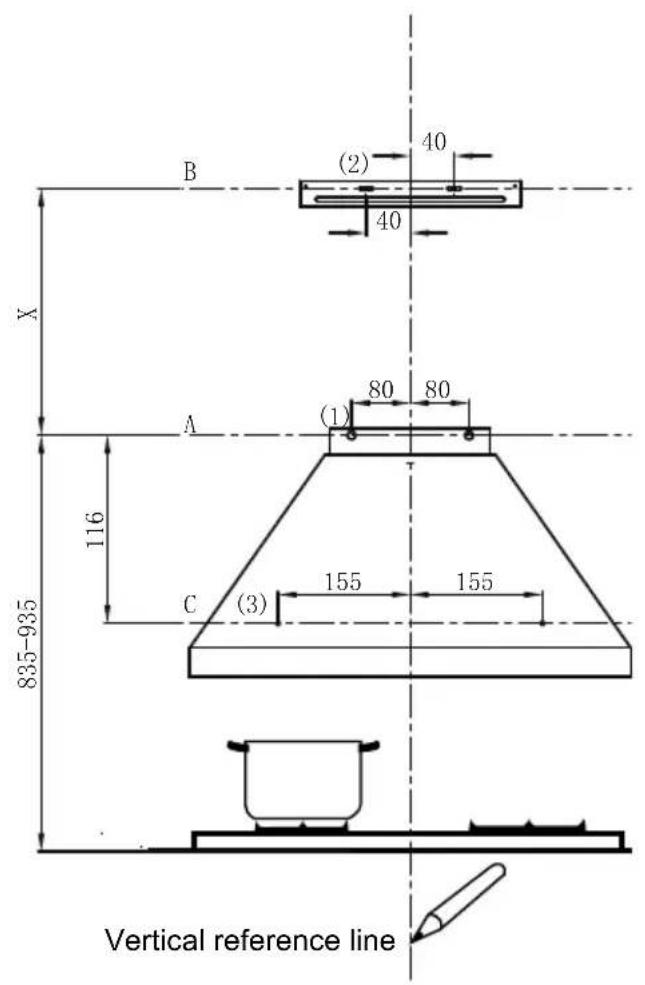

As a first step, proceed with the following drawings:

● A vertical line up to the ceiling or up to the upper limit, at the center of the area in which the hood is to be fitted.
● A horizontal line A at 835-935 mm above the cooker top.
● A horizontal line B at a X mm above the horizontal line A.
● A horizontal line C at a 116mm below the horizontal line A.

Mark Points:

● Mark a point (1) on the horizontal line A, 80 mm to the vertical reference line.
- Repeat this operation on the other side, checking that the two marks are leveled.
● Mark a point (2) on the horizontal line B, 40 mm to the vertical reference line.
- Repeat this operation on the other side, checking that the two marks are leveled.
● Mark a point (3) on the horizontal line C, 155 mm to the vertical reference line.
- Repeat this operation on the other side, checking that the two marks are leveled.

Fix the brackets (Optional):

● Drill holes at the marked points with a 10 mm drill bit.
- Insert the Wall Plugs 11 into the holes.
- Screw 2 screws 10 (5 x 50) to Wall Plugs 11 at the horizontal line A; approximately the four fifth length of the screws 10 (5 x 50) was screwed into the Wall Plugs 11, used for hook the hood.
● Fix a Chimney fixing bracket 21 with 2 screws 10 (5 x 50) at the horizontal line B.

Hook the hood body

● Hook the hood body to the 2 screws 10 (5 x 50) at the horizontal line A.
● Level the hood body itself.
- Remove the filter from the inside of the hood body, fix the screws 10 to Wall Plugs 11 at the points (3).

Simple line drawing of a conical chimney or duct (no text or symbols)

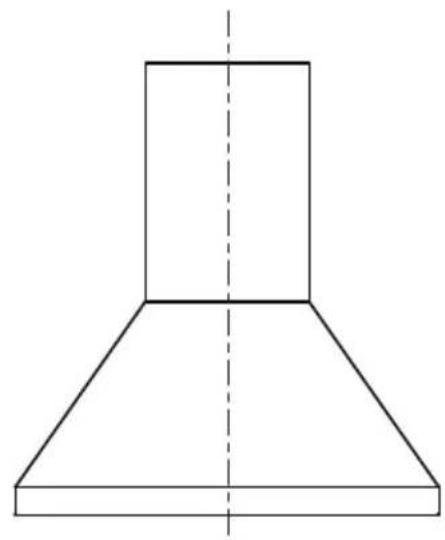

Right

Simple line drawing of a 3D geometric shape resembling a chimney or fan (no text or symbols)

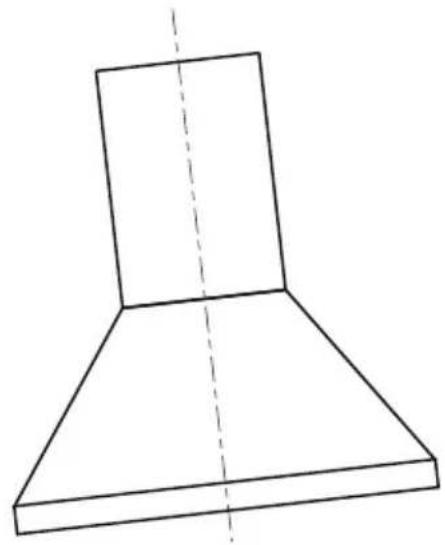

Wrong

CONNECTIONS

DUCTED VERSION AIR EXHAUST SYSTEM

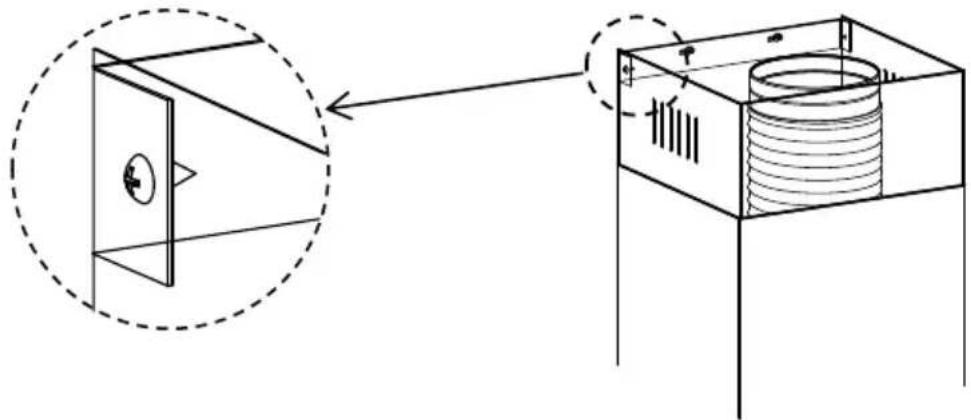

When installing the ducted version, connect the hood to the chimney using either a flexible or rigid pipe 150 or 120 mm, the choice of which is left to the installer.

• If to install a 120 mm air exhaust connection, insert the reducer flange 3 on the hood body outlet.
  ● Fix the pipe 4 in position using sufficient pipe clamps (not supplied).
• Remove possible charcoal filters.

The chimney can only be installed with exhausting hood.

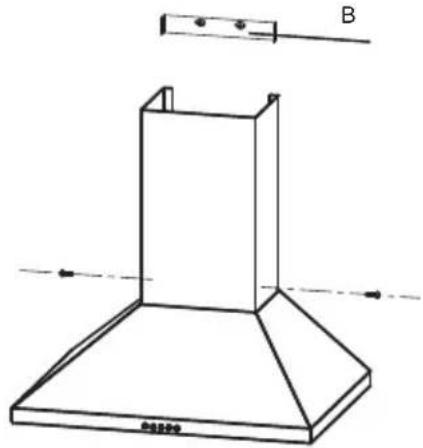

Lower Decorative Chimney

● Fix the Lower Decorative Chimney to the hood body with 2 screws 12 (4.2 x 9.5) supplied with the hood.

Technical line drawing of a mechanical component with no visible text or symbols

Upper Decorative Chimney

● Fix the upper chimney onto the bracket 21 with 2 screws 12 (4.2 x 9.5) supplied with the hood.

USE

Speed adjustment. (For some models)

1	OFF MOTOR SWITCH: Press on this switch to stop the motor operation.
	SPEED SWITCH: Press on this switch, the motor runs at LOW speed.
	SPEED SWITCH: Press on this switch, the motor runs at MEDIUM speed.
	SPEED SWITCH: Press on this switch, the motor runs at HIGH speed.
	ON/OFF LIGHTING SWITCH: Press on this switch to turn on the lights, and press again to turn them off.

GREASE FILTERS

CLEANING METAL SELF-SUPPORTING GREASE FILTERS

• The filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher.

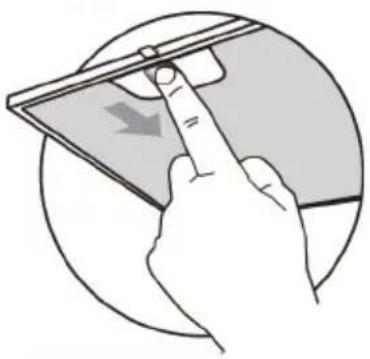

• Remove the filters one by one pushing them towards the back side of the hood unit and simultaneously pulling downwards.
• Any kind of bending of the filters has to be avoided when washing them. Before fitting them again into the hood make sure that they are completely dry. (The color of the filter surface may change throughout the time but this has no influence to the filter efficiency).
• When fitting the filters into the hood pay attention that they are mounted in correct position, the handle facing outwards.

Illustration of a hand using a smartphone to interact with a screen (no text or symbols visible)

ACTIVATED CHARCOAL FILTER (RECIRCULATION VERSION)

These filters are not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently with heavy usage.

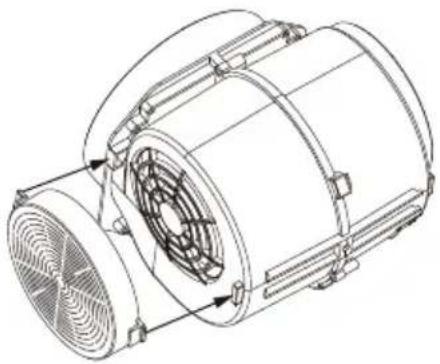

REPLACING THE ACTIVATED CHARCOAL FILTER

• Remove the metal grease filters
• Remove the saturated activated charcoal filter.
  ● Fit the new filters.
• Replace the metal grease filters.

Technical line drawing of a mechanical fan or impeller assembly (no text or symbols)

LIGHT REPLACEMENT

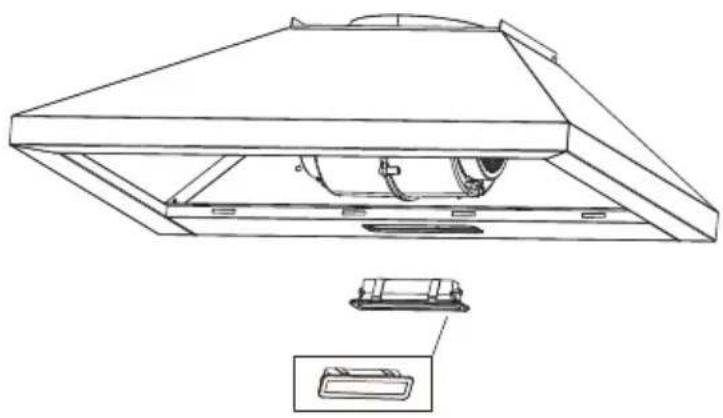

For rectangular LED :

• Remove the grease filter.
• Remove the light by levering its fitting from the hood body (this may require pressure or force to be applied).
• Disconnect the connector of the light.
• Replace the light with a new one of the same type, making sure that you connect the light with the light cable correctly.
  ● Reconnect the power by inserting the mains plug or by switching on the fuse.

Technical line drawing of a device with an open lid and internal components, showing no text or symbols.

	Max power	Voltage Picture	Lamp Cap ILCOS D code
Self-ballasted LED modules	1.5W	220-240V~	Square/Diameter:33.2mmx120mm		DBS-1.5-H-33.2/120

Fault Cause	Solution
Light on, but motor does not work	The blades are blocked.	Check the blades.
	The capacitor is damaged. Replace capacitor.
	The motor is damaged. Replace motor.
	The internal wiring of motor is cut off/disconnected. An unpleasant smell may be produced.	Replace motor.
Both light and motor do not work	Apart from the above mentioned, check the following:
	Light damaged. Replace lights.
	Power cord loose.	Connect the wires as the electric diagram.
Oil leakage	Outlet and the air ventilation entrance are not tightly sealed.	Take down the outlet and seal with glue.
Vibration	The blade, if damaged, can cause vibrating.	Replace the blade.
	The motor is not tightly fastened. Fasten the motor tightly.
	The cooker hood is not tightly fixed. Fixed the cooker hood tightly.
Insufficient suction	The distance between the cooker hood and the cooker top is too large.	Readjust the distance.
	Too much ventilation from open doors or windows.	Choose a new place to install the appliance or close some doors / windows.
The machine inclines	The fixing screws are not tight enough.	Tighten the fixing screw and make it horizontal.
	The hanging screws are not tight enough	Tighten the hanging screw and make it horizontal.

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment.

The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

Warranty conditions

Dear user,

For our warranty conditions, please scan the QR code below or use the link underneath. At the bottom in the footer you will find our warranty conditions.

https://www.exquisitbenelux.nl

For questions regarding sales you can email to: [e-mail]

For questions regarding service you can email to: [e-mail]

For other questions you can email to: [e-mail]

We can also be reached by phone : [phone]

DOMEST

domestic and professional appliances

MULTIBRAND SALES & SERVICES
