User manual infra-red tower heater:

Evolar EVO-HD55

PLEASE READ THE MANUAL CAREFULLY BEFORE USING HEATER AND RETAIN IT FOR FUTURE REFERENCE.

Safety Precautions

To avoid any risk of fire, electric shock or injury, please read and follow the following instructions:

1. Our quality warranty does not cover the risk of damage, accident, fire, electric shock or injury caused by failure to comply with the contents of this manual.
2. The heater must be connected to the power supply in line with the rated voltage on the heater label.
3. The power supply frequency of the electric heater is 230VAC and 50/60Hz, be sure to insert the plug into the appropriate power socket and please unplug the plug when not in use.
4. Please do not use the electric heater directly under the socket.
5. The electrical equipment shall not be used by children, persons with limited physical mobility, or persons lacking common sense, unless there is a designated person who is willing to take responsibility for his or her use.
6. Children should be monitored to ensure they do not play with the device.
7. Do not use a programmer, timer, independent remote-control system, or any other device to turn the heater on automatically. There is a fire hazard if the heater is not properly covered or placed.
8. Do not use the electric heater near the swimming pool to avoid an electric shock.
9. It is forbidden to use this product in inflammable and explosive environment to avoid fire hazard.

Warning: to avoid overheating of the heater, do not use any similar clothing, blankets, curtains, paper products, plastic products, flammable articles, etc., to cover the use of electric heaters, to avoid the occurrence of fire.

1. When the electric heater is running, its surface temperature will become higher. It is forbidden to touch the protective net or plastic shell of the product surface to avoid scalding accident.

2. During the working period of the electric heater, the surface temperature is high, which makes the indoor air become dry. Please pay attention to indoor ventilation and indoor humidity change, so as to prevent bad effects such as poor breathing or skin chaps and pruritus.

3. Do not expose the electric heater to a certain direction or a certain part of the body for a long time during work, so as to avoid burns or fire accidents.

4. Do not use this heater when no one is at home or only children are at home alone.

5. Do not let the power cord pass under the carpet. Do not cover the power cord with a blanket or similar covering. Keep the power cord away from the aisle to prevent tripping over the heater.
6. Do not insert or allow foreign matter into the vent or vent of the heater. This can lead to electric shock or fire, or damage to the heater.
7. Before moving the electric heater, please make sure that the plug has been removed from the socket, and the surface of the heater has been cooled, so as to avoid electric shock or burns and other accidents. When moving, please hold the handle of the electric heater.
8. Do not allow inflammable articles, furniture, pillows, bedding, clothes, curtains, wooden walls, etc. to be too close to the electric heater before using the electric heater. At least keep a distance of 1.5 meters from the front, left and right side of the electric heater, and the back to avoid fire accidents.
9. This electric heater is a product that needs to be taken care of by adults. If people need to leave, they must turn off the electric heater and pull out the plug to avoid fire or electric shock.
10. If the plug or power cord is found damaged, please stop using the heater immediately. Do not disassemble the heater if you find fault or any other damage. Please send it to the manufacturer or someone with professional maintenance qualification.
11. Please use the electric heater as described in the instruction manual. Any other use not recommended may cause fire, electric shock, or injury.
12. Avoid the use of an extension cord because the extension cord may overheat and cause a risk of fire.
13. When not using this product, please unplug it from the socket.

Directions of use

1. Insert the plug into the socket and adjust the knob to the desired position. This product offers a choice of 5 levels of power. (See figure 1 for detailed Settings).
2. When not using the heater, turn the knob to the "off"-position and remove the plug from the socket.
3. Figure 2 shows the rotation angle adjustment knob in the heater. This product provides 120^ and 360^ internal rotation angle adjustment modes.

Note: this product may trigger overheating protection of the motor after being used for a long time, resulting in failure of rotation. After power failure for 10 minutes, the problem can be eliminated.

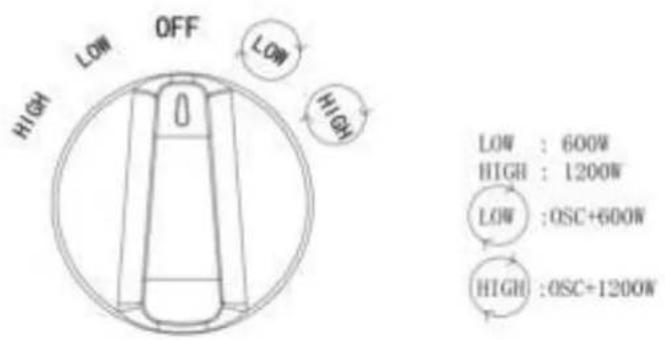

Figure 1:

HIGH LOW OFF LOW HIGH LOW : 600W HIGH : 1200W LOW :OSC+600W HIGH :OSC+1200W

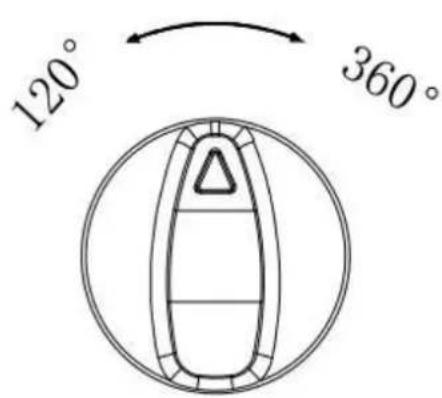

Figure 2:

120° 360°

Cleaning and maintenance

1. Please unplug the plug from the socket before cleaning.
2. Dust the surface of the product with a damp cloth or with soapy water or detergent. But do not use gases or chemicals.
3. When not in use for a long time, make sure the heater is fully cooled and blow-dried by wrapping it in a plastic bag and keeping it in a dry place.

Technical Parameters

Product model	Rated power	Rated voltage	Rated frequency	Swing angle	Product size(cm)	Packing size(cm)	Net weight
HD-55	1200W	230V~	50Hz	360°/120°	224*558	25.7*25.7*60.0	2.96kg

Common faults and treatment methods

Serial number	Common faults	The cause of the problem	Processing method
1	Shake your head from side to side without moving	Synchronous motor overheating protection	Power off and cool for 10 minutes before restarting
2	Left and right may shake head but the heating tube does not heat	Damage of heating pipe	Contact professional after-sales service personnel for maintenance
3		Heating pipeline body fractured	Contact professional after-sales service personnel for maintenance
4	Left and right do not shake his head, the heat pipe does not heat	Electric heater placed in an uneven position, light touch switch did not press in place	Place the heater in a flat position
