Product type	Steam station (cooking appliance)
Brand	De'Longhi
Model	VVX 1660
Dimensions (approx.)	30 x 20 x 25 cm
Weight (approx.)	5 kg
Power supply	220-240 V ~ 50/60 Hz, 10 A minimum with grounding
Recommended water type	Tap water (maximum hardness 27°F, otherwise mix 50% demineralized water)
Main functions	Continuous steam, full soleplate or tip steam, steam adjustment, automatic shut-off (not specified)
Tank capacity	Not specified (estimate 1.5 L)
Heating time	Approximately 2 minutes (longer for first use)
Safety	Do not immerse, do not use unattended, grounding mandatory, maximum pressure safety system
Maintenance and cleaning	Rinse boiler every 10 uses (see page 6 of manual)
Spare parts	Not specified (removable iron rest, hose storage hook)
Repairability	De'Longhi Authorized Technical Assistance Center
General information	Manufacturer's warranty (not specified), disposal via selective collection (WEEE)

Frequently Asked Questions - VVX 1660 DELONGHI

Which water should I use in my De'Longhi VVX 1660 steam station?

Use tap water. If the water is very hard (hardness above 27°F), mix 50% demineralized water with 50% tap water. Never use demineralized water alone, nor mineral water, scented essences, or chemical products.

Why does water come out of the soleplate holes?

Check that the iron's thermostat adjustment button is in the steam zone (see fig. 7 of the manual). If the iron hasn't been used for a while, press the steam button several times away from the ironing board to expel condensation water.

What to do if steam escapes from the bottom of the appliance?

This may indicate activation of the maximum pressure safety system. Immediately stop the appliance and contact an Authorized Technical Assistance Center.

Why are there brown streaks on the soleplate?

This is usually caused by the use of anti-scale products or additives in the tank. Never pour such products. Clean the soleplate with a damp cloth.

Why does smoke come out during first use?

This is normal: the glues and lubricants used for assembly evaporate during first heating. Ventilate the room; the phenomenon will disappear after a few uses.

How to rinse the boiler?

Perform rinsing every 10 uses following the procedure on page 6 of the user manual. This removes limescale deposits and extends the life of the appliance.

What does the 'water shortage' indicator mean?

The indicator shows that the water tank is empty. Fill it immediately to avoid damaging the pump. A louder pump noise is normal during water shortage.

Can I use an adapter or extension cord?

It is not recommended to use adapters, multiple sockets, or extension cords. Plug directly into a grounded outlet of at least 10 A.

How to lock the iron in transport position?

Place the tip of the soleplate in the designated housing (mark B) and slide the J slider to the lock position. Never use the locked iron as a carrying handle.

What to do if the appliance does not turn on?

Check that the appliance is plugged in and that the power buttons (iron and boiler) are pressed. If the problem persists, contact an authorized service.

USER MANUAL VVX 1660 DELONGHI

Filling 4
Use 4
Features. 5
Anticalc System 6
Description - Important safeguards 10
Description. 10
I Control panel. 10
Description of iron. 10
Symbols used in these instructions 10
Fundamental safety warnings 10
Use 11
Designated use. 11
What water to use. 11
Using the appliance for the first time 11
Rinsing the steam generator - Disposal 12
Rinsing the steam generator 12
Disposal 12
Troubleshooting 12

Inhoudsopgave

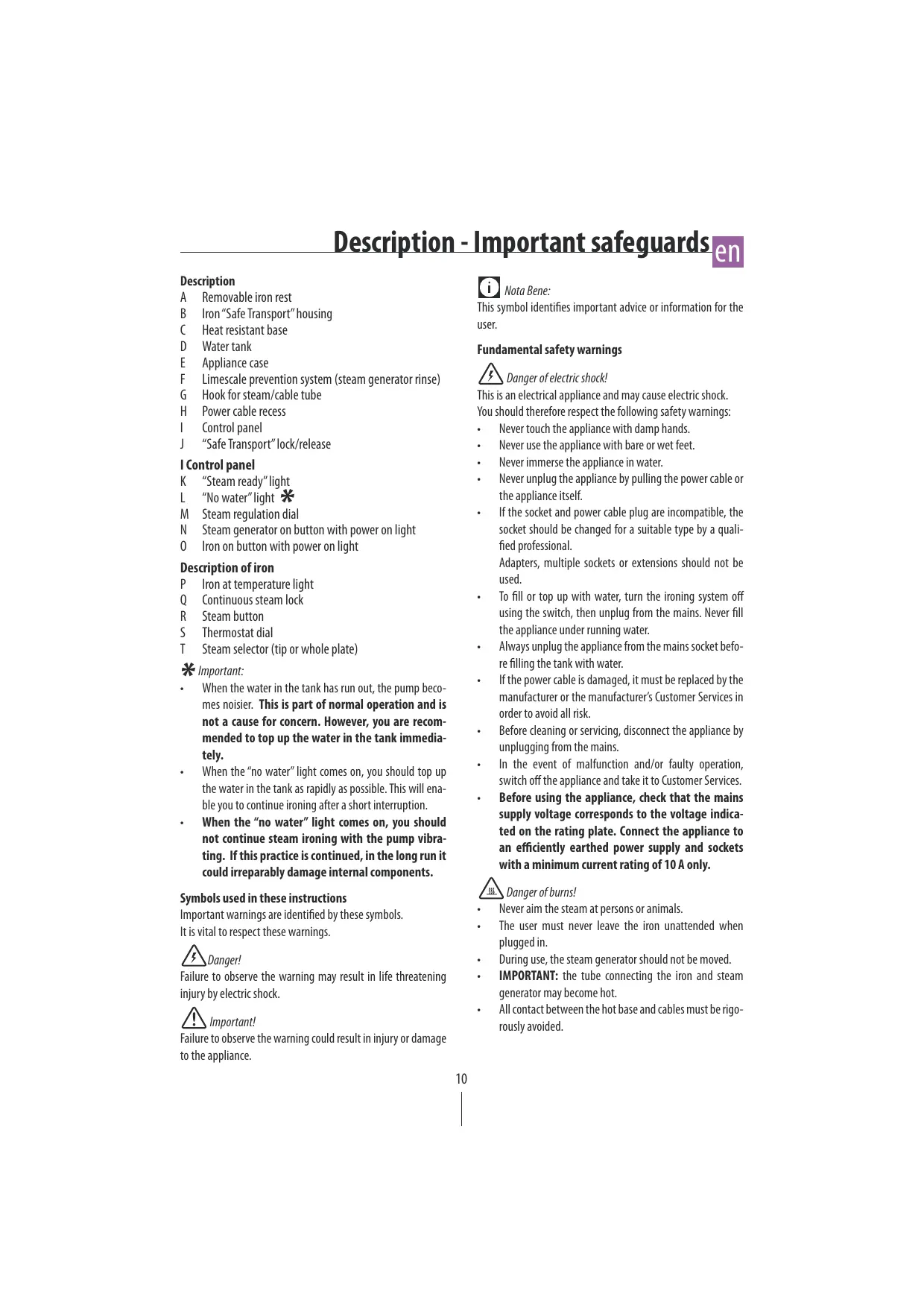

Description - Important safeguards

en

Description

A Removable iron rest
B Iron "Safe Transport" housing
C Heat resistant base
D Water tank
E Appliance case
F Limescale prevention system (steam generator rinse)
G Hook for steam/cable tube
H Power cable recess
Control panel
J "Safe Transport" lock/release

I Control panel

K "Steam ready"light
L "No water"light
M Steam regulation dial
N Steam generator on button with power on light
0 Iron on button with power on light

Description of iron

P Iron at temperature light
Q Continuous steam lock
R Steam button
S Thermostat dial
T Steam selector (tip or whole plate)

*Important:

• When the water in the tank has run out, the pump becomes noisier. This is part of normal operation and is not a cause for concern. However, you are recommended to top up the water in the tank immediately.
• When the "no water" light comes on, you should top up the water in the tank as rapidly as possible. This will enable you to continue ironing after a short interruption.
• When the "no water" light comes on, you should not continue steam ironing with the pump vibrating. If this practice is continued, in the long run it could irreparably damage internal components.

Symbols used in these instructions

Important warnings are identified by these symbols.

It is vital to respect these warnings.

Danger!

Failure to observe the warning may result in life threatening injury by electric shock.

Important!

Failure to observe the warning could result in injury or damage to the appliance.

Nota Bene:

This symbol identifies important advice or information for the user.

Fundamental safety warnings

Danger of electric shock!

This is an electrical appliance and may cause electric shock.

You should therefore respect the following safety warnings:

• Never touch the appliance with damp hands.
• Never use the appliance with bare or wet feet.
• Never immerse the appliance in water.
• Never unplug the appliance by pulling the power cable or the appliance itself.
  If the socket and power cable plug are incompatible, the socket should be changed for a suitable type by a qualified professional.

Adapters, multiple sockets or extensions should not be used.

To fill or top up with water, turn the ironing system off using the switch, then unplug from the mains. Never fill the appliance under running water.
Always unplug the appliance from the mains socket before filling the tank with water.
If the power cable is damaged, it must be replaced by the manufacturer or the manufacturer's Customer Services in order to avoid all risk.
Before cleaning or servicing, disconnect the appliance by unplugging from the mains.
In the event of malfunction and/or faulty operation, switch off the appliance and take it to Customer Services.
Before using the appliance, check that the mains supply voltage corresponds to the voltage indicated on the rating plate. Connect the appliance to an efficiently earthed power supply and sockets with a minimum current rating of 10 A only.

Danger of burns!

• Never aim the steam at persons or animals.
• The user must never leave the iron unattended when plugged in.
  During use, the steam generator should not be moved.
• IMPORTANT: the tube connecting the iron and steam generator may become hot.
• All contact between the hot base and cables must be rigorously avoided.

Attention!

After removing the packaging, make sure the appliance is complete and undamaged. If in doubt, do not use the appliance and contact qualified personnel only.
- Dispose of the plastic bag with care as it represents a hazard for children.
- The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children must be supervised to ensure they do not play with the appliance.
- NEVER mix the water in the tank with stain removers, additives or perfumed oils. This reduces the safety of the appliance and irreparably damages the steam generator which would have to be replaced.

NEVER rest the iron on the case of the appliance when the iron rest is removed.

Use the removable iron rest on an ironing board.

NEVER use the iron rest on a table. The heat could ruin the surface of the table!

"Safe transport": certain models are fitted with a locking system which locks the iron in position during transport.

When the iron is locked in position, it must not be used as a carrying handle to transport the appliance! To position the iron correctly, insert the tip of the plate into the housing B, rest the iron in position and move the lock J to the locking position.

To release the iron, move the lock J into the release position and remove the iron from its housing. While ironing, if the iron rest has not been removed from the appliance, you can rest the tip of the iron on the heat resistant base C above the housing B.

• The appliance must be used and rested on a stable heat resistant surface.

• When placing the iron on the iron rest, make sure the appliance is resting on a stable surface. NEVER store the iron in a vertical position!

• Do not use the appliance if it has been dropped and there are visible signs of damage or leaks. If the ironing system is dropped causing visible damage to the appliance (steam generator or iron), do not use. Take to Customer Services.

Designated use

• This appliance must be used exclusively for the purpose for which it was expressly conceived. Any other use is considered improper and thus dangerous.
• The manufacturer is not liable for damage caused by inappropriate, incorrect or irresponsible use or for damage resulting from repairs carried out by unqualified personnel.

What water to use

The appliance works with normal tap water.

! Important!

In case of very hard water (hardness above 27^ ) we suggest using demineralised water diluted with 50% tap water. Never use demineralised water on its own.

Never use chemical substances or detergents (e.g. perfumed water, essences, descaling solution, etc).

Do not use mineral or other types of water (such as rainwater or water for batteries or air conditioners etc.).

! Important!

If you use filtering devices, make sure the water obtained has a neutral pH.

Using the appliance for the first time

• The first time you use the appliance, the steam generator is empty. When filling the steam generator for the first time, it will take longer to heat up as the air must be eliminated from the steam generator and replaced by the water. During filling/heating it is normal for the pump to make a noise.
• The appliance will also run out of water much more quickly than with subsequent fills.
• When used for the first time, the appliance may give off smoke and an odour for several minutes. This is caused by heating and subsequent drying of the sealers used in assembling the steam generator and iron. You are recommended to ventilate the room.
  Each time the iron is used (including for the first time) or if you have not used steam for several minutes, press the steam delivery button a number of times away from the

Rinsing the steam generator - Disposal

ironing board. This will eliminate condensation from the steam circuit.

Rinsing the steam generator

After every 10 ironing sessions, proceed as described on page 6.

Disposal

In compliance with European directive 2002/96/EC, the appliance must not be disposed of with household waste, but taken to an authorised waste separation and recycling centre.

Troubleshooting

PROBLEM	CAUSE	REMEDY
The appliance does not come on.	The appliance is not plugged into a mains socket.	Make sure the appliance is correctly connected and press the iron and steam generator buttons.
Steam comes out of the bottom of the appliance	The maximum pressure safety system has tripped.	Turn the appliance off immediately and contact an authorised De'Longhi Customer Services.
Water leaks out from the holes in the bottom of the sole plate.	The thermostat dial on the iron is not in the sector shown in fig. 7.	Position the thermostat dial on the iron in the steam sector shown in fig. 7.
	Water has condensed inside the tubes because steam is being used for the first time, or has not been used for some time.	Press the steam button several times away from the ironing board. This will eliminate cold water from the steam circuit.
	The ironing system is positioned on an unstable and/or sloping surface.	Rest the ironing system on a stable flat surface.
Brown coloured fluid leaks from the sole plate.	Chemical water softeners or additives have been poured into the water tank or steam generator.	Never pour products into the water tank (see our tips in the quick guide). Clean the sole plate with a damp cloth.
The first time the appliance is turned on, you notice smoke	Some parts have been treated with sealer/lubricant which evaporates the first time the iron heats up.	This is normal and will stop when you have used the iron a few times.
The appliance emits an intermittent noise associated with vibrations.	Water is being pumped into the steam generator.	This is completely normal.
The appliance emits a continuous noise associated with vibrations.		Unplug the system from the mains and contact an authorised De'Longhi Customer Services.
