Safety information

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damages. Always keep the instructions with the appliance for future reference.

Children and vulnerable people safety

Warning! Risk of suffocation, injury or permanent disability.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Do not let children play with the appliance.
• Keep all packaging away from children.
• Keep all detergents away from children.
• Keep children and pets away from the appliance door when it is open.
• If the appliance has a child safety device, we recommend you activate it.
• Cleaning and user maintenance shall not be made by children without supervision.

General Safety

- Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.

• Do not change the specification of this appliance.
• Obey the maximum load volume of 7 kg (refer to the “Programme chart” chapter).
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• The operating water pressure (minimum and between 0,5 bar (0,05 MPa) and 8 bar (0,8 MPa))
• The ventilation openings in the base (if applicable) must not be obstructed by a carpet.
• The appliance is to be connected to the water mains using the new supplied hose-sets. Old hose sets must not be reused.

Safety instructions

Installation

• Remove all the packaging and the transit bolts.
• Keep the transit bolts. When you move the appliance again you must block the drum.
• Do not install or use a damaged appliance.
• Do not install or use the appliance where the temperature is less than 0 °C or where it is exposed to the weather.
• Obey the installation instruction supplied with the appliance.
• Make sure that the floor where you install the appliance is flat, stable, heat resistant and clean.
• Do not install the appliance where the appliance door can not be fully opened.
• Always be careful when you move the appliance because it is heavy. Always wear safety gloves.
• Make sure that there is air circulation between the appliance and the floor.
• Adjust the feet to have the necessary space between the appliance and the carpet.

Electrical connection

Warning! Risk of fire and electrical shock.

• The appliance must be earthed.
• Make sure that the electrical information on the rating plate agrees with the power supply. If not, contact an electrician.
• Always use a correctly installed shockproof socket.
• Do not use multi-plug adapters and extension cables.
• Make sure not to cause damage to the mains plug and to the mains cable. Should the appliance power supply cable need to be replaced, this must be carried out by our Service Centre.
• Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.
• Do not touch the mains cable or the mains plug with wet hands.
• This appliance complies with the E.E.C. Directives.

Water connection

• Make sure not to cause damage to the water hoses.
• The appliance is to be connected to the water mains using the new supplied hose-sets. Old hose sets must not be reused.
• Before you connect the appliance to new pipes or pipes not used for a long time, let the water flow until it is clean.
• The first time you use the appliance, make sure that there is no leakage.

Use

Warning! Risk of injury, electrical shock, fire, burns or damage to the appliance.

• Use this appliance in a household environment.
• Do not change the specification of this appliance.
• Obey the safety instructions on the detergent packaging.
• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.

• Do not touch the glass of the door while a programme operates. The glass can be hot.

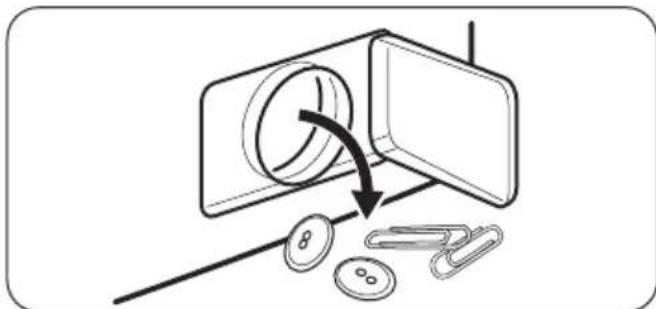

• Make sure that you remove all metal objects from the laundry.

• Do not put a container to collect possible water leakage under the appliance. Contact the Service to ensure which accessories can be used.

Care and Cleaning

Warning! Risk of injury or damage to the appliance.

• Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.
• Do not use water spray and steam to clean the appliance.
• Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.

Disposal

Warning! Risk of injury or suffocation.

• Disconnect the appliance from the mains supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent children and pets to get closed in the appliance.

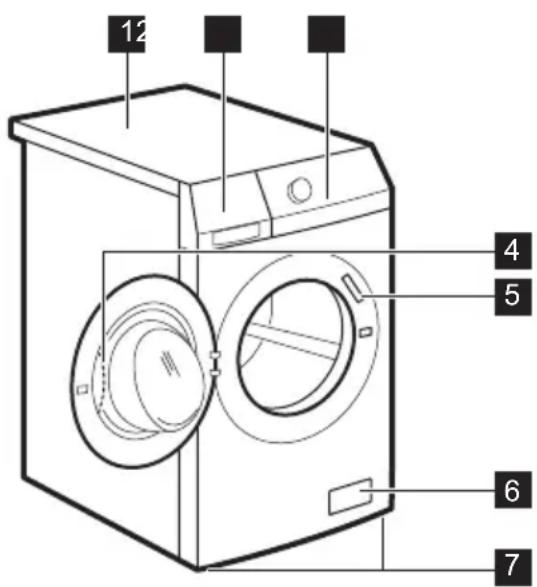

Product description

12 4 5 6 7

1 Worktop

2 Detergent dispenser
3 Control panel
4 Door handle
5 Internal light
6 Rating plate
7 Drain pump filter
8 Feet for the appliance level

Child safety device

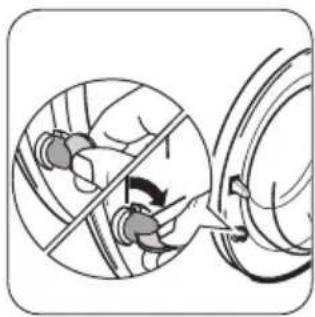

Illustration of a hand holding a mechanical component with a circular cross-section view (no text or symbols)

To activate the device, turn it clockwise, until the groove is horizontal. To deactivate the device, turn it counter-clockwise, until the groove is vertical.

Illustration of a hand holding a device with a circular inset showing internal components (no text or symbols)

When you activate this device, you cannot close the door. This prevents children or pets to be closed in the drum.

Fixing plate kit (4055171146)

Use this special accessory, when you install the appliance on a plinth.

It prevents the movements of the appliance when it operates.

Read carefully the instructions supplied with this accessory.

You can buy it in all approved Service.

Rubber feet kit (4055126249)

Use this special accessory, when you install the appliance in a not flat and stable floor.

The rubber feet prevent the vibrations, noises and movement of the appliance during operation.

Read carefully the instructions supplied with this accessory.

You can buy it in all approved Service.

Control panel

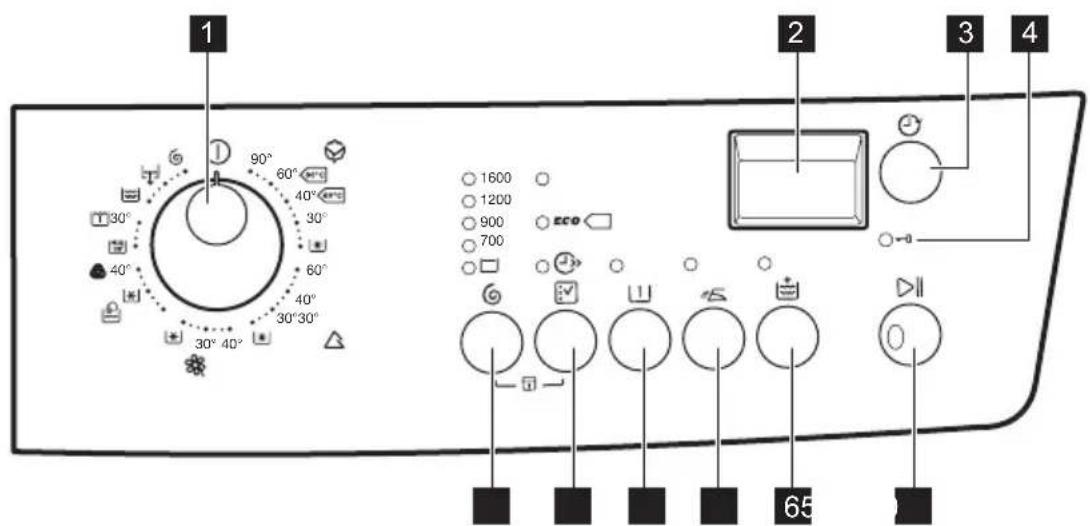

1 2 3 4 90° 60° 40° 30° 60° 40° 30° 30° 30° 40° 1600 1200 900 700 ECO 6 65

1 Programme knob
2 Display
3 Delay start button
4 Door locked indicator 0-1
5 Start/pause button ▷||
6 Extra rinse button
7 Easy Iron button ≡5

8 Prewash button Ⓗ
9 Options button √ :
- ECO option
- SUPER QUICK option
10 Spin reduction button Ⓒ :
- Rinse hold position □

Display

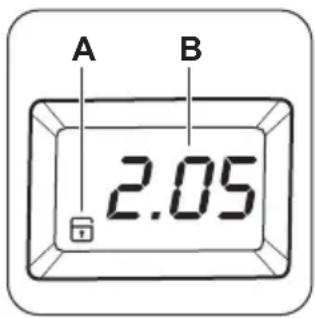

The display shows:

A B 2.05

A) The child lock symbol.

The symbol comes on the display when the related function is set.

B) The programme time and the alarm codes.

If the appliance has a malfunction, the display shows the alarm codes. Refer to the chapter 'Troubleshooting'.

The display shows the message Err for some seconds if:

- You set a function that is not applicable for the programme.

- You change the programme while it operates.

Spin button

With this button you can decrease the spin speed.

The indicator of the set speed comes on.

Rinse hold button

Set this function to prevent the laundry creases.

There is a water in the drum when the programme is completed.

ECO button

Only for cottons and synthetic with light or normal soil at 40^ C or higher.

The appliance extends the wash time and reduces the temperature.

You can have a good result and decrease the energy consumption at the same time.

Super Quick button

With this option you can decrease the programme duration.

Use this option for items with light soil or items to refresh.

Prewash button

The appliance performs a prewash cycle before the main wash.

We recommend that you use this function when you have laundry with a high level of soil.

The set of this function increases the programme duration.

Easy Iron button ≡5

The laundry is gently washed and spun to avoid creases. In this way ironing is easier.

On cotton programmes the appliance reduces the maximum spin speed and performs additional rinses in some programmes.

Extra rinse button

Press this button to add rinsing phases to a programme.

Use this function for persons allergic to detergents and in areas where the water is soft.

Delay start button ⏻

Press this button to delay the start of a programme from 30 minutes to 20 hours.

Door locked indicator

The indicator 0→ shows when the door can be opened:

- The indicator is on: the door cannot be opened.

- The indicator flashes: the door is opening in some minutes.

- The indicator is off: the door can be opened.

Child lock function

This function prevents the children to play with the control panel.

- To activate the function, press the button and the button at the same time until the display shows the symbol.

- To deactivate the function, press the same buttons until the symbol ☐ goes off.

You can activate the function:

- Before you press the Start button ▷∥ : the appliance cannot start.

- After you press the Start button ▷∥, all the buttons and the programme knob do not operate.

Acoustic signals function

The acoustic signals operate when:

• The programme is completed.
• The appliance has a malfunction.
  To deactivate/activate the acoustic signals, press the button and the button at the same time for 6 seconds.

If you deactivate the acoustic signals, they continue operate when the appliance has a malfunction.

Programmes

ProgrammeMaximum and Minimum Temperature - Cycle Description - Maximum Spin Speed - Maximum Fabrics Load - Type of Laundry	Detergent Compartment
COTTONS1)90° - (Cold)Main wash - Rinses - SpinMaximum speed at 1600 rpmMax. load 7 kgWhite and coloured cotton (normally soiled items).	2)
SYNTHETICS60° - (Cold)Main wash - Rinses - SpinMaximum spin speed at 900 rpmMax. load 3.5 kgSynthetic or mixed fabrics: underwear, coloured garments, non-shrink shirts, blouses.	2)
DELICATES40° - (Cold)Main wash - Rinses - SpinMaximum speed at 700 rpmMax. load kg 3.5Delicate fabrics: acrylics, viscose, polyester.	2)
HANDWASH30° - (Cold)Main wash - Rinses - SpinMaximum spin speed at 900 rpmMax. load 2 kgDelicate fabrics with «hand washing» care symbol.
WOOL40°Main wash - Rinses - SpinMaximum speed at 900 rpmMax. load 2 kgFor machine washable wool as well as for hand washable woollens and delicate fabrics3).
ProgrammeMaximum and Minimum Temperature - Cycle Description - Maximum Spin Speed - Maximum Fabrics Load - Type of Laundry	Detergent Compart-ment
MIX 20 ^4) 20°Main wash - Rinses - SpinMaximum speed at 900 rpmMax. load 3 kgSpecial programme for cotton, synthetic and mixed fabrics with light soil.Set this programme to decrease the energy consumption.
SOAK30°Prewash - Soak for about 40 minutes - Stop with water in the tubMax. load 7 kgSpecial programme for laundry with heavy soil. Do not use for very delicate fabrics as silk or wool.Pour the detergent for the soak into the appropriate compartment.At the end of this programme the machine stops automatically with water left in the tub.Important!Before you start a new washing phase, empty out the water:To drain only:turn the programme knob to DRAINpress the button 5.To drain and spin:turn the programme knob to the SPIN programmeif needed, reduce the spin speedpress the button 5.After you have emptied out the water, you can set a new programme:turn first the programme knob to turn the programme knob to the required programmepress the button 5 to start it.
RINSESRinses - SpinMaximum speed at 1600 rpmMax. load 7 kgFor cotton garments washed by hand. The machine performs some rinses and a final long spin. If needed, reduce the spin speed.
DRADNDraining of waterMax. load 7 kgFor emptying out the water of the last rinse in programmes with the option selected, which ends with water left in the tub.
ProgrammeMaximum and Minimum Temperature - Cycle Description - Maximum Spin Speed - Maximum Fabrics Load - Type of Laundry	Detergent Compartment
[SDWK] SPINDrain - Long spinMaximum speed at 1600 rpmMax. load 7 kgSeparate spin for hand washed garments. Also, after programmes with water left in the tub. if needed, reduce the spin speed to adapt it to the fabrics to be spun.
[TBCS] = OFFFor cancelling a running programme or to switch the machine off .

1) Standard programmes for the Energy Label consumption values

According to regulation 1061/2010, the "COTTONS 60^ " with "ECO" option selected and the "COTTONS 40^ " with "ECO" option selected are respectively the "standard 60^ cotton programme" and the "standard 40^ cotton programme". They are the most efficient programmes in terms of combined energy and water consumptions for washing normally soiled cotton laundry.

The water temperature of the washing phase may differ from the temperature declared for the selected programme.

2) If you use liquid detergents, set a programme without PREWASH.
3) A single or bulky item may cause imbalance. If the appliance doesn't perform the final spin phase, add more items, redistribute the load manually and then set the spinning programme.
4) Make sure that the detergent is for low temperature in order to have good washing results.

Programme options compatibility

Programme			ECO1)		2)		3)
Cottons
Synthetics
Delicates
Handwash
Wool
Mix 20°
Soak
Rinse
Drain

Spin

1) ECO option is not active at a temperature lower then 40 °C
2) When you set the Super Quick option, we recommend that you decrease the quantity of the laundry. It is possible to keep the full load but the washing results can be unsatisfactory. We recommend to load: 3.5 kg for cotton, and 1.5 kg for synthetics and delicates.
3) If you use liquid detergent, set a programme without PREWASH.

Consumption values

The data of this table are approximate. Different causes can change the data: the quantity and type of laundry, the water and ambient temperature.

Programmes Load (Kg)	Energy consumption (kWh)	Water consumption (litre)	Approximate programme duration (minutes)	Remaining moisture (%)1)
Cottons 60 °C	7	1.35	58	140
Cottons 40 °C	7	0.75	58	130
Synthetics 40 °C	3.5	0.55	51	80
Delicates 40 °C	3.5	0.55	63	65
Wool/Hand wash 30 °C	2 0.25 62 53	30
Standard cotton programmes
Standard 60 °C cotton	7 0.89 43 184 44
Standard 60 °C cotton	3.5 0.72 36 165 44
Standard 40 °C cotton	3.5 0.53 36 151 44

1) At the end of spin phase.

Off Mode (W)	Left On Mode (W)
0.10	0.98
The information given in the charts above are in compliance with the EU Commission regulation 1015/2010 implementing directive 2009/125/EC.

Before first use

1. Put 2 litre of water in the detergent compartment for washing phase. This activates the drain system.

2. Put a small quantity of detergent in the compartment for washing phase.

3. Set and start a programme for cotton at the highest temperature without laundry. This removes all possible dirt from the drum and the tub.

Daily use

1. Open the water tap.
2. Connect the mains plug to the mains socket.
3. Put the laundry in the appliance.
4. Use the correct quantity of detergent and additives.
5. Set and start the correct programme for the type of laundry and soil.

Loading the laundry

1. Open the appliance door.
2. Put the laundry in the drum, one item at a time. Shake the items before you put them in the appliance. Make sure not to put too much laundry in the drum.
3. Close the door.

Safety warning symbol with a warning triangle and cross, indicating no severe infection or death.

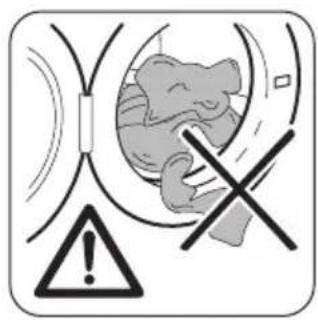

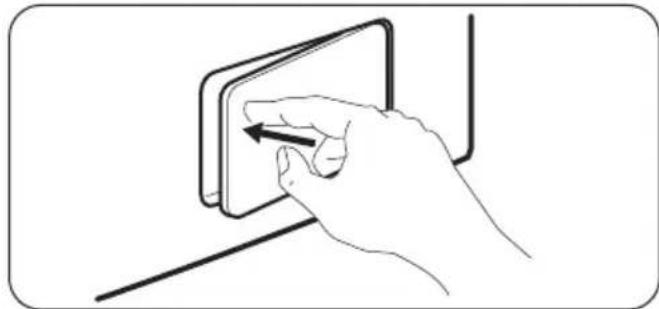

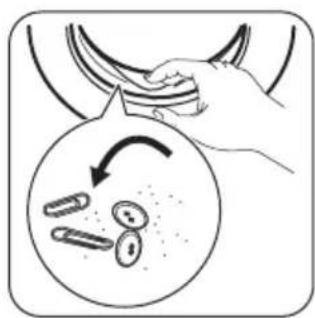

Caution! Make sure that no laundry stays between the seal and the door. There is a risk of water leakage or damage to the laundry.

Using detergent and additives

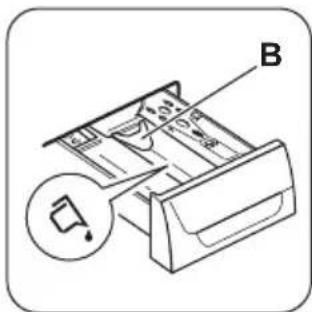

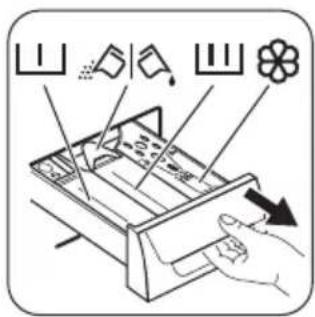

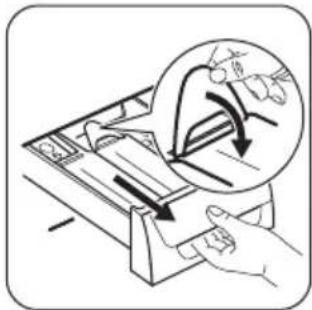

Diagram illustrating a hand holding a device with labeled parts including a folder, icons, and a flower symbol.

- Measure out the detergent and the fabric conditioner. - Carefully close the detergent drawer.

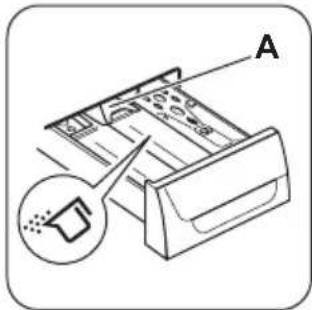

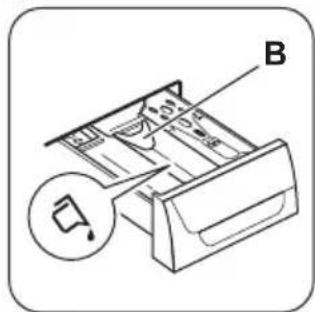

	Detergent compartment for prewash phase.
	Detergent compartment for washing phase.
	Compartment for liquid additives (fabric conditioner, starch).

Flap for powder or liquid detergent.

Liquid or powder detergent

1.

Diagram of a device with labeled section A and a magnified inset showing a device emitting smoke (no text or symbols present)

1.

Diagram illustrating a hand holding a device with directional arrows and a magnified view of the component being processed.

1.

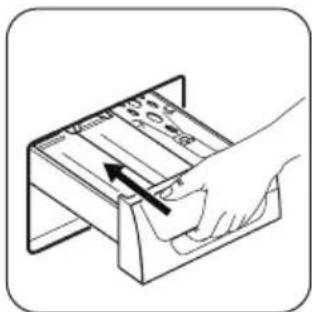

Diagram of a printer drawer with labeled parts and a magnified view showing a small object, likely indicating a component or device.

1.

Illustration of a hand inserting a component into a device (no text or symbols visible)

• Position A for powder detergent (factory setting).
• Position B for liquid detergent.

When you use the liquid detergent:

• Do not use gelatinous or thick liquid detergents.
• Do not put more liquid then the maximum level.
• Do not set the prewash phase.
• Do not set the delay start.

Setting a programme

1. Turn the programme knob and set the programme:

- The indicator flashes. - The display shows the programme duration.

1. If necessary, change the spin speed or add available functions.

When you press the relevant button, the indicator of the set function comes on.

Starting a programme without the delay start

Press the Start button ▷∥ :

• The indicator of the button ▷|| stops to flash and the indicator 0→ is on.
• The programme starts and the door locks.
• The programme time decreases with steps of one minute.

Starting a programme with the delay start

• Press the Delay start button 📋 again and again until the display shows the delay you want to set.
• Press the Start button ▷‖ : The appliance starts the countdown. The indicator 0→ goes on.
  When the countdown is completed, the programme starts automatically.

You can change or cancel the delay start before you press the button ▷∥. After you

have pressed the button ▷∥ you can only cancel the delay.

To cancel the delay start:

1. Press the button ▷∥ to set the appliance to PAUSE.
2. Press thebutton ⏻. The display shows ☐,
3. Press the button ▷ again to start the programme immediately.

Interrupting a programme and changing the options

You can change only some options before they operate.

1. Press the button ▷||. The indicator flashes.
2. Change the options.
3. Press the button ▷ again. The programme continues.

Cancelling a programme

1. Turn the programme knob to Ⓐ to cancel the programme and to deactivate the appliance.

2. Turn the programme knob again to activate the appliance. Now, you can set a new washing programme.

i The appliance does not drain the water.

Changing the options

You can change only some options before they operate.

1. Press the button ▷∥. The indicator flashes.
2. Change the options.
3. Press the button ▷ again. The programme continues.

Opening the door

While a programme or the delay start operates, the appliance door is locked. The indicator —— is on.

Caution! If the temperature and level of the water in the drum are too high, you cannot open the door.

Open the appliance door when the delay start operates:

1. Press the button ▷|| to pause the appli- ance.
2. Wait until the door lock indicator —☐ goes off.
3. You can open the door.
4. Close the door and press the button ▷|| again. The delay start continues to operate.

Open the appliance door when the programme operates:

1. Turn the programme knob to Ⓐ to deactivate the appliance.
2. Wait for some minutes and then open the appliance door.
3. Close the appliance door.
4. Set the programme again.

Stand by : once the programme has finished after a few minutes the energy saving system will be enabled. The brightness of the display is reduced. By pressing any button the appliance will come out of the energy saving status.

The laundry load

• Divide the laundry in: white, coloured, synthetics, delicates and wool.
• Obey the washing instructions that are on the laundry care labels.

- Do not wash together white and coloured items.

- Some coloured items can discolour with the first wash. We recommend that you wash them separately for the first times.

- Button up pillowcases, close zippers, hooks and poppers. Tie up belts.

- Empty the pockets and unfold the items.

- Turn inside out multilayered fabrics, wool and items with painted illustrations.

- Remove hard stains.

- Wash with a special detergent heavy soil stains.

- Be careful with the curtains. Remove the hooks or put the curtains in a washing bag or pillowcase.

- Do not wash in the appliance :

– Laundry without hems or with cuts

- Underwired bras.

- Use a washing bag to wash small items.

- A very small load can cause balance problems with the spin phase. If this occurs, adjust manually the items in the tub and start the spin phase again.

Stubborn stains

For some stains, water and detergent is not sufficient.

Care and cleaning

Warning!

Disconnect the appliance from the mains supply before you clean it.

External cleaning

Clean the appliance only with soap and warm water. Fully dry all the surfaces.

We recommend that you remove these stains before you put the items in the appliance.

Special stain removers are available. Use the special stain remover that is applicable to the type of stain and fabric.

Detergents and additives

• Only use detergents and additives specially made for washing machines.
• Do not mix different types of detergents.
• To help the environment, do not use more than the correct quantity of detergent.
• Obey the instructions that you find on the on packaging of these products.
• Use the correct products for the type and colour of the fabric, the programme temperature and the level of soil.
• If you use liquid detergents, do not set the prewash phase.
• If your appliance has not the detergent dispenser with the flap device, add the liquid detergents with a dosing ball.

Water hardness

If the water hardness in your area is high or moderate, we recommend that you use a water softener for washing machines. In areas where the water hardness is soft it is not necessary to use a water softener.

To know the water hardness in your area, contact your local water authority.

Obey the instructions that you find on the packaging of the products.

Caution! Do not use alcohol, solvents or chemical products.

Descaling

The water we use contains limescale. If it becomes necessary, use a water softener to remove limescales.

Use a special product made for washing machines. Obey the instructions that you find on the packaging of the manufacturer.

Do this separately from the laundry wash.

Maintenance wash

With the low temperature programmes it is possible that some detergent stays in the drum.

Make regularly a maintenance wash. To do this:

• Empty the laundry from the drum.
• Set the hottest cotton wash programme
• Use a correct quantity of powder detergent with biological properties.

After each wash, keep the door open for a while to prevent mould and to let unpleasant smells go out.

Drum

Regularly examine the drum to prevent limescale and rust particles.

Only use special products to remove rust particles from the drum.

To do this:

• Clean the drum with special product for stainless steel.
• Start a short programme for cotton at the maximum temperature with a small quantity of detergent.

Door seal

Illustration of a hand holding a curved object with an arrow pointing to three small oval objects inside a circle (no text or symbols)

Regularly examine the seal and remove all objects from the inner part.

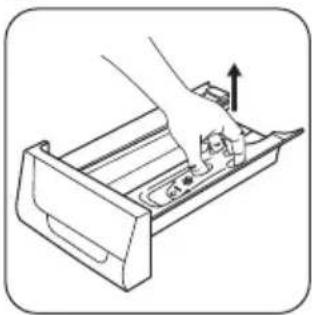

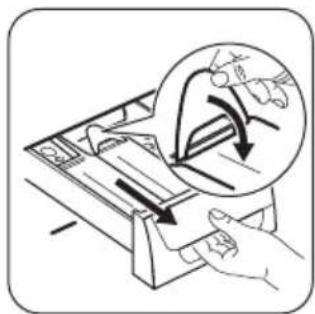

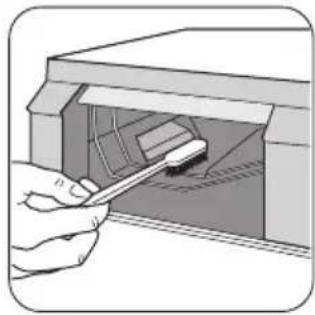

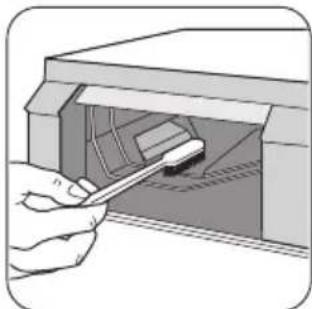

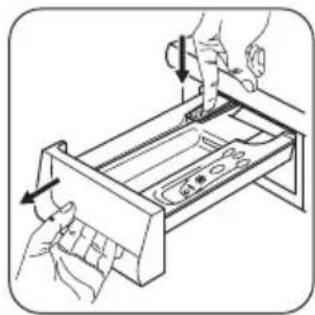

Cleaning the detergent dispenser

1.

Illustration of hands using a tool to adjust or install a tray device (no text or symbols visible)

1.

Line drawing of a hand pressing down on a mechanical component (no text or symbols)

1.

Illustration of a hand using a tool to cut or mark a rectangular object inside a container (no text or symbols visible)

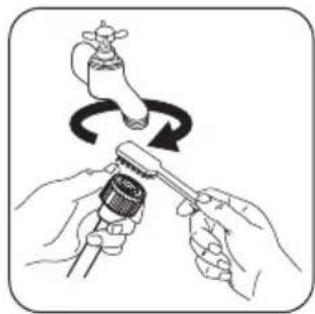

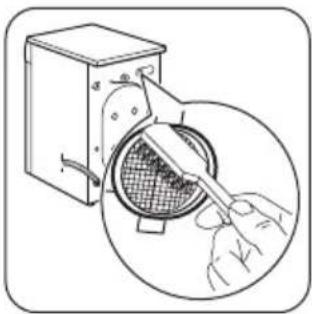

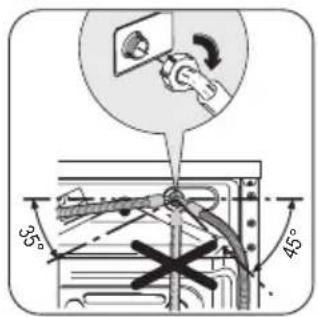

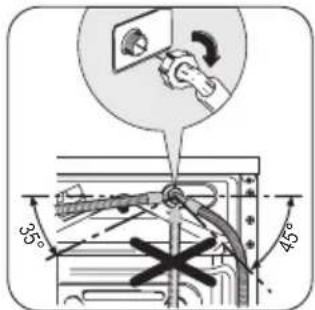

Cleaning the inlet hose filter and the valve filter

It could be necessary to clean the filters when:

• The appliance does not fill with water.
• The appliance fills with the water for a long time.

- The indicator of button flashes and the display shows the related alarm. Refer to 'Troubleshooting'.

Warning! Disconnect the mains plug from the mains socket.

1.

Illustration of hands using a tool to interact with a faucet handle (no text or symbols present)

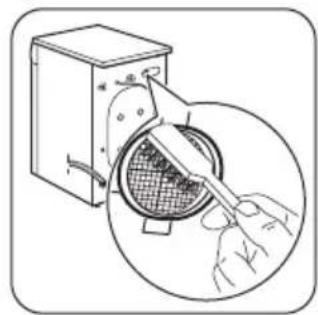

1.

Illustration of a hand using a tool to clean or inspect a circular component, with no visible text or symbols.

1.

35° 45°

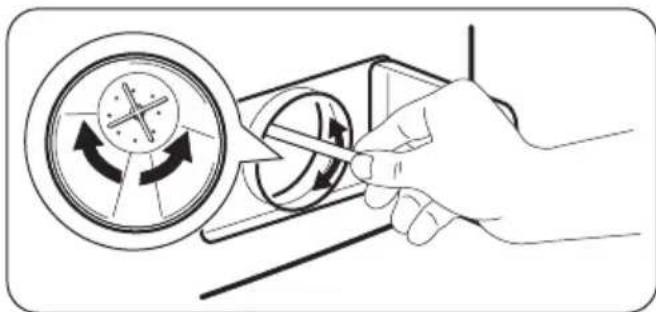

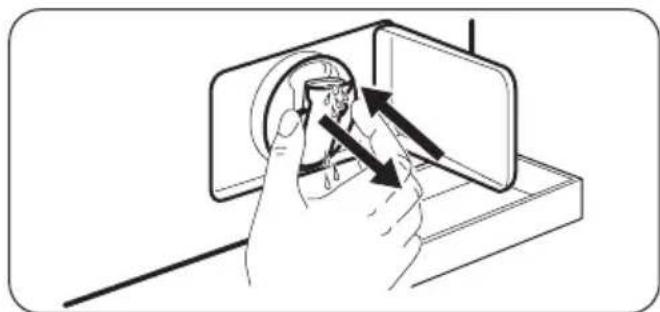

Cleaning the drain pump

i Regularly examine the drain pump and make sure that it is clean.

Clean the pump if:

• The appliance does not drain the water.
• The drum cannot turn.
• The appliance makes an unusual noise because of the blockage of the drain pump.
• The display shows an alarm code because of the problem with water drain.

!

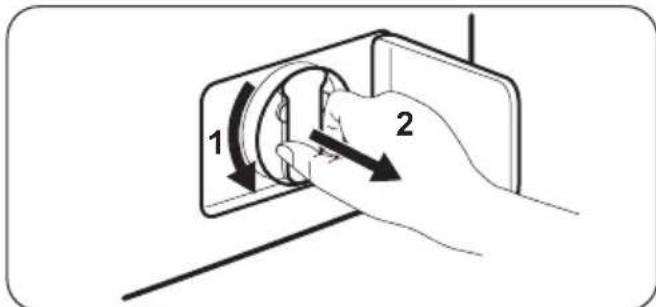

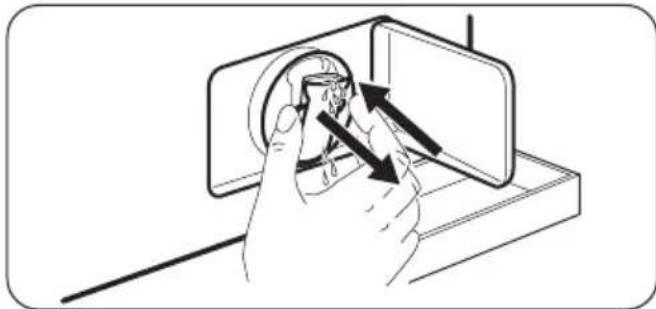

Warning!

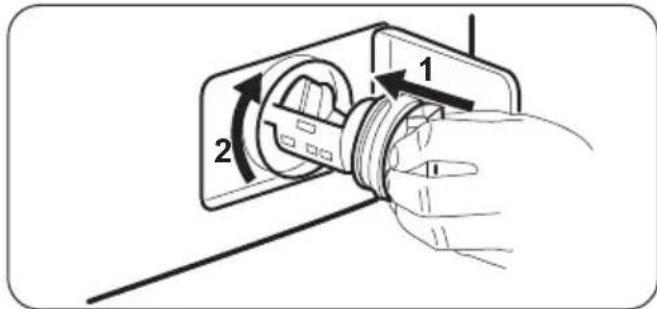

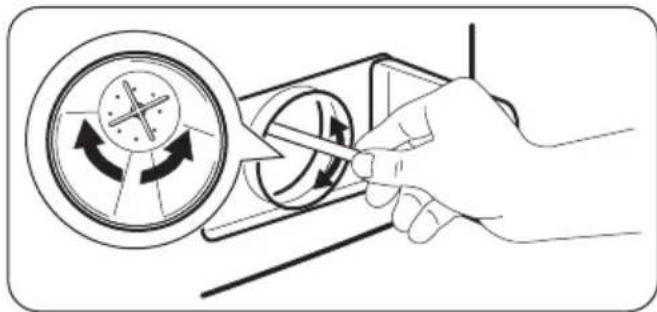

1. Disconnect the mains plug from the mains socket.

2. Do not remove the filter while the appliance operates. Do not clean the drain pump if the water in the appliance is hot. The water must be cold before you clean the drain pump.

3.

Line drawing of a hand holding a smartphone with an arrow indicating left-hand rule (no text or symbols)

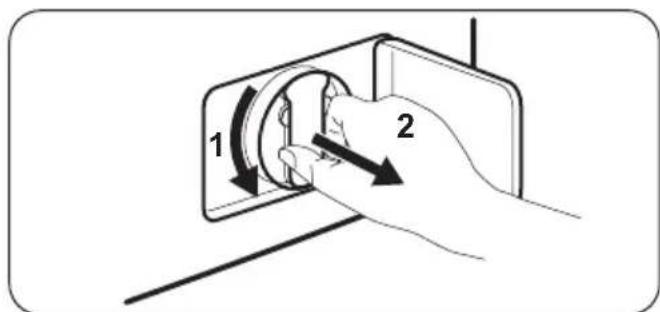

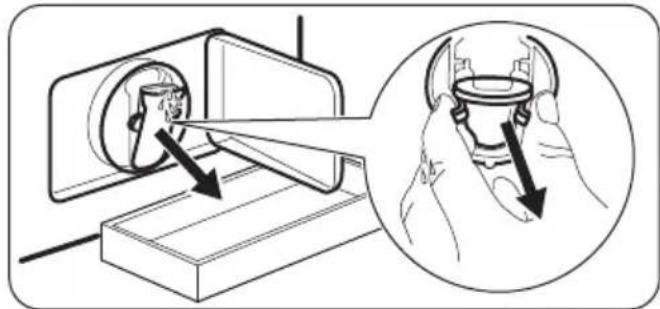

1.

Medical procedure illustration showing a CT scanner and hand placement with arrows indicating direction (no text or symbols)

1.

Illustration of a hand inserting a device into a wall-mounted device (no text or symbols)

1.

1 2

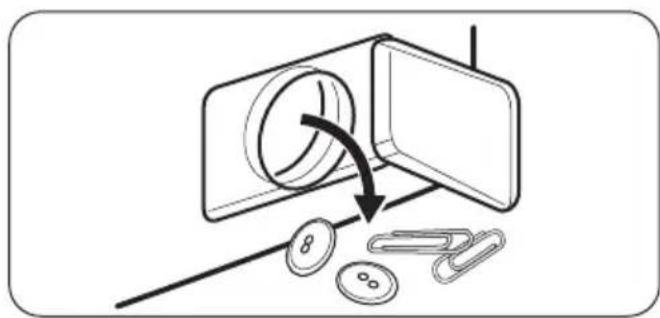

1.

Diagram showing a computer monitor with a magnifying glass and a paperclip, illustrating the process (no text or symbols present)

1.

Illustration of a hand using a tool to adjust or install a circular component with directional arrows (no text or symbols)

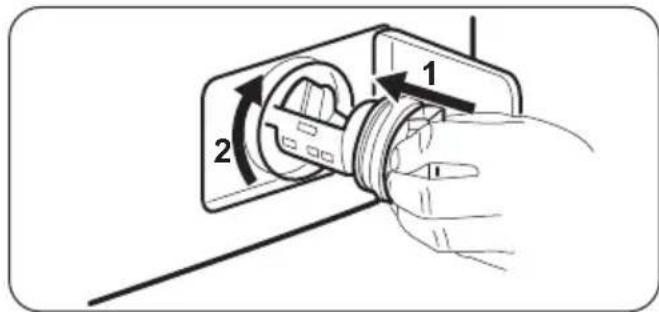

7.

Diagram showing a hand inserting a component into a device with labeled parts 1 and 2

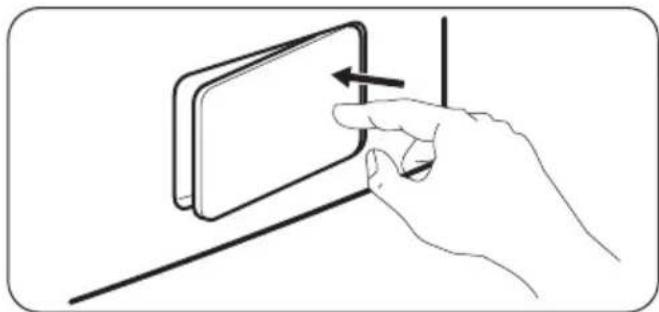

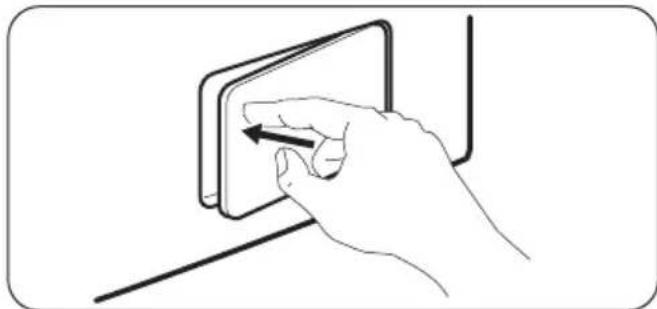

8.

Line drawing of a hand inserting a card into a wall, with an arrow indicating the direction (no text or symbols)

Emergency drain

Because of a malfunction, the appliance cannot drain the water.

If this occurs, do steps (1) through (8) of 'Cleaning the drain filter'.

If necessary, clean the pump.

When you drain the water with the emergency drain procedure, you must activate again the drain system:

Troubleshooting

The start of the appliance does not occur or it stops during operation.

First try to find a solution to the problem (refer to the table). If not, contact the service centre.

With some problems, the acoustic signals operate and the display shows an alarm code:

• E10 - The appliance does not fill with water.

• E20 - The appliance does not drain the water.

• Put 2 litres of water in the main wash compartment of the detergent dispenser.

• Start the programme to drain the water.

Frost precautions

If the appliance is installed in an area where the temperature can be less than 0^ C, remove the remaining water from the inlet hose and the drain pump.

1. Disconnect the mains plug from the mains socket.
2. Close the water tap.
3. Remove the water inlet hose.
4. Put the two ends of the inlet hose in a container and let the water flow out of the hose.
5. Empty the drain pump. Refer to the emergency drain procedure.
6. When the drain pump is empty, install the inlet hose again.

Warning! Make sure that the temperature is more than 0 °C before you use the iance again.

The manufacturer is not responsible for damages caused by low temperatures.

• E40 - The appliance door is open or not closed correctly. Please check the door!
• EHO - The mains supply is unstable. Wait until the mains supply is stable.

Warning! Deactivate the appliance before you do the checks.

Problem Possible solution

The programme does not start. Make sure that the mains plug is connected to the mains socket.

Make sure that the appliance door is closed.

Make sure that there is not a damaged fuse in the fuse box.

Problem Possible solution
Make sure that the Start/Pause has been pressed.
If the delay start is set, cancel the setting or wait for the end of countdown.
Deactivate the Child Lock function if it is on.
The appliance does not fill with water.	Make sure that the water tap is open.
	Make sure that the pressure of the water supply is not too low. For this information, contact your local water authority.
Make sure that the water tap is not clogged.
Make sure that the filter of the inlet hose and the filter of the valve are not clogged. Refer to “Care and cleaning”.
Make sure that the inlet hose has no kinks or bends.
Make sure that the connection of the water inlet hose is correct.
The appliance does not drain the water.	Make sure that the sink spigot is not clogged.
Make sure that the drain hose has no kinks or bends.
	Make sure that the drain filter is not clogged. Clean the filter, if necessary. Refer to 'Care and cleaning'.
Make sure that the connection of the drain hose is correct.
Set the drain programme if you set a programme without drain phase.
Set the drain programme if you set an option which ends with water in the tub.
The spin phase does not operate or the washing cycle lasts longer than usually.	Set the spin programme.
	Make sure that the drain filter is not clogged. Clean the filter, if necessary. Refer to 'Care and cleaning'.
Adjust manually the items in the tub and start the spin phase again. This problem may be caused by balance problems.
There is water on the floor.	Make sure that the couplings of the water hoses are tight and there is not water leakages.
Make sure that the drain hose have no damages.
Make sure you use the correct detergent and the correct quantity of it.
You cannot open the appli-ance door.	Make sure that the washing programme is finished.
Set the drain or the spin programme if there is water in the drum.
The appliance makes an un-usual noise.	Make sure the levelling of the appliance is correct. Refer to 'Installation'.
Make sure that the packaging and/or the transit bolts are removed. Refer to 'Installation'.
Add more laundry in the drum. The load may be too small.
The appliance fills with water and drain immediately.	Make sure that the drain hose is in the correct position. The hose may be too low.
The cycle is shorter than the time displayed.	The appliance calculates a new time according to the laundry load. See the ‘Consumption Values’ chapter.
The cycle is longer than the time displayed.	An unbalanced laundry load increases the duration time. This is a normal behavior of the appliance.
The washing results are not satisfactory.	Increase the detergent quantity or use a different detergent.
Use special products to remove the stubborn stains before you wash the laundry.
Make sure that you set the correct temperature.
Decrease the laundry load.

After the check, activate the appliance. The programme continues from the point of interruption. If the problem occurs again, contact the Service.

If the display shows other alarm codes. Deactivate and activate the appliance. If the problem continues, contact the Service.

Service

We recommend the use of original spare parts. When contacting the Service, make sure that these data are available. You can find the information on the rating plate: model (Mod.), PNC (Prod.No.), Serial number (Ser.No.).

Technical information

Dimensions Width / Height / Depth	600 / 850 / 600 mm
	Total depth 640 mm
Electrical connection: Voltage		220-230 V
	Overall power	2000 W
	Fuse	10 A
	Frequency	50 Hz
Level of protection against ingress of solid particles and moisture ensured by the protective cover, except where the low voltage equipment has no protection against moisture		IPX4
Water supply pressure Minimum 0,5 bar (0,05 MPa)
	Maximum 8 bar (0,8 MPa)
Water supply 1)	Cold water
Maximum load Cotton 7 kg
Spin speed Maximum 1600 rpm

1) Connect the water inlet hose to a water tap with a 3/4" thread.

Recycle the materials with the symbol ⚙ Put the packaging in applicable containers to recycle it.

Help protect the environment and human health and to recycle waste of electrical and electronic appliances. Do not dispose appliances marked with the symbol with the household waste.

Return the product to your local recycling facility or contact your municipal office.

Packaging materials

Recycle the materials with the symbol 📋. Put the packaging in applicable containers to recycle it.

Ecological hints

To help the environment, use less water and energy, obey these instructions:

- Set a programme without the prewash phase to wash laundry with normal soil.

- Always start a washing programme with the maximum load of laundry.

- If necessary, use a stain remover when you set a programme with a low temperature.

- To use the correct quantity of the detergent, check the water hardness of your domestic system

Inhalt

Illustration of a hand holding a mechanical component with a circular inset showing internal components (no text or symbols)

Illustration of a hand holding a small object with a diagonal line crossing, next to a circular component (no text or symbols)

Warning sign with a rat inside a circle, indicating workplace hazard or safety warning

Diagram illustrating a printer or printer mechanism with labeled parts and directional arrow, likely illustrating a printing or printing process.

Diagram of a printer drawer with a magnified inset showing a printer tip (no text or symbols)

1.

Illustration of a hand using a computer to interact with a device, showing a magnified view of the screen (no text or symbols present)

1.

Diagram showing a device with labeled parts and a magnified view of a music note icon

1.

Illustration of a hand inserting a device into a rack with an arrow indicating the direction (no text or symbols)

Illustration of a hand holding a curved object with an arrow pointing to three oval-shaped objects inside a circle (no text or symbols)

Illustration of hands using a tool to adjust or install a tray device (no text or symbols visible)

1.

Line drawing of a hand pressing down on a drawer with an arrow indicating force (no text or symbols)

1.

Illustration of a hand using a tool to clean or store items inside a storage unit (no text or symbols visible)

Illustration of hands using a tool to lift a faucet with a rotating arrow (no text or symbols)

1.

Illustration of a hand using a tool to clean or inspect a circular object with a mesh pattern (no text or symbols)

1.

35° 45°

Line drawing of a hand pressing a button on a smartphone screen (no text or symbols)

1.

Illustration of a medical CT scanner with an arrow indicating insertion or dissection, showing hand positioning and magnified view of the device (no text or symbols present)

1.

Illustration of a hand inserting a device into a device with arrows indicating direction (no text or symbols)

1.

1 2

1.

Diagram illustrating a mechanical or electrical process with labeled components and directional arrows indicating flow or transformation.

1.

Illustration of a hand using a tool to adjust or inspect a circular component with directional arrows (no text or symbols)

1.

Diagram showing a hand inserting a device into a panel with labeled parts 1 and 2

1.

Line drawing of a hand inserting a card into a wall, with an arrow indicating the direction (no text or symbols)

Notentleerung

Warranty For each product we provide a two-year guarantee from the date of purchase or delivery to the consumer (with a guarantee certificate, invoice or sales receipt serving as proof). The guarantee covers the costs of materials, labour and travel. The guarantee will lapse if the operating instructions and conditions of use are not adhered to, if the product is incorrectly installed, or in the event of damage caused by external influences, force majeure, intervention by third parties or the use of non-genuine components.

www.zanussi.com/shop
