USER MANUAL P4 Syrincs

1 General information about this manual 4
2 For your safety 6
3 Features 8
4 Installation 9
5 Technical specifications 11
6 Protecting the environment 13
7 Plug and connection assignment 14

1 General information about this manual

This user manual contains important instructions for the safe operation of the unit. Read and follow the safety instructions and all other instructions. Keep the manual for future reference. Make sure that it is available to all those using the device. If you sell the unit, please make sure that the buyer also receives this manual.

Our products are subject to a process of continuous development. Thus, they are subject to change.

Signal words used

All precautions in this manual are clearly highlighted. The following signal words are used for precautions:

DANGER This warns of dangers that can result in severe injuries or death if the instructions are not followed.

WARNING This warns of dangers that can result in severe injuries or death and/or cause considerable material damage if the instructions are not followed.

CAUTION This warns of dangers that can result in reversible injuries and/or considerable material damage if the instructions are not followed.

NOTICE This warns of dangers that can result to faults during operation and/or considerable material damage. Environmental damage may also occur if the instructions are not followed.

Symbols used

General warning of a dangerous location

Warning of suspended load

Notice

2 For your safety

Intended use

This device is designed as a PA system. Use the device only as described in this user manual. Any other use or use under other operating conditions is considered to be improper and may result in personal injury or property damage. No liability will be assumed for damages resulting from improper use.

This device may be used only by persons with sufficient physical, sensorial, and intellectual abilities and having corresponding knowledge and experience. Other persons may use this device only if they are supervised or instructed by a person who is responsible for their safety.

Safety instructions

DANGER

Danger for children

Ensure that plastic bags, packaging, etc. are properly disposed of and are not in the reach of babies and young children. Choking hazard!

→ Ensure that children do not detach any small parts (e.g. knobs or the like) from the product. They could swallow the pieces and choke!
→ Never let children play unattended with the electrical devices.

CAUTION

Possible hearing damage

The device can produce volume levels that may cause temporary or permanent hearing impairment. Over an extended period of time, even levels that seem to be uncritical can cause hearing damage.

→ Decrease the volume level immediately if you experience ringing in your ears or hearing impairment. If this is not possible, keep a greater distance or use sufficient ear protectors.

NOTICE

Operating conditions

This device has been designed for indoor use only.

→ To prevent damage, never expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and strong vibrations.

3 Features

Special features of this passive 2-way, full-range speaker:

• Connection options: locking NL4 plug connector
• Especially suitable for use with DSP amplifiers from Syrincs
• Trapezoidal multiplex housing
• Fixture on the bottom for SM 707 rotating, tilting speaker flange from Adam Hall
• Two M10 threaded attachment points for ceiling mounting on the top
  Optionally available accessories:
  – Ceiling bracket with multiple holes for different inclination angles

4 Installation

Unpack and check carefully there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively.

Create all connections while the device is off. Use the shortest possible high-quality cables for all connections.

WARNING

Risk of injury caused by falling objects

→ Make sure that the installation complies with the standards and rules that apply in your country. Always secure the device with a secondary safety attachment, such as a safety cable or a safety chain.

NOTICE

Possible property damage by magnetic fields

Loudspeakers produce a static magnetic field.

→ Therefore maintain an appropriate distance to devices that can be adversely affected or damaged by an external magnetic field.

NOTICE

Use of stands

→ When mounting the device onto a stand, ensure that the stand is in a safe and stable position and that the weight of the device does not exceed the maximum permissible load capacity of the stand.

We recommend you to set up the speakers in a way, that their sound signals can reach the audience unobstructedly. It will often be helpful to mount the speakers on tripods. Thus, the sound will be evenly spread with maximum range throughout the audience area.

Always use high grade cables to connect your equipment. Otherwise you won't reach maximum sound quality.

For optimum results both impedance and power rating of the speaker must match the requirements of the amplifier / input signal. Consider the technical specifications of the speakers connected. The overall impedance of the connected loudspeakers shall not be less than the minimum output impedance of the amp. The amps max. RMS output power should be 50 % above the power handling capacity of the connected speakers.

If you notice distortion during operation, either the amp or the speaker is overloaded. This may permanently damage the amp or the speaker. Always reduce the volume as soon as you notice distortion.

5 Technical specifications

Speakers 12" woofer	1.4" tweeter
Power handling 400 W (RMS)	1600 W (peak)
Sensitivity (1 W/1 m) 96 dB
Impedance 8 Ω
Maximum sound pressure level	122 dB (1 m)128 dB (peak)
Frequency range 63 Hz ... 20 kHz (-3 dB)
Beam angle 60° × 50°
Dimensions (W × H × D) 370 mm × 665 mm × 375 mm
Weight 24.5 kg

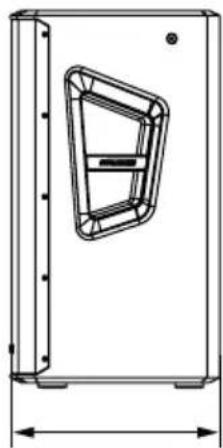

Simple line drawing of a shield-like object with a central vertical slot (no text or symbols)

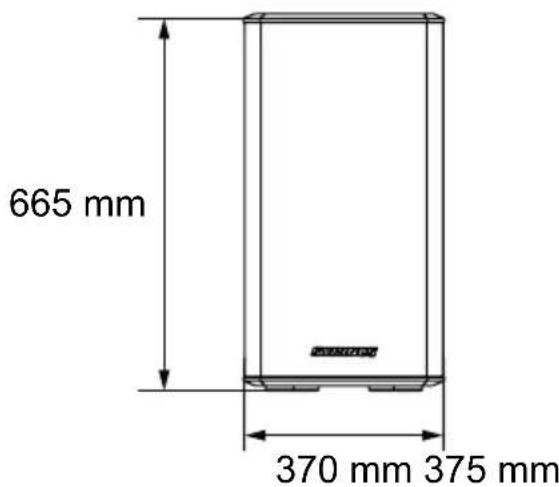

665 mm 370 mm 375 mm

Technical line drawing of a rectangular enclosure with a central frame and side supports (no text or symbols)

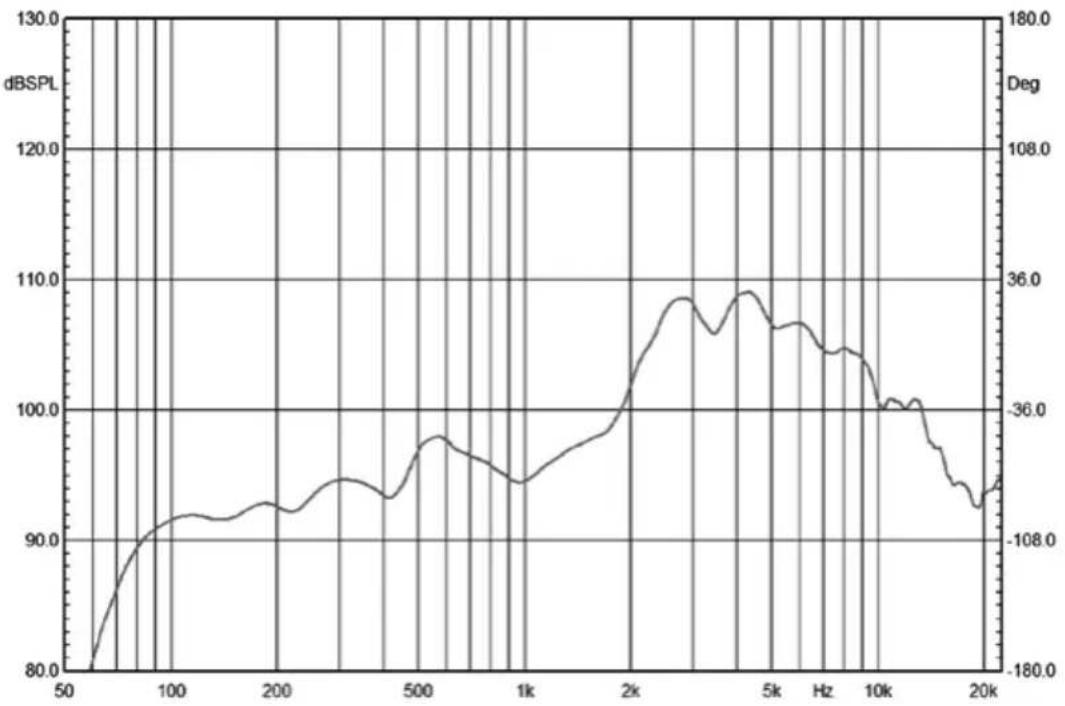

Frequency response

6 Protecting the environment

Packaging

For the packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of.

Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling. Please follow the notes and markings on the packaging.

Disposal of your old device

This product is subject to the European Waste Electrical and Electronic Equipment Directive (WEEE) in its currently valid version. Do not dispose with your normal household waste.

Dispose of this device through an approved waste disposal firm or through your local waste facility. When discarding the device, comply with the rules and regulations that apply in your country. If in doubt, consult your local waste disposal facility.

7 Plug and connection assignment

Introduction

This chapter will help you select the right cables and plugs to connect your valuable equipment in such a way that a perfect sound experience is ensured.

Please follow these tips, because special care is required when dealing with sound and light: Even if a plug fits into the socket, an incorrect connection may result in a destroyed power amp, a short circuit or just in poor transmission quality!

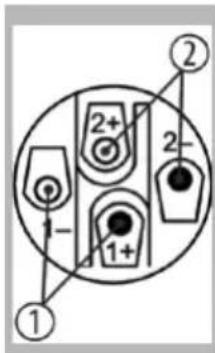

NL4 connection

① ② ②+ 1+ 2- 1+

1, + Signal 1 (in phase)
1, - Signal 1 (out of phase)
2, + Signal 2 (in phase)
2, - Signal 2 (out of phase)

Silhouette of a bird with pointed beak and outstretched tail (no text or symbols)

SYRINCS
