USER MANUAL IAN 287013 Livarno Lux

Assembly, operating and safety instructions

PL

LEDOWA LAMPA STOŁOWA

Before reading, unfold both pages containing illustrations and familiarise yourself with all functions of the device.

SE

GB Assembly, operating and safety instructions Page 5

Simple line drawing of a candle flame with a coil, showing an arrow indicating rotation and a numbered connection point (no text or symbols)

Simple diagram showing a rotating disk and a rectangular block connected by a line to a numbered box (no text or symbols)

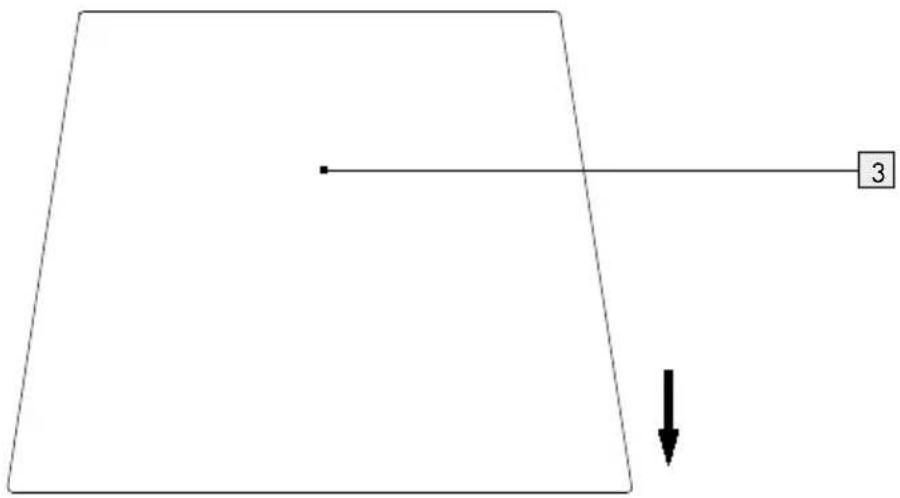

Simple line drawing of a trapezoid with a horizontal line and a downward arrow, no text or symbols present.

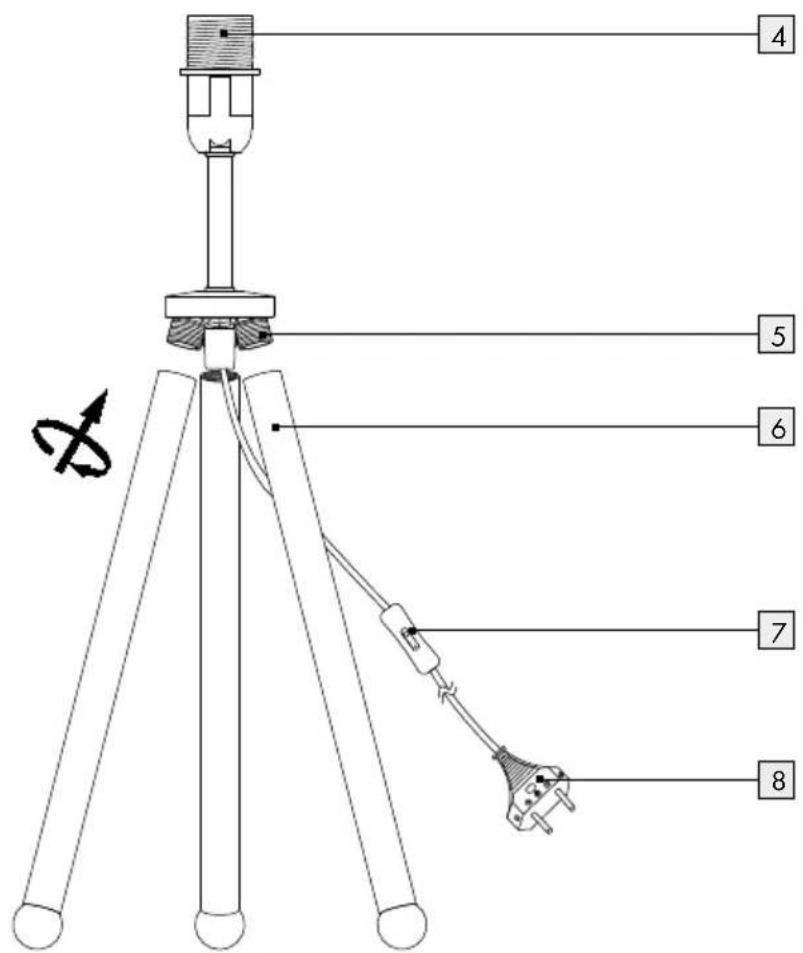

Technical diagram of a tripod-mounted sensor or antenna with labeled components including a base, wires, and connectors.

14123705L/14123706L

|14/23/05L/14/23/06L 1 2 3 4 9 6 8 7

List of pictograms used....Page 6

Introduction......Page 6

Proper use....Page 6

Included items Page 6

Parts description Page 6

Technical data Page 7

Safety Page 7

Safety advice......Page 7

Initial use Page 8

Assembling the light....Page 8

Switching the light on/off....Page 8

Changing the bulb....Page 8

Care and cleaning......Page 8

Disposal Page 9

Warranty and Service......Page 9

Warranty Page 9

Service address....Page 9

Declaration of Conformity....Page 9

Manufacturer......Page 9

List of pictograms used
	Read the instructions!		Observe the warnings and safety notices!
	Volt (AC) Warning! Risk of electric shock!
	Hertz (mains frequency) For your safety
	Watt (effective power)		The light bulb is not suitable for external dimmers or electronic switches.
	Safety class II Warning - Hot surfaces!
	This light is only suitable for indoor use in dry and enclosed spaces.		Dispose of the packaging and device in an environmentally-friendly manner!

LED desk lamp

Introduction

We congratulate you on the purchase of your new device. You have chosen a high quality product. Please read carefully and

completely through these operating instructions. Fold out the page with the illustrations. These instructions form part of the product and contain important information about bringing the product into use and its handling. Always observe all the safety advice. Check that the correct mains voltage is available and that all the parts have been properly assembled before bringing into use. Should you have any questions or be uncertain as to how to operate the device, please get in touch with your dealer or service point. Please keep these instructions in a safe place and hand them on to a third party if necessary.

Properuse

This light is suitable only for interior use, in dry and enclosed spaces. This lamp is intended for use only in a domestic

environment.

Includeditems

Check that all the items and accessories are present and that the lamp is in perfect condition immediately after unpacking.

Model no.: 14123605L/14123606L

1 LED desk lamp
1 Lamp head with lamp socket
3 Tubes
1 Lamp shade
1 LED light bulb E14
1 Set of assembly instructions and instructions for use

Model no.: 14123705L/14123706L

1 LED desk lamp
1 Mains cable with lamp socket
1 Lamp base
1 Lamp shade
1 LED light bulb E14
1 Set of assembly instructions and instructions for use

Partsdescription

1 Light bulb
2 Lamp ring
3 Lamp shade

4 Lamp socket
5 Screw thread (14123605L/14123606L)
6 Tube (14123605L/14123606L)
7 In-line switch
8 Mains plug
9 Lamp base (14123705L/14123706L)

●Technicaldata

Model no.: 14123605L/14123606L/14123705L/14123706L

Operating voltage: 230-240 V\~50 Hz

Rated power: max. 2 W

Protection class: II/

●Safety

Safetyadvice

The right to claim under the guarantee shall be rendered invalid in respect of damage caused by the non-observance of these operating instructions! No liability is accepted for consequent damage! No liability is accepted for damage to property or persons caused by improper handling or non-observance of the safety advice!

To avoid danger to life from electric shock

■ Every time before connecting the lamp the mains, check it and the mains lead for damage. Never use your light if you find it is damaged in any way.

WARNING!

A damaged light bulb means your life is at risk from electric shock. If there is any damage, repairs to be carried out or other problems related to the light bulb, please contact the service centre or a qualified electrician.

In order to prevent hazards, if the outer flexible cable of this lamp becomes damaged it may only be replaced by the manufacturer, a service representative of the manufacturer or a similar specialist!

Before assembly, ensure that the mains voltage available corresponds to the operating voltage necessary of the light (see "Technical Data").
■ Never let the lamp come into contact with water or other liquids.
■ Always unplug the light from the mains prior to assembly, disassembly, cleaning or if the light will not be used for extended periods.
■ Never open or insert anything into electrical fittings or equipment. Doing this sort of thing can lead to a serious danger to life from electric shock.

To avoid danger of fire and injury

CAUTION! RISK OF INJURY!

Check bulbs for damage immediately after un- packing. Do not fit defective bulbs into the light. If they are, contact the service point for a replacement.

CAUTION! RISK OF BURNS DUE TO HOT SURFACES!

Ensure the lamp has been switched off and allowed to cool before you touch it. In this way you will avoid the danger of burns. Bulbs give off a lot of heat around the top of the lamp.

Do not cover the light or the mains plug with objects. Excessive heat can result in a fire.
■ Never leave the lamp operating unattended.
Do not allow the lamp or the packaging materials to lie around unattended. Plastic film or bags, Styrofoam etc. can turn into dangerous toys for children.

ATTENTION!

• Do not look into the LED from a close distance during operation.
  Do not look at the LED with an optical instrument (e.g. magnifier).
  The light bulb is not suitable for external dimmers or electronic switches.

Working safely

■ Install the light so that it is protected from moisture and dirt.
■ Prepare carefully before assembly and allow yourself enough time. Lay out all the individual

Safety / Initial use / Care and cleaning

components and additional tools or materials required so that you can see and reach them.

• Remain alert at all times and always watch what you are doing. Always proceed with caution and do not assemble the lamp if you cannot concentrate or feel unwell.
  In order to disconnect the lamp completely from the power supply, the mains plug 8 must be removed from the socket.

-Initialuse

- Assembling the light

Model no.: 14123605L/14123606L

☐ Assemble the lamp head by screwing the tubes 6 to the screw threads 5 of the lamp head.
Note: Be sure to screw in the tubes as far as possible so that the light is stable.
☐ Loosen the lamp ring 2 from the lamp socket 4.
Place the lamp shade 3 onto the lamp socket 4.
☐ Screw the lamp shade 3 tightly onto the lamp ring 2.
☐ Use a clean, lint-free cloth to insert the bulb 1.
☐ Screw the bulb 1 clockwise into the lamp socket 4.
☐ Plug the mains plug 8 into a properly installed socket.
□ Verify it is seated correctly.

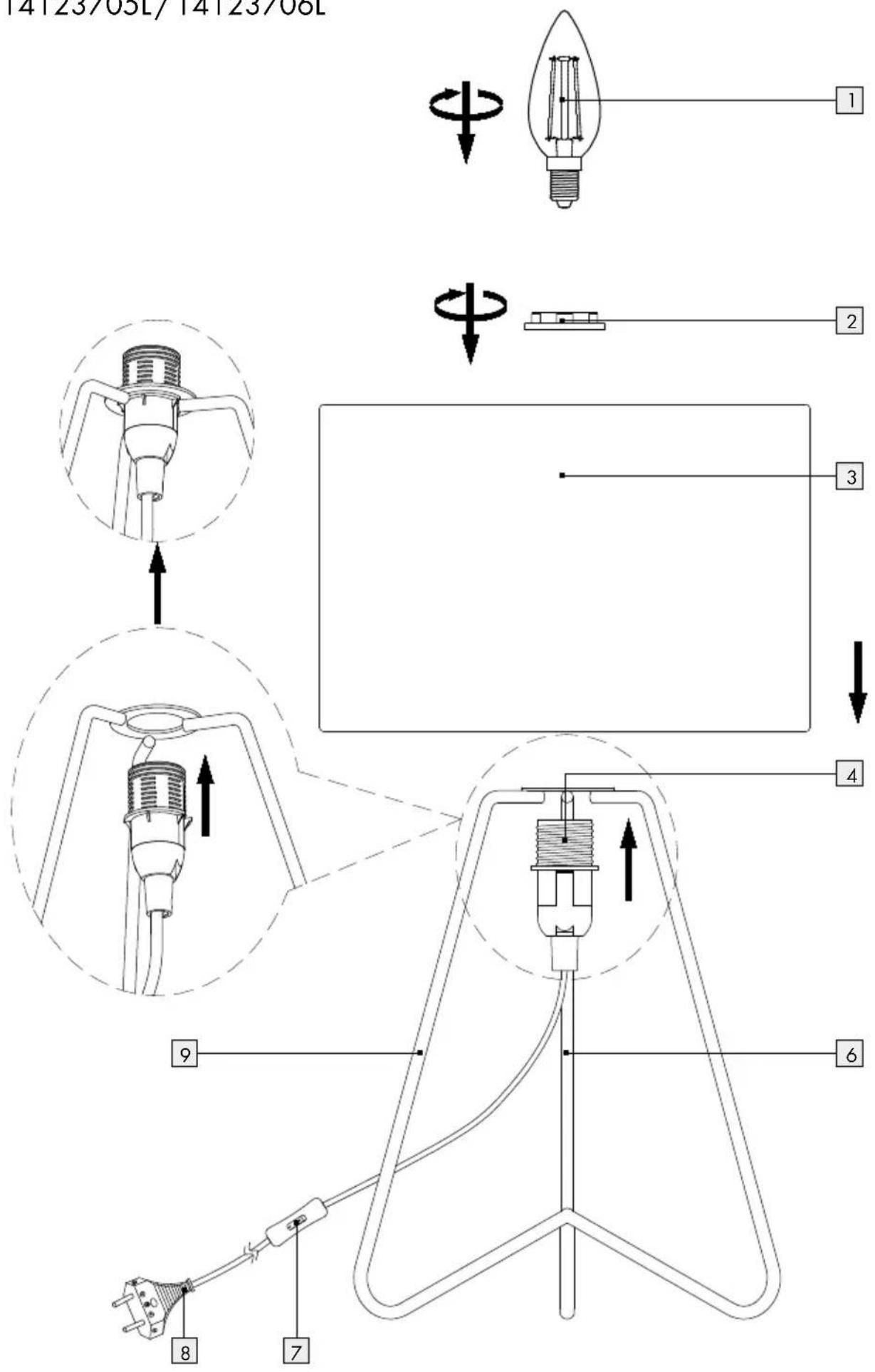

Model no.: 14123705L/14123706L

☐ Loosen the lamp ring 2 from the lamp socket 4.
☐ Remove the lamp shade 3 from the lamp socket 4 and turn it upside down.
Place the lamp shade 3 onto the lamp socket 4 again the correct way around.
☐ Screw the lamp shade 3 and the lamp base 9 to the lamp ring 2.
☐ Use a clean, lint-free cloth to insert the bulb 1.
□ Screw the bulb 1 clockwise into the lamp socket 4.
☐ Plug the mains plug 8 into a properly installed socket.
□ Verify it is seated correctly.

Your light is now ready to use.

- Switching the light on / off

☐ Use the in-line switch ☐ to turn the LED light on and off.

- Changing the bulb

WARNING! DANGER OF ELECTRIC SHOCK!

First unplug the mains plug 8 from the socket.

⚠️ CAUTION! RISK OF BURNS DUE TO HOT SURFACES!

Allow the light to cool down completely. Only replace the lamp after it has completely cooled off.

☐ Use a clean, lint-free cloth when replacing the bulb 1.
Turn the defective light bulb 1 anticlockwise out of the lamp socket 4.
☐ Only use LED light bulbs as specified in the chapter "Technical data".
☐ Insert the new light bulb 1 into the lamp socket 4 and turn it clockwise to tighten it. Ensure that it is positioned correctly.
☐ Plug the mains plug 8 into the socket again.

- Care and cleaning

WARNING! RISK OF ELECTRIC SHOCK!

First pull the mains plug 8 out of the mains socket.

WARNING! RISK OF ELECTRIC SHOCK!

For electrical safety reasons, never clean the lamp with water or other fluids nor immerse it in water.

⚠️ CAUTION! RISK OF BURNS DUE TO HOT SURFACES!

First allow the lamp to cool completely.

• Do not use any solvents, petrol or similar. This would cause damage to the light.
  □ Always use a dry, fluff-free cloth for cleaning.
  ☐ Plug the mains plug 8 into the socket again.

- Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics / 20-22: paper and fibre-board/80-98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

● Warranty and Service

Warranty

You receive a 36 month warranty on this product, valid from the date of purchase. The appliance has been carefully produced under strict quality control. Within the warranty period we shall rectify without charge all material and manufacturing defects. In the event of a defect during the warranty period, please send the appliance to the listed Service Centre address, referencing the following item number: 14123605L/14123606L/14123705L/14123706L.

Wear parts (such as bulbs) and damage caused by improper handling, non-observance of the

operating instructions or unauthorised interference are excluded from the warranty. The performance of services under the warranty does not extend or renew the warranty period.

Serviceaddress

Please have your receipt and the product number (e.g. IAN 12345) available for all queries as proof of purchase.

● Declaration of Conformity CE

This product fulfils the requirements of the applicable European and national directives. Conformity has been demonstrated. The relevant declarations and documents are held by the manufacturer.

Manufacturer
