USER MANUAL AC867 ENGENIUS

Outdoor Long Range Wireless Access Point

IMPORTANT

To install this Access Point please refer to the Quick Installation Guide included in the product packaging.

Table of Contents

Chapter 1 Product Overview.... 4

Key Features/Introduction.... 5 EnGenius EnJet Technology ....6

System Requirements.... 7

Package Contents.... 8

Technical Specifications.... 8

Physical Interface....10

Chapter 2 Before You Begin....12

Computer Settings.... 13

Hardware Installation....17/21

Mounting the Device....18/22

Chapter 3 Configuring Your Access Point.... 24

Web Interface Configuration....25

EnWiFi App Configuration....26

Chapter 4 Building a Wireless Network.... 27

Access Point 28

Client Bridge Mode 29

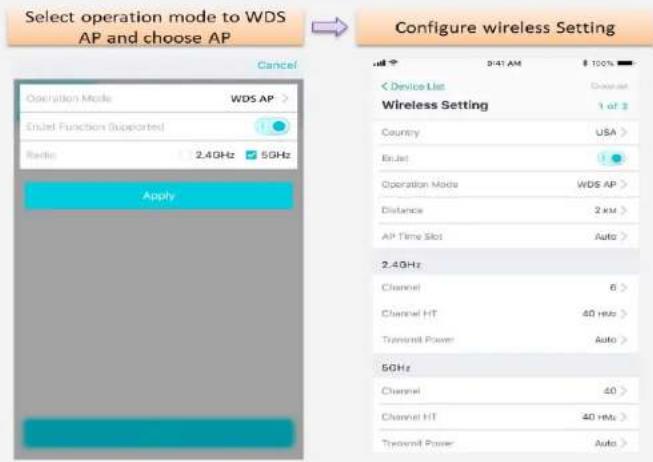

WDS AP Mode....30

WDS Bridge Mode.... 31

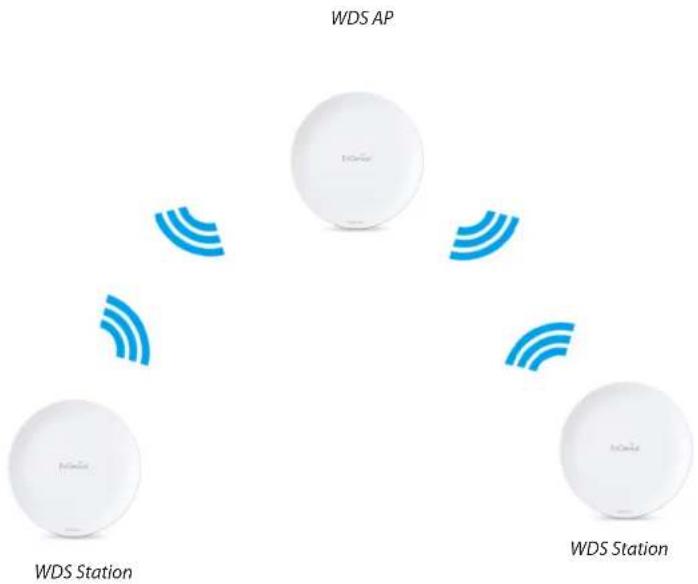

WDS Station Mode.... 32

Chapter 5 Status.... 33

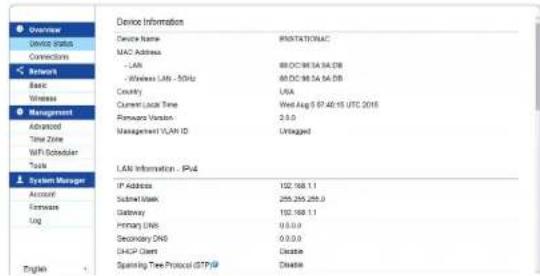

Main Status.... 33

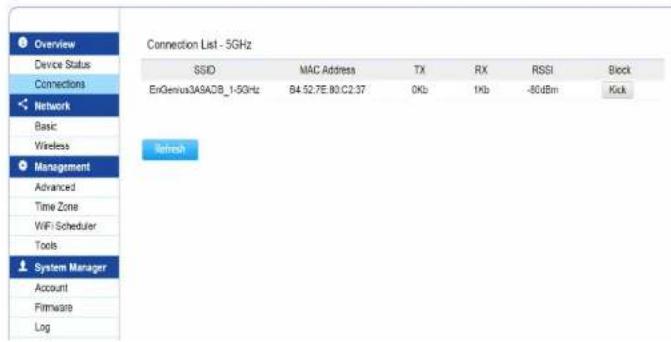

Connection.... 35

Chapter 6 Network ...... 37

Basic IP Settings.... 38

Spanning Tree Protocol Setting.... 38

Chapter 7 Wireless....41

Wireless Settings.... 42

Wireless Network 43

SSID Profile.... 44

Wireless Security...... 46

Fast Roaming....47

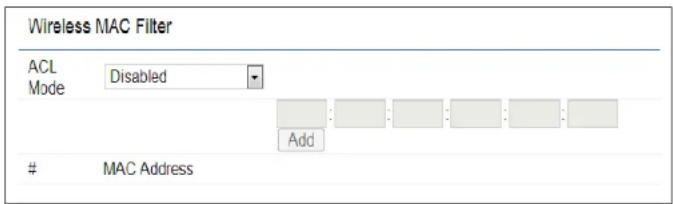

Wireless MAC Filtering.... 48

Wireless Traffic Shaping 45

Guest Network Settings....50

Management VLAV Setting....51

Chapter 8 Management .... 52

Advanced Settings.... 52

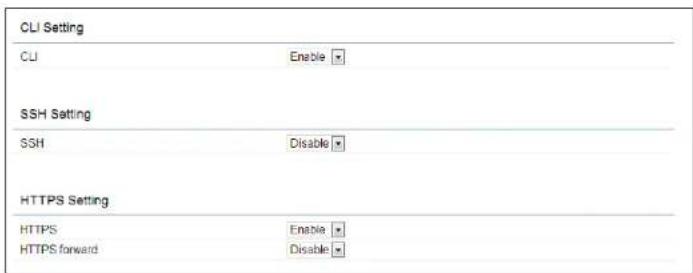

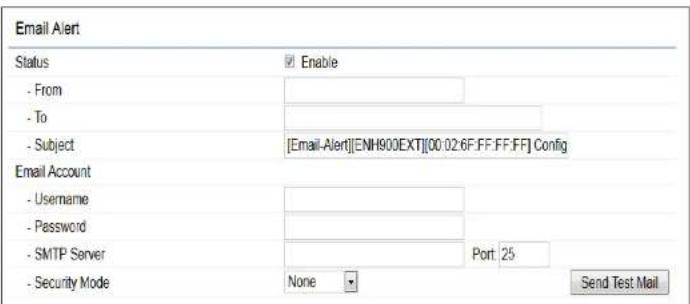

CLI Settings/Email Alert 53

Time Zone....56

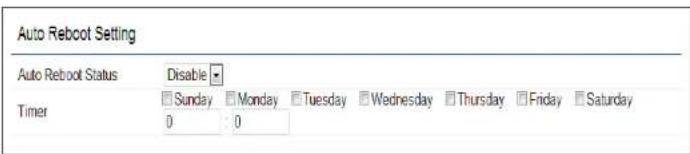

Auto Reboot Settings.... 57

Wi-Fi Scheduler....58

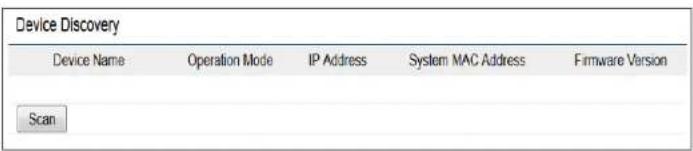

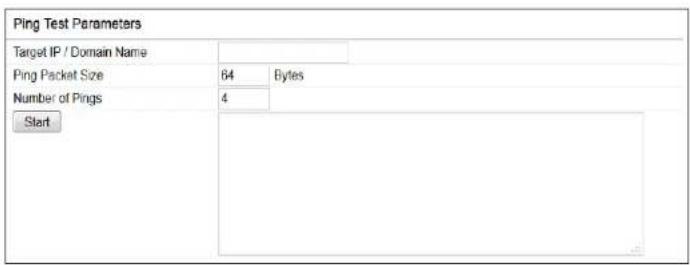

Tools.... 59

Account/Firmware.... 61

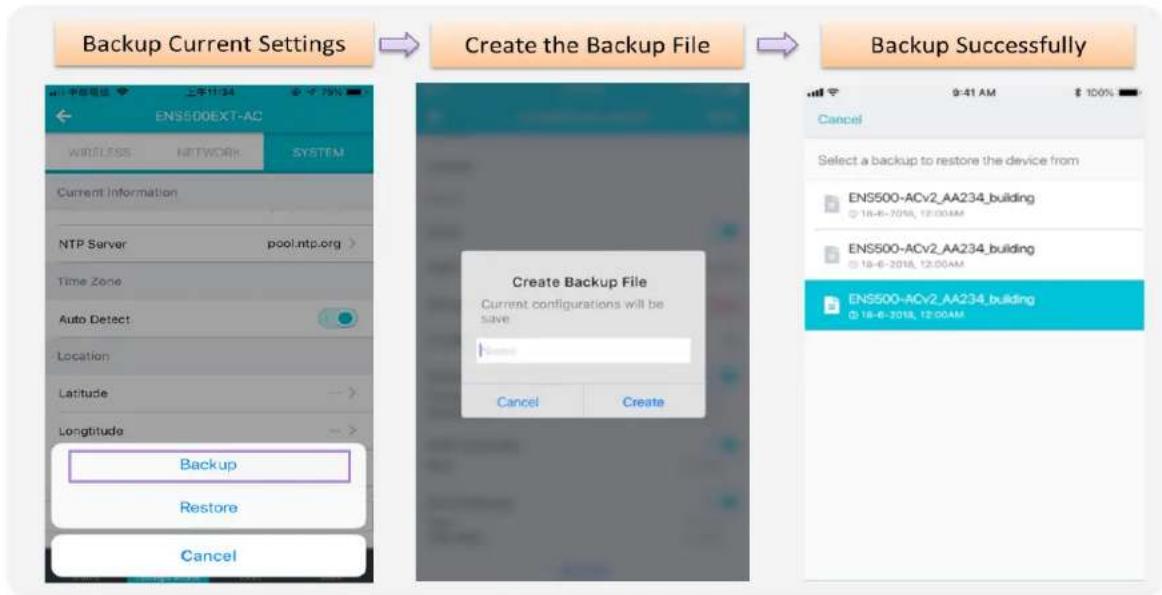

Backup/Restore 62

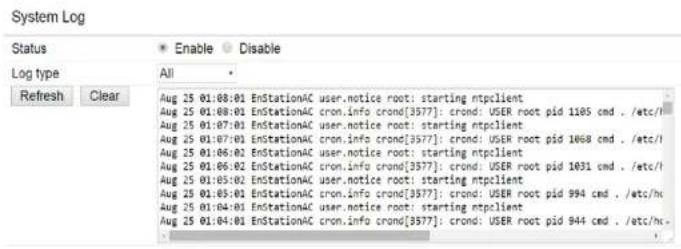

Log....64

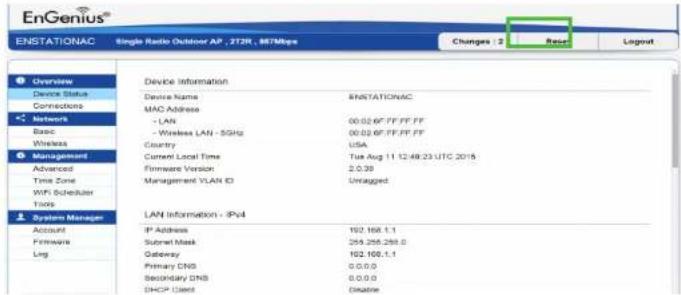

Logout/Reset.... 65

Chapter 9 EnWiFi App 66

About EnWiFi App....67

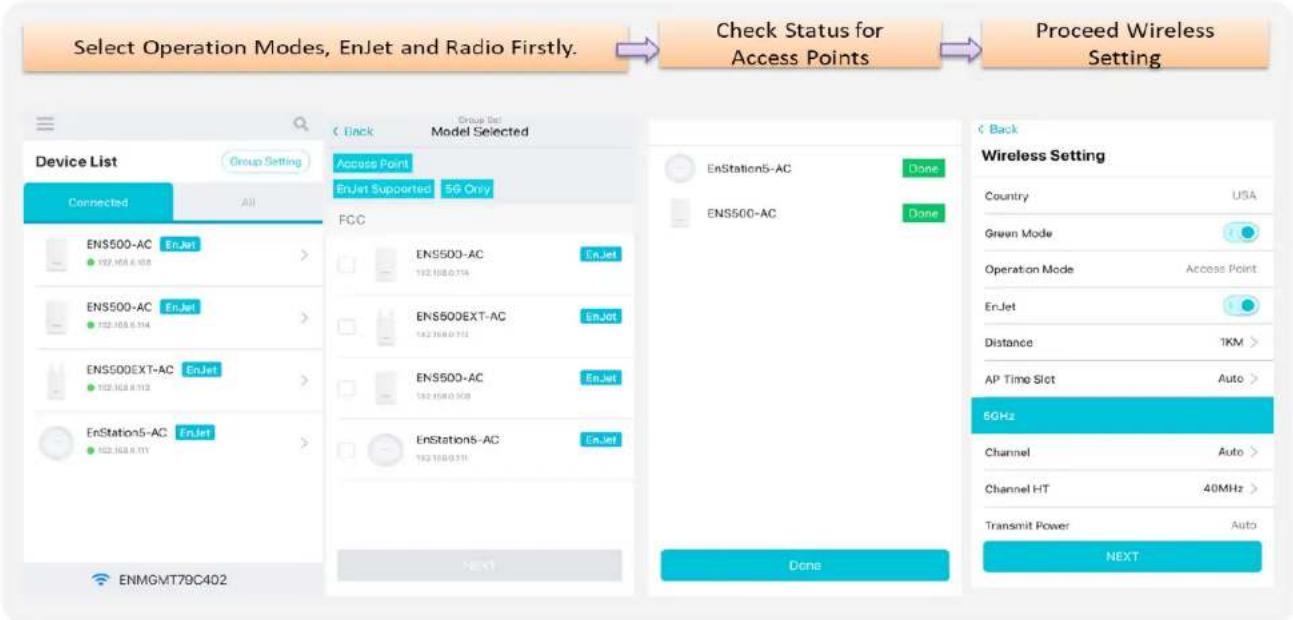

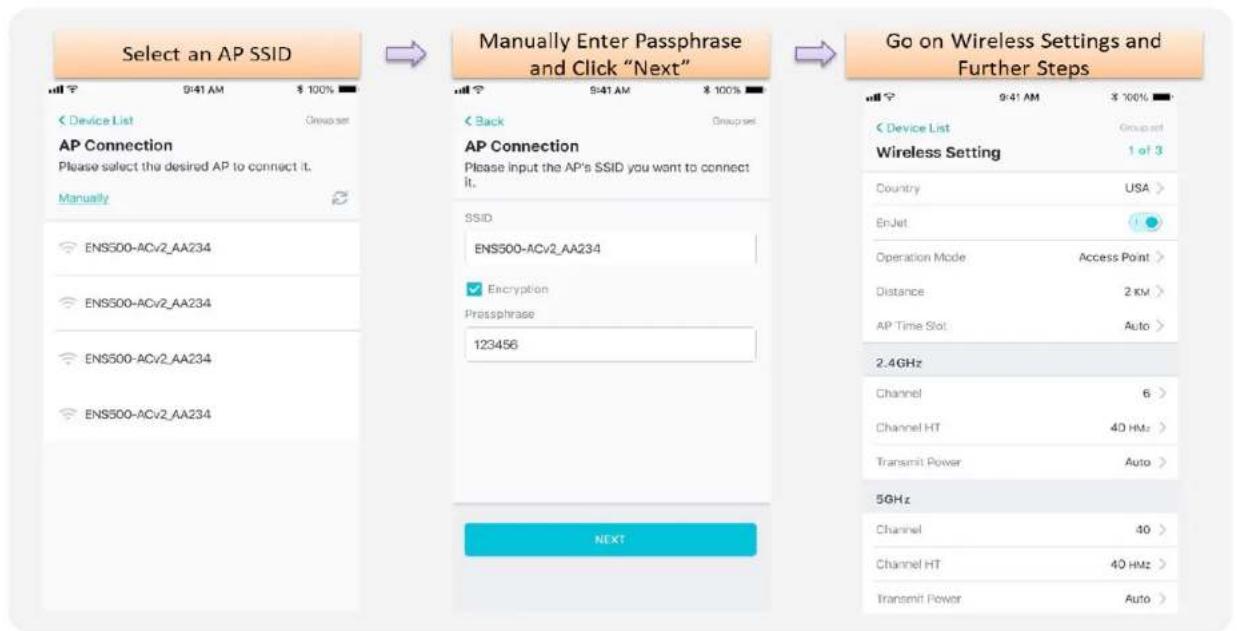

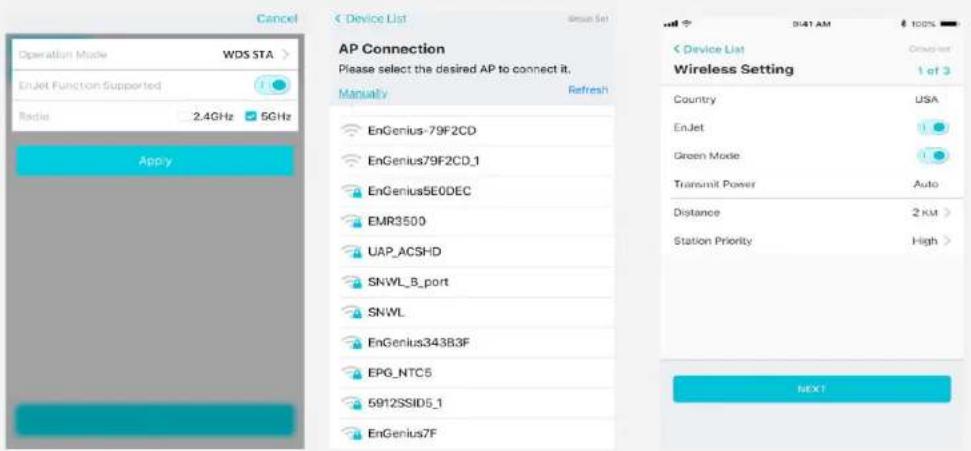

Configuring Device in EnWiFi App____68

Appendix.... 71

FCC Interference Statement.... 72

Professional Installation Instruction (FCC)....73

IC Interference Statement....74

Professional installation instruction(IC)....76

Chapter 1

Product Overview

White EnGenius wireless router with two antennas (no visible text or symbols on body)

Introduction

Key Features

• Supports IEEE802.11ac/a/n wireless standards with up to 867 Mbps data rate.
• Antennas

-EnStation5-ACv2/EnStationACv2: Internal 15.5dBi high gain directional antenna.

-ENH500v3: Internal 14.11dBi high gain directional antenna.
-ENS500-ACv2: Internal 13.42dBi high gain directional antenna.
-ENS500EXT-ACv2: External 5.17dBi dipole antenna

- Power Source

-ENH500v3/ENS500EXT-ACv2/ENS500-ACv2/EnStation5-ACv2 Can be used with included 24V PoE adapter

-EnStationACv2 Can be used with included 54V PoE adapter

• Device can be reset from remote PoE adapter
- Advanced 256-QAM technology to achieve optimal performance throughout ultra-long distance
- EnJet technology eliminates hidden node collisions to keep throughput more consistently when clients increase.
- In conjunction with 2.4GHz management interface and EnGenius EnWiFi App can help device configuration and monitoring more easily on smartphone or tablet.

Introduction

The

EnStation5-ACv2/EnStationACv2/ENH500v3/

EnStation5-ACv2
EnStationACv2

ENS500-ACv2/ENS500EXT-ACv2

ENH500v3

ENS500-ACv2/ENS500EXT-ACv2 is a high-powered, ultra long-range 2x2 Wireless 802.11ac/a/n Outdoor Access Point with speeds up to 867 Mbps on both its high-powered 5 GHz radios. Builded in EnGenius EnJet technology, AP can transmit data more efficiently, avoid collisions, and reduce latency and packet losses. It can be configured as an: Access

Maximum data rates are based on IEEE 802.11 standards. Actual throughput and range may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment, and mix of devices in the network. Features and specifications subject to change without notice. Trademarks and registered trademarks are the property of their respective owners. For United States of America: Copyright © 2019 EnGenius Technologies, Inc. All rights reserved.

Point, Client Bridge or WDS (AP & Station) when EnJet enable, or Access Point, Client Bridge or WDS (AP, Station & Bridge) when EnJet disable. The EnStation5-ACv2/EnStationACv2/ENH500v3/ENS500-ACv2/ENS500EXT-ACv2 is designed to operate in a variety of outdoor environments. Its high-powered, long-range characteristics make it a cost effective alternative to ordinary Access Points that don't have the range and reach to connect to a growing number of wireless CPEs who wish to connect to a business network. The EnStation5-ACv2/EnStationACv2/ENH500v3/ENS500-ACv2/ENS500EXT-ACv2 supports the 5 GHz frequency band for communicating to other 5GHz frequency Access Points concurrently. Several EnStation5-ACv2/EnStationACv2/ENH500v3/ENS500-ACv2/ENS500EXT-ACv2 can be networked in a campus setting using the 5 GHz band between countries, which is easy to be installed in virtually any location with its included PoE (Power over Ethernet) Adapter for quick outdoor installation. The EnStation5-ACv2/EnStationACv2/ENH500v3/ENS500-ACv2/ENS500EXT-ACv2 enables network administrators to control its transmit power and features settings for selecting VHT80 bandwidth to perform ture AC transmission. When EnJet enable, administrators can adjust the time slot and Station Priority to maximize transm efficiency. It also supports wireless encryption incl Wi-Fi Protected Access (WPA2-PSK) Encryption and IEEE 802.1X with RADIUS.)

EnGenius EnJet Technology

EnGenius EnJet technology represents a new era in outdoor wireless solutions. The built-in EnGenius EnJet feature, based on the Time Division Multiple Access method, allows each client to send and receive data using pre-designated time slots following the EnJet scheduling protocol. This eliminates hidden node collisions and maximizes airtime efficiency. The data transmission between AP and clients can have noise immunity to prevent latency and have better throughput and scalability.

EnGenius outdoor APs/CPEs with EnJet are specifically designed and engineered to network over great distances and transfer data at consistent speeds in point-to-point or point-to-multi-point wireless deployments. Quality of service priorities are given to real time and data-heavy transmission types, such as voice and video, to ensure uninterrupted streaming.

EnJet is available to enable in Access Point and WDS Access Point mode only. If EnJet is enabled, the device operates in EnJet mode and only accepts connections from EnJet devices.

EnJet Priority works when EnJet is enabled in Station mode only. Which indicates that EnJet Priority can be set on the GUI or EnWiFi App. By default the AP gives all active clients the same amount of time. However, if the clients are configured with different priorities, the AP will give clients more or less time, depending on the priority.

If the device is in Station mode, the device will automatically enable EnJet when it is connecting to an EnJet AP

The limitation of EnJet technology is that you cannot connect standard Wi-Fi devices, such as laptops, tablets, or smartphones to the AP when EnJet is enabled.

System Requirements

The following are the Minimum System Requirements in order to configure the device.

• Computer with an Ethernet interface or wireless network capability
• Windows OS (XP, Vista, 7, 8, 10), Mac OS, or Linux-based systems
• Web-Browsing Application (i.e.: Internet Explorer, Firefox, Safari, another similar browser application)

Package Contents

The EnStation5-ACv2/EnStationACv2 package contains the following items:*

• EnStation5-ACv2/EnStationACv2 Customer Premises Equipment
• EnStation5-ACv2 with PoE Adapter EPA2406GR
  • EnStationACv2 with PoE Adapter EPA5006GR

• Power Cord

• Pole Mount Strap
  • Wall Mount Bracket Base

• Screw Sets Kit
• Sealing Nut
• Dynamic Stick
• Quick Installation Guide

*(all items must be in package to issue a refund):

The ENH500v3/ENS500-ACv2/ENS500EXT-ACv2 package contains the following items:* operating

*(all items must be in package to issue a refund):

Technical Specifications

Standard

IEEE802.11ac wave2/a/n on 5 GHz

Antenna

Internal 15.5dBi high gain directional antenna (EnStation5-ACv2/EnStationACv2)

Internal 13.42dBi high gain directional antenna (ENS500-ACv2)

External 2*5.17dBi detachable antenna (ENS500EXT-ACv2)

Physical Interface

2 x 10/100/1000 Gigabit Ethernet Port with PoE support

EnStation5-ACv2/ENS500-ACv2/ENS500EXT-ACv2 LAN(PoE) Port supports 24V PoE Input

EnStationACv2 LAN(PoE) Port supports 54V PoE Input

LED Indicator

Power

LAN 1

LAN 2

WLAN

WLAN LED (Weak, Medium, Strong)

Power Requirements

ENH500v3/ENS500EXT-ACv2/ENS500-ACv2/EnStation5-ACv2

Include PoE Adapter, 24V 0.6A

EnStationACv2 Include PoE Adapter, 54V 0.6A

Operation Modes-EnJet enable

Access Point

Client Bridge

WDS AP

WDS Station

Operation Modes-EnJet disable

Access Point

Client Bridge

WDS AP

WDS Bridge

WDS Station

Optimal Performance

Distance Control (Ack Timeout)

Multicast Supported

Data Rate Selection

Auto Channel Selection

BSSID Support

AP Time Slot

Station Priority

Easily Management

VLAN Tag / VLAN Pass-through

Guest Network

QoS: Complaint with IEEE 802.11e /WMM

RADIUS Accounting

Wireless STA (Client) connection list

Traffic Shaping (Per SSID)

Intuitive Tools

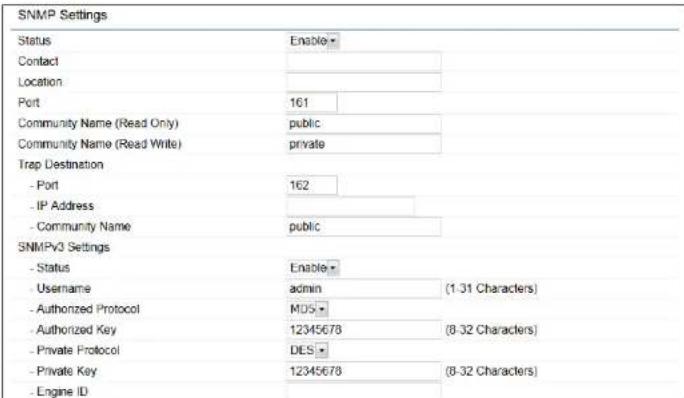

SNMP v1/v2c/v3 support

MIB I/II, Private MIB

Save Configuration as Default

CLI Support

WiFi-Scheduler/Auto Reboot

E-mail Alert

Reinforcement Security

WPA2 Enterprise

Hide SSID in beacons

MAC address filtering, up to 32 MACs per SSID

Wireless STA (Client) connection list

Https Support

SSH Support

QoS (Quality of Service)

Complaint with IEEE 802.11e standard

Physical/Environment Conditions

Operating:

Temperature: -20 °C to 60 °C (-4 °F to 140 °F)

Humidity (non-condensing): 90% or less

Storage:

Temperature: -30 °C to 80 °C (-22 °F to 176 °F)

Humidity (non-condensing): 90% or less

Physical Interface-EnStation5-ACv2/EnStationACv2

Dimensions and Weights

EnStation5-ACv2/EnStationACv2

Dimension: 190mm (7.48")

Height: 38mm (1.9")

Weight: 527g (1.16 lbs)

1 WLAN Signal LED: Applied on Client Bridge/WDS

(1) Red: Weak Signal: Connecting quality is bad.
(2) Yellow: Connecting quality is Normal.
(3) Green: Connection quality is Good.
2 LAN(PoE) Signal LED
3 LAN Signal LED of the 2nd Port
4 Power Signal:
5 LAN Port 1: Gigabit Ethernet port for RJ-45 cable.
6 LAN Port 2: Gigabit Ethernet port for RJ-45 cable.

1 2 3 4

Exploded view diagram of a satellite dish with labeled parts (no text or symbols present)

Physical Interface - ENS500-ACv2/ENS500EXT-ACv2

Dimensions

Length: 186 mm (7.32")

Width: 100 (3.94")

Depth: 29mm (1.14")

1 5 GHz Antennas Detachable 5 dBi 5 GHz Omni-directional Antennas (ENS500EXT-ACv2 Only)
2 LAN Port 1 (Proprietary24V PoE): Ethernet port for RJ-45 cable.
3 LAN Port 2 : Ethernet port for RJ-45 cable.
4 LED Indicators: LED lights for Power, LAN Port 1, LAN Port 2, 2.4 GHz Connection and 5 GHz Connection.
5 Mounting Holes: Using the provided hardware, the AP can be attached to a wall or pole.

*The installation angle of antenna must be vertical to the ground.

1 1 5 4 3 2

Physical Interface - ENS500-ACv2/ENS500EXT-ACv2

Dimensions

Length: 260mm (10.24")

Width: 84 (3.31")

Depth: 55mm (2.17")

1 LAN Port 1 (Proprietary24V PoE): Ethernet port for RJ-45 cable.
2 LAN Port 2 : Ethernet port for RJ-45 cable.
3 Reset Botton

*The installation angle of antenna must be vertical to the ground.

1 2 3

Chapter 2

Before You Begin

White EnGenius wireless router with two antennas (no visible text or symbols on body)

Computer Settings

Windows XP/Windows 7/Windows 8/Windows 10

In order to use the Access Point, you must first configure the TCP/IPv4 connection of your Windows OS computer system.

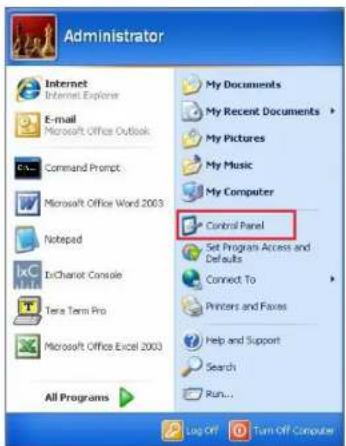

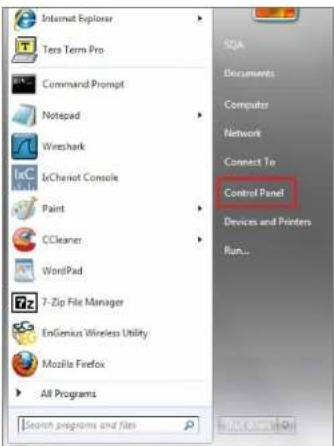

1a. Click the Start button and open the Control Panel

Administrator Internet Internet Explorer E-mail Microsoft Office Outlook Command Prompt Microsoft Office Word 2003 Notepad ToCharot Console Tera Term Pro Microsoft Office Excel 2003 All Programs My Documents My Recent Documents My Pictures My Music My Computer Control Panel Set Programs Access and Defaults Connect To Printers and Faxes Help and Support Search Run... Log Off Turn Off Computer

Windows XP Windows 7

Internet Explorer Tera Term Pro Command Prompt Notepad Wireshark bChenot Console Paint CCleaner WordPad 7-Zip File Manager EnGenius Wireless Utility Mozilla Firefox All Programs Search programs and files Control Panel Devices and Printers Run...

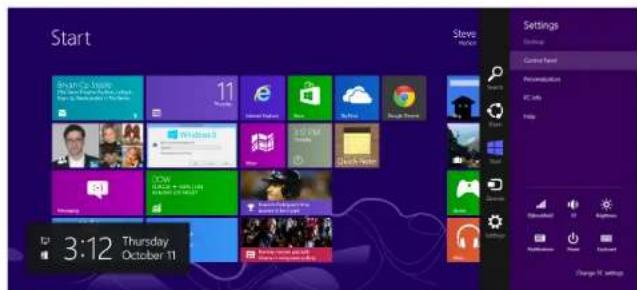

1b. Move your mouse to the lower right hot corner to display the Charms Bar and select the Control Panel in Windows 8 OS.

Start Steve Settings Options Control Panel Recommendation PC Cells Help 3:12 Thursday October 11

Windows 8

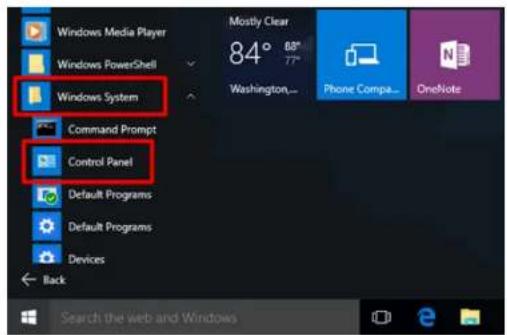

1c. In Windows 10, click Start to select All APPs to enter the folder of Windows system for selecting Control Panel.

Windows Media Player Windows PowerShell Windows System Command Prompt Control Panel Default Programs Default Programs Devices Back Mostly Clear 84° 68° 77° Washington... Phone Compa... OneNote Search the web and Windows

Windows 10

2a. In Windows XP, click Network Connections.

Network Connections

2b. In Windows 7/Windows 8/Windows 10, click View Network Status and Tasks in the Network and Internet section, then select Change adapter settings.

Network and Internet View network status and tasks Choose homegroup and sharing options

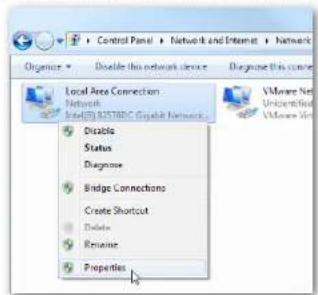

1. Right click on Local Area Connection and select Properties.

Control Panel Network and Internet Organize Disolve this network device Diagnose this course Local Area Connection Network BASEROS SYSTEMS Design Network Disable Status Diagnose Bridge Connections Create Shortcut Delete Rename Properties

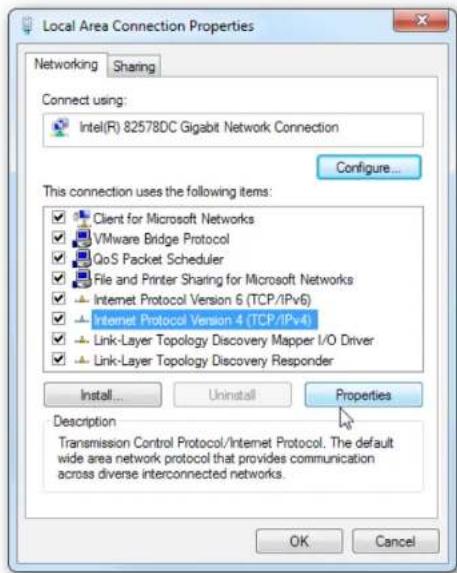

1. Select Internet Protocol Version 4 (TCP/IPv4) and then select Properties.

Local Area Connection Properties Networking Sharing Connect using: Intel(R) 82578DC Gigabit Network Connection Configure... This connection uses the following items: Client for Microsoft Networks VMware Bridge Protocol QoS Packet Scheduler File and Printer Sharing for Microsoft Networks Internet Protocol Version 6 (TCP/IPv6) Internet Protocol Version 4 (TCP/IPv4) Link-Layer Topology Discovery Mapper I/O Driver Link-Layer Topology Discovery Responder Install... Uninstall Properties Description Transmission Control Protocol/Internet Protocol. The default wide area network protocol that provides communication across diverse interconnected networks. OK Cancel

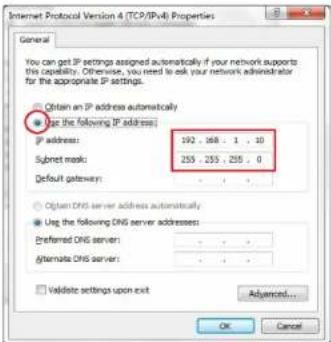

1. Select Use the following IP address and enter an IP address that is different from the Access Point and Subnet mask, then click OK.

Note: Ensure that the IP address and Subnet mask are on the same subnet as the device.

For example: ENH220EXT IP address: 192.168.1.1

PCIP address: 192.168.1.2 - 192.168.1.255

PC Subnet mask: 255.255.255.0

Internet Protocol Version 4 (TCP/IPu6) Properties General You can get IP settings assigned automatically if your network supports this capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. Obtain an IP address automatically Use the following IP address: IP address: 192 , 368 , 1 , 10 Subset mask: 255 , 255 , 255 , 0 Default gateway: Obtain DNS server address automatically Use the following DNS server addresses: Preferred DNS server: - Alternate DNS server: - Validate settings upon exit Advanced... OK Cancel

Apple Mac OS X

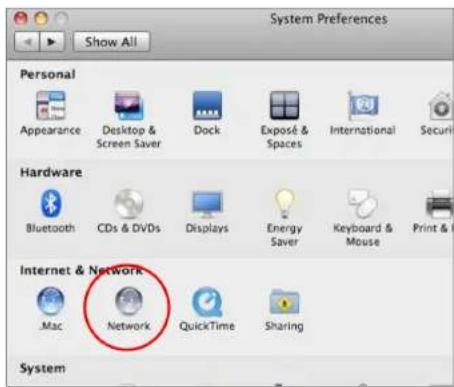

1. Go to System Preferences (Which can be opened in the Applications folder or selecting it in the Apple Menu). Click Apply when done.

2. Select Network in the Internet & Network section.

System Preferences Show All Personal Appearance Desktop & Screen Saver Dock Exposé & Spaces International Securi Hardware Bluetooth CDs & DVDs Displays Energy Saver Keyboard & Mouse Print & Internet & Network Mac Network QuickTime Sharing System

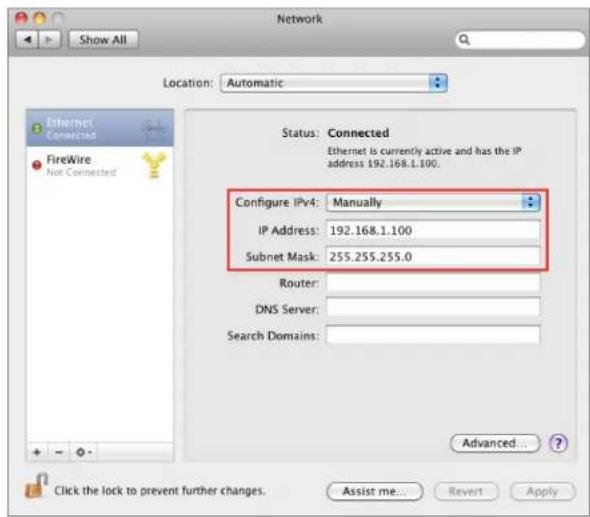

1. Highlight Ethernet.

2. In Configure IPv4, select Manually.

3. Enter an IP address that is different from the Access Point and Subnet mask then press OK.

Note: Ensure that the IP address and Subnet mask are on the same subnet as the device.

For example: ENH900EXT IP address: 192.168.1.1

PCIP address: 192.168.1.2 - 192.168.1.255

PC Subnet mask: 255.255.255.0

Network Show All Location: Automatic Ethernet Connected FireWire Not Connected Status: Connected Ethernet is currently active and has the IP address 192.168.1.100. Configure IPv4: Manually IP Address: 192.168.1.100 Subnet Mask: 255.255.255.0 Router: DNS Server: Search Domains: Advanced... Click the lock to prevent further changes. Assist me... Revert Apply

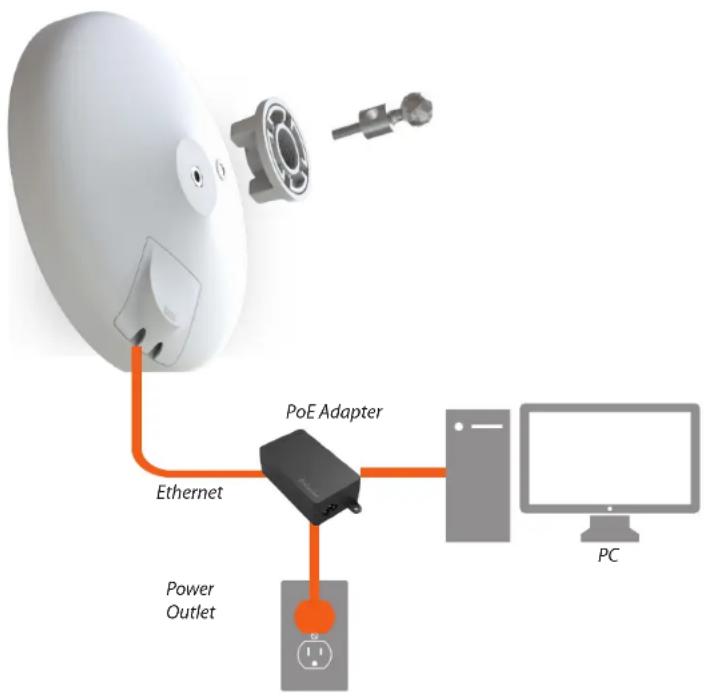

Hardware Installation EnStation5-ACv2/EnStationACv2

1. Remove the rear bottom panel.
2. Connect one end of the Ethernet cable into the main LAN port (PoE) of the Access Point and the other end to the AP Ethernet port on the PoE Adapter.
3. Connect the Power cord to the PoE Adapter and plug the other end in to an electrical outlet.
4. Connect the second Ethernet cable into the LAN port of the PoE Adapter and the other end to the Ethernet port on the computer.
5. Place the panel back into device

Note: The EnStationACv2 should ONLY be powered via Ethernet cable connected to included supports both IEEE 802.3at PoE (Power over Ethernet) or the included PoE Adapter. You may use either one as the power source. Do NOT use both at the same time.

Note: The EnStationACv2 can supply the 802.3af power source when used with included PoE Adapter EPA5006GR.

PoE Adapter Ethernet Power Outlet PC

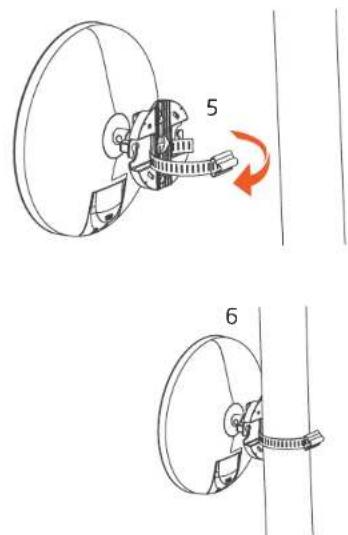

Mounting the EnStation5-ACv2/EnStationACv2

Using the provided hardware, the EnStation5-ACv2 can be attached to a wall or a pole.

1. Device 3. Bracket

2. PoE Adapter& Power Cord

3. Pole Mounting Strap

Technical line drawing of a mechanical component with no visible text or symbols

Illustration of a wireless device with two ports and a black cable (no text or symbols)

1. Screw Set Kit 6. Sealing Nut

2. Dynamic Stick

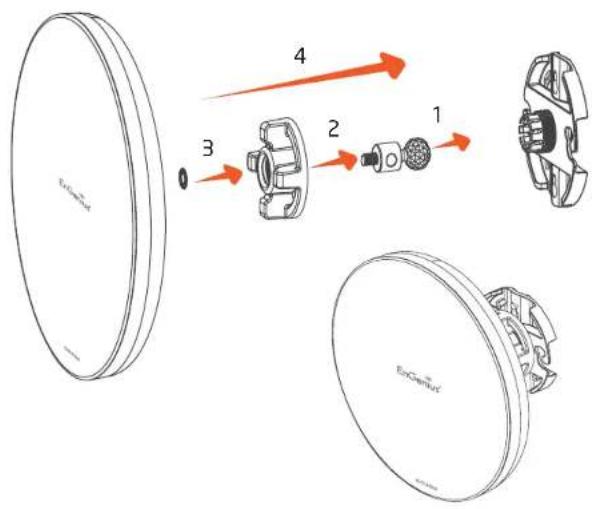

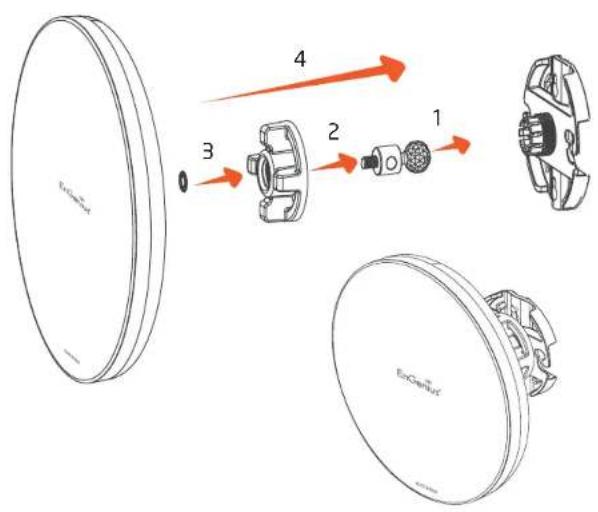

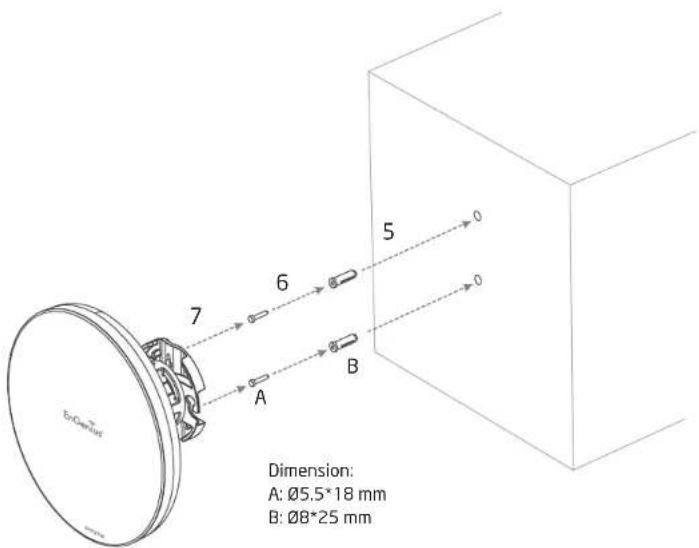

Wall mounting the EnStation5-ACv2/

EnStationACv2

1. Plug the dynamic stick into the bracket.
2. Screw the sealing nut and assembled parts, as well as tighten it.
3. Put the nock washer on the dynamic stick.
4. Assemble the mounting parts to the EnStation.

5. Determine the mounting location. Mark and drill two pilot holes aligning to the screw holes of the bracket

6. Put wall anchors into the holes and insert screw into the wall anchor.

7. Screw and secure the bracket in the place.

EnCerius 4 3 2 1 EnCerius

EnCenius 7 6 5 A B 0 0 Dimension: A: Ø5.5*18 mm B: Ø8*25 mm

Pole mounting the EnStation5-ACv2/

EnStationACv2

1. Plug the dynamic stick into the bracket.
2. Screw the sealing nut and assembled parts, as well as tighten it.
3. Put the nock washer on the dynamic stick.
4. Assemble the mounting parts to the EnStation.

5. Thread the open end of the pole strap through the two tabs on the bracket.

6. Lock and tighten pole strap to secure bracket to the pole

EnGenLac 3 2 1 4 EnGenLac

Technical diagram showing two mechanical assembly steps labeled 5 and 6, with a red arrow indicating rotation or movement.

Hardware Installation ENH500v3/ENS500-ACv2/ENS500EXT-ACv2

1. Connect one end of the Ethernet cable into the LAN port (PoE) of the AP/ Bridge and the other end to the PoE port on the PoE adapter.
2. Connect the Power cord with the PoE Adapter and plug the other end into an electrical outlet.
3. Connect the second Ethernet cable into the LAN port of the PoE adapter and the other end to the Ethernet port on the computer.
4. Screw on the provided antennas to the top of this device.
   Note: The AP/Bridge should ONLY be powered via Ethernet cable connected to the included PoE Adapter.

This diagram depicts the hardware configuration.

Note: The AP/Bridge should ONLY be powered via Ethernet cable connected to the included PoE Adapter.

Mounting the ENH500v3/ENS500-ACv2/ENS500EXT-ACv2

Using the provided hardware, the device can be attached to a wall or a pole. The height should not exceed 2 meter.

1. Wall Mounting Kit

(Anchors: Φ5.5*18 mm & Bolts: Φ8*25 mm)

1. Pole Mounting Strap

(Φ66*12.6 mm)

Anchors

Bolts

Wall mounting the ENH500v3/ENS500-ACv2/ENS500EXT-ACv2

A. Determine where the Access Point to be placed and stick the Adhesive label on the surface.
B. Use the appropriate drill bit to drill two 8.1mm diagram and 26mm depth holes on the markings of the label.
C. Remove the label and screw the anchors unto the holes until they are flush with the wall.
D. Screw the included screws into the anchors. Place the Access Point against wall with the mounting screw heads.

Diagram showing two devices labeled A and D connected to a box with pins, likely illustrating a signal or communication setup.

ENS500ACv2/ENS500EXT-ACv2

A B C

ENH500v3

Pole mounting the ENH500v3/ENS500-ACv2/ENS500EXT-ACv2

A. Thread the open end of the Pole Strap through the two tabs on the Pole Mount Bracket.
B. Lock and tighten Pole Strap to secure Pole Mount Bracket to the pole.

Diagram showing two views of a door handle assembly with a rotation arrow (no text or symbols)

ENS500ACv2/ENS500EXT-ACv2
ENH500v3

Chapter 3

Configuring Your Access Point

White EnGenius wireless router with two antennas (no visible text or symbols on body)

Configuring Your Access Point

This section will show you how to configure the device by using the web-based configuration interface or EnGenius EnWiFi App, which is a management tool to enable easy deployment on outdoor APs/CPEs. In conjunction with the EnWifi App, outdoor APs/CPEs can perform configuration changes en-masse, monitoring, firmware upgrades, and data backups from a smart phone or tablet.

Web Interface Configuration

Default Setting

Please use your Ethernet port or wireless network adapter to connect the Access Point.

IP Address	192.168.1.1
Username / Password	admin / admin

1. Open a web browser (Internet Explorer/Firefox/Safari/Chrome) and enter the IP Address http://192.168.1.1

Note: If you have changed the default LAN IP Address of the Access Point, ensure you enter the correct IP Address.

1. The default username and password are admin. Once you have entered the correct username and password, click the Login button to open the web-base configuration page.

EnGenius® ENSTATIONAC Username Password Login Copyright © 2011 Copyright © Privacy ©

* The model name will be varied by different models

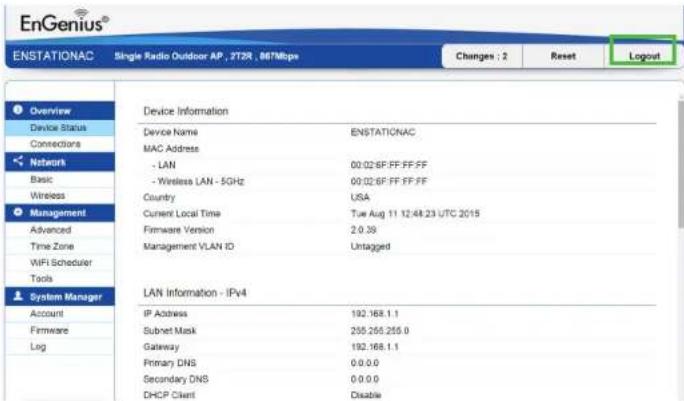

3. If successful, you will be logged in and see the device's User Interface.

Device Information Device Name INFORMATION MAC Address -LAN 88.0C 96.0A 54.0B -Wireless LAN - 5GHz 88.0C 96.0A 54.0B Country USA Current Local Time Wed Aug 9 97:40:15 UTC 2015 Remote Version 2.0.0 Management VLAN ID Unlagged LAN Information - IPv4 IP Address 122.168.1.1 Subtotal mask 255.255.255.0 Gateway 122.168.1.1 Primary DNS 0.0.0.0 Secondary DNS 0.0.0.0 DHCP Client Disease Spinning Tree Protocol (FTP)@ Disease System Manager Account Foreign Log English

EnWiFi App Configuration

Download EnWiFi App

1. Please download and install EnWiFi App from Google Play or iOS App Market.

Android

iOS

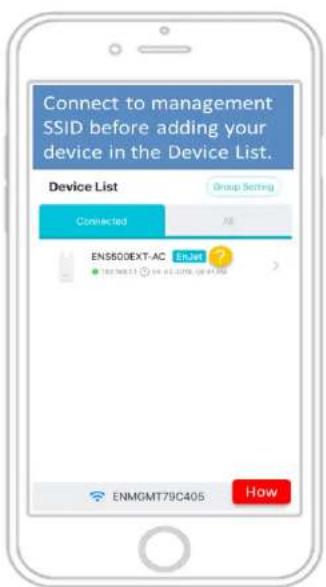

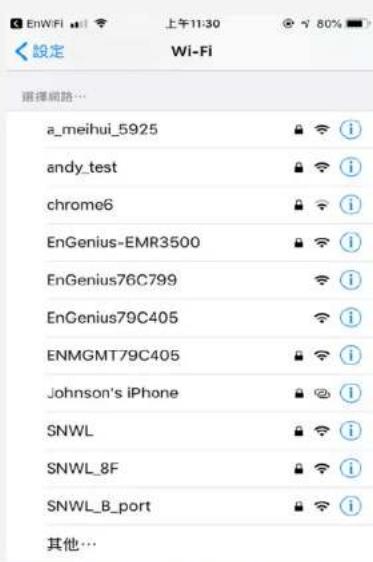

1. Before access to device, you need to find Management SSID and connect to it first. Then you can see your device in the Device List.

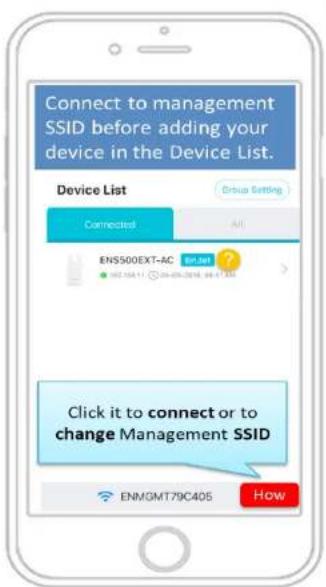

Connect to management SSID before adding your device in the Device List. Device List Group Setting Connected 78 EN560DEXT-AC Enjet ? ENMGMT79C405 How

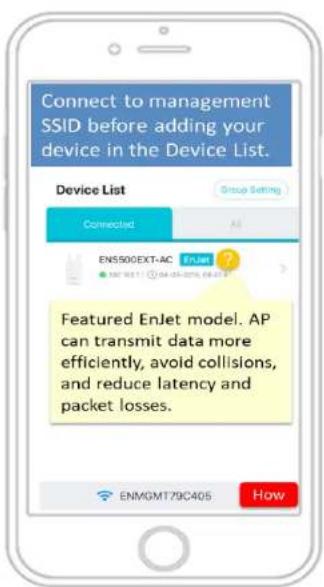

Connect to management SSID before adding your device in the Device List. Device List Connected Group Setting ENSS00EXT-AC EN500 Click it to connect or to change Management SSID ENMGMT79C405 How

Connect to management SSID before adding your device in the Device List. Device List Group Setting Connected EN500EXT-AC ENJet Featured EnJet model. AP can transmit data more efficiently, avoid collisions, and reduce latency and packet losses. ENMGMT79C405 How

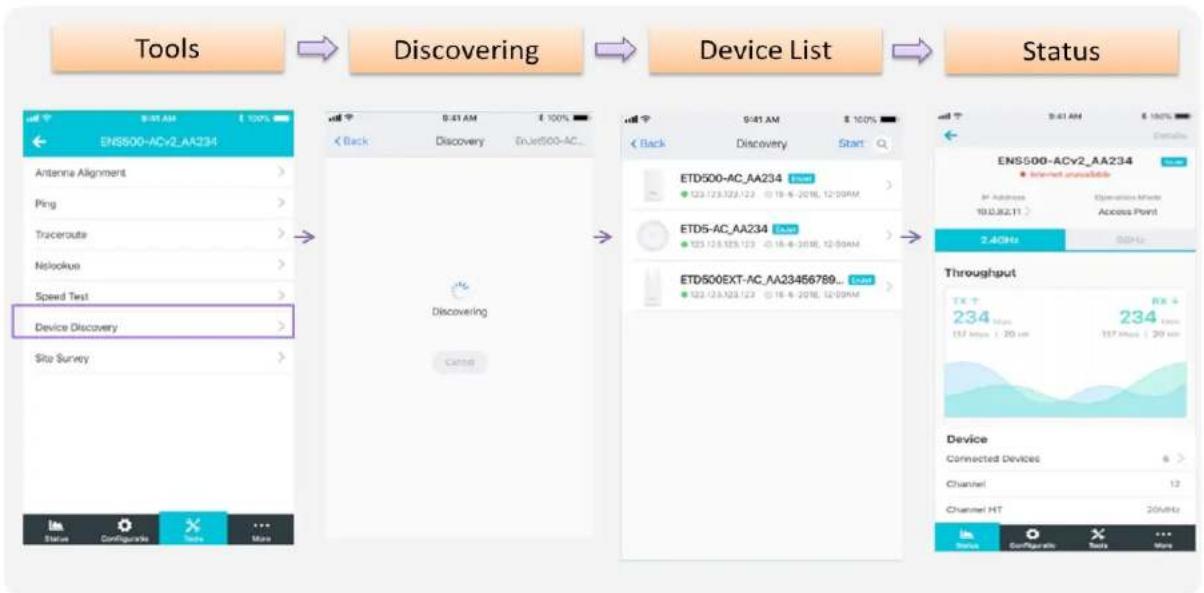

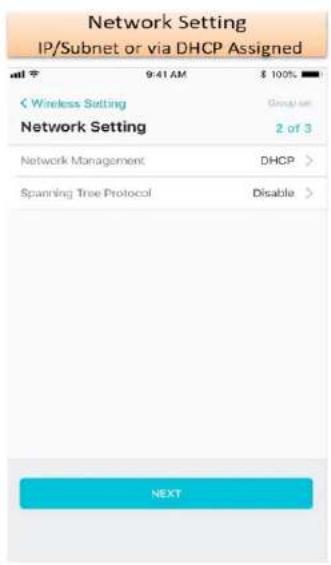

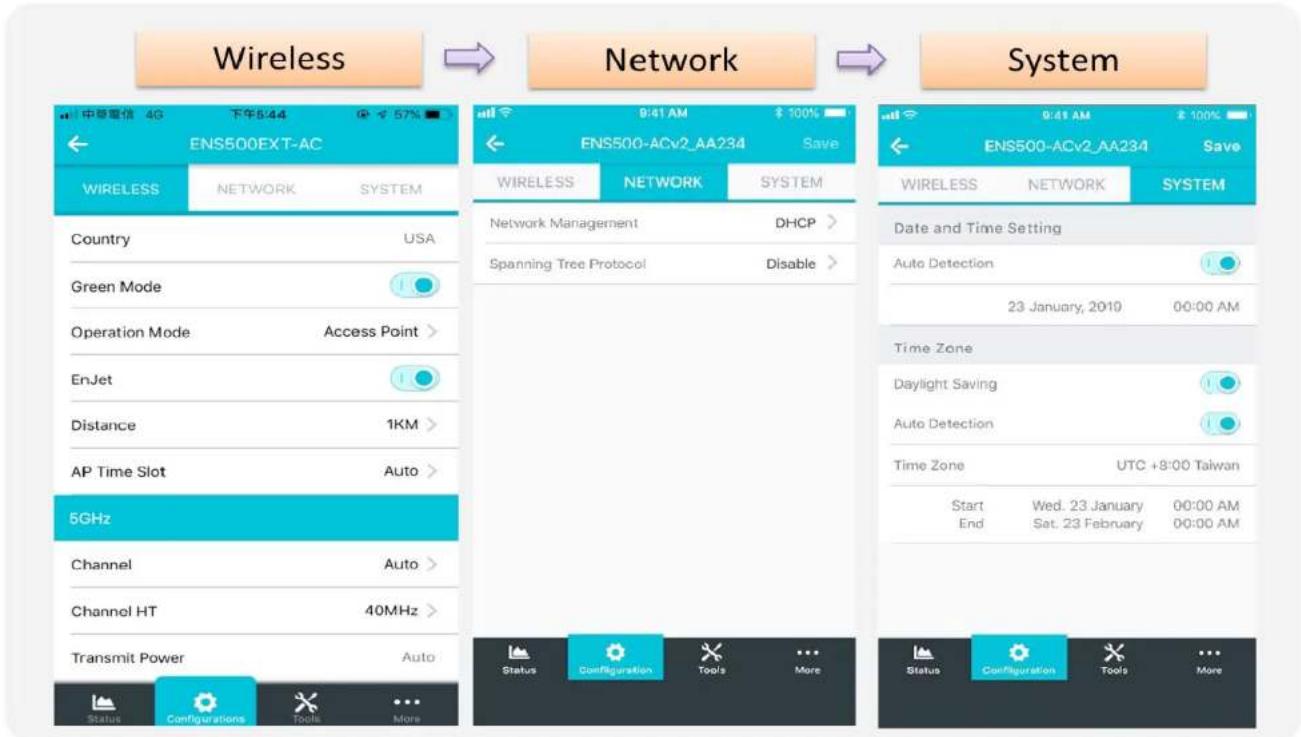

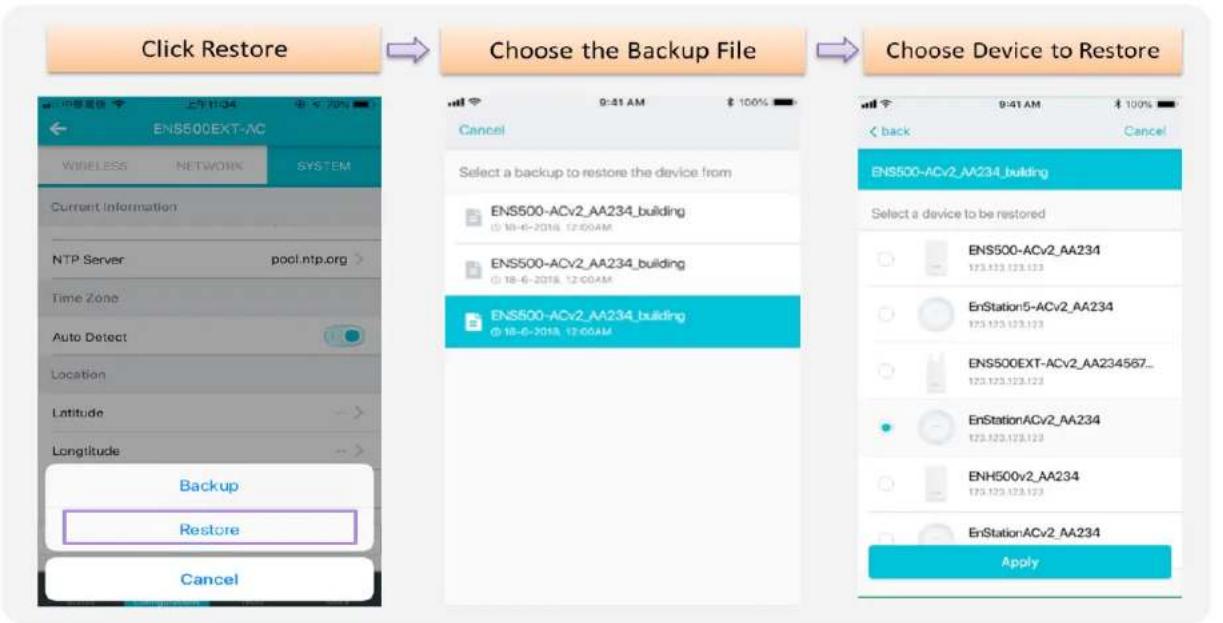

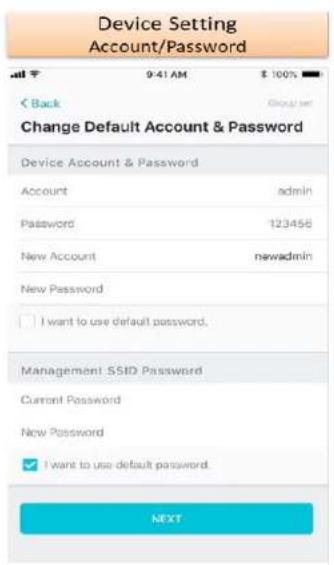

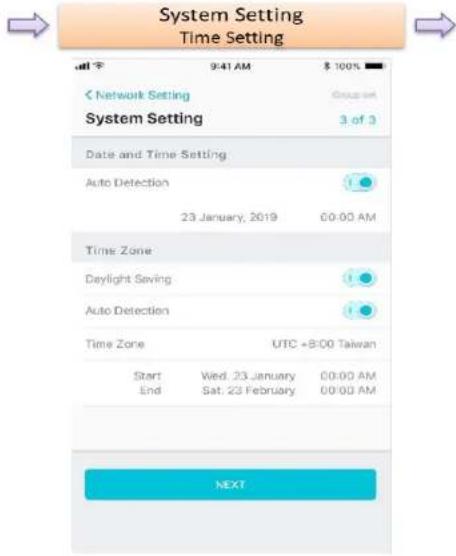

1. For more details of how to configure and management device via EnWiFi App, please see Chpater 9 EnWiFi App.

Chapter 4

Building a Wireless Network

White EnGenius wireless router with two antennas (no visible text or symbols on body)

Before starting to configure this Access Point, you may realize the used scenario under varied operating modes. The EnStation5-ACv2/EnStationACv2/ENH500v3/ENS500-ACv2/ENS500EXT-ACv2 is built in EnGenius EnJet solution, AP can transmit data more efficiently, avoid collisions, and reduce latency and packet losses. When EnJet enable, it can be configured as an: Access Point, Client Bridge or WDS (AP & Station) or Access Point, Client Bridge or WDS (AP, Station & Bridge) when EnJet disable. This chapter describes purpose of different operating modes and lists down the operation modes for EnStation5-ACv2/EnStationACv2/ENH500v3/ENS500-ACv2/ENS500EXT-ACv2.

Access Point Mode

In Access Point Mode, device behaves likes a central connection for stations or clients that support IEEE 802.11ac/a/n networks. The stations and clients must be configured to use the same SSID (Service Set Identifier) and security password to associate with the EnStationAC. The EnStationAC supports up to one (1)/eight (8) SSIDs per band when EnJet enabled/disabled at the same time for secure access.

Client Bridge Mode

The device essentially acts as a wireless adapter that connects to an access point to allow a system of wireless access to the network in the Client Bridge mode. Since the client is on the same subnet, the device can broadcast to reach the client device.

If you use the client bridge mode in the device, you can use the AP Detection feature to scan for Access Points within range. When you find an Access Point, configure the device to use the same SSID and Security Password as the Access Point to associate with it.

Diagram showing a computer connected to a satellite dish with signal waves (no text or symbols)

AP Mode

5GHz

Diagram showing a satellite dish connected to a computer via an orange cable, with a blue signal wave icon on the left (no text or symbols present)

CB Mode

WDS AP Mode

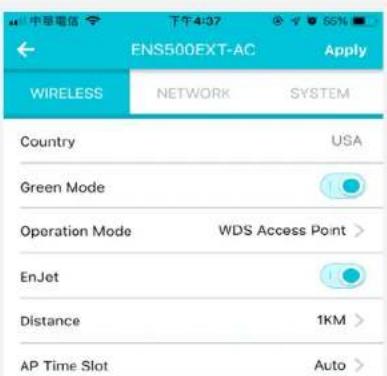

The device also supports WDS AP mode. This operating mode allows wireless connect to the other device via using WDS technology. In this mode, configure the MAC addresses in both Access Points to enlarge the wireless area by enabling WDS Link settings. WDS supports up to four (4) AP MAC addresses.

WDS Bridge Mode

In WDS Bridge Mode, the device can wirelessly connect different LANs by configuring the MAC address and security settings of each device. Use this mode when two wired LANs located a small distance apart want to communicate with each other. The best solution is to use the device to wirelessly connect two wired LANs, as shown in the following diagram.

WDS Bridge Mode can establish up to four WDS links, creating a star-like network.

Note: WDS Bridge Mode does not act as an Access Point. Access Points linked by WDS are using the same frequency channel. More Access Points connected together may lower throughput.

WDS AP

5GHz

WDS Bridge

WDS Station Mode

Station mode expands the WDS by receiving a wireless signal/service and sharing it through the Ethernet port.

WDS AP WDS Station WDS Station

Chapter 5

Status

White EnGenius wireless router with two antennas (no visible text or symbols on body)

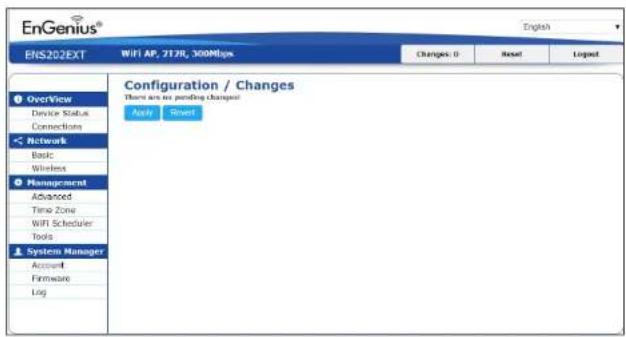

Main Status

Save Changes

This page lets you save and apply the settings shown under Unsaved changes list, or cancel the unsaved changes and revert to the previous settings that were in effect.

EnGenius® ENSG202EXT WIFI AP, 2TZR, 300Mbps Configuration / Changes There are no pending changes? Apply Sheet OverView Device Status Connections Network Basic Wireless Management Advanced Time Zone WiFi Scheduler Tools System Manager Account Firmware Log

*The model name will be varied by different models.

Device Status

Clicking the Device Status link under the Overview menu shows the status information about the current operating mode.

- The Device Information section shows general system information such as Device Name, MAC Address, Current Time, Firmware Version, and Management VLAN ID

Note: VLAN ID information is only applicable in Access Point or WDS AP mode.

Device Information

Device Name	ENS620EXT
MAC Address
- LAN1	88:DC:96:00:00:10
- LAN2	88:DC:96:00:00:11
- Wireless LAN - 2.4GHz	88:DC:96:00:00:12
- Wireless LAN - 5GHz	88:DC:96:00:00:13
Country	USA
Current Local Time	Tue Jul 12 11:45:00 2016
Uptime	0h 4m 57s
Firmware Version	1.0.0
Management VLAN ID	Untagged

*The model name will be varied by different models.

- The Memory Information section shows usage of memory such as Total Available, Free, Cached, Buffered

Memory Information

- The LAN Information section shows the Local Area Network settings such as the LAN IP Address, Subnet mask, and DNS Address.

LAN Information - IPv4
IP Address	192.168.1.1
Subnet Mask	255.255.255.0
Gateway	192.168.1.1
Primary DNS	0.0.0.0
Secondary DNS	0.0.0.0
DHCP Client	Disable
Spanning Tree Protocol (STP)	Disable
LAN Information - IPv6
IP Address	N/A
Link Local Address	fe80: 8adc:96fffe06:3c94
Gateway	N/A
Primary DNS	N/A
Secondary DNS	N/A

- The Wireless LAN Information 5 GHz section shows wireless information such as Operating Mode, Frequency, and Channel. Since the AP/CPE supports multiple-SSIDs, information about each SSID, the ESSID, and security settings, are displayed

Note: Profile Settings are only applicable in Access Point and WDS AP modes.

Wireless LAN Information - 5GHz
Operation Mode		AP
Wireless Mode		802.11 A/N
Channel Bandwidth		40 MHz
Channel		5.68 GHz (Channel 132)
Distance		1000 M
Profile	SSID		Security	VID	802.1Q
#1	EnGenius063C07_1-5GHz		None	51	Disable
#2	EnGenius063C97_2-5GHz		None	52	Disable
#3	EnGenius063C97_3-5GHz		None	53	Disable
#4	EnGenius063C97_4-5GHz		None	54	Disable
#5	EnGenius063C97_5-5GHz		None	55	Disable
#6	EnGenius063C97_6-5GHz		None	56	Disable
#7	EnGenius063C07_7-5GHz		None	57	Disable
#8	EnGenius063C97_8-5GHz		None	58	Disable

- The Statistics section shows Mac information such as SSID, MAC address, RX and TX.

Statistics
SSID	MAC	RX(Packets)	TX(Packets)
Ethernet	00:02:6F FF:FF:FF	75.57KB(856 PKts.)	455.926KB(399 PKts.)
EnGenius083C96_1-2.4GHz	88:DC:96.06:3C:96	0KB(0 PKts.)	0.792KB(4 PKts.)
EnGenius083C97_1-5GHz	88:DC:96:06:3C:97	0KB(0 PKts.)	0KB(0 PKts.)

Connection Realtime

5 GHz Connection List

Click the connection link under the Overview menu displays the connection list of clients associated to the AP/CPE's 5 GHz, along with the MAC addresses and signal strength for each client. Clicking Refresh updates the client list.

Note: Only applicable in Access Point and WDS AP modes.

WDS Link List

Click the connection link under the Overview menu. This page displays the current status of the WDS link, including WDS Link ID, MAC Address, Link Status and RSSI.

Note: Only applicable in WDS AP and WDS Bridge modes.

Overview Device Status Connections Network Basic Wireless Management Advanced Time Zone WiFi Scheduler Tools System Manager Account Firmware Log Connection List - 5GHz SSD MAC Address TX RX RSSI Block EnGenius3A9AC0B_1-5GHz B4.52.7E 80.C2.37 0Kb 1Kb -80dBm Kick Refresh

The Realtime section contains the following options:

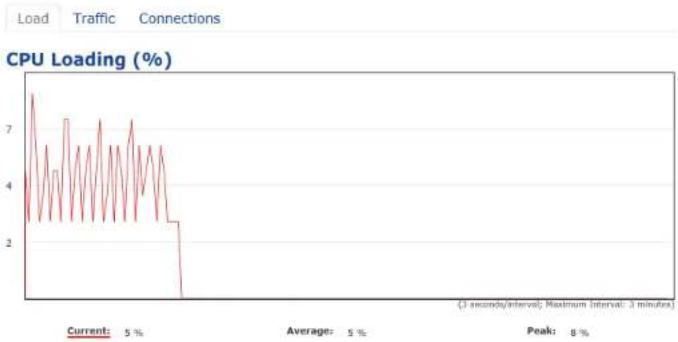

CPU Loading: 3 minutes CPU loading percentage information, it displays current loading, average loading and peak loading status. Left bar is loading percentage; button is time tracing. Interval is every 3 seconds

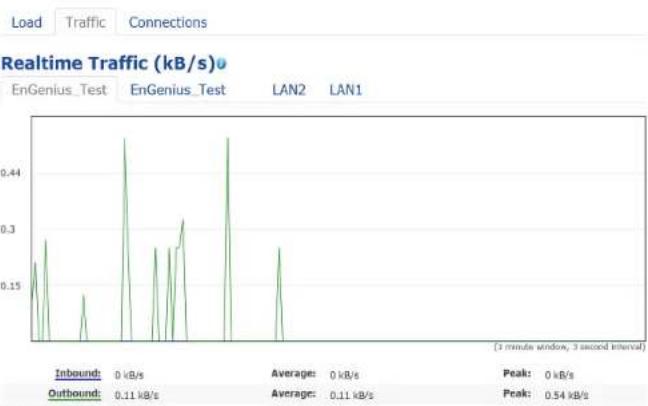

Traffic Loading: 5GHz and Ethernet port inbound and outbound traffic by current, average and peak time.

Realtime Connection (Pkts): Overview on current active network connections. It displays UDP and TCP packets information and other connection status. UDP connections curve is in blue; TCP connection curve is in green; others curve is in red. Below of chart shows connections source and destination.

http://www.hk/10.103.com

Chapter 6 Network

White EnGenius wireless router with two antennas (no visible text or symbols on body)

Basic IP Settings

IPv4/IPv6 Settings

This page allows you to modify the device's IP settings.

IPv4 Settings
IP Network Setting	Static IP
IP Address	192.168 1.1
Subnet Mask	255.255.255.0
Gateway	192.168 1.1
Primary DNS	0.0.0.0
Secondary DNS	0.0.0.0
IPv6 Settings Link-local Address
IP Address
Subnet Prefix Length
Gateway
Primary DNS
Secondary DNS

IP Network Settings: Select whether the device IP address will use a static IP address specified in the IP address field or be obtained automatically when the device connects to a DHCP server.

IP Address: The IP address of this device.

Subnet Mask: The IP Subnet mask of this device.

Gateway: The Default Gateway of this device. Leave it blank if you are unsure of this setting.

Primary/Secondary DNS: The primary/secondary DNS address for this device.

Save: Click Save to confirm the changes.

Spanning Tree Protocol (STP) Settings

This page allows you to modify the Spanning Tree settings. Enabling the Spanning Tree protocol will prevent network loops in your LAN network.

Spanning Tree Protocol (STP) Settings
Status	Disable
Hello Time	2	seconds (1-10)
Max Age	20	seconds (6-40)
Forward Delay	4	seconds (4-30)
Priority	32768	(0-05035)

Spanning Tree Status: Enables or disables the Spanning Tree function.

Hello Time: Specifies Bridge Hello Time in seconds. The value determines how often the device sends handshake packets to communicate information about the topology throughout the entire Bridged Local Area Network.

Max Age: Specifies Bridge Max Age in seconds. If another bridge in the spanning tree does not send a hello packet for a long period of time, it is assumed to be inactive.

Forward Delay: Specifies Bridge Forward Delay in seconds. Forwarding delay time is the time spent in each of the Listening and Learning states before the Forwarding state is entered. This delay is provided so that when a new bridge comes onto a busy network, it analyzes data traffic before participating in the network.

Priority: Specifies the Priority Number. A smaller number has a greater priority than a larger number.

Save: Click Save to confirm the changes.

Chapter 7 Wireless

White EnGenius wireless router with two antennas (no visible text or symbols on body)

Wireless

Wireless Settings

Wireless Settings

Device Name

Country / Region

EnStation5-AC

Canada

*The model name will be varied by different models.

Device Name: Enter a name for the device. The name you type appears in SNMP management. This name is not the SSID and is not broadcast to other devices.

Save: Click Save to confirm the changes.

EnJet

The AP/CPE is default EnJet enable. When enabling the EnGenius EnJet system, the AP/CPE can then transmit data more efficiently, avoid collisions, and reduce latency and packet losses. (If you do not enable EnJet, data will be sent via traditional CSMA.)

EnJet

Disable

Enable

This page displays the current status of the Wireless settings of the AP/CPE.

Wireless Network

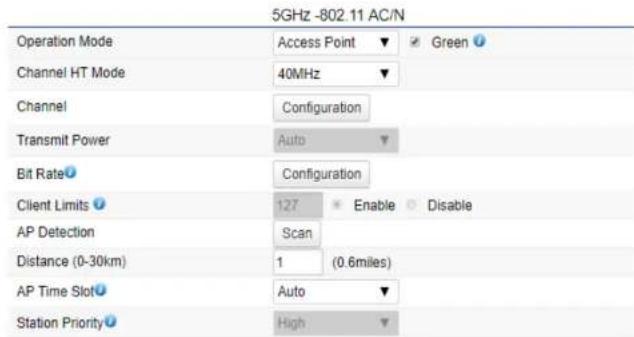

EnStation5-ACv2/EnStationACv2/ENH500v3/ENS500-ACv2/ENS500EXT-ACv2 supports 802.11ac/n mixed mode in 5 GHz.

5GHz -802.11 AC/N Operation Mode Access Point ▼ Green ? Channel HT Mode 40MHz Channel Configuration Transmit Power Auto Bit Rate Configuration Client Limits 127 Enable Disable AP Detection Scan Distance (0-30km) 1 (0.6miles) AP Time Slot Auto Station Priority High

Operation Mode: Select Operation Mode. When EnJet enable, The AP/CPE can be seted as Access Point, Client Bridge or WDS (AP & Station) or Access Point, Client Bridge or WDS (AP, Station & Bridge) when EnJet disable.

Channel HT Mode: The default channel bandwidth is 20 MHz/40/80 MHz. The larger the channel, the greater the transmission quality and speed.

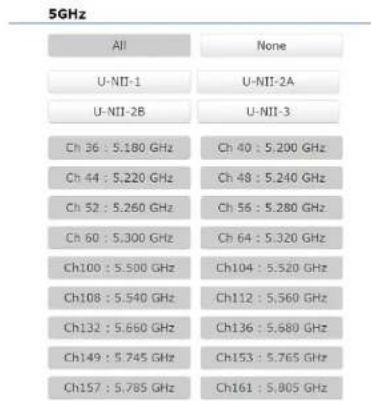

Channel: Click Configuration button to open a new windows to configure channels for performing wireless

service.

5GHz All None U-NII-1 U-NII-2A U-NII-2B U-NII-3 Ch 36 : 5.180 GHz Ch 40 : 5.200 GHz Ch 44 : 5.220 GHz Ch 48 : 5.240 GHz Ch 52 : 5.260 GHz Ch 56 : 5.280 GHz Ch 60 : 5.300 GHz Ch 64 : 5.320 GHz Ch100 : 5.500 GHz Ch104 : 5.520 GHz Ch108 : 5.540 GHz Ch112 : 5.560 GHz Ch132 : 5.660 GHz Ch136 : 5.680 GHz Ch149 : 5.745 GHz Ch153 : 5.765 GHz Ch157 : 5.785 GHz Ch161 : 5.805 GHz

Transmit Power: Sets the power output of the wireless signal.

Bit Rate: 5GHz is default 6 Mbps, the range can control by BAR via scroll from 6Mbps to 54Mbps.

Client Limits: When EnJet disabled, you can set the limitation of client numbers then the maximum associated client devices will be restricted at this number.

AP Detection: AP Detection can select the best channel to

use by scanning nearby areas for Access Points.

Distance: Specifies the distance between Access and client devices. The proper setting for this parameter may assist Access Points to avoid the improper operation when transmitting data under a filed application.

AP Time Slot: In EnJet mode, the AP will assign time slots for each client's data transmission. The larger the slot, the faster the data transmission.

Station Priority: In EnJet mode, the client bridge or WDS station's data transmission is prioritized by s priority. The High/Middle/Low(time ratio is 10:5:1) means transmission time of this client, which is decided by AP.

*High level means this client will get 10/16 of AP's time resource.

Client Limits 127 AP Detection Scan Distance (0-30km) 1 (0.6miles) AP Time Slot Auto Station Priority High

Wireless Setting-5GHz

Current Profile: You can configure up to eight(8)different SSIDs when EnJet disable or 1 SSID when EnJet enable. If multiple client devices will be accessing the network, you can arrange the devices into SSID groups. Click Edit

to configure the profile and check whether you want to enable extra SSID.

SSID Profile when EnJet disable

Wireless Settings - Access Point

Enabled	SSID	Edit	Security	Guest Network	VLAN ID
	EnGenius79C393_1	Edit	None	☐	-
	EnGenius79C393_2	Edit	None	☐	-
	EnGenius79C393_3	Edit	None	☐	-
	EnGenius79C393_4	Edit	None	☐	-
	EnGenius79C393_5	Edit	None	☐	-
	EnGenius79C393_6	Edit	None	☐	-
	EnGenius79C393_7	Edit	None	☐	-
	EnGenius79C393_8	Edit	None	☐	-

SSID Profile when EnJet enable tion Wireless Settings - Access Point

Enabled	SSID	Edit	Security	VLAN ID
√	EnGenius EnWiFi test	Edit	None	-

Management Interface: This Management interface make you can change the configuration via EnWiFi App instead of using the GUI. Management SSID will be turned off in this two situation. (1) When the device is powered up in the first time and there is no connection in 30 minutes. (2) When the setting is done and idle in 15 minutes. If you need to turn on management SSID please reboot the device. You can set to always on or turn off if idle in 15 minutes.

Management Interface - 2.4G

Enabled	SSID	Edit	Security
☑	ENMGMT79C393	Edit	WPA2/PSK AES

Always on Turn off if idle in 15 minutes

Enable: Click this check box to enable this SSID interface. The default SSIDs are enabled on the first 5GHz SSID.

SSID: Specifies the SSID for the current profile.

Hidden SSID: Check this option to hide the SSID from clients. If checked, the SSID will not appear in the site survey.

Client Isolation: Click the appropriate radio button to enable this function for allowing or preventing communication between client devices.

VLAN Isolation: Restrict clients communicating with different VIDs by selecting the radio button.

L2 Isolation: Enable this function prevenet client devices to communicate on the both WLAN and LAN.

VLAN ID: Specifies the VLAN tag for each profile. If your network includes VLANs, you can specify a VLAN ID for packets pass through the Access Point with a tag.

Wireless Security: See the Wireless Security section.

Save: Click Save to accept the changes.

Wireless Security

The Wireless Security section lets you configure the AP's security modes

Wireless Security - 5GHz

Security Mode	WPA-PSK
Encryption	AES
Passphrase
Group Key Update Interval	3600

Security Mode: Including WPA2-PSK, WPA2-Enterprise. We strongly recommend you to use WPA2-PSK mode.

Wireless Security
Security Mode	WFA2-Enterprise
Encryption	AES
Group Key Update Interval	3600	(30~3600; 0:Disable)
Radius Server	182.165.100.36
Radius Port	1812
Radius Secret	1234567890123456789012345

Encryption: Default is AES. Please ensure that your wireless clients use the same settings.

Group Key Update Interval: Specifies how often, in

seconds, the Group Key changes. The default value is 3600

Radius Server: Enter the IP address of the Radius server.

Radius Port: Enter the port number used for connections to the Radius server.

Radius Secret: Enter the secret required to connect to the Radius server.

Radius Settings

NAS-IP: Configure you NAS server address to assign traffic to the destination.

NAS-Ports: Configure your port No. if you would enable Network Address Servecie (NAS) under a SSID.

NAS-ID: Configure a NAS ID which is mapped with the SSID. The traffic will be forwarded via the different SSIDs if these SSIDs configured as different ID.

Radius Accounting

Radius Accounting: Choose to enable or disable accounting feature.

Radius Accounting Server: Enter the IP address of the Radius accounting server.

Radius Accounting Port Enter the port number used for connections to the Radius accounting server.

Radius Accounting Secret: Enter the secret required to connect to the Radius accounting server.

Interim Accounting Interval: Specifies how often, in seconds, the accounting data sends.

Note: 802.11n does not allow WPA2-PSK TKIP security mode.

Fast Roaming

like enable the function to serve mobile client devices that roam from Access Point to Access Point. Some applications running on Client devices require fast re-association when they roam to a different Access Point

Fast Roaming

Enable Fast Roaming

- Enable - Disable

Please enter the settings of the SSID and initialize the Security mode to WPA2 enterprise, as well as to set the Radius Server firstly. Users can enable the Fast Roaming and implement the advanced search.

Please also set the same enterprise Encryption under the same SSID on other Access Points and enable the Fast Roaming. When the configuration is realized on different Access Point, the mobile client devices can run the voice service and require seamless roaming to prevent delay in conversation from Access Point to Access Point.

Wireless MAC Filtering

Wireless MAC Filtering is used to allow or deny network access to wireless clients (computers, tablet PCs, NAS, smartphones, etc.) according to their MAC addresses. You can manually add a MAC address to restrict permission to access the AP/CPE. The default setting is: Disable Wireless MAC Filter.

Note: Only applicable in Access Point and WDS AP modes.

Wireless MAC Filter ACL Mode Disabled Add

MAC Address

ACL Mode: Determines whether network access is granted or denied to clients whose MAC addresses appear in the MAC address table on this page. Your choices are: Disabled, Deny MAC in the list, or Allow MAC in the list.

MAC Address: Enter the MAC address of the wireless client.

Add: Click Add to add the MAC address to the MAC address table.

Delete: Delete the selected entries.

Save: Click Save to apply the changes.

Wireless Traffic Shaping

Traffic shaping regulates the flow of packets leaving an interface to deliver improved Quality of Service(QoS). The function will allow administrators to restrict the wireless bandwidth per SSID or per user.

Wireless Traffic Shaping Enable Traffic Shaping Enable Disable Download Limit 100 Mbps (1-999) Per User Upload Limit 100 Mbps (1-999) Per User

Enable Traffic Shaping: Check this option to enable Wireless Traffic Shaping.

Download Limit: Specifies the wireless transmission bandwidth used for downloading.

Upload Limit: Specifies the wireless transmission bandwidth used for uploading.

Save: Click Save to confirm the changes.

Guest Network Settings

When EnJet disabled, you can add a guest network which allows visitors to use the Internet without giving out your office or company wireless security key. You can guest network to each wireless network in the 5 GHz ac/a/n frequencies.

Guest Network Settings

Enable	SSID	Edit	Security	Hidden SSID	Client Isolation
	EnGenius-5GHz_GuestNetwork	Edit	None
Manual IP Settings
- IP Address		192.168.200.1
- Subnet Mask		255.255.255.0
Automatic DHCP Server Settings
- Starting IP Address		192.168.200.100
- Ending IP Address		192.168.200.200
- WINS Server IP		0.0.0.0

SSID: Specifies the SSID for the current profile.

Suppressed SSID: Check this option to hide the SSID from clients. If checked, the SSID will not appear in the site survey.

Station Separation: Click the appropriate radio button to allow or prevent communication between client devices.

IP Address: The IP Address of this device.

Subnet Mask: The IP Subnet mask of this device.

Starting IP Address: The first IP Address in the range of

the addresses by the DHCP server.

Ending IP Address: The last IP Address in the range of addresses assigned by the DHCP server.

add a RSSI Threshold

RSSI Threshold

Status	Enable	Disable
RSSI	-85	dBm (Range: -60dBm ~ -100dBm)

RSSI Threshold: Enable the Fast Handover feature when EnJet disable by ensuring that each client is served by at least one Access Point at any time. Access Points continuously monitor the connectivity quality of any client in their range and efficiently share this information with other Access Points in the vicinity of that client to coordinate which of them should serve the client best.

RSSI: Enter the RSSI (Received Signal Strength Index) in order to determine the handover procedure which the current wireless link will terminate. RSSI is an indication of the power level being received by the antenna. Therefore, the higher the RSSI number, the stronger the signal.

Management VLAN Settings

This page allows you to assign a VLAN tag to packets sent over the network. A VLAN is a group of computers on a network whose software has been configured so that they behave as if they were on a separate Local Area Network (LAN). Computers on VLAN do not have to be physically located next to one another on the LAN.

Note: Only applicable in Access Point and WDS AP modes.

Management VLAN Settings

CAUTION: If you reconfigure the Management VLAN ID, you may lose connectivity to the access point. Verify that the switch and DHCP server can support the reconfigured VLAN ID, and then re-connect to the new IP address.

Management VLAN Enable 4096

Management VLAN: If your network includes VLANs, you can enable Management VLAN ID for packets passing through the Access Point with a tag.

Save: Click Save to confirm the changes or Cancel to cancel and return to previous settings.

Note: If you reconfigure the Management VLAN ID, you may lose your connection to the EnStationAC. Verify that the DHCP server supports the reconfigured VLAN ID and then reconnect to the EnStationAC using the new IP address.

Chapter 8

Management

White EnGenius wireless router with two antennas (no visible text or symbols on body)

Advanced Settings

SNMP Settings

This page allows you to assign the Contact Details, Location, Community Name, and Trap Settings for a Simple Network Management Protocol (SNMP). SNMP is a networking management protocol used to monitor network attached devices. SNMP allows messages (called protocol data units) to be sent to various parts of the network. Upon receiving these messages, SNMP compatible devices (called agents) returns the data stored in their Management Information Bases.

SNMP Settings Status Enable Contact Location Port 161 Community Name (Read Only) public Community Name (Read Write) private Trap Destination - Port 162 - IP Address - Community Name public SNMPv3 Settings - Status Enable - Username admin (1-31 Characters) - Authorized Protocol MDS - Authorized Key 12345678 (8-32 Characters) - Private Protocol DES - Private Key 12345678 (8-32 Characters) - Engine ID

SNMP Enable/Disable: Enables or disables the SNMP feature.

Contact: Specifies the contact details of the device.

Location: Specifies the location of the device.

Community Name (Read Only): Specifies the password for the SNMP community for read only access.

Community Name (Read/Write): Specifies the password for the SNMP community with read/write access.

Trap Destination Address: Specifies the IP address of the computer that will receive the SNMP traps.

Trap Destination Community Name: Specifies the password for the SNMP trap community.

SNMPv3: Enables or disables the SNMPv3 feature.

User Name: Specifies the username for SNMPv3.

Auth Protocol: Selects the authentication protocol type: MDS or SHA.

Auth Key: Specifies the authentication key.

Priv Protocol: Selects the privacy protocol type: DES.

Priv Key: Specifies the privacy key for privacy.

Engine ID: Specifies the engine ID for SNMPv3.

Apply Save: Click Apply Save to apply the changes.

CLI Settings

CLI Setting CLI Enable SSH Setting SSH Disable HTTPS Setting HTTPS Enable HTTPS forward Disable

CLI: The Command Line Interface (CLI) allows you to type commands instead of choosing them from a menu or selecting an icon.

SSH: Enable Secure Shell (SSH) to make secure, encrypted connections in the network. Secure Shell is a network protocol that allows data to be exchanged using a secure channel between two network devices.

HTTPS: Enable HTTPS to transfer and display web content securely. The Hypertext Transfer Protocol over SSL (Secure Socket Layer) is a TCP/IP protocol used by web servers to transfer and display web content securely.

Email Alert

You can use the Email Alert feature to send messages to the configured email address when particular system events occur.

Note: Do NOT use your personal email address as it can unnecessarily expose your personal email login credentials. Use a separate email account made for this feature instead

Email Alert Status Enable - From - To - Subject [Email-Alert][ENH900EXT][00:02:6F:FF:FF:FF] Config Email Account - Username - Password - SMTP Server Port 25 - Security Mode None Send Test Mail

From: Enter the email address to show the sender of the email.

To: Enter the address that you wish to send emails to.

Subject: Enter the text that you wish to appear in the email's subject line.

Username: Enter the username for the email account that will be used to send emails.

Password: Enter the password for the email account that will be used to send emails.

SMTP Server: Enter the IP address or hostname of the outgoing SMTP server.

Port: Enter the SMTP port number to use for outbound emails.

Security Mode: Selects the security mode: SSL/TLS or STARTTLS or None.

Apply: To save setting and take effect.

Time Zone

Date and Time Setting

This page allows you to set the internal clock of the device.

Date and Time Settings

Manually Set Date and Time

Date: 2019 / 07 / 09

Time: 15 : 03 (24-Hour)

Synchronize with PC

Automatically Get Date and Time

NTP Server: pool.ntp.org

Manually Set Date and Time: Manually specify the date and time.

Automatically Get Date and Time: Select and check whether you wish to enter the IP address of an NTP server or use the default NTP server to have the internal clock set automatically.

Time Zone

You can click Auto Detect or select Time Zone from the

menu.

Enable Daylight Saving: Check whether daylight savings applies to your area.

Start: Select the day, month, and time when daylight savings time starts.

End: Select the day, month, and time when daylight savings times ends.

Time Zone

□ Auto Detect

Time Zone: UTC+00:00 England

□ Enable Daylight Saving

Start: January ▼ 1s ▼ Sun ▼ 00:00 ▼

End: January ▼ 1s ▼ Mon ▼ 00:00 ▼

Auto Reboot Settings

You can specify how often you wish to reboot the EnStationAC.

Auto Reboot Setting Auto Reboot Status Disable ▼ Timer Sunday Monday Tuesday Wednesday Thursday Friday Saturday 0 0

Auto Reboot Setting: Enables or disables the Auto Reboot function.

Frequency of Auto Reboot: Specifies how often you wish to reboot the EnStationAC by Min, Hour, Day or Week.

Timer: Select the day and enter the time you would like to reboot automatically.

Save: Click Save to apply the changes.

Wi-Fi Scheduler

The Wi-Fi Scheduler can be created for use in enforcing rules. For example, if you wish to restrict web access to Mon-Fri from 3pm to 8pm, you could create a schedule selecting Mon, Tue, Wed, Thu and Fri while entering a Start time of 3pm and End Time of 8pm to limit access to these times.

WiFi Scheduler
Status	● Enable ● DisableNOTE: Please assure that the Time Zone Settings is synced with your local time when enabling the Wi-Fi Scheduler.
Wireless Radio	●
SSID Selection	EnGenius3A9ADB_1-5GHz
Schedule Templates	Choose a template
	Day	Availability	Duration
Schedule Table	Sunday	available	00	00	~ 24	: 00
	Monday	available	00	00	~ 24	: 00
	Tuesday	available	00	00	~ 24	: 00
	Wednesday	available	00	00	~ 24	: 00
	Thursday	available	00	00	~ 24	: 00
	Friday	available	00	00	~ 24	: 00
	Saturday	available	00	00	~ 24	: 00

Status: Enables or disables the Wi-Fi scheduler function.

Wireless Radio: Select 2.4 GHz or 5 GHz from the drop-down list for the preferred band type.

SSID Selection: Select a SSID from the drop-down list.

Schedule Templates: Select a schedule template from the

drop-down list.

Day(s): Place a checkmark in the boxes for the desired days or select the All Week radio button to select all seven days of the week.

Duration: The Start Time is entered in two fields. The first box is for hours and the second box is for minutes. The End Time is entered in the same format as the Start time.

Tools

Ping Test Parameters

This page allows you to analyze the connection quality of the EnStationAC and trace the routing table to a target in the network.

Ping Test Parameters Target IP / Domain Name Ping Packet Size 64 Bytes Number of Pings 4 Start

Target IP: Enter the IP address you would like to search.

Ping Packet Size: Enter the packet size of each ping.

Number of Pings: Enter the number of times you wish to ping.

Traceroute Test Parameter

Traceroute Test Parameters Target IP / Domain Name Start Stop

Target IP: Enter the IP address you would like to trace

Nslookup Test Parameter

Target IP/Domain Name: Enter the IP address or domain name you wish to do Nslookup test.

Speed Test Parameters

Speed Test Parameters

Target IP / Domain Name
Time Period	20	Sec
Check Interval	5	Sec
IPv4Port	5001
IPv6Port	5002
Start

Target IP / Domain Name: Enter an IP address or domain name you wish to impelement a speed test for reali; the variance on wireless speed.

Time Period: Enter the time in seconds that you would like the test to implement for and in how many intervals.

IPv4/IPv6 Port: This Access Points uses IPv4 5001 and IPv6 60001 port for the speed test.

Start: Click start to implement speed test.

Device Discovery

This page allows you to discover devices from network for Operation Mode, IP Address, System MAC Address and Firmware version.

Device Discovery Device Name Operation Mode IP Address System MAC Address Firmware Version Scan

Account

This page allows you to change the device username and password. By default, the username is: admin and the password is: admin. The password can contain from 0 to 12 alphanumeric characters and is case sensitive. After this changes applies, you need to login again.

Account Settings

Account Settings
Administrator Username	admin
Current Password
New Password
Verify Password

Apply Apply saved settings to take effect 172.27.0.57 顯示 Revise password successfully! Login the device again.

Administrator Username: Enter a new username for logging in to the New Name entry box.

Current Password: Enter the old password for logging in to the Old Password entry box.

New Password: Enter the new password for logging in to the New Password entry box.

Verify Password: Re-enter the new password in the Confirm Password entry box for confirmation.

Apply: Click Apply to apply the changes.

Firmware

Firmware Upgrade

This page allows you to upgrade the firmware of the device.

Firmware Upgrade Current Firmware Version: 2.0.0 Select the new firmware from your hard disk. Browse No file selected. Upload

To Perform the Firmware Upgrade:

1. Click the Choose File button and navigate the OS file system to the location of the upgrade file.

2. Select the upgrade file. The name of the file will appear in the Upgrade File field.

3. Click the Upload button to commence the firmware upgrade.

Note: The device is unavailable during the Firmware upgrade process and must restart when the upgrade is completed. Any connections to or through the device will be lost.

Backup/Restore

This page allows you to save the current device configurations. When you save your configurations, you also can reload the saved configurations into the device through the Restore Saved Settings from a file section. If extreme problems occur, or if you have set the AP incorrectly, you can use the Reset button in the Revert to Factory Default Settings section to restore all the configurations of the AP to the original default settings.

Backup Setting: Click Export to save the current configured settings.

Restore New Setting: To restore settings that have been previously backed up, click Browse, select the file, and click Restore.

Restore to Default: Click Reset button to restore the AP to its factory default settings.

Backup/Restore Settings

Factory Setting
- Backup Setting	Export
- Restore New Setting	選擇檔案 未選擇任何檔案	Import
- Reset to Default	Reset
User Setting
- Back Up Setting as Default	Backup
- Restore to User Default	Restore
- Caution: Please write down your account number and password before saving. The user settings will now become the new default settings at the next successful login.

User Setting

The function allows you to backup the current device configurations into the EnStationAC as the default value. If extreme problems occur, or if you have set the EnStationAC incorrectly, you can push the Reset button to revert all the configurations of the EnStationAC to the user default.

Back Up Setting as Default: Click Backup to backup the user settings you would like to the device's memory for the default settings.

Restore to User Default: Click Restore to restore user settings to the factory standard settings.

Note1: After setting the current settings as the default, you should click the Restore to Default on the web interface for reverting the settings into the factory default instead of pushing the reset button.

Note2: Please write down your account and password before saving. The user settings will now become the new default settings at the next successful login.

Log

System Log

The EnStationAC automatically logs (records) events of possible interest in its internal memory. To view the logged information, click the Log link under the System Manager menu. If there is not enough internal memory to log all events, older events are deleted from the log. When powered down or rebooted, the log will be cleared.

System Log Status Enable Disable Log type All Refresh Clear Aug 25 01:08:01 EnStationAC user.notice root: starting ntpclient Aug 25 01:08:01 EnStationAC cron.info crond[3577]: crond: USER root pid 1105 cmd ./etc/1 Aug 25 01:07:01 EnStationAC user.notice root: starting ntpclient Aug 25 01:07:01 EnStationAC cron.info crond[3577]: crond: USER root pid 1068 cmd ./etc/1 Aug 25 01:06:02 EnStationAC user.notice root: starting ntpclient Aug 25 01:06:02 EnStationAC cron.info crond[3577]: crond: USER root pid 1031 cmd ./etc/1 Aug 25 01:05:02 EnStationAC user.notice root: starting ntpclient Aug 25 01:05:01 EnStationAC cron.info crond[3577]: crond: USER root pid 994 cmd ./etc/hc Aug 25 01:04:01 EnStationAC user.notice root: starting ntpclient Aug 25 01:04:01 EnStationAC cron.info crond[3577]: crond: USER root pid 944 cmd ./etc/hc

Status: Enable/Disable this function.

Trafic Log: Enable/Disable this function.

Log type: You may choose one of log types to display logs in the following window. The default log types is All.

ALL Debug Information Notice Warning Error Critical Alert Emergency

Remote Log

This page allows you to setup the Remote Log functions for the AP/CPE.

Syslog: Enables or disables the syslog function.

Log Server IP Address: Enter the IP address of the log server.

Remote Log: Enable or disable the remote log service.

Apply: Click Apply to apply the changes.

Logout

Click Logout in Management menu to logout.

EnGenius® ENSTATIONAC Single Radio Outdoor AP, 272R, 067Mbps Changes : 2 Reset Logout Overview Device Status Connections Network Basic Wireless Management Advanced Time Zone WiFi Scheduler Tools System Manager Account Firmware Log Device Information Device Name ENSTATIONAC MAC Address - LAN 00:02:6F:FF:FF:FF - Wireless LAN - 5GHz 00:02:6F:FF:FF:FF Country USA Current Local Time Tue Aug 11 12:48:23 UTC 2015 Firmware Version 2.0.39 Management VLAN ID Untagged LAN Information - IPv4 IP Address 192.168.1.1 Subnet Mask 255.255.255.0 Gateway 192.168.1.1 Primary DNS 0.0.0.0 Secondary DNS 0.0.0.0 DHCP Client Disable

*The model name will be varied by different models.

Please confirm again to logout the system or not.

Reset

In some circumstances, it may be required to force the device to reboot. Click on Reset to reboot or to reset the AP/CPE.

EnGenius® ENSTATIONAC Single Radio Outdoor AP , 2TZR , 8MTbps Changes: 2 Reset Logout Overview Device Status Connections Network Basic Wireless Management Advanced Time Zone WiFi Scheduler Toys System Manager Account Firmware Ling Device Information Device Name MAO Address - LAN - Wireless LAN - SGHz Country Current Local Time Firmware Version Management VLAN ID LAN Information - IPv4 IP Address Subnet Mask Gateway Primary DNS Secondary DNS DHCP Client ENSTATIONAC 00.02 GF FF FF 00.02 GF FF FF USA Tue Aug 11 12:48:23 UTC 2015 Unagged 192.168.1.1 254.255.258.0 192.168.1.1 0.0.0.0 0.0.0.0 Disable

*The model name will be varied by different models.

Once you click reset button, you will see the options for reboot or restore this AP.

Reboot the device: Click it to reboot this device.

Restore to Factory Default: Click it to reset this device to factory default setting.

Restore to User Default: Click it to reset this device to user default settings. For realizing the setting method, you may refer page 62.

Reboot the Device

Restore the device to default settings

CAUTION: All settings will be cleared and reset to either factory default or user default.

Restore to Factory Defaults

Restore to User Default

Chapter 9

EnWiFi App

EnWiFi

About EnWiFi App

EnWiFi is a convenient Wi-Fi management tool for EnGenius-brand outdoor and indoor Wi-Fi devices. Configure and monitor EnGenius Wi-Fi device from a smartphone or tablet. EnWifi offers single or group device configuration and updates on your network's latest status. You can access to EnGenius devices anytime via EnWiFi.

Features

Single Configuration

Proceed single device configuration throughout EnWiFi App. The Configuration could be assisted users to fulfill settings on Wireless, Network and Systems.

Group Configuration

Users can create a group configuration for multiple wireless access points and change between Client Bridge, WDS AP, WDS Bridge, WDS Station modes and EnGenius ERP easily.

Device Management

Realize status of an Access Point on RF information and real time throughput on Tx and Rx ways to make maximum PtP connecting performance or remove device with weak signal.

Discover Device

Discover EnGenius Device nearby and access to it to do management quickly.

Connected Status Monitor

Monitor connected devices on signal level (RSSI), transmit / receive performance, and firmware version. Users can enhance device settings base on these connected information.

Backup and Restore

Backup current configuring file and restore to other devices quickly.

Configuring Device in EnWiFi App

Before access to device, you need to find Management SSID and connect to it first. Then you can see your device in the Device List.

Single Configuration

Proceed Wireless Settings, Network and System Configuration to setup value on RF parameters, DHCP/Spanning Tree, and time zone for a device.

    subgraph Wireless
        E["ENS500EXT-AC"] --> F["WIRESLESS NETWORK SYSTEM"]
        G["Country USA"] --> H["Green Mode"]
        I["Operation Mode Access Point"] --> J["EnJet"]
        K["Distance 1KM"] --> L["AP Time Slot Auto"]
        M["5GHz"] --> N["Channel Auto"]
        O["Channel HT 40MHz"] --> P["Transmit Power Auto"]
    end

    subgraph Network
        Q["ENS500-ACv2_AA234"] --> R["WIRELESS NETWORK SYSTEM"]
        S["Network Management DHCP"] --> T["Spanning Tree Protocol Disable"]
    end

    subgraph System
        U["ENS500-ACv2_AA234"] --> V["WIRELESS NETWORK SYSTEM"]
        W["Date and Time Setting"] --> X["Auto Detection"]
        Y["23 January, 2010 00:00 AM"] --> Z["Time Zone"]
        AA["Daylight Saving"] --> AB["Auto Detection"]
        AC["UTC +8:00 Taiwan"] --> AD["Start Wed. 23 January 00:00 AM"]
        AE["End Sat. 23 February 00:00 AM"] --> AF["Status Configuration Tools More"]
    end

    E --> G
    G --> I
    I --> K
    K --> M
    M --> N
    N --> O
    O --> P
    P --> Q
    Q --> U

WDS Link

Setting WDS links will assist users to setup peer-to-peer connection easily.

Wireless/Change Operation Mode

Set SSID and Security to Proceed Link Settings

Client can connect to it via SSID

中華電信 下午4:37 65% ← ENS500EXT-AC Apply WIRELESS NETWORK SYSTEM Country USA Green Mode Operation Mode WDS Access Point > EnJet Distance 1KM > AP Time Slot Auto >

中華電信 下午4:36 55% ← ENS500EXT-AC Apply WIRELESS NETWORK SYSTEM 50Hz Channel HT 40MHz > Transmit Power Auto

EnWFi 上午11:30 80% 設定 Wi-Fi 選擇網路... a_meihui_5925 andy_test chrome6 EnGenius-EMR3500 EnGenius76C799 EnGenius79C405 ENMGMT79C405 Johnson's iPhone SNWL SNWL_8F SNWL_B_port 其他...

5GHz Channel Auto > Channel HT 40MHz > Transmit Power Auto Status Configurations Tools More

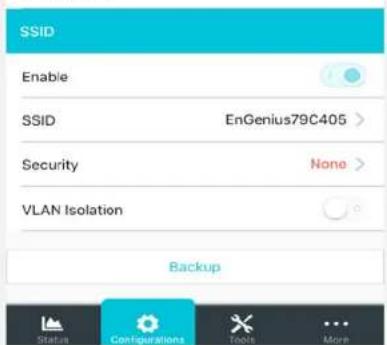

SSID Enable SSID EnGenius79C405 Security None VLAN Isolation Backup Status Configurations Tools More

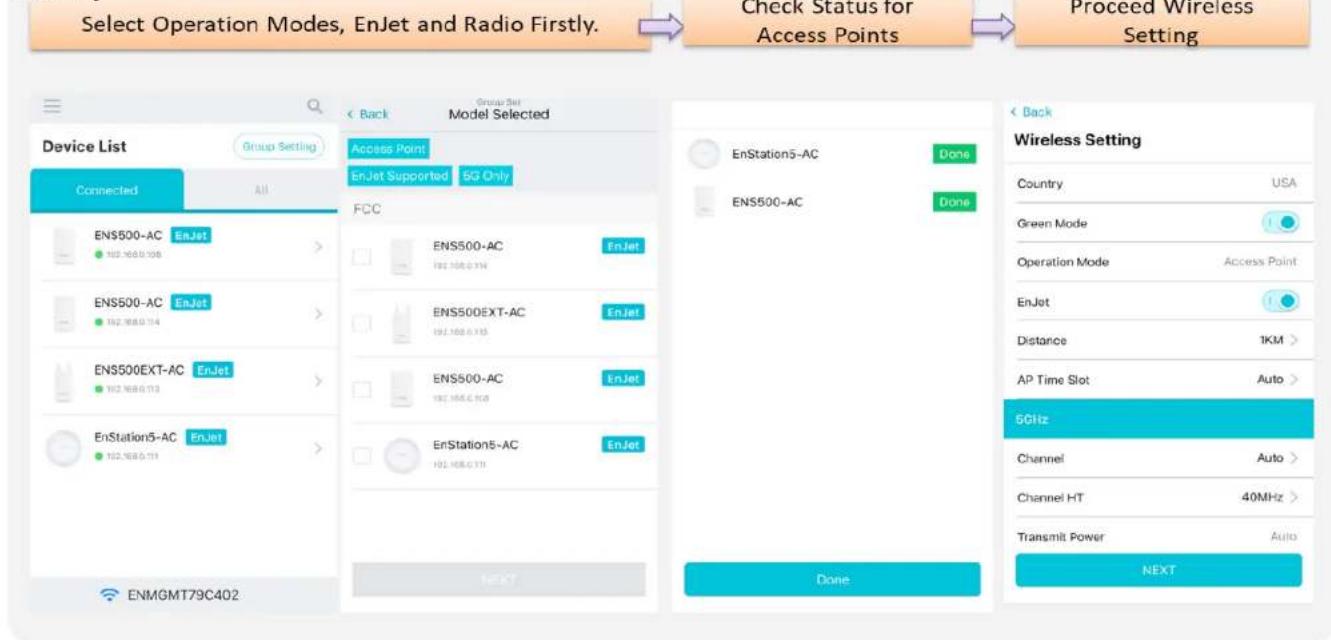

Group Configuration

Proceed Wireless Settings including EnJet, Operation mode, distance and time slot, channel used, channel HT, Tx power and Security

    subgraph Device List
        D["Connected"] --> E["Group Setting"]
        F["EN500-AC"] --> G["EnJet"]
        H["EN500-AC"] --> I["EnJet"]
        J["EN500EXT-AC"] --> K["EnJet"]
        L["EnStation5-AC"] --> M["EnJet"]
        N["ENMGMT79C402"] --> O["Next"]
    end

    subgraph Group Set
        P["Access Point"] --> Q["EnJet Supported 5G Only"]
        R["FCC"] --> S["EN500-AC"]
        T["ENS500EXT-AC"] --> U["EnJet"]
        V["ENS500-AC"] --> W["EnJet"]
        X["EnStation5-AC"] --> Y["EnJet"]
    end

    subgraph Wireless Setting
        Z["EnStation5-AC"] --> AA["Done"]
        AB["ENS500-AC"] --> AC["Done"]
    end

    D --> F
    F --> H
    H --> J
    J --> L
    L --> N

    style A fill:#f9f,stroke:#333
    style B fill:#f9f,stroke:#333
    style C fill:#f9f,stroke:#333
    style D fill:#ccf,stroke:#333
    style E fill:#cfc,stroke:#333
    style F fill:#cfc,stroke:#333
    style G fill:#fcc,stroke:#333
    style H fill:#fcc,stroke:#333
    style I fill:#fcc,stroke:#333
    style J fill:#fcc,stroke:#333
    style K fill:#fcc,stroke:#333
    style L fill:#fcc,stroke:#333
    style M fill:#fcc,stroke:#333
    style N fill:#fcc,stroke:#333
    style O fill:#fcc,stroke:#333

Group Configuration

Proceed Wireless Settings including EnJet, Operation mode, distance and time slot, channel used, channel HT, Tx power and Security

    subgraph Device List
        D["Connected"] --> E["Group Setting"]
        F["EN500-AC"] --> G["EnJet"]
        H["EN500-AC"] --> I["EnJet"]
        J["EN500EXT-AC"] --> K["EnJet"]
        L["EnStation5-AC"] --> M["EnJet"]
        N["ENMGMT79C402"] --> O["Next"]
    end

    subgraph Group Set
        P["Access Point"] --> Q["EnJet Supported 5G Only"]
        R["FCC"] --> S["EN500-AC"]
        T["ENS500EXT-AC"] --> U["EnJet"]
        V["ENS500-AC"] --> W["EnJet"]
        X["EnStation5-AC"] --> Y["EnJet"]
    end

    subgraph Wireless Setting
        Z["EnStation5-AC"] --> AA["Done"]
        AB["ENS500-AC"] --> AC["Done"]
    end

    D --> F
    F --> H
    H --> J
    J --> L
    L --> N
    N --> O
    O --> P
    P --> Q
    Q --> R
    R --> S
    S --> T
    T --> U
    U --> V
    V --> X
    X --> Y
    Y --> Z
    Z --> AA
    AA --> AB
    AB --> AC
    AC --> AD["5GHz"]
    AD --> AE["Channel Auto >"]
    AD --> AF["Channel HT 40MHz >"]
    AD --> AG["Transmit Power Auto"]
    AG --> AH["NEXT"]

Proceed configuration on IP/Subnet, time Setting, and account/password under a group.

Network Setting IP/Subnet or via DHCP Assigned 9:41 AM $ 100% < Wireless Setting Group size Network Setting 2 of 3 Network Management DHCP > Spanning Tree Protocol Disable > NEXT >

System Setting Time Setting 9:41 AM $ 100% Network Setting Groupon System Setting 3 of 3 Date and Time Setting Auto Detection 23 January, 2019 00:00 AM Time Zone Daylight Saving Auto Detection Time Zone UTC +8:00 Taiwan Start Wed. 23 January 00:00 AM End Sat. 23 February 00:00 AM NEXT

Device Setting Account/Password 9:41 AM $ 100% < Back Group set Change Default Account & Password Device Account & Password Account admin Password 123456 New Account newadmin New Password I want to use default password. Management SSID Password Current Password New Password I want to use default password. NEXT

You also can use EnWiFi App to proceed connection from Client Bridge mode devices to an Access Point mode device.

Select an AP SSID AP Connection Please select the desired AP to connect it. Manually ENS500-ACv2_AA234 ENS500-ACv2_AA234 ENS500-ACv2_AA234 Manually Enter Passphrase and Click "Next" Back Groupset AP Connection Please input the AP's SSID you want to connect it. SSID ENS500-ACv2_AA234 Encryption Passphrase 123456 NEXT Go on Wireless Settings and Further Steps Device List Groupset Wireless Setting 1 of 3 Country USA > EnJet Operation Mode Access Point > Distance 2 KM > AP Time Slot Auto > 2.4GHz Channel 6 > Channel HT 40 MHz > Transmit Power Auto > 5GHz Channel 40 > Channel HT 40 MHz > Transmit Power Auto >

You also can set Operation mode to WDS AP mode and let WDS STA devices connect to this WDS AP mode device.

Select operation mode to WDS AP and choose AP Configure wireless Setting Cancel Operation Mode WDS AP > Enable Function (Supported) Radio 2.4GHz 5GHz Apply 9:41 AM 100% < Device List Device List Wireless Setting 1 of 3 Country USA > Enable Operation Mode WDS AP > Distance 2 x 6x > AP Time Slot Auto > 2.4GHz Channel 6 > Channel HT 40 kHz > Transmit Power Auto > 5GHz Channel 40 > Channel HT 40 kHz > Transmit Power Auto >

Select operation mode to WDS STA and choose AP to connect

Configure wireless Setting

Cancel Operation Mode WDS STA EnJet Function Supported Radio 2.4GHz 5GHz Apply < Device List AP Connection Please select the desired AP to connect it. Manually Refresh EnGenius-79F2CD EnGenius79F2CD_1 EnGenius5E0DEC EMR3500 UAP_ACSHD SNWL_B_port SNWL EnGenius343B3F EPG_NTC5 5912SSID5_1 EnGenius7F Device List Onset List Wireless Setting 1 of 3 Country USA EnJet Green Mode Transmit Power Auto Distance 2 KM > Station Priority High > NEXT

Discover Device

Discover and Access to other EnGenius devices to manage their status.

    subgraph Tool_1
        E["ENS500-ACv2_AA234"] --> F["Antenna Alignment"]
        G["Ping"] --> H["Traceroute"]
        I["Nislookus"] --> J["Speed Test"]
        K["Device Discovery"] --> L["Site Survey"]
    end

    subgraph Tool_2
        M["Discovering"] --> N["ETD500-AC_AA234"]
        O["ETD5-AC_AA234"] --> P["ETD500EXT-AC_AA23456789"]
        Q["ETD500EXT-AC_AA23456789"] --> R["Throughput: 234 Mbps 157 Mbps / 20 Mbps"]
        S["Throughput: 234 Mbps 157 Mbps / 20 Mbps"]
    end

    subgraph Tool_3
        T["ESN500-ACv2_AA234"] --> U["Internal Available"]
        V["External Mode: 10.0.82.11"] --> W["Access Point: 80Hz"]
        X["Throughput: 234 Mbps 157 Mbps / 20 Mbps"]
        Y["Device Connected Devices: 6 >"]
        Z["Channel: 12"]
        AA["Channel HT: 20kHz"]
    end

    subgraph Tool_4
        AB["Configurations"] --> AC["None"]
        AD["More"]
    end

    subgraph Tool_5
        AE["Storage"] --> AF["Configuration"]
        AG["Settings"] --> AH["More"]
    end

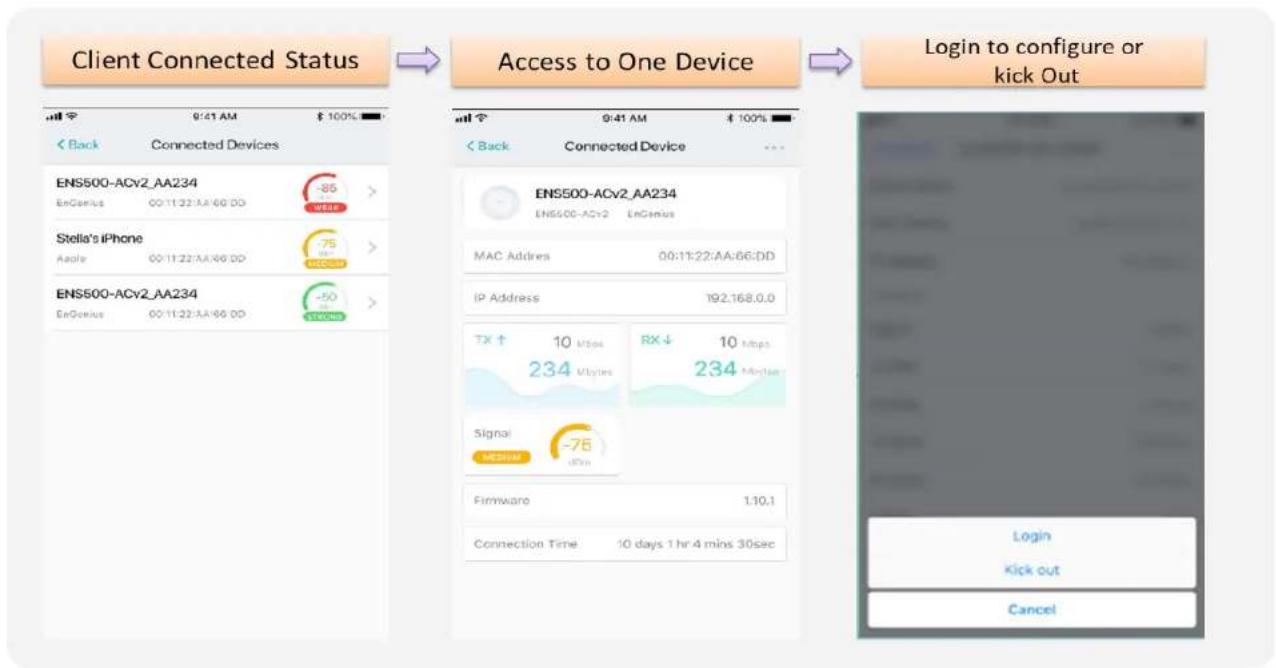

Monitor & Management

Monitor clients connected status. Base on this information to adjust configuration or press kick out to remove device if the signal is weak.

    subgraph_A["Client Connected Status"]
        D["EN500-ACv2_AA234<br>EnGenius 00:11:22:AA:66:DD"] --> E["EN500-ACv2_AA234<br>EN500-ACv2 EnGenius"]
        F["Stella's iPhone<br>Apple 00:11:22:AA:66:DD"] --> G["STella's iPhone<br>Stella's iPhone"]
        H["ENS500-ACv2_AA234<br>EnGenius 00:11:22:AA:66:DD"] --> I["ENS500-ACv2_AA234<br>EN500-ACv2 EnGenius"]
    end

    subgraph_B["Access to One Device"]
        J["MAC Address 00:11:22:AA:66:DD"] --> K["IP Address 192:168.0.0"]
        L["TX ↑ 10 Mbps 234 Mbytes"] --> M["RX ↓ 10 Mbps 234 Mbytes"]
        N["Signal -76 MHz"] --> O["Firmware 1:10.1"]
        P["Connection Time 10 days 1 hr 4 mins 30sec"] --> Q["Login"]
        R["Kick out"] --> S["Cancel"]
    end

    subgraph_C["Login to configure or kick Out"]
        T["Login"] --> U["Add to Device"]
        V["Kick out"] --> W["Add to Device"]
        X["Cancel"] --> Y["Add to Device"]
    end

Backup

Backup current settings as a configuration file to apply to other devices quickly.

    subgraph_A["Backup Current Settings"]
        D["ENSS00EXT-AC"] --> E["Wireless NETWORK SYSTEM"]
        E --> F["Current Information"]
        F --> G["NTP Server pool.ntp.org"]
        G --> H["Time Zone"]
        H --> I["Auto Detect"]
        I --> J["Location"]
        J --> K["Latitude"]
        K --> L["Longitude"]
        L --> M["Backup"]
        M --> N["Restore"]
        N --> O["Cancel"]

    end

    subgraph_B["Create the Backup File"]
        P["Current configurations will be save"]
        P --> Q["Cancel"]
        P --> R["Create"]
    end

    subgraph_C["Backup Successfully"]
        S["ENS500-ACv2_AA234_building 18-6-2018, 12:00AM"]
        T["ENS500-ACv2_AA234_building 18-6-2018, 12:00AM"]
        U["ENS500-ACv2_AA234_building 18-6-2018, 12:00AM"]
    end

Restore

Choose backup file to restore other devices so that they can have the same configuration quickly.

Click Restore Choose the Backup File Choose Device to Restore EN500-ACv2_AA234_building Select a device to be restored ENS500-ACv2_AA234 EnStation5-ACv2_AA234 175.123.123.123 ENS500EXT-ACv2_AA234567... 175.123.123.123 EnStation/ACv2_AA234 175.123.123.123 ENH500v2_AA234 175.123.123.123 EnStation/ACv2_AA234 Apply

Appendix

White EnGenius wireless router with two antennas (no visible text or symbols on body)

Appendix A - FCC Interference Statement

Federal Communication Commission Interference Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. For product available in the USA/Canada market, only channel 1\~11 can be operated. Selection of other channels is not possible. Section 15.204(b) states that an approved "transmission system" must always be marketed as a complete system including the antenna.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

• Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help

FCC Caution:

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

IMPORTANT NOTE:

Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 cm between the radiator & your body.

Appendix B - Professional Installation Instruction (FCC)

Installation Personal

This product is designed for specific application and needs to be installed by a qualified personal who has RF and related rule knowledge. The general user shall not attempt to install or change the setting.

Installation Location

The product shall be installed at a location where the radiating antenna can be kept 20 cm from nearby person in normal operation condition to meet regulatory RF exposure requirement.

External Antenna

Use only the antennas which have been approved by the applicant. The non-approved antenna(s) may produce unwanted spurious or excessive RF transmitting power which may lead to the violation of FCC limit and is prohibited.

Installation Procedure

Please refer to user's manual for the detail.

Warning:

Please carefully select the installation position and make sure that the final output power does not exceed the limit set force in relevant rules. The violation of the rule could lead to serious federal penalty.

Appendix C - IC Interference Statement

Industry Canada statement

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions:

1. This device may not cause interference.
2. This device must accept any interference, including interference that may cause undesired operation of the device.

where applicable, antenna type(s), antenna models(s), and worst-case tilt angle(s) necessary to remain compliant with the e.i.r.p. elevation mask requirement set forth in section 6.2.2.3 shall be clearly indicated.

Avertissement:

Radiation Exposure Statement

This equipment complies with ISED radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

This radio transmitter (IC: 10103A-ENS500ACV2 / Model: EnStation5-ACv2, ENS500EXT-ACv2, ENS500-ACv2 ) and (IC: 10103A-ENH500V3) has been approved by ISED to operate with the antenna type listed below with maximum permissible gain indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device.

Approved antenna(s) list

EnStation5-ACv2, ENS500EXT-ACv2, ENS500-ACv2

No.	Type	Connector	Gain (dBi)				Remark
1	Patch	I-PEX	Ant. 1 (5150-5850MHz)		Ant. 2 (5150-5850MHz)		For Model: ENS500-ACv2 and EAS100-14 use only
			13.35		13.42
2	Dipole	RSMA	5150MHz	5550MHz		5850MHz	For Model: ENS500EXT-ACv2 and EAS100EXT use only
			5.12	5.09		5.17
3	Patch	I-PEX	Ant. 1 (5150-5925MHz)		Ant. 2 (5150-5925MHz)		For Model: EnStation5-ACv2 and EAS100-19 use only
			15.5		15.5

Ant Type Connector Antenna Gain (dBi)
Patch Pin		-	14.11(Hor.)/13.36 (Ver.)
PIFA RF Trace 3.5			-

Appendix D

Professional installation instruction (IC)

1. Installation personal

This product is designed for specific application and needs to be installed by a qualified personal who has RF and related rule knowledge. The general user shall not attempt to install or change the setting.

1. Installation location

The product shall be installed at a location where the radiating antenna can be kept 20cm from nearby person in normal operation condition to meet regulatory RF exposure requirement.

1. External antenna

Use only the antennas which have been approved by the applicant. The non-approved antenna(s) may produce unwanted spurious or excessive RF transmitting power which may lead to the violation of FCC/ISED limit and is prohibited.

1. Installation procedure

Please refer to user's manual for the detail.

1. Warning

Please carefully select the installation position and make sure that the final output power does not exceed the limit set force in relevant rules. The violation of the rule could lead to serious federal penalty.
