Product Type	Laser Ultra Short-Throw Projector
Brand	Acer
Model	Z850
Display Technology	DLP
Light Source	Laser (Class 2)
Native Resolution	1920 x 1080 (1080p)
Aspect Ratios Supported	Auto, 4:3, 16:9, 16:10, UWHD (16:6)
Keystone Correction	Vertical (V Keystone) via remote or OSD
Projection Distance (1080p Series)	1.59 – 1.87 ft (0.49 – 0.57 m) lens to wall
Screen Size (1080p Series)	87 – 102 inches diagonal (16:9)
Screen Size (Ultra Wide Series)	120 – 140 inches diagonal (16:6)
Connectivity	2 x HDMI, 2 x VGA (in/out), Composite Video, USB (type A & mini), RJ45, RS-232, Audio In/Out, Mic In
Audio	Built-in speaker; Line Out and Microphone support
Standby Power Consumption	< 0.5 W
Laser Power Modes	Normal and ECO
3D Support	DLP Link, HDMI 1.4a 3D (Frame Packing, Side-by-Side, Top-and-Bottom)

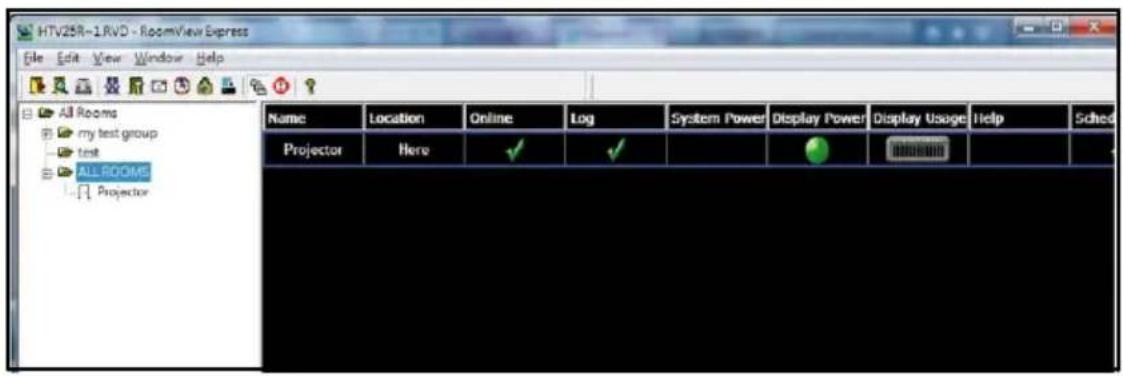

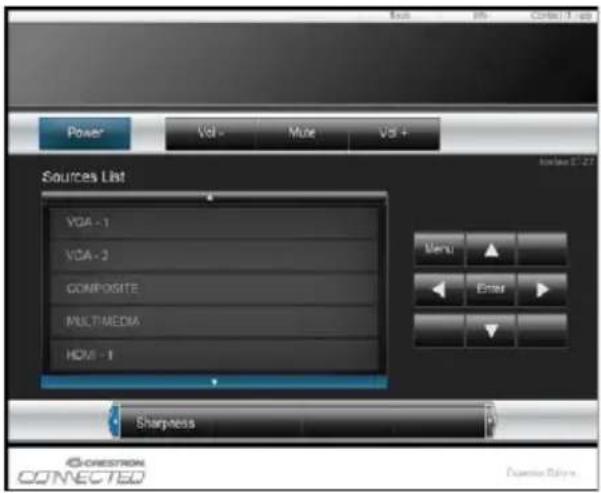

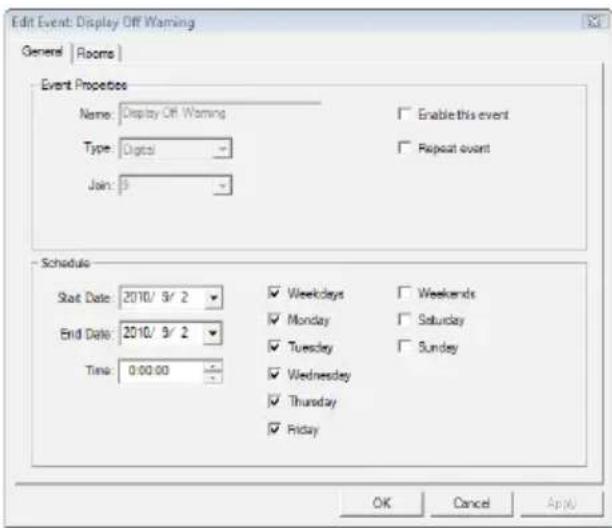

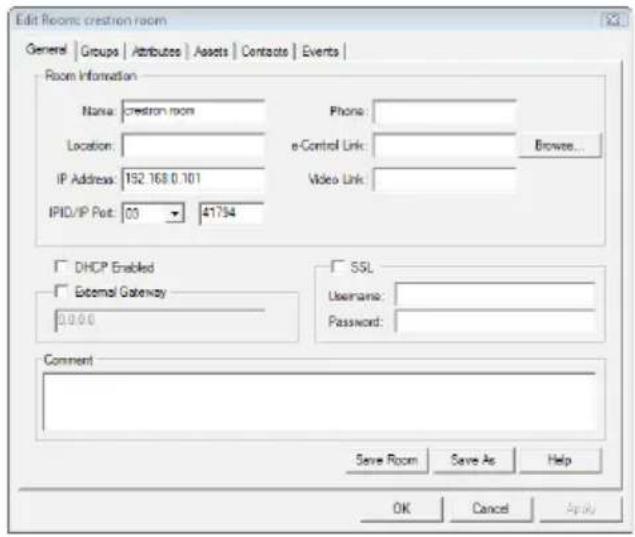

Network Control	LAN (RJ45) for web management, Crestron RoomView, EZView wireless display
Multimedia Playback	Photo (BMP, JPG, PNG), Music (MP3, WMA), Video (AVI, MOV, MP4, RM, etc.), Documents (Word, Excel, PPT, PDF)
Dust Filter	Optional; clean every 500 hours (recommended)

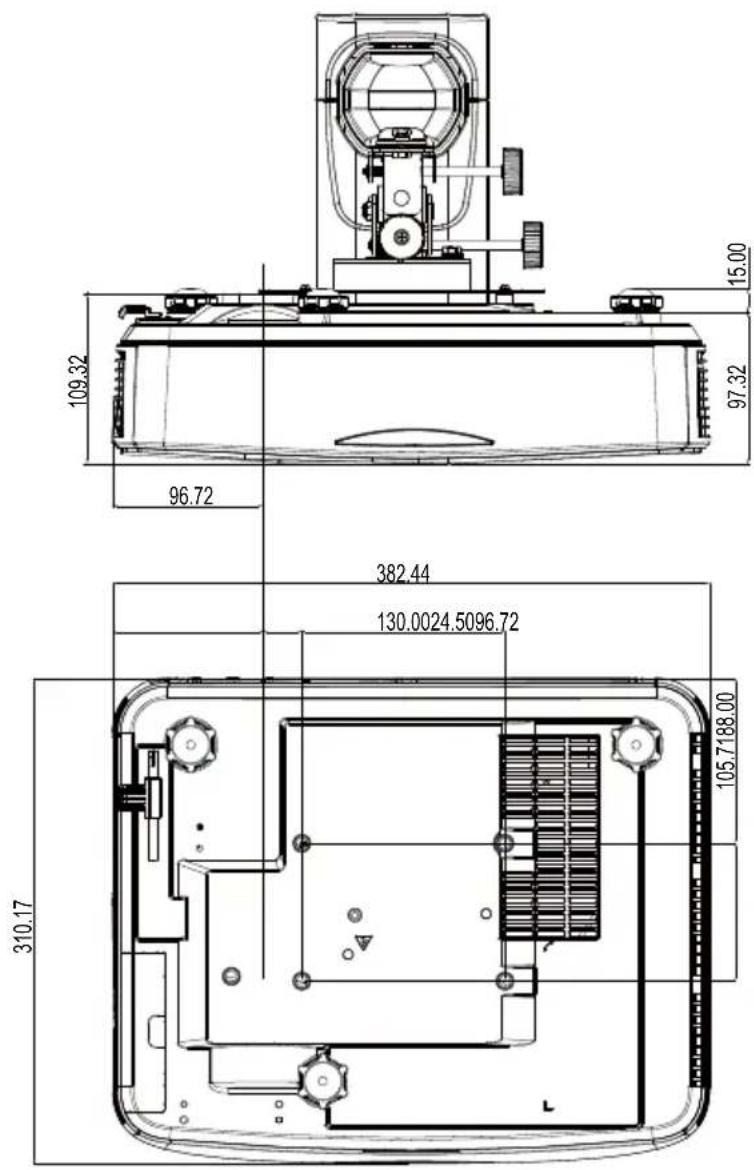

Ceiling Mount	Supported with M4x4 screws (min 10mm length); keep 10 cm gap from ceiling
Safety Class	Class 2 Laser Product; Do Not Stare Into Beam

Frequently Asked Questions - Z850 ACER

How do I turn on the projector?

Connect the power cord and signal cables. The POWER LED will turn orange. Press the Power button on the projector or remote control. The POWER LED turns blue and the startup screen appears in about 10 seconds. Select your language and power saving mode on first use.

How can I adjust the keystone distortion?

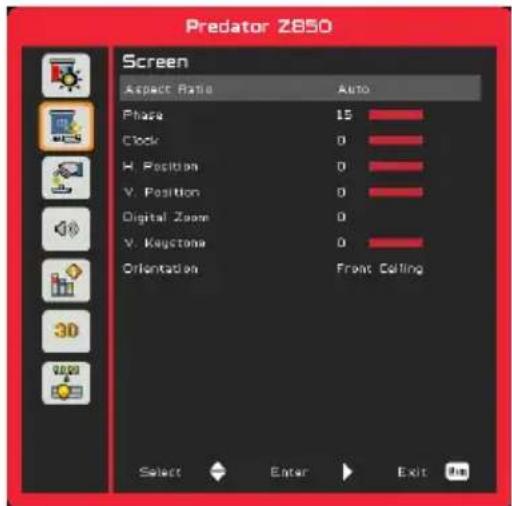

Use the V Keystone option in the Screen menu of the OSD. You can also press the Keystone +/- buttons on the remote control to adjust vertical distortion until the image is rectangular.

How do I connect my laptop to the projector?

Use a VGA or HDMI cable to connect your laptop to the corresponding input on the projector. Turn on the projector first, then select the input source using the Input button or direct source keys (e.g., VGA1, HDMI1) on the remote control.

How do I enable 3D mode?

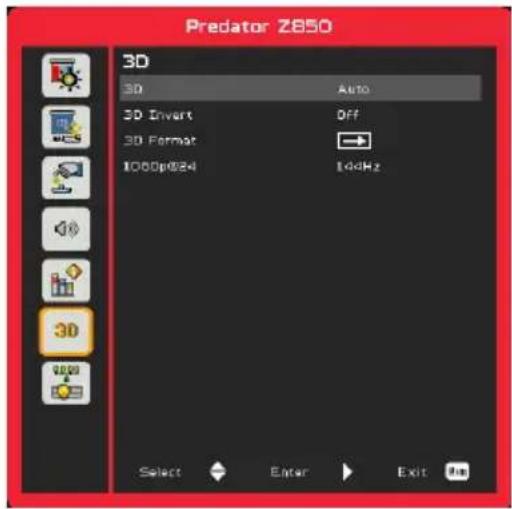

In the 3D menu, set 3D to On or Auto (for HDMI 1.4a 3D signals). Select the appropriate 3D Format (e.g., Frame Packing, Side-by-Side). If you see overlapping images, enable 3D Invert to correct left/right sequencing.

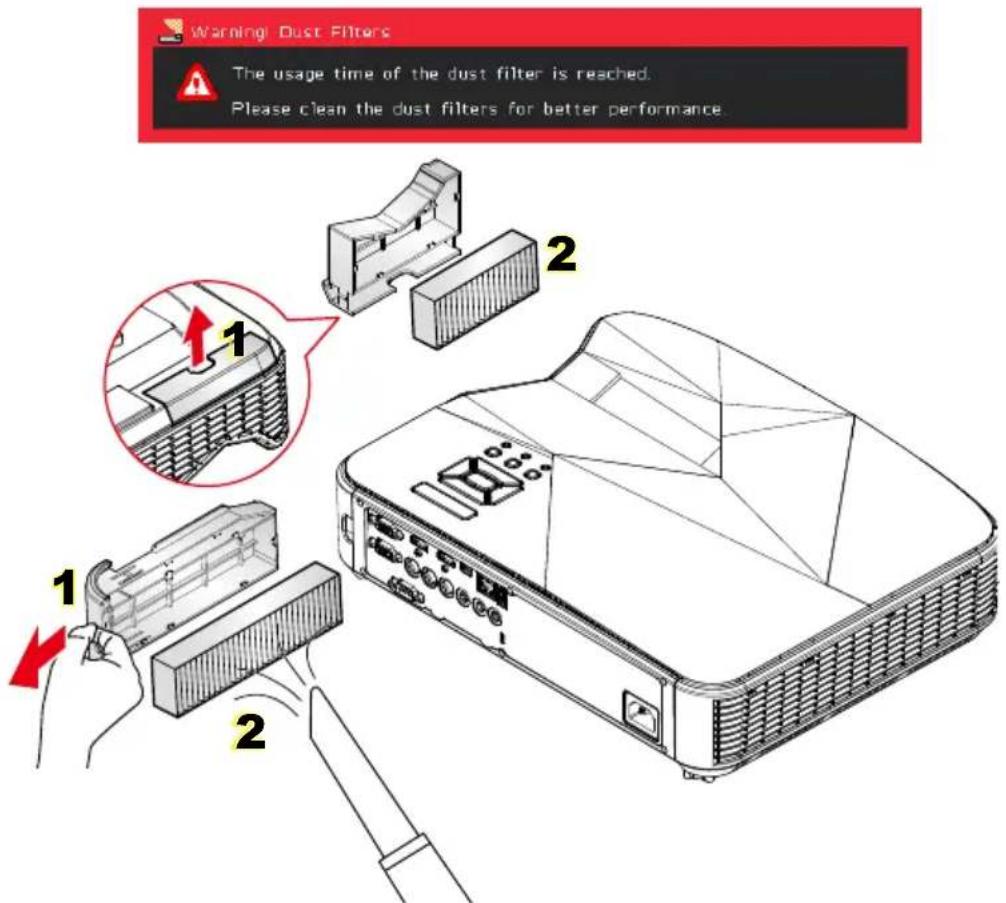

How do I clean the dust filter?

When the warning message appears, turn off the projector and unplug the power cord. Pull out the dust filter, clean it with a soft brush or replace it. Reinstall the filter and reset the filter usage counter in the Options menu under Filters Remind.

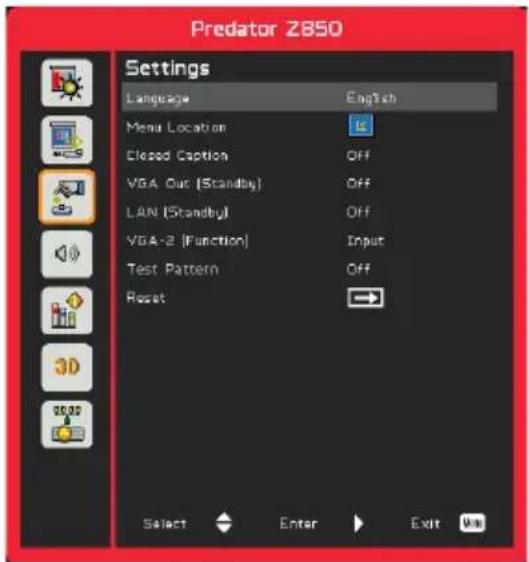

How can I reset all settings to factory defaults?

Go to the Settings menu and select Reset. Choose Yes to return all parameters (except lamp counter) to factory default values.

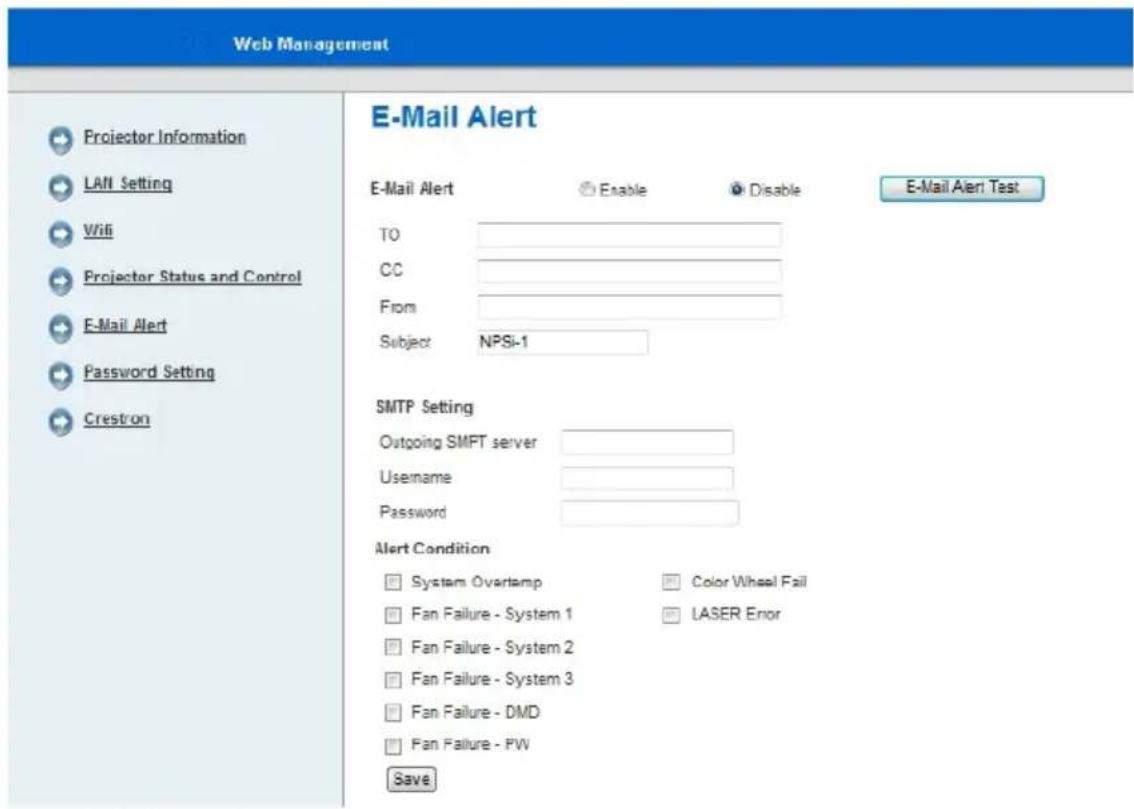

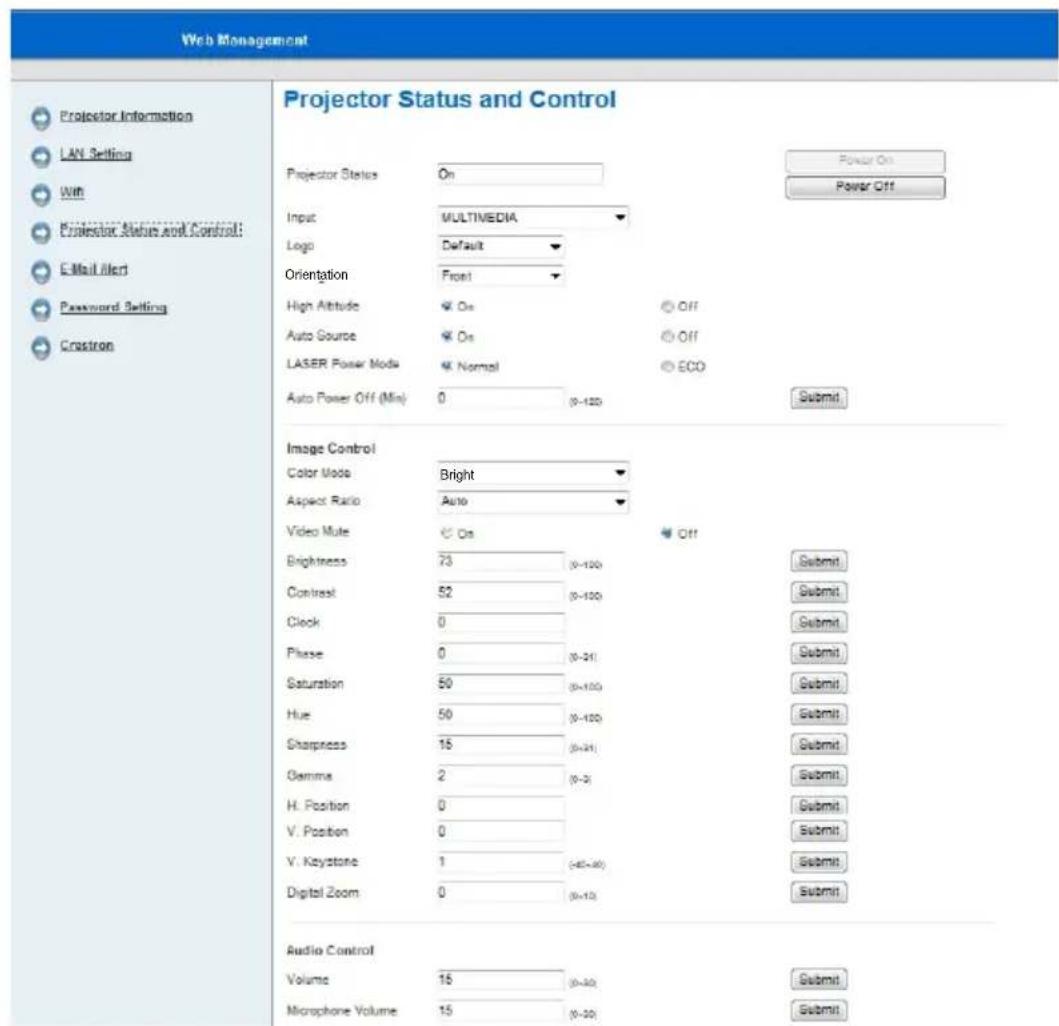

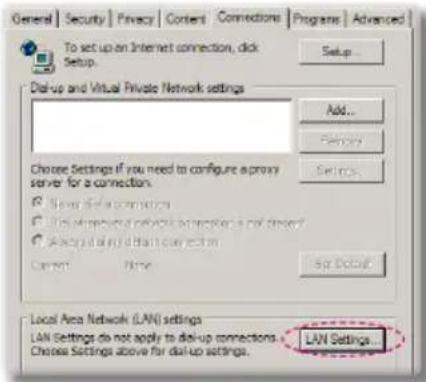

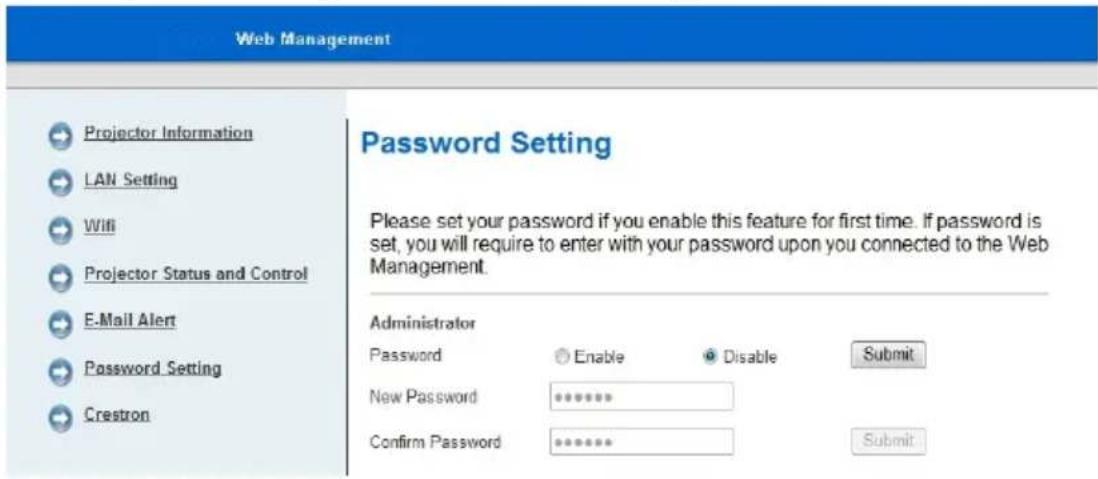

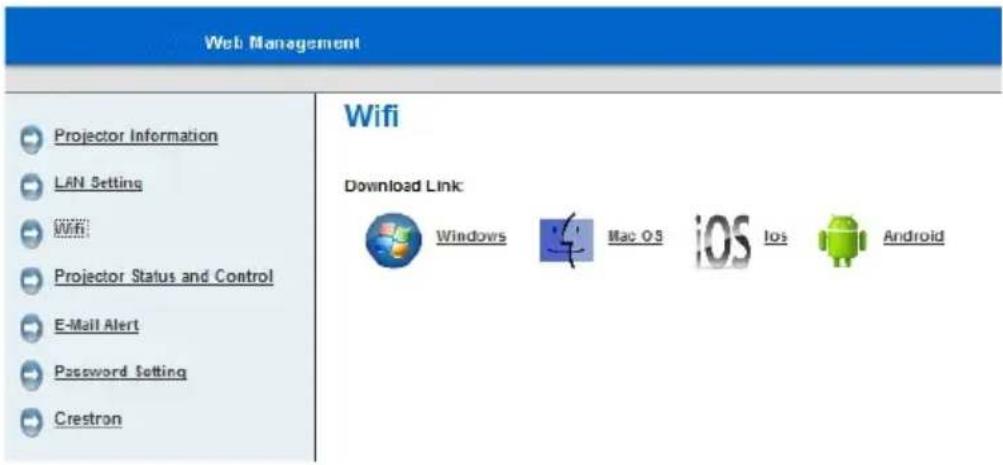

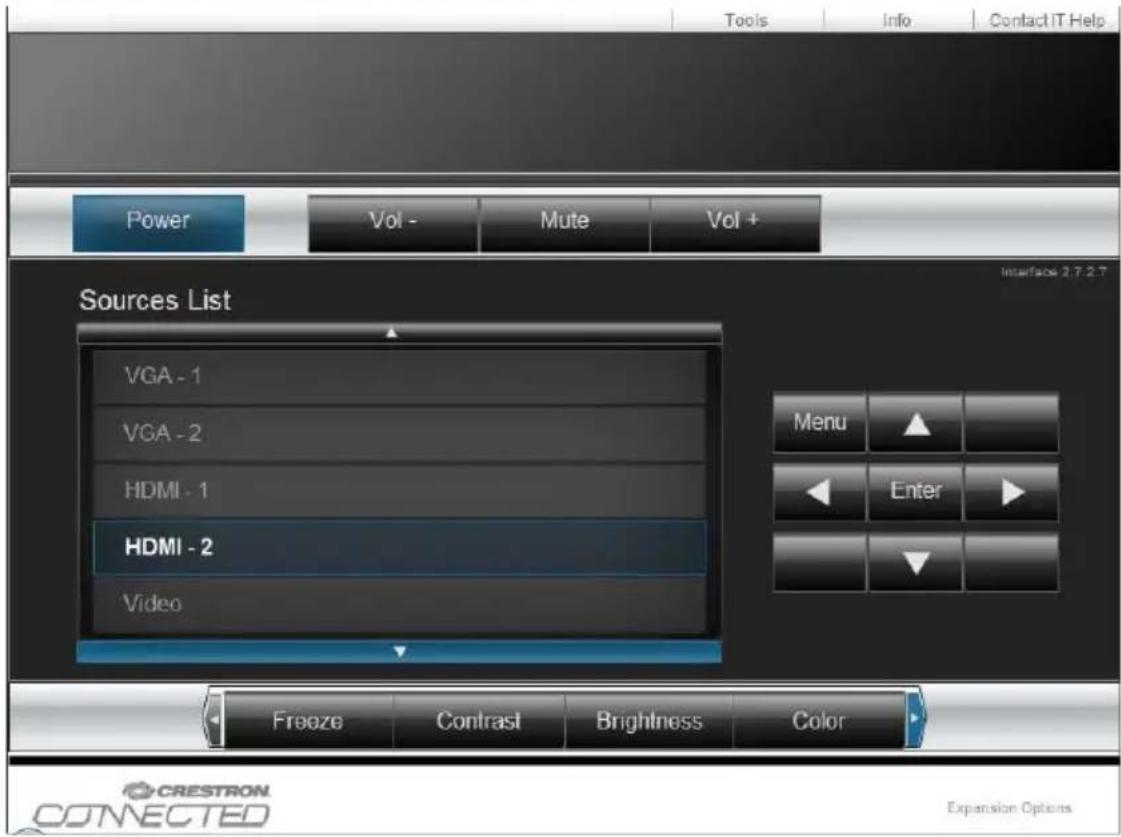

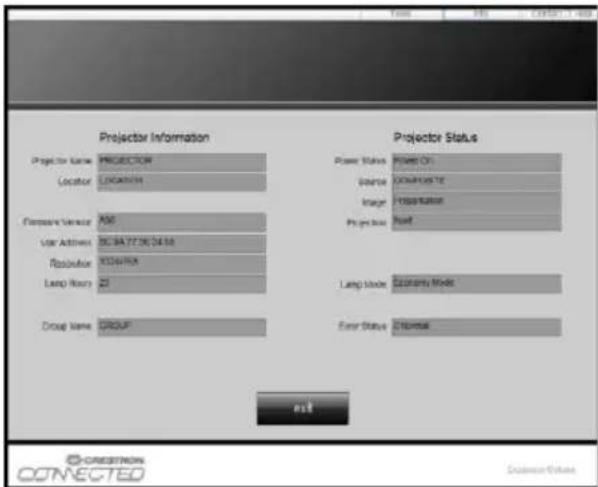

How do I control the projector via a web browser?

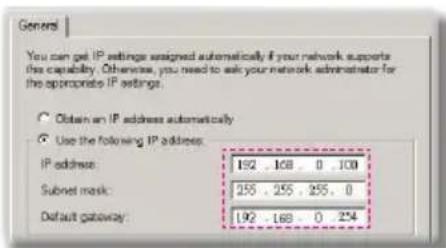

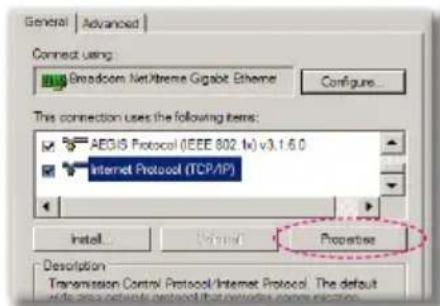

Connect the projector to your network via RJ45. Set DHCP to On or manually assign an IP address in the LAN menu. Note the IP address displayed, then open a web browser and enter that IP. Log in to the web management page for control and monitoring.

What are the laser safety precautions?

This is a Class 2 Laser Product. Do not stare into the beam when the projector is on. Do not open or disassemble the projector; laser radiation hazard. Follow all warnings in the manual. Exposure to the beam may cause permanent eye damage.

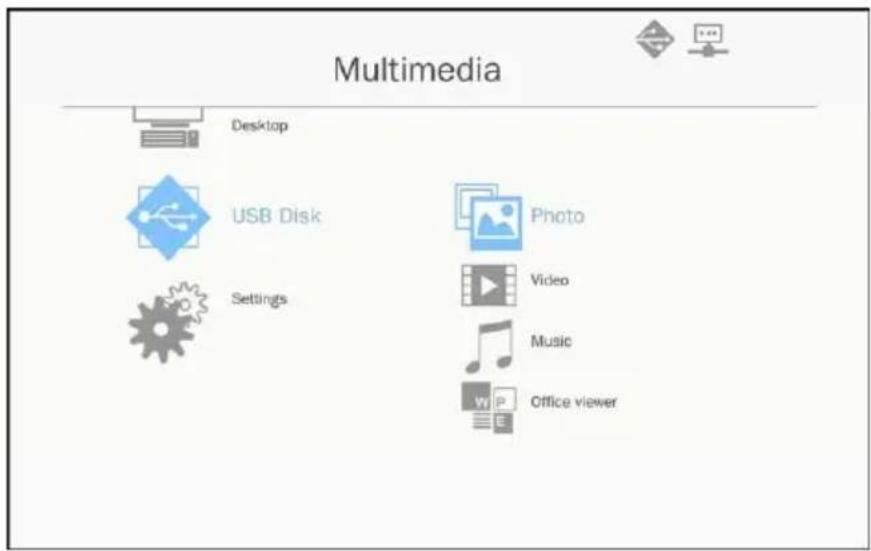

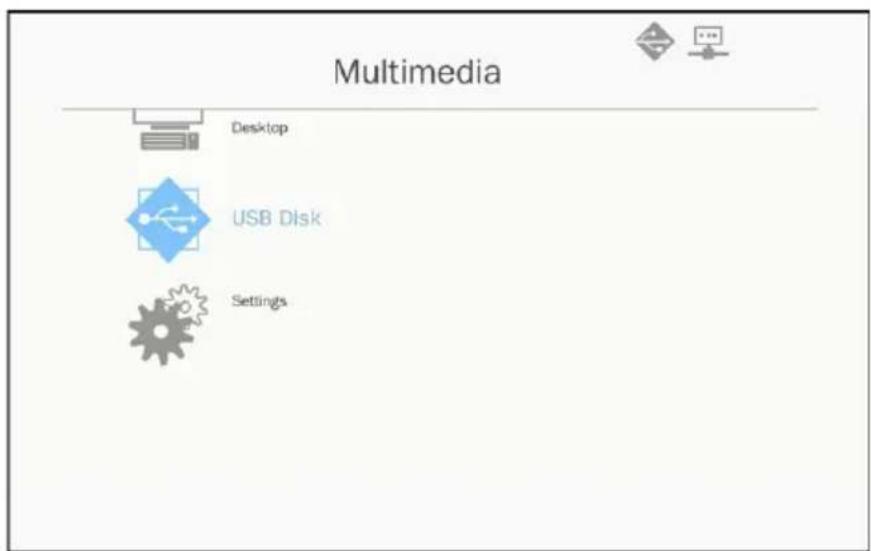

How can I play media files from a USB flash drive?

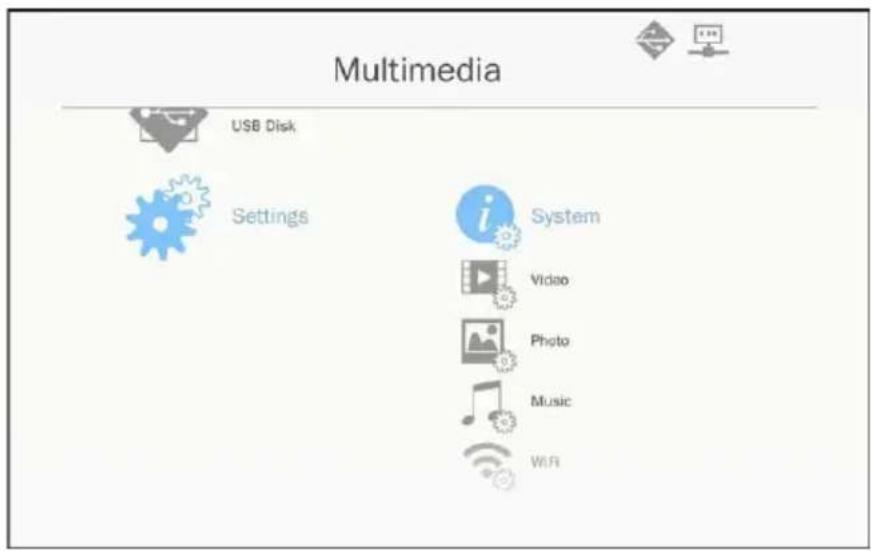

Plug the USB drive into the USB connector. Press Input and select Multimedia then USB Disk. Use the arrow keys to choose file categories (Photo, Video, Music, Office viewer) and navigate to your file. Supported formats include JPEG, MP4, MP3, PDF, etc.

What is the correct way to power off the projector?

Press the Power button; a confirmation message appears. Press Power again to confirm. The cooling fans run for about 4 seconds. Wait until the POWER LED glows solid orange (standby) before disconnecting power. Do not unplug immediately.

USER MANUAL Z850 ACER

Laser Ultra Short-Throw Projector User's Manual

Z850V/RL40/DU-800/Z850/RL30/DU-600

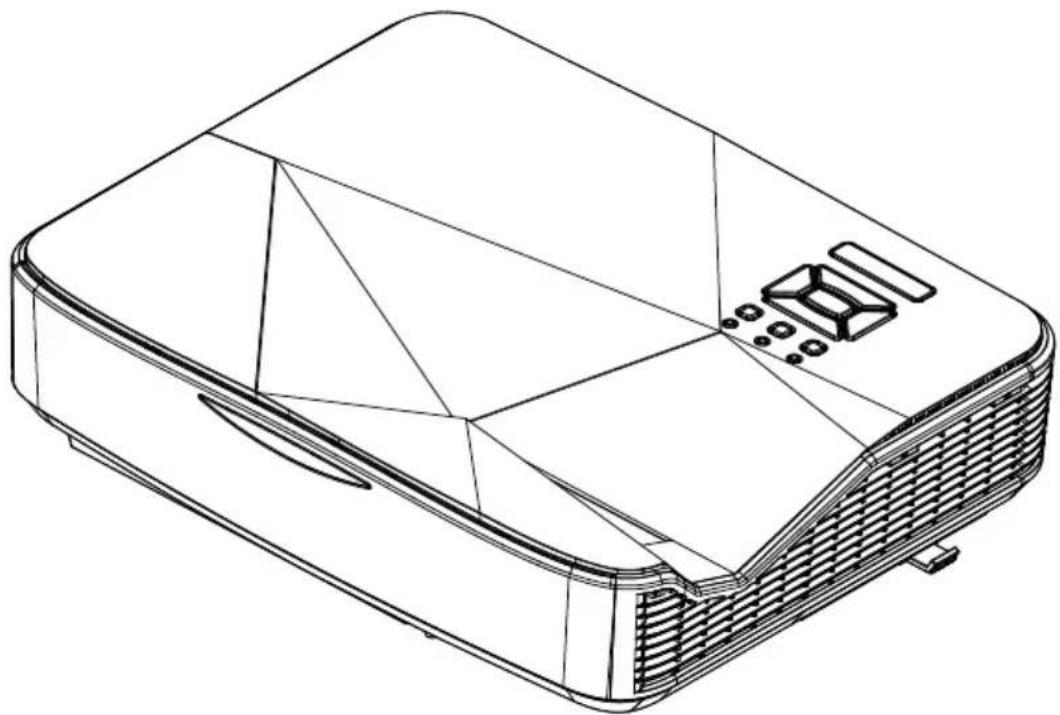

Line drawing of a rectangular electronic device with internal components and ventilation slots (no text or symbols)

Table of Contents

Table of Contents ......2

Usage Notice ....3

Safety Information ....3

Precautions 4

Introduction ......6

Package Overview 6

Product Overview 7

Main Unit 7

Control Panel 8

Input/Output Connections 9

Remote Control 10

Installation 11

Connecting the Projector ....11

Connect to Computer/Notebook ..... 11

Connect to Video Sources .... 12

Powering the Projector On / Off .....13

Powering On the Projector 13

Powering Off the Projector 14

Warning Indicator 14

Adjusting the Projected Image .....15

Adjusting the Projector's Height .....15

Adjusting the Projector's Focus ..... 16

Adjusting Projection Image Size

(Diagonal) 17

User Controls ....19

Control Panel & Remote Control .....19

Control Panel 19

Remote Control 20

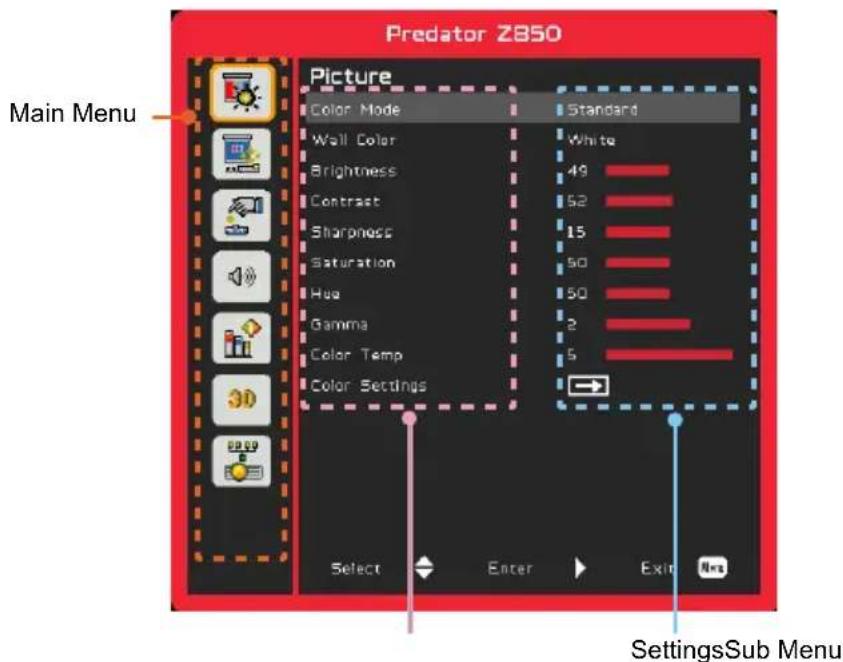

On-screen Display Menus .....22

How to operate 22

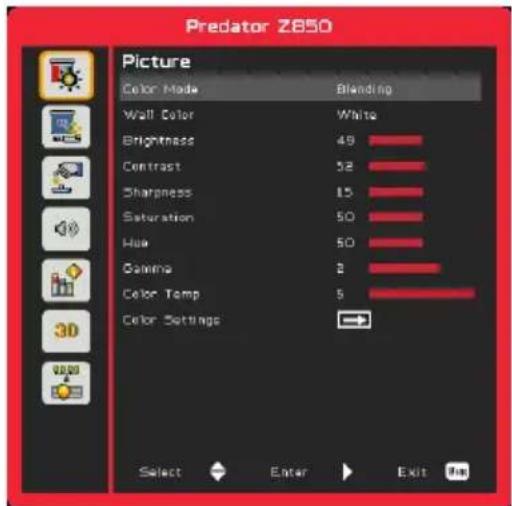

Picture 23

Screen 25

Setting 27

Volume 29

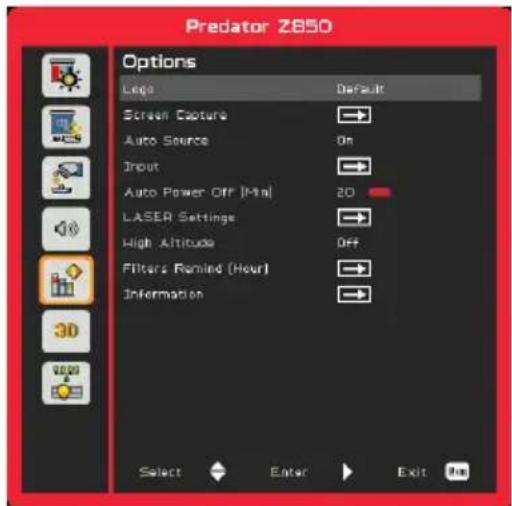

Options 30

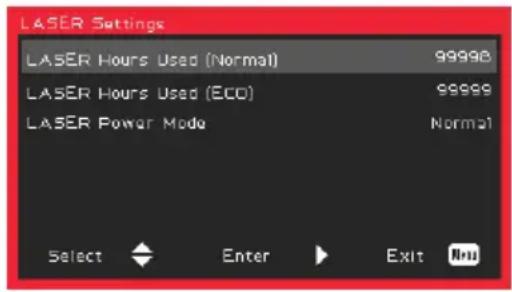

Options | Laser Settings ....32

3D 33

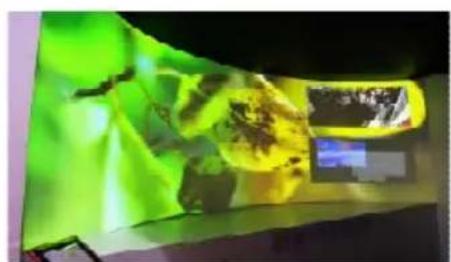

Blending mode 34

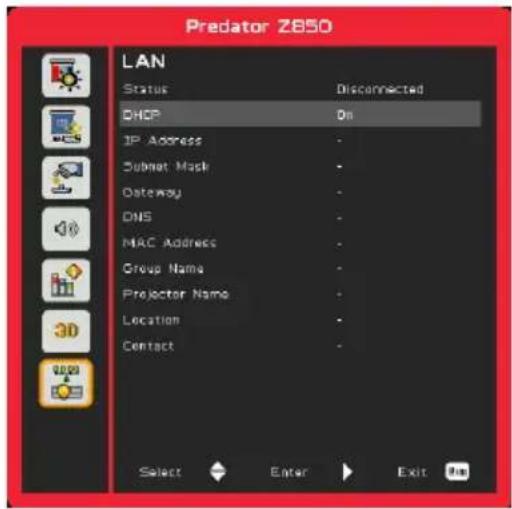

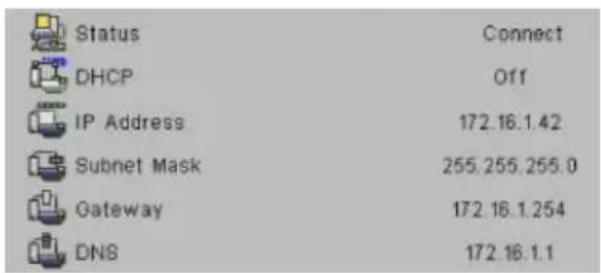

LAN 35

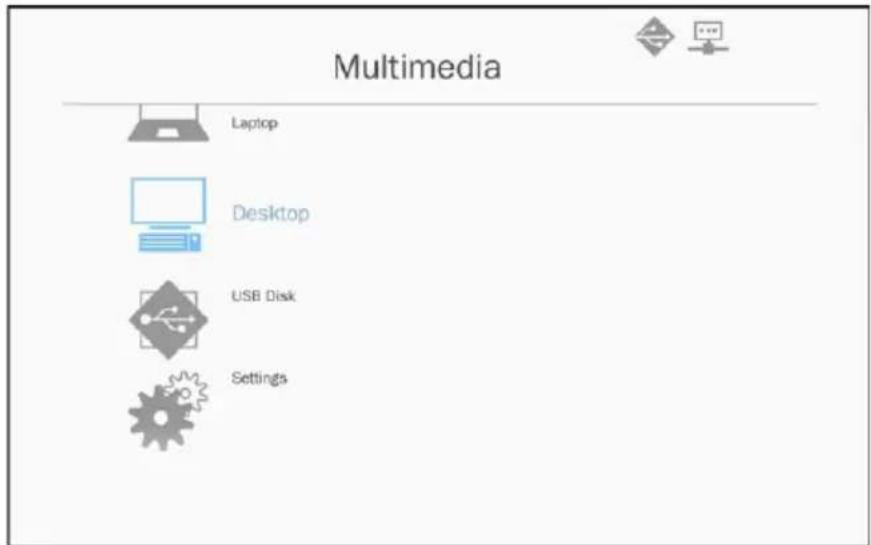

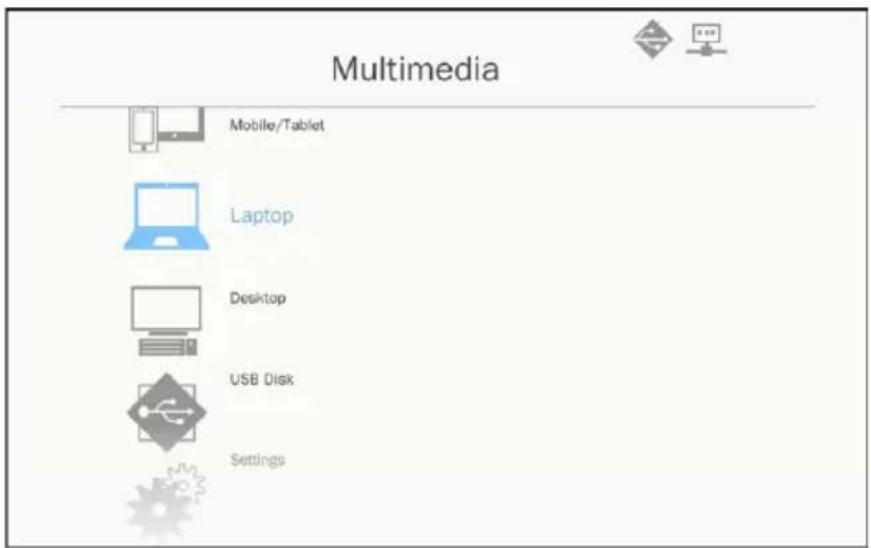

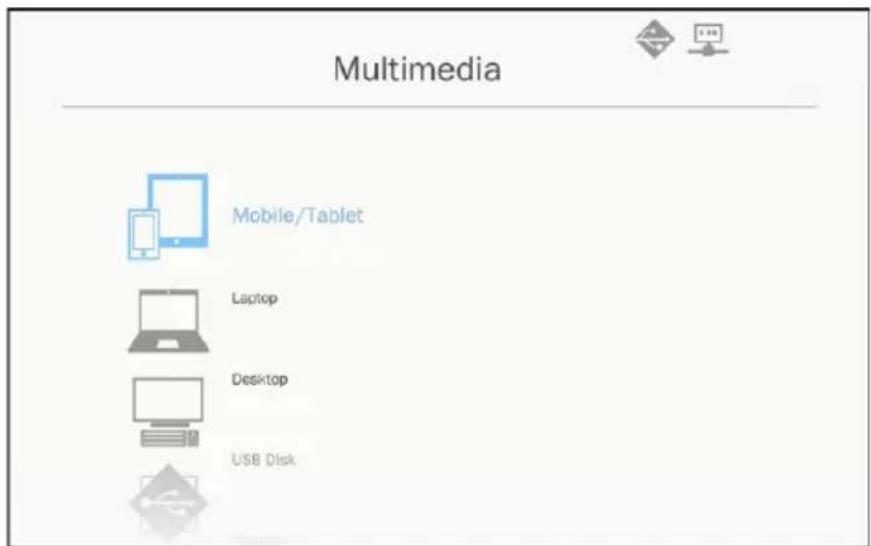

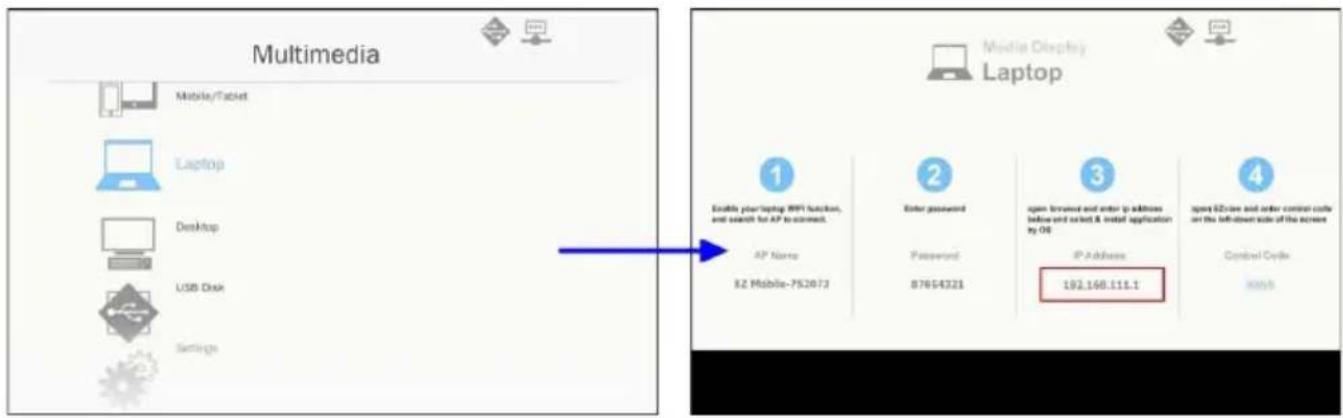

Multimedia 49

Accessing Multimedia Files ......49

How to access Multimedia mode ..... 49

Appendices ....56

Installing and Cleaning the Optional

Dust Filter 56

Compatibility Modes ....57

VGA Analog 57
HDMI Digital.... 59

Regulation & Safety Notices ......61

Ceiling Mount Installation ....64

Safety Information

	The lightning flash with arrow head within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
	The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. DANGEROUS HIGH VOLTAGES ARE PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE CABINET. REFER SERVICING TO QUALIFIED PERSONNEL ONLY.

Class B emissions limits

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

Important Safety Instruction

1. Do not block any ventilation openings. To ensure reliable operation of the projector and to protect from over heating, it is recommended to install the projector in a location that does not block ventilation. As an example, do not place the projector on a crowded coffee table, sofa, bed, etc. Do not put the projector in an enclosure such as a book case or a cabinet that restricts air flow.
2. Do not use the projector near water or moisture. To reduce the risk of fire and/or electric shock, do not expose the projector to rain or moisture.
3. Do not install near heat sources such as radiators, heaters, stoves or any other apparatus such as amplifiers that emits heat.
4. Clean only with dry cloth.
5. Only use attachments/accessories specified by the manufacturer.
6. Do not use the unit if it has been physically damaged or abused. Physical damage/abuse would be (but not limited to):

Unit has been dropped.
☐ Power supply cord or plug has been damaged.
☐ Liquid has been spilled on to the projector.
☐ Projector has been exposed to rain or moisture.
Something has fallen in the projector or something is loose inside. Do not attempt to service the unit yourself. Opening or removing covers may expose you to dangerous voltages or other hazards.

1. Do not let objects or liquids enter the projector. They may touch dangerous voltage points and short out parts that could result in fire or electric shock.

2. See projector enclosure for safety related markings.

3. The unit should only be repaired by appropriate service personnel.

Precautions

Please follow all warnings, precautions and maintenance as recommended in this user's guide.

Warning- Do not look into the projector's lens when the lamp is on. The bright light may hurt and damage your eyes.
Warning- To reduce the risk of fire or electric shock, do not expose this projector to rain or moisture.
Warning- Please do not open or disassemble the projector as this may cause electric shock.

Do:

Turn off and unplug the power plug from the AC outlet before cleaning the product.
Use a soft dry cloth with mild detergent to clean the display housing.
Disconnect the power plug from AC outlet if the product is not being used for a long period of time.

Do not:

Block the slots and openings on the unit provided for ventilation.
Use abrasive cleaners, waxes or solvents to clean the unit.
Use under the following conditions:

- In extremely hot, cold or humid environments.

▶ Sea level to 6000 feet
Extremely hot: > 35°C
Extremely cool: < 5°C

6000 feet above
Extremely hot: > 30°C
Extremely cool: < 5°C

Extremely humid: > 70% R.H. (Relative Humidity)

• In areas susceptible to excessive dust and dirt.
• Near any appliance generating a strong magnetic field.
• In direct sunlight.

Package Overview

Unpack and inspect the box contents to ensure all parts listed below are in the box. If something is missing, please contact your nearest customer service center.

Line drawing of a rectangular electronic device with internal components and a grid pattern (no text or symbols)

Projector

Coiled cable with two connectors and a terminal plug (no text or symbols visible)

Power Cord

Pure electrical circuit lines without any symbols

VGA Cable

Due to different applications in each country, some regions may have different accessories.

Documentation :

User's Manual & Quick Start Guide

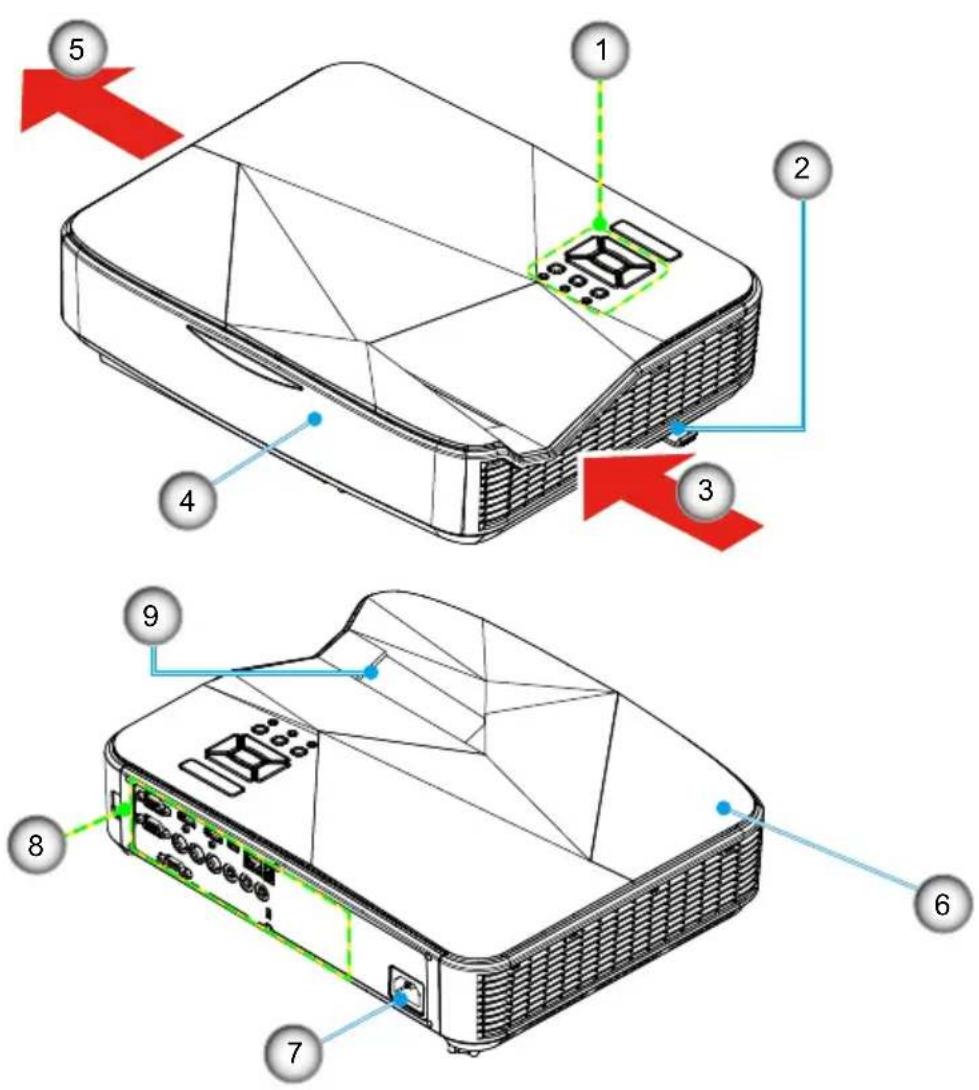

Product Overview

Main Unit

The interface is subject to model's specifications.

1. Control Panel
2. Focus Switch
3. Ventilation (inlet)
4. IR Receiver

5. Ventilation (outlet)

6. Speaker

7. Power Socket
8. Input / Output Connections
9. Lens

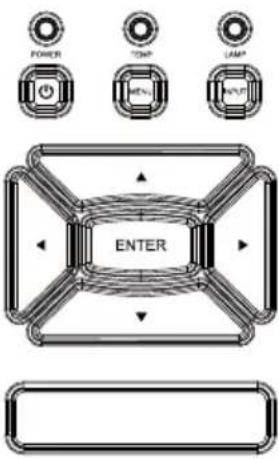

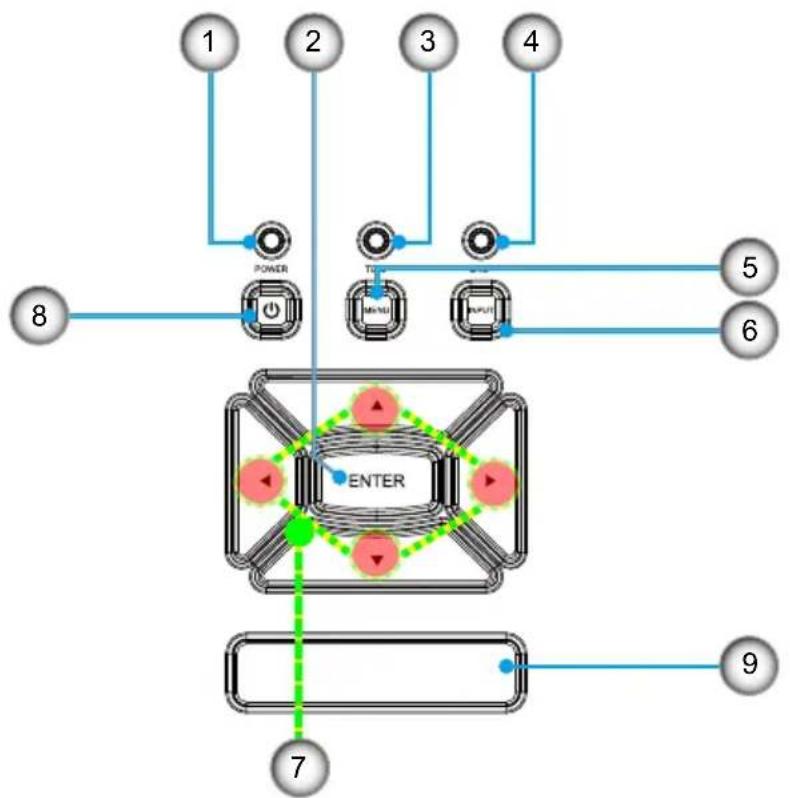

Control Panel

1. Power LED
2. Enter
3. Temp LED
4. Lamp LED
5. Menu
6. Input
7. Four Directional Select Keys
8. Power button
9. IR Receiver

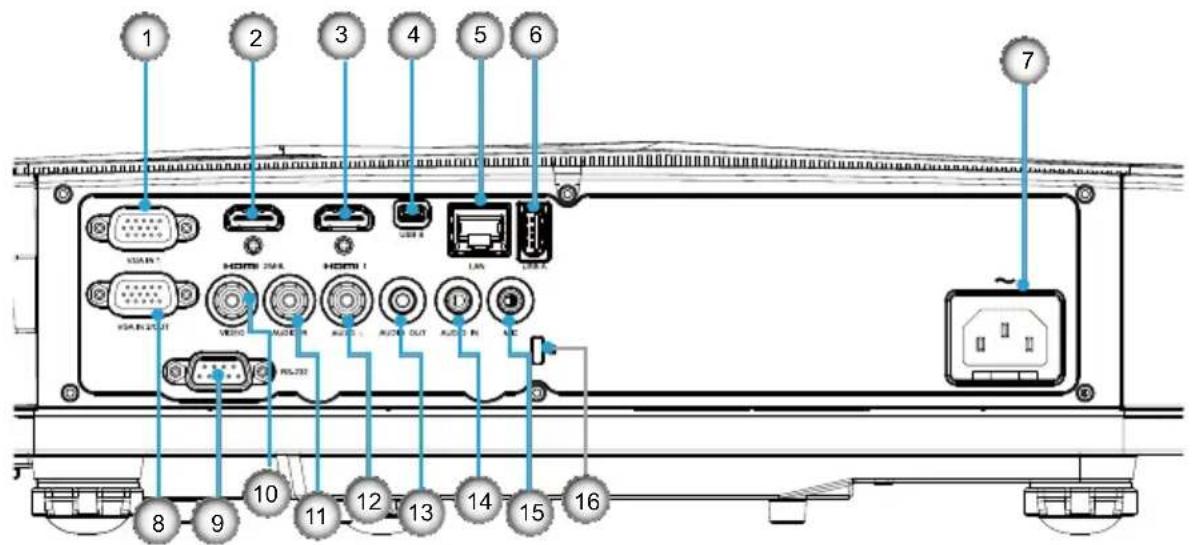

Input/Output Connections

The interface is subject to model's specifications.

Monitor loop through only support in VGA1-In/YPbPr.

VGA1-In/YPbPr Connector 1.

(PC Analog Signal/Component Video Input/HDTV/YPbPr)

HDMI2 Input Connector 2.

HDMI1 Input Connector 3.

USB Connector (Connect to PC for Remote Mouse 4. function)

RJ45 connector (Optional)5.

USB Type A Connector (Optional)6.

Power Socket7.

VGA-Out/VGA2-In Connector8.

RS-232 Connector (9-pin DIN Type)9.

Composite Video Input Connector10.

Composite Audio Input (right) Connector 11.

Composite Audio Input (left) Connector 12.

Audio Output Connector (3.5mm mini jack) 13.

1. Audio Input Connector (3.5mm mini jack)

2. Audio Input Connector (microphone)

3. Kensington™ Lock Port

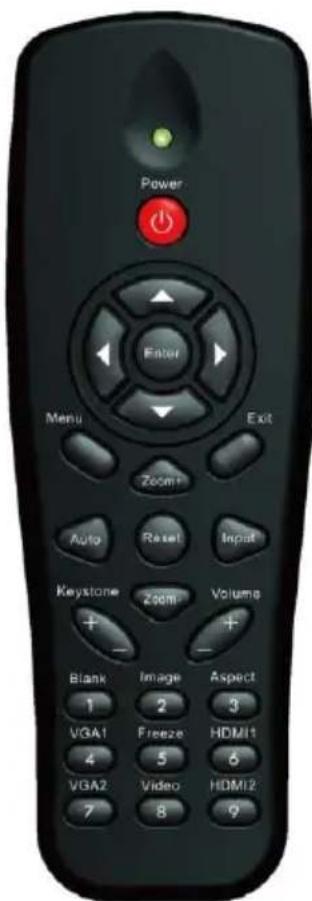

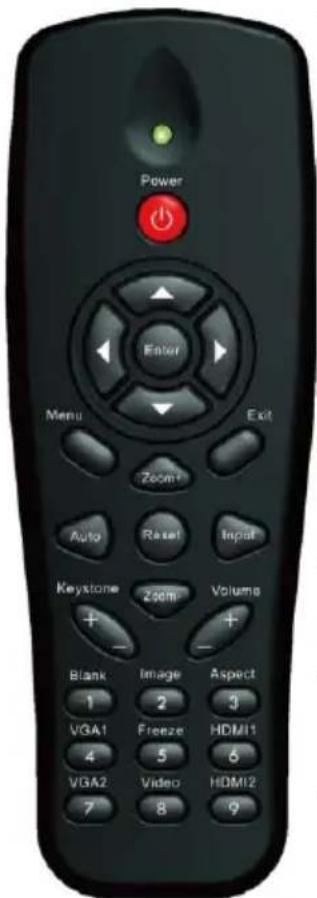

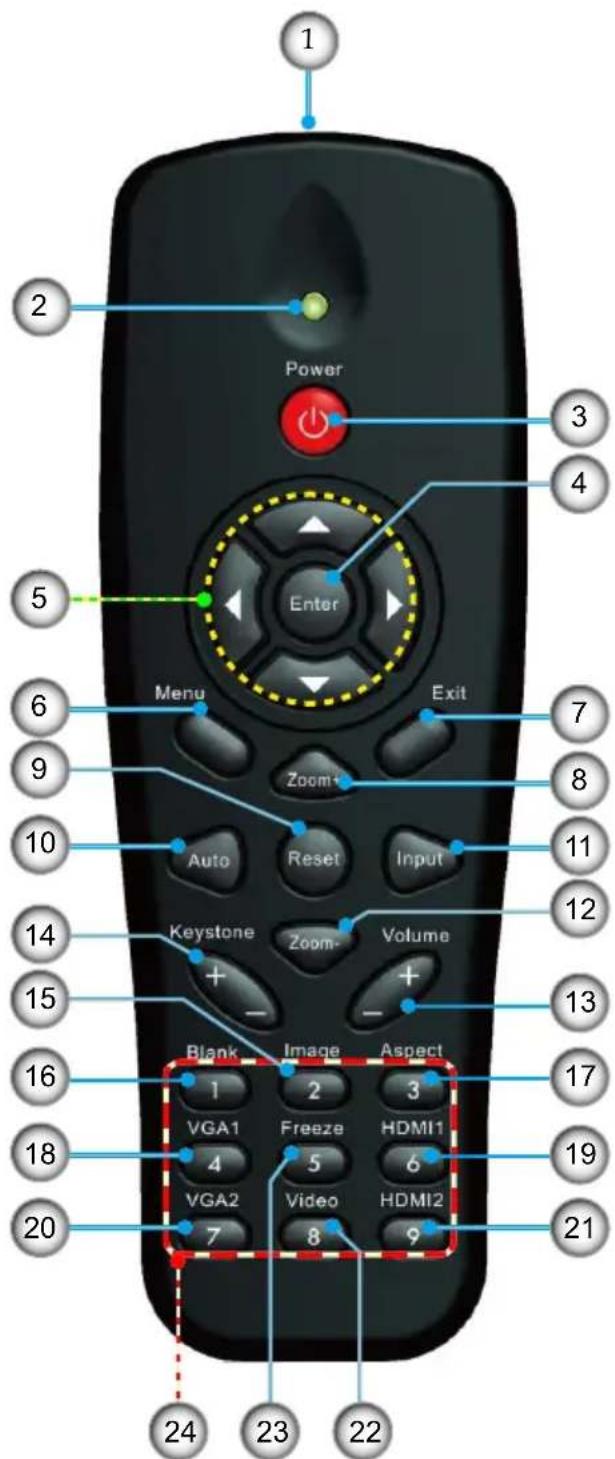

Remote Control

1. Infrared transmitter
2. LED Indicator
3. Power On/Off
4. Enter
5. Four Directional Select Keys
6. Menu
7. Exit
8. Zoom in
9. Reset
10. Auto
11. Input
12. Zoom out
13. Volume +/-
14. Keystone +/-
15. Image
16. Blank
17. Aspect ratio
18. VGA1
19. HDMI1
20. VGA2
21. HDMI2
22. Video
23. Screen freeze
24. Numbered keypad (for password input)

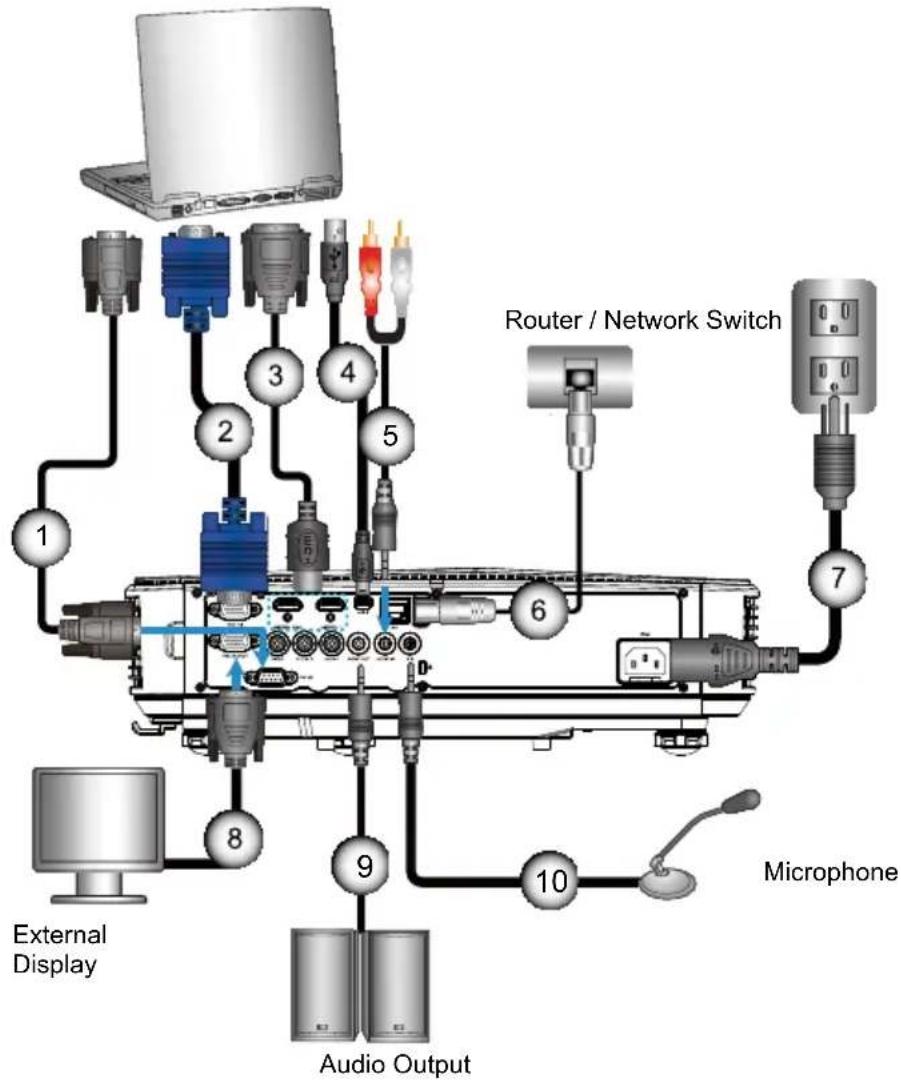

Connecting the Projector Connect to Computer/Notebook

Due to the difference in applications for each country, some regions may have different accessories.

(*) Optional accessory

1....*RS232 Cable
2....VGA Cable
3. ......*HDMI Cable
4....*USB Cable
5. *Audio Cable/RCA
6....*RJ45 Cable
7Power Cord
8....*VGA Output Cable
9....*Audio Output Cable
10....*Audio Input Cable

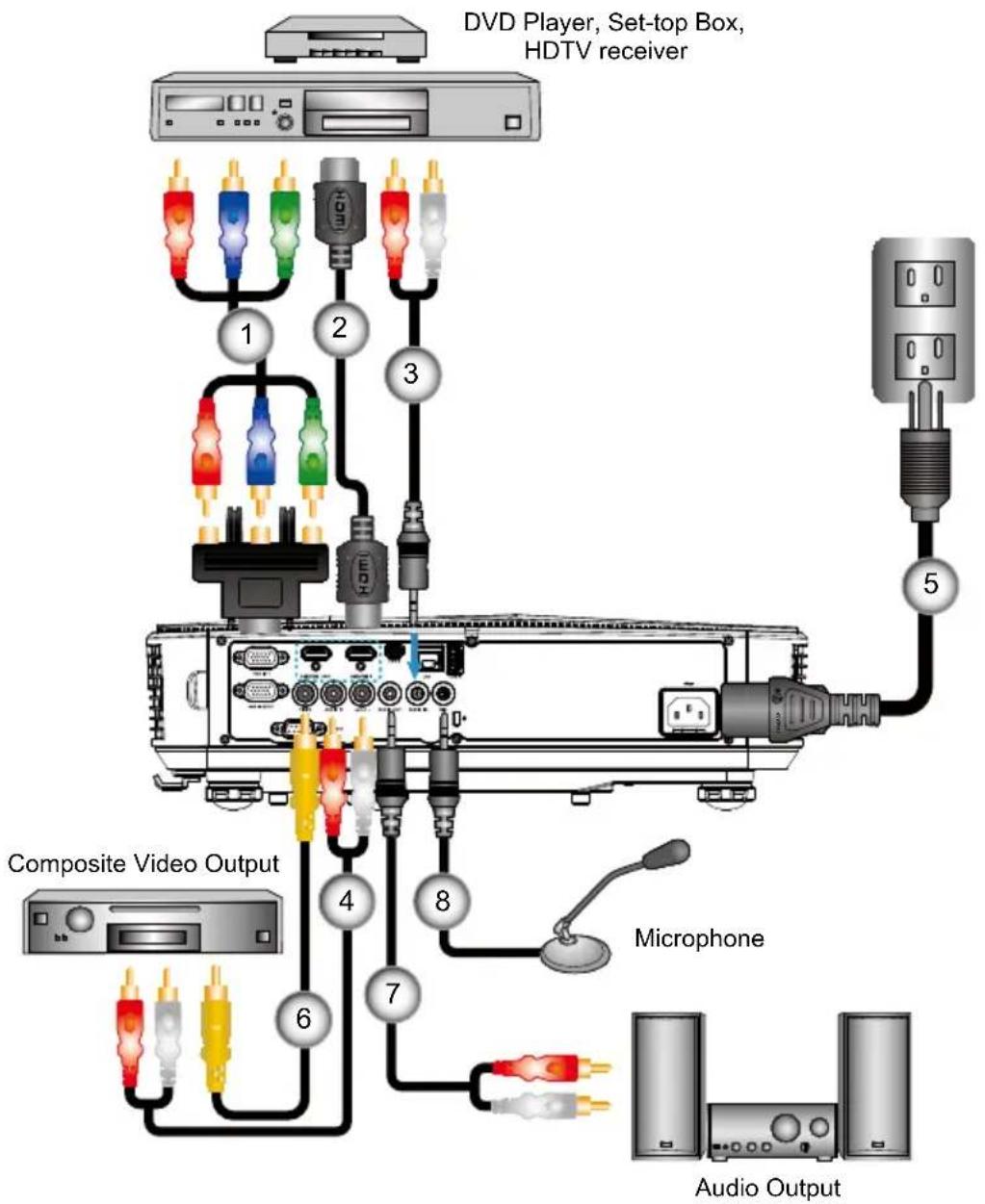

Connect to Video Sources

Due to the difference in applications for each country, some regions may have different accessories.
(*) Optional accessory

1....*15-Pin to 3 RCA Component/HDTV Adaptor
2....*HDMI Cable
3. *Audio Cable
4. *Audio Cable/RCA
5....Power Cord
6....*Composite Video Cable
7....*Audio Cable/RCA
8....*Audio Input Cable

Powering the Projector On / Off

Powering On the Projector

When the power mode is in standby mode (power consumption < 0.5W), the VGA output/input and audio will be deactivated when the projector is in standby.

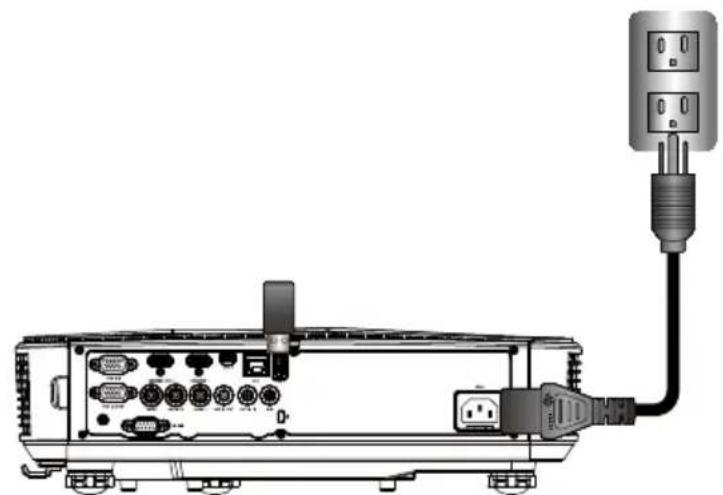

1. Securely connect the power cord and signal cable. When connected, the POWER LED will turn Orange.

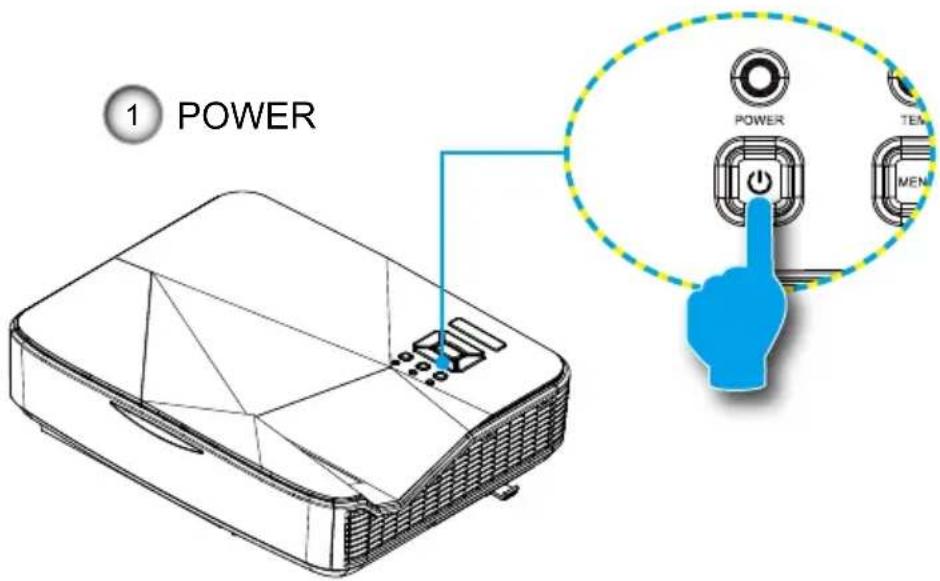

2. Turn on the lamp by pressing "⏻" button either on the projector or on the remote. At this moment, the POWER LED will now turn Blue.①

The startup screen will display in approximately 10 seconds. The first time you use the projector, you will be asked to select the preferred language and power saving mode.

1. Turn on and connect the source that you want to display on the screen (computer, notebook, video player, etc). The projector will detect the source automatically. If not, push menu button and go to "OPTIONS".

Make sure that the "Auto Source" has been set to "Off".

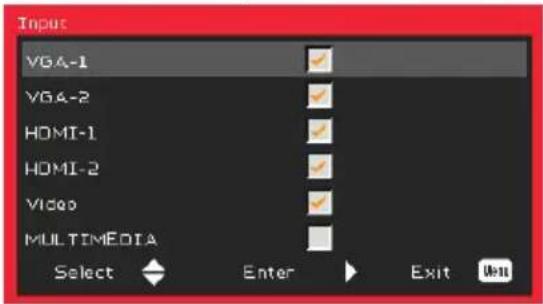

If you connect multiple sources at the same time, press the "INPUT" button on the control panel or direct source keys on the remote control to switch between inputs.

Turn on the projector first and then select the signal sources.

Powering Off the Projector

1. Press the "button on the remote control or on the control panel to turn off the projector. The following message will be displayed on the screen.

Press the “” button again to confirm otherwise the message will disappear after 10 seconds. When you press the “button for the second time, the fan will start cooling the system and will shut down.

1. The cooling fans continue to operate for about 4 seconds for cooling cycle and the POWER LED will flash Orange. When the POWER LED lights solid Orange, the projector has entered standby mode.

If you wish to turn the projector back on, you must wait until the projector has completed the cooling cycle and has entered standby mode. Once in standby mode, simply press "button to restart the projector.

1. Disconnect the power cord from the electrical outlet and the projector.

Warning Indicator

Contact the nearest service center if the projector displays these symptoms.

When the warning indicators (see below) come on, the projector will automatically shutdown:

“LAMP” LED indicator is lit red and if “POWER” indicator flashes amber.
“TEMP” LED indicator is lit red, this indicates the projector has overheated. Under normal conditions, the projector can be switched back on.
“TEMP” LED indicator flashes red and if “POWER” indicator flashes amber.

Unplug the power cord from the projector, wait for 30 seconds and try again. If the warning indicator light up again, please contact your nearest service center for assistance.

Adjusting the Projected Image

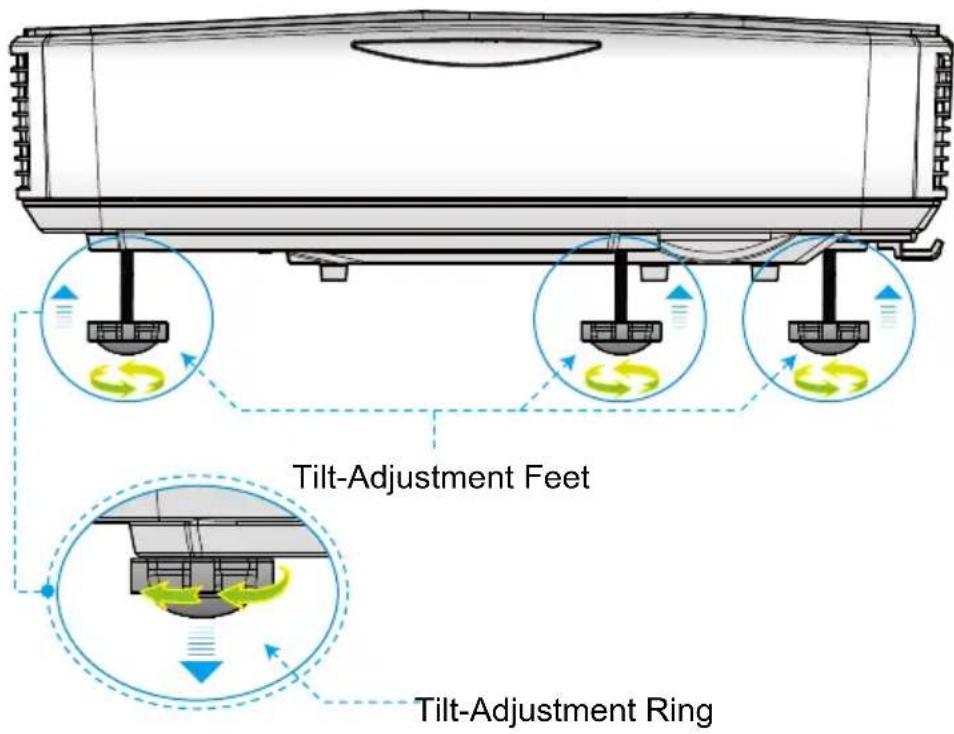

Adjusting the Projector's Height

The projector is equipped with elevator feet for adjusting the image height.

1. Locate the adjustable foot you wish to modify on the underside of the projector.
2. Rotate the adjustable ring clockwise to raise the projector or counter clockwise to lower it. Repeat with the remaining feet as needed.

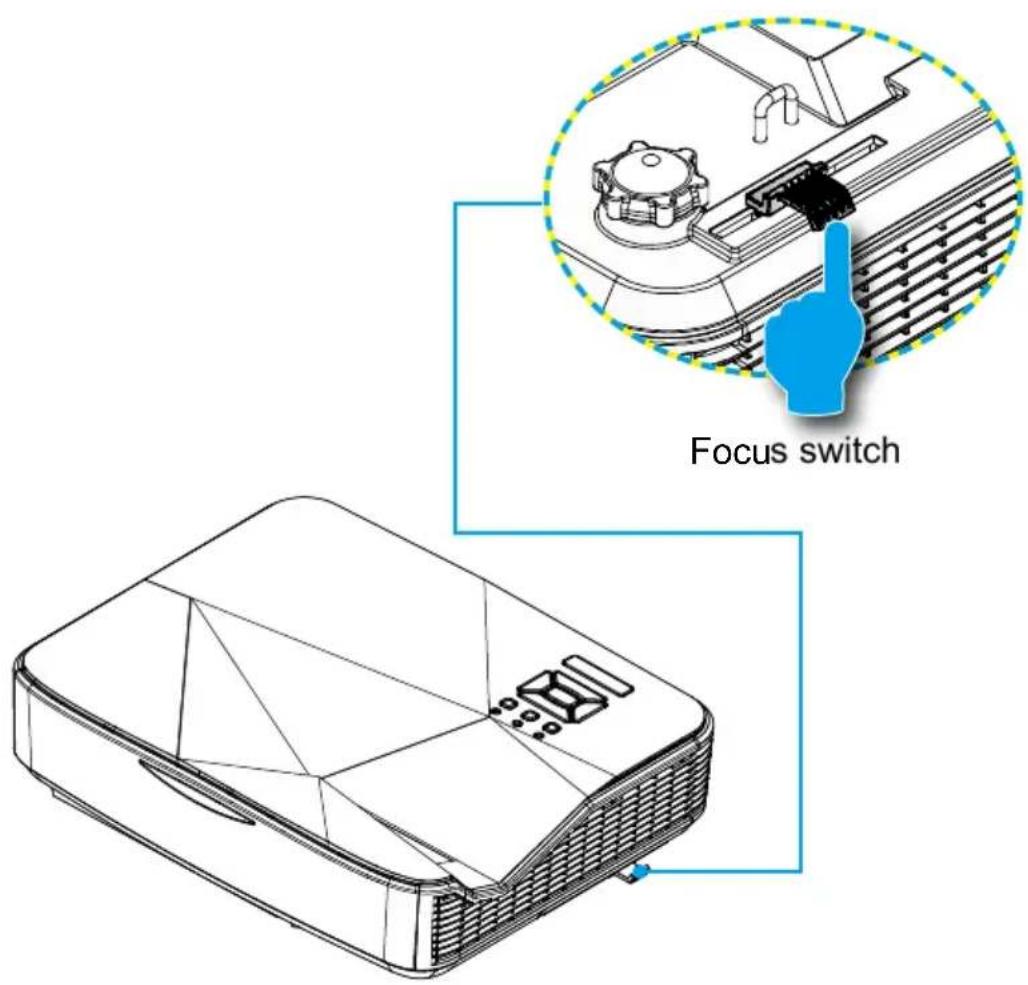

Adjusting the Projector's Focus

To focus the image, slide the focus switch to left/right until the image is clear.

1080p series: The projector will focus at distances (lens to wall) from 1.59\~1.87 feet (0.49\~0.57 meters)
Ultra Wide series: The projector will focus at distances (lens to wall) from 2.36\~2.75 feet (0.72\~0.84 meters)

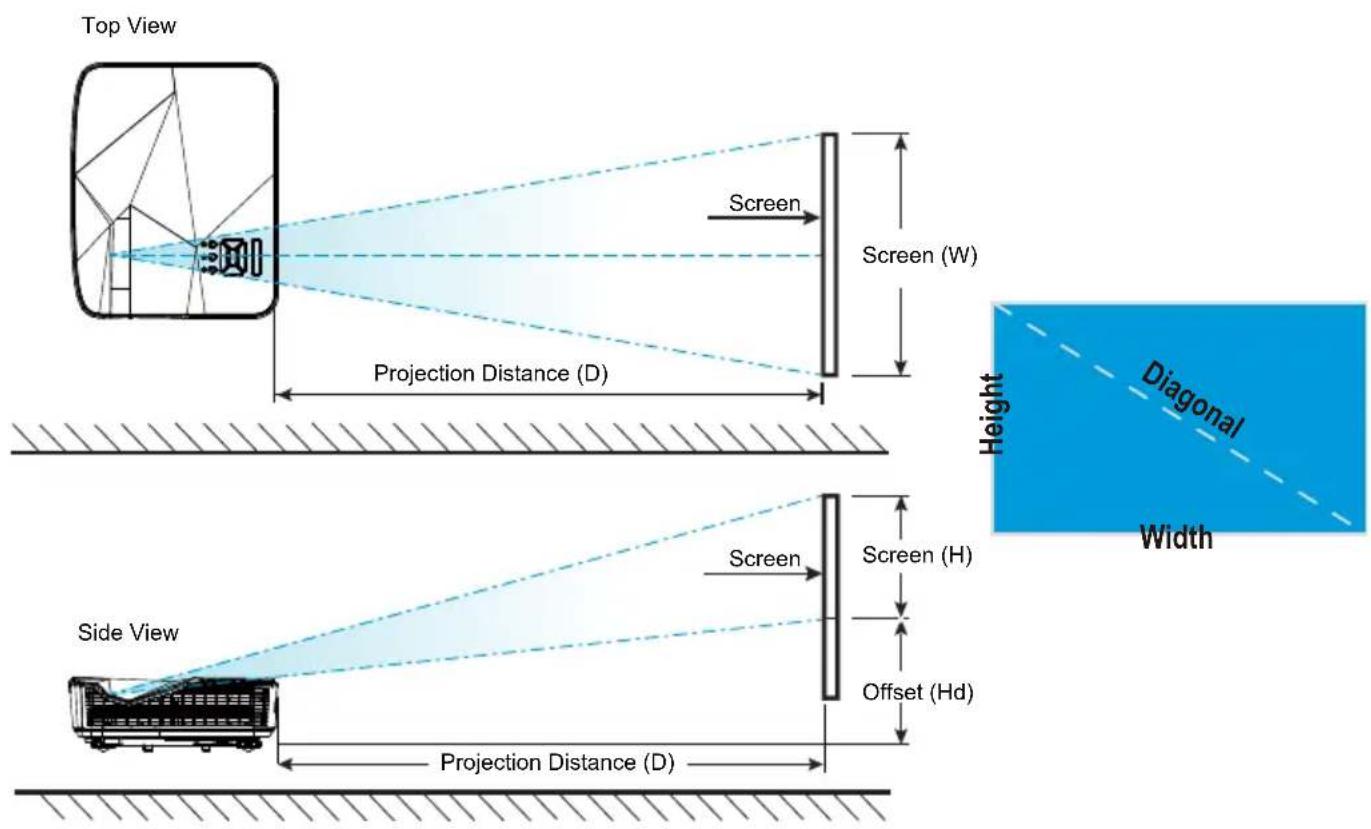

Adjusting Projection Image Size (Diagonal)

1080p series: Projection Image Size from 87" to 102" (2.21 to 2.59 meters).

Ultra Wide series: Projection Image Size from 120" to 140" (3.05 to 3.56 meters).

1080p

Diagonal length (inch) size of 16:9 Screen	Screen Size W x H Projection Distance (D)								Offset (Hd)
	(cm)		(inch)		(cm)		(inch)
	Width	Height	Width	Height	wide	tele	wide	tele	(cm)	(inch)
87	192.6	108.3	75.8	42.6	23.3	NA	9.2	NA	28.9	11.4
90	199.2	112.1	78.4	44.1	24.9	NA	9.8	NA	29.6	11.7
95	210.3	118.3	82.8	46.6	27.7	NA	10.9	NA	30.9	12.2
100	221.4	124.5	87.2	49.0	30.5	NA	12.0	NA	32.2	12.7
102	225.8	127.0	88.9	50.0	31.6	NA	12.4	NA	32.7	12.9

Ultra Wide

Diagonal length (inch) size of 16:6 Screen	Screen Size W x H Projection Distance (D)											Offset (Hd)
	(cm) (inch) (cm) (inch)
	Width	Height	Width	Height wide	tele wide	tele (cm)	(inch)
120 285.4	107.0	112.4	42.1	46.7	NA 18.4	NA 36.9	14.5
125 297.3	111.5	117.0	43.9	49.7	NA 19.6	NA 38.2	15.0
130 309.2	115.9	121.7	45.6	52.6	NA 20.7	NA 39.5	15.6
135 321.1	120.4	126.4	47.4	55.6	NA 21.9	NA 40.8	16.1
140 333.0	124.9	131.1	49.2	58.6	NA 23.1	NA 42.0	16.5

This table is for user's reference only.

Control Panel & Remote Control

Control Panel

Using the Control Panel

POWER	Refer to the “Power On/Off the Projector” section on pages 13-14.
Enter Press “Enter” to confirm your item selection.
INPUT Press “INPUT” to select an input signal.
MENU	Press “MENU” to launch the on-screen display (OSD) menu. To exit OSD, press “MENU” again.
Four Directional Select Keys	Use ▲▼▲to select items or make adjustments to your selection.
LAMP LED	Refer to the LED indicator of the projector light source status.
TEMP LED	Refer to the LED indicator of the projector temperature status.
POWER LED	Refer to the LED indicator of the projector power status.

Remote Control

Using the Remote Control
Infrared transmitter Sends signals to the projector.
LED LED Indicator.
Power	Refer to the “Power On/Off the Projector” section on pages 13-14.
Exit Press “Exit” to close the OSD menu.
Zoom in Zoom in the projector display.
Reset	Return the adjustments and settings to the factory default values. (except for lamp counter)
Zoom out Zoom out the projector display.
Enter Confirm your item selection.
Input Press “Input” to select an input signal.
Auto	Automatically synchronizes the projector to the input source.
Four Directional Select Keys	Use ▲▼ ◀to select items or make adjustments to your selection.
Keystone +/-	Adjust image distortion caused by tilting the projector.
Volume +/-	Adjust to increase / decrease the volume.
Aspect ratio	Use this function to choose your desired aspect ratio.
Menu	Press “Menu” to launch the on-screen display (OSD) menu. To exit OSD, press “Menu” again.

Using the Remote Control
VGA1	Press “VGA1” to choose VGA IN 1 connector.
Blank	Momentarily turns off/on the audio and video.
HDMI1	Press “HDMI1” to choose HDMI IN 1 connector.
HDMI2	Press “HDMI2” to choose HDMI IN 2 connector.
VGA2	Press “VGA2” to choose VGA IN 2 connector.
Video	Press “Video” to choose Composite video source.
Screen freeze	Pause the screen image. Press again to resume the screen image.
Image	Select the display mode from Bright, Standard, Movie, Dark FPS, and User.

On-screen Display Menus

The Projector has multilingual On-screen Display menus that allow you to make image adjustments and change a variety of settings.

How to operate

1. To open the OSD menu, press "Menu" on the Remote Control or Projector Keypad.

2 When OSD is displayed, use the ▲▼ keys to select any item in the main menu. While making a selection on a particular page, press the▶ or “Enter” key to enter sub menu.

1. Use the ▲▼ keys to select the desired item and adjust the settings using the ◀▶ key.

2. Select the next item to be adjusted in the sub menu and adjust as described above.

3. Press "Enter" to confirm, and the screen will return to the main menu.

4. To exit, press "Menu" again. The OSD menu will close and the projector will automatically save the new settings.


Color Mode

There are many factory presets optimized for various types of images. Use the ◀ or ▶ button to select the item.

Bright: For brightness optimization.
Standard: For meeting presentation.
▶ Movie: For playing video content.
Dark FPS: For game content.
User: Memorize user's settings.

Wall Color

Use this function to obtain an optimized screen image according to the wall color. You can select from "White", "Light Yellow", "Light Blue", "Pink", and "Dark Green".

Brightness

Adjust the brightness of the image.

Press the ◀ button to darken image.
▶ Press the ▶ button to darken image.

Contrast

The Contrast controls the difference between the lightest and darkest parts of the picture. Adjusting the contrast changes the amount of black and white in the image.

Press the ◀ button to decrease the contrast.
Press the ▶ button to increase the contrast.

"Sharpness", "Saturation" and "Hue" functions are only supported under video mode.

Sharpness

Adjust the sharpness of the image.

Press the ◀ button to decrease the sharpness.
Press the ▶ button to increase the sharpness.

Saturation

Adjust a video image from black and white to fully saturated color.

Press the ◀ button to decrease the amount of saturation in the image.
Press the ▶ button to increase the amount of saturation in the image.

Hue

Adjust the color balance of red and green.

Press the ◀ button to increase the amount of green in the image.
Press the ▶ button to increase the amount of red in the image.

Gamma

This allows you to adjust the gamma value to obtain the better image contrast for the input.

Color Temp

This allows you to adjust the color temperature. At higher temperature, the screen looks colder; at lower temperature, the screen looks warmer.

Color Settings

Use these settings for advanced adjustment of the individual Red, Green, Blue, Cyan, Magenta and Yellow Colors.

Screen

Aspect Ratio

Auto: Keep the image with original width-height ratio and maximize the image to fit native horizontal or vertical pixels.
4:3: The image will be scaled to fit the screen and displayed using a 4:3 ratio.
16:9: The image will be scaled to fit the width of the screen and the height adjusted to display the image using a 16:9 ratio.
16:10: The image will be scaled to fit the width of the screen and the height adjusted to display the image using a 16:10 ratio. (only for SSI 1080p).
UWHD: The image will be scaled to fit the width of the screen and the height adjusted to display the image using a 16:6 ratio (only for Ultrawide).

Phase

Synchronize the signal timing of the display with the graphic card. If the image appears to be unstable or flickers, use this function to correct it.

Clock

Adjust to achieve an optimal image when there is a vertical flicker in the image.

H. Position

▶ Press the ◀ button to move the image left.
▶ Press the ▶ button to move the image right.

“H. Position” and “V. Position” ranges will depend on input source.

V. Position

Press the ◀ button to move the image down.
Press the ▶ button to move the image up.

Digital Zoom

Press the ◀ button to reduce the size of an image.
Press the ▶ button to magnify an image on the projection screen.

V Keystone

Press the ◀ or ▶ button to adjust image distortion vertically. If the image looks trapezoidal, this option can help make the image rectangular.

Orientation

Front: The image is projected straight on the screen.
Front Ceiling: This is the default selection. When selected, the image will turn upside down.
Rear: When selected, the image will appear reversed.
▶ Rear Ceiling: When selected, the image will appear reversed in upside down position.

Setting

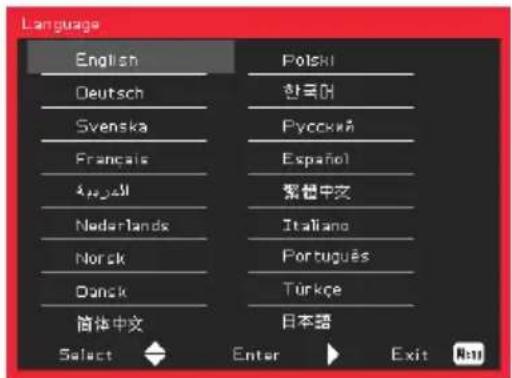

Language

Choose the multilingual OSD menu. Press the ◀ or ▶ button into the sub menu and then use the ▲ or ▼ button to select your preferred language. Press ▶ on the remote control to finalize the selection.

Menu Location

Choose the menu location on the display screen.

Closed Caption

Use this function to enable close caption menu. Select an appropriate closed captions option: Off, CC1, CC2, CC3, and CC4.

VGA Output (Standby)

Choose "On" to enable VGA OUT connection.

User Controls

LAN (Standby)

Choose "On" to enable LAN connection. Choose "Off" to disable LAN connection.

VGA-2 (Function)

Input: Choose "Input" to let the VGA port works as a VGA input function.
Output: Choose "Output" to enable the VGA Out function once the projector is powered on.

Test Pattern

Display a test pattern.

Reset

Choose "Yes" to return the parameters on all menus to the factory default settings.

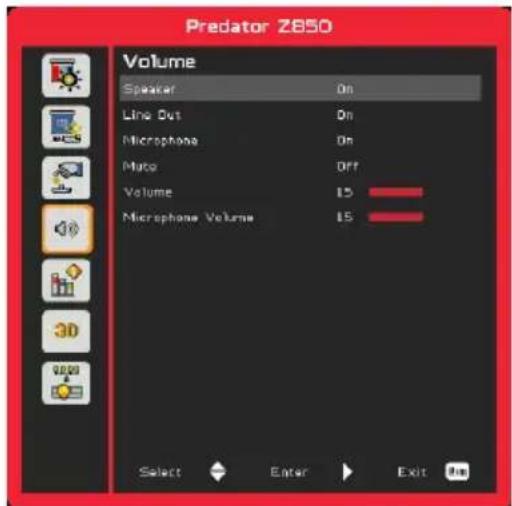

Volume

Speaker

Choose "On" to enable the speaker.
Choose "Off" to disable the speaker.

Line Out

Choose "On" to enable the line out function.
Choose "Off" to disable the line out function.

Microphone

Choose "On" to enable the microphone.
Choose "Off" to disable the microphone.

Mute

Choose "On" to turn mute on.
Choose "Off" to turn mute off.

Volume

Press the ◀ button to decrease the volume.
▶ Press the ▶ button to increase the volume.

Microphone Volume

Press the ◀ button to decrease the microphone volume.
Press the ▶ button to increase the microphone volume.

Options

Logo

Use this function to set the desired startup screen. If changes are made they will take effect the next time the projector is powered on.

Default: The default startup screen.
User: Use stored picture from "Screen Capture" function.

For successful screen capture, please ensure that the on-screen image does not exceed the projector's native resolution. (WXGA:1280x800).

- “Screen Capture” is not available when 3D is enabled. - Before active this function, it is recommended that “Aspect Ratio” is set to the “Auto”.

Screen Capture

Press ▶ button to capture an image of the picture currently displayed on screen.

Auto Source

On: The projector will search for other signals if the current input signal is lost.
Off: The projector will only search current input connection.

Input

Press ▶ button to enable/disable input sources. The projector will not search for inputs that are not selected.

Auto Power Off (Min)

Sets the countdown timer interval. The countdown timer will start, when there is no signal being sent to the projector. The projector will automatically power off when the countdown has finished (in minutes).

Laser Settings

Refer to page 32.

High Altitude

On: The built-in fans run at high speed. Select this option when using the projector at altitudes above 2500 feet/762 meters or higher.
Off: The built-in fans automatically run at a variable speed according to the internal temperature.

Filters Remind (Hour)

Filters Remind (Hour): Set the filter reminder time.
Cleaning Up Remind: Select "Yes" to reset the dust filter hour counter after replacing or cleaning the dust filter.

Information

Display the projector information for model name, SNID, source, resolution, software version, and aspect ratio on the screen.

Options | Laser Settings

Laser Hours Used (Normal)

Display the projection time of normal mode.

Laser Hours Used (ECO)

Display the projection time of ECO mode.

Laser Power Mode

Normal: Normal mode.
ECO: Use this function to dim the projector lamp which will lower power consumption and extend the lamp life.

3D

"Frame Sequential" is supported the DLP Link 3D input signals from VGA / HDMI connector.
"Frame Sequential" / "Field Sequential" are supported the HQFS 3D input signals from Composite/S-Video connector connector.
"Frame Packing" / "Side-by-Side(Half)" / "Top and Bottom" are supported from HDMI 1.4a 3D input signals.

3D

Auto: When a HDMI 1.4a 3D timing identification signal is detected, the 3D image is selected automatically.
Choose "On" to enable 3D function.
Choose "Off" to disable 3D function.

3D Invert

If you see a discrete or overlapping image while wearing DLP 3D glasses, you may need to execute "Invert" to get best match of left/right image sequence to get the correct image.

3D Format

Use this feature to select the 3D format. Options are: "Frame Packing", "Side-by-Side (Half)", "Top and Bottom", "Frame Sequential", and "Field Sequential".

1080p@24

Use this feature to select 96 or 144Hz refresh rate as using 3D glasses in the1080p @ 24 frame packing.

Blending mode

Brightness

For user to manually adjust the brightness of projectors used in blending mode.

Color Temp

For user to manually map the color temperature of projectors used in blending mode.

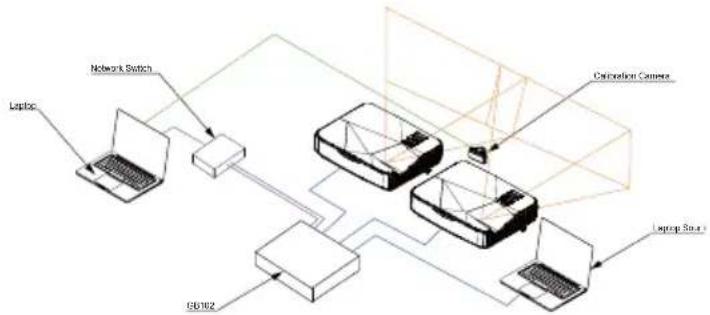

Blending application

System Architecture

Abstract digital display with green and yellow patterns, no visible text or symbols

Meeting Room

▶ Laptop, Switch and Camera is for image calibration only
▶ Laptop Source: Image source
GB-102: Coretronic Blending Box
SSI projector * 2
For more details, please check the GB-102 specification

LAN

Status

Display the network connection status.

DHCP

Configure the DHCP settings.

On: Choose "On" to let the projector to obtain an IP address automatically from your network.
Off: Choose "Off" to assign IP, Subnet Mask, Gateway, and DNS configuration manually.

IP Address

Display an IP address.

Subnet Mask

Display the subnet mask number.

Gateway

Display the default gateway of the network connected to the projector.

DNS

Display the DNS number.

MAC Address

Display the MAC address.

User Controls

Group Name

Display the group name.

Projector Name

Display the projector name.

Location

Display the projector location.

Contact

Display the contact information.

How to use web browser to control your projector

1. Turn on DHCP to allow a DHCP server to automatically assign an IP, or manually enter the required network information.

1. Then choose apply and press OK button to complete the configuration process.
2. Open your web browser and type in IP Address from the OSD LAN screen then the web page will display as below:

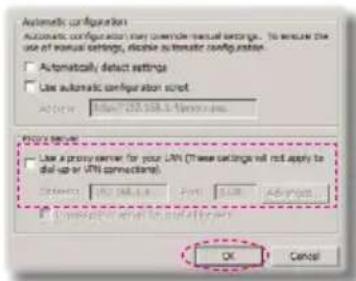

When you used the projector IP address, you will can not link to your service server.

1. Based on network web-page for the input-string in [tools] tab, the limitation for Input-Length is in the below list ("space" and the other punctuation key included):

Category Item		Input-Length (characters)
Crestron Control	IP Address 15
	IP ID 2
	Port 5
Projector	Projector Name 10
	Location 9
	Assigned To 9
Network Configuration	DHCP (Enabled) (N/A)
	IP Address 15
	Subnet Mask 15
	Default Gateway 15
	DNS Server 15
User Password	Enabled	(N/A)
	New Password	15
	Confirm	15
Admin Password	Enabled	(N/A)
	New Password	15
	Confirm	15

1. When making a direct connection from your computer to the projector

Step 1: Find an IP Address (192.168.0.100) from LAN function of projector.

IP Address

192

168

000

100

Step 2: Select apply and press "Enter" button to submit function or press "menu" key to exit.

Step 3: To open Network Connections, click Start, click Control Panel, click Network and Internet Connections, and then click Network Connections. Click the connection you want to configure, and then, under Network Tasks , click Change settings of this connection.

Step 4: On the General tab, under This connection uses the following items, click Internet Protocol (TCP/IP), and then click "Properties."

Step 5: Click Use the following IP address, and type in as below:

1) IP address: 192.168.0.100
2) Subnet mask: 255.255.255.0
3) Default gateway:192.168.0.254

Step 6: To open Internet Options, click IE web browser, click Internet Options, click the Connections tab and click "LAN Settings...".

Step 7: The Local Area Network (LAN) Setting dialog box appears. In the Proxy Server area, uncheck Use a proxy server for your LAN, then click "OK" button twice.

Step 8: Open your IE and type in the IP address of 192.168.0.100 in the URL then press "Enter" key.

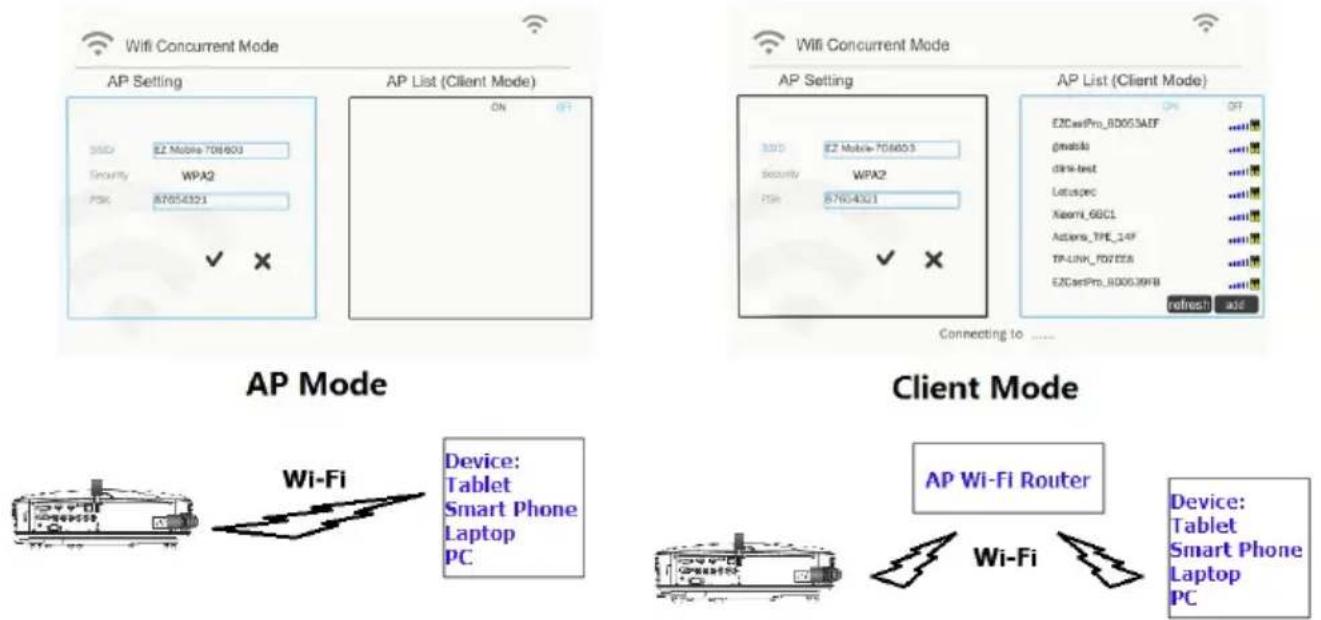

2. When making Wi-Fi connection between your computer and the projector

Step 1: AP Configuration to AP mode or Client mode as below,

Connecting to ....

Step 2: Select Laptop to connect with projector via Wi-Fi Step 3: Find the IP Address configured in multimedia page.

3. Access to Web Management Page

Open IE browser and type in the IP address 192.168.111.1 in the URL then press "Enter" key.

Project Information

User can retrieve the Projector Information in this page and select the content display in different languages.

Web Management

Projector Information

LAN Setting

Wii

Projector Status and Control

E-Mail Alert

Password Setting

Creston

Model Name:

SSI Laser Projector

Group Name:

GROUP

Projector Name:

PROJECTOR

Location:

LOCATION

Contact:

CONTACT

Status:

On

Lamp Hours:

了

Display Hours

7

Firmware Version:

C05

MPU Version:

T01

Network Version:

M03

Input:

MULTIMEDIA

Resolution:

1280×720

Projector ID:

D

Failure Log:

Normal

Serial Number:

X0111Y51W40019

Admin Password:

123456

IP Address:

10.0.21.200

MAC Address:

00:50:41:7F:09:D3

Language

English

Submit

LAN Setting

User can configure LAN parameters and edit the projector information in this page.

Web Management

Projector Information

LAN Setting

[Unreadable]

Projector Status and Control

E-Mail Alert

Password Setting

Crestron

LAN Setting

DHCP

栏 On

40

IP Address:

10.0.21.200

Subnet Mask

255 255 0 0

Gateway

10.0.0.254

DNS

108.55 0.1

Group Name:

GROUP

Projector Name:

PROJECTOR

Location:

LOCATION

Contact:

CONTACT

Submit

Wi-Fi

User can install EZView according to the requirement of different devices.

Projector Status and Control

User can control the projector in this page.

E-mail Alert

User can assign the email address and categorize alert notice.

Password Setting

User can set the password to get access to web management.

Crestron

User can control projector via Crestron flash UI.

4. EZView

EZView is an APP and software that can wirelessly display the content from a smart phone to the dedicated Projector. User can display the photos, video, document.

Furthermore, it can also display the web browser content.

Features:

Support local photo, document(PDF and Office files) gallery and do sketch

Support local video▶

Display Web pages and support sketch function as well

Streaming image data from camera

Support Web Video like Youtube▶

Support Dropbox▶

Screen Display via EZView APP or software

Step 1: According to device OS to install the EZView tool for screen display on projector.

Web Management

Projector Information

LAN Setting

(Wi)

Projector Status and Control

E-Mail Alert

Password Setting

Crestron

Wifi

Download Link:

Windows

Mac OS

los

Android

Step 2: Execute EZView on device as below icon.

on PC or Laptop, E:\ Viewt or smart phone.

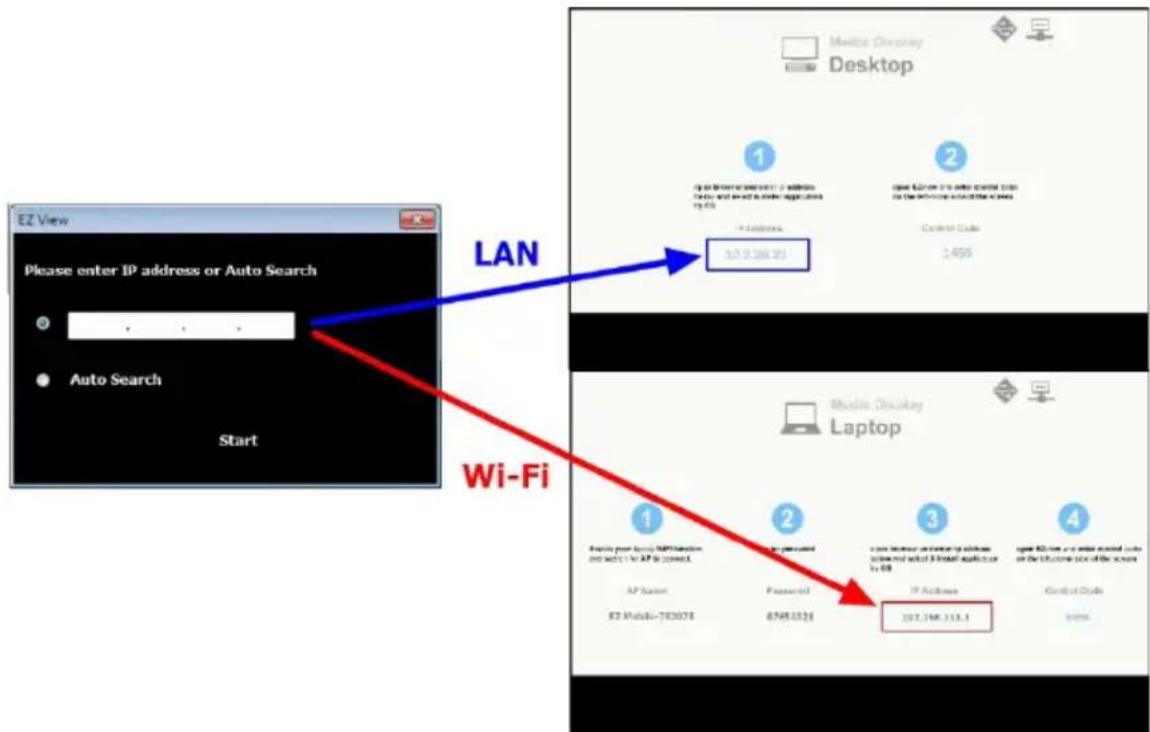

EZView on PC or Laptop

Step 1: Enter the IP address. (choose either from Wi-Fi or LAN connection)


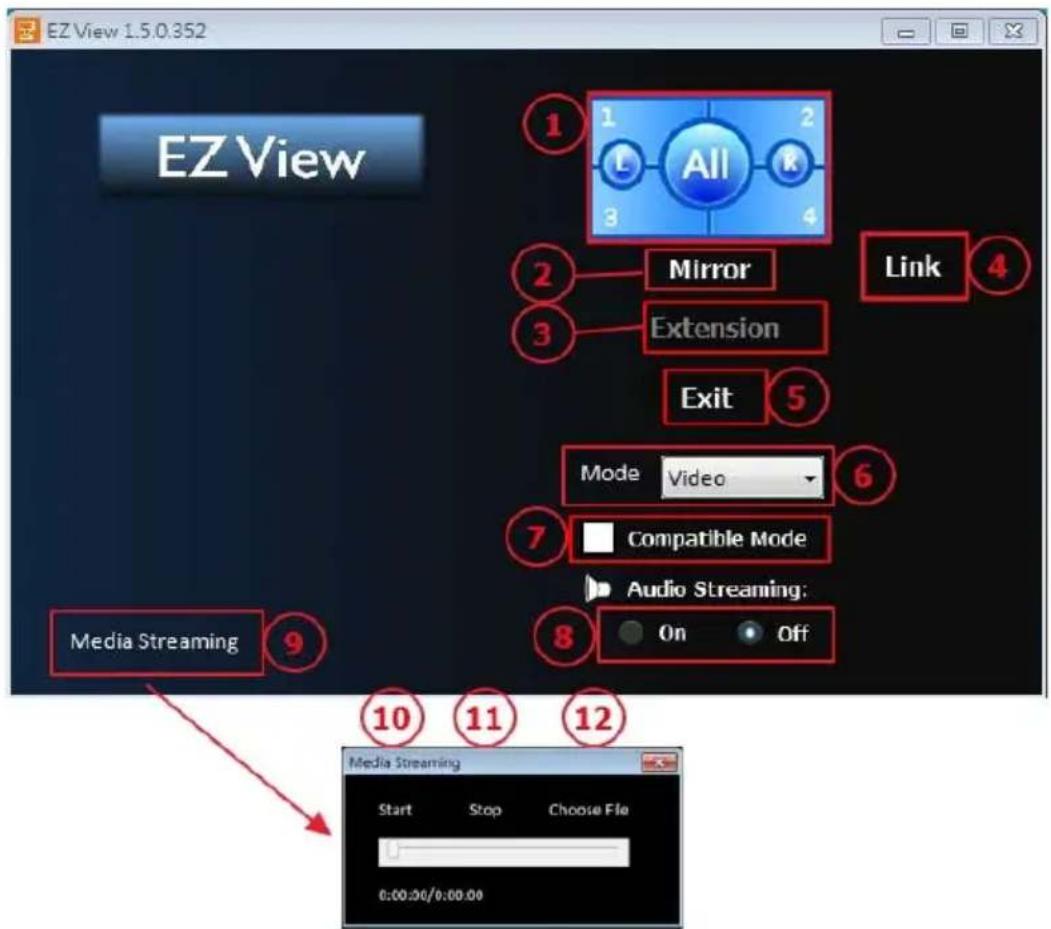

Step 2: For screen display function, select mirror mode or extension mode to project image from the device.

The selection of image position1.

Mirror Mode Display2.

Extension Mode Display3.

Link to Web management page4.

Exit5.

Display Mode : Video or Graphic6.

Compatible Mode7.

On/Off Audio8.

Media Streaming mode for playing video application9.

Start to play video10.

Stop playing video11.

Choosing video streaming file12.

User Controls

EZView on Tablet or Smart phone

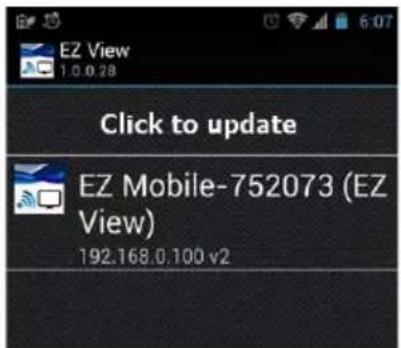

Step 1: Execute EZView APP

Step 2: Enter connection password shown on the screen.

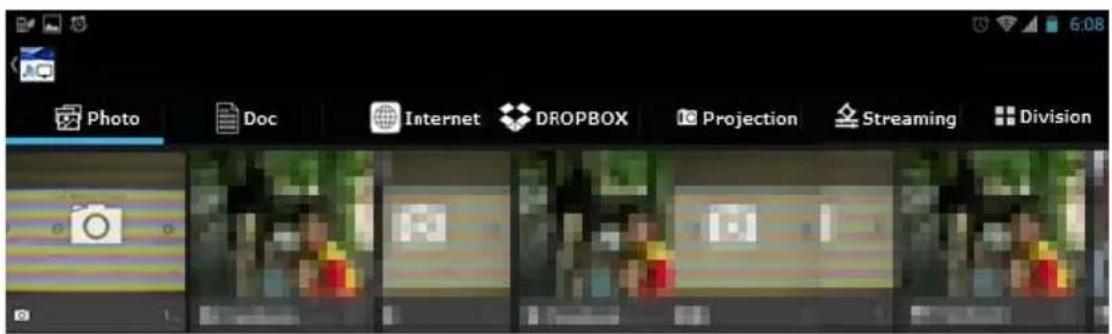

Step 3: Select the way to stream out the screen to projector via EZView.

Crestron RoomView Control Tool

Crestron RoomView™ provides a central monitoring station for 250+ control systems on a single Ethernet network (more are possible, the number depends on the combination of IP ID and IP address). Crestron RoomView monitors each projector, including projector's online status, system power, lamp life, network setting and hardware faults, plus any custom attribute as defined by the Administrator. The Administrator can add, delete, or edit room information, contact information and events, which are logged automatically by the software for all users. (Operation UI as following image)

1. Main Screen


1. Edit Room

Crestron Room-View's function is set according to the products' models and specifications.

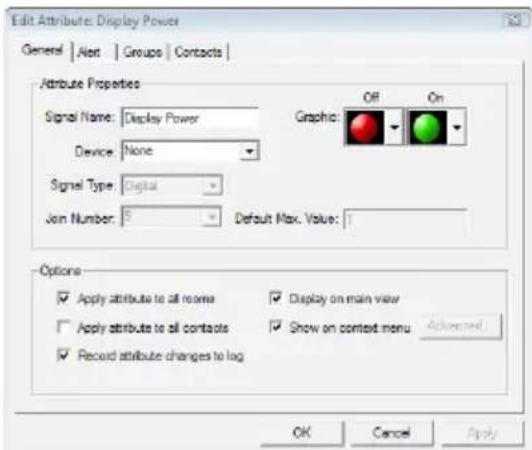

3. Edit Attribute

4. Edit Event

For further information, please visit: http://www.crestron.com & www.crestron.com/getroomview.

Accessing Multimedia Files

This projector supports two methods to project the media files (photos, videos, music, documents) stored on following devices:

a. via Wireless dongle (optional) - wirelessly access the media files stored on your mobile phone, tablet PC, notebook, or desktop.
b. via USB flash drive - directly access the media files stored in the device.

How to access Multimedia mode

1. Plug a wireless dongle or a USB flash drive into the USB connector at the back of projector.

Line drawing of an electronic device with ports, connectors, and a plug inserted into the rear panel (no text or symbols)

1. Press "INPUT" on the remote control or on the control panel to turn on the projector. When the Input menu appears, press the ▲▼ keys to select "Multimedia" and the "Enter" key to confirm.

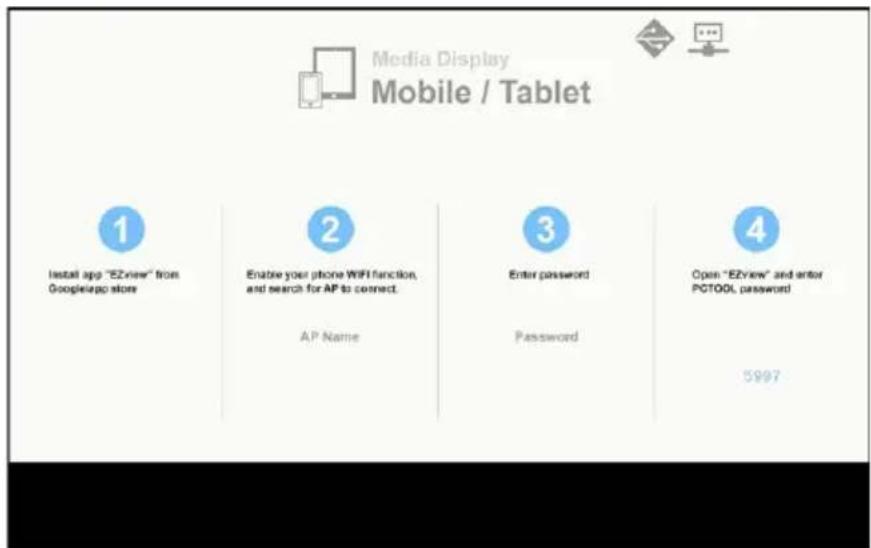

Mobile Display

To access the media files stored on your mobile device or tablet PC, do the following:

1. On Multimedia menu, select Mobile/Tablet.

1. On your mobile device or tablet PC, download "EZview" application App Store (iOS) or Play Store (Android).

1. Enable your mobile device or tablet PC WiFi function, and search the AP name listed in the Wi-Fi network list.
2. On the initial connection, you will be prompted to enter a password. Enter the password.
3. Launch "EZview" application and enter the PCTOOL password.
4. Wait until the connection is established. The media files on your mobile device or tablet PC can be accessed using the projector.

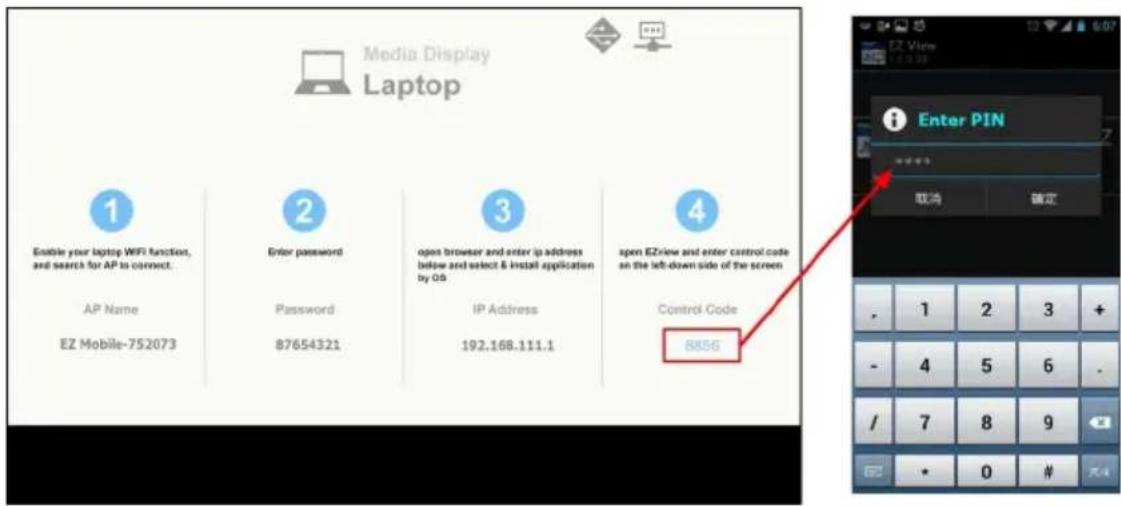

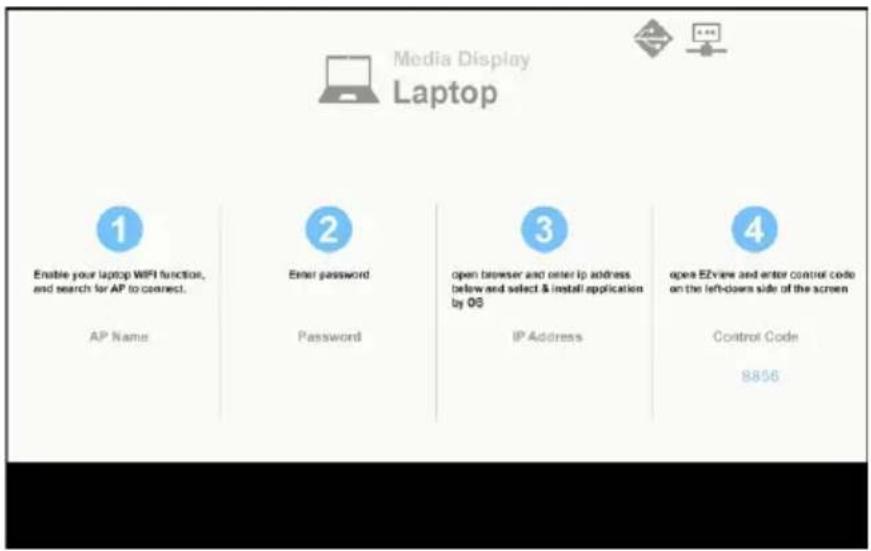

Laptop Display

To access the media files stored on your laptop/notebook, do the following:

1. On Multimedia menu, select Laptop.

1. Enable your laptop/notebook WiFi function, and search the AP name listed in the Wi-Fi network list.

1. On the initial connection, you will be prompted to enter a password. Enter the password.
2. Open your web browser and enter the IP address. Then select "Wifi" on the left side of the screen and install application required by the operation system.

3. Launch "EZview" application and enter the control code shown on the right-bottom side of the screen.

4. Wait until the connection is established. The media files on your laptop/notebook can be accessed using the projector.

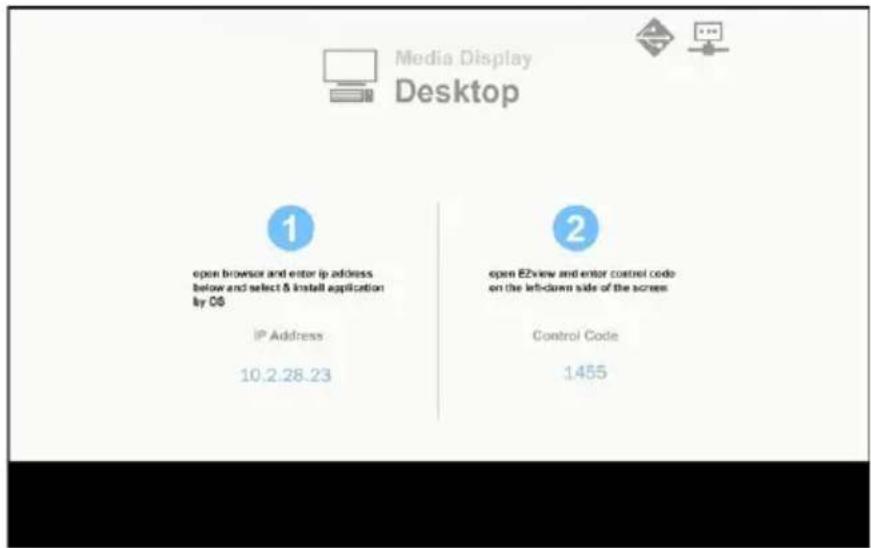

Desktop Display

To access the media files stored on your desktop, do the following:

1. On Multimedia menu, select Desktop.

1. Open your web browser and enter the IP address. Then select "Wifi" on the left side of the screen and install application required by the operation system.

1. Launch "EZview" application and enter the control code shown on the right-bottom side of the screen.
2. Wait until the connection is established. The media files on your desktop can be accessed using the projector.

USB Storage Display

To access the media files stored on your USB flash drive, do the following:

Supported File Format

Multimedia Category File Format
Photo BMP, JPG, PNG
Music MP3, WMA
Video AVI, MOV, MP4,	RM, RMVB, DAT, MPG,ISO, TS, MKV, VOB, and WMV
Document WORD, EXCEL, PPT, PDF

1. On Multimedia menu, select USB Disk.

1. Use the ▲▼ keys to select the file category and press the "Enter" key.

1. Use the ▲▼ keys to select the file to view/play and press the "Enter" key to confirm.

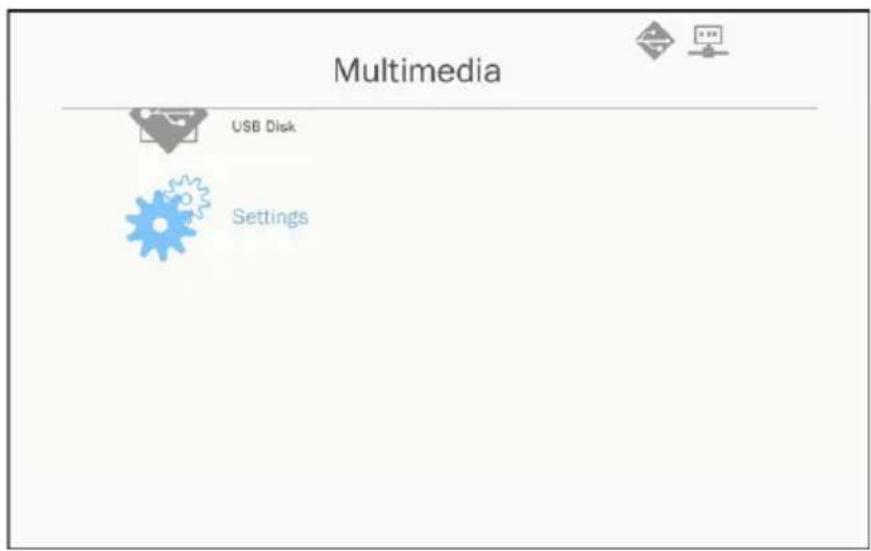

Configuring Multimedia Settings

To change the settings, do the following:

1. On Multimedia menu, select Settings.

1. Use the ▲▼ keys to select the desired menu option and press the "Enter" key to enter the submenu.

System: Select this option to view the firmware version and update firmware.
▶ Video: Select this option to change the display ratio and set the repeat mode.
▶ Photo: Select this option to change the display ratio, slideshow pattern, and slideshow duration.
Music: Select this option to set the repeat mode.
WiFi: Select this option to configure the Wi-Fi connection.

1. Use the ▲▼ keys to select the adjust/select the setting and press the "Enter" key to confirm.

Installing and Cleaning the Optional Dust Filter

We recommend you clean the dust filter every 500 hours of operation, or more often if you are using the projector in a dusty environment.

When the warning message appears on the screen, do the following to clean the air filter:

The optional dust filter should be used in dusty environments.

If the dust filter is installed, a proper maintenance will prevent overheating and projector malfunction.

The dust filter is optional.

The specific interfaces are selected in terms of the specifications of types.

Air Filter Cleaning Procedure:

1. Switch off the power to the projector by pressing the "button."
2. Disconnect the power cord.
3. Pull out the dust filter, as shown in the illustration. 1
4. Carefully remove the dust filter. Then clean or change the filter.2

To install the filter, reverse the previous steps.

1. Turn on the projector and reset the filter usage counter after the dust filter is replaced.

Compatibility Modes

VGA Analog

a. PC signal
Modes Resolution V. Frequency [Hz] H. Frequency [Hz]
VGA	640x480 60 31.5
	640x480 67 35.0
	640x480 72 37.9
	640x480 75 37.5
	640x480 85 43.3
IBM 720x400 70 31.5
SVGA	800x600 56 35.1
	800x600 60 37.9
	800x600 72 48.1
	800x600 75 46.9
	800x600 85 53.7
Apple, MAC II	832x624 75 49.1
XGA	1024x768 60 48.4
	1024x768 70 56.5
	1024x768 75 60.0
	1024x768 85 68.7
	1024x768 120 99.0
Apple, MAC II	1152x870 75 68.7
SXGA	1280x1024 60 64.0
	1280x1024 72 77.0
	1280x1024 75 80.0
QuadVGA	1280x960 60 60.0
	1280x960 75 75.2
SXGA+ 1400x1050 60 65.3
UXGA 1600x1200 60 75.0
b. Extended wide timing
Modes Resolution V. Frequency [Hz] H. Frequency [Hz]
WXGA	1280x720 60 44.8
	1280x800 60 49.6
	1366x768 60 47.7
	1440x900 60 59.9
WSXGA+ 16	80x1050 60 65.3
c. Component signal
Modes Resolution V. Frequency [Hz] H. Frequency [Hz]
480i	720x480(1440x480)	59.94(29.97) 15	7
576i	720x576(1440x576)	50(25) 15.6
480p 720x	480 59.94 31.5
576p 720x	576 50 31.3
720p	1280x720 60 45.0
	1280x720 50 37.5
1080i	1920x1080 60(30) 33.8
	1920x1080 50(25) 28.1
1080p	1920x1080 23.98/24		27.0
	1920x1080 60 67.5
	1920x1080 50 56.3

HDMI Digital

a. PC signal
Modes Resolution V. Frequency [Hz] H. Frequency [Hz]
VGA	640x480 60 31.5
	640x480 67 35.0
	640x480 72 37.9
	640x480 75 37.5
	640x480 85 43.3
IBM 720x400 70 31.5
SVGA	800x600 56 35.1
	800x600 60 37.9
	800x600 72 48.1
	800x600 75 46.9
	800x600 85 53.7
Apple, MAC II	832x624 75 49.1
XGA	1024x768 60 48.4
	1024x768 70 56.5
	1024x768 75 60.0
	1024x768 85 68.7
	1024x768 120 99.0
Apple, MAC II	1152x870 75 68.7
SXGA	1280x1024 60 64.0
	1280x1024 72 77.0
	1280x1024 75 80.0
QuadVGA	1280x960 60 60.0
	1280x960 75 75.2
SXGA+ 1400x1050 60 65.3
UXGA 1600x1200 60 75.0
b. Extended wide timing
Modes Resolution V. Frequency [Hz] H. Frequency [Hz]
WXGA	1280x720 60 44.8
	1280x800 60 49.6
	1366x768 60 47.7
	1440x900 60 59.9
WSXGA+ 16	80x1050 60 65.3
c. Video signal
Modes Resolution V. Frequency [Hz] H. Frequency [Hz]
480p 640x480 59.94/60 31.5
480i	720x480(1440x480)	59.94(29.97) 15.7
576i	720x576(1440x576)	50(25) 15.6
480p 720x480 59.94 31.5
576p 720x576 50 31.3
720p	1280x720 60 45.0
	1280x720 50 37.5
1080i	1920x1080	60(30) 33.8
	1920x1080	50(25) 28.1
1080p	1920x1080	23.98/24 27.0
	1920x1080 60 67.5
	1920x1080 50 56.3
d. HDMI 1.4a mandatory 3D timing- Video Signal
Modes Resolution V. Frequency [Hz] H. Frequency [Hz]
Frame Packing	720p	50 31.5
	720p	59.94/60 15.7
	1080p	23.98/24 15.6
Side-by-Side(Half)	1080i	50 31.5
	1080i 59.94/60 31.3
Top and Bottom	720p	50 45.0
	720p	59.94/60 37.5
	1080p	23.98/24 33.8

Regulation & Safety Notices

This appendix lists the general notices of your projector.

FCC notice

This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the device and receiver.
• Connect the device into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/television technician for help.

Notice: Shielded cables

All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations.

Caution

Changes or modifications not expressly approved by the manufacturer could void the user's authority, which is granted by the Federal Communications Commission, to operate this projector.

Operation conditions

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference and
2. This device must accept any interference received, including interference that may cause undesired operation.

Notice: Canadian users

This Class B digital apparatus complies with Canadian ICES-003.

Declaration of Conformity for EU countries

• EMC Directive 2004/108/EC (including amendments)
- Low Voltage Directive 2006/95/EC
• R & TTE Directive 1999/5/EC (if product has RF function)

Disposal instructions

Do not throw this electronic device into the trash when discarding. To minimize pollution and ensure utmost protection of the global environment, please recycle it.

Safety notice

WARNING

• This projector is a Class 2 laser device that conforms with IEC 60825-1:2007 and CFR 1040.10 and 1040.11.
• Class 2 laser product, Do Not Stare Into Beam.
• This projector has built-in Class 4 laser module. Disassembly or modification is very dangerous and should never be attempted.
• Any operation or adjustment not specifically instructed by the user's guide creates the risk of hazardous laser radiation exposure.
• Do not open or disassemble the projector as this may cause damage by the exposure of laser radiation.
• Do not stare into beam when the projector is on. The bright light may result in permanent eye damage.
• Without following the control, adjustment or operation procedure may cause damage by the exposure of laser radiation.
• Adequate instructions for assembly, operation, and maintenance, including clear warnings concerning precautions to avoid possible exposure to laser and collateral radiation in excess of the accessible emission limits in Class 2.

Ceiling Mount Installation

1. To prevent damage to your projector, please use the Coretronic ceiling mount.

2. If you wish to use a third party ceiling mount kit, please ensure the screws used to attach a mount to the projector meet the following specifications:

Screw type: M4*4
▶ Minimum screw length: 10mm

Please note that damage resulting from incorrect installation will void the warranty.

Warning:

1. If you buy a ceiling mount from another company, please be sure to use the correct screw size. Screw size will vary depending on the thickness of the mounting plate.
2. Be sure to keep at least 10 cm gap between the ceiling and the bottom of the projector.
3. Avoid installing the projector near a heat source.
