TurboClean PowerBrush 2889F - Steam cleaner BISSELL - Free user manual and instructions

Product Type	Steam Cleaner
Brand	Bissell
Model	TurboClean PowerBrush 2889F
Power	1500 Watts
Water Tank Capacity	0.5 Liters
Heat-up Time	30 Seconds
Cord Length	20 Feet
Weight	5.5 Pounds
Dimensions (L x W x H)	12 x 10 x 15 Inches
Main Functions	Steam mopping, handheld steam cleaning, sanitizing
Special Features	SmartSet digital temperature control, 2-in-1 mop and handheld, Easy Pour water tank
Suitable Surfaces	Sealed hardwood, tile, laminate, grout, mirrors, glass
Safety Features	Auto shut-off, child lock, pressure relief valve
Maintenance	Descale every 3 months, clean mop pads after each use
Included Accessories	2 washable mop pads, measuring cup, funnel, scrub brush
Spare Parts Available	Replacement mop pads, filtration cap, soft scrub brush
Repairability	User-replaceable mop pads, easy access to tank and filter

Frequently Asked Questions - TurboClean PowerBrush 2889F BISSELL

How do I fill the water tank on the Bissell TurboClean PowerBrush 2889F?

Remove the water tank from the unit. Open the Easy Pour cap, fill with water (do not exceed max line), and reattach securely. Use only water; cleaning solutions may damage the steam cleaner.

Can I use the steam cleaner on hardwood floors?

Yes, the TurboClean PowerBrush 2889F is safe for sealed hardwood floors. Avoid prolonged steam on one spot and use a dry mop pad after steaming.

How long does it take to heat up?

The unit heats up in approximately 30 seconds. The ready indicator light will glow when steam is ready.

What should I do if the steam output is weak?

Check if the tank is filled. If not, refill. Also, ensure the mop pad is not soaked; replace with a dry one. If still weak, descale the unit to remove mineral buildup.

How do I clean the mop pads?

Remove the pad from the mop head. Machine wash in warm water with mild detergent. Air dry or tumble dry low. Do not use fabric softener.

Is the steam cleaner safe for grout?

Yes, the high-temperature steam effectively cleans grout. Use the handheld mode with the scrub brush for tough grout stains.

Can I use distilled water?

Yes, distilled water is recommended to reduce mineral buildup. Tap water may be used but may require more frequent descaling.

How do I switch between mop and handheld mode?

Press the release button on the handle and detach the handheld unit. Attach desired accessories (scrub brush, etc.) for handheld use.

What does the SmartSet temperature control do?

SmartSet digitally controls steam temperature to optimize cleaning for different surfaces. It automatically adjusts to prevent damage.

How often should I descale the steam cleaner?

Descaling is recommended every 3 months or when you notice reduced steam output. Use a descaling solution approved for steam cleaners.

USER MANUAL TurboClean PowerBrush 2889F BISSELL

What's in the Box? 3

Assembly....3

Cleaning Formulas....4

Filling the Clean Water Tank....5

Cleaning Your Carpet....6

Emptying the Dirty Water Tank....7

After-Cleaning Care....8

Replacing the Belt & Brush Roll....9

Storing Your Machine....9

Troubleshooting....10

Product Overview

1. Upper Handle 6. Dirty Water Tank
2. Spray Trigger 7. Lower Body
3. Middle Handle 8. Nozzle
4. Clean Water Tank
5. Dirty Water Tank Handle

This guide has everything you need to get ready for first use, including setting up, using and maintaining your machine, but online you'll find additional resources like tips and troubleshooting, parts, and more. Go to BISSELL.com.

READ ALL INSTRUCTIONS BEFORE USING YOUR APPLIANCE.

When using an electrical appliance, basic precautions should be observed, including the following:

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY:

»This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. »Children should be supervised to ensure that they do not play with the appliance. »Unplug from electrical socket when not in use, before cleaning, maintaining, or servicing the appliance, and if your appliance has an accessory tool with a moving brush, before connecting or disconnecting the tool.

»Do not immerse in water or liquid.

»Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts of the appliance and its accessories.

»If the supply cable is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person in order to avoid a hazard.

»Do not run appliance over cable.

»Do not use with damaged cable or plug.

»Do not pull or carry by cable, use cable as a handle, close door on cable, or pull cable around sharp edges or corners.

»If the appliance has a handheld accessory like pet brush, motor driven head, etc., the user shall avoid entrapment.

»Keep cable away from heated surfaces. »Use only the type and amount of liquids specified under the operations section of this guide. »Do not leave appliance when plugged in »Liquid must not be directed towards equipment containing electrical components.

»Always connect to a properly earthed electrical socket. Do not modify earthed plug.

»Always install float before any wet pick-up operation.

»To unplug, grasp the plug, not the cable.

»Do not handle plug or appliance with wet hands.

»Turn OFF all controls before unplugging.

»Use indoors only.

»Plastic film can be dangerous. To avoid danger of suffocation, keep away from children.

»Use only as described in this user guide.

»Use only manufacturer's recommended attachments.

» If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water; do not attempt to operate it and have it repaired at an authorised service center.

»Do not put any object into openings.

» Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.

»Use extra care when cleaning on stairs.

»Do not use to pick up flammable or combustible liquids, such as petroleum, or use in areas where they may be present.

»Do not pick up toxic material (chlorine bleach, ammonia, drain cleaner, etc.).

»Do not use appliance in an enclosed space filled with vapours given off by oil-based paint, paint thinner, some moth-proofing substances, flammable dust, or other explosive or toxic vapours.

»Do not pick up hard or sharp objects such as glass, nails, screws, coins, etc.

» Do not pick up anything that is burning or smoking, such as cigarettes, matches or hot ashes.

»Do not use without filters in place.

»Floor slippery when wet.

SAVE THESE INSTRUCTIONS

ORIGINAL INSTRUCTIONS. FOR OPERATION ON A 220-240 VOLT A.C. 50-60 HZ POWER SUPPLY ONLY. THIS MODEL IS FOR HOUSEHOLD USE ONLY.

IMPORTANT INFORMATION

»Keep appliance on a level surface.

» If your appliance has a motorised Brush Roll, do not leave machine running in the same spot without the handle fully upright.
» To reduce the risk of a leaking condition, do not store machine where freezing may occur. Damage to internal components may result.
» Plastic tanks are not dishwasher safe. Do not put tanks in dishwasher.

What's in the Box?

Upper Handle Middle Handle Dirty Water Tank and Lower Body			Clean Water Tank	Trial-Size Formula

Assembly

1. Slide Middle Handle onto Lower Body until it “clicks” into place.	2. Slide Upper Handle into Middle Handle until it “clicks” into place.	3. Place Clean Water Tank on handle and push down until it “clicks” into place.

Line drawing of a hand operating a mechanical lever or lift tool (no text or symbols present)

1. Wrap up power cable.

Cleaning Formulas

View our family of cleaning formulas for your family of mess makers at BISSELL.com.

Keep plenty of BISSELL® formulas on hand so you can clean whenever it fits your schedule. Always use genuine BISSELL formulas in your machine. Other formulas may harm the machine and void the guarantee. Do not use Wash & Shine Hard Floor Formula on area rugs or carpet.

Carpet Cleaning Formulas

Wash & Protect Wash & Refresh
Pro Stain & OdourProfessional strength to remove extra tough stains and odours.	Pet Stain & OdourRemoves tough pet stains and odours.	Stain & OdourRemoves tough stains and odours.	Ambipur Blossom & BreezePowerful cleaning with a refreshing spring scent.

Wash & Remove
Pro Pet Urine Eliminator + Oxy Permanently remove stains and remove odours at the source with the power of Oxy.	Allergen Helps remove pet dander, pollen and dust mite waste allergens.

Pretreat

Pretreat spots and stains to improve carpet cleaning performance.

Stain PretreatLoosens set-in stains & odours before carpet washing.	Pet Stain PretreatLoosens tough pet stains & odours before carpet washing.

Boost

Add Boost carpet cleaning formula enhancers to any formula to increase its effectiveness.

Oxy BoostAdd to formula for permanent stain removal.

Certain trademarks used under license from The Procter & Gamble Company or its affiliates.

WARNING

To reduce the risk of fire and electric shock due to internal component damage, use only BISSELL this machine. Use of cleaning formulas that contain eucalyptus, lemon or pine oil may damage this tree. Chemical spot cleaners or solvent-based soil removers should not be used. These products may be used in your carpet washer causing cracking or pitting.

Filling the Clean Water Tank

Illustration of a hand pouring liquid into a container with an arrow indicating upward motion (no text or symbols)

Illustration of a hand pressing down on a mechanical component with a blue arrow indicating rotation (no text or symbols)

Line drawing of a laboratory apparatus with a cylindrical tank and tubing (no text or symbols)

1. Remove the Clean Water Tank by lifting straight up and away from the machine.

2. Unscrew the cap at the bottom of the tank.

3. Fill with warm (140°F/60°C MAX) tap water to the WATER line. Do not use boiling water. Do not heat water and/or tank in the microwave.

Illustration of hands pouring liquid into a container (no text or symbols)

Line drawing of a hand holding a container with a blue arrow indicating direction (no text or symbols)

1. Add BISSELL formula to the FORMULA line.

2. Replace and tighten the cap.

3. Replace the tank on the machine until it "clicks" into place.

Cleaning Your Carpet

Tips Before Cleaning

• If cleaning an entire room, consider moving your furniture to another area.
  • Vacuum to remove loose dirt and impediments before cleaning.
• Pretreat stains with BISSELL® Pretreat to improve carpet cleaning.

Hand inserting a plug into an electrical outlet (no text or symbols visible)

1. Plug into a proper outlet.

Diagram of a mechanical component with a blue arrow pointing to a hole, no text or symbols present

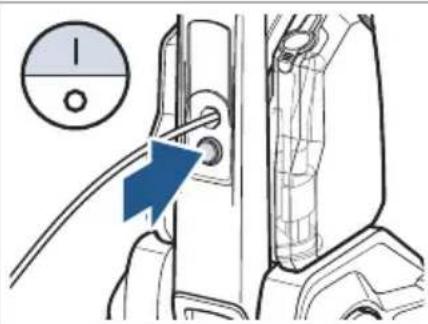

1. Turn the machine ON by pressing the power switch.

Illustration of a person using a vacuum cleaner to lift a vehicle, with blue arrows indicating motion direction (no text or symbols)

1. Step on the recline pedal located below the power switch, and pull back on handle to recline.

Illustration of a person using a lawn mower on a tiled floor, with blue arrows indicating motion direction (no text or symbols)

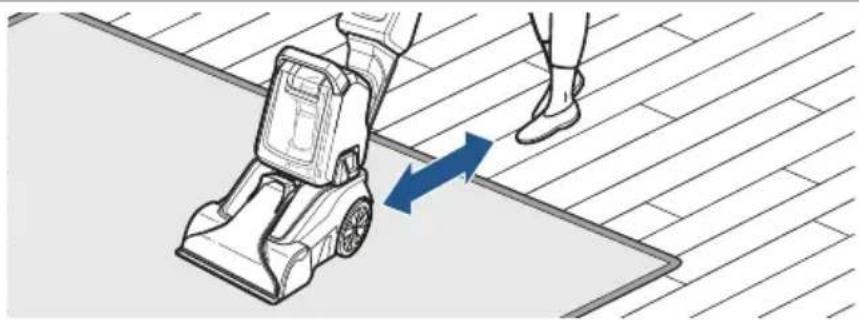

1. Make cleaning passes as described below. Repeat these passes until solution being pulled up appears clean. Empty the Dirty Water Tank and refill the Clean Water Tank as needed.

2. Hold Spray Trigger

- 1 pass forward

- 1 pass back

1. Release Spray Trigger

- 1 pass forward

- 1 pass back

IMPORTANT

» Please check manufacturer's tag before cleaning area rugs for any specialized cleaning instructions. We do not recommend cleaning delicates, silk, delicate wool, antique, or area rugs without a manufacturer's tag that approves carpet washing.
» Do not overwet carpet. Be careful not to run over loose objects or edges of area rugs. Stalling the brush may result in premature belt failure.

Emptying the Dirty Water Tank

1. Turn OFF and unplug your machine.

Diagram of a mechanical device with blue directional arrows indicating motion or force (no text or symbols)

1. Release Dirty Water Tank by pulling out and up on the latches on the side.

Diagram of a hand pressing down on a mechanical component with a blue arrow indicating the motion direction (no text or symbols present)

1. Carefully remove tank by lifting up on the Dirty Water Tank Handle.

Illustration of a hand placing a blue arrow onto a wireframe container (no text or symbols)

1. Lift tab on the top of the tank.

Line drawing of a mechanical device with a blue cable inserted (no text or symbols)

1. To empty, pour out dirty water using opening at back of tank. Rinse the tank thoroughly. Reinsert tab into tank.

Illustration of a two-step vacuum cleaner with blue directional arrows indicating motion (no text or symbols)

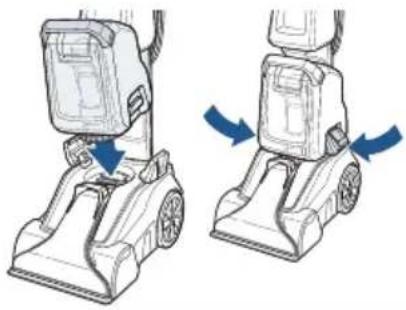

1. To continue cleaning, align the bottom of the tank to the base and secure into place with latches.

After-Cleaning Care

Diagram of a mechanical component with a blue arrow pointing to a hole, showing internal structure and a circular indicator (no text or symbols)

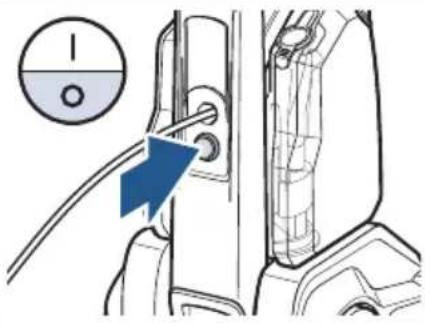

1. Turn OFF and unplug your machine. Follow steps 2 & 3 in the section above to remove the Dirty Water Tank.

Illustration of a hand using a vacuum cleaner to lift a car (no text or symbols present)

1. Grab the top of the Nozzle and pull it up and away from the machine. Rinse or wipe it clean. Use a cloth to wipe debris from the red filter.

Illustration of two hand-painted views of a mechanical device with a tool, showing no text or symbols.

1. Use cloth to wipe brush roll cover clean.

Hand holding a camera lens with a blue arrow indicating rotation (no text or symbols)

1. Ensure the Dirty Water Tank is empty by gently removing the float stack and unscrewing the ring at the bottom of the tank.

Illustration of a hand using a tool to clean or wash liquid from a sink, with a ring nearby (no text or symbols)

1. Clean and rinse debris from the float. Keeping the float clean prevents your Dirty Water Tank from overflowing and ensures the seal stays intact.

Technical line drawing of a mechanical component with a blue arrow indicating direction (no text or symbols)

1. Once clean, assemble by aligning the arrow on the float with the notch on the tank. Then, return the ring and twist to lock. Make sure it's fully aligned, so water doesn't leak.

Illustration of a hand using a vacuum cleaner to press down a component (no text or symbols visible)

1. To replace the Nozzle, align top into channel in front of red filter and press in place.

Illustration of a hand using a tool to lift a car body, showing motion arrows (no text or symbols)

1. Use both hands to push the bottom portion of Nozzle into place.

Illustration of a two-step vacuum cleaner with blue directional arrows indicating motion (no text or symbols)

1. Once Dirty Water Tank is dry align the bottom of the tank to the base and secure into place with latches.

ATTENTION

If you experience no suction, remove the Dirty Water Tank and ensure the Nozzle is secured and Dirty Water Tank to the machine and try cleaning again.

WARNING

To reduce the risk of fire, electric shock or injury, turn power OFF and disconnect plug from hing maintenance or troubleshooting.

electrical outlet before performing maintenance or troubleshooting.

Replacing the Belt & Brush Roll

Technical diagram of an electronic device with labeled ports and wiring (no text or symbols present)

Technical diagram of a mechanical device showing internal components and a blue arrow indicating a specific part (no text or symbols present)

Illustration of a hand operating a device with blue arrows indicating process direction (no text or symbols present)

1. Turn OFF and unplug your machine. Use a Phillips-head screwdriver to remove the 3 screws.

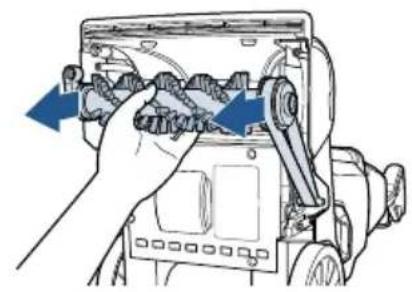

2. Remove belt cover. 3. Pull Brush Roll out and remove belt from track.

Illustration of a hand using a tool to adjust or install a vehicle chassis (no text or symbols visible)

Illustration of hands using a tool to adjust or install a vehicle wheel (no text or symbols visible)

Illustration of a hand operating a mechanical device with gears and a blue arrow pointing to a component (no text or symbols present)

1. Pull belt off of motor shaft.

2. Wrap new belt around motor shaft.

3. Put the belt on the Brush Roll track. Put the Brush Roll back into position.

Mechanical assembly diagram showing a bracket with gears and a blue arrow indicating direction (no text or symbols)

Technical diagram of a mechanical device showing internal components and a blue arrow indicating a directional flow (no text or symbols present)

Technical line drawing of an electronic device with internal components and directional arrows indicating flow or movement (no text or symbols present)

1. Align Brush Roll mount to screw post.

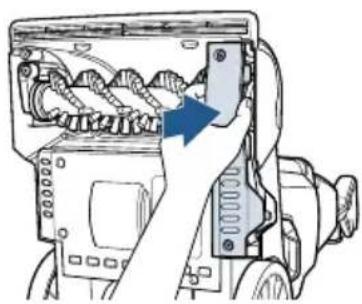

2. Reposition belt cover.

3. Reinstall 3 screws.

Any other maintenance or servicing not included in this manual should be performed by an authorized service representative.

Storing Your Machine

Store your machine in a protected, dry area. When finished using the product, wrap cable around cable wrap for storage.

NOTICE: To reduce the risk of a leaking condition, do not store machine where freezing may occur. Damage to internal components may result.

WARNING

To reduce the risk of fire, electric shock or injury, turn power OFF and disconnect plug from hing maintenance or troubleshooting.

Troubleshooting

This guide has everything you need to get ready for first use, including setting up, using and maintaining your machine, but online you'll find additional resources.

Guarantee

This guarantee gives you specific legal rights, in addition to rights you may have under the Australian Consumer Law. If you need additional instruction regarding this guarantee or have questions regarding what it may cover, please contact your local BISSELL Consumer Care on the details set out below.

It may be necessary to obtain some of your personal information, such as a mailing address, to fulfill terms of this guarantee. Any personal data will be handled pursuant to BISSELL's Privacy Policy, which can be found at global.BISSELL.com/privacy-policy.

BISSELL® Two Year Guarantee

Subject to the *conditions identified below, BISSELL will repair or replace (with new, refurbished, lightly used, or remanufactured components or products), at BISSELL's option, free of charge from the date of purchase by the original purchaser, for two years any defective or malfunctioning part due to manufacturer defect. This guarantee applies to product used for personal purposes, and not commercial or rental service. This guarantee does not apply to fans or routine maintenance or consumable components such as filters, belts, brush rolls, etc., damage or malfunction caused by negligence, abuse, neglect, unauthorized repair, or any other use not in accordance with the user guide. BISSELL recommends that the original packaging be kept for the duration of the guarantee period in case such need arises within the guarantee period that the item needs repacking and transportation.

\*Conditions of Guarantee

Subject to whether such loss is reasonably foreseeable, BISSELL and its in-country distributors are not liable for incidental or consequential damages of any nature associated with the use of this product.

For Australian Consumers Only: Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

This guarantee is in addition to other rights or remedies under law. Nothing in this guarantee excludes, limits or modifies any liability of BISSELL which is imposed by law, or limits or modifies any remedy available to the consumer which is granted by law. To make a claim under this guarantee contact BISSELL Australia PTY LTD (details below). Contact BISSELL prior to returning any goods. Where agreed, BISSELL will reimburse reasonable postage / handling costs (if any) for returning goods to BISSELL. To claim expenses incurred in making a claim under this guarantee please provide BISSELL with a copy of the receipt of the expenses by email or post.

Consumer Care

Australia

Telephone: [phone]

Website: www.BISSELL.com.au

New Zealand

Telephone: [phone]

Website: www.BISSELL.co.nz
