Product Type	Portable Steam Cleaner
Brand	Bissell
Model	SpotClean Turbo
Dimensions (Approx.)	10.5 x 7.5 x 10 inches
Weight (Approx.)	4.8 lbs
Power Supply	120V ~ 60Hz
Wattage	1500 W
Water Tank Capacity	32 oz (0.95 L)
Heating Time	Approximately 30 seconds
Steam Ready Indicator	Yes
Continuous Steam Output	Yes
Included Accessories	Crevice tool, brush, and measuring cup
Function	Steam cleaning & spot cleaning
Maintenance	Descale monthly; clean nozzle after use
Safety Features	Auto shut-off, lock-on trigger, pressure relief valve
Spare Parts Available	Replacement brushes, nozzles, and tank
Repairability	User-replaceable components; professional service available
Warranty	2-year limited warranty

Frequently Asked Questions - SpotClean Turbo BISSELL

How do I set up the Bissell SpotClean Turbo for first use?

Fill the water tank with distilled or tap water up to the fill line. Plug in the unit and wait for the steam ready indicator to turn on (about 30 seconds).

Can I use cleaning solutions in the SpotClean Turbo?

Yes, you can add Bissell-approved cleaning solutions specifically for steam cleaners. Do not use bleach or fabric softener. Fill the tank with water then add solution per instructions.

How do I clean the nozzle after use?

After unplugging and cooling, remove the nozzle and rinse it under running water. Use a small brush to clear any debris. Allow to dry before reattaching.

Why is the steam output weak?

Check the water level; low water reduces steam. Also, mineral deposits may clog the unit. Descale with a mixture of water and vinegar (1:1) and run through the tank.

What is the auto shut-off feature?

The unit automatically turns off after 10 minutes of inactivity to prevent overheating. Press the power button to restart.

How often should I descale the steam cleaner?

For best performance, descale every 1-2 months depending on water hardness. Use a descaling solution or vinegar-water mixture.

Can I use the SpotClean Turbo on upholstery?

Yes, but test on an inconspicuous area first. Use the brush accessory and avoid saturating fabric. Keep the nozzle moving to prevent damage.

What should I do if the unit leaks?

Ensure the water tank is securely closed and not overfilled. Check the sealing ring for damage. If leaks persist, contact Bissell support.

How do I store the steam cleaner?

Empty the water tank completely. Allow all parts to dry. Wrap the cord loosely around the unit. Store in a cool, dry place.

Where can I buy replacement parts?

Visit Bissell.com or authorized retailers. Common parts include replacement brushes, nozzles, and water tank.

USER MANUAL SpotClean Turbo BISSELL

SPOTCLEAN™ TURBO PORTABLE CARPET CLEANER MODELS 3911H, 3911F

Important Safety Instructions....2

Filling the Formula Tank......4

Using Your Machine....5

Cleaning the Machine with the 2-in-1 Tough Stain Tool....7

Emptying the Dirty Water Tank....7

After-Cleaning Care....8

Limited Warranty....9

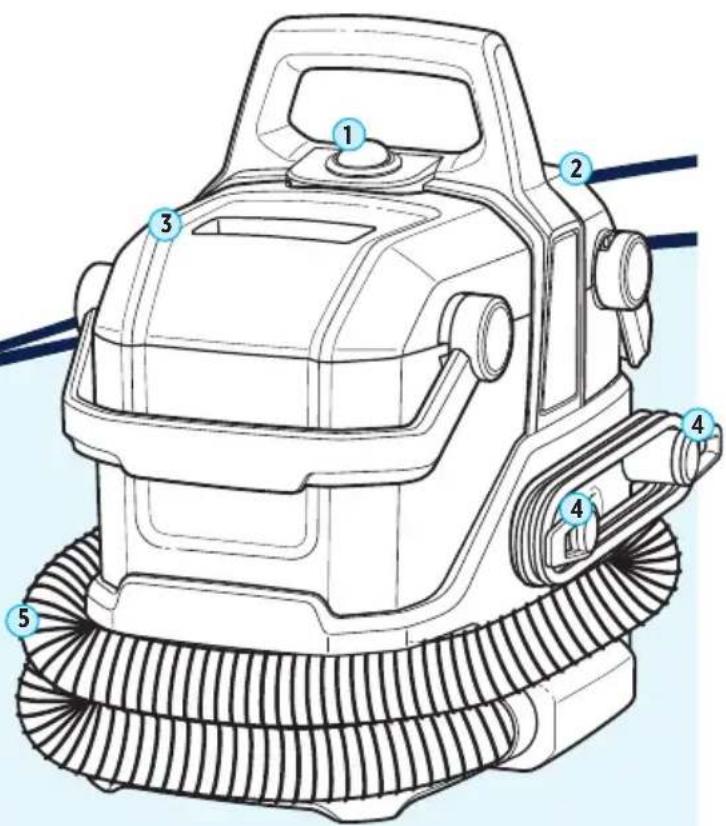

Product Overview

1. Power Switch
2. Clean Water Tank
3. Dirty Water Tank
4. Quick Release™ Cord Wrap and Power Cord
5. Flexible Hose

SYMBOLEXPLANATION
	Caution.
	Read operator's manual.
	Risk of fire.
	Risk of electric shock.
	Do not expose to rain.
	Store indoors.
	Allow parts to dry.
	Do not overwet carpet. Use only on carpet moistened by the cleaning process.
	Use only BISSELL ^® cleaning formulas intended for use with this machine.
	Disconnect power before servicing.

SYMBOLEXPLANATION
	Use warm water, temperature up to 60°C.
	Check the manufacturer's tag before cleaning textile. “W” on the tag as shown means you can use your cleaner.
	Do not freeze.
	Warning: Slippery surface.
	This symbol on the product and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste. For proper treatment, recovery and recycling, please take this product to designated collection points. Please contact your local authority for further details of your nearest designated collection point.

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USING YOUR APPLIANCE.

When using an electrical appliance, basic precautions should be observed, including the following:

WARNING TO REDUCE THE RISK OF

FIRE, ELECTRIC SHOCK OR INJURY:

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Children should be supervised to ensure that they do not play with the appliance.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts of the appliance and its accessories.
• The appliance has to be unplugged after use and before carrying out user maintenance on the appliance.
• If the supply cable is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person in order to avoid a hazard.

• Do not leave appliance when it is plugged in. Unplug from outlet when not in use and before servicing.

• Do not pull or carry by cable, use cable as a handle, close door on cable, or pull cable around sharp edges or corners. Do not run appliance over cable. Keep cord away from heated surfaces.

• Do not unplug by pulling on cable. To unplug, grasp the plug, not the cable.
• Do not handle plug or appliance with wet hands.
• Turn OFF all controls before plugging or unplugging appliance.
• Plastic film can be dangerous. To avoid danger of suffocation, keep away from children.
• Do not use for any purpose other than described in this user guide. Use only manufacturer's recommended attachments.
• If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water; do not attempt to operate it and have it repaired at an authorized service center.
• Do not put any object into openings. Do not use with any opening blocked; keep openings free of dust, lint, hair, and anything that may reduce air flow.
• Use extra care when cleaning on stairs.
• Do not use to pick up flammable or combustible materials (lighter fluid, gasoline, kerosene, etc.) or use in areas where they may be present.

• Do not pick up toxic material (chlorine bleach, ammonia, drain cleaner, etc.)

• Do not use appliance in an enclosed space filled with vapors given off by oil-based paint, paint thinner, some moth-proofing substances, flammable dust, or other explosive or toxic vapors.

• Keep appliance on a level surface.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not expose to rain. Store indoors.

• Always connect to a properly earthed electrical socket. Do not modify earthed plug.

• Liquid must not be directed toward equipment containing electrical components.

• Use only the type and amount of liquids specified under the operations section of this guide.
• Always install float before any wet pick-up operation.
• Do not turn your appliance ON until you are familiar with all instructions and operating procedures.
  • Floor slippery when wet.

SAVE THESE INSTRUCTIONS

ORIGINAL INSTRUCTIONS. FOR OPERATION ON A 220-240 VOLT A.C. 50-60 HZ POWER SUPPLY ONLY. THIS MODEL IS FOR HOUSEHOLD USE ONLY.

IMPORTANT INFORMATION

To reduce the risk of a leaking condition, do not store where freezing may occur. Damage to internal components may result.

TOOLS INCLUDED IN BOX WILL DIFFER BY MODEL

To see what's included with your purchase, check the "Carton Contents" list on the top flap of the box.

			[AT05]
Machine Self-C	eaning Tough Stain Tool	15 cm Tough Stain Tool	Spraying Crevice Tool	Deep Stain Tool

3-in-1 Stair Tool Mesh Tool Bag Caster Wheels(select models)

Trial Formula(s)(vary by model)

This machine is compatible with BISSELL ^® formulas made for portable carpet cleaners. Always use genuine BISSELL formulas in your machine. Use of other cleaning formulas may harm the machine.

Pretreat spots and stains to improve carpet cleaning performance.

Keep plenty of BISSELL formulas on hand so you can clean whenever it fits your schedule.

Add Boost carpet cleaning formula enhancers to any formula to increase its effectiveness.

Illustration of two different spray bottles with no visible text or symbols

1. Choose your formula.* Visit global.BISSELL.com for formulas.

Illustration of a hand pressing down on a mechanical device with a blue upward arrow (no text or symbols)

1. Remove clean water tank from back of machine by lifting carry handle.

Hand holding a device with a blue arrow indicating upward motion (no text or symbols)

1. Flip cap open.

Line drawing of a water purifier with control panel and piping (no text or symbols)

1. Add water to line based on size of your mess.

Small Area: 800mL Large Area: 1600mL

Illustration of a hand using a tool to lift a small machine component (no text or symbols present)

1. Add formula* to line based on size of your mess.

Small Area: 180mL Large Area: 230mL

1. Close cap. Return clean tank to machine and click back into place.

Before You Clean

• Vacuum to remove loose dirt from areas to be cleaned.
- Spray any BISSELL stain pretreat formula on soiled areas and allow to sit for a few minutes.
- Tip: For upholstery, work in small sections until area is clean.

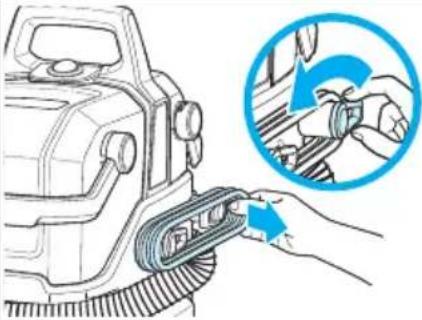

1. Release hose by pulling away from hose clip.	2. Attach desired tool to hose grip until it clicks.	3. Twist Quick Release Cord Wrap to remove cord. Plug cord into outlet.

4. Turn machine ON. 5. Press and	hold trigger over sink or bowl to prime the machine until liquid sprays out.	6. While holding tool above desired area, press and hold trigger to spray solution.

Illustration of a hand using a tool to lift a blue object into a container (no text or symbols)

Illustration of a hand using a tool to lift a blue object into a container (no text or symbols)

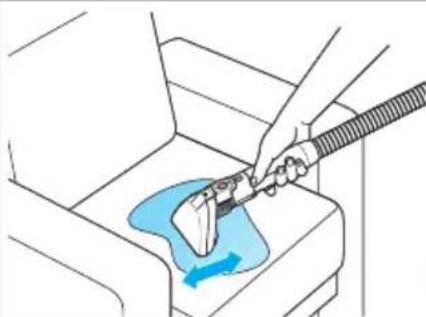

1. Release spray trigger and gently scrub stain using bristles.

2. With trigger released, press tool firmly against surface and pull towards you to remove stain. Repeat as needed.

Using Your Machine (continued)

Using the 2-in-1 Tough Stain Tool (select models)

1.Choose your cleaning method: Use the bristle block for everyday soft surface cleaning, or the rubberized block to remove embedded pet hair and debris.	2.Turn machine OFF and remove tool lens.	3.Pull bottom latch to release bristle block from tool.

4. Insert your preferred tool attachment; it will click into place.	5. Reinstall the lens.	6. Slide tool lever up to ensure tool is in SPRAY mode. Follow step 8 on page 5.

Using the 3-in-1 Stair Tool (select models)

1. Twist tool to desired position. The downward facing edge is the active cleaning mode.	2. Use on stairs 3 ways:a. Use the flat edge to clean the stair tread.b. Use indented area to clean the outside corner.c. Use pointed edge to clean the crevice.	3. Point the tool approximately 1 inch above the spot or stain and press the spray trigger. Suction up the stain by placing tool onto carpet and slowly moving backwards.

Cleaning with the Spraying Crevice Tool (select models)

1. While holding tool above the stained area, press and hold the trigger to spray solution.	2. Release spray trigger and press tool firmly against surface and pull toward you to remove the stain. Repeat this step as needed.

Cleaning the Machine with the 2-in-1 Tough Stain Tool

Illustration of a handheld device with a blue arrow pointing to a circular button labeled 'Spiral' (no text or symbols on the device itself)

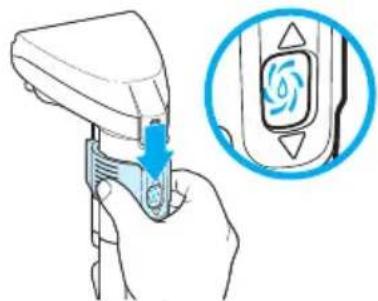

1. Turn machine ON. Slide tool lever down for CLEANOUT mode.

Illustration of a hand holding a handheld device with a blue arrow indicating rotation (no text or symbols present)

1. Press the trigger to activate the CLEANOUT function. Solution mixture will spray through the tool and hose.

Illustration of a hand holding a handheld device with an arrow pointing to a control panel, showing airflow or vibration (no text or symbols present)

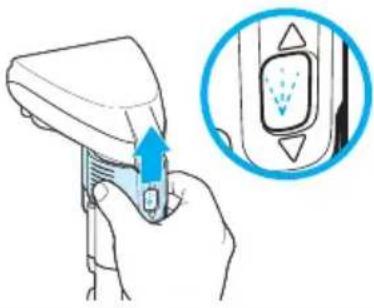

1. To continue cleaning with your machine, slide the tool's lever upward to return to SPRAY mode.

Emptying the Dirty Water Tank

1. Empty dirty water tank when water reaches "MAX" line. Do not let water overfill.

Illustration of a blue water heater with an upward arrow, no text or symbols present

1. Remove dirty water tank and carry to a water disposal area.

Illustration of hands cleaning a small appliance with a lid and handle (no text or symbols)

1. To remove lid, hold bottom of dirty water tank and use handle inset to lift up and off.

Line drawing of hands washing a surface in a kitchen sink (no text or symbols)

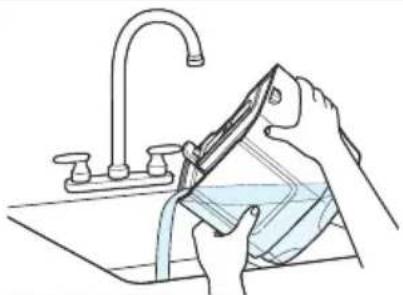

1. Pour out dirty water. Rinse tank to remove any debris.

Illustration of a hand holding a blue appliance with a downward arrow indicating a process (no text or symbols present)

1. Align lid with bottom of tank and press down until secure.

Illustration of a blue medical or cleaning device with a downward arrow indicating a reduction or inspection (no text or symbols present)

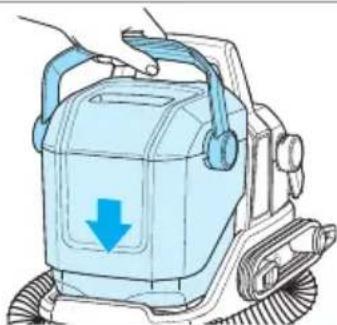

1. Place dirty water tank back onto machine.

After-Cleaning Care

Line drawing of hands washing a glass in a kitchen sink (no text or symbols)

1. Be sure to empty dirty water tank after use (see above).

Illustration of a hand holding a small object with a blue arrow pointing to the circular hole (no text or symbols)

1. To disconnect tools, push down on button above hose grip and pull straight off. (Do NOT twist tool to remove it.)

Illustration of a hand using a handheld device to press or install a device (no text or symbols visible)

1. Remove tool lens.

Illustration of a hand cleaning a pipe with a blue tool, no text or symbols present

1. Rinse lens under clean, running water. Allow to dry before reinstalling.

Illustration of a hand holding a blue hose connected to a portable vacuum cleaner (no text or symbols present)

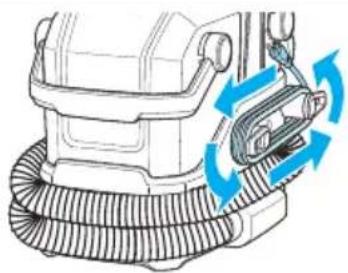

1. Wrap hose and cord storage. Store indoors in a secure, dry location where it is unlikely to experience freezing to prevent damage to internal components.

Diagram of a cleaning or repair device with blue arrows indicating rotation or adjustment (no text or symbols present)

Limited Warranty

This limited warranty is provided by BISSELL® International Trading Company B.V. (“BISSELL”) and applies in Australia and New Zealand. It gives you specific rights. It is offered as an additional benefit to your rights under law. You also have other rights under The Australian Consumer Law or New Zealand Consumer Laws, whichever applies to you. You can find out about your legal rights and remedies by contacting your local consumer advice service. Nothing in this warranty will replace or lessen any of your legal rights or remedies. If you need additional instruction regarding this warranty or have questions regarding what it may cover, please contact BISSELL Consumer Care or contact your local distributor.

This warranty is given to the current owner of the product with the original sales receipt. The original sales receipt must include the product(s) purchased, the date purchased, and which country it was purchased from new. You must be able to evidence the date of purchase and show the product was purchased in Australia or New Zealand to submit a claim under this warranty. You will receive the warranty that is applicable to the country where your product was originally purchased, as shown on the original sales receipt. If you use the product outside of the country where it was purchased, your warranty may be void in BISSELL's sole discretion. It may be necessary to obtain some of your personal information, such as a mailing address, to fulfill the terms of this warranty. Any personal data will be handled pursuant to BISSELL's Privacy Policy, which can be found at global.BISSELL.com/privacy-policy.

Limited 1-, 2-, or 3-Year Warranty (varies by model)

Model 3911F: Limited 2-Year Warranty

Model 3911H: Limited 3-Year Warranty

For two or three years from the date of purchase by the original purchaser, subject to the *EXCEPTIONS AND EXCLUSIONS identified below, BISSELL will repair or replace (with new, refurbished, lightly used, or remanufactured components or products), at BISSELL's option, free of charge, any defective or malfunctioning part or product.

BISSELL recommends that the original packaging and original proof of purchase with the date of purchase and country where purchased be kept for the duration of the warranty period in case you want to redeem the warranty during the warranty period. Keeping the original packaging will assist with any necessary re-packaging and transportation but is not a condition of the warranty.

If your product is replaced by BISSELL under this warranty, then the new item will benefit from the remainder of the term of this warranty (calculated from the date of the original purchase). The period of this warranty shall not be extended whether or not your product is repaired or replaced.

\*Conditions of Warranty

This warranty applies to products used for personal domestic use and not commercial or hire purposes. Consumable components and attachments such as filters, belts, shells, water tanks, scraping strips, brushes, and mop pads, which must be replaced or serviced by the user from time to time, are not covered by this warranty.

This warranty does not apply to any defect arising from fair wear and tear, including but not limited to the battery discharging time shortening due to the aging or use. Damage or malfunction caused by the user or any third party whether as a result of accident, negligence, abuse, neglect, or any other use not in accordance with the user guide is not covered by this warranty. An unauthorised repair (or attempted repair) may void this warranty whether or not damage has been caused by that repair/attempt. Removing or tampering with the Product Rating Label on the product or rendering it illegible will void this warranty.

Except as set out below, BISSELL and its distributors are not liable for any loss or damage that is not foreseeable or for incidental or consequential damages of any nature associated with the use of this product including without limitation loss of profit, loss of business, business interruption, loss of opportunity, distress, inconvenience, or disappointment. Except as set out below, BISSELL's liability will not exceed the purchase price of the product.

BISSELL does not exclude or limit in any way its liability for (a) death or personal injury caused by our negligence or the negligence of our employees, agents or subcontractors; (b) fraud or fraudulent misrepresentation; (c) or for any other matter which cannot be excluded or limited under law.

To make a claim under this warranty contact BISSELL Australia PTY LTD (details below). Contact BISSELL prior to returning any goods. Where agreed, BISSELL will reimburse reasonable postage / handling costs (if any) for returning goods to BISSELL. To claim expenses incurred in making a claim under this warranty please provide BISSELL with a copy of the receipt of the expenses by email or post.

For Australian Consumers Only: Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

Important Notes

Please keep your original sales receipt. It provides proof of the date of purchase and where it was purchased in the event of a warranty claim. See warranty for details.

Please note that using your BISSELL machine outside of its country of original purchase and/or use with a power converter may damage your BISSELL machine and damage caused by mismatched power voltage will not be covered by your warranty.

Please note that putting vinegar, bleach, dish soap, detergent, homemade soap, and other non-BISSELL products in your BISSELL machine may damage your BISSELL machine. Damage caused by using non-BISSELL products in your machine will not be covered by your warranty.

Consumer Care

If your BISSELL product should require service or to claim under our limited guarantee, please contact us.

Australia

Telephone: [phone]

Website: BISSELL.com.au

Address: 789 Springvale Road, Mulgrave, Victoria 3170

Email: [e-mail]

New Zealand

Telephone: [phone]

Website: BISSELL.co.nz

Address: 789 Springvale Road, Mulgrave, Victoria 3170

Email: [e-mail]

But wait, there's more!

Join us online for a complete guide to your new product, including troubleshooting, parts and more.

Go to global.BISSELL.com.
