Product Type	Steam Mop
Brand	Bissell
Model	PowerFresh 2232H
Dimensions (L x W x H)	11 x 5 x 44 inches (approx.)
Weight	7.5 lbs (approx. 3.4 kg)
Power Supply	120V, 60Hz
Wattage	1500W
Water Tank Capacity	12 oz (355 ml)
Heat-up Time	30 seconds
Steam Settings	Low, Medium, High
Floor Types	Sealed hardwood, tile, vinyl, laminate, marble, stone
Mop Pad Type	Machine-washable microfiber pad
Mop Pad Included	2 pads
Cord Length	25 feet (7.6 m)
SmartSet Digital Control	Dial selector for steam levels
Ready Light Indicator	Yes
Auto Shut-Off	Yes (when not in use or overheating)
Easy Fill Reservoir	Removable water tank for easy filling
Maintenance	Descale periodically; wash pads after each use
Replacement Parts	Model specific: pads, water tank, steam trigger
Warranty	2-year limited warranty

Frequently Asked Questions - PowerFresh 2232H BISSELL

How do I assemble the Bissell PowerFresh 2232H steam mop?

The unit comes mostly assembled. Slide the handle into the mop body until it clicks. Attach the removable water tank, fill with water, and attach a microfiber pad to the mop head.

Can I use tap water in the PowerFresh 2232H?

Yes, tap water is fine for most areas. If you have hard water, using distilled water can help reduce mineral buildup. Avoid using additives or chemicals.

How long does it take to heat up?

The Bissell PowerFresh 2232H heats up in approximately 30 seconds. The ready light will indicate when steam is available.

Can I use the steam mop on unsealed hardwood floors?

No, this steam mop is designed for sealed hard floors only. Using it on unsealed wood can cause damage. Check your floor manufacturer's recommendations.

How do I clean the mop pads?

The microfiber pads are machine washable. Wash in warm water with mild detergent, and air dry or tumble dry on low. Do not use fabric softener or bleach.

Why is my mop leaving streaks or residue?

Streaks may occur if the pad is dirty or over-saturated. Use a fresh, dry pad. Also, ensure you are not using too much steam on delicate surfaces. For best results, pre-vacuum floors.

How do I descale the steam mop?

To remove mineral deposits, mix a solution of 50% water and 50% white vinegar in the tank. Run the mop until half the solution is used, then let it sit for 30 minutes, empty, and rinse with clean water.

Can I use the steam mop on carpets or rugs?

No, this model is designed for hard floors only. Do not use on carpets or rugs, as steam can damage them.

What does the SmartSet Digital Control do?

The SmartSet Digital Control allows you to adjust steam level: low for delicate floors, medium for everyday cleaning, and high for tough messes.

Where can I purchase replacement parts?

Replacement pads, water tanks, and other parts are available on Bissell's official website, Amazon, and many home appliance retailers. Use model number 2232H.

USER MANUAL PowerFresh 2232H BISSELL

Line drawing of two different vacuum cleaner stoves with cord and base (no text or symbols)

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USING YOUR APPLIANCE.

Unplug from outlet when not in use and before conducting maintenance. When using an electrical appliance, basic precautions should be observed, including the following:

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY:

»This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. »Children should be supervised to ensure that they do not play with the appliance. »Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts of the appliance and its accessories. »Unplug from electrical socket when not in use, before cleaning, maintaining or servicing the appliance, and if your appliance has an accessory tool with a moving brush, before connecting or disconnecting the tool.

»If the supply cable is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified person in order to avoid a hazard. »Do not run appliance over cable.

» Plastic film can be dangerous. To avoid danger of suffocation, keep away from children.
»Use only as described in this user guide.
»Use only manufacturer's recommended attachments.
»Do not immerse in water or liquid.
» If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water; do not attempt to operate it and have it repaired at an authorized service center. »Do not put any object into openings.
» Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow. »Use extra care when cleaning on stairs.
» Do not use to pick up flammable or combustible liquids, such as petroleum, or use in areas where they may be present.
» Do not pick up toxic material (chlorine bleach, ammonia, drain cleaner, etc.)

» Do not use appliance in an enclosed space filled with vapours given off by oil base paint, paint thinner, some mothproofing substances, flammable dust, or other explosive or toxic vapours.
» Do not pick up hard or sharp objects such as glass, nails, screws, coins, etc.
»Keep appliance on a level surface.
» Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
»If your appliance has a motorized brushroll, do not leave machine running in the same spot without the handle fully upright.
»Do not leave appliance when plugged in.
»Do not use with damaged cable or plug.
» Do not pull or carry by cable, use cable as a handle, close door on cable, or pull cable around sharp edges or corners.
»Keep cable away from heated surfaces.
»To unplug, grasp the plug, not the cable.
»Do not handle plug or appliance with wet hands.
»Turn off all controls before unplugging.
» Hold plug when rewinding onto cord reel. Do not allow plug to whip when rewinding.
»Do not use outdoors or on wet surfaces.
»Always connect to a properly earthed electrical socket.
» The appliance is not to be used if it has been dropped, if there are visible signs of damage or if it is leaking.
» Keep the appliance out of reach of children when it is energized or cooling down.
»The foot surfaces are liable to get hot during use.
» Do not direct steam at people, animals, or equipment containing electrical components.
» Do not use on leather, wax polished furniture or floors, synthetic fabrics, velvet or other delicate, steam-sensitive materials.
»Always turn off vacuum mode if you encounter liquid on the floor.
» Do not leave the appliance unattended while it is connected to the supply mains.
»Do not open the filling aperture during use.

WARNING

SURFACE MAY BE HOT. AVOID CONTACT.

SAVE THESE INSTRUCTIONS

FOR OPERATION ON A 220-240 VOLT A.C. 50-60 HZ POWER SUPPLY ONLY.

This model is for household use only.

Thanks for buying a BISSELL PowerFresh® Slim Steam Mop

Your steam mop needs a little assembly before you can put it to work, so flip to page 5 and let's get started!

Safety Instructions.....2

Troubleshooting ..... 14

Product View....4

Guarantee 15

Assembly 5

Service 15

Operations 6-10

Maintenance & Care ..... 11-13

What's In The Box?

Handheld Pod

Wall Mount & Screws

Mop Pad Foot

White Mop Pad

Scrubby Mop Pad

Water Cup

Tool Box with Tools

Green Bristle Brush (comes in toolbox)

Grout Tool (comes in toolbox)

Flat Scraper Tool (comes in toolbox)

Angle Concentrator Tool (comes in toolbox)

Extension Wand

Window Squeegee

Flat Surface Tool

Flat Surface Mop Pad

Fabric Steamer

Tool BagRed|Brist

Black Bristle Brush

Brush

Brass Bristle Brush

Fabric Steamer Cloth

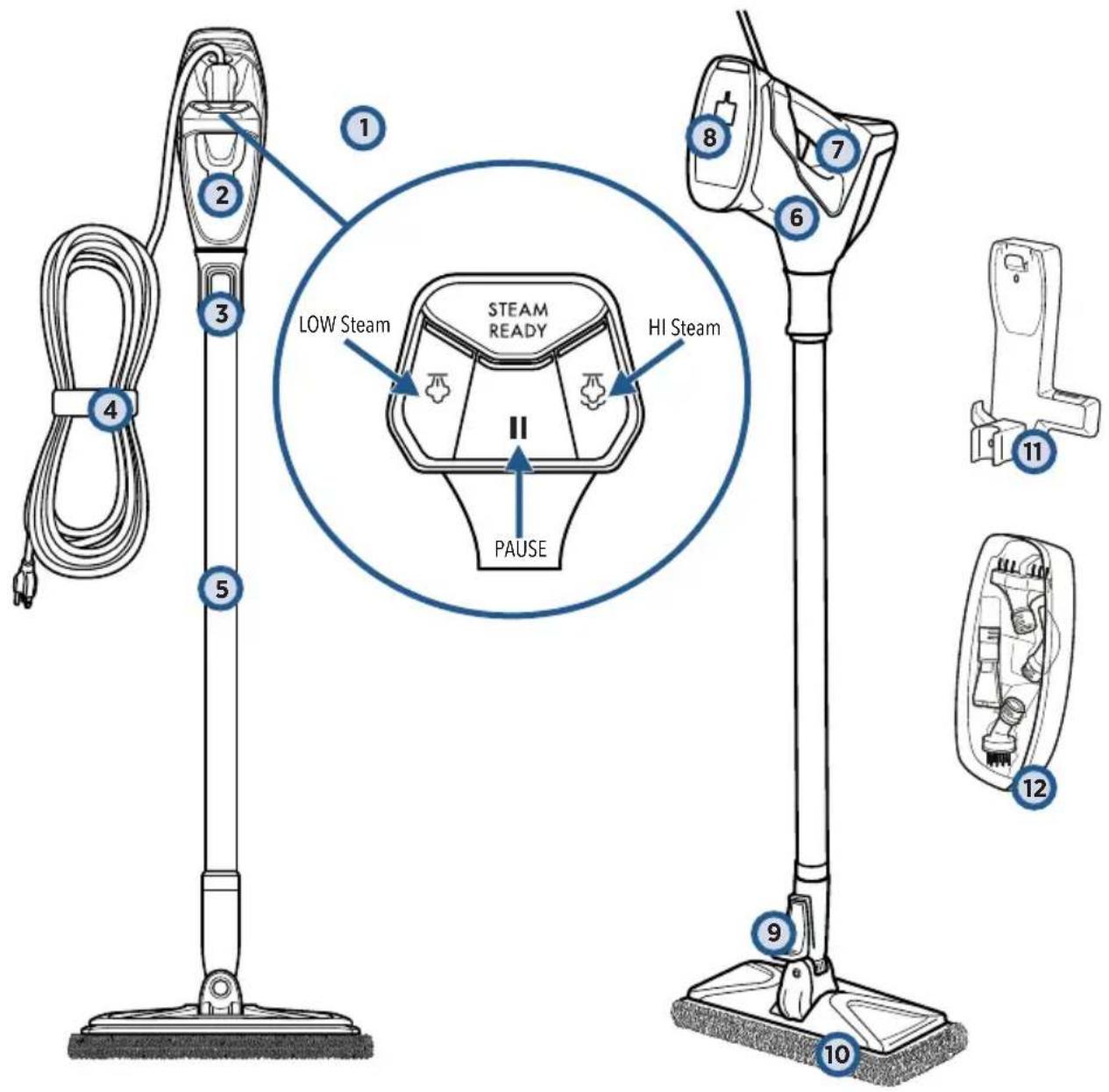

Getting to Know Your Steam Mop

1 SmartSet Steam Control
2 Easy Fill Water Tank
3 Handheld Pod Release Button
4 Power Cable with Wrap Strap
5 Extension Wand
6 Handheld Pod

7 Steam Trigger
8 Wall Mount Storage Clip Area
9 Extension Wand Release Pedal
10 Mop Pad Foot
11 Wall Mount
12 Tool Box

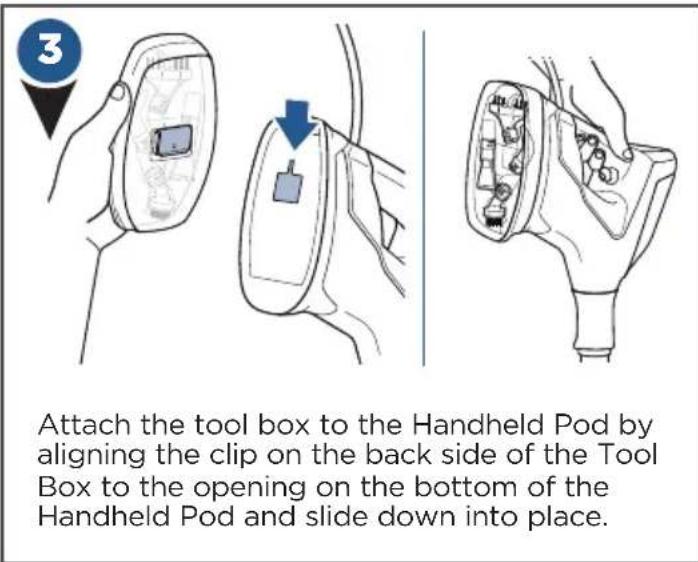

NOTE: Tool Box stores Green Bristle Brush, Angle Concentrator Tool, Grout Tool, and Flat Scraper Tool.

Assembly

WARNING

Do not plug in your PowerFresh® Slim Steam Mop until you are familiar with all instructions and operating procedures.

Your BISSELL PowerFresh® Slim Steam Mop assembles quickly and easily. It is packaged with the following items:

• Handheld Pod
• Extension Wand
• Mop Pad Foot

NOTE: For instructions on attaching the Wall Mount and Storage, please refer to page 12.

WARNING

Never put descaling aromatic, alcoholic, or detergent products into the steam cleaner, as this may damage it or make it unsafe for use. Tinted plates on foot may get hot while steam mop is in use. Do not touch while hot. Upright storage of the PowerFresh® Slim Steam Mop with a wet mop pad may result in the formation of white marks on your floor. To remove the white marks, clean area with vinegar.

Filling Your Water Tank

Line drawing of a hairdryer with a blue arrow indicating downward motion (no text or symbols)

The Water Tank is located on the top of the Handheld Pod.

Technical line drawing of a mechanical device with no visible text or symbols

Pull the Water Tank cap straight up to open.

Line drawing of a hand using a tool to lift or lift a mechanical component (no text or symbols)

Use Water Cup provided and fill with distilled or demineralized water, recommended in place of tap water.

Close the Water Tank cap after filling.

A few notes about filling the Water Tank:

- The Water Tank's capacity is 350 mL (12 oz).

DO NOT USE CHEMICALS IN THE WATER TANK OF YOUR POWERFRESH® SLIM STEAM MOP.

- Other solutions may harm the machine and void the guarantee.

NOTE: Use of distilled water or demineralized water is recommended to prolong the life of your steam mop. To add a fresh scent as you clean, try BISSELL demineralized waters in various scents like Citrus, Eucalyptus Mint, and Spring Breeze.

NOTE: Never put descaling, alcoholic, eucalyptus oil, or detergent products into the steam cleaner, as this may damage it or make it unsafe for use.

Attaching Microfibre Mop Pads

Your PowerFresh® Slim Steam Mop may have come with two different pads.

White Mop Pad

Scrubby Mop Pad

The White Mop Pad is best for everyday use on delicate flooring like sealed hardwoods and laminate. The Scrubby

Mop Pad is recommended for durable surfaces like tile.

Illustration of a hand using a tool to press or mark a surface, no text or symbols present

To attach Mop Pad, wrap Mop Pad around the bottom of the foot, making sure the gray stitching is located on the front of the foot and the Quick Grip Release™ Tab is located on the back.

Using SmartSet™ Steam Control

Plug machine into a properly grounded outlet.

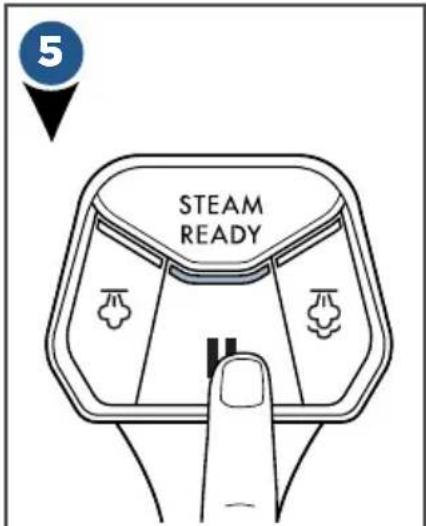

When the unit is plugged in, the STEAM READY light will start to blink.

After 30 seconds, the STEAM READY light will turn to a solid light. This means the steam mop is heated and ready to use.

NOTE: You must wait until the STEAM READY light is a solid colour before selecting your desired steam level. Upon the first use of your steam mop or first use after refilling the Water Tank, the pump may make a “knocking” sound. This is normal and will diminish after a few seconds.

To turn steam OFF, press the PAUSE button once.

Cleaning Your Hard Floors

NOTE: Before you clean, thoroughly sweep or vacuum floor prior to cleaning with the PowerFresh® Slim Steam Mop.

YOUR STEAM MOP IS DESIGNED TO CLEAN HARD FLOORING SUCH AS CERAMIC TILE, LAMINATE, MARBLE, STONE, AND SEALED HARDWOOD FLOORS. USE OF YOUR STEAM MOP ON WAXED OR SOME UNWAXED FLOORS MAY RESULT IN A DIMINISHED GLOSSINESS. THE STEAM MOP IS NOT FOR USE ON UNSEALED FLOORS. FOR BEST RESULTS, TEST IN AN INCONSPICUOUS AREA AND CHECK THE CARE INSTRUCTIONS FROM YOUR FLOORING MANUFACTURER. DON'T STAND STATIONARY AND KEEP THE MOP MOVING WHEN DISPENSING STEAM.

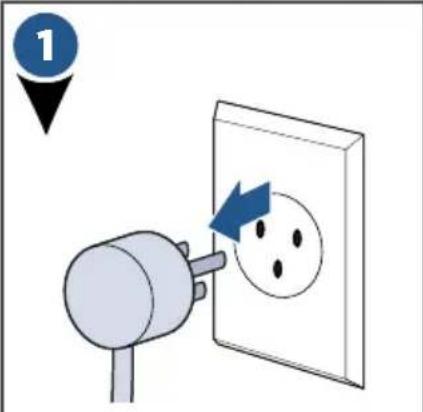

Plug machine into a properly grounded outlet.

Make sure the STEAM READY light is solid before selecting the appropriate steam level based on your hard floor cleaning needs.

Step on the side of the foot to recline the body of the machine to begin cleaning.

NOTE: Your Steam Mop may have already come assembled with a Mop Pad on the foot. If not, refer to instructions on page 6 in the “Attaching Microfibre Mop Pads” section to learn how to attach the Mop Pad.

To easily manoeuvre and clean tight spaces such as baseboards, behind the toilet, and around furniture, take advantage of the swivel steering.

For best results to sanitize an area of your floor, use the microfibre cloth pads and slowly and evenly stroke your steam mop back and forth at least three times over the area using continuous steam. Remove the pad after use and wash.

When finished cleaning, turn off the machine by pressing the PAUSE button and unplugging the unit.

Above Floor Cleaning

Your BISSELL PowerFresh® Slim Steam Mop has the ability to clean above floors or in tight spaces when using the Extension Wand. It also has the convenience of converting into a handheld steamer when removing the Extension Wand.

Wait 30 seconds before changing from mopping to the handheld feature or disconnecting a tool from the Handheld Pod or Extension Wand, make sure steam is no longer coming from the nozzle by releasing the trigger and pressing the PAUSE button.

To clean above floors using the Extension Wand, step down on the pedal located on the back of the steam mop and lift up to release the Extension Wand.

Line drawing of a handheld tool with a bulb and handle, no text or symbols present

Be sure the desired steam setting is selected, then push the trigger located under the handle of the Handheld Pod to release steam.

NOTE: Do not step on the back pedal to recline the unit. When removing the Extension Wand from the foot, make sure to lift away from your body as the bottom of the wand may release steam.

Illustration of a hand holding a pen with a scroll, showing a blue circular arrow indicating rotation (no text or symbols)

Align arrow on tool to arrow on end of nozzle (on Extension Wand or handheld steamer) and twist tool into place.

Diagram of a shower shower system with a lever and sink, no text or symbols present

Attach desired tool to end of Extension Wand to clean above floors and hard to reach areas such as ceilings, showers, baseboards, and sliding door tracks.

To convert the steam mop into a handheld steamer, push the release button on top of the Extension Wand and lift up to detach the Handheld Pod from the Extension Wand.

Line drawing of a hand holding a spray gun with a spray nozzle (no text or symbols)

Cleaning Without Tools:

Push the trigger located under the handle of the Handheld Pod to release steam from the end of the Handheld Pod.

Line drawing of a handheld electric shock absorber with a blue arrow indicating force direction (no text or symbols)

Cleaning With Tools:

Make sure steam is no longer coming from the nozzle by releasing the trigger and pressing the PAUSE button. Then connect the desired tool.

Above Floor Cleaning (continued)

Based on your cleaning needs, connect desired tool to the end of the Extension Wand or the Handheld Pod. Select cleaning tools are included with this model.

Use the Flat Scraping Tool to steam and scrape off those sticky messes on floors, countertops, etc.

Use the Grout Tool to remove dirt and grime from grout.

Use the Mop Pad Foot to steam larger areas such as shower walls, countertops, stairs, etc.

Line drawing of a kitchen sink with faucet and shower (no text or symbols)

Use the Angle Concentrator Tool to steam clean hard-to-reach corners and crevices where dirt and grime build-up in the home, like sinks and faucets.

Line drawing of a hand using a tool on a stove burner with three rotary knobs (no text or symbols)

Use the Green Bristle Brush to clean around stove tops, sinks, showers, etc.

NOTE: Additional tools are available for purchase on BISSELL.com.au.

Diagram showing a plug inserted into a wall socket with a blue arrow indicating direction (no text or symbols)

When finished cleaning, turn OFF the machine by pressing the PAUSE button and unplug the unit.

Illustration of a hand holding a small object with a blue arrow pointing to a cylindrical device (no text or symbols present)

Wait for the steam to stop, then remove tools from the Extension Wand and/or Handheld Pod before reassembling your machine.

CAUTION: Let steam cool down before removing tools. The end of the Extension Wand or Handheld Pod will be hot.

Insert foot back into the end of the Extension Wand until it clicks into place.

≥slant click ≤slant

Illustration of a hand using a dropper to lift a small object with a downward arrow, symbolizing mechanical or electrical damage (no text or symbols present)

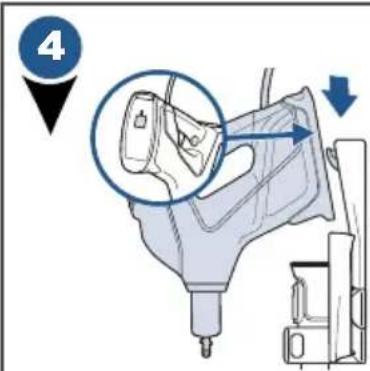

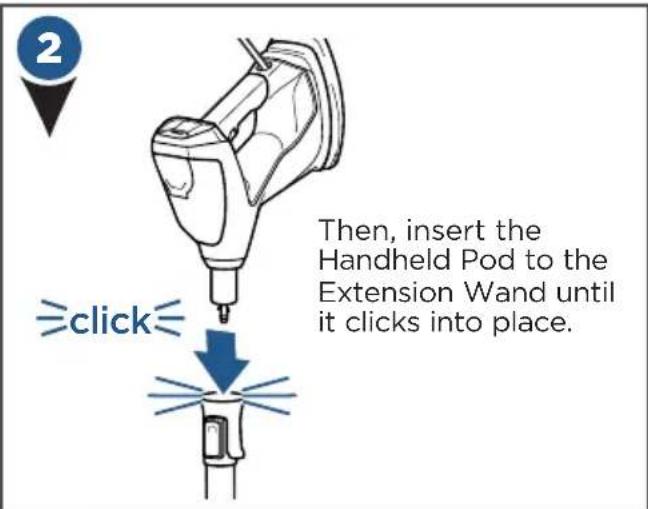

Then, insert the Handheld Pod back into the Extension Wand until it clicks into place.

≥ click ≤

Cleaning Your Steam Mop

WARNING

To reduce the risk of fire, electric shock or injury, turn power OFF and disconnect plug from electrical outlet before performing maintenance or troubleshooting.

Turn machine OFF and unplug from the grounded outlet.

Illustration of a hand using a cleaning tool to clean or store floor tiles (no text or symbols)

Carefully remove Mop Pad using the Quick Grip Release Tab from the mop head.
NOTE: Mop Pad and lower assembly may be hot.

Illustration of a hand using a blue-handled tool to cut a surface, with a numbered marker '3' in the corner (no text or symbols on the diagram itself)

Mop Pads can be machine washed in warm water. Use only non-bleach liquid detergents. Do not use fabric softeners or bleach. For best results, air dry.

Illustration showing hands holding a rope tied with a strap, alongside a separate rope being wrapped in a blanket (no text or symbols)

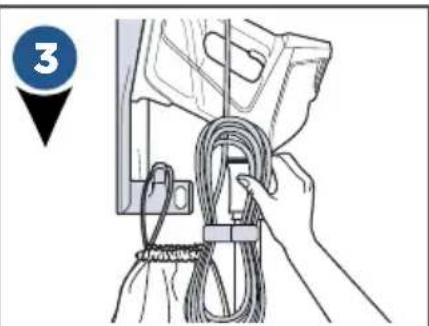

Wrap the cable around the palm of your hand into a circle. Then, place the wrap strap around the cable and back onto itself to secure.

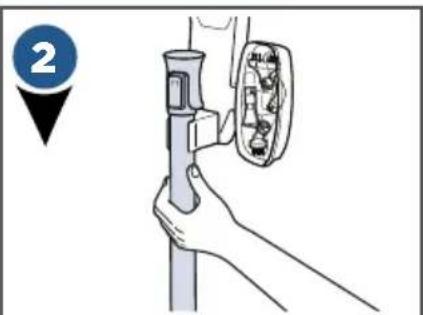

Store on the Wall Mount that is securely mounted to a wall in a protected, dry area. Store with dry Mop Pads as wet Mop Pads may damage wood and other delicate hard floors.

NOTE: Unit does not stand up on its own. If you are not using the Wall Mount, make sure your Steam Mop is stored in a safe place, in the upright position against a firm surface to prevent from falling over.

Setting Up The Wall Mount

A Phillips-head screwdriver is needed to install the Wall Mount. If installing onto drywall, use plastic anchors with provided screws.

Place the Wall Mount against the wall in the area where you've determined you would like to store your machine.

Place each screw through the two holes in the Wall Mount. Use a screwdriver or drill to affix to the wall.

Find the clip on the back of the Tool Box and hook it into the right side of the Wall Mount.

Using The Wall Mount Storage

WARNING

To reduce the risk of fire, electric shock or injury, turn power OFF and disconnect plug from electrical outlet before performing maintenance or troubleshooting.

Your BISSELL PowerFresh® Slim Steam Mop can be stored in 2 different ways using the Wall Mount.

OPTION 1:

Find the opening on the back of the Handheld Pod and hook it onto the top lip of the Wall Mount.

Bend the Mop Pad Foot downward in a slanted position.

Illustration of a person using a rope harness to tie a knot (no text or symbols present)

Hang the power cable and tool bag on the left-side hook.

OPTION 2:

Detach the Extension Wand from Handheld Pod.

Clip the Extension Wand into the holder.

Bend the Mop Pad Foot downward in a slanted position.

Find the opening on the back of the Handheld Pod and hook it onto the top lip of the Wall Mount.

Hang the power cable and tool bag on the left-side hook.

Troubleshooting

WARNING

To reduce the risk of electric shock, turn power switch OFF and disconnect plug from electrical outlet before performing maintenance or troubleshooting checks.

Problem Possible causes Remedies
Reduced steam OR no steam	Water Tank empty. Refill tank.
	Steam level not selected. Select steam level by pushing steam level button.
	Wand not installed properly. Push the wand all the way into the handheld pod until you hear a click.
	Foot not installed properly. Insert the Extension Wand into foot until you hear a click.
	PAUSE button is pressed. Once STEAM READY light is solid, select desired steam level (HI or LO) then push the trigger under the handle of the Handheld Pod to release steam.
Streaking	Dirty Mop Pad. Remove and wash Mop Pad per instructions before further use.
	Use on waxed or oiled floor. If you have used floor polishes or wax on your floors, steam products may decrease glossiness. Refer to the wax or polish manufacturer. If you don't wax or polish your floors, check the floor care instructions from your flooring manufacturer.
Leaking	Mop Pad is too wet. Remove and replace with dry Mop Pad and intermittently press the steam trigger for less steam.
	Steam level is too high. Lower the steam level.
	Crack in unit or Water Tank. Check to see if there are any cracks on the unit or tank and check to make sure the rubber gasket on the tank is still attached and seated properly in the unit.
Knocking noise	First use or Water Tank is empty. Fill Water Tank and knocking will diminish after a few seconds.
	Metal tube cannot reach water. Shake the pod to let the tube reach the water level.

Consumer Guarantee

This Guarantee gives you specific legal rights, in addition to rights you may have under the Australian Consumer Law. If you need additional instruction regarding this Guarantee or have questions regarding what it may cover, please contact your local BISSELL Consumer Services on the details set out below.

Limited 2 Year Guarantee (from the date of purchase by original purchaser)

Subject to the *CONDITIONS identified below, BISSELL will repair or replace (with new, refurbished, lightly used, or remanufactured components or products), at BISSELL's option, free of charge, any defective or malfunctioning part due to manufacturer defect. This Guarantee applies to product used for personal purposes, and not commercial or rental service. This Guarantee does not apply to fans or routine maintenance or consumable components such as filters, belts, brush rolls, etc., damage or malfunction caused by negligence, abuse, neglect, unauthorised repair, or any other use not in accordance with the user's guide. BISSELL recommends that the original packaging be kept for the duration of the Guarantee period in case such need arises within the Guarantee period that the item needs re-packing and transportation.

\*CONDITIONS OF THE GUARANTEE

Subject to whether such loss is reasonably foreseeable, BISSELL and its in-country distributors are not liable for incidental or consequential damages of any nature associated with the use of this product.

FOR AUSTRALIAN CONSUMERS ONLY:

OUR GOODS COME WITH GUARANTEES THAT CANNOT BE EXCLUDED UNDER THE AUSTRALIAN CONSUMER LAW. YOU ARE ENTITLED TO A REPLACEMENT OR REFUND FOR A MAJOR FAILURE AND FOR COMPENSATION FOR ANY OTHER REASONABLY FORESEEABLE LOSS OR DAMAGE. YOU ARE ALSO ENTITLED TO HAVE THE GOODS REPAIRED OR REPLACED IF THE GOODS FAIL TO BE OF ACCEPTABLE QUALITY AND THE FAILURE DOES NOT AMOUNT TO A MAJOR FAILURE.

THIS GUARANTEE IS IN ADDITION TO OTHER RIGHTS OR REMEDIES UNDER LAW. NOTHING IN THIS GUARANTEE EXCLUDES, LIMITS, OR MODIFIES ANY LIABILITY OF BISSELL WHICH IS IMPOSED BY LAW, OR LIMITS OR MODIFIES ANY REMEDY AVAILABLE TO THE CONSUMER WHICH IS GRANTED BY LAW. TO MAKE A CLAIM UNDER THIS GUARANTEE CONTACT BISSELL AUSTRALIA PTY LTD (DETAILS ABOVE). CONTACT BISSELL PRIOR TO RETURNING ANY GOODS. WHERE AGREED, BISSELL WILL REIMBUSE REASONABLE POSTAGE / HANDLING COSTS (IF ANY) FOR RETURNING GOODS TO BISSELL. TO CLAIM EXPENSES INCURRED IN MAKING A CLAIM UNDER THIS GUARANTEE PLEASE PROVIDE BISSELL WITH A COPY OF THE RECEIPT OF THE EXPENSES BY EMAIL OR POST.

Consumer Care

If your BISSELL product should require service or to claim under our limited guarantee, please contact us as follows:

Website and Email:

www.bissell.com.au

www.bissell.co.nz

Telephone:

Australia: 1300-247-735

New Zealand: 0800-247-735

Write:

BISSELL AUSTRALIA PTY LIMITED

42 Rocco Dr.

Scoresby 3179

Victoria

Australia

Replacement parts and accessories are available for purchase. To purchase visit www.BISSELL.com.au.

Visit the BISSELL website: www.BISSELL.com.au

When contacting BISSELL, have model number of cleaner available.

Please record your Model Number: ____ Please record your Purchase Date: ____

NOTE: Please keep your original sales receipt. It provides proof of the date of purchase in the event of a Guarantee claim. See Guarantee for details.
