Comfort 14 E - Air-conditioner OLIMPIA SPLENDID - Free user manual and instructions

Product Type	Portable Air Conditioner (Monoblock)
Brand	Olimpia Splendid
Model	Comfort 14 E
Cooling Capacity	14,000 BTU/h (4.1 kW)
Air Flow Rate	450 m³/h (max)
Noise Level	65 dB(A) (max)
Power Supply	230 V ~ 50 Hz
Power Consumption (Cooling)	1.4 kW
Refrigerant	R290 (propane), 0.35 kg
Dimensions (W x D x H)	47 x 38 x 75 cm
Weight	32 kg
Functions	Cooling, Fan, Dehumidification, Sleep Mode, Timer
Control Type	Electronic control panel with remote control
Filter	Washable anti-dust filter
Condensate Management	Self-evaporation (no bucket required)
Installation	Window kit included for exhaust hose
Safety Features	Thermal overload protection, auto restart, child lock
Energy Efficiency Class	A (cooling)
Reparability	Spare parts available from authorized service centers

Frequently Asked Questions - Comfort 14 E OLIMPIA SPLENDID

How do I clean the air filter on the Comfort 14 E?

Turn off and unplug the unit. Open the front grille and remove the filter. Wash it with warm soapy water, rinse, and let it dry completely before reinstalling. Clean every 2 weeks for optimal performance.

Does the Comfort 14 E need a drain bucket?

No, it features self-evaporation technology. In high humidity, the internal tank may fill and need draining via a hose, but typically it evaporates most condensate automatically.

What is the noise level of this air conditioner?

The maximum noise level is 65 dB(A), comparable to a normal conversation. In sleep mode, it operates quieter.

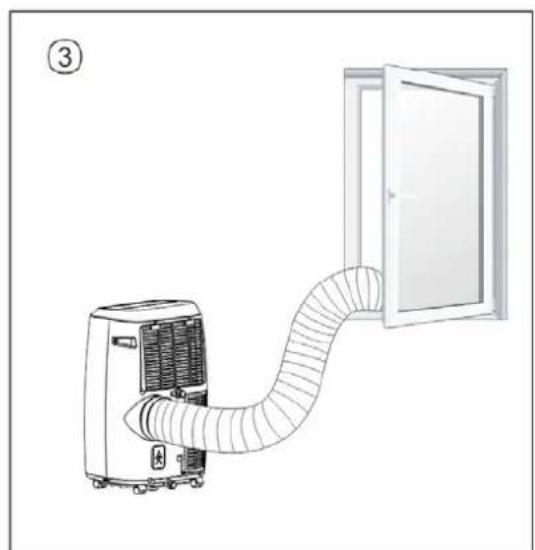

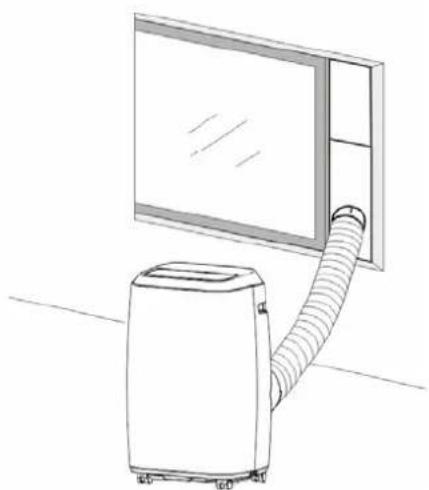

How do I install the exhaust hose?

Insert the hose connector into the back of the unit. Extend the hose and attach the window kit adapter to the sliding window panel. Close the window to secure the seal.

Can I use the Comfort 14 E as a heater?

No, it is a cooling-only air conditioner. It does not have a heat pump function.

What does the error code E4 mean?

E4 indicates a sensor fault or drainage issue. Try unplugging the unit for 10 minutes and ensure the water tank is empty. If persists, contact support.

How often should I service the air conditioner?

Clean the filter every 2 weeks. Have a professional inspect the unit yearly to check refrigerant levels and electrical components.

What is the energy efficiency rating?

It has an EU energy efficiency class A for cooling, with a Seasonal Energy Efficiency Ratio (SEER) of approximately 3.2.

Can I use an extension cord?

It is recommended to plug directly into a wall outlet. If necessary, use a heavy-duty extension cord rated at least 15A with a ground.

How do I set the timer?

Press the Timer button on the remote or control panel to set the unit to turn on or off after a set number of hours (1-24). Confirm with the Set button.

USER MANUAL Comfort 14 E OLIMPIA SPLENDID

White portable air conditioner unit with control panel and wheels (no visible text or symbols)

INSTRUCTION FOR USE AND MAINTENANCE

EN

Caution: risk of fire

OLIMPIA SPLENDID

HOME OF COMFORT

Contents

1. Safety Awareness .... 1

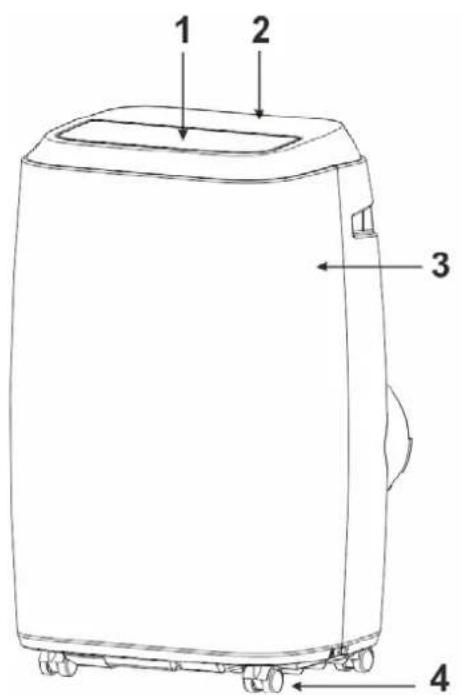

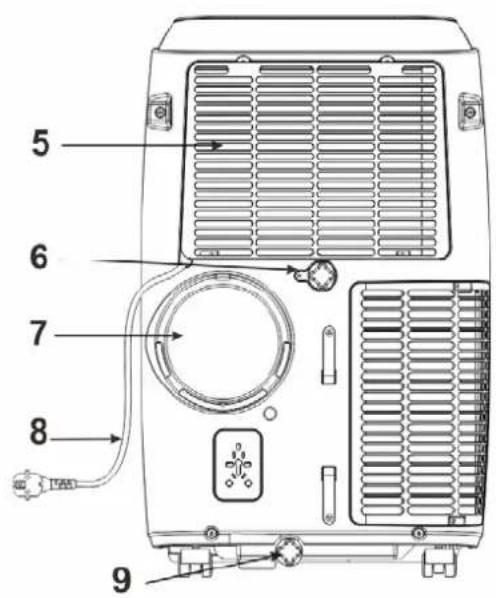

2. Name of Parts 12
3. Accessories 13

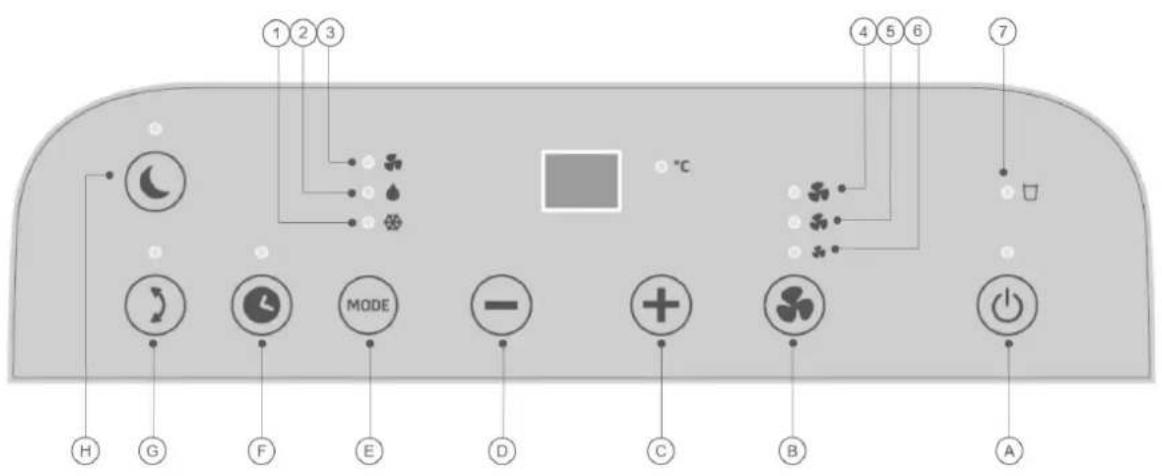

4. Appearance and Function of Control Panel 14
5. Appearance and Function of Remote Control 15
   6.Operation Introduction.... 16
6. Installation 19
   8.Maintenance 22
   9.Troubleshooting 23

1. Safety Awareness

VERY IMPORTANT!

Please do not install or use your portable air-conditioner before you have carefully read this manual. Please keep this instruct ion manual for an eventual product warranty and for future reference.

Warning

Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer.

The appliance shall be stored in a room without continuously operating ignition sources (for example: open flames, an operating gas appliance or an operating electric heater.

Do not pierce or burn.

Be aware the refrigerants may not contain an odour.

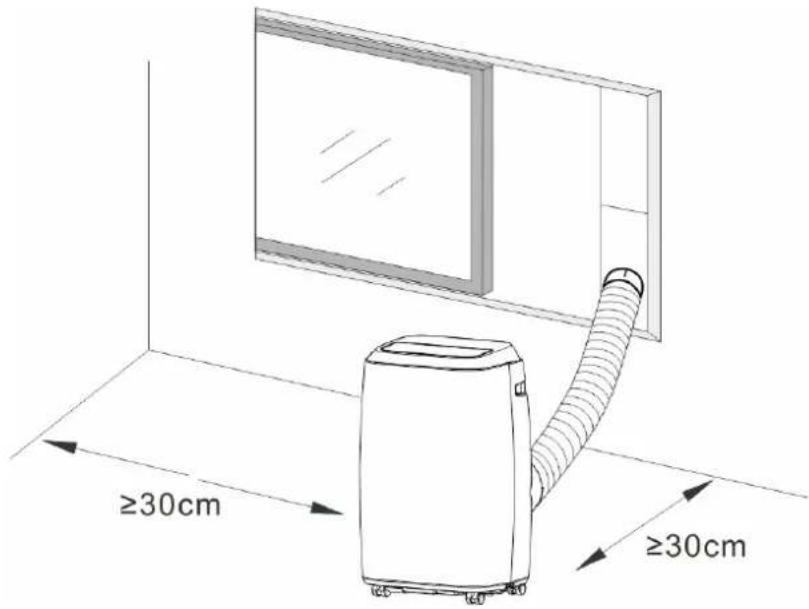

Appliance shall be installed, operated and stored in a room with a floor area larger than X m ^4 .

MODEL X (m)	^2)
14000 Btu/h	4

Warning (for R32)

Specific information regarding appliances with R32 refrigerant gas.

• Thoroughly read all of the warnings.
- When defrosting and cleaning the appliance, do not use any tools other than those recommended by the manufacturing company.

• The appliance must be placed in an area without any continuously sources of ignition (for example: open flames, gas or electrical appliances in operation).
• Do not puncture and do not burn.
• This appliance contains Y g (see rating label back of unit) of R32 refrigerant gas.
• R32 is a refrigerant gas that complies with the European directives on the environment. Do not puncture any part of the refrigerant circuit.
• If the appliance is installed, operated or stored in an unventilated area, the room must be designed to prevent to the accumulation of refrigerant leaks resulting in a risk of fire or explosion due to ignition of the refrigerant caused by electric heaters, stoves, or other sources of ignition.
• The appliance must be stored in such a way as to prevent mechanical failure.
• Individuals who operate or work on the refrigerant circuit must have the appropriate certification issued by an accredited organization that ensures competence in handling refrigerants according to a specific evaluation recognized by associations in the industry.
• Repairs must be performed based on the recommendation from the manufacturing company. Maintenance and repairs that require the assistance of other qualified personnel must be performed under the supervision of an individual specified in the use of flammable refrigerants.

General Safety Instruction

1. The appliance is for indoor use only.
2. o not plug in the unit if malfunctioning, or not installed properly
3. Do not use the unit:

A: Near to source of fire.
B: An area where oil is likely to splash.
C: An area exposed to direct sunlight.
D: An area where water is likely to splash.
E: Near a bath, a laundry, a shower or a swimming pool.

1. Never insert your fingers, or other items into the air outlet. Take special care to warn children of these dangers.
2. Keep the unit upward while transport and storage, for the compressor locates properly.

3. Before cleaning the air-conditioner, always turn off or disconnect the power supply.

4. When moving the portable air-conditioner, always turn off and disconnect the power supply, and move it slowly.

5. To avoid the possibility of fire disaster, the portable air-conditioner shall not be covered.
6. The portable air-conditioner socket must comply with safety requirements. If necessary, please check with the relevant authority where required.
7. Children should be supervised to ensure that they do not play with the appliance.
8. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
9. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
10. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
11. The appliance shall be installed in accordance with national wiring regulations.
12. Details of type and rating of fuses: T, 250V AC, 3.15A or higher.
13. Recycling

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

1. Contact authorized service technician for repair or maintenance of this unit.
2. Do not pull, deform. or modify the power supply cord, or immerse it in water. Pulling or misuse of the power supply cord can result in damage to the unit and cause electrical shock.
3. Compliance with national gas regulations shall be observed.
4. Keep ventilation openings clear of obstruction.
5. Any person who is involved with working on a refrigerant circuit should hold a current valid certificate from an industry-accredited assessment authority, which authorizes their competence to handle refrigerants safely in accordance with an industry recognized assessment specification.
6. Servicing shall only be performed as recommended by the equipment manufacturer. Maintenance and repair requiring the assistance of other skilled personnel shall be carried out under the supervision of the person competent in the use of flammable refrigerants.
7. Do not operate or stop the unit by inserting or pulling out the plug, as it may cause electric shock or fire due to heat generation.
8. Unplug the unit if strange sounds, smell, or smoke comes from it.

Warning symbol depicting flame inside a triangle (no text or numbers)

Simple line drawing of an open book with no text or symbols visible

25. Impedance declaration

These appliances can be connected only to a supply with system impedance no more than 0.367Ω. In case necessary, please consult your supply authority for system impedance information

Notes:

— If any parts are damage, please contact the place of purchase for assistance;
— In case of any damage, please turn off the air switch, disconnect the power supply, and contact

the dealer or a designated repair shop;

— Ensure the power chord is always grounded.
— To avoid the possibility of danger, if the power cord is damaged, please turn off the air switch and disconnect the power supply. It must be returned to the place of purchase.

INSTRUCTIONS FOR REPAIRING APPLIANCES CONTAINING R32

1 GENERAL INSTRUCTIONS

1.1 Checks to the area

Prior to beginning work on systems containing flammable refrigerants, safety checks are necessary to ensure that the risk of ignition is minimised. For repair to the refrigerating system, the following precautions shall be complied with prior to conducting work on the system.

1.2 Work procedure

Work shall be undertaken under a controlled procedure so as to minimise the risk of a flammable gas or vapour being present while the work is being performed.

1.3 General work area

All maintenance staff and others working in the local area shall be instructed on the nature of work being carried out. Work in confined spaces shall be avoided. The area around the workspace shall be sectioned off. Ensure that the conditions within the area have been made safe by control of flammable material.

1.4 Checking for presence of refrigerant

The area shall be checked with an appropriate refrigerant detector prior to and during work, to ensure the technician is aware of potentially flammable atmospheres. Ensure that the leak tection equipment being used is suitable for use with flammable refrigerants, i.e. nonsparking, adequately sealed or intrinsically safe.

1.5 Presence of fire extinguisher

If any hot work is to be conducted on the refrigeration equipment or any associated parts, appropriate fire extinguishing equipment shall be available to hand. Have a dry powder or CO 2 fire extinguisher adjacent to the charging area.

1.6 No ignition sources

No person carrying out work in relation to a refrigeration system which involves exposing any pipe work that contains or has contained flammable refrigerant shall use any sources of ignition in such a manner that it may lead to the risk of fire or explosion. All possible ignition sources, including igarette smoking, should be kept sufficiently far away from the site of installation, repairing, removing and disposal, during which flammable refrigerant can possibly be released to the surrounding space. Prior to work taking place, the area around the equipment is to be surveyed to make sure that there are no flammable hazards or ignition risks. “No Smoking” signs shall be

displayed.

1.7 Ventilated area

Ensure that the area is in the open or that it is adequately ventilated before breaking into the system or conducting any hot work. A degree of ventilation shall continue during the period that the work is carried out. The ventilation should safely disperse any released refrigerant and preferably expel it externally into the atmosphere.

1.8 Checks to the refrigeration equipment

Where electrical components are being changed, they shall be fit for the purpose and to the correct specification. At all times the manufacturer's maintenance and service guidelines shall be followed. If in doubt consult the manufacturer's technical department for assistance. The following checks shall be applied to installations using flammable refrigerants: the charge size is in accordance with the room size within which the refrigerant containing parts are installed; the ventilation machinery and outlets are operating adequately and are not obstructed; if an indirect refrigerating circuit is being used, the secondary circuit shall be checked for the presence of refrigerant; marking to the equipment continues to be visible and legible. Markings and signs that are illegible shall be corrected; refrigeration pipe or components are installed in a position where they are unlikely to be exposed to any substance which may corrode refrigerant containing components, unless the components are constructed of materials which are inherently resistant to being corroded or are suitably protected against being so corroded.

1.9 Checks to electrical devices

Repair and maintenance to electrical components shall include initial safety checks and component inspection procedures. If a fault exists that could compromise safety, then no electrical supply shall be connected to the circuit until it is satisfactorily dealt with. If the fault cannot be corrected immediately but it is necessary to continue operation, an adequate temporary solution shall be used. This shall be reported to the owner of the equipment so all parties are advised.

Initial safety checks shall include: that capacitors are discharged: this shall be done in a safe manner to avoid possibility of sparking; that there no live electrical components and wiring are exposed while charging, recovering or purging the system; that there is continuity of earth bonding.

2 REPAIRS TO SEALED COMPONENTS

2.1 During repairs to sealed components, all electrical supplies shall be disconnected from the equipment being worked upon prior to any removal of sealed covers, etc. If it is absolutely necessary to have an electrical supply to equipment during servicing, then a permanently operating form of leak detection shall be located at the most critical point to warn of a potentially hazardous situation.
2.2 Particular attention shall be paid to the following to ensure that by working on electrical components, the casing is not altered in such a way that the level of protection is affected.

This shall include damage to cables, excessive number of connections, terminals not

made to original specification, damage to seals, incorrect fitting of glands, etc. Ensure that apparatus is mounted securely. Ensure that seals or sealing materials have not degraded such that they no longer serve the purpose of preventing the ingress of flammable atmospheres.

Replacement parts shall be in accordance with the manufacturer's specifications.

NOTE The use of silicon sealant may inhibit the effectiveness of some types of leak detection equipment. Intrinsically safe components do not have to be isolated prior to working on them.

3 REPAIR TO INTRINSICALLY SAFE COMPONENTS

Do not apply any permanent inductive or capacitance loads to the circuit without ensuring that this will not exceed the permissible voltage and current permitted for the equipment in use. Intrinsically safe components are the only types that can be worked on while live in the presence of a flammable atmosphere. The test apparatus shall be at the correct rating. Replace components only with parts specified by the manufacturer. Other parts may result in the ignition of refrigerant in the atmosphere from a leak.

4 CABLING

Check that cabling will not be subject to wear, corrosion, excessive pressure, vibration, sharp edges or any other adverse environmental effects. The check shall also take into account the effects of aging or continual vibration from sources such as compressors or fans.

5 DETECTION OF FLAMMABLE REFRIGERANTS

Under no circumstances shall potential sources of ignition be used in the searching for or detection of refrigerant leaks. A halide torch (or any other detector using a naked flame) shall not be used.

6 LEAK DETECTION METHODS

The following leak detection methods are deemed acceptable for systems containing flammable refrigerants. Electronic leak detectors shall be used to detect flammable refrigerants, but the sensitivity may not be adequate, or may need recalibration. (Detection equipment shall be calibrated in a refrigerant-free area.) Ensure that the detector is not a potential source of ignition and is suitable for the refrigerant used. Leak detection equipment shall be set at a percentage of the LFL of the refrigerant and shall be calibrated to the refrigerant employed and the appropriate percentage of gas (25 % maximum) is confirmed. Leak detection fluids are suitable for use with most refrigerants but the use of detergents containing chlorine shall be avoided as the chlorine may react with the refrigerant and corrode the copper pipe-work. If a leak is suspected, all naked flames shall be removed/extinguished. If a leakage of refrigerant is found which requires brazing, all of the refrigerant shall be recovered from the system, or isolated (by means of shut off valves) in a part of the system remote from the leak. Oxygen free nitrogen (OFN) shall then be purged through the system both before and during the brazing process.

7 REMOVAL AND EVACUATION

When breaking into the refrigerant circuit to make repairs – or for any other purpose – conventional procedures shall be used. However, it is important that best practice is followed since flammability is a consideration. The following procedure shall be adhered to: remove refrigerant; purge the circuit with inert gas; evacuate; purge again with inert gas; open the circuit by cutting or brazing. The refrigerant charge shall be recovered into the correct recovery cylinders. The system shall be “flushed” with OFN to render the unit safe. This process may need to be repeated several times. Compressed air or oxygen shall not be used for this task. Flushing shall be achieved by breaking the vacuum in the system with OFN and continuing to fill until the working pressure is achieved, then venting to atmosphere, and finally pulling down to a vacuum. This process shall be repeated until no refrigerant is within the system. When the final OFN

charge is used, the system shall be vented down to atmospheric pressure to enable work to take place. This operation is absolutely vital if brazing operations on the pipework are to take place.

Ensure that the outlet for the vacuum pump is not close to any ignition sources and there is ventilation available.

8 CHARGING PROCEDURES

In addition to conventional charging procedures, the following requirements shall be followed.

- Ensure that contamination of different refrigerants does not occur when using charging equipment. Hoses or lines shall be as short as possible to minimise the amount of refrigerant contained in them.

- Cylinders shall be kept upright.

- Ensure that the refrigeration system is earthed prior to charging the system with refrigerant.

- Label the system when charging is complete (if not already).

- Extreme care shall be taken not to overfill the refrigeration system.

Prior to recharging the system it shall be pressure tested with OFN. The system shall be leak tested on completion of charging but prior to commissioning. A follow up leak test shall be carried out prior to leaving the site.

9 DECOMMISSIONING

Before carrying out this procedure, it is essential that the technician is completely familiar with the equipment and all its detail. It is recommended good practice that all refrigerants are recovered safely. Prior to the task being carried out, an oil and refrigerant sample shall be taken in case analysis is required prior to re-use of reclaimed refrigerant. It is essential that electrical power is available before the task is commenced.

a) Become familiar with the equipment and its operation.

b) Isolate system electrically.

c) Before attempting the procedure ensure that :mechanical handling equipment is available, if required, for handling refrigerant cylinders; all personal protective equipment is available and being used correctly; the recovery process is supervised at all times by a competent person; recovery equipment and cylinders conform to the appropriate standards.

d) Pump down refrigerant system, if possible.

e) If a vacuum is not possible, make a manifold so that refrigerant can be removed from various parts of the system.

f) Make sure that cylinder is situated on the scales before recovery takes place.

g) Start the recovery machine and operate in accordance with manufacturer's instructions.

h) Do not overfill cylinders. (No more than 80 % volume liquid charge).

i) Do not exceed the maximum working pressure of the cylinder, even temporarily.

j) When the cylinders have been filled correctly and the process completed, make sure that the cylinders and the equipment are removed from site promptly and all isolation valves on the equipment are closed off.

k) Recovered refrigerant shall not be charged into another refrigeration system unless it has been cleaned and checked.

10 LABELLING

Equipment shall be labelled stating that it has been de-commissioned and emptied of refrigerant. The label shall be dated and signed.

Ensure that there are labels on the equipment stating the equipment contains flammable refrigerant.

11 RECOVERY

When removing refrigerant from a system, either for servicing or decommissioning, it is recommended good practice that all refrigerants are removed safely. When transferring refrigerant into cylinders, ensure that only appropriate refrigerant recovery cylinders are employed. Ensure that the correct number of cylinders for holding the total system charge are available. All cylinders to be used are designated for the recovered refrigerant and labelled for that refrigerant (i.e. special cylinders for the recovery of refrigerant). Cylinders shall be complete with pressure relief valve and associated shut-off valves in good working order. Empty recovery cylinders are evacuated and, if possible, cooled before recovery occurs.

The recovery equipment shall be in good working order with a set of instructions concerning the equipment that is at hand and shall be suitable for the recovery of flammable refrigerants. In addition, a set of calibrated weighing scales shall be available and in good working order. Hoses shall be complete with leak-free disconnect couplings and in good condition. Before using the recovery machine, check that it is in satisfactory working order, has been properly maintained and that any associated electrical components are sealed to prevent ignition in the event of a refrigerant release. Consult manufacturer if in doubt.

The recovered refrigerant shall be returned to the refrigerant supplier in the correct recovery cylinder, and the relevant Waste Transfer Note arranged. Do not mix refrigerants in recovery units and especially not in cylinders.

If compressors or compressor oils are to be removed, ensure that they have been evacuated to an acceptable level to make certain that flammable refrigerant does not remain within the lubricant. The evacuation process shall be carried out prior to returning the compressor to the suppliers. Only electric heating to the compressor body shall be employed to accelerate this process. When oil is drained from a system, it shall be carried out safely.

Competence of service personnel

General

Special training additional to usual refrigerating equipment repair procedures is required when equipment with flammable refrigerants is affected.

In many countries, this training is carried out by national training organisations that are accredited to teach the relevant national competency standards that may be set in legislation.

The achieved competence should be documented by a certificate.

Training

The training should include the substance of the following:

Information about the explosion potential of flammable refrigerants to show that flammables may be dangerous when handled without care.

Information about potential ignition sources, especially those that are not obvious, such as lighters, light switches, vacuum cleaners, electric heaters.

Information about the different safety concepts:

Unventilated – (see Clause GG.2) Safety of the appliance does not depend on ventilation of the housing. Switching off the appliance or opening of the housing has no significant effect on the safety. Nevertheless, it is possible that leaking refrigerant may accumulate inside the enclosure and flammable atmosphere will be released when the enclosure is opened.

Ventilated enclosure – (see Clause GG.4) Safety of the appliance depends on ventilation of the housing. Switching off the appliance or opening of the enclosure has a significant effect on the safety. Care should be taken to ensure a sufficient ventilation before.

Ventilated room – (see Clause GG.5) Safety of the appliance depends on the ventilation of the room. Switching off the appliance or opening of the housing has no significant effect on the safety. The ventilation of the room shall not be switched off during repair procedures.

Information about the concept of sealed components and sealed enclosures according to IEC 60079-15:2010.

Information about the correct working procedures:

a) Commissioning

• Ensure that the floor area is sufficient for the refrigerant charge or that the ventilation duct is assembled in a correct manner.
• Connect the pipes and carry out a leak test before charging with refrigerant.
• Check safety equipment before putting into service.

b) Maintenance

- Portable equipment shall be repaired outside or in a workshop specially equipped for servicing units with flammable refrigerants.

- Ensure sufficient ventilation at the repair place.

- Be aware that malfunction of the equipment may be caused by refrigerant loss and a refrigerant leak is possible.

- Discharge capacitors in a way that won't cause any spark. The standard procedure to short circuit the capacitor terminals usually creates sparks.

- Reassemble sealed enclosures accurately. If seals are worn, replace them.

- Check safety equipment before putting into service.

c) Repair

- Portable equipment shall be repaired outside or in a workshop specially equipped for servicing units with flammable refrigerants.

- Ensure sufficient ventilation at the repair place.

- Be aware that malfunction of the equipment may be caused by refrigerant loss and a refrigerant leak is possible.

- Discharge capacitors in a way that won't cause any spark.

- When brazing is required, the following procedures shall be carried out in the right order:

- Remove the refrigerant. If the recovery is not required by national regulations, drain the refrigerant to the outside. Take care that the drained refrigerant will not cause any danger. In doubt, one person should guard the outlet. Take special care that drained refrigerant will not float back into the building.

• Evacuate the refrigerant circuit.
  – Purge the refrigerant circuit with nitrogen for 5 min.
• Evacuate again.
• Remove parts to be replaced by cutting, not by flame.
• Carry out a leak test before charging with refrigerant.

– Purge the braze point with nitrogen during the brazing procedure.

• Reassemble sealed enclosures accurately. If seals are worn, replace them.
• Check safety equipment before putting into service.

d) Decommissioning

• If the safety is affected when the equipment is put out of service, the refrigerant charge shall be removed before decommissioning.
• Ensure sufficient ventilation at the equipment location.
• Be aware that malfunction of the equipment may be caused by refrigerant loss and a refrigerant leak is possible.

- Discharge capacitors in a way that won't cause any spark.

- Remove the refrigerant. If the recovery is not required by national regulations, drain the refrigerant to the outside. Take care that the drained refrigerant will not cause any danger. In doubt, one person should guard the outlet. Take special care that drained refrigerant will not float back into the building.

• Evacuate the refrigerant circuit.
• Purge the refrigerant circuit with nitrogen for 5 min.
• Evacuate again.
• Fill with nitrogen up to atmospheric pressure.
• Put a label on the equipment that the refrigerant is removed.

e) Disposal

- Ensure sufficient ventilation at the working place.

- Remove the refrigerant. If the recovery is not required by national regulations, drain the refrigerant to the outside. Take care that the drained refrigerant will not cause any danger. In doubt, one person should guard the outlet. Take special care that drained refrigerant will not float back into the building.

• Evacuate the refrigerant circuit.
• Purge the refrigerant circuit with nitrogen for 5 min.
• Evacuate again.
• Cut out the compressor and drain the oil.

Transportation, marking and storage for units that employ flammable refrigerants Transport of equipment containing flammable refrigerants

Attention is drawn to the fact that additional transportation regulations may exist with respect to equipment containing flammable gas. The maximum number of pieces of equipment or the configuration of the equipment, permitted to be transported together will be determined by the applicable transport regulations.

Marking of equipment using signs

Signs for similar appliances used in a work area generally are addressed by local regulations and give the minimum requirements for the provision of safety and/or health signs for a work location.

All required signs are to be maintained and employers should ensure that employees receive suitable and sufficient instruction and training on the meaning of appropriate safety signs and the actions that need to be taken in connection with these signs.

The effectiveness of signs should not be diminished by too many signs being placed together.

Any pictograms used should be as simple as possible and contain only essential details.

Disposal of equipment using flammable refrigerants

See national regulations.

Storage of equipment/appliances

The storage of equipment should be in accordance with the manufacturer's instructions.

Storage of packed (unsold) equipment

Storage package protection should be constructed such that mechanical damage to the equipment inside the package will not cause a leak of the refrigerant charge.

The maximum number of pieces of equipment permitted to be stored together will be determined by local regulations.

2. Name of Parts

Fig.1

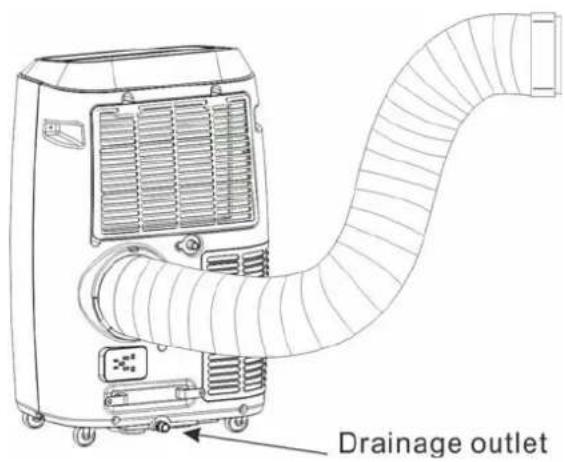

1	Louver 6 Drainage outlet
2	Control panel 7 Air outlet
3	Front panel 8 Power cord
4	Castor 9 Drainage outlet
5	Air inlet

3. Accessories

Part Description	Quantity
	Exhaust hose 1
	Housing adaptor 1
	Window Connector 1
	Remote Controller 1
	Window Slider Kit	1

After unpacking, please check whether the above-mentioned accessories are included, and check their purposes in the installation introduction in this manual.

4. Appearance and Function of Control Panel

A Power on/off 1			Cooling
B Fan speed 2			Dehumidifying
C Temperature up 3			Fan
D Temperature down 4			High fan speed
E Operation mode 5			Medium fan speed
F Timer on/off 6			Low fan speed
G Swing on/off		7	Water full
H Sleep mode

5. Appearance and Function of Remote Control

Remote Control

1	POWER	Power on/off
2	TIMER	Timer on/off
3	MODE	Operation MODE
4	TEMP-	Temperature down
5	TEMP+ Temperature up
6	SPEED Fan speed
7	Sleep	Sleep mode
8	SWING	Auto swing

Notes:

• Do not drop the remote.
• Do not place the remote control in a location exposed to direct sunlight.

6. Operation Introduction

Before starting operations in this section:

1) Find a place where there is power supply nearby.

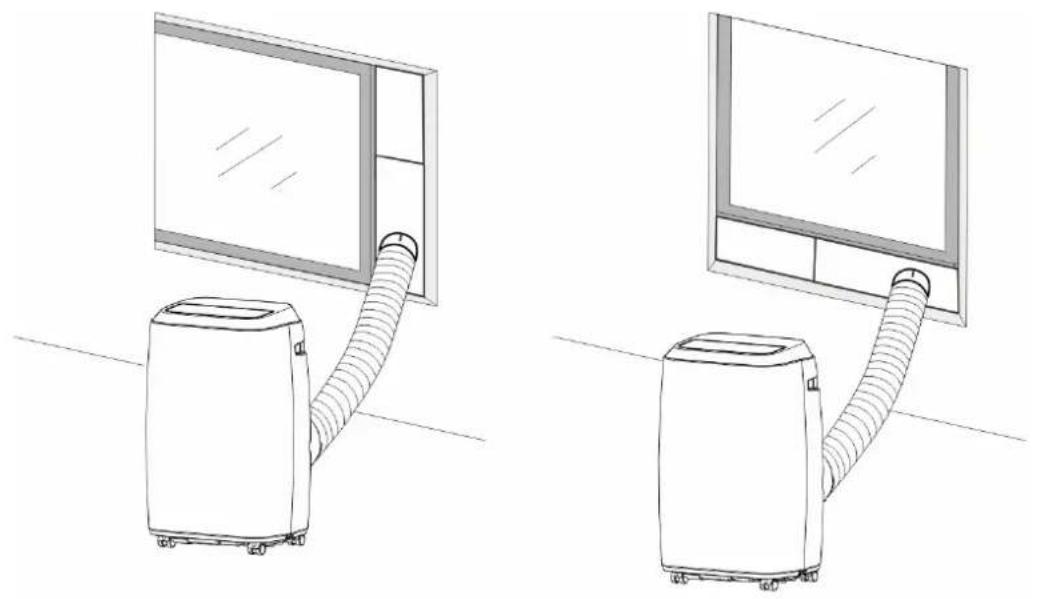

2) As shown in Fig.5 and Fig.5a, install the exhaust hose, and adjust the window position.

Line drawings of two household air conditioners with hoses, placed on a floor near a window (no text or symbols)

Fig.5 Fig.5a

3) Insert the power cord into a grounded AC220\~240V/50Hz socket;
4) Press the POWER button to turn on the portable air-conditioner.

Fig.6

6.1. Before using

Notice:

- Operation temperature range:

	Maximum cooling	Minimum cooling
DB/WB(°C)	35/24	18/12

Check whether the exhaust hose has been installed correctly.

Cautions for cooling and dehumidifying modes:

• When using functions on cooling and dehumidifying, keep an interval of at least 3 minutes between each ON/OFF.
• Power supply meets the requirements.
• The socket is for AC use.
• Do not share one socket with other appliances.
• Power supply is AC220--240V, 50Hz

6.2 Cooling operation

• Press the "Mode" button until the "Cool" icon appears.
• Press the "DOWN" or "UP" button to select a desired room temperature. (16°C-31°C)
• Press the "SPEED" button to select fan speed.

6.3 Dehumidifying operation

Press the "Mode" button until the "Dehumidify" icon appears.

• Automatically set the selected temperature to current room temperature minus 2°C. (16°C-31°C)
• Automatically set the fan motor to LOW fan speed.

6.4 Fan operation

• Press the "Mode" button till the "Fan" icon appears.

• Press the "WIND" button to select wind speed.

• When the portable air-conditioner ON, press "Timer" button and select a desired OFF time using the temperature and time setting buttons.

• "Preset OFF Time" is displayed on the operation panel.
• OFF time can be set between 0-24 hours.

6.5 Auto SWING

After portable air-conditioner turns on, press the Swing button, the louver will swing continuously left and right; by pressing this button again the movement will stop and the louver remain in that position.

6.6 SLEEP mode

• While in cooling mode, press the SLEEP button to set the temperature. It increases 1 °C after an hour and at most increases 2 °C after 2 hours.
• Press the SLEEP button again can cancel the setting.

6.7 Water drainage

Water Full Alarm

The inner water tray in the portable air-conditioner has one water level safety switches, it controls the water level. When water level reaches an anticipated height, the water full indicator lights up. When the water is full, please remove the rubber blockage from the drainage outlet at the bottom of unit, and drain all water outside.

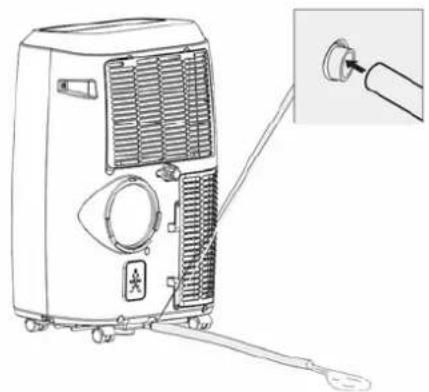

Continuous Drainage

• When you plan to leave this unit unused for a long time, please remove the rubber blockage from the drainage hole at the bottom of unit, and drain all water outside.
• The continuous drainage is not required when the unit is working the COOL or DEHUMIDIFY mode. The unit can evaporate the condensate water automatically by the splash motor. Make sure the drainage holes are stemmed well.

7. Installation

7.1 Installation:

• The portable air-conditioner should be used on a flat and stable surface. Don't block the air outlet, ensure clearance of 30~cm on all sides.(See Fig.8)
• Do not install in wet areas, such as bathrooms, laundry etc.
• Socket wiring should be in accordance with the local safety requirements.

Fig.8

7.2 Introduction to Exhaust Hose Installation

Temporary installation

Line drawing of an air conditioner unit connected to a door via tubing (no text or symbols)

Fig.9

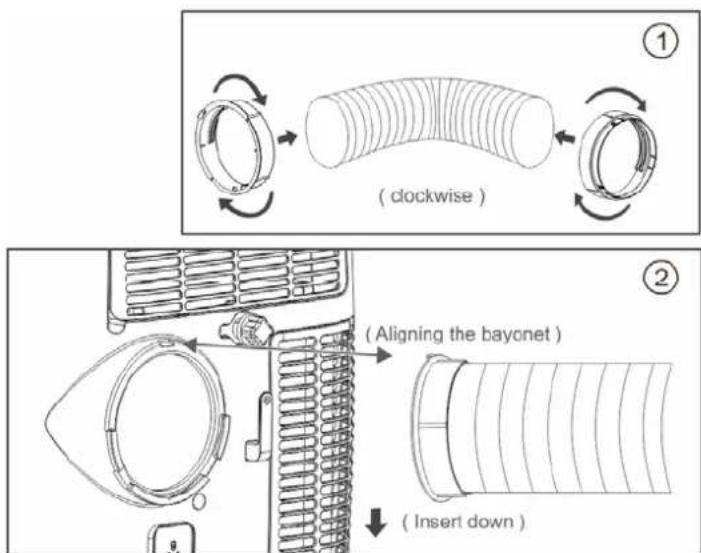

1. Twist the housing adaptor and the window connector to the ends of the exhaust hose.
2. Insert the fixing clip of the housing adaptor into the openings at back of the portable air-conditioner..

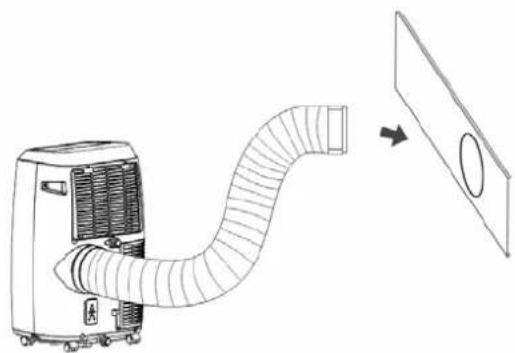

3. Put the other end of the exhaust hose to the near windowsill(see Fig.9).

Window Kit Installation

The window kit can be installed in a vertical or horizontal position. As shown Fig.10 and Fig.10a, check the min. and max. size of the window before the installation.

1. Install the window kit on the window (Fig.10, Fig.10a);
2. Adjust the length of the window slider kit according to the window width or height, and fix it with the dowel;
3. Insert the window connector of the hose to the hole of the window kit(Fig.11).

①

Simple diagram showing a window with two downward arrows and a left-pointing arrow inside, no text or symbols present.

Window width
min:67.5cm
max:123cm

Pure diagram of a door frame with arrows indicating direction and height measurement (no text or symbols)

Window height
min:67.5cm
max:123cm

Fig.10 Fig.10a
②

③

Line drawing of a small industrial air conditioner connected to a panel with a circular vent (no text or symbols)

Line drawing of a portable air conditioner unit connected to a wall-mounted door (no text or symbols)

Fig.11

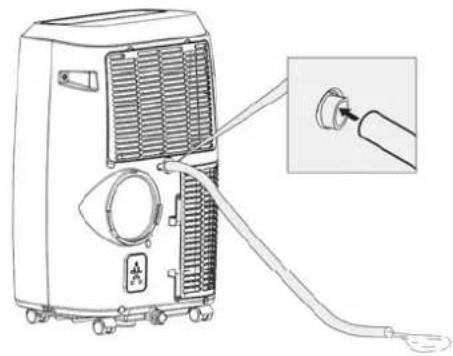

7.3 Water Full alarm

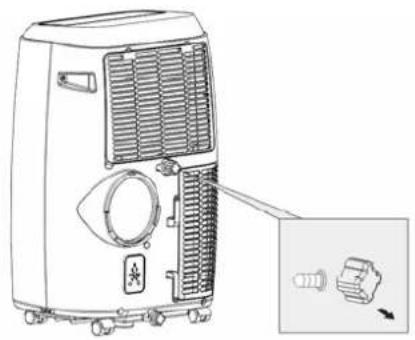

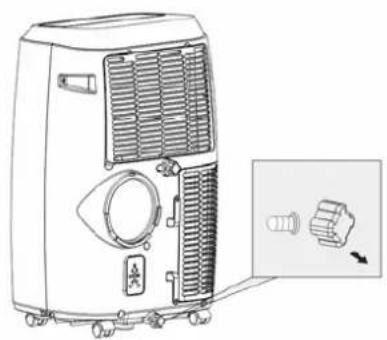

The inner water tray inside the portable air-conditioner monitors the water level. When the water level reaches capacity, the water full indicator lights up. When the water reservoir is full remove the rubber plug at the bottom of the unit, and drain the unit.

(A)

Diagram of a portable air conditioner unit with ventilation grilles and a close-up of its internal components (no text or labels)

Line drawing of a portable air conditioner unit with attached cable and connector, showing internal airflow path (no text or symbols)

(B)

Line drawing of a portable air conditioner unit with ventilation grilles and a close-up inset showing a connector (no text or symbols)

Line drawing of a portable air conditioner unit with attached cable and connector, showing internal airflow and component details (no text or symbols)

8. Maintenance

Declaration

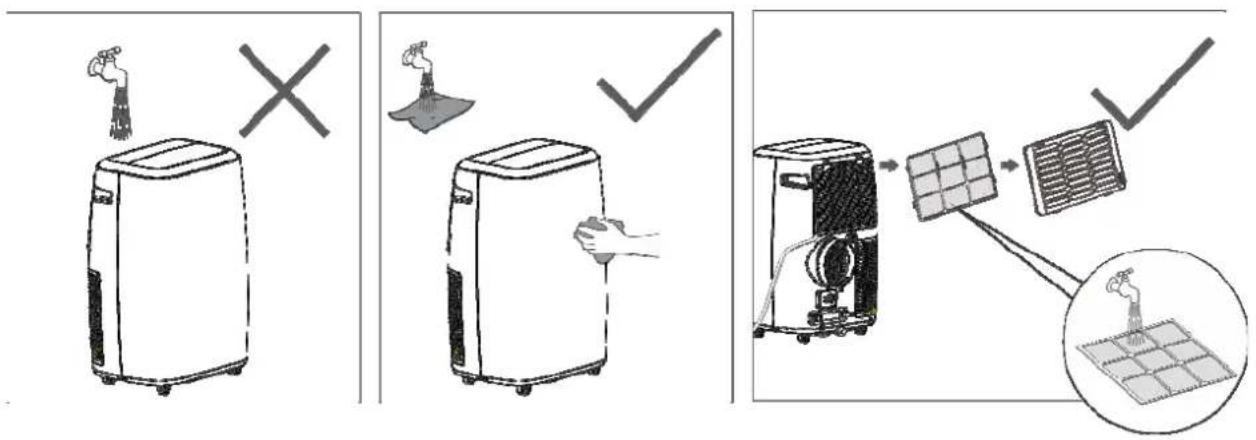

1) Before cleaning, be sure to disconnect the unit from any electric supply outlet;
2) Do not use gasoline or other chemicals to clean the unit;
3) Do not wash the unit directly;
4) If the portable air-conditioner is damaged, return to store of purchase.

8.1 Air Filter

• If the air filter becomes clogged with dust/dirt, the air filter should be cleaned once every two weeks.
• Remove Filter
  Open the air inlet grille and take off air filter.
• Cleaning
  Clean the air filter with neutral detergent in lukewarm water (40°C) and dry thoroughly before re-installing it.
• Re-installing the filter
  Putting the air filter into the inlet grille, replace the components as they were.

8.2 Cleaning the portable air-conditioner's Surface

Clean the surface with a damp cloth and then wipe dry.

9. Troubleshooting

Troubles Possible Causes Suggested Remedies
1. Unit does not start when pressing on/off button	- Water full indicator lamp blinks, and water reservoir is full.	Drain the water out of the water tray.
	- Room temperature is higher than the setting temperature. (Electric heating mode)	Reset the temperature
	- Room temperature is lower than the setting temperature. (Cooling mode)	Reset the temperature
2. Not cool enough	- The doors or windows are not closed.	Make sure all the windows and doors are closed.
	- There are heat sources inside the room.	Remove the heat sources if possible
	- Exhaust air hose is not connected or blocked.	Connect or clean the exhaust air hose.
	- Temperature setting is too high.	Reset the temperature
	- Air inlet is blocked. Clean the air inlet.
3. Noisy	- The ground is not level or not flat enough	Place the unit on a flat, level surface
	- The sound comes from the flowing of the refrigerant inside the portable air-conditioner	It is normal.
4. E0 Code Room temperature sensor failed		Contact store where purchased for assistance.
5. E1 Code	Condenser temperature sensor failed	Contact store where purchased for assistance.
6. E2 Code	Water reservoir full when cooling	Take off rubber stopper and empty the water.
7. E3 Code	Evaporator temperature sensor failed	Contact store where purchased for assistance.

Note: Pictures shown are for illustration purpose only. actual product may vary.

Our goods come with a guarantee that cannot be excluded under the Australia Consumer law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. If you have any queries regarding your product or its warranty please find contacts below.

Olimpia Splendid Australia Pty Ltd

80-84 Burlington

Oakleigh, Victoria, 3166

Ph: 1300 664 768

[e-mail]

Olimpia Splendid New Zealand Pty Ltd

C/ Key Services Ltd

34 A Cryers Road

East Tamaki, Manukau City

Auckland, New Zealand

P: [phone]

[e-mail]
