Product Type	Netbook / Ultraportable Laptop
Brand	Fujitsu
Model	LifeBook P3110
Display Size	10.1 inches (diagonal)
Display Resolution	1024 x 600 pixels
Processor	Intel Atom N450 (1.66 GHz)
RAM	1 GB DDR2 (upgradeable to 2 GB)
Storage	160 GB SATA HDD (5400 RPM)
Operating System	Windows 7 Starter (32-bit)
Graphics	Intel GMA 3150 (integrated)
Wireless Connectivity	Wi-Fi 802.11 b/g/n, Bluetooth 2.1+EDR
Ports	3x USB 2.0, 1x VGA, 1x RJ-45, 1x headphone/mic combo
Card Reader	SD/SDHC/MMC
Webcam	0.3 MP (VGA) integrated
Dimensions (W x D x H)	258 x 185 x 32 mm
Weight	Approx. 1.3 kg (with battery)
Battery Type	Lithium-ion 6-cell (4400 mAh)
Battery Life	Up to 5 hours (depending on usage)
Power Supply	AC adapter 100-240V, 50-60Hz, output 19V 2.1A
Main Functions	Web browsing, office applications, media playback, email
Maintenance & Cleaning	Wipe with dry soft cloth; avoid liquids; clean vents with compressed air
Safety	Do not block ventilation; avoid overheating; use only supplied charger
Spare Parts & Repairability	RAM, HDD, battery, and keyboard are user-replaceable; other parts require service
General Information	Released in 2010; ideal for basic computing on the go

Frequently Asked Questions - LifeBook P3110 FUJITSU

How do I replace the battery on my Fujitsu LifeBook P3110?

Turn off the laptop, slide the battery release latch to the unlock position, and slide the battery out. To install, align the new battery and push it in until it clicks. Ensure the latch is locked.

Can I upgrade the RAM on the LifeBook P3110?

Yes, the LifeBook P3110 supports up to 2 GB of DDR2 RAM. The memory slot is accessible by removing the bottom panel. Use a compatible 200-pin SO-DIMM module.

What operating system does the LifeBook P3110 support?

It comes with Windows 7 Starter but can also run Windows XP, Windows 7 (Home Premium/Ultimate), or some Linux distributions. Drivers for XP/7 are available on Fujitsu's support site.

How do I connect to Wi-Fi on the LifeBook P3110?

Ensure the Wi-Fi switch on the front edge is turned on. Click the network icon in the system tray, select your network, and enter the password. The laptop supports 802.11 b/g/n.

What is the battery life of the LifeBook P3110?

The 6-cell battery provides up to 5 hours of usage under normal conditions. Actual battery life depends on screen brightness, active applications, and wireless usage.

How do I clean the keyboard and display?

For the keyboard, use compressed air to remove debris, then wipe with a slightly damp cloth. For the display, use a soft, dry microfiber cloth. Avoid using any liquids directly on the screen.

Does the LifeBook P3110 have Bluetooth?

Yes, it includes Bluetooth 2.1+EDR. To use it, enable Bluetooth via the function key (Fn + F2) or in Windows settings. Pair devices from the Bluetooth control panel.

Why is my LifeBook P3110 overheating?

Overheating may be due to blocked ventilation or a dusty fan. Ensure the laptop is on a hard surface, not on soft bedding. Clean the vents with compressed air. If the issue persists, check for background processes.

Can I use a solid-state drive (SSD) in the LifeBook P3110?

Yes, you can replace the 2.5-inch SATA HDD with a 2.5-inch SATA SSD. This will improve boot times and performance. Ensure the SSD is 7mm thick or use a spacer.

How do I perform a factory reset?

Back up your data first. Restart and press F8 repeatedly to access Advanced Boot Options, then choose 'Repair Your Computer'. Alternatively, use the recovery partition (if available) by pressing F11 during startup.

USER MANUAL LifeBook P3110 FUJITSU

© Fujitsu Technology Solutions 2009

2009/09

Published by

Fujitsu Technology Solutions GmbH

http://ts.fujitsu.com/support

All rights reserved, including intellectual property rights. Technical data subject to modifications and delivery subject to availability. Any liability that the data and illustrations are complete, actual or correct is excluded. Designations may be trademarks and/or copyrights of the respective manufacturer, the use of which by third parties for their own purposes may infringe the rights of such owner. For further information see http://ts.fujitsu.com/terms_of_use.html

Order-No. Fujitsu Technology Solutions: A26391-K305-Z200-1-19

LIFEBOOKP3110

Betriebsanleitung

InnovativeTechnologie1

AnschlüsseundBedienelemente 3

WichtigeHinweis e 5

InnovativeTechnologie .... 1

Save Changes and Power Off 49

ProblemlösungenundTipps 50

Regulatorynotices. 60

Regulatoryinformationfornotebookswithoutradiodevice.... 60

DOC(IndustryCANADA)Notices 62

FCCRegulatoryinformationfornotebookswithradiodevice.... 64

Stichwörter 66

InnovativeTechnologie

1 = M i k r o f o n

2=WebCam

3=Ein-/Ausschalter

4=LAN-Anschluss

5=KensingtonLock-Vorrichtung

6=USB-Anschlüsse

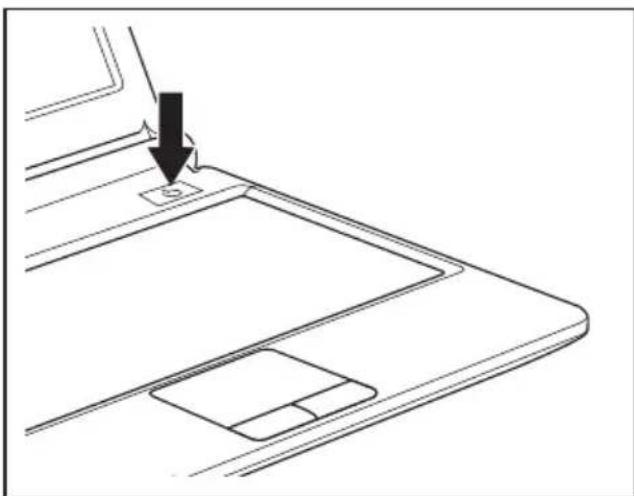

Line drawing of a mechanical component with a downward arrow indicating a feature or process (no text or symbols present)

Diagram showing a curved arrow labeled '1' pointing to a rectangular object on a flat base (no text or symbols present)

Line drawing of a device's front panel with a black arrow pointing to a small component labeled 'S' (no text or symbols beyond the label)

Line drawing of a device's front panel with a black arrow pointing to a small square component (no text or symbols)

Line drawing of a laptop with a curved arrow pointing downward, indicating a download or exit function (no text or symbols present)

Two rectangular frames with bidirectional arrows indicating movement, no text or symbols present

Korrekturtaste(Backspace)
    A["Strg"] + B["Alt"] + C["Entf"]
    D["↑"] + E["←→"]

Windows-Sicherheit/Task-Manager

Diagram showing a folded paper sheet with a gray block and a black arrow pointing to it, no text or symbols present.

Diagram showing a connector with a cable and resistor, no text or symbols present

▶ BringenSiedenKensingtonMicroSaveran derVorrichtungIhresNotebookan.

Diagram showing a connector with a D-sub and a close-up view of the internal structure (no text or symbols)

Diagram showing a USB plug inserted into a socket with an arrow indicating the insertion point, alongside a USB symbol (no text or labels present)

Diagram showing a mechanical component being inserted into a threaded rod, with motion indicators (no text or symbols)

Diagram showing a mechanical device with an ear and connector, no text or symbols present

If there is no FCC logo and also no FCC ID on the device then this device is not approved by the Federal Communications Commission (FCC) of the USA. Although it is not explicitly forbidden to travel the US trading area carrying this device, but to avoid trouble at customs clearance Fujitsu Technology Solutions GmbH recommends not to bring this device into the US trading area.

Regulatory information for notebooks without radio device

NOTICE:

Changes or modifications not expressly approved by Fujitsu Technology Solutions could void this user's authority to operate the equipment.

Notice to Users of Radios and Television

These limitsaredesign ed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, ifnot installeda nd used in accordance with the instructions, may cause harmful interference to radiocommunicatio ns. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception,whichcan be determined by turning the equipment off and on, the user is encouraged totry tocorrect thei interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.

• Connecttheequipmentintoanoutletthatisonadifferentcircuitthanthereceiver.
• Consultthedealeroranexperiencedradio/TVtechnicianforhelp.

NoticetoUsersoftheUSTelephoneNetwork

YournotebookmaybesuppliedwithaninternalmodemwhichcomplieswithPart68ofthe FCCrules.OnthisnotebookisalabelthatcontainstheFCCRegistrationNumberandthe RingerEquivalenceNumber(REN)forthisequipmentamongotherinformation.Ifrequested, theusermustprovidetheirtelephonecompanywiththefollowinginformation:

1. Thetelephonenumbertowhichthenotebookisconnected.
2. The Ringer Equivalence Number (REN) forthisequipment.

3. The equipment requires a standard modular jack type USOCRJ-11C which is FCC Part 68 compliant.

4. The FCCRegistrationNumber.

Thisequipmentisdesignedtobeconnectedtothetelephonenetworkorpremiseswiringusing a standard modular jack type USOC RJ-11C which is FCC Part 68 compliant and a line cord betweenthemodemandthetelephonenetworkwithaminimumof26AWG.

TheRENisusedtodeterminethenumberofdevicesthatyoumayconnecttoyourtelephone lineandstillhaveallofthosedeVICESringwhenyournumberiscalled.Toomanydevices ononelinemayresultinfailuretoringinresponsetoanincomingcall.Inmost,butnotall, areas the sum of the RENs of all of the devices should not exceed five (5). To be certain ofthenumberofdevicesyoumayconnecttoyourline,asdeterminedbytheRENs,contact yourlocaltelephonecompany.Ifthisequipmentcausesharmtothetelephonenetwork,your telephonecompanymaydiscontinueyourservicetemporarily.Ifpossible,theywillnotifyyou in advance. If advance notice is not practical they will notify you as soon as possible. You will also be advised of your right to file a complaint with the FCC.

ThisfaxmodemalsocomplieswithfaxbrandingrequirementsperFCCPart68.

Your telephone company will probably ask you to disconnect this equipment from the telephone network until the problem is corrected and you are sure that the equipment is not malfunctioning. This equipment may not be used on coin-operated telephones provided by your telephone company. Connection to party lines is subject to state tariffs. Contact your state's public utility commission, public service commission or corporation commission form more information.

This equipment includes automatic dialing capability. When programming and/or making test call to emergencies:

- Remain on the line and briefly explain to the dispatcher the reason for the call.

- Performsuchactivitiesinoff-peakhours,suchasearlymorningorlateevening.

FCCrulesprohibittheuseofnon-hearingaidcompatibletelephonesinthe followinglocationsorapplications:

- Allpublicorsemipubliccoin-operatedorcreditcardtelephones.

• Elevators, highways, tunnels (automobile, subway, railroad or pedestrian) where a personwithimpairedhearingmightbeisolatedinanemergency.
• Places where telephones are specifically installed to alert emergency authorities suchasfire,policeormedicalassistancepersonnel.

•Hospitalrooms, residentialhealthcarefacilities, convalescenthomesandprisons.

•Hotel, motelorapartmentlobbies.

- Storeswheretelephonesareusedbypatronstoordermerchandise.

• Publictransportationterminalswheretelephonesareusedtocalltaxisortoreservelodgingorrentalcars.
• Inhotelandmotelroomsasatleasttenpercentoftheroomsmustcontainhearing aid-compatibletelephonesorjacksforplug-inhearingaidcompatibletelephoneswhich willbeprovidedtohearingimpairedcustomersonrequest.

DOC(IndustryCANADA)Notices

NoticetoUsersofRadiosandTe levision

ThisClassBdigitalapparatusm eetsallrequirementsofCanadianInterference-CausingEquipment Regulations.

This equipment meets the appli cableIndustryCanadaTerminalEquipmentTechnical Specifications. This is confirmed by the registration number. The abbreviation, IC, before the registration numbersignifies that registration was performed based on a Declaration of Conformity indicating that industry Canada technical specifications were met. It does not imply that Industry Canada approved the equipment. Before connecting this equipment to atelophonelin the usershould ensure that it is permissible to connect this equipment to the local telecommunicat ion facilities. The users should be aware that compliance with the certification standards does not prevent service degradation in some situations.

Repairstotelecommunica tionequipmentshoubemadebyaCanadianauthorized maintenancefacility.An yrepairsoralterationsnotexpresslyapprovedbyFujitsuor anyequipmentfailuresma ygivethetelecommunicationcompanycausetorequestthe usertodisconnecttheeq uipmentfromthetelephoneline.

NOTICE:

TheRingerEquivalenceNumber(REN)forthisterminalequipmentis0.0.TheRENassigned toeachterminalequipme ntprovidesanindicationofthemaximumnumberofterminals allowedtobeconnected toatelephoneinterface.Theterminationonaninterfacemay consistofanycombinat ionofdevicessubjectonlytotherequirementthatthesumofthe RingerEquivalenceNum bers of all the devices does not exceed five.

CAUTION:

Forsafety, usersshou Idensure that the electrical ground of the power utility, the telephonelines and hemetallic water pipes are connected together. Users should NOT attempt to make correction themselves but should contact the appropriate electric inspection authority or electrician. This may be particularly important in rural areas.

CAUTION:

To reduce the risk of fire, use only 26AWG or larger telecommunications line cord.

For Authorized Repair Technicians Only

CAUTION:

For continued protection against risk of fire, replace only with the sametypeandratingfuse.

WARNING:

Dangerofexplosi on if Lithium (CMOS) battery is incorrectly replaced. Replace only withthesameoreq uivalentyperecommendedbythemanufacturer.

Disposeofusedba tteriesaccordingtothemanufacturer'sinstruction.

FCCRegulatoryinformationfornotebookswithradiodevice

FederalCommunicationsCommissionstatement

This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause interference, and

(2) this device must accept any interference, including interference that may cause undesired operation of this device.

FCCInterferenceStatement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions, it may cause harmful interference or radiocommunications.

However, there is no guarantee that interference will not occur in particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment of fandon, the user is encouraged to try to correct the interference by one or more of the following measures:

1. Reorientorrelocatethereceivingantenna.
2. Increase thedistance between the equipment and thereceiver.
3. Connect the equipment to an outlet on a circuit different from the one the receiver is connected to.
4. Consultthedealeroranexperiencedradio/TVtechnicianforhelp.
   Please note the following regulatory information related to the optional radio device.

FCCRadioFrequencyExposurestatement

This radiodevice has been evaluated under FCC Bulletin OET65 Cand found compliant with the requirements asset forth in CFR47 Sections 2.1091, 2.1093, and 15.247(b)(4) addressing RF Exposure from radio frequency devices. The radiated output power of this radio device is far below the FCC radio frequency exposure limits. Nevertheless, this device shall be used in such a manner that the potential for human contact during normal operation is minimized. When using this device, a certain separation distance between antenna and near-persons must be maintained to ensure RF exposure compliance. In order to comply with RF exposure limits established in the ANSI C95.1 standards, the distance between the antennas and the user should not be less than 20 cm (8 inches).

RegulatoryNotesandStatements

Radiodevice, HealthandAuthorizationforuse

Radiofrequencyelectromagneticenergyisemittedfromtheradiodevices.Theenergylevelsof these emissions, however, are far much less than the electromagnetic energy emissions from wirelessdevicessuchasmobilephones.Radiodevicesaresafeforusebyconsumersbecause they operate within the guidelines found in radio frequency safety standards and recommendations.

The use of the radio devices may be restricted in some situations or environments, such as:

• onboardanairplane, or
•inanexplosiveenvironment,or
•insituationswheretheinterferencerisktootherdevicesorservicesis perceivedoridentifiedasharmful.

In cases in which the policy regarding use of radio devices in specific environments is not clear(e.g.,airports,hospitals,chemical/oil/gasindustrialplants,privatebuildings),obtain authorizationousethesedevicespriortooperatingtheequipment.

RegulatoryInformation/Disclaimers

Installation and use of this radiodevicemustbeinstrictaccordancewiththeinstructionsincluded in the user documentation provided with the product. Any changes or modifications made to this device that are not expressly approved by the manufacturer may void the user's authority to operate the equipment. The manufacturer is not responsible for any radio or television interference caused by unauthorized modification of this device, or the substitution or attachment of connecting cables and equipment other than those specified by the manufacturer. It is the responsibility of the user to correct any interference caused by such unauthorized modification, substitution or attachment. The manufacturer and its authorized resellers or distributors will assume no liability for any damage or violation of government regulations arising from failure to comply with these guidelines.

Exportrestrictions

Thisproductorsoftwarecontainsencryptioncodewhichmaynotbeexportedor transferredfromtheUSorCanadawithoutanapprovedUSDepartmentofCommerce exportlicense. ThisdevicecomplieswithPart15ofFCCRules,aswellasICES003B/NMB003B.Operationissubjecttothefollowingtwoconditions:

(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesirable operation.

Modifications not expressly authorized by Fujitsu Technology Solutions may invalidatetheuser'srighttooperatethisequipment.

Stichwörter

A

Akku25

aufladen25

Ladezustand25,28

lagern25

Lebensdauer25

pflegenundwarten25

Selbstentladung25

Akkuanzeige14

Regulatoryinformation

Notebookswithradiodevice64

Notebookswithoutradiodevice60

Reinigung8

Reise, Notebook7

Return18

s
