Product Type	Air Purifier with UV-C Sanitization
Model	SanificaAria 200 Connect
Brand	Beghelli
Power Supply	90-256 VAC, 50/60 Hz (2m cable)
Power Consumption	<60 W (min speed), <65 W (medium), <75 W (max)
Standby Power	<1.5 W
UV-C Lamp	2 x TC 2G11 24W (total 48W), wavelength 254 nm
Radiant Power UV-C	14 W
Air Flow	200 m³/h (max), 130 m³/h (medium), 81 m³/h (min)
Noise Level (1m)	38 dB(A) (min), 47 dB(A) (medium), 59 dB(A) (max)
Dimensions (W x H x D)	296 x 477 x 347 mm
Weight	13 kg (10 kg without bracket)
Connectivity	Bluetooth Low Energy (2.4 GHz) and Wi-Fi (IEEE 802.11 b/g/n, 2.4 GHz)
Control Modes	ON/OFF button (3 fan speeds), SanificaAria App (local BLE), DOM-E App (remote Wi-Fi)
Cartridge Life	12 months continuous use; replace with uvOxy® Beghelli (code 26721)
Ozone Emission	Ozone-free UV-C lamp
Safety Features	UV-C safety warnings, LED alerts (red for anomalies), automatic fan stop if both cartridges exhausted
Installation Options	Floor support (included) or wall mounting (bracket included, screws not supplied)
Maintenance	Clean external grids with brush; replace cartridges annually
Certifications	CE, EU Directive 2014/53/EU

Frequently Asked Questions - SanificaAria 200 Connect Beghelli

How do I connect the SanificaAria 200 Connect via Bluetooth?

How do I connect the purifier to Wi-Fi for remote control?

What does the red LED indicator mean?

How often should I replace the uvOxy cartridges?

Can I mount the SanificaAria 200 on the wall?

Is the purifier safe to use outdoors?

What is the noise level of this air purifier?

How do I clean the SanificaAria 200?

What should I do if the device falls accidentally?

Does the SanificaAria 200 produce ozone?

USER MANUAL SanificaAria 200 Connect Beghelli

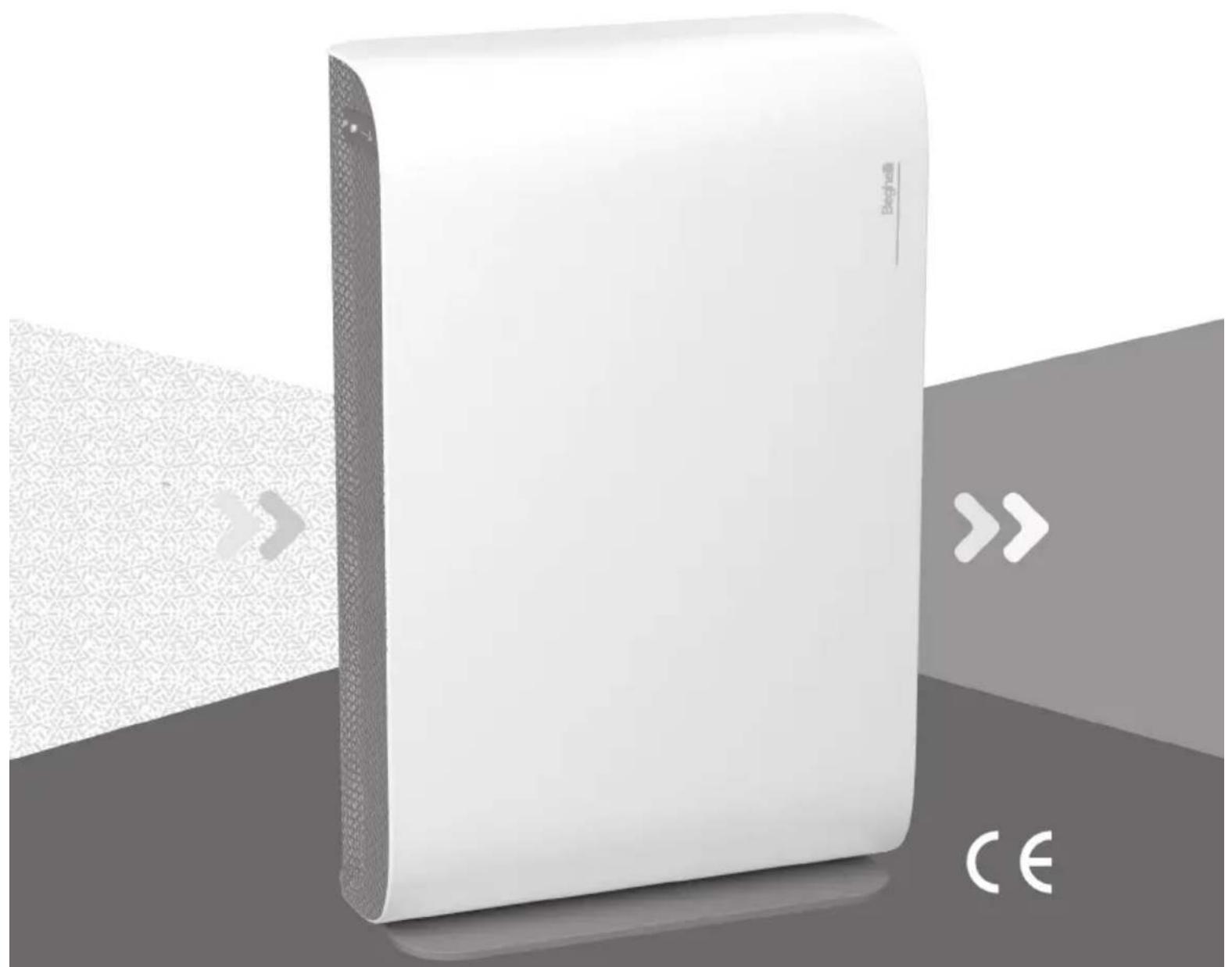

200 UP TO FINO A m³/h 250m² Sanifica A Connect ARIA Beghelli

White wireless device labeled 'Biophyll' with a gray background and 'CE' text, no other visible text or symbols.

Beghelli

INDEX:

① Manuale d'installazione, uso e manutenzione 2
GB Installation, use and maintenance manual 6
D Installations-, Gebrauchs- und Wartungshandbuch 10
E Manual de instalación, uso y mantenimiento 14
P Manual de instalação, uso e manutenção 18
Montáž, použití a návod na údržbu 22
H Szerelési, használati és karbantartási útmutató 26
PL Instrukcja montażu, użytkowania i konserwacji 30

A

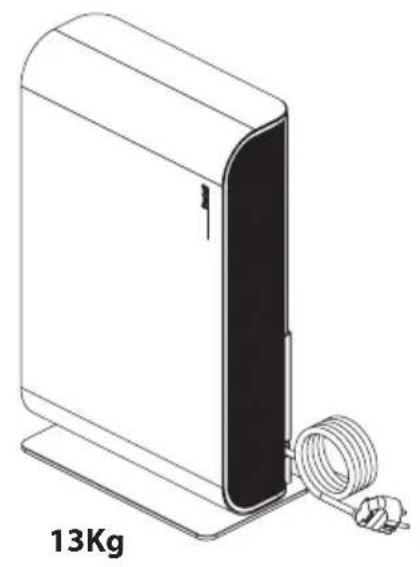

Illustration of a white rectangular device with a black lid and coiled cable attached, labeled '13Kg' at the bottom (no other text or symbols)

296mm 477mm

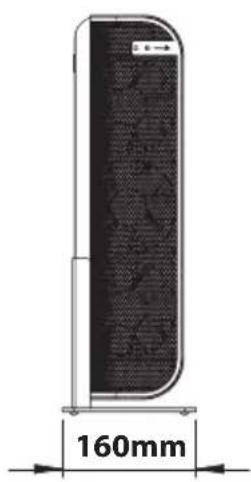

Technical diagram of a vertical cylindrical device with a 160mm height dimension label (no text or symbols on the device itself)

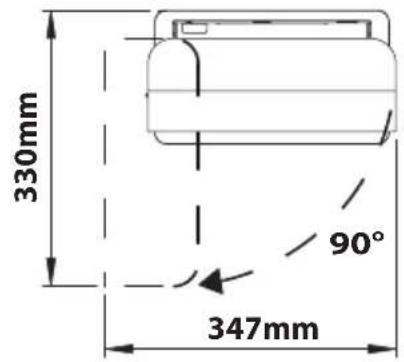

330mm 90° 347mm

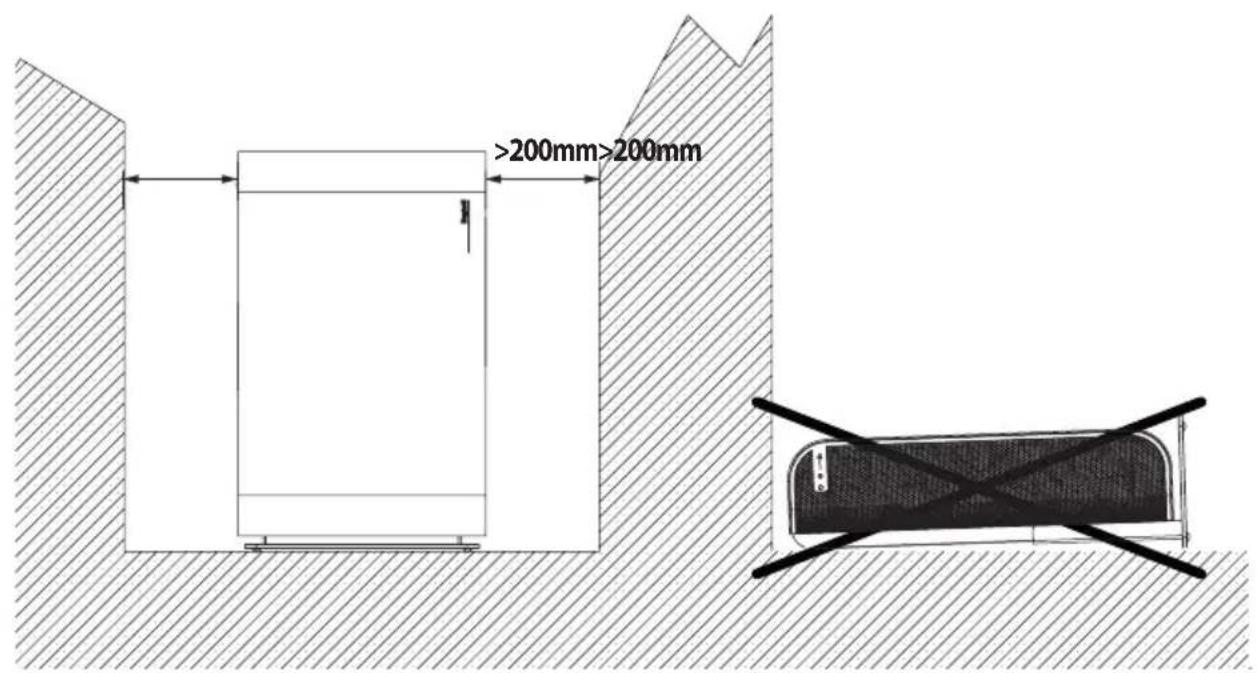

>200mm>200mm

B

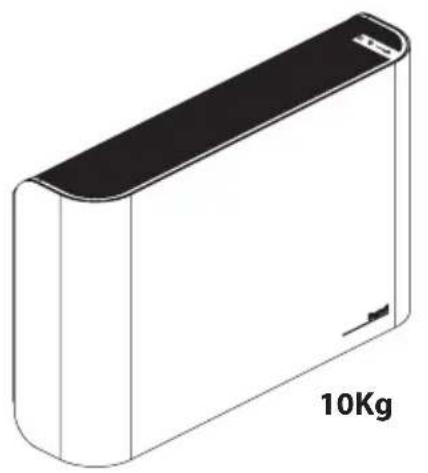

Isometric line drawing of a rectangular electronic device with a black top and 10Kg label (no other text or symbols)

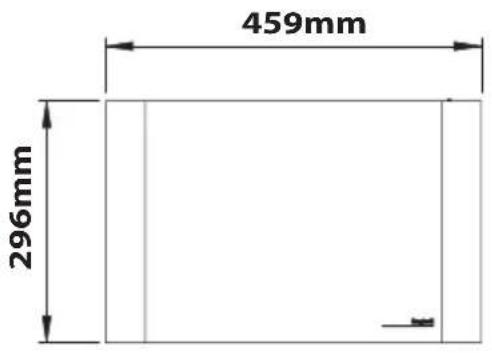

459mm 296mm

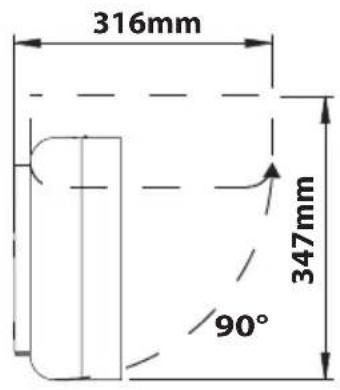

316mm 347mm 90°

131mm

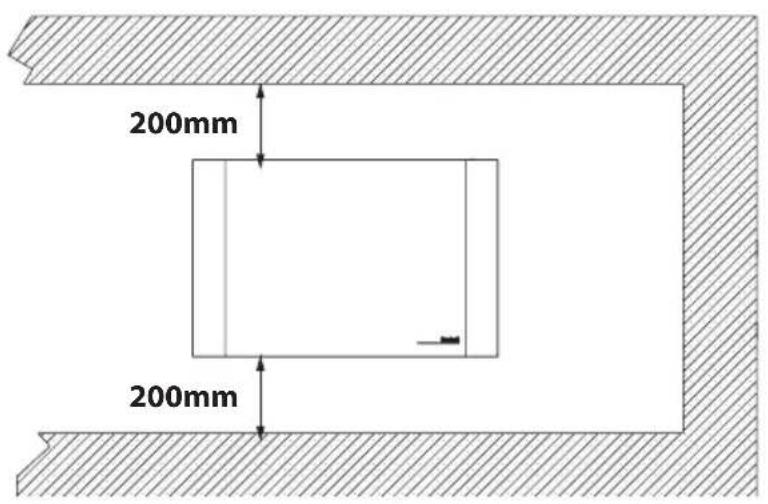

200mm 200mm

Pure mechanical diagram showing a shaft and housing without any text, numbers, or symbols

Pure electrical circuit lines without any symbols

Simple line drawing of a rectangular object with two crossed black X marks (no text or symbols)

11 13 5mm 12 B1 1 2 3 Ø 9mm MAX 6mm Ø 2,5mm² 4cm N L B1

IMPORTANTE

AVVERTENZE SULLA SICUREZZA

Assorbimento in standby: < 1.5W

UV-C Lamp: 2 X TC 2G11 24W (totale 48W)

LED ON/OFF + SPEED

• The device contains a UV-C emission lamp.
• WARNING: DO NOT activate the UV lamp when removed from the protective casing of the appliance.
• This device must only be used for its intended use. Any other use shall be deemed as nonconforming and therefore dangerous.
• Using the device otherwise than as described herein or if the housing is damaged can result in UV-C radiation leaks.
• Even small doses of UV-C radiation can damage eyes and the skin.
• Please read the maintenance instructions before opening the device.
• The device must be turned off and disconnected from the power supply before replacing the uvOxyBeghelli cartridge (code 26721).
• Do not insert small objects into the ventilation grid. They could damage the fans and impair the device operation.
• If damaged, the device should not be used.
• In case of accidental fall, check the correct ignition of the UV-C lamp by checking that the LED does not signal anomalies (the RED LED must NOT be turned on).
• In case of failure or malfunction, do not tamper with the device. Please contact only an authorized technical service centre for repairs.
• The device must be used exclusively indoors and not outdoors. Any other use shall be deemed improper.
• Children mustn't play with the device. Cleaning and maintenance must not be done by children without adult supervision.
• Make sure the device is connected to a grounded outlet.
• DO NOT obstruct the air passage grates with objects.

SanificaAria 200 TECHNICAL FEATURES (cod. 26702)

Power supply: 90VAC ÷ 256 VAC, 50÷60Hz (2m long cable)

Absorption:

• <60W (minimum speed)
• <65W (medium speed)
• <75W (maximum speed)

Standby absorption: < 1.5W

UV-C Lamp: 2 X TC 2G11 24W (total 48W)

UV-C wavelength: 254nm

Flow of treated air:

• 200m³/h at maximum speed
• 130m³/h at medium speed
• 81m³/h at minimum speed

Radiant power UV-C: 14W

Ozone-free UV-C lamp

Cartridge life: 12 months (continuous use). Replacing the cartridge allows you to keep the germicidal performance of the device in time.

Noise level:

• 38dB(A) at 1 meter (minimum speeda)
• 47dB(A) at 1 meter (medium speed)
• 59dB(A) at 1 meter (maximum speed)

Weight: 13kg (10Kg without bracket)

ON / OFF button and fan speed adjustment (3 speeds)

BLE interface for local control using the SanificaAria Beghelli APP for Android and IOS

Wi-Fi interface for remote control via DOME-E APP for Android and IOS

RADIO TECHNICAL CHARACTERISTICS

Transceiver with Bluetooth® Low Energy (BLE) wireless technology

Frequency band: 2,4GHz-2,4835GHz

Power RF: <100mW e.i.r.p.

Transceiver WiFi

Frequency band: 2.400-2.4835GHz

Wi-Fi standard: IEEE 802.11b/g/n (channels 1-14)

Power RF: <100mW e.i.r.p.

Beghelli S.p.A. declares that the radio transceiver devices comply with European Directive 2014/53/UE.

The full text of the EU Declaration of Conformity of the device is available at:

The devices can be used in a 'free use' policy.

MAINTENANCE

Before cleaning or maintenance, make sure the device is turned off and disconnected from the power supply.

CLEANING

Periodically remove the dust, eventually deposited on the external grids, using a brush. When replacing the Cartridge, remove the dust on the internal deflectors.

Note: The residual dust agglomerates in the sanitizing chamber are totally free of bacterial load.

DISPOSAL

The packaging is made out of recyclable materials. Dispose of it according to environmental protection regulations, by separate collection.

According to European Directive 2012/19/EU, the device fallen into disuse must be disposed of in a compliant manner: It must not be discarded as unselected municipal waste. It must be taken to recycling centres or sent back to the Beghelli vendor.

Recyclable materials used in the appliance can be recovered to avoid environmental pollution. For more information, please contact your local disposal authority or the appliance vendor.

A INSTALLATION WITH FLOOR SUPPORT

- Connect the power cable to the mains

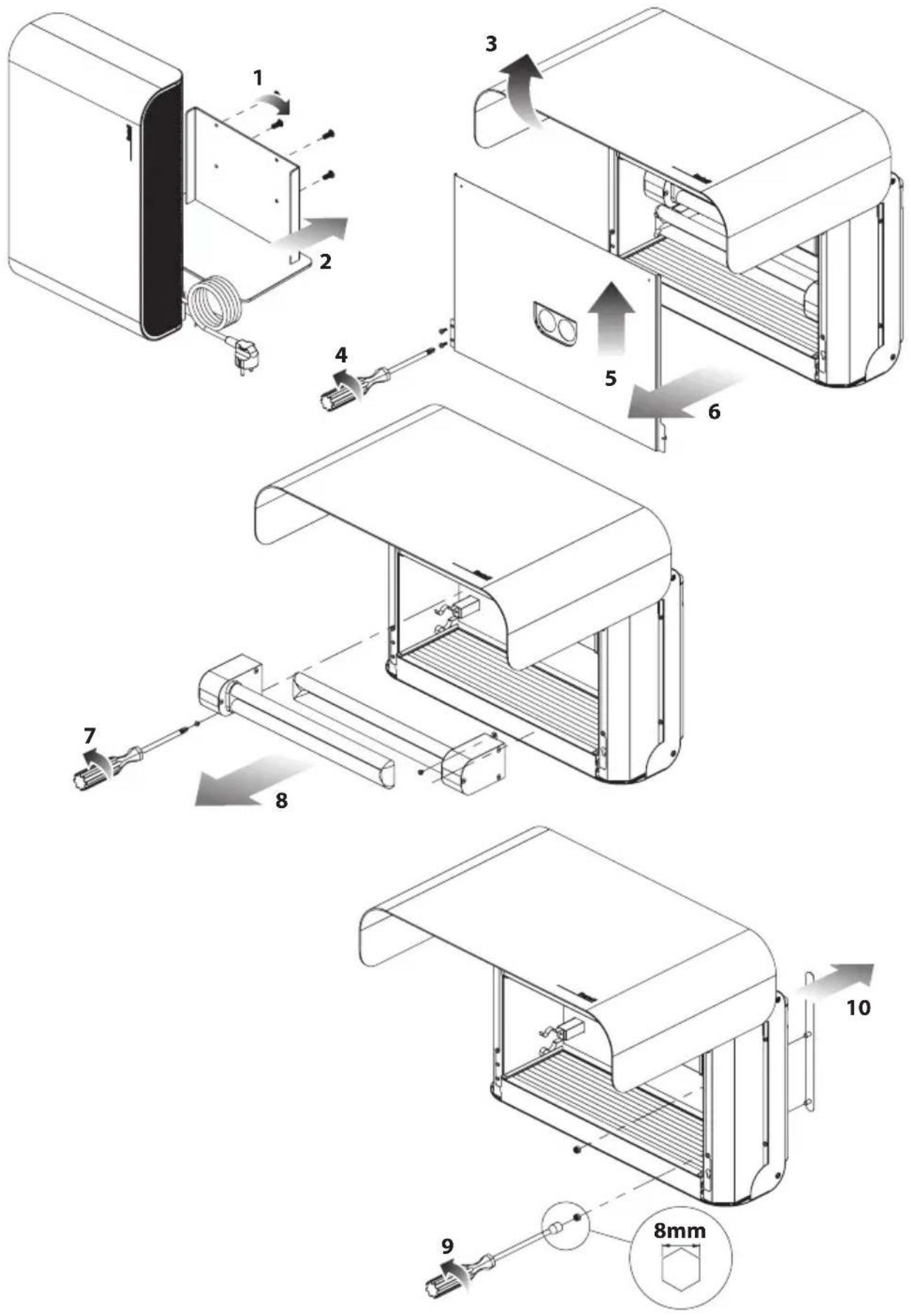

B WALL INSTALLATION WITH CABLE POWER

• Remove the support bracket
• Open the door of the device
• Unscrew the 2 safety screws
• Slide the cover upwards to remove it from the catch, then pull it out
• Unscrew the safety screws and remove the cartridges
• Remove the aesthetic covers and the relative fixing nuts (8mm wrench)
• Using the template supplied, make 4 holes in the wall (screws and wall plugs not supplied; ∅ 6mm wall plugs and ∅ 4.5mm cross screws recommended)
• Pre-assemble the screws leaving them out of the wall by at least 5mm
• Hang the device through the slots on the bottom then tighten the screws
• Connect the power cable to the mains
• Replace the cartridges, the cover and close the device

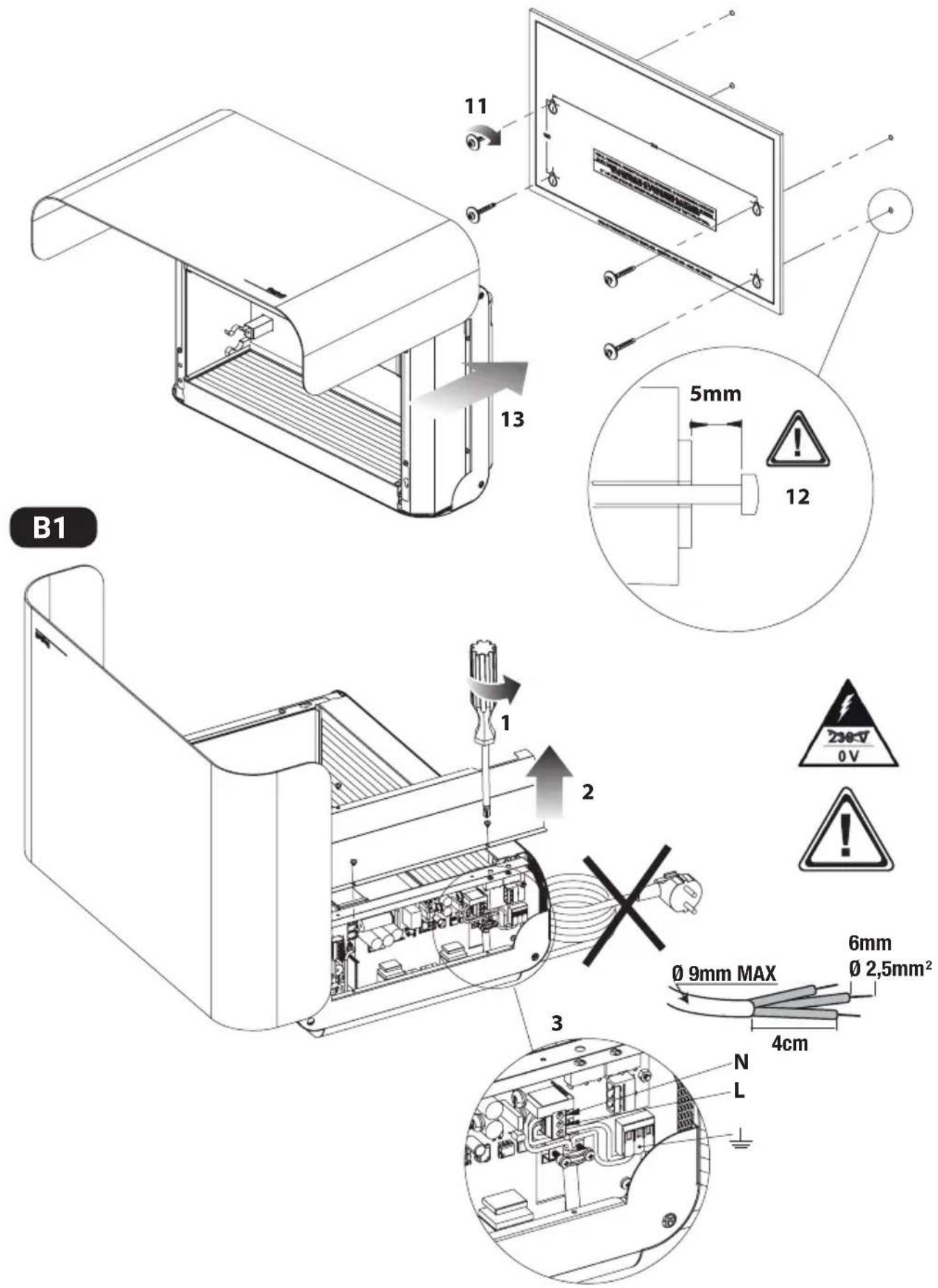

B1 WALL INSTALLATION WITH POWER SUPPLY FROM DUCT

• Unscrew the screws and remove the circuit cover
• Carry out the wiring as indicated
• Replace the cartridges, the cover and close the device

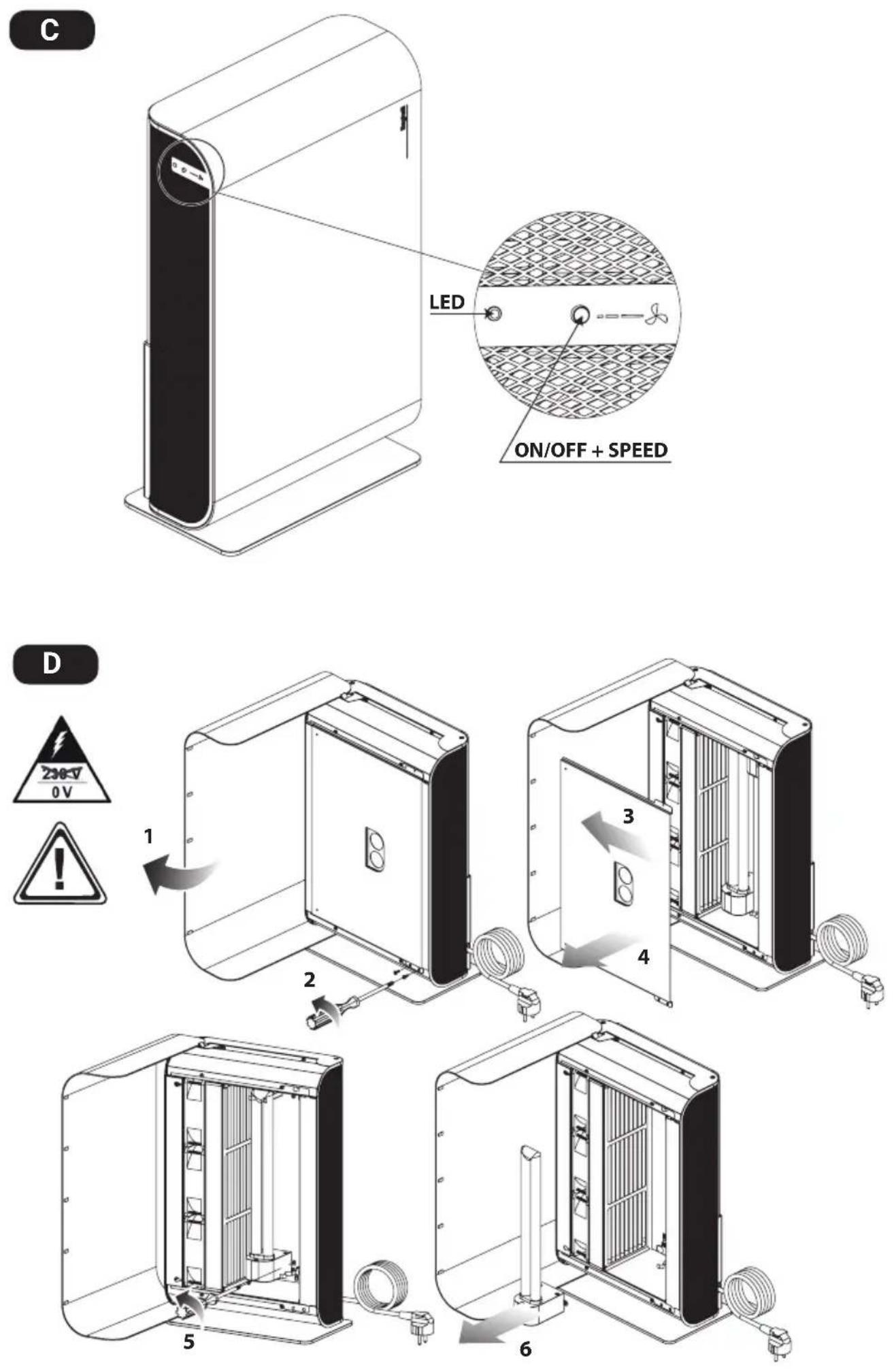

C OPERATION AND ADJUSTMENT

LED SIGNALS:

• WHITE: DEVICE IN STANDBY, SANITIZATION OFF
• LIGHT BLUE: regular operation, SANITIZATION ON
• BLUE: regular operation with Bluetooth® (BLUE LED with sanitizer connected to the SanificaAria App)

• RED: operating anomaly (check the type of anomaly with the SanificaAria App or DOM-E):

• "uvOxy cartridge exhausted" (replace the cartridge)

• "blown fan" (the device must be repaired by the technical assistance service)

Note: The device contains two uvOxy cartridges. In case of exhaustion of only one of the two cartridges, the sanitizer continues to operate with reduced performance, until the other cartridge runs out. Replace both cartridges as soon as possible.

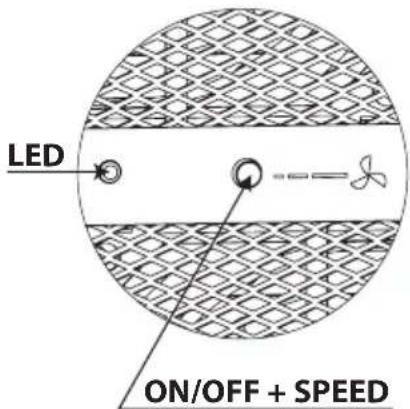

LED ON/OFF + SPEED

ON / OFF BUTTON:

On / off and manual adjustment of the fan speed.

• FIRST PRESS: Speed 1 (1 beep)
• SECOND PRESS: Speed 2 (2 beeps)
• THIRD PRESS: Speed 3 (3 beeps)
• FOURTH PRESS: STAND-BY (long beep)

N.B. The device turns on at speed 2.

After a power cut, the device ALWAYS turns on at minimum speed.

The device can be controlled via Bluetooth® locally with the SanificaAria App and, at the same time, it can also be controlled remotely via WiFi with the DOM-E Beghelli App.

USING THE APP SanificaAria Beghelli:

The device can be switched on / off and the fan speed and the on / off timer can be adjusted via the Beghelli SanificaAria App.

The smartphone connects to the device via Bluetooth®.

• download the SanificaAria Beghelli App (available on the App Store and Google Play) and activate it (no need to register, the App works like a simple remote control);
• approach the device, within a range of about 2 meters; as soon as the sanitizer recognizes the presence of the smartphone, the App menu is activated, the sanitizer LED turns BLUE and the remote control is functional. The Bluetooth ^® connection remains active as long as the App is in the foreground on the smartphone; afterwards the sanitizer LED turns white.

In the event of a power failure, the device loses the information set through the App, including any timer configuration.

The App signals the exhaustion of the cartridge with a specific ICON.

Sanifica ARIA Deghelli ON/OFF TAGR VEGETN OK/OK Cancel Beghelli

USING THE APP DOM-E Beghelli:

The device can be controlled (on / off) and adjusted remotely (3 fan speeds and on / off timer) via the DOM-E Beghelli App. For this use, the sanitizer must be connected to a 2.4GHz WiFi:

• download the DOM-E Beghelli App (available on the App Store and Google Play) and activate it;
• add the new SanificaAria 200 device to the App using the "+" icon
• follow the instructions on the App for connecting and configuring the WiFi connection
• when requested by the App, press the ON / OFF button of the device for at least 6 seconds; a rapid sequence of "beeps" and the flashing of the LED highlights the connection phase in progress. At the end of the process, after about 2 minutes, the LED signals normal operation or any anomaly. If necessary, repeat the connection / configuration.

dome beghelli Beghelli

In the event of a power failure, any timer configurations set through the DOM-E App are kept by the cloud system and do not need to be reset.

Note: The timer set with the SanificaAria App and the DOM-E App do not synchronize with each other. It is recommended to use only one of the two timer modes to avoid confusion.

D uvOxy® 200 SANITIZING CARTRIDGE REPLACEMENT

For the correct operation of SanificaAria, the Sanitization Cartridge must be replaced every 12 months of operation, and in any case when the device signals this.

To maintain the effectiveness of sanitation, as well as ensure the total absence of ozone emissions harmful to people's health, use only original uvOxy® Beghelli cartridges, also available online (www.beghelli.it/store)

The failure of one of the two uvOxy ^® cartridges is immediately notified by turning on the RED LED, sending a message to the DOM-E App and lighting up an icon on the Air Sanitizer App. In the event of a single cartridge failure, the sanitizer continues to operate with reduced effectiveness. When both cartridges are faulty, in addition to the previous notifications, the sanitizer switches off the fan and activates a continuous periodic acoustic signal: 3 beeps every 30 minutes. Both cartridges must ALWAYS be replaced even if the reported fault is related to the single cartridge.

Before proceeding with the cartridge replacement, disconnect the device from the power supply

• Open the door of the device
• Unscrew the 2 safety screws
• Slide the cover to remove it from the catch, then pull it out
• Unscrew the safety screws and replace the cartridges only with original uvOxy® Beghelli spare parts (code 26721)
• Put the cover back on, tighten the two screws and close the device door
