Product Type	Wireless Stereo Headset
Model	HBS-W120
Brand	LG
Bluetooth Version	V 4.2
Supported Bluetooth Profiles	Headset, Hands-Free, A2DP, AVRCP
Battery Type	Lithium-ion polymer, 3.7 V, 445 mAh
Standby Time	Up to 61 days
Talk Time	Up to 40 hours (16 hours in speaker mode)
Music Play Time	Up to 35 hours (6 hours in speaker mode at 50% volume)
Charging Time	Less than 2.5 hours
Rated Input Voltage	DC 4.75 – 5.3 V, 700 mA
Operating Temperature	-10°C to +50°C (14°F to 122°F)
Dimensions (W x L x H)	7.6" x 6.9" x 0.7" (193 x 175 x 18 mm)
Weight	4.4 oz (125 g)
Speaker/Earphone Mode Switch	Yes, slide switch
Vibration Speaker (Wearable Bass)	Yes, adjustable via equalizer mode
Dual Play (Connect Two Headsets)	Yes, share music with another HBS-W120
Multipoint Connection	Up to 2 devices simultaneously
Equalizer Modes	Bass (default), Normal, Treble
Wired Audio Input	3.5 mm audio input (cable sold separately)
Voice Prompts	Yes, for connection and battery status
App Support	LG Tone & Talk (Android only)
Included Accessories	Ear gels (small, medium installed), micro USB charging cable, user manual, warranty card
Maintenance	Clean earbuds regularly; avoid excessive sweat; store in dry place
Safety Precautions	Not waterproof; do not disassemble; use only authentic LG components
FCC ID	ZNFHBSW120

Frequently Asked Questions - Tone Studio HBS-W120 LG

How do I pair the LG HBS-W120 with my phone?

Turn on the headset by sliding the power switch to ON. The blue indicator lamp will flash and the headset enters search mode. On your phone, go to Bluetooth settings and select LG HBSW120. A voice prompt confirms connection. If pairing fails, press and hold the Call button while sliding the power switch to ON to manually enter search mode.

How can I check the battery level?

Press and hold the Previous (◀◀) button for a few seconds. The indicator lamp will flash and a voice prompt announces the battery status. Blue = sufficient, purple = normal, red = low.

What is Dual Play and how do I use it?

Dual Play lets you connect two HBS-W120 headsets to the same phone to share music. First, connect the first headset to your phone. Then on that headset, press and hold the Next (▶) and Play/Pause buttons simultaneously for over one second (Master). On the second headset, press and hold the Previous (◀) and Play/Pause buttons for over one second (Slave). An alert confirms connection. To disconnect, repeat the same button combination on either headset.

How do I switch between speaker and earphone mode?

Slide the Speaker/Earphones mode switch on the headset toward the desired direction. In speaker mode, only the upper right speaker is active during calls.

How do I activate the vibration speaker (Wearable Bass)?

While playing music, press and hold the Volume control wheel/button to cycle through equalizer modes: Bass (default) – strong vibration, Normal – moderate vibration, Treble – light vibration. The vibration speaker intensity changes accordingly.

Can I connect the HBS-W120 to two devices at the same time?

Yes, it supports multipoint connection. While connected to one device (main device), put the headset into search mode (press and hold Call button while sliding power ON) and pair with a second device. The last connected device becomes the main device. Note that Dual Play and multipoint cannot be used simultaneously.

Why is the sound volume low?

Check the volume level on both the headset (using the Volume control wheel/button) and the connected device. Also ensure the headset is not muted (press the Volume control wheel/button twice quickly to toggle mute). Adjust the equalizer mode if needed.

What should I do if the headset does not connect or works intermittently?

First, ensure the headset is charged and turned on. If not connecting, manually put it into search mode by pressing and holding the Call button while sliding power ON. If the device is out of range (over 33 feet/10 meters), move closer. For Dual Play issues, place both headsets within 1 foot (30 cm) of each other and follow the pairing procedure again.

Is the LG HBS-W120 waterproof?

No, the headset is not waterproof. Avoid exposure to water, humidity, sweat, alcohol, or benzene. Clean with a dry cloth and store in a dry place.

How do I use the LG Tone & Talk app with this headset?

Download LG Tone & Talk from Google Play store (Android only). After installation, you can access features like Current Time Alert, Voice Memo, speed dial, favorites, call history, and change voice prompt language. To use a function, select it in the app and then perform the specified button action on the headset (e.g., press and hold Next button for one second for Time Alert). Only one function can be active at a time.

USER MANUAL Tone Studio HBS-W120 LG

All rights reserved.

© 2017 LG Electronics, Inc.

Please read the Important Safety Information for the proper use of this product.

After reading, store this User Manual in a place easily accessible to all users.

NOTE: Please read all information carefully prior to using the HBS-W120 in order to enjoy the best performance and prevent damage to the product.

WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Call [phone] for more information.

Wash hands after handling.

HBS-W120

www.lg.com

Contents

Product Components....1

Safety Cautions....2

Precautions When Using the Product....3

HD Speaker....3

Product Description....4

HBS-W120 Pairing and Connecting....5

Battery Charging and Alerts....9

Indicator Lamp....9

Mobile Calling Functions....10

Playing Music....11

Switching Speaker/Earphones Mode 12

Setting up the Vibration Speaker (Wearable Bass™)....12

Out of Range 13

LG Tone & Talk™ 13

Troubleshooting....14

Specifications and Features....15

Declaration of Confirmation 16

Additional Information....17

Limited Warranty....19

Important Safety Information....20

The LG TONE Studio (HBS-W120) is a lightweight wireless stereo headset that uses Bluetooth technology.

This product can be used as an audio accessory for devices supporting either the A2DP or Hands-Free Bluetooth profile.

Product Components

Illustration of a curved, segmented object resembling a stylized ear or device (no text or symbols visible)

LG TONE Studio HBS-W120 (medium ear gels installed)

Extra Ear Gels (small) Micro USB Charging Cable

User Manual Warranty Card

NOTE: Actual product design may differ from images shown in manual.

CAUTION

Make sure authentic LG Electronics components are used. Using a non-authentic component may damage the product and thus void the warranty.

Safety Cautions

CAUTION

Do not disassemble, adjust, or repair the product arbitrarily.

Do not place the product near excessive heat or flammable material.

Do not arbitrarily replace the battery, as it may explode.

The product may be damaged if an incompatible recharger is used.

Make sure that an infant or a child does not swallow a magnet or a small component of the product.

Make sure that foreign objects do not enter the charger's connectors (charging port and power plug).

Failure to do so may result in fire or electric shock.

If you have a medical device implanted, contact your doctor before using this device.

For your safety, do not remove the battery installed in the product.

The lithium-ion polymer battery is a hazardous component which can cause injury.

Battery replacement by an unqualified professional can cause damage to your device.

Make sure that foreign substances do not enter the audio input terminal.

WARNING

Do not apply excessive force to, make holes in, or drop the product from a high place.

Keep the product away from water, alcohol, benzene, etc.

Do not store the product in a wet or a dusty place.

Do not place any heavy objects on the product.

This product is not waterproof. Avoid humidity or water when using the product.

Precautions When Using the Product

Refer to the following to use the product for its normal life span.

	Do not pull the earphone cable with excessive force.
	If the product is exposed to excessive sweat, clean the product.
	Keep the earbuds clean.
	For your safety, do not wear the product while it is being charged.

HD Speaker

If the communication network of the device you are connecting to supports "HD Voice Calling," you can make voice calls in high definition.

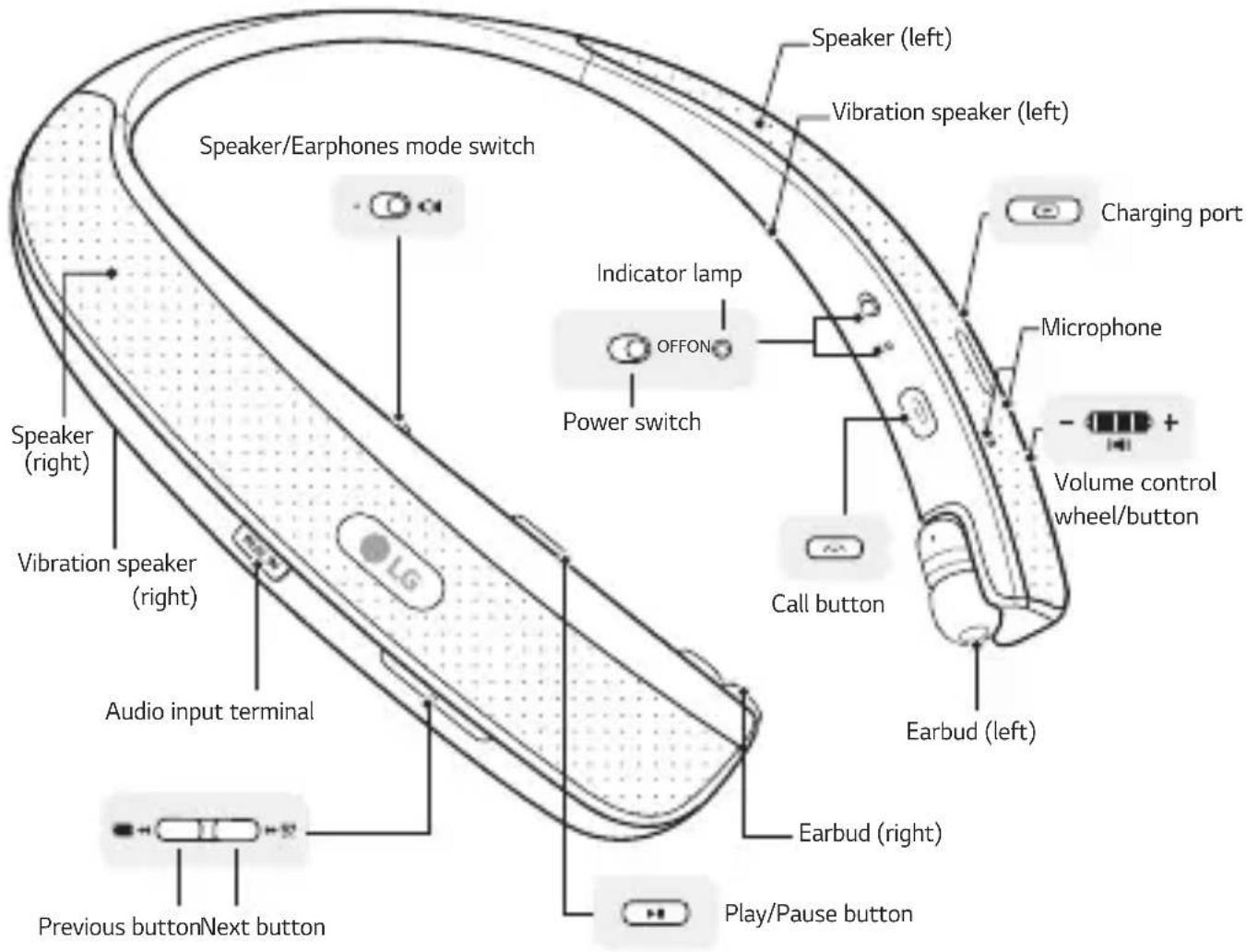

Product Description

NOTE: To prevent hearing loss, the control sound is played for a long time when controlling the volume at high volumes.

HBS-W120 Pairing and Connecting

You can easily pair and connect the device following the voice prompts from the earbuds or the speaker.

If you hear that the battery is insufficient, recharge the battery before proceeding with pairing.

If pairing is not completed within three minutes, power automatically turns off. When power automatically turns off, slide the Power switch from the OFF to the ON position to turn power on again.

Line drawing of a person's head and shoulders (no text or symbols)

Connecting Quickly

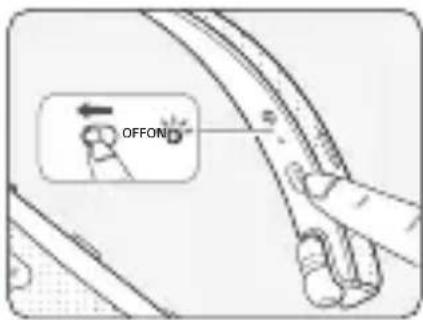

1 Slide the Power switch toward the ON position to turn on power.
2 The blue Indicator lamp turns on and HBS-W120 switches to Search mode.

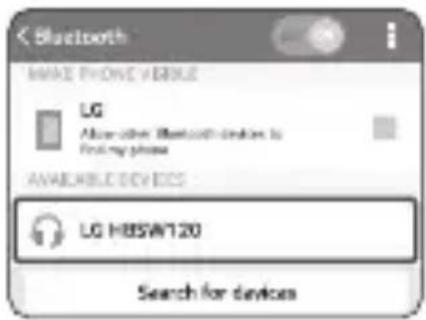

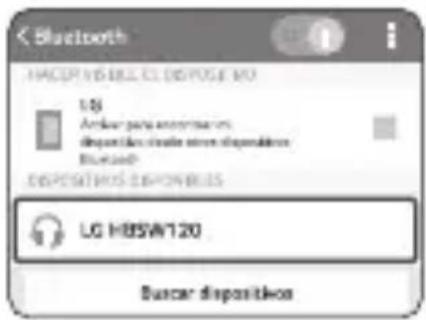

3 From the mobile phone or device list, select LG HBSW120 to connect.
4 A voice message will indicate that the connection is completed.
5 Use the same process to pair HBS-W120 with other devices.

Connecting Manually (connecting to other devices or reconnecting)

1 Press and hold the Call button and slide the Power switch to the ON position to turn it on.
2 The blue Indicator lamp turns on and HBS-W120 switches to Search mode.
3 Select LG HBSW120 from the device list to connect.

Multiple Connections

HBS-W120 can be connected to two devices like a mobile phone and a PC, etc., and used on them simultaneously.

An additional device can be connected while HBS-W120 is connected to one device.

1 Press and hold the Call button and slide the Power switch to the ON position to turn it on.
2 The blue Indicator lamp turns on and HBS-W120 switches to Search mode.
3 From the mobile phone or device list, select LG HBSW120 to connect.
4 A voice message will indicate that the connection is completed. This device becomes the "Main Connected Device."
5 Try to connect to HBS-W120 using a previously connected device. This device becomes the "Sub Connected Device."

NOTE: If the HBS-W120 is simultaneously connected to two devices, the last connected device becomes the Main Connected Device. The main functions work based on the Main Connected Device.

Automatic Reconnection

If you turn on HBS-W120, it automatically connects to the previously connected device (Main Connected Device or Sub Connected Device). (If the product cannot find the device, it switches to Search mode.)

If the product does not automatically connect to the device you want, search HBS-W120 in the device you want to connect to and connect it manually.

Dual Play

You can connect two HBS-W120 headsets to listen to the same music.

1 Connect the first HBS-W120 to your mobile phone or device.
2 Press and hold the Next (▶) button and Play/Pause button of the first HBS-W120 simultaneously for more than one second. (This HBS-W120 becomes the Master headset.)

3 Press and hold the Previous () button and Play/Pause button of the second HBS-W120 simultaneously for more than one second. (This HBS-W120 becomes the Slave headset.)

4 An alert will indicate the connection status once the two HBS-W120 headsets are connected.

To disconnect Dual Play, press the Previous (◀) button or the Next (▶) button and the Play/Pause button simultaneously for at least one second.

NOTE: Dual Play supports both Android and iOS.

The music playback functions can only perform in the Master headset while Dual Play is activated. (Except Equalizer Mode Change and volume control)

If the Master headset and Slave headset are disconnected during Dual Play and they later enter an environment in which they can reconnect, they will automatically attempt a Dual Play connection.

Multi-connection is not available during Dual Play.

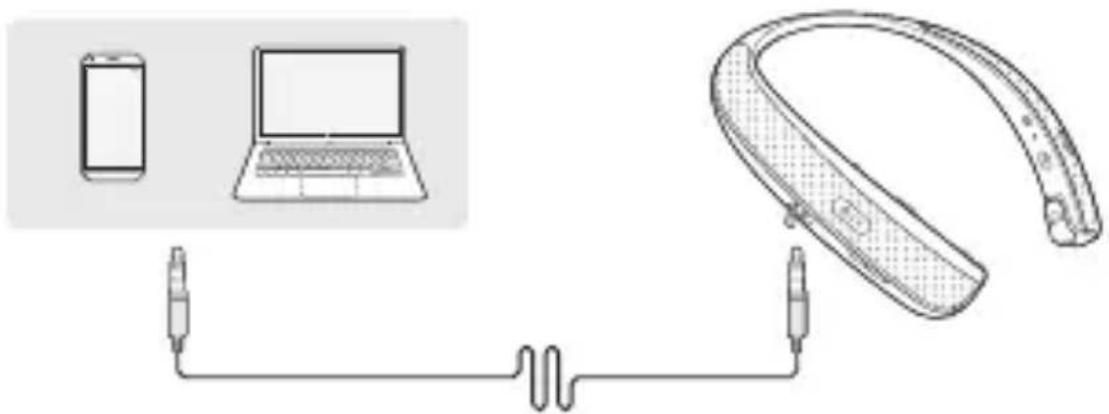

Wired connection (audio input terminal)

When the headset is turned on, use a wired connection through the audio input terminal to play music through speakers.

NOTE: When wired audio is connected, the Dual Play connection and the Bluetooth connection will be cut.

The audio cable is purchased separately and is not provided when purchasing the product. When the audio cable is disconnected, an automatic connection is established with the most recently connected device. (If no device is found, Search mode is activated.)

Earphones mode is unavailable when the audio cable is connected.

Use a portable 3.5 mm audio cable.

Diagram showing a smartphone connected to a laptop and a handheld device via a wire (no text or symbols present)

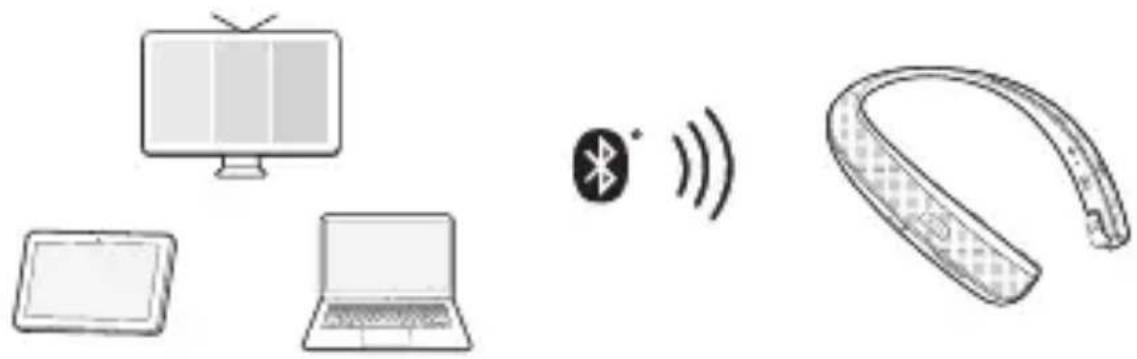

Pairing with TV and other devices (tablet, notebook PC, etc.)

You can connect and use HBS-W120 with TV and other devices that support the Bluetooth function. For details on how to connect, refer to the user manual supplied with the product.

Compatible with TV and other devices

Compatible with Bluetooth enabled devices (Smartphone, Tablet and Laptops).

Compatible with Bluetooth audio enabled LG Smart TV's running WebOS, manufactured from 2015 onward. For other Smart TV compatibility, please consult with the TV manufacturer.

Illustration of connected devices including a monitor, laptop, and earband with wireless signal waves (no text or symbols)

Battery Charging and Alerts

Open the Charging port cover and connect your charger to the Charging port.

Pure mechanical diagram showing a lever and lever assembly without any text, numbers, or symbols

Indicator Lamp Red Purple Blue
Battery Status Charging 80% Completed

Press and hold the Previous (◀◀) button for a few seconds to check the battery status using the voice prompt and the Indicator lamp.

Line drawing of a finger pressing a button on a curved object (no text or symbols)

Battery Status Sufficient Normal Insufficient
Indicator Lamp	Blue flashes three times	Purple flashes three times	Red flashes three times

Indicator Lamp

HBS-W120 Status Description
Power On The blueIndicator lampflashes four times.
Power Off The blueIndicator lampflashes four times.
Bluetooth Search Mode The blue	Indicator lampis on.
Connected to a Device	The blueIndicator lampflashes once every five seconds.
Dual Play Search Mode	Master: The greenIndicator lampflashes.Slave: The greenIndicator lampis on.
Connected to Dual Play	Master/Slave: The greenIndicator lampflashes once every five seconds.

Mobile Calling Functions

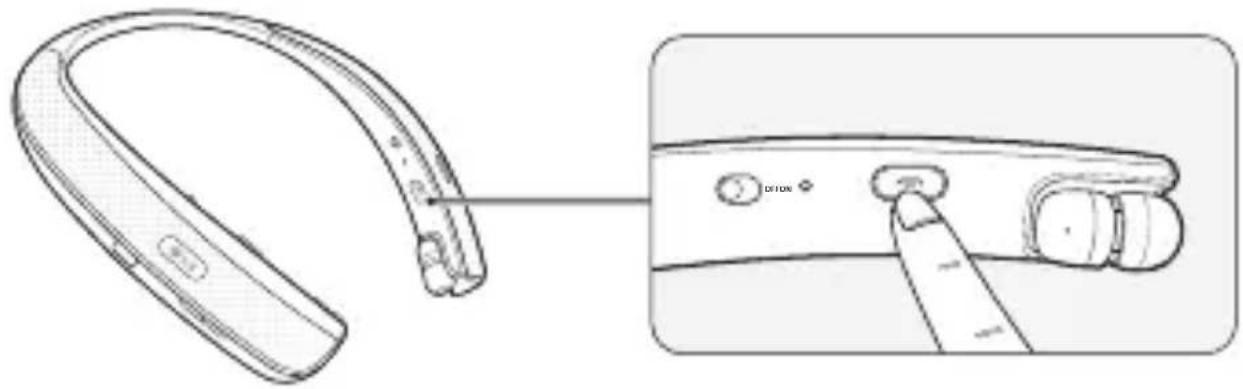

Line drawing of a handheld electronic device with a close-up view showing its port and adjustment knob (no text or symbols present)

Function Status Description
Receiving a Call/Hanging Up	Accepting a Call Briefly press theCall button.
Making a Call Standby Mode		If you make a call using a mobile phone, the call is automatically connected to HBS-W120.
Redial Standby Mode		Press and hold theCall buttonfor one second to dial the last number you called.
Voice Dial Standby Mode Briefly press		theCall button.
Switching Calls Call in Progress		Briefly press thePlay/Pause buttontwice.(Every time you press this button, the call switches to the mobile phone or HBS-W120.)
Call in ProgressAcceptingAnother Call	Call in Progress	Press and hold theCall buttonfor one second to accept another call while on the phone.The existing call switches to call waiting status. Press and hold theCall buttonagain for one second to switch back to the previous call.
Rejecting a Call Accepting a Call Press		and hold theCall buttonfor two seconds.

NOTE: The Voice Dial and Redial functions work on the "Main Connected Device" or on the device on which you made the last call. (The Voice Dial and Redial functions may work differently depending on the mobile phone being used.)
Some features may not be supported depending on the connected device.

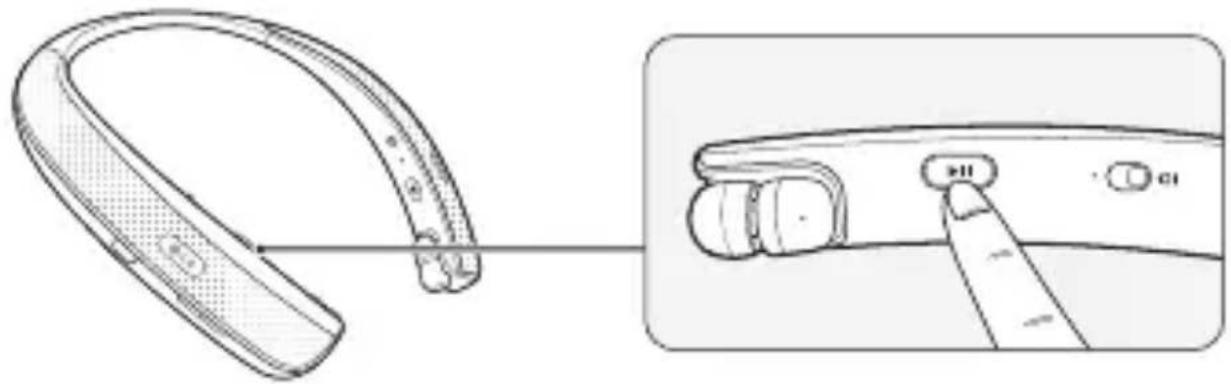

Playing Music

Diagram of a handheld ear device with a close-up view showing the terminal knob (no text or symbols present)

Function Status Description
Playing Music Standby Mode Briefly press the Play/Pause button.
Pause Music in Play Briefly press the Play/Pause button.
Play Previous/Next Song	Music in Play	Briefly press the Previous (◀) button or Next (▶) button.
Fast Rewind/Forward	Music in Play	Press and hold the Previous ( ) button or Next ( ) button until you reach the desired part.
Mute Music in Play		Briefly press the Volume control wheel/button twice.Briefly press the Volume control wheel/button twice again to turn off Mute.
Equalizer Mode change	Music in Play	Press and hold the Volume control wheel/button to change the mode in the following order:Bass (default) > Normal (general) > Treble (emphasis on high notes)NOTE: The Vibration Speaker operates depending on the set equalizer mode.

NOTE: To change the music player when multiple devices are connected, stop the current music in play and play the music on the desired device.

Some features may not be supported depending on the connected device.

Switching Music Players

If you stop the current music in play, and then play music on either of the two connected devices, HBS-W120's music playback and control change to those of such device.

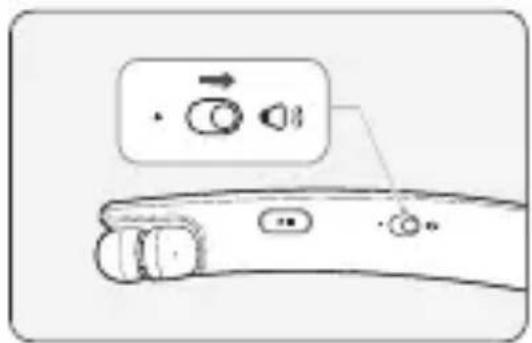

Switching Speaker/Earphones Mode

Slide the Speaker/Earphones mode switch toward the desired direction to change the mode.

NOTE: When making a mobile call in Speaker mode, only the speaker on the upper right hand side is active.

Earphones Mode Speaker Mode

Setting up the Vibration Speaker (Wearable Bass™)

Line drawing of a device with a finger pointing to a button (no text or symbols)

The strength of the bass and vibration is adjusted in stages depending on the equalizer mode.

Press and hold the Volume control wheel/button while playing audio (music) to change the equalizer mode.

Bass (default) > Normal (general) > Treble (emphasis on high notes)

Line drawing of a person's neck and shoulder with two neck clips (no text or symbols)

Put on the product and turn on the Vibration Speaker to enjoy immersive surround sound and vibrations.

Out of Range

If the device connected to HBS-W120 is out of effective communication range (33 feet/10 meters), the communication signal becomes weak and the communication is lost.

If the device comes back within the effective communication range, the product automatically reconnects to HBS-W120.

If the device is not automatically reconnected, press the Call button on HBS-W120 to connect to it manually.

If a device that is not in use moves out of range in multi-connection mode, automatic reconnection function is not supported.

LG Tone & Talk™

Search for "LG Tone & Talk" in Google Play™ store or scan the QR code on the right to install LG Tone & Talk.

HBS-W120 can use the following functions in LG Tone & Talk:

NOTE: The LG Tone & Talk feature can only be used one function at a time. LG Tone & Talk can be used on Android™ smartphones.

Function Description
Current Time Alert	1. Go to Tone & Talk and select Current Time Alert.2. Press and hold the Next ( ) button for one second.
Voice Memo	1. Go to Tone & Talk and select Voice Memo.2. Press and hold the Next ( ) button for one second.
Using Speed Dial to Make a Call	1. Go to Tone & Talk and select a speed dial contact.2. Briefly press the Call button twice.(The number should be specified in the Tone & Talk app.)
Using Favorites to Make a Call	1. Go to Tone & Talk and select a favorite contact.2. Briefly press the Call button twice.3. Press and hold the Previous ( ) button or Next ( ) button for one second to select a number.4. Briefly press the Call button twice.
Using Call History to Make a Call	1. Go to Tone & Talk and select a number from the Call History.2. Briefly press theCall buttontwice.3. Press and hold thePrevious () button or Next () buttonfor one second to select a number.4. Briefly press theCall buttontwice.
Changing the Voice Prompt Language	1. Go to Tone & Talk and selectHeadset settings.2. SelectVoice prompt languageto change the language.
Changing Equalizer Mode	You can change the equalizer mode through the app.Bass (default) > Normal (general) > Treble (emphasis on high notes)

NOTE: The Current Time Alert and the Voice Memo features cannot be used at the same time. When making selections in the Tone & Talk app, you can only use one function at a time. The Voice Memo feature may not be supported on some devices.

Troubleshooting

Problem Solution
The power does not turn on Check the battery level and charge it.
Cannot make a call with HBS-W120	If the mobile phone does not support headset and hands-free function, you cannot use the calling features. Check the battery level and charge it.
Cannot register HBS-W120 to the mobile phone	Check whether HBS-W120 is turned on.Check whether HBS-W120 is in Search mode.- If you press and hold the Call button while you slide the Power switch to the ON position to turn the power on, the HBS-W120 switches to Search mode.
The sound is low Control the sound level of the device connected to HBS-W120.
Connection to TV is lost, or TV cannot be connected	Check whether the TV is turned off or switched to sleep mode.If you turn off the TV and turn it on again, you will need to reconnect it (refer to the user manual provided with the TV).
Dual Play cannot be connected	Please check your battery level and charge the battery.Refer to the Connecting Quickly/Connecting Manually instructions and connect your HBS-W120 to your mobile phone or device.Position two HBS-W120 headsets within 1 foot (30 centimeters) of each other.Refer to the Dual Play connection instructions to connect the two HBS-W120 headsets.NOTE: Connections are only supported between two identical HBS-W120 models.

Specifications and Features

Item Comments
Bluetooth Specifications	V 4.2 (Headset/Hands-Free/A2DP/AVRCP)
Battery 3.7 V / 445 mAh*	2, lithium-ion polymer
Standby Time Up to 61 days*
Talk Time Up to 40 hours (16 hours when in Speaker mode)*
Music Play Time	Up to 35 hours (6 hours when in Speaker mode, Based on 50% volume level)*
Charging Time Less than 2.5 hours
Rated Input Voltage DC 4.75 ~ 5.3 V, 700 mA
Operating Temperature -10°C (+14°F) ~ +50°C (+122°F)
Dimension/Weight 7.6" (W) X 6.9" (L) X 0.7" (H) / 4.4 oz
Operating Frequency 2402 MHz to 2480 MHz

*Duration of use may vary depending on the connected mobile device, features being used, settings, signal strength, operating temperature, frequency band, and other methods of use.
NOTE: When using the speaker mode, the usage time may vary depending on the volume size set by the user.

Declaration of Confirmation

FCC NOTICE TO USERS:

This device complies with part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.

Changes or modifications not expressly approved by the manufacturer (or party responsible) for compliance could void the user's authority to operate the equipment.

FCC Part 15.105 statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

IMPORTANT NOTE:

To comply with the FCC RF exposure compliance requirements, no change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void the user's authority to operate the device.

Bluetooth ^® is a registered trademark of Bluetooth SIG, Inc. worldwide.

FCC ID: ZNFHBSW120

Additional Information

1. Radio frequency exposure

This Bluetooth Wireless Stereo Headset HBS-W120 is a radio transmitter and receiver. When in operation it communicates with a Bluetooth-equipped mobile device by receiving and transmitting radio frequency (RF) electromagnetic fields (microwaves) in the frequency range 2.4 to 2.4835 GHz. Your Bluetooth headset is designed to operate in compliance with the RF exposure guidelines and limits set by national authorities and international health agencies when used with any compatible LG Electronics mobile phone.

2. Bluetooth connection precautions

The following environments affect the range and reception of Bluetooth signals:

- When walls, metal, human bodies, or other obstacles exist between the Bluetooth device and the connected device.

- When equipment that uses 2.4 GHz frequency signals (wireless LANs, wireless phones, microwave ovens, etc.) is placed near the devices being used.

3. Potentially explosive atmosphere

Turn off your electronic device when in any area with a potentially explosive atmosphere. Although this is uncommon, your electronic device could generate sparks. Sparks in such areas could cause an explosion or fire resulting in bodily injury or even death. Areas with a potentially explosive atmosphere are often but not always clearly marked.

4. Emergency calls

IMPORTANT!

This Bluetooth headset and the electronic device connected to the headset operate using radio signals and mobile and landline networks as well as user-programmed functions, which cannot guarantee connection under all conditions. Therefore, you should never rely solely upon any electronic device for essential communications (e.g., medical emergencies). Remember, in order to make or receive calls, the headset and the electronic device connected to the headset must be switched on and in a service area with adequate mobile signal strength. Emergency calls may not be possible on all mobile phone networks or when certain network services and/or phone features are in use. Check with your local service provider.

5. Battery information

A rechargeable battery has a long service life if treated properly. A new battery or one that has not been used for a long period of time could have reduced capacity the first few times it is used. Do not expose the battery to extreme temperatures, never above +50°C (+122°F) or below -10°C (+14°F). For maximum battery capacity, use the battery at room temperature. If the battery is used in low temperatures, the battery capacity will be reduced. The battery can only be charged in temperatures between +10°C (+50°F) and +45°C (+113°F).

6. Recycling the battery in your Bluetooth headset

The battery in your Bluetooth headset must be disposed of properly and should never be placed in municipal waste. The LG Electronics service partner that removes the battery will dispose of it according to local regulations.

7. Conditions

- The warranty is valid only if the original receipt issued to the original purchaser by the dealer, specifying the date of purchase and serial number, is presented with the product to be repaired or replaced. LG Electronics reserves the right to refuse warranty service if this information has been removed or changed after the original purchase of the product from the dealer.

- If LG Electronics repairs or replaces the product, the repaired or replaced product shall be warranted for the remaining time of the original warranty period or for ninety (90) days from the date of repair, whichever is longer. Repair or replacement may involve the use of functionally equivalent reconditioned units. Replaced parts or components will become the property of LG Electronics.

- This warranty does not cover any failure of the product due to normal wear and tear, or due to misuse, including but not limited to use in other than the normal and customary manner, in

accordance with instructions for use and maintenance of the product. Nor does this warranty cover any failure of the product due to accident, modification or adjustment, acts of God, or damage resulting from liquid.

- This warranty does not cover product failures due to improper repair installations, modifications, or service performed by a non-LG Electronics authorized person. Tampering with any of the seals on the product will void the warranty.

- THERE ARE NO EXPRESS WARRANTIES, WHETHER WRITTEN OR ORAL, OTHER THAN THIS PRINTED INCLUDING WITHOUT LIMITATION THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO THE DURATION OF THIS LIMITED WARRANTY. IN NO EVENT SHALL LG ELECTRONICS OR ITS VENDORS BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY NATURE WHATSOEVER, INCLUDING BUT NOT LIMITED TO LOST PROFITS OR COMMERCIAL LOSS, TO THE FULL EXTENT THOSE DAMAGES CAN BE DISCLAIMED BY LAW.

- Some countries/states do not allow the exclusion or limitation of incidental or consequential damages, or limitation of the duration of implied warranties, so the preceding limitations or exclusions may not apply to you. The warranty provided does not affect the consumer's statutory rights under applicable national legislation in force, nor the consumer's rights against the dealer arising from their sales/purchase contract.

Limited Warranty

Subject to the conditions of this Limited Warranty, LG Electronics warrants this product to be free from defects in design, material, and workmanship at the time of its original purchase by a consumer, and for a subsequent period of one (1) year. Should your product need warranty service, please return it to the dealer from whom it was purchased or contact your local LG Electronics contact center to get further information.

Important Safety Information

Avoiding hearing damage

Permanent hearing loss may occur if you use your headset at a high volume.

Set the volume to a safe level. Over time you can become accustomed to a higher volume that may sound normal but can be damaging to your hearing.

If you experience ringing in your ears or muffled speech, stop listening and have your hearing checked. The louder the volume, the less time is required before your hearing could be affected.

Hearing experts suggest that to protect your hearing:

• Limit the amount of time you use the headset at high volume.
• Avoid turning up the volume to block out noisy surroundings.
• Turn the volume down if you can't hear people speaking near you.

Lower the volume before switching to Earphones mode from Speaker mode.

While in Speaker mode, do not listen to or adjust the volume with the headset placed close to your ears.

Using headsets safely

Use of headsets to listen to music while operating a vehicle is not recommended and is illegal in some areas. Be careful and attentive while driving. Stop using this device if you find it disruptive or distracting while operating any type of vehicle or performing any other activity that requires your full attention.

LG

Life's Good

Manual del usuario

LG TONE Studio™

© 2017 LG Electronics, Inc.

LG Tone & Talk....14

Solución de problemas....15

Illustration of a curved, segmented object resembling a stylized ear or connector (no text or symbols)

Line drawing of a person's head and shoulders (no text or symbols)

Conexión rápida

Diagram showing a smartphone connected to a laptop and a handheld device via a cable (no text or symbols present)

Illustration of three devices: a monitor, a laptop, and a curved smartphone with Bluetooth signal (no text or symbols)

Diagram of a device with an arrow pointing to a component, no visible text or symbols

Line drawing of a finger pressing a button on a wooden object (no text or symbols)

Line drawing of a curved electronic device with a finger pressing a button, shown from an inset view (no text or symbols)

Technical line drawing of a handheld electronic device with a close-up view showing the terminal panel (no text or symbols present)

Diagram of a handheld device with control buttons and display indicators (no text or symbols)

Line drawing of a device with a finger inserted into a port (no text or symbols)

Line drawing of a neck with two clamps and a textured collar (no text or symbols)

Any modifications or changes to this manual due to typographical errors or inaccuracies of stated information shall only be made by LG Electronics Inc.
