USER MANUAL SRX240H2 Juniper

SRX240 Services Gateway

Hardware Guide

Published: 2014-06-10

Juniper Networks, Inc.

1194 North Mathilda Avenue

Sunnyvale, California 94089

USA

408-745-2000

www.juniper.net

Juniper Networks, Junos, Steel-Belted Radius, NetScreen, and ScreenOS are registered trademarks of Juniper Networks, Inc. in the United States and other countries. The Juniper Networks Logo, the Junos logo, and JunosE are trademarks of Juniper Networks, Inc. All other trademarks, service marks, registered trademarks, or registered service marks are the property of their respective owners.

Juniper Networks assumes no responsibility for any inaccuracies in this document. Juniper Networks reserves the right to change, modify, transfer, or otherwise revise this publication without notice.

SRX240 Services Gateway Hardware Guide

Copyright © 2014, Juniper Networks, Inc.

All rights reserved. Printed in USA.

Revision History

October 2013

June 2014—Added the EMC compliance requirements in Israel

The information in this document is current as of the date on the title page.

SOFTWARE LICENSE

The terms and conditions for using this software are described in the software license contained in the acknowledgment to your purchase order or, to the extent applicable, to any reseller agreement or end-user purchase agreement executed between you and Juniper Networks. By using this software, you indicate that you understand and agree to be bound by those terms and conditions.

Generally speaking, the software license restricts the manner in which you are permitted to use the software and may contain prohibitions against certain uses. The software license may state conditions under which the license is automatically terminated. You should consult the license for further details.

For complete product documentation, please see the Juniper Networks Web site at www.juniper.net/techpubs.

END USER LICENSE AGREEMENT

The Juniper Networks product that is the subject of this technical documentation consists of (or is intended for use with) Juniper Networks software. Use of such software is subject to the terms and conditions of the End User License Agreement ("EULA") posted at http://www.juniper.net/support/eula.html. By downloading, installing or using such software, you agree to the terms and conditions of that EULA.

Table of Contents

About This Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Objectives ix

Audience ix

Documentation Conventions

SRX Series Documentation and Release Notes . . . . . . . . . . . . . . . . . . . . . .

Obtaining Documentation

Documentation Feedback

Requesting Technical Support

Self-Help Online Tools and Resources . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Opening a Case with JTAC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part 1 SRX240 Services Gateway Overview

Chapter 1 Introduction to the SRX240 Services Gateway . . . . . . . . . . . . . . . . .

SRX240 Services Gateway Description

SRX240 Services Gateway Models

SRX240 Services Gateway Hardware Features . . . . . . . . . . . . . . . . . . . . . .

Chapter 2 SRX240 Services Gateway Hardware Components and Specifications ..... 7

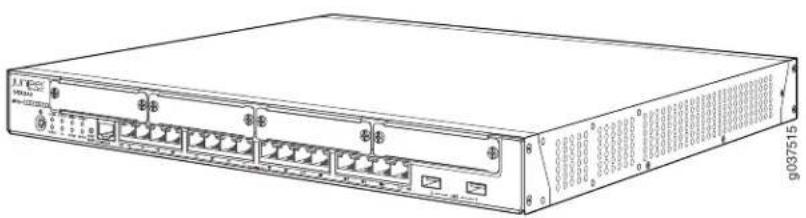

SRX240 Services Gateway Chassis

SRX240 Services Gateway Front Panel and Back Panel Views . . . . . . . . . . . . .

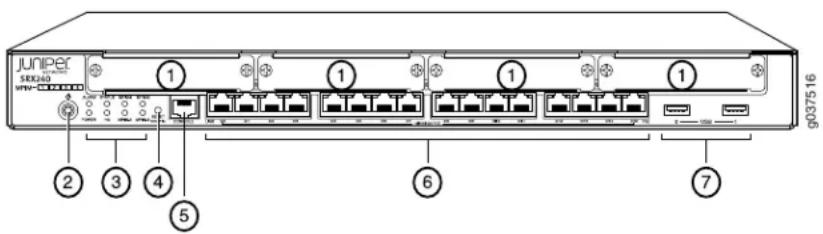

SRX240 Services Gateway Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . .

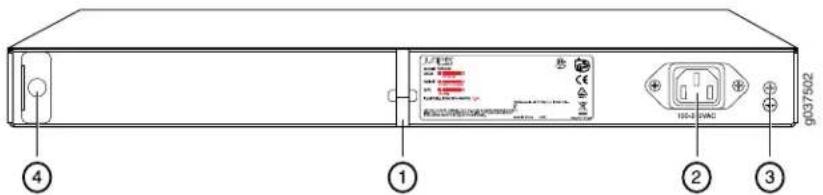

SRX240 Services Gateway Back Panel (AC power supply models) ..... 11

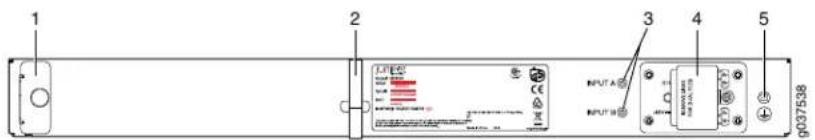

SRX240 Services Gateway Back Panel (DC Power Supply Model) ..... 11

SRX240 Services Gateway Built-In Interfaces

SRX240 Services Gateway LEDs

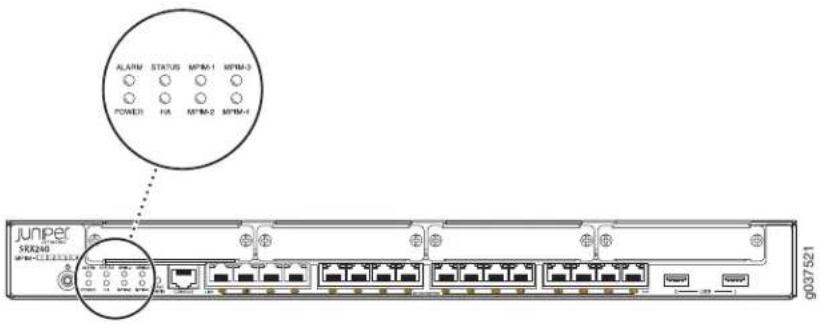

Front Panel LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

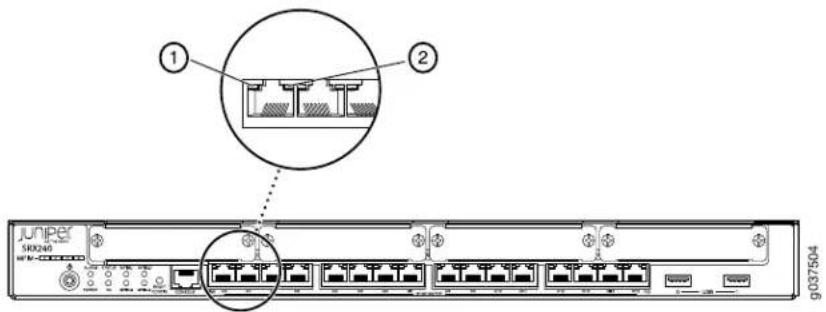

Ethernet Port LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

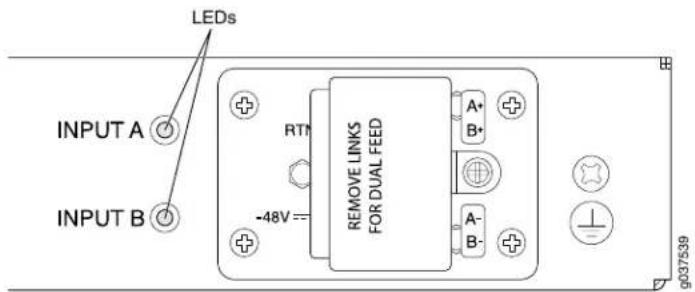

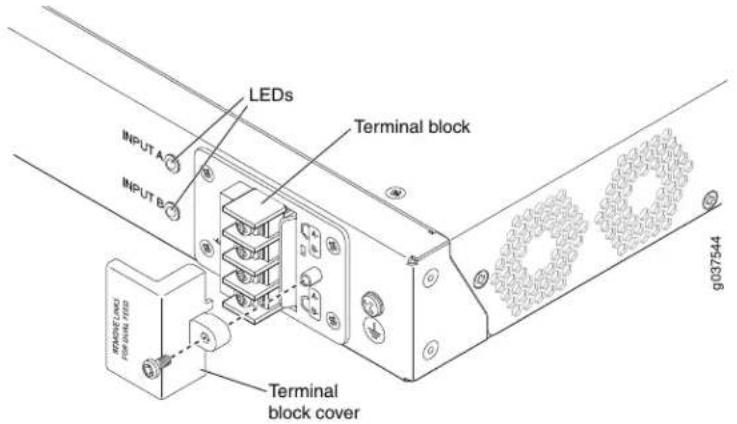

DC Power Supply Feed LEDs (SRX240 Services Gateway DC Power Supply Model)

SRX240 Services Gateway Boot Devices and Dual-Root Partitioning

Scheme

Boot Devices

Dual-Root Partitioning Scheme ....

SRX240 Services Gateway Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . .

AC Power Supply (SRX240 Services Gateway) . . . . . . . . . . . . . . . . . . . . .

DC Power Supply (SRX240 Services Gateway with DC Power Supply Model) 20

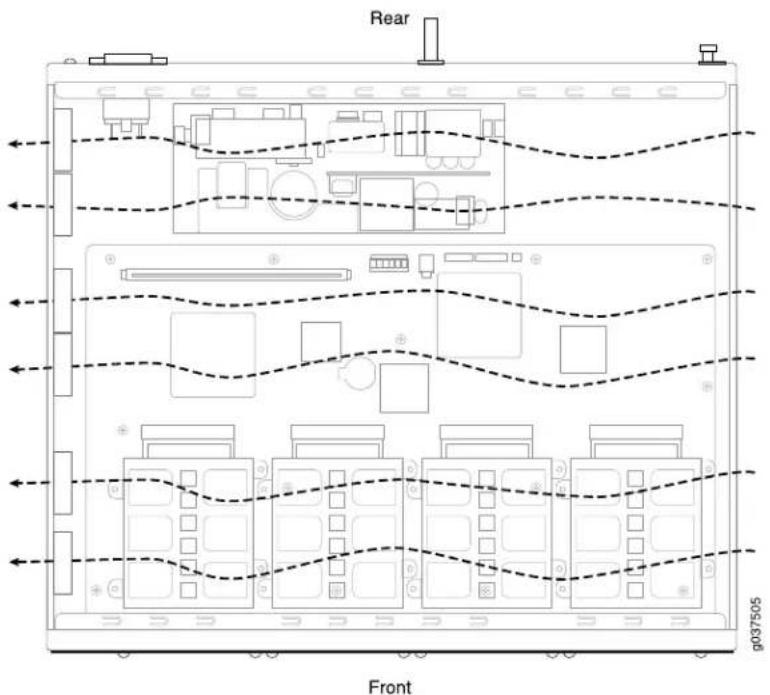

SRX240 Services Gateway Cooling System

SRX240 Services Gateway Air Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Chapter 3 SRX240 Services Gateway Mini-Physical Interface Modules . . . . . . . . . . .

Mini-Physical Interface Modules for the SRX240 Services Gateway ..... 23

Chapter 4 SRX240 Services Gateway Power over Ethernet Support . . . . . . . . . . .

SRX240 Services Gateway Power over Ethernet Overview . . . . . . . . . . . . . . . . . . . . .

Introduction

PoE Classes and Power Ratings ....

Configuring Power over Ethernet on the SRX240 Services Gateway . . . . . . . . . . 27

Part 2 Setting Up the SRX240 Services Gateway

Chapter 5 Preparing the Site for the SRX240 Services Gateway Installation . . . . . . .

Site Preparation Checklist for the SRX240 Services Gateway . . . . . . . . . . . . . . . . . . . . .

General Site Guidelines for Installing the SRX240 Services Gateway ..... 32

SRX240 Services Gateway Rack Requirements . . . . . . . . . . . . . . . . . . . . . . . . . .

Clearance Requirements for Airflow and Hardware Maintenance on the SRX240 Services Gateway

SRX240 Services Gateway Electrical and Power Requirements 35

Chapter 6 Installation Overview for the SRX240 Services Gateway . . . . . . . . . . . .

Installation Overview for the SRX240 Services Gateway . . . . . . . . . . . . . . . . . . .

Chapter 7 Required Tools and Parts for Installing and Maintaining the SRX240

Services Gateway

Required Tools and Parts for Installing and Maintaining the SRX240 Services Gateway 39

Chapter 8 Unpacking the SRX240 Services Gateway . . . . . . . . . . . . . . . . . . .

Unpacking the SRX240 Services Gateway . . . . . . . . . . . . . . . . . . . . . . . . . .

Verifying Parts Received with the SRX240 Services Gateway . . . . . . . . . . . . . . . . . . . . . . . . . 4

Chapter 9 Installing the SRX240 Services Gateway . . . . . . . . . . . . . . . . . . . .

SRX240 Services Gateway Safety Requirements, Warnings, and Guidelines . . . . 43

Preparing the SRX240 Services Gateway for Installation . . . . . . . . . . . . . . . . . . .

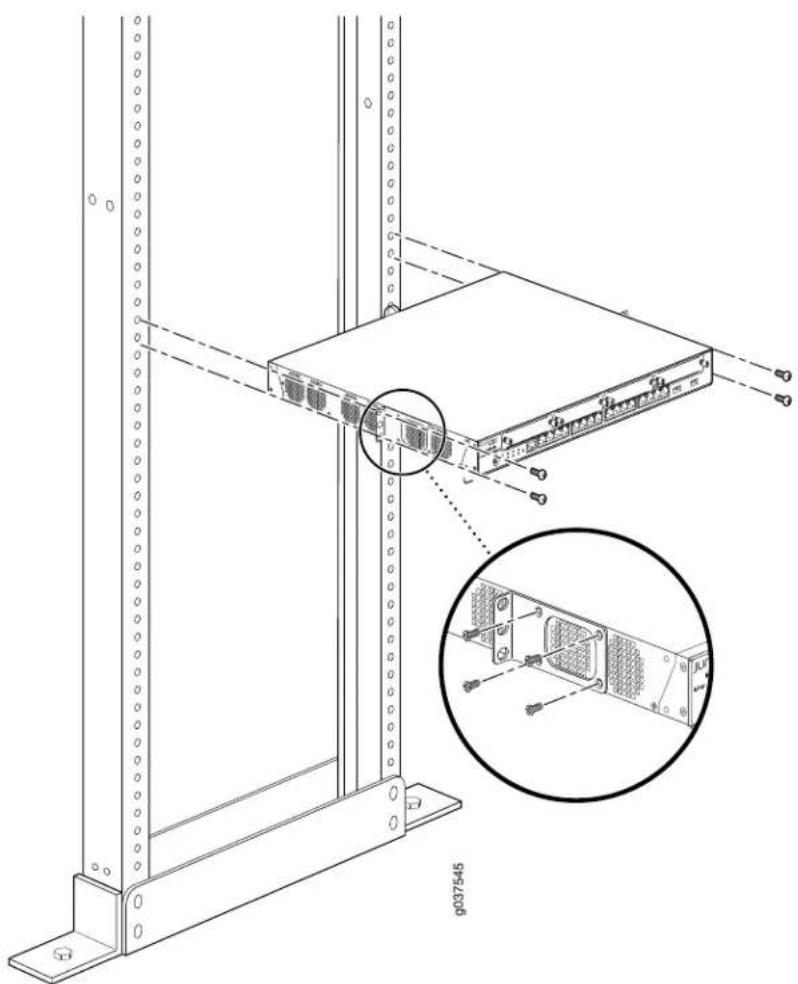

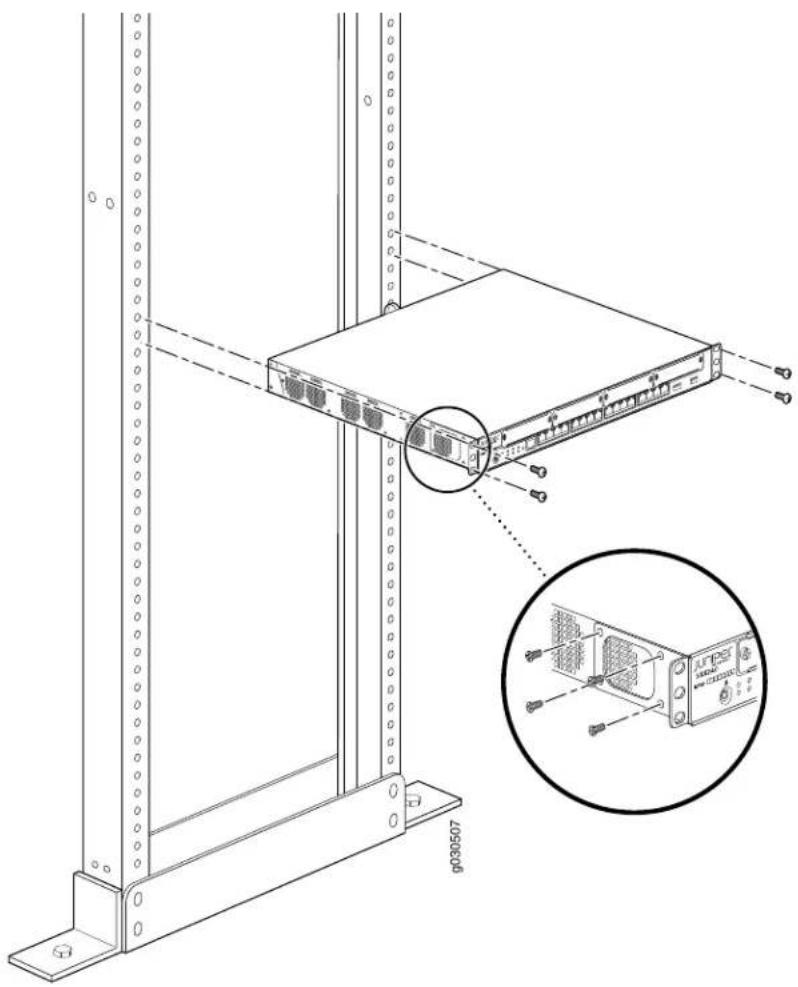

Installing the SRX240 Services Gateway

Replacing or Installing Mini-Physical Interface Modules in the SRX240 Services Gateway

Chapter 10 Connecting, Grounding, and Powering On the SRX240 Services

Gateway 49

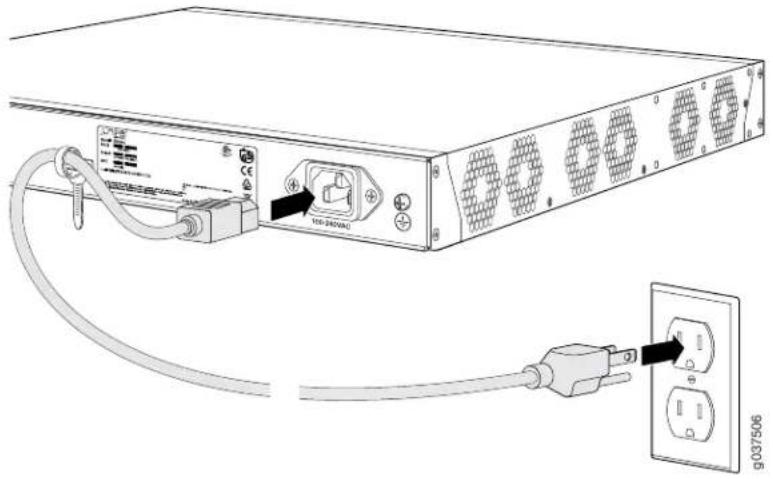

Connecting the SRX240 Services Gateway to the AC Power Source . . . . . . . . . 49

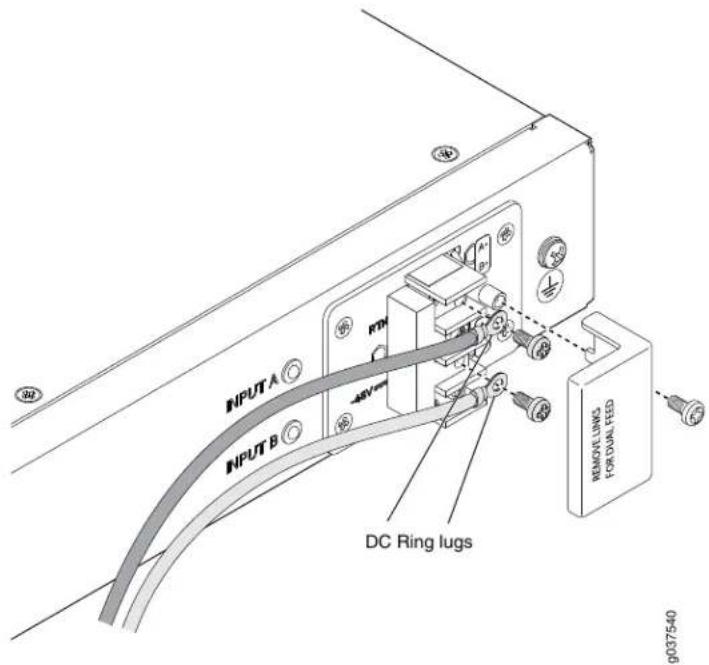

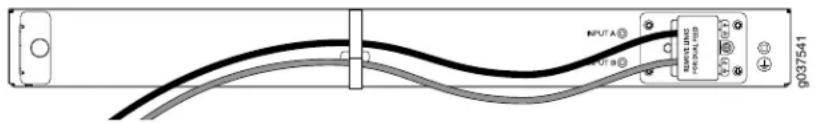

Connecting the SRX240 Services Gateway DC Power Supply Model to a DC Power Source

Connecting and Organizing Interface Cables to the SRX240 Services Gateway 54

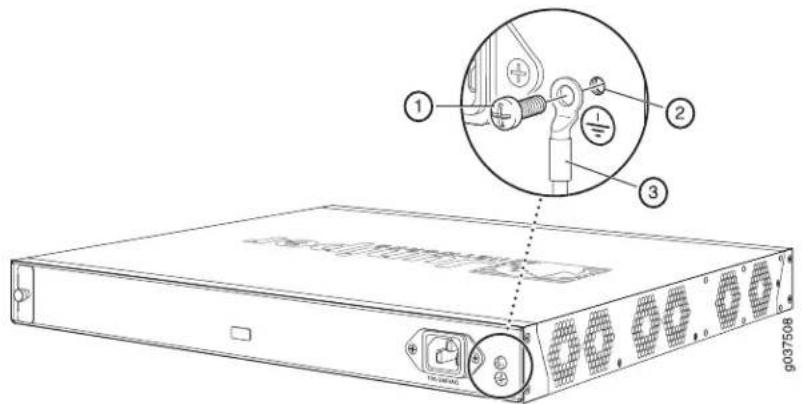

Grounding the SRX240 Services Gateway . . . . . . . . . . . . . . . . . . . . . . . . . . .

Powering On and Powering Off the SRX240 Services Gateway . . . . . . . . . . . . . . . 5.

Powering On the SRX240 Services Gateway ..... Powering Off the SRX240 Services Gateway ..... Resetting the SRX240 Services Gateway ....

Chapter 11 SRX240 Services Gateway Autoinstallation . . . . . . . . . . . . . . . . . .

SRX240 Services Gateway Autoinstallation Overview . . . . . . . . . . . . . . . . . . . .

Chapter 12 Connecting the SRX240 Services Gateway to Management Devices . . . . 63

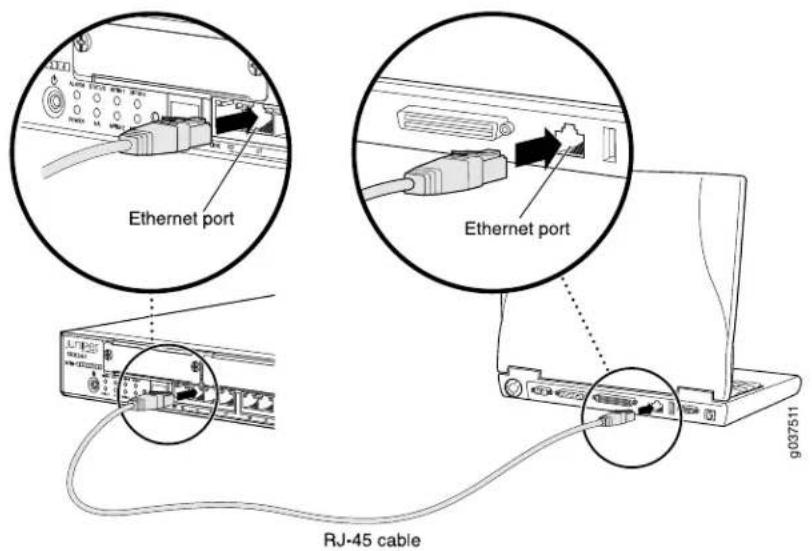

Connecting to the SRX240 Services Gateway Setup Wizard . . . . . . . . . . . . . . .

Connecting the SRX240 Services Gateway to the CLI . . . . . . . . . . . . . . . . . . . . .

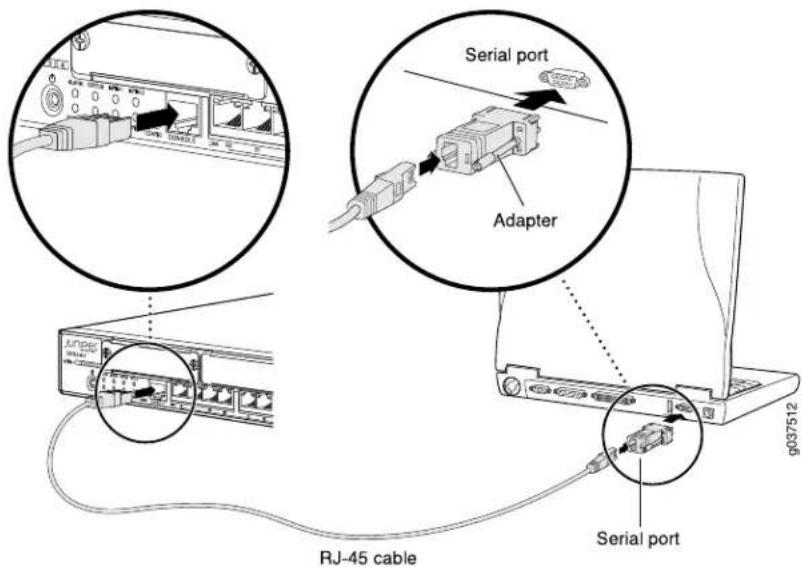

Connecting the Services Gateway to the CLI Locally . . . . . . . . . . . . . . . . . .

Connecting a Services Gateway to the CLI Remotely . . . . . . . . . . . . . . . . . .

Connecting the Modem at the SRX240 Services Gateway End . . . . . . . . . . . . . .

Connecting the Modem to the Console Port on the SRX240 Services

Gateway

Connecting to the CLI at the User End for the SRX240 Services Gateway ..... 69

Chapter 13 Performing Initial Software Configuration on the SRX240 Services

Gateway 71

SRX240 Services Gateway Software Configuration Overview 71

Preparing the SRX240 Services Gateway for Configuration ..... 71

Understanding the Factory Default Configuration . . . . . . . . . . . . . . . . . . . . .

Understanding Built-In Ethernet Ports and Initial Configuration ..... 72

Mapping the Chassis Cluster Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Understanding Management Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Performing Initial Software Configuration on the SRX240 Services Gateway

Using the Setup Wizard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

About the Setup Wizard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

About the Default Setup Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

About the Guided Setup Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Running the Setup Wizard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Performing Initial Software Configuration on the SRX240 Services Gateway

Using the CLI

Performing Initial Software Configuration on the SRX240 Services Gateway

Using the J-Web Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Establishing Basic Connectivity

Configuring Basic System Properties

SRX240 Services Gateway Secure Web Access Overview . . . . . . . . . . . . . . . . .

Part 3 Maintaining, Replacing, and Monitoring the SRX240 Services Gateway Hardware

Chapter 14 Maintaining the SRX240 Services Gateway Hardware Components ..... 89

Maintaining the SRX240 Services Gateway Hardware Components ..... 89

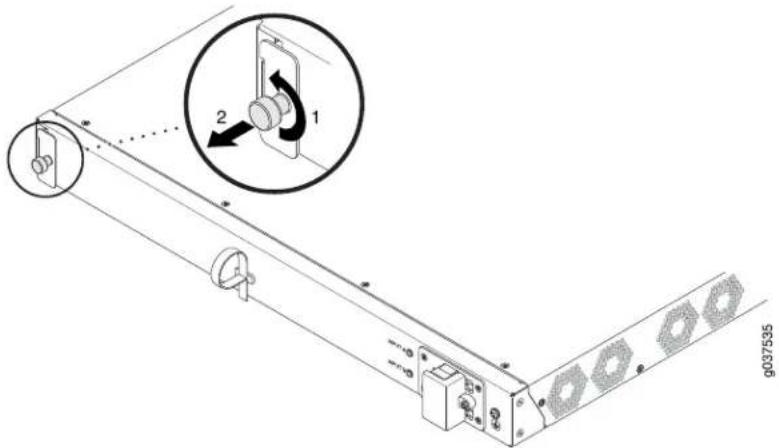

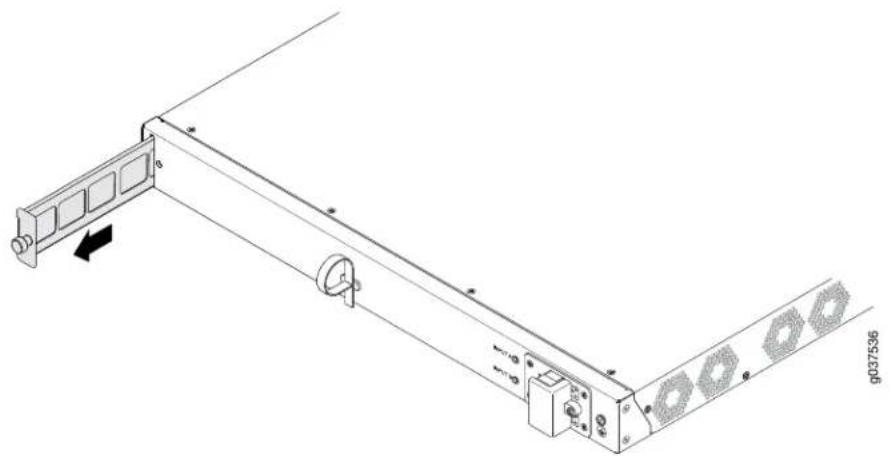

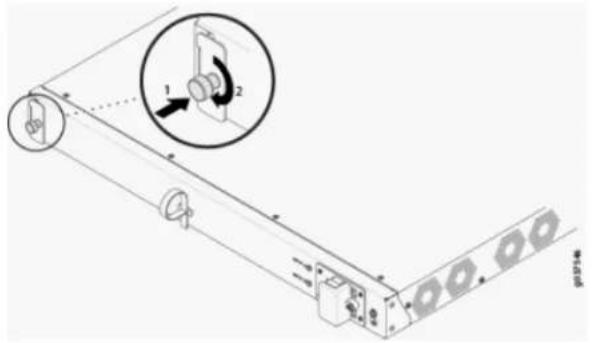

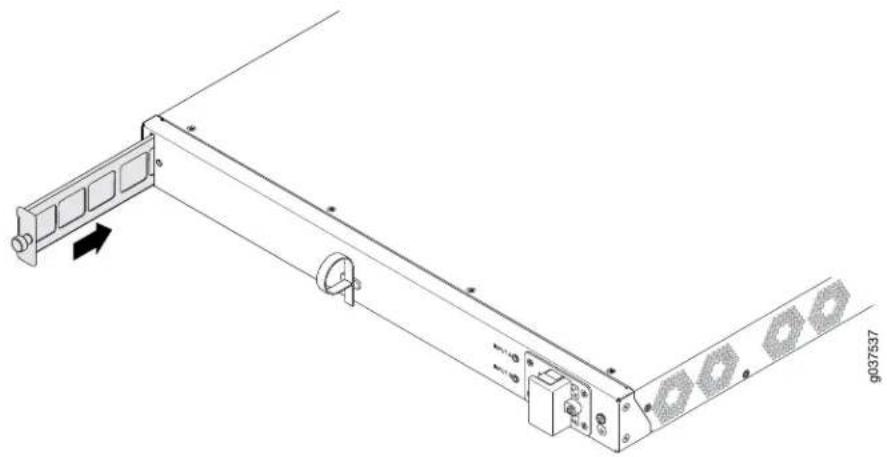

Replacing the Air Filter on the SRX240 Services Gateway . . . . . . . . . . . . . . . .

Chapter 15 Monitoring the SRX240 Services Gateway . . . . . . . . . . . . . . . . . . .

Monitoring Hardware Components on the SRX240 Services Gateway ..... 95

Monitoring the SRX240 Services Gateway Chassis Using the CLI . . . . . . . . 95

Monitoring the SRX240 Services Gateway Components Using LEDs ..... 97

Monitoring the SRX240 Services Gateway Using Chassis Alarm

Conditions

Monitoring the SRX240 Services Gateway Power System . . . . . . . . . . . . . . . 103

Monitoring the SRX240 Services Gateway AC Power System . . . . . . . 103

Monitoring the SRX240 Services Gateway DC Power System ..... 104

Resetting the Configuration File When the SRX240 Services Gateway Is

Inaccessible

Loading the Rescue Configuration on the SRX240 Services Gateway . . . . . 105

Changing the Reset Config Button Behavior on the SRX240 Services

Gateway

Juniper Networks Technical Assistance Center

Part 4 Appendixes

Appendix A Safety and Regulatory Compliance Information

SRX240 Services Gateway Definition of Safety Warning Levels . . . . . . . . . . . . . 109

SRX240 Services Gateway General Safety Guidelines and Warnings ..... 111

General Safety Guidelines and Warnings

Qualified Personnel Warning

Restricted Access Area Warning

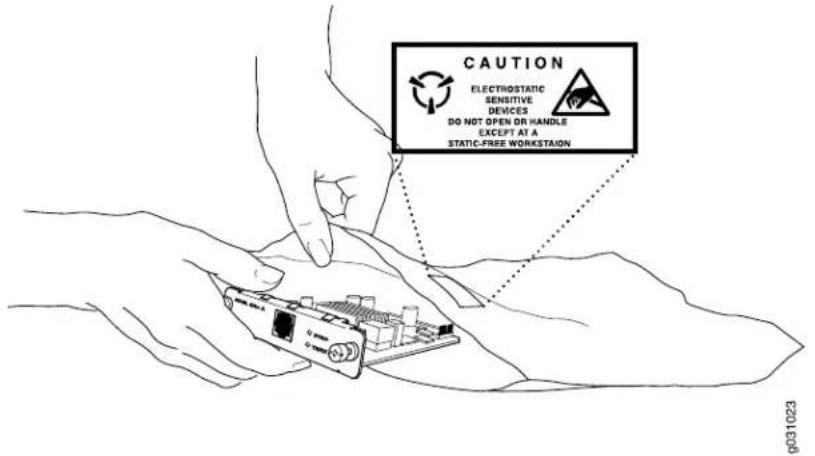

Preventing Electrostatic Discharge Damage to the Services Gateway ..... 114

SRX240 Services Gateway Fire Safety Requirements

SRX240 Services Gateway Installation Safety Guidelines and Warnings ..... 116

Installation Instructions Warning

Rack-Mounting Requirements and Warnings

SRX240 Services Gateway Laser and LED Safety Guidelines and Warnings . . . . 121

Laser and LED Safety Guidelines and Warnings

General Laser Safety Guidelines

Class 1 Laser Product Warning

Class 1 LED Product Warning

Laser Beam Warning

Radiation from Open Port Apertures Warning 12

SRX240 Services Gateway Maintenance and Operational Safety Guidelines and

Warnings

Safety Guidelines and Warnings

Battery Handling Warning

Jewelry Removal Warning

Lightning Activity Warning

Operating Temperature Warning

Product Disposal Warning

SRX240 Services Gateway Electrical Safety Guidelines and Warnings ..... 130

Electrical Safety Guidelines and Warnings

In Case of Electrical Accident

General Electrical Safety Guidelines and Warnings 130

Copper Conductors Warning

DC Power Electrical Safety Guidelines and Warnings

DC Power Electrical Safety Guidelines

DC Power Disconnection Warning

DC Power Grounding Requirements and Warning

DC Power Wiring Sequence Warning

DC Power Wiring Terminations Warning . . . . . . . . . . . . . . . . . . . . . . . . . .

SRX240 Services Gateway Agency Approvals ....

SRX240 Services Gateway Compliance Statements for EMC Requirements . . . 139

Canada

European Community

Israel 139

Japan 139

United States

SRX240 Services Gateway (DC Power Supply Model) Compliance Statements for Network Equipment Building System (NEBS) 1

SRX240 Services Gateway Compliance Statements for Environmental Requirements 140

SRX240 Services Gateway Compliance Statements for Acoustic Noise . . . . . . 141

Appendix B SRX240 Services Gateway Power Guidelines, Requirements, and Specifications

SRX240 Services Gateway Site Electrical Wiring Guidelines 143

SRX240 Services Gateway AC Power Specifications and Requirements ..... 145

AC Power Requirement Specifications

AC Power Cord Specifications

SRX240 Services Gateway DC Power Specifications and Requirements ..... 146

DC Power System Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . .

DC Power Cable Specifications

SRX240 Services Gateway Grounding Specifications . . . . . . . . . . . . . . . . . . . . . .

Appendix C SRX240 Services Gateway Interface Cable Specifications and Connector Pinouts 149

Interface Cable and Wire Specifications for the SRX240 Services Gateway . . . . 149

RJ-45 Connector Pinouts for the SRX240 Services Gateway Ethernet Port . . . . 149

RJ-45 Connector Pinouts for the SRX240 Services Gateway Console Port . . . . . 151

Appendix D Contacting Customer Support and Returning the SRX240 Services Gateway Hardware . . . . . . . . . . . . . . . . .

Return Procedure for the SRX240 Services Gateway . . . . . . . . . . . . . . . . . . . . .

Locating SRX240 Services Gateway Component Serial Number and Agency Labels....154

Listing the SRX240 Services Gateway and Component Details with the CLI

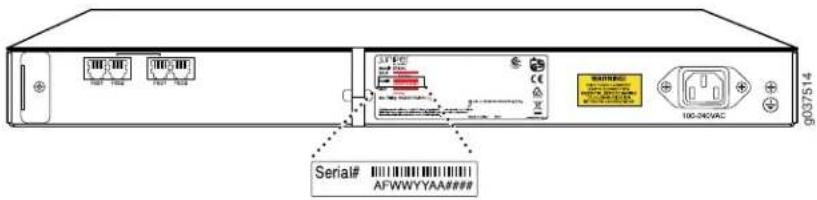

SRX240 Services Gateway Chassis Serial Number and Agency Labels . . . . 155

SRX240 Services Gateway Mini-Physical Interface Module Serial Number Label

Contacting Customer Support to Obtain Return Materials Authorization ..... 155

Information You Might Need to Supply to Juniper Networks Technical Assistance Center 156

Juniper Networks Technical Assistance Center....156 Packing the SRX240 Services Gateway and Components for Shipment...156 Packing the Services Gateway..... Packing the Components for Shipment....

Part 5 Index

Index 161

About This Guide

• Objectives on page ix
  • Audience on page ix
  • Documentation Conventions on page ix
  • SRX Series Documentation and Release Notes on page xi
• Obtaining Documentation on page xii
  • Documentation Feedback on page xii
• Requesting Technical Support on page xii

Objectives

This guide describes hardware components and installation, basic configuration, and basic troubleshooting procedures for the Juniper Networks SRX240 Services Gateway. It explains how to prepare your site for services gateway installation, unpack and install the hardware, power on the services gateway, perform initial software configuration, and perform routine maintenance. After completing the installation and basic configuration procedures covered in this guide, see the Junos OS configuration guides for information about further Junos OS configuration.

Audience

This guide is designed for network administrators who are installing and maintaining a Juniper Networks SRX240 Services Gateway or preparing a site for device installation. To use this guide, you need a broad understanding of networks in general and the Internet in particular, networking principles, and network configuration. Any detailed discussion of these concepts is beyond the scope of this guide.

Documentation Conventions

Table 1 on page x defines the notice icons used in this guide.

Table 1: Notice Icons

		DescriptionMeaningIcon
		Indicates important features or instructions.Informational note
		Indicates a situation that might result in loss of data or hardware damage.Caution
		Alerts you to the risk of personal injury or death.Warning
		Alerts you to the risk of personal injury from a laser.Laser warning
		Indicates helpful information.Tip
		Alerts you to a recommended use or implementation.Best practice

Table 2 on page x defines the text and syntax conventions used in this guide.

Table 2: Text and Syntax Conventions

		ExamplesDescriptionConvention
Bold text like this	Represents text that you type.	To enter configuration mode, type theconfigure command:user@host>configure
Fixed-width text like this	Represents output that appears on theuser@host>show chassis alarms terminal screen.No alarms currently active
Italic text like this	Introduces or emphasizes important new terms.Identifies guide names.Identifies RFC and Internet draft titles.	A policy term is a named structure that defines match conditions and actions.Junos OS CLI User GuideRFC 1997, BGP Communities Attribute
Italic text like this	Represents variables (options for whichConfigure the machine's domain name: you substitute a value) in commands or configuration statements.[edit]root@# set system domain-name domain-name

Table 2: Text and Syntax Conventions (continued)

		ExamplesDescriptionConvention
Text like this	Represents names of configuration statements, commands, files, and directories; configuration hierarchy levels; or labels on routing platform components.	To configure a stub area, include the stub statement at the [edit protocols ospf area area-id] hierarchy level.The console port is labeled CONSOLE.
< > (angle brackets)	Encloses optional keywords or variables.	stub;
| (pipe symbol)	Indicates a choice between the mutual exclusive keywords or variables on either side of the symbol. The set of choices (string1 | string2 | string3) often enclosed in parentheses for clarity.
# (pound sign)	same line as the configuration statement to which it applies.	rsvp { # Required for dynamic MPLS only indicates same line as the configuration statement to which it applies.
[ ] (square brackets)	Encloses a variable for which you can substitute one or more values.	community name members [ community-ids ]
Indention and braces ( { } )	Identifies a level in the configuration hierarchy.	[edit]routing-options {static {route default {nexthop address;retain;} } }
; (semicolon)	Identifies a leaf statement at a configuration hierarchy level.
GUI Conventions
Bold text like this	Represents graphical user interface (GUI) In the Logical Interfaces box, select items you click or select.	All Interfaces.To cancel the configuration, click Cancel.
> (bold right angle bracket)	Separates levels in a hierarchy of menu the configuration editor hierarchy, selections.	select Protocols>Ospf.

SRX Series Documentation and Release Notes

For a list of related SRX Series documentation, see

http://www.juniper.net/techpubs/hardware/srx-series-main.html.

If the information in the latest SRX Series Release Notes differs from the information in the documentation, follow the SRX Series Release Notes.

Obtaining Documentation

To obtain the most current version of all Juniper Networks technical documentation, see the products documentation page on the Juniper Networks website at http://www.juniper.net/techpubs.

To order printed copies of this guide and other Juniper Networks technical documents, contact your sales representative.

Copies of the Management Information Bases (MIBs) available in a software release are included on the documentation CDs and at http://www.juniper.net.

Documentation Feedback

We encourage you to provide feedback, comments, and suggestions so that we can improve the documentation. You can send your comments to [e-mail], or fill out the documentation feedback form at http://www.juniper.net/techpubs/docbug/docbugreport.html. If you are using e-mail, be sure to include the following information with your comments:

• Document Name
• Document part number
• Page number
• Software release version (not required for Network Operations Guides [NOGs])

Requesting Technical Support

Technical product support is available through the Juniper Networks Technical Assistance Center (JTAC). If you are a customer with an active J-Care or JNASC support contract, or are covered under warranty, and need postsales technical support, you can access our tools and resources online or open a case with JTAC.

• JTAC policies—For a complete understanding of our JTAC procedures and policies, review the JTAC User Guide located at http://www.juniper.net/us/en/local/pdf/resource-guides/7100059-en.pdf.
• Product warranties—For product warranty information, visit http://www.juniper.net/support/warranty/.
• JTAC Hours of Operation —The JTAC centers have resources available 24 hours a day, 7 days a week, 365 days a year.

Self-Help Online Tools and Resources

For quick and easy problem resolution, Juniper Networks has designed an online self-service portal called the Customer Support Center (CSC) that provides you with the following features:

• Find CSC offerings: http://www.juniper.net/customers/support/
• Find product documentation: http://www.juniper.net/techpubs/
• Find solutions and answer questions using our Knowledge Base: http://kb.juniper.net/
- Download the latest versions of software and review release notes: http://www.juniper.net/customers/csc/software/
- Search technical bulletins for relevant hardware and software notifications: http://kb.juniper.net/InfoCenter/
- Join and participate in the Juniper Networks Community Forum: http://www.juniper.net/company/communities/
- Open a case online in the CSC Case Management tool: http://www.juniper.net/cm/

To verify service entitlement by product serial number, use our Serial Number Entitlement (SNE) Tool: https://tools.juniper.net/SerialNumberEntitlementSearch/

Opening a Case with JTAC

You can open a case with JTAC on the Web or by telephone.

• Use the Case Management tool in the CSC at http://www.juniper.net/cm/.
• Call 1-888-314-JTAC (1-888-314-5822 toll-free in the USA, Canada, and Mexico).

For international or direct-dial options in countries without toll-free numbers, visit us at http://www.juniper.net/support/requesting-support.html

PART 1

SRX240 Services Gateway Overview

• Introduction to the SRX240 Services Gateway on page 3
  • SRX240 Services Gateway Hardware Components and Specifications on page 7
  • SRX240 Services Gateway Mini-Physical Interface Modules on page 23
• SRX240 Services Gateway Power over Ethernet Support on page 25

CHAPTER 1

Introduction to the SRX240 Services Gateway

This chapter includes the following topics:

• SRX240 Services Gateway Description on page 3
• SRX240 Services Gateway Models on page 4
• SRX240 Services Gateway Hardware Features on page 5

SRX240 Services Gateway Description

The Juniper Networks SRX240 Services Gateway offers complete functionality and flexibility for delivering secure, reliable data over IP, and provides multiple interfaces that support WAN and LAN connectivity and Power over Ethernet (PoE).

The SRX240 Services Gateway provides IP Security (IPsec), virtual private network (VPN), and firewall services for small and medium-sized companies and enterprise branch and remote offices. Additional security features include Unified Threat Management (UTM), which consists of IPS antispam, antivirus, and Web filtering.

The SRX240 Services Gateway runs the Juniper Networks Junos operating system (Junos OS).

The SRX240 Services Gateway has a modular 1U chassis that fits a 19-inch rack with a depth of approximately 17.5 in. (44.5 cm).

Figure 1 on page 3 shows the SRX240 Services Gateway.

Figure 1: SRX240 Services Gateway

Line drawing of a network switch device with multiple ports and ventilation slots (no text or labels)

For information about SRX240 Services Gateway software features and licenses, see the following guides:

• Initial Configuration for Security Devices
  • Monitoring and Troubleshooting for Security Devices

Related Documentation

SRX240 Services Gateway Chassis on page 7.

SRX240 Services Gateway Models

Table 3 on page 4 lists the SRX240 Services Gateway models.
Table 3: SRX240 Services Gateway Models

	Device TypeModel Name
	512 MB RAM, 1 GB flash memory with AC power supplySRX240B
	1 GB RAM, 2 GB flash memory with AC power supplySRX240B2
	1 GB RAM, 1 GB flash memory with AC power supplySRX240H
	2 GB RAM, 2 GB flash memory with AC power supplySRX240H2
SRX240H-TAA	1 GB RAM, 1 GB flash memory with AC power supply (TAA compliant)
SRX240H2-TAA	2 GB RAM, 2 GB flash memory with AC power supply (TAA compliant)
	1 GB RAM, 1 GB flash memory with DC power supplySRX240H-DC
	2 GB RAM, 2 GB flash memory with DC power supplySRX240H2-DC
SRX240H-POE	1 GB RAM, 1 GB flash memory and Power over Ethernet (PoE) with AC power supply
SRX240H2-POE	2 GB RAM, 2 GB flash memory and Power over Ethernet (PoE) with AC power supply
SRX240H-POE-TAA	1 GB RAM, 1 GB flash memory and Power over Ethernet (PoE) with AC power supply (TAA compliant)
SRX240H2-POE-TAA	2 GB RAM, 2 GB flash memory and Power over Ethernet (PoE) with AC power supply (TAA compliant)

All models run Junos OS.

Related Documentation

SRX240 Services Gateway Description on page 3.

• SRX240 Services Gateway Hardware Features on page 5

•SRX240 Services Gateway Chassis on page 7

SRX240 Services Gateway Hardware Features

Table 4 on page 5 lists the hardware features supported on various models of the SRX240 Services Gateway.
Table 4: SRX240 Services Gateway Hardware Features

	SRX240 Services Gateway with AC Power Supply and No PoE Support	SRX240 Services Gateway with AC Power Supply and PoE Support	SRX240 Services Gateway with DC Power Supply
DDR memory	For SRX240B: 512 MBFor SRX240B2: 1GBFor SRX240H: 1GBFor SRX240H2: 2 GBFor SRX240H-TAA: 1GBFor SRX240H2-TAA: 2 GB	For SRX240H-POE: 1GBFor SRX240H2-POE: 2 GBFor SRX240H-POE-TAA: 1GBFor SRX240H2-POE-TAA: 2 GB	For SRX240H-DC: 1GBFor SRX240H2-DC: 2 GB
			NoYesNoPoE support
			190 watts360 watts150 wattsPower st
		100 to 240 VAC100	te4840/DCACInput voltageOperating range:-40.5 V to -72 V
			161616Gigabit Ethernet ports
Console ports	1	1	1
Universal Serial Bus (USB) ports	2	2	2
Mini-PIM slots	4	4	4
LEDs	Status, Alarm, HA, Power, Mini-PIMs, and Port (TX/RX/Link and PoE)	Status, Alarm, HA, Power, Mini-PIMs, and Port (TX/RX/Link and PoE)	Status, Alarm, HA, Power, Mini-PIMs, Port (TX/RX/Link and PoE), DC power feed LEDs.
NOTE: The PoE LED is enabled only on the PoE variant of the SRX240 Services Gateway.

Table 4: SRX240 Services Gateway Hardware Features (continued)

	SRX240 Services Gateway with AC Power Supply and No PoE Support	SRX240 Services Gateway with AC Power Supply and PoE Support	SRX240 Services Gateway with DC Power Supply
Internal flash	For SRX240B: 1GBFor SRX240B2: 2GBFor SRX240H: 1GBFor SRX240H2: 2GBFor SRX240H-TAA: 1GBFor SRX240H2-TAA: 2GB	For SRX240H-POE: 1GBFor SRX240H2-POE: 2GBFor SRX240H-POE-TAA: 1GBFor SRX240H2-POE-TAA: 2GB	For SRX240H-DC: 1GBFor SRX240H2-DC: 2GB
			666Fans
Air filters(Separately orderable)			OneNoneOne
			YesNoNoNEBS-compliant

NOTE: An air filter is not shipped with the SRX240 Services Gateway with AC power supply models. To meet NEBS requirements, you must order the air filter separately and install it. Contact your Juniper Networks customer service representative for more information.

For more details about the chassis specification, see "SRX240 Services Gateway Chassis" on page 7.

Related Documentation

•SRX240 Services Gateway Description on page 3

•SRX240 Services Gateway Chassis on page 7

CHAPTER 2

SRX240 Services Gateway Hardware Components and Specifications

This chapter includes the following topics:

• SRX240 Services Gateway Chassis on page 7
• SRX240 Services Gateway Front Panel and Back Panel Views on page 9
• SRX240 Services Gateway Built-In Interfaces on page 12
• SRX240 Services Gateway LEDs on page 14
- SRX240 Services Gateway Boot Devices and Dual-Root Partitioning Scheme on page 18
• SRX240 Services Gateway Power Supply on page 20
• SRX240 Services Gateway Cooling System on page 21
• SRX240 Services Gateway Air Filter on page 21

SRX240 Services Gateway Chassis

Figure 1 on page 3 shows the SRX240 Services Gateway chassis.
Figure 2: SRX240 Services Gateway

Line drawing of a network switch device with ports and connectors (no text or symbols)

Table 5 on page 7 provides information about the physical specifications for the services gateway.

Table 5: Physical Specifications for the SRX240 Services Gateway

	ValueSpecification
	1 unit (U)Chassis height
	17.5 in. (44.5 cm)Chassis width
	15 in. (38.1 cm)Chassis depth
Chassis weight	SRX240 Services Gateway with AC power supply and no PoE support models: 11.24 lb. (5.1 kg)SRX240 Services Gateway with AC power supply and PoE support models: 12.34 lb. (5.6 kg)SRX240 Services Gateway with DC power supply models: 12.56 lb. (5.7 kg)
Average Power consumption	SRX240 Services Gateway with AC power supply and no PoE support models: 74 wattsSRX240 Services Gateway with AC power supply and PoE support: 86 watts (excluding PoE load)SRX240 Services Gateway with DC power supply models: 72 watts
	No performance degradation at upto 10,000 ft (3048 m)Altitude
	5% to 90%, noncondensingRelative humidity
Temperature	Normal operation ensured in temperature range 32°F (0°C) through 104°F (40°C)Nonoperating storage temperature in shipping container: -40°F (-40°C) to 158°F (70°C)
Seismic	Designed to meet Telcordia Technologies Zone 4 earthquake requirements
Maximum thermal output	SRX240 Services Gateway with AC power supply and no PoE support models: 427 BTU/hourSRX240 Services Gateway with AC power supply and PoE support models: 560 BTU/hour (Excluding PoE load)SRX240 Services Gateway with DC power supply models: 409 BTU/hourNOTE: These specifications are estimates and subject to change.
	Less than 70 dB(A) as per EN ISO 7779Noise level

NOTE: Before removing or installing components of a functioning services gateway, attach an electrostatic discharge (ESD) strap to an ESD point and fasten the other end of the strap around your bare wrist. Failure to use an ESD strap could result in damage to the services gateway.

Related Documentation

SRX240 Services Gateway Description on page 3.

•SRX240 Services Gateway Hardware Features on page 5
•SRX240 Services Gateway Front Panel and Back Panel Views on page 9
•SRX240 Services Gateway Built-In Interfaces on page 12
•SRX240 Services Gateway LEDs on page 14
•SRX240 Services Gateway Power Supply on page 20
•SRX240 Services Gateway Cooling System on page 21

SRX240 Services Gateway Front Panel and Back Panel Views

This topic describes the front panel and back panel of the SRX240 Services Gateway models. This topic includes the following sections:

• SRX240 Services Gateway Front Panel on page 9
- SRX240 Services Gateway Back Panel (AC power supply models) on page 11
- SRX240 Services Gateway Back Panel (DC Power Supply Model) on page 11

SRX240 Services Gateway Front Panel

Figure 3 on page 9 shows the front panel of an SRX240 Services Gateway.
Figure 3: SRX240 Services Gateway Front Panel (with AC Power Sup Model, and with DC Power Supply Models)

Juniper 56023 1 1 1 1 2 3 4 5 6 7 g0375 16

Table 6 on page 9 lists the front panel components of the services gateway.

Table 6: SRX240 Services Gateway Front Panel

	ComponentNumber
	Mini-PIM slots1
	Power button2
	LEDs: Status, Power, Mini-PIM, Alarm, HA3
	RESET CONFIG button4
	Console port5
	Gigabit Ethernet ports6
	Universal Serial Bus (USB) ports7

For more information on the front panel components, see the following topics:

• SRX240 Services Gateway Built-In Interfaces on page 12
• SRX240 Services Gateway LEDs on page 14
• SRX240 Services Gateway Boot Devices and Dual-Root Partitioning Scheme on page 18

SRX240 Services Gateway Back Panel (AC power supply models)

Figure 4 on page 11 shows the back panel of the SRX240 Services Gateway AC power supply models.

Figure 4: SRX240 Services Gateway Back Panel (with AC Power Sup Models)

4 ① ② ③ 1037502

Table 7 on page 11 lists the back panel components of the SRX240 Services Gateway AC power supply models.

Table 7: SRX240 Services Gateway Back Panel AC Power Supply Mode

	ComponentNumber
	Cable tie holder1
	Power supply point2
	Grounding point3
	Air filter slot4

NOTE: The air filter is shipped with SRX240 Services Gateways with DC power supply models only.

You can order the air filter separately for the SRX240 Services Gateway with AC power supply models. Contact your Juniper Networks customer service representative for more information.

SRX240 Services Gateway Back Panel (DC Power Supply Model)

Figure 5 on page 11 shows the back panel of an SRX240 Services Gateway with DC power supply models.

Figure 5: SRX240 Services Gateway DC Power Supply Model

1 2 3 4 5 037538

Table 8 on page 12 lists the back panel components of the SRX240 Services Gateway DC power supply models.
Table 8: SRX240 Services Gateway Back Panel DC power supply mode

	ComponentNumber
	Air filter slot1
	Cable tie holder2
	DC power feed LEDs3
	DC power feed4
	Grounding point5

Related Documentation

SRX240 Services Gateway Hardware Features on page 5.

•SRX240 Services Gateway Chassis on page 7
•SRX240 Services Gateway Built-In Interfaces on page 12
•SRX240 Services Gateway LEDs on page 14
•SRX240 Services Gateway Boot Devices and Dual-Root Partitioning Scheme on page 18
•SRX240 Services Gateway Power Supply on page 20
•SRX240 Services Gateway Cooling System on page 21

SRX240 Services Gateway Built-In Interfaces

Table 9 on page 12 describes the built-in interface ports on the SRX240 Services Gateway.
Table 9: SRX240 Services Gateway Built-In Interfaces

Interface Type	Description	Usage
Gigabit Ethernet	16 ports, labeled 0/0 Function as front-end network ports and through 0/15, built intoprovide LAN and WAN connectivity to the chassis front panelswitches, local servers, and workstationProvide link speeds of 10/100/1000 MbpsOperate in full-duplex and half-duplex modesNOTE: On the PoEmodels of the SRX240 Services Gateway, all 16 Gigabit Ethernet ports support PoE.
		UsageDescriptionInterface Type
Universal Serial Bus (USB)	Two ports labeled,usb0 and usb 1, built into the chassis front panelFunction in the following modes:Full speedHigh speedCompliant with USB revision 2.0	Support a USB storage device that functions as a secondary boot device case of internal flash failure on startNOTE:To use USB to boot your ser gateway, you must install and config the USB storage device on the USB to use it as a secondary boot device. Additionally, the USB storage device must have Junos OS installed.Provide the USB interfaces that are to communicate with the various typ of Juniper Networks-supported USB storage devices.Contact a customer service representative for more information.
Console	One port built into the chassis front panelUses an RJ-45 serial cable connectorSupports the RS-232 (EIA-232) standard	Functions as a management port usi which you can log in to the services gateway directly.Provides the interface to configure th services gateway using the CLI.
Mini-PIM slots	Four slots built into the chassis front panelMini-PIMs can be plugged directly into the slots	Provide LAN and WAN functionality alo with connectivity to various media typeFor more information about Mini-PIMs, theSRX Series Services Gateways fo the Branch Physical Interface Module Hardware Guide.

NOTE: We strongly recommend that only transceivers provided by Juniper Networks be used on an SRX240 Services Gateway. We cannot guarantee that the interface module will operate correctly if third-party transceivers are used. Please contact Juniper Networks for the correct transceiver part number for your device.

Related Documentation

SRX240 Services Gateway Chassis on page 7.

•SRX240 Services Gateway Front Panel and Back Panel Views on page 9

•SRX240 Services Gateway LEDs on page 14

•SRX240 Services Gateway Boot Devices and Dual-Root Partitioning Scheme on page 18

•SRX240 Services Gateway Power Supply on page 20

•SRX240 Services Gateway Cooling System on page 21

SRX240 Services Gateway LEDs

This topic includes the following sections:

• Front Panel LEDs on page 14
• Ethernet Port LEDs on page 16
• DC Power Supply Feed LEDs (SRX240 Services Gateway DC Power Supply Model) on page 17

Front Panel LEDs

Figure 6 on page 14 shows the SRX240 Services Gateway front panel LEDs.
Figure 6: SRX240 Services Gateway Front Panel LEDs

ALARM STATUS MPM-1 MPM-3 POWER HA MPM-2 MPM-4 Juniper SKX240 G037521

Table 10 on page 14 lists the LED indicators on the SRX240 Services Gateway front panel.

Table 10: SRX240 Services Gateway Front Panel Components

		UsageDescriptionComponent
Status LED	The Status LED has the following indicator colors: The Status LED can be used to determine whether the device is starting up, is functioning normal. Green and steadily on indicates or has failed. that the device is functioning normally. Amber and steadily on indicates that the device is starting up. Red and steadily on indicates that the device has failed.
Alarm LED	The Alarm LED has the following indicator colors:Red and steadily on indicates major alarm.Amber and steadily on indicates a minor alarm.Off indicates that the device is starting up.NOTE:When the system is up and running, if the Alarm LED is off, it indicates that no alarms are present on the device.	The Alarm LED can be used to gather information on major or minor alarms or to determine whether the device is functioning normally.
Power LED	The Power LED has the following indicator colors:Green and steadily on indicates that the device is functioning normally.Amber and steadily on indicates that the Power button has been pressed and quickly released.Off indicates that the device is not receiving power.	The Power LED can be used to determine whether the device is receiving power.
HA LED	The HA LED has the following indicator colors:Green and steadily on indicates that all HA links are available.Red and steadily on indicates that the HA links are not working as expected.Amber and steadily on indicates that some HA links are not working as expected.Off indicates that HA is not enabled.	The HA LED can be used to determine whether the chassis clustering is enabled on the device.
Mini-PIM LED	Each Mini-Physical Interface ModuleThe Mini-PIM LED can be used to (Mini-PIM) LED has the following indicator colors:Green and steadily on indicates that the Mini-PIM is functioning normally.Off indicates that the Mini-PIM is not present or not detected by the device.	determine whether the Mini-PIM is present and detected by the device.

Ethernet Port LEDs

On the SRX240 Services Gateway, each Gigabit Ethernet port has the two LEDs as shown in Figure 7 on page 16.

Figure 7: SRX240 Services Gateway Port LEDs

① ② JUNIPER SRX240 9037504

Table 11: SRX240 Services Gateway Port LEDs

	LEDNumber
	TX/RX/Link LED1
	PoE (Power over Ethernet) LED2

NOTE: ThePoELEDis enabled only on the PoEvariant of the SRX240 Services Gateway. For non-PoE services gateways, the PoE LED remains off.

Table 12 on page 16 describes the Ethernet port LEDs.
Table 12: SRX240 Services Gateway Ethernet Port LEDs

			DescriptionStateColo
TX/RX/Link	Green	Blinking	Link is active. Data communication is taking place.
		Steady	Link is active. No data communication is taking place.
	Unlit	Off	Link is inactive.
			DescriptionStateCold
		SteadyGreenPoE Status	PoE is activated and the connected power device is receiving power.
		SteadyYellow	PoE is activated, but the connected power device is not receiving power (fault or not enough power).
		OffUnlit	PoE is disabled or no device is drawing power.

DC Power Supply Feed LEDs (SRX240 Services Gateway DC Power Supply Model)

On the SRX240 Services Gateway with DC power supply models, the back panel includes two LEDs, which indicate the status of the DC power supply feed.

Figure 8 on page 17 shows the DC power supply feed LEDs on the SRX240 Services Gateway with DC power supply model.

Figure 8: DC Power Supply Feed LEDs

LEDs INPUT A INPUT B RTN -48V REMOVE LINKS FOR DUAL FEED A+ B+ A- B- g037539

Table 13 on page 17 describes the DC power supply feed LEDs.

Table 13: DC Power Supply Feed LEDs

DC Input				LED BLED
	Input BInput A
Input is normal.	Input is normal.	No output	Red	Red
		Output is normal.	Green	Green
has failed because the power supply fuse has failed or input voltage is low.	Input is normal.Input Goutunested but normal. (blinking)			GreenRed
Input is normal.	Input is connected but has failed normal. because the power supply fuse has failed or input voltage is low.		GreenOutput is Red (blinking)
no DC input connected.	Input is normal.Input Outaker open or normal. (blinking)			GreenRed
	Input has failed output.Input had failed. (blinking)			Red (blinking)
	No input. No output.No inputOff			Off
(1) No output because of output side failure or an open connection.

Related Documentation

SRX240 Services Gateway Chassis on page 7

• SRX240 Services Gateway Front Panel and Back Panel Views on page 9
• SRX240 Services Gateway Built-In Interfaces on page 12
- SRX240 Services Gateway Boot Devices and Dual-Root Partitioning Scheme on page 18
• SRX240 Services Gateway Power Supply on page 20
• SRX240 Services Gateway Cooling System on page 21

SRX240 Services Gateway Boot Devices and Dual-Root Partitioning Scheme

This topic includes the following sections:

• Boot Devices on page 18
  • Dual-Root Partitioning Scheme on page 19

Boot Devices

The SRX240 Services Gateway can boot from the following storage media (in the given order of priority):

- Internal NAND flash memory (default; always present)

- USB storage device (alternate)

Dual-Root Partitioning Scheme

Dual-root partitions allow SRX240 Services Gateways to remain functional if there is file system corruption and facilitate easy recovery of the corrupted file system.

The dual-root partitioning scheme keeps the primary and backup Junos OS images in two independently bootable root partitions. If the primary root partition becomes corrupted, the system will be able to boot from the backup Junos OS image located in the other root partition and remain fully functional.

When the services gateway powers up, it tries to boot Junos OS from the default storage media. If the services gateway fails to boot from the default storage media, it tries to boot from the alternate storage media. With the dual-root partitioning scheme, the services gateway first tries to boot Junos OS from the primary root partition and then from the backup root partition on the default storage media. The services gateway remains fully functional even if it boots Junos OS from the backup root partition of storage media.

NOTE: SRX Series Services Gateways that ship with Junos OS Release 10.0 or later are formatted for the dual-root partitioning scheme.

SRX240 Services Gateways that are running Junos OS Release 9.6 or earlier use the single-root partitioning scheme. While upgrading these services gateway to Junos OS Release 10.0 or later, you can choose to format the storage media with dual-root partitions (strongly recommended) or retain the existing single-root partitioning.

For instructions on upgrading to Junos OS Release 10.0 or later, see the following guides:

• Initial Configuration for Security Devices
  • Monitoring and Troubleshooting for Security Devices

Related Documentation

SRX240 Services Gateway Chassis on page 7.

•SRX240 Services Gateway Front Panel and Back Panel Views on page 9

•SRX240 Services Gateway Built-In Interfaces on page 12

•SRX240 Services Gateway LEDs on page 14

•SRX240 Services Gateway Power Supply on page 20

•SRX240 Services Gateway Cooling System on page 21

SRX240 Services Gateway Power Supply

This topic includes the following sections:

• AC Power Supply (SRX240 Services Gateway) on page 20
• DC Power Supply (SRX240 Services Gateway with DC Power Supply Model) on page 20

AC Power Supply (SRX240 Services Gateway)

The SRX240 Services Gateway AC power supply models use a fixed, internal AC power supply. The power supply distributes the different output voltages to the device components according to their voltage requirements. The power supply is fixed in the chassis and is not field-replaceable.

The AC power supply has a single AC appliance inlet that requires a dedicated AC power feed.

DC Power Supply (SRX240 Services Gateway with DC Power Supply Model)

The SRX240 Services Gateway with DC power supply models have a fixed, internal DC power supply. The DC power supply available on the back panel of the chassis has dual redundant power feeds and provides full power redundancy in the device. The power supply is fixed in the chassis and is not field-replaceable.

The DC power supply feed has a terminal block that provides a single DC input (-48 VDC and return) and requires a dedicated 10 A (-48 VDC) circuit breaker. The DC power feed includes two LEDs that indicate the status of the power supply. For more details about the LEDs, see "SRX240 Services Gateway LEDs" on page 14.

NOTE: Each power feed requires its own dedicated circuit breaker to be a fully redundant DC source.

NOTE: DC-powered devices are intended for installation only in a restricted access location.

Related Documentation

- Connecting the SRX240 Services Gateway DC Power Supply Model to a DC Power Source on page 50

•SRX240 Services Gateway DC Power Specifications and Requirements on page 146

•DC Power Electrical Safety Guidelines and Warnings on page 132

•SRX240 Services Gateway Chassis on page 7

•SRX240 Services Gateway Front Panel and Back Panel Views on page 9

•SRX240 Services Gateway Built-In Interfaces on page 12

•SRX240 Services Gateway LEDs on page 14

SRX240 Services Gateway Cooling System

SRX240 Services Gateways have six cooling fans.

The fans draw air from the right side of the chassis (when the chassis is viewed from the front) and exhaust the air at the left side of the chassis (when the chassis is viewed from the front) as shown in Figure 9 on page 21.

The airflow produced by these fans keeps all components within the acceptable temperature range.

Figure 9: Airflow Through the SRX240 Services Gateway Chassis

Rear Front g037505

Related Documentation

SRX240 Services Gateway Chassis on page 7.

SRX240 Services Gateway Front Panel and Back Panel Views on page 9
•SRX240 Services Gateway Built-In Interfaces on page 12
•SRX240 Services Gateway LEDs on page 14
•SRX240 Services Gateway Boot Devices and Dual-Root Partitioning Scheme on page 18
•SRX240 Services Gateway Power Supply on page 20

SRX240 Services Gateway Air Filter

The air filter for the SRX240 Services Gateway (both with AC power supply models and with DC power supply models) is hot-insertable and hot-removable. The air intake opening

is at the right side of the chassis (when the chassis is viewed from the front side). The air filter weighs approximately 0.2 lbs (0.09 kg). To ensure optimal operation, you must replace the air filter periodically (every six months).

NOTE: An air filter is not shipped with the SRX240 Services Gateway with AC power supply model. To meet NEBS requirements, you must order the air filter separately and installContact yourJuniper Networks customer service representative for more information.

Related Documentation

•Replacing the Air Filter on the SRX240 Services Gateway on page 90

•SRX240 Services Gateway Chassis on page 7

•SRX240 Services Gateway Front Panel and Back Panel Views on page 9

•SRX240 Services Gateway LEDs on page 14

•SRX240 Services Gateway Boot Devices and Dual-Root Partitioning Scheme on page 18

•SRX240 Services Gateway Power Supply on page 20

CHAPTER 3

SRX240 Services Gateway Mini-Physical Interface Modules

This chapter includes the following topic:

- Mini-Physical Interface Modules for the SRX240 Services Gateway on page 23

Mini-Physical Interface Modules for the SRX240 Services Gateway

SRX240 Services Gateway support Mini-Physical Interface Modules (Mini-PIMs).

A Mini-PIM is a network interface card (NIC) that is installed on the services gateways to provide physical connections to a LAN or a WAN. The Mini-PIM receives incoming packets from the network and transmits outgoing packets to the network.

The Mini-PIMs supported on SRX240 Services Gateways are field-replaceable—you can remove and replace them. You can install a Mini-PIM in the Mini-PIM slots on the front panel of the services gateway chassis.

CAUTION: The Mini-PIMs for SRX240 Services Gateways are not hot-swappable. You must power off the services gateway before removing or installing Mini-PIMs.

For more information about supported Mini-PIMs, and on how to install and configure Mini-PIMs, refer to the SRX Series Services Gateways for the Branch Physical Interface Modules Hardware Guide

Related Documentation

•SRX240 Services Gateway Chassis on page 7

•SRX240 Services Gateway Front Panel and Back Panel Views on page 9

•SRX240 Services Gateway LEDs on page 14

•SRX240 Services Gateway Built-In Interfaces on page 12

•SRX240 Services Gateway Cooling System on page 21

CHAPTER 4

SRX240 Services Gateway Power over Ethernet Support

This chapter includes the following topics:

• SRX240 Services Gateway Power over Ethernet Overview on page 25
- Configuring Power over Ethernet on the SRX240 Services Gateway on page 27

SRX240 Services Gateway Power over Ethernet Overview

This topic includes the following sections:

• Introduction on page 25
- PoE Classes and Power Ratings on page 26

Introduction

Power over Ethernet (PoE) provides a device the capability to transmit both data and electric power over a copper Ethernet LAN cable.

The PoE-capable models of the SRX240 Services Gateway (see “SRX240 Services Gateway Models” on page 4) PoE on all Gigabit Ethernet ports. The PoE ports transfer electrical power and data, to remote devices over a standard twisted-pair cable in an Ethernet network. PoE ports allow you to plug in devices that require both network connectivity and electric power, such as wireless LAN access points, and VoIP telephones.

You can configure the services gateway to act as power sourcing equipment for devices connected to the PoE ports.

Table 14 on page 25 lists the PoE specifications for SRX240 Services Gateway.
Table 14: SRX240 Services Gateway PoE Specifications

	ValuesPower Management Schemes
Supported standards	IEEE 802.3 AFEEEE 802.3 AT (PoE+)Legacy (pre-standards)
Supported ports	PoE is supported on all 16 Gigabit Ethernet ports (0/0 through 0/15; interfaces ge-0/0/0 through ge-0/0/15)
	150 wattsTotal PoE power sourcing capacity
Per port power limit	30 wattsNOTE: Default value is 15.4 watts
Power management modes	Static: Power allocated for each interface can be configured.Class: Power allocated for interfaces is decided on the basis of class of powered device connected.

PoE Classes and Power Ratings

A powered device is classified on the basis of the maximum power that it draws across all input voltages and operational modes. When class-based power management mode is configured on the services gateway, power is allocated taking into account the maximum power ratings defined for the different classes of devices.

Table 15 on page 26 lists the classes and their power ratings as specified by the IEEE 802.3 AF standard.

Table 15: PoE Classes and Power Ratings

	Minimum Power Level Output from PoE P
	15.4 watts0
	4.0 watts1
	7.0 watts2
	15.4 watts3
	30.0 watts4

Related Documentation

SRX240 Services Gateway Description on page 3

• SRX240 Services Gateway Chassis on page 7
• SRX240 Services Gateway Front Panel and Back Panel Views on page 9
• SRX240 Services Gateway Built-In Interfaces on page 12
• SRX240 Services Gateway LEDs on page 14
- Mini-Physical Interface Modules for the SRX240 Services Gateway on page 23

Configuring Power over Ethernet on the SRX240 Services Gateway

To enable the PoE support on your SRX240 services gateway to work properly, you must configure the services gateway.

You can configure PoE using Junos OS CLI.

For more details on configuring the PoE, see the Interfaces for Security Devices.

Related Documentation

•SRX240 Services Gateway Power over Ethernet Overview on page 25

•SRX240 Services Gateway Description on page 3

•SRX240 Services Gateway Built-In Interfaces on page 12

•SRX240 Services Gateway LEDs on page 14

PART 2

Setting Up the SRX240 Services Gatew

• Preparing the Site for the SRX240 Services Gateway Installation on page 31
• Installation Overview for the SRX240 Services Gateway on page 37
- Required Tools and Parts for Installing and Maintaining the SRX240 Services Gateway on page 39
• Unpacking the SRX240 Services Gateway on page 41
• Installing the SRX240 Services Gateway on page 43
- Connecting, Grounding, and Powering On the SRX240 Services Gateway on page 49
- SRX240 Services Gateway Autoinstallation on page 61
- Connecting the SRX240 Services Gateway to Management Devices on page 63
- Performing Initial Software Configuration on the SRX240 Services Gateway on page 71

CHAPTER 5

Preparing the Site for the SRX240 Services Gateway Installation

This chapter includes the following topics:

• Site Preparation Checklist for the SRX240 Services Gateway on page 31
• General Site Guidelines for Installing the SRX240 Services Gateway on page 32
  • SRX240 Services Gateway Rack Requirements on page 33
• Clearance Requirements for Airflow and Hardware Maintenance on the SRX240 Services Gateway on page 34
  • SRX240 Services Gateway Electrical and Power Requirements on page 35

Site Preparation Checklist for the SRX240 Services Gateway

The checklist in Table 16 on page 31 summarizes the tasks you need to perform when preparing a site for installing the SRX240 Services Gateway.

Table 16: Site Preparation Checklist for Services Gateway Installation

Date and NotesAd

Environment

Verify that environmental factors such as "SRX240 Services Gateway Chassis" temperature and humidity do not exceed on page 7 device tolerances.

Power

Measure distance between external power"SRX240 Services Gateway Electrical sources and device installation site. and Power Requirements" on page 35

Locate sites for connection of system grounding. "SRX240 Services Gateway Grounding Specifications" on page 147

Gather the AC power requirements. "SRX240 Services Gateway AC Power Specifications and Requirements" on page 145

Table 16: Site Preparation Checklist for Services Gateway Installation (continued)

Date and NotesAd

Gather the DC power requirements.

"SRX240 Services Gateway DC Power Specifications and Requirements" on page 146

Rack Installation

• Verify that your rack meets the minimum RX240 Services Gateway Rack requirements.
• Plan the rack location, including required space clearances.
• Secure the rack to the floor and the building structure.

Cables

• Acquire cables and connectors.
"Interface Cable and Wire
- Choose the cable length as required the distance between the hardware components being connected.
Specifications for the SRX240 Services Gateway" on page 149
- Plan the cable routing and management.

Related Documentation

SRX240 Services Gateway Chassis on page 7.

•SRX240 Services Gateway Site Electrical Wiring Guidelines on page 143

SRX240 Services Gateway Rack Requirements on page 33

- Clearance Requirements for Airflow and Hardware Maintenance on the SRX240 Services Gateway on page 34

•Interface Cable and Wire Specifications for the SRX240 Services Gateway on page 149

•General Site Guidelines for Installing the SRX240 Services Gateway on page 32

General Site Guidelines for Installing the SRX240 Services Gateway

The following precautions help you plan an acceptable operating environment for your SRX240 Services Gateway and avoid environmentally caused equipment failures:

• For the cooling system to function properly, the airflow around the chassis must be unrestricted. Allow sufficient clearance between the front and back of the chassis and adjacent equipment. Ensure that there is adequate circulation in the installation location.
• Follow the ESD procedures to avoid damaging the equipment. Static discharge can cause components to fail completely or intermittently over time.
• Ensure that the blank Mini-PIM panel is installed in the empty slot to prevent any interruption or reduction in the flow of air across internal components.

NOTE: Install the device only in restricted areas, such as dedicated equipment rooms and equipment closets, in accordance with Articles 110-16, 110-17, and 110-18 of the National Electrical Code, ANSI/NFPA 70.

Related Documentation

SRX240 Services Gateway Chassis on page 7.

•SRX240 Services Gateway Site Electrical Wiring Guidelines on page 143
•SRX240 Services Gateway Rack Requirements on page 33
- Clearance Requirements for Airflow and Hardware Maintenance on the SRX240 Services Gateway on page 34
•Interface Cable and Wire Specifications for the SRX240 Services Gateway on page 149

SRX240 Services Gateway Rack Requirements

The SRX240 Services Gateway can be installed in a rack. Many types of racks are acceptable, including front-mount racks and four-post (telco) racks.

Table 17 on page 33 provides the details on rack size, clearance, and airflow requirements.

Table 17: Rack Requirements for the Services Gateway

	SpecificationsRack Requirements
Rack Size	A 19 in. (48.3 cm) rack as defined in Cabinets, Racks, Panels, and Associated Equipment (document number EIA-310-D) published by the Electronics Industry Association (http://www.eia.org).
Rack Requirements	The outer edges of the mounting brackets extend the width of either chassis to 19 in. (48.3 cm).The front of the chassis extends approximately 0.5 in. (1.27 cm) beyond the mounting ears.Maximum permissible ambient temperature when two devices are placed side by side in a 19 in. ra#B. is 40
Spacing of Mounting Bracket and Flange Holes	The holes within each rack set are spaced at 1 U. The device can be mounted in any rack that provides holes or hole patterns spaced at 1-U [1.75 in. (4.5 cm)] increments.The mounting brackets and front-mount flanges used to attach the chassis to a rack are designed to fasten to holes spaced at rack distances of 1 U (1.75 in.).The mounting holes in the mounting brackets provided with the device are spaced 1.25 in. (3.2 cm) apart (top and bottom mounting hole).
Connecting to the Building Structure	Always secure the rack in which you are installing the services gateway to the structure of the building. If your geographical area is subject to earthquakes, bolt the rack to the floor. For maximum stability, also secure the rack to ceiling brackets.

Related Documentation

General Site Guidelines for Installing the SRX240 Services Gateway on page 32.

- Clearance Requirements for Airflow and Hardware Maintenance on the SRX240 Services Gateway on page 34

•SRX240 Services Gateway Electrical and Power Requirements on page 35

Clearance Requirements for Airflow and Hardware Maintenance on the SRX240 Services Gateway

When planning the installation site for the SRX240 Services Gateway, you need to allow sufficient clearance around the rack.

When planning the installation site for the services gateway, consider the following:

- For the cooling system to function properly, the airflow around the chassis must be unrestricted.

- For service personnel to remove and install hardware components, there must be adequate space at the front and back of the device.

- For the DC power supply model, ensure that you follow the NEBS recommendation—The NEBS GR-63 recommends that you allow at least 30 in. (72.6 cm) in front of the rack and 24 in. (61.0 cm) behind the rack.

- If you are mounting the device in a rack with other equipment, or if you are placing it on the desktop near other equipment, ensure that the exhaust from other equipment does not blow into the intake vents of the chassis.

Table 18 on page 34 provides information on the clearance requirements for maintaining the optimum airflow and the distances for facilitating easy maintenance of the device.

Table 18: Clearance Requirements for the Services Gateway

	Recommended ClearanceLocation	Requirement for Clearance
and rack or cabinet edge	2.5 in. (6.35 cm) Between Spade for the chasting system to organization
any non-heat-producing surface such as a wall or cabinet side	2.5 in. (6.35 cm) Between Spade for the chasting system to function properly and to maintain unrestricted airflow around the chassis
devices that have fans or blowers	2.5 in. (6.35 cm) Between Spade for the chasting system to function properly and to maintain unrestricted airflow around the chassis

Related Documentation

General Site Guidelines for Installing the SRX240 Services Gateway on page 32.

•SRX240 Services Gateway Rack Requirements on page 33

•SRX240 Services Gateway Electrical and Power Requirements on page 35

SRX240 Services Gateway Electrical and Power Requirements

There are factors you must consider while planning the electrical wiring and power availability at your site. These factors include the following requirements:

• Power specifications and requirements for the device
• Electrical wiring guidelines for the device installation site
  • Power, connection, and power cord specifications for the device
• Grounding guidelines and specifications for the device

Related Documentation

•General Site Guidelines for Installing the SRX240 Services Gateway on page 32

•SRX240 Services Gateway Rack Requirements on page 33

- Clearance Requirements for Airflow and Hardware Maintenance on the SRX240 Services Gateway on page 34

CHAPTER 6

Installation Overview for the SRX240 Services Gateway

This chapter includes the following topic:

• Installation Overview for the SRX240 Services Gateway on page 37

Installation Overview for the SRX240 Services Gateway

After you have prepared your installation site, you are ready to unpack and install the services gateway. It is important to proceed through the installation process as shown in Table 19 on page 37.

Table 19: Installation Process Sequence for the SRX240 Services Gateway

		For More InformationProcessSteps
	Review the safety guidelines.1	“SRX240 Services Gateway Safety Requirements, Warnings, and Guidelines” on page 43
2	Verify that you have prepared your site for the installation of the services gateway using the checklist.	“Site Preparation Checklist for the SRX240 Services Gateway” on page 31
3	Unpack the services gateway and verify that the parts are received.	“Unpacking the SRX240 Services Gateway” on page 41
4	Prepare the services gateway for installation.	“Preparing the SRX240 Services Gateway for Installation” on page 43
	Install the services gateway.5	“Installing the SRX240 Services Gateway” on page 44
	Connect the power supply6	"Connecting the SRX240 Services Gateway to the AC Power Source" on page 49(For SRX240 ServicesGateway with AC power supply models)
		"Connecting the SRX240 Services Gateway DC Power Supply Model to a DC Power Source" on page 50(For SRX240 Services Gateway with DC power supply models)
	Connect cables to external devices.7	"Connecting and Organizing Interface Cables to the SRX240 Services Gateway" on page 54
	Connect the grounding cable.8	"Grounding the SRX240 Services Gateway" on page 55
	Power on the services gateway.9	"Powering On and Powering Off the SRX240 Services Gateway" on page 57

Related Documentation

•SRX240 Services Gateway Safety Requirements, Warnings, and Guidelines on page 43

•General Site Guidelines for Installing the SRX240 Services Gateway on page 32

• Unpacking the SRX240 Services Gateway on page 41

•Preparing the SRX240 Services Gateway for Installation on page 43

- Connecting and Organizing Interface Cables to the SRX240 Services Gateway on page 54

•Grounding the SRX240 Services Gateway on page 55

•Powering On and Powering Off the SRX240 Services Gateway on page 57

CHAPTER 7

Required Tools and Parts for Installing Maintaining the SRX240 Services Gateway

This chapter includes the following topic:

- Required Tools and Parts for Installing and Maintaining the SRX240 Services Gateway on page 39

Required Tools and Parts for Installing and Maintaining the SRX240 Services Gat

Table 20 on page 39 lists the tools and equipments required to install and maintain the SRX240 Services Gateway.

Table 20: Required Tools and Parts for Installing and Maintaining the SRX240 Services Gateway

		Related TopicTools and
Installing the SRX240 Services Gateway	• Phillips (+) screwdrivers, number-2 and number-3 • Tie wrap	"Installing the SRX240 Services Gateway" on page 44
Connecting the SRX240 Services Gateway	Electrostatic discharge (ESD) grounding wrist strap	"Connecting the SRX240 Services Gateway to the Power Source" on page 4
Connecting the SRX240 Services Gateway to a power source	• DC power source cables (12-14 DC AWG) with ring lug (Molex 190700067 or equivalent) (not provided) • Phillips (+) screwdriver, number 1	"Connecting the SRX240 Services Gateway DC Pow Supply Model to a DC Power Source" on page 5
Grounding the SRX240 Services Gateway	Phillips (+) screwdrivers, numbers and 2	1"Grounding the SRX240 Services Gateway" on page 55
Replacing the air filter on Electrostatic discharge (ESD)the SRX240 Services grounding wrist strapGateway ( DC power supply model)		"Replacing the Air Filter of the SRX240 Services Gateway" on page 90
Packing the SRX240Services Gateway	Blank panels to cover empty slotsElectrostatic bag or antistatic mat,for each componentElectrostatic discharge (ESD)grounding wrist strap	Packing the SRX240Services Gateway and Components for Shipment on page 156

Related Documentation

• Unpacking the SRX240 Services Gateway on page 41

•Installing the SRX240 Services Gateway on page 44

•Grounding the SRX240 Services Gateway on page 55

•Connecting the SRX240 Services Gateway to the AC Power Source on page 49

•Packing the SRX240 Services Gateway and Components for Shipment on page 156

CHAPTER 8

Unpacking the SRX240 Services Gateway

This chapter includes the following topics:

• Unpacking the SRX240 Services Gateway on page 41
  • Verifying Parts Received with the SRX240 Services Gateway on page 41

Unpacking the SRX240 Services Gateway

The SRX240 Services Gateway is shipped in a cardboard carton and secured with foam packing material. The carton also contains an accessory box and the SRX240 Services Gateway Quick Start.

NOTE: Theservicesgateway is maximallyprotected inside the shipping crate. Do not unpack it until you are ready to begin installation.

To unpack the services gateway:

1. Open the box in which the device is shipped.
2. Verify the parts received as in the list provided in Verifying Parts Received topic. See Related Topics.
3. Store the shipping box and packing material in case you need to return or move the device at a later time.

Related Documentation

• Required Tools and Parts for Installing and Maintaining the SRX240 Services Gateway on page 39
  •Verifying Parts Received with the SRX240 Services Gateway on page 41
  •Preparing the SRX240 Services Gateway for Installation on page 43

Verifying Parts Received with the SRX240 Services Gateway

The SRX240 Services Gateway shipment package contains a packing list that includes all parts and accessories available with the device. Check the parts in the shipment against the items on the packing list. The packing list specifies the part numbers and descriptions of each part in your order.

NOTE: If any part is missing, contact your Juniper Networks customer service representative.

A fully configured SRX240 Services Gateway contains the chassis with installed components, listed in Table 21 on page 42 and an accessory box, which contains the parts listed in Table 22 on page 42.

NOTE: The parts shipped with your device can vary depending on the configuration you ordered.

Table 21: Parts List for a Fully Configured SRX240 Services Gateway

	QuantityCompon
	1Rack Mounting Kit
	13-prong power cord
[Not available for SRX240 Services Gateway with DC power supply models]
	1DB-9 to RJ-45 adapter, straight t

Table 22: Accessory Parts List for the SRX240 Services Gateway

	QuantityPart
	1Juniper Networks Product Warranty
	1End User License Agreement
	1SRX240 Services Gateway Quick 1
	1Security Products Safety Guide
	1Juniper Networks Compliance Form
	1Product Registration

Related Documentation

• Unpacking the SRX240 Services Gateway on page 41

•Preparing the SRX240 Services Gateway for Installation on page 43

•Installing the SRX240 Services Gateway on page 44

CHAPTER 9

Installing the SRX240 Services Gateway

This chapter includes the following topics:

• SRX240 Services Gateway Safety Requirements, Warnings, and Guidelines on page 43
• Preparing the SRX240 Services Gateway for Installation on page 43
• Installing the SRX240 Services Gateway on page 44
- Replacing or Installing Mini-Physical Interface Modules in the SRX240 Services Gateway on page 47

SRX240 Services Gateway Safety Requirements, Warnings, and Guidelines

To avoid harm to yourself or the device as you install and maintain it, follow the guideline: for working with and near electrical equipment, as well as the safety procedures for working with devices. For a discussion of how to make the installation site a safe environment along with a list of safety warnings, see Appendix A, Safety and Regulatory Compliance Information.

NOTE: Providing an exhaustive set of guidelines for working with electrical equipment is beyond the scope of this guide.

Related Documentation

Preparing the SRX240 Services Gateway for Installation on page 43.

•Installing the SRX240 Services Gateway on page 44

Preparing the SRX240 Services Gateway for Installation

You can mount an SRX240 Services Gateway in a rack. The services gateway can be mounted on four-post (telco) racks, enclosed cabinets, and open-frame racks.

Table 23: SRX240 Services Gateway Preinstallation Checklist

Additional InformationTask

Verify that the installation site meets the General Site Guidelines for Installing the SRX240 requirements. Services Gateway" on page 32

Table 23: SRX240 Services Gateway Preinstallation Checklist (continued)

	Additional InformationTask
Remove the services gateway chassis from packing the SRX240 Services Gateway" on the shipping carton.	from packing the SRX240 Services Gateway" on page 41
Verify the parts you have received.	"Verifying Parts Received with the SRX240 Ser Gateway" on page 41

Related Documentation

General Site Guidelines for Installing the SRX240 Services Gateway on page 32.

• Unpacking the SRX240 Services Gateway on page 41
•Verifying Parts Received with the SRX240 Services Gateway on page 41
•Installing the SRX240 Services Gateway on page 44

Installing the SRX240 Services Gateway

You can front-mount or center-mount the SRX240 Services Gateway in a rack.

NOTE: If you are installing multiple devices in one rack, install the lowest one first and proceed upward in the rack.

To install the device in a rack:

1. Position a mounting bracket on each side of the chassis. You can position the brackets in:

2. Front-mount position as shown in Figure 10 on page 45.
   • Center-mount position as shown in Figure 11 on page 45.

NOTE: Positioning the brackets in the center offers greater stability.

Figure 10: Installing the SRX240 Services Gateway in a Rack (Front-Mount)

Technical diagram of a server rack with labeled components and an inset view showing internal components.

Figure 11: Installing the SRX240 Services Gateway in a Rack (Center-Mount)

p037545

1. Use a number-2 Phillips screwdriver to install the screws that secure the mounting brackets to the chassis.
2. Have one person grasp the sides of the device, lift it, and position it in the rack.
3. Align the bottom hole in each mounting bracket with a hole in each rack rail, making sure the chassis is level.
4. Have a second person install a mounting screw into each of the two aligned holes. Use a number-3 Phillips screwdriver to tighten the screws.
5. Install the second screw in each mounting bracket.
6. Verify that the mounting screws on one side of the rack are aligned with the mounting screws on the opposite side and that the device is level.

Related Documentation

Preparing the SRX240 Services Gateway for Installation on page 43.

•Required Tools and Parts for Installing and Maintaining the SRX240 Services Gateway on page 39

•SRX240 Services Gateway Installation Safety Guidelines and Warnings on page 116

Replacing or Installing Mini-Physical Interface Modules in the SRX240 Services Gate

Mini-Physical Interface Modules (Mini-PIMs) are circuit boards that you can install in a device for enhanced functionality based on your requirements. They enable you to easily add or change physical interfaces on a device.

The Mini-Physical Interface Module (Mini-PIM) slot is covered with a blank faceplate to maintain proper airflow through the services gateway. Before installing the Mini-PIM, you must remove the faceplate.

See the SRX Series Services Gateways for the Branch Physical Interface Modules Hardware Guide for information about installing the Mini-PIMs.

NOTE: The Mini-PIMs available on the SRX240 Services Gateway are not hot-swappable. You need to power off the device before removing or installing Mini-PIMs.

Related Documentation

•SRX240 Services Gateway Installation Safety Guidelines and Warnings on page 116

•Required Tools and Parts for Installing and Maintaining the SRX240 Services Gateway on page 39

•Installing the SRX240 Services Gateway on page 44

CHAPTER 10

Connecting, Grounding, and Powering Or the SRX240 Services Gateway

This chapter includes the following topics:

• Connecting the SRX240 Services Gateway to the AC Power Source on page 49
• Connecting the SRX240 Services Gateway DC Power Supply Model to a DC Power Source on page 50
• Connecting and Organizing Interface Cables to the SRX240 Services Gateway on page 54
  • Grounding the SRX240 Services Gateway on page 55
  • Powering On and Powering Off the SRX240 Services Gateway on page 57

Connecting the SRX240 Services Gateway to the AC Power Source

Figure 12 on page 49 shows how the SRX240 Services Gateway is connected to an AC power source.

Figure 12: SRX240 Services Gateway Power Supply Connection

Diagram showing connection between a server rack and an electrical outlet, with labeled ports and cable connections.

To connect the device to the power supply:

1. Attach an electrostatic discharge (ESD) grounding strap to your bare wrist, and connect the other end of the ESD strap to the ESD point on the rack.
2. Insert the appliance coupler end of a power cord into the appliance inlet on the power supply faceplate.
3. Insert the plug into an AC power source receptacle.

NOTE: The services gateway must be connected to earth ground during normal operation. The protective earthing terminal on the rear of the chassis is provided to connect the services gateway to ground.

CAUTION: We recommend using a surge protector for the power connection.

NOTE: Use the cable tie holder to secure the power cord on to the power supply point.

NOTE: We strongly recommend that you use only the 3-prong power cord supplied with your services gateway. If you are using a 2-prong power cord, then ensure that your services gateway is adequately grounded using the grounding point available on the back panel of the chassis.

Related Documentation

Installing the SRX240 Services Gateway on page 44.

• Required Tools and Parts for Installing and Maintaining the SRX240 Services Gateway on page 39
• Connecting and Organizing Interface Cables to the SRX240 Services Gateway on page 54
  •Grounding the SRX240 Services Gateway on page 55
  • Powering On and Powering Off the SRX240 Services Gateway on page 57

Connecting the SRX240 Services Gateway DC Power Supply Model to a DC Pov Source

WARNING: DC-powered SRX240 Services Gateways are intended for installation only in a restricted access location.

WARNING: Before performing the following procedure, ensure that power is removed from the DC circuit. To ensure that all power is off, locate the circuit breaker on the panel board that services the DC circuit, switch the circuit breaker to the off position, and tape the switch handle of the circuit breaker in the off position.

Required tools and parts:

• DC power source cables (12–14 AWG) with ring lug (Molex 190700067 or equivalent) (not provided)
  • Phillips (+) screwdriver, number 1

Before you begin:

• Ensure that you have taken the necessary precautions to prevent ESD damage.
• Ensure that you have connected the device chassis to earth ground.

CAUTION: Before you connect power to the services gateway, a licensed electrician must attach a cable lug to the grounding and power cables that you use. A cable with an incorrectly attached lug can damage the device (for example, by causing a short circuit).

To meet safety and electromagnetic interference (EMI) requirements and to ensure proper operation, you must connect the SRX240 Services Gateway to ground before you connect it to power.

You connect DC source power to the device by attaching power cables from the external DC power sources to the terminal studs on the DC power feed faceplates.

To connect the DC source power to the device:

1. Ensure that the input circuit breaker is open so that the voltage across the DC power source cable leads is 0 V and that the cable leads will not become active while you are connecting DC power.

NOTE: The DC power feed in SRX240 Services Gateway DC power supply model has four terminals labeled A+, B+, A-, and B- for connecting DC power source cables labeled positive (+) and negative (-). The DC power feed section on the SRX240 Services Gateway with DC power supply model is shipped with jumpers from the A+ input to B+ input tied together and links (jumpers) from the A- input to B- input tied together.

1. Remove the screw securing the terminal block cover using the Phillips (+) screwdriver, number 1 and remove the terminal block cover as shown in Figure 13 on page 52. Save the screw.

Figure 13: DC Power Feed on SRX240 Services Gateway with DC Pow Supply Model

LEDs INPUT A INPUT B Terminal block Terminal block cover 9037544

1. Remove the screws on the terminals using the Phillips (+) screwdriver, number 1. Save the screws.

WARNING: Ensure that the powercables do not block access to the device or drape where people can trip on them.

1. Connect the power feed to the power sources as shown in Figure 14 on page 53. Secure power source cables to the power feed on the device by screwing the ring lugs attached to the cables to the appropriate terminals by using the screw from the terminals.

Figure 14: Connecting DC Power to the SRX240 Services Gateway with DC Power Supply Model

NPUT A NPUT B DC Ring lugs REMOVL UNLS FOR DUAL FEED g037540

To connect to a single power source:

1. Leave the links (jumpers) on the terminal blocks in place.
2. Secure the ring lug of the RETURN (+) DC power source cable to the A+ terminal on the terminal block.
3. Secure the ring lug of the -48 VDC power source cable to the A- terminal on the terminal block.
4. Tighten the screws on the power supply terminals until snug using the Phillips (+) screwdriver, number-2. Do not overtighten—apply between 8 lb-in. (0.9 Nm) and 9 lb-in. (1.02 Nm) of torque to the screws.

To connect to two power sources:

1. Remove the links (jumpers) and insulator on the power supply terminal block.
2. Secure the ring lug of the RETURN (+) DC power source cable from the first DC power source to the A+ terminal.
3. Secure the ring lug of the -48V DC power source cable from the first DC power source to the A- terminal.

4. Secure the ring lug of the Return (+) DC power source cable from the second DC power source to the B+ terminal.

5. Secure the ring lug of the -48VDC power source cable from the second DC power source to the B- terminal.

6. Tighten the screws on the power supply terminals using the Phillips (+) screwdriver, number 1. Do not overtighten—apply between 8 lb-in. (0.9 Nm) and 9 lb-in. (1.02 Nm) of torque to the screws.

7. Replace the terminal block cover and secure it using the screw. Use the Phillips (+) screwdriver, number 1 to tighten the screw.

8. Close the input circuit breaker.

9. Verify that the power cables do not block access to router components or drape where people can trip on them. Use the cable tie holder as shown in Figure 15 on page 54 to secure cables so that they are not supporting their own weight as they hang to the floor

Figure 15: Organizing the Power Cables Using a Cable Tie Holder

NPU/A NCU/LNC H2A/HSB g037541

1. Verify that the LEDs on the power supply are lit green and are on steadily.

Related Documentation

SRX240 Services Gateway Power Supply on page 20.

•SRX240 Services Gateway DC Power Specifications and Requirements on page 146

•SRX240 Services Gateway LEDs on page 14

•Required Tools and Parts for Installing and Maintaining the SRX240 Services Gateway on page 39

•Grounding the SRX240 Services Gateway on page 55

• Powering On and Powering Off the SRX240 Services Gateway on page 57

Connecting and Organizing Interface Cables to the SRX240 Services Gateway

You connect the interfaces installed in the services gateway to various network media. Each type of interface on a services gateway uses a particular medium to transmit data. You must configure each network interface before it can operate on the device.

To connect the interface cable to the device:

1. Have ready a length of the type of cable used by the interface.
2. Insert the cable connector into the cable connector port on the interface faceplate.
3. Arrange network cables as follows to prevent them from dislodging or developing stress points:

4. Secure cables so that they are not supporting their own weight as they hang to the floor.

5. Place excess cable out of the way in neatly coiled loops.

6. Use fasteners to maintain the shape of cable loops.

Related Documentation

Installing the SRX240 Services Gateway on page 44.

•Grounding the SRX240 Services Gateway on page 55

•Connecting the SRX240 Services Gateway to the AC Power Source on page 49

• Powering On and Powering Off the SRX240 Services Gateway on page 57

Grounding the SRX240 Services Gateway

The following tools and parts are required for grounding the SRX240 Services Gateway:

• Grounding cable for your services gateway—The grounding cable must be minimum 14 AWG (2 mm ^2 ), minimum 90°C wire, or as permitted by the local code.
• Grounding lug—Ring-type, vinyl-insulated TV14-6R lug or equivalent for your grounding cable
• Washers and 10-32x.25-in. screws to secure the grounding lug to the protective earthing terminal
  • Phillips (+) screwdrivers, numbers 1 and 2

Figure 16 on page 55 shows the SRX240 grounding point.
Figure 16: Grounding the SRX240 Services Gateway

Technical diagram of a server rack with labeled components and an inset showing internal wiring connections.

You ground the device by connecting a grounding cable to earth ground and then attaching it to the chassis grounding points using one M3 screw.

Table 24 on page 55 lists the specifications of the grounding cable used with the device.

Table 24: Grounding Cable Specifications for the Services Gateway

SpecificationGrounding Requirement

14 AWG single-strand wire cableGrounding cable

Table 24: Grounding Cable Specifications for the Services Gateway (continued)

	SpecificationGrounding Requirement
	Up to 4 AAmperage of grounding cable
Grounding lug	Ring-type, vinyl-insulated TV14-6R lug or equivalent

CAUTION: Before device installation begins, a licensed electrician must attach a cable lug to the grounding and power cables that you use. A cable with an incorrectly attached lug can damage the device (for example, by causing a short circuit).

To ground the device:

1. Connect the grounding cable to a proper earth ground.
2. Verify that a licensed electrician has attached the cable lug to the grounding cable.
3. Place the grounding cable lug over the grounding point on the upper rear of the chassis.
4. Secure the grounding cable lug to the grounding point with the screw. Apply between 6 in.-lb (0.67 Nm) and 8 in.-lb (0.9 Nm) of torque to the screws.
5. Dress the grounding cable and verify that it does not touch or block access to the services gateway components and that it does not cause create a tripping hazard.

NOTE: The device should be permanently connected to ground during normal operation.

Related Documentation

Installing the SRX240 Services Gateway on page 44.

• Required Tools and Parts for Installing and Maintaining the SRX240 Services Gateway on page 39
• Connecting and Organizing Interface Cables to the SRX240 Services Gateway on page 54
  •Connecting the SRX240 Services Gateway to the AC Power Source on page 49
  • Powering On and Powering Off the SRX240 Services Gateway on page 57

Powering On and Powering Off the SRX240 Services Gateway

This topic includes the following sections:

• Powering On the SRX240 Services Gateway on page 57
• Powering Off the SRX240 Services Gateway on page 57
- Resetting the SRX240 Services Gateway on page 59

Powering On the SRX240 Services Gateway

To power on the services gateway:

1. Ensure that you have connected the power supply to the services gateway.
2. Insert the plug into an AC power source receptacle (for SRX240 Services Gateway with AC power supply, and PoE).
   Or

Attach the power cable to the DC power source (for SRX240 Services Gateway with DC power supply model). Ensure that the DC power source is connected according to the guidelines recommended in "Connecting the SRX240 Services Gateway DC Power Supply Model to a DC Power Source" on page 50.

1. The services gateway starts up as the power supply completes its startup sequence. The Power LED glows during startup and remains on steadily when the services gateway is operating normally.

NOTE: After the power supply is turned on, it can take up to 60 seconds for status indicators—such as the Status and Power LEDs on the front panel of chassis to show that the power supply is functioning normally.

NOTE: We recommend that you issue the CLI command request system power-off when you want to power off the device immediately after the device is powered on.

Powering Off the SRX240 Services Gateway

You can power off the services gateway in one of the following ways:

- Graceful shutdown—Press and immediately release the Power button. The device begins gracefully shutting down the operating system and then powers itself off.

WARNING: Use the graceful shutdown method to power off or reboot the services gateway.

- Forced shutdown—Press the Power button and hold it for 10 seconds. The device immediately powers itself off without shutting down the operating system.

WARNING: Use the forced shutdown method as a last resort to recover the services gateway if the services gateway operating system is not responding to the graceful shutdown method.

WARNING: Do not press the Power button while the services gateway is shutting down.

CAUTION: Forced shutdown can result in data loss and corruption of the file system.

NOTE: To remove power completely from the services gateway, unplug the AC power cord (for SRX240 Services Gateway with AC power supply, and PoE models) or switch off the DC power source (SRX240 Services Gateway with DC power supply).

After powering off a power supply, wait at least 10 seconds before turning it back on. After powering on a power supply, wait at least 10 seconds before turning it off.

The Power button on the services gateway is a standby power switch.

If you press the Power button to power off the services gateway when it is still connected to a power source, 12 V (for SRX240 Services Gateway with AC and DC Power Supply models) / 52 V (SRX240 Services Gateway PoE models) power will still be available in the chassis and the device will be fully powered off.

TIP: When you are poweringoff the services gateway, the following message is displayed:

Turning the system power off.

You can now safely remove the power cable to completely disconnect the power from the device.

NOTE: You can use the request system reboot command to schedule a reboot of the services gateway.

For more information about halting, powering off, or rebooting the services gateway using the CLI, see the following guides:

• Initial Configuration for Security Devices
  • Monitoring and Troubleshooting for Security Devices

Resetting the SRX240 Services Gateway

The RESET CONFIG button located at the front panel of the SRX240 Services Gateway removes the current configuration and resets the device to the default configuration. The button is recessed in the front panel to prevent it from being pressed accidentally.

NOTE: Pressing and holding the RESET CONFIG button for 15 seconds or more deletes all configurations on the device and loads and commits the factory configuration.

Related Documentation

- Required Tools and Parts for Installing and Maintaining the SRX240 Services Gateway on page 39

- Connecting and Organizing Interface Cables to the SRX240 Services Gateway on page 54

•Connecting the SRX240 Services Gateway to the AC Power Source on page 49

- Connecting the SRX240 Services Gateway DC Power Supply Model to a DC Power Source on page 50

CHAPTER 11

SRX240 Services Gateway Autoinstallation

This chapter includes the following topic:

- SRX240 Services Gateway Autoinstallation Overview on page 61

SRX240 Services Gateway Autoinstallation Overview

The autoinstallation process begins any time a services gateway is powered on and cannot locate a valid configuration file in the internal flash. Typically, a configuration file is unavailable when a services gateway is powered on for the first time or if the configuration file is deleted from the internal flash. The autoinstallation feature enables you to deploy multiple services gateways from a central location in the network.

If you are setting up many devices, autoinstallation can help automate the configuration process by loading configuration files onto new or existing devices automatically over the network. You can use either the J-Web interface or the CLI to configure a device for autoinstallation.

For the autoinstallation process to work, you must store one or more host-specific or default configuration files on a configuration server in the network and have a service available—typically Dynamic Host Configuration Protocol (DHCP)—to assign an IP address to the services gateway.

Autoinstallation takes place automatically when you connect an Ethernet port on a new services gateway to the network and power on the device. To simplify the process, you can explicitly enable autoinstallation on a device and specify a configuration server, an autoinstallation interface, and a protocol for IP address acquisition.

For more information about configuring autoinstallation, see the following topics:

• Initial Configuration for Security Devices
  • Monitoring and Troubleshooting for Security Devices

Related Documentation

•Connecting the SRX240 Services Gateway to the AC Power Source on page 49

•Grounding the SRX240 Services Gateway on page 55

• Powering On and Powering Off the SRX240 Services Gateway on page 57

CHAPTER 12

Connecting the SRX240 Services Gateway to Management Devices

This chapter includes the following topics:

• Connecting to the SRX240 Services Gateway Setup Wizard on page 63
• Connecting the SRX240 Services Gateway to the CLI on page 64
• Connecting the Modem at the SRX240 Services Gateway End on page 67
• Connecting the Modem to the Console Port on the SRX240 Services Gateway on page 68
• Connecting to the CLI at the User End for the SRX240 Services Gateway on page 69

Connecting to the SRX240 Services Gateway Setup Wizard

If you plan to use the setup wizard to configure the services gateway, you must connect through one of the built-in Gigabit Ethernet ports. You can use any built-in Ethernet port except port 0/0.

To enable communication between the management device and the services gateway, ports 0/1 through 0/15 are preconfigured with the IP address 192.168.1.1. DHCP is used to assign an IP address on the 192.168.1.0/24 network to any connected device.

To connect to the Ethernet port:

1. Ensure that the IP address for the Ethernet port on the management device is configured in one of the following ways:

• The IP address is assigned by DHCP.
- The IP address is on the 192.168.1.0/24 subnetwork (but is not 192.168.1.1).

1. Turn off the management device.
2. Plug one end of the CAT-5e (Ethernet cable) into the Ethernet port on the management device.
3. Connect the other end of the Ethernet cable to the built-in Gigabit Ethernet port (any one port between 0/1 and 0/15) on the services gateway as shown in Figure 17 on page 64.

Figure 17: Connecting to the Ethernet Port on an SRX240 Services Gate

Ethernet port Ethernet port RJ-45 cable

If the services gateway has not already been powered on, power it on now.

1. Wait until the Status LED on the front panel of the services gateway turns steadily green.
2. Turn on the power to the management device. The services gateway assigns an IP address to the management device within the 192.168.1.0/24 subnetwork if the management device is configured to use DHCP.
3. To access the setup wizard, open a Web browser on the management device and enter the IP address 192.168.1.1 in the address field.

Related Documentation

• Performing Initial Software Configuration on the SRX240 Services Gateway Using the Setup Wizard on page 75
  •Connecting the SRX240 Services Gateway to the CLI on page 64
  •Connecting to the CLI at the User End for the SRX240 Services Gateway on page 69
  •Connecting the Modem at the SRX240 Services Gateway End on page 67
• Connecting the Modem to the Console Port on the SRX240 Services Gateway on page 68

Connecting the SRX240 Services Gateway to the CLI

This topic includes the following sections:

• Connecting the Services Gateway to the CLI Locally on page 65
• Connecting a Services Gateway to the CLI Remotely on page 66

Connecting the Services Gateway to the CLI Locally

If you plan to use the CLI to configure the SRX240 Services Gateway, you must connect the services gateway through the console port as shown in Figure 18 on page 65.

Figure 18: Connecting an SRX240 Services Gateway to the CLI

Serial port Adapter RJ-45 cable Serial port g037512

NOTE: Figure 18 on page 65 shows a connection to a local management device. A remote connection to the services gateway through a modem requires the cable and connector shown (provided in the services gateway accessory box), plus a DB-9 male to DB-25 male (or similar) adapter for your modem, which you must purchase separately.

To connect to the CLI using a local management device through the console port on the services gateway:

1. Turn off power to the services gateway.
2. Turn off power to the management device, such as a PC or laptop computer, that you are using to access the CLI.
3. Plug one end of the CAT-5e (Ethernet cable) supplied with your services gateway into the RJ-45 to DB-9 serial port adapter supplied with your services gateway.
4. Plug the RJ-45 to DB-9 serial port adapter into the serial port on the management device.
5. Connect the other end of the Ethernet cable to the console port on the services gateway.

6. Turn on the power to the management device.

7. Start your asynchronous terminal emulation application (such as Microsoft Windows HyperTerminal) and select the appropriate COM port to use (for example, COM1).

8. Configure the port settings shown in Table 25 on page 66.

Table 25: Port Settings When Connecting the Services Gateway to the CLI Locally

	ValuePort Settings
	9600Bits per second
	8Data bits
	NoneParity
	1Stop bits
	NoneFlow control

1. Power on the services gateway by pressing the Power button on the front panel. Verify that the Power LED on the front panel turns green.

The terminal emulation screen on your management device displays the startup sequence. When the services gateway has finished starting up, a login prompt appears.

1. Log in as the user root. No password is required at initial connection, but you must assign a root password before committing any configuration settings.

Connecting a Services Gateway to the CLI Remotely

You can connect the services gateway to the CLI from a remote location through two dial-up modems:

• A modem that is connected to the console port on the services gateway
• A second modem connected to a remote management device

The modem connection allows you to remotely perform the same console operations you can perform locally.

Related Documentation

Connecting to the SRX240 Services Gateway Setup Wizard on page 63.

• Connecting to the CLI at the User End for the SRX240 Services Gateway on page 69
• Connecting the Modem at the SRX240 Services Gateway End on page 67
• Connecting the Modem to the Console Port on the SRX240 Services Gateway on page 68

Connecting the Modem at the SRX240 Services Gateway End

Before you can connect a dial-up modem to the console port on the SRX240 Services Gateway, you must configure the modem to accept a call on the first ring and accept DTR signals. You must also disable flow control on the modem.

NOTE: These instructions use Hayes-compatible modem commands to configure the modem. If your modem is not Hayes-compatible, refer to the documentation for your modem and enter the equivalent modem commands.

To configure the modem on the services gateway end:

1. Connect the modem to a PC or laptop computer.
2. Power on the modem.
3. From the PC or laptop computer, start your asynchronous terminal emulation application (such as Microsoft Windows HyperTerminal), and select the COM port to which the modem is connected (for example, COM1).
4. Configure the port settings as shown in Table 26 on page 67.

Table 26: Port Settings for Configuring the Modem on the Services Gateway End

	ValuePort Setting
	9600Bits per second
	8Data bits
	NoneParity
Stop bits	1
	NoneFlow control

1. In the HyperTerminal window, enter AT.

For more information on the AT commands, see the following topics:

• Initial Configuration for Security Devices
  • Monitoring and Troubleshooting for Security Devices

An OK response verifies that the modem can communicate successfully with the COM port on the PC or laptop.

1. Configure the modem to answer a call on the first ring by entering ATSO=1.

2. Configure the modem to accept modem control DTR signals by entering AT&D1.

3. Disable flow control by entering AT&KO.

4. Save modem settings by entering AT&W.

Related Documentation

Connecting to the SRX240 Services Gateway Setup Wizard on page 63.

•Connecting the SRX240 Services Gateway to the CLI on page 64
•Connecting to the CLI at the User End for the SRX240 Services Gateway on page 69
- Connecting the Modem to the Console Port on the SRX240 Services Gateway on page 68

Connecting the Modem to the Console Port on the SRX240 Services Gateway

To connect the dial-up modem to the console port on the services gateway:

1. Turn off power to the services gateway.
2. Turn off power to the modem.
3. Plug one end of the Ethernet cable supplied with your services gateway into the console port.
4. Plug the other end of the CAT-5e (Ethernet cable) into the RJ-45 to DB-9 serial port adapter supplied with your services gateway.
5. Connect the serial port adapter to a separately purchased DB-9 female to DB-25 male adapter or other adapter appropriate for your modem.
6. Plug the modem adapter into the DB-25 connector on the modem.
7. Connect the modem to your telephone network.
8. Turn on the power to the modem.
9. Power on the services gateway by pressing the Power button on the front panel. Verify that the Power LED on the front panel turns green.

NOTE: Most modems have an RS-232 DB-25 connector. You must separately purchase an adapter to connect your modem to the RJ-45 to DB-9 adapter and Ethernet cable supplied with the services gateway.

Related Documentation

Connecting to the SRX240 Services Gateway Setup Wizard on page 63.

• Connecting the SRX240 Services Gateway to the CLI on page 64
  •Connecting the Modem at the SRX240 Services Gateway End on page 67
• Connecting to the CLI at the User End for the SRX240 Services Gateway on page 69

Connecting to the CLI at the User End for the SRX240 Services Gateway

To remotely connect to the CLI through a dial-up modem connected to the console port on the services gateway:

1. Connect a modem at your remote location to a management device such as a PC or laptop computer.
2. Start your asynchronous terminal emulation application (such as Microsoft Windows HyperTerminal) on the PC or laptop computer.
3. Select the COM port to which the modem is connected (for example, COM1).
4. Configure the port settings shown in Table 27 on page 69.

Table 27: Port Settings for Connecting to the CLI at User End

	ValuePort Setting
	9600Bits per second
	8Data bits
	NoneParity
	1Stop bits
	NoneFlow control

1. In the HyperTerminal window, enter AT.

For more information on the AT commands, see the following topics:

• Initial Configuration for Security Devices
  • Monitoring and Troubleshooting for Security Devices

An OK response verifies that the modem can communicate successfully with the COM port on the PC or laptop.

1. Dial the modem that is connected to the console port on the services gateway by entering ATDT remote-modem-number. For example, if the number of the modem connected to the console port on the services gateway is 0013033033030, enter ATDT 0013033033030.

The services gateway login prompt appears.

1. Log in as the user root. No password is required at initial connection, but you must assign a root password before committing any configuration settings.

Related Documentation

- Connecting to the SRX240 Services Gateway Setup Wizard on page 63

•Connecting the SRX240 Services Gateway to the CLI on page 64

•Connecting the Modem at the SRX240 Services Gateway End on page 67

- Connecting the Modem to the Console Port on the SRX240 Services Gateway on page 68

CHAPTER 13

Performing Initial Software Configuration on the SRX240 Services Gateway

This chapter includes the following topics:

• SRX240 Services Gateway Software Configuration Overview on page 71
• Performing Initial Software Configuration on the SRX240 Services Gateway Using the Setup Wizard on page 75
• Performing Initial Software Configuration on the SRX240 Services Gateway Using the CLI on page 78
• Performing Initial Software Configuration on the SRX240 Services Gateway Using the J-Web Interface on page 80
  • SRX240 Services Gateway Secure Web Access Overview on page 85

SRX240 Services Gateway Software Configuration Overview

This topic includes the following sections:

• Preparing the SRX240 Services Gateway for Configuration on page 71
• Understanding the Factory Default Configuration on page 72
• Understanding Built-In Ethernet Ports and Initial Configuration on page 72
- Mapping the Chassis Cluster Ports on page 73
• Understanding Management Access on page 74

Preparing the SRX240 Services Gateway for Configuration

The services gateway is shipped with the Juniper Networks Junos operating system (Junos OS) preinstalled. When the services gateway is powered on, it is ready to be configured.

You can perform the initial configuration of the services gateway by using the browser-based setup wizard or by using the command-line interface (CLI).

Before configuring the services gateway, gather the configuration information required to deploy the services gateway in your network. At minimum, the setup wizard requires the following information:

• Device name to be used on the network

• Password for the root user
  • Time information for the services gateway location:
• Local time zone

- Name or IP address of a Network Time Protocol (NTP) server, if NTP is used to set the time on the services gateway

- Local date and time if an NTP server is not used to set the time

Understanding the Factory Default Configuration

Your services gateway comes configured with a default configuration. This factory default configuration sets up the following network topology:

• Interface ge-0/0/0 (port 0/0) is configured for Internet access. A DHCP client running on the interface enables the interface to receive its network settings—IP address, default gateway, and DNS servers—from an Internet service provider (ISP).
• Interfaces ge-0/0/1 through ge-0/0/15 (port 0/1 through port 0/15) are configured as switched interfaces in a VLAN on which the IP address 192.168.1.1/24 is configured.
• A DHCP server is active on interfaces ge-0/0/1 through ge-0/0/15. The DHCP server assigns IP addresses in the 192.168.1.0/24 network to connected devices.

The default configuration also includes the following security configuration:

• Two security zones are created: trust and untrust.
• Interface ge-0/0/0 is in the untrust zone, while interfaces ge-0/0/1 through ge-0/0/15 are in the trust zone.
• A security policy is created that permits outbound traffic from the trust zone to the untrust zone. Inbound traffic originating in the untrust zone is blocked.
• Source Network Address Translation (NAT) is configured on the trust zone.

Understanding Built-In Ethernet Ports and Initial Configuration

During the initial configuration of the services gateway, how you use the built-in Ethernet ports (ports 0/0 through 0/15) depends on the initial configuration you are performing:

- Configuration using autoinstallation—Use the built-in Ethernet port 0/0 to connect to the DHCP server. A DHCP client is configured on this interface, allowing the services gateway to receive its IP address from the DHCP server.

- Configuration using the setup wizard—Use the following built-in Ethernet ports:

- Port 0/1—Connect your management device to this port. A DHCP server running on this interface automatically assigns your management device an IP address on the same subnetwork as the interface, allowing your management device to communicate with the services gateway through this interface.

- Port 0/0—Connect your services gateway to the Internet on this port if you plan to download purchased software licenses through the setup wizard. A DHCP client running on this interface allows it to receive its network settings from the ISP.

NOTE: Downloading of purchased licenses from the setup wizard is available only in Junos OS Release 11.2R3 or later.

- Configuration of a chassis cluster—Perform the initial configuration of the chassis cluster using a console connection. Before you perform the initial configuration, connect the built-in Ethernet ports as follows:

• Port 0/0—Connect to the out-of-band management network for management of the services gateway. When you enable chassis clustering as part of configuring the chassis cluster, the management interface (fxp0) is automatically created on this port.
• Port 0/1—Connect to the other device in the chassis cluster. When you enable chassis clustering, the control interface between the two devices (fxpl) is automatically created on this port.

You must also make another connection between the two devices for the fabric link. You can use any available Gigabit Ethernet port for this connection. You must configure the interface you choose as the fabric link. For more information on configuring chassis clusters, see the Security Basics.

Mapping the Chassis Cluster Ports

A chassis cluster is created by physically connecting two identical SRX240 Services Gateways together using a pair of the same type of Ethernet connections. The connection is made for both a control link and a fabric (data) link between the two services gateway.

The fxp0 port is dedicated as the out-of-band management interface for each of the services gateway in the chassis cluster setup and the fxp1 port is dedicated as the chassis-cluster control port.

On the SRX240 Services Gateway, the fxpl port is not user configurable when the services gateway is operating in chassis cluster mode.

Table 28 on page 73 shows the mapping of the chassis cluster ports.

Table 28: Mapping the Chassis Cluster Ports on an SRX240 Services Gateway

	Management InterfaceEthernet Ports
	fxp0 (management port)0/0 (ge-0/0/0)
	fxp1 (control port)0/1 (ge-0/0/1)

NOTE: On SRX240 Services Gateway, the fabric link connection can be any pair of Gigabit Ethernet interfaces.

Junos OS automatically creates the fxp0 and fxp1 interfaces on these ports when the SRX240 Services Gateway is operating in chassis cluster mode.

For more information, see the following guides:

• Security Basics
  • Interfaces for Security Devices

Understanding Management Access

Telnet allows you to connect to the services gateway and access the CLI to execute commands from a remote system. Telnet CLI connections are not encrypted and therefore can be intercepted.

NOTE: Telnet access to the root user is prohibited. You must use more secure methods, such as SSH, to log in as root.

SSH provides the following features:

• Allows you to connect to the services gateway and access the CLI to execute commands from a remote system
• Encrypts traffic so that it cannot be intercepted (unlike Telnet)
• Can be configured so that connections are authenticated by a digital certificate
• Uses public-private key technology for both connection and authentication

The SSH client software must be installed on the machine where the client application runs. If the SSH private key is encrypted (for greater security), the SSH client must be able to access the passphrase used to decrypt the key.

For information about obtaining SSH software, see http://www.ssh.com and http://www.openssh.com.

If you are using a Junos XML protocol server to configure and monitor devices, you can activate cleartext access on the device to allow unencrypted text to be sent directly over a Transmission Line Protocol (TCP) connection without using any additional protocol (such as SSH, SSL, or Telnet). For more information about the Junos XML management protocol, see the Junos XML Management Protocol Guide.

NOTE: Information sent in cleartext is not encrypted and therefore can be intercepted.

If the device is operating in a Common Criteria environment, see the Configuration Guides for Junos OS Public Sector Certifications.

Related Documentation

Connecting to the SRX240 Services Gateway Setup Wizard on page 63.

•Connecting the SRX240 Services Gateway to the CLI on page 64

- Performing Initial Software Configuration on the SRX240 Services Gateway Using the CLI on page 78

- Performing Initial Software Configuration on the SRX240 Services Gateway Using the Setup Wizard on page 75

•SRX240 Services Gateway Secure Web Access Overview on page 85

Performing Initial Software Configuration on the SRX240 Services Gateway Using Setup Wizard

This topic describes how to perform the initial software configuration of your services gateway using the setup wizard available in Junos OS Release 11.2R3 or later. If your services gateway is running an earlier version of Junos OS, see “Performing Initial Software Configuration on the SRX240 Services Gateway Using the J-Web Interface” on page 80.

This topic includes the following sections:

• About the Setup Wizard on page 75
• About the Default Setup Mode on page 76
• About the Guided Setup Mode on page 76
• Running the Setup Wizard on page 77

About the Setup Wizard

The setup wizard guides you step-by-step through configuring a services gateway that can securely pass traffic. To help guide you through the process, the wizard:

• Provides recommended settings based on your previous selections. For example, the wizard recommends security policies based on the security topology you have defined.
• Determines which configuration tasks to present to you based on your selections. If a configuration task is unnecessary given your selections, the wizard skips it.
• Flags any missing required configuration when you attempt to leave a page.
• Indicates which configuration elements or tasks are unavailable to you based on your previous selections by graying them out.

You choose one of two paths through the wizard by selecting the configuration mode:

• Default Setup mode—This mode allows you to quickly set up a services gateway in a default security configuration.
• Guided Setup mode—This mode allows you to set up a services gateway in a custom security configuration.

About the Default Setup Mode

If you choose the Default Setup mode, the wizard takes you through the minimal configuration needed to set up the services gateway to securely pass traffic in the default configuration. The resulting configuration is similar to the factory default configuration described in "SRX240 Services Gateway Software Configuration Overview" on page 71, except that the untrust and trust zones are renamed Internet and Internal zones.

In the Default Setup mode, you configure:

• The device name
• The password for the root account

• Time information for services the gateway location:

• Local time zone

• Name or IP address of a Network Time Protocol (NTP) server, if NTP is used to set the time on the services gateway
• Local date and time if an NTP server is not used to set the time

The wizard also gives you the option of using the free 30-day trial licenses or downloading purchased licenses. You cannot do additional configuration in the Default Setup mode—you must commit your changes and exit the wizard to perform any additional configuration. You can perform additional configuration by rerunning the wizard in the Guided Setup mode, by using the J-Web interface, or by using the CLI.

See "SRX240 Services Gateway Software Configuration Overview" on page 71 for step-by-step instructions on how to configure your services gateway in the Default Setup mode.

About the Guided Setup Mode

If you choose the Guided Setup mode, the wizard guides you through configuring your services gateway in a custom security configuration. Configuration you can perform with the setup wizard includes:

• Specifying a static IP address, default gateway, and DNS servers for the Internet interface
• Creating user accounts and specifying roles for the accounts
• Defining security zones and specifying which interfaces are in each zone
• Enabling a DHCP server in a zone
• Specifying what services—such as HTTP or SCP—are available in a zone
• Creating VLANs
• Defining security policies and Network Address Translation (NAT) rules
• Creating a virtual private network (VPN) for remote users

NOTE: In the Guided Setupmode, makesureyou have configuredtheEthernet interface you will be using for management access before you commit the configuration. If you do not do so, you can lose access to the J-Web interface.

If you lose access to the J-Web interface, you can:

• Make a console connection to the services gateway and configure access using the CLI.
• Reset the servicesgatewayto its factory default configurationas described in "Loading the Rescue Configuration on the SRX240 Services Gateway" on page105.Thisallows you to regain access to the setup wizard and restart the initial configuration.

Running the Setup Wizard

To run the setup wizard:

1. Connect a laptop or desktop computer to any of the ports 0/1 through 0/15 as described in "Connecting to the SRX240 Services Gateway Setup Wizard" on page 63.
2. If you will be using the setup wizard to download purchased licenses, connect your services gateway to the Internet on port 0/0.
3. Open a Web browser on your laptop or desktop.

NOTE: Supported browsers are Windows Internet Explorer versions 7, 8, and 9 and Mozilla Firefoxversions 4 and 5. The minimumscreen resolution is 800 by 600 pixels.

1. Enter one of the following URLs: http://192.168.1.1 or https://192.168.1.1

When the Welcome page for the setup wizard appears, choose the setup mode you want to use to configure the services gateway.

After you finish configuring the services gateway with the setup wizard and commit your configuration, you are redirected to the J-Web interface. Thereafter, whenever you connect to the services gateway, you are placed in the J-Web interface. You can access the setup wizard from the J-Web interface and use it to reconfigure your services gateway. To do so, select Configuration > Tasks > Run Setup Wizard.

Related Documentation

Connecting to the SRX240 Services Gateway Setup Wizard on page 63.

•SRX240 Services Gateway Software Configuration Overview on page 71
•Performing Initial Software Configuration on the SRX240 Services Gateway Using the CLI on page 78
•SRX240 Services Gateway Secure Web Access Overview on page 85

Performing Initial Software Configuration on the SRX240 Services Gateway Using CLI

This procedure connects the services gateway to the network but does not enable it to forward traffic. For complete information about enabling the services gateway to forward traffic, including examples, see the appropriate Junos OS configuration guides.

To configure the software:

1. Verify that the services gateway is powered on.

2. Log in as the root user. There is no password.

3. Start the CLI:

root# cli
root@>

1. Enter configuration mode:

configure
[edit]
root@#

1. Set the root authentication password by entering a cleartext password, an encrypted password, or an SSH public key string (DSA or RSA):

[edit]
root@# set system root-authentication plain-text-password
New password: password
Retype new password: password

1. Configure an administrator account on the services gateway:

[edit]
root@# set system login user admin class super-user authentication plain-text-password

1. Commit the configuration to activate it on the services gateway:

[edit]
root@# commit

1. Log in as the administrative user you configured in Step 6.

2. Configure the name of the services gateway. If the name includes spaces, enclose the name in quotation marks (“ ”) :

configure
[edit]
admin@# set system host-name host-name

1. Configure the traffic interface:

[edit]
admin@# set interfaces ge-0/0/1 unit 0 family inet address address/prefix-length

1. Configure the default route:

[edit]

admin@# set routing-options static route 0.0.0.0/0 next-hop gateway

1. Configure basic security zones and bind them to traffic interfaces:

[edit]

admin@# set security zones security-zone untrust Interfaces ge-0/0/1

1. Configure basic security policies:

[edit]

admin@# set security policies from-zone trust to-zone untrust policy policy-name match source-address any destination-address any application any admin@# set security policies from-zone trust to-zone untrust policy policy-name then permit

1. Create a NAT rule for source translation of all Internet-bound traffic:

[edit]

admin@# set security nat source rule-set interface-nat from zone trust admin@# set security nat source rule-set interface-nat to zone untrust admin@# set security nat source rule-set interface-nat rule rule1 match source-address 0.0.0.0/0 destination-address 0.0.0.0/0 admin@# set security nat source rule-set interface-nat rule rule1 then source-nat Interface

1. Check the configuration for validity:

[edit]

admin@# commit check configuration check succeeds

1. Commit the configuration to activate it on the services gateway:

[edit]

admin@# commit commit complete

1. Optionally, display the configuration to verify that it is correct:

[edit] user@host# show system { host-name devicea; domain-name lab.device.net; domain-search [ lab.device.net device.net ]; backup-device 192.168.2.44; time-zone America/Los_Angeles; root-authentication { ssh-rsa "ssh-rsa AAAAB3Nza...D9Y2gXF9ac==[e-mail]"; } name-server { 10.148.2.32; } services { } ntp { server 10.148.2.21; }

}
interfaces {
    ge-0/0/0 {
    unit 0 {
    family inet {
    address 192.168.1.1/24;
    }
    }
}
lo0 {
    unit 0 {
    family inet {
    address 172.16.1.24/32;
    }
    }
}

1. Commit the configuration to activate it on the services gateway:

[edit]
admin@# commit

1. Optionally, configure additional properties by adding the necessary configuration statements. Then commit the changes to activate them on the services gateway:

[edit]
admin@host# commit

1. When you have finished configuring the services gateway, exit configuration mode:

[edit]
admin@host# exit
admin@host>

Related Documentation

Connecting the SRX240 Services Gateway to the CLI on page 64.

- Performing Initial Software Configuration on the SRX240 Services Gateway Using the Setup Wizard on page 75

•SRX240 Services Gateway Software Configuration Overview on page 71

•SRX240 Services Gateway Secure Web Access Overview on page 85

Performing Initial Software Configuration on the SRX240 Services Gateway Using J-Web Interface

This topic describes how to perform the initial configuration of your services gateway using the J-Web setup wizard that is available in Junos OS Release 11.2R2 or earlier. If your services gateway is running Release 11.2R3 or later, see “Performing Initial Software Configuration on the SRX240 Services Gateway Using the Setup Wizard” on page 75.

This topic includes the following sections:

• Establishing Basic Connectivity on page 81

- Configuring Basic System Properties on page 82

Establishing Basic Connectivity

To establish basic connectivity:

1. Connect an Ethernet cable from any of the ports 0/1 through 0/15 to the Ethernet port on the management device (workstation or laptop).
2. Connect the power cable to the device and a power source. (We recommend using a surge protector.) Note the following indications:

• Power LED (steadily green): The device is receiving power.
- Status LED (steadily green): The device is operating normally.

NOTE: The services gateway functions as a DHCP server and will assign an IP address to the management device.

1. Ensure that the management device acquires an IP address on the 192.168.1.0/24 subnetwork (other than 192.168.1.1) from the device.

NOTE: If an IP address is not assigned to the management device, manually configure an IP address in the 192.168.1.0/24 subnetwork. Do not assign the 192.168.1.1 IP address to the management device, as this IP address is assigned to the services gateway.

1. Access the J-Web interface:

a. Launch a Web browser from the management device.

NOTE: To access the J-Web interface, your management device requires a supported browser: either Microsoft Internet Explorer version 7.0 (or later) or Mozilla Firefox version 3.0 (or later).

b. Enter 192.168.1.1 in the Address box.
c. Specify the default user name as root. Do not enter any value in the Password box.
d. Press Enter. The J-Web Setup Wizard page opens.

1. Use the wizard to configure the basic settings, such as Hostname, Domain Name, and Root Password, for your services gateway.

The upper left area of the wizard page shows where you are in the setup process. Click a field in the wizard page to display information about that field in the lower left area of the page.

You can also use the wizard to configure the following settings:

• Default gateway
• DNS servers
• Domain search
• VLANs
• Interfaces

NOTE: All network and management access settings are optional.

See Table 29 on page 82 and Table 30 on page 83 summarize the configuration details for the initial setup.

1. Click Commit on the Review & Commit page to apply the configuration.

NOTE: After you configure the basic settings, the J-Web Setup wizard redirects you to the J-Web pages where you can continue working in the J-Web interface.

Configuring Basic System Properties

Table 29 on page 82 and Table 30 on page 83 summarize the configuration details for initial setup.

Table 29: Required Setup Fields

		Your ActionFieldSetup Wizard
Introduction		Read the introduction page to basic instructions on using the setup wizard. Click Start to continue.

Configure System: Identification

Table 29: Required Setup Fields (continued)

		Your ActionFieldSetup Wiza
	Host Name	Type the name of the services gateway.
	Domain Name	Type the name of the network or subnetwork to which the services gateway belongs.
	Root Password (required)	Type the password that user root will use to log in to the device.
	(required)	Retype the root password.Verify Root Password

Configure J-Web Preferences

	J-Web starting page options	Specify the tab you want to appear when J-Web starts.
	J-Web commit options	Specify when you want J-Web to commit your configuration changes.

Table 30: Optional Setup Fields

		Your ActionFunctionField
Configure System: Identification
	Default Gateway	Type the IP address of the default gateway.
	DNS Name Servers	Type the IP address of each server that maintains databases for resolving hostnames and IP addresses and click Add.
	Domain Search	Type the IP address or domain name of each domain that includes the services gateway to include it in a DNS search
Interface Groups (VLANs)		Use buttons to add, edit, or delete VLANs
Configure Interfaces		Use buttons to add, edit, or delete interfaces other than VLANs.
		NOTE: Make sure that you have selected the required services and protocols under Services (Inbound) and Protocols (Inbound). Select all to permit all protocols and services.
Configure System: Time
	Current System Time	Use Reset Manually button to reset the time.
	Time Zone	Choose the time zone from the list
	NTP Servers	Add Network Time Protocol (NTP) servers that the gateway can reach to synchronize the system time.

After you configure basic setup, the Setup wizard is no longer available, unless you reset the device to the factory default and reboot it. To make changes to the configuration, use the J-Web interface or the command-line interface (CLI).

You can use other wizards to configure basic firewall policies, VPN settings, and NAT rules. Choose Configure > Wizards to use the available wizards. Use the J-Web interface or the CLI for more extensive configuration.

For more instructions on managing users and operations, monitoring network performance, upgrading software, and diagnosing common problems on an SRX240 Services Gateway, see the following guides:

• Initial Configuration for Security Devices
  • Monitoring and Troubleshooting for Security Devices

Related Documentation

Connecting to the SRX240 Services Gateway Setup Wizard on page 63.

•SRX240 Services Gateway Software Configuration Overview on page 71
- Performing Initial Software Configuration on the SRX240 Services Gateway Using the CLI on page 78
•SRX240 Services Gateway Secure Web Access Overview on page 85

SRX240 Services Gateway Secure Web Access Overview

You can manage a services gateway remotely through the J-Web interface. To communicate with the services gateway, the J-Web interface uses Hypertext Transfer Protocol (HTTP). HTTP allows easy Web access but no encryption. The data that is transmitted between the Web browser and the services gateway by means of HTTP is vulnerable to interception and attack. To enable secure Web access, the services gateway supports HTTP over Secure Sockets Layer (HTTPS). You can enable HTTP or HTTPS access on specific interfaces and ports as needed.

The services gateway uses the SSL protocol to provide secure management of services gateways through the J-Web. SSL uses public-private key technology that requires a paired private key and an authentication certificate for providing the SSL service. SSL encrypts communication between your device and the Web browser with a session key negotiated by the SSL server certificate.

An SSL certificate includes identifying information such as a public key and a signature made by a certificate authority (CA). When you access the services gateway through HTTPS, an SSL handshake authenticates the server and the client and begins a secure session. If the information does not match or if the certificate has expired, your access to the services gateway through HTTPS is restricted.

Without SSL encryption, communication between your services gateway and the browser is sent in the open and can be intercepted. We recommend that you enable HTTPS access on your WAN interfaces.

For more information about configuring secure Web access, see the following topics:

• Initial Configuration for Security Devices
  • Monitoring and Troubleshooting for Security Devices

Related Documentation

- SRX240 Services Gateway Software Configuration Overview on page 71

•Performing Initial Software Configuration on the SRX240 Services Gateway Using the CLI on page 78

- Performing Initial Software Configuration on the SRX240 Services Gateway Using the Setup Wizard on page 75

PART 3

Maintaining, Replacing, and Monitoring the SRX240 Services Gateway Hardware

• Maintaining the SRX240 Services Gateway Hardware Components on page 89
  • Monitoring the SRX240 Services Gateway on page 95

CHAPTER 14

Maintaining the SRX240 Services Gateway Hardware Components

This chapter includes the following topics:

• Maintaining the SRX240 Services Gateway Hardware Components on page 89
• Replacing the Air Filter on the SRX240 Services Gateway on page 90

Maintaining the SRX240 Services Gateway Hardware Components

Table 31 on page 89 describes the common tasks to maintain the hardware components of the services gateway.
Table 31: Maintenance Procedures for the Services Gateway Hardware Components

	DescriptionMaintenance Procedures
Routine Maintenance Procedures	To maintain optimum performance of the services gateway, you must regularly perform the following preventive maintenance procedures:Inspect the installation site for moisture, loose wires or cables, and excessive dust.Ensure that airflow is unobstructed around the device and into the air intake vents.Check the Status LED on the front panel of the device and on the Mini-Physical Interface Module (Mini-PIM) you are using.
Maintaining the Cooling System	The services gateway cooling system works to maintain an optimal temperature for the device. If the fan controller fails, the device temperature will exceed the maximum working temperature and the device will fail. Ensure that you maintain the recommended clearances behind the device to enable the cooling system to function optimally.
Maintaining the Power Supply	To maintain the power supply on the services gateway:Ensure that the power and grounding cables are arranged so that they do not obstruct access to other device components.Periodically inspect the site to ensure that the grounding and power cables connected to the device are securely in place and that there is no moisture accumulating near the device.CAUTION: We recommend using a surge protector for the power connection.
Maintaining the Air Filter	Periodically replace the filter in use. We recommend that you replace the filter every six months as a dirty air filter restricts airflow in the unit, reducing the ventilation of the chassis. The filter degrades over time.Store spare air filter in a dark, cool, and dry place. Storing air filter at higher temperatures, or where they can be exposed to ultraviolet (UV) radiation, hydrocarbon emissions, or vapors from solvents, can significantly reduce their life.NOTE: Always keep the air filter in place while the device is operating. Because the fans are very powerful, they could pull small bits of wire or other materials into the device through the unfiltered air intake. This could damage the device components.

Related Documentation

Monitoring the SRX240 Services Gateway Components Using LEDs on page 97.

•Monitoring the SRX240 Services Gateway Using Chassis Alarm Conditions on page 101

•Monitoring the SRX240 Services Gateway Power System on page 103

Replacing the Air Filter on the SRX240 Services Gateway

The SRX240 Services Gateway High Memory with DC Power Supply model and SRX240 Services Gateway High Memory with AC Power Supply model has one air filter that installs vertically in the rear of the chassis. The air filter is hot-insertable and hot-removable.

NOTE: An air filter is not shipped with the SRX240 Services Gateway High Memory with AC Power Supply model. To meet NEBS requirements, you must order the air filter separately. Contact your Juniper Networks customer service representative for more information.

The air filter is located in the rear of the chassis on left side (from rear side view). The a filter weighs approximately 0.2 lb (0.09 kg).

CAUTION: Do not run NEBS-compliant services gateways (the SRX240 Services Gateway with DC Power Supply model and the SRX240 Services GatewaywithACPowerSupplymodels)formorethan a fewminuteswithout the air filter in place.

CAUTION: Always keep the air filter in place while the device is operating, except during replacement. Because the fans are very powerful, they could pull small bits of wire or other materials into the device through the unfiltered air intake. This could damage the services gateway components.

To replace the air filter:

1. Attach an electrostatic discharge (ESD) grounding strap to your bare wrist, and connect the other end of the ESD strap to the ESD point on the rack.
2. Loosen the thumb-screw on the air filter. See Figure 19 on page 91.

Figure 19: Loosening the Air Filter Screw

Technical diagram of a mechanical device with labeled components and an inset showing a component with rotation arrows.

1. Slide the air filter out of the chassis and properly dispose off it. See Figure 20 on page 92.

Figure 20: Removing the Air Filter from the Services Gateway

Technical line drawing of a mechanical or electronic device with no visible text, numbers, or symbols.

1. Slide the air filter straight into the chassis until it stops. See Figure 21 on page 92.

Figure 21: Installing the Air Filter in a Services Gateway

Technical line drawing of a mechanical or electronic device with no visible text, numbers, or symbols

1. Tighten the screw on the air filter to secure it in the chassis. See Figure 22 on page 92.

Figure 22: Tightening the Air Filter Screw

Technical diagram of a mechanical assembly with labeled components and a magnified inset showing two parts.

NOTE: When you are inserting an air filter for the first time on the SRX240 Services Gateway High Memory with AC Power supply model, you must remove the air filter cover by removing the screw on the cover using a number-1 Phillips screwdriver.

Related Documentation

- Maintaining the SRX240 Services Gateway Hardware Components on page 89

•SRX240 Services Gateway Air Filter on page 21

CHAPTER 15

Monitoring the SRX240 Services Gateway

This chapter includes the following topics:

• Monitoring Hardware Components on the SRX240 Services Gateway on page 95
- Resetting the Configuration File When the SRX240 Services Gateway Is Inaccessible on page 105
• Juniper Networks Technical Assistance Center on page 106

Monitoring Hardware Components on the SRX240 Services Gateway

This topic includes the following sections:

• Monitoring the SRX240 Services Gateway Chassis Using the CLI on page 95
• Monitoring the SRX240 Services Gateway Components Using LEDs on page 97
• Monitoring the SRX240 Services Gateway Using Chassis Alarm Conditions on page 101
• Monitoring the SRX240 Services Gateway Power System on page 103

Monitoring the SRX240 Services Gateway Chassis Using the CLI

You can monitor alarms to troubleshoot hardware problems on a services gateway. The chassis properties include the status of active chassis alarms on the services gateway, environment measurements, and the status of Mini-PIMs on the services gateway.

To view these chassis properties, select Monitor>Chassis in the J-Web interface, or enter the following CLI show commands:

• show chassis hardware
• show chassis environment
• show chassis fpc
• show chassis alarms

Examples:

The following examples provide the sample output of show CLI commands:

• show chassis hardware command

user@host > show chassis hardware

Hardware inventory:

Item	Version	Part number	Serial number	Description
Chassis			AG1111AA7943	SRX240h
Routing Engine	REV 01	750-021793	PW7943	RE-SRX240H
FPC 0				FPC
PIC 0				16x GE Base PIC
FPC 4				FPC
PIC 0				1x DOCSIS mPIM
Power Supply 0

user@host > show chassis hardware detail

Hardware inventory:

Item	Version	Part number	Serial number	Description
Chassis			AG1111AA7943	SRX240h
Routing Engine	REV 01	750-021793	Pw7943	RE-SRX240H
da0 999 MB	ST72682			Nand Flash
usb0 (addr 1)	DWC OTG	root hub 0	vendor 0x0000	uhub0
usb0 (addr 2)	product	0x6254 25172	vendor 0x058f	uhub1
usb0 (addr 3)	ST72682	High Speed	Mode 64218 STMicroelectronics umass0
FPC 0				FPC
PIC 0				16x GE Base PIC
FPC 4				FPC
PIC 0				1x DOCSIS mPIM
Power Supply 0

NOTE: The values given in the usb0 rows provide information for USB level debugging. This information is about USB hub topology.

• show chassis environment command

Class	Item	Status	Measurement
Temp	Routing Engine	OK	36 degrees C / 96 degrees F
	Routing Engine CPU	Absent
Fans	SRX240 Chassis fan 0	OK	Spinning at high speed
	SRX240 Chassis fan 1	OK	Spinning at high speed
Power	Power Supply 0	OK

• show chassis fpc command

user@host > show chassis fpc

Slot	State	Temp (C)	CPU Utilization (%)		Memory DRAM (MB)	Utilization (%)
			Total	Interrupt		Heap	Buffer
0	Online	----			CPU less FPC	----
1	Online	----			CPU less FPC	----
2	Online	----			CPU less FPC	----
3	Online	----			CPU less FPC	----
4	Online	----			CPU less FPC	----

• show chassis alarms command

user@host > show chassis alarms

1 alarms currently active

Alarm time Class Description

2010-01-04 17:11:06 UTC Minor Host 0 Boot firmware requires upgrade

For more information, see the following guides:

• Initial Configuration for Security Devices
  • Monitoring and Troubleshooting for Security Devices

Related Documentation

Monitoring the SRX240 Services Gateway Components Using LEDs on page 97.

•Monitoring the SRX240 Services Gateway Using Chassis Alarm Conditions on page 101

•Monitoring the SRX240 Services Gateway Power System on page 103

Monitoring the SRX240 Services Gateway Components Using LEDs

The LEDs on the services gateway display the status of various components.

Table 32 on page 97 describes the LEDs.

Table 32: Component LEDs on the SRX240 Services Gateway

			Possible Causes and Corrective ActionsMeanIn
	GreenStatus LED	The services gateway is functioning normally.	Normal condition. No action is required.
	Yellow	The services gateway is starting up.The RESET CONFIG button is pressed.	Normal condition. No action is required.
	Red	An error is detected in the services gateway.	Contact the Juniper Networks Technical Assistance Center (JTAC).See “Juniper Networks Technical Assistance Center” on page 106.Possible Causes and Corrective ActionsMeaning
	RedAlarm LED	The services gateway detects a major alarm.	A major alarm indicates a critical situation on the gateway that requires immediate action. See "Monitoring the SRX240 Services Gateway Using Chassis Alarm Conditions" on page 101.
	Yellow	Indicates a minor alarm. NOTE: TheAlarm LED glows Yellow while initializing.	A minor alarm requires monitoring or maintenance. If left unchecked, it might cause an interruption in service or degradation in performance. See "Monitoring the SRX240 Services Gateway Using Chassis Alarm Conditions" on page 101.
	Off	The services gateway is starting up. NOTE: When the system is up and running, if the Alarm LED is off, it indicates that no alarms are active on the services gateway.	Normal condition. No action is required.
	GreenPower LED	The services gateway is receiving power supply and is functioning normally.	Normal condition. No action is required.
	Amber	The Power button has been pressed and quickly released is required.	Normal condition. No action is required.
	Off	The services gateway is not receiving power.	Normal condition if the services gateway is switched off. No action is required. If you have not powered off the services gateway, verify that the AC power cord from the power source to the device is not damaged, the socket is in working condition, and the device has an AC input voltage between 110 and 240 VAC. See "Monitoring the SRX240 Services Gateway Power System" on page 103.Possible Causes and Corrective ActionsMeanin
	OffHA LED		The device is not part of the chassis cluster setup.
	GreenMini-PIM	LEDThe Mini-PIM is present and detected by the device.	Normal condition. No action is required.
System Feeds LEDs	OffOutput is normal.GreenDC	The Mini-PIM is not presentSee “Monitoring the SRX240 Services Gateway Using Chassis Alarm Conditions” on page 101.Normal condition. No action is required.
	Red (blinking)	The port has detected a failure.	Input is connected but has failed because the power supply fuse has failed or the input voltage is low.Verify that the source circuit breaker has the proper current rating. Each power supply must be connected to a separate source circuit breaker.Check whether the DC power cables from the power source to the device are not damaged. If the insulation is cracked or broken, immediately replace the cable.Contact the Juniper Networks Technical Assistance Center (JTAC). See “Juniper Networks Technical Assistance Center” on page 106.
	Red (steady)	The port has detected a failure.	Both inputs are normal but no output because of output side failure or open connection.Connect the power supply feeds to a different power source with a new power cables.Contact the Juniper Networks Technical Assistance Center (JTAC). See “Juniper Networks Technical Assistance Center” on page 106.
		No outputOff	Normal condition if the services gateway is switched off. No action is required.

Related Documentation

Monitoring the SRX240 Services Gateway Chassis Using the CLI on page 95.

•Monitoring the SRX240 Services Gateway Using Chassis Alarm Conditions on page 101
•Monitoring the SRX240 Services Gateway Power System on page 103
- Loading the Rescue Configuration on the SRX240 Services Gateway on page 105
- Changing the Reset Config Button Behavior on the SRX240 Services Gateway on page 106
•Juniper Networks Technical Assistance Center on page 106

Monitoring the SRX240 Services Gateway Using Chassis Alarm Conditions

When the services gateway detects an alarm condition, the Alarm LED on the front panel turns red or yellow as appropriate.

To view a more detailed description of the cause of the alarm, issue the show chassis alarms CLI command.

For more information about the show chassis alarms command, see the following guides:

• Initial Configuration for Security Devices
  • Monitoring and Troubleshooting for Security Devices

Table 33 on page 101 describes the chassis alarm conditions and corrective actions.

Table 33: SRX240 Services Gateway Chassis Alarm Conditions and Corrective Actions

			Alarm SeverityA
Boot media	The services gateway boots from an alternate boot device.	·If the internal flash memory fails at start up the services gateway automatically boot (minor) itself from the alternative boot device (USB storage device).NOTE: If you configured your services gateway to boot from an alternative boot device, ignore this alarm condition.·Reformat the internal flash memory and install a bootable image. (See the Initial Configuration for Security Devices.)·If you did not configure the services gateway to boot from an alternative boot device, contact Juniper Networks Technical Assistance Center (JTAC). See “Juniper Networks Technical Assistance Center” on page 106.
Mini-Physical Interface Module (Mini-PIM)	A Mini-PIM has failed.	Contact JTAC. See “Juniper Networks Red Technical Assistance Center” on page 10 (major)If you must replace the failed Mini-PIM, see the SRX Series Services Gateways for the Branch Physical Interface Modules Hardware Guide for information about replacing the Mini-PIMs.
Hardware components on the services gateway	The services gateway chassis temperature is too warm.	Check the room temperature. See Yellow “SRX240 Services Gateway Chassis” on (minor) page 7.Check the air flow. See “General Site Guidelines for Installing the SRX240 Services Gateway” on page 32.Check the fans. See “SRX240 Services Gateway Cooling System” on page 21.Contact JTAC for support. See “Juniper Networks Technical Assistance Center” on page 106.
	The services gateway fan has failed.	Use the CLI command show chassis environment to determine whether the fan major is functioning normally.If fan has failed, contact JTAC for support.See “Juniper Networks Technical Assistance Center” on page 106.
	The services gateway temperature is too high, either because of an internal overheating condition or because the maximum recommended room temperature has been exceeded.	The services gateway shuts down automatically in 4 minutes.	Red (major)

Related Documentation

Monitoring the SRX240 Services Gateway Chassis Using the CLI on page 95.

•Monitoring the SRX240 Services Gateway Components Using LEDs on page 97

•Monitoring the SRX240 Services Gateway Power System on page 103

•Juniper Networks Technical Assistance Center on page 106

•SRX240 Services Gateway Chassis on page 7

- Clearance Requirements for Airflow and Hardware Maintenance on the SRX240 Services Gateway on page 34

•SRX240 Services Gateway Cooling System on page 21

Monitoring the SRX240 Services Gateway Power System

This topic includes the following sections:

• Monitoring the SRX240 Services Gateway AC Power System on page 103
• Monitoring the SRX240 Services Gateway DC Power System on page 104

Monitoring the SRX240 Services Gateway AC Power System

The LEDs on the SRX240 Services Gateway enable you to determine its performance and operation. The Power LED, located on the front panel of the services gateway, indicates different conditions with respect to the power system.

Table 34 on page 103 describes different Power LED indications and the required corrective actions.

Table 34: Services Gateway Power LED Status

		Possible Cause and Corrective ActionMeaningLED Status
Green	receiving power, and the internal power supply is functional.	Normal indication. No action is required.The services g
Yellow	been pressed and quickly released. The services gateway is shutting down or starting up.	Normal indication. No action is required.The Power bl
Off	The services gateway is not receiving power.	Verify that the AC power cord from the power source to the services gateway is not damaged. If the insulation is cracked or broken, immediately replace the cord or cable.Ensure that the socket you plug in is in working condition.Ensure the services gateway has an AC input voltage between 110 and 240 VAC.If you cannot determine the cause of the problem or need additional assistance, contact the Juniper Networks Technical Assistance Center (JTAC).See “Juniper Networks Technical Assistance Center” on page 106.

Monitoring the SRX240 Services Gateway DC Power System

The back panel of an SRX240 Services Gateway with DC power supply model has two LEDs that indicate the status of the dual feed for the integrated DC power supply.

Table 35 on page 104 describes the LEDs on the DC power feeds on the SRX240 Services Gateway DC power supply model.

Table 35: SRX240 Services Gateway DC Power Feed LEDs

DC Input				LED BLED
	Input BInput A

^1 .Input is normal.Input RedRedBad. output

		normal.		GreenGreenOutput is
has failed because the power supply fuse has failed or input voltage is low.	Input is normal.Input	Outconnected but normal.	(blinking)	GreenRed
Input is normal.	Input is connected but has failed because the power supply fuse has failed or input voltage is low.	normal.	GreenOutput is Red (blinking)
no DC input connected.	Input is normal.Input	Outper open or normal.	(blinking)	GreenRed
Input has failed.	Input has failed.	No output.	Red (blinking)	Red (blinking)
No input.	No input.	No output.	Off	Off

(1) No output because of output side failure or open connection.

Related Documentation

• Monitoring the SRX240 Services Gateway Chassis Using the CLI on page 95
• Monitoring the SRX240 Services Gateway Components Using LEDs on page 97
• Monitoring the SRX240 Services Gateway Using Chassis Alarm Conditions on page 101
• Juniper Networks Technical Assistance Center on page 106
• SRX240 Services Gateway LEDs on page 14

Resetting the Configuration File When the SRX240 Services Gateway Is Inaccessit

You can use the SRX240 Services Gateway's RESET CONFIG button to restore the device's configuration file when the current one is faulty or fails. You can also change the default behavior of the RESET CONFIG button.

This topic includes the following sections:

• Loading the Rescue Configuration on the SRX240 Services Gateway on page 105
• Changing the Reset Config Button Behavior on the SRX240 Services Gateway on page 106

Loading the Rescue Configuration on the SRX240 Services Gateway

If a configuration fails or denies management access to the services gateway, you can use the RESET CONFIG button to restore the device to the factory-default configuration or a rescue configuration. For example, if someone inadvertently commits a configuration that denies management access to a services gateway, you can delete the invalid configuration and replace it with a rescue configuration by pressing the RESET CONFIG button.

NOTE: TheRESETCONFIG button is recessed to prevent it from being pressed accidentally.

The rescue configuration is a previously committed, valid configuration. You must have previously set the rescue configuration through the J-Web interface or the CLI.

To press the RESET CONFIG button, insert a small probe (such as a straightened paper clip) into the pinhole on the front panel.

• By default, pressing and quickly releasing the RESET CONFIG button loads and commits the rescue configuration through the J-Web interface or the CLI. The Status LED is solid amber during this time.
• By default, pressing and holding the RESET CONFIG button for 15 seconds or more—until the Status LED is solid amber — deletes all configurations on the device, including the backup configurations and rescue configuration, and loads and commits the factory configuration.

For details about factory-default settings, see the following topics:

• Initial Configuration for Security Devices
  • Monitoring and Troubleshooting for Security Devices

Related Documentation

- Changing the Reset Config Button Behavior on the SRX240 Services Gateway on page 106

•Monitoring the SRX240 Services Gateway Chassis Using the CLI on page 95

•Monitoring the SRX240 Services Gateway Components Using LEDs on page 97

•SRX240 Services Gateway LEDs on page 14

Changing the Reset Config Button Behavior on the SRX240 Services Gateway

You can change the default operation of the RESET CONFIG button by limiting how the button resets the services gateway:

- To prevent the RESET CONFIG button from setting the device to the factory-default configuration and deleting all other configurations:

admin@host# set chassis config-button no-clear

You can still press and quickly release the button to reset it to the rescue configuration.

- To prevent the RESET CONFIG button from setting the device to the rescue configuration:

admin@host# set chassis config-button no-rescue

You can still press and hold the button for 15 seconds or more to reset the gateway to the factory-default configuration.

- To disable the button and prevent the device from resetting to either configuration: admin@host# set chassis config-button no-clear no-rescue

The no-clear option prevents the RESET CONFIG button from deleting all configurations on the services gateway. The no-rescue option prevents the RESET CONFIG button from loading the rescue configuration.

To return the function of the RESET CONFIG button to its default behavior, remove the config-button statement from the device configuration.

Related Documentation

Monitoring the SRX240 Services Gateway Chassis Using the CLI on page 95.

•Monitoring the SRX240 Services Gateway Components Using LEDs on page 97

•SRX240 Services Gateway LEDs on page 14

- Loading the Rescue Configuration on the SRX240 Services Gateway on page 105

Juniper Networks Technical Assistance Center

If you need assistance while troubleshooting a services gateway, open a support case using the Case Manager link at http://www.juniper.net/support/, or call 1-888-314-JTAC (within the United States) or 1-408-745-9500 (from outside the United States).

Related Documentation

• Information You Might Need to Supply to Juniper Networks Technical Assistance Center on page 156

PART 4

Appendixes

• Safety and Regulatory Compliance Information on page 109
- SRX240 Services Gateway Power Guidelines, Requirements, and Specifications on page 143
- SRX240 Services Gateway Interface Cable Specifications and Connector Pinouts on page 149
- Contacting Customer Support and Returning the SRX240 Services Gateway Hardware on page 153

APPENDIX A

Safety and Regulatory Compliance Information

This appendix includes the following topics:

• SRX240 Services Gateway Definition of Safety Warning Levels on page 109
• SRX240 Services Gateway General Safety Guidelines and Warnings on page 111
• SRX240 Services Gateway Fire Safety Requirements on page 115
• SRX240 Services Gateway Installation Safety Guidelines and Warnings on page 116
• SRX240 Services Gateway Laser and LED Safety Guidelines and Warnings on page 121
- SRX240 Services Gateway Maintenance and Operational Safety Guidelines and Warnings on page 125
• SRX240 Services Gateway Electrical Safety Guidelines and Warnings on page 130
• DC Power Electrical Safety Guidelines and Warnings on page 132
• SRX240 Services Gateway Agency Approvals on page 138
• SRX240 Services Gateway Compliance Statements for EMC Requirements on page 139
- SRX240 Services Gateway (DC Power Supply Model) Compliance Statements for Network Equipment Building System (NEBS) on page 140
- SRX240 Services Gateway Compliance Statements for Environmental Requirements on page 140
• SRX240 Services Gateway Compliance Statements for Acoustic Noise on page 141

SRX240 Services Gateway Definition of Safety Warning Levels

This topic defines the following four levels of safety warnings used in Juniper Networks technical publications:

NOTE: You might find this information helpful in a particular situation or might otherwise overlook it.

CAUTION: You need to observe the specified guidelines to avoid minor injury or discomfort to you or severe damage to the services gateway.

WARNING: This symbol is used with laser warnings. Unterminated optical connectors can emit invisible laser radiation. Focusing your eye directly on a laser source—even a low-power laser—could permanently damage the eye.

WARNING: This symbol means danger. You are in a situation that could cause bodily injury. Before you work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing accidents.

Related Documentation

SRX240 Services Gateway General Safety Guidelines and Warnings on page 111.

•SRX240 Services Gateway Fire Safety Requirements on page 115

•SRX240 Services Gateway Installation Safety Guidelines and Warnings on page 116

•SRX240 Services Gateway Laser and LED Safety Guidelines and Warnings on page 121

- SRX240 Services Gateway Maintenance and Operational Safety Guidelines and Warnings on page 125

•SRX240 Services Gateway Electrical Safety Guidelines and Warnings on page 130

SRX240 Services Gateway General Safety Guidelines and Warnings

This topic includes the following sections:

• General Safety Guidelines and Warnings on page 111
  • Qualified Personnel Warning on page 112
• Restricted Access Area Warning on page 113
  • Preventing Electrostatic Discharge Damage to the Services Gateway on page 114

General Safety Guidelines and Warnings

The following guidelines help ensure your safety and protect the services gateway from damage. The list of guidelines might not address all potentially hazardous situations in your working environment, so it is important that you remain alert and exercise good judgment at all times.

• Perform only the procedures explicitly described in these topics. Ensure that only authorized service personnel perform other system services.

• Keep the area around the chassis clear and free from dust before, during, and after installation.

• Keep tools away from areas where people could trip on them.

• Wear safety glasses if you are working under any conditions that could be hazardous to your eyes.
• Do not perform any actions that create a potential hazard to people or make the equipment unsafe.
• Never install or manipulate wiring during electrical storms.
• Never install electrical jacks in wet locations unless the jacks are specifically designed for wet environments.
• Do not open or remove chassis covers or sheet metal parts unless instructions are provided in this guide. Such an action could cause severe electrical shock.
• Do not push or force any objects through any opening in the chassis frame. Such an action could result in electrical shock or fire.
• Avoid spilling liquid onto the services gateway chassis or onto any services gateway component. Such an action could cause electrical shock or damage the services gateway.
• Avoid touching uninsulated electrical wires or terminals that have not been disconnected from their power source. Such an action could cause electrical shock.

Qualified Personnel Warning

WARNING: Only trained and qualified personnel should install or replace the services gateway.

Restricted Access Area Warning

WARNING: The services gateway is intended for installation in restricted access areas. A restricted access area is an area to which access can be gained only by service personnel through the use of a special tool, lock and key, or other means of security, and which is controlled by the authority responsible for the location.

Preventing Electrostatic Discharge Damage to the Services Gateway

Many services gateway hardware components are sensitive to damage from static electricity. Some components can be impaired by voltages as low as 30 V. You can easily generate potentially damaging static voltages whenever you handle plastic or foam packing material or if you move components across plastic or carpets. Observe the following guidelines to minimize the potential for electrostatic discharge (ESD) damage, which can cause intermittent or complete component failures:

- Always use an ESD wrist strap or ankle strap, and verify that it is in direct contact with your skin.

CAUTION: For safety, periodically check the resistance value of the ESD strap. The measurement should be in the range of 1 to 10 Mohms.

• When handling any component that is removed from the chassis, verify that the equipment end of your ESD strap is attached to one of the ESD points on the chassis.
• Avoid contact between the component and your clothing. ESD voltages emitted from clothing can still damage components.
• When removing or installing a component, always place it component-side up on an antistatic surface, in an antistatic card rack, or in an electrostatic bag. If you are returning a component, place it into an electrostatic bag before packing it. See

Figure 23 on page 115.

Figure 23: Placing a Component into an Electrostatic Bag

CAUTION ELECTROSTATIC SENSITIVE DEVICES DO NOT OPEN OR HANDLE EXCEPT AT A STATIC-FREE WORKSTATION

Related Documentation

SRX240 Services Gateway Definition of Safety Warning Levels on page 109.

SRX240 Services Gateway Fire Safety Requirements on page 115

•SRX240 Services Gateway Installation Safety Guidelines and Warnings on page 116

•SRX240 Services Gateway Laser and LED Safety Guidelines and Warnings on page 121

•SRX240 Services Gateway Maintenance and Operational Safety Guidelines and Warnings on page 125

•SRX240 Services Gateway Electrical Safety Guidelines and Warnings on page 130

SRX240 Services Gateway Fire Safety Requirements

In the event of a fire emergency involving devices and other network equipment, the safety of people is the primary concern. Establish procedures for protecting people in the event of a fire emergency, provide safety training, and properly provision fire-control equipment and fire extinguishers.

In addition, establish procedures to protect your equipment in the event of a fire emergency. Juniper Networks products should be installed in an environment suitable for electronic equipment. We recommend that fire suppression equipment be available in the event of a fire in the vicinity of the equipment and that all local fire, safety, and electrical codes and ordinances be observed when installing and operating your equipment.

In the event of an electrical hazard or an electrical fire, first turn power off to the equipment at the source. Then use a Type C fire extinguisher to extinguish the fire. Type C fire extinguishers, which use noncorrosive fire retardants such as carbon dioxide CO Halotron, are most effective for suppressing electrical fires. Type C fire extinguishers displace the oxygen from the point of combustion to eliminate the fire. For extinguishing fire on or around equipment that draws air from the environment for cooling, use this

type of inert oxygen displacement extinguisher instead of an extinguisher that leaves residue on equipment.

Do not use multipurpose Type ABC chemical fire extinguishers (dry chemical fire extinguishers) near Juniper Networks equipment. The primary ingredient in these fire extinguishers is monoammonium phosphate, which is very sticky and difficult to clean. In addition, in minute amounts of moisture, monoammonium phosphate can become highly corrosive and corrodes most metals.

Any equipment in a room in which a chemical fire extinguisher has been discharged is subject to premature failure and unreliable operation. The equipment is considered to be irreparably damaged.

NOTE: To keep warranties effective, donotuseadrychemical fire extinguisher to control a fire at or near a Juniper Networks services gateway. If a dry chemical fire extinguisher is used, the unit is no longer eligible for coverage under a service agreement.

We recommend that you dispose of any irreparably damaged equipment in an environmentally responsible manner.

Related Documentation

SRX240 Services Gateway Definition of Safety Warning Levels on page 109.

•SRX240 Services Gateway General Safety Guidelines and Warnings on page 111
•SRX240 Services Gateway Installation Safety Guidelines and Warnings on page 116
•SRX240 Services Gateway Laser and LED Safety Guidelines and Warnings on page 121
•SRX240 Services Gateway Maintenance and Operational Safety Guidelines and Warnings on page 125
•SRX240 Services Gateway Electrical Safety Guidelines and Warnings on page 130

SRX240 Services Gateway Installation Safety Guidelines and Warnings

This topic includes the following sections:

• Installation Instructions Warning on page 116
- Rack-Mounting Requirements and Warnings on page 118

Installation Instructions Warning

NOTE: TheSRX240 Services Gateway can be installed as customerpremises equipment (CPE) only.

WARNING: Read the installationinstructionsbeforeyou connecttheservices gateway to a power source.

WARNING: Before you make any crimp connections, coat all conductors (frame ground, battery, and battery return) with an appropriate antioxidant compound. Before you connect unplated connectors, braided strap, and bus bars, bring them to a bright finish and coat them with an antioxidant compound. You do not have to prepare tinned, solder-plated, or silver-plated connectors or other plated connection surfaces before connecting them, but make sure such surfaces remain clean and free of contaminants. To provide a permanent low-impedance path, tighten all raceway fittings.

WARNING: An electrical conducting path shall exist between the device chassis and the grounding conductor, or between the chassis and the metal surface of the enclosure or rack in which the device is mounted. Electrical continuity shall be provided by the use of thread-forming-type, unit-mounting screws that remove any paint or nonconductive coatings and establish metal-to-metal contact. Any paint or other nonconductive coatings shall be removed on the surfaces between the mounting hardware and the enclosure or rack. The surfaces shall be cleaned and an antioxidant applied before installation.

Rack-Mounting Requirements and Warnings

Ensure that the equipment rack into which the services gateway is installed is evenly and securely supported to avoid the hazardous condition that could result from uneven mechanical loading.

WARNING: To prevent bodily injury when mounting or servicing the services gateway in a rack, take the following precautions to ensure that the system remains stable. The following directives help maintain your safety:

• The services gateway must be installed into a rack that is secured to the building structure.
• The services gateway should be mounted at the bottom of the rack if it is the only unit in the rack.
• When mounting the services gateway in a partially filled rack, load the rack from the bottom to the top with the heaviest component at the bottom of the rack.
• If the rack is provided with stabilizing devices, install the stabilizers before mounting or servicing the services gateway in the rack.

Related Documentation

SRX240 Services Gateway Definition of Safety Warning Levels on page 109.

•SRX240 Services Gateway General Safety Guidelines and Warnings on page 111

•SRX240 Services Gateway Fire Safety Requirements on page 115

•SRX240 Services Gateway Laser and LED Safety Guidelines and Warnings on page 121

- SRX240 Services Gateway Maintenance and Operational Safety Guidelines and Warnings on page 125

•SRX240 Services Gateway Electrical Safety Guidelines and Warnings on page 130

SRX240 Services Gateway Laser and LED Safety Guidelines and Warnings

The 1-Port SFP Mini-Physical Interface Module (Mini-PIM) is equipped with laser transmitters, which are considered a Class 1 Laser Product by the USA Food and Drug Administration, and they are evaluated as a Class 1 Laser Product per EN 60825-1 +A11 +A2 requirements.

This topic includes the following section:

- Laser and LED Safety Guidelines and Warnings on page 122

Laser and LED Safety Guidelines and Warnings

General Laser Safety Guidelines

When working around Mini-PIMs, observe the following safety guidelines to prevent eye injury:

• Do not look into unterminated ports or at fibers that connect to unknown sources.
• Do not examine unterminated optical ports with optical instruments.
• Avoid direct exposure to the beam.

WARNING: Unterminated optical connectors can emit invisible laser radiation. The lens in the human eye focuses all the laser power on the retina, so focusing the eye directly on a laser source—even a low-power laser—could permanently damage the eye.

Class 1 Laser Product Warning

WARNING: Class 1 laser product.

Waarschuwing Klasse-1 laser produkt.

Class 1 LED Product Warning

WARNING: Class 1 LED product.

WARNING: Do not stare into the laser beam or view it directly with optical instruments.

Radiation from Open Port Apertures Warning

WARNING: Because invisible radiation may be emitted from the aperture of the port when no fiber cable is connected, avoid exposure to radiation and do not stare into open apertures.

Related Documentation

SRX240 Services Gateway Definition of Safety Warning Levels on page 109.

•SRX240 Services Gateway General Safety Guidelines and Warnings on page 111

•SRX240 Services Gateway Fire Safety Requirements on page 115

•SRX240 Services Gateway Installation Safety Guidelines and Warnings on page 116

- SRX240 Services Gateway Maintenance and Operational Safety Guidelines and Warnings on page 125

•SRX240 Services Gateway Electrical Safety Guidelines and Warnings on page 130

SRX240 Services Gateway Maintenance and Operational Safety Guidelines and Warnings

This topic includes the following sections:

• Safety Guidelines and Warnings on page 125

Safety Guidelines and Warnings

Battery Handling Warning

WARNING: Replacing the battery incorrectly might result in an explosion. Replace the battery only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions.

Jewelry Removal Warning

WARNING: Before working on equipment that is connected to power lines, remove jewelry, including rings, necklaces, and watches. Metal objects heat up when connected to power and ground and can cause serious burns or weld the metal object to the terminals.

WARNING: Do not work on the systemor connect or disconnectcables during periods of lightning activity.

Operating Temperature Warning

WARNING: To prevent the servicesgateway from overheating, do not operate it in an area that exceeds the maximum recommended ambient temperature of 104F (40C). To prevent airflow restriction, allow at least 6 in. (15.2 cm) of clearance around the ventilation openings.

Product Disposal Warning

WARNING: Disposal of this product must be handled according to all national laws and regulations.

Related Documentation

SRX240 Services Gateway Definition of Safety Warning Levels on page 109.

•SRX240 Services Gateway General Safety Guidelines and Warnings on page 111

•SRX240 Services Gateway Fire Safety Requirements on page 115

•SRX240 Services Gateway Installation Safety Guidelines and Warnings on page 116

•SRX240 Services Gateway Laser and LED Safety Guidelines and Warnings on page 121
•SRX240 Services Gateway Electrical Safety Guidelines and Warnings on page 130

SRX240 Services Gateway Electrical Safety Guidelines and Warnings

When working on equipment powered by electricity, follow the safety guidelines.

This topic includes the following sections:

• Electrical Safety Guidelines and Warnings on page 130

Electrical Safety Guidelines and Warnings

In Case of Electrical Accident

If an electrical accident results in an injury, take the following actions in this order:

1. Use caution. Be aware of potentially hazardous conditions that could cause further injury.
2. Disconnect power from the services gateway.
3. If possible, send another person to get medical aid. Otherwise, assess the condition of the victim, then call for help.

General Electrical Safety Guidelines and Warnings

WARNING: Certain ports on the services gateway are designed for use as intrabuilding (within-the-building) interfaces only (Type 2 or Type 4 ports as described in GR-1089-CORE, Issue 4) and require isolation from the exposed outside plant (OSP) cabling. To comply with NEBS requirements and protect against lightning surges and commercial power disturbances, the intrabuilding ports must not be metallically connected to interfaces that connect to the OSP or its wiring. The intrabuilding ports on the switch are suitable for connection to intrabuilding or unexposed wiring or cabling only. The addition of primary protectors is not sufficient protection for connecting these interfaces metallically to OSP wiring.

• Install the services gateway in compliance with the following local, national, or international electrical codes:

• United States—National Fire Protection Association (NFPA 70), United States National Electrical Code
  • Canada—Canadian Electrical Code, Part 1, CSA C22.1

• Other countries—International Electromechanical Commission (IEC) 60364, Part 1 through Part 7

• Evaluated to the TN power system

• Locate the emergency power-off switch for the room in which you are working so that if an electrical accident occurs, you can quickly turn off the power.

• Do not work alone if potentially hazardous conditions exist anywhere in your workspace.
• Never assume that power is disconnected from a circuit. Always check the circuit before starting to work.
• Carefully look for possible hazards in your work area, such as moist floors, ungrounded power extension cords, and missing safety grounds.
• Operate the services gateway within marked electrical ratings and product usage instructions.
• For the services gateway and peripheral equipment to function safely and correctly, use the cables and connectors specified for the attached peripheral equipment, and make certain they are in good condition.

Copper Conductors Warning

WARNING: Use copper conductors only.

Related Documentation

SRX240 Services Gateway Definition of Safety Warning Levels on page 109.

•SRX240 Services Gateway General Safety Guidelines and Warnings on page 111

•SRX240 Services Gateway Fire Safety Requirements on page 115

•SRX240 Services Gateway Installation Safety Guidelines and Warnings on page 116

•SRX240 Services Gateway Laser and LED Safety Guidelines and Warnings on page 121

•SRX240 Services Gateway Maintenance and Operational Safety Guidelines and Warnings on page 125

DC Power Electrical Safety Guidelines and Warnings

This topic includes the following sections:

• DC Power Electrical Safety Guidelines on page 132
• DC Power Disconnection Warning on page 133
• DC Power Grounding Requirements and Warning on page 134
• DC Power Wiring Sequence Warning on page 135
• DC Power Wiring Terminations Warning on page 136

DC Power Electrical Safety Guidelines

The following electrical safety guidelines apply to a DC-powered services gateway:

• A DC-powered services gateway is equipped with a DC terminal block that is rated for the power requirements of a maximally configured services gateway. To supply sufficient power, terminate the DC input wiring on a facility DC source capable of supplying at least 5 A @ -48 VDC for the system. We recommend that the 48 VDC facility DC source be equipped with a circuit breaker rated at 10 A (-48 VDC) minimum, or as required by local code. Incorporate an easily accessible disconnect device into the facility wiring. In the United States and Canada, the -48 VDC facility must be equipped with a circuit breaker rated a minimum of 125% of the power provisioned for the input in accordance with the National Electrical Code in the US and the Canadian Electrical Code in Canada. Be sure to connect the ground wire or conduit to a solid office (earth) ground. A closed loop ring is recommended for terminating the ground conductor at the ground stud.
• Run two wires from the circuit breaker box to a source of 48 VDC. Use appropriate gauge wire to handle up to 10 A.
• A DC-powered services gateway that is equipped with a DC terminal block is intended only for installation in a restricted access location. In the United States, a restricted access area is one in accordance with Articles 110-16, 110-17, and 110-18 of the National Electrical Code ANSI/NFPA 70.

NOTE: Primary overcurrent protection is provided by the building circuit breaker. This breaker must protect against excess currents, short circuits, and earth faults in accordance with NEC ANSI/NFPA70.

• Ensure that the polarity of the DC input wiring is correct. Under certain conditions, connections with reversed polarity might trip the primary circuit breaker or damage the equipment.

• For personal safety, connect the green and yellow wire to safety (earth) ground at both the services gateway and the supply side of the DC wiring.

• The marked input voltage of -48 VDC for a DC-powered services gateway is the nominal voltage associated with the battery circuit, and any higher voltages are only to be associated with float voltages for the charging function.

• Because the services gateway is a positive ground system, you must connect the positive lead to the terminal labeled RETURN, the negative lead to the terminal labeled -48V, and the earth ground to the chassis grounding points.

DC Power Disconnection Warning

WARNING: Before performing any of the following procedures, ensure that power is removed from the DC circuit. To ensure that all power is off, locate the circuit breaker on the panel board that services the DC circuit, switch the circuit breaker to the OFF position, and tape the switch handle of the circuit breaker in the OFF position.

DC Power Grounding Requirements and Warning

An insulated grounding conductor that is identical in size to the grounded and ungrounded branch circuit supply conductors, but is identifiable by green and yellow stripes, is installed as part of the branch circuit that supplies the unit. The grounding conductor is a separately derived system at the supply transformer or motor generator set.

WARNING: When installing the services gateway, the ground connection must always be made first and disconnected last.

DC Power Wiring Sequence Warning

WARNING: Wire the DC power supply using the appropriate lugs. When connecting power, the proper wiring sequence is ground to ground, +RTN to +RTN, then -48 V to -48 V. When disconnecting power, the proper wiring sequence is -48 V to -48 V, +RTN to +RTN, then ground to ground. Note that the ground wire must always be connected first and disconnected last.

DC Power Wiring Terminations Warning

WARNING: When stranded wiring is required, use approved wiring terminations, such as closed-loop or spade-type with upturned lugs. These terminations should be the appropriate size for the wires and should clamp both the insulation and the conductor.

Related Documentation

SRX240 Services Gateway Definition of Safety Warning Levels on page 109.

•SRX240 Services Gateway General Safety Guidelines and Warnings on page 111

•SRX240 Services Gateway Fire Safety Requirements on page 115

SRX240 Services Gateway Installation Safety Guidelines and Warnings on page 116

•SRX240 Services Gateway Laser and LED Safety Guidelines and Warnings on page 121

- SRX240 Services Gateway Maintenance and Operational Safety Guidelines and Warnings on page 125

SRX240 Services Gateway Agency Approvals

The services gateway complies with the following standards:

• Safety
  • CAN/CSA-C22.2 No. 60950-1 (2007) Information Technology Equipment
  • UL 60950-1 (2nd Edition) Information Technology Equipment
  • EN 60950-1 (2005) Information Technology Equipment
  • IEC 60950-1 (2005) Information Technology Equipment
  • EN 60825-1 +A1+A2 (1994) Safety of Laser Products - Part 1: Equipment Classification
  • EMC
  • EN 300 386 V1.3.3 (2005) Telecom Network Equipment - EMC requirements
  • EMI
  • FCC Part 15 Class A (2007) USA Radiated Emissions
  • EN 55022 Class A (2006) European Radiated Emissions
  • VCCI Class A (2007) Japanese Radiated Emissions
• Immunity
• EN 55024 +A1+A2 (1998) Information Technology Equipment Immunity Characteristics
  • EN-61000-3-2 (2006) Power Line Harmonics
  • EN-61000-3-3 +A1 +A2 +A3 (1995) Power Line Voltage Fluctuations
  • EN-61000-4-2 +A1 +A2 (1995) Electrostatic Discharge
  • EN-61000-4-3 +A1+A2 (2002) Radiated Immunity
  • EN-61000-4-4 (2004) Electrical Fast Transients
  • EN-61000-4-5 (2006) Surge
  • EN-61000-4-6 (2007) Immunity to Conducted Disturbances
  • EN-61000-4-11 (2004) Voltage Dips and Sags

Related Documentation

SRX240 Services Gateway Compliance Statements for EMC Requirements on page 139.

•SRX240 Services Gateway Compliance Statements for Environmental Requirements on page 140

•SRX240 Services Gateway Compliance Statements for Acoustic Noise on page 141

SRX240 Services Gateway Compliance Statements for EMC Requirements

This topic includes the following sections:

• Canada on page 139
• European Community on page 139
• Israel on page 139
• Japan on page 139
• United States on page 140

Canada

This Class A digital apparatus complies with Canadian ICES-003.

This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

Israel

הַרְשָׁה

.Class A

אַעְרָה אַעְרָה אַעְרָה, לַעְרָה אַעְרָה, לַעְרָה אַעְרָה, לַעְרָה אַעְרָה, לַעְרָה אַעְרָה, לַעְרָה אַעְשִׁם, לַעְרָה אַעְשִׁם, לַעְרָה אַעְשִׁם, לַעְרָה אַעְשִׁם, לַעְרָה אַעְשִׁם, לַעְשִׁם, לַעְשִׁם, לַעְשִׁם, לַעְשִׁם, לַעְשִׁם, לַעְשִׁם, לַעְשִׁם, לַעְשִі

The preceding translates as follows:

This product is Class A. In residential environments, the product may cause radio interference, and in such a situation, the user may be required to take adequate measures.

Japan

The preceding translates as follows:

This is a Class A product based on the standard of the Voluntary Control Council for Interference by Information Technology Equipment (VCCI). If this product is used near

a radio or television receiver in a domestic environment, it may cause radio interference. Install and use the equipment according to the instruction manual.

United States

The services gateway has been tested and found to comply with the limits for a Class A digital device of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

Related Documentation

• SRX240 Services Gateway Compliance Statements for Environmental Requirements on page 140
  •SRX240 Services Gateway Agency Approvals on page 138
  •SRX240 Services Gateway Compliance Statements for Acoustic Noise on page 141

SRX240 Services Gateway (DC Power Supply Model) Compliance Statements for Network Equipment Building System (NEBS)

This product complies with the following NEBS standards:

• The equipment is suitable for installation as part of the Common Bonding Network (CBN).
• The equipment is suitable for installation in locations where the National Electrical Code (NEC) applies.
• The battery return connection is to be treated as an Isolated DC return (DC-I), as defined in GR-1089-CORE
• The minimum steady-state operating voltage is -40.5V (after turn on at minimum of 44 VDC).

Related Documentation

- SRX240 Services Gateway Compliance Statements for Environmental Requirements on page 140

•SRX240 Services Gateway Agency Approvals on page 138

•SRX240 Services Gateway Compliance Statements for Acoustic Noise on page 141

SRX240 Services Gateway Compliance Statements for Environmental Requirements

This topic includes the compliance statement for the following environmental requirement:

Lithium Battery

Batteries in this product are not based on mercury, lead, or cadmium substances. The batteries used in this product are in compliance with EU Directives 91/157/EEC, 93/86/EEC, and 98/101/EEC. The product documentation includes instructional information about the proper method of reclamation and recycling.

Related Documentation

SRX240 Services Gateway Compliance Statements for EMC Requirements on page 139.

•SRX240 Services Gateway Compliance Statements for Acoustic Noise on page 141

•SRX240 Services Gateway Agency Approvals on page 138

SRX240 Services Gateway Compliance Statements for Acoustic Noise

The maximum emitted sound pressure level is 70 dB(A) or less per EN ISO 7779.

Related Documentation

•SRX240 Services Gateway Compliance Statements for EMC Requirements on page 139

•SRX240 Services Gateway Compliance Statements for Environmental Requirements on page 140

•SRX240 Services Gateway Agency Approvals on page 138

APPENDIX B

SRX240 Services Gateway Power Guidelines, Requirements, and Specifications

This appendix includes the following topics:

• SRX240 Services Gateway Site Electrical Wiring Guidelines on page 143
• SRX240 Services Gateway AC Power Specifications and Requirements on page 145
• SRX240 Services Gateway DC Power Specifications and Requirements on page 146
• SRX240 Services Gateway Grounding Specifications on page 147

SRX240 Services Gateway Site Electrical Wiring Guidelines

Table 36 on page 144 describes the factors you must consider while planning the electrical wiring for the services gateway at your site.

CAUTION: It is particularly important to provide a properly grounded and shielded environment and to use electrical surge-suppression devices.

CAUTION: For devices with AC power supplies, an external surge protective device (SPD) must be used at the AC power source.

Table 36: Site Electrical Wiring Guidelines for the Services Gateway

	GuidelineSite Wiring Factor
Signaling Limitations	To ensure that signaling functions optimally:Install wires correctly.Improperly installed wires can emit radio interference.Do not exceed the recommended distances or pass wires between buildings.The potential for damage from lightning strikes increases if wires exceed recommended distances or if wires pass between buildings.Shield all conductors.The electromagnetic pulse (EMP) caused by lightning can damage unshielded conductors and destroy electronic devices.
Radio Frequency Interference (RFI)	To reduce or eliminate the emission of RFI from your site wiring:Use twisted-pair cable with a good distribution of grounding conductors.Use a high-quality twisted-pair cable with one ground conductor for each data signal when applicable, if you must exceed the recommended distances.
Electromagnetic Compatibility (EMC)	Provide a properly grounded and shielded environment and use electrical surge-suppression devices.Strong sources of electromagnetic interference (EMI) can cause the following damage:Destroy the signal drivers and receivers in the deviceConduct power surges over the lines into the equipment, resulting in an electrical hazardNOTE: If your site is susceptible to problems with EMC, particularly from lightning or radio transmitters, you may want to seek expert advice.

CAUTION: To comply with intrabuilding lightning/surge requirements, the intrabuilding wiring must be shielded. The shielding for the wiring must be grounded at both ends.

Related Documentation

SRX240 Services Gateway AC Power Specifications and Requirements on page 145.

•SRX240 Services Gateway Grounding Specifications on page 147

•SRX240 Services Gateway Power Supply on page 20

SRX240 Services Gateway AC Power Specifications and Requirements

This topic includes the following sections:

• AC Power Requirement Specifications on page 145
• AC Power Cord Specifications on page 145

AC Power Requirement Specifications

The AC power system electrical specifications for the SRX240 Services Gateway are listed in Table 37 on page 145.

Table 37: AC Power Supply Specifications for the SRX240 Services Gateway

	SpecificationPower Requirement
	100 to 240 VACAC input voltage
	50 to 60 HzAC input line frequency
AC system current rating	2.5 A
	4.5 A (for PoE models)

AC Power Cord Specifications

Table 38 on page 145 depicts the plugs on the AC power cords provided for each country or region.

Table 38: AC Power Cord Specifications

	Model NumberCountry
	CBL-JX-PWR-AUAustralia
	CBL-JX-PWR-CHChina
and United Kingdom)	CBL-JX-PWR-EUEurope (except Denmark, Italy, Switzerland,
	CBL-JX-PWR-ITItaly
	CBL-JX-PWR-JPJapan
	CBL-JX-PWR-USNorth America
	CBL-JX-PWR-UKUnited Kingdom

WARNING: The AC power cord for the services gateway is intended for use with the services gateway only and not for any other use.

Related Documentation

SRX240 Services Gateway Site Electrical Wiring Guidelines on page 143.

•SRX240 Services Gateway Grounding Specifications on page 147

•SRX240 Services Gateway Power Supply on page 20

•SRX240 Services Gateway DC Power Specifications and Requirements on page 146

SRX240 Services Gateway DC Power Specifications and Requirements

This topic includes the following sections:

• DC Power System Electrical Specifications on page 146

• DC Power Cable Specifications on page 146

DC Power System Electrical Specifications

Table 39 on page 146 lists the DC power system electrical specifications.

Table 39: DC Power Supply Specifications for the SRX240 Services Gateway

	SpecificationPower Requirement
	Operating range: -40.5 to -72 VDCDC input
	5A @ -48 VDCDC system current rating

DC Power Cable Specifications

Table 40 on page 146 summarizes the specifications for the power cables, which you must supply.

Table 40: DC Power Supply Cable Specifications for the SRX240 Servi Gateway

	SpecificationCable Type
Power	Four 12-14 AWG (3.31 to 2.08 mm2), minimum 60°C wire, permitted by the local code.

Related Documentation

SRX240 Services Gateway Site Electrical Wiring Guidelines on page 143.

•SRX240 Services Gateway Grounding Specifications on page 147

•SRX240 Services Gateway Power Supply on page 20

- Connecting the SRX240 Services Gateway DC Power Supply Model to a DC Power Source on page 50

SRX240 Services Gateway Grounding Specifications

To meet safety and electromagnetic interference (EMI) requirements and to ensure proper operation, the services gateway must be adequately grounded before power is connected. A grounding lug available on the rear of the services gateway chassis is used to connect the device to earth ground.

WARNING: Before device installation begins, a licensed electrician must attach a cable lug to the grounding and power cables that you supply. A cable with an incorrectly attached lug can damage the device (for example, by causing a short circuit).

To ground the device before connecting power, you connect the grounding cable to earth ground and then attach the lug on the cable to the chassis grounding point with the screw.

Table 41 on page 147 lists the specifications of the grounding cable used with the device.

Table 41: Grounding Cable Specifications for the Services Gateway

	SpecificationGrounding Requirement
	14 AWG single-strand wire cableGrounding ca
	Up to 25 AAmperage of grounding cable
Grounding lug	Ring-type, vinyl-insulated TV14-6R lug or equivalent

Related Documentation

•SRX240 Services Gateway Site Electrical Wiring Guidelines on page 143
•Grounding the SRX240 Services Gateway on page 55
•SRX240 Services Gateway AC Power Specifications and Requirements on page 145
•SRX240 Services Gateway Power Supply on page 20

APPENDIX C

SRX240 Services Gateway Interface Cabl Specifications and Connector Pinouts

This appendix includes the following topics:

• Interface Cable and Wire Specifications for the SRX240 Services Gateway on page 149
• RJ-45 Connector Pinouts for the SRX240 Services Gateway Ethernet Port on page 149
- RJ-45 Connector Pinouts for the SRX240 Services Gateway Console Port on page 151

Interface Cable and Wire Specifications for the SRX240 Services Gateway

Table 42 on page 149 lists the specifications for the cables that connect to ports.

Table 42: Cable and Wire Specifications for Ports

			Maximum LengthCable/VRice/Package	Device
Console port	RS-232 (EIA-232) serial cable	with DB-9/RJ-45 connectors		RJ-456 ft (1.83 m)One 6-ft (1
Ethernet port	CAT-5e (Category 5) cable or equivalent suitable for 100BASE-T operation	One 15-ft (4.57-m) length with RJ-45/RJ-45 (100 m) connectors		RJ-45328 ft

Related Documentation

RJ-45 Connector Pinouts for the SRX240 Services Gateway Ethernet Port on page 149.

- RJ-45 Connector Pinouts for the SRX240 Services Gateway Console Port on page 151

RJ-45 Connector Pinouts for the SRX240 Services Gateway Ethernet Port

Figure 24 on page 150 shows the RJ-45 cable connector pinouts for Ethernet ports.

Figure 24: Ethernet Cable Connector (RJ-45)

9001063

Table 43 on page 150 describes the RJ-45 connector pinouts for the Ethernet port for 10/100 Mbps.

Table 43: RJ-45 Connector Pinouts for the Services Gateway Ethernet Port (10/100 Mbps)

	SignalPin
1	TX+
2	TX-
3	RX+
	Termination network4
	Termination network5
6	RX-
	Termination network7
	Termination network8

Table 44 on page 150 describes the RJ-45 connector pinouts for the Ethernet port for 1 Gbps (1000 Mbps).

Table 44: RJ-45 Connector Pinouts for the Services Gateway Ethernet Port (1 Gbps)

	SignalPin
	BI_DA+1
	BI_DA-2
	BI_DB+3
	BI_DC+4
	BI_DC-5
	BI_DB-6
	BI_DD+7
BI_DD-8

Related Documentation

Interface Cable and Wire Specifications for the SRX240 Services Gateway on page 149. •RJ-45 Connector Pinouts for the SRX240 Services Gateway Console Port on page 151

RJ-45 Connector Pinouts for the SRX240 Services Gateway Console Port

Figure 25 on page 151 shows the RJ-45 connector pinouts for the console port.

Figure 25: Console Cable Connector

Table 45 on page 151 describes the RJ-45 connector pinouts for the console port.

Table 45: RJ-45 Connector Pinouts for the Services Gateway Console Port

		DescriptionSignalPin
		Request to SendRTS1
	2	Data Terminal ReadyDTR
3	TXD	Transmit Data
4	Ground	Signal Ground
5	Ground	Signal Ground
6	RXD	Receive Data
7	DSR/DCD	Data Set Ready
	CTS8	Clear to Send

Related Documentation

• Interface Cable and Wire Specifications for the SRX240 Services Gateway on page 149

•RJ-45 Connector Pinouts for the SRX240 Services Gateway Ethernet Port on page 149

APPENDIX D

Contacting Customer Support and Returning the SRX240 Services Gateway Hardware

This appendix includes the following topics:

• Return Procedure for the SRX240 Services Gateway on page 153
• Locating SRX240 Services Gateway Component Serial Number and Agency Labels on page 154
• Contacting Customer Support to Obtain Return Materials Authorization on page 155

Return Procedure for the SRX240 Services Gateway

Follow the tasks list provided in Table 46 on page 153 to return an SRX240 Services Gateway or component to Juniper Networks for repair or replacement:

Table 46: Return Procedure for SRX240 Services Gateway

		For more information, seeTaskSt
1	Determine the part number and serial number of the services gateway or component.	Locating SRX240 Services Gateway Component Serial Number and Ager Labels" on page 154
2	Obtain a Return Materials Authorization (RMA) number from JTAC.	Uniper Networks Technical Assistance Center" on page 106
3	Pack the SRX240 Services Gateway component for shipping.	"Tracking the SRX240 Services Gateway and Components for Shipment" on page 156

NOTE: Donot return the device or any component to Juniper Networks unless you have first obtained an RMA number. Juniper Networks reserves the right to refuse shipments that do not have an RMA. Refused shipments are returned to the customer via collect freight.

For more information about return and repair policies, see the customer support webpage at http://www.juniper.net/support/guidelines.html.

For product problems or technical support issues, open a support case using the Case Manager link at http://www.juniper.net/support/ or call 1-888-314-JTAC (within the United States) or 1-408-745-9500 (outside the United States).

Related Documentation

- Locating SRX240 Services Gateway Component Serial Number and Agency Labels on page 154

• Information You Might Need to Supply to Juniper Networks Technical Assistance Center on page 156

•Juniper Networks Technical Assistance Center on page 106

•Packing the SRX240 Services Gateway and Components for Shipment

Locating SRX240 Services Gateway Component Serial Number and Agency Labels

This topic includes the following sections:

• Listing the SRX240 Services Gateway and Component Details with the CLI on page 154

• SRX240 Services Gateway Chassis Serial Number and Agency Labels on page 155

- SRX240 Services Gateway Mini-Physical Interface Module Serial Number Label on page 155

Listing the SRX240 Services Gateway and Component Details with the CLI

Before contacting Juniper Networks to request an RMA, you must find the serial number on the SRX240 Services Gateway or component.

To list all of the SRX240 Services Gateway components and their serial numbers, enter the following command-line interface (CLI) command:

user@host> show chassis hardware

Hardware inventory:

Item Version Part number Serial number Description

Chassis AH1111AA7887 SRX240h-poe

Routing Engine REV 01 750-021794 PW7887 RE-SRX240-POE

FPC 0 FPC

PIC 0 16x GE Base PIC

FPC 1 REV 01 750-025085 PW8534 FPC

PIC 0 1x Serial mPIM

FPC 2 REV 00 750-032730

FPC 3 REV 06 750-025184 AAAN7005 FPC

PIC 0 1x VDSL2 Annex A

Power Supply 0

NOTE: In the show chassis hardware command, the Mini-Physical Interface Module (Mini-PIM) slot number is reported as an FPC number, and the Mini-PIM number (always 0) is reported as the PIC number.

Most components also have a serial number ID label attached to the component body.

SRX240 Services Gateway Chassis Serial Number and Agency Labels

The SRX240 Services Gateway has a serial number ID label and an agency label located on the back of the chassis as shown in Figure 26 on page 155.

Figure 26: Location of SRX240 Serial Number and Agency Labels

Serial# AFWWYYAA### 9037514

SRX240 Services Gateway Mini-Physical Interface Module Serial Number Label

Mini-Physical Interface Modules (Mini-PIMs) are field-replaceable on the SRX240 Services Gateway. Each Mini-PIM has a unique serial number. The serial number label is located on the right side of the Mini-PIM, when the Mini-PIM is horizontally oriented (as it would be installed on the device).

The exact location might be slightly different on different Mini-PIMs, depending on the placement of components on the Mini-PIM.

Related Documentation

Packing the SRX240 Services Gateway and Components for Shipment on page 156.

• Return Procedure for the SRX240 Services Gateway on page 153

• Information You Might Need to Supply to Juniper Networks Technical Assistance Center on page 156

Contacting Customer Support to Obtain Return Materials Authorization

This topic includes the following sections:

• Information You Might Need to Supply to Juniper Networks Technical Assistance Center on page 156

• Juniper Networks Technical Assistance Center on page 156

- Packing the SRX240 Services Gateway and Components for Shipment on page 156

Information You Might Need to Supply to Juniper Networks Technical Assistance Center

If you are returning a services gateway or hardware component to Juniper Networks for repair or replacement, obtain a Return Materials Authorization (RMA) number from Juniper Networks Technical Assistance Center (JTAC).

When requesting support from JTAC by telephone, be prepared to provide the following information:

• Your existing case number, if you have one
  • Details of the failure or problem
• Type of activity being performed on the services gateway when the problem occurred
• Configuration data displayed by one or more show commands
• Your name, organization name, telephone number, fax number, and shipping address

Related Documentation

Return Procedure for the SRX240 Services Gateway on page 153.

- Locating SRX240 Services Gateway Component Serial Number and Agency Labels on page 154

•Packing the SRX240 Services Gateway and Components for Shipment on page 156

•Juniper Networks Technical Assistance Center on page 106

Juniper Networks Technical Assistance Center

If you need assistance while troubleshooting a services gateway, open a support case using the Case Manager link at http://www.juniper.net/support/, or call 1-888-314-JTAC (within the United States) or 1-408-745-9500 (from outside the United States).

Related Documentation

• Information You Might Need to Supply to Juniper Networks Technical Assistance Center on page 156

Packing the SRX240 Services Gateway and Components for Shipment

This topic includes the following sections:

• Packing the Services Gateway on page 157
• Packing the Components for Shipment on page 157

Packing the Services Gateway

To pack the services gateway for shipment:

1. Retrieve the shipping carton and packing materials in which the services gateway was originally shipped. If you do not have these materials, contact your Juniper Networks representative about approved packaging materials.
2. Attach an electrostatic discharge (ESD) grounding strap to your bare wrist and connect the strap to the ESD point on the chassis or to an outside ESD point if the services gateway is disconnected from earth ground.
3. On the console or other management device connected to the services gateway, enter CLI operational mode and issue the following command to shut down the services gateway software:

user@host> request system power-off

Wait until a message appears on the console confirming that the operating system has halted.

1. Shut down power to the services gateway by pressing the Power button on the front panel of the services gateway.
2. Disconnect power from the services gateway.
3. Remove the cables that connect to all external services gateway.
4. Remove all field-replaceable units (FRUs) from the services gateway.
5. If the services gateway is installed on a rack, have one person support the weight of the services gateway while another person unscrews and removes the mounting screws.
6. Place the services gateway in the shipping carton.
7. Cover the services gateway with an ESD bag, and place the packing foam on top of and around the services gateway.
8. Replace the accessory box on top of the packing foam.
9. Securely tape the box closed.
10. Write the Return Materials Authorization (RMA) number on the exterior of the box to ensure proper tracking.

Packing the Components for Shipment

Follow these guidelines for packing and shipping individual components of the services gateway:

• When you return a component, ensure that it is adequately protected with packing materials and packed so that the pieces are prevented from moving around inside the carton.

• Use the original shipping materials if they are available.

• Place individual Mini-Physical Interface Modules (Mini-PIMs) in electrostatic bags.

• Write the Return Materials Authorization (RMA) number on the exterior of the box to ensure proper tracking.

CAUTION: Do not stack any of the services gateway components during packing.

Related Documentation

• Required Tools and Parts for Installing and Maintaining the SRX240 Services Gateway on page 39
• Locating SRX240 Services Gateway Component Serial Number and Agency Labels on page 154
  • Information You Might Need to Supply to Juniper Networks Technical Assistance Center on page 156
  •SRX240 Services Gateway General Safety Guidelines and Warnings on page 111
  • Return Procedure for the SRX240 Services Gateway on page 153
  •Juniper Networks Technical Assistance Center on page 106

PART 5

Index

- Index on page 161

Index

Symbols

, comments in configuration statements....xi

( ), in syntax descriptions....xi

< >, in syntax descriptions....xi

[ ], in configuration statements....xi

{ }, in configuration statements....xi

I (pipe), in syntax descriptions....xi

A

AC input line frequency....145

AC input voltage....145

AC system current rating....145

Accessory parts list....42

acoustic noise....141

agency approvals....138

agency labels....154

air filter, replacing....90

airflow 34

Alarm LED....14

approvals, agency....138

autoinstallation....61

use of built-in Ethernet ports....72

B

back panel....9

blank faceplate, removing....47

boot devices....18

braces, in configuration statements....xi

brackets

angle, in syntax descriptions....xi

square, in configuration statements....xi

building structure....33

C

CAT-5e....149

clearance requirements....34

CLI

configuring services gateway with....78

comments, in configuration statements....xi

compliance

EMC requirements....139

general standards....138

compliance statements for EMC requirements

Israel....139

configuration

factory default....72

use of built-in Ethernet ports....72

using the CLI....78

using the setup wizard....75

connecting to

CLI locally....64

CLI remotely....64

power....49

setup wizard....63

console port, RJ-45....151

conventions

notice icons....ix

text and syntax....x

cooling system....21

curly braces, in configuration statements....xi

customer support.....xii, 153

contacting JTAC....xii

D

DC input voltage....146

DC power cable....146

DC system current rating....146

default

built-in Ethernet interface configuration....72

security policy configuration....72

security zone configuration....72

documentation....xi

E

electrical and power requirements....35

electricity safety warnings....130

electromagnetic compatibility....144

electrostatic discharge damage....111, 114

EMC (EMI)

compliance with requirements....139

standards....138

EMC requirements

Israel....139

encrypted access

through HTTPS....85

through SSH....74

through SSL....85

Ethernet cable, connecting the services gateway to a management device....63

Ethernet port autoinstallation....72 chassis cluster....72 factory default configuration....72 initial configuration....72 RJ-45....150

F

factory default configuration....72

fans....21

fire safety specifications....115

flange holes....33

font conventions....x

front panel....9

G

Gigabit Ethernet port....12

grounding....49 cable, amperage....147 lug....147

H

HA LED....14

hardware features....5

HTTP (Hypertext Transfer Protocol) on built-in management interfaces....85

HTTPS (Hypertext Transfer Protocol over SSL) recommended for secure access....85

|

immunity standards....138

interfaces....12

internal flash....18

J

JTAC....106, 153, 156

L

laptop See management device laser safety guidelines....121

LEDs....14 safety warnings....121

lithium battery....140

M

maintenance guidelines warnings....125

management device connecting to CLI....64 connecting to setup wizard....63

manuals, list of ....xi

Mini-PIM description....23 installing....47 LED....14 removing....47 slots....12

monitoring alarm conditions....101 CLI....95 LEDs....97 power system....103

mounting brackets....33

N

NEBS standards....138

notice icons....ix

O

overview, installation....37

P

parentheses, in syntax descriptions....xi

parts list 3-prong power cord....41 chassis....41 DB-9 to RJ-45 adapter straight through, 7 feet....41 rack mounting kit....41

PC See management device

PoE....25 classes and power ratings....26 supported ports....25 supported standards....25

PoE Status LED....16

port LEDs TX/RX/Link and POE......16

port settings....67

power....49 powering on....57 shutting down....57

Power LED....14

Power over Ethernet....25

R

rack requirements....33
