USER MANUAL DT-510 SHARP

Black-and-white illustration of a family scene with TV, sports, and surveillance equipment (no text or symbols)

PICTURE BY DLP® TEXAS INSTRUMENTS

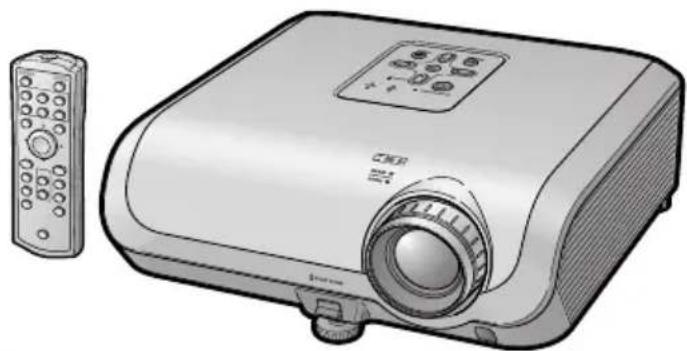

Illustration of a projector with a remote control unit beside it (no text or symbols visible)

HDMI ^TM

HIGH-DEFINITION MULTIMEDIA INTERFACE

Before using the projector, please read this operation manual carefully.

Introduction

IMPORTANT

• For your assistance in reporting the loss or theft of your Projector, please record the Serial Number located on the bottom of the projector and retain this information.
• Before recycling the packaging, please ensure that you have checked the contents of the carton thoroughly against the list of "Supplied accessories" on page 10.

Model No.: DT-510

Serial No.:

WARNING:

High brightness light source. Do not stare into the beam of light, or view directly. Be especially careful that children do not stare directly into the beam of light.

WARNING:

To reduce the risk of fire or electric shock, do not expose this product to rain or moisture.

See bottom of projector.

CAUTION

RISK OF ELECTRIC SHOCK. DO NOT REMOVE SCREWS EXCEPT SPECIFIED USER SERVICE SCREW.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS EXCEPT LAMP UNIT. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk or electric shock to persons.

The exclamation point within a triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

WARNING:

FCC Regulations state that any unauthorized changes or modifications to this equipment not expressly approved by the manufacturer could void the user's authority to operate this equipment.

U.S.A. ONLY

WARNING:

The cooling fan in this projector continues to run for about 90 seconds after the projector enters standby mode. During normal operation, when putting the projector into standby mode always use the STANDBY/ON button on the projector or the STANDBY button on the remote control. Ensure the cooling fan has stopped before disconnecting the power cord. DURING NORMAL OPERATION, NEVER TURN THE PROJECTOR OFF BY DISCONNECTING THE POWER CORD. FAILURE TO OBSERVE THIS WILL RESULT IN PREMATURE LAMP FAILURE

INFORMATION

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the operation manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
  U.S.A. ONLY

Declaration of conformity

SHARP PROJECTOR, MODEL DT-510

This device complies with Part 15 of the FCC rules. Operation is subject to the following conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Responsible Party:

SHARP ELECTRONICS CORPORATION

Sharp Plaza, Mahwah, New Jersey 07430-2135

TEL: 1-800-BE-SHARP (1-800-237-4277)

U.S.A. ONLY

PRODUCT DISPOSAL

This projector utilizes tin-lead solder, and a pressurized lamp containing a small amount of mercury. Disposal of these materials may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or, if you are located in the United States of America, the Electronic Industries Alliance: www.eiae.org.

Caution Concerning Lamp Replacement

See "Replacing the Lamp" on page 56.

This SHARP projector uses a DLP® chip. This very sophisticated panel contains 921,600 pixels (micromirrors). As with any high technology electronic equipment such as large screen TVs, video systems and video cameras, there are certain acceptable tolerances that the equipment must conform to.

This unit has some inactive pixels within acceptable tolerances which may result in inactive dots on the picture screen. This will not affect the picture quality or the life expectancy of the unit.

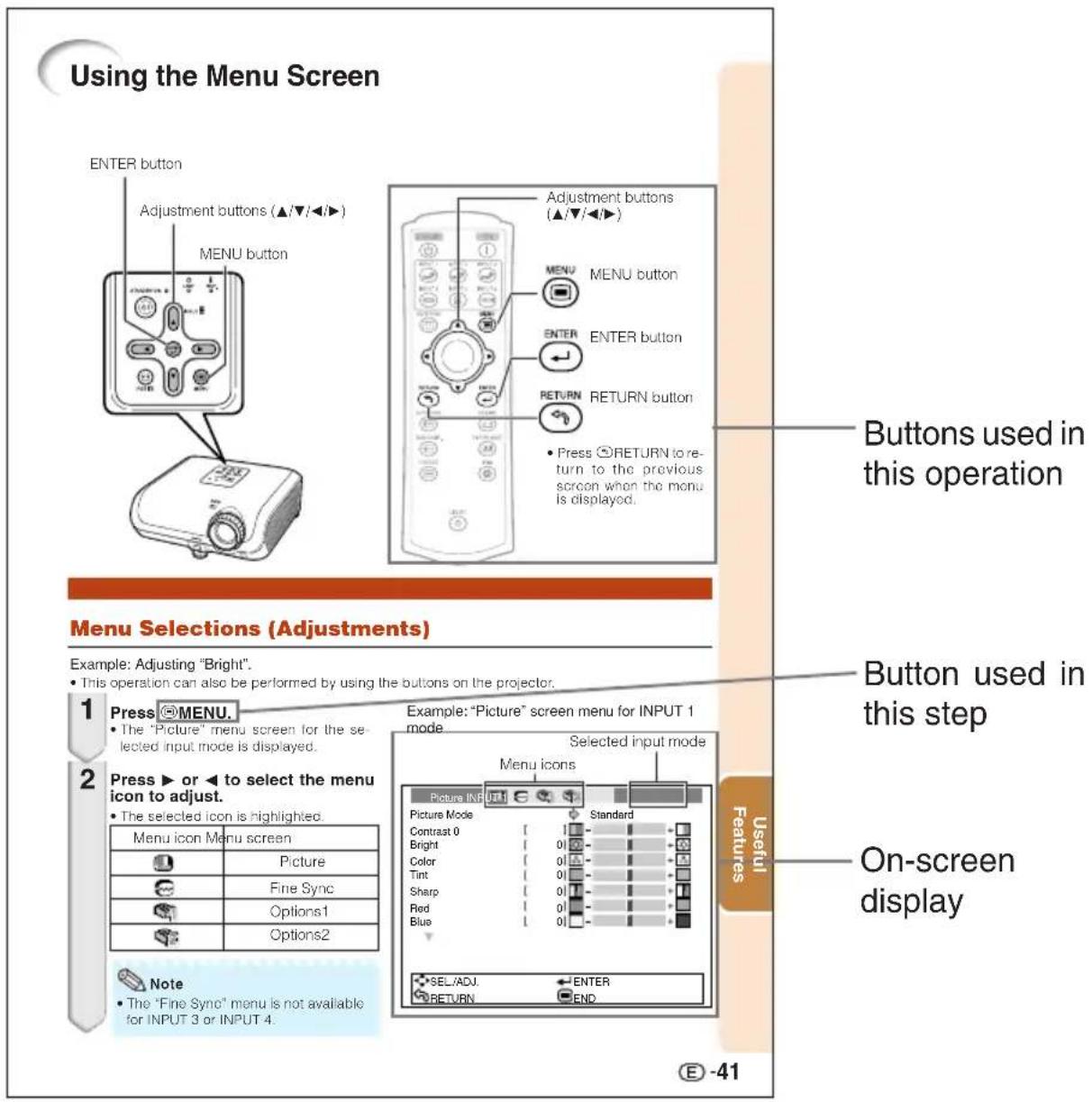

How to Read this Operation Manual

■ The specifications are slightly different, depending on the model. However, you can connect and operate all models in the same manner.
- In this operation manual, the illustration and the screen display are simplified for explanation, and may differ slightly from the actual display.

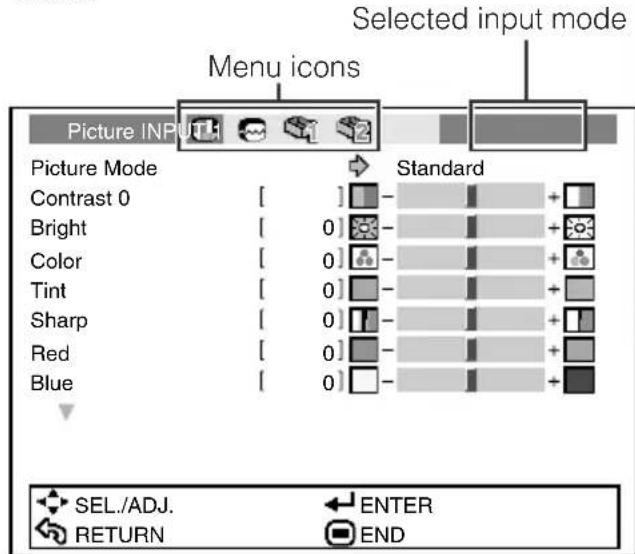

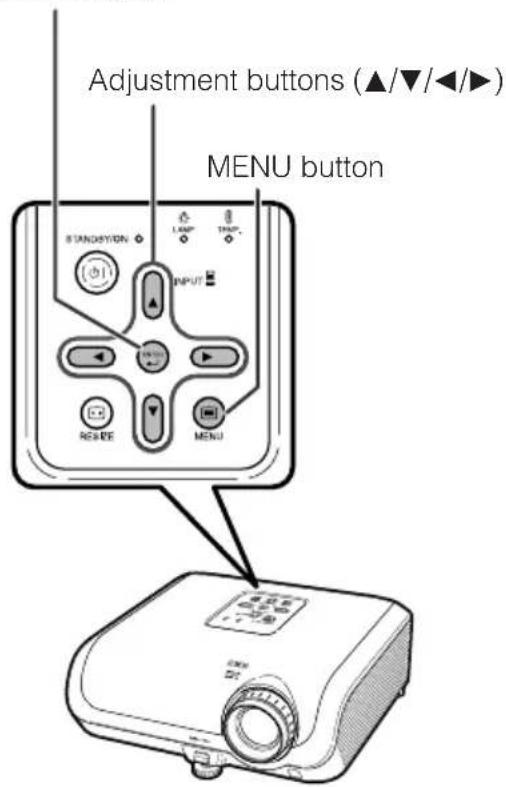

Using the Menu Screen ENTER button Adjustment buttons (▲/▼/◄/►) MENU button Adjustment buttons (▲/▼/◄/►) MENU MENU button ENTER ENTER button RETURN RETURN button Press RETURN to return to the previous screen when the menu is displayed. Buttons used in this operation Menu Selections (Adjustments) Example: Adjusting "Bright". • This operation can also be performed by using the buttons on the projector. 1 Press MENU. • The "Picture" menu screen for the selected input mode is displayed. 2 Press ► or ► to select the menu icon to adjust. • The selected icon is highlighted. Menu icon Menu screen Picture Fine Sync Options1 Options2 Example: "Picture" screen menu for INPUT 1 mode. Selected input mode Menu icons Picture IN Picture Mode Contrast 0 Bright Color Tint Sharp Red Blue Standard Useful Features SEL/ADJ. ENTER RETURN END Button used in this step On-screen display Note • The "Fine Syno" menu is not available for INPUT 3 or INPUT 4. E -41

Info .....Indicates safeguards for using the projector.

Note......Indicates additional information for setting up and operating the projector.

For Future Reference

IndexMaintenance

P. 51

PP. 61 and 62

P. 65

Preparing

Introduction

How to Read this Operation Manual .... 3

Contents 4

IMPORTANT SAFEGUARDS ...... 6

Accessories 10

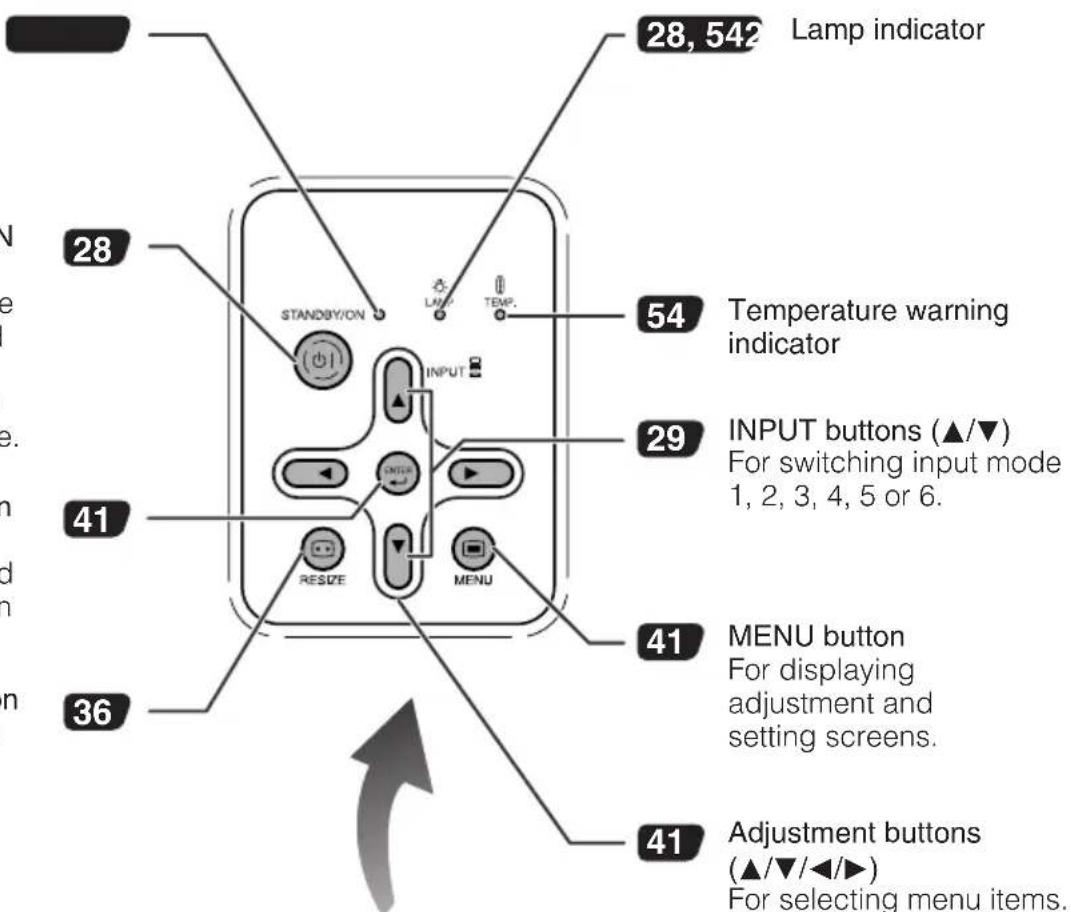

Part Names and Functions 11

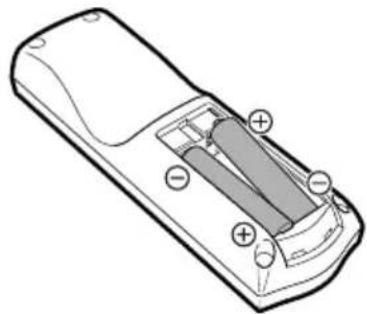

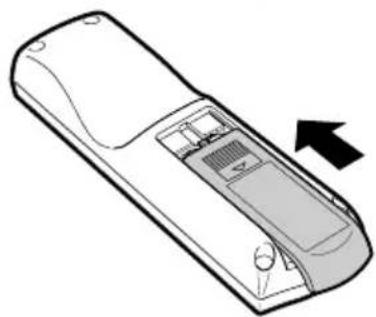

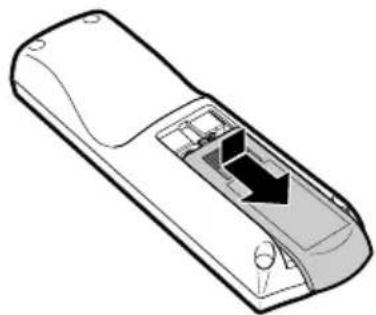

Inserting the Batteries 14

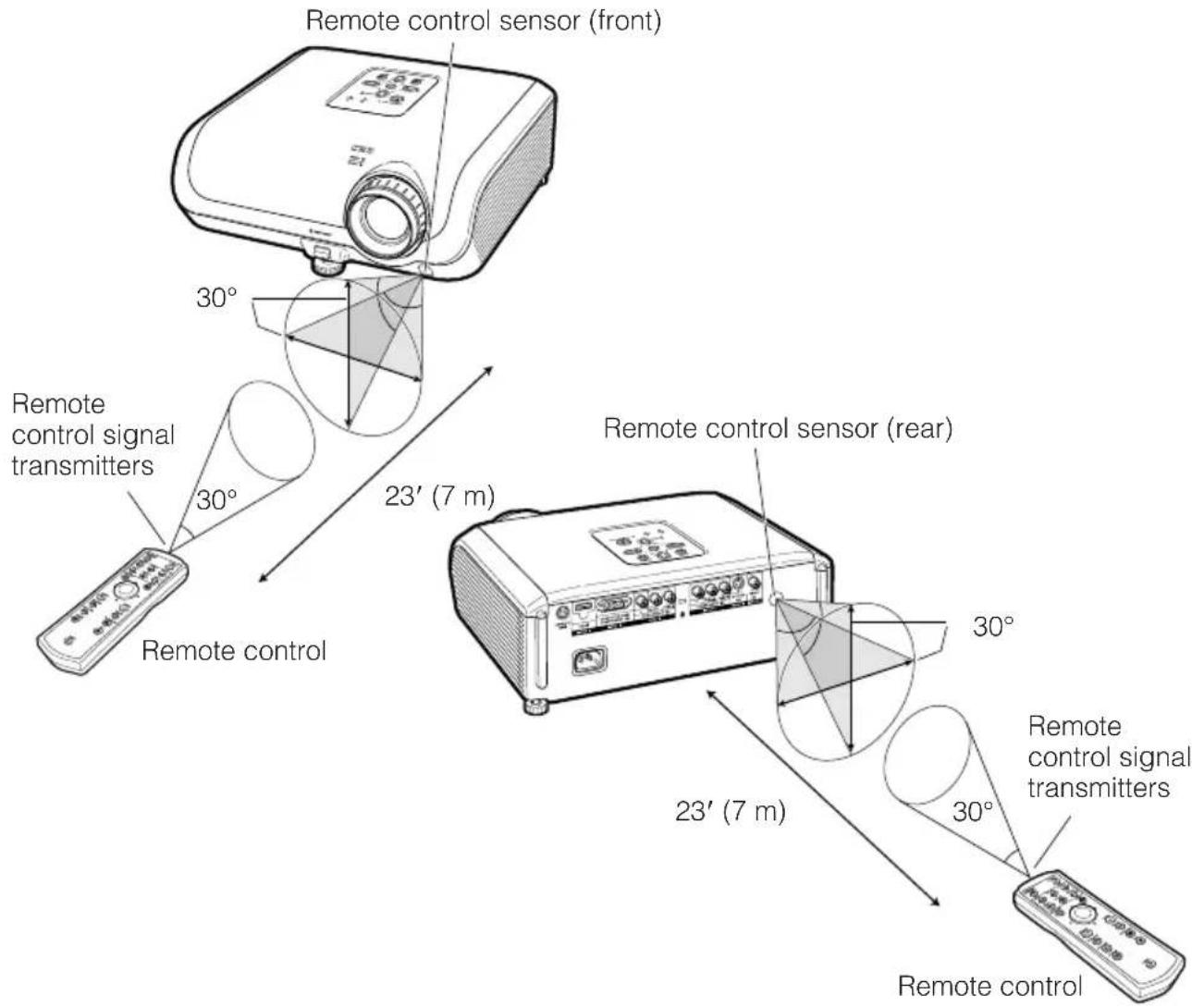

Usable Range 15

Quick Start

Quick Start 16

Setup

Setting up the Projector 18

Setting up the Projector 18

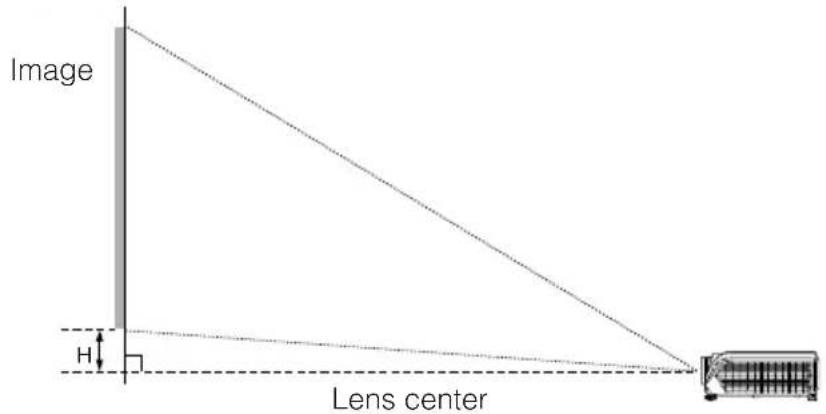

Standard Setup (Front Projection) ..... 18

Ceiling-mount Setup 18

Projection (PRJ) Mode 19

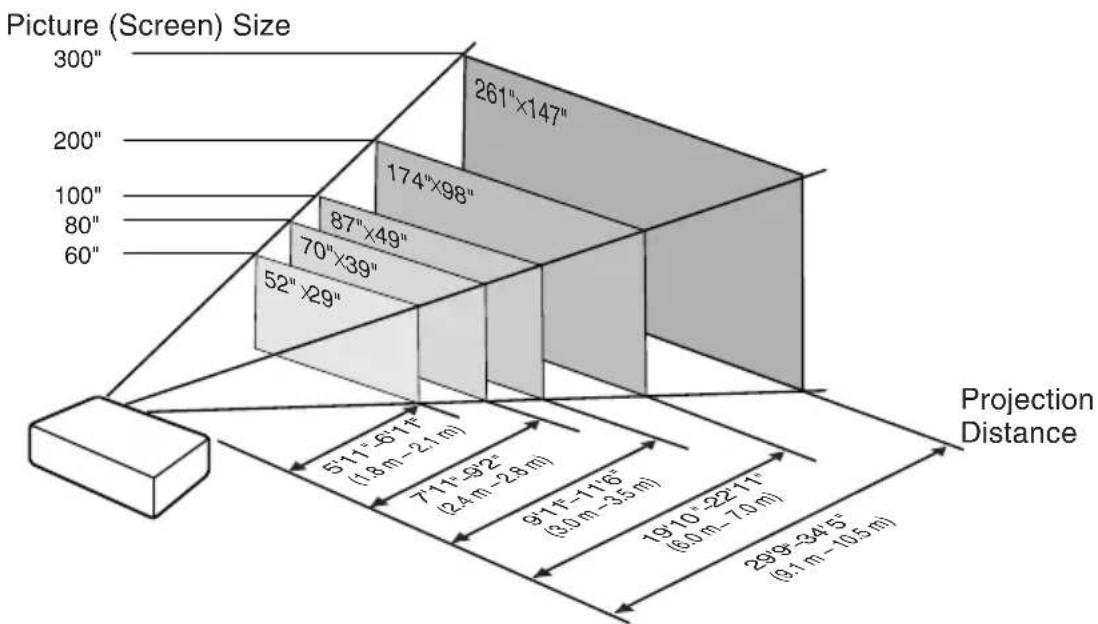

Picture (Screen) Size and Projection Distance 20

Connections

Samples of Cables for Connection ..... 22

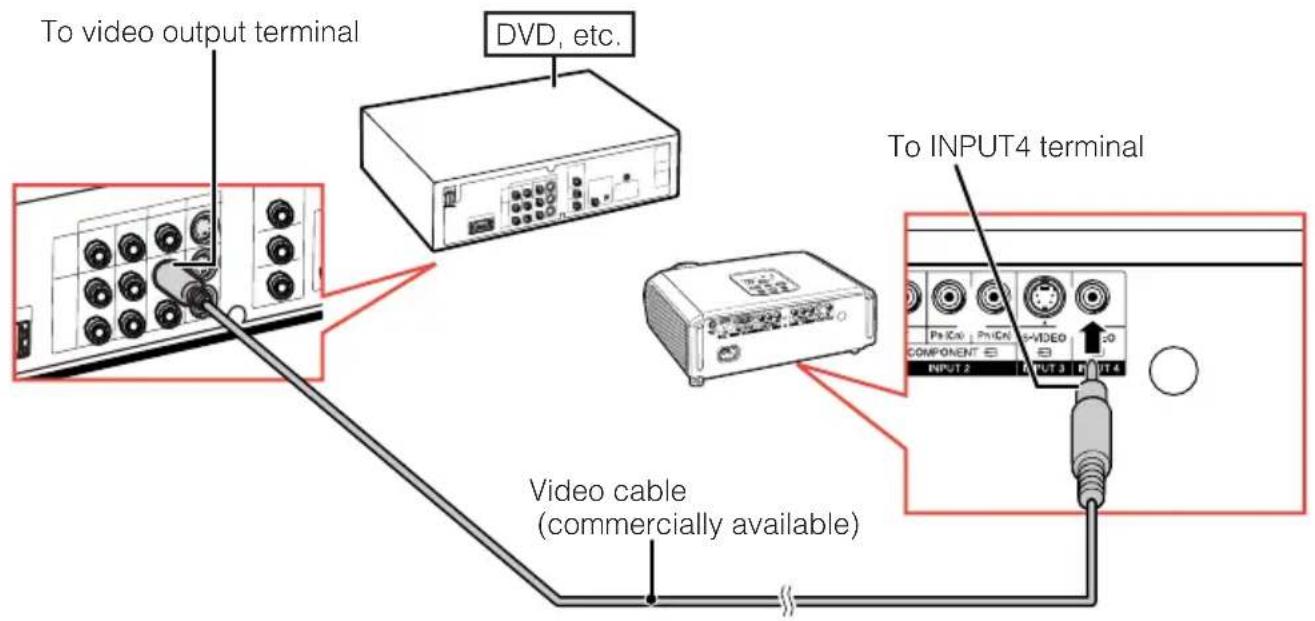

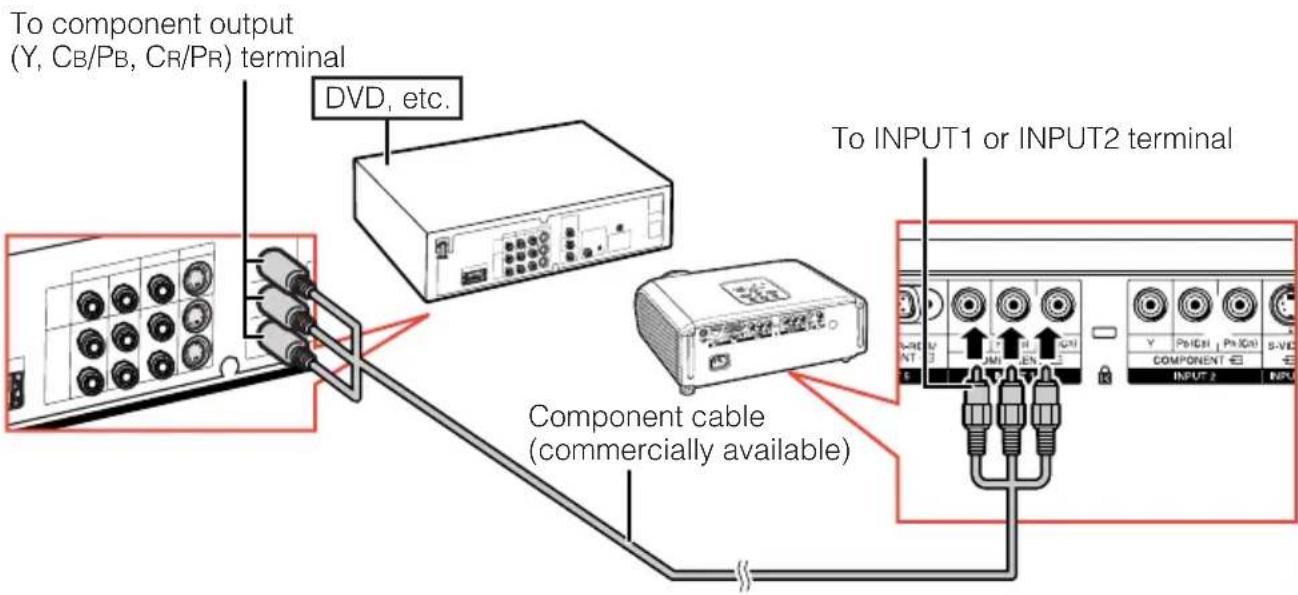

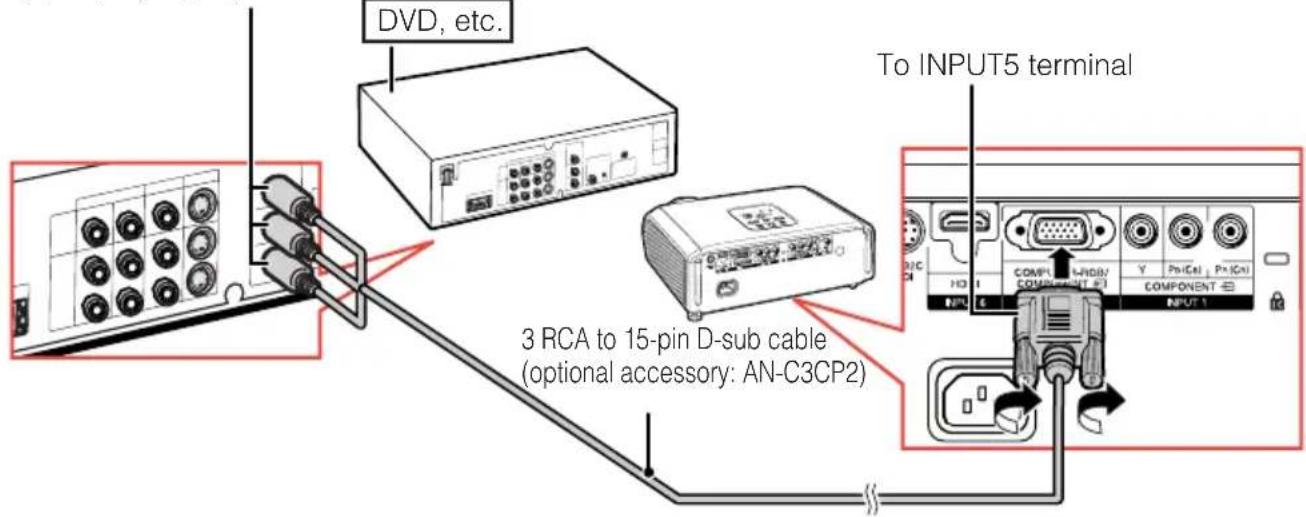

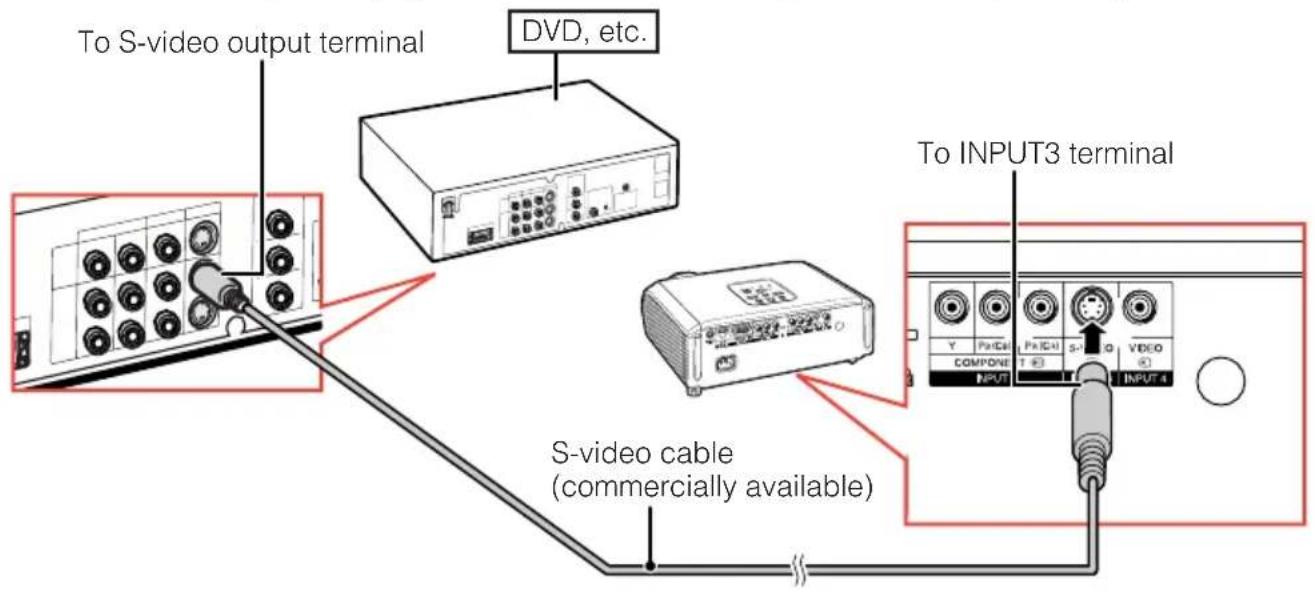

Connecting to Video Equipment ..... 23

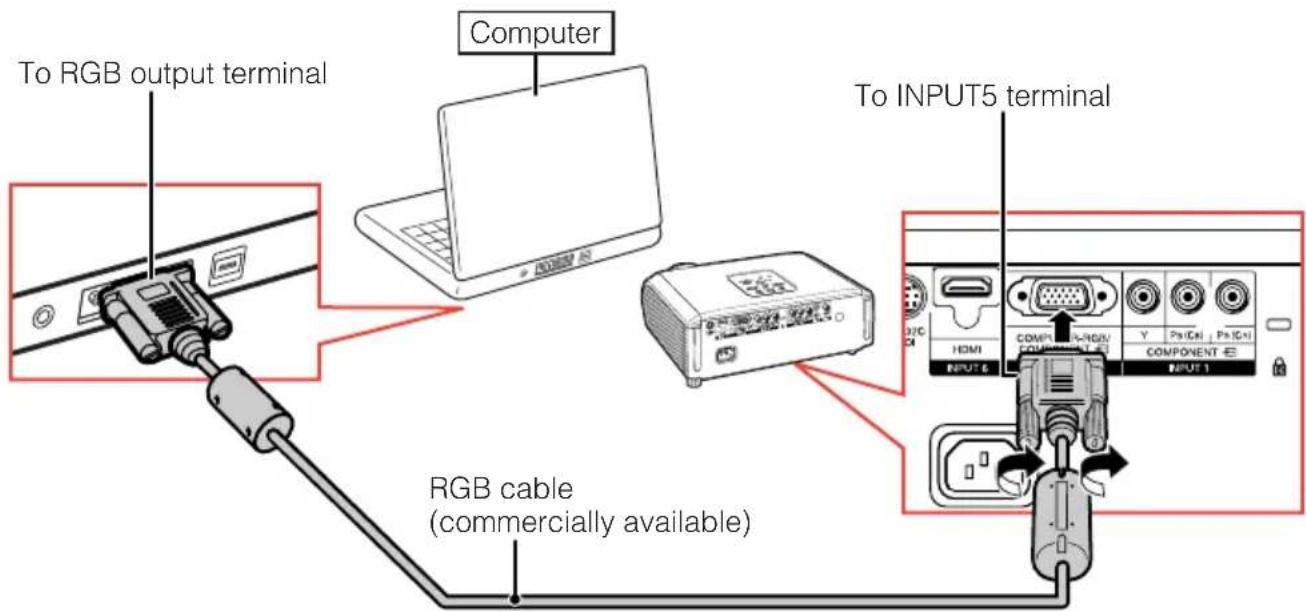

Connecting to a Computer 27

Using

Basic Operation

Turning the Projector On/Off 28

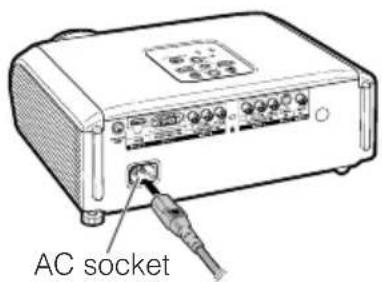

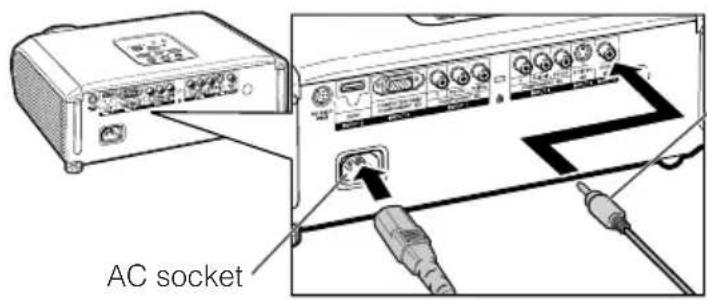

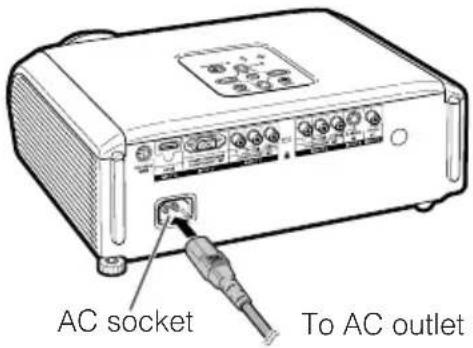

Connecting the Power Cord 28

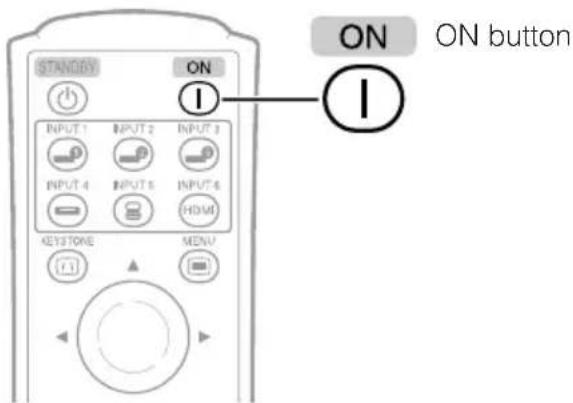

Turning the Projector on 28

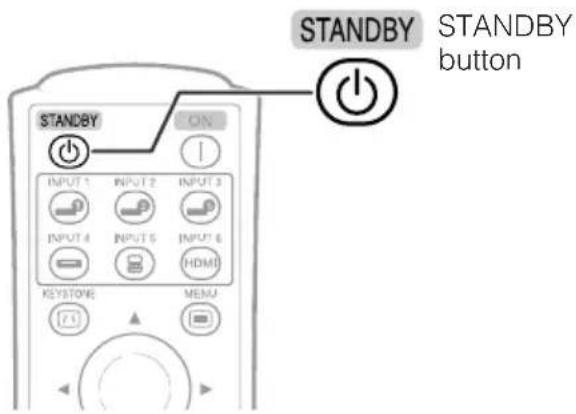

Turning the Power off (Putting the Projector into Standby Mode) ...... 29

Image Projection 29

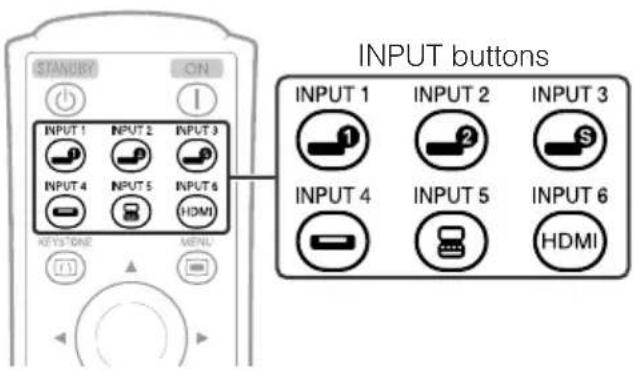

Switching the Input Mode 29

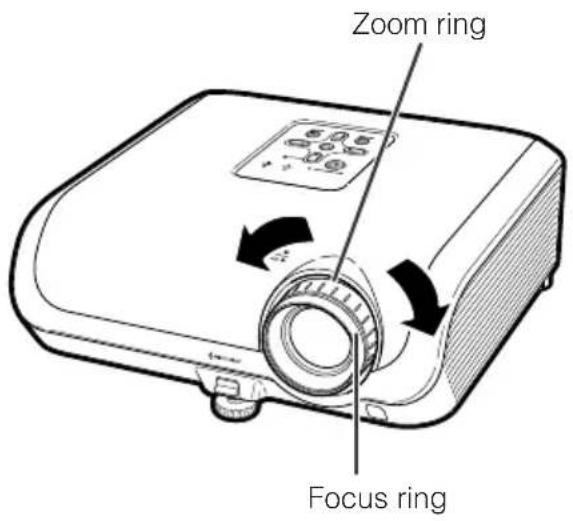

Adjusting the Projected Image 30

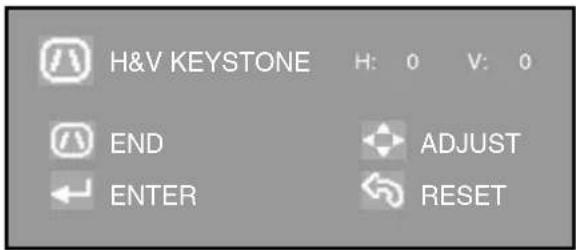

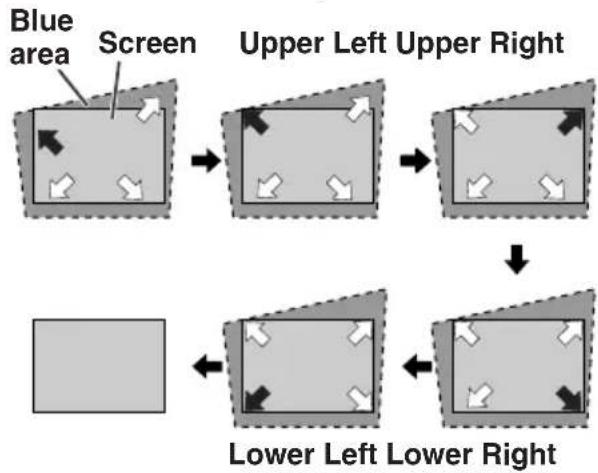

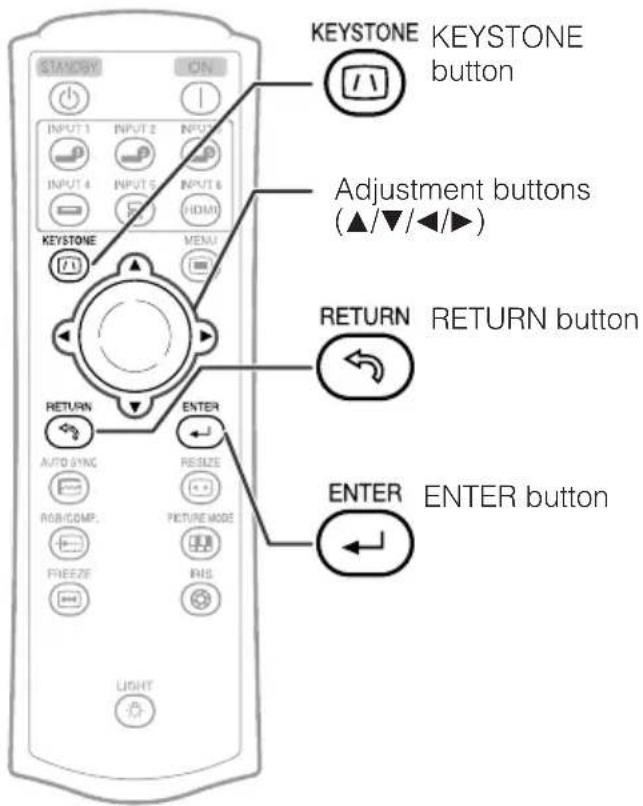

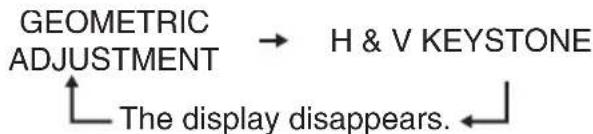

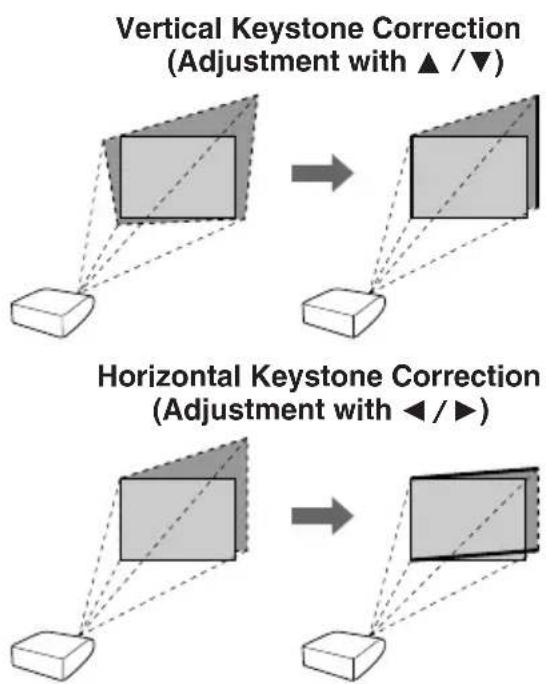

Correcting Trapezoidal Distortion ..... 32

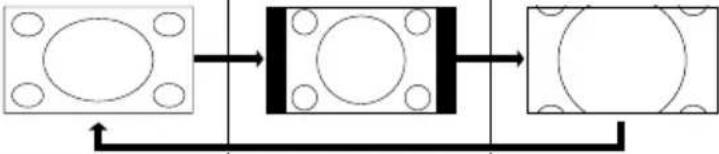

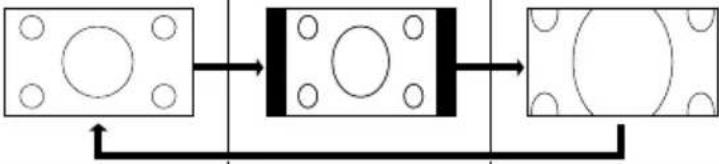

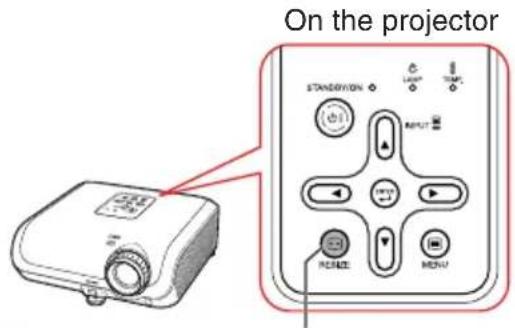

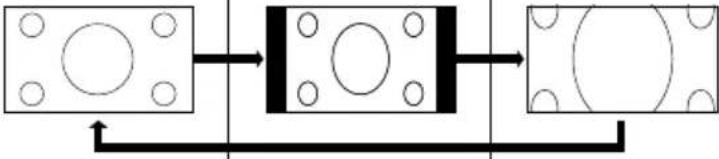

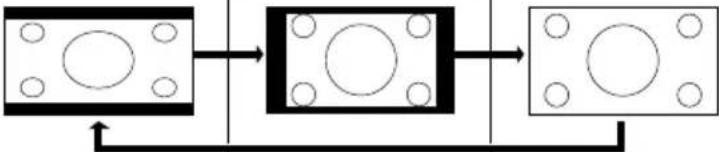

Resize Mode 36

Useful Features

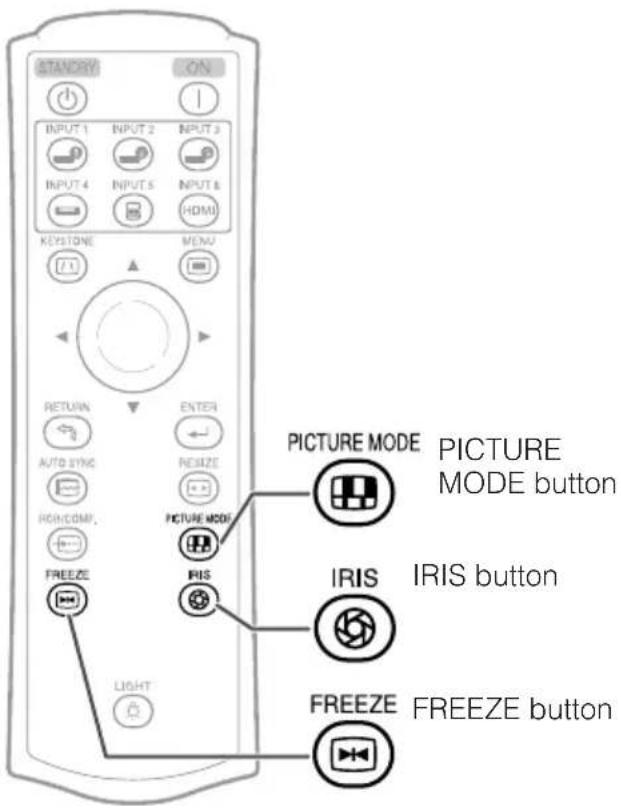

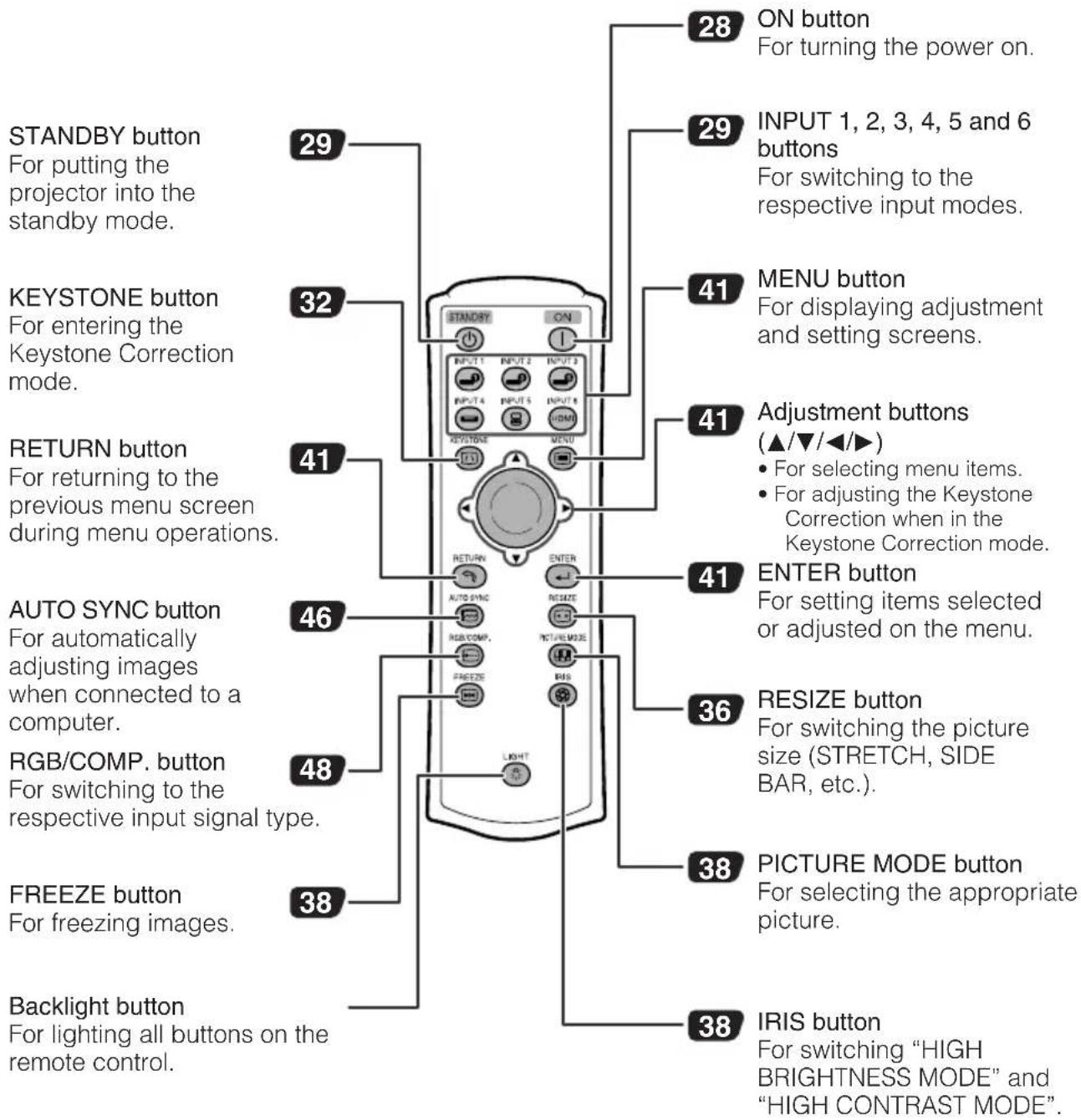

Operating with the Remote Control .... 38

Selecting the Picture Mode 38

Switching the Iris Setting 38

Freezing a Moving Image 38

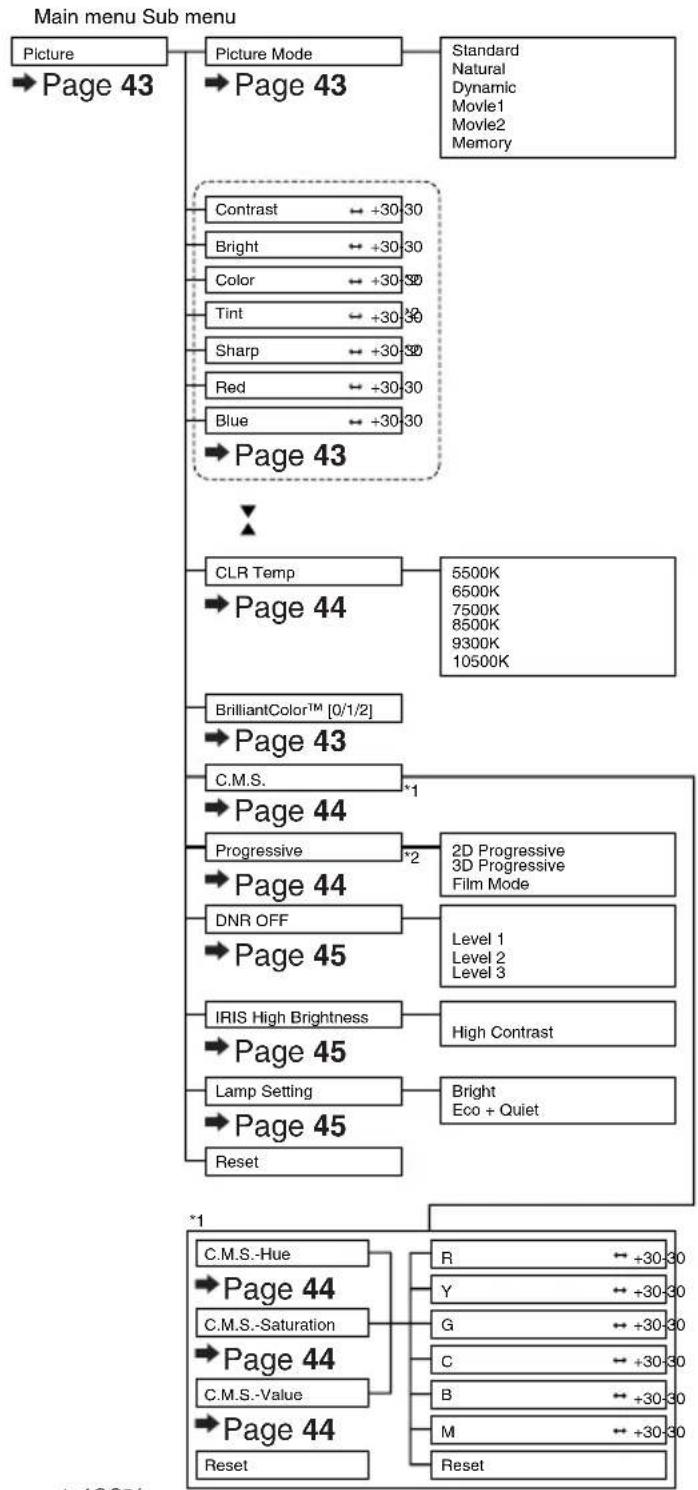

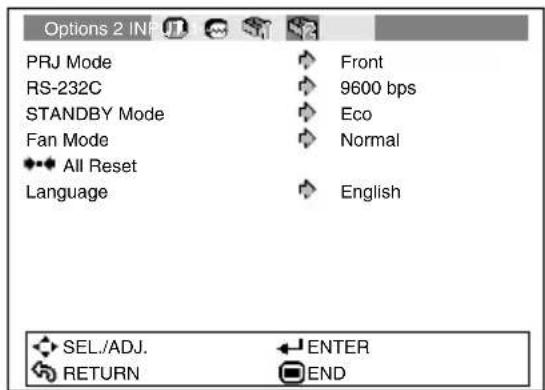

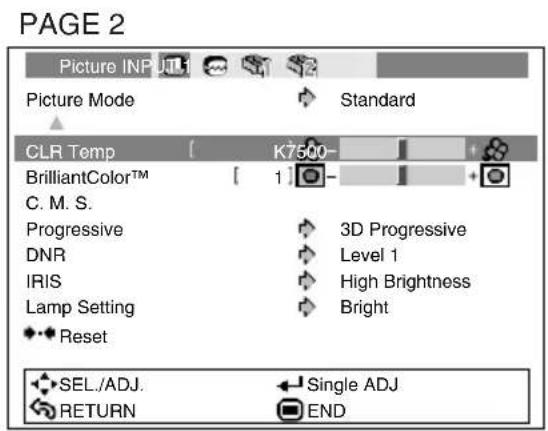

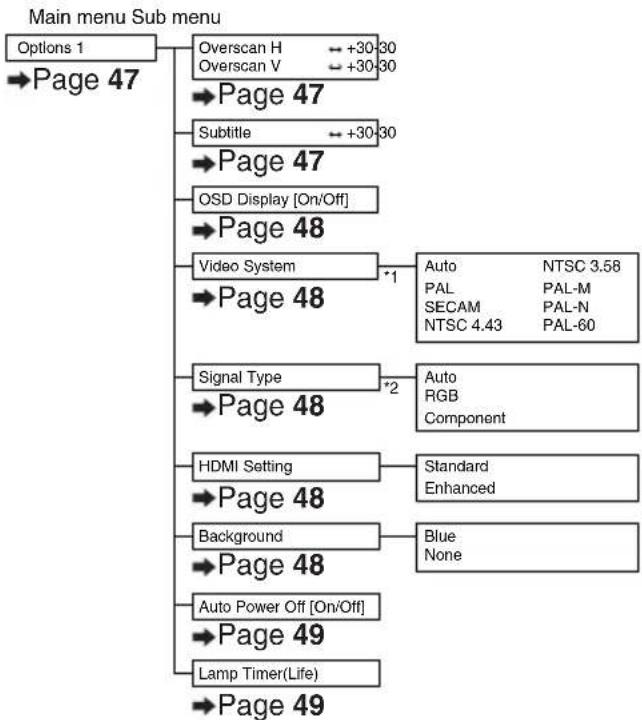

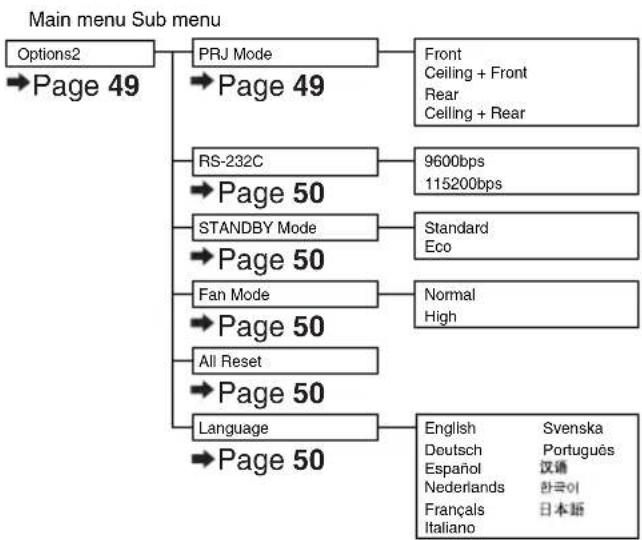

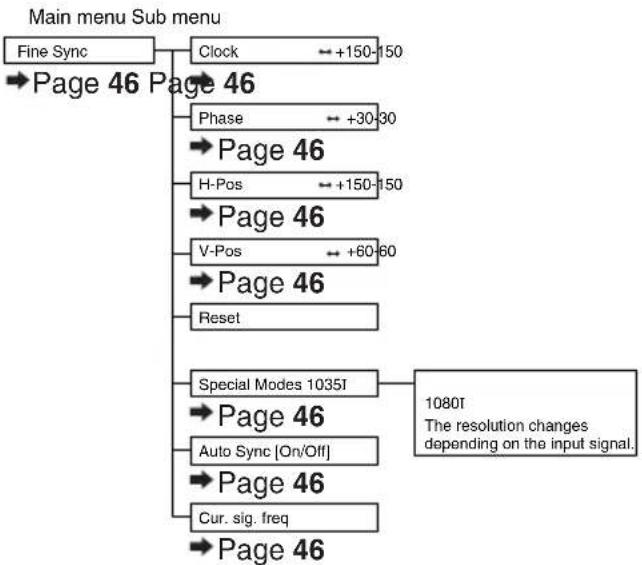

Menu Items 39

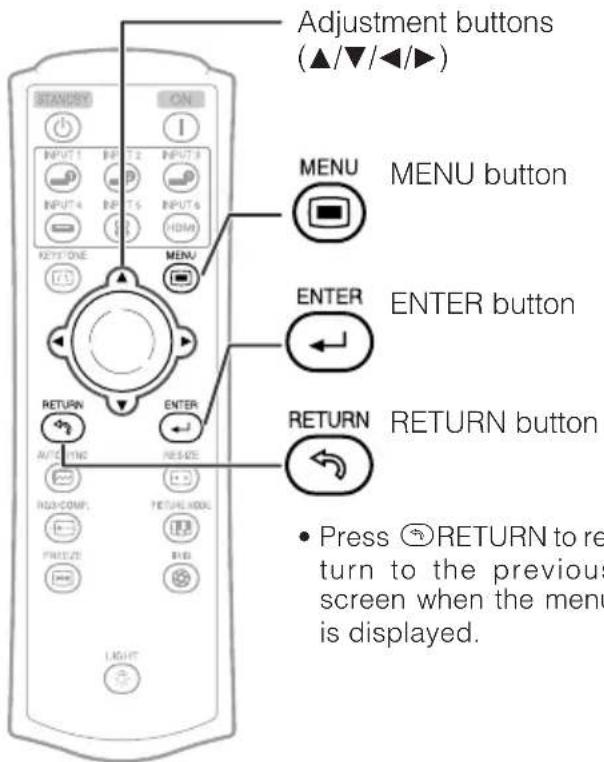

Using the Menu Screen 41

Menu Selections (Adjustments) ...... 41

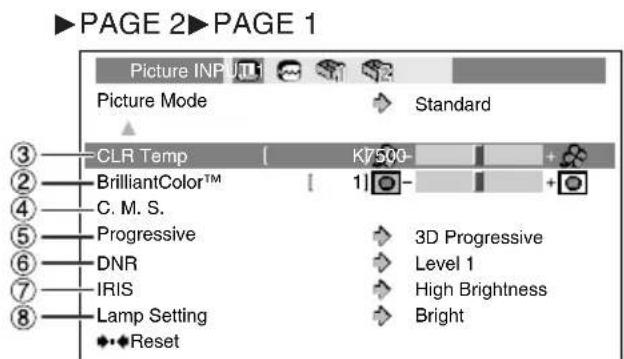

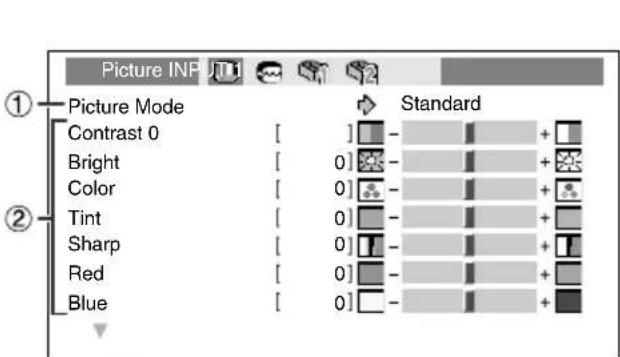

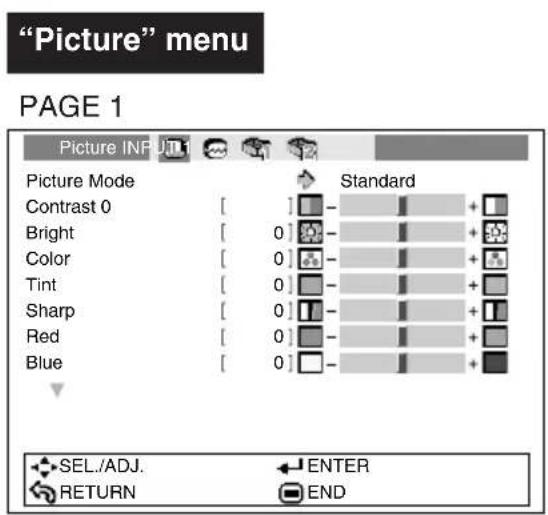

Picture Adjustment ("Picture" menu) .. 43

Selecting the Picture Mode 43

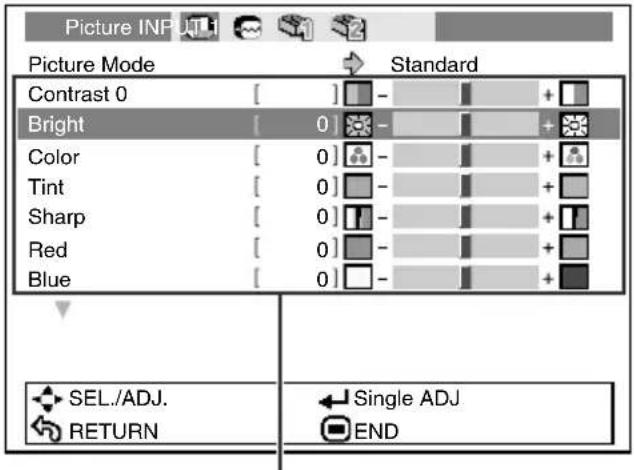

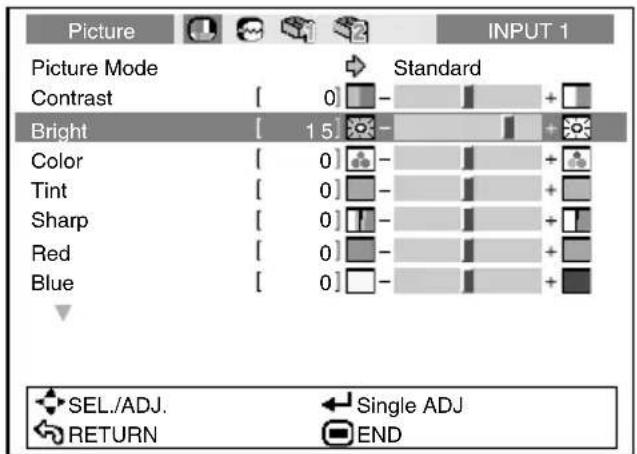

Adjusting the Image 43

Adjusting the Color Temperature ..... 44

Adjusting the Colors 44

Progressive 44

Reducing Image Noise (DNR) 45

Switching the Iris Setting 45

Lamp Setting 45

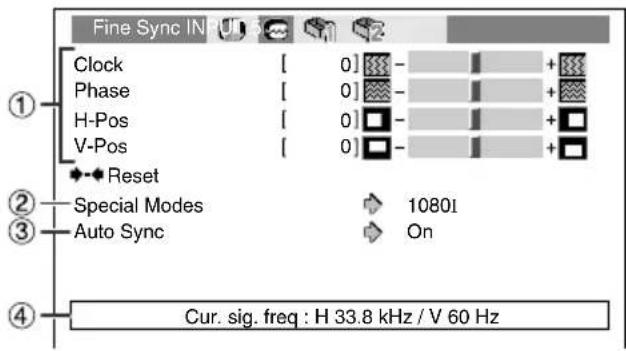

Computer Image Adjustment

("Fine Sync" menu).... 46

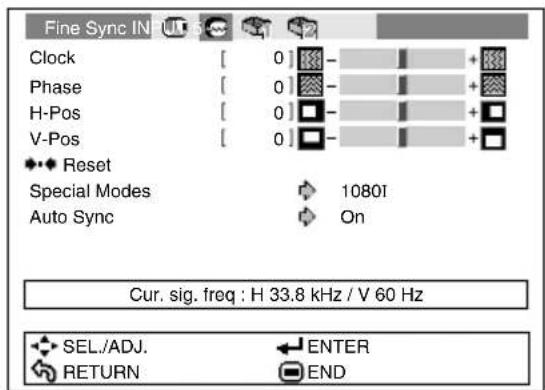

Adjusting the Computer Image ..... 46

Special Modes Setting 46

Auto Sync (Auto Sync Adjustment) ..... 46

Checking the Input Signal 46

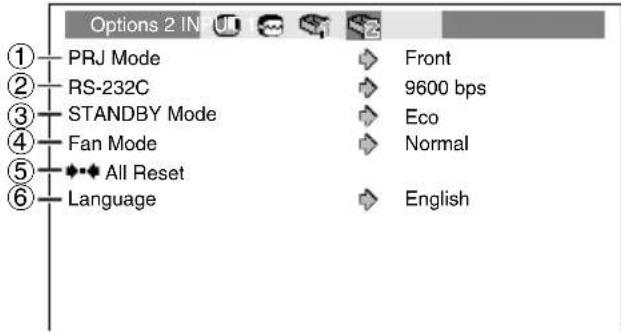

Using the "Options" Menu 47

Adjusting the Overscan 47

Adjusting the Vertical Size of the Display (Subtitle Setting) 47

Setting the On-screen Display 48

Setting the Video System 48

Signal Type Setting 48

Selecting the HDMI Setting 48

Selecting the Background Image ..... 48

Auto Power Off Function 49

Checking the Lamp Life Status ..... 49

Reversing/Inverting Projected Images 49

Selecting the Transmission Speed (RS-232C) 50

Reducing the Power Consumption When the Power Is in Standby Mode ..... 50

Fan Mode Setting 50

Returning to the Default Settings ..... 50

Selecting the On-screen Display Language 50

Reference

Appendix

Maintenance 51

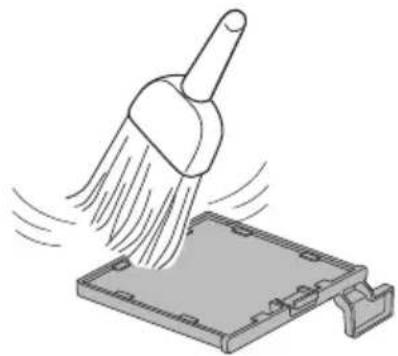

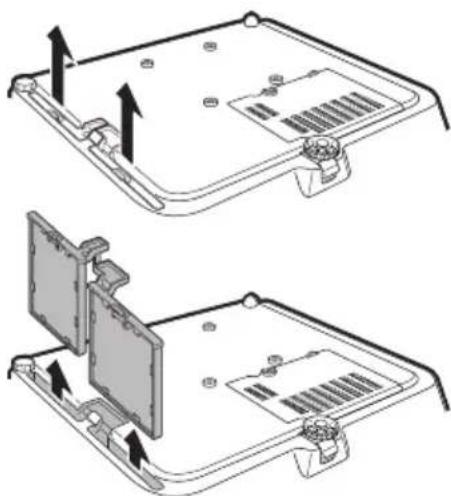

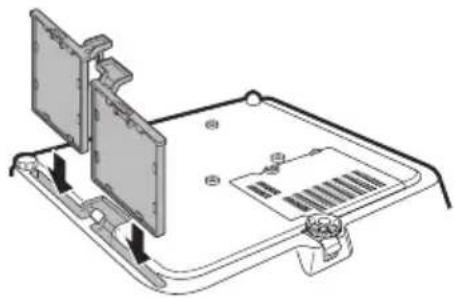

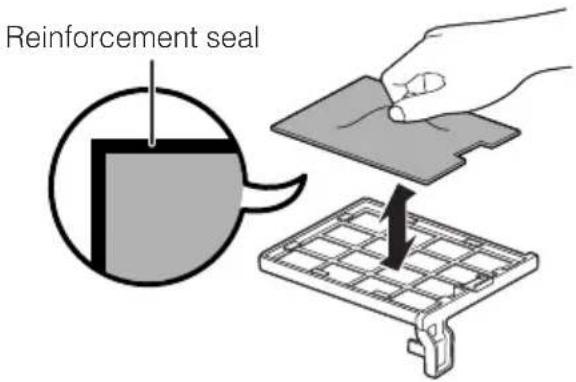

Cleaning and Replacing the Dust Filters 52

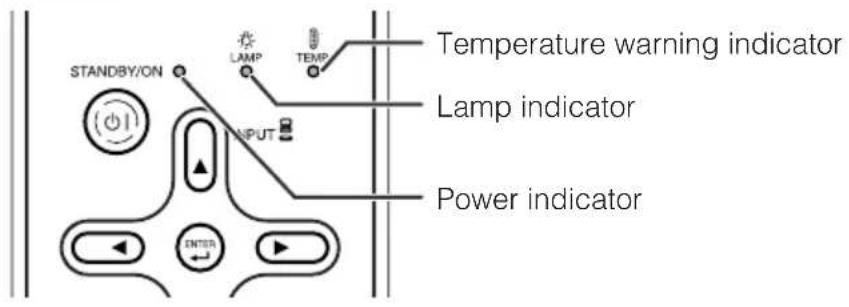

Maintenance Indicators 54

Regarding the Lamp 56

Lamp 56

Caution Concerning the Lamp 56

Replacing the Lamp 56

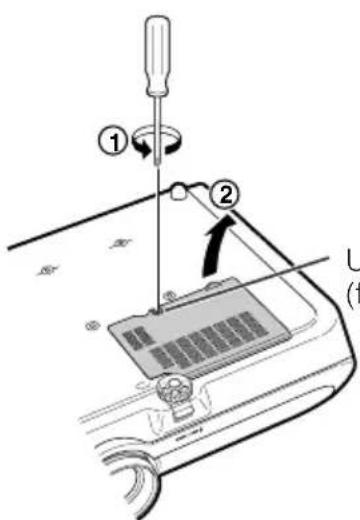

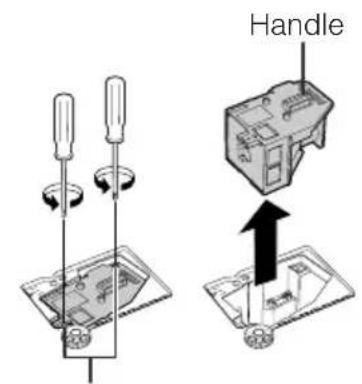

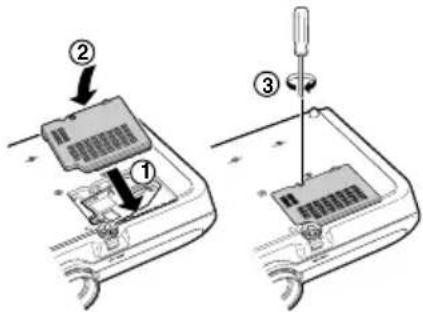

Removing and Installing the Lamp Unit 57

Resetting the Lamp Timer 58

Connecting Pin Assignments ..... 59

Computer Compatibility Chart ...... 60

Troubleshooting 61

Service Information (For the U.S.) ..... 62

Specifications 63

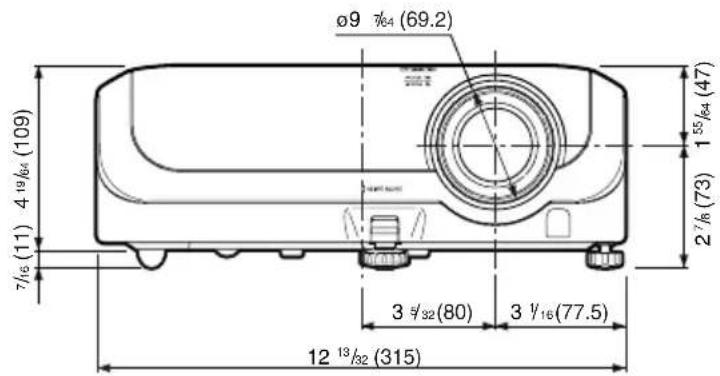

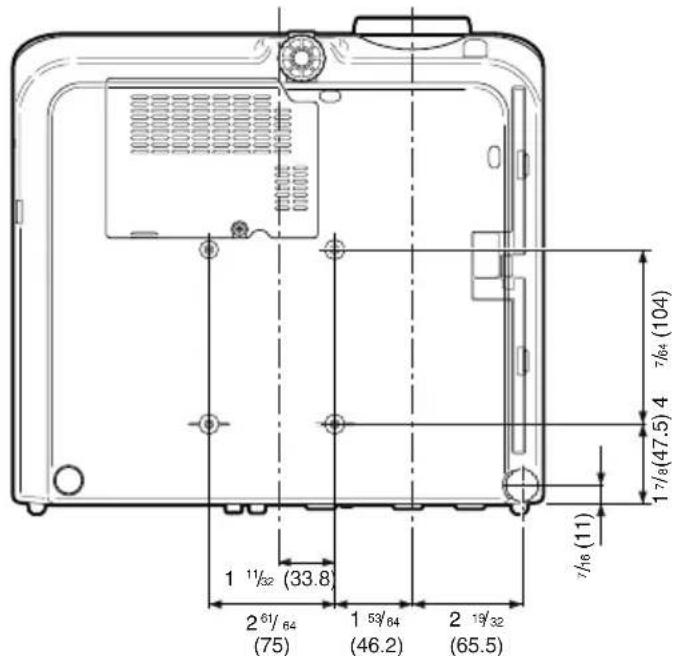

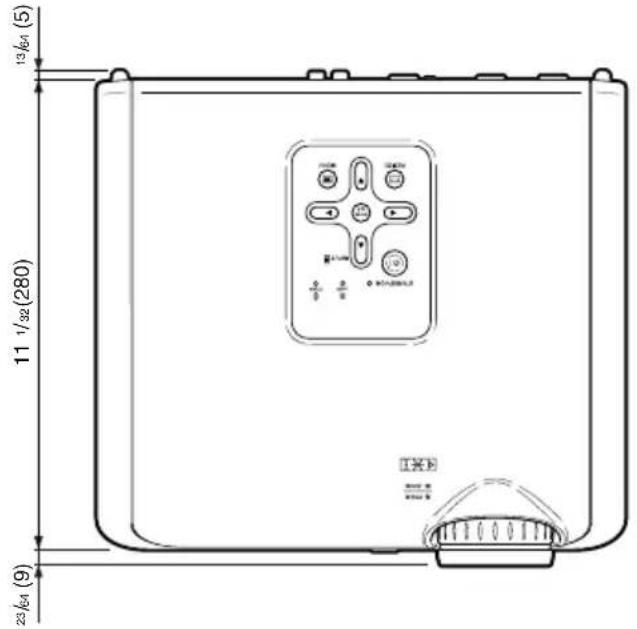

Dimensions 64

Index 65

CONSUMER LIMITED WARRANTY (VALID IN USA ONLY) 66

LIMITED WARRANTY (VALID IN CANADA ONLY) 67

IMPORTANT SAFEGUARDS

CAUTION: Please read all of these instructions before you operate this product and save these instructions for later use.

Electrical energy can perform many useful functions. This product has been engineered and manufactured to assure your personal safety. BUT IMPROPER USE CAN RESULT IN POTENTIAL ELECTRICAL SHOCK OR FIRE HAZARDS. In order not to defeat the safeguards incorporated in this product, observe the following basic rules for its installation, use and servicing.

1. Read Instructions

All the safety and operating instructions should be read before the product is operated.

2. Retain Instructions

The safety and operating instructions should be retained for future reference.

3. Heed Warnings

All warnings on the product and in the operating instructions should be adhered to.

4. Follow Instructions

All operating and use instructions should be followed.

5. Cleaning

Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

6. Attachments

Do not use attachments not recommended by the product manufacturer as they may cause hazards.

7. Water and Moisture

Do not use this product near water-for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like.

8. Accessories

Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer's instructions, and should use a mounting accessory recommended by the manufacturer.

9. Transportation

A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.

Symbolic icon of a person assembling a large mechanical component, enclosed in a circular frame (no text or symbols)

10. Ventilation

Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.

11. Power Sources

This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.

12. Grounding or Polarization

This product is provided with one of the following types of plugs. If the plug should fail to fit into the power outlet, please contact your electrician. Do not defeat the safety purpose of the plug.

a. Two-wire type (mains) plug.
b. Three-wire grounding type (mains) plug with a grounding terminal.
This plug will only fit into a grounding type power outlet.

13. Power-Cord Protection

Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.

14. Lightning

For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the cable system. This will prevent damage to the product due to lightning and power-line surges.

15. Overloading

Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.

16. Object and Liquid Entry

Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

17. Servicing

Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

18. Damage Requiring Service

Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a. When the power-supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen into the product.
c. If the product has been exposed to rain or water.
d. If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions, as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to normal operation.

e. If the product has been dropped or damaged in any way.

f. When the product exhibits a distinct change in performance, this indicates a need for service.

19. Replacement Parts

When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.

20. Safety Check

Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.

21. Wall or Ceiling Mounting

This product should be mounted to a wall or ceiling only as recommended by the manufacturer.

22. Heat

This product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

• The DLP ^ logo, the DLP ^ medallion and BrilliantColor ^TM are trademarks of Texas Instruments.
• Microsoft® and Windows® are registered trademarks of Microsoft Corporation in the United States and/or other countries.
• PC/AT is a registered trademark of International Business Machines Corporation in the United States.
• Macintosh ^ is a registered trademark of Apple Computer, Inc. in the United States and/or other countries.
• HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
• All other company or product names are trademarks or registered trademarks of their respective companies.
• Some IC chips in this product include confidential and/or trade secret property belonging to Texas Instruments. Therefore you may not copy, modify, adapt, translate, distribute reverse engineer, reverse assemble or discompile the contents thereof.

Observe the following safeguards when setting up your projector.

Caution concerning the lamp unit

■Potential hazard of glass particles if lamp ruptures. In case of lamp rupture, contact your nearest Sharp Authorized Service Center or Dealer for replacement. See “Replacing the Lamp” on page 56.

高温注意 CAUTION PRECAUCTION PRECAUTION

Caution concerning the setup of the projector

■For minimal servicing and to maintain high image quality, SHARP recommends that this projector be installed in an area free from humidity, dust and cigarette smoke. When the projector is subjected to these environments, the vents and lens must be cleaned more often. As long as the projector is regularly cleaned, use in these environments will not reduce the overall operation life of the unit. Internal cleaning should only be performed by a Sharp Authorized Service Center or Dealer.

Do not set up the projector in places exposed to direct sunlight or bright light.

■Position the screen so that it is not in direct sunlight or room light. Light falling directly on the screen washes out the colors, making viewing difficult. Close the curtains and dim the lights when setting up the screen in a sunny or bright room.

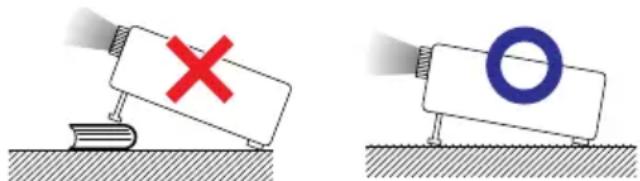

Caution regarding placing of the projector

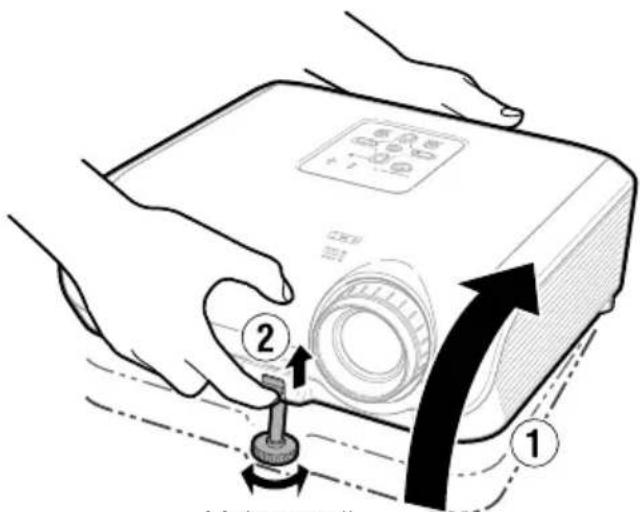

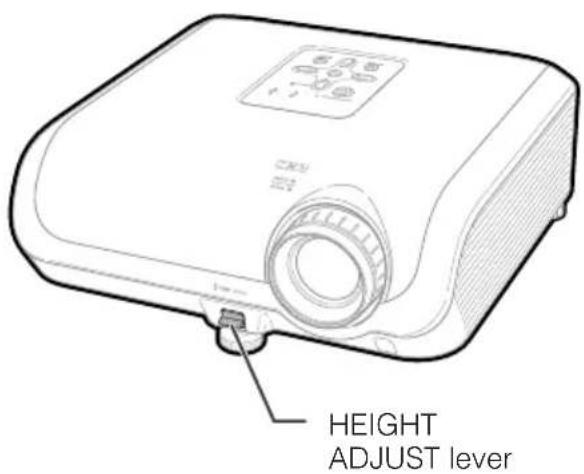

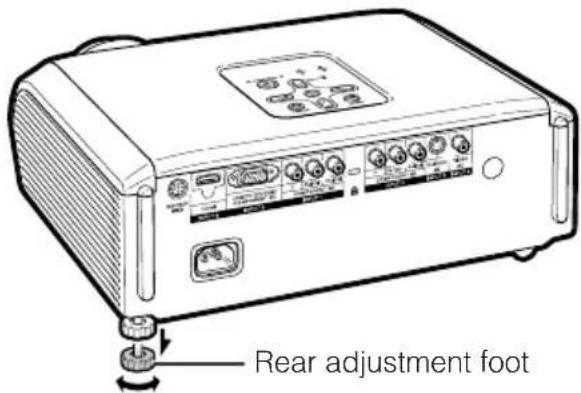

■Place the projector on a level site within the adjustment range (8 degrees) of the adjustment foot.

Two diagrams showing a hand holding a red X mark and a blue circle on a surface, with no text or symbols present.

■After the projector is purchased, a faint smell from the vent may appear when the power is first turned on. This is normal and is not a malfunction. It will disappear after the projector is used for a while.

When using the projector in high-altitude areas such as mountains (at altitudes of approximately 4,900 feet (1,500 meters) or more)

■When you use the projector in high-altitude areas with thin air, set "Fan Mode" to "High". Neglecting this can affect the longevity of the optical system.

Warning about placing the projector in a high position

■When placing the projector in a high position, make certain it is carefully secure to avoid personal injury caused by the projector falling down.

Do not subject the projector to hard impact and/or vibration.

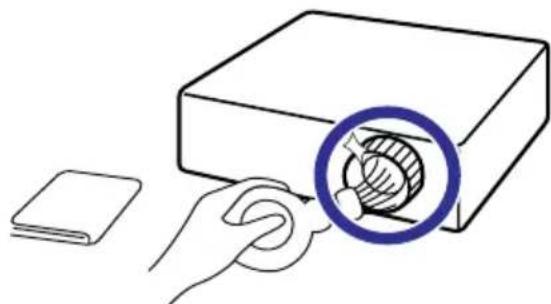

■Protect the lens so as not to hit or damage the surface of the lens.

Rest your eyes occasionally.

■Continuously watching the screen for long hours will cause eye strain. Take regular breaks to rest your eyes.

Avoid locations with extremes of temperature.

■The operating temperature of the projector is from 41°F to 95°F (+5°C to +35°C).

■The storage temperature of the projector is from -4^ to 140^ ( -20^ to +60^ ).

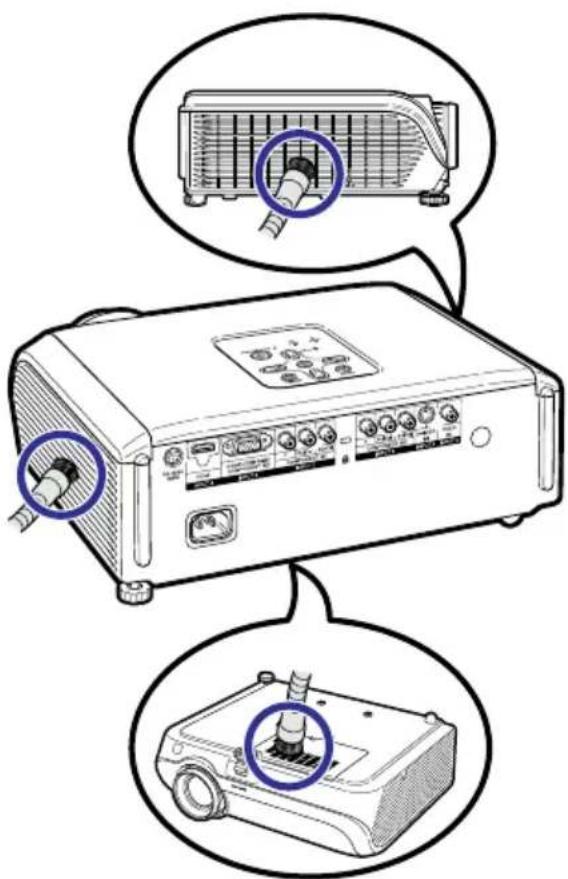

Do not block the exhaust and intake vents.

■Allow at least 11 ^13/_16 inches (30 cm) of space between the exhaust vent and the nearest wall or obstruction.

■Be sure that the intake vent and the exhaust vent are not obstructed.

If the cooling fan becomes obstructed, a protection circuit will automatically put the projector into standby mode to prevent overheat damage. This does not indicate a malfunction. (See pages 54 and 55.) Remove the projector power cord from the wall outlet and wait at least 10 minutes. Place the projector where the intake and exhaust vents are not blocked, plug the power cord back in and turn on the projector. This will return the projector to the normal operating condition.

■When turning off the projector, the cooling fan runs to decrease the internal temperature for a while. Unplug the power cord after the cooling fan stops. The period the cooling fan runs will vary, depending on the circumstances and the internal temperature.

Caution regarding usage of the projector

When using the projector, take care not to subject it to hard impact and/or vibration, as this can result in damage. Take extra care with the lens. Before moving the projector, make certain you unplug the power cord from the wall outlet, and disconnect any other cables connected to it.

■Do not carry the projector by holding the lens.

■When storing the projector, ensure you attach the lens cap. (See page 11).

■Do not expose the projector to direct sunlight or place next to heat sources. Doing so may affect the cabinet color or cause deformation of the plastic cover.

Other connected equipment

■When connecting a computer or other audio-visual equipment to the projector, make the connections AFTER unplugging the power cord of the projector from the AC outlet and turning off the equipment to be connected.

■Please read the operation manuals of the projector and the equipment to be connected for instructions on how to make the connections.

Using the projector in other countries

■The power supply voltage and the shape of the plug may vary depending on the region or country you are using the projector in. When using the projector overseas, make sure you use an appropriate power cord for the country you are in.

Temperature monitor function

TEMP.

If the projector starts to overheat due to setup problems or blockage of the air vents, "and

“TEMP. minate in the lower left corner of the picture. If the temperature continues to rise, the lamp will turn off, the temperature warning indicator on the projector will blink, and after a 90-second cooling-off period the projector will enter standby mode. Refer to “Maintenance Indicators” on page 54 for details.

Info

- The cooling fan regulates the internal temperature, and its performance is automatically controlled. The sound of the fan may change during projector operation due to changes in the fan speed. This does not indicate malfunction.

- Do not unplug the power cord during projection or cooling fan operation. This can cause damage due to rise in internal temperature, as the cooling fan also stops.

Accessories

Supplied accessories

Front panel of a remote control with labeled buttons and dials

Remote control RRMCGA543WJSB

Two R-03 batteries ("AAA" size, UM/SUM-4, HP-16 or similar)

Lens cap (attached) CCAPHA024WJSA

Line drawing of a cord with two connectors and a power plug (no text or symbols)

Power cord QACCDA007WJPZ
- Operation manual

Optional accessories

Lamp unit

AN-XR10L2

■ 3 RCA to 15-pin D-sub cable (10' (3.0 m))

AN-C3CP2

Note

- Some of the optional accessories may not be available depending on the region. Please check with your nearest Sharp Authorized Service Center or Dealer.

Part Names and Functions

Numbers in ■ refer to the main pages in this operation manual where the topic is explained.

Projector

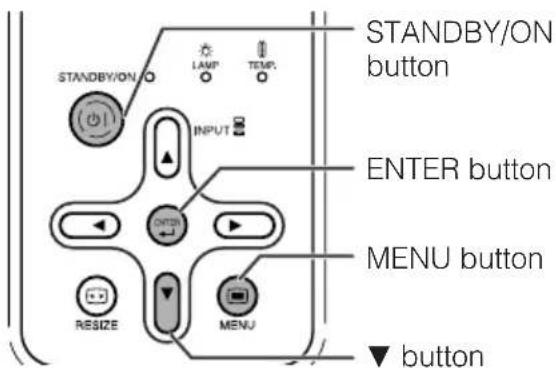

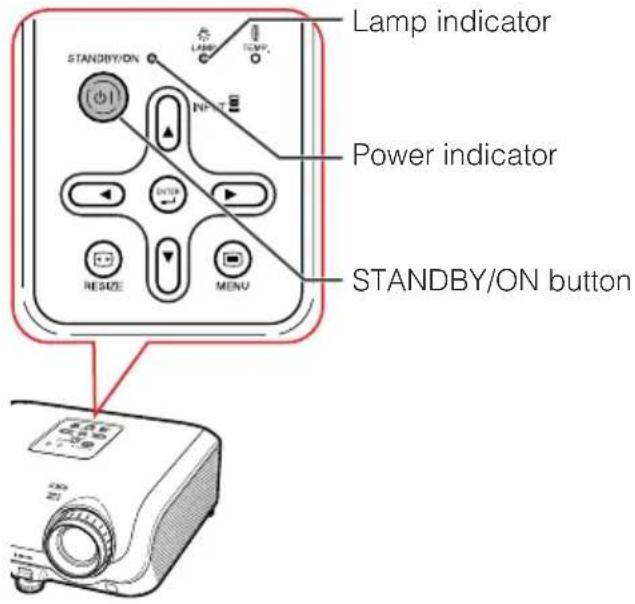

Top View

Power indicator

STANDBY/ON button

For turning the power on and putting the projector into standby mode.

ENTER button

For setting items selected or adjusted on the menu.

RESIZE button For switching the screen size.

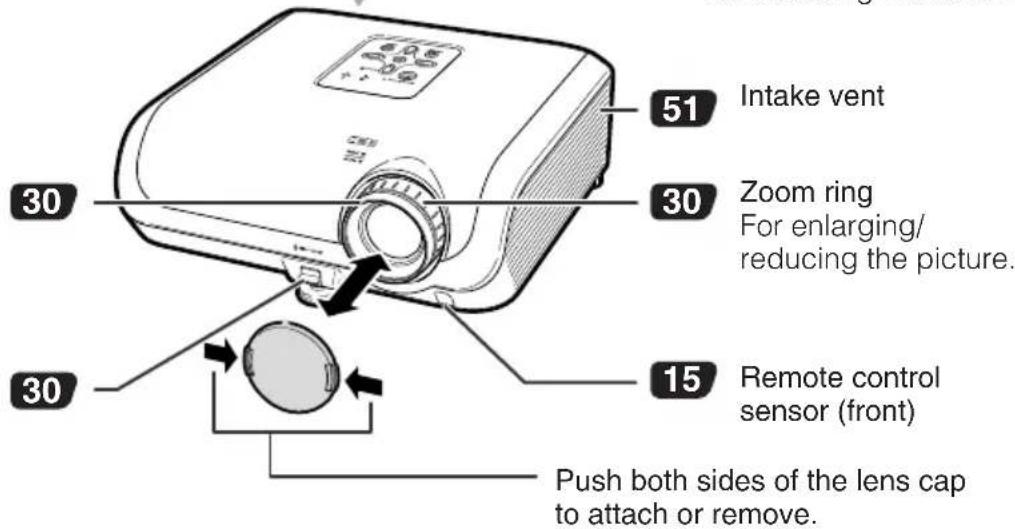

Front View

Focus ring For adjusting the focus.

HEIGHT ADJUST lever

28, 542 Lamp indicator 28 STANDBY/ON TEMP. 54 Temperature warning indicator 29 INPUT buttons (▲/▼) For switching input mode 1, 2, 3, 4, 5 or 6. 41 RESIZE MENU 41 MENU button For displaying adjustment and setting screens. 36 41 Adjustment buttons (▲/▼/◄/►) For selecting menu items.

51 Intake vent 30 Zoom ring For enlarging/ reducing the picture. 30 Remote control sensor (front) 15 Push both sides of the lens cap to attach or remove.

Part Names and Functions (Continued)

Numbers in ■ refer to the main pages in this operation manual where the topic is explained.

Rear View

Intake vent

AC socket

Connect the supplied Power cord.

Rear adjustment foot

51 15 28 13 31

Exhaust vent

Remote control sensor (rear)

Kensington Security Standard connector

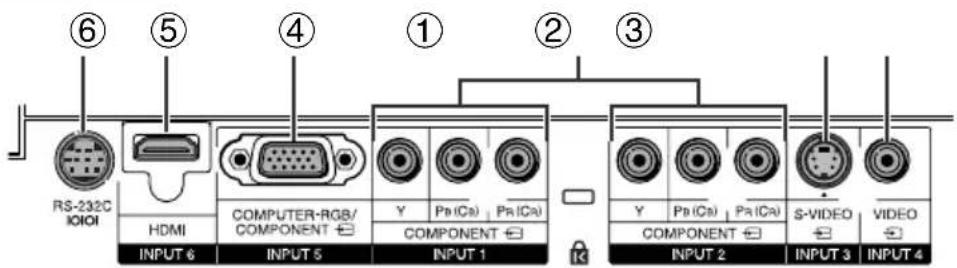

Terminals

⑥ ⑤ ④ ① ② ③ RS-232C IOIOI HDMI COMPUTER-RGB/ COMPONENT Y Pb (Ca) Pb (Ca) COMPONENT Y Pb (Ca) Pb (Ca) S-VIDEO VIDEO COMPONENT INPUT 6 INPUT 5 INPUT 1 INPUT 2 INPUT 3 INPUT 4

Terminal	Description	Page
1	INPUT 1, 2 terminalConnecting video equipment with component output terminal (DVD player, DTV decoder, DVD recorder with hard disc, etc.).	23
2	INPUT 3 terminalConnecting video equipment with S-video output terminal (VCR, DVD player, etc.).	24
3	INPUT 4 terminalConnecting video equipment without S-video output terminal.	24
4	INPUT 5 terminal■Connecting video equipment with component output terminal(DVD player, DTV decoder, DVD recorder with hard disc, etc.).■ Connecting the computer.	25

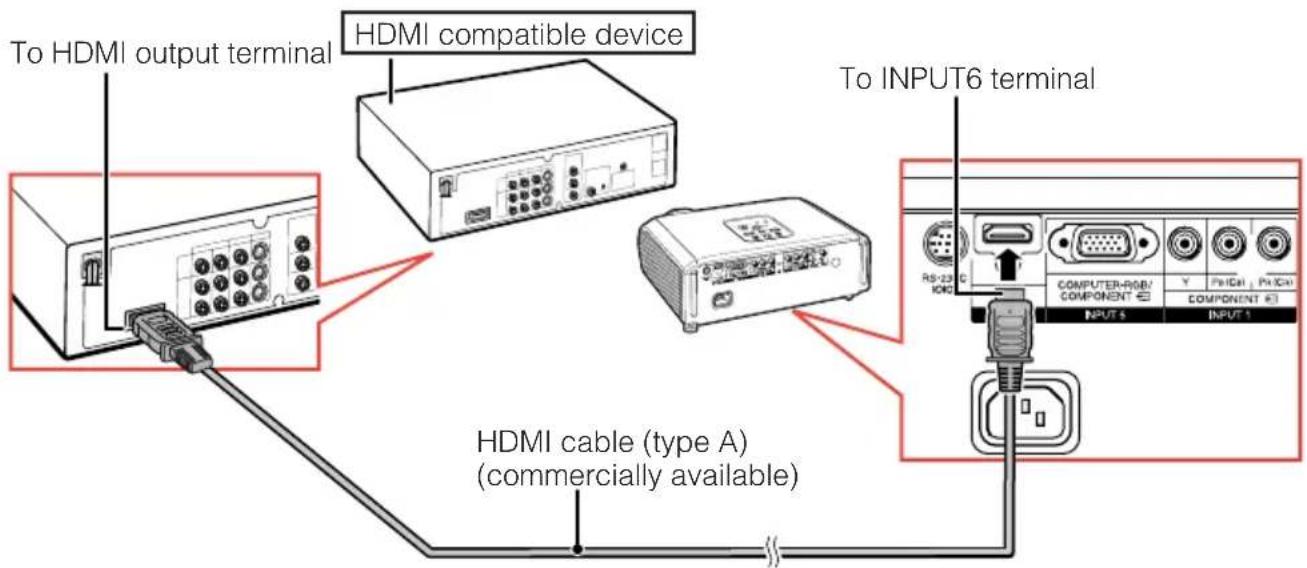

5	INPUT 6 terminalConnecting video equipment with HDMI output terminal.	26
6	RS-232C terminalServiceman only	—

Numbers in ■ refer to the main pages in this operation manual where the topic is explained.

STANDBY button For putting the projector into the standby mode. KEYSTONE button For entering the Keystone Correction mode. RETURN button For returning to the previous menu screen during menu operations. AUTO SYNC button For automatically adjusting images when connected to a computer. RGB/COMP. button For switching to the respective input signal type. FREEZE button For freezing images. Backlight button For lighting all buttons on the remote control. 29 32 41 46 48 38 28 ON button For turning the power on. 29 INPUT 1, 2, 3, 4, 5 and 6 buttons For switching to the respective input modes. 41 MENU button For displaying adjustment and setting screens. 41 Adjustment buttons (▲/▼/◄/►) • For selecting menu items. • For adjusting the Keystone Correction when in the Keystone Correction mode. 41 ENTER button For setting items selected or adjusted on the menu. 36 RESIZE button For switching the picture size (STRETCH, SIDE BAR, etc.). 38 PICTURE MODE button For selecting the appropriate picture. 38 IRIS button For switching "HIGH BRIGHTNESS MODE" and "HIGH CONTRAST MODE".

Using the Kensington Lock on the projector

- This projector has a Kensington Security Standard connector for use with a Kensington MicroSaver Security System. Refer to the information that came with the system for instructions on how to use it to secure the projector.

Part Names and Functions (Continued)

Inserting the Batteries

1 Press the ▲ mark on the cover and slide it in the direction of the arrow.

Diagram of a remote control device showing internal components and an arrow indicating a location (no text or symbols present)

2 Insert the batteries.

- Insert the batteries making sure the polarities correctly match the ⊕ and ⊖ marks inside the battery compartment.

Diagram of a remote control casing with labeled terminals and battery compartment (no text or symbols)

3 Attach the cover and slide it until it clicks into place.

Line drawing of a remote control casing with an arrow indicating direction (no text or symbols)

Incorrect use of the batteries may cause them to leak or explode. Please follow the precautions below.

Caution

• Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
• Insert the batteries making sure the polarities correctly match the ⊕ and ⊖ marks inside the battery compartment.
• Batteries of different types have different properties, therefore do not mix batteries of different types.
• Do not mix new and old batteries.
  This may shorten the life of new batteries or may cause old batteries to leak.
• Remove the batteries from the remote control once they have run out, as leaving them in can cause them to leak. Battery fluid from leaked batteries is harmful to skin, therefore ensure you wipe them first and then remove them using a cloth.

- The batteries included with this projector may run down in a short period, depending on how they are kept. Be sure to replace them as soon as possible with new batteries.

- Remove the batteries from the remote control if you will not be using the remote control for a long time.

- Comply with the rules (ordinance) of each local government when disposing of worn-out batteries.

Usable Range

The remote control can be used to control the projector within the ranges shown in the illustration.

Remote control sensor (front) 30° Remote control signal transmitters 30° 23' (7 m) Remote control Remote control sensor (rear) 30° 23' (7 m) Remote control signal transmitters 30° Remote control

Note

- The signal from the remote control can be reflected off a screen for easy operation. However, the effective distance of the signal may differ depending on the screen material.

When using the remote control

• Ensure that you do not drop it or expose it to moisture or high temperature.
• The remote control may malfunction under a fluorescent lamp. In this case, move the projector away from the fluorescent lamp.

Quick Start

This section shows the basic operation (projector connecting with the video equipment). For details, see the page described below for each step.

Setup and Projection

In this section, connection of the projector and the video equipment is explained using one example.

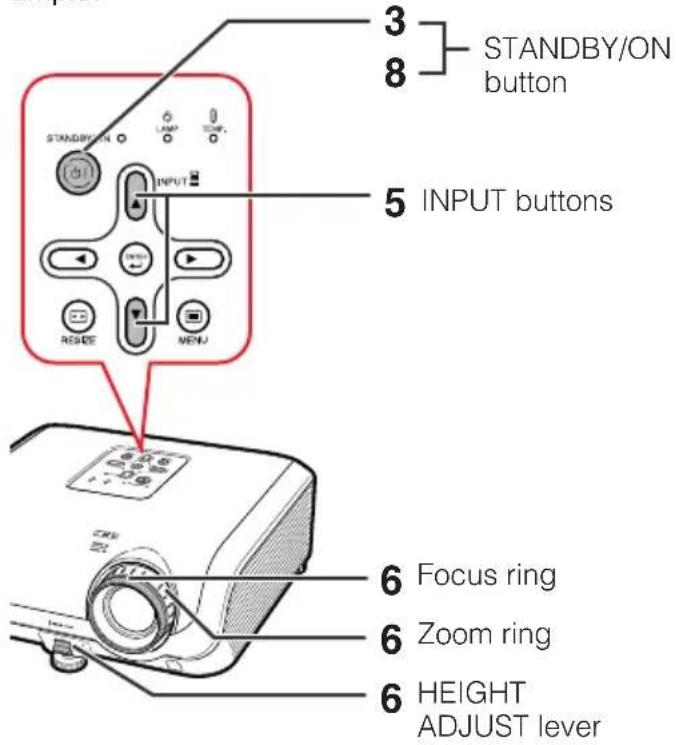

STANDBY/ON button 3 8 5 INPUT buttons 6 Focus ring 6 Zoom ring 6 HEIGHT ADJUST lever

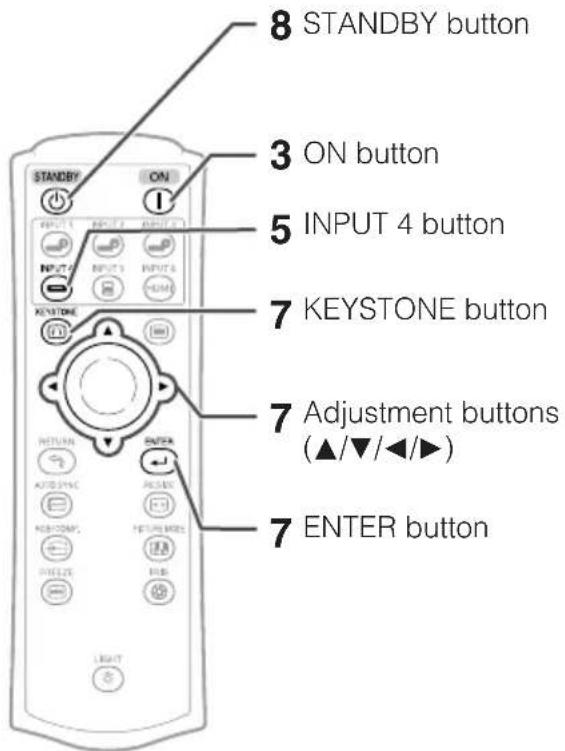

8 STANDBY button 3 ON button 5 INPUT 4 button 7 KEYSTONE button 7 Adjustment buttons (▲/▼/◄/►) 7 ENTER button

1. Place the projector facing a wall or a screen

→P.18

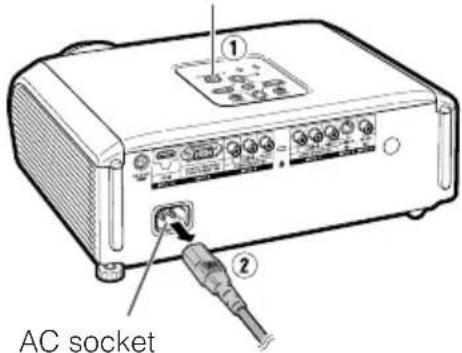

1. Connect the projector to the video equipment and plug the power cord into the AC socket of the projector →PP. 22–28

AC socket

To INPUT 4 terminal

Connect the audio output of any video devices to an appropriate audio device.

1. Remove the lens cap and turn the projector on

→P.28

Mechanical component diagram showing a knob inserted into a curved housing with a circular base (no text or symbols)

On the projector STANDBY/CN

On the remote control

4. Turn the video equipment on and start playback

5. Select the INPUT mode

→P.29

Select the "INPUT 4" using the INPUT buttons on the projector or the INPUT 4 button on the remote control. On the remote On screen display

On the On the remote projector control

On-screen display

- When pressing the INPUT buttons on the projector, input mode switches in the following order: INPUT1←INPUT2←INPUT3←INPUT4←INPUT5←INPUT6←

- Pressing the INPUT buttons on the remote control also allows you to switch the input mode.

6. Adjust the focus, image size, and projector angle

→PP. 30, 31

1. Adjust the focus by turning the focus ring.

Diagram of a projector with bidirectional arrows indicating rotation (no text or symbols)

Focus ring

1. Adjust the projection image size by turning the zoom ring.

the Zoom ring. Zoom ring

1. Adjust the projector angle using the HEIGHT ADJUST lever.

Diagram showing hands operating a device with labeled parts and directional arrows indicating movement or operation.

7. Correct trapezoidal distortion (GEOMETRIC ADJUSTMENT)

→PP. 32–35

1. Press Ⓞ KEYSTONE on the remote control.

2. Press ▲/▼/◄/► on the remote control to set the upper-left position of the projected image.

3. Press ⏻ ENTER on the remote control to set the position.

4. Follow steps 2 and 3 to also set the upper-right, lower-right, and lower-left positions of the projected image.

- When you confirm the lower left position, the screen adjustments will be set and setup will end.

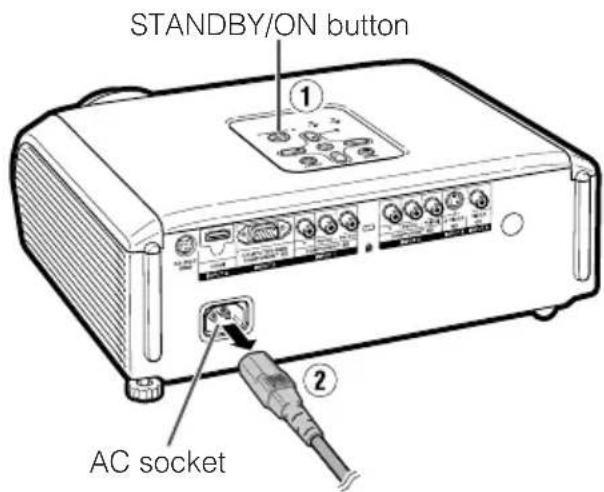

8. Turn the Power off

→P.29

Press the STANDBY/ON button on the projector or the STANDBY button on the remote control, and then press the button again while the confirmation message is displayed to put the projector into standby mode.

On the projector STANDBY/ON

On the remote control

On-screen Display

Enter STANDBY mode?

Yes:Press Again

No : Please Wait

- Unplug the power cord from the AC outlet after the cooling fan stops.

Setting up the Projector

Setting up the Projector

For optimal image quality, position the projector perpendicular to the screen with the projector's feet flat and level. Doing so will eliminate the need for Keystone correction and provide the best image quality.

Standard Setup (Front Projection)

■Place the projector at the required distance from the screen according to the desired picture size. (See page 20.)

according

Example of standard setup

Side View

Image H Lens center

Note

- Refer to page 20 for additional information concerning "Picture (Screen) Size and Projection Distance".

Ceiling-mount Setup

It is recommended that you use the optional Sharp ceiling-mount bracket for this installation. Before mounting the projector, contact your nearest Sharp Authorized Service Center or Dealer to obtain the recommended ceiling-mount bracket (sold separately).

• AN-XRCM30 ceiling-mount bracket (for U.S.A.).
- AN-60KT ceiling-mount bracket, its AN-TK201 and AN-TK202 extension tubes (for countries other than the U.S.A.).

■Invert the image by setting "Ceiling + Front" in "PRJ Mode". See page 49 for use of this function.

Line drawing of a meeting scene with audience members watching a screen (no text or symbols)

Projection (PRJ) Mode

The projector can use any of the 4 projection modes shown in the diagram below. Select the mode most appropriate for the projection setting in use. (You can set the PRJ Mode in "Options2" menu. See page 49.)

■ Table mounted, front projection

Simple line drawing of a projector and two human figures (no text or symbols)

Menu item → "Front"

■ Table mounted, rear projection (with a translucent screen)

Diagram showing a projector projecting onto a screen to a seated audience (no text or symbols present)

Menu item → "Rear"

■ Ceiling mounted, front projection

Simple line drawing of a projector projecting onto a screen to an audience (no text or symbols)

Menu item → "Ceiling + Front"

■ Ceiling mounted, rear projection (with a translucent screen)

Simple line drawing of a projector projecting onto a screen to two silhouettes (no text or symbols)

Menu item → "Ceiling + Rear"

Indication of the Projection Image Size and Projection Distance

Refer to page 20 for additional information concerning "Picture (Screen) Size and Projection Distance". Example: When using a wide screen (16:9)

Setting up the Projector (Continued)

Picture (Screen) Size and Projection Distance

The projection screen size varies according to the distance from the lens of the projector to the screen. Install the projector so that projected images are projected onto the screen at the optimum size by referring to the table below. Use the values in the table as a reference when installing the projector.

When using a wide screen (16:9) and projecting 16:9 image

Picture (Screen) size Projection			distance [L]		Distance from the lens center to the bottom of the image [H]
Diag. [ ] Width Height			Minimum [L1]	Maximum [L2]
300" (762 cm)	261" (664 cm)	147" (374 cm)	29' 9" (9.1 m)	34' 5" (10.5 m)	21 ^1/32 " (53 cm)
270" (686 cm)	235" (598 cm)	132" (336 cm)	26' 9" (8.2 m)	30'11" (9.4 m)	18 ^15/16 " (48 cm)
250" (635 cm)	218" (553 cm)	123" (311 cm)	24' 9" (7.5 m)	28' 8" (8.7 m)	17 ^17/32 " (45 cm)
200" (508 cm)	174" (443 cm)	98" (249 cm)	19'10" (6.0 m)	22'11" (7.0 m)	14 ^1/64 " (36 cm)
150" (381 cm)	131" (332 cm)	74" (187 cm)	14'10" (4.5 m)	17' 2" (5.2 m)	10 ^33/64 " (27 cm)
100" (254 cm)	87" (221 cm)	49" (125 cm)	9'11" (3.0 m)	11' 6" (3.5 m)	7 ^1/64 " (18 cm)
80" (203 cm)	70" (177 cm)	39" (100 cm)	7'11" (2.4 m)	9' 2" (2.8 m)	5 ^39/64 " (14 cm)
70" (178 cm)	61" (155 cm)	34" (87 cm)	6'11" (2.1 m)	8' 0" (2.4 m)	4 ^29/32 " (12 cm)
60" (152 cm)	52" (133 cm)	29" (75 cm)	5'11" (1.8 m)	6'11" (2.1 m)	4 ^13/64 " (11 cm)
40" (102 cm)	35" (89 cm)	20" (50 cm)	4' 0" (1.2 m)	4' 7" (1.4 m)	2 ^51/64 " (7 cm)

χ: Picture (Screen) size (diag.) (in/cm)
L: Projection distance (ft/m)
L1: Minimum projection distance (ft/m)
L2: Maximum projection distance (ft/m)
H: Distance from the lens center to the bottom of the image (in/cm)
The formula for picture size and projection distance
[Feet/inches] [m/cm]
L1 (ft) = 0.03019x / 0.3048 L1 (m) = 0.03019x
L2 (ft) = 0.03493% / 0.3048 L2 (m) = 0.03493%
H (in) = 0.17808 x / 2.54 H (cm) = 0.17808 x

When using a normal screen (4:3) and projecting 4:3 image (SIDE BAR Mode)

Picture (Screen) size Projection			distance [L]		Distance from the lens center to the bottom of the image [H]
Diag. [ ]	Width Height		Minimum [L1]	Maximum [L2]
300" (762 cm)	240" (610 cm)	180" (457 cm)	36' 4" (11.1 m)	42' 1" (12.8 m)	25 ^47/64 " (65 cm)
270" (686 cm)	216" (549 cm)	162" (411 cm)	32' 9" (10.0 m)	37' 10" (11.5 m)	23 ^11/64 " (59 cm)
250" (635 cm)	200" (508 cm)	150" (381 cm)	30' 4" (9.2 m)	35' 1" (10.7 m)	21 ^29/64 " (54 cm)
200" (508 cm)	160" (406 cm)	120" (305 cm)	24' 3" (7.4 m)	28' 1" (8.6 m)	17 ^5/32 " (44 cm)
150" (381 cm)	120" (305 cm)	90" (229 cm)	18' 2" (5.5 m)	21' 0" (6.4 m)	12 ^7/8 " (33 cm)
100" (254 cm)	80" (203 cm)	60" (152 cm)	12' 1" (3.7 m)	14' 0" (4.3 m)	8 ^37/64 " (22 cm)
80" (203 cm)	64" (163 cm)	48" (122 cm)	9' 8" (3.0 m)	11' 3" (3.4 m)	6 ^55/64 " (17 cm)
70" (178 cm)	56" (142 cm)	42" (107 cm)	8' 6" (2.6 m)	9' 10" (3.0 m)	6" (15 cm)
60" (152 cm)	48" (122 cm)	36" (91 cm)	7' 3" (2.2 m)	8' 5" (2.6 m)	5 ^9/64 " (13 cm)
40" (102 cm)	32" (81 cm)	24" (61 cm)	4' 10" (1.5 m)	5' 7" (1.7 m)	3 ^7/16 " (9 cm)

χ: Picture (Screen) size (diag.) (in/cm)
L: Projection distance (ft/m)
L1: Minimum projection distance (ft/m)
L2: Maximum projection distance (ft/m)
H: Distance from the lens center to the bottom of the image (in/cm)
The formula for picture size and projection distance
[Feet/inches] [m/cm]
L1 (ft) = 0.03694X / 0.3048 L1 (m) = 0.03694X
L2 (ft) = 0.04275% / 0.3048 L2 (m) = 0.04275%
H (in) = 0.21794X / 2.54 H (cm) = 0.21794X

When using a normal screen (4:3) and projecting 16:9 image

Picture (Screen) size Projection			distance [L]		Distance from the lens center to the bottom of the image [H]
Diag. [ ]	Width	Height	Minimum [L1]	Maximum [L2]
300"(762 cm)	240"(610 cm)	180"(457 cm)	27' 3"(8.3 m)	31' 7"(9.6 m)	19 ^5 /16"(49 cm)
270"(686 cm)	216"(549 cm)	162"(411 cm)	24' 7"(7.5 m)	28' 5"(8.7 m)	17 ^9 /8"(44 cm)
250"(635 cm)	200"(508 cm)	150"(381 cm)	22' 9"(6.9 m)	26' 4"(8.0 m)	16 ^3 /32"(41 cm)
200"(508 cm)	160"(406 cm)	120"(305 cm)	18' 2"(5.5 m)	21' 0"(6.4 m)	12 ^7 /8"(33 cm)
150"(381 cm)	120"(305 cm)	90"(229 cm)	13' 8"(4.2 m)	15' 9"(4.8 m)	9 ^21 /32"(25 cm)
100"(254 cm)	80"(203 cm)	60"(152 cm)	9' 1"(2.8 m)	10' 6"(3.2 m)	6 ^7 /16"(16 cm)
80"(203 cm)	64"(163 cm)	48"(122 cm)	7' 3"(2.2 m)	8' 5"(2.6 m)	5 ^9 /64"(13 cm)
70"(178 cm)	56"(142 cm)	42"(107 cm)	6' 4"(1.9 m)	7' 4"(2.2 m)	4 ^1 /2"(11 cm)
60"(152 cm)	48"(122 cm)	36"(91 cm)	5' 5"(1.7 m)	6' 4"(1.9 m)	3 ^55 /64"(10 cm)
40"(102 cm)	32"(81 cm)	24"(61 cm)	3' 8"(1.1 m)	4' 2"(1.3 m)	2 ^37 /64"(7 cm)

χ: Picture (Screen) size (diag.) (in/cm)
L: Projection distance (ft/m)
L1: Minimum projection distance (ft/m)
L2: Maximum projection distance (ft/m)
H: Distance from the lens center to the bottom of the image (in/cm)

The formula for picture size and projection distance

[Feet/inches]

L1 (ft) = 0.02771x / 0.3048
L2 (ft) = 0.03206% / 0.3048
H (in) = 0.16346% / 2.54

[m/cm]

L1 (m) = 0.02771%
L2 (m) = 0.03206%
H (cm) = 0.16346%

Note

- Allow a margin of error in the values in the diagrams.

Samples of Cables for Connection

• For more details of connection and cables, refer to the operation manual of the connecting equipment.
• You may need other cables or connectors not listed below.

Equipment	Input Signal	Cable	Terminal on the projector
Audio-visual equipment	HDMI video	HDMI cable (commercially available)	INPUT6
	Component video		INPUT1, 2Component
	Component video	3 RCA to 15-pin D-sub cable (optional accessory: AN-C3CP2)	INPUT5
	S-video	S-video cable (commercially available)	INPUT3
	Video	Video cable (commercially available)	INPUT4
Camera/video game	Component video	Cables for a camera or a video game	INPUT1, 2
	Component video	Cables for a camercable or a video game , r plug (commercially available)	INPUT5
	S-video	Cables for a camera or a video game	INPUT3
	Video	Cables for a camera or a video game	INPUT4
Computer	RGB video	RGB cable (commercially available)	INPUT5

Connecting to Video Equipment

Before connecting, ensure that the power cord of the projector is unplugged from the AC outlet and turn off the devices to be connected. After making all connections, turn on the projector first and then the other devices.

When connecting the component video equipment to the component input terminal on the projector (INPUT1 or INPUT2)

To component output (Y, CB/PB, CR/PR) terminal DVD, etc. Component cable (commercially available) To INPUT1 or INPUT2 terminal

Connecting to Video Equipment (Continued)

When connecting to equipment with S-video output terminal (INPUT3)

To S-video output terminal DVD, etc. S-video cable (commercially available) To INPUT3 terminal Y PartCE PartCA S- VIDEO COMPONE INPUT INPUT4

When connecting to equipment with video output terminal (INPUT4)

To video output terminal DVD, etc. To INPUT4 terminal Video cable (commercially available)

When connecting the component video equipment to the computer-RGB/component input terminal on the projector (INPUT5)

To component output (Y, CB/PB, CR/PR) terminal

DVD, etc. To INPUT5 terminal 3 RCA to 15-pin D-sub cable (optional accessory: AN-C3CP2)

Connecting to Video Equipment (Continued)

When connecting to equipment with HDMI output terminal (INPUT6)

HDMI is a new specialized interface capable of delivering a video and audio signal to the terminal using just one cable. Since this projector does not support an audio signal by itself, use an amplifier or other audio device.

For video connection, use a cable that conforms to HDMI standards. Using cables that do not conform to HDMI standards may result in a malfunction.

To HDMI output terminal HDMI compatible device To INPUT6 terminal HDMI cable (type A) (commercially available)

Note

• HDMI (High Definition Multimedia Interface) is a digital AV interface that can deliver a high-definition video signal, multi-channel audio signal, and bi-directional control signal all in just one cable.
• Because it is compatible with the HDCP (High-bandwidth Digital Content Protection) system, the digital video signal does not degrade when transmitted, and a high-quality image with a simple connection can be enjoyed.
• When a DVI to HDMI conversion cable is connected to the HDMI terminal, a proper picture may not be displayable.

Connecting to a Computer

When connecting a computer, ensure that it is the last device to be turned on after all the connections are made.

Ensure that you have read the operation manuals of the devices to be connected before making connections.

To RGB output terminal Computer To INPUT5 terminal RGB cable (commercially available)

Note

- See page 60 "Computer Compatibility Chart" for a list of computer signals compatible with the projector. Use with computer signals other than those listed may cause some of the functions to not work.

- A Macintosh adaptor may be required for use with some Macintosh computers. Contact your nearest Macintosh Dealer.

- Depending on the computer you are using, an image may not be projected unless the computer's external output port is switched on. (e.g. Press "Fn" and "F5" keys simultaneously when using a SHARP notebook computer). Refer to the specific instructions in your computer's operation manual to enable your computer's external output port.

Turning the Projector On/Off

Connecting the Power Cord

Plug the supplied power cord into the AC socket on the rear of the projector. Then plug into AC outlet.

Turning the Projector on

Note that the connections to external equipment and power outlet should be done before performing the operations written below. (See pages 23 to 28.)

Remove the lens cap and press ⓄSTANDBY/ON on the projector or ⏱ON on the remote control.

Note

- About the Lamp Indicator

The lamp indicator illuminates to indicate the status of the lamp.

Green: The lamp is on.

Blinking in green: The lamp is warming up or shutting down.

Red: The lamp is shut down abnormally or the lamp should be replaced.

- When switching on the projector, a slight flickering of the image may be experienced within the first minute after the lamp has been illuminated. This is normal operation as the lamp's control circuitry is stabilising the lamp output characteristics. It should not be regarded as faulty operation.

- If the projector is put into standby mode and immediately turned on again, the lamp may take some time to start projection.

Supplied accessory Power cord

AC socket To AC outlet

Info

- English is the factory default language. If you want to change the on-screen display to another language, change the language according to the procedure on page 50.

Lamp indicator STANDBY/ON LAMP TEMP. INPUT Power indicator RESIZE MENU STANDBY/ON button

STANDARD ON INPUT 1 INPUT 2 INPUT 3 INPUT 4 INPUT 5 INPUT 6 HDMI KEYSTONE MENU ON ON button

Turning the Power off (Putting the Projector into Standby Mode)

1

Press ⒷSTANDBY/ON on the projector or ⏻STANDBY on the remote control, then press that button again while the confirmation message is displayed, to put the projector into standby mode.

2

Unplug the power cord from the AC outlet after the cooling fan stops.

• The power indicator on the projector blinks in green while cooling.
• The power indicator changes to red when the projector finishes cooling.

Info

- Do not unplug the power cord during projection or cooling fan operation. This can cause damage due to rise in internal temperature, as the cooling fan also stops.

STANDBY STANDBY button STANDBY ON INPUT 1 INPUT 2 INPUT 3 INPUT 4 INPUTS INPUT 6 HDMI KEYSTONE MENU

On-screen Display (confirmation message)

Enter STANDBY mode?

Yes : Press Again

No : Please Wait

Shutting Down. Please Wait.

Image Projection

Switching the Input Mode

Select the appropriate input mode for the connected equipment.

Press the appropriate INPUT button on the remote control to select the desired input mode.

- When pressing INPUT (▲/▼) on the projector, input mode switches in the following order:

INPUT1 INPUT2 INPUT3

INPUT6 INPUT5 INPUT4

STANDARD ON INPUT 1 INPUT 2 INPUT 3 INPUT 4 INPUT 5 INPUT 6 HDMI KEYSTONE MENU INPUT buttons INPUT 1 INPUT 2 INPUT 3 INPUT 4 INPUT 5 INPUT 6 HDMI

Adjusting the Projected Image

1 Adjusting the Focus

You can adjust the focus with the focus ring on the projector.

Rotate the focus ring to adjust the focus while watching the projected image.

2 Adjusting the Picture Size

You can adjust the picture size using the zoom ring on the projector.

Rotate the zoom ring to enlarge or shrink the picture size.

3 Adjusting the Height

The height of the projector can be adjusted using the adjustment feet at the front and rear of the projector.

When the screen is above the projector, the projection image can be made higher by adjusting the projector.

1

Lift the projector to adjust its height while lifting the HEIGHT ADJUST lever.

2

Remove your hands from the HEIGHT ADJUST lever of the projector after its height has been finely adjusted.

- The angle of projection is adjustable up to 8 degrees from the surface on which the projector is placed.

Zoom ring Focus ring

HEIGHT ADJUST lever

Diagram showing a hand operating a device with labeled parts and directional arrows indicating movement or change.

Make small adjustments.

3

Use the rear adjustment foot to make the projector level.

- The projector is adjustable ±1 degree from the standard position.

Note

- When adjusting the height of the projector, trapezoidal distortion occurs. Follow the procedures in Keystone Correction to correct the distortion. (See page 32.)

Info

• Do not apply too much pressure on the projector when the front adjustment foot comes out.
• When lowering the projector, be careful not to get your fingers caught in the area between the adjustment foot and the projector.
• Hold the projector firmly while lifting or carrying.
• Do not hold by the lens area.

Rear adjustment foot

Correcting Trapezoidal Distortion

When the image is projected either from the top or from the bottom towards the screen at an angle, the image becomes distorted trapezoidally. The function for correcting trapezoidal distortion is called Keystone Correction.

There are the two types of the Keystone Correction.

1) The "GEOMETRIC ADJUSTMENT" method corrects trapezoidal distortion by specifying 4 marks on the screen.
2) The "H & V KEYSTONE" method features corrections to 2 axes (horizontal and vertical) based on numerical values.

STANOSY ON INPUT 1 INPUT 2 INPUT 3 INPUT 4 INPUT 5 INPUT 6 HDMI KEYSTONE MEM RETURN RETURN button AUTO SYNC RESET ROADCOMP. FIATURE MODE FREEZE INS LIGHT ENTER UNIT ONE ORDER button UNIT ONE UNIT ONE UNIT ONE UNIT ONE UNIT ONE UNIT ONE UNIT ONE UNIT ONE UNIT ONE UNIT ONE UNIT ONE UNIT ONE UNIT ONE UNIT ONE UNIT ONE UNIT ONE UNIT ONE UNIT ONE UNIT ONE UNIT ONE UNIT ONE UNIT ONE UNIT ONE UNIT ONE

Selecting the Type of Correction

Select the Keystone correction method. Press Ⓞ KEYSTONE on the remote control.

- "GEOMETRIC ADJUSTMENT" will be displayed.

• Each time Ⓜ KEYSTONE is pressed, the display toggles as follows:

GEOMETRIC ADJUSTMENT	For correcting an image by designating the corner of the projected image.(See page 34.)
H & V KEYSTONE	For correcting an image by designating the horizontal or vertical axes. (See page 35.)

Note

- When corrections are made with Keystone correction, the changes are saved even if the power cord is unplugged.

- Since Keystone correction digitally corrects the signal, resolution may slightly decrease when it is used. Moiré patterns and line distortions may also be visible in detailed images. However, this is not a malfunction.

- If you cannot correct trapezoidal distortion with Keystone correction, change the placement position of the projector.

- Straight lines and the edges of the displayed image may appear jagged, when adjusting the Keystone setting.

- Also read "About Copyrights" on page 37.

GEOMETRIC ADJUSTMENT

Info

- When adjusting a 4:3-aspect-ratio input signal to a 4:3-aspect-ratio screen, correct the trapezoidal distortion by setting "RESIZE" to "STRETCH" (16:9).

1

Press Ⓜ KEYSTONE on the remote control repeatedly until "GEOMETRIC ADJUSTMENT" is displayed.

2

Adjust the focus, size, and projection angle so that the screen edges line up into the blue area.

- Line up the screen edges into the blue area as closely as possible.

3

Press ▲, ▼, ◀ or ▶ to move the position for the upper left of the image.

- Adjust the screen until the displayed red arrows line up in the upper left.

4

Press ⏻ ENTER to set the position.

• The arrow in the upper right turns red.

5

Repeat the same procedure with the positions for the upper right, lower right and lower left of the image.

- When you press 📋 RETURN at this point, you will return to the previous screen.

- If you press 📋 RETURN before adjusting the upper left corner, the Reset Confirmation screen displays.

- When you confirm the lower left position, the screen adjustments will be set and the "GEOMETRIC ADJUSTMENT" mode will end.

Note

- The placement of the screen and the projector may result in the image aspect ratio becoming slightly distorted.

- Try "H&V KEYSTONE" when "GEOMETRIC ADJUSTMENT" does not fully correct trapezoidal distortion.

▼On-screen display

Adjust upper left corner GEOMETRIC ADJUSTMENT ADJUST RESET NEXT END

Geometric Adjustment

H & V KEYSTONE

1 Project the image and adjust the focus, image size, and projection angle.

2 Press Ⓐ KEYSTONE on the remote control repeatedly until "H & V KEYSTONE" is displayed.

- When the "GEOMETRIC ADJUSTMENT" mode has been used to adjust the image, a confirmation screen displays before the "H & V KEYSTONE" screen, asking if you want to reset the adjustments or not. Then select RESET.

3 Press ▲ or ▼ on the remote control to align the left and right sides of the projected image.

4 Press ◀ or ▶ on the remote control to align the upper and lower sides of the projected image.

5 Press Ⓜ KEYSTONE or ⏻ ENTER on the remote control and the "H&V KEYSTONE" mode ends.

Note

• If adjustments are made using both "H KEYSTONE" and "V KEYSTONE" at the same time, the image aspect ratio may become slightly distorted.
• When adjusting "H KEYSTONE" and "V KEYSTONE" at the same time, the values of adjustable angles for each setting become smaller.
• The adjustable value of the "V KEYSTONE" becomes extremely small when "H KEYSTONE" is made to be the maximum value.

▼On-screen display

H&V KEYSTONE H: 0 V: 0 END ADJUST ENTER RESET

Vertical Keystone Correction (Adjustment with ▲ /▼) Horizontal Keystone Correction (Adjustment with ◀ /►)

Resize Mode

This function allows you to modify or customize the resize mode to enhance the input image. Depending on the input signal, you can choose "STRETCH", "SIDE BAR", "CINEMA ZOOM" or "DOT BY DOT (Computer input only)" image.

Press Ⓗ RESIZE on the projector or ⒽRESIZE on the remote control.

On the projector STANDARD ON LIGHT TEMP OUTPUT RESET MENU

RESIZE button

On the remote control

ACTU AUTO-DIME RARECOMP. FROZE ENTER RESIZE RESET

RESIZE button

VIDEO

• "STRETCH" is fixed when 540P, 720P or 1080I signals are entered.

Input Signal		Output screen image
DVD / Video Image type		STRETCH SIDE	BAR	CINEMA ZOOM
480I, 480P, 576I, 576P, NTSC, PAL, SECAM	4:3 aspect ratio
	Letter box
	Squeezed
	16:9 aspect ratio
540P, 720P, 1080I	16:9 aspect ratio

: Cutout area on which images cannot be projected.

Computer

Input Signal		Output screen image
Computer	Image type	STRETCH	SIDE BAR	CINEMA ZOOM	DOT BY DOT
VGA, SVGA	4:3 aspect ratio
XGA(1024×768)	4:3 aspect ratio
1280×720	16:9 aspect ratio		—	—	—

: Cutout area on which images cannot be projected.

Note

- You can select "CINEMA ZOOM" when with a "VGA/SVGA" signal with a vertical frequency 60 Hz and less. However, when a "VGA/SVGA" signal with a vertical frequency of more than 60 Hz is used, "CINEMA ZOOM" is not available.

About Copyrights

• When using the RESIZE function to select an image size with a different aspect ratio to a TV program or video image, the image will look different from its original appearance. Keep this in mind while choosing an image size.
• The use of the Resize, Keystone Correction, Subtitle, or Overscan function to compress or stretch the image for commercial purposes/public displays in a café, hotel, etc. may be an infringement of copyright protected by law for copyright holders. Please use caution.
• While watching non-widescreen images (4:3), if you use the RESIZE function to fill the screen or use the Overscan function to change the aspect ratio of a fixed-ratio input signal, parts of the outer edge of the image will be cut off or distorted. To watch original images as the producers intended, set RESIZE to "SIDE BAR" and Overscan to its default setting.

Operating with the Remote Control

Selecting the Picture Mode

You can select the appropriate picture mode to best match the projected image you are watching.

Press 📄PICTURE MODE.

- When pressing ⒶPICTURE MODE, the picture mode changes in the following order:

Note

• See page 43 for details on the picture mode.

Switching the Iris Setting

This function controls the quantity of the projected light and the contrast of the image.

Press ⓧIRIS.

• Each time the button is pressed while the display is on, the mode is switched in the following order:

HIGH BRIGHTNESS MODE ↑ ↓ HIGH CONTRAST MODE

Note

- For details on Iris, see page 45.

Freezing a Moving Image

1 Press ⒽFREEZE.

• The projected image is frozen.

2 Press 📄FREEZE again to return to the moving image from the currently connected device.

STANDRY ON INPUT 1 INPUT 2 INPUT 3 INPUT 4 INPUT 5 INPUT 6 HDMI KEYSTONE MENU RETURN AUTO SYNC RIGHTCOMP. FREEZE ENTER REEZE PICTURE MODE PICTURE MODE button IRIS IRIS button FROUZEN FROUZEN FROUZEN FROUZEN LIGHT FROUZEN FREEZE button

Menu Items

The following shows the items that can be set in the projector.

The selectable items vary depending on the selected input, input signals, or adjustment values. Items that cannot be selected will be greyed out.

"Picture" menu PAGE 1 Picture INPUT 1 Picture Mode Contrast 0 Bright Color Tint Sharp Red Blue Standard SEL./ADJ. ENTER RETURN END

PAGE 2 Picture INP Picture Mode Standard CLR Temp BrilliantColor™ C. M. S. Progressive DNR IRIS Lamp Setting Reset K7500- 1 3D Progressive Level 1 High Brightness Bright SEL./ADJ. RETURN Single ADJ END

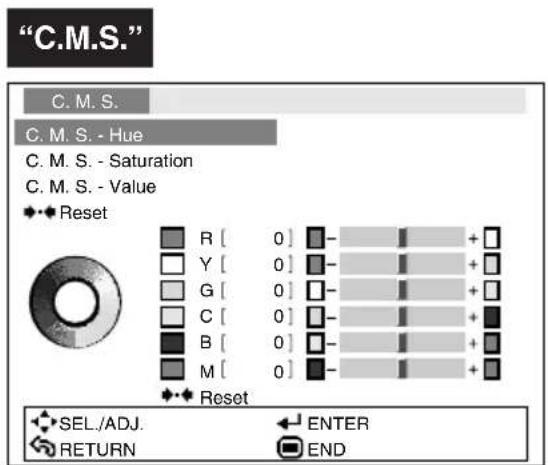

"C.M.S." C. M. S. C. M. S. - Hue C. M. S. - Saturation C. M. S. - Value Reset R [ 0 ] - + Y [ 0 ] - + G [ 0 ] - + C [ 0 ] - + B [ 0 ] - + M [ 0 ] - + Reset SEL./ADJ. ← ENTER RETURN END

* When a video signal, S-video signal, or component 480I/576I signal is input and the Progressive mode is set to "3D Progressive" or "Film Mode", the C.M.S. function cannot be used.

*2 Item that cannot be set when inputting an RGB signal through INPUT 5 or INPUT 6.

Menu Items (Continued)

"Fine Sync" menu

Fine Sync INPUTS Clock [ 0 ] - + Phase [ 0 ] - + H-Pos [ 0 ] - + V-Pos [ 0 ] - + Reset Special Modes 1080I Auto Sync On Cur. sig. freq : H 33.8 kHz / V 60 Hz SEL./ADJ. ENTER RETURN END

• The "Fine Sync" menu is not available for INPUT 3 or INPUT 4.

"Options1" menu

Options 1 IN Overscan H [ 0 ] - + Overscan V [ 0 ] - + OSD Display On Video System Auto Signal Type Auto HDMI Setting Standard Background Blue Auto Power Off On [ ] h0Lamp(Timer(Life) 100% SEL./ADJ. ENTER RETURN END

*1 Item that can be set when using INPUT 3 or INPUT 4.

*2 Item that can be set when using IINPUT 5 or INPUT 6.

"Options2" menu

Options 2 INF PRJ Mode RS-232C STANDBY Mode Fan Mode All Reset Language Front 9600 bps Eco Normal English SEL./ADJ. ENTER RETURN END

Using the Menu Screen

ENTER button

Adjustment buttons (▲/▼/◄/►) MENU button STANDARD INPUT RESER MENU

Adjustment buttons (▲/▼/◄/►) MENU MENU button ENTER ENTER button RETURN RETURN button • Press ⬇RETURN to return to the previous screen when the menu is displayed.

Menu Selections (Adjustments)

Example: Adjusting "Bright".

- This operation can also be performed by using the buttons on the projector.

1

Press ⓄMENU.

- The "Picture" menu screen for the selected input mode is displayed.

2

Press ▶ or ◀ to select the menu icon to adjust.

• The selected icon is highlighted.

Menu icon Menu screen
	Fine Sync
	Options1
	Options2

Note

- The "Fine Sync" menu is not available for INPUT 3 or INPUT 4.

Example: "Picture" screen menu for INPUT 1 mode

Menu icons Selected input mode Picture INPUT Picture Mode Contrast 0 Bright Color Tint Sharp Red Blue Standard SEL./ADJ. RETURN ENTER END

Using the Menu Screen (Continued)

3

Press ▲ or ▼ to select the item to adjust.

• The selected item is highlighted.

Picture INPUT Picture Mode Standard Contrast 0 [ ] - + Bright [ 0 ] - + Color [ 0 ] - + Tint [ 0 ] - + Sharp [ 0 ] - + Red [ 0 ] - + Blue [ 0 ] - + SEL./ADJ. RETURN Single ADJ END

Items to be adjusted

To adjust the projected image while watching it

Press ← ENTER.

• The selected item (e.g. "Bright") is displayed by itself at the bottom of the screen.
• When pressing ▲ or ▼, the following item ("Color" after "Bright") will be displayed.

Note

- Press ⏻ENTER again to return to the previous screen.

The item displayed by itself

Picture INPUT OB right SEL./ADJ. Rtn. Menu RETURN END

4

Press ◀ or ▶ to adjust the item selected.

• The adjustment is stored.

Picture INPUT 1 Picture Mode Contrast [ 0 ] Standard Bright [ 15 ] Color [ 0 ] Tint [ 0 ] Sharp [ 0 ] Red [ 0 ] Blue [ 0 ] SEL./ADJ. RETURN Single ADJ END

5

Press ⓄMENU.

• The menu screen will disappear.

Note

- The Ⓐ MENU button does not function while the projector is operating the "Auto Sync" or "FREEZE" functions.

Picture Adjustment (“Picture” menu)

Menu operation → Page 41

Picture INPUT Picture Mode Contrast 0 Bright Color Tint Sharp Red Blue Standard

PAGE 2 PAGE 1 Picture IN P U I Picture Mode Standard CLR Temp [ K7500- BrilliantColor™ [ 1] C. M. S. Progressive DNR IRIS Lamp Setting Reset 3D Progressive Level 1 High Brightness Bright

Selecting the Picture Mode

Selectable items	Description	The default settings of each item when selecting Picture Mode
		CLR Temp	BrilliantColorTM	IRIS	Lamp Setting
Standard	For standard image	7500K	0	High Brightness	Bright
Natural	A balanced color image is obtained.	7500K	0	High Brightness	Bright
Dynamic	A vivid image is obtained.	7500K	2	High Brightness	Bright
Movie1	Makes the black levels of the dark portions of the screen more pronounced and vivid.	6500K	0	High Brightness	Eco + Quiet
Movie2	Reduces glare and creates a subdued tone.	6500K	0	High Contrast	Eco + Quiet
Memory	Allows you to store your picture adjustment settings. The settings stored effect each input mode.	7500K	0	High Brightness	Bright

• You can set or adjust each item in the "Picture" menu to your preference. Any changes you make are retained in memory.

Note

• You can also press Ⓗ PICTURE MODE on the remote control to select the picture mode. (See page 38.)
• The default settings are subject to change without notice.

Adjusting the Image

Adjustment items	◀ button	▶ button
Contrast	For less contrast.	For more contrast.
Bright	For less brightness.	For more brightness.
Color*1	For less color intensity.	For more color intensity.
Tint*1	For making skin tones purplish.	For making skin tones greenish.
Sharp*1	For less sharpness.	For more sharpness.
Red	For weaker red.	For stronger red.
Blue	For weaker blue.	For stronger blue.
BrilliantColorTM*2	For making the effect weaker.	For making the effect stronger.

*1 Item that cannot be adjusted in RGB mode.
^*2 BrilliantColor ^TM uses Texas Instruments' BrilliantColor ^TM technology. As the BrilliantColor ^TM level is increased, the image becomes brighter while the color reproduction is kept at a high level.

Note

- To reset all adjustment items, select "Reset" and press ⏻ENTER. The Picture Mode settings of the selected input return to the default settings.

Picture Adjustment (“Picture” menu) (Continued)

Adjusting the Color Temperature

Selectable items	Description
5500K	For lower color temperature for warmer, reddish incandescent-like images.
6500K
7500K
8500K
9300K
10500K	For higher color temperature for cooler, bluish, fluorescent-like images.

Note

- Values on "CLR Temp" are only for general standard purposes.

Adjusting the Colors

Select "C.M.S." (Color Management System) in the "Picture" menu and then press ⏻ ENTER.

This function adjusts each of the six main colors that comprise the color wheel, altering their "Hue", "Saturation", or "Value".

Selectable items	Description
C.M.S.-Hue	Sets the hue of the main colors.
C.M.S.-Saturation	Sets the saturation of the main colors
C.M.S.-Value	Sets the brightness of the main colors.
Reset	The adjustments of “Hue”, “Saturation” and “Value” of all colors are reset to the default setting.

Adjusting "Hue", "Saturation", or "Value".

1 Press ▲ or ▼ to select either "Hue", "Saturation", or "Value" and then press ⏻ ENTER.
2 Select the color to be adjusted with ▲ or ▼ and adjust it with ◀ or ▶.

Example of adjusting the "Hue"

Main colors	◀ button	▶ button
R (Red)	Closer to magenta	Closer to yellow
Y (Yellow)	Closer to red	Closer to green
G (Green)	Closer to yellow	Closer to cyan
C (Cyan)	Closer to green	Closer to blue
B (Blue)	Closer to cyan	Closer to magenta
M (Magenta)	Closer to blue	Closer to red

Menu operation → Page 41

• When "Saturation" is selected, the selected color becomes
  ◀: lighter. ▶: thicker.
• When "Value" is selected, the selected color becomes
  ◀: darker. ▶: brighter.

- To reset the adjustment values of each color to the default settings, select "Reset" and press ENTER.

Info

- When a video signal, S-video signal, or component 480I/576I signal is input, set "Progressive" mode to "2D Progressive" and then adjust the colors.

Progressive

Selectable items	Description
2D Progressive	Useful to display fast-moving images such as sports.
3D Progressive	Useful to display relatively slow-moving images such as drama and documentary more clearly.
Film Mode	Reproduces the image of film source* clearly. Displays the optimized image of film transformed with three-two pull down (NTSC and PAL60Hz) or two-two pull down (PAL50Hz and SECAM) enhancement to progressive mode images.

* The film source is a digital video recording with the original encoded as is at 24 frames/second. The projector can convert this film source to progressive video at 60 frames/second with NTSC and PAL60Hz or at 50 frames/second with PAL50Hz and SECAM to play back a high-definition image.

Note

• In NTSC or PAL60Hz, even if the 3D Progressive mode has been set, the three-two pull down enhancement will be enabled automatically when the film source has been entered.
• When the image is blurred or noisy, switch to the optimal mode.
• When using progressive inputs, inputs are directly displayed so that 2D Progressive, 3D Progressive and Film Mode cannot be selected.

Info

- The settings can be made either when INPUT3 or INPUT4 are selected or when INPUT1, 2, INPUT5, or INPUT6 are selected and the input signal is 480I or 576I.

Reducing Image Noise (DNR)

Video digital noise reduction (DNR) provides high quality images with minimal dot crawl and cross color noise.

Selectable items	Description
OFF	DNR does not function.
Level 1-3	Sets the DNR level for viewing a clearer picture.

Note

Set "DNR" to "OFF" in the following cases:

• When the image is blurry.
• When the contours and colors of moving images drag.
• When TV broadcasts with weak signals are projected.

Switching the Iris Setting

This function controls the quantity of the projected light and the contrast of the image.

Selectable items	Description
High Brightness	High brightness is given priority over high contrast.
High Contrast	High contrast is given priority over high brightness.

Note

- You can also use IRIS on the remote control to change the Iris. (See page 38.)

Lamp Setting

Select-able items	Brightness	Fan sound	Power consumption (When using AC 100V)	Lamp Life
Bright	100%	Normal	303W	Approx. 2,000 hours
Eco + Quiet	Approx. 76%	Low	234W	Approx. 3,000 hours

Note

- When "Lamp Setting" is set to "Eco+Quiet", the power consumption will decrease and the lamp life will extend. (Projection brightness decreases approximately 24%.)

Computer Image Adjustment ("Fine Sync" menu)

Fine Sync IN Clock [ 0] - + Phase [ 0] - + H-Pos [ 0] - + V-Pos [ 0] - + Reset Special Modes Auto Sync 1080I On Cur. sig. freq : H 33.8 kHz / V 60 Hz

① Adjusting the Computer Image

Use the Fine Sync function in case of irregularities such as vertical stripes or flickering in portions of the screen.

Selectable items	Description
Clock	Adjusts vertical noise.
Phase	Adjusts horizontal noise (similar to tracking on your VCR).
H-Pos	Centers the on-screen image by moving it to the left or right.
V-Pos	Centers the on-screen image by moving it up or down.

Note

• You can automatically adjust the computer image by setting "Auto Sync" in the "Fine Sync" menu to "On" or pressing Ⓔ AUTO SYNC on the remote control.
• "Clock", "Phase", "H-Pos" and "V-Pos" cannot be adjusted when INPUT 6 is selected.
• The adjustable area of each item may be changed according to the input signal.
• To reset all adjustment items, select "Reset" and press ⏻ ENTER.

Menu operation → Page 41

② Special Modes Setting

Ordinarily, the type of input signal is detected and the correct resolution mode is automatically selected. However, for some signals, the optimal resolution mode in "Special Modes" in the "Fine Sync" menu may need to be selected to match the computer display mode.

Note

• Avoid displaying computer patterns which repeat every other line (horizontal stripes). (Flickering may occur, making the image hard to see.)
  • Information on the currently selected input signal can be confirmed in item ④.

③ Auto Sync (Auto Sync Adjustment)

Selectable items	Description
On	Auto Sync adjustment will occur when the projector is turned on or when the input signals are switched, when connected to a computer.
Off	Auto Sync adjustment is not automatically performed.

Note

• Auto Sync adjustment is also performed by pressing Ⓗ AUTO SYNC on the remote control.
• The Auto Sync adjustment may take some time to complete, depending on the image of the computer connected to the projector.
• When the optimum image cannot be achieved with Auto Sync adjustment, use manual adjustments.

④ Checking the Input Signal

This function allows you to check the current input signal information.

Using the "Options" Menu

Menu operation → Page 41

Options 1 IN ① Overscan H [ 0] - + ① Overscan V [ 0] - + ② OSD Display [ 0$] - + ③ Video System On ④ Signal Type Auto ⑤ HDMI Setting Auto ⑥ Background Standard ⑦ Background Blue ⑧ Auto Power Off On ⑨ [ ] h0Lamp Timer(Life) 100% SEL./ADJ. ← ENTER RETURN END

Settings on the Options 1 menu

① Adjusting the Overscan

This function allows you to adjust the Overscan area ratio (display area ratio).

Orientation	◀ button	▶ button
Overscan H (Horizontal)	Reduces the image. (The display area ratio becomes larger.)	Enlarges the image. (The display area ratio becomes smaller.)
Overscan V (Vertical)

Note

• This function can only be adjusted when a video, S-video, or Component signal is input.
• If the display area ratio is set too large, noise may appear at the screen edges. If this happens, set the display area ratio to a smaller value.
• When "Resize" is set to "CINEMA ZOOM", depending on the input signal, "Overscan V" may not be adjustable.
• Also read "About Copyrights" on page 37.

② Adjusting the Vertical Size of the Display (Subtitle Setting)

With this function, you can adjust the vertical size of the display to allow for subtitles.

◀ button	The image is compressed by adjusting the vertical size of the display.
▶ button	The image is enlarged by adjusting the vertical size of the display.

Note

• When changing the screen with the Subtitle setting, not only the bottom of the screen rises, but also the upper part is changed to a certain point.
• The Subtitle setting can be adjusted more effectively with the Overscan function.
• The Subtitle setting only works when "Resize" is set to "CINEMA ZOOM".
• The adjustment area changes according to the input signal.

Setting the On-screen Display

Selectable items	Description
On	All On-screen Displays are displayed.
Off	INPUT/FREEZE/AUTO SYNC/RESIZE/PICTURE MODE/IRIS are not displayed.

Setting the Video System

This function can only be set in INPUT 3 or INPUT 4.

The video input system mode is factory preset to "Auto"; however, a clear picture from the connected audio-visual equipment may not be received, depending on the video signal difference. In that case, switch the video signal.

Selectable items	Description
PAL	When connected to PAL video equipment.
SECAM	When connected to SECAM video equipment.
NTSC4.43	When reproducing NTSC signals in PAL video equipment.
NTSC3.58	When connected to NTSC video equipment.

Signal Type Setting

This function allows you to select the input signal type (RGB or Component) for INPUT 5 or INPUT 6.

Selectable items	Description
Auto	Automatically selects the appropriate input signal between RGB and Component.
RGB	Set when RGB signals are received.
Component	Set when component signals are received.

Note

- You can also select "Signal Type" using RGB/COMP. on the remote control (INPUT 5 or INPUT 6).

Selecting the HDMI Setting

When there is an HDMI-capable device connected to INPUT 6, an optimum picture may not be displayed if the device's output signal type and the projector's input signal type do not match. If this should occur, switch the HDMI Setting.

Selectable items	Description
Standard	When the black levels of the image show banding or appear faded, select the option that results in the best picture quality. (In most circumstances, “Standard” should be selected.)
Enhanced

Note

- The HDMI Setting can be selected only when INPUT 6 is selected.

Selecting the Background Image

Selectable items	Description
Blue	Blue screen
None	— (Black screen)

Auto Power Off Function

Selectable items	Description
On	When no input signal is detected for more than 15 minutes, the projector will automatically enter standby mode.
Off	The Auto Power Off function will be disabled.

Note

- When the Auto Power Off function is set to "On", 5 minutes before the projector enters standby mode, the message "Enter STANDBY mode in X min." will appear on the screen to indicate the remaining minutes.

Checking the Lamp Life Status

You can confirm the cumulative lamp usage time and the remaining lamp life (percentage).

Lamp usage condition		Remaining lamp life
	“Life”	100%	5%
Operated exclusively with Lamp Setting set to “Eco + Quiet”		Approx. 3,000 hours	Approx. 150 hours
Operated exclusively with Lamp Setting set to “Bright”		Approx. 2,000 hours	Approx. 100 hours

Note

• It is recommended that the lamp be changed when the remaining lamp life becomes 5%.
• The lamp life may vary depending on the usage condition.

Options 2 IN ① PRJ Mode ② RS-232C ③ STANDBY Mode ④ Fan Mode ⑤ All Reset ⑥ Language Front 9600 bps Eco Normal English

Settings on the Options 2 menu

Reversing/Inverting Projected Images

Selectable items	Description
Front	Normal image (Projected from the front of the screen)
Ceiling + Front	Inverted image (Projected from the front of the screen with an inverted projector)
Rear	Reversed image (Projected from the rear of the screen or with a mirror)
Ceiling + Rear	Reversed and inverted image (Projected with a mirror)

See page 19 for details of Projection (PRJ) Mode.

Selecting the Transmission Speed (RS-232C)

Serviceman only

When using the RS-232C terminal, set the baud rate of the projector to the same baud rate as the computer.

Selectable items	Description
9600bps	Transmission speed is slow.
	[$45H]
115200bps	Transmission speed is rapid.

Reducing the Power Consumption When the Power Is in Standby Mode

When "STANDBY Mode" has been set to "Standard", the RS-232C function is activated and power is consumed even in standby mode. It is recommended that "STANDBY Mode" be set to "Eco" when it is not being used. This reduces power consumption when the projector is in standby mode.

Selectable items	Description
Standard	The RS-232C function is activated even if the projector is in standby mode.
Eco	The RS-232C function is switched off when the projector is in standby mode.

Note

- When you want to control the projector using the RS-232C function, set to "Standard".

Fan Mode Setting

This function changes the fan rotation speed.

Selectable items	Description
Normal	Suitable for normal environments.
High	Select this when using the projector at altitudes of approximately 4,900 feet (1,500 meters) or more.

When "Fan Mode" is set to "High", the fan rotation speeds up, and the fan noise becomes louder.

Returning to the Default Settings

Use "All Reset" to initialize all the adjustments you have made to the default settings.

Note

The following items cannot be initialized.

• "Fine Sync" menu
• Special Modes
• "Options1" menu
• Lamp Timer (Life)
• Language

Selecting the On-screen Display Language

The projector can switch the on-screen display language among 11 languages.

English	Svenska
Deutsch	Português
Español	汉语
Nederlands	한국어
Français	日本語
Italiano

Maintenance

Cleaning the projector

■Ensure that you have unplugged the power cord before cleaning the projector.

■The cabinet as well as the operation panel is made of plastic. Avoid using benzene or thinner, as these can damage the finish on the cabinet.

■Do not use volatile agents such as insecticides on the projector.

Do not attach rubber or plastic items to the projector for long periods.

The effects of some of the agents in the plastic may cause damage to the quality or finish of the projector.

■Wipe off dirt gently with a soft flannel cloth.

When the dirt is hard to remove, soak a cloth in a mild detergent diluted with water, wring the cloth well and then wipe the projector.

Strong cleaning detergents may discolor, warp or damage the coating on the projector. Make sure to test on a small, inconspicuous area on the projector before use.

Mild detergent Mild detergent diluted with water Wax Thinner

Cleaning the lens

■Use a commercially available blower or lens cleaning paper (for glasses and camera lenses) for cleaning the lens. Do not use any liquid type cleaning agents, as they may wear off the coating film on the surface of the lens.

As the surface of the lens can easily get damaged, be careful not to scrape or hit the lens.

Illustration of a hand cleaning a box with a magnified inset showing a circular component (no text or symbols)

Cleaning the exhaust and intake vents

■Use a vacuum cleaner to clean dust from the exhaust vent and the intake vent.

Diagram showing three views of a portable electronic device with labeled connectors and ports, including a close-up of the internal component.

Info

- If you want to clean the air vents during projector operation, ensure you press ⏻STANDBY/ON on the projector or ⏻STANDBY on the remote control and put the projector into standby mode. After the cooling fan has stopped, clean the vents.

Cleaning and Replacing the Dust Filters

Cleaning the Dust Filters

Info

- The dust filters should be cleaned every 100 hours of use. Clean the filters more often when the projector is used in a dusty or smoky location.

1

Press ⒶSTANDBY/ON on the projector to put the projector into standby mode.

- Wait until the cooling fan stops. - Disconnect the power cord and unplug the power cord from the AC socket.

2

Remove the filter holders.

- Turn the projector over. To remove the filter holders, press in the tabs while lifting up.

3

Clean the dust off the dust filters and the holders with a hand broom.

STANDBY/ON button

① ② AC socket

Diagram showing two views of a computer chassis with arrows indicating assembly or movement (no text or symbols present)

Illustration of a broom being brushed out from a flat base (no text or symbols)

4 Replace the filter holders.

- Align the tabs on the filter holders while replacing them, and then press down on the tabs to lock them in place.

Diagram of a computer monitor with cable and drive components, no text or symbols present

Note

- Be sure the filter holders are securely installed. The power will not turn on unless it is correctly installed.

Replacing the Dust Filters

Info

- If the filters become too dirty to clean effectively, purchase new ones (PFILDA025WJZZ) from your nearest Sharp Authorized Service Center or Dealer.

After removing the filter holders (see step 2 of "Cleaning the Dust Filters"), remove the dust filters, then replace with new ones.

• Pick the dust filters up with your fingers and lift them out of the filter holders.
• With the reinforcement seal facing down, place the dust filters underneath the tabs on the filter holders.

Reinforcement seal

Maintenance Indicators

■ The warning lights (power indicator, lamp indicator and temperature warning indicator) on the projector indicate problems inside the projector.
If a problem occurs, either the temperature warning indicator or the lamp indicator will illuminate red, and the projector will enter standby mode. After the projector has entered standby mode, follow the procedures given below.

Top View

STANDBY/ON LAMP TEMP Temperature warning indicator Lamp indicator Power indicator

About the temperature warning indicator

TEMP.

If the temperature inside the projector increases, due to blockage of the air vents, or the setting location, "TEMP." will illuminate in the lower left corner of the picture. If the temperature keeps on rising, the lamp will turn off and the temperature warning indicator will blink, the cooling fan will run, and then the projector will enter standby mode. After "TEMP"ears, ensure you perform the measures described on page 55.

About the lamp indicator

Change The Lamp.

■When the remaining lamp life becomes 5% or less, (yellow) and "Change The Lamp" will be displayed on the screen. When the percentage becomes 0%, it will change to (red), the lamp will automatically turn off and then the projector will automatically enter standby mode. At this time, the lamp indicator will illuminate in red.

If you try to turn on the projector a fourth time without replacing the lamp, the projector will not turn on.

Indicators on the Projector

Power indicator	Red on	Normal (Standby)
	Green on	Normal (Power on)
	Red blinks Abnormal	(See page 55.)
	Green blinks	Normal (Cooling)
Lamp indicator	Green on	Normal
	Green blinks	The lamp is warming up or shutting down.
	Red on The lamp is shut down abnormally or requires to be changed. (See page 55.)
Temperature warning indicator	Off	Normal
	Red on	The internal temperature is abnormally high. (See page 55.)

Maintenance indicator			Problem	Cause	Possible Solution
	Normal	Abnormal
Tempera-ture warning indicator	Off	Red on (Standby)	The internal temperature is abnormally high.	• Blocked air intake	• Relocate the projector to an area with proper ventilation. (See page 8.)
				• Cooling fan breakdown• Internal circuit failure• Clogged air intake	• Take the projector to your nearest Sharp Authorized Service Center or Dealer for repair.
Lamp indicator	Green on (Green blinks when the lamp is warming up or turning off.)	Red on	The lamp does not illuminate.	• The lamp is shut down abnormally.	• Disconnect the power cord from the AC outlet, and then connect it again.
			Time to change the lamp.	• Remaining lamp life becomes 5% or less.	• Carefully replace the lamp. (See page 57.)• Take the projector to your nearest Sharp Authorized Service Center or Dealer for repair.• Please exercise care when replacing the lamp.• Securely install the cover.
		Red on (Standby)	The lamp does not illuminate.	• Burnt-out lamp• Lamp circuit failure
Power indicator	Green on/ Red on Green blinks (Cooling)	Red blinks	The power indicator blinks in red when the projector is on.	• The dust filter holder or lamp unit cover is open.	• If the power indicator blinks in red even when the dust filter holders and lamp unit cover are securely installed, contact your nearest Sharp Authorized Service Center or Dealer for advice.

Info

• If the temperature warning indicator illuminates, and the projector enters standby mode, follow the possible solutions above and then wait until the projector has cooled down completely before plugging in the power cord and turning the power back on. (At least 10 minutes.)
• If the power is turned off for a brief moment due to power outage or some other cause while using the projector, and the power supply recovers immediately after that, the lamp indicator will illuminate in red and the lamp may not be lit. In this case, unplug the power cord from the AC outlet, replace the power cord in the AC outlet and then turn the power on again.
• The cooling fan keeps the internal temperature of the projector constant and this function is controlled automatically. The sound of the cooling fan may change during operation because the fan speed may change and this is not a malfunction.
• Do not unplug the power cord after the projector has entered standby mode and while the cooling fan is running. The cooling fan runs for about 90 seconds.

Regarding the Lamp

Lamp

It is recommended that the lamp (sold separately) be replaced when the remaining lamp life becomes 5% or less, or when you notice a significant deterioration in the picture and color quality. The lamp life (percentage) can be checked with the on-screen display. (See page 49.)

■Purchase a replacement lamp of type AN-XR10L2 from your place of purchase, nearest Sharp Authorized Service Center or Dealer.

IMPORTANT NOTE TO U.S. CUSTOMERS:

The lamp included with this projector is backed by a 90-day parts and labor limited warranty. All service of this projector under warranty, including lamp replacement, must be obtained through a Sharp Authorized Service Center or Dealer. For the name of the nearest Sharp Authorized Service Center or Dealer, please call toll-free: 1-888-GO-SHARP (1-888-467-4277).

Hg LAMP CONTAINS MERCURY For State Lamp Disposal Information

www.lamprecycle.org or 1-800-BE-SHARP

U.S.A. ONLY

Caution Concerning the Lamp

This projector utilizes a pressurized mercury lamp. A loud sound may indicate lamp failure. Lamp failure can be attributed to numerous sources such as: excessive shock, improper cooling, surface scratches or deterioration of the lamp due to a lapse of usage time.
The period of time up to failure largely varies depending on the individual lamp and/or the condition and the frequency of use. It is important to note that failure can often result in the bulb cracking.
When the lamp replacement indicator and on-screen display icon are illuminated, it is recommended that the lamp be replaced with a new one immediately, even if the lamp appears to be operating normally.
■ Should the lamp break, there is also a possibility that glass particles may spread inside of the projector. In such a case, it is recommended you contact your nearest Sharp Authorized Service Center or Dealer to assure safe operation.
■ Should the lamp break, the glass particles may spread inside the lamp cage or gas contained in the lamp may be vented into the room from the exhaust vent. Because the gas in this lamp includes mercury, ventilate the room well if the lamp breaks and avoid all exposure to the released gas. In case of exposure to the gas, consult a doctor as soon as possible.

Replacing the Lamp

- Do not remove the lamp unit from the projector right after use. The lamp will be very hot and may cause burn or injury.

■ Carefully change the lamp by following the instructions described in this section. * If you wish, you may have the lamp replaced at your nearest Sharp Authorized Service Center or Dealer.

* If the new lamp does not light after replacement, take your projector to the nearest Sharp Authorized Service Center or Dealer for repair.

Removing and Installing the Lamp Unit

Warning!

- The lamp unit becomes very hot while the projector is operating. Do not remove the lamp unit from the projector right after use. The lamp and parts around the lamp will be very hot and may cause burns or injury.

Info

• Make sure that you remove the lamp unit by the handle. Do not touch the glass surface of the lamp unit or the inside of the projector.
• To avoid injury to yourself and damage to the lamp, make sure you carefully follow the steps below.
• Do not loosen other screws except for the lamp unit cover and lamp unit.

1

Press Ⓑ STANDBY/ON on the projector or ⏻ STANDBY on the remote control to put the projector into standby mode.

- Wait until the cooling fan stops.

2

Disconnect the power cord.

- Unplug the power cord from the AC socket.

- Leave the lamp until it has fully cooled down (about 1 hour).

3

Remove the lamp unit cover.

- Turn the projector over. Loosen the user service screw (①) that secures the lamp unit cover. Remove the lamp unit cover (②).

Optional accessory

Lamp unit AN-XR10L2

STANDBY/ON button ① ② AC socket

Diagram showing a device with labeled parts and directional arrows, including numbered annotations ① and ②.

User service screw (for lamp unit cover)

Regarding the Lamp (Continued)

4 Remove the lamp unit.

- Loosen the securing screws from the lamp unit. Hold the lamp unit by the handle and pull it in the direction of the arrow. At this time, keep the lamp unit horizontal and do not tilt it.

5 Insert the new lamp unit.

- Press the lamp unit firmly into the lamp unit compartment. Fasten the securing screws.

6 Replace the lamp unit cover.

- Align the tab on the lamp unit cover (①) and place it while pressing the tab (②) to close it. Then tighten the user service screw (③) to secure the lamp unit cover.

Info

- If the lamp unit and lamp unit cover are not correctly installed, the power will not turn on, even if the power cord is connected to the projector.

Resetting the Lamp Timer

Reset the lamp timer after replacing the lamp.

Info

- Make sure to reset the lamp timer only when replacing the lamp. If you reset the lamp timer and continue to use the same lamp, this may cause the lamp to become damaged or explode.

1 Connect the power cord.

- Plug the power cord into the AC socket of the projector.

2 Reset the lamp timer.

- While simultaneously holding down ⓞMENU, ⚙ENTER and ▼ on the projector, press ⚙STANDBY/ON on the projector. - “LAMP 0000H” is displayed, indicating that the lamp timer is reset.

Handle

Securing screws

Diagram showing two steps of a device assembly: one with a box and arrow indicating direction, the other with a screwdriver and rotating arrows.

Diagram showing three steps of a device operation: loading, adding, and adjusting a component with a screwdriver.

AC socket

STANDBY/ON button LAMP TEMP. STANDBY/ON INPUT ENTER button MENU button RESIZE MENU ▼ button

Connecting Pin Assignments

COMPUTER-RGB/COMPONENT INPUT5 Terminal: 15-pin Mini D-sub female connector

11 ~ 15 1 ~ 5 6 ~ 10

COMPUTER-RGB Input

1. Video input (red)

2. Video input (green/sync on green)

3. Video input (blue)

4. Not connected

5. Not connected

6. Earth (red)

7. Earth (green/sync on green)

8. Earth (blue)

9. Not connected

10. GND

11. Not connected
12. Bi-directional data
13. Horizontal sync signal: TTL level
14. Vertical sync signal: TTL level
15. Data clock

Component Input

1. P_R(C_R)
2. Y
3. P_B(C_B)
4. Not connected
5. Not connected
6. Earth (P R)
7. Earth (Y)
8. Earth (P B)
9. Not connected
10. Not connected
11. Not connected
12. Not connected
13. Not connected
14. Not connected
15. Not connected

HDMI Terminal

1 19 2 18

NamePin No.

1. TMDS Data2+
2. TMDS Data2 Shield
3. TMDS Data2-
4. TMDS Data1+
5. TMDS Data1 Shield
6. TMDS Data1-
7. TMDS Data0+

NamePin No.

1. TMDS Data0 Shield
2. TMDS Data0-
3. TMDS Clock+
4. TMDS Clock Shield
5. TMDS Clock-
6. CEC

NamePin No.

1. Reserved
2. SCL
3. SDA
4. DDC/CEC Ground
5. +5V Power
6. Hot Plug Detect

Computer Compatibility Chart

Computer

• Multiple signal support
  Horizontal Frequency: 15-70 kHz,
  Vertical Frequency: 45-85 Hz,
  Pixel Clock: 12-85 MHz
  Sync signal: Compatible with TTL level

• Compatible with sync on green signal

• Expansion System resizing technology

The following is a list of modes that conform to VESA. However, this projector supports other signals that are not VESA standards.

PC/MAC	Resolution		Horizontal Frequency (kHz)	Vertical Frequency (Hz)	VESA Standard	HDMI Support	Display
PC	VGA	640 × 350	27.0	60			Upscale
			31.5	70
			37.5	85	√
		640 × 400	27.0	60
			31.5	70
			37.9	85	√
		720 × 350	27.0	60
			31.5	70
		720 × 400	27.0	60
			31.5	70
			37.9	85	√
		640 × 480	26.2	50
			31.5	60	√	√
			34.7	70
			37.9	72	√
			37.5	75	√
			43.3	85	√
	SVGA	800 × 600	31.4	50
			35.1	56	√
			37.9	60	√
			46.6	70
			48.1	72	√
			46.9	75	√
			53.7	85	√
	XGA	1,024 × 768	40.3	50			Intelligent compression
			48.4	60	√
			56.5	70	√
			60.0	75	√
	—	1,280 × 720	45.0	60			True
		1,280 × 768	47.8	60			Intelligent compression
MAC 13"	VGA	640 × 480	34.9	67			Upscale
MAC 16"	SVGA	800 × 600	37.8	60
		832 × 624	49.7	75
MAC 19"	XGA	1,024 × 768	60.2	75			Intelligent compression

Note

- When this projector receives 640 × 350 VESA format VGA signals, "640 × 400" appears on the screen.

DTV

Signal	Horizontal Frequency (kHz)	Vertical Frequency (Hz)	HDMI Support
480I	15.7	60	√
480P	31.5	60	√
540P	33.8	60
576I	15.6	50	√
576P	31.3	50	√
720P	37.5	50	√
720P	45.0	60	√
1035I	28.1	50
1035I	33.8	60
1080I	28.1	50	√
1080I	33.8	60	√

Problem Check		Page
Picure does not appear or projector does not start.	Projector power cord is not plugged into the wall outlet.	28
	Power to the external connected devices is off.	-
	The selected input mode is wrong.	29
	Cables incorrectly connected to the projector.	23-27
	Remote control battery has run out.	14
	External output has not been set when connecting notebook computer.	27
	The lamp unit cover is not installed correctly.	57, 58
	The dust filter holders are not installed correctly.	52, 53
No picture appears (or picture is dark).	Cables incorrectly connected to the projector.	23-27
	"Bright" is set to minimum position.	43
	Depending on the computer you are using, an image may not be projected unless the signal output setting of the computer is switched to the external output. Refer to the computer's operation manual for how to switch its signal output settings.	-
Color is faded or poor.	Image adjustments are incorrectly set.Make adjustments to "Color", "Tint" and "BrilliantColorTM" in "Picture Mode".	43
	(Video Input only)Video input system is incorrectly set.	48
Picture is blurred; noise appears.	Adjust the focus.	30
	The projection distance exceeds the focus range.	20
	There is fog on the lens. If the projector is carried from a cold room into a warm room, or if it is suddenly heated, condensation may form on the surface of the lens and the image will become blurred. Please set up the projector at least one hour before it is to be used. If condensation should form, remove the power cord from the wall outlet and wait for it to clear.	-
	(Computer Input only)Perform "Fine Sync" Adjustments ("Clock" Adjustment)Perform "Fine Sync" Adjustments ("Phase" Adjustment)Noise may appear depending on the computer.	4646-
Picture is green on INPUT 5 (Component)/INPUT 6 (Component).	Select "Signal Type" in the "Options1" menu and change the input signal type.	48
Picture is pink (no green) on INPUT 5 (RGB)/INPUT 6 (RGB).
An unusual sound is occasionally heard from the cabinet.	If the picture is normal, the sound is due to cabinet shrinkage caused by room temperature changes. This will not affect operation or performance.	-
Maintenance indicator on the projector illuminates or blinks in red.	See "Maintenance Indicators".	54

Troubleshooting (Continued)

Problem	Check	Page
Picture is too bright and whitish.	· Image adjustments are incorrectly set.	43
The black levels of the image show banding or appear faded when INPUT 6 is selected.	· Select the HDMI Setting ("Standard" or "Enhanced") that results in the best picture quality.	48
The cooling fan becomes noisy.	· When temperature inside the projector increases, the cooling fan runs faster.	8,951-55
The lamp does not light up even after the projector turns on.	· The lamp indicator is illuminating in red.Replace the lamp.	54,57
The lamp suddenly turns off during projection.
The image sometimes flickers.	· Cables incorrectly connected to the projector or the connected equipment works improperly.· If this happens frequently, replace the lamp.	23-2757
The lamp needs much time to turn on.	· The lamp will eventually need to be changed.While the remaining lamp life draws to a close, replace the lamp.	57
Picture is dark.
The remote control cannot be used.	· Operate the remote control while pointing it at the projector's remote control sensor.· The remote control may be too far away from the projector.· If direct sunlight or a strong fluorescent light is shining on the projector's remote control sensor, place the projector where it will not be affected by strong light.	15
	· The batteries may be depleted or inserted incorrectly. Make sure the batteries are inserted correctly or insert new ones.	14

This unit is equipped with a microprocessor. Its performance could be adversely affected by incorrect operation or interference. If this should happen, unplug the Unit and plug it in again after more than 5 minutes.

Service Information (For the U.S.)

For the location of the nearest Sharp Authorized Service Center, or to obtain product literature, accessories, supplies or customer assistance, please call 1-800-BE-SHARP (1-800-237-4277) or visit SHARP's website (http://www.sharpusa.com).

Specifications

Product type	Projector
Model	DT-510
Video system	NTSC3.58/NTSC4.43/PAL/PAL-M/PAL-N/PAL-60/SECAM/DTV480I/DTV480P/DTV540P/DTV576I/DTV576P/DTV720P/DTV1035I/DTV1080I/DTV1080I-50
Display method	DLP® chip
	Panel size: 0.62"
	Drive method: Digital Light Processing (DLP®)
	No. of dots: 921,600 dots (1280 [H] × 720 [V])
Lens	1-1.15 × zoom lens, F2.4-2.6, f = 19.0-21.9 mm
Projection lamp	220 W DC lamp
Component input signal(INPUT1/2)	RCA connector
	Y: 1.0 Vp-p, sync negative, 75 Ω terminated
	PB(CB): 0.7 Vp-p, 75 Ω terminated
	PR(CR): 0.7 Vp-p, 75 Ω terminated
S-video input signal(INPUT 3)	4-pin mini DIN connector
	Y (luminance signal): 1.0 Vp-p, sync negative, 75 Ω terminated
	C (chrominance signal): Burst 0.286 Vp-p, 75 Ω terminated
Video input signal(INPUT 4)	RCA connector: VIDEO, composite video, 1.0 Vp-p, sync negative, 75 Ω terminated
Computer RGB/	15-pin mini D-sub connector
Component input signal(INPUT 5)	RGB separate/sync on green type analog input: 0-0.7 Vp-p, positive, 75 Ω terminated
	HORIZONTAL SYNC. SIGNAL: TTL level (positive/negative)
	VERTICAL SYNC. SIGNAL: Same as above
HDMI input signal(INPUT 6)	HDMI terminal (video signal only)
Horizontal resolution	720 TV lines (DTV720P)
Vertical frequency	45-85 Hz
Horizontal frequency	15-70 kHz
Pixel clock	12-85 MHz
Rated voltage	AC 100-240 V
Input current	3.1 A
Rated frequency	50/60 Hz
Power consumption	303 W (Lamp Setting "Bright")/234 W (Lamp Setting "Eco + Quiet") with AC 100 V
	293 W (Lamp Setting "Bright")/228 W (Lamp Setting "Eco + Quiet") with AC 240 V
Power consumption (standby)	4 W (AC 100 V) - 5 W (AC 240 V)*
Heat dissipation	1,140 BTU/hour (Lamp Setting "Bright")/1,100 BTU/hour (Lamp Setting "Eco + Quiet") with AC 100 V
	880 BTU/hour (Lamp Setting "Bright")/860 BTU/hour (Lamp Setting "Eco + Quiet") with AC 240 V
Operating temperature	41°F to 95°F (+5°C to +35°C)
Storage temperature	-4°F to 140°F (-20°C to +60°C)
Cabinet	Plastic
I/R carrier frequency	38 kHz
Dimensions (approx.)	12^13/_32'' × 4^19/_64'' × 11^1/_32'' (315 (W) × 109 (H) × 280 (D) mm) (main body only)
	12^13/_32'' × 4^47/_64'' × 11^37/_64'' (315 (W) × 120 (H) × 294 (D) mm) (including adjustment foot and projecting parts)
Weight (approx.)	8.8 lbs. (4.0 kg)
Replacement parts	Remote control, Power cord for U.S. and Canada, etc., Operation manual

*1 When STANDBY Mode is set to "Eco"

As a part of policy of continuous improvement, SHARP reserves the right to make design and specification changes for product improvement without prior notice. The performance specification figures indicated are nominal values of production units. There may be some deviations from these values in individual units.

Units: inches (mm)

13/64 (5) 11 1/32 (280) 23/64 (9)

Ø9 7/64 (69.2) 1 55/64 (47) 7/16 (11) 4 19/64 (109) 3 7/32 (80) 3 1/16 (77.5) 12 13/32 (315)

300000000 300000000 300000000 300000000 300000000 7h64 (104) 4 1 7/8 (47.5) 1 1/82 (33.8) 2 61/64 (75) 1 53/64 (46.2) 2 19/32 (65.5) 7h6 (11)

AC socket 28

Accessories 10

Adjustment buttons 41

Aspect ratio 36

Auto Power Off 49

Auto Sync (Auto Sync adjustment) 46

AUTO SYNC button 46

Background 48

Backlight button 13

Blue 43

Bright 43

BrilliantColor™ 43

Checking the Input Signal 46

CINEMA ZOOM 36, 37

Clock 46

CLR Temp (Color Temperature) 44

C.M.S. 44

Color 43

Contrast 43

DOT BY DOT 37

DNR 45

Dust filters 52

ENTER button.... 41

Exhaust vent 12,51

Fan Mode 50

Fine Sync 46

Focus ring 30

FREEZE button 38

GEOMETRIC ADJUSTMENT 34

H & V KEYSTONE 35

HDMI Setting 48

H-Pos 46

HEIGHT ADJUST lever 30

Hue 44

INPUT 1 terminal 23

INPUT 1 - 6 modes .....29

INPUT 2 terminal 23

INPUT 3 terminal 24

INPUT 4 terminal 24

INPUT 5 terminal 25, 27

INPUT 6 terminal 26

INPUT buttons 29

Intake vent 11, 12, 51

IRIS button 38

Kensington Security Standard connector .... 12, 13

KEYSTONE button 32

Keystone Correction 32

Lamp 10,56

Lamp indicator 54

Lamp Setting 45

Lamp Timer (Life) 49

Lamp unit 57

Language (on-screen display language) ..... 50

Lens cap 11

MENU button 41

ON button 28

Optional accessories ....10

OSD Display 48

Overscan 47

Phase 46

Picture Adjustment 43

Picture Mode 38,43

PICTURE MODE button 38

Picture (Screen) Size and Projection Distance ..... 20

Power cord 28

PRJ Mode 19,49

Progressive 44

R-03 batteries 14

Rear adjustment foot 31

Red 43

Remote control 13

Remote control sensor 15

Replacing the lamp 56, 57

Resize 36,37

RESIZE button 36

RETURN button 41

RGB/COMP. button 48

RS-232C Setting 50

Saturation 44

Sharp 43

SIDE BAR 36,37

Special Modes 46

STANDBY button 29

STANDBY/ON button 28, 29

STANDBY Mode 50

STRETCH 36, 37

Subtitle 47

Supplied accessories 10

Temperature warning indicator 54

Tint 43

Value 44

Video System 48

V-Pos....46

Zoom ring 30

CONSUMER LIMITED WARRANTY

SHARP ELECTRONICS CORPORATION warrants to the first consumer purchaser that this Sharp brand product (the "Product"), when shipped in its original container, will be free from defective workmanship and materials, and agrees that it will, at its option, either repair the defect or replace the defective Product or part thereof with a new or remanufactured equivalent at no charge to the purchaser for parts or labor for the period(s) set forth below.

This warranty does not apply to any appearance items of the Product nor to the additional excluded item(s) set forth below nor to any Product the exterior of which has been damaged or defaced, which has been subjected to improper voltage or other misuse, abnormal service or handling, or which has been altered or modified in design or construction.

In order to enforce the rights under this limited warranty, the purchaser should follow the steps set forth below and provide proof of purchase to the servicer.

The limited warranty described herein is in addition to whatever implied warranties may be granted to purchasers by law. ALL IMPLIED WARRANTIES INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR USE ARE LIMITED TO THE PERIOD(S) FROM THE DATE OF PURCHASE SET FORTH BELOW. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.

Neither the sales personnel of the seller nor any other person is authorized to make any warranties other than those described herein, or to extend the duration of any warranties beyond the time period described herein on behalf of Sharp.

The warranties described herein shall be the sole and exclusive warranties granted by Sharp and shall be the sole and exclusive remedy available to the purchaser. Correction of defects, in the manner and for the period of time described herein, shall constitute complete fulfillment of all liabilities and responsibilities of Sharp to the purchaser with respect to the Product, and shall constitute full satisfaction of all claims, whether based on contract, negligence, strict liability or otherwise. In no event shall Sharp be liable, or in any way responsible, for any damages or defects in the Product which were caused by repairs or attempted repairs performed by anyone other than an authorized servicer. Nor shall Sharp be liable or in any way responsible for any incidental or consequential economic or property damage. Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion may not apply to you.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.

Model Specific Section (In-Home Service)

Your Product Model Number & Description:	DT-510 Projector(Be sure to have this information available when you need service for your Product.)
Warranty Period for this Product:	One (1) year parts and labor from date of purchase except for the Projector Lamp for which the warranty period is ninety (90) days from date of purchase. After the ninety (90) day warranty period on the Projector Lamp, parts and labor for a lamp replacement are the responsibility of the consumer.
Additional Item(s) Excluded from Warranty Coverage (if any):	Cleaning of Optical System and/or replacement of any filter.Labor & materials required to remove and reinstall a suspended projector in installations not accessible with a standard (8' step) ladder or ceilings exceeding 12' in height.Labor & materials required to remove and reinstall a projector in complex systems including, but not limited to, projectors installed in custom enclosures, projectors connected to third party control and automation systems, and realignment of projectors installed in "mirrored" rear projection enclosures.
Where to Obtain Service:	From a Sharp Authorized Servicer located in the United States. To find the location of the nearest Sharp Authorized Servicer, call Sharp toll free at 1-800-BE-SHARP.
What to do to Obtain Service:	Contact your Sharp Authorized Servicer to obtain in-home service for this Product. The Servicer will come to your home and if necessary to remove the Product for repair at the Servicer's facility, the Servicer will reinstall it upon completion of repair. Be sure to have Proof of Purchase available.

TO OBTAIN PRODUCT INFORMATION, CALL 1-800-BE-SHARP (1-800-237-4277) OR VISIT www.sharpusa.com.

SHARP®

LIMITED WARRANTY

Consumer Electronics Products

Congratulations on your purchase!

Sharp Electronics of Canada Ltd. (hereinafter called "Sharp") gives the following express warranty to the first consumer purchaser for this Sharp brand product, when shipped in its original container and sold or distributed in Canada by Sharp or by an Authorized Sharp Dealer:

Sharp warrants that this product is free, under normal use and maintenance, from any defects in material and workmanship. If any such defects should be found in this product within the applicable warranty period, Sharp shall, at its option, repair or replace the product as specified herein.

This warranty shall not apply to:

(a) Any defects caused or repairs required as a result of abusive operation, negligence, accident, improper installation or inappropriate use as outlined in the owner's manual.
(b) Any Sharp product tampered with, modified, adjusted or repaired by any party other than Sharp, Sharp's Authorized Service Centres or Sharp's Authorized Servicing Dealers.
(c) Damage caused or repairs required as a result of the use with items not specified or approved by Sharp, including but not limited to head cleaning tapes and chemical cleaning agents.
(d) Any replacement of accessories, glassware, consumable or peripheral items required through normal use of the product including but not limited to earphones, remote controls, AC adapters, batteries, temperature probe, stylus, trays, filters, belts, ribbons, cables and paper.
(e) Any cosmetic damage to the surface or exterior that has been defaced or caused by normal wear and tear.
(f) Any damage caused by external or environmental conditions, including but not limited to transmission line/power line voltage or liquid spillage.
(g) Any product received without appropriate model, serial number and CSA/cUL markings.
(h) Any products used for rental or commercial purposes.
(i) Any installation, setup and/or programming charges.

Should this Sharp product fail to operate during the warranty period, warranty service may be obtained upon delivery of the Sharp product together with proof of purchase and a copy of this LIMITED WARRANTY statement to an Authorized Sharp Service Centre or an Authorized Sharp Servicing Dealer. In home warranty service may be provided at Sharp's discretion on any Sharp television with the screen size of 27" or larger and on any Sharp Over The Range Microwave Oven.

This warranty constitutes the entire express warranty granted by Sharp and no other dealer, service centre or their agent or employee is authorized to extend, enlarge or transfer this warranty on behalf of Sharp. To the extent the law permits, Sharp disclaims any and all liability for direct or indirect damages or losses or for any incidental, special or consequential damages or loss of profits resulting from a defect in material or workmanship relating to the product, including damages for the loss of time or use of this Sharp product or the loss of information. The purchaser will be responsible for any removal, reinstallation, transportation and insurance costs incurred. Correction of defects, in the manner and period of time described herein, constitute complete fulfillment of all obligations and responsibilities of Sharp to the purchaser with respect to the product and shall constitute full satisfaction of all claims, whether based on contract, negligence, strict liability or otherwise.

WARRANTY PERIODS

Projector

1 year (bulb 90 days)

To obtain the name and address of the nearest Authorized Sharp Service Centre or Dealer, please contact: SHARP ELECTRONICS OF CANADA LTD.

SHARP ELECTRONICS OF CANADA LTD.

335 Britannia Road East

Mississauga, Ontario

L4Z 1W9

[phone]

Web site: www.sharp.ca

SHARP SERVICE THROUGH CUSTOMER SATISFACTION

SHARP®

SHARP CORPORATION
