USER MANUAL XV-Z10000 SHARP

Black-and-white illustration of diverse scenes including wedding, military transport, and dinosaur-like creatures (no text or symbols)

ENGLISH ..... -E- -XXE

FRANÇAIS ..... -1 - -XXF

ESPAÑOL ..... ES- -XXES

PORTUGUÊS ..... -P- -XX(P)

PICTURE BY DLP™ A TEXAS INSTRUMENTS TECHNOLOGY

Illustration of a projector with visible lens and control buttons (no text or symbols on the device itself)

Before using the projector, please read this operation manual carefully.

Introduction

ENGLISH

IMPORTANT

For your assistance in reporting the loss or theft of your Projector, please record the Serial Number located on the bottom of the projector and retain this information. Before recycling the packaging, please be sure that you have checked the contents of the carton thoroughly against the list of "Supplied accessories" on page 14.

Model No.: XV-Z10000

Serial No.:

There are two important reasons for prompt warranty registration of your new SHARP Projector, using the REGISTRATION CARD packed with the projector.

1. WARRANTY

This is to assure that you immediately receive the full benefit of the parts, service and labor warranty applicable to your purchase.

2. CONSUMER PRODUCT SAFETY ACT

To ensure that you will promptly receive any safety notification of inspection, modification, or recall that SHARP may be required to give under the 1972 Consumer Product Safety Act, PLEASE READ CAREFULLY THE IMPORTANT "LIMITED WARRANTY" CLAUSE. U.S.A. ONLY

WARNING:

High brightness light source. Do not stare into the beam of light, or view directly. Be especially careful that children do not stare directly into the beam of light.

WARNING:

To reduce the risk of fire or electric shock, do not expose this product to rain or moisture.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER.

NO USER-SERVICEABLE PARTS EXCEPT LAMP UNIT. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk or electric shock to persons.

The exclamation point within a triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

WARNING:

FCC Regulations state that any unauthorized changes or modifications to this equipment not expressly approved by the manufacturer could void the user's authority to operate this equipment.

U.S.A. ONLY

INFORMATION

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the operation manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

U.S.A. ONLY

Declaration of Conformity

SHARP PROJECTOR, MODEL XV-Z10000

This device complies with Part 15 of the FCC rules. Operation is subject to the following conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Responsible Party:

SHARP ELECTRONICS CORPORATION

Sharp Plaza, Mahwah, New Jersey 07430

TEL: 1-800-BE-SHARP (1-800-237-4277)

U.S.A. ONLY

WARNING:

The cooling fan in this projector continues to run for about 90 seconds after the projector is turned off. During normal operation, when turning the power off always use the power (OFF) button on the projector or on the remote control. Ensure the cooling fan has stopped before disconnecting the power cord. DURING NORMAL OPERATION, NEVER TURN THE PROJECTOR OFF BY DISCONNECTING THE POWER CORD. FAILURE TO OBSERVE THIS WILL RESULT IN PREMATURE LAMP FAILURE.

PRODUCT DISPOSAL

This projector utilizes tin-lead solder, high intensity discharge lamp (HID lamp) containing a small amount of mercury. Disposal of these materials may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or, if you are located in the United States of America, the Electronic Industries Alliance: www.eiae.org.

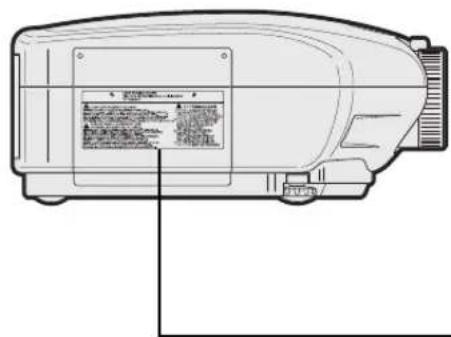

Line drawing of a portable electronic device with ports and a label on the front panel (no readable text or symbols)

Caution Concerning the Lamp Replacement

See "Replacing the Lamp" on page 76.

Some IC chips in this product include confidential and/or trade secret property belonging to Texas Instruments. Therefore you may not copy, modify, adapt, translate, distribute, reverse engineer, reverse assemble or discompile the contents thereof.

Outstanding Features

1. High Color Purity and Broad Dynamic Range Due to Advanced Optical Engine

• Newly developed 12° DMD™ chip provides significantly improved optical efficiency and excellent contrast ratio.
• Newly developed DDR (Double Data Rate) chip eliminates Color Breaking phenomena common with previous generation DLP™ projectors.
• Superior image quality with Minolta™ optical lens system.
• Use of 270 W high-output lamp realizes both high color purity and high brightness. Natural images made possible by high color reproducibility can be created with high-brightness, powerful expression capabilities.

2. Advanced Computer & Video Integrated Composer Technology

• Realizes vivid images using the latest image quality circuitry.

- New I/P conversion algorithm enhances the performance of the motion detect I/P conversion.

Extensive improvements on the jagged edges or slanted lines in moving images.

- New Edge Up-Scaling

As a result of reducing jaggies and flickering when up-scaling edges of slanted lines, even signals not reaching a panel resolution of 480I/P can be projected by converting to 720P high-definition images.

- New Film Mode Function

Three-two pull down enhancement for not only 480I and 576I signals, but HDTV 1080I signals as well.

- Noise Reduction

Allows for a clear image even with noisy source signals.

• Contrast Control Dynamic Gamma

Improved contrast and natural color gradation by minimizing hue change.

• Color Management System

Color Management System that freely adjusts only specific hues of RGBCMY enables easy adjustment of only specific locations of an image without affecting other portions of the image.

• Gamma Adjustment Function

Gamma Adjustment Function adds adjustments to each RGB gamma curve for finer image adjustment

3. Low Noise Design

A new optical engine has been developed for this product resulting in minimized fan noise for undisturbed viewing.

4. All Digital Projection

Use of a DVI/HDCP terminal enables all processes from input to signal processing and projection to be performed digitally, resulting in the realization of all-digital projection without any data loss due to analog conversion. This also supports the building of home theaters using HTPC*.

Contents

Introduction .... 1

Outstanding Features .... 3

Important Safeguards 8

Be sure to read the following safeguards when setting up your projector. 8

How to Access the PDF Operation Manuals of SharpVision Manager 9

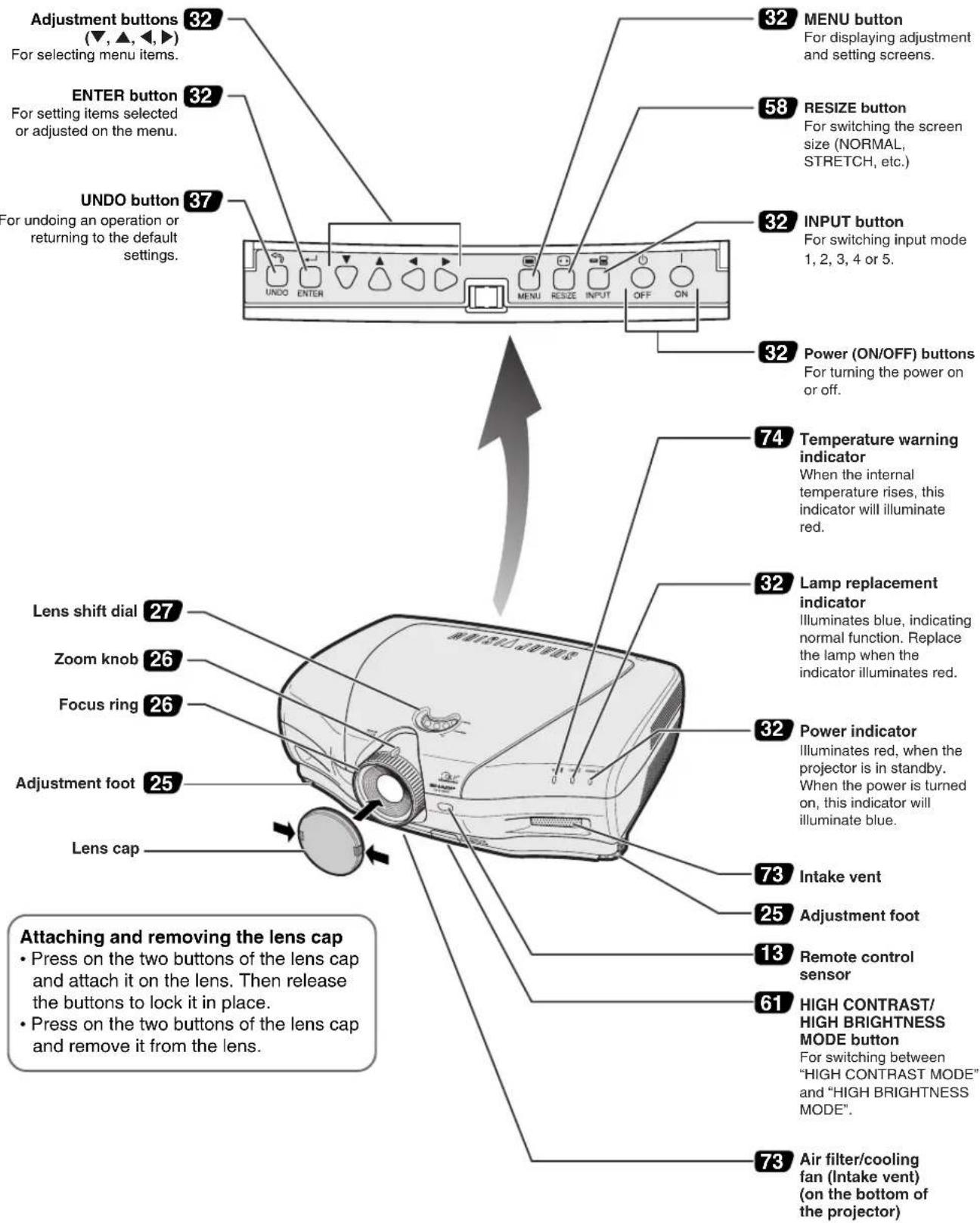

Part Names ...... 10

Projector (Front and Top View) 10

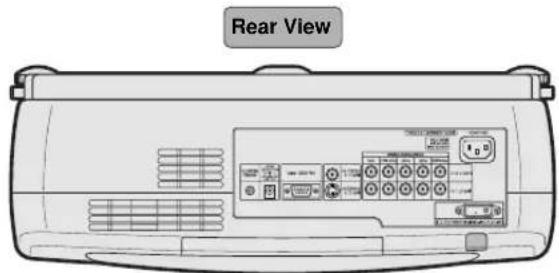

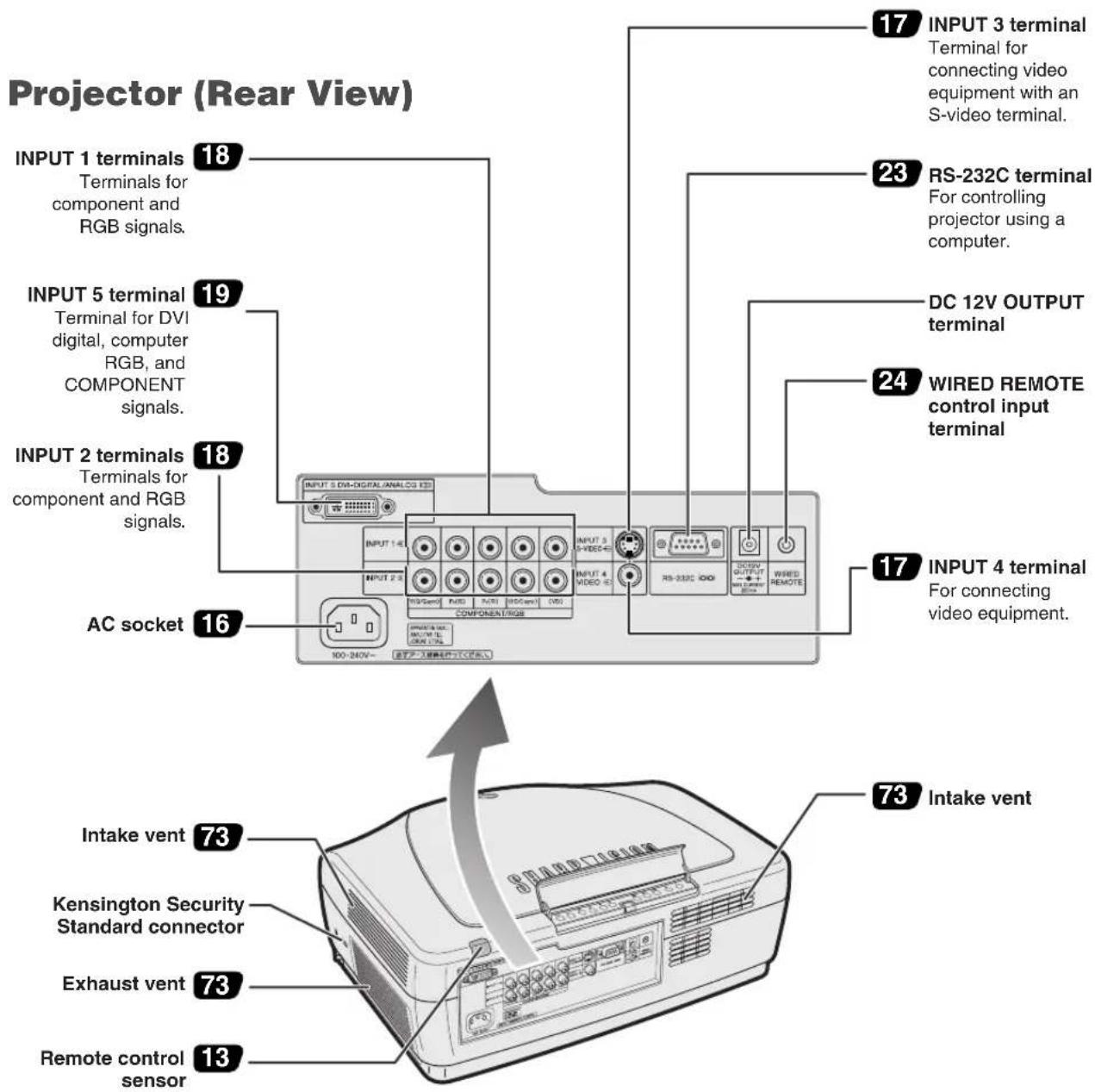

Projector (Rear View) 11

Part Names 12

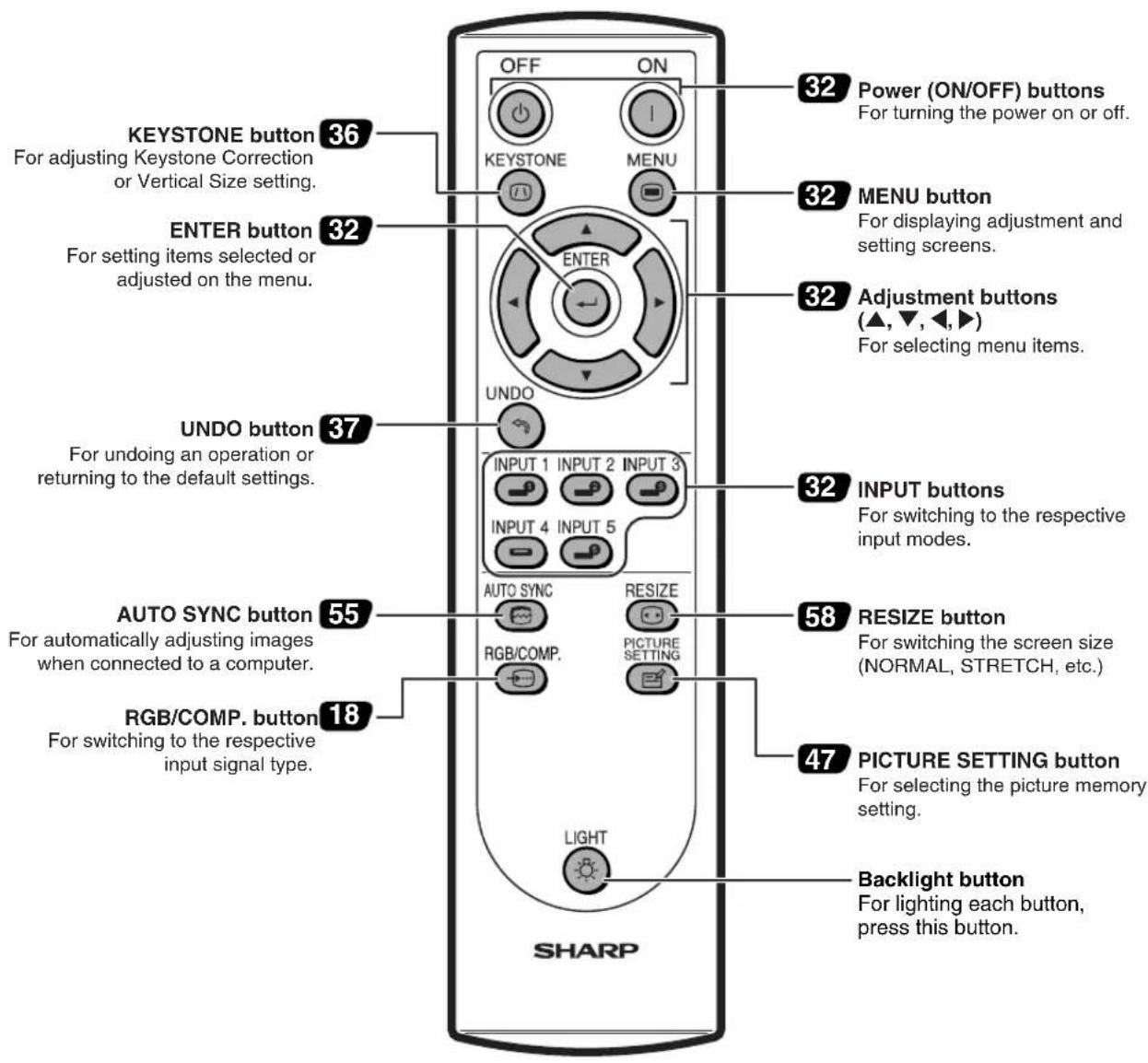

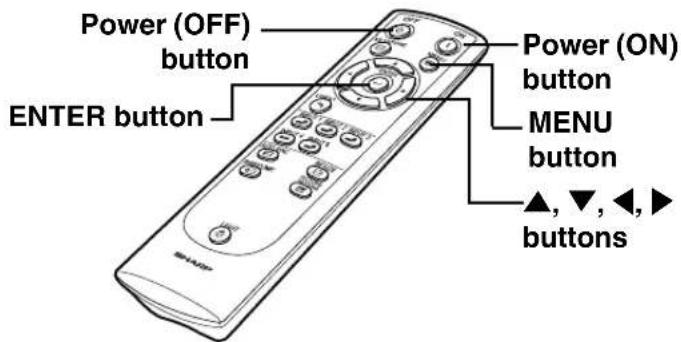

Remote Control (Front View) 12

Remote Control (Top View) 12

Using the Remote Control 13

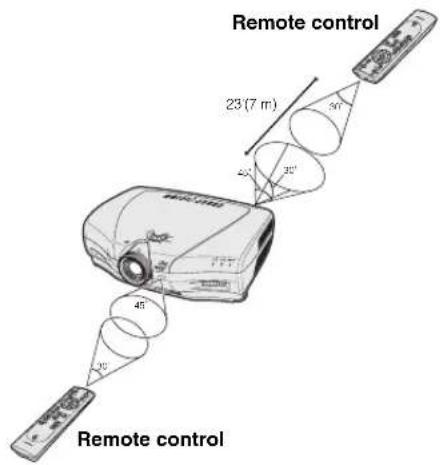

Available Range of the Remote Control 13

Inserting the Batteries 13

Accessories 14

Connections and Setup

Connecting the Projector to Other Devices.... 16

Before Connecting.... 16

This projector can be connected to: 16

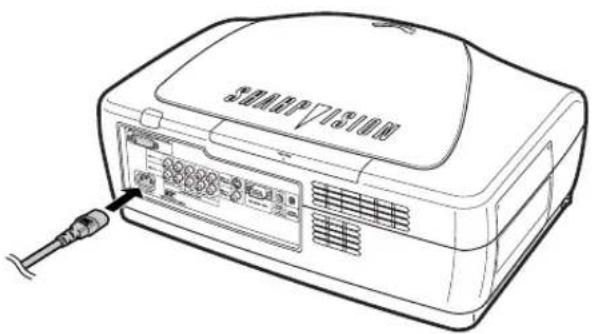

Connecting the Power Cord 16

Connecting to Video Equipment.... 17

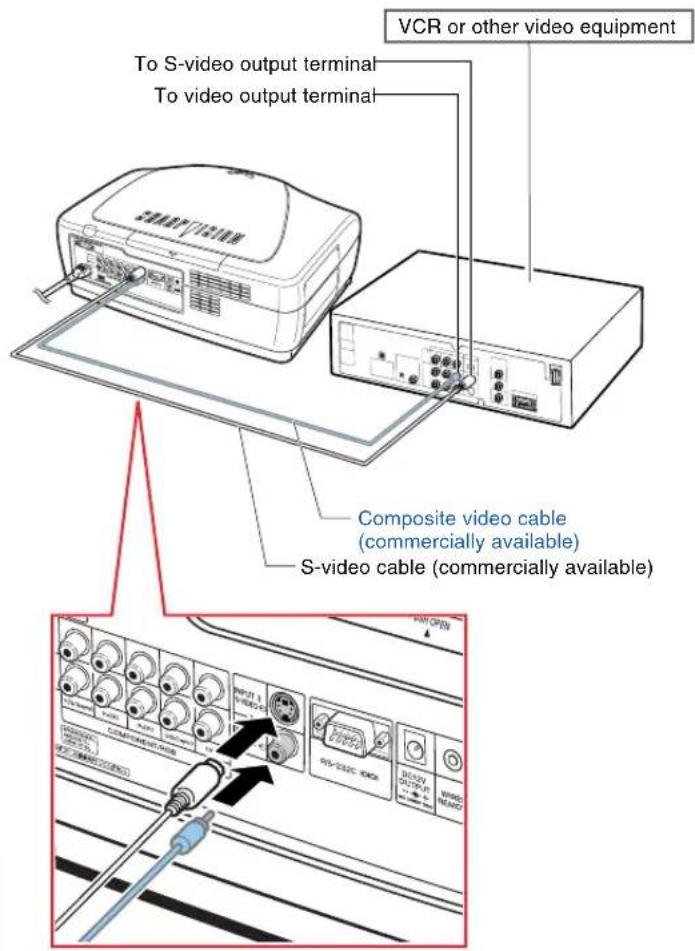

Connecting to Video Equipment Using an S-video or a Composite Video Cable 17

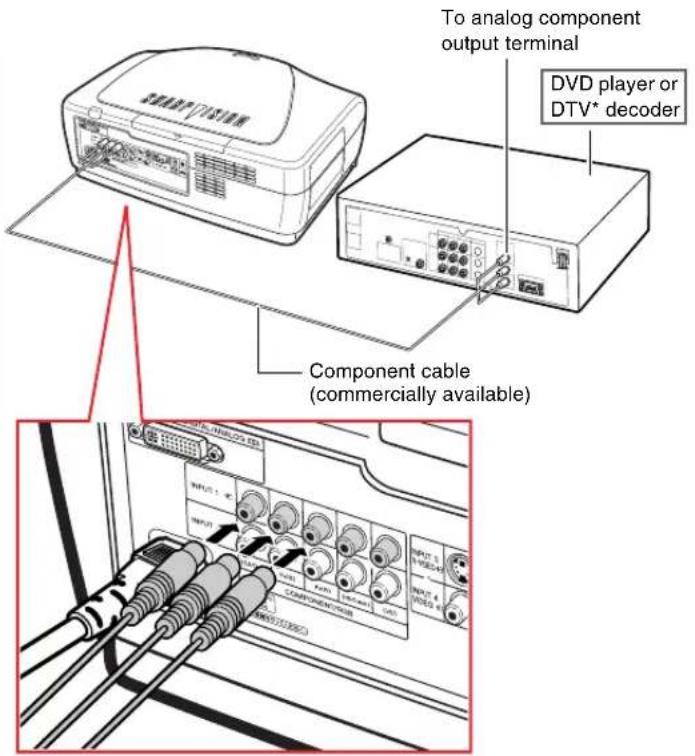

Connecting to Component Video Equipment Using a Component Cable (INPUT 1 or 2)....18

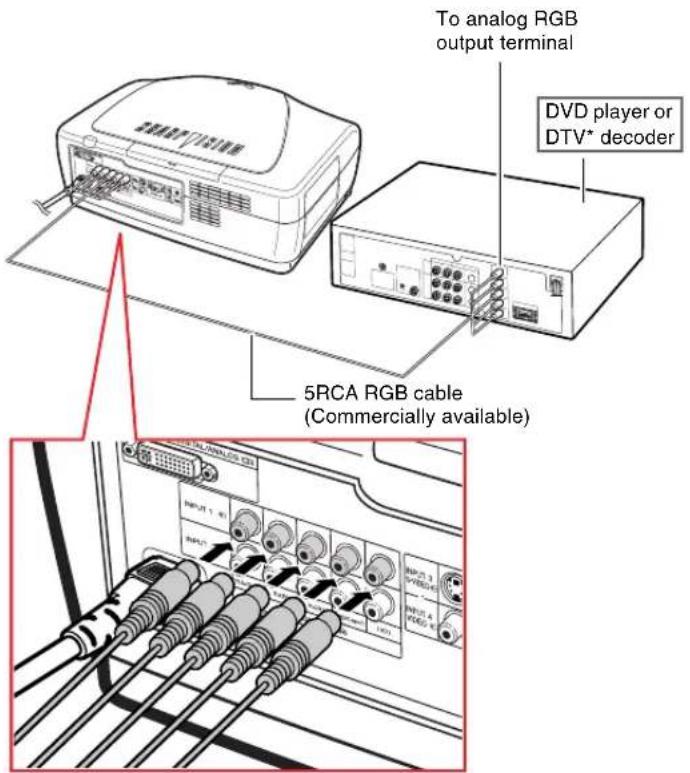

Connecting to RGB Video Equipment Using a 5RCA RGB Cable (INPUT 1 or 2) 18

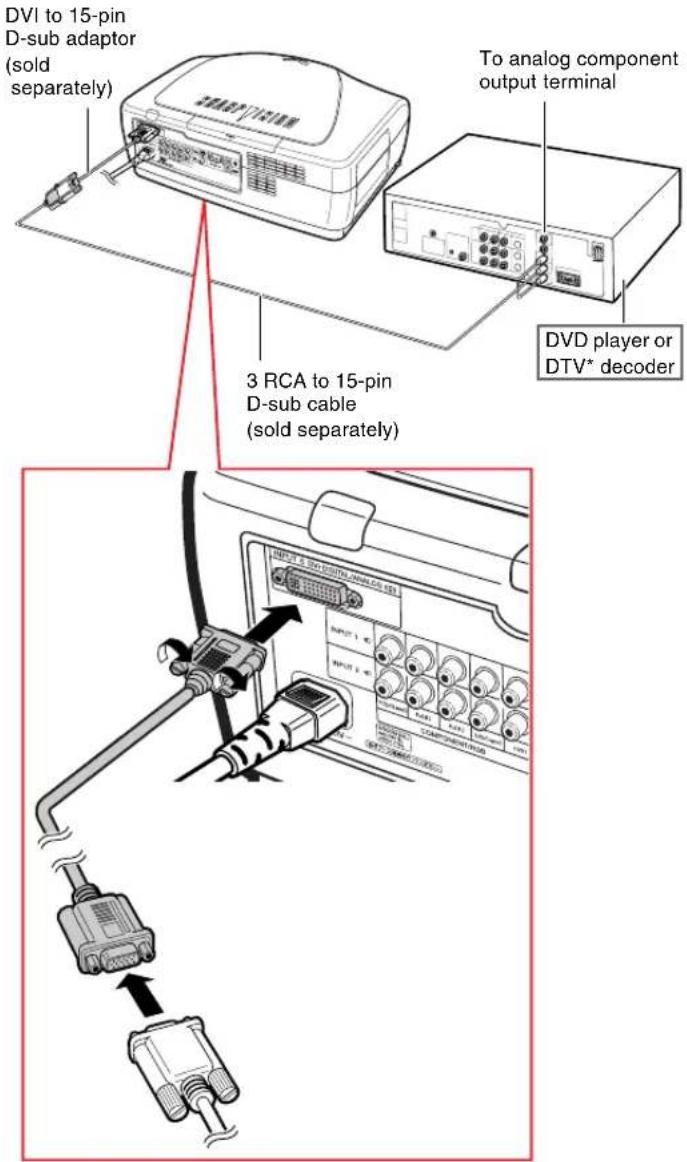

Connecting to Component Video Equipment Using a 3 RCA to 15-pin D-Sub Cable Using the DVI to 15-pin D-Sub adaptor (INPUT 5)....19

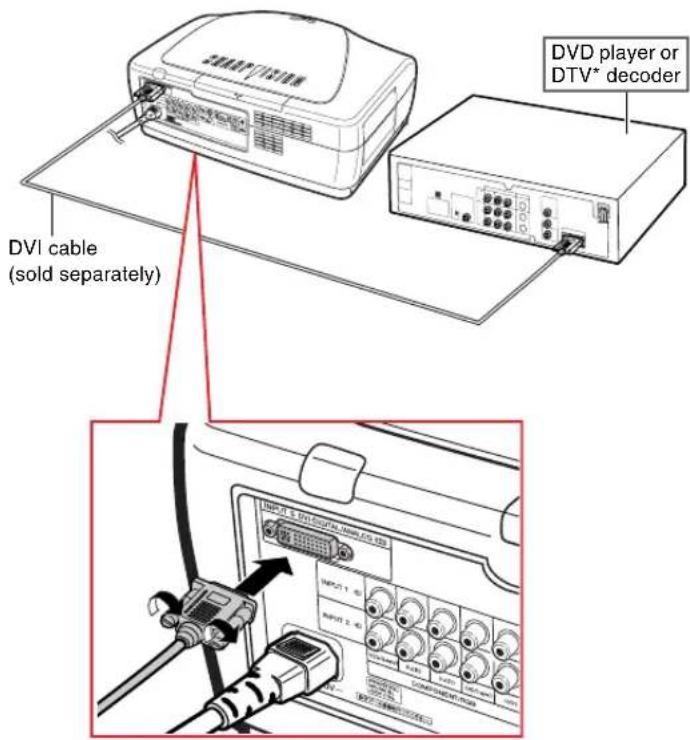

Connecting to Video Equipment with the DVI Output Termianl Using the DVI Cable .....20

Connecting the Projector to a Computer 21

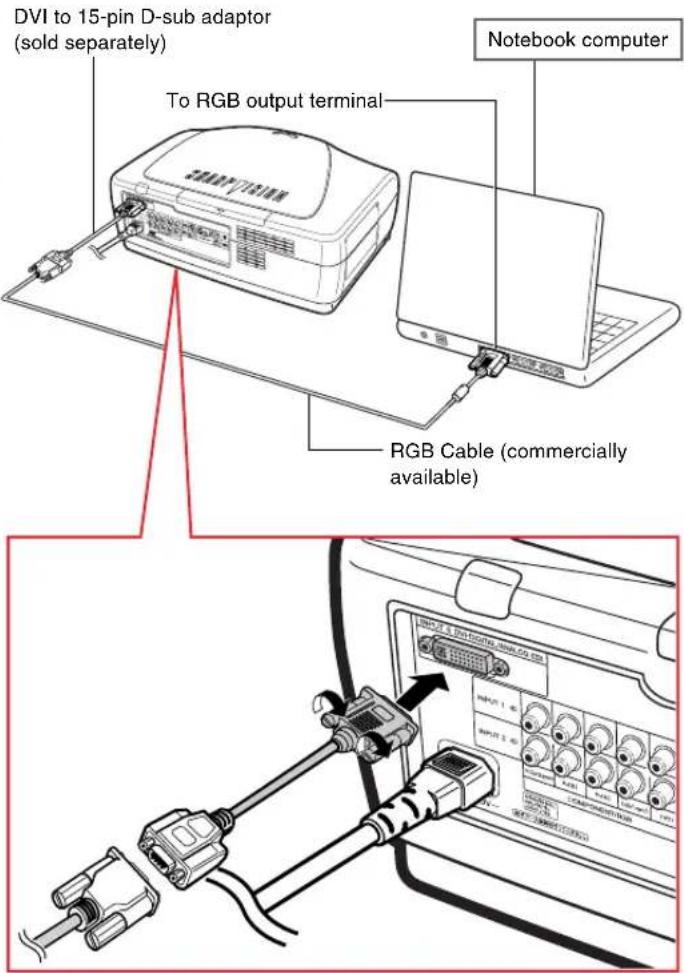

Connecting to a Computer Using the the DVI to 15-pin D-sub Adaptor and the RGB Cable ..... 21

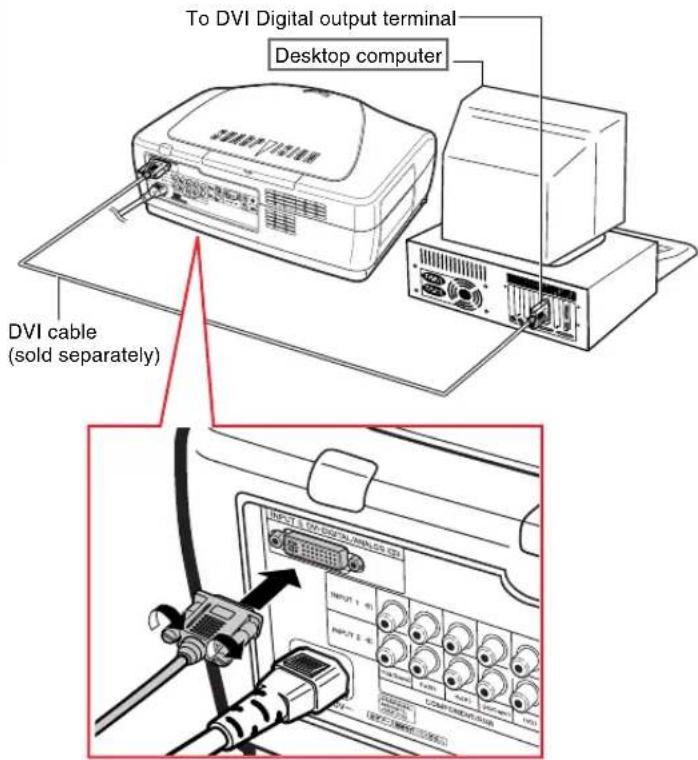

Connecting to a Computer Using a DVI Cable (Sold Separately) 22

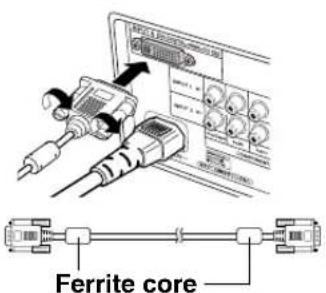

Connecting the thumbscrew cables 22

"Plug and Play" function 22

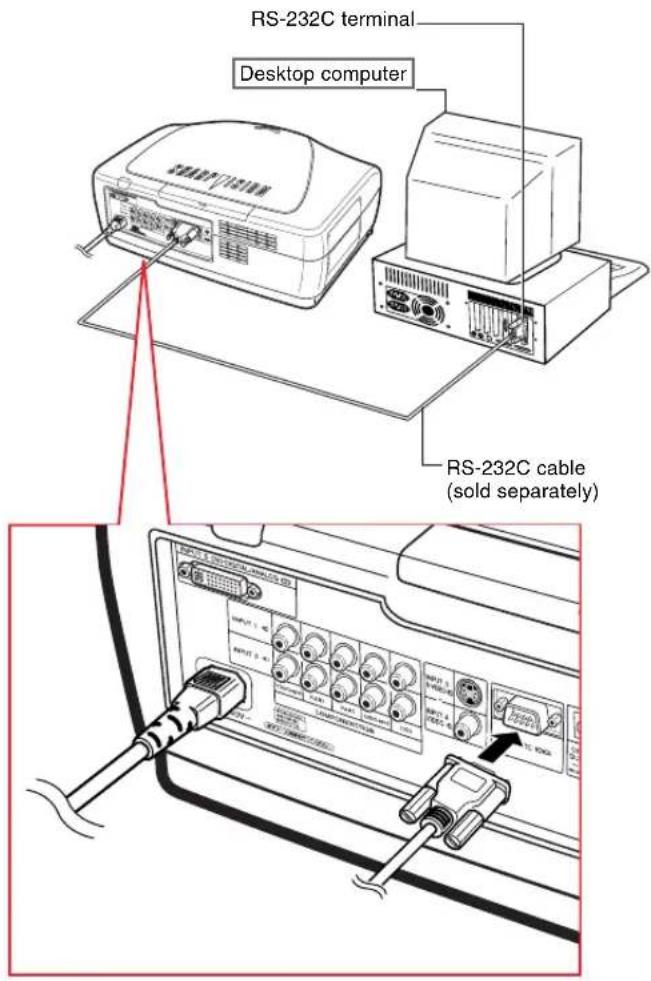

Controlling the Projector by a Computer .... 23 Controlling the Projector Using an RS-232C Cable ... 23

Using as a Wired Remote Control.... 24

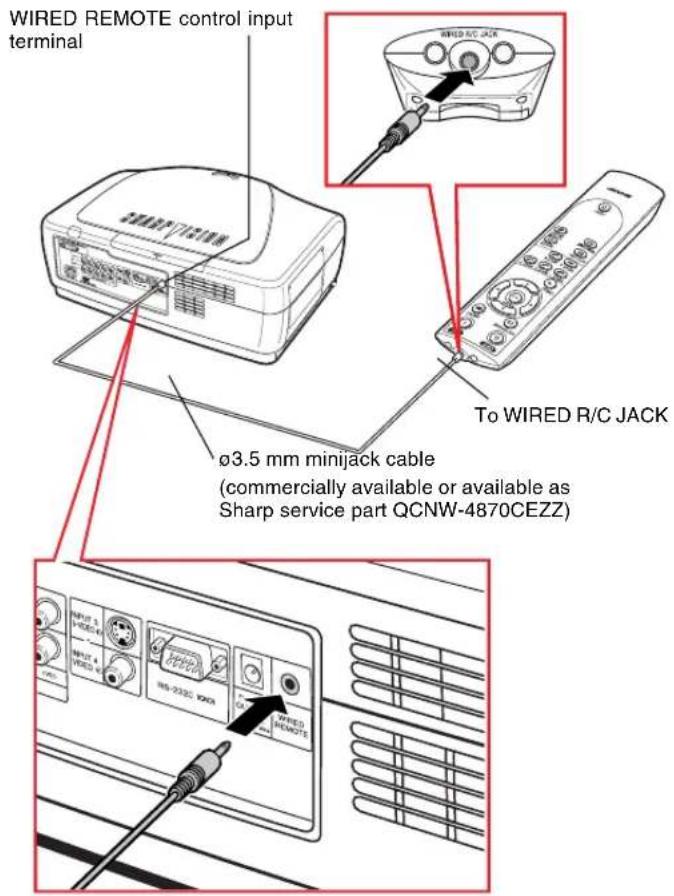

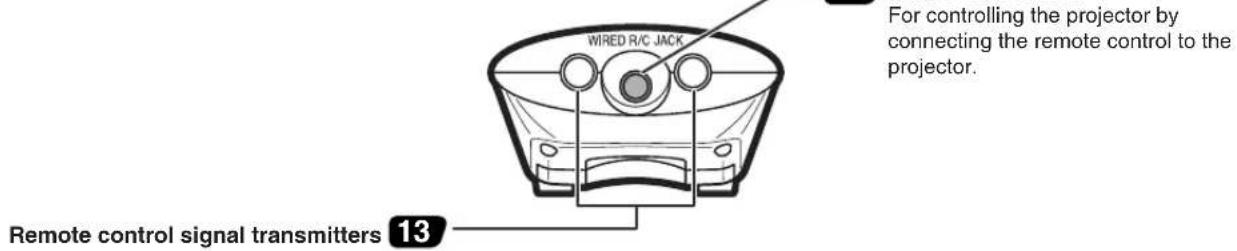

Connecting the Remote Control to the Projector .... 24

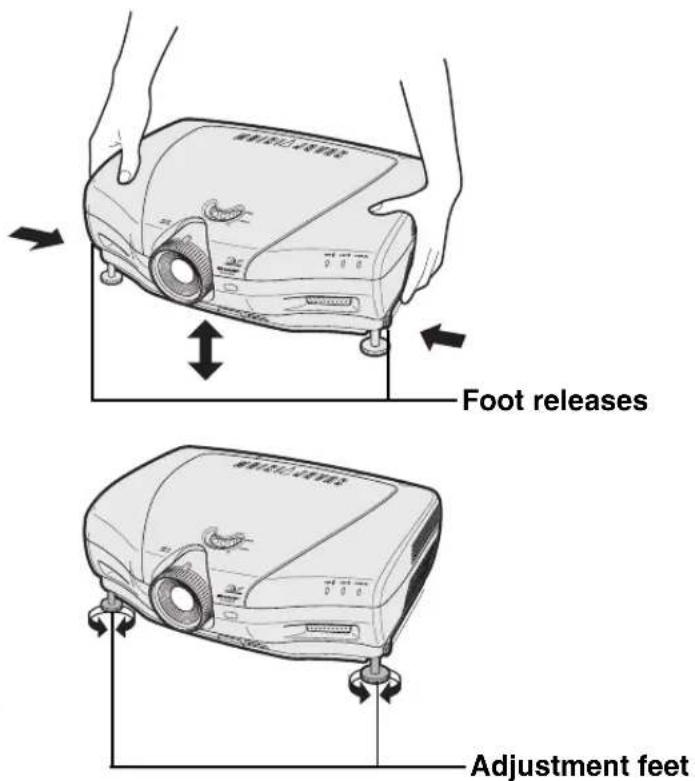

Using the Adjustment Feet 25

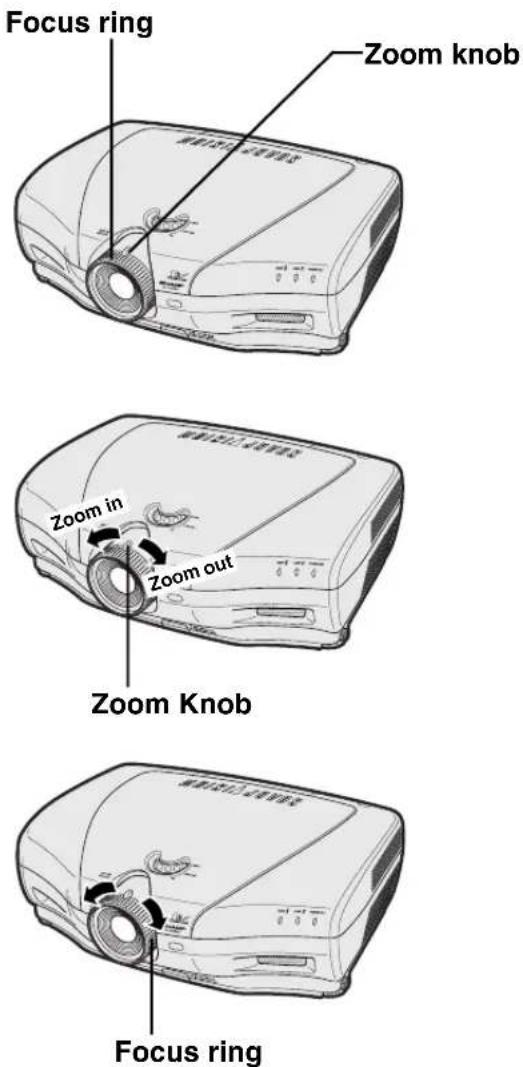

Adjusting the Lens 26

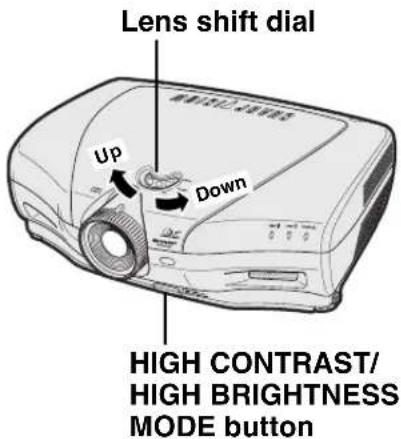

Using the Lens Shift 27

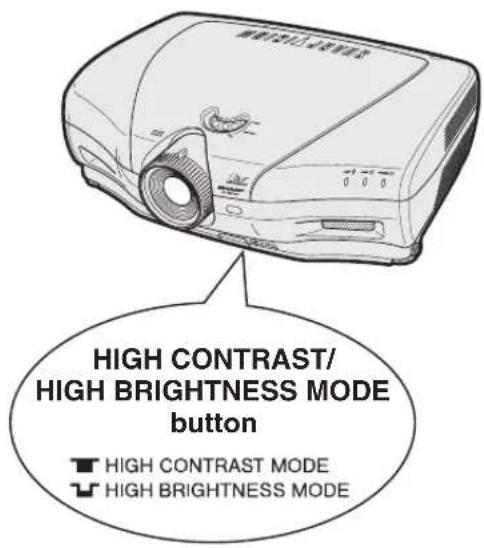

Selecting the HIGH CONTRAST/ HIGH BRIGHTNESS MODE ....27

Setting up the Screen 28

Example of Standard Setup 28

Screen Size and Projection Distance 29

Projecting a Reversed/Inverted Image 30

Basic Operation

Image Projection 32

Basic Procedure 32

Selecting the On-screen Display Language .....34

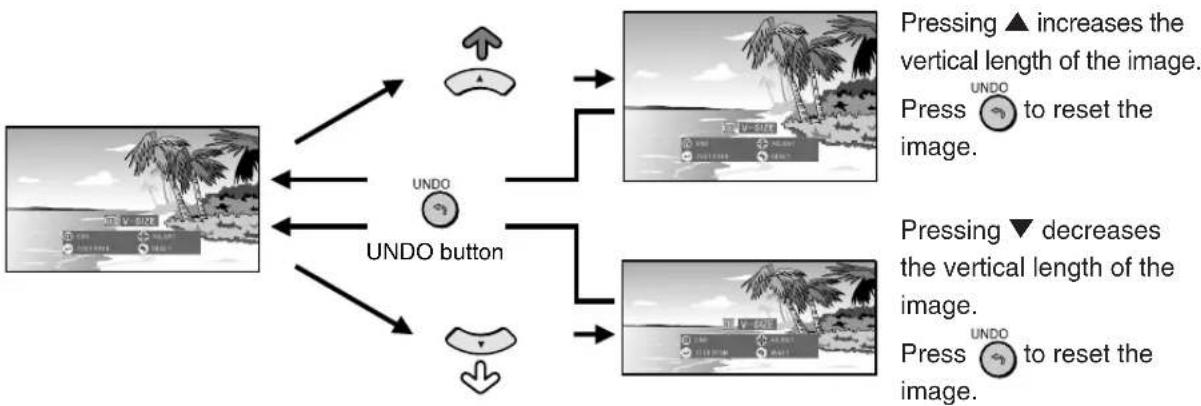

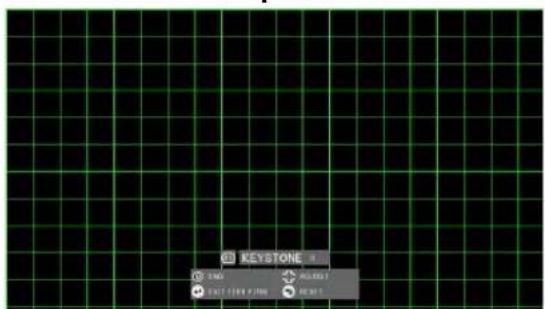

Keystone Correction and Vertical Size Adjustment 36

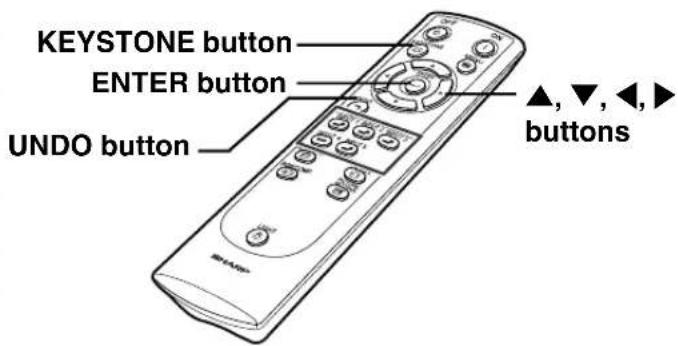

Correcting Trapezoidal Distortion and Adjusting the Vertical Size of the Picture 36

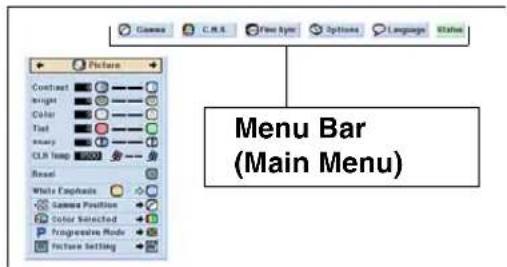

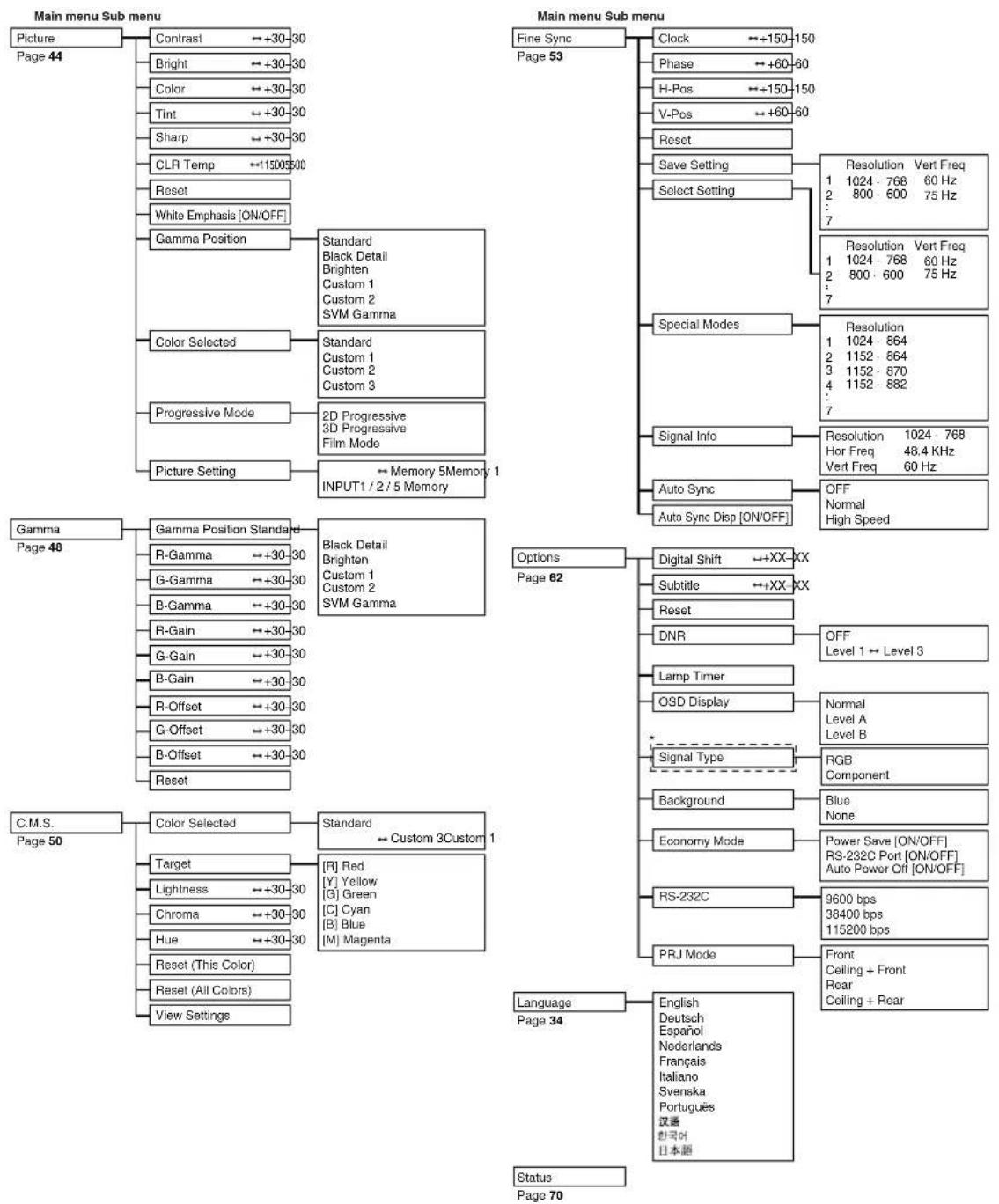

Menu Bar Items 38

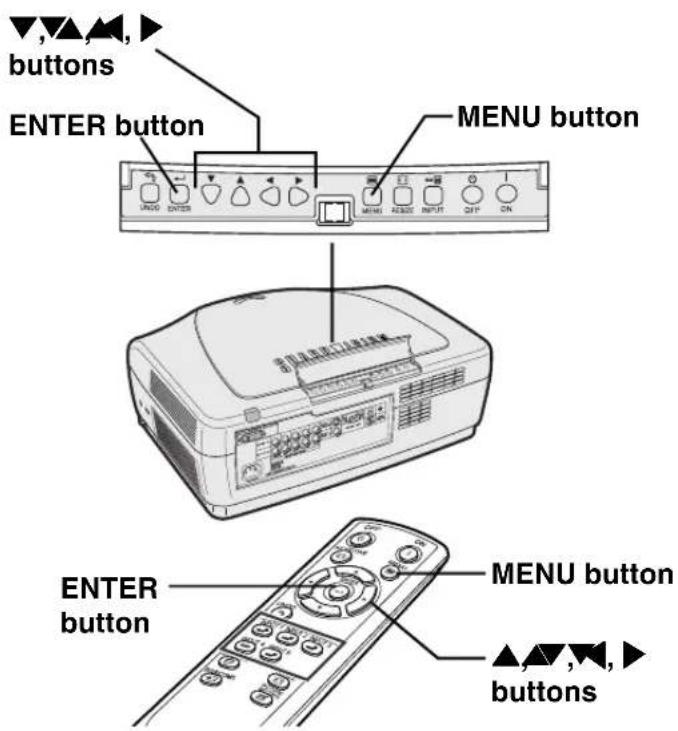

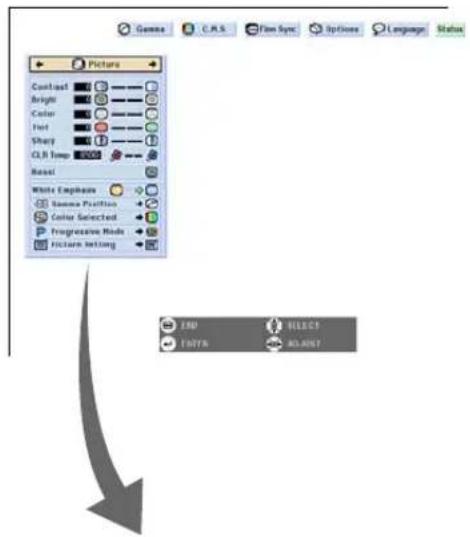

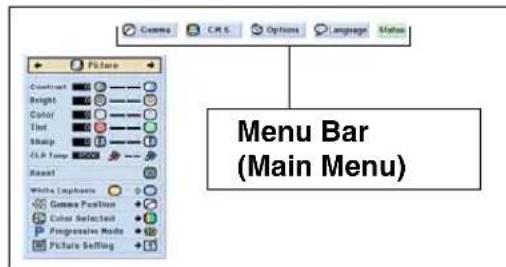

Using the Menu Screen 40

Menu Selections (Adjustments) 40

Menu Selections (Settings) 42

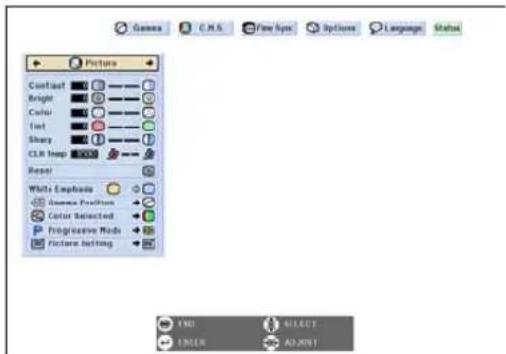

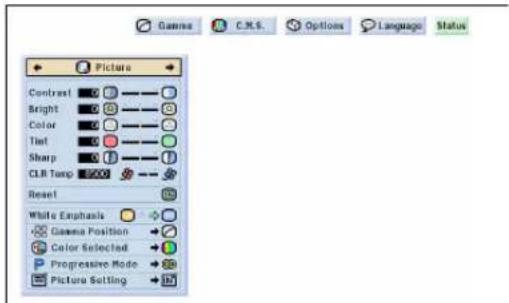

Adjusting the Picture 44

Adjusting Image Preferences ....44

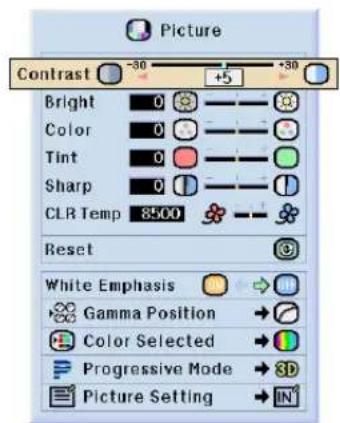

Emphasizing the Contrast 45

Selecting the Gamma Position 45

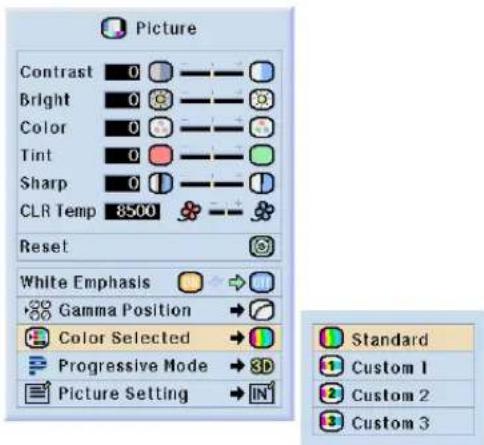

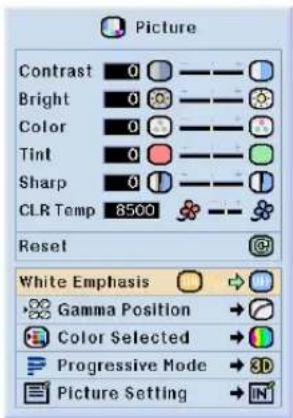

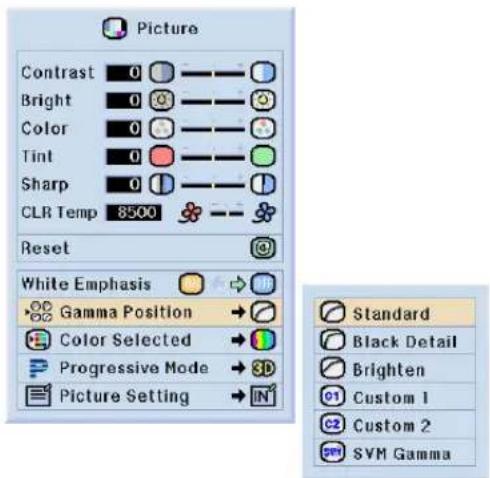

Selecting the C.M.S. Color 45

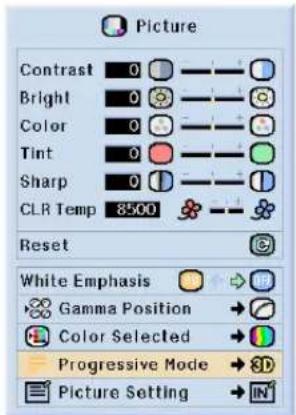

Progressive Mode 46

Picture Setting Function 47

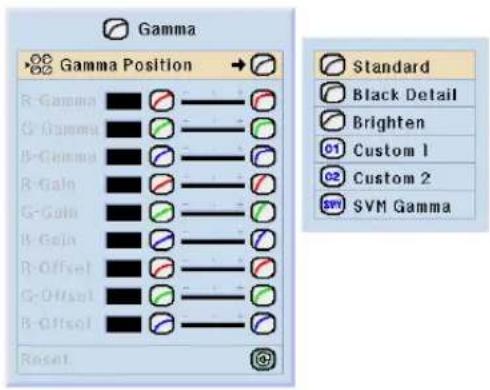

Adjusting the Gamma 48

Selecting the Gamma Position ....48

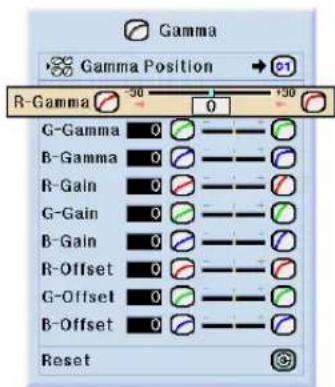

Adjusting the Gamma 49

Color Management System (C. M. S.)....50

Selecting the Color Reproduction Mode ....50

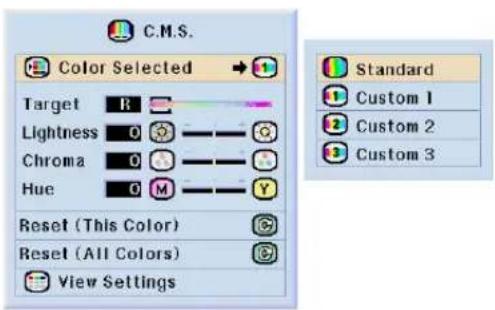

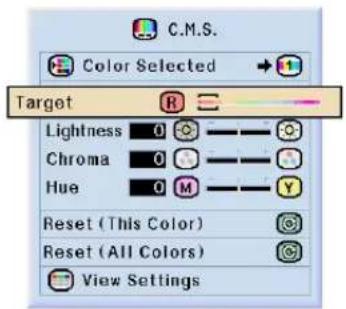

Selecting the Target Color 50

Setting the Brightness of the Target Color 51

Setting the Chromatic Value of the Target Color .....51

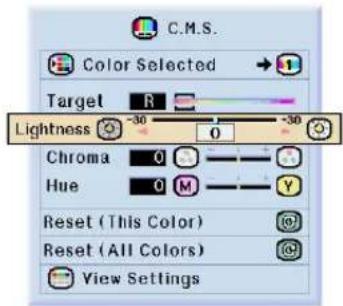

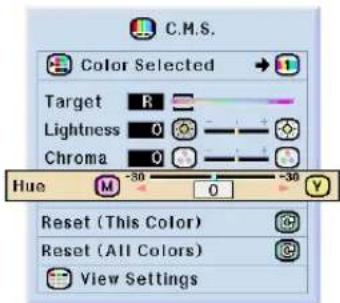

Setting the Hue of the Target Color 51

Resetting User-Defined Color Settings 52

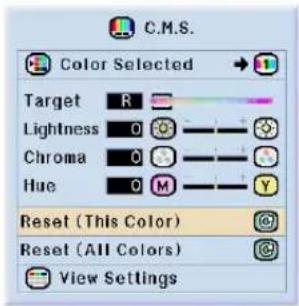

Overview of All Color Settings 52

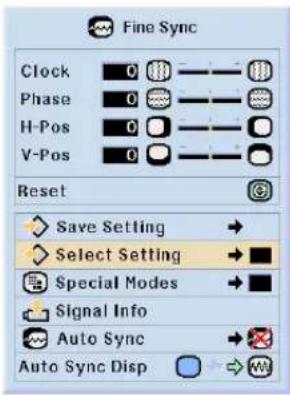

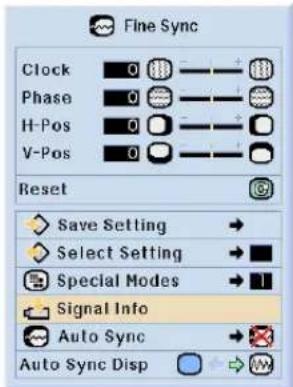

Adjusting Computer Images 53

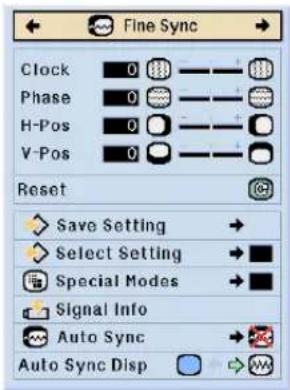

When Auto Sync is OFF 53

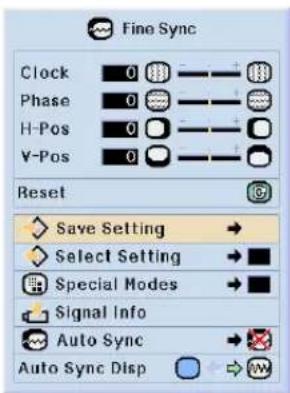

Saving Adjustment Settings 53

Selecting Adjustment Settings ....54

Special Mode Settings ....54

Checking the Input Signal 55

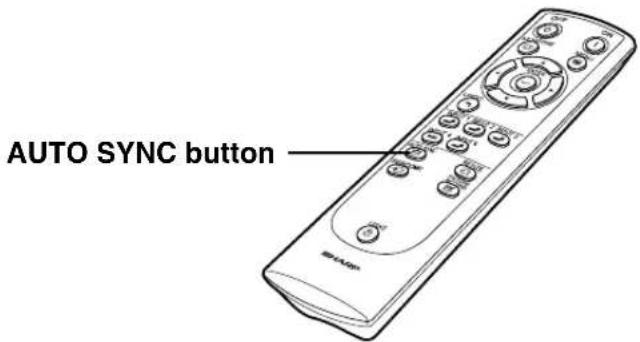

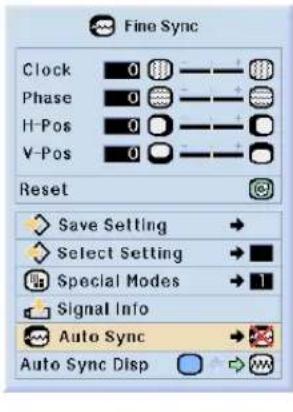

Auto Sync Adjustment ....55

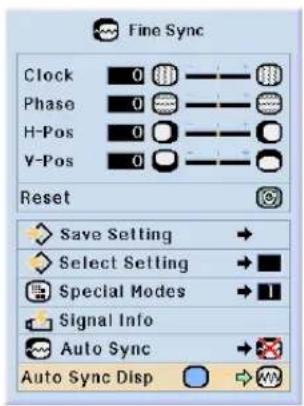

Auto Sync Display Function 56

Easy to Use Functions

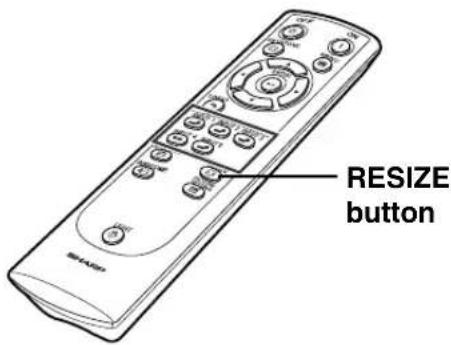

Selecting the Picture Display Mode .... 58

Switching the Picture Display Using Different Input Signals 58

Switchable High Contrast/

High Brightness Mode 61

Operating the Theater Mode Function 61

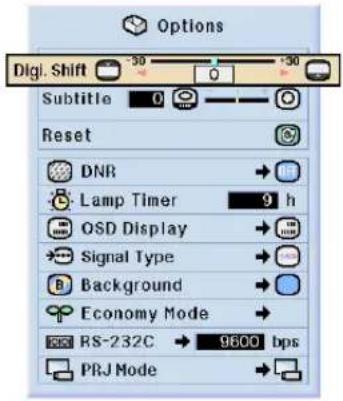

Digital Shift Function 62

Adjusting the Digital Shift 62

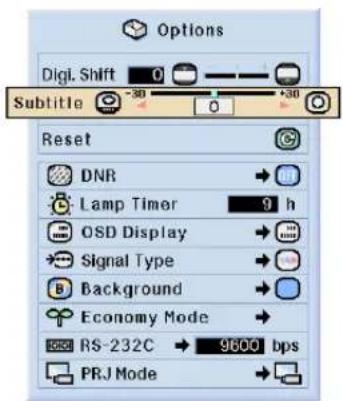

Subtitle Setting 62

Adjusting the Vertical Size of the Display 62

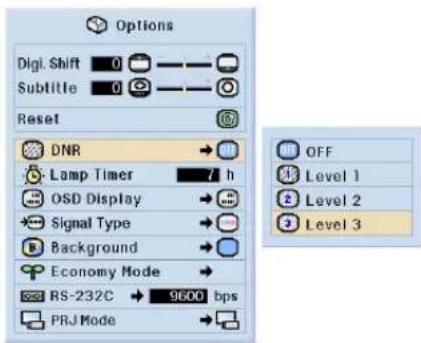

Video Digital Noise Reduction (DNR) System ....63

Reducing Image Noise 63

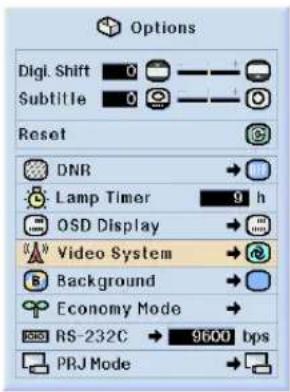

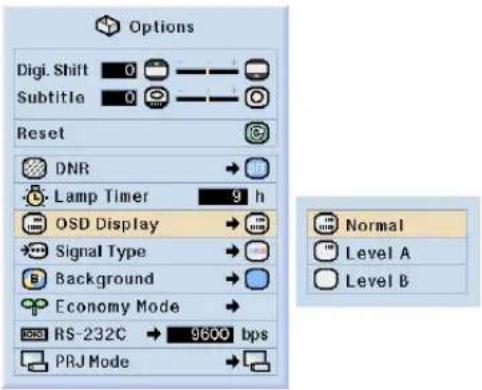

Setting On-screen Display 63

Turning Off the On-screen Display 63

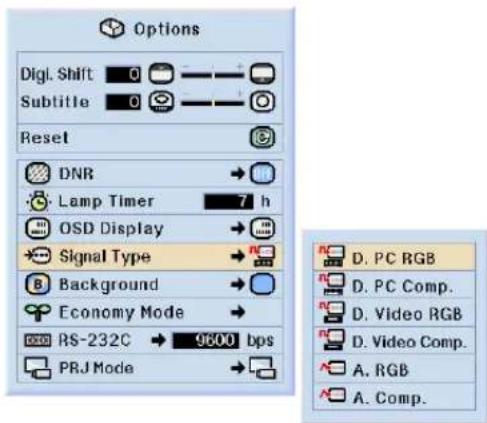

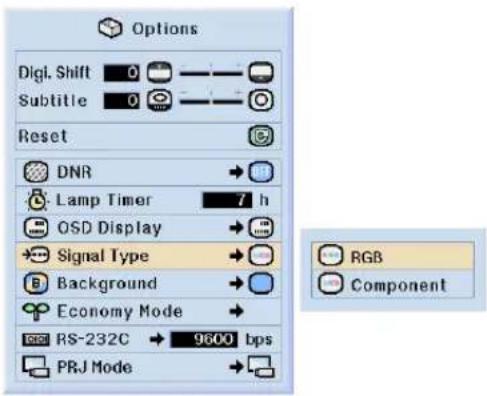

Selecting the Signal Type 64

Setting the Video System 65

Setting the Video System....65

Setting a Background Image.... 66

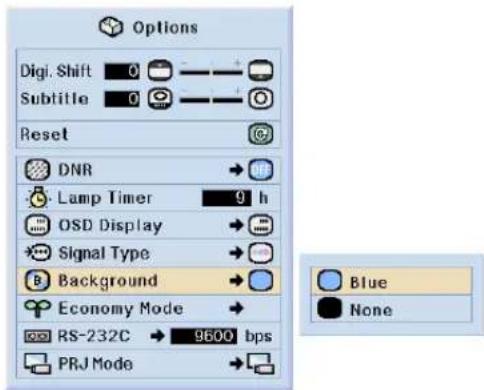

Selecting a Background Image 66

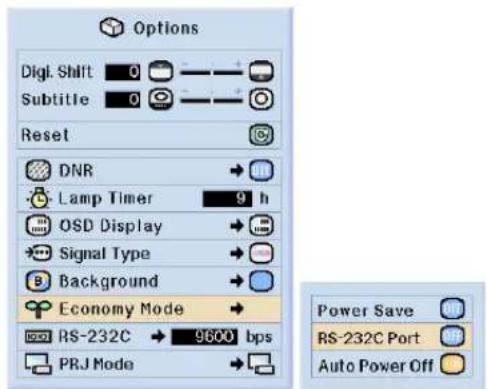

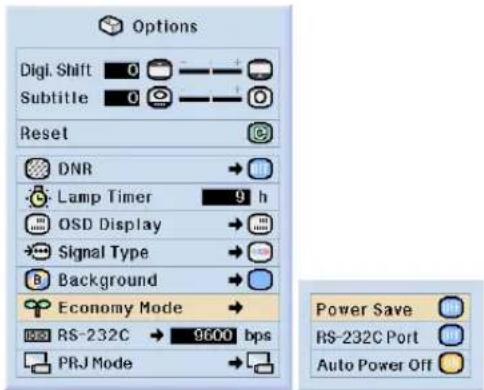

Selecting the Economy Mode 67

Setting the Power Save 67

RS-232C Off Function 67

Automatic Power Off Function 68

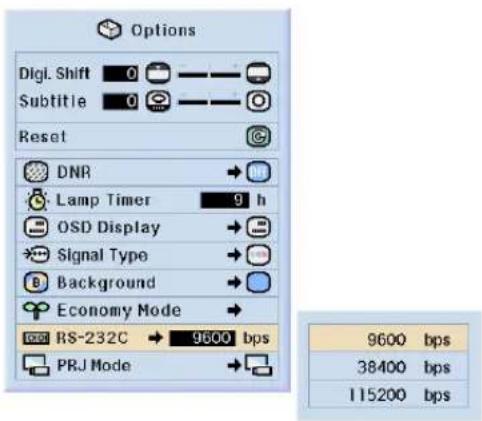

Selecting the Transmission Speed (RS-232C) ... 68

Selecting the Transmission Speed (RS-232C) ..... 68

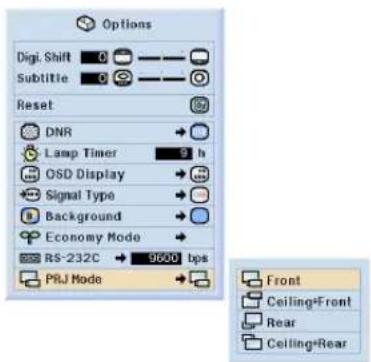

Reversing/Inverting Projected Images 69

Setting the Projection Mode 69

Displaying the Adjustment Settings .... 70

Overview of All Menu Settings 70

Appendix

Maintenance 72

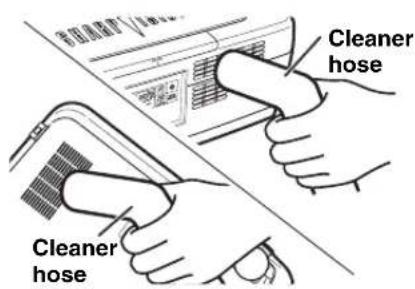

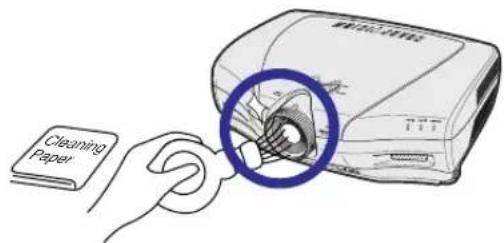

Cleaning the Ventilative Holes 73

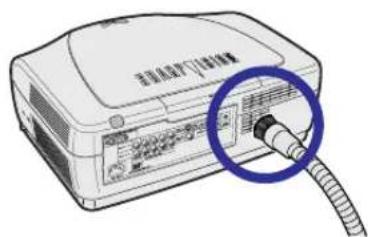

Cleaning the Ventilative Holes 73

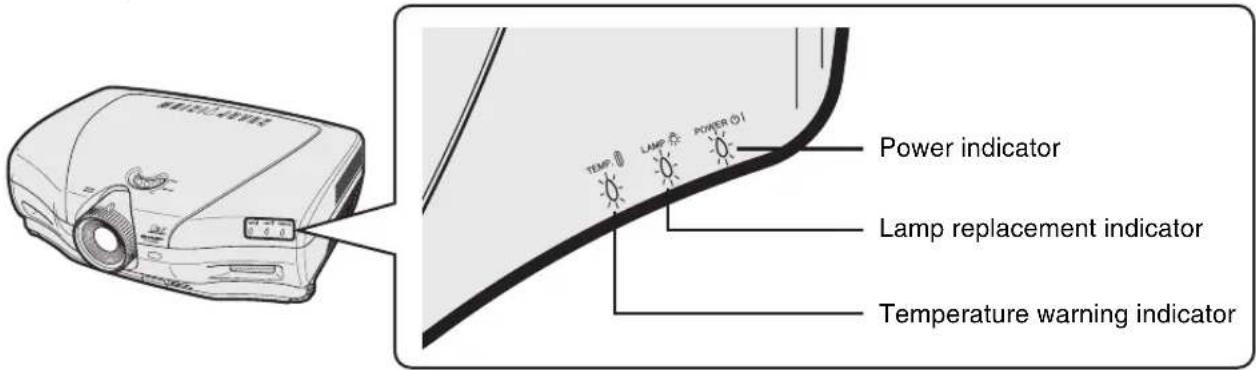

Maintenance Indicators 74

Regarding the Lamp 76

Lamp 76

Caution Concerning the Lamp 76

Replacing the Lamp 76

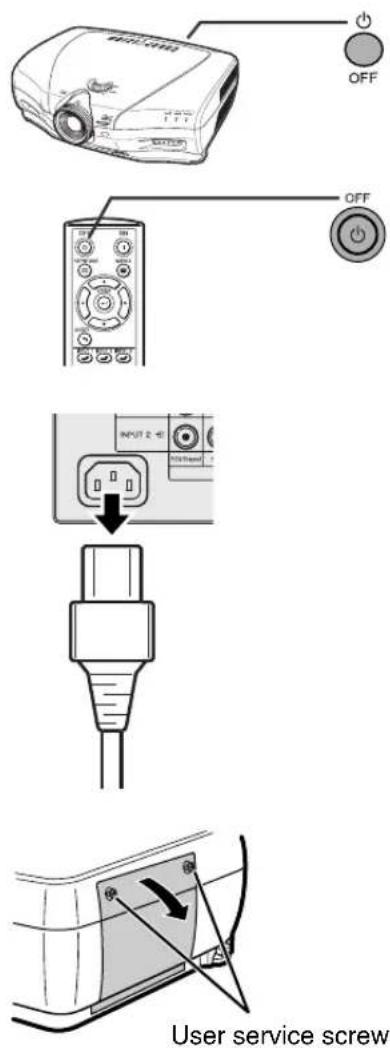

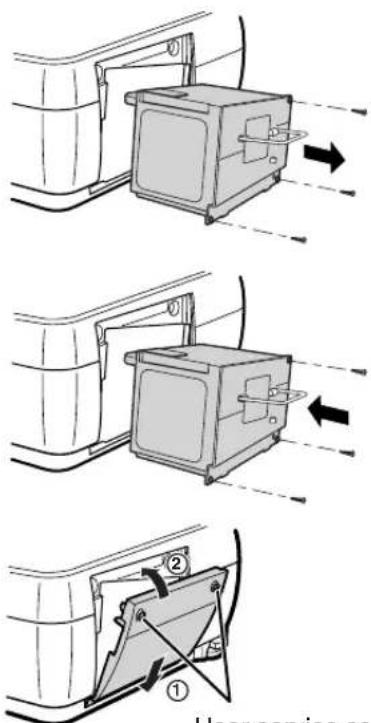

Removing and Installing the Lamp Unit 77

Resetting the Lamp Timer 78

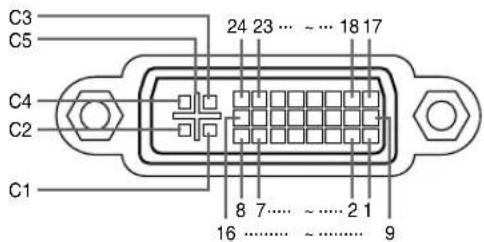

Connecting Pin Assignments 79

(RS-232C) Specifications and

Command Settings 80

PC control 80

Communication conditions 80

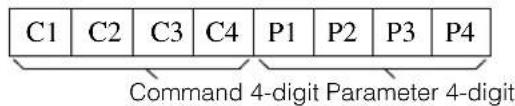

Basic format 80

Commands 80

Wired Remote Control Terminal

Specifications 83

Specifications of wired remote control input 83

Function and transmission codes ....83

Sharp remote control signal format 83

Computer Compatibility Chart 84

Troubleshooting 85

For SHARP Assistance (U.S.A only).... 86

Specifications 87

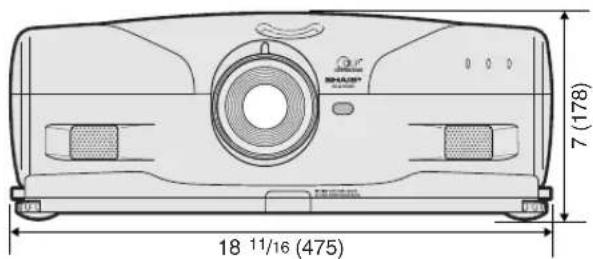

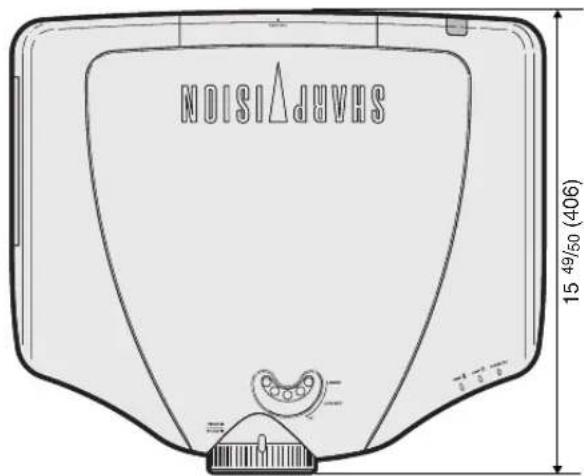

Dimensions 88

Glossary 89

Index 90

IMPORTANT SAFEGUARDS

CAUTION: Please read all of these instructions before you operate this product and save them for later use.

Electrical energy can perform many useful functions. This product has been engineered and manufactured to assure your personal safety. BUT IMPROPER USE CAN RESULT IN POTENTIAL ELECTRICAL SHOCK OR FIRE HAZARDS. In order not to defeat the safeguards incorporated in this product, observe the following basic rules for its installation, use and servicing.

1. Read Instructions

All the safety and operating instructions should be read before the product is operated.

2. Retain Instructions

The safety and operating instructions should be retained for future reference.

3. Heed Warnings

All warnings on the product and in the operating instructions should be adhered to.

4. Follow Instructions

All operating and use instructions should be followed.

5. Cleaning

Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

6. Attachments

Do not use attachments not recommended by the product manufacturer as they may cause hazards.

7. Water and Moisture

Do not use this product near water-for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like.

8. Accessories

Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer's instructions, and should use a mounting accessory recommended by the manufacturer.

9. Transportation

A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.

10. Ventilation

Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a book-case or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.

11. Power Sources

This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.

12. Grounding or Polarization

This product is equipped with a three-wire grounding-type plug, a plug having a third (grounding) pin. This plug will only fit into a grounding-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding-type plug.

13. Power-Cord Protection

Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.

14. Lightning

For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the cable system. This will prevent damage to the product due to lightning and power-line surges.

15. Overloading

Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.

16. Object and Liquid Entry

Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

17. Servicing

Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

18. Damage Requiring Service

Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a. When the power-supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen into the product.
c. If the product has been exposed to rain or water.
d. If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions, as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to normal operation.
e. If the product has been dropped or damaged in any way.
f. When the product exhibits a distinct change in performance.

19. Replacement Parts

When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.

20. Safety Check

Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.

21. Wall or Ceiling Mounting

This product should be mounted to a wall or ceiling only as recommended by the manufacturer.

22. Heat

This product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

INTELLECTUAL PROPERTY RIGHTS

IMPORTANT

READ BEFORE USING THE PRODUCT

• Digital Light Processing, DLP, Digital Micromirror Device and DMD are trademarks of Texas Instruments.
- Microsoft and Windows are registered trademarks of Microsoft Corporation in the United States and/or other countries.
• PC/AT is a registered trademark of International Business Machines Corporation in the United States.
- Adobe Acrobat is a trademark of Adobe Systems Incorporated.
• Macintosh is a registered trademark of Apple Computer, Inc. in the United States and/or other countries.
- Minolta is a registered trademark of Minolta Co., Ltd.
- All other company or product names are trademarks or registered trademarks of their respective companies.

Be sure to read the following safeguards when setting up your projector.

Caution concerning the lamp unit

■Potential hazard of glass particles if lamp ruptures. In case of lamp rupture, contact your nearest Authorized SharpVision Service Center or Dealer for replacement. See "Replacing the Lamp" on page 76.

Cautions concerning the setup of the projector

■For minimal servicing and to maintain high image quality, SHARP recommends that this projector be installed in an area free from humidity, dust and cigarette smoke. When the projector is subjected to these environments, the lens must be cleaned more often. As long as the projector is regularly cleaned, use in these environments will not reduce the overall operation life of the unit. Internal cleaning should only be performed by an Authorized SharpVision Service Center or Dealer.

Do not set up the projector in places exposed to direct sunlight or bright light.

■Position the screen so that it is not in direct sunlight or room light. Light falling directly on the screen washes out the colors, making viewing difficult. Close the curtains and dim the lights when setting up the screen in a sunny or bright room.

The projector may safely be tilted to a maximum angle of 5 degrees.

■Placement should be within ±5 degrees.

Do not subject the projector to hard impact and/or vibration.

■Take care with the lens so as not to hit or damage the surface of the lens.

Rest your eyes occasionally.

■Watching the screen for long hours continuously will make your eyes tired. Be sure to occasionally rest your eyes.

Avoid locations with high or low temperature.

■The operating temperature for the projector is from 41^ F to 95^ F (+5°C to +35°C). ■The storage temperature for the projector is from -4^ F to 140^ F (-20°C to +60°C).

Do not block the intake and exhaust vents.

■Allow at least 1 foot (30 cm) of space between the exhaust vent and the nearest wall or obstruction.

■Be sure that the intake vent and the exhaust vent are not obstructed. ■If the cooling fan becomes obstructed, a protection circuit will automatically turn off the projector. This does not indicate a malfunction. Remove the projector power cord from the wall outlet and wait at least 10 minutes. Place the projector where the intake and exhaust vents are not blocked, plug the power cord back in and turn on the projector. This will return the projector to the normal operating condition.

Cautions regarding the transportation of the projector

■When transporting the projector, be sure not to subject it to hard impact and/or vibration, as this can result in damage. Take extra caution with the lens. Before moving the projector, be sure to unplug the power cord from the wall outlet, and disconnect any other cables connected to it.

Other connected equipment

■When connecting other audio-visual equipment or a computer to the projector, make the connections AFTER turning off the projector and the equipment to be connected. ■Please read the operation manuals of the projector and the equipment to be connected for instructions on how to make the connections.

Temperature monitor function

If the projector starts to overheat due to setup problems or blockage of the air vents, "X and TEMP ink in the lower left corner of the picture. If the tem-

perature continues to rise, the lamp will turn off, the temperature warning indicator on the projector will blink, and after a 90-second cooling-off period the power will shut off. Refer to "Maintenance Indicators" on page 74 for details.

Info

- The cooling fan regulates the internal temperature, and its performance is automatically controlled. The sound of the fan may change during projector operation due to changes in the fan speed. This does not indicate malfunction. - Do not unplug the power cord during projection or cooling fan operation. This can create damage due to the rise in internal temperature, as the cooling fan also stops.

How to Access the PDF Operation Manuals of SharpVision Manager

PDF operation manuals for the “SharpVision Manager” theater projector software provided are included in the CD-ROM in several languages. To utilize these manuals, you need Adobe Acrobat Reader installed on your PC (Windows or Macintosh). If you have not installed Acrobat Reader yet, you can install it from the CD-ROM.

To install Acrobat Reader from the CD-ROM

For Windows:

①Insert the CD-ROM in the CD-ROM drive.

② Double click the "My Computer" icon.

③ Double click the "CD-ROM" drive.

④ Double click the "ACROBAT" folder.

⑤Double click the language (name of the folder) that you want to view.

⑥Double click the installation program and follow the instructions on the screen.

For Macintosh:

①Insert the CD-ROM in the CD-ROM drive.

② Double click the "CD-ROM" icon.

③ Double click the "ACROBAT" folder.

④ Double click the language (name of the folder) that you want to view.

⑤Double click the installation program and follow the instructions on the screen.

For other operating systems:

Please download Acrobat Reader from the Internet (http://www.adobe.com).

For other languages:

If you prefer using Acrobat Reader for languages other than those included in the CD-ROM, please download the appropriate version from the Internet.

Accessing the PDF Manuals

For Windows:

①Insert the CD-ROM in the CD-ROM drive.

② Double click the "My Computer" icon.

③ Double click the "CD-ROM" drive.

④ Double click the "MANUALS" folder.

⑤Double click the language (name of the folder) that you want to view.

⑥ Double click the "SVM2" pdf file to access the SharpVision Manager manual.

For Macintosh:

①Insert the CD-ROM in the CD-ROM drive.

② Double click the "CD-ROM" icon.

③ Double click the "MANUALS" folder.

④Double click the language (name of the folder) that you want to view.

⑤ Double click the "SVM2" pdf file to access the SharpVision Manager manual.

Note

- If the desired pdf file cannot be opened by double clicking the mouse, start Acrobat Reader first, then specify the desired file using the "File", "Open" menu.

- See the "readme.txt" file on the CD-ROM for important information not included in this operation manual.

Part Names

Numbers in order to the main pages in this operation manual where the topic is explained.

Projector (Front and Top View)

Adjustment buttons (▼, ▲, ◀, ▶) For selecting menu items. ENTER button For setting items selected or adjusted on the menu. UNDO button For undoing an operation or returning to the default settings. 32 MENU button For displaying adjustment and setting screens. 58 RESIZE button For switching the screen size (NORMAL, STRETCH, etc.) 32 INPUT button For switching input mode 1, 2, 3, 4 or 5. 32 Power (ON/OFF) buttons For turning the power on or off. 74 Temperature warning indicator When the internal temperature rises, this indicator will illuminate red. 32 Lamp replacement indicator Illuminates blue, indicating normal function. Replace the lamp when the indicator illuminates red. 32 Power indicator Illuminates red, when the projector is in standby. When the power is turned on, this indicator will illuminate blue. 73 Intake vent 25 Adjustment foot 13 Remote control sensor 61 HIGH CONTRAST/ HIGH BRIGHTNESS MODE button For switching between "HIGH CONTRAST MODE" and "HIGH BRIGHTNESS MODE". 73 Air filter/cooling fan (Intake vent) (on the bottom of the projector) Attaching and removing the lens cap • Press on the two buttons of the lens cap and attach it on the lens. Then release the buttons to lock it in place. • Press on the two buttons of the lens cap and remove it from the lens.

Projector (Rear View) INPUT 1 terminals Terminals for component and RGB signals. INPUT 2 terminals Terminals for component and RGB signals. AC socket 16 18 19 17 INPUT 3 terminal Terminal for connecting video equipment with an S-video terminal. 23 RS-232C terminal For controlling projector using a computer. DC 12V OUTPUT terminal 24 WIRED REMOTE control input terminal 17 INPUT 4 terminal For connecting video equipment. INTake vent 73 Intake vent Kensington Security Standard connector Exhaust vent 73 Remote control sensor

Using the Kensington Lock

This projector has a Kensington Security Standard connector for use with a Kensington MicroSaver Security System. Refer to the information that came with the system for instructions on how to use it to secure the projector.

Using the Terminal Cover

When the projector is used on a desktop, high mounted or ceiling mounted, attach the terminal cover (supplied) to hide the connecting cables.

Attaching the Terminal Cover

①Align with the tab on the projector, push the two clips attached on the bottom.
②Press the tab to attach to the projector.

Diagram showing device components with numbered parts and a labeled push button, illustrating assembly or installation steps.

Attach the clips after removing the rubber cap.

Remote Control (Front View)

OFF ON 32 Power (ON/OFF) buttons For turning the power on or off. 36 KEYSTONE button For adjusting Keystone Correction or Vertical Size setting. 32 MENU button For displaying adjustment and setting screens. 32 ENTER button For setting items selected or adjusted on the menu. 32 Adjustment buttons (▲, ▼, ◀, ►) For selecting menu items. 37 UNDO button For undoing an operation or returning to the default settings. 37 INPUT 1 INPUT 2 INPUT 3 INPUT 4 INPUT 5 32 INPUT buttons For switching to the respective input modes. 55 AUTO SYNC button For automatically adjusting images when connected to a computer. 58 RESIZE button For switching the screen size (NORMAL, STRETCH, etc.) RGB/COMP. button For switching to the respective input signal type. 18 RGB/COMP. button LIGHT 47 PICTURE SETTING button For selecting the picture memory setting. Backlight button For lighting each button, press this button. SHARP

Remote Control (Top View)

WIRED R/C JACK For controlling the projector by connecting the remote control to the projector. Remote control signal transmitters 13

Using the Remote Control

Available Range of the Remote Control

■The remote control can be used to control the projector within the ranges shown in the illustration.

Note

- The signal from the remote control can be reflected off a screen for easy operation. However, the effective distance of the signal may differ due to the screen material.

When using the remote control:

• Be sure not to drop, expose to moisture or high temperature.
• The remote control may malfunction under a fluorescent lamp. Under that circumstance, move the projector away from the fluorescent lamp.

Inserting the Batteries

The batteries (two "AA" size) are included in the package.

1 Pull down the tab on the cover and remove the cover towards the direction of the arrow.
2 Insert the included batteries.

• Insert the batteries making sure the polarities correctly match the ④ and - marks inside the battery compartment.

3 Insert the lower tab of the cover into the opening, and lower the cover until it clicks in place.

Remote control 23 (7 m) 30° 45° 30° 40° 45° 40° Remote control

Line drawing of a remote control device with a black arrow pointing to the handle (no text or symbols)

Diagram of a remote control panel with buttons and a scroll wheel (no text or labels)

Diagram of a remote control device with a black arrow indicating left motion (no text or symbols)

Incorrect use of the batteries may cause them to leak or explode. Please follow the precautions below.

Caution

• Insert the batteries making sure the polarities correctly match the ④ and marks inside the battery compartment.
• Batteries of different types have different properties, therefore do not mix batteries of different types.
• Do not mix new and old batteries.

This may shorten the life of new batteries or may cause old batteries to leak.

- Remove the batteries from the remote control once they have run out, as leaving them can cause them to leak. Battery fluid from leaked batteries is harmful to your skin, therefore be sure to first wipe them and then remove them using a cloth.

• The batteries included with this projector may exhaust over a short period, depending on how they are kept. Be sure to replace them as soon as possible with new batteries when they have run out.
• Remove the batteries from the remote control if you will not be using the remote control for a long time.

Accessories

Supplied accessories

Line drawing of a remote control with buttons and scroll (no text or symbols)

Remote control RRMCGA128WJSA

Two "AA" size batteries

Power cord CACCDA010DE01

Lens cap (attached) PCAPH01056CESA

CD-ROM (SharpVision Manager) UDSKAA019WJZZ

Terminal cover CCOVA1985CE02
Operation manual (this manual) TINS-A440WJZZ SharpVision Manager operation manual TINS-A452WJZZ

Optional accessories

DVI to 15-pin D-sub adaptor AN-A1DV

RS-232C cable (32'10" (10.0m)) AN-C10RS

3 RCA to 15-pin D-sub cable (9'10" (3.0m)) AN-C3CP

DVI cable (9'10" (3.0m)) AN-C3DV

Note

- Some of the cables may not be available depending on the region. Please check with your nearest Authorized SharpVision Service Center or Dealer.

Connections and Setup

Illustration of a family observing a medical device with a screen in the background (no text or symbols)

Connecting the Projector to Other Devices

Before Connecting

Note

• Before connecting, be sure to turn off both the projector and the devices to be connected. After making all connections, turn on the projector and then the other devices.
  When connecting a computer, be sure that it is the last device to be turned on after all the connections are made.
• Be sure to read the operation manuals of the devices to be connected before making connections.

This projector can be connected to:

Video equipment:

■A VCR, Laser disc player or other video equipment (See page 17.)
■A DVD player or DTV* decoder (See page 18.)

*DTV is the umbrella term used to describe the new digital television system in the United States.

A computer using:

■DVI to D-sub 15-Pin cable (See page 21.)
■A DVI cable (See page 22.)
■An RS-232C cable (AN-C10RS) (sold separately) (See page 23.)

Connecting the Power Cord

Plug in the supplied power cord into the AC socket on the rear of the projector.

Supplied accessory

Power cord

Line drawing of a portable electronic device with ports and a cable inserted (no text or symbols)

Connecting to Video Equipment

Connecting to Video Equipment Using an S-video or a Composite Video Cable

Using an S-video or a composite video cable, a VCR, laser disc player or other video equipment can be connected to INPUT 3 and INPUT 4 input terminals.

Connect the projector to the video equipment using an S-video cable or a composite video cable (both commercially available).

Note

- The INPUT 3 (S-VIDEO) terminal uses a video signal system in which the picture is separated into color and luminance signals to realize a higher-quality image. To view a higher-quality image, use a commercially available S-video cable to connect the INPUT 3 terminal on the projector and the S-video output terminal on the video equipment.

VCR or other video equipment To S-video output terminal To video output terminal Composite video cable (commercially available) S-video cable (commercially available)

Connecting to Component Video Equipment Using a Component Cable (INPUT 1 or 2)

Use a component cable when connecting to the INPUT 1 or 2 terminal, component video equipment such as DVD players and DTV* decoders.

*DTV is the umbrella term used to describe the new digital television system in the United States.

Connect the projector to the component video equipment using the component cable.

Note

• When connecting the projector to the video equipment in this way, select "Component" for "Signal Type" in the "Options" menu, or select the Component mode by pressing on the remote control. See page 64.
• Set the "Resolution" of "Special Modes" to "480P" during input of a 525P signal.

Connecting to RGB Video Equipment Using a 5RCA RGB Cable (INPUT 1 or 2)

Use a 5RCA RGB cable when connecting to the INPUT 1 or 2 terminal, RGB video equipment such as DVD players and DTV* decoders.

Connect the projector to the RGB video equipment using the 5RCA RGB cable.

Note

• When connecting the projector to the video equipment in this way, select "RGB" for "Signal Type" in the "Options" menu, or select the RGB mode by pressing on the remote control. See page 64.
• The (HD/C sync) and (VD) terminals may be used depending on the specifications of the DTV decoder connected to this projector. Please refer to the operation manual of the DTV decoder for details.

To analog component output terminal DVD player or DTV* decoder Component cable (commercially available)

The component jack for a DVD and so forth may be indicated with Y, C_B or C_R . Connect each jack in the manner shown below at this time.

Projector	Y	P_B	P_R
DVD player orDTV decoder	Y	C_B	C_R

To analog RGB output terminal DVD player or DTV* decoder 5RCA RGB cable (Commercially available)

Connecting to Component Video Equipment Using a 3 RCA to 15-pin D-Sub Cable Using the DVI to 15-pin D-Sub adaptor (INPUT 5)

Use a 3 RCA to 15-pin D-Sub cable using the DVI to 15-pin D-Sub adaptor when connecting to the INPUT 5 terminal, component video equipment such as DVD players and DTV* decoders.

*DTV is the umbrella term used to describe the new digital television system in the United States.

Connect the projector to the video equipment using a 3 RCA to 15-pin D-Sub cable using the DVI to 15-pin D-Sub adaptor.

Note

- The component jack for a DVD and so forth may be indicated with Y, C_B or C_R . Connect each jack in the manner shown below at this time.

Projector	Y	P_B	P_R
DVD player orDTV decoder
	Y	C_B	C_R

Optional accessories

3 RCA to 15-pin D-sub cable Type: AN-C3CP (9'10" (3.0 m))
DVI to 15-pin D-sub adaptor Model: AN-A1DV (7.9" (20 cm))

DVI to 15-pin D-sub adaptor (sold separately) To analog component output terminal DVD player or DTV* decoder 3 RCA to 15-pin D-sub cable (sold separately)

Connecting to Video Equipment with the DVI Output Termianl Using the DVI Cable

Use the DVI cable when connecting to the INPUT 5 terminal, video equipment with the DVI output terminal such as DVD players and DTV* decoders.

*DTV is the umbrella term used to describe the new digital television system in the United States.

Connect the projector to the video equipment using the DVI cable.

Note

- Select the input signal type of the video equipment. See page 64.

Optional accessory

DVI cable Type:AN-C3DV (9'10" (3.0m))

DVD player or DTV* decoder DVI cable (sold separately)

Connecting the Projector to a Computer

Connecting to a Computer Using the the DVI to 15-pin D-sub Adaptor and the RGB Cable

Connect the projector to the computer using the DVI to 15-pin D-sub adaptor and the RGB cable.

- Secure the connectors by tightening the thumbscrews.

Note

• See page 84 "Computer Compatibility Chart" for a list of computer signals compatible with the projector. Use with computer signals other than those listed may cause some of the functions not to work.
• When connecting the projector to a computer in this way, select "RGB" for "Signal Type" in the "Options" menu, or select the RGB mode by pressing on the remote control. See page 64.
• A Macintosh adaptor may be required for use with some Macintosh computers. Contact your nearest Authorized SharpVision Service Center or Dealer.
• Depending on the computer you are using, an image may not be projected unless the signal output setting of the computer is switched to the external output. Refer to the computer operation manual for switching the computer signal output settings.

Optional accessory

DVI to 15-pin D-sub adaptor Type: AN-A1DV (7.9" (20cm))

DVI to 15-pin D-sub adaptor (sold separately) To RGB output terminal Notebook computer RGB Cable (commercially available)

Connecting to a Computer Using a DVI Cable (Sold Separately)

Connect the projector to the computer using the DVI cable.

Note

- Select the input signal type of the video equipment. See page 64.

Optional accessory

DVI cable Type:AN-C3DV (9'10" (3.0m))

To DVI Digital output terminal Desktop computer DVI cable (sold separately)

Connecting the thumbscrew cables

■Connect the thumbscrew cable making sure that it fits correctly into the terminal. Then, firmly secure the connectors by tightening the screws on both sides of the plug.
■ Do not remove the ferrite core attached to the RGB cable.

Ferrite core

"Plug and Play" function

This projector is compatible with VESA-standard DDC 1/DDC 2B. The projector and a VESA DDC compatible computer will communicate their setting requirements, allowing for quick and easy setup.
■ Before using the "Plug and Play" function, be sure to turn on the projector first and the connected computer last.

Note

- The DDC "Plug and Play" function of this projector operates only when used in conjunction with a VESA DDC compatible computer.

Controlling the Projector by a Computer

Controlling the Projecor Using an RS- 232C Cable

When the RS-232C terminal on the projector is connected to a computer with an RS-232C cable (null modem, cross type, sold separately), the computer can be used to control the projector and check the status of the projector. See page 80 for details.

Connect the projector to the computer using an RS-232C cable.

Note

• Do not connect or disconnect an RS-232C cable to or from the computer while it is on. This may damage your computer.
• The RS-232C function may not operate if your computer terminal is not correctly set up. Refer to the operation manual of the computer for details.
• See page 79 for connection of an RS-232C cable.

Optional cable

RS-232C cable Type: AN-C10RS (32'10" (10.0m))

RS-232C terminal Desktop computer RS-232C cable (sold separately)

Using as a Wired Remote Control

Connecting the Remote Control to the Projector

When the remote control cannot be used due to the range or positioning of the projector (rear projection, etc.), connect a 3.5 mm minijack cable (commercially available or available as Sharp service part QCNW-4870CEZZ) from the WIRED R/C JACK on the top of the remote control to the WIRED REMOTE control input terminal.

WIRED REMOTE control input terminal ø3.5 mm minijack cable (commercially available or available as Sharp service part QCNW-4870CEZZ) To WIRED R/C JACK

Setup

Using the Adjustment Feet

The height of the projector can be adjusted using the adjustment feet when the surface the projector is placed on is uneven or when the screen is slanted.

The projection of the image can be made higher by adjusting the projector when it is in a location lower than the screen.

1 Press the foot releases and lift the projector to the desired angle.

2 Remove your hands from the foot releases. Once the adjustment feet have locked in position, release the projector.

- If the screen is at an angle, the adjustment feet can be used to adjust the angle of the image.

Note

• The projector is adjustable up to approximately 5 degrees from the standard position.
• When the height of the projector is adjusted, the image may become distorted (keystoned), depending on the relative positions of the projector and the screen. See page 36 for details on the keystone correction.

Info

• Do not hold the lens when lifting or lowering the projector.
• When lowering the projector, be careful not to get your finger caught in the area between the adjustment foot and the projector.

Foot releases Adjustment feet

Setup

Adjusting the Lens

The image is focused and adjusted to the desired size using the focus ring or zoom knob on the projector.

1 Zooming is adjusted by moving the zoom knob.
2 The focus is adjusted by rotating the focus ring.

Focus ring Zoom knob Zoom in Zoom out Zoom Knob Focus ring

Setup

Using the Lens Shift

The height of the projected image can be adjusted within the shift range of the lens by rotating the lens shift dial on the top of the projector.

Note

- Do not forcibly turn the lens shift dial beyond the range of the upper limit and lower limit positions. This may cause the projector to malfunction.

Selecting the HIGH CONTRAST/ HIGH BRIGHTNESS MODE

Pressing the HIGH CONTRAST/HIGH BRIGHTNESS MODE button switches between the contrast emphasis mode and brightness emphasis mode. See page 61 for details.

Lens shift dial Up Down HIGH CONTRAST/ HIGH BRIGHTNESS MODE button

Setting up the Screen

Position the projector perpendicular to the screen with all feet flat and level to achieve an optimal image.

Note

• The projector lens should be centered in the middle of the screen. If the horizontal line passing through the lens center is not perpendicular to the screen, the image will be distorted, making viewing difficult.
• For optimal image, position the screen so that it is not in direct sunlight or room light. Light falling directly on the screen washes out the colors, making viewing difficult. Close the curtains and dim the lights when setting up the screen in a sunny or bright room.
• A polarizing screen cannot be used with this projector.

Standard Setup (Front Projection)

■Place the projector at the required distance from the screen according to the desired picture size. (See page 29.)

Example of Standard Setup

Side View

90° Audience

- The distance from the screen to the projector may vary depending on the size of the screen.

P.29

- The default setting can be used, when placing the projector in front of the screen. If the projected image is reversed or inverted, readjust the setting to "Front" for "PRJ Mode" in the "Options" menu.

P.69

Top View

90° 球

- Place the projector so that an imaginary horizontal line that passes through the center of the lens is perpendicular to the screen.

Setup

Screen Size and Projection Distance

Diagram showing a 3D coordinate system with x, y, z axes and a rectangular object on a plane

When using a normal screen (4:3)

In case of setting the 16:9 picture to the full horizontal width of the 4:3 screen.

4 3

: Screen area
: Picture area

Screen size (4:3)			Projection Distance (y)		Distance from the lens center to the lower edge of the image (z)
Diag. (x)	Width	Height	Maximum (y1)	Minimum (y2)	Upper (z1)	Lower (z1)
250"	200"	150"	41'4" (12.6 m)	30'6" (9.3 m)	0" (0 cm)	-12'6" (-286 cm)
200"	160"	120"	33' (10.1 m)	24'4" (7.4 m)	0" (0 cm)	-10' (-229 cm)
150"	120"	90"	24'9" (7.5 m)	18'3" (5.6 m)	0" (0 cm)	-7'6" (-171 cm)
100"	80"	60"	16'5" (5.0 m)	12'1" (3.7 m)	0" (0 cm)	-5' (-114 cm)
84"	67"	50"	13'9" (4.2 m)	10'2" (3.1 m)	0" (0 cm)	-4'2" (-96 cm)
72"	58"	43"	11'10" (3.6 m)	8'8" (2.6 m)	0" (0 cm)	-3'7" (-82 cm)
60"	48"	36"	9'10" (3.0 m)	7'2" (2.2 m)	0" (0 cm)	-3' (-69 cm)

The formula for screen size and projectino distance

y_i (Max.) = (0.05058x - 0.0447) · 3.28
y_2 (Min.) = (0.03734x - 0.0447) · 3.28
z_1 (Upper) = 0
z_2 (Lower) = -0.45x

x : Screen size (diag.) (inches)
y: Projection distance (feet)
z : Distance from the lens center to the lower edge of the screen (feet)

Note

• There is an error of ±3% in the formula above.
- Values with a minus (−) sign indicate the distance of the lens center below the bottom of the screen.

When using a wide screen (16:9)

In case of displaying the 16:9 picture on the whole of the 16:9 screen.

: Picture area

Screen size (16:9) Projection Distance (y)					Distance from the lens center to the lower edge of the image (z)
Diag. (x)	Width	Height	Maximum (y1)	Minimum (y2)	Upper (z1)	Lower (z2)
300"	261"	147"	54'1" (16.5 m)	39'11" (12.2 m)	0" (0 cm)	-12'3" (-374 cm)
250"	218"	123"	45'1" (13.7 m)	33'3" (10.1 m)	0" (0 cm)	-10'3" (-311 cm)
200"	174"	98"	36' (11.0 m)	26'7" (8.1 m)	0" (0 cm)	-8'2" (-249 cm)
150"	131"	74"	26'12" (8.2 m)	19'11" (6.1 m)	0" (0 cm)	-6'2" (-187 cm)
133"	116"	65"	23'11" (7.3 m)	17'7" (5.4 m)	0" (0 cm)	-5'5" (-166 cm)
106"	92"	52"	18'11" (5.8 m)	13'11" (4.3 m)	0" (0 cm)	-4'4" (-131 cm)
100"	87"	49"	17'11" (5.5 m)	13'2" (4.0 m)	0" (0 cm)	-4'1" (-125 cm)
92"	80"	45"	16'5" (5.0 m)	12'1" (3.7 m)	0" (0 cm)	-3'9" (-114 cm)
84"	73"	41"	15' (4.6 m)	11'1" (3.4 m)	0" (0 cm)	-3'5" (-105 cm)
72"	63"	35"	12'10" (3.9 m)	9'6" (2.9 m)	0" (0 cm)	-2'11" (-90 cm)
60"	52"	29"	10'8" (3.3 m)	7'10" (2.4 m)	0" (0 cm)	-2'5" (-75 cm)
40"	35"	20"	7'1" (2.2 m)	5'2" (1.6 m)	0" (0 cm)	-1'8" (-50 cm)

The formula for screen size and projectino distance

y_1 (Max.) = (0.05510x - 0.04593) · 3.28
y_2 (Min.) = (0.04068x - 0.04369) · 3.28
z_1 (Upper) = 0
z_2 (Lower) = -0.4904x

x: Screen size (diag.) (inches)
y: Projection distance (feet)
z : Distance from the lens center to the lower edge of the screen (feet)

Note

• There is an error of ± 3% in the formula above.
- Values with a minus (−) sign indicate the distance of the lens center below the bottom of the screen.

Setup

Projecting a Reversed/Inverted Image

Projection from behind the screen

■Place a translucent screen between the projector and the audience.
■ Reverse the image by setting "Rear" for "PRJ Mode" in the

"Options" menu. See page 69 for use of this function.

Line drawing of a meeting scene with three people facing a screen (no text or symbols)

Projection using a mirror

■Place a mirror (normal flat type) in front of the lens.
■ Reverse the image by setting "Rear" for "PRJ Mode" in the

"Options" menu, when the mirror is placed on the audience side. See page 69 for use of this function.

Line drawing of two people observing a large screen projection (no text or symbols)

Info

- When using a mirror, be sure to carefully position both the projector and the mirror so the light does not shine into the eyes of the audience.

Ceiling-mount setup

■It is recommended that you use the optional Sharp ceiling-mount bracket for this installation.
■Before mounting the projector, contact your nearest Authorized SharpVision Service Center or Dealer to obtain the recommended ceiling-mount bracket (sold separately). (AN-CM250 ceiling-mount bracket, AN-EP101B extension tube for AN-CM250.)
■Be sure to adjust the position of the projector to match the distance (Z) from the lens center position (see page 29) to the

lower edge of the image, when mounting the projector on the ceiling.

■Invert the image by setting "Ceiling + Front" for "PRJ Mode" in the "Options" menu. See page 69 for use of this function.

Simple line drawing of a meeting room with a presenter and audience, connected by a projector screen (no text or symbols)

When using the default setting.

▼On-screen Display

Г ТУЧИ! ГАЗИОЧКОЗ The image is reversed.

When using the default setting.

▼On-screen Display

ГТУЧИЛ ГРЕЗИОЧНОС The image is reversed.

When using the default setting.

▼On-screen Display

c-INPUT The image is inverted.

Basic Operation

Illustration of a family gathered around a handheld device, with a screen displaying a simple diagram (no text or symbols present)

Image Projection

Basic Procedure

Connect the required external equipment to the projector before operating the following procedures.

Info

• The language preset at the factory is English. If you want to change the on-screen display to another language, reset the language according to the procedure on page 34.

1 Plug the power cord into the wall outlet.

- The power indicator illuminates red, and the projector enters standby mode.

2 Press ON the remote control or ON on the projector.

- The power indicator illuminates blue. After the lamp replacement indicator illuminates, the projector is ready to start operation.

Note

- The lamp replacement indicator illuminates, indicating the status of the lamp.

Blue: The lamp is ready.

Blue blinking: The lamp is warming up.

Red: The lamp should be replaced.

- If the power is turned off and immediately switched on again, the lamp replacement indicator may take time to illuminate.

- When controlling the projector using RS-232C commands from a computer, wait for at least 30 seconds after the power has been turned on, and then transmit the commands.

Lamp replacement indicator LAMP POWER (O) Power indicator

MENU button INPUT button POWER (OFF) button ENTER button UNDO ENTER MENU RESET INPUT OFF ON Power (ON) button

Power (OFF) button Power (ON) button ENTER button MENU button ▲,▼,◀,► buttons INPUT buttons

3

Press

on the remote control or on the projector to select the INPUT mode.

• After pressing once on the projector, use ☐ to select the desired input mode.

Note

• When no signal is received, "NO SIGNAL" will be displayed. When a signal that the projector is not preset to receive is received, "NOT REG." will be displayed.
• The INPUT mode is not displayed when "OSD display" is set to "Level A" or "Level B". (See page 63.)

About the INPUT modes

INPUT 1INPUT 2 (Component/RGB*)	Used for projecting images from equipment that sends component signals or RGB signals connected to the INPUT 1 or 2 terminal.
INPUT 3 (S-Video)	Used for projecting images from equipment connected to the S-VIDEO input terminal.
INPUT 4 (Video)	Used for projecting images from equipment connected to the VIDEO input terminal.
INPUT 5 (Digital PC RGB/Digital PC Component/Digital Video RGB/Digital Video Component/Analog RGB/Analog Component)	Used for projecting images from equipment connected to the DVI input terminal.

* Input the RGB signal of the DTV, not the computer.
    O["The display varies according to the "Signal Type" with INPUT 5. The explanation provided here uses the example of the case of having selected "Analog RGB"."]

4

Press on the remote control or on the projector, then press or again while the confirmation message is displayed, to turn off the projector.

Note

- If you accidentally pressed and do not want to turn off the power, wait until the confirmation message disappears.

Info

- Do not unplug the power cord during projection or cooling fan operation. This can cause damage due to the rise in internal temperature, as the cooling fan also stops. - When connected to equipment such as an amplifier, be sure to turn off the power to the equipment connected first and then to the projector.

Selecting the On-screen Display Language

- The on-screen display language of the projector can be set to English, German, Spanish, Dutch, French, Italian, Swedish, Portuguese, Chinese, Korean or Japanese.

1

Press

• The menu will be displayed.

2

Press ◀ or ▶ to select “Language”.

Power (OFF) button ENTER button Power (ON) button MENU button ▲, ▼, ◀, ► buttons

Turn Power OFF?

Yes: Press Again No: Please Wait

Gamma C.M.S. Options Language Status Picture Contrast Bright Color Tint Sharp CLR Temp Reset White Emphasis Gamma Position Color Selected Progressive Mode Picture Setting

3

Press ▲ or ▼ to select the desired language, and then press

4

Press

- The desired language will be set as the on-screen display.

English

Deutsch

Español

Nederlands

Français

Italiano

Svenska

Português

汉语

한국어

日本語

Keystone Correction and Vertical Size Adjustment

Correcting Trapezoidal Distortion and Adjusting the Vertical Size of the Picture

This function allows for Keystone (On-screen Trapezoidal Distortion) Correction and the adjustment of the vertical size of the picture.

Note

• When the image is projected either from top or from bottom toward the screen at an angle, the image becomes distorted trapezoidally.
  The function for correcting trapezoidal distortion is called Keystone Correction.
• The Keystone Correction can be adjusted up to angle of approximately ± 30 degrees.
• There are some input signal in which "KEYSTONE" does not work.

1

Press

- Pressing switches the settings in the manner shown in the diagram at right each time it is pressed.

2

Press ▲, ▼, ◀ and ▶ to adjust the Keystone correction.

- If you want to make more detailed corrections, press 🔊 to display the test pattern, and then press ▼,▲,▲ and ▶ to make the adjustments.

Note

• Since the trapezoidal distortion of the image can be corrected up to an angle of approximately ±30 degrees, the actual screen can be diagonally set up to that angle as well.
• Press (to) cancel Keystone Correction.
• Straight lines or the edges of images may appear jagged while adjusting the image.

KEYSTONE button ENTER button UNDO button ▲, ▼, ◀, ► buttons

Normal screen
Keystone Correction screen
Vertical size adjustment screen

* "V-SIZE" is not displayed when the value of "KEYSTONE" is "0".

Compresses upper side.

Test pattern

KEystone VR OK OK OK

3

When adjusting vertical size, pressing Ⓤ again displays the vertical size adjustment menu.

4

Press ▼ and ▲ to adjust the vertical size of the picture, and press 📊.

- See below for details about the vertical size adjustment.

Vertical Size Adjustment

The screen aspect ratio may change when the lens shift function is used in combination with the Keystone Correction function. In this case, adjust the aspect ratio using the vertical size adjustment.

Menu Bar Items

This list shows the items that can be set in the projector.

■ INPUT 1 / 2 / 5 Mode

    U["Main menu Sub menu"] --> V["Fine Sync"]
    U --> W["Clock ←+150-150"]
    U --> X["Phase ←+60-60"]
    U --> Y["H-Pos ←+150-150"]
    U --> Z["V-Pos ←+60-60"]
    U --> AA["Reset"]
    U --> AB["Save Setting"]
    U --> AC["Select Setting"]

    V --> AD["Resolution Vert Freq 1 1024 - 768 60 Hz 2 800 - 600 75 Hz 7"]
    V --> AE["Resolution Vert Freq 1 1024 - 768 60 Hz 2 800 - 600 75 Hz 7"]

    W --> AF["Special Modes"]
    W --> AG["Signal Info"]
    W --> AH["Auto Sync"]
    W --> AI["Auto Sync Disp [ON/OFF"]]

    U --> AJ["Resolution 1 1024 - 864 2 1152 - 864 3 1152 - 870 4 1152 - 882 7"]
    U --> AK["Resolution 1024 - 768 Hor Freq 48.4 KHz Vert Freq 60 Hz"]

    V --> AL["Options"]
    V --> AM["Digital Shift ←+XX-XX"]
    V --> AN["Subtitle ←+XX-XX"]
    V --> AO["Reset"]
    V --> AP["DNR"]
    V --> AQ["Lamp Timer"]
    V --> AR["OSD Display"]
    V --> AS["Signal Type"]
    V --> AT["Background"]
    V --> AU["Economy Mode"]
    V --> AV["RS-232C"]
    V --> AW["PRJ Mode"]

    W --> AX["Options"]
    W --> AY["Digital Shift ←+XX-XX"]
    W --> AZ["Subtitle ←+XX-XX"]
    W --> BA["Reset"]
    W --> BB["DNR"]
    W --> BC["Level 1 ← Level 3"]

    X["C.M.S. Page 50"] --> Y["Color Selected"]
    Y --> Z["Target"]
    Y --> AA["Lightness ←+30-30"]
    Y --> AB["Chroma ←+30-30"]
    Y --> AC["Hue ←+30-30"]
    Y --> AD["Reset (This Color)"]
    Y --> AE["Reset (All Colors)"]
    Y --> AF["View Settings"]

    U --> AG["C.M.S. Page 48"] & V & W & X & Y & Z & AA & AB & AC & AD & AE & AF & AG & AH & AI & AJ & AK & AL & AM & AN & AO & AP & AQ & AR & AS & AT & AU & AV & AW & AX & AY & AZ & BA & BB & BC & BD & BE & BF & BG & BH & BI & BJ & BK & BL & BM & BN & BO & BP & BP & BX & BX & BX & BX & BX & BX & BX & BX & BX & BX & BX & BX & BX & BX & BX & BX & BX & BX & BX & BX & BX & BX & BX & BX & BX & BX & BX & BX & BX & BX & BX & BX & BX & BX & BX & BX & BX & BX & BX & BX & BX & BX & BX & BX & BX & BX & BX & BX & BX & BX & AX & AX & AX & AX & AX & AX & AX & AX & AX & AX & AX & AX & AX & AX & AX & AX & AX & AX & AX & AX & AX & AX & AX & AX & AX & AX & AX & AX & AX & AX & AX & AX & AX & AX & AX & AX & AX & AX & AX & AX & AX & AX & AX & AX & AX & AX & AX & AX & AX & AX & RX

*In INPUT 5, the items in "Signal Type" are "D. PC RGB", "D. PC Comp.", "D. Video RGB", "D. Video Comp." "A. RGB" and "A. Comp.".

Note

• The resolution, vertical frequency and horizontal frequency figures displayed above are for example purposes only.
• Picture adjustment settings differ depending on the type of input signal.

■ INPUT 3 / 4 Mode

    AE["Main menu Sub menu"] --> AF["Options"]
    AF --> AG["Digital Shift ←+30-30"]
    AF --> AH["Subtitle ←+30-30"]
    AF --> AI["Reset"]
    AF --> AJ["DNR"]
    AJ --> AK["OFF Level 1 ← Level 3"]
    AJ --> AL["Lamp Timer"]
    AL --> AM["Normal Level A"]
    AL --> AN["Level B"]
    AJ --> AO["OSD Display"]
    AO --> AP["Normal Level A"]
    AO --> AQ["Level B"]
    AJ --> AR["Video System"]
    AR --> AS["Auto PAL (50/60Hz)"]
    AR --> AT["SECAM NTSC4.43 NTSC3.58 PAL-M PAL-N"]
    AR --> AU["Background"]
    AU --> AV["Blue None"]
    AR --> AW["Economy Mode"]
    AW --> AX["Power Save [ON/OFF"] RS-232C_Port["ON/OFF"] Auto_Power_Off["ON/OFF"]]
    AW --> AY["RS-232C"]
    AW --> AZ["PRJ Mode"]
    AZ --> BA["9600 bps 38400 bps 115200 bps"]
    AZ --> BB["Front Ceiling + Front Rear Ceiling + Rear"]

    BC["Gamma"]
    BC --> CD["Gamma Position Standard"]
    CD --> CE["R-Gamma ←+30-30"]
    CD --> CF["G-Gamma ←+30-30"]
    CD --> CG["B-Gamma ←+30-30"]
    CD --> CH["R-Gain ←+30-30"]
    CD --> CI["G-Gain ←+30-30"]
    CD --> CJ["B-Gain ←+30-30"]
    CD --> CK["R-Offset ←+30-30"]
    CD --> CL["G-Offset ←+30-30"]
    CD --> CM["B-Offset ←+30-30"]
    CD --> CN["Reset"]

    CO["C.M.S."]
    CO --> CP["Color Selected"]
    CP --> CQ["Target"]
    CP --> CR["Lightness ←+30-30"]
    CP --> CS["Chroma ←+30-30"]
    CP --> CT["Hue ←+30-30"]
    CP --> CU["Reset (This Color)"]
    CP --> CV["Reset (All Colors)"]
    CP --> CW["View Settings"]

    CX["Main menu Sub menu"] --> CY["Language"]
    CY --> CZ["English"]
    CZ --> DA["Deutsch"]
    CZ --> DB["Espaniol"]
    CZ --> DC["Nederlands"]
    CZ --> DE["Français"]
    CZ --> DF["Italiano"]
    CZ --> DG["Svenska Português 汉语"]
    CZ --> DH["한국어 日本語"]

    BI["Main menu Sub menu"] --> BJ["Options"]

    BK["Main menu Sub menu"] --> BL["Main menu Sub menu"]

Using the Menu Screen

This projector has two sets of menu screens that allow you to adjust the image and various projector settings.

You can operate the menus from the projector or remote control using the following procedure.

Menu screen for INPUT 1, INPUT 2 or INPUT 5 RGB mode

Menu Bar (Main Menu)

Menu screen for INPUT 3, INPUT 4 or INPUT 5 VIDEO Mode

Menu Bar (Main Menu)

Menu Selections (Adjustments)

1 Press

• The menu screen is displayed.

Note

• The "Picture" menu screen for the selected input mode is displayed.
• The on-screen display shown on the lower right is displayed when the INPUT 1, 2 or INPUT 5 RGB mode is selected.

▼,▼,▲,▲,▲,▲,▲,▲,▲,▲,▲,▲,▲,▲,▲,▲,▲,▲,▲,▲,▲,▲,▲,▲,▲,▲,▲,▲,▲,▲,▲,▲,▲,▲,▲,▲,▲,▲,▲,▲,▲,▲,▲,▲,▲,▲,▲,▲,▲,▲,▲,▲,▼,▼,▼,▼,▼,▼,▼,▼,▼,▼,▼,▼,▼,▼,▼,▼,▼,▼,▼,▼,▼,▼,▼,▼,▼,▼,▼,▼,▼,▼,▼,▼,▼,▼,▼,▼,▼,▼,▼,▼,▼,▼,▼,▼,▼,▼,▼,▼,▼,▼,▲,#,#,#,#,#,#,#,#,#,#,#,#,#,#,#,#,#,#,#,#,#,#,#,#,#,#,#,#,#,#,#,#,#,#,#,#,#,#,#,#,#,#,#,#,#,#,#,#,#,#,#,#,#,#,#,#,#,#,#,#,#,#,#,#,#,#,#,#,#,#,#,#,#,#,#,#,#,#,#,#,#,#,#,#,#,#,#,#,#,#,#,#,#,#,#,#,#,#,#,##,################################################### MENU button ENTER button MENU button MENU button MENU button MENU button MENU button MENU button MENU button MENU button MENU button MENU button MENU button MENU button MENU button MENU button MENU button MENU button MENU button MENU button MENU button MENU button MENU button MENU button MENU button MENU button MENU button MENU button MENU button MENU button MENU button MENU button MENU button MENU button MENU button MENUButton

▼Menu Screen

Games C.P.N.S Flow by Options Language Status Picture Contrast Bright Color Iust Sharp CLR Heap Reset White Emphasis Glowness Position Color Selected Progressive Mode Picture Setting END SELECT ELEEN A2-2011

2 Press ◀ or ▶ to select the menu you want to adjust.

- For details on the menus, see the tree charts on pages 38 and 39.

3 Press ▼or▲▲ select the item you want to adjust.

- To display a single adjustment item, press Ⓞ after selecting the item. Only the menu bar and the selected adjustment item will be displayed. Then if you press ▲ or ▼, the following item ("Bright" after "Contrast") will be displayed.

Enter ENTER

- Press 📋 or 📋 to return to the previous screen.

4 Press ◀ or ▶ to adjust the item selected.

• The adjustment is stored.

5 Press MENU

• The menu screen will disappear.

Genre C: R.S Fox Sync Options Language Status Picture Contrast Bright Color Fort Sharp Q: B Imp Based White Embrace Gamma Position Color Selected Progressive Mode Picture setting END WIDTH ROOT ROOT

Picture Contrast 30 0 30 Bright 0 Color 0 Tint 0 Sharp 0 CLR Temp 85.00 Reset White Emphasis Gamma Position Color Selected Progressive Mode Picture Setting IN

Picture Contrast 30 +5 30 Bright 0 Color 0 Tint 0 Sharp 0 CLR Temp 8500 Reset White Emphasis Gamma Position Color Selected Progressive Mode Picture Setting IN

Menu Selections (Settings)

1

Press

• The menu screen is displayed.

Note

• The "Picture" menu screen for the selected input mode is displayed.
• The on-screen displays shown on the lower right is displayed when INPUT 1, 2 or INPUT 5 RGB mode is selected.

2

Press ◀ or ▶ to select the menu you want to adjust.

Note

- For details on the menus, see the tree charts on pages 38 and 39.

3

Press ▼▼r ▲▲b select the item you want to set.

Note

• Press UNDO to return to the previous screen.
• In some menus, select the icon using "→"

▼,▲,▲,► buttons ENTER button MENU button VACC ENTER MENU FASER INPUT QFP CN ENTER button MENU button ▲,▲,▼,► buttons

▼ Menu screen

Games CMS Free sync Options Language Status Pictures Cooked Bright Color Tad Sharp SLR Temp Reset White Graphs Gamma Position Color Selected Progressive Mode Picture Setting Pictures Games CMS Free sync Language Status Options Dig Shift Subtitle Reset Unit Lamp Timer OAS Display Signal Type Background Economy Mode RS-232C Type PRJ Mode Options Digi Shift 0 Subtitle 0 Reset DNR Lamp Timer 7 h OSD Display Signal Type Background Economy Mode RS-232C 9600 bps PRJ Mode OFF Level 1 Level 2 Level 3 Sub menu

4 Press ▶.

- The cursor shifts to the sub menu.

5 Press ▼▼r ▲▲ select the setting of the item displayed in the sub menu.

6 Press

• The item selected is set.

Note

- Some adjustment items will display a confirmation message.

When setting an item, press ◀ or ▶ to select "Yes" or "OK" and then press 📋

- Use 🙏 to select "ON" or "OFF" for the item of "Economy Mode".

7 Press

• The menu will disappear.

Options Digi. Shift 0 Subtitle 0 Reset DNR Lamp Timer 7 h OSD Display Signal Type Background Economy Mode RS-232C → 9600 bps PRJ Mode Sub menu OFF Level 1 Level 2 Level 3

Options Digi. Shift 0 Subtitle 0 Reset DNR Lamp Timer 7 h OSD Display Signal Type Background Economy Mode RS-232C → 9600 bps PRJ Mode OFF Level 1 Level 2 Level 3

Adjusting the Picture

You can adjust the projector's picture to your preferences with the following picture settings.


Gamma

C.M.S.

Fine Sync

Options

Language

Status

Adjusting Image Preferences

Note

- First select "INPUT # Memory" when you want to save the "Picture" menu settings. See page 47 for details.

Adjust the "Picture" menu on the menu screen.

→For operating the menu screen, see pages 40 to 43.

Picture Contrast 0 Bright 0 Color 0 Tint 0 Sharp 0 CLR Temp 8500 Reset White Emphasis Gamma Position Color Selected Progressive Mode 3D Picture Setting

Selected Item	Description	◀ button ▶ button
Contrast	For adjusting the contrast level	For less contrast	For more contrast
Bright	For adjusting the brightness of an image	For less brightness	For more brightness
Color	For adjusting the color intensity of an image	For less color intensity	For more color intensity
Tint	For adjusting the tones of an image	Skin tones become purplish	Skin tones become greenish
Sharp	For making sharper or softer the contour of an image	For less sharpness	For more sharpness
CLR Temp	For adjusting the color temperature of an image	Decreases color temperature for warmer, reddish, incandescent-like images.	Increases color temperature for cooler, bluish, fluorescent-like images.

Note

• Picture adjustment settings differ depending on the type of input signal.
• The picture adjustments can be stored separately in each input mode.
• Some parameters may not be able to be adjusted depending on the combination of INPUT mode and "Signal Type".
• To reset all adjustment items, select "Reset" and press 🔊.

Emphasizing the Con- trast

This function emphasizes the bright portions of images to obtain a higher contrast image.

Select "White Emphasis" in the "Picture" menu on the menu screen.

→For operating the menu screen, see pages 40 to 43.

Note

• ON

Emphasizes the bright portions of images.

• OFF

Disables "White Emphasis".

Selecting the Gamma Position

This function allows you to select the desired gamma position.

Select "Gamma Position" in the "Picture" menu on the menu screen.

→For operating the menu screen, see pages 40 to 43.

→For setting the gamma, see page 48.

Selecting the C.M.S. Color

This function allows you to select the desired color reproduction mode.

Select "Color Selected" in the "Picture" menu on the menu screen.

→For operating the menu screen, see pages 40 to 43.

→For setting the color reproduction mode, see page 50.

Picture Contrast 0 Bright 0 Color 0 Tint 0 Sharp 0 CLR Temp 8500 Reset White Emphasis Gamma Position Color Selected Progressive Mode 3D Picture Setting

Picture Contrast 0 Bright 0 Color 0 Tint 0 Sharp 0 CLR Temp 8500 Reset White Emphasis Gamma Position Color Selected Progressive Mode Picture Setting Standard Black Detail Brighten Custom 1 Custom 2 SVM Gamma

Picture Contrast 0 Bright 0 Color 0 Tint 0 Sharp 0 CLR Temp 8500 Reset White Emphasis Gamma Position Color Selected Progressive Mode 3D Picture Setting Standard Custom 1 Custom 2 Custom 3

Progressive Mode

This function allows you to select the progressive display of a video signal. The progressive display projects a smoother video image.

Select "Progressive Mode" in the "Picture" menu on the menu screen.

→For operating the menu screen, see pages 40 to 43.

Note

• 20 Progressive

This function is useful to display fast-moving images such as sports and action films. This mode optimizes the image in a displayed frame.

• 3D 3D Progressive

This function is useful to display relatively slow-moving images such as drama and documentary more clearly.

This mode optimizes the image by estimating the movement of a number of preceding and succeeding frames.

- Film Mode

Reproduces the image of film source clearly. Displays the optimized image of film transformed with three-two pull down (NTSC and PAL60Hz) or two-two pull down (PAL50Hz and SECAM) enhancement to progressive mode images.

* The film source is a digital video recording with the original encoded as is at 24 frames/second. The projector can convert this film source to progressive video at 60 frames/second with NTSC and PAL60Hz or at 50 frames/second with PAL50Hz and SECAM to play back a high-definition image.

- When using progressive inputs, these inputs are directly displayed so that 2D Progressive, 3D Progressive and Film Mode cannot be selected. These modes can be selected in interlace signals other than 1080I.

- In NTSC or PAL60Hz, even if the 3D Progressive mode has been set, the three-two pull down enhancement will be enabled automatically, when the film source has been entered.

- In PAL50Hz or SECAM, the two-two pull down enhancement will be enabled only in the Film Mode, when the film source has been entered.

Picture Contrast 0 Bright 0 Color 0 Tint 0 Sharp 0 CLR Temp 8500 Reset White Emphasis Gamma Position Color Selected Progressive Mode 3D Picture Setting

Picture Setting Function

This function stores all items set in "Picture". Five settings can be stored separately in "Memory 1" to "Memory 5". Each stored setting is reassigned to each input mode (INPUT 1 to INPUT 5). Even when the input mode or signal is changed, you can easily select optimal settings from the stored settings.

■When Saving:

Select the Memory number to be saved or "INPUT # Memory" for each adjustment value in memory before setting on the "Picture" menu.

Select "Picture Setting" in the "Picture" menu on the menu screen.

→For operating the menu screen, see pages 40 to 43.

Selected item	Description
Memory 1 to Memory 5	Settings of all items in “Picture” can be stored for the respective input modes. The stored settings can be selected in any input modes.
INPUT 1 Memory to INPUT 5 Memory	Besides “Memory 1” to “Memory 5”, other settings can be stored for each input mode. “INPUT 1-5 Memory” can be selected for each input mode.

■When Recalling Saved Contents:

When a saved memory number is selected, the contents of the "Picture" menu change to the adjustment values of the saved Memory number.

Note

- The contents of "Picture Setting" can be selected directly by pressing the button. The contents change in the order of "Memory 1" – "Memory 5" and then "INPUT # Memory" each time button is pressed.

■When Changing Saved Contents:

Change the contents of the "Picture" menu after selecting the Memory number for which adjustment values are to be changed.

Picture Contrast 0 Bright 0 Color 0 Tint 0 Sharp 0 CLR Temp 8500 Reset White Emphasis Gamma Position Color Selected Progressive Mode 3D Picture Setting IN 1 Memory 1 2 Memory 2 3 Memory 3 4 Memory 4 5 Memory 5 IN INPUT1 Memory

PICTURE SETTING button

Adjusting the Gamma

Use this function to select the gamma position and adjust the gamma curve for finer image adjustment.


Gamma

C.M.S.

Fine Sync

Options

Language

Status

Selecting the Gamma Position

Select "Gamma Position" in the "Gamma" menu on the menu screen. For operating the menu screen, see pages 40 to 43.

Selected item	Description
Standard	For Standard picture.
Black Detail	Gives greater depth to darker portions of image.
Brighten	Brightens darker portions of image.
Custom 1–2	Allows you to adjust the gamma curve for each of RGB.
SVM Gamma	Allows you to adjust gamma value using SharpVision Manager Software.

Note

• The gamma position you make the setting in this menu for can be selected in the "Gamma Position" in the "Picture" menu.
• Select "Custom 1" or "Custom 2" to make the more detailed gamma setting.
• For selecting "SVM Gamma", refer to the SharpVison Manager operation manual (supplied).

Gamma Gamma Position R-Gamma G-Gamma B-Gamma R-Gain G-Gain B-Gain R-Offset G-Offset B-Offset Reset. Standard Black Detail Brighten Custom 1 Custom 2 SVM Gamma

Standard Black Detail Brighten

SVM Gamma Custom 2 Custom 1

Adjusting the Gamma

Adjust the gamma curve to suit your preferences.

Select the gamma item in the "Gamma" menu on the menu screen.

→For operating the menu screen, see pages 40 to 43.

Note

- These gamma values can be adjusted only when the gamma position is set to "Custom 1" or "Custom 2".

Gamma Gamma Position R-Gamma 30 0 130 G-Gamma 0 B-Gamma 0 R-Gain 0 G-Gain 0 B-Gain 0 R-Offset 0 G-Offset 0 B-Offset 0 Reset

Selected Item	Description	◀ button	▶ button
Red Gamma	For adjusting the display characteristic of red color	For giving greater depth to brighter portion of image in red color.	For giving greater depth to darker portion of image in red color.
Green Gamma	For adjusting the display characteristic of green color	For giving greater depth to brighter portion of image in green color.	For giving greater depth to darker portion of image in green color.
Blue Gamma	For adjusting the display characteristic of blue color	For giving greater depth to brighter portion of image in blue color.	For giving greater depth to darker portion of image in blue color.
Red Gain	For adjusting the contrast level of red color	For less contrast in red color	For more contrast in red color
Green Gain	For adjusting the contrast level of green color	For less contrast in green color	For more contrast in green color
Blue Gain	For adjusting the contrast level of blue color	For less contrast in blue color	For more contrast in blue color
Red Offset	For adjusting the brightness level of red color	For less brightness in red color	For more brightness in red color
Green Offset	For adjusting the brightness level of green color	For less brightness in green color	For more brightness in green color
Blue Offset	For adjusting the brightness level of blue color	For less brightness in blue color	For more brightness in blue color

Color Management System (C. M. S.)

This function allows you to individually adjust the display characteristics of six colors (R: Red, Y: Yellow, G: Green, C: Cyan, B: Blue, M: Magenta).


Gamma

C.M.S.

Fine Sync

Options

Language

Status

Selecting the Color Reproduction Mode

Select "Color Selected" in the "C.M.S." menu on the menu screen.

→For operating the menu screen, see pages 40 to 43.

Selected item	Description
Standard	Sharp default setting
Custom 1-3	“Lightness”, “Chroma” and “Hue” can be adjusted for each of the six colors.

Note

- If "Standard" is selected for "Color Selected", other items (e.g., Target) cannot be adjusted.

Selecting the Target Color

Select "Target" in the "C.M.S." menu on the menu screen.

→For operating the menu screen, see pages 40 to 43.

C.M.S. Color Selected Target R Lightness O Chroma O Hue O M Reset (This Color) Reset (All Colors) View Settings Standard Custom 1 Custom 2 Custom 3

C.M.S. Color Selected Target Lightness 0 Chroma 0 Hue 0 M Reset (This Color) Reset (All Colors) View Settings

	Red Cyan
	Yellow Blue
	Green Magenta

Setting the Brightness of the Target Color

Select "Lightness" in the "C.M.S." menu on the menu screen.

→For operating the menu screen, see pages 40 to 43.

Setting the Chromatic Value of the Target Color

Select "Chroma" in the "C.M.S." menu on the menu screen.

→For operating the menu screen, see pages 40 to 43.

Setting the Hue of the Target Color

Select "Hue" in the "C.M.S." menu on the menu screen.

→For operating the menu screen, see pages 40 to 43.

C.M.S. Color Selected Target R Lightness -30 0 -30 Chroma 0 Hue 0 M Y Reset (This Color) Reset (All Colors) View Settings

C.M.S. Color Selected Target R Lightness 0 Chroma -30 0 -30 Hue 0 M Y Reset (This Color) Reset (All Colors) View Settings

C.M.S. Color Selected Target R Lightness 0 Chroma 0 Hue M -30 0 -30 Y Reset (This Color) Reset (All Colors) View Settings

Resetting User-Defined Color Settings

Select "Reset (This Color)" or "Reset (All Colors)" in the "C.M.S." menu on the menu screen.

→For operating the menu screen, see pages 40 to 43.

Selected item	Description
Reset (This Color)	“Lightness”, “Chroma” and “Hue” of the color selected for “Target” are reset.
Reset (All Colors)	“Lightness”, “Chroma” and “Hue” of all colors are reset.

Overview of All Color Settings

Select "View Settings" in the "C.M.S." menu on the menu screen.

→For operating the menu screen, see pages 40 to 43.

C.M.S. Color Selected Target R Lightness O Chroma O Hue O M Reset (This Color) Reset (All Colors) View Settings

C.M.S. Color Selected Target R Lightness 0 Chroma 0 Hue 0 M Reset (This Color) Reset (All Colors) View Settings

Adjusting Computer Images

Use the Fine Sync function in case of irregularities such as vertical stripes or flickering in portions of the screen.


Gamma

C.M.S.

Fine Sync

Options

Language

Status

When Auto Sync is OFF

When "Auto Sync" is "OFF", interference such as flickering or vertical stripes may occur if displaying tilings or vertical stripes. Should this occur, adjust "Clock", "Phase", "H-Pos" and "V-Pos" for obtaining an optimum image.

Select "Clock", "Phase", "H-Pos" or "V-Pos" in the "Fine Sync" menu on the menu screen.

→For operating the menu screen, see pages 40 to 43.

Fine Sync Clock 0 Phase 0 H-Pos 0 V-Pos 0 Reset Save Setting → Select Setting → Special Modes → Signal Info → Auto Sync → Auto Sync Disp ↕

Selected Item Description
Clock	Adjusts vertical noise.
Phase	Adjusts horizontal noise (similar to tracking on your VCR).
H-Pos	Centers the on-screen image by moving it to the left or right.
V-Pos	Centers the on-screen image by moving it up or down.

Note

- Computer image adjustments can be made easily by pressing AUTO SYNC. See page 55 for details.

Saving Adjustment Settings

This projector allows you to store up to seven adjustment settings for use with various computers.

Select "Save Setting" in the "Fine Sync" menu on the menu screen.

→For operating the menu screen, see pages 40 to 43.

Fine Sync Clock 0 Phase 0 H-Pos 0 Y-Pos 0 Reset Save Setting → Select Setting → Special Modes → Signal Info Auto Sync → Auto Sync Disp →

	Resolution	Vert Freq
1	1024 × 768	60 Hz
2
3
4
5
6
7

Selecting Adjustment Settings

Adjustment settings stored in the projector can be easily accessed.

Select "Select Setting" in the "Fine Sync" menu on the menu screen.

→For operating the menu screen, see pages 40 to 43.

Note

• If a memory position has not been set, a resolution and frequency setting will not be displayed.
• When selecting a stored adjustment setting with "Select Setting", you can set the projector in the stored adjustments.

Special Mode Settings

Ordinarily, the type of input signal is detected and the correct resolution mode is automatically selected. However, for some signals, the optimal resolution mode in "Special Modes" on the "Fine Sync" menu screen may need to be selected to match the computer display mode.

Set the resolution by selecting "Special Modes" in the "Fine Sync" menu on the menu screen.

→For operating the menu screen, see pages 40 to 43.

Note

• Avoid displaying computer patterns which repeat every other line (horizontal stripes). (Flickering may occur, making the image hard to see.)
• When a DVD player or Digital Video is connected, select 480P as the input signal.
• See "Checking the Input Signal" below for information on the currently selected input signal.

Fine Sync Clock 0 Phase 0 H-Pos 0 V-Pos 0 Reset Save Setting → Select Setting → Special Modes → Signal Info → Auto Sync → Auto Sync Disp ↕

	Resolution	Vert Freq
1	1024 × 768	75 Hz
2
3
4
5
6
7

Fine Sync Clock 0 Phase 0 H-Pos 0 V-Pos 0 Reset Save Setting → Select Setting → Special Modes → Signal Info → Auto Sync → Auto Sync Disp →

Resolution
1	540 × 480
2	720 × 480
3	480p
4
5
6
7

Adjusting Computer Images

Checking the Input Signal

This function allows you to check the current input signal information.

Select "Signal Info" in the "Fine Sync" menu on the menu screen.

→For operating the menu screen, see pages 40 to 43.

Note

- The projector will display the number of scanned lines available from audio-visual equipment such as a DVD player or Digital Video.

Auto Sync Adjustment

Used to automatically adjust a computer image.

Select "Auto Sync" in the "Fine Sync" menu on the menu screen.

→For operating the menu screen, see pages 40 to 43.

Note

When setting to "Normal" or "High Speed":

- Auto Sync adjustment will occur when the projector is turned on or when the inputs are switched, when connected to a computer.

Manual adjustments should be performed:

- When the optimum image cannot be achieved with Auto Sync adjustment. See page 53.

- Auto Sync adjustment may take some time to complete, depending on the image of the computer connected to the projector.

- When setting "Auto Sync" to "OFF" or "High Speed", and if AUTO SYNC is pressed Auto Sync will be executed in "High Speed" mode. If the button is pressed again within one minute, Auto Sync will be executed in "Normal" mode.

Fine Sync Clock 0 Phase 0 H-Pos 0 V-Pos 0 Reset Save Setting → Select Setting → Special Modes → Signal Info Auto Sync → Auto Sync Disp →

Resolution	1024×768
Hor Freq	48.2 kHz
Vert Freq	60 Hz

Fine Sync Clock 0 Phase 0 H-Pos 0 V-Pos 0 Reset Save Setting → Select Setting → Special Modes → 1 Signal Info Auto Sync → Auto Sync Disp →

Screen display during Auto Sync

Add to the Image Wizard

AUTO SYNC button

Auto Sync Display Function

Used to set the screen displayed during Auto Sync.

Select "Auto Sync Disp" in the "Fine Sync" menu on the menu screen.

→For operating the menu screen, see pages 40 to 43.

Selected item	Description
	The image set as a back-ground image is projected.
	The computer image being adjusted is displayed.

Fine Sync Clock 0 Phase 0 H-Pos 0 V-Pos 0 Reset Save Setting → Select Setting → Special Modes → Signal Info → Auto Sync → Auto Sync Disp →

Easy to Use Functions

Illustration of a family watching television on a screen, with no visible text or symbols

Selecting the Picture Display Mode

This function allows you to modify or customize the picture display mode to enhance the input image. Depending on the input signal, you can choose "NORMAL", "FULL", "DOT BY DOT", "BORDER", "STRETCH" or "SMART STRETCH" image.

Switching the Picture Display Using Different Input Signals

Press

RESIZE

• Each time 📋s pressed, the display changes as shown on pages 59 and 60.

Info

• In the Dot by Dot Mode, images are displayed in the original resolution, therefore they will not be enlarged.
• To return to the standard image, press ☑ while "RESIZE" is displayed on the screen.

RESIZE button

Screen display of the picture display mode

RESIZE

NORMAL

VIDEO

		SIDE BAR STRETCH	SMART STRETCH	CINEMA ZOOM		DOT BY DOT
For 4:3 aspect ratio	480I490P576I576PNTSCPALSECAM	960 × 720 1260 × 720		1260 × 720	1260 × 720	-
For 16:9 aspect ratio		960 × 720 1260 × 720460P		1260 × 720	1260 × 720	-
		-	-	-	1260 × 720	1260 × 720
		-	-	-	1260 × 720	-1080I

• "STRETCH" is fixed when 720P, or 1080I signals are entered.
  * The Digital Shift function can be used with these images.

	Input Signal	Output screen image
		SIDE BAR	SMART STRETCH		STRETCH DOT BY DOTCINEMA ZOOM
ANDSOPSTEWRNTKCPALSECAM	For 4.3 aspect ratio	*
SACP100U
T2GP

COMPUTER

		NORMAL DOT BY DOT
For 4:3 aspect ratio	SVGA (600 × 600)	960 × 720	800 × 600
	XGA (1024 × 768)	960 × 720	1024 × 720
	SXGA (1280 × 960)	960 × 720	1280 × 720
For without 4:3 aspect ratio	SXGA (1280 × 1024)	900 × 720	1280 × 720

- "NORMAL" is fixed when XGA (1024 · 768) signals are entered.

	Input Signal	Output screen image
		NORMAL	DOT BY DOT
VGA	For 4.3 aspect ratio(642 × 490)
SVGA	For 4.3 aspect ratio(600 × 600)
XGA	For 4.3 aspect ratio(1024 × 765)
SXGA	For 4.3 aspect ratio(1245 × 1034)

Switchable High Contrast/High Brightness Mode

This function controls the quantity of the projected light and the contrast of the image. It can be operated using the HIGH CONTRAST/HIGH BRIGHTNESS MODE button on the projector. Set “NORMAL” when the projector is used in a relatively bright room.

Operating the Theater Mode Function

Press the HIGH CONTRAST/HIGH BRIGHTNESS MODE button to select the "HIGH CONTRAST MODE" or "HIGH BRIGHTNESS MODE".

Selected mode	Description
HIGH CONTRAST MODE	This mode is recommended for dark environments.
HIGH BRIGHTNESS MODE	This mode is recommended for bright environments.

Note

• When selecting "HIGH CONTRAST MODE", the fan noise increases.
• Even when selecting "HIGH CONTRAST MODE", the fan noise may increase if internal temperature rises enough to activate the cooling function.

HIGH CONTRAST/ HIGH BRIGHTNESS MODE button ■ HIGH CONTRAST MODE ◀ HIGH BRIGHTNESS MODE

Digital Shift Function

For easier viewing, this function shifts the entire image projected on the screen up or down when projecting 16:9 images from DVD players and DTV* decoders.

* DTV is the umbrella term used to describe the new digital television system in the United States.


Gamma

C.M.S.

Fine Sync

Options

Language

Status

Adjusting the Digital Shift

Select "Digital Shift" in the "Options" menu on the menu screen.

→For operating the menu screen, see pages 40 to 43.

Note

• The Digital Shift Function works with the SMART STRETCH and CINEMA ZOOM screen. For details, see pages 59 and 60.

Options Digi. Shift 30 30 Subtitle 0 Reset DNR Lamp Timer 9 h OSD Display Signal Type Background Economy Mode RS-232C → 9600 bps PRJ Mode

Subtitle Setting

With this function, you can adjust the vertical size of the display to allow for subtitles.


Gamma

C.M.S.

Fine Sync

Options

Language

Status

Adjusting the Vertical Size of the Display

Select "Subtitle" in the "Options" menu on the menu screen.

→For operating the menu screen, see pages 40 to 43.

Note

• When changing the screen with the Subtitle setting, not only the bottom of the screen rises, but also the upper part is changed to a certain point.
• The subtitle setting can be adjusted more effectively with the Digital Shift function.
• The subtitle setting can be made only with the SMART STRETCH and CINEMA ZOOM screen. For details, see pages 59 and 60.

Options Digi. Shift 0 Subtitle -30 0 +30 Reset DNR Lamp Timer 9 h OSD Display Signal Type Background Economy Mode RS-232C → 9600 bps PRJ Mode

Video Digital Noise Reduction (DNR) System

Digital Noise Reduction (DNR) provides high quality images with minimal dot crawl and cross color noise.


Gamma

C.M.S.

Fine Sync

Options

Language

Status

Reducing Image Noise

Select "DNR" in the "Options" menu on the menu screen.

→For operating the menu screen, see pages 40 to 43.

Note

• Set a level so as to view a clearer picture.
  Make sure to set DNR to "OFF" in the following cases:
• When the image is blurry.
• When the contours and colors of moving images drag.
• When TV broadcasts with weak signals are projected.

Info

- This function is available with INPUT 1, 2 (480I, 480P, 580I and 580P signals) and INPUT 3, 4 (all signals).

Options Digi. Shift 0 Subtitle 0 Reset DNR Lamp Timer 9 h OSD Display Signal Type Background Economy Mode RS-232C → 9600 bps PRJ Mode OFF Level 1 Level 2 Level 3

Setting On-screen Display

This function allows you to turn on or off the on-screen messages. When setting “☐” Level A” or “☐” Level B” in “OSD Display”, the input mode display (e.g. INPUT 1) will not appear, even if the INPUT button is pressed.

Turning Off the On-screen Display

Select "OSD Display" in the "Options" menu on the menu screen.

→For operating the menu screen, see pages 40 to 43.

Options Digi. Shift 0 Subtitle 0 Reset DNR Lamp Timer 9 h OSD Display Signal Type Background Economy Mode RS-232C → 9600 bps PRJ Mode Normal Level A Level B

Selected Item	Description
Normal	All On-screen Displays are displayed.
Level A	Input and Auto Sync are not displayed.
Level B	All On-screen Displays are not displayed.(except for Menu, On-screen Displays displayed when the KEYSTONE button is pressed, and warning displays (Power off/Temp./Change The Lamp., etc.))

Selecting the Signal Type

This function allows you to select the input signal type RGB or Component for INPUT 1 and 2, or Digital PC RGB, Digital PC Component, Digital Video RGB, Digital Video Component, Analog RGB or Analog Component for INPUT 5.

Select "Signal Type" in the "Options" menu on the menu screen.

→For operating the menu screen, see pages 40 to 43.

Note

For INPUT 1 and INPUT 2

[WYKS] RGB	Set when RGB signals are received from video equipment.
[4CWB] Component	Set when analog component signals are received from video equipment.

For INPUT 5

D. PC RGB	Set when digital PC RGB signals are received from the computer.
D. PC Comp.	Set when digital PC component signals are received from the computer.
D. Video RGB	Set when digital video RGB signals are received from video equipment.
D. Video Comp.	Set when digital video component signals are received from video equipment.
A. RGB	Set when analog RGB signals are received.
A. Comp.	Set when analog component signals are received.

For INPUT 1 and INPUT 2

Options Digi. Shift 0 Subtitle 0 Reset DNR Lamp Timer 7 h OSD Display Signal Type Background Economy Mode RS-232C → 9600 bps PRJ Mode RGB Component

For INPUT 5

Options Digi. Shift 0 Subtitle 0 Reset DNR Lamp Timer 7 h OSD Display Signal Type Background Economy Mode RS-232C → 9600 bps PRJ Mode D. PC RGB D. PC Comp. D. Video RGB D. Video Comp. A. RGB A. Comp.

Setting the Video System

The video input system mode is preset to "Auto"; however, a clear picture from the connected audio-visual equipment may not be received, depending on the video signal difference. In that case, switch the video signal.


Gamma

C.M.S.

Options

Language

Status

Setting the Video System

Select "Video System" in the "Options" menu on the menu screen.

→For operating the menu screen, see pages 40 to 43.

Note

• The video signal can only be set in INPUT 3 or INPUT 4 mode.
• In "Auto", images are displayed in PAL even if PAL-N or PAL-M input signals are received.

Options Digi. Shift 0 Subtitle 0 Reset DNR Lamp Timer 9 h OSD Display Video System Background Economy Mode RS-232C → 9600 bps PRJ Mode

Auto P1 PAL(50/60Hz) SECAM NTSC4.43 NTSC3.58 PAL-M PAL-N

PAL	When connected to PAL video equipment.
SECAM	When connected to SECAM video equipment.
NTSC4.43	When reproducing NTSC signals in PAL video equipment.
NTSC3.58	When connected to NTSC video equipment.

Setting a Background Image

This function allows you to select the image displayed when no signal is being sent to the projector.


Gamma

C.M.S.

Fine Sync

Options

Language

Status

Selecting a Background Image

Select "Background" in the "Options" menu on the menu screen.

→For operating the menu screen, see pages 40 to 43.

Options Digi. Shift 0 Subtitle 0 Reset DNR Lamp Timer 9 h OSD Display Signal Type Background Economy Mode RS-232C → 9600 bps PRJ Mode Blue None

Selected Item	Description
Blue	Blue screen
None	Black screen *

* If the input signal has interference, the screen will be displayed with the interference.

Selecting the Economy Mode

These functions allow you to reduce the power consumption of the projector.


Gamma

C.M.S.

Fine Sync

Options

Language

Status

Setting the Power Save

Select "Power Save" in "Economy Mode" under the "Options" menu on the menu screen.

→For operating the menu screen, see pages 40 to 43.

Note

• Although noise is reduced when "Power Save" is set to "ON", brightness decreases by 20%.
• "Power Save" mode is factory preset to "OFF".
• "Power Save" is switched on and off by pressing ⏻.

RS-232C Off Function

This projector consumes power when using a computer connected to the RS-232C terminal. When not using these terminals, "RS-232C Port" can be set to "OFF" to reduce standby power consumption.

Select "RS-232C Port" in "Economy Mode" under the "Options" menu on the menu screen.

→For operating the menu screen, see pages 40 to 43.

ON	RS-232C connection is set to “ON”. The RS-232C is operating at all times (to accept communications).
OFF	RS-232C connection is set to “OFF”. RS-232C does not operate when the power supply is in standby.

Note

• Set "RS-232 Port" to "ON" when using the SharpVision Manager Software.
• "RS-232S Port" is switched on and off by pressing ⏻.

Options Digi. Shift 0 Subtitle 0 Reset DNR Lamp Timer 9 h OSD Display Signal Type Background Economy Mode RS-232C → 9600 bps PRJ Mode Power Save RS-232C Port Auto Power Off

Status	Brightness	Power consumption
ON(Low power mode)	80%	220 W
OFF(Standard mode)	100%	270 W

Options Digi. Shift 0 Subtitle 0 Reset DNR Lamp Timer 9 h OSD Display Signal Type Background Economy Mode RS-232C → 9600 bps PRJ Mode Power Save RS-232C Port Auto Power Off

Automatic Power Off Function

When no input signal is detected for more than 15 minutes, the projector will automatically turn off if set to "ON".

The Auto Power Off function will be disabled when it is set to "OFF".

Select "Auto Power Off" in "Economy Mode" under the "Options" menu on the menu screen.

→For operating the menu screen, see pages 40 to 43.

Note

• When the Auto Power Off function is set to "ON", 5 minutes before the power turns off, the message "Power OFF in X min." will appear on the screen to indicate the remaining minutes.
• "Auto Power Off" is switched on and off by pressing 😊.

Options Digi. Shift 0 Subtitle 0 Reset DNR Lamp Timer 9 h OSD Display Signal Type Background Economy Mode RS-232C → 9600 bps PRJ Mode Power Save RS-232C Port Auto Power Off

Power OFF in 1 min.

Selecting the Transmission Speed (RS-232C)

This menu allows you to adjust the transmission speed of the RS-232C connection by selecting the baud rate.


Gamma

C.M.S.

Fine Sync

Options

Language

Status

Selecting the Transmission Speed (RS-232C)

Select "RS-232C" in the "Options" menu on the menu screen.

→For operating the menu screen, see pages 40 to 43.

Note

- Make sure that both the projector and computer are set for the same baud rate. Refer to the computer's operation manual for instructions for setting the computer's baud rate.

Options Digi. Shift 0 Subtitle 0 Reset DNR Lamp Timer 9 h OSD Display Signal Type Background Economy Mode RS-232C → 9600 bps PRJ Mode 9600 bps 38400 bps 115200 bps

Reversing/Inverting Projected Images

This projector is equipped with a reverse/invert image function that allows you to reverse or invert the projected image for various applications.


Gamma

C.M.S.

Fine Sync

Options

Language

Status

Setting the Projection Mode

Select "PRJ Mode" in the "Options" menu on the menu screen.

→For operating the menu screen, see pages 40 to 43.

Options Digi. Shift 0 Subtitle 0 Reset DNR Lamp Timer 9 h OSD Display Signal Type Background Economy Mode RS-232C → 9600 bps PIJ Mode Front Ceiling*Front Rear Ceiling*Rear

Selected Item	Description
Front	Normal image
Ceiling + Front	Inverted image
Rear	Reversed image
Ceiling + Rear	Reversed and inverted image

Note

- This function is used for the reversed image and ceiling-mount setups. See page 30 for these setups.

Front Ceiling+Front Rear Ceiling+Rear

Displaying the Adjustment Settings

This function can be used to display all the adjusted settings as a list on the screen.


Gamma

C.M.S.

Fine Sync

Options

Language

Status

Overview of All Menu Settings

Select the "Status" menu on the menu screen and press ENTER

→For operating the menu screen, see pages 40 to 43.

Picture	Fine Sync	Options
Contrast	Clock	Dig Shift	EnglishLanguage
Bright	Phase	Subtile	Smart StroResize
Color	H-Pos	DNR	Auto Power Off
Int	V-Pos	Lamp Timer	90000ps
Sharp	Select Setting	GSD Display	PRJ2 Mode
CLR Temp	Special Modes	Signal Type	Progressive Mode
White Emphasie	Auto Sync	Background	Picture Setting
Gamma Position	Auto Sync Disp	Power Save	TES12926
Color Selected		RS-232C Port

Appendix

Illustration of a person reading a book while using a projector (no text or symbols present)

Maintenance

Cleaning the projector

■Be sure to unplug the power cord before cleaning the projector.

■The cabinet as well as the operation panel is made of plastic. Avoid using benzene or thinner, as these can damage the finish on the cabinet.

■Do not use volatile agents such as insecticides on the projector.

Do not attach rubber or plastic items on the projector for long time.

The effects of some of the agents in the plastic may cause damage to the quality or finish of the projector.

Wax Tanner

■Wipe off dirt gently with a soft flannel cloth.

Neutral detergent Neutral detergent diluted with water

■When the dirt is hard to remove, soak a cloth in a neutral detergent diluted with water, wring the cloth well and then wipe the projector.

Strong cleaning detergents may discolor, warp or damage the coating on the projector.

Make sure to test on a small, inconspicuous area on the projector before using.

Cleaning the lens

■Use a commercially available blower or lens cleaning paper (for glasses and camera lenses) for cleaning the lens. Do not use any liquid type cleaning agents, as they may wear off the coating film on the surface of the lens.

■As the surface of the lens can easily get damaged, be sure not to scrape or hit the lens.

Cleaning Paper

Cleaning the exhaust and intake vents

■Use a vacuum cleaner to clean dust from the exhaust vent and the intake vent.

Cleaning the Ventilative Holes

• This projector is equipped with ventilative holes to ensure the optimal operating condition of the projector.
  • Periodically clean the ventilative hole by vacuuming it off with a vacuum cleaner.
• The ventilative holes should be cleaned every 100 hours of use. Clean the ventilative holes more often when the projector is used in a dirty or smoky location.

Side and Rear view E Front view Ventilative holes Ventilative holes

Cleaning the Ventilative Holes

1 Turn off the power and disconnect the power cord.

- Press Wait until the cooling fan stops.

Power (OFF) button Power (OFF) button

2 Unplug the Power Cord.

INPUT 2 ID 1000000

3 Clean the dust off by putting the cleaner hose on the intake ventilative holes.

cleaner hose Cleaner hose

Maintenance Indicators

■The warning lights on the projector indicate problems inside the projector.
If a problem occurs, either the temperature warning indicator or the lamp replacement indicator will illuminate red, and the power will turn off. After the power has been turned off, follow the procedures given below.

TEMP. 8 LAMP. 2 POWER 1 Power indicator Lamp replacement indicator Temperature warning indicator

About the temperature warning indicator

If the temperature inside the projector increases, due to blockage of the air vents, or the setting location, "TEMP." will blink in the lower left corner of the picture. If the temperature keeps on rising, the lamp will turn off and the temperature warning indicator will blink, the cooling fan will run for further 90 seconds, then the power will be shut off. After "TEMP." appears, be sure to perform the following measures.

TEMP

About the lamp replacement indicator

■When the lamp exceeds 1,900 cumulative hours of use,

Change The Lamp.

“☒” will be displayed on the screen in yellow. When the cumulative hours of use reach 2,000, “☒” will change to red, the lamp will automatically turn off and then the projector as well. At this time, the LAMP REPLACEMENT indicator will illuminate in red.

If you try to turn on the projector a fourth time without replacing the lamp, the projector will not turn on.

Maintenance indicator Condition			Problem Possible	Solution
Temperature warning indicator	Normal	Abnormal	The internal temperature is abnormally high.	• Blocked air intake	• Relocate the projector to an area with proper ventilation.
	Off	Red on/Power off		• Cooling fan break-down• Internal circuit failure	• Take the projector to your nearest Authorized SharpVision Service Center or Dealer for repair.
				• Clogged air intake	• Clean the ventilative holes according to the procedure on page 73.
Lamp replacement indicator	Blue on(Blue blinks when the lamp is active.)	Red on/Power off	The lamp does not illuminate.	• Burnt-out lamp• Lamp circuit failure	• Carefully replace the lamp. (See page 77)• Take the projector to your nearest Authorized SharpVision Service Center or Dealer for repair.• Please exercise care when replacing the lamp.
Power indicator	Blue on/Red on	Red blinks	The power indicator blinks in red when the projector is on.	• The exhaust vent cover is open.	• Securely install the cover.• If the power indicator blinks even when the exhaust vent cover is securely installed, contact your nearest Authorized SharpVision Service Center or Dealer for advice.

Maintenance Indicators

Info

• If the temperature warning indicator illuminates, and the power turns off, follow the above possible solutions and then wait until the projector has cooled down completely before plugging in the power cord and turning the power back on. (At least 5 minutes.)
• If the power is turned off and then turned on again, as during a brief test, the lamp replacement indicator may be triggered, preventing the power from going on. Should this occur, take the power cord out of the wall outlet and plug it back in again.
• If you want to clean the air vents during projector operation, be sure to first press ⏻. Make sure the power has turned off and the cooling fan has stopped, then clean the vents.
• Do not unplug the power cord after the power has been turned off and while the cooling fan is running. The cooling fan runs for about 90 seconds.

Regarding the Lamp

Lamp

It is recommended that the lamp (sold separately) be replaced after approximately 1,900 cumulative hours of use or when you notice a significant deterioration in the picture and color quality. The number of hours the lamp has been used can be checked with “Lamp Timer” in the “Options” menu on the menu screen.

■ For lamp replacement, please consult your nearest Authorized SharpVision Service Center or Dealer.

■ The actual lamp service life may be less than 1900 hours depending on the environment in which the projector is used.

IMPORTANT NOTE TO U.S. CUSTOMERS:

The lamp included with this projector is backed by a 90-day parts and labor limited warranty. All service of this projector under warranty, including lamp replacement, must be obtained through an Authorized SharpVision Service Center or Dealer. For the name of the nearest Authorized SharpVision Service Center or Dealer, please call toll-free: 1-877-DTV-SHARP (1-877-388-7427). U.S.A. ONLY

Caution Concerning the Lamp

This projector utilizes a pressurized mercury lamp. A loud sound may indicate lamp failure. Lamp failure can be attributed to numerous sources such as: excessive shock, improper cooling, surface scratches or deterioration of the lamp due to a lapse of usage time. The period of time up to failure largely varies depending on the individual lamp and/or the condition and the frequency of use. It is important to note that failure can often result in the bulb cracking.

■ When the lamp replacement indicator and on-screen display icon are illuminated or flash, it is recommended that the lamp be replaced with a new one immediately, even if the lamp appears to be operating normally.

■ Should the lamp break, the glass particles may spread inside the lamp cage or gas contained in the lamp may be vented into the room from the exhaust vent. Because the gas in this lamp includes mercury, ventilate the room well if the lamp breaks and avoid all exposure to the released gas. In case of exposure to the gas, consult with a doctor as soon as possible.

■ Should the lamp break, there is also a possibility that glass particles may spread inside of the projector. In such a case, it is recommended you contact your nearest Authorized SharpVision Service Center or Dealer to remove the damaged lamp and assure safe operation.

Replacing the Lamp

Caution

- Do not remove the lamp unit immediately after operation of the projector. The lamp will be hot and touching it can lead to burn or injury.

- Wait at least one hour after the power cord is disconnected to allow the surface of the lamp unit to fully cool before removing the lamp unit.

If the new lamp does not light after replacement, take your projector to the nearest Authorized SharpVision Service Center or Dealer for repair. Purchase a replacement lamp unit of type BQC-XVZ100001 from your nearest Authorized SharpVision Service Center or Dealer. Then carefully change the lamp by following the instructions described in this section. If you wish, you may have the lamp replaced at your nearest Authorized SharpVision Service Center or Dealer.

Removing and Install- ing the Lamp Unit

Info

• Be sure to remove the lamp unit by the handle. Be sure not to touch the glass surface of the lamp unit or the inside of the projector.
• To avoid injury to yourself and damage to the lamp, be sure to carefully follow the steps below.
• Do not loosen other screws except for the lamp unit cover and lamp unit. (Only the silver screws are loosened).
• Please refer to the installation manual included with the lamp unit.

1

Press ON the projector or ON the remote control to turn off the power.

- Wait until the cooling fan stops.

Warning!

- Do not remove the lamp unit from the projector right after use. The lamp will be very hot and may cause burn or injury.

2

Disconnect the power cord.

• Unplug the power cord from the AC socket.
• Leave the lamp until it has fully cooled down (about 1 hour).

3

Remove the lamp unit cover.

- Loosen the user service screw that secures the lamp unit cover. Then open the cover in the direction of the arrow.

Lamp unit

BQC-XVZ100001

4 Remove the lamp unit.

- Loosen the securing screws from the lamp unit. Hold the lamp unit by the handle and pull it in the direction of the arrow.

5 Insert the new lamp unit.

- Press the lamp unit firmly into the lamp unit compartment. Fasten the securing screws.

6 Attach the lamp unit cover.

- Close the lamp unit cover in the direction of the arrow (to the close mark) on the side of the projector. Then tighten the user service screw.

Info

- If the lamp unit and lamp cover are not correctly installed, the power will not turn on, even if the power cord is connected to the projector.

Resetting the Lamp Timer

Reset the lamp timer after replacing the lamp.

1 Connect the power cord.

- Plug the power cord into the AC socket of the projector.

2 Reset the lamp timer.

- While holding down □, ▼ and ▶ on the projector, press ○ on the projector. - "LAMP 0000H" is displayed, indicating that the lamp timer is reset.

Info

- Make sure to reset the lamp timer only when replacing the lamp. If you reset the lamp timer and continue to use the same lamp, this may cause the lamp to become damaged or explode.

Technical diagram showing three steps of door mounting device installation with labeled components and directional arrows

User service screws

INPUT 2 ICS (Power)

Connecting Pin Assignments

DVI-I (INPUT 5 / DIGITAL INPUT) port : 29 pin connector

C3 C5 24 23 ... ~ ... 18 17 C4 C2 C1 8 7.... ~ .... 2 1 16 ....... ~ ....... 9

• DVI Digital INPUT

Pin No.	Signal	Pin No.	Signal
1	T.M.D.S data 2-	16	Hot plug detection
2	T.M.D.S data 2+	17	T.M.D.S data 0-
3	T.M.D.S data 2 shield	18	T.M.D.S data 0+
4	Not connected	19	T.M.D.S data 0 shield
5	Not connected 20	Not connected
6	DDC clock	21	Not connected
7	DDC data	22	T.M.D.S clock shield
8	Not connected 23	T.M.D.S clock+
9	T.M.D.S data 1-	24	T.M.D.S clock-
10	T.M.D.S data 1+ C1	Not connected
11	T.M.D.S data 1 shield	C2	Not connected
12	Not connected	C3	Not connected
13	Not connected	C4	Not connected
14	+5V power	C5	Ground
15	Ground

• DVI Analog RGB Input

Pin No.	Signal	Pin No.	Signal	Pin No.	Signal	Pin No.	Signal
1	Not connected	16	Hot plug detection	1	Not connected	16	Not connected
2	Not connected	17	Not connected	2	Not connected	17	Not connected
3	Not connected	18	Not connected	3	Not connected	18	Not connected
4	Not connected	19	Not connected	4	Not connected	19	Not connected
5	Not connected	20	Not connected	5	Not connected	20	Not connected
6	Not connected	21	Not connected	6	Not connected	21	Not connected
7	Not connected	22	Not connected	7	Not connected	22	Not connected
8	Vertical sync	23	Not connected	8	Not connected	23	Not connected
9	Not connected	24	Not connected	9	Not connected	24	Not connected
10	Not connected	C1	Analog input Red	10	Not connected	C1	Analog input Pr/Cr
11	Not connected	C2	Analog input Green	11	Not connected	C2	Analog input Y
12	Not connected	C3	Analog input Blue	12	Not connected	C3	Analog input Pb/Cb
13	Not connected	C4	Horizontal sync	13	Not connected	C4	Not connected
14	+5V power	C5	Ground	14	Not connected	C5	Ground
15	Ground			15	Ground

RS-232C Port: 9-pin D-sub male connector of the DIN-D-sub RS-232C cable

9 8 7 6 5 4 3 2 1

Pin No. Signal Name I/O Reference

1 Not connected
2 RD Receive Data Input Connected to internal circuit
3 SD Send Data Output Connected to internal circuit
4 Reserved Connected to internal circuit
5 SG Signal Ground Connected to internal circuit
6 Reserved Connected to internal circuit
7 Reserved Connected to internal circuit
8 Reserved Connected to internal circuit
9 Not connected

(RS-232C) Specifications and Command Settings

PC control

A computer can be used to control the projector by connecting an RS-232C cable (null modem, cross type, commercially available) to the projector. (See page 23 for connection.)

Communication conditions

Set the serial port settings of the computer to match that of the table.

Signal format: Conforms to RS-232C standard.

Baud rate*: 9,600 bps / 384,00bps / 1152,00bps

Data length: 8 bits

Parity bit: None

Stop bit: 1 bit

Flow control: None

*Use the same settings for the projector and computer.

Basic format

Commands from the computer are sent in the following order: command, parameter, and return code. After the projector processes the command from the computer, it sends a response code to the computer.

Command format

C1 C2 C3 C4 P1 P2 P3 P4 Command 4-digit Parameter 4-digit

Response code format

Normal response

Problem response (communication error or incorrect command)

Info

• When more than one code is being sent, send each command only after the response code for the previous command from the projector is verified.
• In the case of transmitting commands during standby, it takes a maximum of 30 seconds until the response code is received.
• When the power is turned on during standby with the "POWER ON" command, wait for at least 30 seconds after the power has been turned on, and then transmit the next command.

Note

- When using the computer control function of the projector, the projector's operating status cannot be read by the computer. Therefore, confirm the status by transmitting the display commands for each adjustment menu and checking the status with the on-screen display. If the projector receives a command other than a menu display command, it will execute the command without displaying the on-screen display.

Commands

Example:

- When "BRIGHT" of INPUT 1 image adjustment is set to -10.

ProjectorComputer

R A B R 1 0 _ → K ← ↙

(RS-232C) Specifications and Command Settings

CONTROL CONTENTS

COMMAND

PARAMETER

RETURN CONTROL

CONTENTS

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

Command

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PROGRAM

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

INTERNATIONAL PROGRAMS

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RFN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PROGRESSIVE

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

REFN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

INPUT 1 COMPLEMENT (1)

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

INPUT 1 COMPLEMENT (1)

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMITER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RUN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

commands

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

PARAMETER

RETURN

COMMAND

COMPETITION: CUSTOM1

RETURN

COMMAND

PARAMETER:CUSTOM2

RETURN

COMMAND

PARAMETER:CUSTOM3

RETURN

COMMAND

PARAMETER:CUSTOM4

RETURN

COMMAND

PARAMETER:CUSTOM5

RETURN

COMMAND

PARAMETER:CUSTOM6

RETURN

COMMAND

PARAMETER:CUSTOM7

RETURN

COMMAND

PARAMETER:CUSTOM8

RETURN

COMMAND

PARAMETER:CUSTOM9

RETURN

COMMAND

PARAMETER:CUSTOM10

RETURN

COMMAND

PARAMETER:CUSTOM11

RETURN

COMMAND

PARAMETER:CUSTOM12

RETURN

COMMAND

PARAMETER:CUSTOM13

RETURN

COMMAND

PARAMETER:CUSTOM14

RETURN

COMMAND

PARAMETER:CUSTOM15

RETURN

COMMAND

PARAMETER:CUSTOM16

RETURN

COMMAND

PARAMETER:CUSTOM17

RETURN

COMMAND

PARAMETER:CUSTOM18

RETURN

COMMAND

PARAMETER:CUSTOM19

RETURN

COMMAND

PARAMETER:CUSTOM20

RETURN

COMMAND

PARAMETER:CUSTOM21

RETURN

COMMAND

PARAMETER:CUSTOM22

RETURN

COMMAND

PARAMETER:CUSTOM23

RETURN

COMMAND

PARAMETER:CUSTOM24

RETURN

COMMAND

PARAMETER:CUSTOM25

RETURN

COMMAND

PARAMETER:CUSTOM26

RETURN

COMMAND

PARAMETER:CUSTOM27

RETURN

COMMAND

PARAMETER:CUSTOM28

RETURN

COMMAND

PARAMETER:CUSTOM29

RETURN

COMMAND

PARAMETER:CUSTOM30

RETURN

COMMAND

PARAMETER:CUSTOM31

RETURN

COMMAND

PARAMETER:CUSTOM32

RETURN

COMMAND

PARAMETER:CUSTOM33

RETURN

COMMAND

PARAMETER:CUSTOM34

RETURN

COMMAND

PARAMETER:CUSTOM35

RETURN

COMMAND

PARAMETER:CUSTOM36

RETURN

COMMAND

PARAMETER:CUSTOM37

RETURN

COMMAND

PARAMETER:CUSTOM38

RETURN

COMMAND

PARAMETER:CUSTOM39

RETURN

COMMAND

PARAMETER:CUSTOM40

RETURN

COMMAND

PARAMETER:CUSTOM41

RETURN

COMMAND

PARAMETER:CUSTOM42

RETURN

COMMAND

PARAMETER:CUSTOM43

RETURN

COMMAND

PARAMETER:CUSTOM44

RETURN

COMMAND

PARAMETER:CUSTOM45

RETURN

COMMAND

PARAMETER:CUSTOM46

RETURN

COMMAND

PARAMETER:CUSTOM47

RETURN

COMMAND

PARAMETER:CUSTOM48

RETURN

COMMAND

PARAMETER:CUSTOM49

RETURN

COMMAND

PARAMETER:CUSTOM50

RETURN

COMMAND

PARAMETER:CUSTOM51

RETURN

COMMAND

PARAMETER:CUSTOM52

RETURN

COMMAND

PARAMETER:CUSTOM53

RETURN

COMMAND

PARAMETER:CUSTOM54

RETURN

COMMAND

PARAMETER:CUSTOM55

RETURN

COMMAND

PARAMETER:CUSTOM56

RETURN

COMMAND

PARAMETER:CUSTOM57

RETURN

COMMAND

PARAMETER:CUSTOM58

RETURN

COMMAND

PARAMETER:CUSTOM59

RETURN

COMMAND

PARAMETER:CUSTOM60

RETURN

COMMAND

PARAMETER:CUSTOM61

RETURN

COMMAND

PARAMETER:CUSTOM62

RETURN

COMMAND

PARAMETER:CUSTOM63

RETURN

COMMAND

PARAMETER:CUSTOM64

RETURN

COMMAND

PARAMETER:CUSTOM65

RETURN

COMMAND

PARAMETER:CUSTOM66

RETURN

COMMAND

PARAMETER:CUSTOM67

RETURN

COMMAND

PARAMETER:CUSTOM68

RETURN

COMMAND

PARAMETER:CUSTOM69

RETURN

COMMAND

PARAMETER:CUSTOM70

RETURN

COMMAND

PARAMETER:CUSTOM71

RETURN

COMMAND

PARAMETER:CUSTOM72

RETURN

COMMAND

PARAMETER:CUSTOM73

RETURN

COMMAND

PARAMETER:CUSTOM74

RETURN

COMMAND

PARAMETER:CUSTOM75

RETURN

COMMAND

PARAMETER:CUSTOM76

RETURN

COMMAND

PARAMETER:CUSTOM77

RETURN

COMMAND

PARAMETER:CUSTOM78

RETURN

COMMAND

PARAMETER:CUSTOM79

RETURN

COMMAND

PARAMETER:CUSTOM80

RETURN

COMMAND

PARAMETER:CUSTOM81

RETURN

COMMAND

PARAMETER:CUSTOM82

RETURN

COMMAND

PARAMETER:CUSTOM83

RETURN

COMMAND

PARAMETER:CUSTOM84

RETURN

COMMAND

PARAMETER:CUSTOM85

RETURN

COMMAND

PARAMETER:CUSTOM86

RETURN

COMMAND

PARAMETER:CUSTOM87

RETURN

COMMAND

PARAMETER:CUSTOM88

RETURN

COMMAND

PARAMETER:CUSTOM89

RETURN

COMMAND

PARAMETER:CUSTOM90

RETURN

COMMAND

PARAMETER:CUSTOM91

RETURN

COMMAND

PARAMETER:CUSTOM92

RETURN

COMMAND

PARAMETER:CUSTOM93

RETURN

COMMAND

PARAMETER:CUSTOM94

RETURN

COMMAND

PARAMETER:CUSTOM95

RETURN

COMMAND

PARAMETER:CUSTOM96

RETURN

COMMAND

PARAMETER:CUSTOM97

RETURN

COMMAND

PARAMETER:CUSTOM98

RETURN

COMMAND

PARAMETER:CUSTOM99

RETURN

COMMAND

PARAMETER:CUSTOM100

RETURN

COMMAND

PARAMETER:CUSTOM101

RETURN

COMMAND

PARAMETER:CUSTOM102

RETURN

COMMAND

PARAMETER:CUSTOM103

RETURN

COMMAND

PARAMETER:CUSTOM104

RETURN

COMMAND

PARAMETER:CUSTOM105

RETURN

COMMAND

PARAMETER:CUSTOM106

RETURN

COMMAND

PARAMETER:CUSTOM107

RETURN

COMMAND

PARAMETER:CUSTOM108

RETURN

COMMAND

PARAMETER:CUSTOM109

RETURN

COMMAND

PARAMETER:CUSTOM110

RETURN

COMMAND

PARAMETER:CUSTOM111

RETURN

COMMAND

PARAMETER:CUSTOM112

RETURN

COMMAND

PARAMETER:CUSTOM113

RETURN

COMMAND

PARAMETER:CUSTOM114

RETURN

COMMAND

PARAMETER:CUSTOM115

RETURN

COMMAND

PARAMETER:CUSTOM116

RETURN

COMMAND

PARAMETER:CUSTOM117

RETURN

COMMAND

PARAMETER:CUSTOM118

RETURN

COMMAND

PARAMETER:CUSTOM119

RETURN

COMMAND

PARAMETER:CUSTOM120

RETURN

COMMAND

PARAMETER:CUSTOM121

RETURN

COMMAND

PARAMETER:CUSTOM122

RETURN

COMMAND

PARAMETER:CUSTOM123

RETURN

COMMAND

PARAMETER:CUSTOM124

RETURN

COMMAND

PARAMETER:CUSTOM125

RETURN

COMMAND

PARAMETER:CUSTOM126

RETURN

COMMAND

PARAMETER:CUSTOM127

RETURN

COMMAND

PARAMETER:CUSTOM128

RETURN

COMMAND

PARAMETER:CUSTOM129

RETURN

COMMAND

PARAMETER:CUSTOM130

RETURN

COMMAND

PARAMETER:CUSTOM131

RETURN

COMMAND

PARAMETER:CUSTOM132

RETURN

COMMAND

PARAMETER:CUSTOM133

RETURN

COMMAND

PARAMETER:CUSTOM134

RETURN

COMMAND

PARAMETER:CUSTOM135

RETURN

COMMAND

PARAMETER:CUSTOM136

RETURN

COMMAND

PARAMETER:CUSTOM137

RETURN

COMMAND

PARAMETER:CUSTOM138

RETURN

COMMAND

PARAMETER:CUSTOM139

RETURN

COMMAND

PARAMETER:CUSTOM140

RETURN

COMMAND

PARAMETER:CUSTOM141

RETURN

COMMAND

PARAMETER:CUSTOM142

RETURN

COMMAND

PARAMETER:CUSTOM143

RETURN

COMMAND

PARAMETER:CUSTOM144

RETURN

COMMAND

PARAMETER:CUSTOM145

RETURN

COMMAND

PARAMETER:CUSTOM146

RETURN

COMMAND

PARAMETER:CUSTOM147

RETURN

COMMAND

PARAMETER:CUSTOM148

RETURN

COMMAND

PARAMETER:CUSTOM149

RETURN

COMMAND

PARAMETER:CUSTOM150

RETURN

COMMAND

PARAMETER:CUSTOM151

RETURN

COMMAND

PARAMETER:CUSTOM152

RETURN

COMMAND

PARAMETER:CUSTOM153

RETURN

COMMAND

PARAMETER:CUSTOM154

RETURN

COMMAND

PARAMETER:CUSTOM155

RETURN

COMMAND

PARAMETER:CUSTOM156

RETURN

COMMAND

PARAMETER:CUSTOM157

RETURN

COMMAND

PARAMETER:CUSTOM158

RETURN

COMMAND

PARAMETER:CUSTOM159

RETURN

COMMAND

PARAMETER:CUSTOM160

RETURN

COMMAND

PARAMETER:CUSTOM161

RETURN

COMMAND

PARAMETER:CUSTOM162

RETURN

COMMAND

PARAMETER:CUSTOM163

RETURN

COMMAND

PARAMETER:CUSTOM164

RETURN

COMMAND

PARAMETER:CUSTOM165

RETURN

COMMAND

PARAMETER:CUSTOM166

RETURN

COMMAND

PARAMETER:CUSTOM167

RETURN

COMMAND

PARAMETER:CUSTOM168

RETURN

COMMAND

PARAMETER:CUSTOM169

RETURN

COMMAND

PARAMETER:CUSTOM170

RETURN

COMMAND

PARAMETER:CUSTOM171

RETURN

COMMAND

PARAMETER:CUSTOM172

RETURN

COMMAND

PARAMETER:CUSTOM173

RETURN

COMMAND

PARAMETER:CUSTOM174

RETURN

COMMAND

PARAMETER:CUSTOM175

RETURN

COMMAND

PARAMETER:CUSTOM176

RETURN

COMMAND

PARAMETER:CUSTOM177

RETURN

COMMAND

PARAMETER:CUSTOM178

RETURN

COMMAND

PARAMETER:CUSTOM179

RETURN

COMMAND

PARAMETER:CUSTOM180

RETURN

COMMAND

PARAMETER:CUSTOM181

RETURN

COMMAND

PARAMETER:CUSTOM182

RETURN

COMMAND

PARAMETER:CUSTOM183

RETURN

COMMAND

PARAMETER:CUSTOM184

RETURN

COMMAND

PARAMETER:CUSTOM185

RETURN

COMMAND

PARAMETER:CUSTOM186

RETURN

COMMAND

PARAMETER:CUSTOM187

RETURN

COMMAND

PARAMETER:CUSTOM188

RETURN

COMMAND

PARAMETER:CUSTOM189

RETURN

COMMAND

PARAMETER:CUSTOM190

RETURN

COMMAND

PARAMETER:CUSTOM191

RETURN

COMMAND

PARAMETER:CUSTOM192

RETURN

COMMAND

PARAMETER:CUSTOM193

RETURN

COMMAND

PARAMETER:CUSTOM194

RETURN

COMMAND

PARAMETER:CUSTOM195

RETURN

COMMAND

PARAMETER:CUSTOM196

RETURN

COMMAND

PARAMETER:CUSTOM197

RETURN

COMMAND

PARAMETER:CUSTOM198

RETURN

COMMAND

PARAMETER:CUSTOM199

RETURN

COMMAND

PARAMETER:CUSTOM200

RETURN

COMMAND

PARAMETER:CUSTOM201

RETURN

COMMAND

PARAMETER:CUSTOM202

RETURN

COMMAND

PARAMETER:CUSTOM203

RETURN

COMMAND

PARAMETER:CUSTOM204

RETURN

COMMAND

PARAMETER:CUSTOM205

RETURN

COMMAND

PARAMETER:CUSTOM206

RETURN

COMMAND

PARAMETER:CUSTOM207

RETURN

COMMAND

PARAMETER:CUSTOM208

RETURN

COMMAND

PARAMETER:CUSTOM209

RETURN

COMMAND

PARAMETER:CUSTOM210

RETURN

COMMAND

PARAMETER:CUSTOM211

RETURN

COMMAND

PARAMETER:CUSTOM212

RETURN

COMMAND

PARAMETER:CUSTOM213

RETURN

COMMAND

PARAMETER:CUSTOM214

RETURN

COMMAND

PARAMETER:CUSTOM215

RETURN

COMMAND

PARAMETER:CUSTOM216

RETURN

COMMAND

PARAMETER:CUSTOM217

RETURN

COMMAND

PARAMETER:CUSTOM218

RETURN

COMMAND

PARAMETER:CUSTOM219

RETURN

COMMAND

PARAMETER:CUSTOM220

RETURN

COMMAND

PARAMETER:CUSTOM221

RETURN

COMMAND

PARAMETER:CUSTOM222

RETURN

COMMAND

PARAMETER:CUSTOM223

RETURN

COMMAND

PARAMETER:CUSTOM224

RETURN

COMMAND

PARAMETER:CUSTOM225

RETURN

COMMAND

PARAMETER:CUSTOM226

RETURN

COMMAND

PARAMETER:CUSTOM227

RETURN

COMMAND

PARAMETER:CUSTOM228

RETURN

COMMAND

PARAMETER:CUSTOM229

RETURN

COMMAND

PARAMETER:CUSTOM230

RETURN

COMMAND

PARAMETER:CUSTOM231

RETURN

COMMAND

PARAMETER:CUSTOM232

RETURN

COMMAND

PARAMETER:CUSTOM233

RETURN

COMMAND

PARAMETER:CUSTOM234

RETURN

COMMAND

PARAMETER:CUSTOM235

RETURN

COMMAND

PARAMETER:CUSTOM236

RETURN

COMMAND

PARAMETER:CUSTOM237

RETURN

COMMAND

PARAMETER:CUSTOM238

RETURN

COMMAND

PARAMETER:CUSTOM239

RETURN

COMMAND

PARAMETER:CUSTOM240

RETURN

COMMAND

PARAMETER:CUSTOM241

RETURN

COMMAND

PARAMETER:CUSTOM242

RETURN

COMMAND

PARAMETER:CUSTOM243

RETURN

COMMAND

PARAMETER:CUSTOM244

RETURN

COMMAND

PARAMETER:CUSTOM245

RETURN

COMMAND

PARAMETER:CUSTOM246

RETURN

COMMAND

PARAMETER:CUSTOM247

RETURN

COMMAND

PARAMETER:CUSTOM248

RETURN

COMMAND

PARAMETER:CUSTOM249

RETURN

COMMAND

PARAMETER:CUSTOM250

RETURN

COMMAND

PARAMETER:CUSTOM251

RETURN

COMMAND

PARAMETER:CUSTOM252

RETURN

COMMAND

PARAMETER:CUSTOM253

RETURN

COMMAND

PARAMETER:CUSTOM254

RETURN

COMMAND

PARAMETER:CUSTOM255

RETURN

CONTROL CONTENTS	COMMAND	PARAMETER	RETURN CONTROL
INPUT 2 GAMMA POSITION: STANDARD	G M R B	0	OK OR ERR
INPUT 2 GAMMA POSITION: BLACK DETAIL	G M R B	1	OK OR ERR
INPUT 2 GAMMA POSITION: BRIGHTEN	G M R B	-2	OK OR ERR
INPUT 2 GAMMA POSITION: CUSTOM 1	G M R B	-3	OK OR ERR
INPUT 2 GAMMA POSITION: CUSTOM 2	G M R B	-4	OK OR ERR
INPUT 2 GAMMA POSITION: SVM GAMMA	G M R B	-5	OK OR ERR
INPUT 3 GAMMA POSITION: STANDARD	G M V B	-0	OK OR ERR
INPUT 3 GAMMA POSITION: BLACK DETAIL	G M V B	-1	OK OR ERR
INPUT 3 GAMMA POSITION: BRIGHTEN	G M V B	-2	OK OR ERR
INPUT 3 GAMMA POSITION: CUSTOM 1	G M V B	-3	OK OR ERR
INPUT 3 GAMMA POSITION: CUSTOM 2	G M V B	-4	OK OR ERR
INPUT 3 GAMMA POSITION: SVM GAMMA	G M V B	-5	OK OR ERR
INPUT 4 GAMMA POSITION: STANDARD	G M V A	-0	OK OR ERR
INPUT 4 GAMMA POSITION: BLACK DETAIL	G M V A	-1	OK OR ERR
INPUT 4 GAMMA POSITION: BRIGHTEN	G M V A	-2	OK OR ERR
INPUT 4 GAMMA POSITION: CUSTOM 1	G M V A	-3	OK OR ERR
INPUT 4 GAMMA POSITION: CUSTOM 2	G M V A	-4	OK OR ERR
INPUT 4 GAMMA POSITION: SVM GAMMA	G M V A	-5	OK OR ERR
INPUT 5 GAMMA POSITION: STANDARD	G M R C	-0	OK OR ERR
INPUT 5 GAMMA POSITION: BLACK DETAIL	G M R C	-1	OK OR ERR
INPUT 5 GAMMA POSITION: BRIGHTEN	G M R C	-2	OK OR ERR
INPUT 5 GAMMA POSITION: CUSTOM 1	G M R C	-3	OK OR ERR
INPUT 5 GAMMA POSITION: CUSTOM 2	G M R C	-4	OK OR ERR
INPUT 5 GAMMA POSITION: SVM GAMMA	G M R C	-5	OK OR ERR
R-GAMMA (-30~+30)	G M E R	-0	OK OR ERR
G-GAMMA (-30~+30)	G M E G	-0	OK OR ERR
B-GAMMA (-30~+30)	G M E B	-0	OK OR ERR
R-GAMMA (-30~+30)	G M G R	-0	OK OR ERR
G-GAMMA (-30~+30)	G M G G	-0	OK OR ERR
B-GAMMA (-30~+30)	G M G B	-0	OK OR ERR
R-OFFSET (-30~+30)	G M O R	-0	OK OR ERR
G-OFFSET (-30~+30)	G M O G	-0	OK OR ERR
R-OFFSET (-30~+30)	G M O B	-0	OK OR ERR
GAMMA RESET	G M R E	-1	OK OR ERR
INPUT 1 COLOR SELECTED: STANDARD	C S R A	-0	OK OR ERR
INPUT 1 COLOR SELECTED: CUSTOM 1	C S R A	-1	OK OR ERR
INPUT 1 COLOR SELECTED: CUSTOM 2	C S R B	-1	OK OR ERR
INPUT 1 COLOR SELECTED: CUSTOM 3	C S R B	-1	OK OR ERR
INPUT 2 COLOR SELECTED: STANDARD	C S R B	-0	OK OR ERR
INPUT 2 COLOR SELECTED: CUSTOM 1	C S R B	-1	OK OR ERR
INPUT 2 COLOR SELECTED: CUSTOM 2	C S R B	-1	OK OR ERR
INPUT 2 COLOR SELECTED: CUSTOM 3	C S R B	-1	OK OR ERR
INPUT 3 COLOR SELECTED: STANDARD	C S V B	-0	OK OR ERR
INPUT 3 COLOR SELECTED: CUSTOM 1	C S V B	-1	OK OR ERR
INPUT 3 COLOR SELECTED: CUSTOM 2	C S V B	-1	OK OR ERR
INPUT 3 COLOR SELECTED: CUSTOM 3	C S V B	-1	OK OR ERR
TARGET: RED	C M T G	-1	OK OR ERR
TARGET: YELLOW	C M T G	-2	OK OR ERR
TARGET: GREEN	C M T G	-3	OK OR ERR
TARGET: GREEN	C M T G	-4	OK OR ERR
TARGET: CYAN	C M T G	-5	OK OR ERR
TARGET: BLUE	C M T G	-6	OK OR ERR
TARGET: MAGENTA	C M T G	-7	OK OR ERR
LIGHTNESS (-30~+30)	C M S L	-0	OK OR ERR
CHROMA (-30~+30)	C M S C	-0	OK OR ERR
HUE (-30~+30)	C M S H	-0	OK OR ERR
RESET (THIS COLOR)	C M R E	-1	OK OR ERR
RESET (ALL COLORS)	C M R E	-2	OK OR ERR

LANGUAGE

OPTIONS

COMMAND

CONTENTS

1

M

C

L

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

○

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

1

M

P

H

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

●

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

-

1

A

H

P

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

K

K

K

K

K

K

K

K

K

K

K

K

K

K

K

K

K

K

K

K

K

K

K

K

K

K

K

K

K

K

K

K

K

K

K

K

K

K

K

K

K

K

K

K

K

K

K

K

K

K

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

1

A

V

P

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

K

K

K

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

1

A

R

E

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

K

K

K

•

•

‘, OR, ERR, ...’

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

1

A

R

E

•

•

•

•

•

•

•

•

•

•

•

•

RGB HORIZONTAL FREQUENCY CHECK

RGB VERTICAL FREQUENCY CHECK

NORMAL AUTO SYNC

HIGH SPEED AUTO SYNC

AUTO SYNC OFF

POWER SYNC DISPLAY ON

AUTO SYNC DISPLAY OFF

DIGITAL SHIFT (-30 - +30)

SUBTITLE (-30 - +30)

POWER SAVE MODE : ON : --- : --- : --- : --- : --- : --- : --- : --- : --- : --- : --- : --- : --- : --- : --- : --- : --- : --- : --- : --- : --- : --- : --- : --- : --- : --- : --- : --- : --- : --- : --- : --- : --- : --- : --- : --- : --- : --- : --- : --- : --- : --- : --- : --- : --- : --- : --- : --- : --- : --- :--- : --- : --- : --- : --- : --- : --- : --- : --- : --- : --- : --- : --- : --- : --- : --- : --- : --- : --- : --- : --- : --- : --- : --- : --- : --- : --- : --- : --- : --- : --- : --- : --- : --- : --- : --- : --- : --- : --- : --- : --- : --- : --- : --- : --- : --- : --- : --- : --- : --- : --- 3D DMR : OFF 3D DMR : LEVEL 1 3D DMR : LEVEL 2 3D DMR : LEVEL 3 3D DMR : LEVEL 4 3D DMR : LEVEL 5 3D DMR : LEVEL 6 3D DMR : LEVEL 7 3D DMR : LEVEL 8 3D DMR : LEVEL 9 3D DMR : LEVEL 10 3D DMR : LEVEL 11 3D DMR : LEVEL 12 3D DMR : LEVEL 13 3D DMR : LEVEL 14 3D DMR : LEVEL 15 3D DMR : LEVEL 16 3D DMR : LEVEL 17 3D DMR : LEVEL 18 3D DMR : LEVEL 19 3D DMR : LEVEL 20 3D DMR : LEVEL 21 3D DMR : LEVEL 22 3D DMR : LEVEL 23 3D DMR : LEVEL 24 3D DMR : LEVEL 25 3D DMR : LEVEL 26 3D DMR : LEVEL 27 3D DMR : LEVEL 28 3D DMR : LEVEL 29 3D DMR : LEVEL 30 3D DMR : LEVEL 31 3D DMR : LEVEL 32 3D DMR : LEVEL 33 3D DMR : LEVEL 34 3D DMR : LEVEL 35 3D DMR : LEVEL 36 3D DMR : LEVEL 37 3D DMR : LEVEL 38 3D DMR : LEVEL 39 3D DMR : LEVEL 40 3D DMR : LEVEL 41 3D DMR : LEVEL 42 3D DMR : LEVEL 43 3D DMR : LEVEL 44 3D DMR : LEVEL 45 3D DMR : LEVEL 46 3D DMR : LEVEL 47 3D DMR : LEVEL 48 3D DMR : LEVEL 49 3D DMR : LEVEL 50 3D DMR : LEVEL 51 3D DMR : LEVEL 52 3D DMR : LEVEL 53 3D DMR : LEVEL 54 3D DMR : LEVEL 55 3D DMR : LEVEL 56 3D DMR : LEVEL 57 3D DMR : LEVEL 58 3D DMR : LEVEL 59 3D DMR : LEVEL 60 3D DMR : LEVEL 61 3D DMR : LEVEL 62 3D DMR : LEVEL 63 3D DMR : LEVEL 64 3D DMR : LEVEL 65 3D DMR : LEVEL 66 3D DMR : LEVEL 67 3D DMR : LEVEL 68 3D DMR : LEVEL 69 3D DMR : LEVEL 70 3D DMR : LEVEL 71 3D DMR : LEVEL 72 3D DMR : LEVEL 73 3D DMR : LEVEL 74 3D DMR : LEVEL 75 3D DMR : LEVEL 76 3D DMR : LEVEL 77 3D DMR : LEVEL 78 3D DMR : LEVEL 79 3D DMR : LEVEL 80 3D DMR : LEVEL 81 3D DMR : LEVEL 82 3D DMR : LEVEL 83 3D DMR : LEVEL 84 3D DMR : LEVEL 85 3D DMR : LEVEL 86 3D DMR : LEVEL 87 3D DMR : LEVEL 88 3D DMR : LEVEL 89 3D DMR : LEVEL 90 3D DMR : LEVEL 91 3D DMR : LEVEL 92 3D DMR : LEVEL 93 3D DMR : LEVEL 94 3D DMR : LEVEL 95 3D DMR : LEVEL 96 3D DMR : LEVEL 97 3D DMR : LEVEL 98 3D DMR : LEVEL 99 3D DMR : LEVEL 100 3D DMR : LEVEL 101 3D DMR : LEVEL 102 3D DMR : LEVEL 103 3D DMR : LEVEL 104 3D DMR : LEVEL 105 3D DMR : LEVEL 106 3D DMR : LEVEL 107 3D DMR : LEVEL 108 3D DMR : LEVEL 109 3D DMR : LEVEL 110 3D DMR : LEVEL 111 3D DMR : LEVEL 112 3D DMR : LEVEL 113 3D DMR : LEVEL 114 3D DMR : LEVEL 115 3D DMR : LEVEL 116 3D DMR : LEVEL 117 3D DMR : LEVEL 118 3D DMR : LEVEL 119 3D DMR : LEVEL 120 3D DMR : LEVEL 121 3D DMR : LEVEL 122 3D DMR : LEVEL 123 3D DMR : LEVEL 124 3D DMR : LEVEL 125 3D DMR : LEVEL 126 3D DMR : LEVEL 127 3D DMR : LEVEL 128 3D DMR : LEVEL 129 3D DMR : LEVEL 130 3D DMR : LEVEL 131 3D DMR : LEVEL 132 3D DMR : LEVEL 133 3D DMR : LEVEL 134 3D DMR : LEVEL 135 3D DMR : LEVEL 136 3D DMR : LEVEL 137 3D DMR : LEVEL 138 3D DMR : LEVEL 139 3D DMR : LEVEL 140 3D DMR : LEVEL 141 3D DMR : LEVEL 142 3D DMR : LEVEL 143 3D DMR : LEVEL 144 3D DMR : LEVEL 145 3D DMR : LEVEL 146 3D DMR : LEVEL 147 3D DMR : LEVEL 148 3D DMR : LEVEL 149 3D DMR : LEVEL 150 3D DMR : LEVEL 151 3D DMR : LEVEL 152 3D DMR : LEVEL 153 3D DMR : LEVEL 154 3D DMR : LEVEL 155 3D DMR : LEVEL 156 3D DMR : LEVEL 157 3D DMR : LEVEL 158 3D DMR : LEVEL 159 3D DMR : LEVEL 160 3D DMR : LEVEL 161 3D DMR : LEVEL 162 3D DMR : LEVEL 163 3D DMR : LEVEL 164 3D DMR : LEVEL 165 3D DMR : LEVEL 166 3D DMR : LEVEL 167 3D DMR : LEVEL 168 3D DMR : LEVEL 169 3D DMR : LEVEL 170 3D DMR : LEVEL 171 3D DMR : LEVEL 172 3D DMR : LEVEL 173 3D DMR : LEVEL 174 3D DMR : LEVEL 175 3D DMR : LEVEL 176 3D DMR : LEVEL 177 3D DMR : LEVEL 178 3D DMR : LEVEL 179 3D DMR : LEVEL 180 3D DMR : LEVEL 181 3D DMR : LEVEL 182 3D DMR : LEVEL 183 3D DMR : LEVEL 184 3D DMR : LEVEL 185 3D DMR : LEVEL 186 3D DMR : LEVEL 187 3D DMR : LEVEL 188 3D DMR : LEVEL 189 3D DMR : LEVEL 190 3D DMR : LEVEL 191 3D DMR : LEVEL 192 3D DMR : LEVEL 193 3D DMR : LEVEL 194 3D DMR : LEVEL 195 3D DMR : LEVEL 196 3D DMR : LEVEL 197 3D DMR : LEVEL 198 3D DMR : LEVEL 199 3D DMR : LEVEL 200 3D DMR : LEVEL 201 3D DMR : LEVEL 202 3D DMR : LEVEL 203 3D DMR : LEVEL 204 3D DMR : LEVEL 205 3D DMR : LEVEL 206 3D DMR : LEVEL 207 3D DMR : LEVEL 208 3D DMR : LEVEL 209 3D DMR : LEVEL 210 3D DMR : LEVEL 211 3D DMR : LEVEL 212 3D DMR : LEVEL 213 3D DMR : LEVEL 214 3D DMR : LEVEL 215 3D DMR : LEVEL 216 3D DMR : LEVEL 217 3D DMR : LEVEL 218 3D DMR : LEVEL 219 3D DMR : LEVEL 220 3D DMR : LEVEL 221 3D DMR : LEVEL 222 3D DMR : LEVEL 223 3D DMR : LEVEL 224 3D DMR : LEVEL 225 3D DMR : LEVEL 226 3D DMR : LEVEL 227 3D DMR : LEVEL 228 3D DMR : LEVEL 229 3D DMR : LEVEL 230 3D DMR : LEVEL 231 3D DMR : LEVEL 232 3D DMR : LEVEL 233 3D DMR : LEVEL 234 3D DMR : LEVEL 235 3D DMR : LEVEL 236 3D DMR : LEVEL 237 3D DMR : LEVEL 238 3D DMR : LEVEL 239 3D DMR : LEVEL 240 3D DMR : LEVEL 241 3D DMR : LEVEL 242 3D DMR : LEVEL 243 3D DMR : LEVEL 244 3D DMR : LEVEL 245 3D DMR : LEVEL 246 3D DMR : LEVEL 247 3D DMR : LEVEL 248 3D DMR : LEVEL 249 3D DMR : LEVEL 250 3D DMR : LEVEL 251 3D DMR : LEVEL 252 3D DMR : LEVEL 253 3D DMR : LEVEL 254 3D DMR : LEVEL 255 3D DMR : LEVEL 256 3D DMR : LEVEL 257 3D DMR : LEVEL 258 3D DMR : LEVEL 259 3D DMR : LEVEL 260 3D DMR : LEVEL 261 3D DMR : LEVEL 262 3D DMR : LEVEL 263 3D DMR : LEVEL 264 3D DMR : LEVEL 265 3D DMR : LEVEL 266 3D DMR : LEVEL 267 3D DMR : LEVEL 268 3D DMR : LEVEL 269 3D DMR : LEVEL 270 3D DMR : LEVEL 271 3D DMR : LEVEL 272 3D DMR : LEVEL 273 3D DMR : LEVEL 274 3D DMR : LEVEL 275 3D DMR : LEVEL 276 3D DMR : LEVEL 277 3D DMR : LEVEL 278 3D DMR : LEVEL 279 3D DMR : LEVEL 280 3D DMR : LEVEL 281 3D DMR : LEVEL 282 3D DMR : LEVEL 283 3D DMR : LEVEL 284 3D DMR : LEVEL 285 3D DMR : LEVEL 286 3D DMR : LEVEL 287 3D DMR : LEVEL 288 3D DMR : LEVEL 289 3D DMR : LEVEL 290 3D DMR : LEVEL 291 3D DMR : LEVEL 292 3D DMR : LEVEL 293 3D DMR : LEVEL 294 3D DMR : LEVEL 295 3D DMR : LEVEL 296 3D DMR : LEVEL 297 3D DMR : LEVEL 298 3D DMR : LEVEL 299 3D DMR : LEVEL 300 3D DMR : LEVEL 301 3D DMR : LEVEL 302 3D DMR : LEVEL 303 3D DMR : LEVEL 304 3D DMR : LEVEL 305 3D DMR : LEVEL 306 3D DMR : LEVEL 307 3D DMR : LEVEL 308 3D DMR : LEVEL 309 3D DMR : LEVEL 310 3D DMR : LEVEL 311 3D DMR : LEVEL 312 3D DMR : LEVEL 313 3D DMR : LEVEL 314 3D DMR : LEVEL 315 3D DMR : LEVEL 316 3D DMR : LEVEL 317 3D DMR : LEVEL 318 3D DMR : LEVEL 319 3D DMR : LEVEL 320 3D DMR : LEVEL 321 3D DMR : LEVEL 322 3D DMR : LEVEL 323 3D DMR : LEVEL 324 3D DMR : LEVEL 325 3D DMR : LEVEL 326 3D DMR : LEVEL 327 3D DMR : LEVEL 328 3D DMR : LEVEL 329 3D DMR : LEVEL 330 3D DMR : LEVEL 331 3D DMR : LEVEL 332 3D DMR : LEVEL 333 3D DMR : LEVEL 334 3D DMR : LEVEL 335 3D DMR : LEVEL 336 3D DMR : LEVEL 337 3D DMR : LEVEL 338 3D DMR : LEVEL 339 3D DMR : LEVEL 340 3D DMR : LEVEL 341 3D DMR : LEVEL 342 3D DMR : LEVEL 343 3D DMR : LEVEL 344 3D DMR : LEVEL 345 3D DMR : LEVEL 346 3D DMR : LEVEL 347 3D DMR : LEVEL 348 3D DMR : LEVEL 349 3D DMR : LEVEL 350 3D DMR : LEVEL 351 3D DMR : LEVEL 352 3D DMR : LEVEL 353 3D DMR : LEVEL 354 3D DMR : LEVEL 355 3D DMR : LEVEL 356 3D DMR : LEVEL 357 3D DMR : LEVEL 358 3D DMR : LEVEL 359 3D DMR : LEVEL 360 3D DMR : LEVEL 361 3D DMR : LEVEL 362 3D DMR : LEVEL 363 3D DMR : LEVEL 364 3D DMR : LEVEL 365 3D DMR : LEVEL 366 3D DMR : LEVEL 367 3D DMR : LEVEL 368 3D DMR : LEVEL 369 3D DMR : LEVEL 370 3D DMR : LEVEL 371 3D DMR : LEVEL 372 3D DMR : LEVEL 373 3D DMR : LEVEL 374 3D DMR : LEVEL 375 3D DMR : LEVEL 37

Note

• If an underbar (_) appears in the parameter column, enter a space. If an asterisk (*) appears, enter a value in the range indicated in brackets under CONTROL CONTENTS.
• * FINE SYNC can only be set in the displayed RGB mode.

Wired Remote Control Terminal Specifications

Specifications of wired remote control input

• 3.5 mm minijack
• External: GND
• Internal: +3.3V

Function and transmisson codes

CONTROLITEM	SYSTEM CODE					DATA CODE							JUDGEMENTCODE
	C1	C2	C3	C4	C5	C6	C7	C8	C9	C10	C11	C12	C13	C14	C15
ON	1	0	1	1	0	0	1	1	0	1	0	1	0	1	0
OFF	1	0	1	1	0	0	1	1	0	1	0	0	1	1	0
MENU	1	0	1	1	0	0	0	1	0	0	0	1	1	1	0
▲	1	0	1	1	0	0	0	1	1	1	0	0	1	1	0
▼	1	0	1	1	0	1	0	1	1	1	0	0	1	1	0
◀	1	0	1	1	0	0	0	0	0	1	0	1	0	1	0
▶	1	0	1	1	0	1	1	1	1	0	0	1	0	1	0
ENTER	1	0	1	1	0	1	1	1	0	1	0	1	0	1	0
UNDO	1	0	1	1	0	1	0	0	1	1	0	1	0	1	0
RGB/COMP.	1	0	1	1	0	1	0	0	0	1	1	1	1	1	0

CONTROL ITEM	SYSTEM CODE					DATA CODE								JUDGEMENT CODE
	C1	C2	C3	C4	C5	C6	C7	C8	C9	C10	C11	C12	C13	C14	C15
RESIZE	1	0	1	1	0	0	1	1	1	1	0	1	0	1	0
PICTURE SETTING	1	0	1	1	0	1	0	0	1	1	1	0	0	1	0
AUTO SYNC	1	0	1	1	0	0	1	0	1	1	1	1	1	1	0
KEYSTONE	1	0	1	1	0	1	1	1	1	1	1	0	1	1	0
INPUT 1	1	0	1	1	0	0	1	0	1	1	0	0	0	1	0
INPUT 2	1	0	1	1	0	0	1	0	1	1	1	0	0	1	0
INPUT 3	1	0	1	1	0	1	1	1	0	1	1	0	0	1	0
INPUT 4	1	0	1	1	0	0	1	0	0	1	1	0	0	1	0
INPUT 5	1	0	1	1	0	1	0	1	0	1	1	0	0	1	0

Wired remote control function code

LSB MSB

C1←System Code→C5

C6←Data Code→C13

C14

C15

1

0

1

1

0

*

*

*

*

*

*

*

*

1

0

• System codes C1 to C5 are fixed at "10110".
• Codes C14 and C15 are reverse confirmation bits, with "10" indicating "Front" and "01" indicating "Rear".

Sharp remote control signal format

Transmission format: 15-bit format

D δ D δ D δ D δ D δ D ← 67.5 ms 67.5 ms

Wave form of output signal: Output using Pulse Position Modulation

t T₁ T₂ "0"~0"0"~1" -0"~1"~0" D

26.4 s 1

• t = 264 μs
- Pulse carrier frequency = 37.917 kHz
• T 0 = 1.05 ms
- Duty ratio = 1:1
• T 1 = 2.10 ms

Transmission control code

15 bit

C1 C2 C3 C4 C5 C6 C7 C8 C9 C10 C11 C12 C13 C14							C15
System Address	Function Key Data Bit			Data Expansion	Mask	Data Determination
D to D Common Data Bit Reverse in D....				-

Example of Reverse D to

D	C1	C2	C3	C4	C5	C6	C7	C8	C9	C10	C11	C12	C13	C14	C15
	1	0	1	1	0	1	0	0	0	0	0	0	0	1	0

Computer Compatibility Chart

Computer

• Multiple signal support

Horizontal Frequency: 15–81 kHz, Vertical Frequency: 43–100 Hz, Pixel Clock: 12–120 MHz

• Compatible with sync on green and composite sync signals
  • SXGA compatible in advanced intelligent compression
  • AICS (Advanced Intelligent Compression and Expansion System) resizing technology

The following is a list of modes that conform to VESA. However, this projector supports other signals that are not VESA standards.

PC/MAC/WS	Resolution		Horizontal Frequency (kHz)	Vertical Frequency (Hz)	VESA Standard	DVI Suport	Display
PC	VGA	640 · 350	27.0 60				Upscale
			31.5	70
			37.9	85	✓
		720 · 350	27.0	60
			31.5	70
		640 · 400	27.0	60		✓
			31.5	70		✓
			37.9	85	✓	✓
		720 · 400	27.0	60		✓
			31.5	70		✓
			37.9	85	✓	✓
		640 · 480	26.2	50		✓
			31.5	60		✓
			36.8	70		✓
			37.9	72	✓	✓
			37.5	75	✓	✓
			43.3	85	✓	✓
			47.9	90		✓
			53.0	100		✓
	SVGA	800 · 600	31.4	50		✓
			35.1	56	✓	✓
			37.9	60	✓	✓
			44.5	70		✓
			48.1	72	✓	✓
			46.9	75	✓	✓
			53.7	85	✓	✓
			56.8	90		✓
			64.0	100		✓
	XGA	1,024 · 768	35.5	43		✓	True
			40.3	50		✓
			48.4	60	✓	✓
			56.5	70	✓	✓
			60.0	75	✓	✓
			68.7	85	✓	✓
			73.5	90		✓
			77.2	96		✓
			80.6	100		✓

PC/MAC/WS	Resolution		Horizontal Frequency (kHz)	Vertical Frequency (Hz)	VESA Standard	DVI Suport	Display
PC	SXGA	1,152864	54.3 60			√	Advanced Intelligent Compres-sion
			64.0	70		√
			64.1	85		√
			67.5	60	√	√
			75.7	70		√
		1,152882	54.8	60		√
			65.9	72		√
			67.4	74		√
		1,280 · 1,024	64.0	60	√	√
MAC 13"	VGA	640 · 480	34.9	67			Upscale
MAC 16"	SVGA	832 · 624	49.6 75
MAC 19"	XGA	1,024 · 768	48.4 60		√		True
MAC 21"	SXGA	1,152 · 870	68.5 75				Advanced Intelligent Compres-sion
PC (WS)	SXGA	1,280 · 960	60.0 60		√	√
SGI (WS)		1,280 · 1,024	53.5 50
SUN (WS)		1,152 · 900	60.9 66
			71.9 76

Note

• This projector may not be able to display images from notebook computers in simultaneous (CRT/LCD) mode. Should this occur, turn off the LCD display on the notebook computer and output the display data in "CRT only" mode. Details on how to change display modes can be found in your notebook computer's operation manual.
• When this projector receives 640 · 350 VESA format VGA signals, "640 · 400" appears on the screen.
• When projecting video images of an interlace video signal with the projector, the intended image may not be projected depending on the video signal when using the RBG input. In such cases, use the component input, S-video input or video input.

DTV

Signal	Horizontal Frequency (kHz)	Vertical Frequency (Hz)	DVI Support
480I	15.8	60
480P	31.5	60	√
576I	15.6	50
576P	31.3	50	√
720P	45.0	60	√
720P	37.5	50	√
1080I	33.8	60	√
1080I	28.1	50	√

Troubleshooting

Problem	Check Page
No picture and no sound or projector does not start.	•Projector power cord is not plugged into the wall outlet. 16
	•Power to the external connected devices is off. -
	•The selected input mode is wrong. 33
	•Cables incorrectly connected to rear panel of the projector. 17-22
	•Remote control batteries have run out. 13
	•External output has not been set when connecting notebook computer.	-
	•The cover of the lamp unit is not installed correctly. 78
No picture appears in INPUT 5.	•The selected “Signal Type” is wrong. 64
Sound is heard but no picture appears.	•Cables incorrectly connected to the rear panel of the projector. 17-22
	•“Bright” is set to minimum position. 44
Color is faded or poor.	•Picture adjustments are incorrectly set. 44
	(Video Input only)•Video input system is incorrectly set. 65(INPUT 1 and 2 only)•Input signal type (RGB/Component) is incorrectly set.	64
Picture is blurred; noise appears.	•Adjust the focus.	26
	•The projection distance exceeds the focus range.	28-29
	(Computer Input only)•Perform “Fine Sync” Adjustments (“Clock” Adjustment)•Perform “Fine Sync” Adjustments (“Phase” Adjustment)•Noise will appear depending on the computer.	5353-
	•The “DNR” (Digital Noise Reduction) setting is not correct. 63
Picture appears but no sound is heard.	•Cables incorrectly connected to rear panel of the projector. 17-22
An unusual sound is occasionally heard from the cabinet.	•If the picture is normal, the sound is due to cabinet shrinkage caused by a room temperature changes. This will not affect operation or performance.	-
Maintenance indicator illuminates.	•See “Maintenance Indicators”.	74

Troubleshooting

	CheckProblem Page
Picture is green on INPUT 1 or 2 COMPONENT.Picture is pink (no green) on INPUT 1 or 2 RGB.	•Change the input signal type setting. 64
Picture is dark.	•The lamp replacement indicator is blinking in red. Replace the 74 lamp.
Picture is too bright and whitish.	•Picture adjustments are incorrectly set. 44
A response code cannot be received when the projector was attempted to be controlled using RS-232C commands from a computer during standby.	•In the case of transmitting RS-232C commands from a computer 80 during standby, it takes a maximum of 30 seconds for the computer to receive the response code. Set the response code waiting time of the computer to 30 seconds or more.

For SHARP Assistance (U.S.A only)

If you encounter any problems during setup or operation of this projector, first refer to the "Troubleshooting" section on this page. If this operation manual does not answer your question, please call toll free 1-877-DTV-SHARP (1-877-388-7427) for further assistance. Or, send us an e-mail at [e-mail].

Our World Wide Web address is http://www.sharpusa.com/.

Specifications

Product type	Projector
Model	XV-Z10000
Video system	NTSC 3.58/NTSC 4.43/PAL/PAL-M/PAL-N/PAL 60/SECAMDTV480I/DTV480P/DTV720P/DTV1080I
Display method	DLP chip, RGB optical shutter method
DLP panel	Panel size: 0.8" (XX mm) (XX [H] · XX [W] mm)Display method: Single Panel Digital Micromirror Device (DMDTM) by Texas InstrumentsDrive method: Digital Light Processing (DLPTM)No. of dots: 921,600 dots (1,280 [H] · 720 [V])
Lens	1-1.35 · zoom lens, F3.8, f = 32.5-44.0 mm
Projection lamp	270 W SHP lamp
S-video input signal	4-pin Mini DIN connector (INPUT 3)Y (luminance signal): 1.0 Vp-p, sync negative, 75 Ω terminatedC (chrominance signal): Burst 0.286 Vp-p, 75 Ω terminated
Component input signal	RCA Connector (INPUT 1, 2)Y: 1.0 Vp-p, sync negative, 75 Ω terminatedPB: 0.7 Vp-p, 75 Ω terminatedPR: 0.7 Vp-p, 75 Ω terminated
Horizontal resolution	520 TV lines (NTSC 3.58 input), 750 TV lines (DTV 720P input)
RGB input signal	DVI-I terminal: (INPUT 5)/RCA connector: INPUT 1/2
	Input impedance 50 ΩInput level 250-1000mV
	Input Impedance 75 ΩInput level 0.7Vp-p
	Separate sync / Composite syncInput level TTL levelInput impedance 1K ΩGreen on syncInput level (Synchronising input) 0.286Vp-pInput Impedance 75 Ω
Video input signal	RCA Connector: VIDEO (INPUT 4), composite video, 1.0 Vp-p, sync negative, 75 Ω terminated
Computer control signal	9-pin D-sub connector (RS-232C Port)
Pixel clock	12-120 MHz
Vertical frequency	43-100 Hz
Horizontal frequency	15-81 kHz
Rated voltage	AC 100-240 V
Input current	3.6 A
Rated frequency	50/60 Hz
Power consumption (normal)	365 W
Power consumption(standby)	About 0.2 W (When using 100 V)
Heat dissipation	1,400 BTU/hour
Operating temperature	41°F to 95°F (+5°C to +35°C)
Storage temperature	-4°F to 140°F (-20°C to +60°C)
Cabinet	Plastic
I/R carrier frequency	38 kHz
Dimensions (approx.)	18 11/16" · 7" · 15 49/50" (475 (W) · 178 (H) · 406 (D) mm) (main body only)18 11/16" · 7" · 19 1/2" (475 (W) · 178 (H) · 496 (D) mm) (including terminal cover)
Weight (approx.)	20.7 lbs. (9.4 kg)
Supplied accessories	Remote control, Two AA size batteries, Power cord (11'10", 3.6 m), Terminal cover, Lens cap (attached), SharpVision Manager Software CD-ROM, Projector operation manual, SharpVision Manager operation manual
Replacement parts	Lamp unit (Lamp/cage module) (BQC-XVZ100001), Remote control (RRMCGA128WJSA), AA size batteries , Power cord (CACCDA010DE01), Terminal cover (CCOVA1985CE02), Lens cap (PCAPHA1056CESA), SharpVision Manager Software CD-ROM (UDSKAA019WJZZ), Projector operation manual (TINS-A440WJZZ), SharpVision Manager operation manual (TINS-A452WJZZ)

This SHARP projector uses a DMD Chip. This very sophisticated panel contains 921,600 pixels. As with any high technology electronic equipment such as large screen TVs, video systems and video cameras, there are certain acceptable tolerances that the equipment must conform to.

This unit has some inactive pixels within acceptable tolerances which may result in inactive dots on the picture screen. This will not affect the picture quality or the life expectancy of the unit. If you have any questions about this matter, please call toll free 1-877-DTV-SHARP (1-877-388-7427).

U.S.A ONLY

Specifications are subject to change without notice.

Dimensions

Units: inches (mm)

Rear View

Side View Side ViewTop View

Technical line drawing of a mechanical device with no visible text or symbols

Front View

SHARPISHON 15 49/50 (406)

18 11/16 (475) 7 (178)

Bottom View

Top-down line drawing of a device casing with internal components and buttons (no text or symbols)

Glossary

Advanced intelligent compression

High quality resizing of lower and higher resolution images to fit the projector's native resolution.

Aspect Ratio

Width and height ratio of an image. The normal aspect ratio of a computer and video image is 4:3. There are also wide images with an aspect ratio of 16:9 and 21:9.

Auto Sync

Optimizes projected computer images by automatically adjusting certain characteristics.

Background

Initial setting image projected when no signal is being output.

Border

Projects a 4:3 image fully within a 16:9 screen by keeping the aspect ratio at 4:3.

Clock

Clock adjustment is used to adjust vertical noise when clock level is incorrect.

CLR Temp (Color temperature)

Function that can be used to adjust the color temperature to suit the type of image input to the projector. Decrease the color temperature to create warmer, reddish images for natural flesh tones, or increase to create cooler, bluish images for a brighter picture.

C.M.S. (Color Management System)

Function allows you individually adjust the display characteristics of six colors (R: Red, Y: Yellow, G: Green, C: Cyan, B: Blue, M: Magenta)

Digital Shift Setting

Shifts image up or down easily by ▲, ▼ buttons when RESIZE mode of input image is BORDER, STRETCH or SMART STRETCH of the video or the DTV signals.

Dot by dot

Mode that projects images in their native resolution.

Gamma

Image quality enhancement function that offers a richer image by brightening the darker portions of the image without altering the brightness of the brighter portions. You can select four different modes: STANDARD, PRESENTATION, CINEMA and CUSTOM.

Keystone correction

Function to digitally correct a distorted image when the projector is set up at an angle, smoothens out jaggies on keystone images and compresses the image not only horizontally but vertically keeping the 4:3 aspect ratio.

Phase

Phase shift is a timing shift between isomorphic signals with the same resolution. When phase level is incorrect, the projected image typically displays horizontal flicker.

Progressive Mode

The progressive display projects a smoother video image. You can select three different modes: 2D Progressive, 3D Progressive and Film Mode.

Resize

Allows you to modify or customize the picture display mode to enhance the input image. You can select six different modes: NORMAL, FULL, DOT BY DOT, BORDER, STRETCH and SMART STRETCH.

Smart Stretch

Projects the image fully in a 16:9 screen by enlarging only the surrounding areas while keeping the aspect ratio in the middle part of the image at 4:3.

Stretch

Mode that stretches the 4:3 image horizontally to display it fully on a 16:9 screen.

Index

2D Progressive 46

3D Progressive 46

AC socket 16

Adjusting Computer Images 53

Adjusting the Lens 26

Adjusting the Picture.... 44

Adjustment buttons 32

Adjustment feet 25

Aspect ratio 59

Auto Power off 68

Auto Sync adjustment.... 55

AUTO SYNC button 55

Auto Sync Disp 56

Background 66

Batteries 13

BORDER....56

Ceiling-mount setup.... 30

Chroma 51

Clock 53

CLR Temp (Color Temperature) 44

C.M.S. 50

Color Selected 50

Digital Shift Setting 62

DNR 63

DOT BY DOT 58

ENTER button.... 32

Exhaust vent 73

Film Mode 46

Fine Sync 53

Focus ring 26

FULL 58

Hue 51

INPUT 1 terminals .... 19

INPUT 1 - 5 modes .... 33

INPUT 2 terminals 18

INPUT 3 terminal 17

INPUT 4 terminal 17

INPUT button 32

Intake vent 73

Kensington Security Standard connector.... 11

KEYSTONE button 36

Keystone correction 36

Lamp 76

Lamp Life 76

Lamp replacement indicator 32

Lens cap 10

Lightness 51

MENU button 32

NORMAL....58

Optional accessories 14

OSD Display 63

PDF 9

Phase 53

Power buttons 32

Power cord 16

Power indicator 32

PRJ mode 69

Progressive Mode 46

Remote control 12

Remote control sensor 13

Replacing the lamp 76

RESIZE button 58

Reversing/Inverting Projected Images 69

RS-232C terminal 23

Save Setting 53

Select Setting.... 54

Selecting the on-screen display language ..... 34

Signal Info 55

Signal Type 64

SMART STRETCH 59

Special Modes 54

Status 70

STRETCH 59

Supplied accessories.... 14

Target 50

Temperature warning indicator 74

UNDO button 37

Video System....65

WIRED R/C JACK 24

WIRED REMOTE control input terminal 24

Zoom knob 26

CONSUMER LIMITED WARRANTY

SHARP ELECTRONICS CORPORATION warrants to the first consumer purchaser that this Sharp brand product (the "Product"), when shipped in its original container, will be free from defective workmanship and materials, and agrees that it will, at its option, either repair the defect or replace the defective Product or part thereof with a new or remanufactured equivalent at no charge to the purchaser for parts or labor for the period(s) set forth below.

This warranty does not apply to any appearance items of the Product nor to the additional excluded item(s) set forth below nor to any Product the exterior of which has been damaged or defaced, which has been subjected to improper voltage or other misuse, abnormal service or handling, or which has been altered or modified in design or construction.

In order to enforce the rights under this limited warranty, the purchaser should follow the steps set forth below and provide proof of purchase to the servicer.

The limited warranty described herein is in addition to whatever implied warranties may be granted to purchasers by law. ALL IMPLIED WARRANTIES INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR USE ARE LIMITED TO THE PERIOD(S) FROM THE DATE OF PURCHASE SET FORTH BELOW. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.

Neither the sales personnel of the seller nor any other person is authorized to make any warranties other than those described herein, or to extend the duration of any warranties beyond the time period described herein on behalf of Sharp.

The warranties described herein shall be the sole and exclusive warranties granted by Sharp and shall be the sole and exclusive remedy available to the purchaser. Correction of defects, in the manner and for the period of time described herein, shall constitute complete fulfillment of all liabilities and responsibilities of Sharp to the purchaser with respect to the Product, and shall constitute full satisfaction of all claims, whether based on contract, negligence, strict liability or otherwise. In no event shall Sharp be liable, or in any way responsible, for any damages or defects in the Product which were caused by repairs or attempted repairs performed by anyone other than an authorized servicer. Nor shall Sharp be liable or in any way responsible for any incidental or consequential economic or property damage. Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion may not apply to you.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.

Model Specific Section (In-Home Service)	XV-Z10000 Projector
Your Product Model Number & Description:	(Be sure to have this information available when you need service for your Product.)
Warranty Period for this Product:	One (1) year parts and labor from date of purchase except for the Projector Lamp for which the warranty period is ninety (90) days from date of purchase. After the ninety (90) day warranty period on the Projector Lamp, parts and labor for a lamp replacement are the responsibility of the consumer.
Additional Item(s) Excluded from Warranty Coverage (if any):	Cleaning of Optical System and/or replacement of any filter.Labor & materials required to remove and reinstall a suspended projector in installations not accessible with a standard (8' step) ladder or ceilings exceeding 12' in height.
Where to Obtain Service:	Labor & materials required to remove and reinstall a projector in complex systems including, but not limited to, projectors installed in custom enclosures, projectors connected to third party control and automation systems, and realignment of projectors installed in "mirrored" rear projection enclosures.
What to do to Obtain Service:
	From a Sharp Authorized Servicer located in the United States. To find the location of the nearest Sharp Authorized Servicer, call Sharp toll free at 1-800-BE-SHARP.Contact your Sharp Authorized Servicer to obtain in-home service for this Product. The Servicer will come to your home and if necessary to remove the Product for repair at the Servicer's facility, the Servicer will reinstall it upon completion of repair. Be sure to have Proof of Purchase available.

TO OBTAIN PRODUCT INFORMATION, CALL 1-877-DTV-SHARP OR VISIT www.sharpusa.com.

SHARP®

LIMITED WARRANTY

Consumer Electronics Products

Congratulations on your purchase!

Sharp Electronics of Canada Ltd. (hereinafter called "Sharp") gives the following express warranty to the first consumer purchaser for this Sharp brand product, when shipped in its original container and sold or distributed in Canada by Sharp or by an Authorized Sharp Dealer:

Sharp warrants that this product is free, under normal use and maintenance, from any defects in material and workmanship. If any such defects should be found in this product within the applicable warranty period, Sharp shall, at its option, repair or replace the product as specified herein.

This warranty shall not apply to:

(a) Any defects caused or repairs required as a result of abusive operation, negligence, accident, improper installation or inappropriate use as outlined in the owner's manual.
(b) Any Sharp product tampered with, modified, adjusted or repaired by any party other than Sharp, Sharp's Authorized Service Centres or Sharp's Authorized Servicing Dealers.
(c) Damage caused or repairs required as a result of the use with items not specified or approved by Sharp, including but not limited to head cleaning tapes and chemical cleaning agents.
(d) Any replacement of accessories, glassware, consumable or peripheral items required through normal use of the product including but not limited to earphones, remote controls, AC adapters, batteries, temperature probe, stylus, trays, filters, belts, ribbons, cables and paper.
(e) Any cosmetic damage to the surface or exterior that has been defaced or caused by normal wear and tear.
(f) Any damage caused by external or environmental conditions, including but not limited to transmission line/power line voltage or liquid spillage.
(g) Any product received without appropriate model, serial number and CSA/cUL markings.
(h) Any products used for rental or commercial purposes.
(i) Any installation, setup and/or programming charges.

Should this Sharp product fail to operate during the warranty period, warranty service may be obtained upon delivery of the Sharp product together with proof of purchase and a copy of this LIMITED WARRANTY statement to an Authorized Sharp Service Centre or an Authorized Sharp Servicing Dealer. In home warranty service may be provided at Sharp's discretion on any Sharp television with the screen size of 27" or larger and on any Sharp Over The Range Microwave Oven.

This warranty constitutes the entire express warranty granted by Sharp and no other dealer, service centre or their agent or employee is authorized to extend, enlarge or transfer this warranty on behalf of Sharp. To the extent the law permits, Sharp disclaims any and all liability for direct or indirect damages or losses or for any incidental, special or consequential damages or loss of profits resulting from a defect in material or workmanship relating to the product, including damages for the loss of time or use of this Sharp product or the loss of information. The purchaser will be responsible for any removal, reinstallation, transportation and insurance costs incurred. Correction of defects, in the manner and period of time described herein, constitute complete fulfillment of all obligations and responsibilities of Sharp to the purchaser with respect to the product and shall constitute full satisfaction of all claims, whether based on contract, negligence, strict liability or otherwise.

WARRANTY PERIODS

Projector 1 years (bulb 90 days)

To obtain the name and address of the nearest Authorized Sharp Service Centre or Dealer, please contact:

SHARP ELECTRONICS OF CANADA LTD.

SHARP ELECTRONICS OF CANADA LTD

335 Britannia Road East

Mississauga, Ontario

L4Z 1W9

[phone]

Web site: www.sharp.ca

SHARP SERVICE THROUGH CUSTOMER SATISFACTION
