USER MANUAL PG-MB60X SHARP

MULTIMEDIA PROJECTOR

Notevision

香港電器安全規格

(國際電工委員會規格適合)

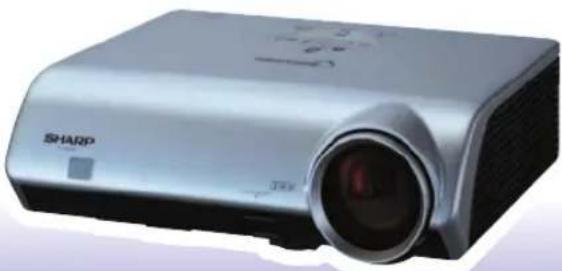

Exterior view of a Sharp projector (no visible text or symbols on body)

IMPORTANT

For your assistance in reporting the loss or theft of your Projector, please record the Serial Number located on the bottom of the projector and retain this information. Before recycling the packaging, please ensure that you have checked the contents of the carton thoroughly against the list of "Supplied accessories" on page 10.

Model No.: PG-MB60X

Serial No.:

This apparatus complies with the requirements of Council Directives 89/336/EEC and 73/23/EEC as amended by Council Directive 93/68/EEC.

The mains lead of this product is fitted with a non-rewireable (moulded) plug incorporating a 5A fuse. Should the fuse need to be replaced, a BSI or ASTA approved BS 1362 fuse marked or and of the same rating as above, which is also indicated on the pin face of the plug, must be used.

Always refit the fuse cover after replacing the fuse. Never use the plug without the fuse cover fitted.

In the unlikely event of the socket outlet in your home not being compatible with the plug supplied, cut off the mains plug and fit an appropriate type.

DANGER:

The fuse from the cut-off plug should be removed and the cut-off plug destroyed immediately and disposed of in a safe manner.

Under no circumstances should the cut-off plug be inserted elsewhere into a 5A socket outlet, as a serious electric shock may occur.

To fit an appropriate plug to the mains lead, follow the instructions below:

WARNING:

THIS APPARATUS MUST BE EARTHED.

IMPORTANT:

The wires in this mains lead are coloured in accordance with the following code:

Green-and-yellow:Earth

Blue: Neutral

Brown:Live

As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug proceed as follows:

• The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is marked by the letter E or by the safety earth symbol or coloured green or green-and-yellow.
• The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.
• The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

IF YOU HAVE ANY DOUBT, CONSULT A QUALIFIED ELECTRICIAN.

The supplied CD-ROM contains operation instructions in English, German, French, Swedish, Spanish, Italian, Dutch, Portuguese, Chinese (Traditional Chinese and Simplified Chinese) and Korean. Carefully read through the operation instructions before operating the projector.

Die mitgelieferte CD-ROM enthält Bedienungsanleitungen in Englisch, Deutsch, Französisch, Schwedisch, Spanisch, Italienisch, Niederländisch, Portugiesisch, Chinesisch (Traditionelles Chinesisch und einfaches Chinesisch) und Koreanisch. Bitte lesen Sie die Bedienungsanleitung vor der Verwendung des Projektors sorgfältig durch.

Le CD-ROM fourni contient les instructions de fonctionnement en anglais, allemand, français, suédois, espagnol, italien, néerlandais, portugais, chinois (chinois traditionnel et chinois simplifié) et coréen. Veuillez lire attentivement ces instructions avant de faire fonctionner le projecteur.

Den medföljande CD-ROM-skivan innehåller bruksanvisningar på engelska, tyska, franska, svenska, spanska, italienska, holländska, portugisiska, kinesiska (traditionell kinesiska och förenklad kinesiska) och koreanska. Läs noga igenom bruksanvisningen innan projektorn tas i bruk.

El CD-ROM suministrado contiene instrucciones de operación en inglés, alemán, francés, sueco, español, italiano, holandés, portugués, chino (chino tradicional y chino simplificado) y coreano. Lea cuidadosamente las instrucciones de operación antes de utilizar el proyector.

Il CD-ROM in dotazione contiene istruzioni per l'uso in inglese, tedesco, francese, svedese, spagnolo, italiano, olandese, portoghese, cinese (cinese tradizionale e cinese semplificato) e coreano. Leggere attentamente le istruzioni per l'uso prima di usare il proiettore.

De meegeleverde CD-ROM bevat handleidingen in het Engels, Duits, Frans, Zweeds, Spaans, Italiaans, Nederlands, Portugees, Chinees (Traditioneel Chinees en Vereenvoudigd Chinees) en Koreaans. Lees de handleiding zorgvuldig door voor u de projector in gebruik neemt.

O CD-ROM fornecido contém instruções de operação em Inglês, Alemão, Francês, Sueco, Espanhol, Italiano, Holandês, Português, Chinês, (Chinês Tradicional e Chinês Simplificado) e Coreano. Leia cuidadosamente todas as instruções de operação antes de operar o projetor.

附送之CD-ROM光碟中,有用英文、德文、法文、瑞典文、西班牙文、意大利文、荷蘭文、葡萄牙文、中文(繁體中文和簡體中文)和韓國文所寫的使用說明書。在操作本投影機之前,請務必仔細閱讀整本使用說明書。

附送之CD-ROM光碟中,有用英文、德文、法文、瑞典文、西班牙文、意大利文、荷兰文、葡萄牙文、中文(繁体中文和简体中文)和韩国文所写的使用说明书。在操作本投影机之前,请务必仔细阅读整本使用说明书。

제공된 CD-ROM에는 영어, 독일어, 프랑스어, 스웨덴어, ス페인어, 이탈리아어, 네덜란드어, 포르투갈어, 중국어(번체자와 간체자), 그리고 한국어로 작성된 조작 설명서가 포함되어 있습니다. 프로젝터를 조작하기 전에 조작 지침을 상세하게 숙지하십시오.

Introduction

ENGLISH

There are two important reasons for prompt warranty registration of your new SHARP Projector, using the REGISTRATION CARD packed with the projector.

1. WARRANTY

This is to assure that you immediately receive the full benefit of the parts, service and labor warranty applicable to your purchase.

2. CONSUMER PRODUCT SAFETY ACT

To ensure that you will promptly receive any safety notification of inspection, modification, or recall that SHARP may be required to give under the 1972 Consumer Product Safety Act, PLEASE READ CAREFULLY THE IMPORTANT "LIMITED WARRANTY" CLAUSE. [U.S.A. ONLY]

WARNING:

High brightness light source. Do not stare into the beam of light, or view directly. Be especially careful that children do not stare directly into the beam of light.

WARNING: To reduce the risk of fire or electric shock, do not expose this product to rain or moisture.

See bottom of projector.

CAUTION

RISK OF ELECTRIC SHOCK. DO NOT REMOVE SCREWS EXCEPT SPECIFIED USER SERVICE SCREW.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER.

NO USER-SERVICEABLE PARTS EXCEPT LAMP UNIT. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk or electric shock to persons.

The exclamation point within a triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

WARNING:

FCC Regulations state that any unauthorized changes or modifications to this equipment not expressly approved by the manufacturer could void the user's authority to operate this equipment.

INFORMATION

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the operation manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at his own expense.

The enclosed computer cable must be used with the device. The cable is provided to ensure that the device complies with FCC Class A verification. U.S.A. ONLY

WARNING:

This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

WARNING:

The cooling fan in this projector continues to run for about 90 seconds after the projector enters the standby mode. During normal operation, when putting the projector into standby mode always use the STANDBY button on the projector or on the remote control. Ensure the cooling fan has stopped before disconnecting the power cord. DURING NORMAL OPERATION, NEVER TURN THE PROJECTOR OFF BY DISCONNECTING THE POWER CORD. FAILURE TO OBSERVE THIS WILL RESULT IN PREMATURE LAMP FAILURE.

PRODUCT DISPOSAL

This projector utilizes tin-lead solder, and a pressurized lamp containing a small amount of mercury. Disposal of these materials may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or, if you are located in the United States of America, the Electronic Industries Alliance: www.eiae.org.

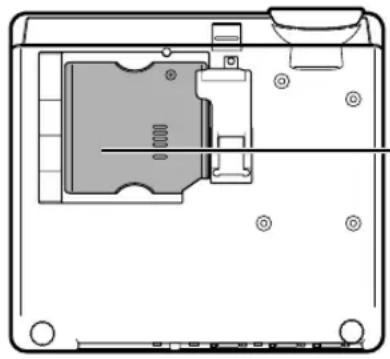

Caution Concerning Lamp Replacement

See "Replacing the Lamp" on page 64.

Technical diagram of a device interior showing internal components and mounting points (no text or labels)

LAMP REPLACEMENT WARNING :

TURN OFF THE LAMP AND DISCONNECT

POWER CORD BEFORE OPENING THIS

COVER. HOT SURFACE INSIDE.

ALLOW 1 HOUR TO COOL BEFORE REPLACING THE LAMP.

REPLACE WITH SAME SHARP LAMP UNIT MODEL

AN-MB60LP ONLY

HIGH PRESSURE LAMP : RISK OF EXPLOSION

POTENTIAL HAZARD OF GLASS PARTICLES IF LAMP HAS

RUPTURED. HANDLE WITH CARE. SEE OPERATION MANUAL.

SERVICEMAN-WARNING · USE RADIATION EYE AND

SKIN PROTECTION DURING SERVICING

AVERTISSEMENT CONCERNANT LE

REEMPLACEMENT DE LA LAMPE :

ETEINDRE LA LAMPE ET DEBRANCHER LE CORDON

D'ALIMENTATION AVANT D'OUVRIR LE COUVERCLE.

L'INTERIEUR DU BOITIER ETANT EXTREMEMENT CHAUD,

ATTENDRE 1 HEURE AVANT DE PROCEDER AU REMPLACEMENT DE LA LAMPE NE REMPLACER QUE

REMPLACEMENT DE LA LAMPE. NE REMPLACER QUE PAR UNE LAMPE SHARP DE M∅RÈLE AN MR60L8

PAR UNE LAMPE SHARP DE MODELE AN-MB60LP.

LAMPE A HAUTE PRESSION : RISQUE

D'EXPLOSION. DANGER POTENTIEL DE PARTICULES DE

VERRE EN CAS D'ECLATEMENT DE LA LAMPE.

A MANIPULER AVEC PRECAUTION.

SE REPORTER AU MODE D'EMPLOI.

AVERTISSEMENT - REPARATEUR : SE PROTEGER LES

YEUX ET LA PEAU DES RADIATIONS LORS DES REPARATIONS.

This SHARP projector uses a DMD panel. This very sophisticated panel contains 786,432 pixels micromirrors. As with any high technology electronic equipment such as large screen TVs, video systems and video cameras, there are certain acceptable tolerances that the equipment must conform to.

This unit has some inactive pixels within acceptable tolerances which may result in inactive dots on the picture screen. This will not affect the picture quality or the life expectancy of the unit.

• DLP ^TM (Digital Light Processing) and DMD ^TM (Digital Micromirror Device) are trademarks of Texas Instruments, Inc.
• Microsoft ^ and Windows ^ are registered trademarks of Microsoft Corporation in the United States and/or other countries.
  • PC/AT is a registered trademark of International Business Machines Corporation in the United States.
• Adobe ^ Reader ^ is a trademark of Adobe Systems Incorporated.
  •Macintosh ^® is a registered trademark of Apple Computer, Inc. in the United States and/or other countries.
• All other company or product names are trademarks or registered trademarks of their respective companies.
• Some IC chips in this product include confidential and/or trade secret property belonging to Texas Instruments. Therefore you may not copy, modify, adapt, translate, distribute, reverse engineer, reverse assemble or discompile the contents thereof.

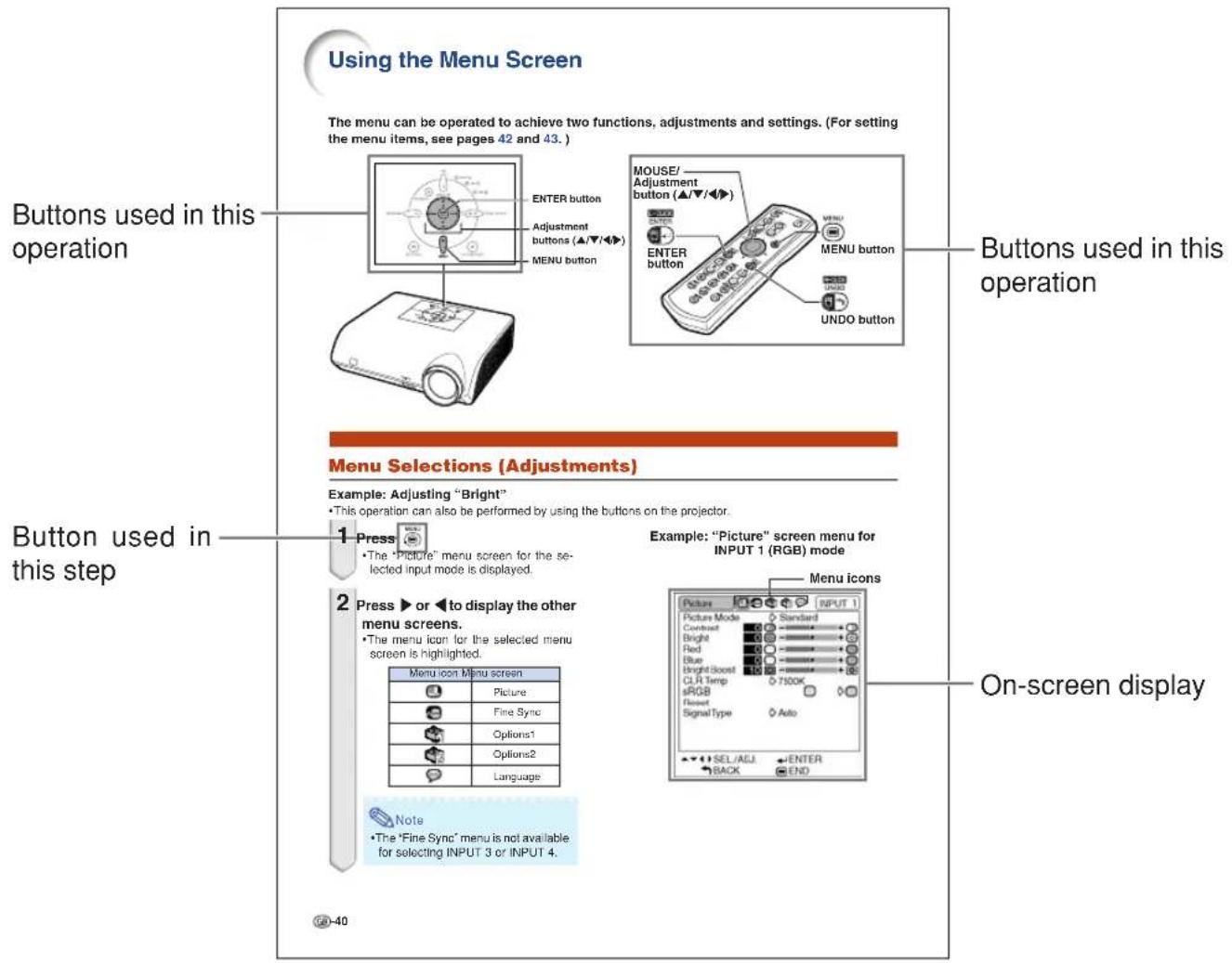

How to Read this Operation Manual

- In this operation manual, the illustrations and on-screen displays are simplified for explanation. This may differ from the actual on-screen display.

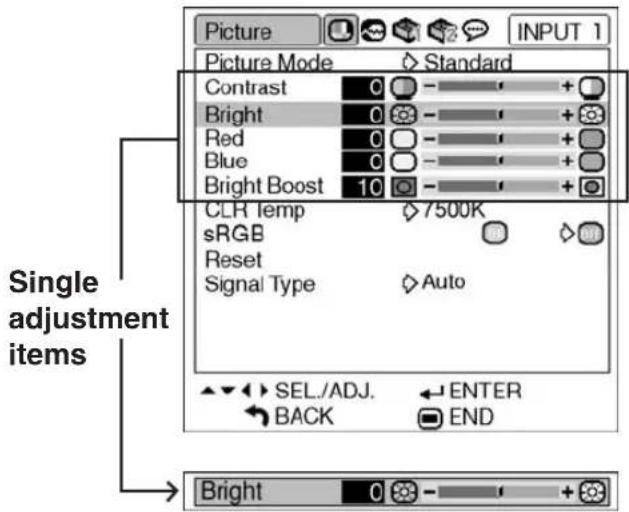

Using the Menu Screen The menu can be operated to achieve two functions, adjustments and settings. (For setting the menu items, see pages 42 and 43.) Buttons used in this operation Menu Selections (Adjustments) Example: Adjusting "Bright" • This operation can also be performed by using the buttons on the projector. Button used in this step 1 Press • The "Picture" menu screen for the selected input mode is displayed. 2 Press ▶ or ◀ to display the other menu screens. • The menu icon for the selected menu screen is highlighted. Menu icon Menu screen Picture Fine Sync Options1 Options2 Language Example: "Picture" screen menu for INPUT 1 (RGB) mode Menu icons Picture Mode Standard Comfort Bright Red Bright Blue Bright Reset CLR Temp 0.7500K RGB Reset SignalType Auto SEL/AEJ ENTER BACK END Notes • The "Fine Sync" menu is not available for selecting INPUT 3 or INPUT 4. On-screen display

Info ......Indicates safeguards when using the projector.

Note ......Indicates additional information for setting up and operating the projector.

For Future Reference

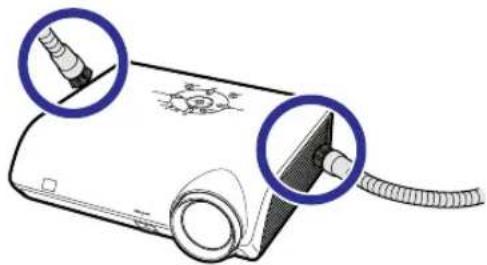

Maintenance

→ Page 61

Troubleshooting

→ Pages 68 and 69

Index

→ Page 73

Preparing

Introduction

How to Read this Operation Manual ...... 3

Contents...... 4

IMPORTANT SAFEGUARDS ...... 6

How to Access the PDF Operation Manuals ... 9

Accessories 10

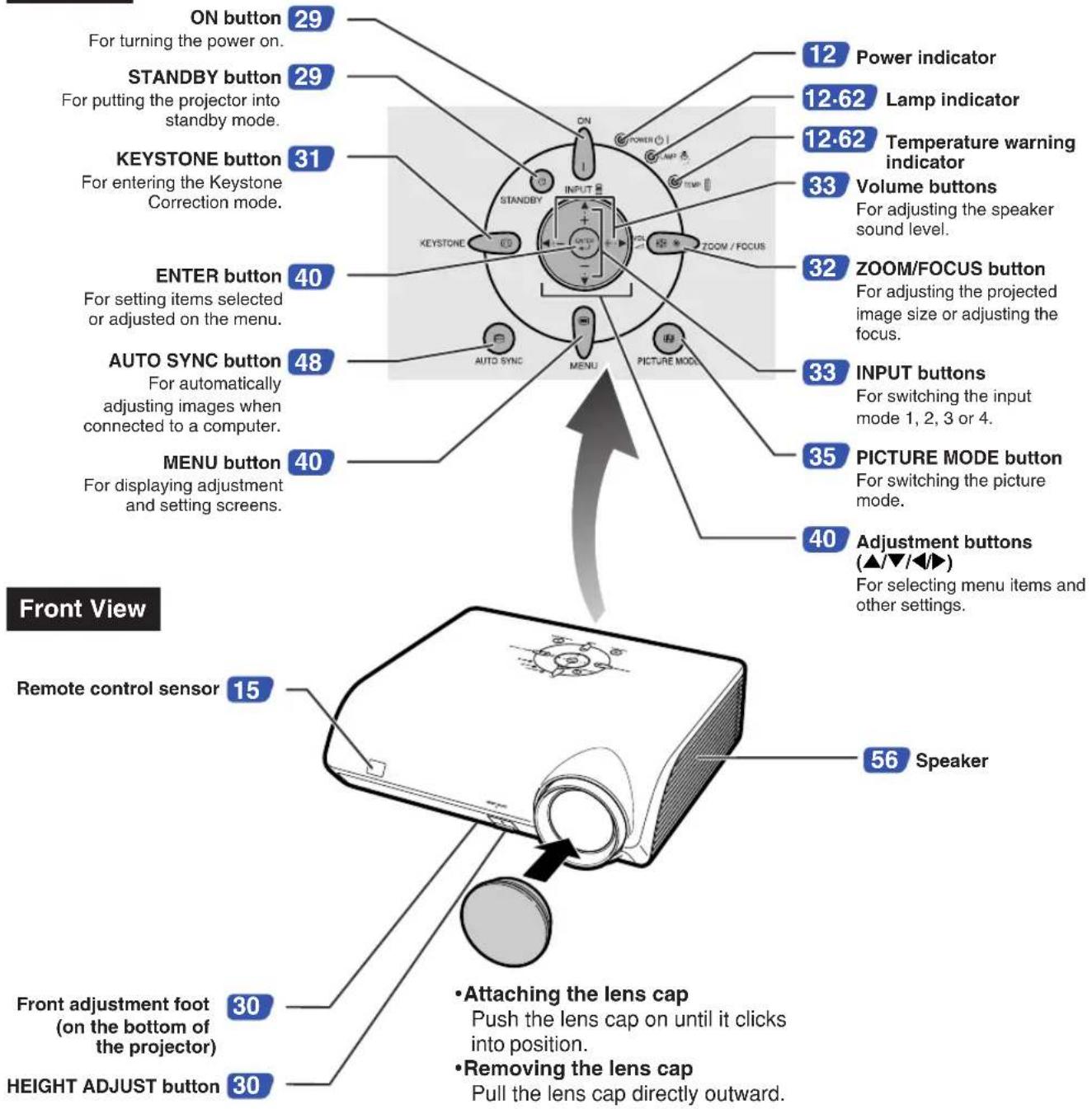

Part Names and Functions ...... 11

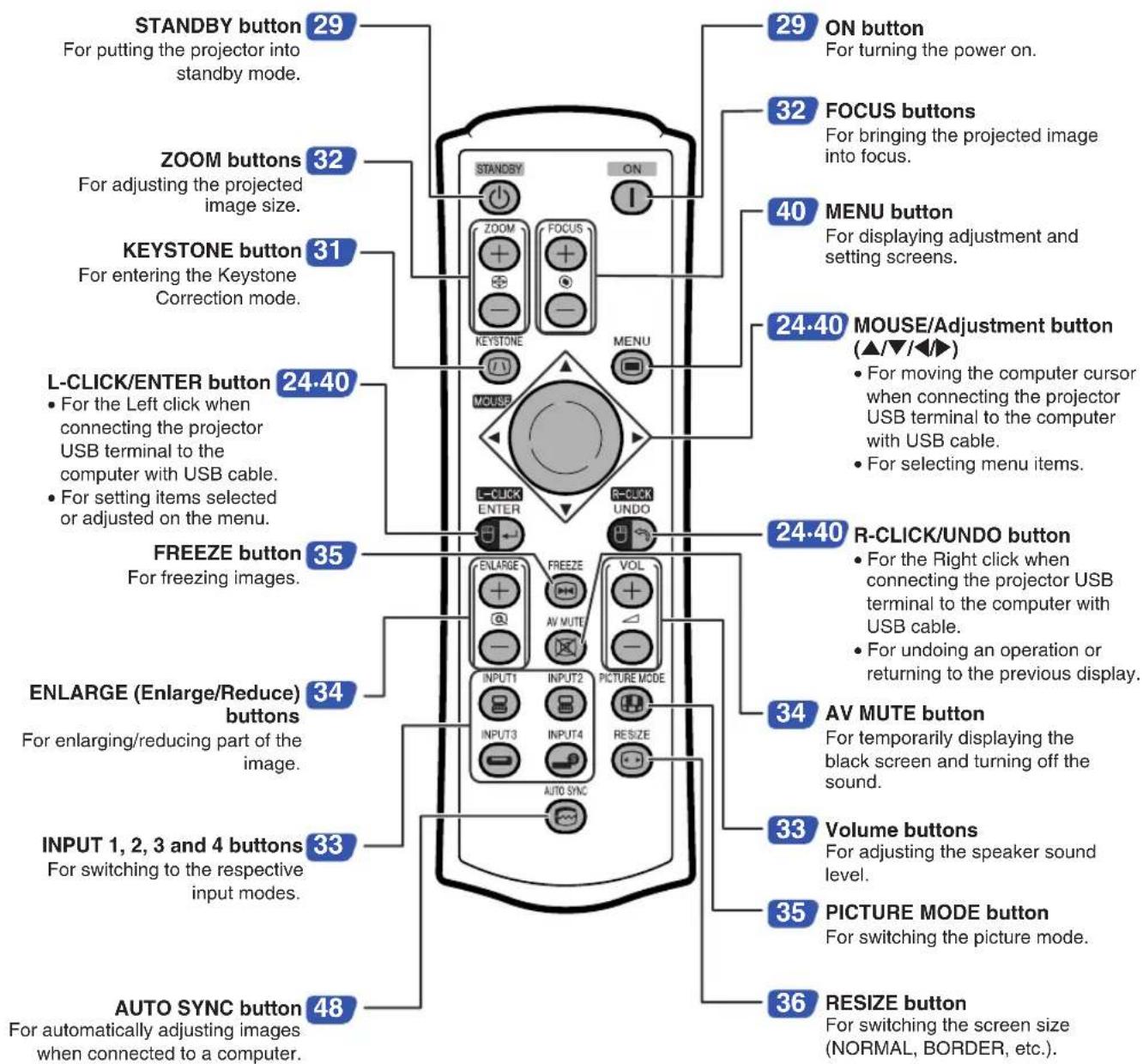

Using the Remote Control 15

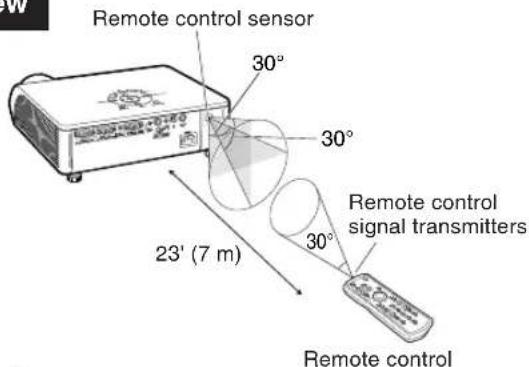

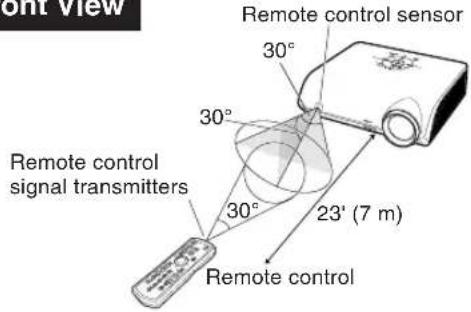

Usable Range 15

Inserting the Batteries 15

Quick Start

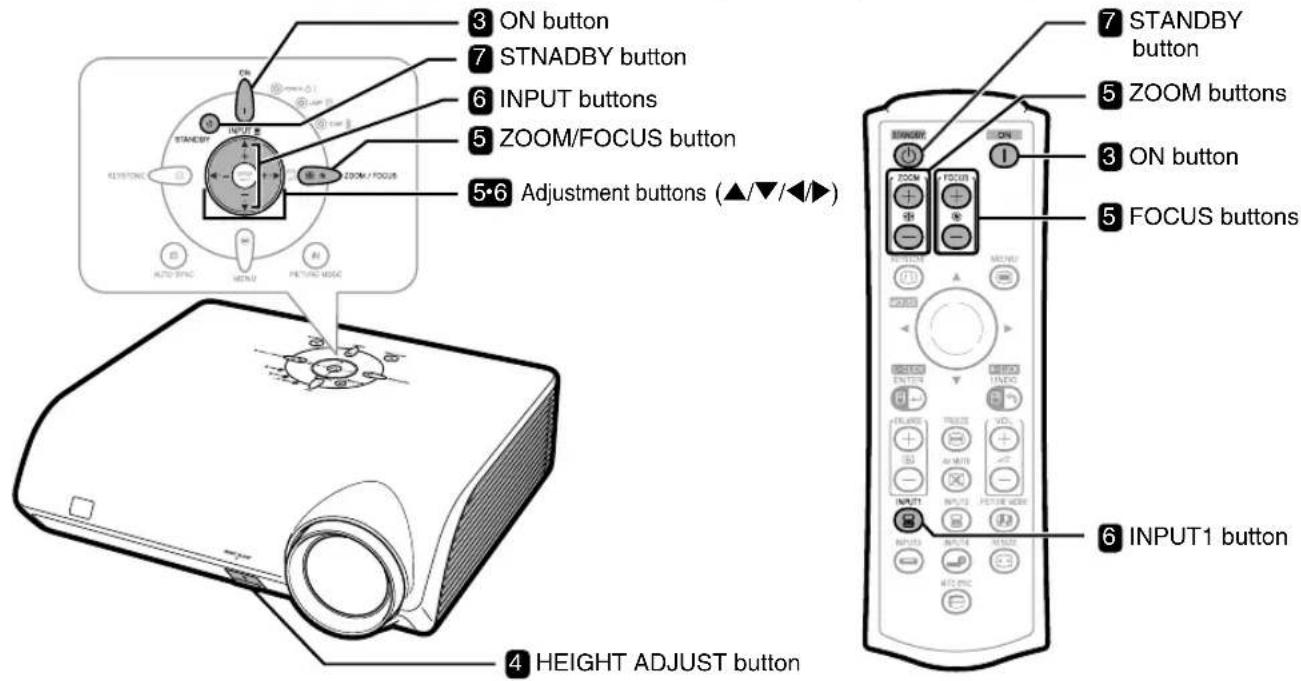

Quick Start 16

Setup

Storing the Projector .... 18

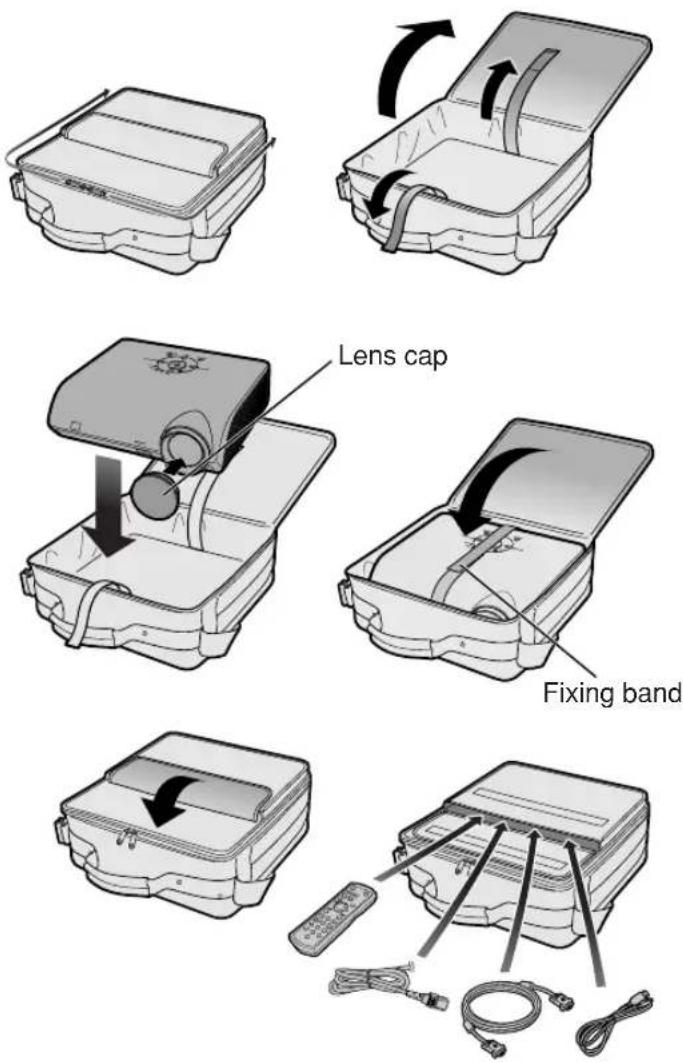

How to Use the Storage Case 18

Setting up the Projector .... 19

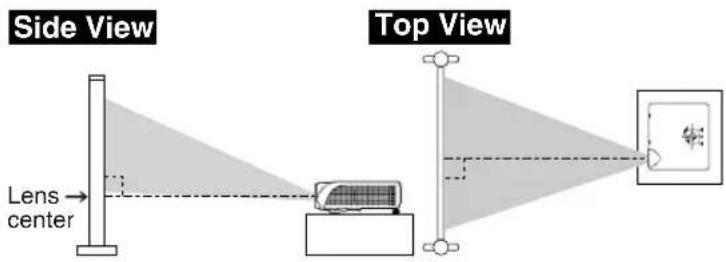

Setting up the Projector 19

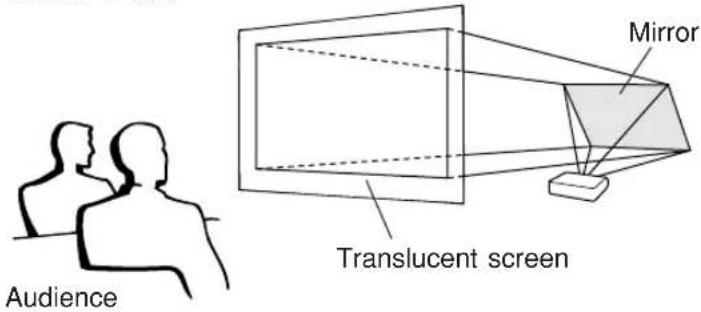

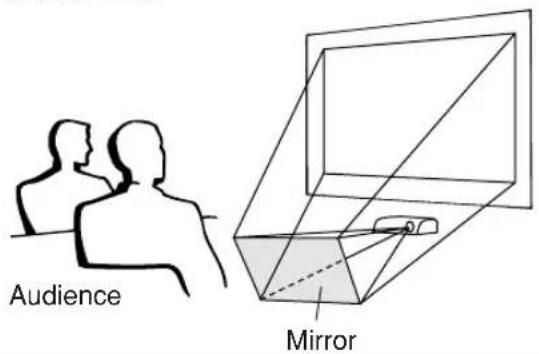

Projecting a Reversed Image 20

Connections

Connections 21

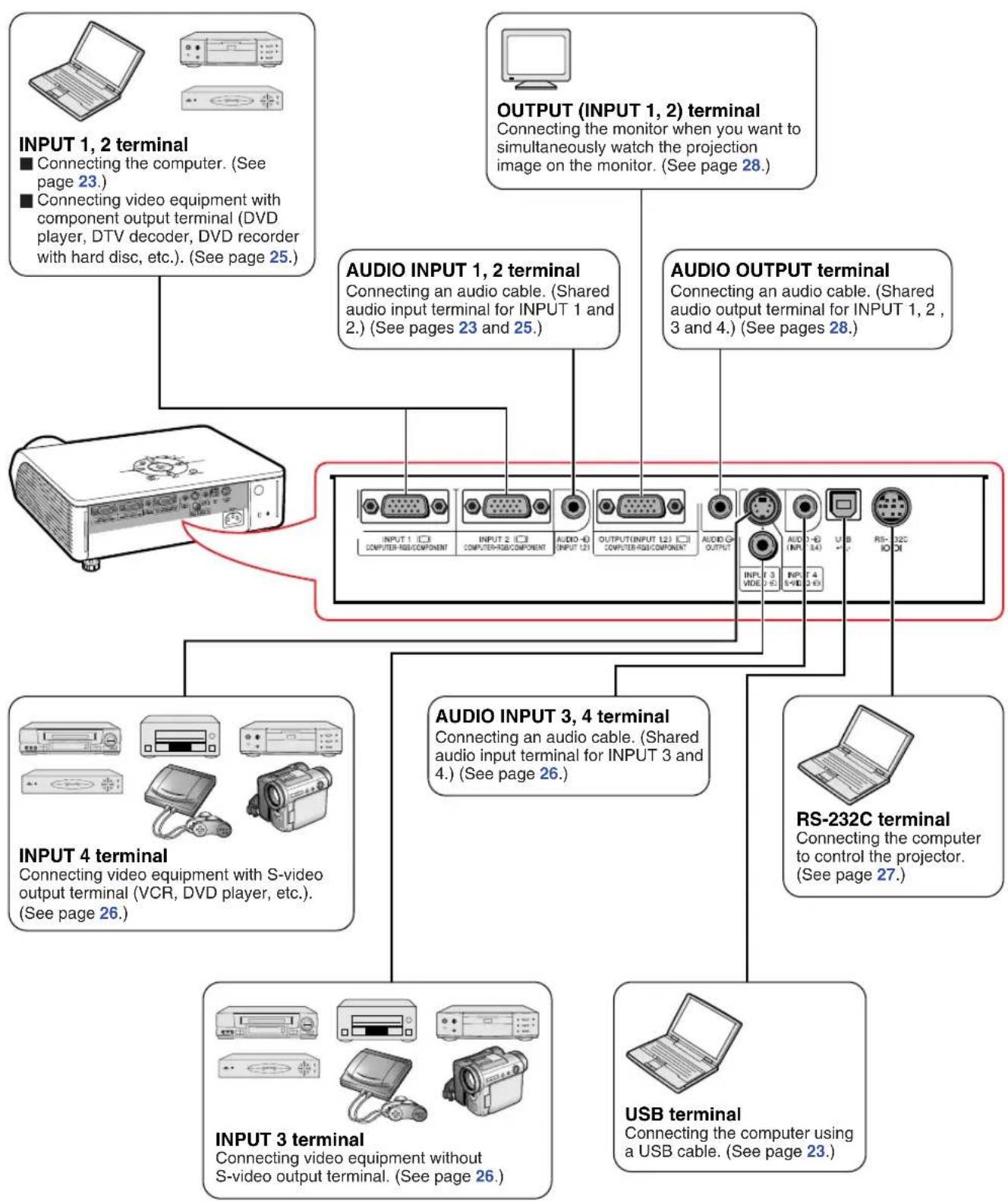

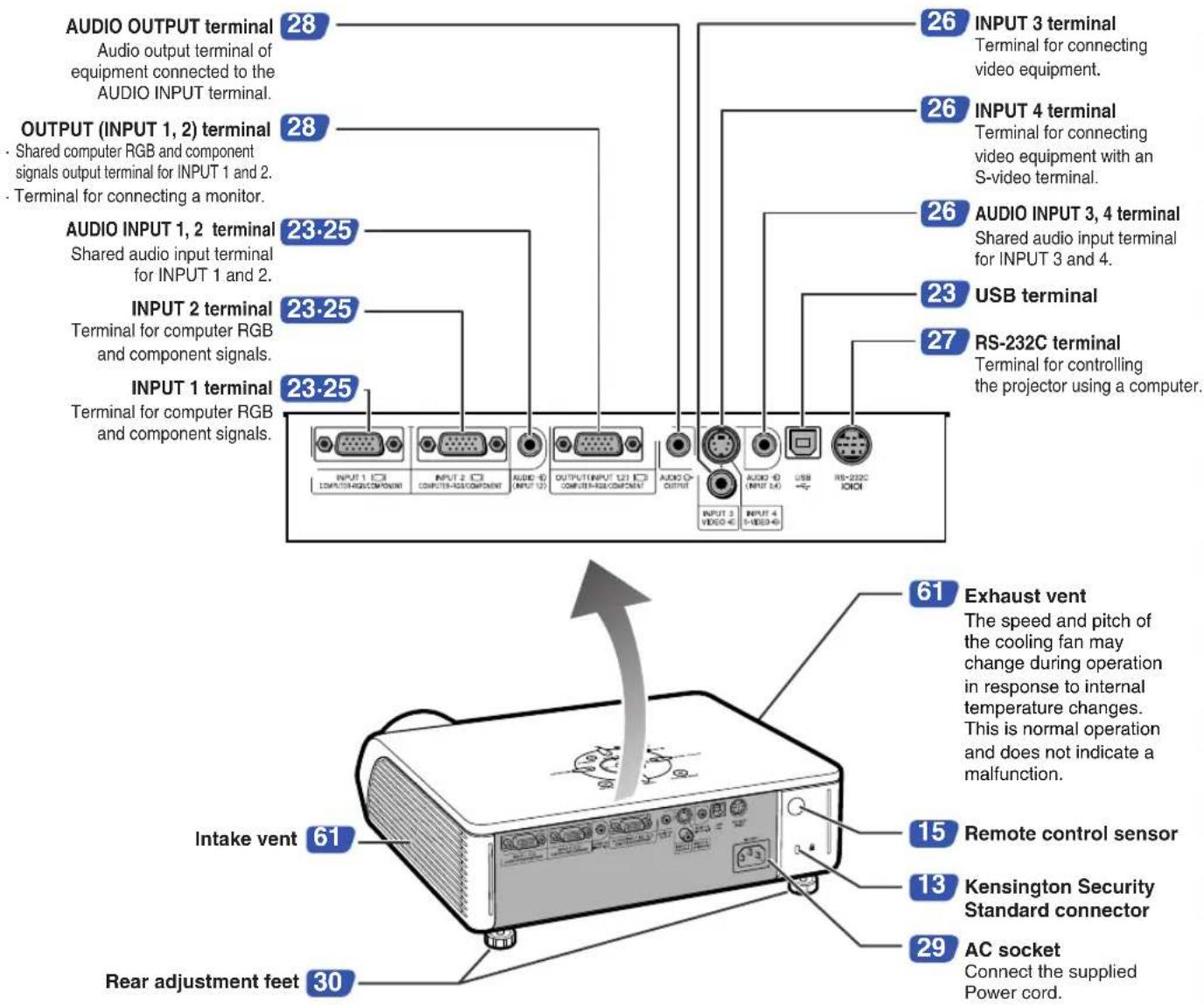

INPUT/OUTPUT Terminals and Connectable Main Equipment 21

Samples of Cables for Connection 22

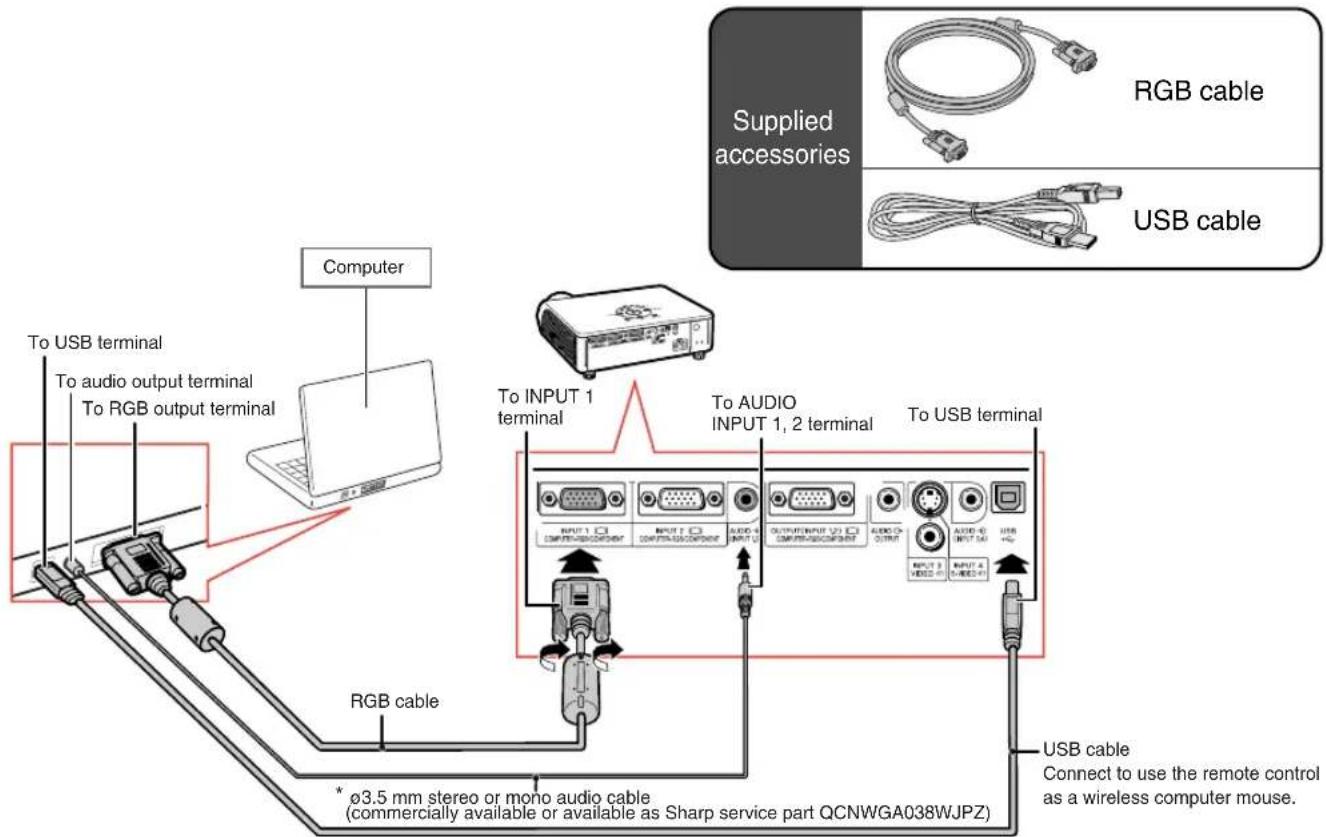

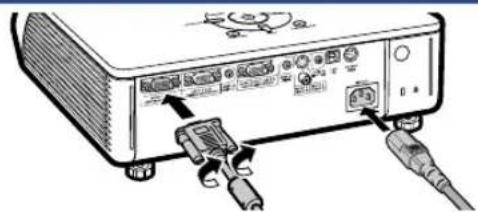

Connecting to a Computer 23

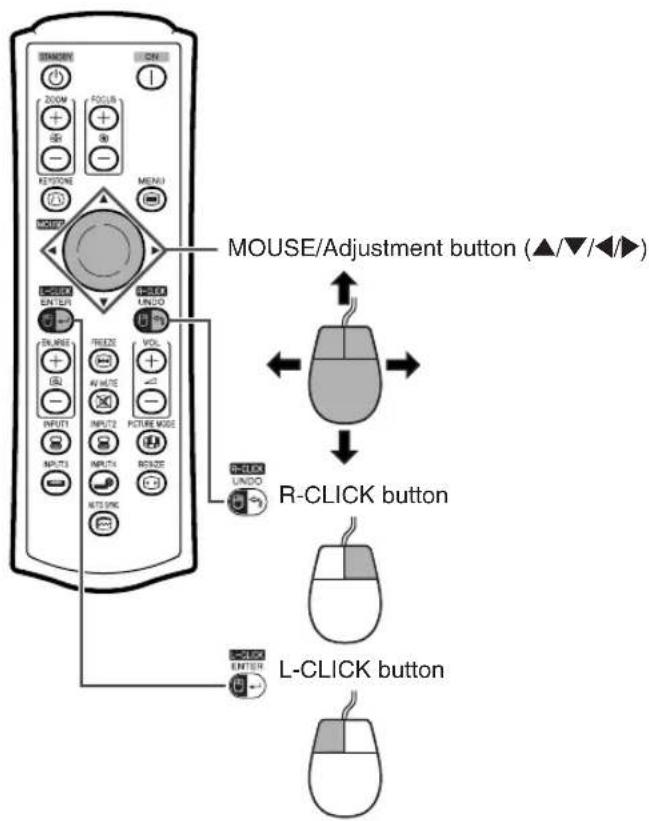

Using the Remote Control as the Wireless Computer Mouse 24

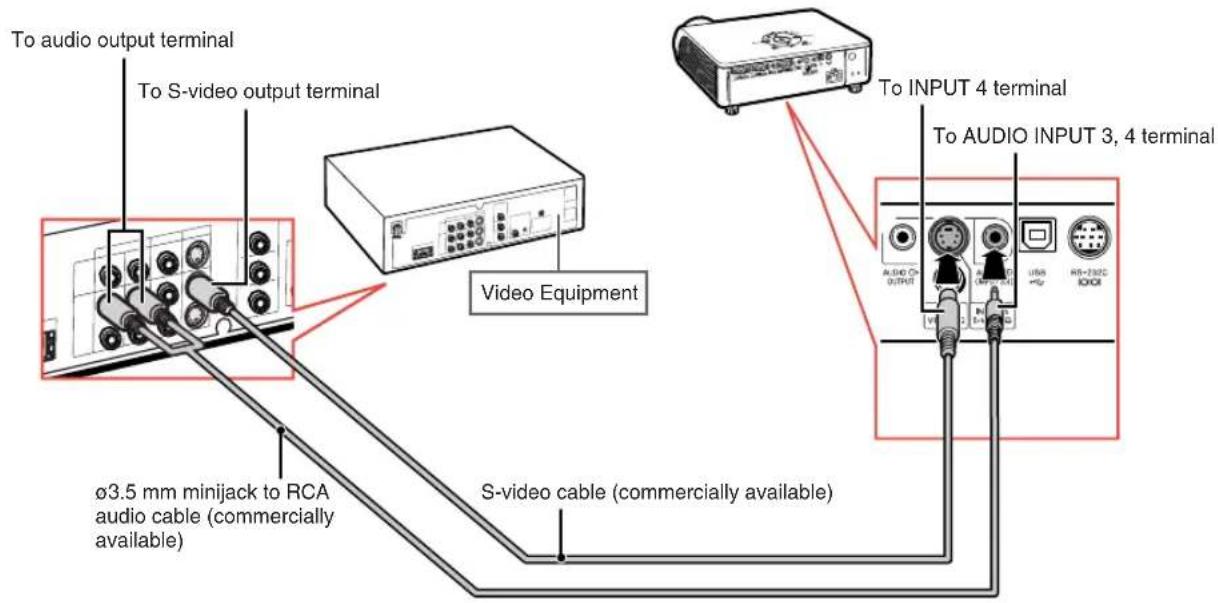

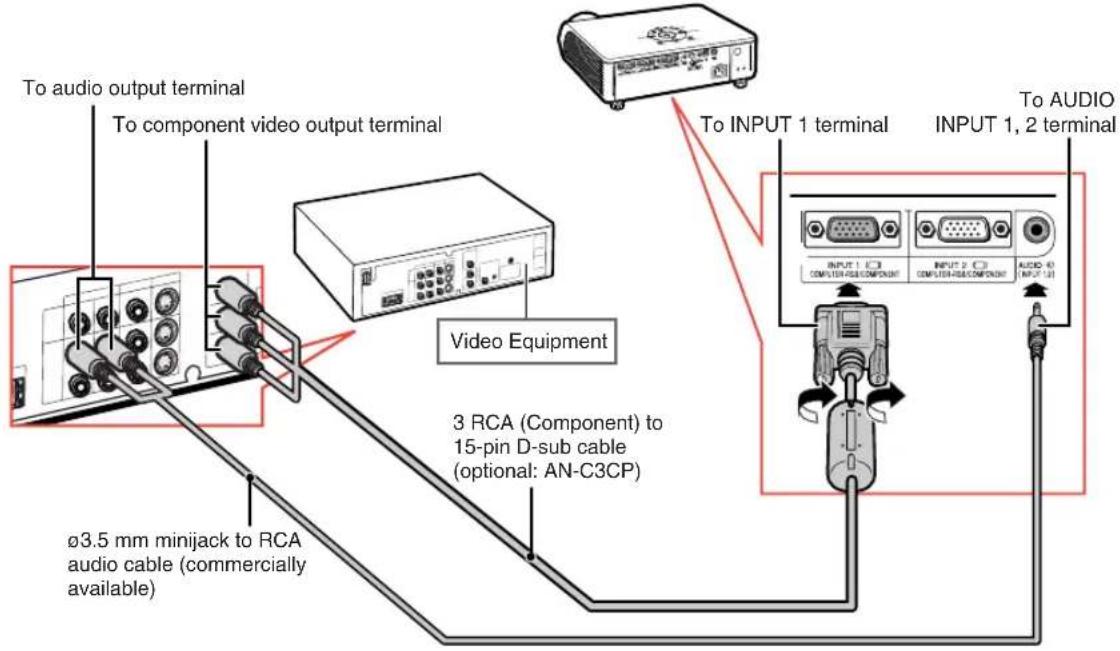

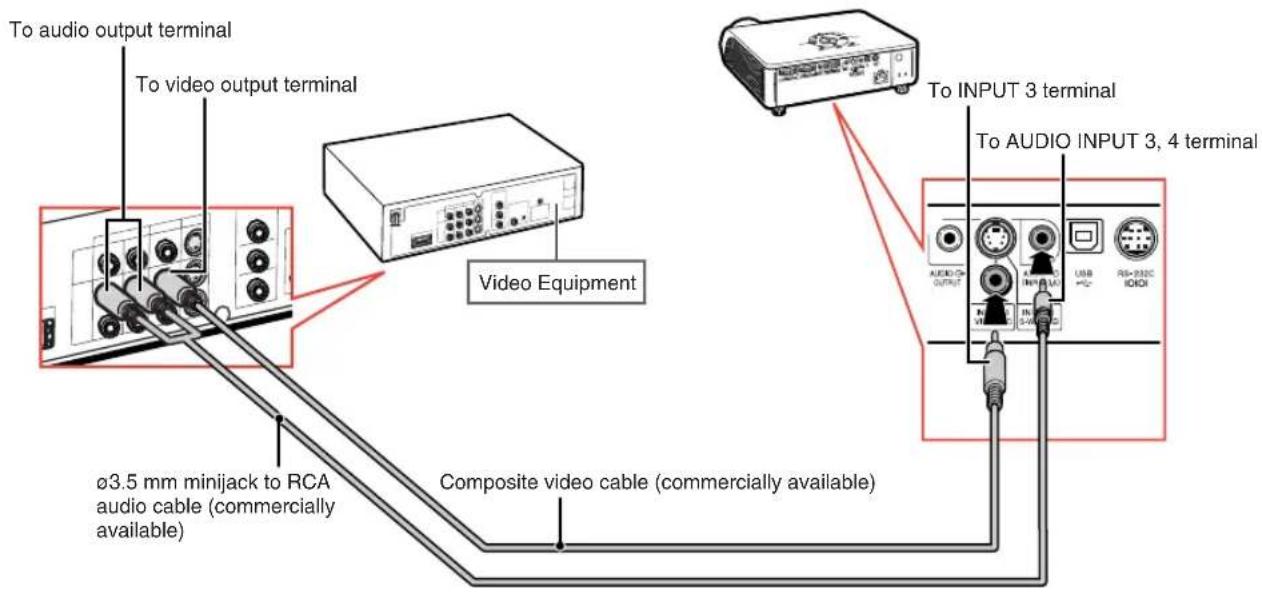

Connecting to Video Equipment 25

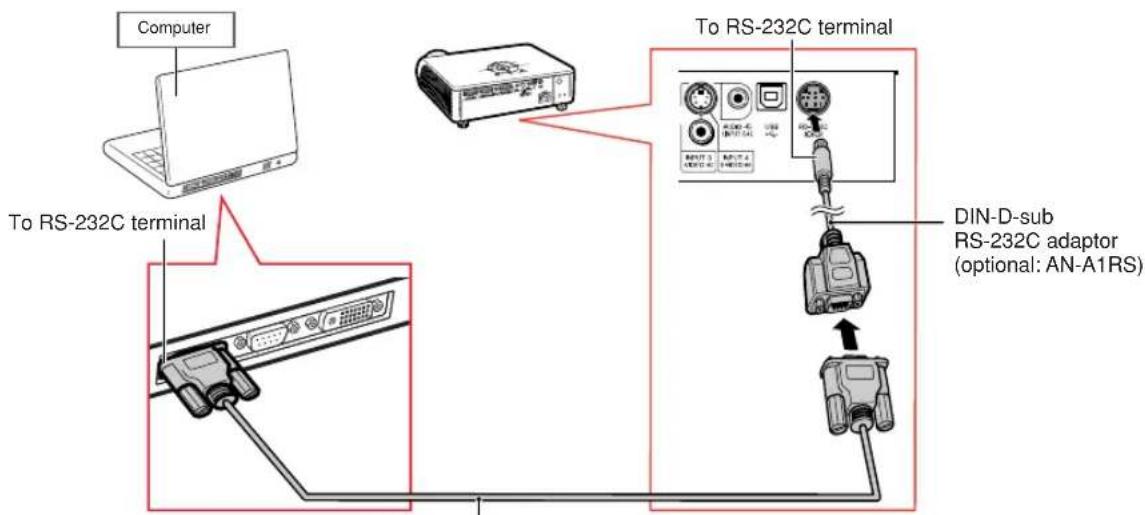

Controlling the Projector by a Computer ... 27

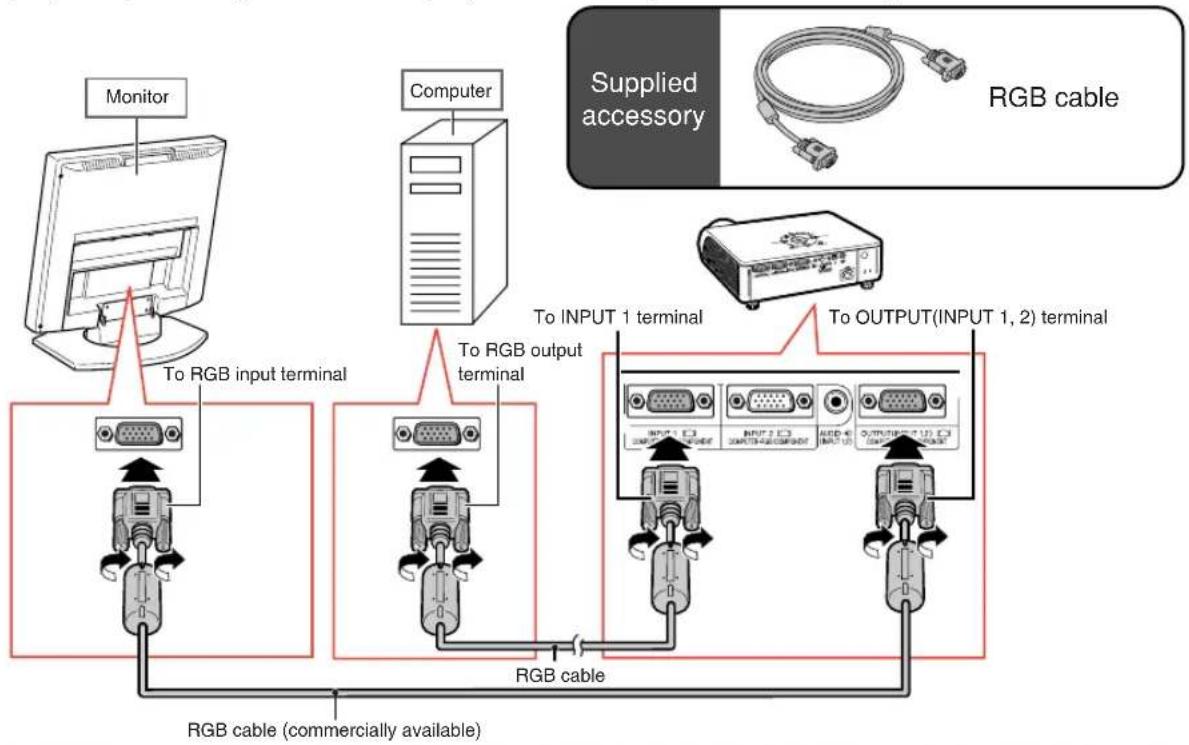

Connecting to a Monitor with RGB Input Terminal 28

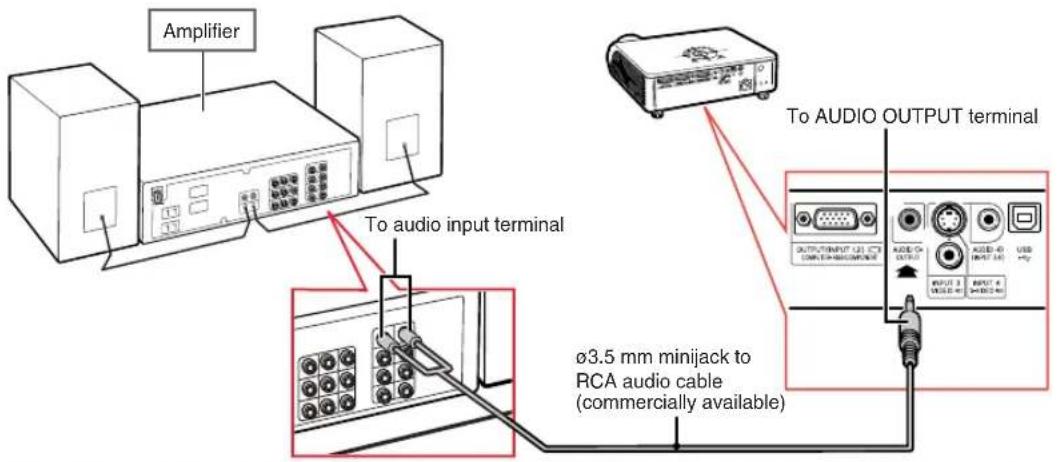

Connecting to an Amplifier or Other Audio Equipment 28

Using

Basic Operation

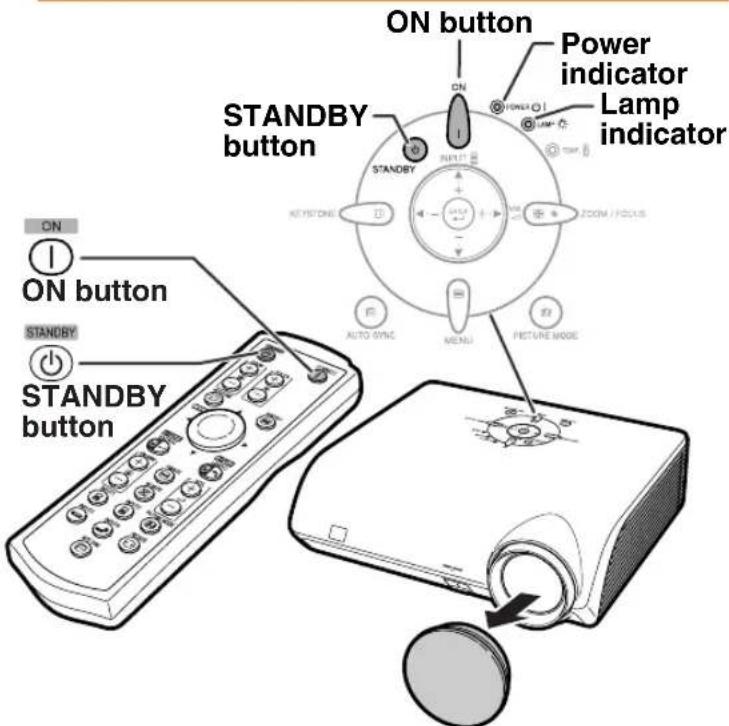

Turning the Projector On/Off 29

Image Projection 30

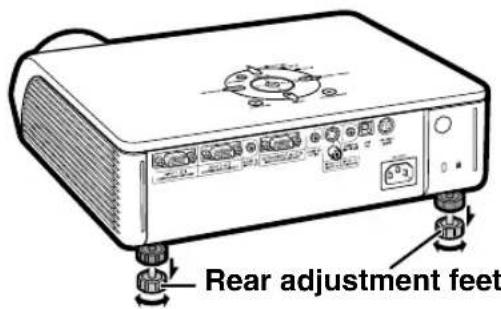

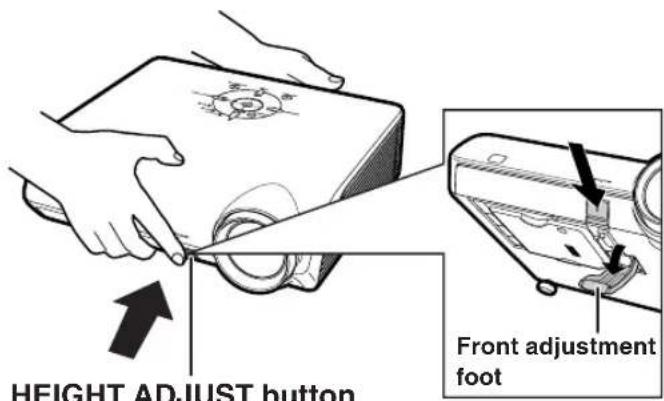

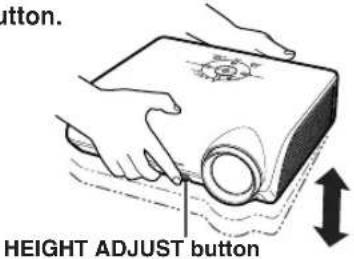

Using the Adjustment Feet 30

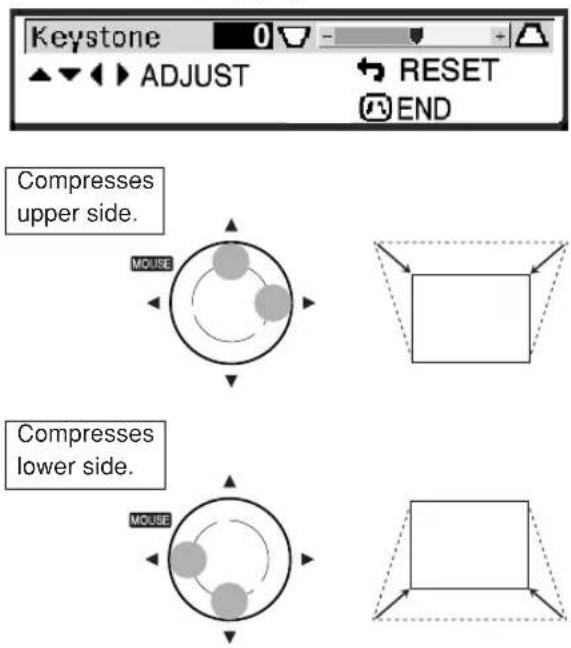

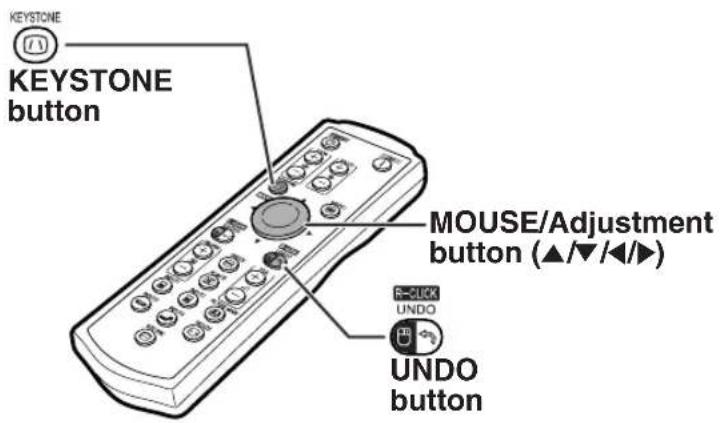

Correcting Trapezoidal Distortion 31

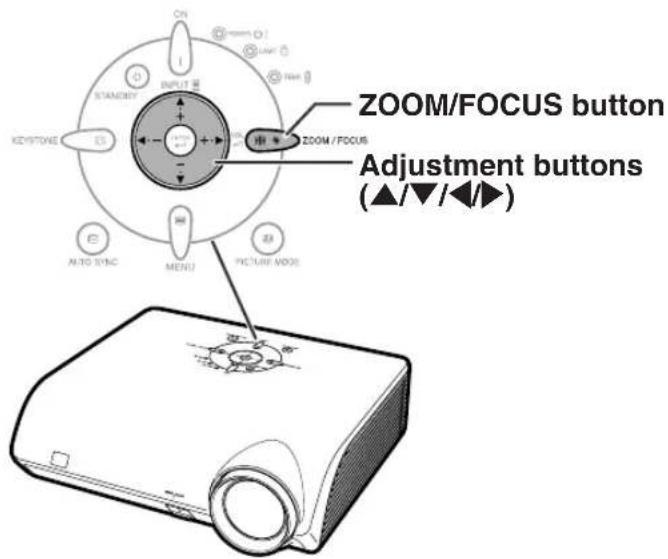

Adjusting the Focus 32

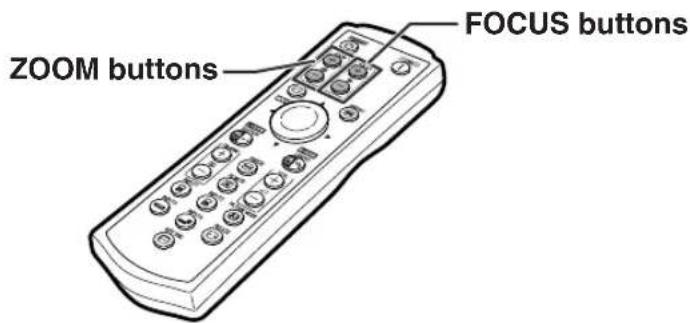

Adjusting the Projected Image Size 32

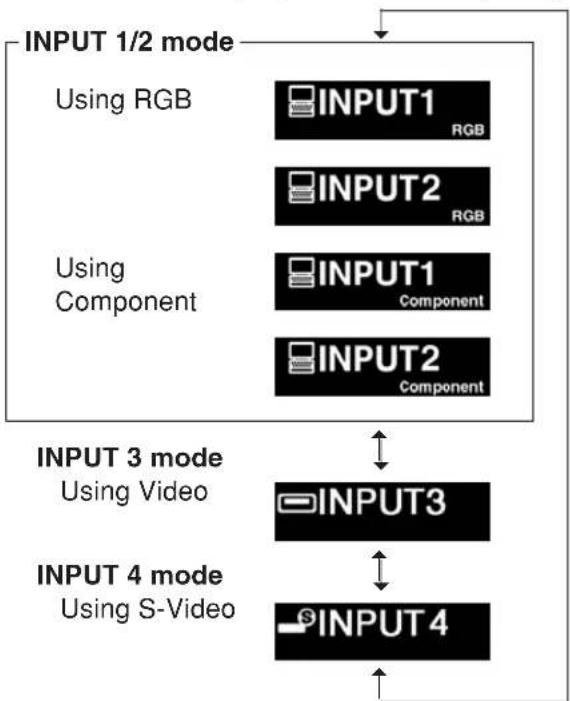

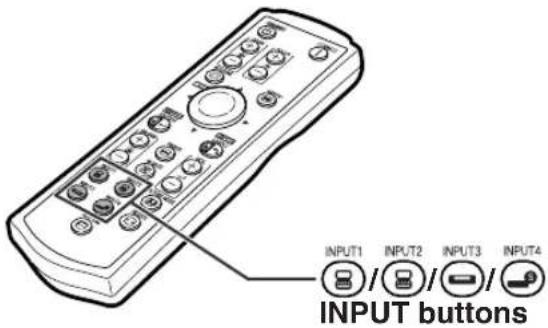

Switching the INPUT Mode 33

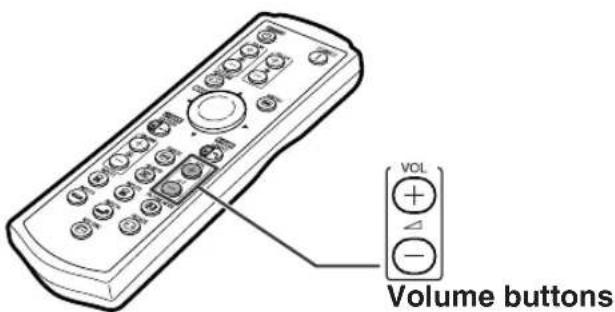

Adjusting the Volume 33

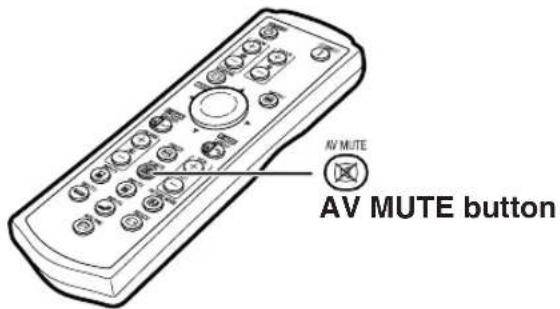

Displaying the Black Screen and Turning off the Sound Temporarily 34

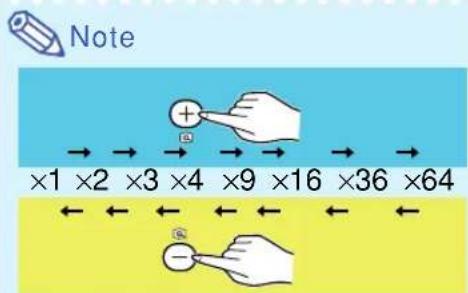

Displaying an Enlarged Portion of an Image ..... 34

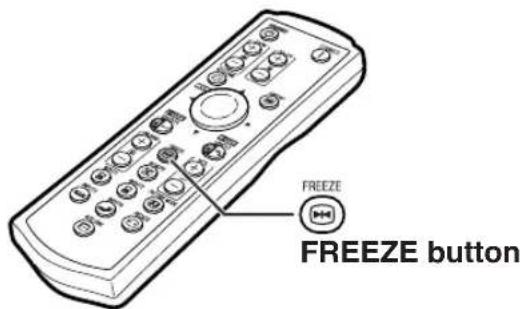

Freezing a Moving Image 35

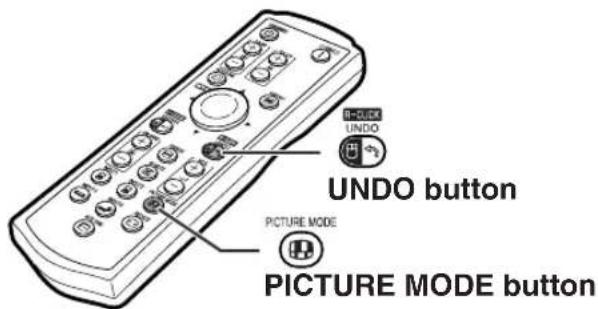

Selecting the Picture Mode 35

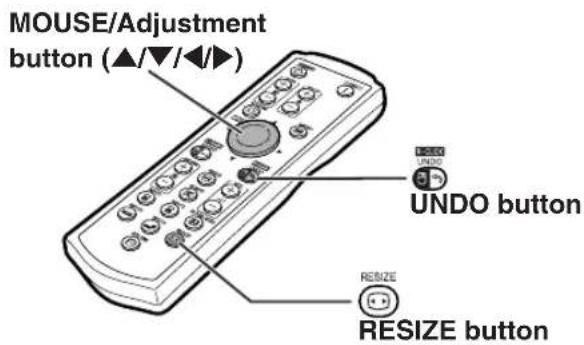

Resize Mode 36

Useful Features

Menu Items 38

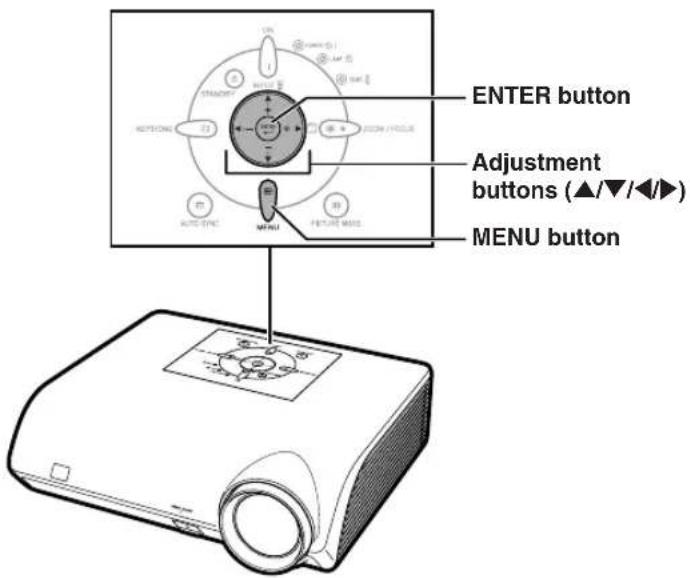

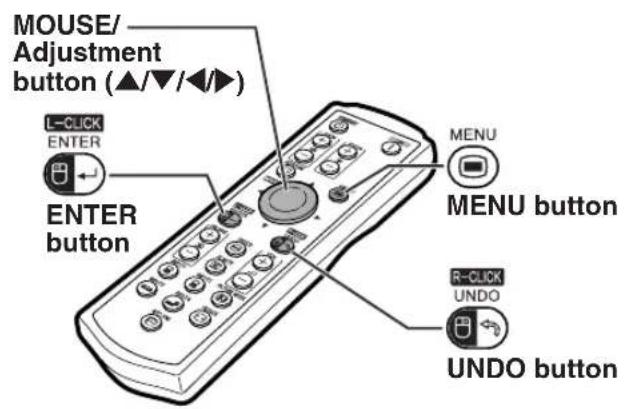

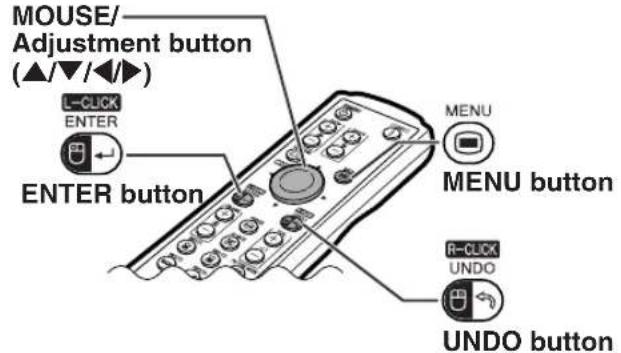

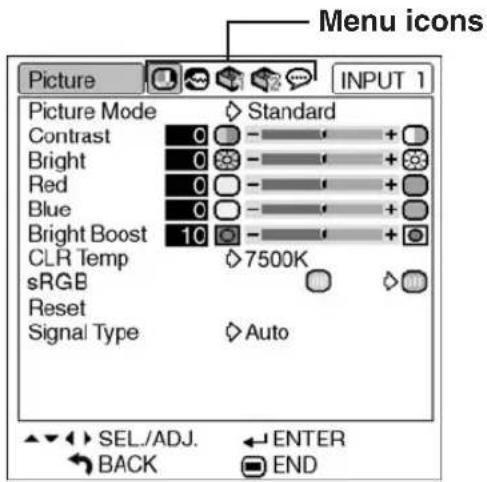

Using the Menu Screen 40

Menu Selections (Adjustments) 40

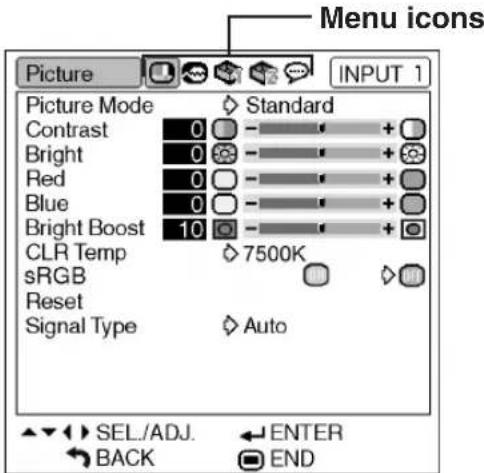

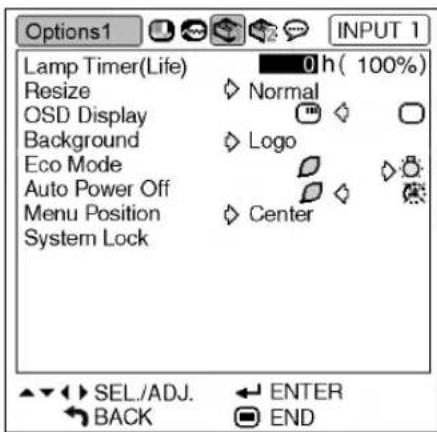

Menu Selections (Settings) 42

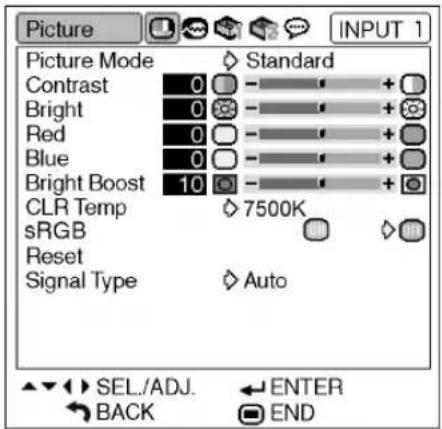

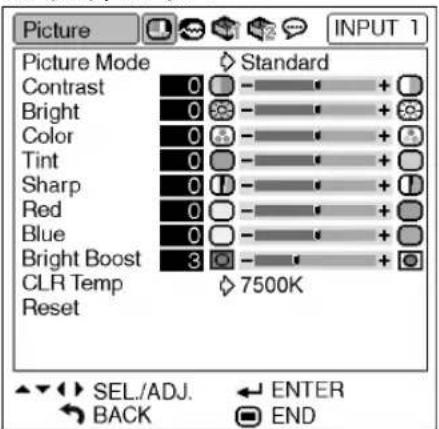

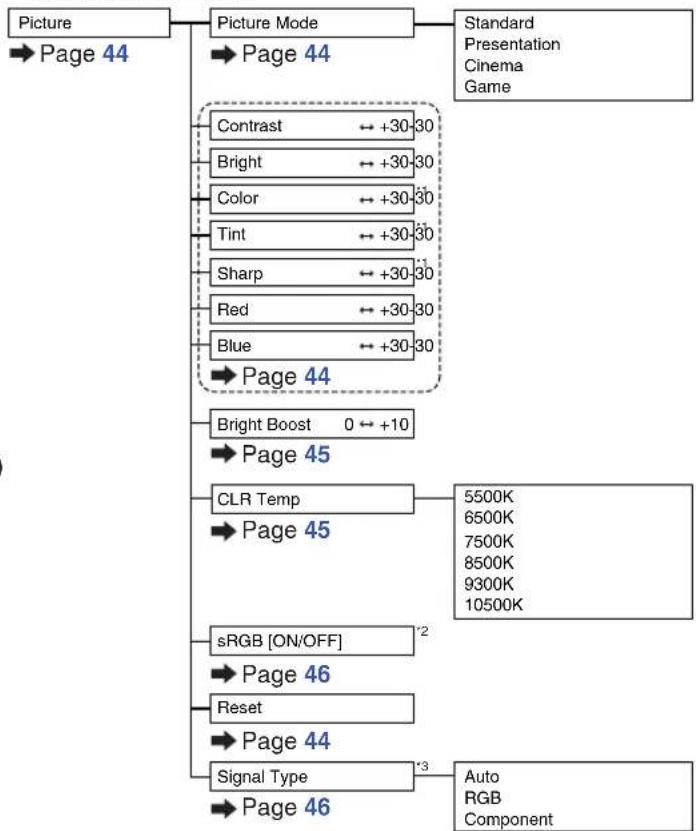

Picture Adjustment ("Picture" menu) ..... 44

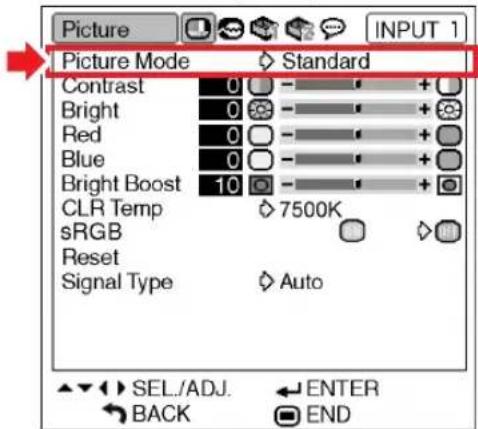

Selecting the Picture Mode 44

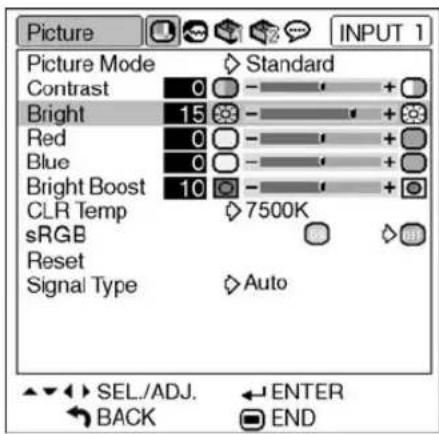

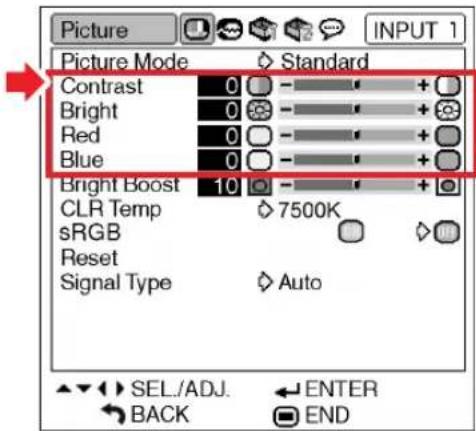

Adjusting the Image 44

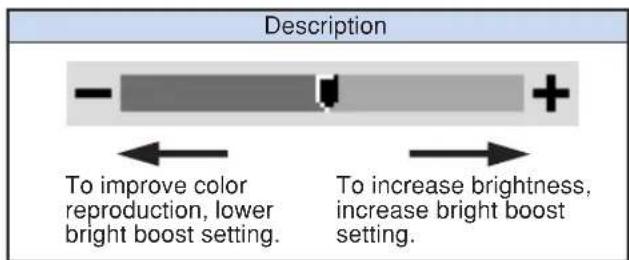

Emphasizing the Contrast 45

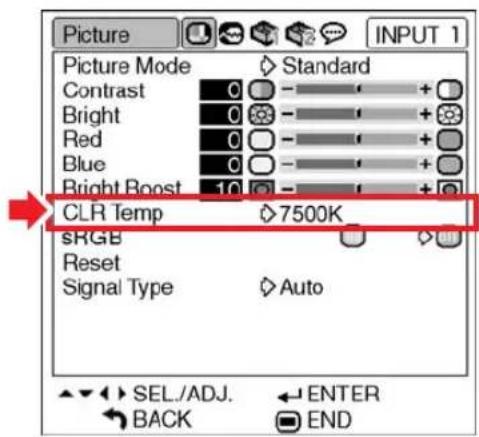

Adjusting the Color Temperature 45

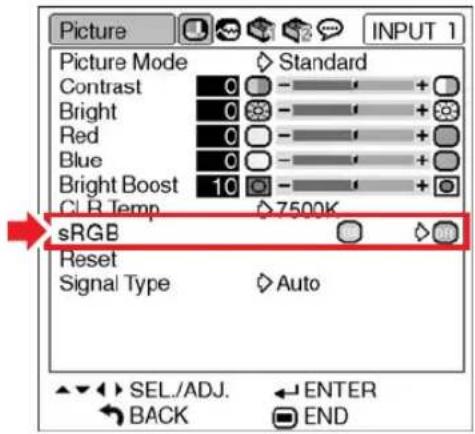

sRGB Setting 46

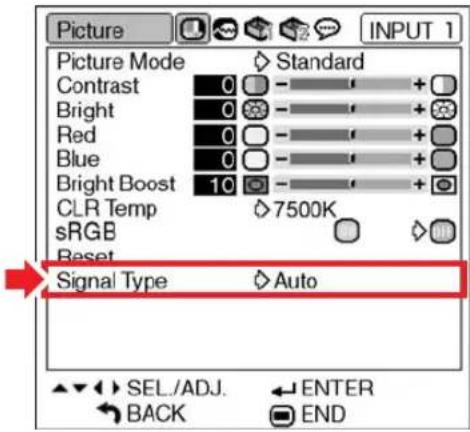

Signal Type Setting 46

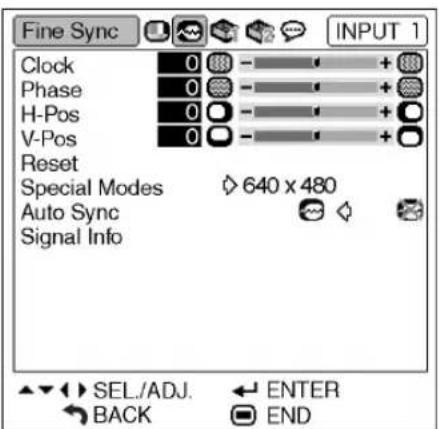

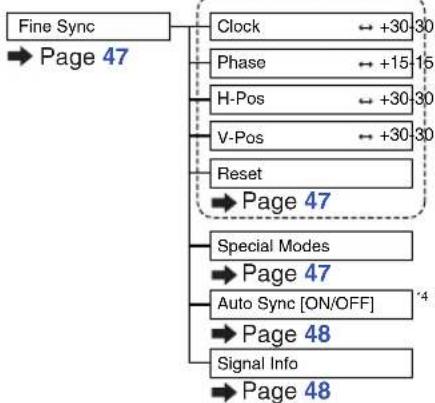

Computer Image Adjustment

("Fine Sync" menu) 47

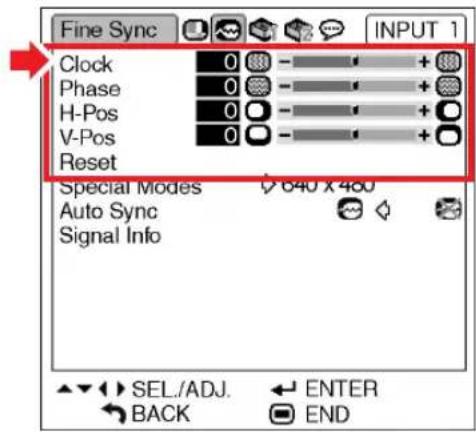

Adjusting the Computer Image 47

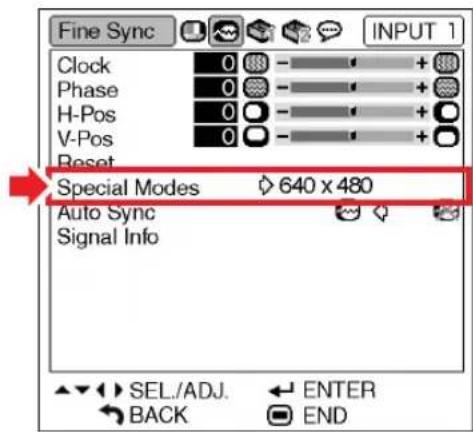

Special Modes Setting 47

Auto Sync Adjustment 48

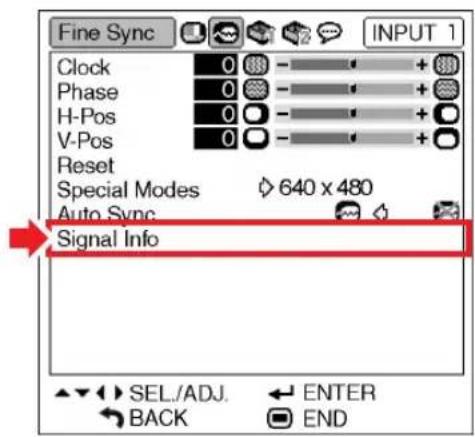

Checking the Input Signal 48

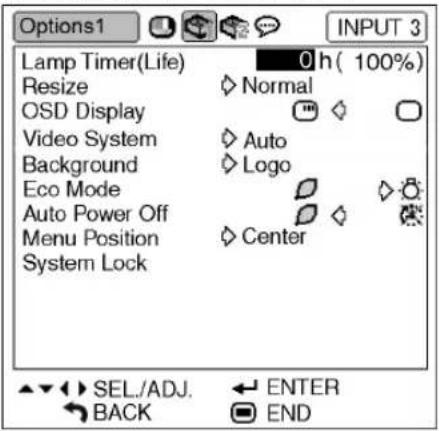

Using the "Options1" Menu 49

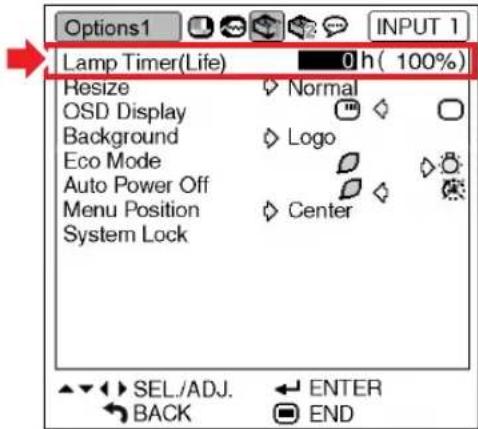

Checking the Lamp Life Status 49

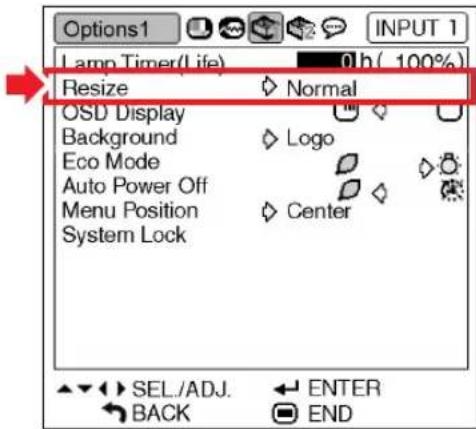

Setting the Resize Mode 49

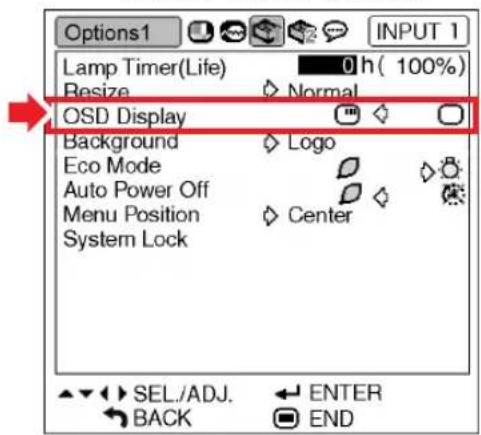

Setting On-screen Display 50

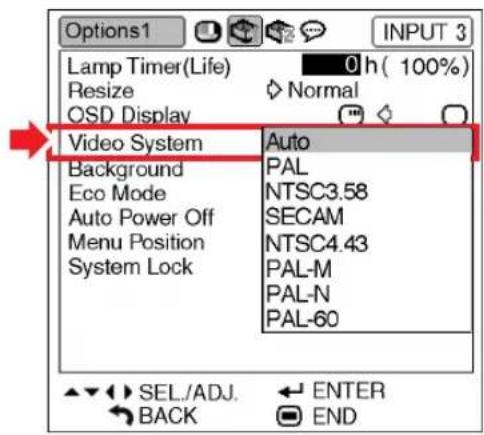

Setting the Video System.... 50

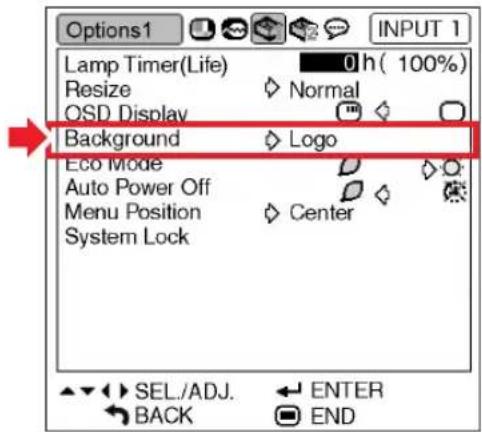

Selecting a Startup and Background Image ..... 51

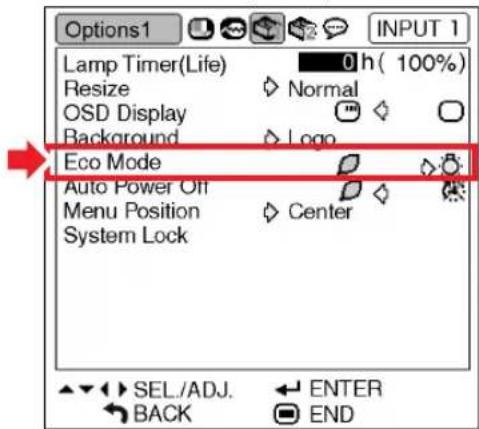

Eco Mode 51

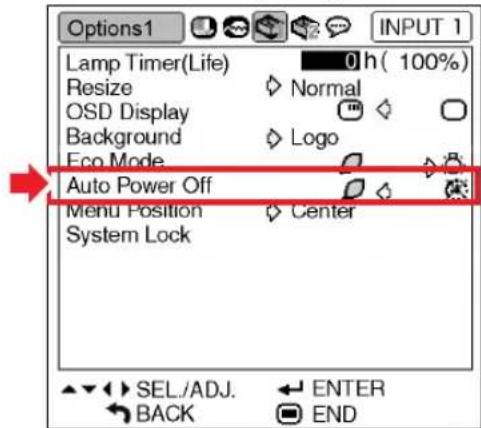

Auto Power Off Function 52

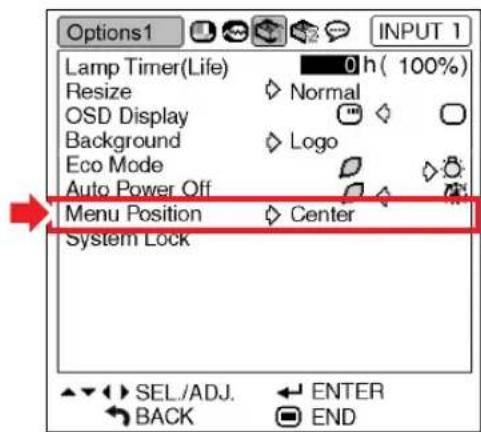

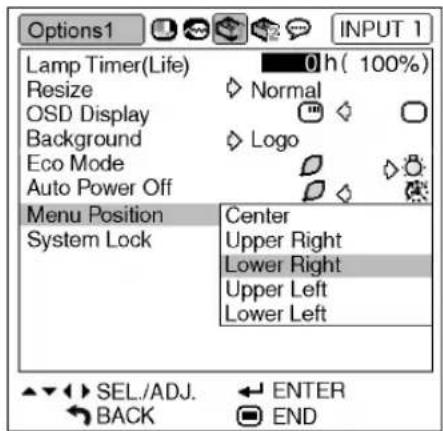

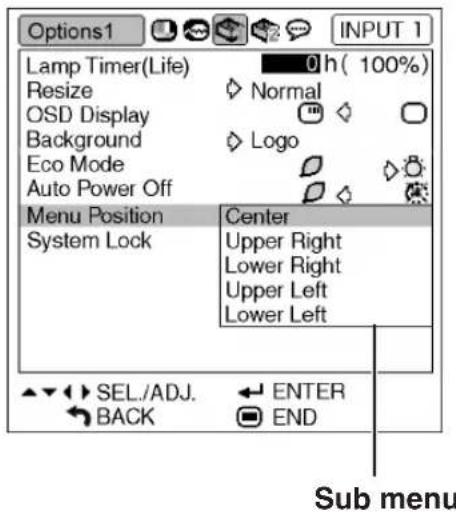

Selecting the Menu Screen Position 52

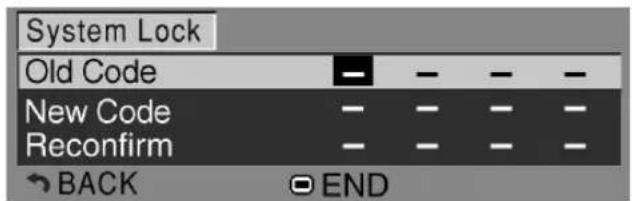

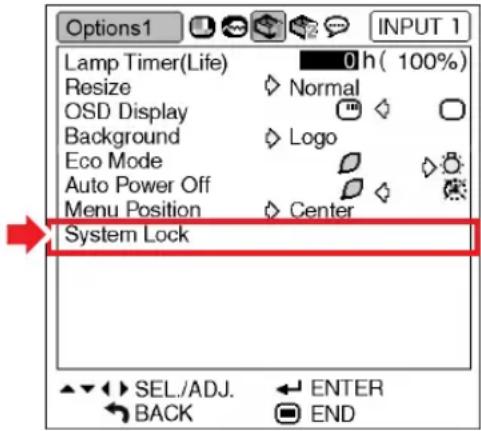

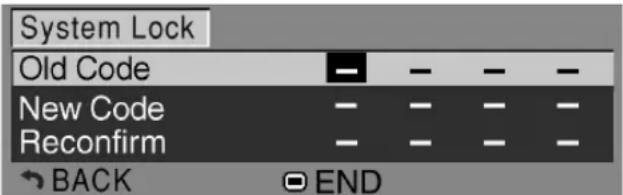

System Lock Function 53

Keylock Function 54

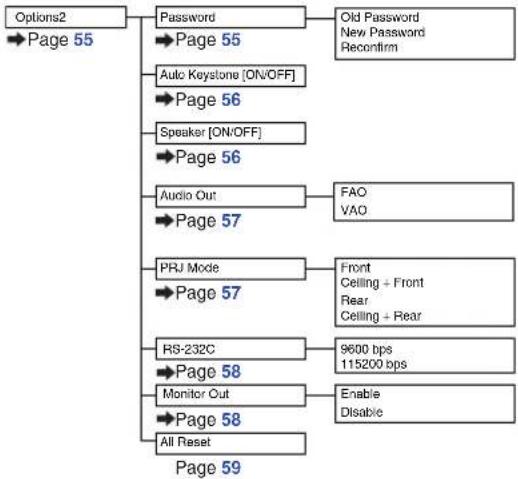

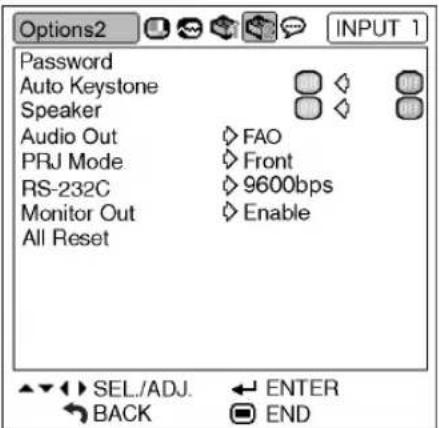

Helpful Functions Set during Installation

("Options2" menu) 55

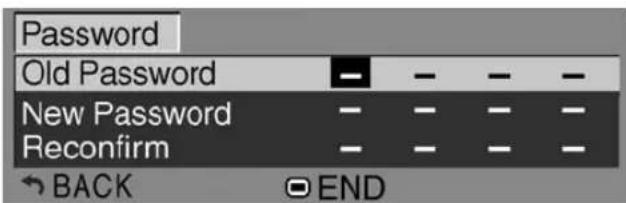

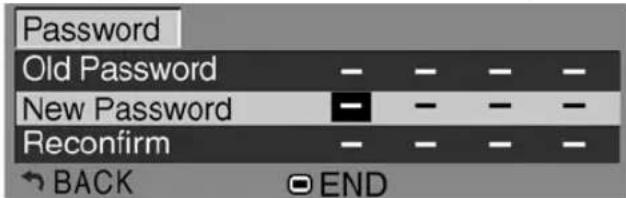

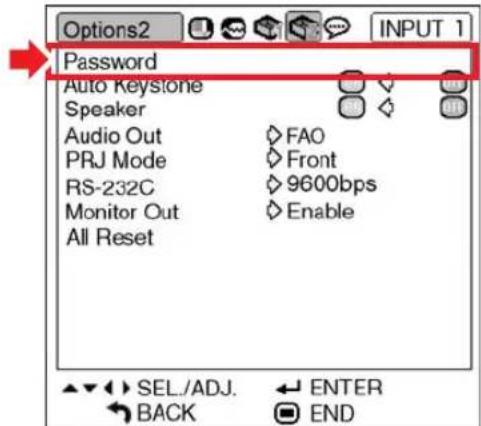

Setting a Password 55

If You Forget Your Password 55

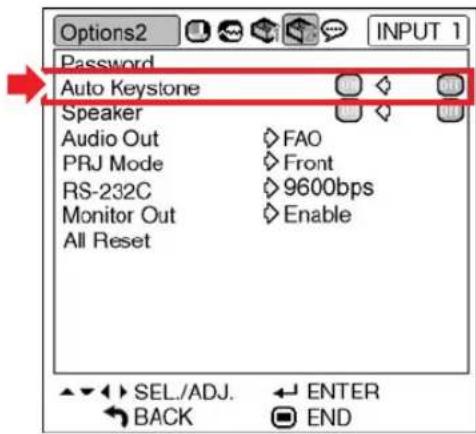

Auto Keystone Setting 56

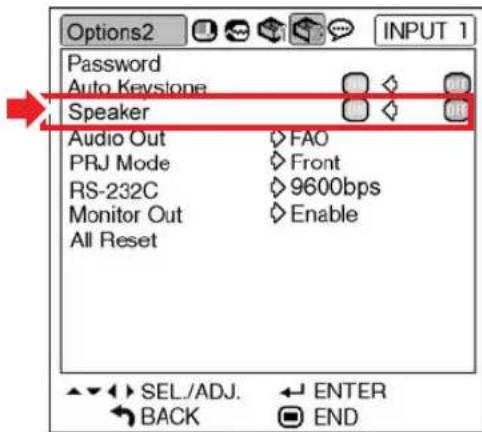

Speaker Setting 56

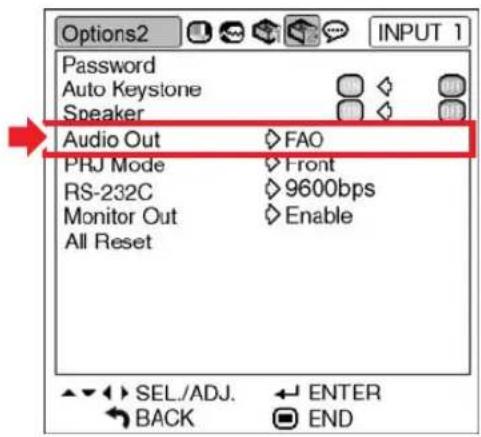

Setting the Audio Output Type 57

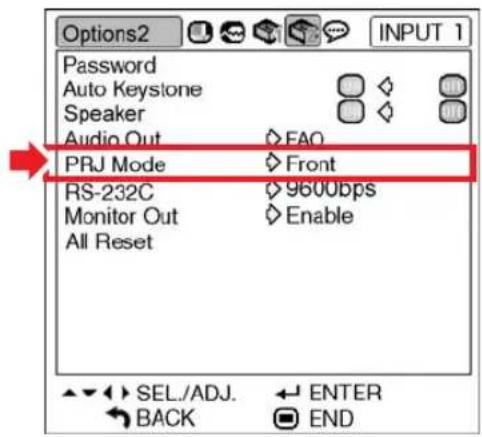

Reversing/Inverting Projected Images 57

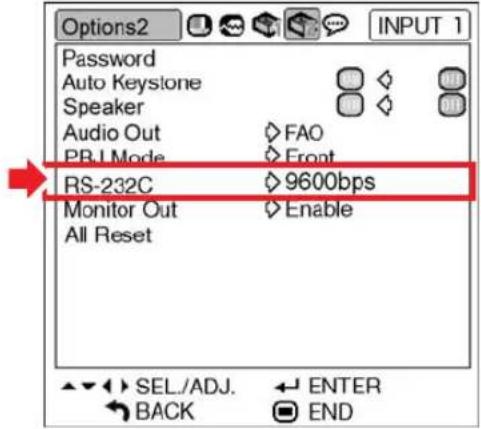

Selecting the Transmission Speed (RS-232C)..... 58

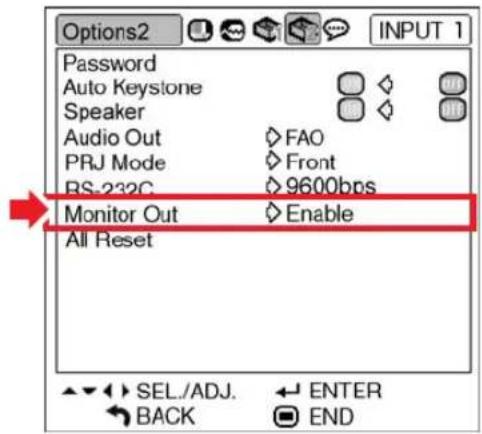

Monitor Output Settings 58

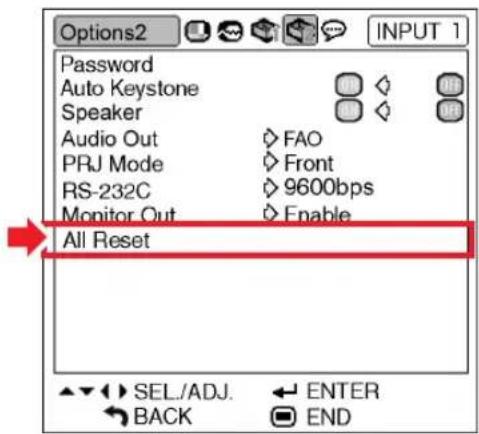

Returning to the Default Settings 59

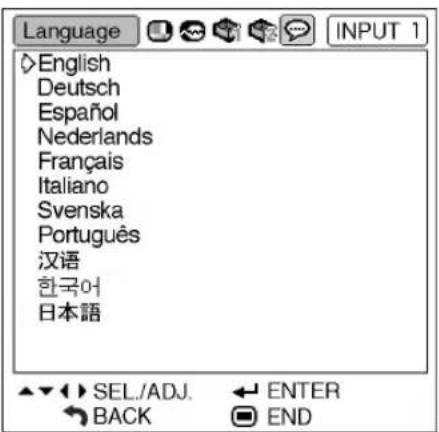

Using the "Language" Menu 60

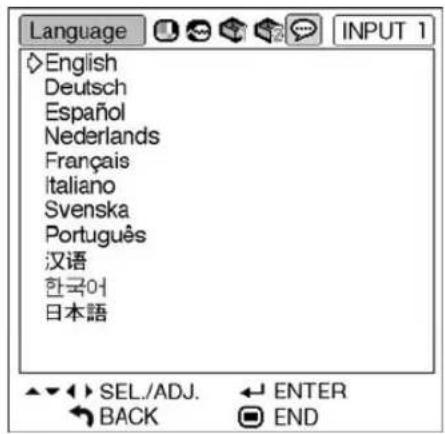

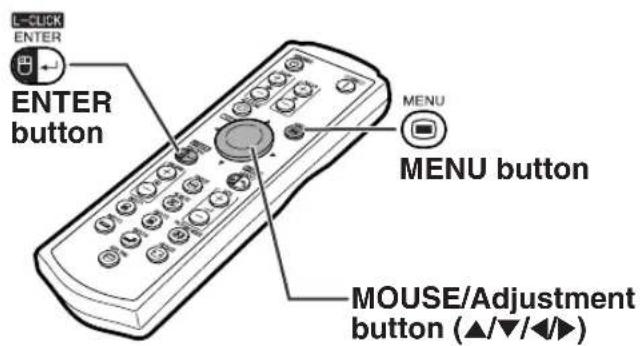

Selecting the On-screen Display Language ..... 60

Reference

Appendix

Maintenance 61

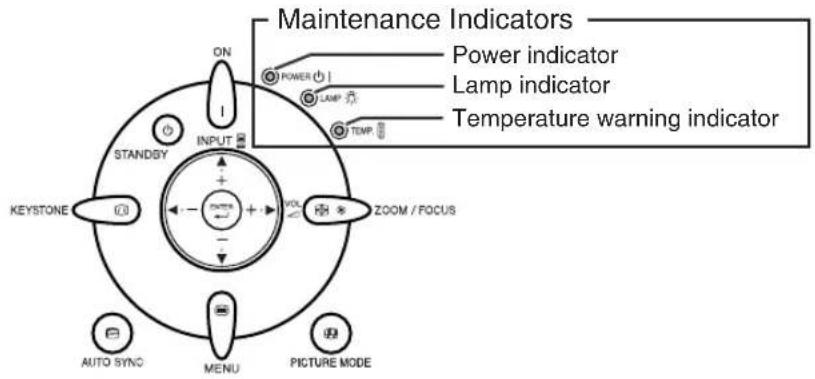

Maintenance Indicators 62

Regarding the Lamp 64

Lamp 64
Caution Concerning the Lamp 64

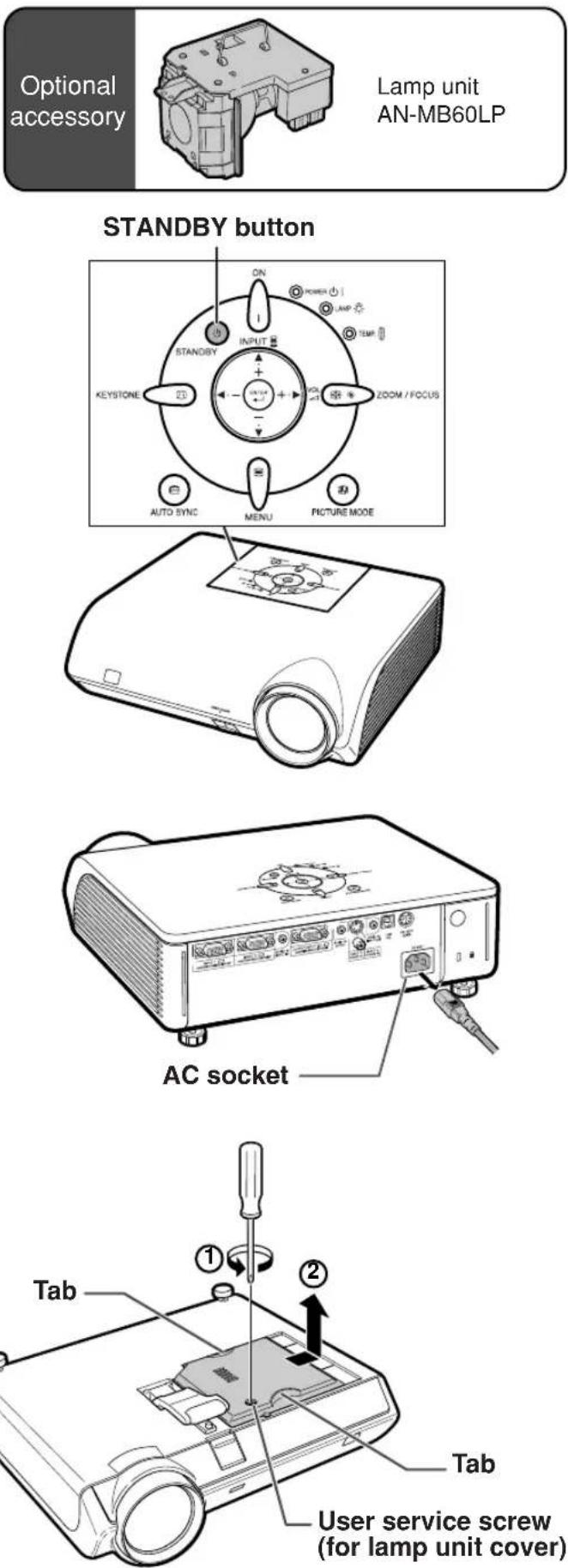

Replacing the Lamp 64

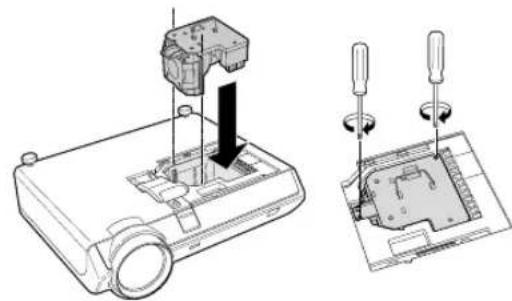

Removing and Installing the Lamp Unit 65

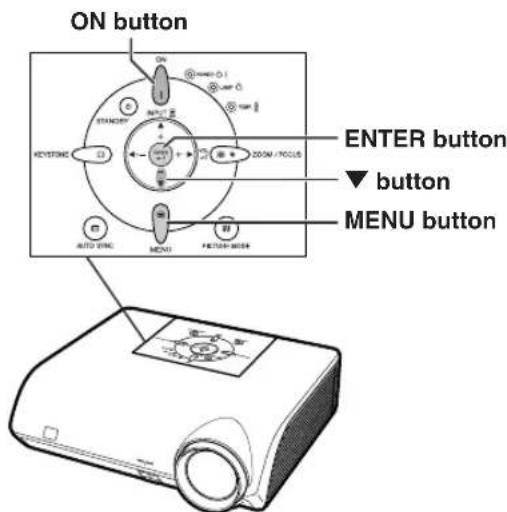

Resetting the Lamp Timer 66

Computer Compatibility Chart 67

Troubleshooting 68

For SHARP Assistance 70

Specifications 71

Glossary 72

Index 73

CAUTION: Please read all of these instructions before you operate this product and save these instructions for later use.

Electrical energy can perform many useful functions. This product has been engineered and manufactured to assure your personal safety. BUT IMPROPER USE CAN RESULT IN POTENTIAL ELECTRICAL SHOCK OR FIRE HAZARDS. In order not to defeat the safeguards incorporated in this product, observe the following basic rules for its installation, use and servicing.

1. Read Instructions

All the safety and operating instructions should be read before the product is operated.

2. Retain Instructions

The safety and operating instructions should be retained for future reference.

3. Heed Warnings

All warnings on the product and in the operating instructions should be adhered to.

4. Follow Instructions

All operating and use instructions should be followed.

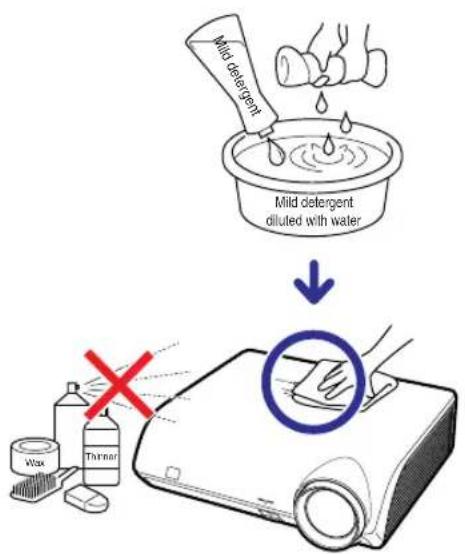

5. Cleaning

Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

6. Attachments

Do not use attachments not recommended by the product manufacturer as they may cause hazards.

7. Water and Moisture

Do not use this product near water-for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like.

8. Accessories

Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer's instructions, and should use a mounting accessory recommended by the manufacturer.

9. Transportation

A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.

10. Ventilation

Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.

11. Power Sources

This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.

12. Grounding or Polarization

This product is provided with one of the following types of plugs. If the plug should fail to fit into the power outlet, please contact your electrician.

Do not defeat the safety purpose of the plug.

a. Two-wire type (mains) plug.

b. Three-wire grounding type (mains) plug with a grounding terminal.

This plug will only fit into a grounding type power outlet.

13. Power-Cord Protection

Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.

14. Lightning

For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the cable system. This will prevent damage to the product due to lightning and power-line surges.

15. Overloading

Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.

16. Object and Liquid Entry

Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

17. Servicing

Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

18. Damage Requiring Service

Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a. When the power-supply cord or plug is damaged.

b. If liquid has been spilled, or objects have fallen into the product.

c. If the product has been exposed to rain or water.

d. If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions, as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to normal operation.

e. If the product has been dropped or damaged in any way.

f. When the product exhibits a distinct change in performance, this indicates a need for service.

19. Replacement Parts

When replacement parts are required, ensure that the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.

20. Safety Check

Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.

21. Wall or Ceiling Mounting

This product should be mounted to a wall or ceiling only as recommended by the manufacturer.

22. Heat

This product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

Ensure that you read the following safeguards when setting up your projector.

Caution concerning the lamp unit

■ Potential hazard of glass particles if lamp ruptures. In case of lamp rupture, contact your nearest Sharp Authorized Projector Dealer or Service Center for a replacement.

警告注意 CAUTION PRECAUTION PRECAUTION ATC/BEHICPT

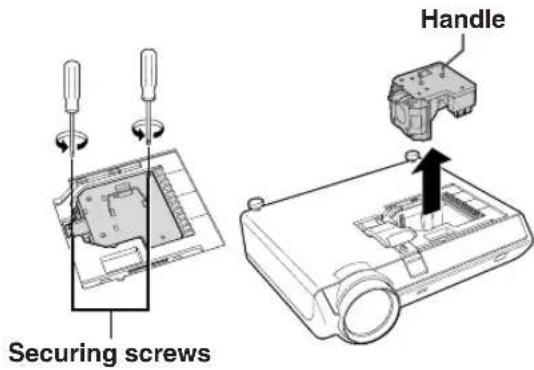

See "Replacing the Lamp" on page 64.

Caution concerning the setup of the projector

For minimal servicing and to maintain high image quality, SHARP recommends that this projector be installed in an area free from humidity, dust and cigarette smoke. When the projector is subjected to these environments, the vents and lens must be cleaned more often. As long as the projector is regularly cleaned, use in these environments will not reduce the overall operation life of the unit. Internal cleaning should only be performed by a Sharp Authorized Projector Dealer or Service Center.

Do not set up the projector in places exposed to direct sunlight or bright light.

■ Position the screen so that it is not in direct sunlight or room light. Light falling directly on the screen washes out the colors, making viewing difficult. Close the curtains and dim the lights when setting up the screen in a sunny or bright room.

The projector may be safely tilted to a maximum angle of 12 degrees.

■ Placement should be within ±12 degrees of horizontal.

Diagram of a tilted solar panel with a circular ring, resting on stacked books (no text or symbols present)

Warning about placing the projector in a high position

■ When placing the projector in a high position, ensure to secure it carefully to avoid personal injury caused by the projector falling down.

Do not subject the projector to hard impact and/or vibration.

■ Take care with the lens so as not to hit or damage the surface of the lens.

Rest your eyes occasionally.

■ Continuously watching the screen for long hours will cause eye strain. Ensure to occasionally rest your eyes.

Avoid locations with extremes of temperature.

■ The operating temperature of the projector is from 41^ F to 104^ F ( +5^ C to +40^ C).

■ The storage temperature of the projector is from -4^ to 140^ ( -20^ to +60^ ).

Do not block the intake and exhaust vents.

- Allow at least 7 ^7/8 inches (20 cm) of space between the exhaust vent and the nearest wall or obstruction.

■ Ensure that the intake vent and the exhaust vent are not obstructed.

If the cooling fan becomes obstructed, a protection circuit will automatically put the projector into standby mode to prevent overheat damage. This does not indicate a malfunction (See pages 62 and 63.). Remove the projector power cord from the wall outlet and wait at least 10 minutes. Place the projector where the intake and exhaust vents are not blocked, plug the power cord back in and turn on the projector. This will return the projector to the normal operating condition.

Caution regarding usage of the projector

When using the projector, ensure not to subject it to hard impact and/or vibration, as this can result in damage. Take extra care with the lens. If you are not to use the projector for a long time, ensure to unplug the power cord from the wall outlet, and disconnect any other cables connected to it.
■ Do not use the projector by holding the lens.
■ When storing the projector, ensure to attach the lens cap to the projector. (See page 11.)
■ Do not expose the storage case or projector to direct sunlight or near heat sources. The storage case or projector may change color or become deformed.

Other connected equipment

■ When connecting a computer or other audio-visual equipment to the projector, make the connections AFTER unplugging the power cord of the projector from the AC outlet and turning off the equipment to be connected.
■ Please read the operation manuals of the projector and the equipment to be connected for instructions on how to make the connections.

Using the projector in other countries

The power supply voltage and the shape of the plug may vary depending on the region or country you are using the projector in. When using the projector overseas, ensure to use an appropriate power cord for the country you are in.

Temperature monitor function

If the projector starts to overheat due to setup problems or blockage of the air vents,

TEMP.

'nd "wTEMP!ni-

nate in the tower left corner of the picture. If the temperature continues to rise, the lamp will turn off, the temperature warning indicator on the projector will blink, and after a 90-second cooling-off period the projector will enter the standby mode. Refer to "Maintenance Indicators" on page 62 for details.

Info

•The cooling fan regulates the internal temperature, and its performance is automatically controlled. The sound of the fan may change during projector operation due to changes in the fan speed. This does not indicate malfunction.
- Do not unplug the power cord during projection or cooling fan operation. This can cause damage due to rise in internal temperature, as the cooling fan also stops.

How to Access the PDF Operation Manuals

PDF operation manuals in several languages are included in the CD-ROM, so that you can work with the projector. To utilize these manuals, you need to install Adobe Reader® on your computer (Windows® or Macintosh®).

Please download Adobe ^® Reader ^® from the Internet (http://www.adobe.com).

Accessing the PDF Manuals

For Windows®:

①Insert the CD-ROM in the CD-ROM drive.
②Double click the "My Computer" icon.
③Double click the "CD-ROM" drive.
④ When you want to view the operation manual
1) Double click the "MANUALS" folder.
2) Double click the language (name of the folder) that you want to view.
3) Double click the "MB60" pdf file to access the projector manuals.

When you want to view the setup guide

1) Double click the "SETUP" folder.
2) Double click the language (name of the folder) that you want to view.
3) Double click the "SE_MB6" pdf file to access the setup guide.

For Macintosh®:

①Insert the CD-ROM in the CD-ROM drive.
②Double click the "CD-ROM" icon.
③ When you want to view the operation manual
1) Double click the "MANUALS" folder.
2) Double click the language (name of the folder) that you want to view.
3) Double click the "MB60" pdf file to access the projector manuals.

When you want to view the setup guide

1) Double click the "SETUP" folder.
2) Double click the language (name of the folder) that you want to view.
3) Double click the "SE_MB6" pdf file to access the setup guide.

Info

- If the desired pdf file cannot be opened by double clicking the mouse, start Adobe® Reader® first, then specify the desired file using the "File", "Open" menu.

SETUP GUIDE

Refer to the "SETUP GUIDE" contained on the supplied CD-ROM for details.

Screen Size and Projection Distance ...... 2

Connecting Pin Assignments .... 3

RS-232C Specifications and Commands ..... 4

Dimensions 6

Supplied accessories

Some accessories (Remote control and Power cord etc.) are placed in the pocket of the storage case when shipped from the factory.

Remote control RRMCGA342WJSA

Two R-03 batteries ("AAA" size, UM/SUM-4, HP-16 or similar)

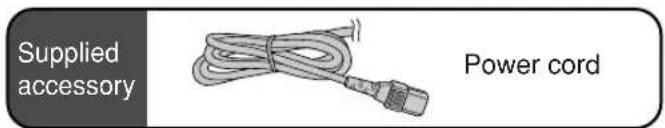

Power cord*

(1)

For U.S., Canada, etc. (12' (3.6 m)) QACCDA010WJPZ

(2) (3)

For Europe, except U.K. (6' (1.8 m)) QACCVA011WJPZ

For U.K., Hong Kong and Singapore (6' (1.8 m)) QACCBA036WJPZ

(4)

For Australia, New Zealand and Oceania (6' (1.8 m)) QACCLA018WJPZ

*Use the power cord that corresponds to the wall outlet in your country.

RGB cable (9'10" (3.0 m)) QCNWGA045WJPZ

USB cable (9'10" (3.0 m)) QCNWGA014WJPZ

Storage case GCASNA014WJSA

Lens cap (attached) RCAPHA021WJSA
Projector manual and technical reference CD-ROM UDSKAA053WJZZ
"QUICK GUIDE" label TLABZA793WJZZ
Operation manual (this manual) TINS-B526WJZZ

Optional accessories

■3 RCA to 15-pin D-sub cable (9'10" (3.0 m)) AN-C3CP
■DIN-D-sub RS-232C adaptor (5 ^57/64 " (15 cm)) AN-A1RS
■Lamp unit AN-MB60LP

Note

- Some of the optional accessories may not be available depending on the region. Please check with your nearest Sharp Authorized Projector Dealer or Service Center.

Part Names and Functions

Numbers in refer to the main pages in this operation manual where the topic is explained.

Projector

Top View

ON button For turning the power on. STANDBY button For putting the projector into standby mode. KEYSTONE button For entering the Keystone Correction mode. ENTER button For setting items selected or adjusted on the menu. AUTO SYNC button For automatically adjusting images when connected to a computer. MENU button For displaying adjustment and setting screens. 12 Power indicator 12-62 Lamp indicator 12-62 Temperature warning indicator 33 Volume buttons For adjusting the speaker sound level. 32 ZOOM/FOCUS button For adjusting the projected image size or adjusting the focus. 33 INPUT buttons For switching the input mode 1, 2, 3 or 4. 35 PICTURE MODE button For switching the picture mode. 40 Adjustment buttons (▲/▼/◄►) For selecting menu items and other settings. Front View Remote control sensor 15 56 Speaker Front adjustment foot (on the bottom of the projector) 30 • Attaching the lens cap Push the lens cap on until it clicks into position. • Removing the lens cap Pull the lens cap directly outward. HEIGHT ADJUST button 30

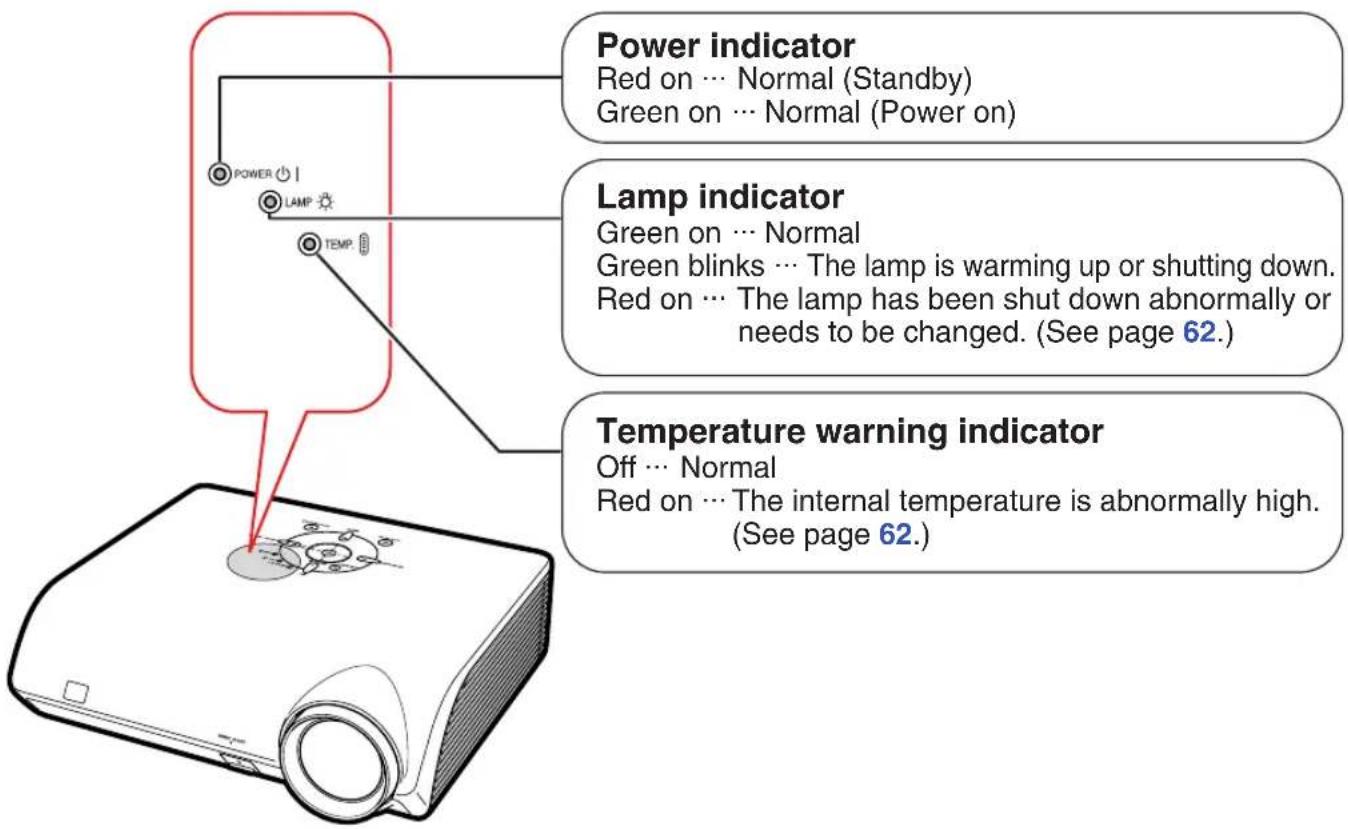

About the Indicators on the Projector

Power indicator Red on ... Normal (Standby) Green on ... Normal (Power on) Lamp indicator Green on ... Normal Green blinks ... The lamp is warming up or shutting down. Red on ... The lamp has been shut down abnormally or needs to be changed. (See page 62.) Temperature warning indicator Off ... Normal Red on ... The internal temperature is abnormally high. (See page 62.)

When Attaching the "QUICK GUIDE" Label

Attaching the "QUICK GUIDE" Label (supplied) on the projector will help you check the setup procedure. Ensure to attach the "QUICK GUIDE" Label on the top cabinet of the projector as shown in the drawing on the right. Do not attach the "QUICK GUIDE" label anywhere else to avoid blocking an air intake or exhaust vent.

"QUICK GUIDE" Label

Numbers in refer to the main pages in this operation manual where the topic is explained.

Projector (Rear View)

Terminals Refer to "INPUT/OUTPUT Terminals and Connectable Main Equipment" on page 21.

AUDIO OUTPUT terminal Audio output terminal of equipment connected to the AUDIO INPUT terminal. OUTPUT (INPUT 1, 2) terminal • Shared computer RGB and component signals output terminal for INPUT 1 and 2. • Terminal for connecting a monitor. AUDIO INPUT 1, 2 terminal Shared audio input terminal for INPUT 1 and 2. INPUT 2 terminal Terminal for computer RGB and component signals. INPUT 1 terminal Terminal for computer RGB and component signals. 28 28 23-25 23-25 23-25 23-25 61 Exhaust vent The speed and pitch of the cooling fan may change during operation in response to internal temperature changes. This is normal operation and does not indicate a malfunction. 61 15 Remote control sensor 13 Kensington Security Standard connector 29 AC socket Connect the supplied Power cord. Rear adjustment feet 30

Using the Kensington Lock

- This projector has a Kensington Security Standard connector for use with a Kensington MicroSaver Security System. Refer to the information that came with the system for instructions on how to use it to secure the projector.

Numbers in refer to the main pages in this operation manual where the topic is explained.

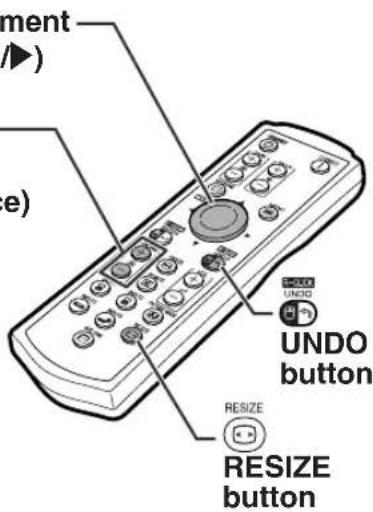

Remote Control

STANDBY button 29 For putting the projector into standby mode. ZOOM buttons 32 For adjusting the projected image size. KEYSTONE button 31 For entering the Keystone Correction mode. L-CLICK/ENTER button 24.40 • For the Left click when connecting the projector USB terminal to the computer with USB cable. • For setting items selected or adjusted on the menu. FREEZE button 35 For freezing images. ENLARGE (Enlarge/Reduce) buttons 34 For enlarging/reducing part of the image. INPUT 1, 2, 3 and 4 buttons 33 For switching to the respective input modes. AUTO SYNC button 48 For automatically adjusting images when connected to a computer. STANDBY button ON ON button For turning the power on. FOCUS buttons For bringing the projected image into focus. MENU button For displaying adjustment and setting screens. 24.40 MOUSE/Adjustment button (▲/▼/◄►) • For moving the computer cursor when connecting the projector USB terminal to the computer with USB cable. • For selecting menu items. 24.40 R-CLICK/UNDO button • For the Right click when connecting the projector USB terminal to the computer with USB cable. • For undoing an operation or returning to the previous display. AV MUTE button For temporarily displaying the black screen and turning off the sound. 33 Volume buttons For adjusting the speaker sound level. 35 PICTURE MODE button For switching the picture mode. 36 RESIZE button For switching the screen size (NORMAL, BORDER, etc.).

Note

- All the buttons on the remote control, except the MOUSE/Adjustment button, are made of luminous material that is visible in the dark. Visibility will diminish over time. Exposure to light will recharge the luminous buttons.

Using the Remote Control

Usable Range

The remote control can be used to control the projector within the ranges shown in the illustration.

Note

• The signal from the remote control can be reflected off a screen for easy operation. However, the effective distance of the signal may differ depending on the screen material.

When using the remote control:

• Ensure not to drop, expose to moisture or high temperature.
  •The remote control may malfunction under a fluorescent lamp. In this case, move the projector away from the fluorescent lamp.

Inserting the Batteries

The batteries (two R-03 batteries ("AAA" size, UM/SUM-4, HP-16 or similar)) are supplied in the package.

1

Press the ▲ mark on the cover and slide it in the direction of the arrow.

2

Insert the batteries.

- Insert the batteries making sure the polarities correctly match the and marks inside the battery compartment.

3

Attach the cover and slide it un- til it clicks into place.

Front View

Front View Remote control sensor 30° 30° Remote control signal transmitters 30° 23' (7 m) Remote control

Rear View

Remote control sensor 30° 30° 23' (7 m) Remote control signal transmitters 30° Remote control

Line drawing of a remote control casing with internal compartments and a black arrow indicating a specific area (no text or symbols)

Line drawing of a remote control device with labeled ports and an external door (no text or symbols present)

Line drawing of a remote control device with an arrow indicating left motion (no text or symbols)

Incorrect use of the batteries may cause them to leak or explode. Please follow the precautions below.

Caution

• Insert the batteries making sure the polarities correctly match the ④ and marks inside the battery compartment.
• Batteries of different types have different properties, therefore do not mix batteries of different types.
• Do not mix new and old batteries.

This may shorten the life of new batteries or may cause old batteries to leak.

- Remove the batteries from the remote control once they have run out, as leaving them in can cause them to leak. Battery fluid from leaked batteries is harmful to skin, therefore ensure to first wipe them and then remove them using a cloth.

• The batteries included with this projector may run down in a short period, depending on how they are kept. Ensure to replace them as soon as possible with new batteries.
• Remove the batteries from the remote control if you will not be using the remote control for a long time.

Quick Start

This section shows the basic operation (projector connecting with the computer). For details, see the page described below for each step.

Setup and Projection

In this section, connection of the projector and the computer is explained using one example.

3 ON button 7 STNADBY button 6 INPUT buttons 5 ZOOM/FOCUS button 5·6 Adjustment buttons (▲/▼/◄►) 4 HEIGHT ADJUST button 7 STANDBY button 5 ZOOM buttons 3 ON button 5 FOCUS buttons 6 INPUT1 button

1. Place the projector facing a screen

Simple diagram showing a gray arrow pointing upward toward a rectangular block on a horizontal line (no text or symbols)

→ Page 19

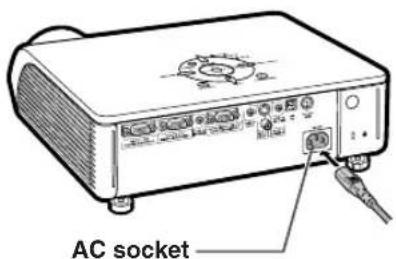

2. Connect the projector to the computer and plug the power cord into the AC socket of the projector

Diagram showing connection of a device with labeled ports and connectors, including a USB port and connected cables.

When connecting equipment other than the computer, see pages 25 and 26.

→ Pages 23, 29

3. Remove the lens cap and turn the projector on

Diagram showing a mechanical component with a circular component and an arrow pointing to it (no text or symbols present)

On the remote control On the projector

→ Page 29

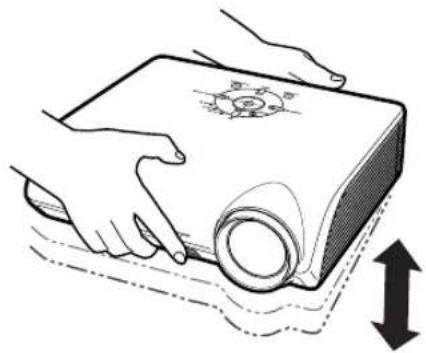

4. Adjust the angle

Adjust the projector angle

- Adjust the projector angle using the HEIGHT ADJUST button.

button. HEIGHT ADJUST button

- This projector is equipped with an “Auto Keystone Correction” function that automatically corrects any trapezoidal distortion within the projected image. The correction is made automatically provided the vertical incline or decline is within 12 degrees.

→ Page 30

5. Adjust the focus and the zoom

① Bring the projected image into focus

- Bring the projected image into focus by adjusting the focus.

On the projector

On the remote control Adjust by pressing the FOCUS buttons.

② Adjust the projected image size

- Adjust the projected image size by adjusting zoom.

On the projector

On the remote control Adjust by pressing the ZOOM buttons.

→ Page 32

6. Select the INPUT mode

Select the "INPUT 1" using the INPUT buttons on the projector or the INPUT1 button on the remote control.

On the projector

On the remote control

▼▼On-screen Display (RGB)

- When pressing ▲/▼ on the projector, input mode switches in order of :

- When using the remote control, press ⏻/8/—/— to switch the INPUT mode.

→ Page 33

7. Turn the Power off

Press the STANDBY button, then press that button again while the confirmation message is displayed, to put the projector into standby mode.

On the projector

STANDBY

On the remote control

▼On-screen Display

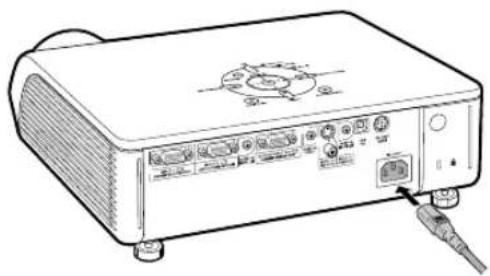

- Unplug the power cord from the AC outlet after the cooling fan stops.

→ Page 29

Storing the Projector

How to Use the Storage Case

When storing the projector, attach the lens cap to the lens, and place it in the supplied storage case.

1 Open the cover of the storage case.
2 Place the projector into the storage case.

Info

• Ensure the projector has cooled down sufficiently before placing it in the case.
• Ensure the lens cap is attached to the lens for protection.
• Place the projector into the storage case with the lens facing the handle.
• Ensure the projector is held in place by using the fixing band.

3 Close the cover of the storage case.
4 Place the accessories in the front pocket of the storage case.

Info

- This storage case is only for storing the projector.

Setting up the Projector

Setting up the Projector

Position the projector perpendicular to the screen with the projector's feet flat and level to achieve an optimal image.

Note

• The projector lens should be centered in the middle of the screen. If the horizontal line passing through the lens center is not perpendicular to the screen, the image will be distorted, making viewing difficult.
• For an optimal image, position the screen so that it is not in direct sunlight or room light. Light falling directly on the screen washes out the colors, making viewing difficult. Close the curtains and dim the lights when setting up the projector in a sunny or bright room.

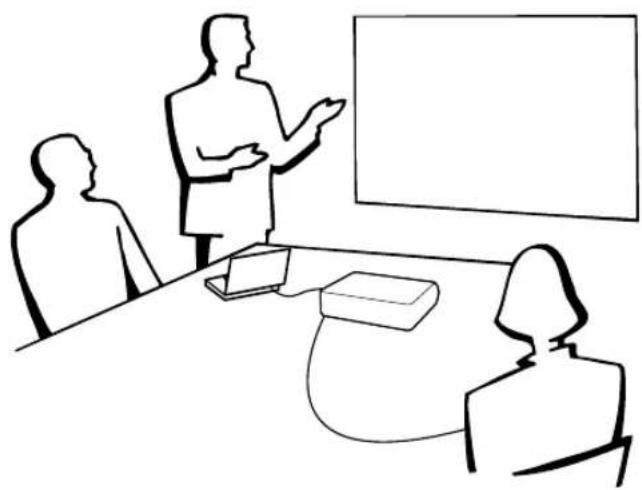

Standard Setup (Front Projection)

Place the projector at the required distance from the screen according to the desired picture size. (For details, refer to page 2 of the "SETUP GUIDE" contained on the supplied CD-ROM.)

Line drawing of a meeting scene with three people, one standing and gesturing, the other seated at a table with a laptop (no text or symbols)

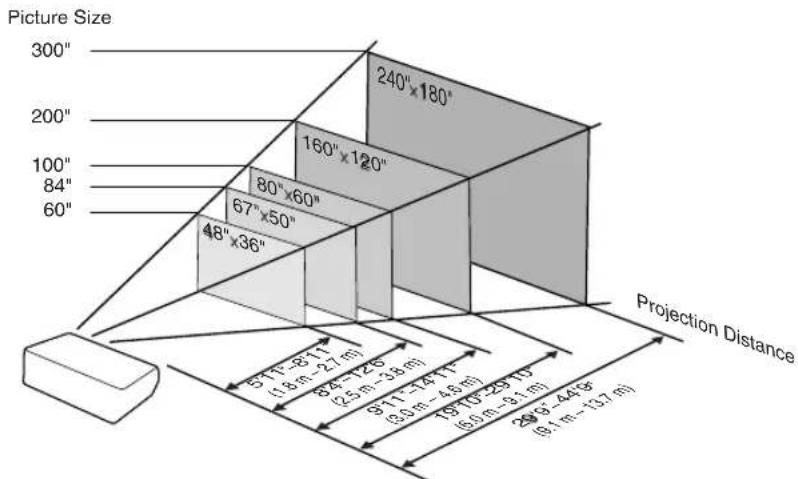

Indication of the Projection Image Size and Projection Distance

For details, refer to page 2 of the "SETUP GUIDE" contained on the supplied CD-ROM. Example: NORMAL Mode (4:3)

Picture Size 300" 200" 100" 84" 60" 240"×180" 160"×120" 80"×60" 67"×50" 48"×36" Projection Distance 511°-8'11" (1.6 m - 2.7 m) 84°-12.6" (2.5 m - 3.8 m) 9'11" - 14'11" (3.3 m - 4.8 m) 19'10" - 29'10" (6.0 m - 8.1 m) 26'9" - 44'9" (9.1 m - 13.7 m)

Projecting a Reversed Image

Projection from behind the Screen

■Place a translucent screen between the projector and the audience.
■ Reverse the image by setting "Rear" in the "PRJ Mode" menu. (See page 57.)

Audience Translucent screen

Projection Using a Mirror

■Place a mirror (normal flat type) in front of the lens.
■ When the translucent screen is placed between the mirror and audience, set to "Front" in the "PRJ Mode" menu. (See page 57.)
■ When the mirror is placed on the audience side, set to "Rear" in the "PRJ Mode" menu. (See page 57.)

Set to "Front"

Audience Mirror Translucent screen

Set to "Rear"

Audience Mirror

Info

- When using a mirror, ensure that both the projector and the mirror are carefully placed so the projected light does not shine into the eyes of the audience.

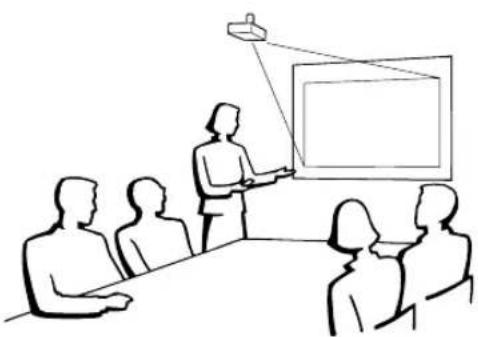

Ceiling-mount Setup

■It is recommended that you use the optional Sharp ceiling-mount bracket for this installation.

Before mounting the projector, contact your nearest Sharp Authorized Projector Dealer or Service Center to obtain the recommended ceiling-mount bracket (sold separately).

- AN-MBCM10 ceiling-mount bracket, its AN-EP101B extension tube and AN-JT200 universal bracket, adaptor for non-level ceiling installation (for U.S.A.).

• AN-60KT ceiling-mount bracket, its AN-TK201 and AN-TK202 extension tubes (for countries other than the U.S.A.).

■Invert the image by setting "Ceiling + Front" in "PRJ Mode". See page 57 for use of this function.

Line drawing of a meeting scene with a presenter and audience (no text or symbols)

INPUT/OUTPUT Terminals and Connectable Main Equipment

Samples of Cables for Connection

• For more details of connection and cables, refer to the operation manual of the connecting equipment.
• You may need other cables or connectors not listed below.

Equipment	Terminal on connected equipment	Cable	Terminal on the projector
Computer	RGB output terminal	RGB cable (supplied)	INPUT 1, 2
	Audio output terminal	ø3.5 mm stereo audio cable (commercially available)	AUDIO INPUT[W20Z]
Audio-visual equipment	Component video output terminal	3 RCA (Component) to 15-pin D-sub cable (optional: AN-C3CP)	INPUT 1, 2
	Terminal for using the dedicated cable	Connect with the cable adaptor, etc.Dedicated cable	INPUT 1, 2[67CX]
	Video output terminal	Video cable (commercially available)	INPUT3
	S-video output terminal	S-video cable (commercially available)	INPUT4
	Audio output terminal	ø3.5 mm minijack to RCA audio cable (commercially available)	AUDIO INPUT
	Terminal for using the dedicated cable	Connect with the cable adaptor, etc.Cable adaptorø3.5 mm minijack to RCA audio cable (commercially available)	AUDIO INPUT
Amplifier	Audio input terminal	ø3.5 mm minijack to RCA audio cable (commercially available)	AUDIO OUTPUT[S742]
Monitor	RGB input terminal	RGB cable (commercially available)	OUTPUT

Connecting to a Computer

Before connecting, ensure the power cord of the projector from the AC outlet is unplugged, and that the devices to be connected are turned off. After making all connections, turn on the projector and then the other devices. When connecting a computer, ensure that it is the last device to be turned on after all the connections are made.

Ensure the operation manuals of the devices to be connected have been read before making connections.

To USB terminal To audio output terminal To RGB output terminal Computer RGB cable * ø3.5 mm stereo or mono audio cable (commercially available or available as Sharp service part QCNWGA038WJPZ) To INPUT 1 terminal To AUDIO INPUT 1, 2 terminal To USB terminal USB cable Connect to use the remote control as a wireless computer mouse. Supplied accessories RGB cable USB cable

* When using the 3.5 mm mono audio cable, the volume level will be half of when using the 3.5 mm stereo audio cable.

Note

• When connecting with a USB cable, you can use the remote control as a mouse for controlling the cursor. See page 24.
• See page 67 "Computer Compatibility Chart" for a list of computer signals compatible with the projector. Use with computer signals other than those listed may cause some of the functions to not work.
• A Macintosh adaptor may be required for use with some Macintosh computers. Contact your nearest Macintosh Dealer.
• Depending on the computer you are using, an image may not be projected unless the signal output setting of the computer is switched to the external output. Refer to the computer operation manual for switching the computer signal output settings.

"Plug and Play" function (when connecting to a 15-pin terminal)

This projector is compatible with VESA-standard DDC 1/DDC 2B. The projector and a VESA DDC compatible computer will communicate their setting requirements, allowing for quick and easy setup.
Before using the "Plug and Play" function, ensure to turn on the projector first and the connected computer last.

Note

- The DDC "Plug and Play" function of this projector operates only when used in conjunction with a VESA DDC compatible computer.

Using the Remote Control as the Wireless Computer Mouse

When connecting the projector and the computer with the supplied RGB cable and USB cable (see page 23), you can use the remote control as the computer mouse.

The mouse pointer can be operated in the following way after it is connected.

■ When moving the cursor

Press MOUSE/Adjustment button (▲/▼/◄/►).

■ When left-clicking

Press

■ When right-clicking

Press

■ When your computer supports only a one-click mouse (such as Macintosh)

Press or

L-CLICK and R-CLICK have common function.

Note

• You cannot use this function when displaying the menu screen.
• Confirm that the computer recognizes the USB connection.
• If "Resize" is displayed when signals having a higher resolution than XGA are being input and you have set "Dot By Dot" as the screen size, you cannot operate the mouse function.

MOUSE/Adjustment button (▲/▼/◄►) R-CLICK button L-CLICK button

Connecting to Video Equipment

The projector has a COMPUTER-RGB/COMPONENT terminal, an S-VIDEO terminal and VIDEO terminal for video input. Refer to the listed illustrations on how to connect audio-visual equipment.

The image quality is highest in order of the component signal, the RGB signal, the S-video signal and the video signal. If your audio-visual equipment has a component output terminal or RGB output terminal, use the COMPUTER-RGB/COMPONENT terminal (INPUT 1 or INPUT 2) on the projector for video connection.

When connecting video equipment with component video output terminal (When connecting to INPUT 1)

To audio output terminal To component video output terminal Video Equipment 3 RCA (Component) to 15-pin D-sub cable (optional: AN-C3CP) ø3.5 mm minijack to RCA audio cable (commercially available) To INPUT 1 terminal To AUDIO INPUT 1, 2 terminal

Note

• 3.5 mm minijack to RCA audio cable (commercially available) is required for audio input.
• When you connect video equipment with a 21-pin RGB output (Euro-scart) to the projector, use a commercially available cable that fits in the projector terminal you want to connect.

Connecting to Video Equipment

When connecting video equipment with video output terminal

To audio output terminal To video output terminal Video Equipment To INPUT 3 terminal To AUDIO INPUT 3, 4 terminal 03.5 mm minijack to RCA audio cable (commercially available) Composite video cable (commercially available)

When connecting video equipment with S-video output terminal

To audio output terminal To S-video output terminal Video Equipment To INPUT 4 terminal To AUDIO INPUT 3, 4 terminal S-video cable (commercially available) ø3.5 mm minijack to RCA audio cable (commercially available)

Note

• 3.5 mm minijack to RCA audio cable (commercially available) is required for audio input.
• When you connect video equipment with a 21-pin RGB output (Euro-scart) to the projector, use a commercially available cable that fits in the projector terminal you want to connect.

Controlling the Projector by a Computer

When the RS-232C terminal on the projector is connected to a computer with a DIN-D-sub RS-232C adaptor (optional: AN-A1RS) and an RS-232C serial control cable (cross type, commercially available), the computer can be used to control the projector and check the status of the projector. Refer to the "SETUP GUIDE" contained on the supplied CD-ROM for details.

When connecting to a computer using an RS-232C serial control cable and a DIN-D-sub RS-232C adaptor

Computer To RS-232C terminal To RS-232C terminal To RS-232C terminal DIN-D-sub RS-232C adaptor (optional: AN-A1RS)

RS-232C serial control cable (cross type, commercially available)

Note

• The RS-232C function may not operate if your computer terminal is not correctly set up. Refer to the operation manual of the computer for details.
• Refer to page 4 of the “SETUP GUIDE” contained on the supplied CD-ROM for “RS-232C Specifications and Commands”.

Info

• Do not connect the RS-232C cable to a port other than the RS-232C terminal on the computer. This may damage your computer or projector.
• Do not connect or disconnect an RS-232C serial control cable to or from the computer while it is on. This may damage your computer.

Connecting to a Monitor with RGB Input Terminal

You can display computer images on both the projector and a separate monitor using two sets of RGB cables.

Note

• RGB signals and Component signals can be output to the monitor.
• For this connection, another RGB cable (commercially available) is required.

Connecting to an Amplifier or Other Audio Equipment

Audio signals input from equipment connected to each audio input terminal of the projector can be output to audio equipment.

Amplifier To audio input terminal To AUDIO OUTPUT terminal Ø3.5 mm minijack to RCA audio cable (commercially available)

Note

• 3.5 mm minijack to RCA audio cable (commercially available) is required for audio input.
• Turn off the power of both the projector and audio equipment when connecting.
• When turning off the power in the case of connecting an amplifier or other audio equipment, first turn off the power of the amplifier and then turn off the power of the projector.
• By using external audio components, the volume can be amplified for better sound.
• For details on Variable Audio Output (VAO) and Fixed Audio Output (FAO), see page 57.

Connecting the Power Cord

Plug the supplied power cord into the AC socket on the rear of the projector.

Turning the Projector on

Before performing the steps in this section, connect any equipment that you use with the projector. (See pages 23-28.)

Remove the lens cap and press on the projector or on the remote control.

•The power indicator illuminates green.
• After the lamp indicator illuminates, the projector is ready to start operation.
- When System Lock is set, the keycode input screen appears. Enter the right keycode to start projection. See page 53 for details.

Note

• The lamp indicator illuminates or blinks, indicating the status of the lamp.

Green: The lamp is ready.

Blinking green: The lamp is warming up or shutting down.

Red: The lamp is shut down abnormally or the lamp should be replaced.

- When switching on the projector, a slight flickering of the image may be experienced within the first minute after the lamp has been illuminated. This is normal operation as the lamp's control circuitry is stabilizing the lamp output characteristics. This does not indicate malfunction.

- If the projector is put into standby mode and immediately turned on again, the lamp may take some time to illuminate.

Turning the Power off (Putting the Projector into Standby Mode)

1

Press on the projector or on the remote control, then press that button again while the confirmation message is displayed, to put the projector into standby mode.

2

Unplug the power cord from the AC outlet after the cooling fan stops.

Supplied accessory Power cord

Line drawing of a portable electronic device with ports and an external connector (no text or symbols)

Info

- English is the factory preset language. If you want to change the on-screen display to another language, change the language according to the procedure on page 60.

ON button Power indicator Lamp indicator STANDBY button STANDBY ON button STANDBY STANDBY button AUTO SYNC MENU FUTURE MODE

▼On-screen Display

Enter STANDBY mode? Yes: Press Again. No: Please Wait.

Shutting Down. Please Wait.

Info

- Do not unplug the power cord during projection or cooling fan operation. The cooling fan in this projector continues to run for about 90 seconds after the projector enters the standby mode. This can cause damage due to rise in internal temperature, as the cooling fan also stops.

Using the Adjustment Feet

The height of the projector can be adjusted using the adjustment feet at the front and rear of the projector when the screen is located higher than the projector, the screen is inclined or when the installation site is slightly inclined. Install the projector so that it is as perpendicular to the screen as possible.

1 Press the HEIGHT ADJUST button.

• The front adjustment foot comes out.

2 Lift the projector to adjust its height while pressing the HEIGHT ADJUST button.

• The projector is adjustable up to approximately 12 degrees (6 steps).
- When lowering the projector, it may be difficult to move the front adjustment foot because the installation surface is difficult to slide. In this case, pull the projector back slightly and adjust its height.

3 Remove your hand from the HEIGHT ADJUST button of the projector after its height has been finely adjusted.

4 Finely adjust the height and inclination by turning the rear adjustment feet.

- When adjusting the height of the projector, trapezoidal distortion occurs. When "Auto Keystone" of the "Options2" menu is set to "☐" (ON) (see page 56), keystone correction functions automatically to correct trapezoidal distortion. When you want to adjust the automatically corrected image, use the manual keystone correction. (See page 31.)

Info

• Do not press the HEIGHT ADJUST button when the front adjustment foot comes out without firmly holding the projector.
• Do not hold the lens when lifting or lowering the projector.
• When lowering the projector, be careful not to get your fingers caught in the area between the adjustment foot and the projector.

Side View Lens center Top View

HEIGHT ADJUST button Front adjustment foot

Illustration of hands pressing down on a device with a magnified view showing internal components (no text or symbols)

Rear adjustment feet

Correcting Trapezoidal Distortion

Auto Keystone Correction

When the image is projected either from the top or from the bottom towards the screen at an angle, the image becomes distorted trapezoidally. The function for correcting trapezoidal distortion is called Keystone Correction.

This projector is equipped with an "Auto Keystone Correction" function that automatically corrects any trapezoidal distortion within the projected image. The correction is made automatically provided the vertical incline or decline is within 12 degrees.

Note

- When not using the Auto Keystone Correction function, set "Auto Keystone" on the "Options2" menu to "OFF".

Manual Keystone Correction

When you want to make fine adjustments after the Auto Keystone Correction function has been activated, or when you want to make corrections without using the Auto Keystone Correction function, you can make corrections manually using the following procedure.

1

Press 📄 on the remote control to enter the Keystone Correction mode.

- You can also use KETON the projector.

2

Press ▲, ▶ or ▼, ◀ on the remote control to adjust the Keystone Correction.

- You can also adjust the Keystone Correction using the ▲,▲ or ▼,▼ buttons on the projector.

Note

• Press to return to the default setting.
• Straight lines or the edges of images may appear jagged while adjusting the image.

3

Press

•The on-screen display of the Keystone Correction mode will disappear.
- You can also use KEYSTONE on the projector.

KEystone KEYSTONE button MOUSE/Adjustment button (▲/▼/◄/►) R-UCK UNDO UNDO button

▼On-screen Display (Keystone Correction mode)

Keystone ADJUST RESET END Compresses upper side. COMpresses lower side.

Note

- The Manual Keystone Correction can be adjusted up to an angle of approximately ± 35 degrees and the screen can also be set up to an angle of approximately ± 35 degrees (when the resize mode is set to "NORMAL" (see page 36)).

The screen can also be installed by inclining to that angle.
•The Keystone Correction cannot be adjusted in the lateral direction.
- You can use the same settings used in NORMAL mode 4:3 for 16:9.

Adjusting the Focus

When adjusting the focus using the buttons on the projector on the remote control

Adjust by pressing the FOCUS buttons.

ZOOM/FOCUS button Adjustment buttons (▲/▼/◄►)

Adjusting the Projected Image Size

When adjusting zoom using the buttons on the projector on the remote control

Adjust by pressing the ZOOM buttons.

ZOOM buttons FOCUS buttons

Note

• After you have pressed the FOCUS buttons or ZOOM buttons on the remote control, or after you have pressed the ZOOM/FOCUS button on the projector, you can display the test pattern by pressing the ENTER button. The test pattern is useful for making more accurate adjustments.

Switching the INPUT Mode

Select the appropriate input mode for the connected equipment.

Press INPUT1, INPUT2, INPUT3, INPUT4, or on the re-

mote control to select the input mode.

- When pressing ▲▲r ▼▼ on the projector, input mode switches in order of :

→ INPUT 1← INPUT 2 INPUT 3 INPUT←4

Note

• When no signal is received, "NO SIGNAL" will be displayed. When a signal that the projector is not preset to receive is received, "NOT REG." will be displayed.
• The INPUT mode is not displayed when "OSD Display" of the "Options1" menu is set to "☐" (OFF). (See page 50.)

About the INPUT mode

INPUT 1/INPUT 2(RGB/Component)	Used for projecting images from equipment that sends RGB signals or component signals connected to the RGB input terminal.
INPUT 3(Video)	Used for projecting images from equipment connected to the VIDEO input terminal.
INPUT 4(S-Video)	Used for projecting images from equipment connected to the S-VIDEO input terminal.

Adjusting the Volume

Press ◀/▶ on the projector or VOL - / + on the remote control to adjust the volume.

Note

- Pressing ⏻ or ◀ will lower the volume. Pressing ⊕ or ▶ will raise the volume.

INPUT1 INPUT2 INPUT3 INPUT4 INPUT buttons

▼On-screen Display of INPUT Mode (Example)

VOL + - Volume buttons

▼On-screen Display

VOLUME 25

Displaying the Black Screen and Turning off the Sound Temporarily

Press on the remote control to temporarily display a black screen and turn off the sound.

Note

AV MUTE

- Pressing again will turn the projected image and sound back on.

Displaying an Enlarged Portion of an Image

Graphs, tables and other portions of projected images can be enlarged. This is helpful when providing more detailed explanations.

1

Press ⊕ on the remote control.

- Enlarges the image.

- Pressing + or enlarges or reduces the projected image.

Note ×1 ×2 ×3 ×4 ×9 ×16 ×36 ×64

- You can change the location of the enlarged image using ▲, ▼, ◀ and ▶.

2

Press 📄 on the remote control to cancel the operation.

•The magnification then returns to ×1.

Note

In the following cases, the image will return to the normal size ( ×1 ).

• When switching the INPUT mode.
• When UNDO has been pressed.
• When the input signal is changed.
• When the input signal resolution and refresh rate (vertical frequency) change.
• When has been pressed.

AV MUTE AV MUTE button

▼On-screen Display

AV MUTE

MOUSE/Adjustment button (▲/▼/◄/►)

ENLARGE (Enlarge/Reduce) buttons

ment (e) UNDO button RESIZE RESIZE button

Freezing a Moving Image

1

Press on the remote control.

•The projected image is frozen.

2

Press again to return to the moving image from the currently connected equipment.

Selecting the Picture Mode

You can select the suitable picture mode for the projected image, such as movie or video game.

PICTURE MODE

Press on the remote control.

- When pressing, the picture mode changes in order of

→STANDARDPRESENTATIONCINEMAGAME

Note

• You can also use on the projector.
• Press return to the "STANDARD" mode.
• This function can also be accessed from the OSD menu (see page 44).

FREEZE FREEZE button

UNDO button PICTURE MODE PICTURE MODE button

This function allows you to modify or customize the resize mode to enhance the input image. Depending on the input signal, you can choose "NORMAL", "DOT BY DOT", "BORDER" or "STRETCH" image.

Resize Mode

RESIZE Press 📄 on the remote control.

• Pressing changes the display as shown on pages 36 and 37.
• To return to the standard image, press while "RESIZE" is displayed on the screen.
• This function can also be accessed from the OSD menu (see page 49).

MOUSE/Adjustment button (▲/▼/◄/►) UNDO button RESIZE RESIZE button

COMPUTER

		NORMAL DOT BY DOT BORDER STRETCH
4:3 aspect ratio	SVGA (800 × 600)	1024 × 768	800 × 600	768 × 576	1024 × 576
	XGA (1024 × 768)		—
	SXGA (1280 × 960)		1280 × 960
	SXGA+ (1400 × 1050)		1400 × 1050
Other aspect ratios	SXGA (1280 × 1024)	960 × 768	1280 × 1024	720 × 576	960 × 576
	1280 × 720	—	—	—	1024 × 576

Input Signal		Output screen image
Computer	Image type	NORMAL DOT BY DOT BORDER			STRETCH
Resolution lower than XGA	4:3 aspect ratio	*	*	*
XGA	4:3 aspect ratio	*		*
Resolution higher than XGA	KKDY]4:3 aspect ratio	*		*
SXGA (1280 × 1024)	5:4 aspect ratio	*		*
1280 × 720	16:9 aspect ratio				*

* Mode for projecting an image with the original aspect ratio without cutting any portions. ■: Cutout area on which images cannot be projected.
: Area where the signals are off screen.

Note

- If "RESIZE" is displayed when you have set "DOT BY DOT" and signals having a higher resolution than XGA are being input, you can move the image so that it appears entirely within the panel by using the adjustment buttons (▲/▼/◄/►) on the remote control. (However, this does not apply when you have set "Resize" from the OSD menu.)

VIDEO

- "STRETCH" is fixed when 540P, 720P or 1080I signals are entered.

Input Signal		Output screen image
	Image typeDVD / Video	NORMAL	BORDER STRETCH
480I, 480P, NTSC, PAL, SECAM	4:3 aspect ratio	*	*
	Letter box	*	*
	Squeezed 16:9 image			*
	Squeezed 4:3 image			*
540P, 720P, 1080I (16:9)	16:9 aspect ratio		—	*
	16:9 aspect ratio(4:3 aspect ratio in 16:9 screen)		—	*

*Mode for projecting an image with the original aspect ratio without cutting any portions.

: Cutout area on which images cannot be projected.
: Area on which the image is not included in the original signals.

The following shows the items that can be set in the projector.

"Picture" menu

INPUT 1 (RGB) / INPUT 2 (RGB)

Picture Picture Mode Standard Contrast 0 - + + Bright 0 - + + Red 0 - + + Blue 0 - + + Bright Boost 10 - + + CLR Temp 7500K sRGB Reset Signal Type Auto SEL./ADJ. ENTER BACK END

INPUT 1 (Component) / INPUT 2 (Component) INPUT 3 / INPUT 4

Picture Picture Mode Standard Contrast 0 - + + Bright 0 - + + Color 0 - + + Tint 0 - + + Sharp 0 - + + Red 0 - + + Blue 0 - + + Bright Boost 3 - + + CLR Temp 7500K Reset SEL./ADJ. ENTER BACK END

Main Menu Sub Menu

*1 Items when inputting component signal through INPUT 1 or INPUT 2, or when selecting INPUT 3 or INPUT 4
*2 Item when inputting RGB signal through INPUT 1 or INPUT 2
*3 Item when selecting INPUT 1 or INPUT 2

"Fine Sync" menu

INPUT 1 / INPUT 2

Fine Sync INPUT 1 Clock 0 - + Phase 0 - + H-Pos 0 - + V-Pos 0 - + Reset Special Modes 640 x 480 Auto Sync Signal Info SEL./ADJ. ENTER BACK END

Main Menu

*4 Item when inputting RGB signal through INPUT 1 or INPUT 2

Note

When using the INPUT 1 or INPUT 2 mode:

- "Fine Sync" menu is only displayed when the projector input is INPUT 1 or INPUT 2.

"Options1" menu

Example: INPUT 3/INPUT 4

Options1 Lamp Timer(Life) Resize OSD Display Video System Background Eco Mode Auto Power Off Menu Position System Lock 0 h ( 100% ) Normal Auto Logo Center SEL./ADJ. BACK ENTER END

Main Menu Sub Menu

*1 Item when inputting RGB signal through INPUT 1 or INPUT 2 *2 Item when selecting INPUT 3 or INPUT 4

"Options2" menu

Options2 Password Auto Keystone Speaker Audio Out PRJ Mode RS-232C Monitor Out All Reset FAO Front 9600bps Enable SEL./ADJ. ENTER BACK END INPUT 1

Main Menu

"Language" menu

Language English Deutsch Español Nederlands Français Italiano Svenska Português 汉语 한국어 日本語 SEL./ADJ. ← ENTER BACK END

Main Menu

Language Page 60 English Deutsch Español Nederlands Français Italiano Svenska Português 汉语 ホンот 日本班

Using the Menu Screen

The menu can be operated to achieve two functions, adjustments and settings. (For setting the menu items, see pages 42 and 43.)

ENTER button Adjustment buttons (▲/▼/◄/►) MENU button

MOUSE/ Adjustment button (▲/▼/◄/►) L-CLICK ENTER ENTER button MENU MENU button R-CLICK UNDO UNDO button

Menu Selections (Adjustments)

Example: Adjusting "Bright"

- This operation can also be performed by using the buttons on the projector.

1 Press

- The "Picture" menu screen for the selected input mode is displayed.

2

Press ▶ or ◀ to display the other menu screens.

- The menu icon for the selected menu screen is highlighted.

Menu icon Menu screen
	Fine Sync
	Options1
	Options2
	Language

Example: "Picture" screen menu for INPUT 1 (RGB) mode

Menu icons Picture INPUT 1 Picture Mode Standard Contrast 0 + Bright 0 + Red 0 + Blue 0 + Bright Boost 10 + CLR Temp 7500K sRGB Reset Signal Type Auto SEL./ADJ. ENTER BACK END

Note

- The "Fine Sync" menu is not available for selecting INPUT 3 or INPUT 4.

3

Press ▲▲r ▼▼ to select the item you want to adjust.

•The selected item is highlighted.

To adjust the pro- jected image while viewing it

Press

• The selected single adjustment item (e.g. "Bright") appears instead of the menu.
• When pressing ▲▲r ▼, the following item ("Red" after "Bright") will be displayed.

Note

- Press to return to the previous screen.

Picture INPUT 1 Picture Mode Standard Contrast 0 + Bright 0 + Red 0 + Blue 0 + Bright Boost 10 + CLH temp 7500K sRGB Reset Signal Type Auto Single adjustment items SEL./ADJ. ENTER BACK END Bright

4

Press ◀ or ▶ to adjust the item selected.

•The adjustment is stored.

Picture Picture Mode Standard Contrast 0 - + Bright 15 - + Red 0 - + Blue 0 - + Bright Boost 10 - + CLR Temp 7500K sRGB Reset Signal Type Auto SEL./ADJ. ENTER BACK END

5

Press

•The menu screen will disappear.

The menu can be operated to achieve two functions, adjustments and settings. (For adjusting the menu items, see pages 40 and 41.)

MOUSE/ Adjustment button (▲/▼/◄►) L-CLICK ENTER ENTER button MENU MENU button R-CLICK UNDO UNDO button

Menu Selections (Settings)

Example: Setting "Menu Position"

- This operation can also be performed by using the buttons on the projector.

1

Press

- The "Picture" menu screen for the selected input mode is displayed.

Example: "Picture" screen menu for INPUT 1 (RGB) mode

Menu icons Picture INPUT 1 Picture Mode Standard Contrast 0 - - + + Bright 0 - - + + Red 0 - - + + Blue 0 - - + + Bright Boost 10 - - + + CLR Temp 7500K sRGB Reset Signal Type Auto SEL./ADJ. ENTER BACK END

2

Press ▶ or ◀ to display the other menu screens.

- The menu icon for the selected menu screen is highlighted.

Menu icon Menu screen
	Fine Sync
	Options1
	Options2
	Language

Example: "Options1" screen menu

Options1 Lamp Timer(Life) Resize OSD Display Background Eco Mode Auto Power Off Menu Position System Lock 0 h ( 100% ) Normal Logo Center SEL./ADJ. BACK ENTER END

Note

- The "Fine Sync" menu is not available for selecting INPUT 3 or INPUT 4.

3

Press ▲▲r ▼▼ to select the item you want to set, and then press ▶ to display the sub menu.

•The selected item is highlighted.
- When you select "System Lock" on the "Options1" menu or "Password" on the

"Options2" menu, press ENTER

Note

• Press or ◀ to return to the previous screen.
• For some items, press ◀ or ▶ to select the icon using “◀”.

4

Press ▲▲r ▼▼o select the setting of the item displayed in the sub menu.

Options1 INPUT 1 Lamp Timer(Life) Resize OSD Display Background Eco Mode Auto Power Off 0 h ( 100% ) Normal Logo Menu Position System Lock Center Upper Right Lower Right Upper Left Lower Left SEL./ADJ. BACK ENTER END Sub menu

Options1 Lamp Timer(Life) Resize OSD Display Background Eco Mode Auto Power Off Menu Position System Lock 0 h ( 100% ) Normal Logo Center Upper Right Lower Right Upper Left Lower Left SEL./ADJ. BACK ENTER END

5

Press

•The selected item is set.

6

Press

•The menu screen will disappear.

You can adjust the projector's picture to your preferences using the "Picture" menu.

Selecting the Picture Mode

This function allows you to select the picture mode in accordance with brightness of the room or content of the image to be projected. In all picture modes, items on the "Picture" menu can be adjusted and saved.

Menu operation ▶ Page 42

Example: "Picture" screen menu for INPUT 1 (RGB) mode

Picture INPUT 1 Picture Mode Standard Contrast 0 - + Bright 0 - + Red 0 - + Blue 0 - + Bright Boost 10 - + CLR Temp 7500K sRGB Reset Signal Type Auto SEL./ADJ. ENTER BACK END

Description of Picture Modes

Selectable items	Description
Standard	For standard image
Presentation	Brightens darker portions of image for more enhanced presentations.
Cinema	Gives greater depth to darker portions of image for a more exciting theater experience.
Game	For natural color gradation for playing a game, etc.

Note

- You can also press on the projector or on the remote control to select the picture mode. (See page 35.)

Adjusting the Image

Select a picture mode before adjusting the image.

Menu operation Page 40

Example: "Picture" screen menu for INPUT 1 (RGB) mode

Picture INPUT 1 Picture Mode Standard Contrast 0 - + + Bright 0 - + + Red 0 - + + Blue 0 - + + Bright Boost 10 - + + CLR Temp 7500K sRGB Reset Signal Type Auto SEL./ADJ. ENTER BACK END

Description of Adjustment Items

Selectable items	Press◀	Press▶
Contrast	For less contrast	For more contrast
Bright	For less brightness	For more brightness
Color*1	For less color intensity	For more color intensity
Tint*1	For making skin tones purplish	For making skin tones greenish
Sharp*1	For less sharpness	For more sharpness
Red*2	For weaker red	For stronger red
Blue*2	For weaker blue	For stronger blue

1 "Color", "Tint" and "Sharp" are not displayed when selecting INPUT 1/INPUT 2 and setting the "Signal Type" to "RGB" or setting the "Signal Type" to "Auto" and the input signal is recognized as an RGB signal.

^2 “Red” and “Blue” cannot be adjusted when “sRGB” is set to “ON).

Note

- "Sharp" can be adjusted when 480I, 480P, 540P, 576I, 576P, 720P, 1035I or 1080I signals are detected while "Signal Type" for INPUT 1 or INPUT 2 is set to "Component" or set to "Auto" and the input signal is recognized as a component signal.

- To reset all adjustment items, select "Reset" and press ENTER.

Emphasizing the Contrast

This function emphasizes the bright portions of images to obtain a higher contrast image.

Menu operation Page 40

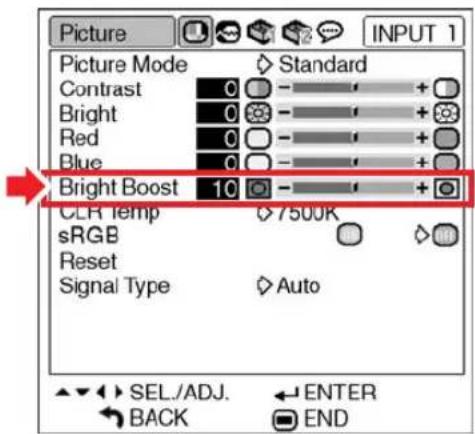

Example: "Picture" screen menu for INPUT 1 (RGB) mode

Picture INPUT 1 Picture Mode Standard Contrast 0 - + + Bright 0 - + + Red 0 - + + Blue 0 - + + Bright Boost 10 - + + CLR temp 7500K sRGB Reset Signal Type Auto SEL./ADJ. ENTER BACK END

Description of Bright Boost Setting

Description To improve color reproduction, lower bright boost setting. To increase brightness, increase bright boost setting.

Note

- "Bright Boost" cannot be set when "sRGB" is set to "☐" (ON).

Adjusting the Color Temperature

Menu operation Page 42

Example: "Picture" screen menu for INPUT 1 (RGB) mode

Picture INPUT 1 Picture Mode Standard Contrast 0 - + + Bright 0 - + + Red 0 - + + Blue 0 - + + Bright Boost 10 - + + CLR Temp 7500K sRGB Reset Signal Type Auto SEL./ADJ. ENTER BACK END

Description of Color Temperature Settings

Selectable items	Description
5500K	For lower color temperature for warmer, reddish incandescent-like images.
6500K
7500K
8500K
9300K	For higher color temperature for cooler, bluish, fluorescent-like images.
10500K

Note

• Values on "CLR Temp" are only for general standard purposes.
• "CLR Temp" cannot be set when "sRGB" is set to "☐" (ON).

sRGB Setting

When you want to display the image in a natural tint based on an original image from the computer, select "sRGB" and set it to "ON".

Menu operation ▶ Page 42

Example: "Picture" screen menu for INPUT 1 (RGB) mode

Picture Picture Mode Standard Contrast 0 - + + Bright 0 - + + Red 0 - + + Blue 0 - + + Bright Boost 10 - + + CLR Temp 7500K sRGB Reset Signal Type Auto SEL./ADJ. ENTER BACK END

Note

• An international standard of color reproduction regulated by the IEC (International Electrotechnical Commission). As the fixed color area has been decided by the IEC, the images are displayed in a natural tint based on an original image, when "sRGB" is set to "☐" (ON).
• You cannot set the items, "Red", "Blue", "CLR Temp", "Bright Boost" on the "Picture" menu, when "sRGB" is set to "ON).
• For additional information about the sRGB function, visit "http://www.srgb.com/".

Info

- When "sRGB" is set to "ON), the projected image may become dark, but this does not indicate a malfunction.

Signal Type Setting

This function allows you to select the input signal type RGB or Component for INPUT 1 or INPUT 2.

Menu operation Page 42

Example: "Picture" screen menu for INPUT 1 (RGB) mode

Picture Picture Mode Standard Contrast 0 - + + Bright 0 - + + Red 0 - + + Blue 0 - + + Bright Boost 10 - + + CLR Temp 7500K sRGB Reset Signal Type Auto SEL./ADJ. ENTER BACK END

Description of Signal Type Settings

Selectable items	Description
Auto	Input signals are automatically recognized as RGB or Component.
RGB	Set when RGB signals are received.
Component	Set when Component signals are received.

Computer Image Adjustment ("Fine Sync" menu)

You can adjust the computer image, match the computer display mode, and confirm the input signal using the "Fine Sync" menu.

Adjusting the Computer Image

Use the Fine Sync function in case of irregularities such as vertical stripes or flickering in portions of the screen.

Menu operation Page 40

Example: "Fine Sync" screen menu for INPUT 1 (RGB) mode

Fine Sync INPUT 1 Clock 0 - + + Phase 0 - + + H-Pos 0 - + + V-Pos 0 - + + Reset Special Modes 640 x 480 Auto Sync Signal Info SEL./ADJ. ← ENTER BACK END

Description of Adjustment Items

Selectable items	Description
Clock	Adjusts vertical noise.
Phase	Adjusts horizontal noise (similar to tracking on your VCR).
H-Pos	Centers the on-screen image by moving it to the left or right.
V-Pos	Centers the on-screen image by moving it up or down.

Note

- You can automatically adjust the computer image by setting "Auto Sync" on the "Fine Sync" menu to "ON" or pressing on the projector or on the remote control. See next page for details.

- To reset all adjustment items, select "Reset" and press ENTER

Special Modes Setting

Ordinarily, the type of input signal is detected and the correct resolution mode is automatically selected. However, for some signals, the optimal resolution mode in "Special Modes" on the "Fine Sync" menu may need to be selected to match the computer display mode.

Menu operation ▶ page 42

Example: "Fine Sync" screen menu for INPUT 1 (RGB) mode

Fine Sync INPUT 1 Clock 0 - + + Phase 0 - + + H-Pos 0 - + + V-Pos 0 - + + Reset Special Modes 640 x 480 Auto Sync Signal Info SEL./ADJ. ← ENTER BACK END

Note

• If your computer displays patterns which repeat every other line (horizontal stripes), flickering may occur which makes the image hard to see.
• See "Checking the Input Signal" on the next page for information on the currently selected input signal.

Auto Sync Adjustment

Used to automatically adjust a computer image.

Menu operation ▶ Page 42

Example: "Fine Sync" screen menu for INPUT 1 (RGB) mode

Fine Sync INPUT 1 Clock 0 - + Phase 0 - + H-Pos 0 - + V-Pos 0 - + Reset Special Modes 640 x 480 Auto Sync Signal Info SEL./ADJ. ← ENTER BACK END

Description of Auto Sync Adjustment

Selectable items	Description
[02Dx] (ON)	Auto Sync adjustment will occur when the projector is turned on or when the input signals are switched, when connected to a computer.
[23OH] (OFF)	Auto Sync adjustment is not automatically performed.

Note

• Auto Sync adjustment is also performed by pressing Ⓗ on the projector or Ⓞ on the remote control.
  • The Auto Sync adjustment may take some time to complete, depending on the image of the computer connected to the projector.
• When the optimum image cannot be achieved with Auto Sync adjustment, use manual adjustments. (See page 47.)

Checking the Input Signal

Menu operation Page 42

Example: "Fine Sync" screen menu for INPUT 1 (RGB) mode

Fine Sync INPUT 1 Clock 0 - + + Phase 0 - + + H-Pos 0 - + + V-Pos 0 - + + Reset Special Modes 640 x 480 Auto Sync Signal Info SEL./ADJ. ← ENTER BACK END

Note

• The projector will display the number of scanned lines available from audio-visual equipment such as a DVD player or Digital Video.
• The projector will display the resolution when connecting the computer.

You can use the "Options1" menu to enhance the usage for the projector.

Checking the Lamp Life Status

You can confirm the cumulative lamp usage time and the remaining lamp life (percentage).

Menu operation ▶ Page 42

Example: "Options1" screen menu for INPUT 1 (RGB) mode

Options1 Lamp Timer(Life) 0h( 100%) Resize OSD Display Background Eco Mode Auto Power Off Menu Position System Lock Normal Logo Center SEL./ADJ. ENTER BACK END

Description of Lamp Timer (Life)

Lamp usage condition		Remaining lamp life
	“Life”	100% 5%
Operated exclusively in Eco mode (☐)		Approx. Approx. 3,000 hours	150 hours
Operated exclusively in Standard mode (☐)		Approx. Approx. 2,000 hours	100 hours

Note

• It is recommended that the lamp be changed when the remaining lamp life becomes 5%.
• The table above indicates rough estimates in the case of using only in each mode shown.
• Remaining lamp life changes within the range of the values shown depending on the frequency at which "Eco Mode" is switched to "☐" (Eco mode) and "☐" (Standard mode). (See page 51.)
  • The lamp life may vary depending on the usage condition.

Setting the Resize Mode

Depending on the input signal, you can select the screen image.

Menu operation Page 42

Example: "Options1" screen menu for INPUT 1 (RGB) mode

Options1 Lamp Timer(Life) 0h ( 100% ) Resize Normal OSD Display Background Logo Eco Mode Auto Power Off Menu Position Center System Lock SEL./ADJ. ENTER BACK END

Selectable items of Resize Modes

•Normal
•Border
- Dot By Dot*
- Stretch

*Item when inputting RGB signal through INPUT 1 or INPUT 2

Note

• For details of the Resize mode, see pages 36 and 37.
• You can also press on the remote control to set the resize mode. (See page 36.)

Setting On-screen Display

This function allows you to turn the on-screen messages on or off.

Menu operation Page 42

Example: "Options1" screen menu for INPUT 1 (RGB) mode

Options1 Lamp Timer(Life) 0 h ( 100%) Resize Normal OSD Display Background Logo Eco Mode Auto Power Off Menu Position Center System Lock SEL./ADJ. ENTER BACK END

Description of OSD Display Settings

Selectable items	Description
(ON)	All On-screen Displays are displayed.
(OFF)	• INPUT/VOLUME/AV MUTE/FREEZE/AUTO SYNC/ENLARGE/ “An invalid button has been pressed.” are not displayed.• “All buttons on Projector are locked.” is displayed when the STANDBY button is pressed while the Keylock function is active.

Setting the Video System

The video input system mode is factory preset to "Auto"; however, a clear picture from the connected audio-visual equipment may not be received, depending on the video signal difference. In that case, switch the video signal.

Menu operation Page 42

Example: "Options1" screen menu for INPUT 3 (Video) mode

Options1 Lamp Timer(Life) Resize OSD Display 0 h ( 100% ) Normal Video System Background Eco Mode Auto Power Off Menu Position System Lock Auto PAL NTSC3.58 SECAM NTSC4.43 PAL-M PAL-N PAL-60 SEL./ADJ. BACK ENTER END

Description of Video Systems

Selectable items	Description
PAL	When connected to PAL video equipment.
SECAM	When connected to SECAM video equipment.
NTSC4.43	When reproducing NTSC signals in PAL video equipment.
NTSC3.58	When connected to NTSC video equipment.

Note

• The video signal can only be set in INPUT 3 or INPUT 4 mode.
• When "Video System" is set to "Auto", you may not receive a clear picture due to signal differences. Should this occur, switch to video system of the source signal.

Selecting a Startup and Background Image

Menu operation ▶Page 42

Example: "Options1" screen menu for INPUT 1 (RGB) mode

Options1 Lamp Timer(Life) Resize OSD Display 0 h ( 100% ) Normal Background Logo Eco Mode Auto Power Off Menu Position System Lock Center SEL./ADJ. BACK ENTER END

Description of Background Images

Selectable items	Description
Logo	SHARP default image
Blue	Blue screen
None	Black screen*

Note

* If the input signal has interference, the screen will be displayed during interference.

Eco Mode

Menu operation Page 42

Example: "Options1" screen menu for INPUT 1 (RGB) mode

Options1 Lamp Timer(Life) Resize OSD Display Background 0 h ( 100% ) Normal Logo Eco Mode Auto Power Off Menu Position System Lock Center SEL./ADJ. BACK ENTER END

Description of Eco Mode

Selectable items	Brightness	Power consumption(When using AC 100V)	Lamp life
(Eco mode)	80%	220 W	Approx.3,000 hours
(Standard mode)	100%	270 W	Approx.2,000 hours

Note

- When "Eco Mode" is set to "Eco mode), the power consumption will decrease and the lamp life will extend. (Projection brightness decreases 20%.)

Auto Power Off Function

Menu operation ▶ Page 42

Example: "Options1" screen menu for INPUT 1 (RGB) mode

Options1 Lamp Timer(Life) Resize OSD Display Background Eco Mode Auto Power Off Menu Position System Lock 0 h ( 100% ) Normal Logo Center SEL./ADJ. BACK ENTER END

Description of Auto Power Off

Selectable items	Description
(T54A) (ON)	The projector automatically enters the standby mode when no input signal is detected for 15 minutes or longer.
(OFF)	The Auto Power Off function will be disabled.

Note

- When the Auto Power Off function is set to “(ON), 5 minutes before the projector enters the standby mode, the message “Enter STANDBY mode in X min.” will appear on the screen to indicate the remaining minutes.

Selecting the Menu Screen Position

Select "Menu Position" on the "Options1" menu and the desired position for the menu screen.

Menu operation Page 42

Example: "Options1" screen menu for INPUT 1 (RGB) mode

Options1 Lamp Timer(Life) Resize OSD Display Background Eco Mode Auto Power Off Menu Position System Lock 0 h ( 100% ) Normal Logo Center SEL./ADJ. ENTER BACK END

Description of Menu Positions

Selectable items	Description
Center	Displayed on the center of the image.
Upper Right	Displayed on the upper right of the image.
Lower Right	Displayed on the lower right of the image.
Upper Left	Displayed on the upper left of the image.
Lower Left	Displayed on the lower left of the image.

System Lock Function

This function prevents unauthorized use of the projector. Once this function is activated, users must enter the correct keycode each time the projector is turned on. We suggest you record the keycode in a safe place where only authorized users have access.

Info

- If you lose or forget your keycode, contact your nearest Sharp Authorized Projector Dealer or Service Center (see page 70). Even if the product warranty is valid, the keycode reset will incur a charge.

Menu operation ▶ Page 42

Example: "Options1" screen menu for INPUT 1 (RGB) mode

Options1 Lamp Timer(Life) Resize OSD Display Background Eco Mode Auto Power Off Menu Position 0h ( 100%) Normal Logo Center System Lock SEL./ADJ. BACK ENTER END

Setting the keycode

1 Select "System Lock" on the "Options1" menu, then press ENTER.

• A message is displayed.

- Read this message, and press

2 Press the 4 buttons on the remote control or on the projector to enter the preset keycode in "Old Code".

- When setting the keycode for the first time, press ▼ on the projector for four times.

▼▼ On-screen Display

System Lock Old Code New Code Reconfirm BACK END

Note

• If you input a wrong keycode, the cursor returns to the first point of the "Old Code".
• The preset keycode is 4 ▼ buttons on the projector. If this keycode is set, the keycode input screen does not appear when turning the power on.

3

Press the 4 buttons on the remote control or on the projector to enter the new keycode in "New Code".

Note

- You cannot use the following buttons for keycode:

•ON button
•STANDBY button
•L-CLICK/ENTER button
•R-CLICK/UNDO button
- MENU button
•ZOOM/FOCUS button
•ZOOM buttons
- FOCUS buttons

- System Lock function recognizes each button on the remote control or on the projector as an individual button, even if they share the same button name. If you set the keycode with the buttons on the projector, use only those buttons on the projector. If you set the keycode with the buttons on the remote control, use only those buttons on the remote control.

4

Enter the same keycode in "Reconfirm".

Note

Not displaying the keycode input screen when turning the projector on

- Press ▼ on the projector for four times in steps 2 and 3 above.

When the System Lock is set

- When System Lock is set, the keycode input screen appears after the power is turned on. When it appears, enter the right keycode to start projection. Failure to enter the keycode will cause images not to be projected even when signals are entered to the projector.

Changing the keycode

System Lock Old Code New Code Reconfirm BACK END

1 Press the buttons on the remote control or on the projector to enter the preset keycode in "Old Code".
2 Press the 4 buttons on the remote control or on the projector to enter the new keycode in "New Code".
3 Enter the same keycode in "Reconfirm".

When System Lock is set

If you have set the system lock, enter the keycode and follow the procedure below to release the system lock.

▼Input screen for keycode

System Lock

Note

• When System Lock is set, the keycode input screen appears after the power is turned on.
• If no keycode is entered, the image will not be displayed, even if the projector receives the input signal.

1 Press on the remote control or on the projector to turn on the projector.

2 When the keycode input screen appears, enter the right keycode to start projection.

Note

- System Lock function recognizes each button on the remote control or on the projector as an individual button, even if they share the same button name. If you set the keycode with the buttons on the projector, use only those buttons on the projector. If you set the keycode with the buttons on the remote control, use only those buttons on the remote control.

Keylock Function

Use this function to lock the operation buttons on the projector.

■ Locking the Operation Buttons

Hold down ☐ on the projector for about 3 seconds while the projector is being turned on.

▼On-screen Display

Keylock function ON

• The keylock function does not affect the operation with the remote control buttons.
• You cannot use the keylock function while the projector is warming up.

■ Taking the Keylock off

Hold down on the projector for about 3 seconds.

▼On-screen Display

Keylock function OFF

- When the projector is in standby mode, you can release the keylock by holding down on the projector for about 3 seconds.

Helpful Functions Set during Installation (“Options2” menu)

Setting a Password

- There is no factory preset for the password, so the "Options2" menu is enabled. - If you do not want others to operate the "Options2" menu, set a password.

Menu operation Page 42

Example: "Options2" screen menu

Options2 INPUT 1 Password Auto Keystone Speaker Audio Out FAO PRJ Mode Front RS-232C 9600bps Monitor Out Enable All Reset SEL./ADJ. ENTER BACK END

Password Old Password - - - - New Password - - - - Reconfirm - - - - - BACK END

1 Select "Password" from the "Options2" menu, and press ENTER.
• The screen for entering the password is displayed.

2 Press ▲▲r ▼▼ to set the first digit in "New Password" and then press ▶.

3 Enter the remaining 3 digits and press ENTER.

4 Enter the same password in "Re- confirm" and press

Note

- The password must be entered to use the "Options2" menu when a password has been set.

Changing the Password

Password Old Password New Password Reconfirm BACK END

1 Press ▲▲▼▼ and ▶ to enter the password in "Old Password" and press L-CUCK ENTER.

2 Press ▲▲▼ and ▶ to set the new password in "New Password" and press L-CLICK ENTER.

3 Enter the same 4-digit password in "Reconfirm" and press

Note

• If you do not want to set a password, leave the fields blank in steps 2 and 3 and press
  • To cancel the password settings, press

If You Forget Your Password

If you forget the password, delete it using the following procedure and set a new password.

Note

• If is held down for more than 3 seconds, the operation buttons on the projector will be locked. (See page 54.)
• You can only use the buttons on the projector to delete the password.

Auto Keystone Setting

When the image is projected either from the top or from the bottom towards the screen at an angle, the image becomes distorted trapezoidally. This trapezoidal distortion is corrected automatically.

Menu operation ▶ Page 42

Example: "Options2" screen menu

Options2 INPUT 1 Password Auto Keystone Speaker Audio Out FAO PRJ Mode Front RS-232C 9600bps Monitor Out Enable All Reset SEL./ADJ. ENTER BACK END

Description of Auto Keystone

Selectable items	Description
(ON)	The projected image is corrected trapezoidal distortion automatically.
(OFF)	The projected image is not corrected trapezoidal distortion automatically.

Note

• Trapezoidal distortion can be corrected with the Auto Keystone Correction function for angles up to about 12 degrees vertically with respect to the screen.
• When the screen is slanting or the image is deteriorated, set "Auto Keystone" to "OFF).
• You can make corrections manually when you want to make fine adjustments after the Auto Keystone Correction function has been activated. (See page 31.)

Speaker Setting

This function allows you to set the audio output of the internal speaker to “☐” (ON) or “☐” (OFF) such as when the projector is connected to an external amplifier.

Menu operation ▶ page 42

Example: "Options2" screen menu

Options2 Password Auto Keystone Speaker Audio Out PRJ Mode RS-232C Monitor Out All Reset FAO Front 9600bps Enable SEL./ADJ. ENTER BACK END

Description of Speaker Settings

Selectable items	Description
(ON)	The audio signal is output from the internal speaker.
(OFF)	The audio signal is not output from the internal speaker.

Setting the Audio Output Type

This function determines whether the audio level output from the AUDIO OUTPUT terminal is fixed or variable by linking with VOLUME.

Menu operation Page 42

Example: "Options2" screen menu

Options2 Password Auto Keystone Speaker Audio Out FAO PRJ Mode Front RS-232C 9600bps Monitor Out Enable All Reset SEL./ADJ. ENTER BACK END

Description of Audio Out Settings

Selectable items	Description
FAO(Fixed Audio Output)	Audio output that does not vary in strength with the volume level of the source projector.
VAO(Variable Audio Output)	Audio output that varies in strength with the volume level of the source projector.

Info

- When "Audio Out" has been set to "VAO", first make sure to lower the volume of the projector before turning the power on or off and when switching the input.

Reversing/Inverting Projected Images

This projector is equipped with a reverse/invert image function that allows you to reverse or invert the projected image for various applications.

Menu operation Page 42

Example: "Options2" screen menu

Options2 Password Auto Keystone Speaker Audio Out FAO PRJ Mode Front RS-232C 9600bps Monitor Out Enable All Reset SEL./ADJ. ENTER BACK END

Description of PRJ Modes

Selectable items	Description
Front	Normal image
Ceiling + Front	Inverted image
Rear	Reversed image
Ceiling + Rear	Reversed and inverted image

Note

- This function is used for the reversed image and ceiling-mount setups. (See page 20.)

Selecting the Transmission Speed (RS-232C)

Make sure that both the projector and computer are set for the same baud rate.

Menu operation ▶ page 42

Example: "Options2" screen menu

Options2 Password Auto Keystone Speaker Audio Out PBJ Mode FAO Front RS-232C 9600bps Monitor Out Enable All Reset SEL./ADJ. ENTER BACK END

Description of RS-232C

Selectable items	Description
9600 bps	Transmission speed is slow.↑↓Transmission speed is rapid.
115200 bps

Note

• Refer to the "SETUP GUIDE" contained on the supplied CD-ROM for RS-232C Specifications and Command Settings.
• Refer to the computer's operation manual for instructions for setting the computer's baud rate.

Monitor Output Settings

When the Monitor Out has been set to "Enable", the monitor output is activated and power is consumed even in the standby mode. It is recommended that the Monitor Out be set to "Disable" when it is not connected. This reduces power consumption when the projector is in the standby mode.

Menu operation Page 42

Example: "Options2" screen menu

Options2 Password Auto Keystone Speaker Audio Out PRJ Mode RS-232C Monitor Out All Reset FAO Front 9600bps Enable SEL./ADJ. ENTER BACK END

Description of Monitor Out

Selectable items	Description
Enable	The monitor output function is activated even if the projector is in standby mode.
Disable	The monitor output function is switched off when the projector is in standby mode.

Returning to the Default Settings

This function allows you to initialize the settings you have made in the projector.

Menu operation ▶ Page 42

Example: "Options2" screen menu

Options2 INPUT 1 Password Auto Keystone Speaker Audio Out FAO PRJ Mode Front RS-232C 9600bps Monitor Out Enable All Reset SEL./ADJ. ENTER BACK END

Note

The following items or menu cannot be initialized.

• "Fine Sync" menu Special Modes
• "Options1" menu Lamp Timer (Life) System Lock
• "Language" menu

Selecting the On-screen Display Language

The projector can switch the on-screen display language among 11 languages: English, German, Spanish, Dutch, French, Italian, Swedish, Portuguese, Chinese, Korean or Japanese.

Example: "Language" screen menu for INPUT 1 (RGB) mode

Language English Deutsch Español Nederlands Français Italiano Svenska Português 汉语 한국어 日本語 SEL./ADJ. ← ENTER BACK END

C-CLICK ENTER ENTER button MENU MENU button MOUSE/Adjustment button (▲/▼/▲/▲)

1 Press MENU on the remote control.

•The "Picture" menu will be displayed.

2 Press ◀ or ▶ to select the “Language” menu icon (💡).

• The "Language" menu will be displayed.

3 Press ▲ or ▼ to select the desired language, and then press

•The language you selected will be set as the on-screen display.

4 Press MENU • The "Language" menu will disappear.

Note

- This procedure can also be performed by using the buttons on the projector.

Maintenance

Cleaning the projector

■ Ensure the power cord is unplugged before cleaning the projector.
■ The cabinet as well as the operation panel is made of plastic. Avoid using benzene or thinner, as these can damage the finish on the cabinet.
■ Do not use volatile agents such as insecticides on the projector.

Do not attach rubber or plastic items to the projector for long periods.

The effects of some of the agents in the plastic may cause damage to the quality or finish of the projector.

Mild detergent Mild detergent diluted with water Wax Thinner

■ Wipe off dirt gently with a soft flannel cloth.
■ When the dirt is hard to remove, soak a cloth in a mild detergent diluted with water, wring the cloth well and then wipe the projector.

Strong cleaning detergents may discolor, warp or damage the coating on the projector. Make sure to test on a small, inconspicuous area on the projector before use.

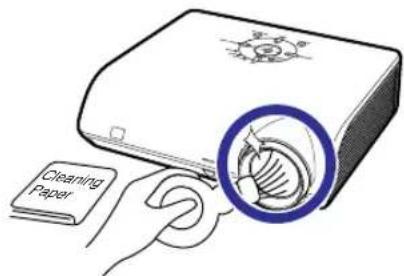

Cleaning the lens

■ Use a commercially available blower or lens cleaning paper (for glasses and camera lenses) for cleaning the lens. Do not use any liquid type cleaning agents, as they may wear off the coating film on the surface of the lens.
■ As the surface of the lens can easily get damaged, ensure not to scrape or hit the lens.

Cleaning Paper

Cleaning the exhaust and intake vents

■ Use a vacuum cleaner to clean dust from the exhaust vent and the intake vent.

Illustration of a medical device with two blue circular insets showing internal components (no text or symbols)

Info

- If you want to clean the air vents during projector operation, ensure to press ON the projector or ON the remote control and put the projector into standby mode. After the cooling fan has stopped, unplug the power cord from the AC socket and clean the vents.

Maintenance Indicators

■ The warning lights on the projector indicate problems inside the projector.
If a problem occurs, either the temperature indicator or the lamp indicator will illuminate red, and the projector will enter the standby mode. After the projector has entered the standby mode, follow the procedures given below.

Maintenance Indicators Power indicator Lamp indicator Temperature warning indicator ON POWER LAMP TEMP STANDBY INPUT KEYSTONE VOL ZOOM / FOCUS AUTO SYNC MENU PICTURE MODE

About the temperature warning indicator

TEMP.

If the temperature inside the projector increases, due to blockage of the air vents, or the setting location, "TEMP." will illuminate in the lower left corner of the picture. If the temperature keeps on rising, the lamp will turn off and the temperature warning indicator will blink, the cooling fan will run for a further 90 seconds, and then the projector will enter the standby mode. After "TEMP." appears, ensure to perform the measures described on page 63.

About the lamp indicator

Change The Lamp.

■ When the remaining lamp life becomes 5% or less, “☒” (yellow) and “Change The Lamp.” will be displayed on the screen. When the percentage becomes 0%, it will change to “☒” (red), the lamp will automatically turn off and then the projector will automatically enter the standby mode. At this time, the lamp indicator will illuminate in red.
■ If you try to turn on the projector a fourth time without replacing the lamp, the projector will not turn on.

Maintenance indicator			Problem	Cause Possible solution
	Normal	Abnormal
Temperature warning indicator	Off	Red on (Standby)	The internal temperature is abnormally high.	• Blocked air intake
				•Cooling fan break-down•Internal circuit failure•Clogged air intake
Lamp indicator	Green on (Green blinks when the lamp is warming up or shutting down.)	Red on	The lamp does not illuminate.	•The lamp is shut down abnormally.
			Time to change the lamp.	•Remaining lamp life becomes 5% or less.
		Red on (Standby)	The lamp does not illuminate.	•Burnt-out lamp•Lamp circuit failure

Info

• If the temperature warning indicator illuminates and the projector enters the standby mode, check whether any of the ventilation holes are blocked (see page 7) and then try turning the power back on. Wait until the projector has cooled down completely before plugging in the power cord and turning the power back on. (At least 10 minutes.)
• If the power is turned off for a brief moment due to power outage or some other cause while using the projector, and the power supply recovers immediately after that, the lamp indicator will illuminate in red and the lamp may not be lit. In this case, unplug the power cord from the AC outlet, replace the power cord in the AC outlet and then turn the power on again.
• Do not unplug the power cord after the projector has entered the standby mode and while the cooling fan is running. The cooling fan runs for about 90 seconds.

Lamp

It is recommended that the lamp unit (optional: AN-MB60LP) be replaced when the remaining lamp life becomes 5% or less, or when you notice a significant deterioration in the picture and color quality. The lamp life (percentage) can be checked with the on-screen display. See page 49.
■ Purchase a replacement lamp unit of type AN-MB60LP from your place of purchase, nearest Sharp Authorized Projector Dealer or Service Center.

IMPORTANT NOTE TO U.S. CUSTOMERS:

The lamp included with this projector is backed by a 90-day parts and labor limited warranty. All service of this projector under warranty, including lamp replacement, must be obtained through a Sharp Authorized Projector Dealer or Service Center. For the name of the nearest Sharp Authorized Projector Dealer or Service Center, please call toll-free: 1-888-GO-SHARP (1-888-467-4277).

Hg LAMP CONTAINS MERCURY For State Lamp Disposal Information

www.lamprecycle.org or 1-800-BE-SHARP

U.S.A. ONLY

Caution Concerning the Lamp

This projector utilizes a pressurized mercury lamp. A loud sound may indicate lamp failure. Lamp failure can be attributed to numerous sources such as: excessive shock, improper cooling, surface scratches or deterioration of the lamp due to a lapse of usage time.
The period of time up to failure largely varies depending on the individual lamp and/or the condition and the frequency of use. It is important to note that failure can often result in the bulb cracking.
■ When the lamp replacement indicator and on-screen display icon are illuminated, it is recommended that the lamp be replaced with a new one immediately, even if the lamp appears to be operating normally.
■ Should the lamp break, the glass particles may spread inside the lamp cage or gas contained in the lamp may be vented into the room from the exhaust vent. Because the gas in this lamp includes mercury, ventilate the room well if the lamp breaks and avoid all exposure to the released gas. In case of exposure to the gas, consult a doctor as soon as possible.
■ Should the lamp break, there is also a possibility that glass particles may spread inside of the projector. In such a case, it is recommended you contact your nearest Sharp Authorized Projector Dealer or Service Center to assure safe operation.

Replacing the Lamp

Caution

• Do not remove the lamp unit from the projector right after use. The lamp will be very hot and may cause burn or injury.
• Wait at least one hour after the power cord is disconnected to allow the surface of the lamp unit to fully cool before removing the lamp unit.

■ Carefully change the lamp by following the instructions described in this section. *If you wish, you may have the lamp replaced at your nearest Sharp Authorized Projector Dealer or Service Center.

* If the new lamp does not illuminate after replacement, take your projector to the nearest Sharp Authorized Projector Dealer or Service Center for repair.

Removing and Installing the Lamp Unit

Info

• Ensure the lamp unit is removed using the handle. Ensure the glass surface of the lamp unit or the inside of the projector are not touched.
  • To avoid injury to yourself and damage to the lamp, ensure to carefully follow the steps below.
• Do not loosen other screws except for the lamp unit cover and lamp unit.

1

Press

on the projector or

STANDBY

on the remote control to putprojector into standby mode.

- Wait until the cooling fan stops.

Warning!

- Do not remove the lamp unit from the projector right after use. The lamp and parts around the lamp will be very hot and may cause burn or injury.

2

Disconnect the power cord.

• Unplug the power cord from the AC socket.
• Leave the lamp until it has fully cooled down (about 1 hour).

3

Remove the lamp unit cover.

- Turn the projector over. Loosen the user service screw (①) that secures the lamp unit cover. Pressing the tab, remove the lamp unit cover (②).

Regarding the Lamp

4

Remove the lamp unit.

- Loosen the securing screws from the lamp unit. Hold the lamp unit by the handle and pull it in the direction of the arrow. At this time, keep the lamp unit horizontal and do not tilt it.

5

Insert the new lamp unit.

- Press the lamp unit firmly into the lamp unit compartment. Fasten the securing screws.

6

Replace the lamp unit cover.

- Align the lamp unit cover and slide it to close. Then tighten the user service screw to secure the lamp unit cover.

Info

- If the lamp unit and lamp unit cover are not correctly installed, the power will not turn on, even if the power cord is connected to the projector.

Resetting the Lamp Timer

Reset the lamp timer after replacing the lamp.

Info

- Make sure to reset the lamp timer only when replacing the lamp. If you reset the lamp timer and continue to use the same lamp, this may cause the lamp to become damaged or explode.

1

Connect the power cord.

- Plug the power cord into the AC socket of the projector.

2

Reset the lamp timer.

- While simultaneously holding down ▼, and on the projector, press on the projector.

- “LAMP 0000H” is displayed, indicating that the lamp timer is reset.

Securing screws Handle

Technical line drawing showing a mechanical assembly with two screwdrivers and a component, no text or symbols present.

User service screw (for lamp unit cover)

AC socket

ON button ENTER button ▼ button MENU button

Computer Compatibility Chart

The table below lists signal codes that are compatible with the projector. When the images are distorted or cannot be projected, adjust the output signal of your computer and so forth while referring to the table below.

Computer

•Multiple signal support

Horizontal Frequency: 15–70 kHz

Vertical Frequency: 43–85 Hz

Pixel Clock: 12–108 MHz

Sync signal: Compatible with TTL level

• Compatible with sync on green signal
  • SXGA+ and SXGA compatible in intelligent compression
  • Intelligent Compression and Expansion System resizing technology

The following is a list of modes that conform to VESA. However, this projector supports other signals that are not VESA standards.

PC/MAC/WS	Resolution VESA Standard		Horizontal Frequency (kHz)	Vertical Frequency (Hz)		Display
PC	VGA	640 × 350	27.0	60		Upscale
			31.5	70
			37.5	85	√
		640 × 400	27.0	60
			31.5	70
			37.9	85	√
		720 × 350	27.0	60
			31.5	70
		720 × 400	27.0	60
			31.5	70
			37.9	85	√
		640 × 480	26.2	50
			31.5	60	√
			34.7	70
			37.9	72	√
			37.5	75	√
			43.3	85	√
	SVGA	800 × 600	31.4	50
			35.1	56	√
			37.9	60	√
			46.6	70
			48.1	72	√
			46.9	75	√
			53.7	85	√
	XGA	1,024 × 768	35.5	43		True
			40.3	50
			48.4	60	√
			56.5	70	√
			60.0	75	√
			68.7	85	√
	SXGA	1,152 × 864	55.0	60		Intelligent Compression
			66.2	70
			67.5	75	√
		1,280 × 1,024	64.0	60	√
	SXGA+	1,400 × 1,050	64.0	60
MAC 13"	VGA	640 × 480	34.9	67		Upscale
MAC 16"	SVGA	800 × 600	37.8	60
		832 × 624	49.7	75
MAC 19"	XGA	1,024 × 768	60.2	75		True
MAC 21"	SXGA	1,152 × 870	68.7	75		Intelligent Compression

Note

• This projector may not be able to display images from notebook computers in simultaneous (CRT/LCD) mode. Should this occur, turn off the LCD display on the notebook computer and output the display data in "CRT only" mode. Details on how to change display modes can be found in your notebook computer's operation manual.
• When this projector receives 640 × 350 VESA format VGA signals, "640 × 400" appears on the screen.
• When projecting the RGB interlace signal using INPUT 1/2 with "Signal Type" set to "Auto" or "RGB", the image may not be projected as desired. In this case, select either INPUT 3 (Video) or INPUT 4 (S-Video).

DTV

Signal	Horizontal Frequency (kHz)	Vertical Frequency (Hz)
480I	15.7	60
480P	31.5	60
540P	33.8	60
576I	15.6	50
576P	31.3	50
720P	45.0	60
1035I	28.1	50
1035I	33.8	60
1080I	28.1	50
1080I	33.8	60

Problem	Check	Page
No picture and no sound or projector does not start.	•Projector power cord is not plugged into the wall outlet.	29
	•Power to the external connected devices is off.	—
	•The selected input mode is wrong.	33
	•The AV MUTE function is working.	34
	•Cables incorrectly connected to rear panel of the projector.	23,25-28
	•Remote control batteries have run out.	15
	•External output has not been set when connecting notebook computer.	67
	•The lamp unit cover is not installed correctly.	65,66
Sound is heard but no picture appears.	•Cables incorrectly connected to the rear panel of the projector.	23,25-28
	•“Bright” is set to minimum position.	44
Color is faded or poor.	•Image adjustments are incorrectly set.	44
	(Video Input only)•Video input system is incorrectly set.(INPUT 1, INPUT 2 only)•Input signal type (RGB/Component) is incorrectly set.	5046
Picture is blurred; noise appears.	•Adjust the focus.	32
	•The projection distance exceeds the focus range.	19
	(Computer Input only)•Perform “Fine Sync” Adjustments. (“Clock” Adjustment)•Perform “Fine Sync” Adjustments. (“Phase” Adjustment)•Noise may appear depending on the computer.	4747—
Picture appears but no sound is heard.	•Cables incorrectly connected to rear panel of the projector.	23,25-28
	•Volume is set to minimum.	33
An unusual sound is occasionally heard from the cabinet.	•If the picture is normal, the sound is due to cabinet shrinkage caused by room temperature changes. This will not affect operation or performance.	—
Maintenance indicator illuminates or blinks in red.	•See “Maintenance Indicators”.	62
The projector cannot be turned on or put into the standby mode using the ON or STANDBY button on the projector.	•The keylock is set.If the keylock is set to ON, all the buttons are locked.CheckProblem Page	54
Picture is green on INPUT 1 (COMPONENT)/INPUT 2 (COMPONENT).	•Change the input signal type setting.	46
Picture is pink (no green) on INPUT 1 (RGB)/INPUT 2 (RGB).
Picture is too bright and whitish.	•Image adjustments are incorrectly set.	44
The cooling fan becomes noisy.	•When temperature inside the projector increases, the cooling fan runs faster.	—
The lamp does not light up even after the projector turns on.	•The lamp indicator is illuminating in red.Replace the lamp.	62
The lamp suddenly turns off during projection.
The image sometimes flickers.	•Cables incorrectly connected to the projector or the connected equipment works improperly.•If this happens frequently, replace the lamp.	23,25-2865
The lamp takes a long time to turn on.	•The lamp will eventually need to be changed.The lamp has reached the end of its life. Replace the lamp.	65
Picture is dark.

This projector is equipped with a microprocessor. Its performance could be adversely affected by incorrect operation or interference. If this should happen, unplug the projector and plug it in again after more than 5 minutes.

If you encounter any problems during setup or operation of this projector, first refer to the "Troubleshooting" section on pages 68 and 69. If this operation manual does not answer your question, please contact the SHARP Service departments listed below.

U.S.A. Sharp Electronics Corporation

1-888-GO-SHARP (1-888-467-4277)

[e-mail]

http://www.sharplcd.com

Canada Sharp Electronics of Canada Ltd.

[phone]

http://www.sharp.ca

Mexico Sharp Electronics Corporation Mexico

Branch

[phone]

http://www.sharp.com.mx

Latin America Sharp Electronics Corp. Latin American Group

[phone]

[e-mail]

http://www.siempresharp.com

Germany Sharp Electronics (Europe) GMBH

01805-234675

http://www.sharp.de

U.K. Sharp Electronics (U.K.) Ltd.

0161-205-2333

[e-mail]

http://www.sharp.co.uk

Italy Sharp Electronics (Italy) S.P.A.

(39) 02-89595-1

http://www.sharp.it

France Sharp Electronics France

01 49 90 35 40

[e-mail]

http://www.sharp.fr

Spain Sharp Electronica Espana, S.A.

93 5819700

[e-mail]

http://www.sharp.es

Switzerland Sharp Electronics (Schweiz) AG

0041 1 846 63 11

[e-mail]

http://www.sharp.ch

Sweden Sharp Electronics ( Nordic ) AB

(46) 8 6343600

[e-mail]

http://www.sharp.se

Austria Sharp Electronics (Europe) GMBH

Branch Office Austria

0043 1 727 19 123

[e-mail]

http://www.sharp.at

Benelux SHARP Electronics Benelux BV

0900-SHARPCE (0900-7427723)

Nederland

9900-0159 Belgium

http://www.sharp.nl

http://www.sharp.be

http://www.sharp.lu

Australia Sharp Corporation of Australia

Pty. Ltd.

1300-135-022

http://www.sharp.net.au

New Zealand Sharp Corporation of New Zealand

[phone], [phone]

http://www.sharpnz.co.nz

Singapore Sharp-Roxy Sales (S) Pte. Ltd.

65-226-6556

[e-mail]

http://www.sharp.com.sg

Hong Kong Sharp-Roxy (HK) Ltd.

(852) 2410-2623

[e-mail]

http://www.sharp.com.hk

Taiwan Sharp Corporation (Taiwan)

0800-025111

http://www.sharp-scot.com.tw

Malaysia Sharp-Roxy Sales & Service Co.

(60) 3-5125678

U.A.E. Sharp Middle East Fze

971-4-81-5311

[e-mail]

Thailand Sharp Thebnakorn Co. Ltd.

02-236-0170

[e-mail]

http://www.sharp-th.com

Korea Sharp Electronics Incorporated of Korea

(82) 2-3660-2002

[e-mail]

http://www.sharpkorea.co.kr

India Sharp Business Systems (India)

Limited

(91) 11-6431313

[e-mail]

Specifications

Product type	Multimedia Projector
Model	PG-MB60X
Video system	NTSC3.58/NTSC4.43/PAL/PAL-M/PAL-N/PAL-60/SECAM/DTV480I/DTV480P/DTV540P/DTV576I/DTV576P/DTV720P/DTV1035I/DTV1080I
Display method	Single Chip Digital Micromirror DeviceTM (DMDTM) by Texas Instruments
DMD panel	Panel size: 0.7"No. of dots: 786,432 dots (1,024 [H] × 768 [V])
Lens	1.5 × electric zoom/focus lens, F2.0–2.5, f = 21.3–31.6 mm
Projection lamp	200 W DC lamp
Component input (INPUT 1/2)/output (OUTPUT) signal	15-pin mini D-sub connectorY: 1.0 Vp-p, sync negative, 75 Ω terminatedPB: 0.7 Vp-p, 75 Ω terminatedPR: 0.7 Vp-p, 75 Ω terminated
Horizontal resolution	750 TV lines (DTV720P)
Computer RGB input (INPUT 1/2)/output (OUTPUT) signal	15-pin mini D-sub connectorRGB separate/sync on green type analog input: 0–0.7 Vp-p, positive, 75 Ω terminatedHORIZONTAL SYNC. SIGNAL: TTL level (positive/negative)VERTICAL SYNC. SIGNAL: Same as above
Video input signal(INPUT 3)	RCA connector: VIDEO, composite video, 1.0 Vp-p, sync negative, 75 Ωterminated
S-video input signal(INPUT 4)	4-pin mini DIN connectorY (luminance signal): 1.0 Vp-p, sync negative, 75 Ω terminatedC (chrominance signal): Burst 0.286 Vp-p, 75 Ω terminated
Audio input signal	ø3.5 mm minijack: AUDIO, 0.5 Vrms, more than 22 kΩ (stereo)
USB terminal	4-pin B-type USB female connector
RS-232C terminal	9-pin mini DIN connector
Pixel clock	12–108 MHz
Vertical frequency	43–85 Hz
Horizontal frequency	15–70 kHz
Audio output	2.0 W (monaural)
Speaker system	4.0 cm × 2.85 cm oval × 1
Rated voltage	AC 100–240 V
Input current	2.7 A
Rated frequency	50/60 Hz
Power consumption	270 W (Standard mode)/220 W (Eco mode) with AC 100 V255 W (Standard mode)/210 W (Eco mode) with AC 240 V
Power consumption (standby)	5 W (AC 100 V) – 6 W (AC 240 V)
Heat dissipation	1,015 BTU/hour (Standard mode)/960 BTU/hour (Eco mode) with AC 100 V960 BTU/hour (Standard mode)/760 BTU/hour (Eco mode) with AC 240 V
Operating temperature	41°F to 104°F (+5°C to +40°C)
Storage temperature	-4°F to 140°F (-20°C to +60°C)
Cabinet	Plastic
I/R carrier frequency	38 kHz
Dimensions (approx.)	12 7/32" × 3 33/64" × 11 7/64" (310 (W) × 89 (H) × 282 (D) mm) (main body only)12 7/32" × 4 7/64" × 11 5/16" (310 (W) × 104 (H) × 287 (D) mm) (including adjustment foot and projecting parts)
Weight (approx.)	8.8 lbs. (4.0 kg)
Replacement parts	Lamp unit (Lamp/cage module) (AN-MB60LP), Remote control (RRMCGA342WJSA), Power cord for U.S., Canada, etc. (QACCDA010WJPZ), Power cord for Europe, except U.K. (QACCVA011WJPZ), Power cord for U.K., Hong Kong and Singapore (QACCBA036WJPZ), Power cord for Australia, New Zealand and Oceania (QACCLA018WJPZ), RGB cable (QCNWGA045WJPZ), USB cable (QCNWGA014WJPZ), Storage case (GCASNA014WJSA), Lens cap (RCAPHA021WJSA), Projector manual and technical reference CD-ROM (UDSKAA053WJZZ), "QUICK GUIDE" label (TLABZA793WJZZ), Operation manual (TINS-B526WJZZ)

As a part of policy of continuous improvement, SHARP reserves the right to make design and specification changes for product improvement without prior notice. The performance specification figures indicated are nominal values of production units. There may be some deviations from these values in individual units.

Glossary

Aspect Ratio

Width and height ratio of an image. The normal aspect ratio of a computer and video image is 4:3. There are also wide images with an aspect ratio of 16:9 and 21:9.

Auto Sync

Optimizes projected computer images by automatically adjusting certain characteristics.

Background

Initial setting image projected when no signal is being output.

Border

Projects a 4:3 image fully within a 16:9 screen by keeping the aspect ratio at 4:3.

Clock

Clock adjustment is used to adjust vertical noise when clock level is incorrect.

CLR Temp (Color temperature)

Function that can be used to adjust the color temperature to suit the type of image input to the projector. Decrease the color temperature to create warmer, reddish images for natural flesh tones, or increase to create cooler, bluish images for a brighter picture.

Dot by dot

Mode that projects images in their native resolution.

Intelligent compression

High quality resizing of lower and higher resolution images to fit the projector's native resolution.

Keylock

Mode that can lock the operation of projector buttons to prevent unauthorized adjustment.

Keystone Correction

Function to digitally correct a distorted image when the projector is set up at an angle, smoothens out jaggies on keystone images and compresses the image not only horizontally but vertically keeping the 4:3 aspect ratio.

Password

A password is set so that changes cannot be made in the "Options2" setting.

Phase

Phase shift is a timing shift between isomorphic signals with the same resolution. When phase level is incorrect, the projected image typically displays horizontal flicker.

Picture Mode

Image quality enhancement function that offers a richer image by brightening the darker portions of the image without altering the brightness of the brighter portions. You can select four different modes: STANDARD, PRESENTATION, CINEMA and GAME.

Resize

Allows you to modify or customize the picture display mode to enhance the input image. You can select four different modes: NORMAL, DOT BY DOT, BORDER and STRETCH.

sRGB

An international standard of color reproduction regulated by the IEC (International Electrotechnical Commission). As the fixed color area has been decided by the IEC, the color changes according to DLP features, so that the images are displayed in a natural tint based on an original image, when "sRGB" is set to "ON".

Stretch

Mode that stretches the 4:3 image horizontally to display it fully on a 16:9 screen.

System Lock

If the "Keycode" set in the projector is not correctly entered, the projector will not operate even if signals are entered.

AC socket 29

Adjustment buttons 40

Aspect ratio 36,37

AUDIO INPUT terminal 23

AUDIO OUTPUT terminal 28

Auto Keystone 56

Auto Power Off 52

Auto Sync (Auto Sync adjustment) 48

AUTO SYNC button 48

AV MUTE button 34

Background 51

Blue 44

Border 36,49

Bright....44

Bright Boost 45

Cinema.... 44

Clock 47

CLR Temp (Color Temperature) 45

Color 44

Contrast 44

DIN-D-sub RS-232C adaptor 27

Dot By Dot 36,49

Eco Mode 51

ENLARGE buttons 34

ENTER button 40

Exhaust vent 7,13,61

Fine Sync 38,47

FOCUS buttons 32

FREEZE button 35

Front adjustment foot 30

Game 44

Keystone Correction 31

Lamp 64

Lamp indicator 62

Lamp Timer (Life) 49

Language (on-screen display language) ..... 39,60

L-CLICK/ENTER button 24,40

Lens cap 11

MENU button 40

Menu Position 52

MOUSE/Adjustment button 24,40

Normal 36,49

ON button 29

Optional accessories 10

Options1 39,49

Options2 39,55

OSD Display 50

OUTPUT (INPUT 1, 2) terminal 28

Password 55

PDF 9

Phase 47

Picture 38,44

Picture Mode 44

PICTURE MODE button 35

Power cord 29

Power indicator 12

Presentation 44

PRJ mode 57

R-CLICK/UNDO button 24,40

Rear adjustment feet 30

Red 44

Remote control 14

Remote control sensor 15

Replacing the lamp 64

RESIZE button 36

RGB cable....23

RS-232C terminal 27

Sharp 44

Signal Info 48

Signal Type 46

Special Modes 47

sRGB 46

Standard 44

STANDBY button 29

Storage case 18

Stretch 36,49

Supplied accessories 10

System Lock 53

Temperature warning indicator 62

Tint 44

USB terminal 23

Video System 50

Volume buttons 33

V-Pos 47

Zoom buttons 32

ZOOM/FOCUS button 32

SHARP®

SHARP CORPORATION
