Product Type	Alarm Clock Radio with CD Player
Brand	RCA
Model	RP4010
Power Supply	120V~60Hz
Power Consumption	40 Watts
Battery Backup	2 x AAA batteries (not included)
Dimensions (approx.)	8 x 5 x 3 inches (20 x 13 x 8 cm)
Weight (approx.)	2 lbs (0.9 kg)
Radio Bands	AM / FM
Preset Stations	11 (including AL for alarm station)
CD Compatibility	5-inch CDs only
CD Play Modes	Repeat, Repeat All, Shuffle, Repeat Shuffle
Alarm Modes	Alarm Tone, Radio, CD
Wake Features	Dual Wake (Wake 1 and Wake 2), Gradual Wake (tone volume increases)
Snooze	Adjustable 1-30 minutes (default 9 minutes), up to 2 hours total
Sleep Timer	1 minute to 2 hours
Nap Timer	10 minutes to 2 hours (10-minute intervals)
Weekend Cancel	Disables alarms on Saturday and Sunday
Display	Digital with dimmer control
Antennas	FM: power cord; AM: built-in ferrite rod
Remote Control	Included
Warranty	1 year (US and Canada)
Cleaning	Wipe with a soft, dry cloth
Safety	Polarized plug, do not expose to rain or moisture, replace fuse with same type

Frequently Asked Questions - RP4010 RCA

How do I set the clock on my RCA RP4010?

Press SET repeatedly until the clock icon appears on the display. Then press << or >> to adjust the time. Hold the button for faster adjustment. The clock uses a 12-hour format, so check AM/PM.

How do I set the alarm (wake) time?

Press SET repeatedly until WAKE 1 or WAKE 2 flashes. Then press << or >> to set the wake time. Press SET again to exit. Note: you cannot set wake time while the radio is on.

How do I change the wake mode from radio to CD or tone?

Press WAKE 1 or WAKE 2 repeatedly to cycle through the options: alarm tone (), radio (), or CD (). The icon on the display will indicate the selected mode.

Why is the display blinking after a power outage?

A blinking display indicates that AC power was interrupted and the clock/alarm settings may have been reset. You need to readjust the time and alarm settings. To avoid this, install 2 AAA batteries for backup (not included).

How do I use the CD player?

Press OPEN to open the CD compartment, insert a 5-inch CD (label side up), and close the door. Press Play/pause to start playback. Use Rev or Fwd to skip tracks, or hold to search. Press STOP to stop. The unit supports repeat, shuffle, and repeat shuffle modes via CD MODE.

How do I preset radio stations?

Tune to the desired station using << or >>. Press SET once, then press MEMO RECALL repeatedly to choose a preset number (1-10 or AL for alarm station). Press SET again to confirm. To recall presets, press MEMO RECALL.

How does the snooze function work?

When the alarm sounds, press SNOOZE to silence it temporarily. The default snooze period is 9 minutes, but you can adjust it from 1 to 30 minutes by holding SNOOZE and pressing << or >>. The alarm will reappear after the set period. Snooze can be used repeatedly for up to 2 hours total.

What is the Weekend Cancel feature?

Weekend Cancel disables the wake alarms on Saturdays and Sundays while keeping them active Monday through Friday. To activate, press and hold WEEKEND CANCEL for 5 seconds until the icon appears on the display. Press and hold again to deactivate.

How do I adjust the display brightness?

When not in CD or radio mode, press << or >> to adjust the dimmer level. The default is the brightest setting. You can change it to a lower brightness for nighttime.

What should I do if the CD player shows 'nd'?

'nd' means no disc detected. This can happen if no disc is inserted, the disc is scratched or upside down, or a non-compatible disc (e.g., MP3 CD) is used. Ensure you use a standard 5-inch audio CD. If the problem persists, try cleaning the disc or the lens.

USER MANUAL RP4010 RCA

WARNING: TO PREVENT FIRE OR ELECTRICAL SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

FCC Information

FCC Information

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

In accordance with FCC requirements, changes or modifications not expressly approved by Thomson Inc. could void the user's authority to operate this product.

This device generates and uses radio frequency (RF) energy, and if not installed and used properly, this equipment may cause interference to radio and television reception.

If this equipment does cause interference to radio or television reception (which you can determine by unplugging the unit), try to correct the interference by one or more of the following measures:

• Re-orient the receiving antenna (that is, the antenna for the radio or television that is "receiving" the interference).
• Move the unit away from the equipment that is receiving interference.
• Plug the unit into a different wall outlet so that the unit and the equipment receiving interference are on different branch circuits.

If these measures do not eliminate the interference, please consult your dealer or an experienced radio/television technician for additional suggestions. Also, the Federal Communications Commission has prepared a helpful booklet, "How To Identify and Resolve Radio TV Interference Problems." This booklet is available from the U.S. Government Printing Office, Washington, DC 20402. Please specify stock number 004-000-00345-4 when ordering copies.

CAUTION: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE FUSE.

For Your Safety

The AC power plug is polarized (one blade is wider than the other) and only fits into AC power outlets one way. If the plug will not go into the outlet completely, turn the plug over and try to insert it the other

way. If it still does not fit, contact a qualified electrician to change the outlet, or use a different one. Do not attempt to bypass this safety feature.

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

Technical Specification

Product: Clock Radio with CD player

Brand: RCA

Model: RP4010

Electrical Consumption

Power Supply: 120V\~60Hz

Power Consumption: 40 Watts

IMPORTER

In the event that service should be required, you may need both the model number and the serial number. In the space below, record the date and place of purchase:

Date of Purchase:

Place of Purchase:

Service Information

This product should be serviced only by those specially trained in appropriate servicing techniques. For instructions on how to obtain service, refer to the warranty included in this Guide.

Battery Back-Up Operation

EN

This clock radio is equipped with a memory holding system that can be powered with 2 "AAA" batteries (not included). The power failure protection circuit will not operate unless battery is installed.

When normal household power is interrupted, or the AC line cord is unplugged, the battery will power the clock radio to keep track of time and alarm settings programmed into memory. When the battery backup functions, the digital display will not light, however, the function of alarm still occurs during the power interruption if the remaining battery power is adequate. Normal operation will resume after AC power is restored so you will not have to reset the time or the alarm.

Install battery as follow:

1. Unlock the battery compartment door (located at the bottom of the radio) by sliding the tab away from the door.
2. Remove the battery compartment door.
3. Insert 2 "AAA" batteries.
4. Replace the compartment door and slide the tab to lock battery compartment.

Power Failure Indicator

When AC power is interrupted (disconnected) for a short period of time, both time and alarm settings will change (unless optional battery is installed). After AC power is restored (reconnected), the Digital Display will blink to indicate that power was interrupted and you should readjust the time and alarm settings.

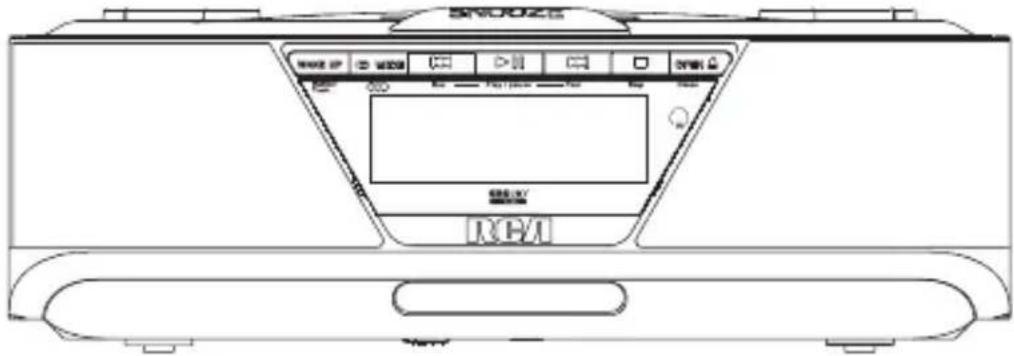

General Controls

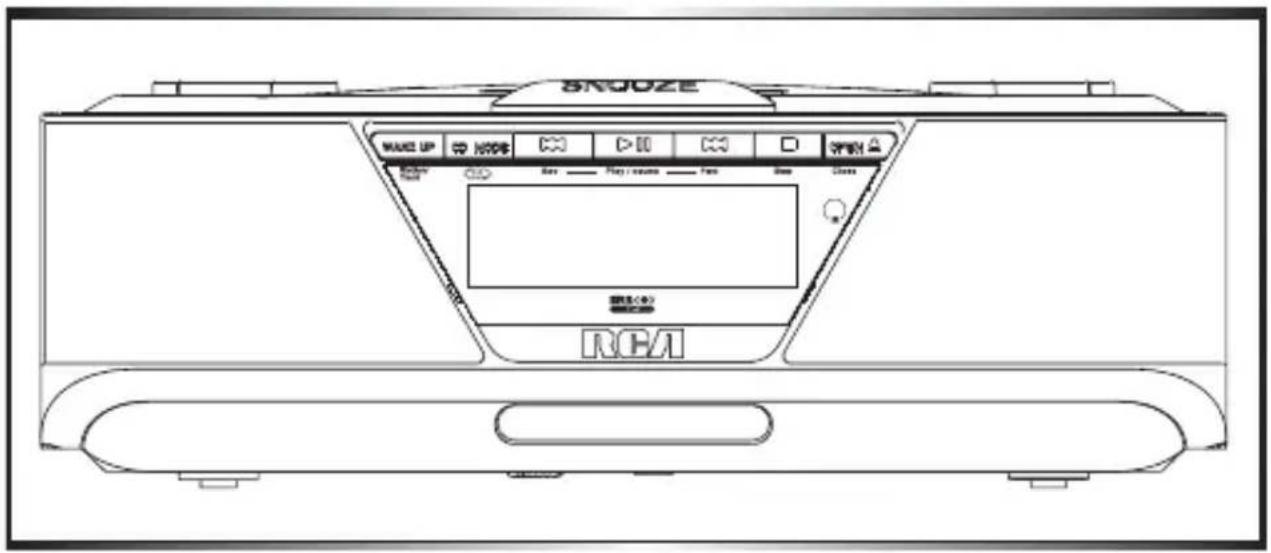

Line drawing of a CD-ROM front panel with control buttons and display screen (no text or symbols)

WAKE UP Station / Track - sets the wake up radio station or CD track.

CD MODE - selects repeat / repeat all / shuffle / repeat shuffle in CD mode.

Rev - skips / searches backward.

Play / pause - starts / pauses CD playback.

Fwd - skips / searches forward.

Stop - stops CD playback.

Open / close - opens / closes the CD compartment.

NAP - sets the alarm to sound after a specific period of time. (Alarm tone only)

WEEKEND CANCEL - activates Weekend Cancel function.

SLEEP - activates SLEEP function.

WAKE 1 - activates WAKE 1 setting, press

repeatedly to cycle wake mode:

WAKE 2 - activates WAKE 2 setting, press

repeatedly to cycle wake mode:

CANCEL - cancels WAKE setting.

SNOOZE - turns off the alarm momentarily.

MEMO RECALL - recalls available preset radio stations.

<< / >> - changes time / radio frequency / CD track

SET - sets clock / wake time; store preset memory in radio mode.

VOLUME CONTROL - rotates to adjust volume

RADIO ON/BAND- turns on the radio / changes radio band

OFF - turns off the radio / alarm / CD

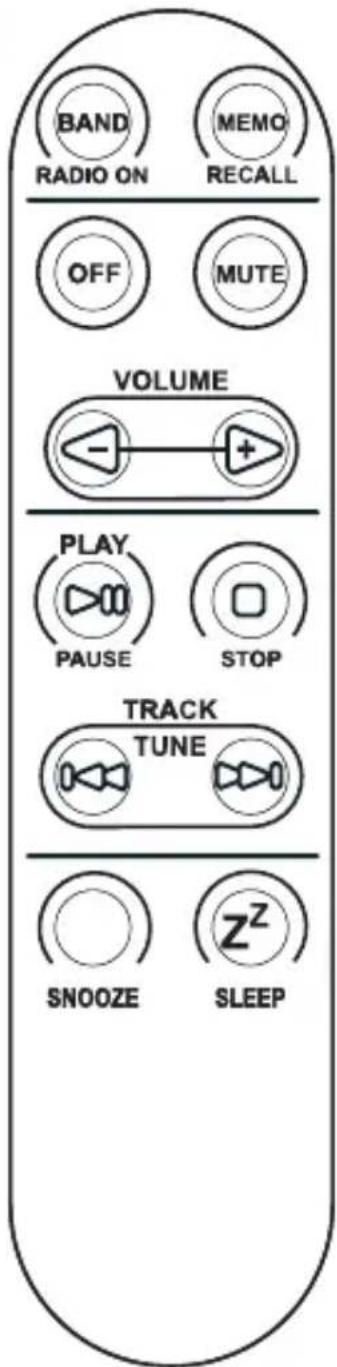

Remote Control

EN

RADIO ON / BAND- turns on the radio / changes radio band

MEMO RECALL - recalls available preset radio stations.

OFF - turns off the CD / radio / alarm tone

MUTE - mutes the volume.

VOLUME - / + - adjusts the volume.

Play / pause - starts / pauses CD playback.

Stop - stops CD playback.

TRACK / TUNE I<< / >>I - changes time / radio frequency / CD track

SNOOZE - turns off the alarm momentarily.

SLEEP - activates the SLEEP function.

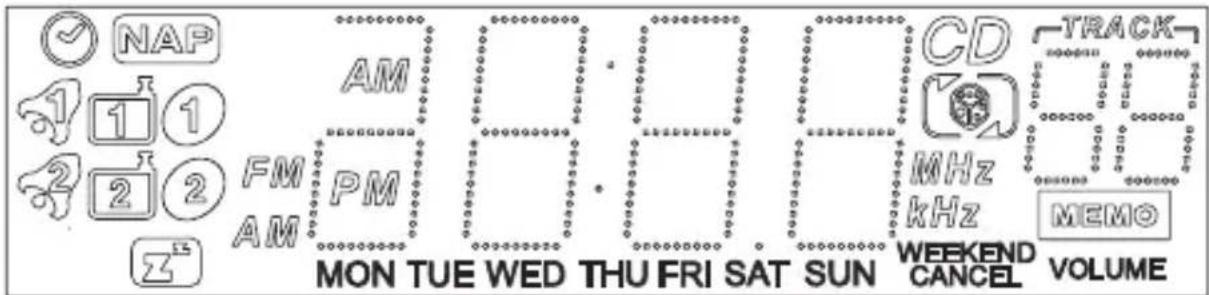

Display

Clock Display

- In clock setting mode.

WEEKEND CANCEL - Weekend Cancel is activated. Wake settings are activated during Mon to Fri, but are cancelled on Sat and Sun.

NAP - Nap activated.

- Sleep activated.

AM - In AM radio band.

FM - In FM radio band.

CD - In CD mode.

- repeats the current track.

- repeats the whole disc.

- plays tracks randomly.

- plays random track repeatedly.

- In CD mode, displays track number.

- No disc detected.

88 - In radio mode, displays memory recall number.

- Displays when the alarm radio station is set.

MHz / kHz - Radio frequency unit.

MON TUE WED THU FRI SAT SUN - Day indicator

88 VOLUME - Volume level (min. 00 - max. 79)

Wake 1 and Wake 2 Display

/1/9 - Wake 1 source.

/2/3 - Wake 2 source.

- Wake to CD.

- Wake to alarm tone.

- Wake to radio.

AM - AM time indicator.

PM - PM time indicator.

38:88 - Wake time.

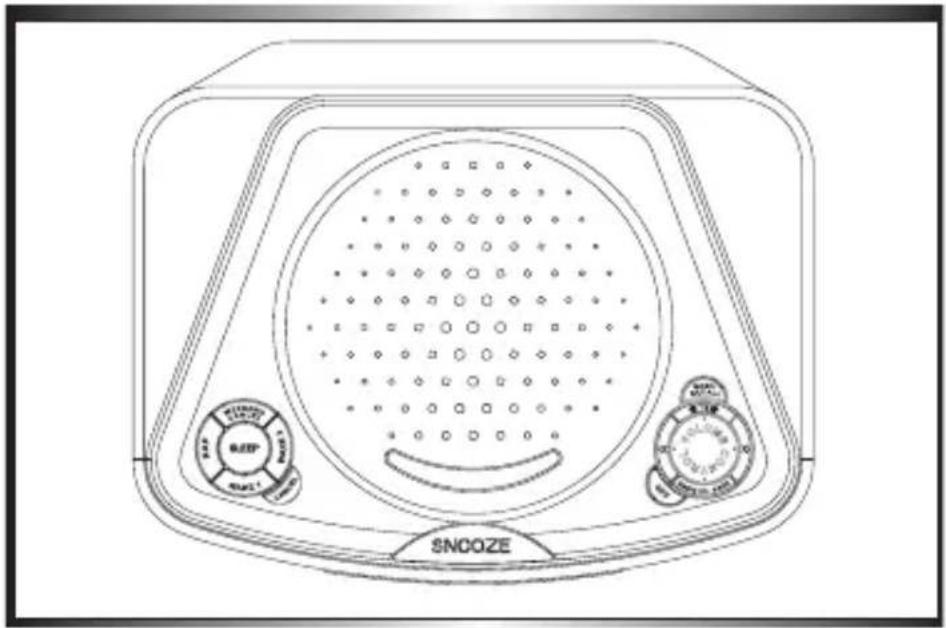

Setting the Clock

EN

Line drawing of a SNOOZE air purifier with control knobs and a central circular vent (no text or symbols)

Setting Clock Time

Your digital clock operates on a 12-hour standard mechanism. AM or PM will show on the display accordingly.

When you first turn on the unit:

1. The clock icon 📋 shows on the display
2. Press << or >> to set the clock time. When you press and hold << or >>, the time decrements or increments will follow by a faster rate.

Or you can adjust the clock anytime by following below procedures:

1. Press SET repeatedly until the clock icon

shows on the display.

1. Press << or >> to set the clock time. When you press and hold << or >>, the time decrements or increments will follow by a faster rate.

Setting the Day

1. Press SET repeatedly until the day indicator flashes on the display.
2. Press << or >> to set the day.

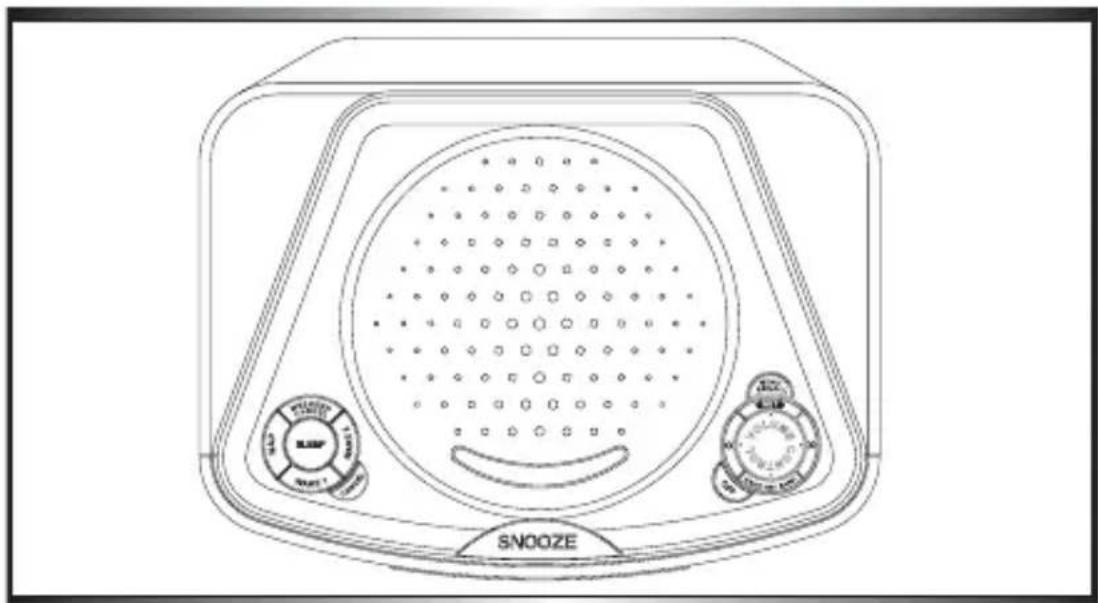

Operating the Radio

Line drawing of a snooze appliance with circular vent and control knobs (no text or symbols)

EN

Antennas

FM antenna - The power cord acts as your FM antenna. It picks up moderate to strong radio stations and eliminates the need for an external antenna in most strong signal areas. Be sure the power cord is stretched to its full length. Do not coil or bunch the cord together. Changing position of the power cord may improve reception.

AM Antenna - A built-in ferrite rod antenna eliminates the need for an outside antenna for AM reception. Rotating the unit slightly may improve reception of distant AM stations.

Tuning the Stations

1. Plug the power cord into any 120V AC household outlet.
2. Press RADIO ON/BAND (located on the top of the radio) to turn on the radio.
3. Press RADIO ON/BAND to select the desired broadcast band.
4. Press << or >> to tune to your desired radio station.
5. Press OFF to turn off the radio.

Operating the Radio

EN

Setting the Preset Radio Stations

1. Press RADIO ON/BAND to turn on the radio.
2. Press RADIO ON/BAND to change the broadcast band.
3. Press << or >> to tune to your desired radio station.
4. If you want to memorize this radio station, press SET once, and then press MEMO RECALL repeatedly to choose the radio station number you want to record in.
5. Press SET again to confirm.
6. If you set the radio station in the AL location, it will be the wake up radio station of the alarm.

Note: Note:

This unit can store up to 11 preset radio stations, while AL location is for the wake up radio station.

Automatic Radio Station Search

1. Press RADIO ON/BAND (located on the top of the radio) to turn on the radio.
2. Press and hold << or >> for 2 seconds, it will automatically search a radio station for you.

Selecting the Preset Radio Stations

1. Press RADIO ON/BAND to turn on the radio.
2. Press MEMO RECALL repeatedly to select your desired preset radio station.

Overwriting the Preset Radio Stations

1. First, press << or >> to tune your desired preset radio station.
2. Press SET once and then press MEMO RECALL repeatedly to choose the radio station number you want to overwrite.
3. Press SET again to confirm.

Deleting the Preset Radio Stations

1. Press MEMO RECALL repeatedly to select your preset radio station you want to delete.
2. Press and hold SET for 3 seconds to delete the selected preset radio station.

Operating the Alarm

Setting the Wake Time

1. Press SET repeatedly until WAKE 1

/1/1 or WAKE 2 /2/2 icon flashes on the display.

1. Press << or >> to set the wake time. The time decrements or increments will follow by a faster rate when you press and hold either << or >>.
2. Press SET repeatedly to exit setting wake time mode.

Note: Note:

You cannot set wake time in radio mode.

The unit equips with GRAD=U-WAKEUeWAKEthe alarm tone volume will increase gradually to its maximum in about 30 to 45 seconds.

Attention: Attention:

When the AC power is disconnected, the unit will enter DC backup mode, all wake mode will be reverted

to alarm tone.

Selecting Wake Mode

To change to another wake mode (e.g. from CD to radio), simply press WAKE 1 or WAKE 2 repeatedly to scroll through

wake options.

Waking to Alarm Tone

When waking to alarm tone is selected, the 🔔 icon is displayed.

The unit is equipped with GRAD-U-WAKE feature, the alarm tone volume will increase gradually to its maximum in about 30 to 45 seconds.

Tip: Tip:

If you set the SLEEP function with low volume level before going to bed, we advise using Waking to Alarm Tone mode to wake you up since the volume will automatically increase.

Operating the Alarm

EN

Waking to RADIO

When the waking to radio is selected, the icon is displayed.

1. Set the wake time (see directions on the previous page).
2. Press WAKE 1 or WAKE 2 to select waking up by RADIO d.
3. Rotate VOLUME CONTROL to your desired wake up volume.
4. Press OFF to turn off the radio.

You can select your wake up radio station by the following procedures.

1. Press RADIO ON/BAND to turn on the radio.
2. Press << or >> to tune to your desired radio station.
3. Press and hold WAKE UP Station / Track to store the current radio station as the wake up radio station. Will show on the display.

Note: Note:

"AL" refers to the Alarm Station. If no WAKE

STATION is set, the wake

up radio station will stay at your last listening radio station.

Waking to CD

When the waking to CD is selected, the icon is displayed.

1. Set wake time (see directions on the previous page).

2. Press WAKE 1 or WAKE 2 to select waking up by CD ☐.

3. Rotate VOLUME CONTROL to your desired wake up volume.
4. Press OFF to turn off the radio.

You can select your CD wake up track by the following procedures.

1. In CD mode, while pressing WAKE UP Station / Track, press << or >> to select your desired CD wake up track.

Turning off Alarm

Silence the alarm momentarily

Press SNOOZE. The alarm will sound again when the snooze period is over. (see "Snooze" on page 13).

Stop the alarm

Press OFF. Then, the alarm will be on the following day at the same time.

Disable the alarm permanently

1. Press CANCEL.
2. The WAKE 1 📋/ɪ/① or WAKE 2 📋/ɪ/② icon will flash, while it is flashing, press WAKE 1 or WAKE 2 to cancel the alarm. Corresponding WAKE indicator will disappear.
3. To activate the alarm again, press WAKE 1 or WAKE 2, and the WAKE indicator will appear.

Note: Note:

You can activate the previous wake settings by pressing WAKE 1 WAKEWAKE 2.

Operating the CD Player

EN

Listening to Compact Disc

1. Press OPEN to open the CD compartment.
2. Insert a disc, the compartment will automatically close.
3. Press Play/pause.
4. Adjust volume to your desired level.
5. Press Rev or Fwd to skip backward or forward the CD track.
6. Press and hold Rev or Fwd to search forward or backward the CD track.
7. Press STOP to stop CD playback.

Note: Note:

"nd" will show on the display when no disc is detected. (e.g. scratched CD or mp3 disc is inserted)

Attention: Attention:

The unit only supports 5 inch CD.

Selecting Play Mode

1. Start CD playback.

2. During playback, press CD MODE to toggle between different play modes.

3. repeats the current track.

4. repeats the whole disc.
5. plays tracks randomly.

- plays random track repeatedly.

Warning! Warning!

Do not press on the CD compartment when it is opened.

Note: Note:

When there is no disc in the CD compartment, the pre-installed music tracks will be played.

Alarm Settings

EN

Setting Sleep Time

In sleep mode, the radio and CD will turn off automatically. To set the sleep time, simply:

1. Press SLEEP, then the time display will exhibit 0:59.
2. While holding SLEEP, press << or >> to set the sleep time. The time range is from 1 minute to 2 hours.
3. Release SLEEP and the current time will be shown again.

Sleep to Radio

Turn on the radio after setting the sleep time, you may select the radio station as usual. Once the sleep time is reached, the radio will turn off automatically. Sleep radio station will automatically switch to the last sleep radio station setting. You must reset to sleep to a different radio station.

1. Press RADIO ON/BAND.
2. Press << or >> to tune to the radio station you want to sleep to.

Sleep to CD

Press Play/pause after setting the sleep time to begin CD playback. The unit will turn off automatically once the sleep time is reached.

Viewing Remaining Time

Press SLEEP to read the remaining sleep time.

Tip: Tip:

If you decide to turn off the unit sooner, press SNOOZE or

OFF.

Tip: Tip:

When SLEEP SLEEPvated again, the sleep time will be the same as the one you

have set before.

Alarm Settings

Nap Mode

For catnaps up to 2 hours without disturbing the regular alarm settings, the NAP function wakes you up after a short period of time. Simply:

1. Press NAP, the NAP indicator will flash. While the NAP indicator is flashing, press << or >> to adjust nap time. The time range is from 10 minutes to 2 hours at 10 minutes interval.
2. Press NAP again to confirm, the NAP indicator will show on the display.
3. Press NAP once to show time left.

Stopping the Nap Alarm

When the NAP alarm sounds, you can press OFF to stop it.

Cancelling the Nap Alarm

Press and hold NAP for 5 seconds to cancel the nap setting.

Tip: Tip:

Only alarm tone can be selected in NAP mode.

Snooze

This operation allows extra sleep time after the alarm is on. The alarm will be off by pressing SNOOZE until the snooze period is over. Snooze function can be used repeatedly up to 2 hours. After this, the alarm will turn off until the next alarm conditions are met. Set the "quiet" period as follows:

1. While pressing SNOOZE, press << or >> to set the "quiet" period (the default time is 9 minutes) from 1 minute to 30 minutes. Release button, then the "quiet" period is set.

Weekend Cancel

Wake settings are activated during Mon to Fri, but are cancelled on Sat and Sun. (Work only when wake setting is active)

1. Press and hold WEEKEND CANCEL for 5 seconds.
2. The WEEKEND CANCEL icon will appear on the display.
3. Press and hold WEEKEND CANCEL for 5 seconds to disable the Weekend Cancel function.

Adjusting the Dimmer

Press << or >> to adjust dimmer level. Default is the brightest.

Note: Note:

You cannot adjust the dimmer in CD and radio mode.

U.S. Limited Warranty

EN

What your warranty covers:

- Defects in materials or workmanship.

For how long after your purchase:

• One year from date of purchase.

The warranty period for rental units begins with the first rental or 45 days from date of shipment to the rental firm, whichever comes first.

What we will do:

• Provide you with a new, or at our option, a refurbished unit. The exchange unit is under warranty for the remainder of the original product's warranty period.
• Proof of purchase in the form of a bill of sale or receipted invoice which is evidence that the product is within the warranty period must be presented to obtain warranty service. For rental firms, proof of first rental is also required.

How to make a warranty claim:

• Properly pack your unit. Include any cables, etc., which were originally provided with the product. We recommend using the original carton and packing materials.
• Include evidence of purchase date such as the bill of sale. Also print your name and address and a description of the defect. Send via standard UPS or its equivalent to:

Thomson Inc.

Product Exchange Center

11721 B Alameda Avenue

• Insure your shipment for of loss or damage. Thomson accepts no liability in case of damage or loss en route to Thomson.
• Pay any charges billed to you by the Exchange Center for service not covered by the warranty.
• A new or refurbished unit will be shipped to you freight prepaid.

What your warranty does not cover:

• Customer instruction. (Your Owner's Manual provides information regarding operating Instructions and user controls. For additional information, ask your dealer.)
• Installation and set-up service adjustments.
• Batteries.
• Damage from misuse or neglect.
• Products which have been modified or incorporated into other products.
• Products purchased or serviced outside the USA.
• Acts of nature, such as but not limited to lightning damage.

U.S. Limited Warranty

Limitation of Warranty:

• THE WARRANTY STATED ABOVE IS THE ONLY WARRANTY APPLICABLE TO THIS PRODUCT. ALL OTHER WARRANTIES, EXPRESS OR IMPLIED (INCLUDING ALL IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE) ARE HEREBY DISCLAIMED. NO VERBAL OR WRITTEN INFORMATION GIVEN BY THOMSON INC., ITS AGENTS OR EMPLOYEES SHALL CREATE A GUARANTY OR IN ANY WAY INCREASE THE SCOPE OF THIS WARRANTY.
• REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER. THOMSON INC. SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT OR ARISING OUT OF ANY BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT. THIS DISCLAIMER OF WARRANTIES AND LIMITED WARRANTY ARE GOVERNED BY THE LAWS OF THE STATE OF INDIANA. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED TO THE APPLICABLE WARRANTY PERIOD SET FORTH ABOVE.

How state law relates to this warranty:

• Some states do not allow the exclusion nor limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you.
• This warranty gives you specific legal rights, and you also may have other rights that vary from state to state.

If you purchased your product outside the USA:

This warranty does not apply. Contact your dealer for warranty information.

Canadian Limited Warranty

EN

Thomson multimedia Ltd. warrants to the purchaser or gift recipient that if any manufacturing defect becomes apparent in this product within 1 year from the original date of purchase, it will be replaced free of charge, including return transportation.

This warranty does not include damage to the product resulting from accidents, misuse or leaking batteries.

Should your product not perform properly during the warranty period, either:

1. Return it to the selling dealer with proof of purchase for replacement, OR

2. Remove the batteries (where applicable), and pack product complete with accessories in the original carton (or equivalent). Mail prepaid (with proof of purchase) and insured to:

Thomson multimedia Ltd.

6200 Edwards Blvd.,

Mississauga, Ontario, L5T 2V7

Canada

The provisions of this written warranty are in addition to and not a modification of or subtraction from the statutory warranties and other rights and remedies contained in any applicable legislation, and to the extent that any such provisions purport to disclaim, exclude or limit any such statutory warranties and other rights and remedies, such provisions shall be deemed to be amended to the extent necessary to comply therewith.

If you are unable to find a qualified servicer for out of warranty service, you may write to:

Thomson Inc.

P.O. Box 0944

Indianapolis, Indiana, U.S.A., 46206-0944

Attach your sales receipt to this booklet for future reference. This information is required if service is needed during the warranty period.

PURCHASE DATE

NAME OF STORE
