TABLE OF CONTENTS

SAFETY 4

Important Safety Instruction.... 4

3D Safety Information....5

Copyright 6

Disclaimer....6

Trademark Recognition 6

FCC 7

Declaration of Conformity for EU countries 7

WEEE 7

INTRODUCTION 8

Package Overview....8

Standard accessories....8

Optional accessories 8

Product Overview 9

Connections (1080P / WXGA) 10

Connections (XGA).... 11

Keypad 12

Remote Control 13

SETUP AND INSTALLATION 14

Installing the projector 14

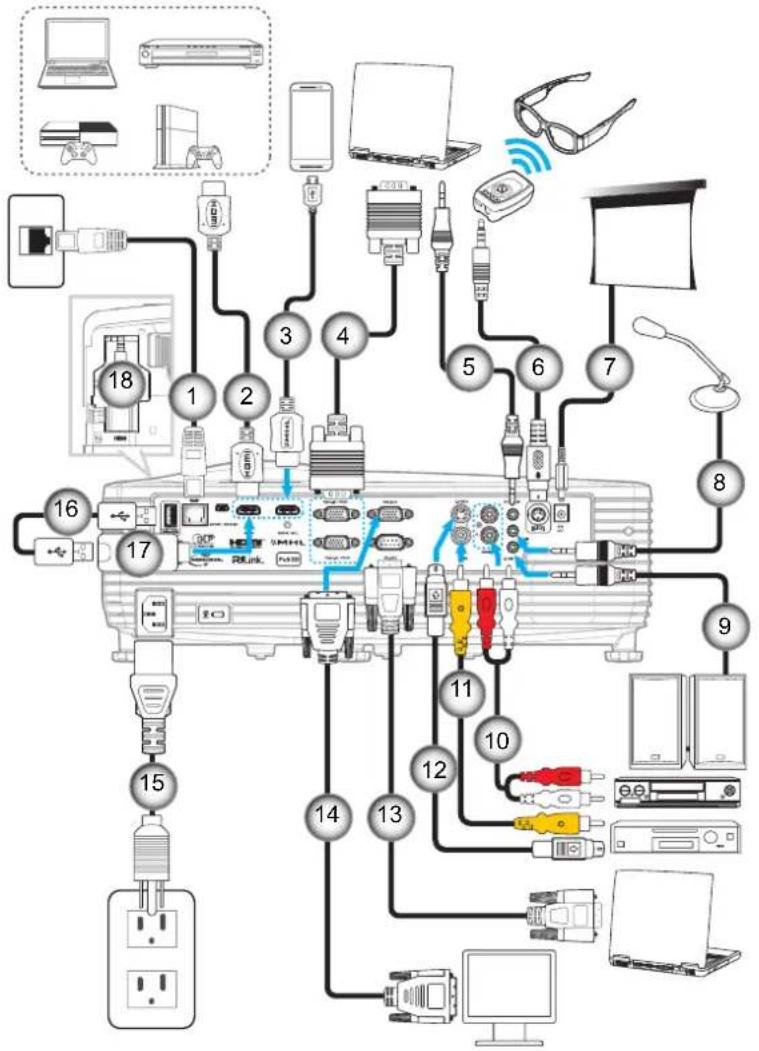

Connecting sources to the projector (1080P / WXGA) 15

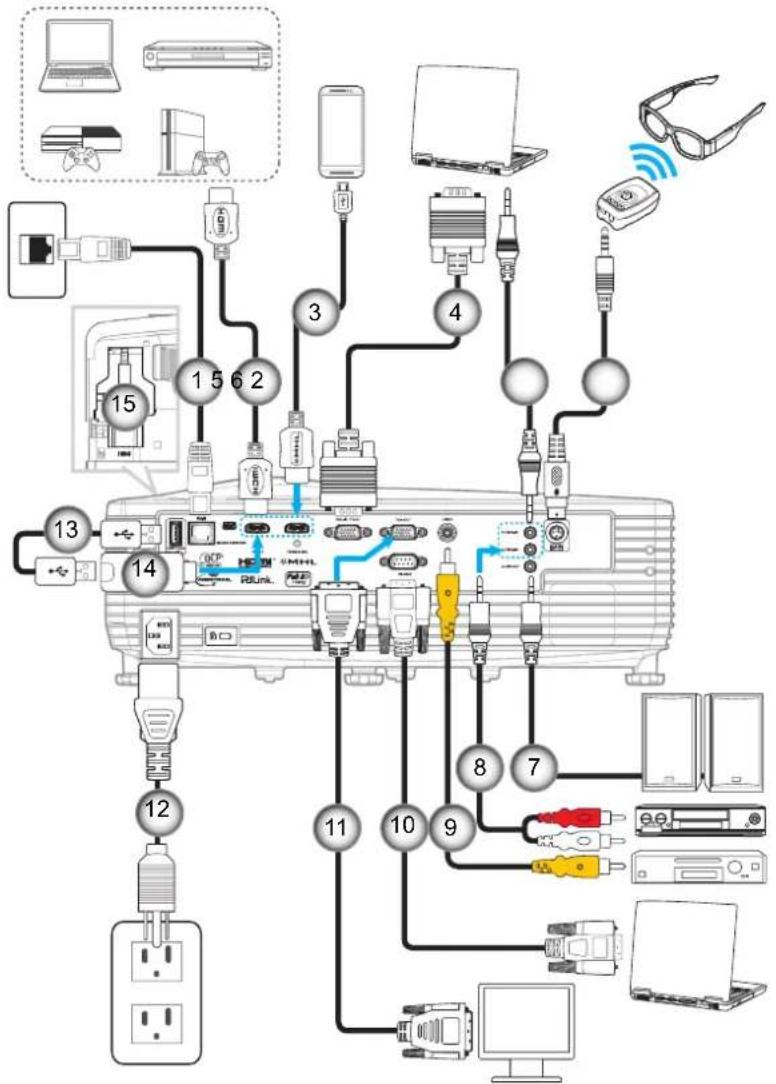

Connecting sources to the projector (XGA).... 16

Adjusting the projector image 17

Remote setup 18

USING THE PROJECTOR 20

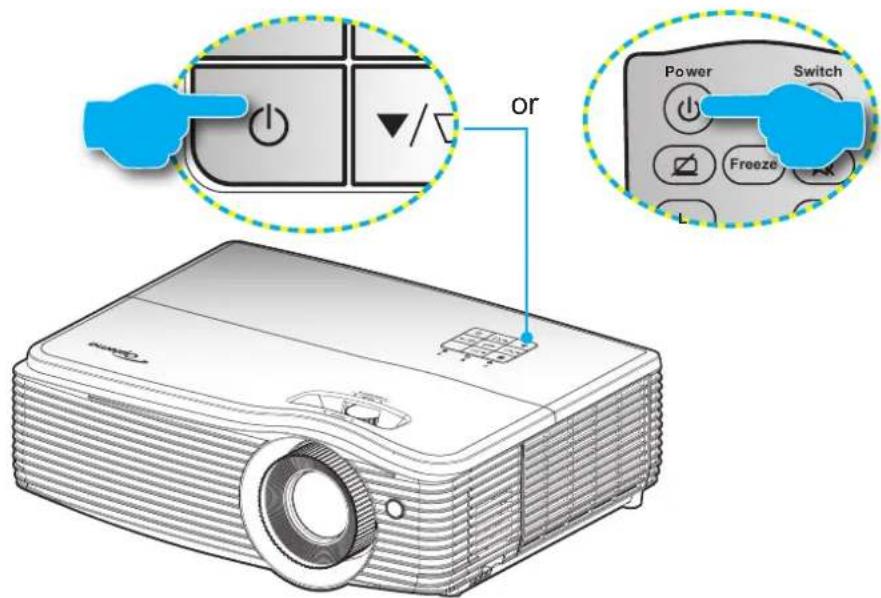

Powering on / off the projector.... 20

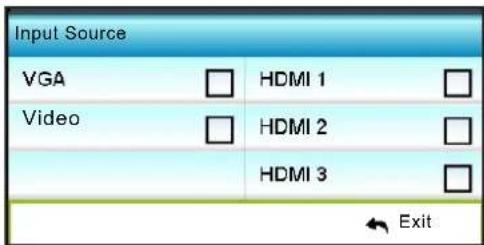

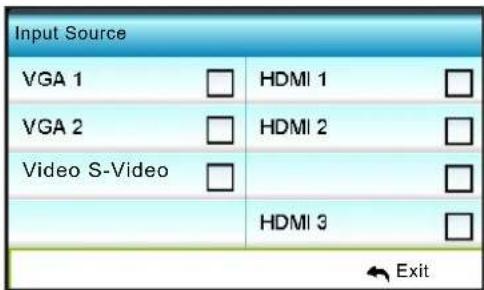

Selecting an input source 21

Menu navigation and features 22

OSD Menu tree.... 23

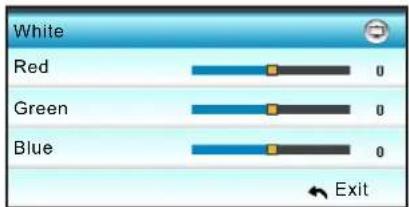

Image menu.... 31

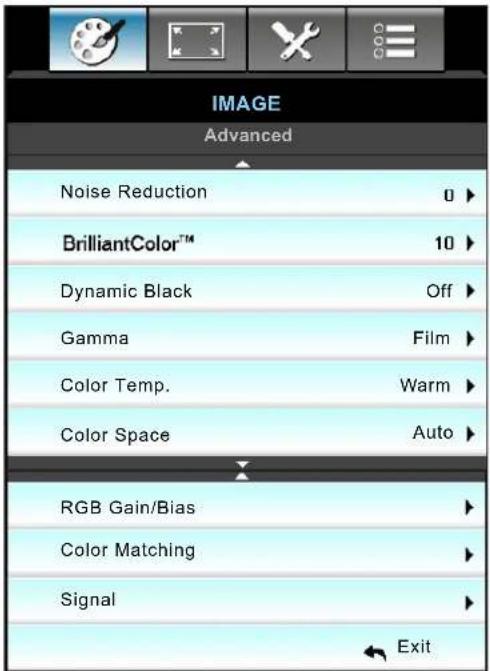

Image Advanced menu.... 33

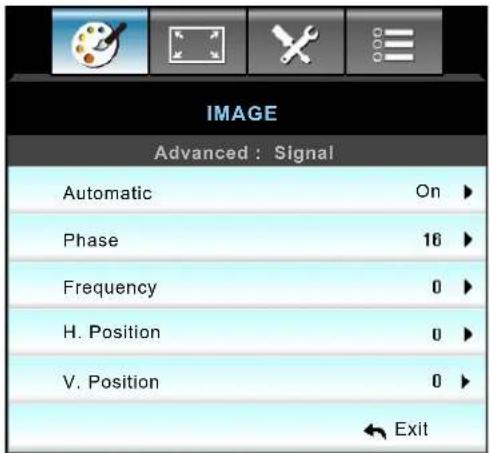

Image advanced signal (RGB) menu 35

Image advanced signal (video) menu 36

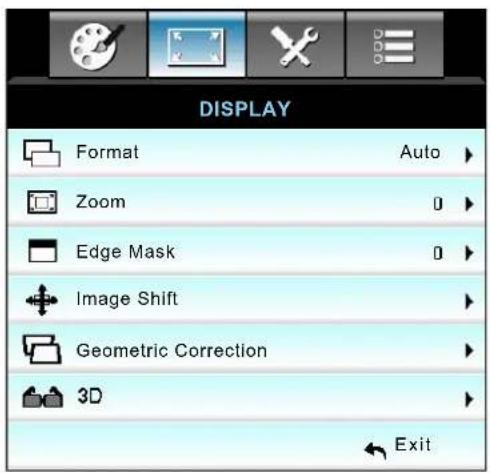

Display menu 37

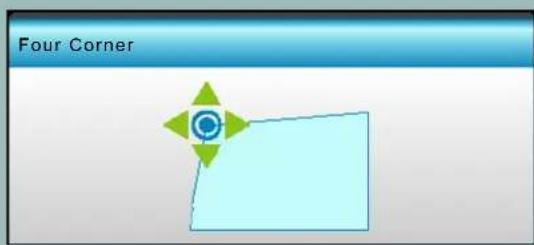

Display geometric correction menu 40

Display 3D menu 41

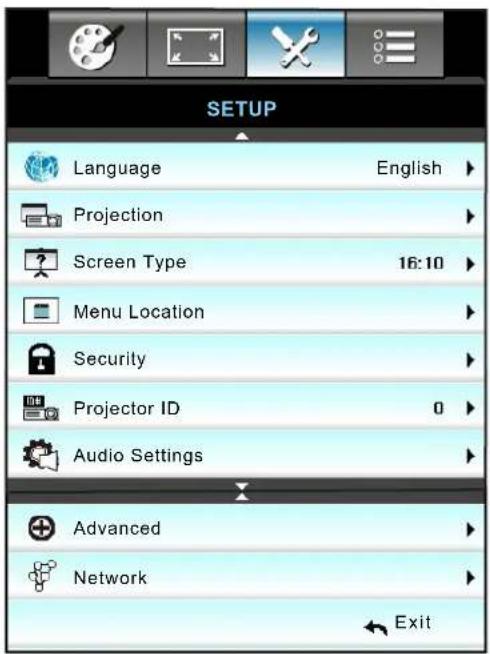

Setup menu 42

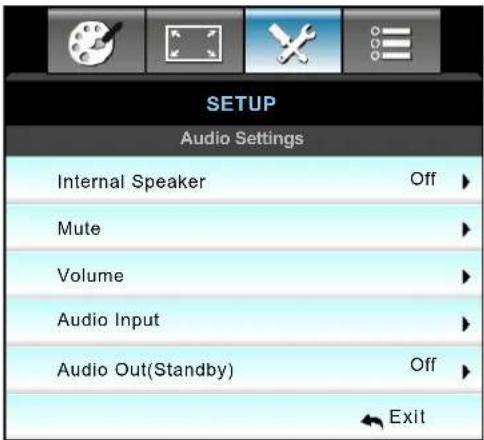

Setup audio settings menu.... 44
Setup audio settings volume menu 45

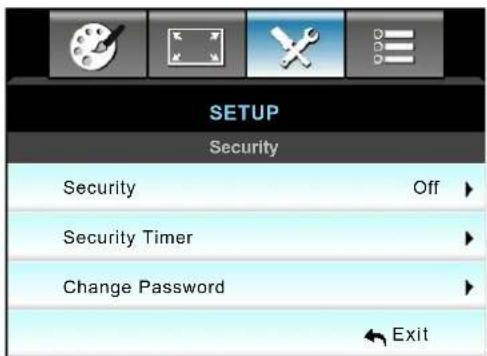

Setup Security menu 45

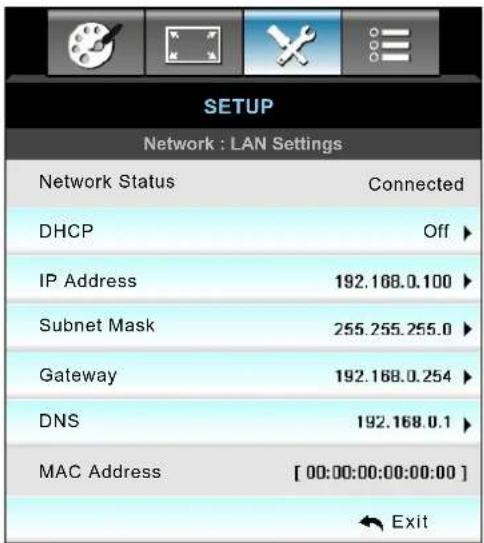

Setup network LAN settings menu 47
Setup network control settings menu 49
Setup network control settings menu 50
Setup advanced menu.... 55

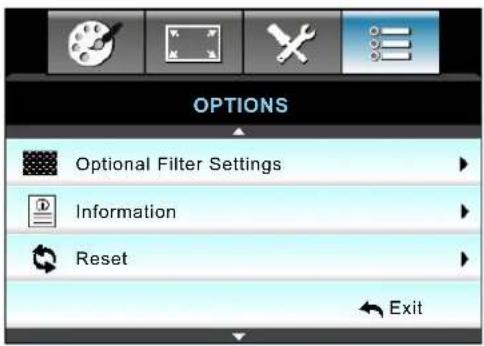

Options menu 56
Options menu 57
Options menu 58

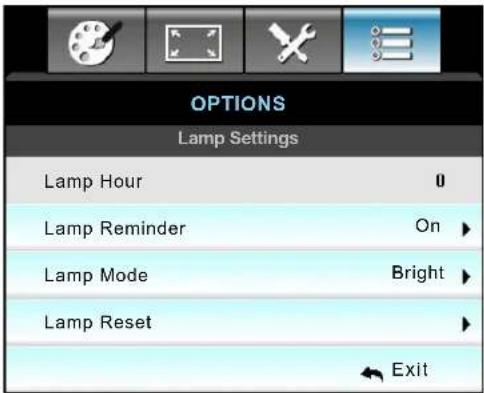

Options lamp settings menu 59
Options remote settings menu....60
Options advanced menu....61
Options optional filter settings menu 63
3D Setup....64

MAINTENANCE 65

Replacing the lamp....65

Replacing the lamp (continued)....66

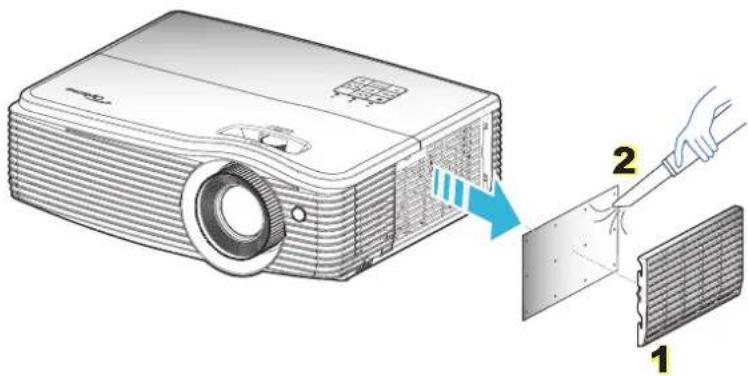

Installing and cleaning the dust filter 67

ADDITIONAL INFORMATION 68

Compatible resolutions....68

Image size and projection distance 69

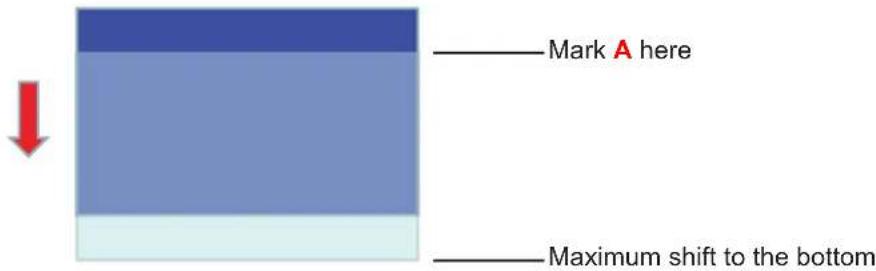

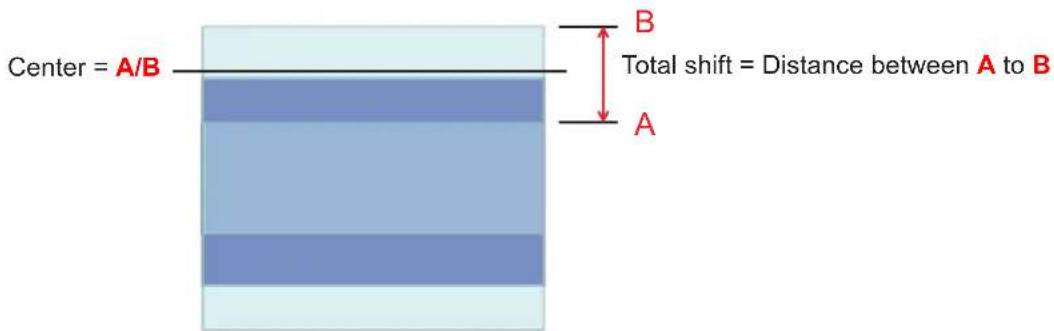

Determining the lens shift center position.... 73

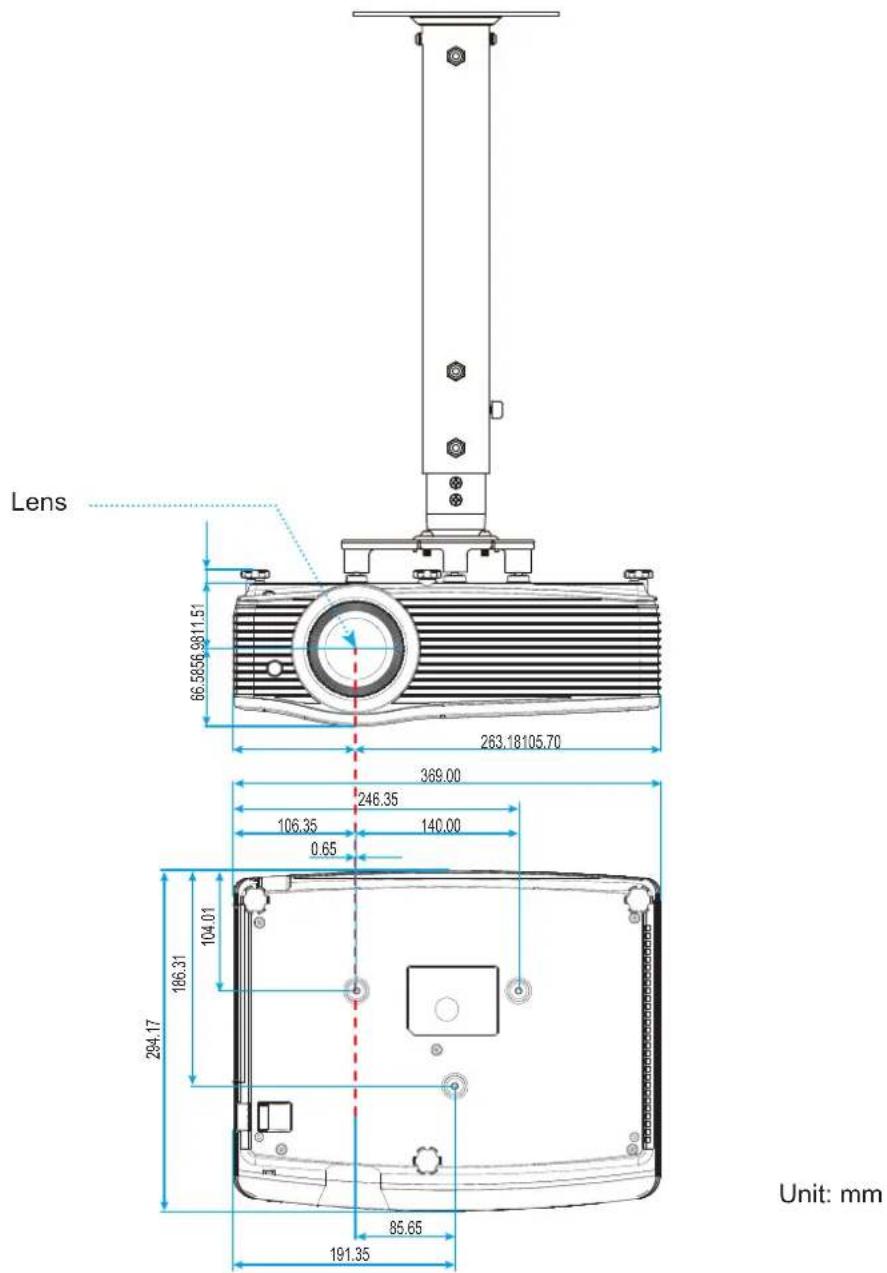

Projector dimensions and ceiling mount installation 74

RS232 protocol function list....75

IR remote codes 83

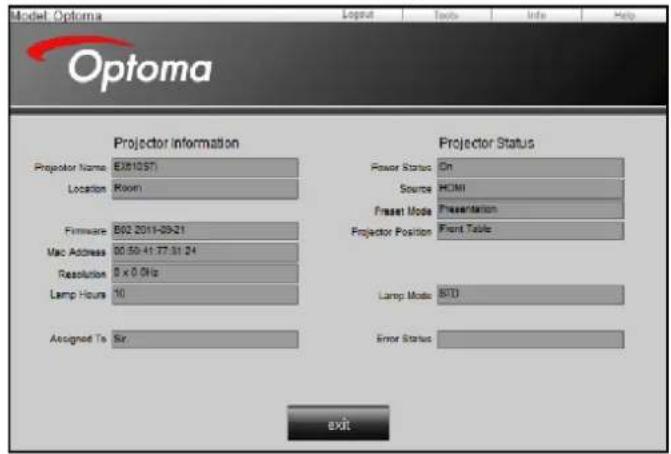

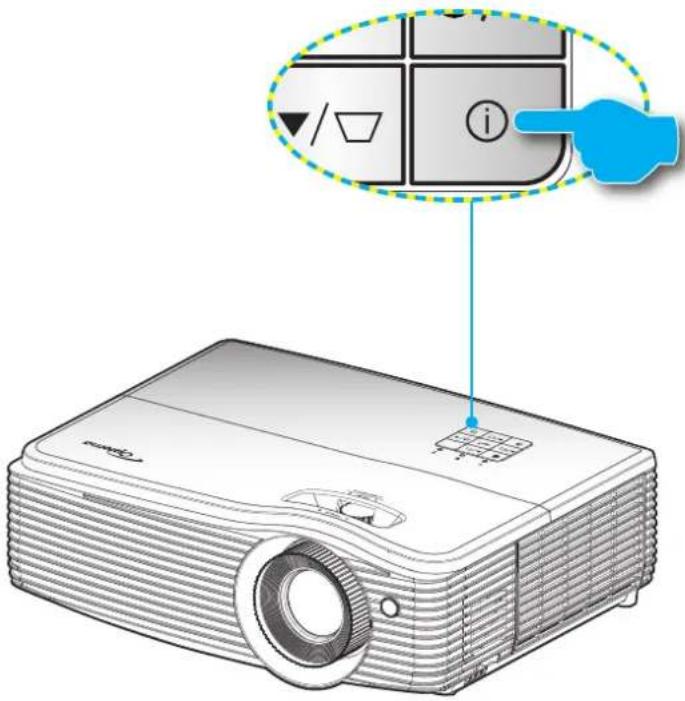

Using the Information button 85

Troubleshooting 86

Warning indicators....87

Specifications 89

Optoma global offices....92

	The lightning flash with arrow head within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
	The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Please follow all warnings, precautions and maintenance as recommended in this user's guide.

Important Safety Instruction

• Do not block any ventilation openings. To ensure reliable operation of the projector and to protect from over heating, it is recommended to install the projector in a location that does not block ventilation. As an example, do not place the projector on a crowded coffee table, sofa, bed, etc. Do not put the projector in an enclosure such as a book case or a cabinet that restricts air flow.
  • To reduce the risk of fire and/or electric shock, do not expose the projector to rain or moisture. Do not install near heat sources such as radiators, heaters, stoves or any other apparatus such as amplifiers that emits heat.
• Do not let objects or liquids enter the projector. They may touch dangerous voltage points and short out parts that could result in fire or electric shock.

Do not use under the following conditions: •

In extremely hot, cold or humid environments. –

(i) Ensure that the ambient room temperature is within 5^ C \~ 40^ C
(ii) Relative humidity is 10% \~ 85%

In areas susceptible to excessive dust and dirt. —

Near any appliance generating a strong magnetic field. –

In direct sunlight. –

• Do not use the projector in places where flammable gases or explosives gases may be present in the atmosphere. The lamp inside the projector becomes very hot during operation and the gases my ignite and result in a fire.
  Do not use lens cap when projector is in operation.
• Do not use the unit if it has been physically damaged or abused. Physical damage/abuse would be (but not limited to):

– Unit has been dropped.
– Power supply cord or plug has been damaged.
– Liquid has been spilled on to the projector.
– Projector has been exposed to rain or moisture.

- Something has fallen in the projector or something is loose inside.

• Do not place the projector on an unstable surface. The projector may fall over resulting in injury or the projector may become damaged.
• Do not block the light coming out of the projector lens when in operation. The light will heat the object and my melt, cause burns or start a fire.
  • Please do not open or disassemble the projector as this may cause electric shock.
• Do not attempt to service the unit yourself. Opening or removing covers may expose you to dangerous voltages or other hazards. Please call Optoma before you send the unit for repair.
  • See projector enclosure for safety related markings.

The unit should only be repaired by appropriate service personnel.

Only use attachments/accessories specified by the manufacturer.

• Do not look into straight into the projector lens during operation. The bright light may harm your eyes.
- When replacing the lamp, please allow the unit to cool down. Follow instructions as described on pages 65-66.
- This projector will detect the life of the lamp itself. Please be sure to change the lamp when it shows warning messages.
- Reset the "Lamp Reset" function from the on-screen display "Options lamp settings" menu after replacing the lamp module (refer to page 59).
- When switching the projector off, please ensure the cooling cycle has been completed before disconnecting power. Allow 90 seconds for the projector to cool down.
- When the lamp is approaching to the end of its life time, the message "Lamp life exceeded." will show on the screen. Please contact your local reseller or service center to change the lamp as soon as possible.
• Turn off and unplug the power plug from the AC outlet before cleaning the product.
• Use a soft dry cloth with mild detergent to clean the display housing. Do not use abrasive cleaners, waxes or solvents to clean the unit.
• Disconnect the power plug from AC outlet if the product is not being used for a long period of time.

Note: When the lamp reaches the end of its life, the projector will not turn back on until the lamp module has been replaced. To replace the lamp, follow the procedures listed under “Replacing the Lamp” section on pages 65-66.

• Do not setup the projector in places where it might be subjected to vibration or shock.
• Do not touch the lens with bare hands
- Remove battery/batteries from remote control before storage. If the battery/batteries are left in the remote for long periods, they may leak.
- Do not use or store the projector in places where smoke from oil or cigarettes may be present, as it can adversely affect the quality of the projector performance.
- Please follow the correct projector orientation installation as non standard installation may affect the projector performance.

3D Safety Information

Please follow all warnings and precautions as recommended before you or your child use the 3D function.

Warning

Children and teenagers may be more susceptible to health issues associated with viewing in 3D and should be closely supervised when viewing these images.

Photosensitive Seizure Warning and Other Health Risks

• Some viewers may experience an epileptic seizure or stroke when exposed to certain flashing images or lights contained in certain Projector pictures or video games. If you suffer from, or have a family history of epilepsy or strokes, please consult with a medical specialist before using the 3D function.
• Even those without a personal or family history of epilepsy or stroke may have an undiagnosed condition that can cause photosensitive epileptic seizures.
- Pregnant women, the elderly, sufferers of serious medical conditions, those who are sleep deprived or under the influence of alcohol should avoid utilizing the unit's 3D functionality.
- If you experience any of the following symptoms, stop viewing 3D pictures immediately and consult a medical specialist: (1) altered vision; (2) light-headedness; (3) dizziness; (4) involuntary movements such as eye or muscle twitching; (5) confusion; (6) nausea; (7) loss of awareness; (8) convulsions; (9) cramps; and/ or (10) disorientation. Children and teenagers may be more likely than adults to experience these symptoms. Parents should monitor their children and ask whether they are experiencing these symptoms.

• Watching 3D projection may also cause motion sickness, perceptual after effects, disorientation, eye strain and decreased postural stability. It is recommended that users take frequent breaks to lessen the potential of these effects. If your eyes show signs of fatigue or dryness or if you have any of the above symptoms, immediately discontinue use of this device and do not resume using it for at least thirty minutes after the symptoms have subsided.
• Watching 3D projection while sitting too close to the screen for an extended period of time may damage your eyesight. The ideal viewing distance should be at least three times the screen height. It is recommended that the viewer's eyes are level with the screen.
• Watching 3D projection while wearing 3D glasses for an extended period of time may cause a headache or fatigue. If you experience a headache, fatigue or dizziness, stop viewing the 3D projection and rest.
  • Do not use the 3D glasses for any other purpose than for watching 3D projection.
• Wearing the 3D glasses for any other purpose (as general spectacles, sunglasses, protective goggles, etc.) may be physically harmful to you and may weaken your eyesight.
  • Viewing in 3D projection may cause disorientation for some viewers. Accordingly, DO NOT place your 3D PROJECTOR near open stairwells, cables, balconies, or other objects that can be tripped over, run into, knocked down, broken or fallen over.

Copyright

This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without written consent of the author.

© Copyright 2015

Disclaimer

The information in this document is subject to change without notice. The manufacturer makes no representations or warranties with respect to the contents hereof and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose. The manufacturer reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of the manufacturer to notify any person of such revision or changes.

Trademark Recognition

Kensington is a U.S. registered trademark of ACCO Brand Corporation with issued registrations and pending applications in other countries throughout the world.

HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

IBM is a trademark or registered trademark of International Business Machines, Inc. Microsoft, PowerPoint, and Windows are trademarks or registered trademarks of Microsoft Corporation.

Adobe and Acrobat are trademarks or registered trademarks of Adobe Systems Incorporated.

DLP ^® , DLP Link and the DLP logo are registered trademarks of Texas Instruments and BrilliantColor ^™ is a trademark of Texas Instruments.

All other product names used in this manual are the properties of their respective owners and are Acknowledged.

MHL, Mobile High-Definition Link and the MHL Logo are trademarks or registered trademarks of MHL Licensing, LLC.

FCC

This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and on is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the device and receiver.

• Connect the device into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/television technician for help.

Notice: Shielded cables

All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations.

Caution

Changes or modifications not expressly approved by the manufacturer could void the user's authority, which is granted by the Federal Communications Commission, to operate this projector.

Operation Conditions

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference and
2. This device must accept any interference received, including interference that may cause undesired operation.

Notice: Canadian users

This Class B digital apparatus complies with Canadian ICES-003.

Declaration of Conformity for EU countries

EMC Directive 2004/108/EC (including amendments) •

Low Voltage Directive 2006/95/EC •

R & TTE Directive 1999/5/EC (if product has RF function) •

WEEE

Disposal instructions

Do not throw this electronic device into the trash when discarding. To minimize pollution and ensure utmost protection of the global environment, please recycle it.

INTRODUCTION

Package Overview

Carefully unpack and verify that you have the items listed below under standard accessories. Some of the items under optional accessories may not be available depending on the model, specification and your region of purchase. Please check with your place of purchase. Some accessories may vary from region to region.

The warranty card is only supplied in some specific regions. Please consult your dealer for detailed information.

Standard accessories

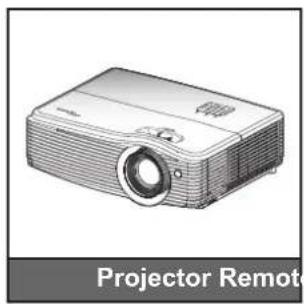

Illustration of a projector with a lens and screen, labeled 'Projector Remote' below (no other text or symbols)

Control 2x AAA batteries F

1 3 + + 3 1 er cord

Illustration of a bundle of cables with connectors, no text or symbols present

Diagram of a VGA cable connector with multiple connectors and cables (no text or symbols on the diagram itself)

CD User Manual Warranty Card* Basic User Manual Documentation

Note: * For European warranty Information, please visit www.optomaeurope.com.

Optional accessories

Line drawing of a two-wheeled bag with handles and a cable, labeled 'Carry bag' below (no other text or symbols)

Illustration of a HDMI cable with two connectors and a central strap (no text or symbols on the cable itself)

Note: Optional accessories vary depending on model, specification, and region.

INTRODUCTION

Product Overview

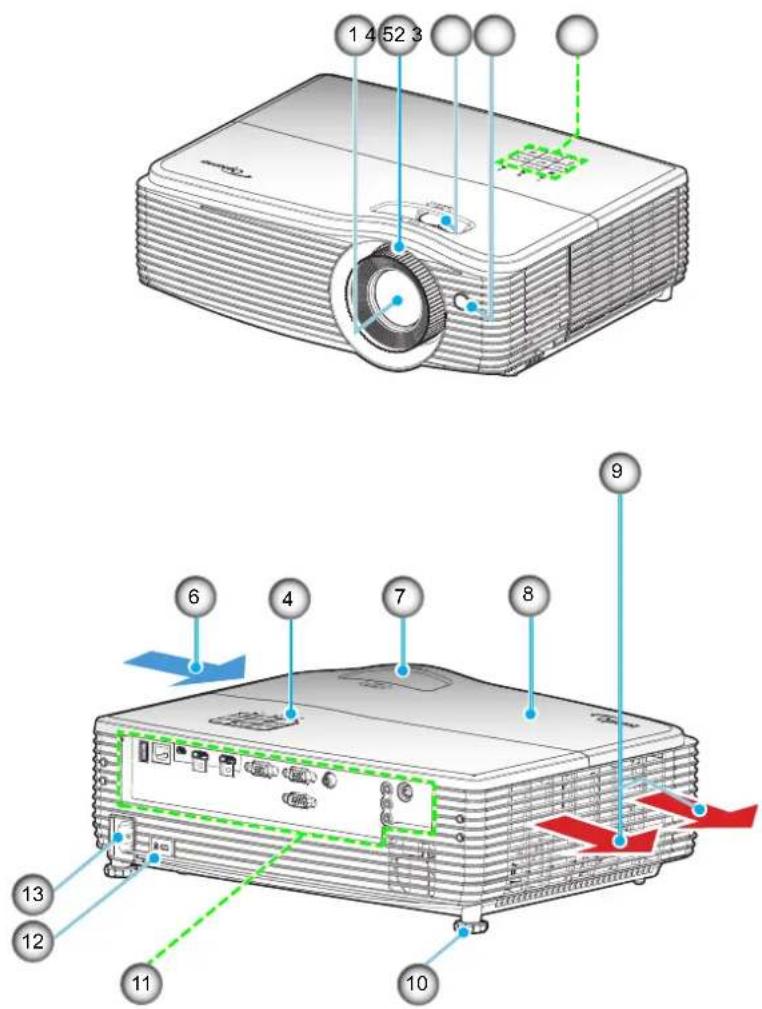

1 4 52 3 9 6 4 7 8 13 12 11 10

Do not block projector inlet or outlet air vents. Note:

No Item No Item
1. Lens 8. Lamp Cover
2. Focus Ring		9.	Ventilation (outlet)

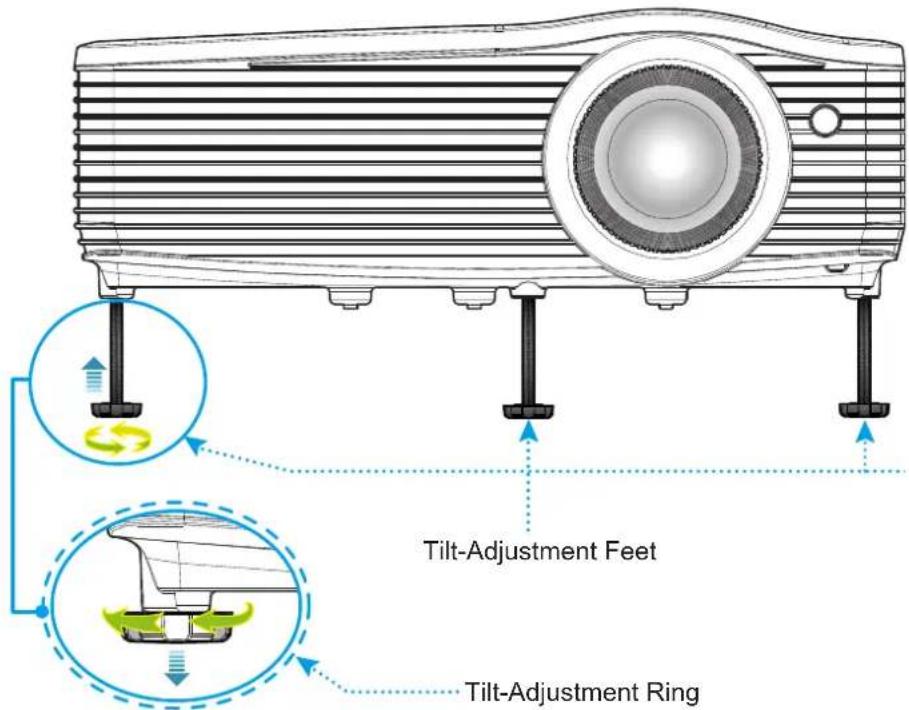

3. Lens Shift (vertical) 10. Tilt-Adjustment Foot
4. IR Receiver 11. Input/Output Connectors
5. Keypad		12.	KensingtonTM Lock
6. Ventilation (inlet)		13.	Power Socket
7. Zoom Lever

INTRODUCTION

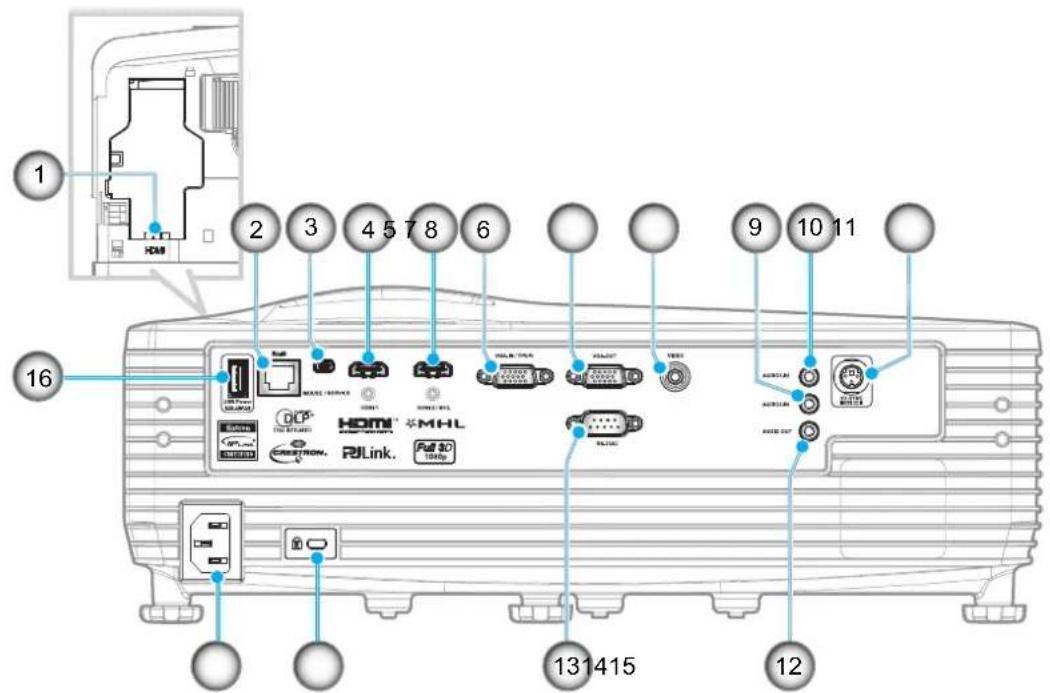

Connections (1080P / WXGA)

1 2 3 4 5 7 8 6 9 10 11 16 131415 12

Remote mouse requires special remote. Note:

No Item No Item
1. HDMI3 / MHL connector 9. Audio2-In connector
2. RJ-45 connector 10. Audio1-In connector
3.	MOUSE / SERVICE connector	11.	3D Sync out (5V) connector
4. HDMI1 connector		12.	Audio-Out connector
5. HDMI2 / MHL connector		13.	RS-232C connector
6. VGA-In / YPbPr connector		14.	Kensington Lock
7. VGA-Out connector		15.	Power socket
8.	Video connector	16.	USB Power Out (5V---1A) connector

INTRODUCTION

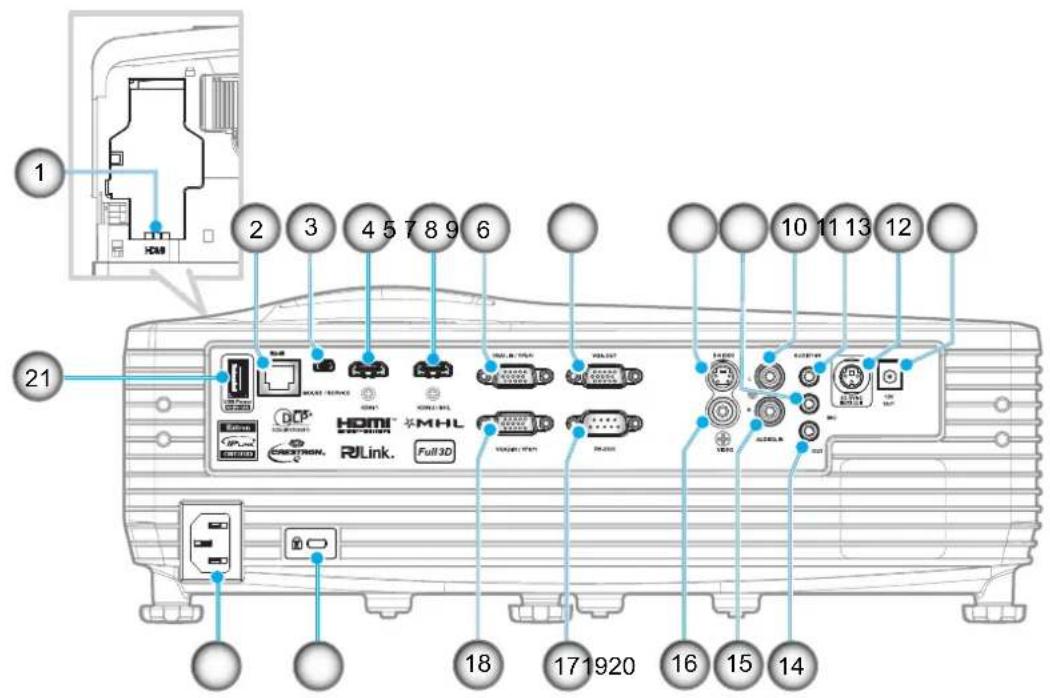

Connections (XGA)

1 2 3 4 5 7 8 9 6 21 HDMI RILink. FULL 3D HDMI RILink. 18 17 1920 16 15 14

Remote mouse requires special remote. Note:

No Item No Item
1. HDMI3 / MHL connector 12. 3D Sync out (5V) connector
2. RJ-45 connector		13. 12V Out connector
3.	MOUSE / SERVICE connector	14.	Audio-Out connector
4. HDMI1 connector		15.	Audio2-In connector (right)
5. HDMI2 / MHL connector 16. Video connector
6. VGA1-In / YPbPr connector		17.	RS-232C connector
7. VGA-Out connector		18.	VGA2-In / YPbPr connector
8. S-Video connector		19.	Kensington Lock
9. MIC connector		20.	Power socket
10.	Audio2-In connector (left)	21.	USB Power Out (5V--1A) connector
11.	Audio1-In connector

INTRODUCTION

Keypad

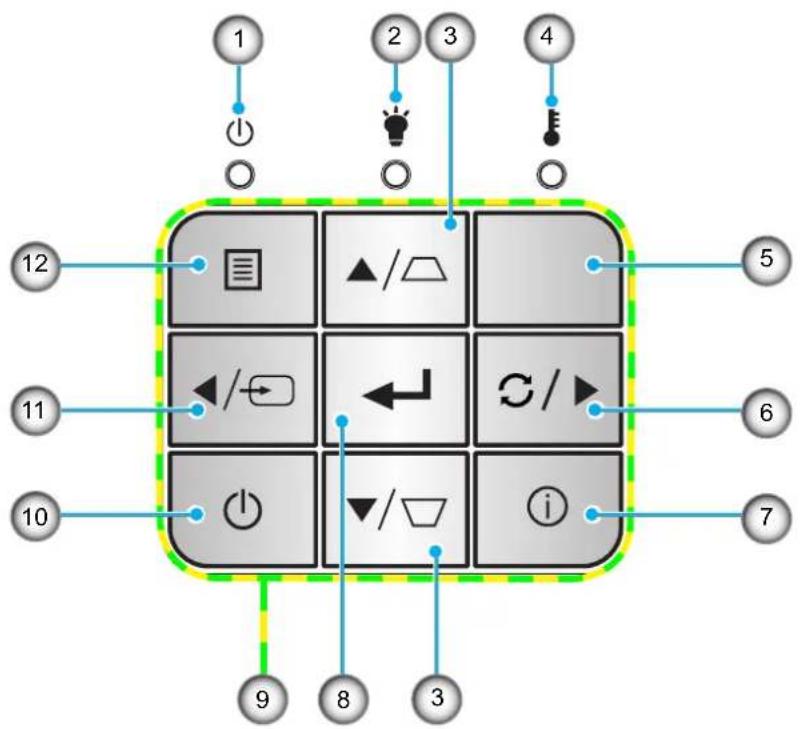

1 2 3 4 12 11 10 9 8 3 5 6 7 i ▲/▽ ←/→ ○/▽ ○/▽ ○/▽

No Item No Item
1.	On / Standby LED
2.	Lamp LED
3.	Keystone Correction (vertical)
4.	Temp LED
5.	IR Receiver
6.	Re-Sync

7.	Information
8.	Enter
9.	Four Directional Select Keys (▲, ▶, ▼, ◀)
10.	Power
11.	Source
12.	Menu

INTRODUCTION

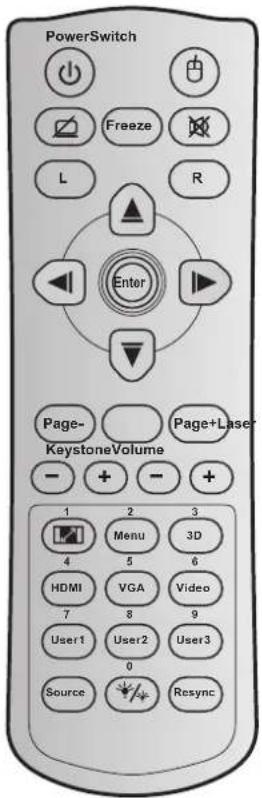

Remote Control

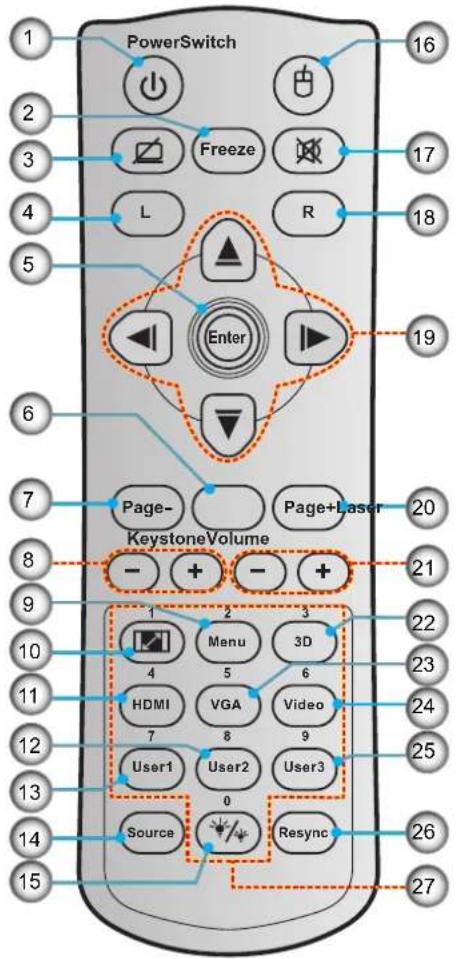

PowerSwitch Freeze L R Enter Page- KeystoneVolume Page+Laser 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

No Item No Item
1. Power On / Off 15. Brightness Mode
2. Freeze 16. Mouse On / Off
3. Display Blank / Audio Mute 17. Mute
4. Mouse Left Click 18. Mouse Right Click
5. Enter 19. Four Directional Select Keys
6. Laser 20. Page +
7. Page -	21. Volume - / +
8. Keystone	22. 3D Menu On / Off
9. Menu 23. VGA
10. Aspect Ratio	24. Video
11. HDMI	25. User 3
12. User 2	26. Resync
13. User 1	27. Numeric Keypad (0-9)
14. Source

Note: Some keys may have no function for models that do not support these features.

SETUP AND INSTALLATION

Installing the projector

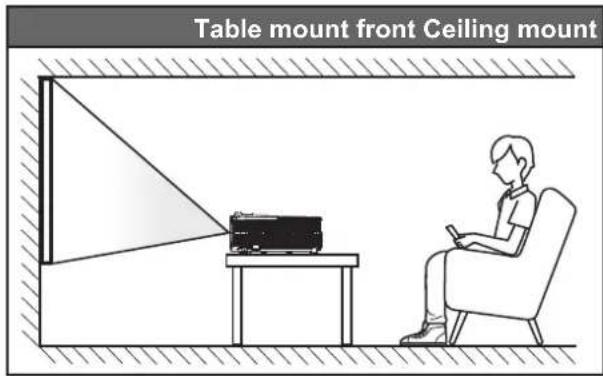

Your projector is designed to be installed in one of four possible positions.

Your room layout or personal preference will dictate which installation location you select. Take into consideration the size and position of your screen, the location of a suitable power outlet, as well as the location and distance between the projector and the rest of your equipment.

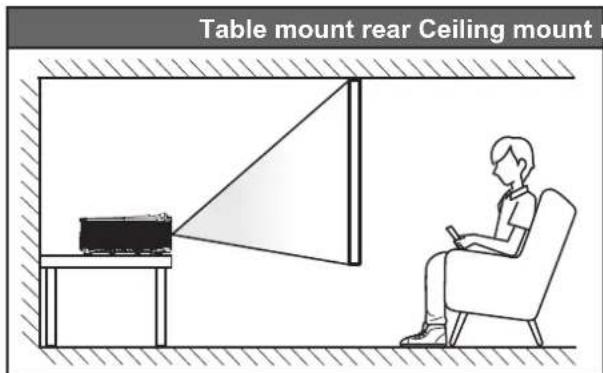

Table mount front Ceiling mount

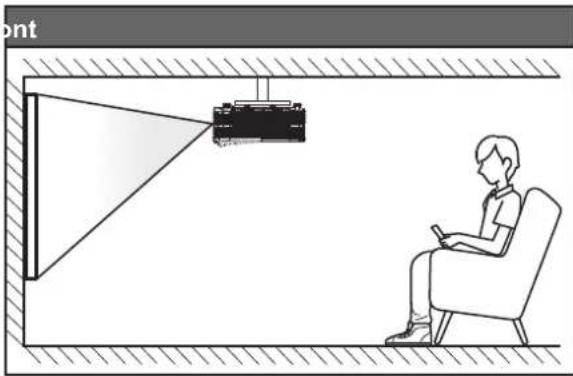

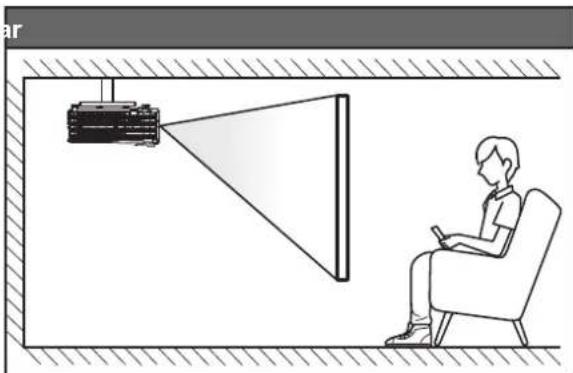

Diagram showing a person using a projector in a room with a wall-mounted device (no text or symbols)

Table mount rear Ceiling mount

Illustration of a person sitting in a chair watching a projector projection (no text or symbols present)

Projector should be placed flat on a surface and 90 degrees / perpendicular to the to the screen.

• How to determine projector location for a given screen size, please refer to the distance table on pages 69-72.
• How to determine screen size for a given distance, please refer to the distance table on pages 69-72.

Note: The further away the projector is placed from the screen the projected image size increases and vertical offset also increases proportionally.

Important!

Do not operate the projector in any orientation other than table top or ceiling mount. The projector should be horizontal and not tilted either forwards/backwards or left/right. Any other orientation will invalidate the warranty and may shorten the lifetime of the projector lamp or the projector itself. For none standard installation advise please contact Optoma.

SETUP AND INSTALLATION

Connecting sources to the projector (1080P / WXGA)

No Item No Item

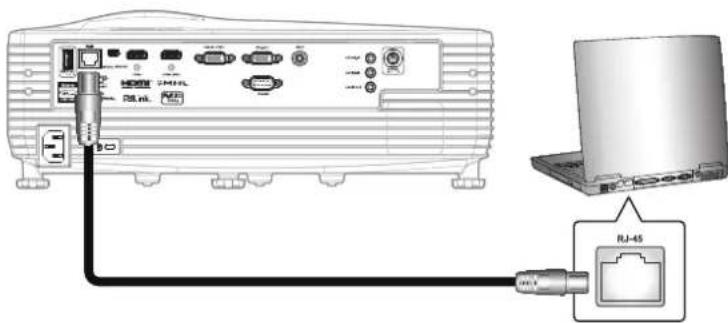

1. RJ-45 cable 9. Video cable
2. HDMI cable 10. RS-232C cable
3. MHL cable 11. VGA-Out cable
4. VGA-In cable
5. Audio-In cable
6. 3D emitter cable
7. Audio Out cable

8. Audio-In cable

9. Power cord

10. USB Power Charger
11. USB dongle
12. HDMI Dongle

Note:

• The projector needs to be powered off prior performing the connection to the HDMI3 / MHL connector. If not powered off manually, the projector will automatically power off as soon as the top cover is opened.
• Due to size limit, we recommend using MHL powered HDMI dongles that are equal to or smaller than 85 x 31 x 15mm. For HDMI dongles that require USB power, please ensure they are smaller than 65 x 31 x 15mm.
• Alternatively, if your MHL powered dongle is larger than the dimensions suggested, use the extra HDMI port found on the back panel along with the USB port to power the dongle.

SETUP AND INSTALLATION

Connecting sources to the projector (XGA)

No Item No Item

1. RJ-45 cable 10. Audio-In cable
2. HDMI cable 11. Video cable
3. MHL cable 12. S-Video cable
4. VGA-In cable 13. RS-232C cable
5. Audio-In cable
6. 3D emitter cable
7. 12V DC Jack
8. Microphone cable

9. Audio Out cable

10. VGA-Out cable

11. Power cord
12. USB Power Charger
13. USB dongle
14. HDMI dongle

Note:

• The projector needs to be powered off prior performing the connection to the HDMI3 / MHL connector. If not powered off manually, the projector will automatically power off as soon as the top cover is opened.
- Due to size limit, we recommend using MHL powered HDMI dongles that are equal to or smaller than 85 x 31 x 15mm. For HDMI dongles that require USB power, please ensure they are smaller than 65 x 31 x 15mm.
• Alternatively, if your MHL powered dongle is larger than the dimensions suggested, use the extra HDMI port found on the back panel along with the USB port to power the dongle.

SETUP AND INSTALLATION

Adjusting the projector image

Image height

The projector is equipped with elevator feet for adjusting the image height.

Locate the adjustable foot you wish to adjust on the underside of the projector.1.

Rotate the adjustable foot clockwise or counter-clockwise to raise or lower the projector.2.

Tilt-Adjustment Feet Tilt-Adjustment Ring

Zoom and focus

• To adjust the image size, turn the zoom lever clockwise or counter-clockwise to increase or decrease the projected image size.
• To adjust the focus, turn the focus ring clockwise or counter-clockwise until the image is sharp and legible.

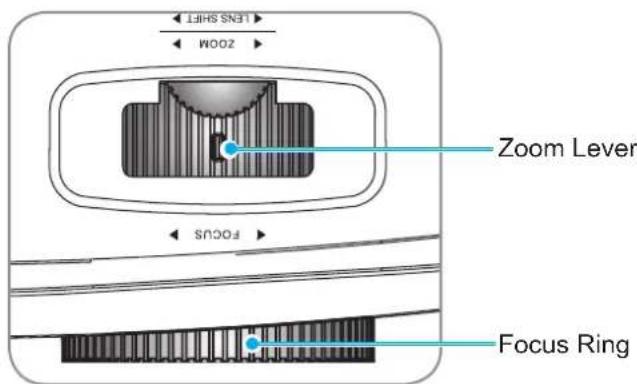

Zoom LENS SHIFT ZOOM Zoom Lever FOCUS Focus Ring

SETUP AND INSTALLATION

Remote setup

Installing / replacing the batteries

Two AAA size batteries are supplied for the remote control.

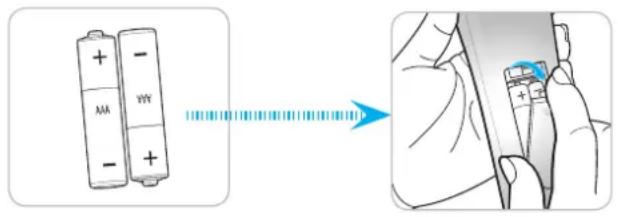

Remove the battery cover on the back of the remote control.1. Insert AAA batteries into the battery compartment as illustrated.2.

Replace back cover on remote control.3.

Diagram showing battery charge distribution before and after a photo of a hand holding a battery, with text labels indicating charge states.

Replace only with the same or equivalent type batteries. Note:

CAUTION

Improper use of batteries can result in chemical leakage or explosion. Be sure to follow the instructions below.

• Do not mix batteries of different types. Different types of batteries have different characteristics.
- Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries or cause chemical leakage in old batteries.
- Remove batteries as soon as the are depleted. Chemicals that leak from batteries that come in contact with skin can cause a rash. If you find any chemical leakage, wipe thoroughly with a cloth.
• The batteries supplied with this product may have a shorter life expectancy due to storage conditions.
• If you will not be using the remote control for an extended period of time, remove the batteries.
- When you dispose of the batteries, you must obey the law in the relative area or country.

Effective range

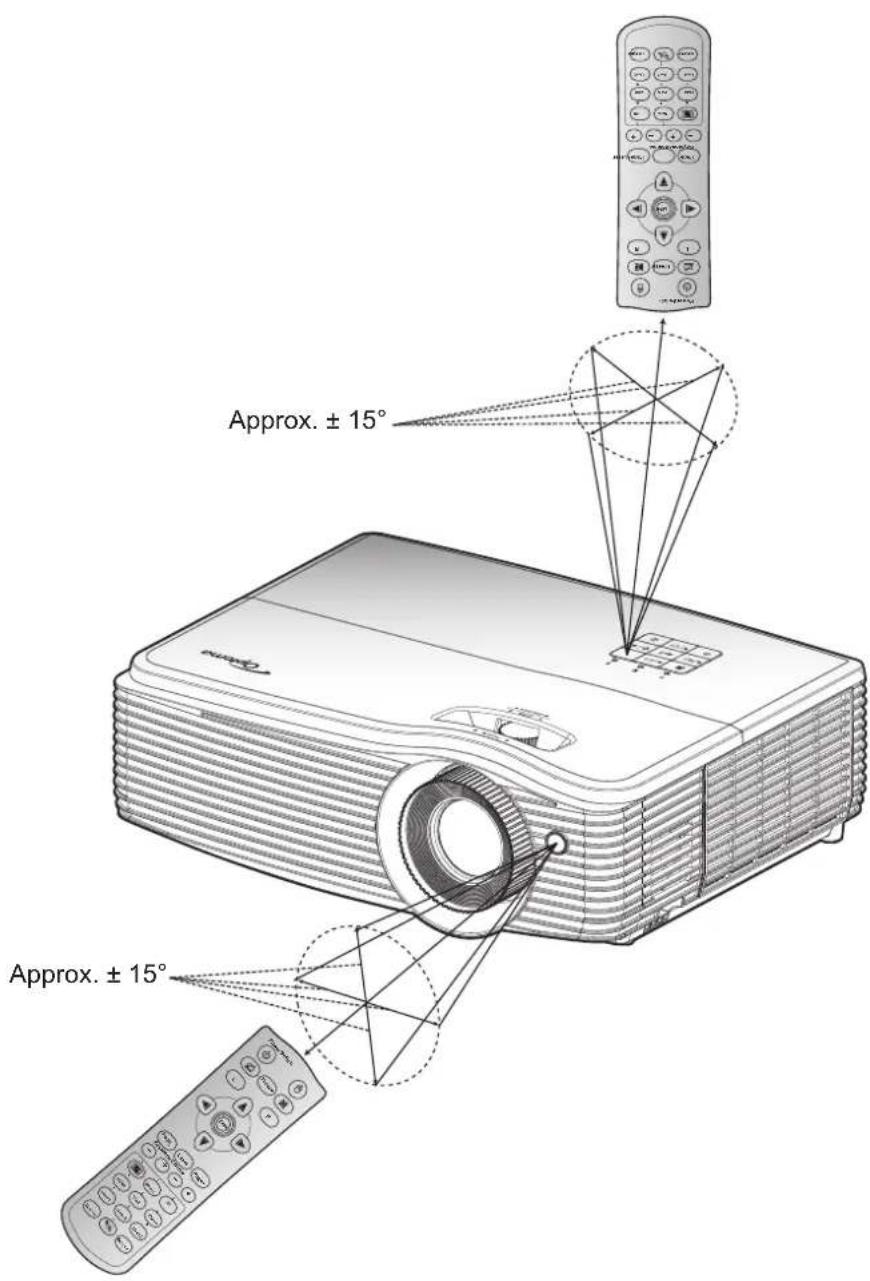

Infra-Red (IR) remote control sensor is located on the rear side of the projector. Ensure to hold the remote control at an angle within 30 degrees perpendicular to the projector's IR remote control sensor to function correctly. The distance between the remote control and the sensor should not be longer than 8 meters (\~26 feet).

• Make sure that there are no obstacles between the remote control and the IR sensor on the projector that might obstruct the infra-red beam.
• Make sure the IR transmitter of the remote control is not being shined by sunlight or fluorescent lamps directly.
- Please keep the remote controller away from fluorescent lamps for over 2m or the remote controller might become malfunction.
• If the remote control is too close to Inverter-Type fluorescent lamps, it might become ineffective from time to time.
• If the remote control and the projector are within a very short distance, the remote control might become ineffective.
- When you aim at the screen, the effective distance is less than 5m from the remote control to the screen and reflecting the IR beams back to the projector. However, the effective range might change according to screens.

SETUP AND INSTALLATION

Approx. ± 15° Approx. ± 15°

USING THE PROJECTOR

Powering on / off the projector

Power Switch Freeze or

Powering on

Securely connect the power cord and signal / source cable. When connected, the On / Standby LED 1. will turn red.

Turn on the projector by pressing the 20" " either on the projector keypad or the remote control.

A start up screen will display in approximately 10 seconds and the On / Standby LED will be solid blue.3.

Note: The first time the projector is turned on, you will be prompted to select the preferred language, and other settings.

Powering off

Turn off the projector by pressing the 10" " either on the projector keypad or the remote control. The following message will be displayed:2.

Power Off? Press Power key again

Press the 30" again to confirm, otherwise the message will disappear after 15 seconds. When you press the "button for the second time, the projector will shut down."

The cooling fans will continue to operate for about 10 seconds for the cooling cycle and the On/4. Standby LED will flash blue. When the On / Standby LED turns solid red, this indicates the projector has entered standby mode. If you wish to turn the projector back on, you must wait until the cooling cycle has finished and the projector has entered standby mode. When the projector is in standby mode, simply press the "button again to turn on the projector.

1. Disconnect the power cord from the electrical outlet and the projector.

Note: It is not recommended that the projector is turned on immediately right after a power off procedure.

USING THE PROJECTOR

Selecting an input source

Turn on the connected source that you want to display on the screen such as computer, notebook, video player, etc. The projector will automatically detect the source. If multiple sources are connected, push the source button on the projector keypad or the remote control to select the desired input.

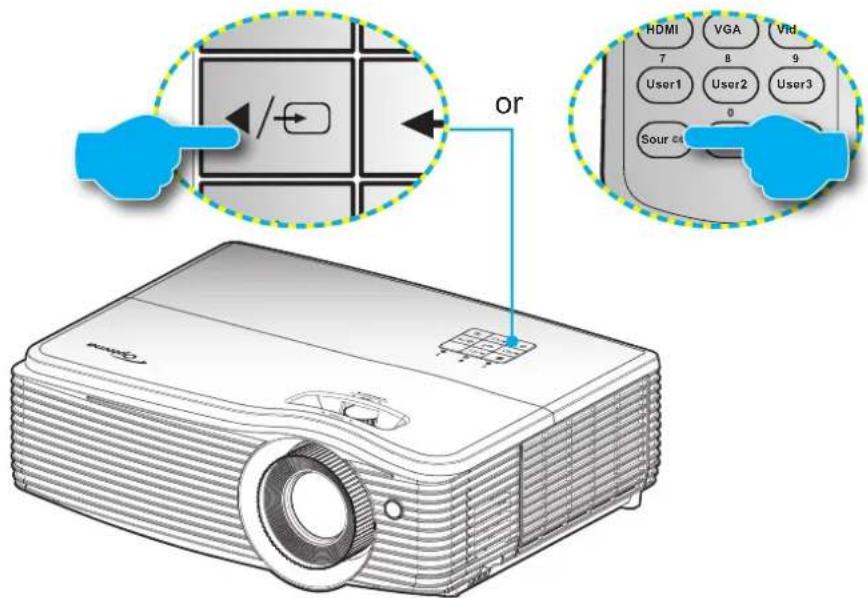

or HDMI VGA Vrd 7 8 9 User1 User2 User3 0 Sour cl

USING THE PROJECTOR

Menu navigation and features

The projector has multilingual on-screen display menus that allow you to make image adjustments and change a variety of settings. The projector will automatically detect the source.

To open the OSD menu, press "Menu" on the projector keypad or the remote control.1.

When OSD is displayed, use 2 keys to select any item in the main menu. While making a selection on a particular page, press ▼ or "Enter" key to enter sub menu.

Use ▲ keys to select the desired item in the sub menu and then press ▶ "Enter" key to view further settings. Adjust the settings by using ▶ keys.

Select the next item to be adjusted in the sub menu and adjust as described above.4.

Press "Enter" or "Menu" to confirm, and the screen will return to the main menu.5.

To exit, press "Menu" again. The OSD menu will close and the projector will automatically save the 6. new settings.

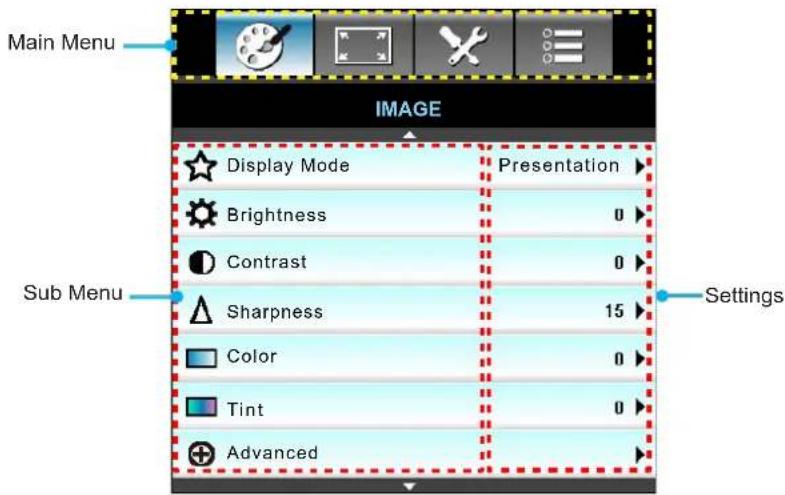

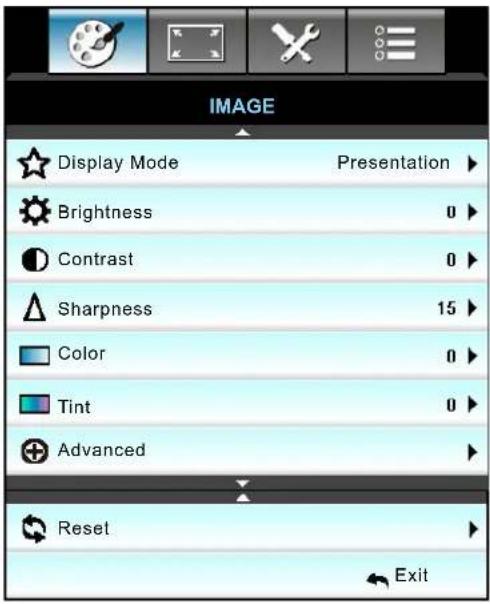

Main Menu IMAGE Display Mode Presentation Brightness 0 Contrast 0 Sharpness 15 Color 0 Tint 0 Advanced Settings

USING THE PROJECTOR

OSD Menu tree

Main menu Sub menu Advanced menu Single-item menu Value

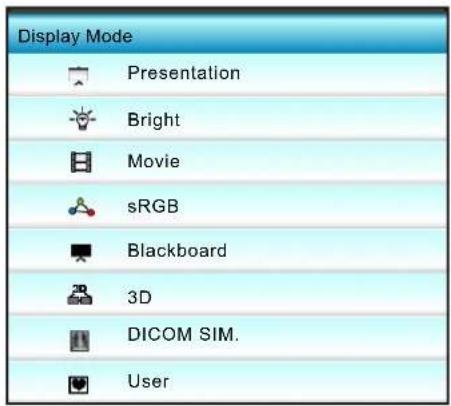

Image	Display Mode		Presentation	[Default: Presentation]PS. Each mode can adjust and save in each mode
			Bright
			Movie
			sRGB
			Blackboard
			DICOM SIM.
			User
			3D
	Brightness -50~50
	Contrast -50~50
	Sharpness 1~15
	Color -50~50
	Tint -50~50
	Advanced	Noise Reduction 0~10
		BrilliantColorTM		1~10
		Dynamic Black	On	Note: End-user can choose lamp mode between Bright and Eco while DynamicBlack is Off; between Dynamic and Eco+ while DynamicBlack is On.
			Off
		Gamma	Film
			Graphics
			1.8
			2.0
			2.2
			2.6
			Blackboard
			DICOM
		Color Temp.	Warm
			Standard
			Cool
			Cold
		Color Space	Not HDMI Input: Auto / RGB / YUV
			HDMI Input: Auto/ RGB(0~255) / RGB(16~235) / YUV

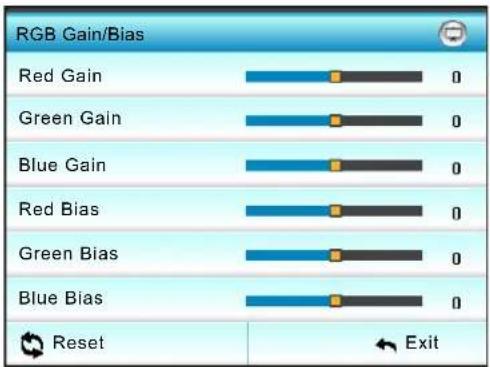

		RGB Gain / Bias	Red Gain -50~50
			Green Gain -50~50
			Blue Gain -50~50
			Red Bias	-50~50
			Green Bias	-50~50
			Blue Bias -50~50
			Reset	Yes
				No
			Exit

USING THE PROJECTOR

Main menu Sub menu Advanced menu Single-item menu Value

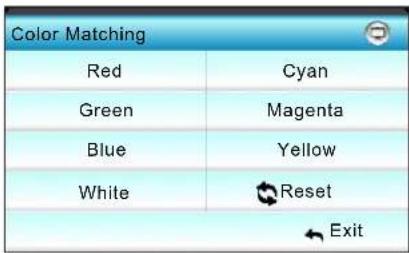

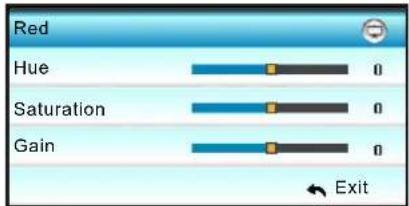

Image	Advanced	Color Matching	Red Hue / Saturation /	Gain [-50~50]
			Green Hue / Saturation	/ Gain [-50~50]
			Blue Hue / Saturation /	Gain [-50~50]
			Cyan Hue / Saturation /	Gain [-50~50]
			Magenta Hue / Saturation	/ Gain [-50~50]
			Yellow Hue / Saturation	/ Gain [-50~50]
			White Red/Green/Blue	[-50~50]
			Reset	Yes
				No
			Exit
		Signal (RGB)	Automatic	On
				Off
			Phase 0~31
			Frequency	-5~5
			H. Position	-5~5Note: Depends on input signal.
			V. Position	-5~5Note: Depends on input signal.
			Exit

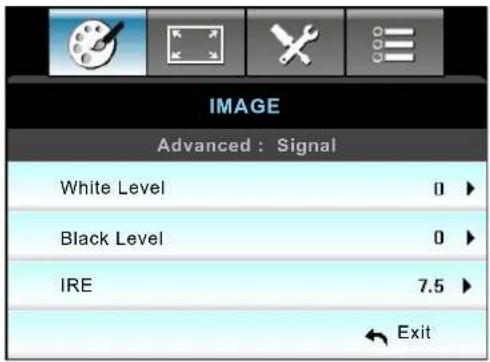

		Signal (Video)	White Level	0~31
			Black Level	-5~5
			IRE	0 / 7.5
			Exit
		Exit
	Reset			Yes
				No
Display	Format		WXGA:4:3, 16:9 or 16:10,LBX, Native, Auto
			XGA:4:3, 16:9, Native, Auto
			1080p: 4:3, 16:9, LBX,Native, Auto
	Zoom			-5~25
	Edge Mask			0~10
	Image Shift	H: 0; V: -100		-100~+100Note: Depends on input signal.
		H: -100; V: 0
		H: 0; V: 100
		H: 0; V: 100
		H: -100; V: 0
		H: 0; V: -100
		H: 100; V: 0
		H: 0; V: 100

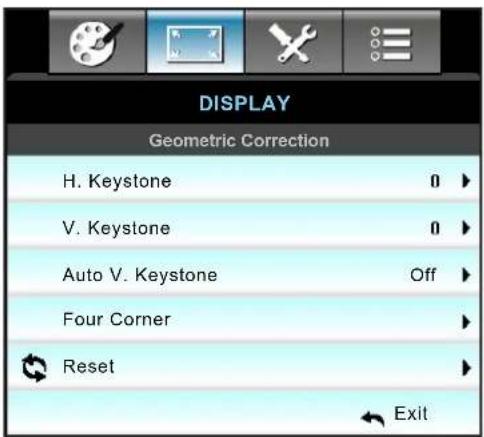

	Geometric Correction	H. Keystone		-30 ~ +30
		V. Keystone		-30 ~ +30
Display	Geometric Correction	Auto V. Keystone	On	Default [Off]
			Off

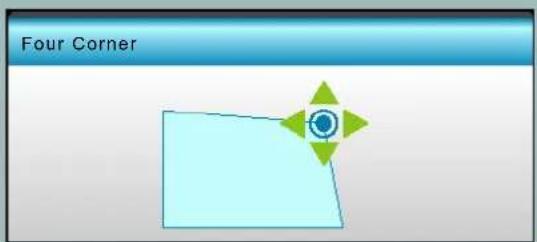

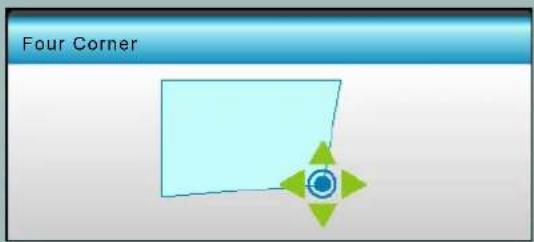

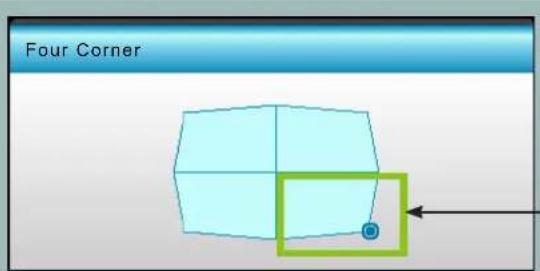

		Four Corner	Top-Left
			Top-Right
			Bottom-Left
			Bottom-Right
		Reset	Yes
			No

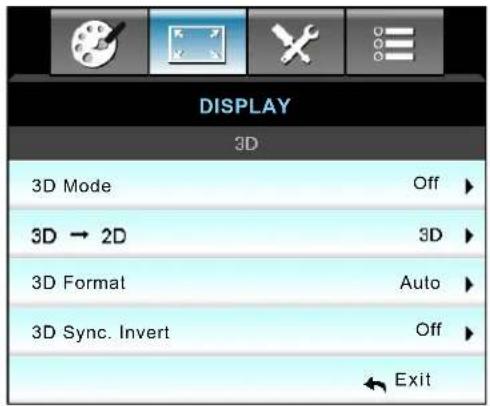

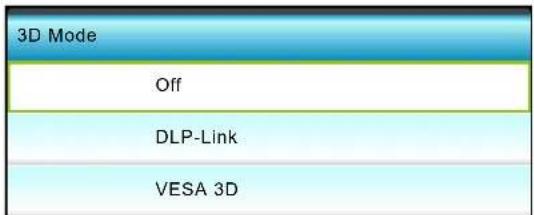

Setup	3D	3D Mode	DLP-Link
			VESA 3D
			Off
		3D->2D	3D
			L
			R
		3D Format	Auto
			SBS
			Top and Bottom
			Frame Sequential
		3D Sync Invert	On
			Off
		Exit
	Language		English
			Deutsch
			Français
			Italiano
			Español
			Português
			Svenska
			Nederlands
			Norsk
			Dansk
			Polski
			Русский
			Suomi
			ελληνικά
			Magyar
			Čeština
			يَبْرِع
			繁體中文
			簡体中文
			日本語
			한국어
			ไทย
			Türkçe
			يسراً

USING THE PROJECTOR

Main menu Sub menu Advanced menu Single-item menu Value
Setup	Language		Vietnamese
			Romanian
			Indonesian
	Projection		Front
			Rear
			Front-Ceiling
			Rear-Ceiling
	Screen Type		16:10 (WXGA)
			16:9 (WXGA)
	Menu Location		Top-Left
			Top-Right
			Center
			Bottom-Left
			Bottom-Right
	Security	Security	On
			Off

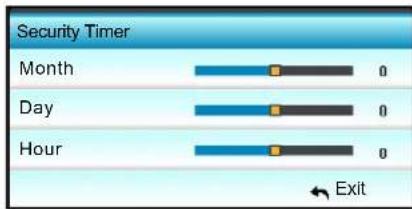

		Security Timer	Month
			Day
			Hour
		Change Password
		Exit
	Projector ID 00~99

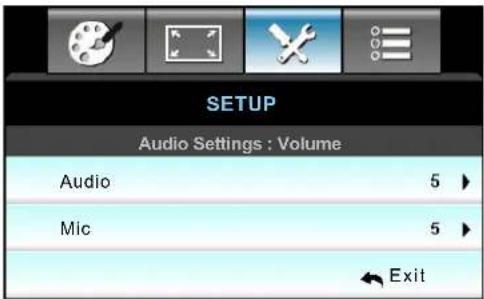

	Audio Settings	Internal Speaker	On
			Off
		Mute	On
			Off
		Volume	Audio 0-10
			Mic (XGA only) 0-10
		Audio Input	Default For WXGA and Audio1	1080p: VGA->Audio1 Video->Audio2 For XGA: VGA1 / VGA2 -> Audio1 Video / S-Video -> Audio2
			Audio2

USING THE PROJECTOR

Main menu Sub menu Advanced menu Single-item menu Value
Setup	Audio Settings	Audio Out(Standby)	On Default[Off]	Note:- Considering power consumption in active mode, AudioOut(Standby) supports only analog audio input (HDMI audio is out from AudiolInput1).- End-user can enable / disable AudioOut(Standby) while PowerMode(Standby) is Active, not operate this function while PowerMode(Standby) is Eco.
			Off
		Exit

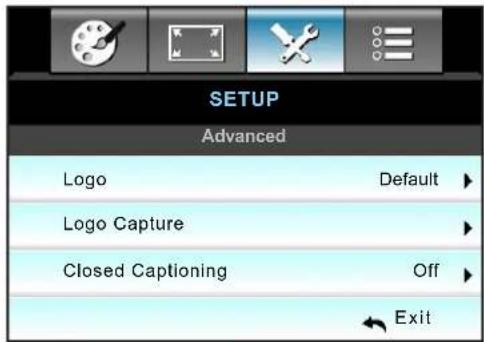

	Advanced	Logo	Default
			Neutral
			User
		Logo Capture		Note:- Because of flash size limitation, logo captured by end-user must be smaller than 2MB.- Logo Capture function is invalid while 3D is On. 3D image consists of two frame images, it may cause logo capture to fail.- Logo Capture feature should be used solely for capturing logos, not complicated pictures.
		Closed Captioning	Off
			CC1
			CC2
		Exit

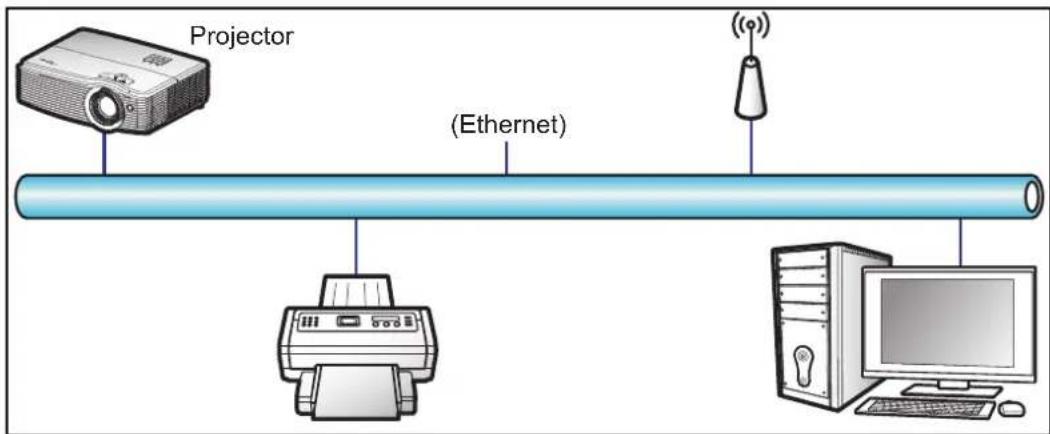

	Network	LAN Settings	Network Status	Connect (Read-Only)
				Disconnect (Read-Only)
			DHCP	On
				Off [Default]
			IP Address Default [192.168.0.100]
			Subnet Mask Default [255.255.255.0]
			Gateway Default [192.168.0.254]
			DNS Default [192.168.0.1]
			MAC Address Read-Only
			Exit

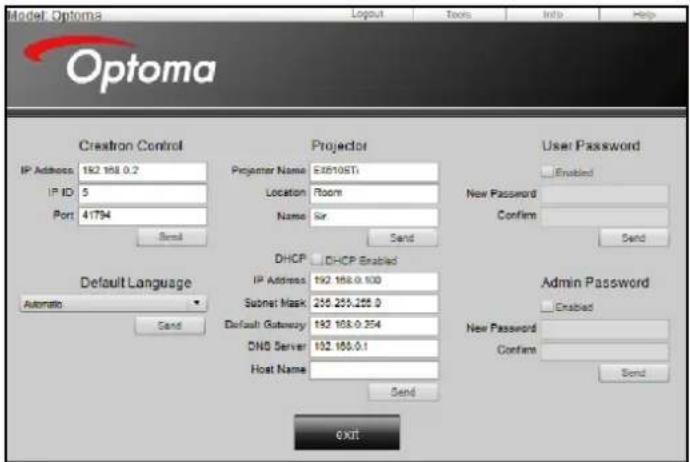

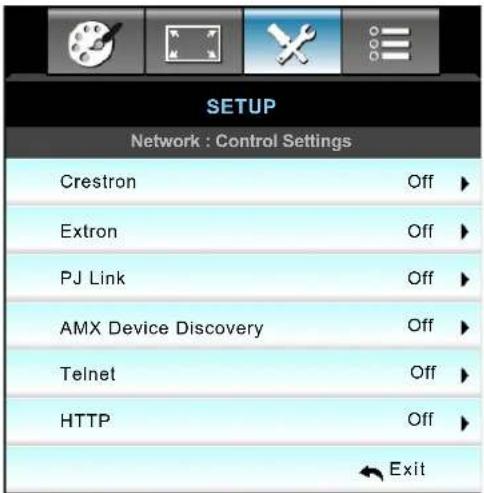

		Control Settings	Crestron On / Off (port: 41794)
			Extron On / Off (port: 2023)
			PJLink On / Off (port: 4352)
			AMX Device Discovery	On / Off (port: 9131)
			Telnet	On / Off (port: 23)
			HTTP	On / Off (port: 80)
			Exit

USING THE PROJECTOR

Main menu Sub menu Advanced menu Single-item menu Value

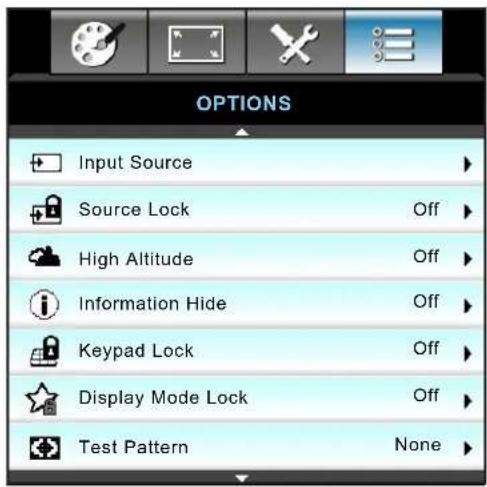

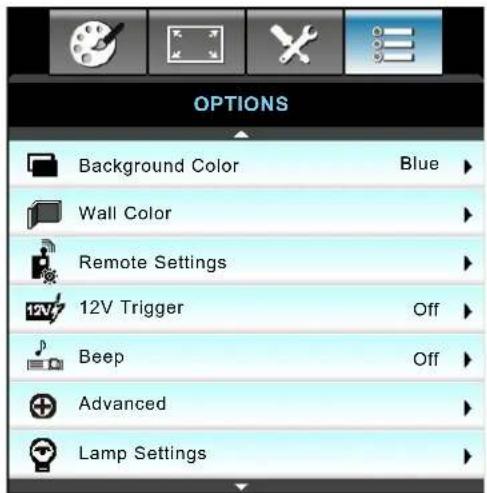

Options	Input Source		VGA1
			VGA2 (XGA only)
			Video
			S-Video (XGA only)
			HDMI1
			HDMI2
			HDMI3
			Exit
	Source Lock		On	[Default On]
			Off
	High Altitude		On	[Default Off]
			Off
	Information Hide		On [Default Off]	PS. Warning message & Power off not hide
			Off
	Keypad Lock		On	[Default Off]
			Off
	Display Mode Lock		On
			Off
	Test Pattern		None
			Grid
			White Pattern
	Background Color		Black	[Default Blue]
			Red
			Blue
			Green
			White
	Wall Color		Off	[Default Off]
			Light Yellow
			Light Green
			Light Blue
			Pink
			Gray

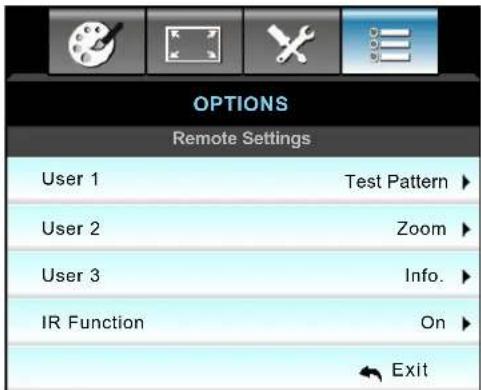

	Remote Settings	User1	HDMI2	[Default "Test Pattern"]
			VGA2 (XGA only)
			S-Video (XGA only)
			Test Pattern
			Zoom
			Info.
		User2	HDMI2	[Default "Zoom"]
			VGA2 (XGA only)
			S-Video (XGA only)
			Test Pattern
			Zoom
			Info.

USING THE PROJECTOR

Main menu Sub menu Advanced menu Single-item menu Value
Options	Remote Settings	User3	HDMI2	[Default "Info"]
			VGA2 (XGA only)
			S-Video (XGA only)
			Test Pattern
			Zoom
			Info.
		IR Function	On
			Front
			Top
			Off
		Exit
	12V Trigger (XGA only)		On	[Default On]
			Off
	Beep		On	[Default On]
			Off

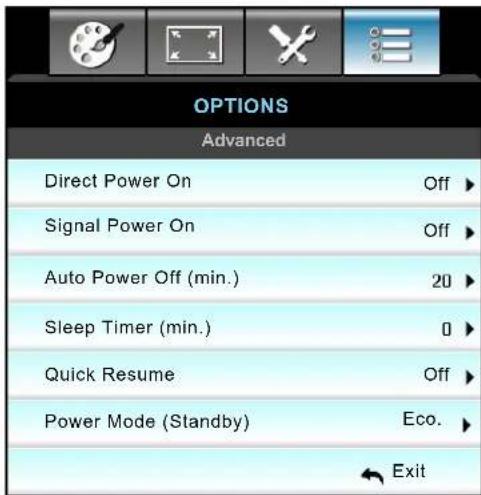

	Advanced	Direct Power On	On	[Default Off]
			Off
		Signal Power On	On [Default Off]	Note:- End-user can enable / disable SignalPowerOn while PowerMode(Standby) is Active.- SignalPowerOn can support all sources (VGA / Video / S-Video (for XGA) / HDMI.
			Off
		Auto Power Off (min.)		[Default: 20 mins]0-180 (one step: 5 mins)
		Sleep Timer (min.)		0-990 (one step: 10 mins )Note:Always On [check box style, default is unchecked.]
		Quick Resume	On	[Default Off]
			Off
		Power Mode (Standby)	Active	[Default Eco.]
			Eco.
		Exit
	Lamp Settings	Lamp Hour [Read-Only]
		Lamp Reminder	On	[Default Off]
			Off
		Lamp Mode	Bright	Note:End-user can choose lamp mode between Bright and Eco while DynamicBlack is Off; between Dynamic and Eco+ while DynamicBlack is On.
			Eco
			Dynamic
			Eco+
		Lamp Reset	Yes
			No
		Exit

USING THE PROJECTOR

Main menu Sub menu Advanced menu Single-item menu Value

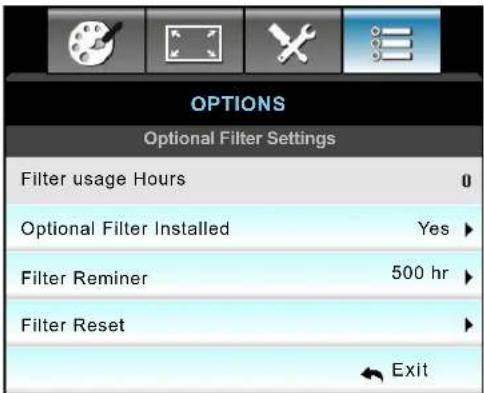

Options	Optional Filter Settings	Optional Filter Installed		Yes
				No [Default]
		Filter Usage Hours Read-Only [Range 0~9999]
		Filter Reminder	Off
			300 hr
			500 hr [Default]
			800 hr
			1000 hr
		Filter Reset		Yes
				No
		Exit

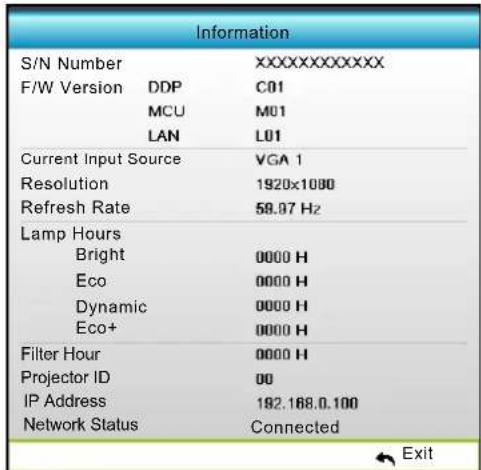

	Information			Please see page 58.
	Reset		Yes
			No

Note:

• If the Signal setting is set to Automatic, the Phase, frequency items are grayed out. If the "Signal" setting is set to a specific input source, the phase, frequency items will appear for user to manually tune and saved in settings.
  The "LAMP RESET" in OSD will only reset both Lamp Hours in OSD and Lamp Hours in service mode. The Projection Hours in service mode will not be reset.
• If the end-user changes the Audio setting from "Default" to "Audio in 1" then all sources, including HDMI should follow this setting.
• If you made modifications to the "IR Function", "Projection", or "Keypad Lock" function, a confirmation message will appear on the screen. Select "Yes" to save the settings.
• Eco+ mode is using Philips (Dynamic Eco) technology, lamp power can be dynamically adjusted from 100% to 70%.
  • The projector supports Quick Resume function which means that within a 100-second time period the projector can be switched on immediately in the situation when the projector was switched off unintentionally.
  If the Quick Resume function is off then 10-seconds after switching off the projector the cooling fans will start to cool down the projector and switching on the system immediately is strongly not recommended.

• Each display mode can be adjusted and saved the value.

USING THE PROJECTOR

Image menu

IMAGE Display Mode Presentation Brightness 0 Contrast 0 Sharpness 15 Color 0 Tint 0 Advanced Reset Exit

Display Mode

There are many factory presets optimized for various types of images.

Display Mode Presentation Bright Movie sRGB Blackboard 3D DICOM SIM. User

- Presentation: This mode is suitable for showing PowerPoint presentations when the project is connected to the PC.

Bright • : Maximum brightness from PC input.

Movie • : This mode is suitable for watching video.

sRGB • : Standardized accurate color.

- Blackboard: This mode should be selected to achieve optimum color settings when projecting onto a blackboard (green).

• 3D: To experience the 3D effect, you need to have 3D glasses. Make sure your PC / portable device has a 120 Hz signal output quad buffered graphics card and a 3D Player installed.

• DICOM SIM.: This mode can project a monochrome medical image such as an X ray radiography, MRI, etc.

• User : Memorize user's settings.

USING THE PROJECTOR

Brightness

Adjust the brightness of the image.

Press the ◀ to darken image.

Press the ▶ to lighten the image.

Contrast

The contrast controls the degree of difference between the lightest and darkest parts of the picture.

Press the ◀ to decrease the contrast.

Press the ▶ to increase the contrast.

Sharpness

Adjust the sharpness of the image.

Press the ◀ to decrease the sharpness.

Press the ▶ to increase the sharpness.

Color

Adjust a video image from black and white to fully saturated color.

Press the ◀ to decrease the amount of saturation in the image.

Press the ▶ to increase the amount of saturation in the image.

Tint

Adjust the color balance of red and green.

Press the ◀ to increase the amount of green in the image.

Press the ▶ to increase the amount of red in the image.

Reset

Choose "Yes" to return the factory default settings for "IMAGE".

Exit

Choose "Exit" to exit the menu.

USING THE PROJECTOR

Image Advanced menu

IMAGE Advanced Noise Reduction 0 ▶ BrilliantColor™ 10 ▶ Dynamic Black Off ▶ Gamma Film ▶ Color Temp. Warm ▶ Color Space Auto ▶ RGB Gain/Bias ▶ Color Matching ▶ Signal ▶ Exit

Noise Reduction

Select a filter sensitivity to be applied on noise. A higher value may improve noisy sources, but it will soften the image.

Press the ▶ to decrease the noise in the image.

Press the ◀ to increase the noise in the image.

BrilliantColor™

This adjustable item utilizes a new color-processing algorithm and enhancements to enable higher brightness while providing true, more vibrant colors in picture.

Press the ▶ to stronger enhance the image.

Press the ◀ to less enhance the image.

Dynamic Black

Dynamic Black enables the projector to automatically optimize the brightness of the display during dark / light movie scenes to be shown in incredible detail.

Gamma

This allows you to set up gamma curve type. After the initial setup and fine tuning is completed, utilize the Gamma Adjustment steps to optimize your image output. Press the ◀r to select the mode.

Film: for home theater.

Graphics: for PC / Photo source.

1.8 / 2.0 / 2.2 / 2.6: for specific PC / Photo source.

- Blackboard: This mode should be selected to achieve optimum color settings when projecting onto a blackboard (green).

• DICOM: This mode can project a monochrome medical image such as an X ray radiography, MRI, etc.

Color Temp.

Press the ◄r t▶ select a color temperature from Warm, Standard, Cool, or Cold.

USING THE PROJECTOR

Color Space

Press the ◀ or ▶ to select an appropriate color matrix type from the following:

Not-HDMI Input: Auto, RGB or YUV •

HDMI Input: Auto, RGB(0\~255), RGB(16\~235) or YUV.

RGB Gain / Bias

This settings allows to configure the brightness (gain) and contrast (bias) of an image.

Press the ◀ to decrease a chosen color gain and bias.

Press the ▶ to increase a chosen color gain and bias.

Color Matching

Press the ▶ into the next menu and then use , ▲, ▽ to select the item.

Color Matching Red Cyan Green Magenta Blue Yellow White Reset Exit

• Red / Green / Blue / Cyan / Magenta / Yellow: Use ◀ or ▶ to adjust Hue, Saturation and Gain Colors.

Red Hue 0 Saturation 0 Gain 0 Exit

White • : Use◀ or ▶ to adjust Red, Green, and Blue Colors.

White Red 0 Green 0 Blue 0 Exit

- Reset: Choose "Reset" to return the factory default settings for color adjustments.

Exit

Choose "Exit" to exit the menu.

USING THE PROJECTOR

Image advanced signal (RGB) menu

IMAGE Advanced : Signal Automatic On ► Phase 16 ► Frequency 0 ► H. Position 0 ► V. Position 0 ► Exit

Note:

"Signal" is only supported in Analog VGA (RGB) signal.

- If the "Signal" setting is set to automatic, the phase, frequency items are grayed out. If the "Signal" setting is set to a specific input source, the phase, frequency items will appear for the user to manually tune and are saved in the settings after the next time projector is turned off and on again.

Automatic

Automatically selects the signal. If this function is enabled, the Phase, frequency items are grayed out. If this function is disabled, the phase, frequency items will appear for user to manually tune and saved in settings after the next time projector turns off and on again.

Phase

Synchronize the signal timing of the display with the graphic card. If the image appears to be unstable or flickers, use this function to correct it.

Frequency

Change the display data frequency to match the frequency of your computer's graphic card. Use this function only if the image appears flickering vertical lines.

H. Position

Press the ◀ to move the image left.

Press the ▶ to move the image right.

V. Position

Press the ◀ to move the image down.

Press the ▶ to move the image up.

Exit

Choose "Exit" to exit the menu.

USING THE PROJECTOR

Image advanced signal (video) menu

IMAGE Advanced : Signal White Level 0 ▶ Black Level 0 ▶ IRE 7.5 ▶ Exit

White Level

Allow user to adjust White Level when inputting Video signals.

Black Level

Allow user to adjust Black Level when inputting Video signals.

IRE

Allow user to adjust IRE value when inputting Video signals.

IRE is only available with NTSC video format. Note:

Press the ◀ to decrease the amount of color in the image.

Press the ▶ to increase the amount of color in the image.

Exit

Choose "Exit" to exit the menu.

USING THE PROJECTOR

Display menu

DISPLAY Format Auto Zoom 0 Edge Mask 0 Image Shift Geometric Correction 3D Exit

Format

Press the ◀ or ▶ to choose your desired aspect ratio between 4:3, 16:9 / 16:10, LBX, Native, Auto (WXGA), 4:3, 16:9, Native, Auto (XGA), or 4:3, 16:9, LBX, Native, Auto (1080p).

1080P:

4:3: This format is for 4:3 input sources • .

• 16:9: This format is for 16:9 input sources, like widescreen laptops.
- LBX: This format is for non-16 x 9, letterbox source and for users who use external 16 x 9 lens to display 2.35:1 aspect ratio using full resolution.
• Native: This format displays the original image without any scaling.

AUTO: Automatically selects the appropriate display format.

1080P scaling table:

16 : 9 screen 480i/p 576i/p 1080i/p 720p PC
4x3 Scale to 1440 x 1080.
16x9	Scale to 1920 x 1080.
LBX	Scale to 1920 x 1440, then get the central 1920 x 1080 image to display.
Native mode	1:1 mapping centered.No scaling will be made; the resolution is dependent on which input source and is then displayed.
Auto	If this format is selected, the screen type will automatically become 16:9 (1920 x 1080).-If source is 4:3, the screen type will automatically resize to 1440 x 1080.-If source is 16:9, the screen type will automatically resize to 1920 x 1080.-If source is 16:10, the screen type will automatically resize to 1920 x 1200 and cut 1920 x 1080 area to display.

USING THE PROJECTOR

WXGA:

4:3: This format is for 4:3 input sources • .

• 16:9: This format is for 16:9 input sources, like HDTV and DVD enhanced for Wide screen TV.
• 16:10: This format is for 16:10 input sources, like widescreen laptops.
- LBX: This format is for non-16x9, letterbox source and for users who use external 16x9 lens to display 2.35:1 aspect ratio using full resolution.

Native: This format displays the original image without any scaling.

AUTO: Automatically selects the appropriate display format.

Detailed informations about LBX mode: Note:

• Some Letter-Box Format DVDs are not enhanced for 16x9 TVs. In this situation, the image will not look right when displaying image in 16:9 mode. In this situation, please try to use the 4:3 mode to view the DVD. If the content is not 4:3, there will be black bars around the image in 16:9 display. For this type of content, you can use LBX mode to fill the image on the 16:9 display.
• If you use an external anamorphic lens, this LBX mode also allows you to watch a 2.35:1 content (include Anamorphic DVD and HDTV film source) that supports anamorphic wide is enhanced for 16x9 Display in a wide 2.35:1 image. In this case, there are no black bars. Lamp power and vertical resolution are fully utilized.

WXGA scaling table (screen type 16x10):

16 : 10 screen	480i/p	576i/p	1080i/p	720p	PC
4x3	Scale to 1066 x 800.
16x10	Scale to 1280 x 800.
LBX	Scale to 1280 x 960, then get the central 1280 x 800 image to display.
Native mode	1:1 mapping centered.		1:1 mapping display 1280 x 800.	1280 x 720 centered.	1:1 mapping centered.
Auto	Input source will be fit into 1280 x 800 display area and be kept its original aspect ratio.- If source is 4:3, the screen type will automatically resize to 1066 x 800.- If source is 16:9, the screen type will automatically resize to 1280 x 720.- If source is 15:9, the screen type will automatically resize to 1280 x 768.- If source is 16:10, the screen type will automatically resize to 1280 x 800.

WXGA scaling table (screen type 16x9):

16 : 9 screen	480i/p	576i/p	1080i/p	720p	PC
4x3	Scale to 960 x 720.
16x9	Scale to 1280 x 720.
LBX	Scale to 1280 x 960, then get the central 1280 x 720 image to display.
Native mode	1:1 mapping centered.		1:1 mapping display 1280 x 720.	1280x720 centered.	1:1 mapping centered.
Auto	If this format is selected, the screen type will automatically become 16:9 (1280 x 720).-If source is 4:3, the screen type will automatically resize to 960 x 720.-If source is 16:9, the screen type will automatically resize to 1280 x 720.-If source is 15:9, the screen type will automatically resize to 1200 x 720.-If source is 16:10, the screen type will automatically resize to 1152 x 720.

USING THE PROJECTOR

XGA:

4:3: This format is for 4:3 input sources.

• 16:9: This format is for 16:9 input sources, like widescreen laptops.
Native: This format displays the original image without any scaling.
AUTO: Automatically selects the appropriate display format.

XGA scaling table:

Source 480i/p 576i/p 1080i/p 720p
4x3 Scale to 1024 x 768.
16x9 Scale to 1024 x 576.
Native mode	No scaling will be made; the resolution is dependent on which input source and is then displayed.
Auto -If source is 4:3, the screen type will automatically resize to 1024 x 768.-If source is 16:9, the screen type will automatically resize to 1024 x 576.-If source is 16:9, the screen type will automatically resize to 1024 x 576.-If source is 16:10, the screen type will automatically resize to 1024 x 576

Zoom

• Press the ◀ to reduce the size of an image.
• Press the ▶ to magnify an image on the projection screen.

Edge Mask

Use this function to remove video the encoding noise on the edge of video source.

Note:

• Each I/O has different setting of "Edge Mask".
- "Edge Mask" and "Zoom" cannot work at the same time.

Image Shift

Press ▶ into the next menu as below and then use ▲, ▼, ◀, ▶ to select item.

Image Shift H : -10 V : 10

• H: Press the ◀▶ to shift the projected image position horizontally.
• V: Press the ▲▼ to shift the projected image position vertically.

USING THE PROJECTOR

Display geometric correction menu

DISPLAY Geometric Correction H. Keystone 0 ▶ V. Keystone 0 ▶ Auto V. Keystone Off ▶ Four Corner ▶ Reset ▶ Exit

Geometric correction

• H. Keystone (Horizontal Keystone): Press the ◀▶ to correct horizontal keystone distortion.
• V. Keystone (Vertical Keystone): Press the ▲▼ to correct vertical keystone distortion.
Auto V. Keystone: Automatically corrects vertical keystone error.
• Four Corner: Compensate for image distortion by adjusting one corner at a time.
- Reset: Choose "Yes" to return the factory default settings for "Geometric correction".

Four Corner

1. Use "Menu" to start.
2. Use "Four Corner" menu to choose one corner and press "Enter" to confirm.
3. Use the ▲, ▼, ◀, or ▶ to move the angle and press "Enter" to confirm.

Four Corner

Four Corner

Four Corner

Four Corner

USING THE PROJECTOR

Display 3D menu

DISPLAY 3D 3D Mode Off ▶ 3D → 2D 3D ▶ 3D Format Auto ▶ 3D Sync. Invert Off ▶ ← Exit

3D Mode

Use this function to disable the 3D function or select the appropriate the 3D function.

3D Mode Off DLP-Link VESA 3D

Off: • Select "Off" to turn off 3D mode.

• DLP-Link: Select "DLP-Link" to use optimized settings for DLP Link 3D Glasses.
• VESA 3D: Select "VESA 3D" to use optimized setting for VESA 3D Glasses.

3D -> 2D

Use this option to specify how the 3D content should appear on the screen.

3D: Display 3D signal.

L (Left): Display the left frame of 3D content.

R (Right): Display the right frame of 3D content.

3D Format

Use this option to select the appropriate 3D format content.

• Auto: When a 3D identification signal is detected, the 3D format is selected automatically.
SBS: Display 3D signal in "Side-by-Side" format.
• Top and Bottom: Display 3D signal in "Top and Bottom" format.
• Frame Sequential: Display 3D signal in "Frame Sequential" format.

Note:

• "3D Format" is only supported on 3D Timing on page 69.
- "3D Format" is only supported on non-HDMI 1.4a 3D timing.

3D Sync. Invert

Use this option to enable / disable the 3D sync invert function.

• Press the "On" to invert left and right frame contents.
  • Press the "Off" for default frame contents.

Exit

Choose "Exit" to exit the menu.

USING THE PROJECTOR

Setup menu

SETUP Language English Projection Screen Type 16:10 Menu Location Security Projector ID 0 Audio Settings Advanced Network Exit

Language

Choose the multilingual OSD menu. Press ▶ into the sub menu and then use the , ▲ or ▼ key to select your preferred language. Press "Enter" to finalize the selection.

Language
English	Nederlands	Čeština	Türkçe
Deutsch	Norsk/Dansk	عربي	فارسی
Français	Polski	繁體中文	Vietnamese
Italiano	Русский	简体中文	Romanian
Español	Suomi	日本語	Indonesian
Português	ελληνικά	한국어
Svenska	Magyar	1πυ	Exit

Projection

• Front
  This is the default selection. The image is projected straight on the screen.
• Rear
  When selected, the image will appear reversed.
• Front-Ceiling
  When selected, the image will turn upside down.
• Rear-Ceiling
  When selected, the image will appear reversed in upside down position.

Note: Rear-Desktop and Rear-Ceiling are to be used with a translucent screen.

USING THE PROJECTOR

Screen Type

Choose the screen type from 16:10 or 16:9 (WXGA).

"Screen Type" is for WXGA only. Note:

Menu Location

Choose the menu location on the display screen.

Projector ID

ID definition can be set up by menu (range 0-99), and allow user control an individual projector by RS232.

Exit

Choose "Exit" to exit the menu.

USING THE PROJECTOR

Setup audio settings menu

SETUP Audio Settings Internal Speaker Off ▶ Mute ► Volume ► Audio Input ► Audio Out(Standby) Off ► Exit

Internal Speaker

Choose the "On" or "Off" to turn on or off the internal speaker.

Mute

Use this option to temporarily turn off the sound.

Choose the "On" to turn mute on.

Choose the "Off" to turn mute off.

Note: "Mute" function affects both internal and external speaker volume.

Audio Input

The default audio settings are on the back panel of the projector. Use this option to reassign any of the Audio Inputs (1 or 2) to the current image source. Each Audio input can be assigned to more than one video source.

Default: VGA1 / VGA2->Audio1, Video / S-Video->Audio2.

1080p / WXGA: Audio1 / 2: Mini jack connection.

XGA: Audio1: Mini jack connection; Audio2: L / R.

Audio Out(Standby)

Choose the "On" or "Off" to turn on or off the audio out.

Note: If the "Audio Out (Standby)" option is turned "On", the power consumption of the projector in standby mode will be over 3W.

Exit

Choose "Exit" to exit the menu.

USING THE PROJECTOR

Setup audio settings volume menu

SETUP Audio Settings : Volume Audio 5 ▶ Mic 5 ▶ Exit

Audio

Adjust the volume level.

Press the ◀ to decrease the volume.

Press the ▶ to increase the volume.

Mic (XGA only)

Adjust the microphone input sound level.

Press the ◀ to decrease the microphone input sound level.

Press the ▶ to increase the microphone input sound level.

Setup Security menu

SETUP Security Security Off Security Timer Change Password Exit

Security

Enable this function to prompt for a password before using the projector.

• On: Choose "On" to use security verification when the turning on the projector.
  • Off: Choose "Off" to be able to switch on the projector without password verification.

USING THE PROJECTOR

Security Timer

Can be select the time (Month / Day / Hour) function to set the number of hours the projector can be used. Once this time has elapsed you will be requested to enter your password again.

Security Timer Month 0 Day 0 Hour 0 Exit

Change the Password

First time • :

Press the "Enter" key to set the password.1.

The password has to be 4 digits. 2.

Use number button on the remote control or on-screen numeric keypad to enter your new password 3. and then press the "Enter" key to confirm your password.

Change Password • :

(If your remote does not have a number keypad, please use the ▲▼ arrows to change each digit of the password, then press the “Enter” key to confirm).

Press the "Enter" key to input old password.1.

Use the number button or on-screen numeric keypad to enter the current password and then press the 2. "Enter" key to confirm.

Enter the new password (4 digits in length) using the number buttons on the remote control, then 3. press the "Enter" key to confirm.

Enter the new password again and press the "Enter" key to confirm.4.

If the incorrect password is entered 3 times, the projector will automatically shut down.

If you have forgotten your password, please contact your local office for support.

The password default value is "1234" (first time). Note:

Enter Current Activity Cycle (4 digits) REMOTE 1 2 3 4 5 6 7 8 9 0

Exit

Choose "Exit" to exit the menu.

USING THE PROJECTOR

Setup network LAN settings menu

SETUP Network : LAN Settings Network Status Connected DHCP Off ▶ IP Address 192.168.0.100 ▶ Subnet Mask 255.255.255.0 ▶ Gateway 192.168.0.254 ▶ DNS 192.168.0.1 ▶ MAC Address [ 00:00:00:00:00:00 ] ← Exit

Network Status

Display the network connection status (read-only).

DHCP

Use this option to enable or disable the DHCP function.

• On: Projector will obtain an IP address automatically from your network.
• Off: To assign IP, Subnet Mask, Gateway and DNS configuration manually.

Exiting OSD will automatically apply the entered values. Note:

IP Address

Display the IP address.

Subnet Mask

Display subnet mask number.

Gateway

Display the default gateway of the network connected to the projector.

DNS

Display DNS number.

MAC Address

Display the MAC address (read-only).

Exit

Choose "Exit" to exit the menu.

How to use web browser to control your projector

Turn "On" the DHCP option on projector to allow a DHCP server to automatically assign an IP 1. address. Open the web browser in your PC and type in the projector's IP address ("Network: LAN Settings > IP 2. Address"). Enter the user name and password, and click "Login".3. The projector's configuration web interface opens.

USING THE PROJECTOR

Note:

The default user name and password is "admin".

The steps in this section is based on Windows 7 operating system • .

Making a direct connection from your computer to the projector\*

Turn "Off" the DHCP option on the projector.1.

Configure the IP address, Subnet Mask, Gateway, and DNS on projector ("Network: LAN Settings").2.

IP Address	192.160.0.100
Subnet Mask	255.255.255.0
Gateway	192.160.0.254
DNS	192.168.0.1

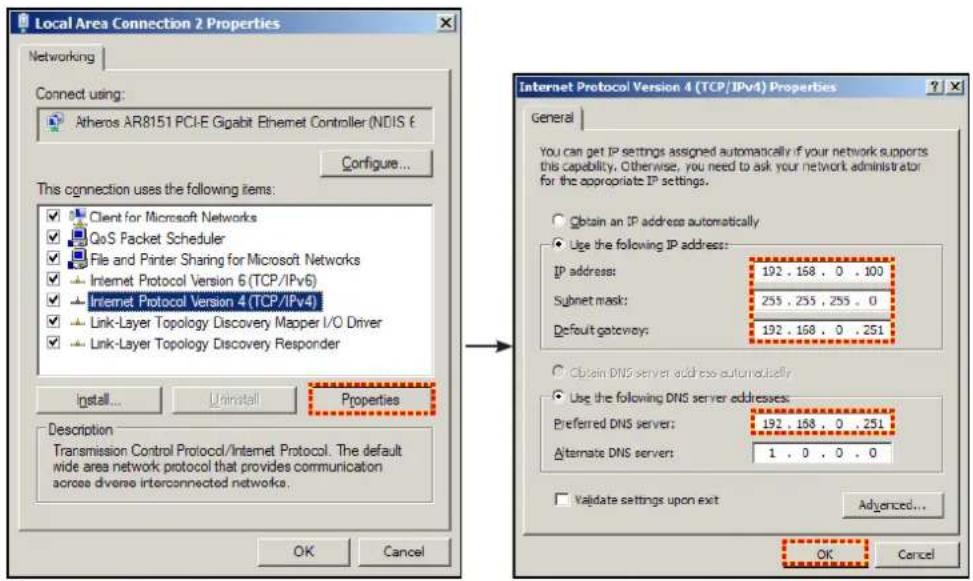

1. Open Network and Sharing Center page on your PC, and assign the identical network parameters to your PC as set on projector. Click "OK" to save the parameters.

Local Area Connection 2 Properties Networking Connect using: Atheros AR8151 PCI-E Gigabit Ethernet Controller (NDIS € Configure... This connection uses the following items: ✓ Client for Microsoft Networks ✓ QoS Packet Scheduler ✓ File and Printer Sharing for Microsoft Networks ✓ Internet Protocol Version 6 (TCP/IPv6) ✓ Internet Protocol Version 4 (TCP/IPv4) ✓ Link-Layer Topology Discovery Mapper I/O Driver ✓ Link-Layer Topology Discovery Responder Install... Install Properties Description Transmission Control Protocol/Internet Protocol. The default wide area network protocol that provides communication across diverse interconnected networks. Internet Protocol Version 4 (TCP/IPv4) Properties General You can get IP settings assigned automatically if your network supports this capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. Obtain an IP address automatically. Use the following IP address: IP address: 192 . 168 . 0 . 100 Subnet mask: 255 . 255 . 255 . 0 Default gateway: 192 . 168 . 0 . 251 Obtain DNS server address automatically Use the following DNS server addresses: Preferred DNS server: 192 . 168 . 0 . 251 Alternate DNS server: 1 . 0 . 0 . 0 Validate settings upon exit Advanced... OK Cancel Internet Protocol Version 4 (TCP/IPv4) Properties

Open the web browser on your PC and type in to the URL field the IP address, assigned in step 3.4. Then press "Enter" key.

USING THE PROJECTOR

Setup network control settings menu

SETUP Network : Control Settings Crestron Off ▶ Extron Off ▶ PJ Link Off ▶ AMX Device Discovery Off ▶ Telnet Off ▶ HTTP Off ▶ Exit

Crestron

Use this function to select the network function (port: 41794).

For more information, please visit http://www.crestron.com and www.crestron.com/getroomview.

Extron

Use this function to select the network function (port: 2023).

PJ Link

Use this function to select the network function (port: 4352).

AMX Device Discovery

Use this function to select the network function (port: 9131).

Telnet

Use this function to select the network function (port: 23).

HTTP

Use this function to select the network function (port: 80).

Exit

Choose "Exit" to exit the menu.

USING THE PROJECTOR

Setup network control settings menu

LAN RJ45 function

For simplicity and ease of operation, the projector provides diverse networking and remote management features. The LAN / RJ45 function of the projector through a network, such as remotely manage: Power On / Off, Brightness and Contrast settings. Also you can view the projector status information, such as: Video- Source, Sound-Mute, etc.

Projector (Ethernet)

Wired LAN terminal functionalities

This projector can be controlled by using a PC (laptop) or other external device via LAN / RJ45 port and compatible ith Crestron / Extron / AMX (Device Discovery) / PJLink.

• Crestron is a registered trademark of Crestron Electronics, Inc. of the United States.

• Extron is a registered trademark of Extron Electronics, Inc. of the United States.

AMX is a registered trademark of AMX LLC of the United States.

- PJLink applied for trademark and logo registration in Japan, the United States of America, and other countries by JBMIA.

The projector is supported by the specified commands of the Crestron Electronics controller and related software, for example RoomView®.

http://www.crestron.com/

This projector is compliant to support Extron device(s) for reference.

http://www.extron.com/

This projector is supported by AMX (Device Discovery).

http://www.amx.com/

This projector supports all commands of PJLink Class1 (Version 1.00).

http://pjlink.jbmia.or.jp/english/

For more detailed information about the various types of external devices which can be connected to the LAN / RJ45 port and remote control the projector, as well as the supported commands for these external devices, please contact the Support-Service directly.

USING THE PROJECTOR

LAN RJ45

Connect an RJ45 cable to RJ45 ports on the projector and the PC (laptop).1.

Diagram showing connection between a projector and a laptop via RJ-45 Ethernet, with labeled ports and cables.

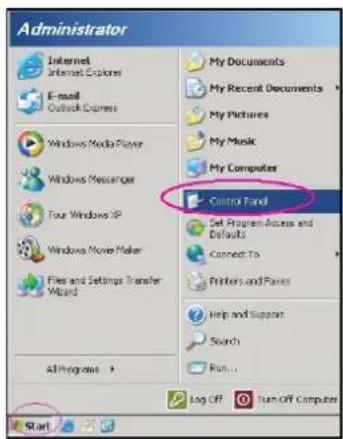

1. On the PC (Laptop), select Start > Control Panel > Network Connections.

Administrator Internet Internet Explorer E-mail Outlook Express My Documents My Recent Documents My Pictures My Music My Computer Control Panel Set Program Access and Defaults Connect To Printers and Flares Help and Support Search Run... All Programs > Log Off Turn Off Computer Start

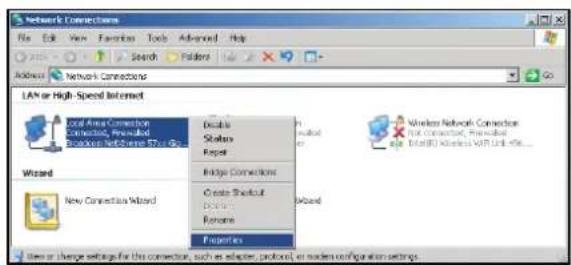

1. Right-click on the Local Area Connection, and select Property.

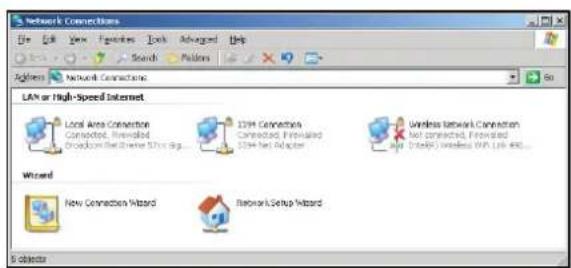

Network Connections File Edit View Favorites Book Advanced Help Address Network Connections LAN or High-Speed Internet Local Area Connection Connected, Renewable Broadband Band Chain Store Big... LTEM Connection Connected, Renewable LTEA Net Adapter Wireless Network Connection Net connected, Renewable Air (DTEF) wireless WiFi Lib 400... Wizard New Connection Wizard Network Setup Wizard S objects

1. In the Properties window, select the General tab, and select Internet Protocol (TCP / IP).

Network Connections File Edit View Favorites Tools Advanced Help Address Network Connections LAN or High Speed Internet Local Area Connection Description: Personalized Access NetChene STG - 01 Details Status Repair Bridge Connections Create Shortcut Drive Rename Properties Wizard New Connection Wizard Wireless Network Connection VIX Conductor, Parallel VIX (R) Wireless WITH Unit Off... View or Change settings for this connection, such as adapter, protocol, or mode configuration settings.

USING THE PROJECTOR

Click "Properties".5.

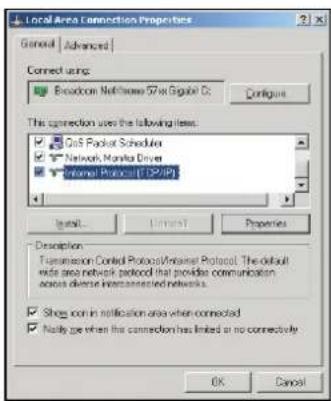

Local Area Connection Properties General | Advanced | Connect using: Broadcom Networks 57.8x Genome Co Configure This connection uses the following items: □ Soft Packet Scheduler □ Network Manila Driver ■ Internal Protocol [CP/IP] Install... Connect... Properties Description Transmission Control Protocol/Internal Protocol. The default area network protocol that provides communication across diverse interconnected networks. □ Show con in notification area when connected □ Notify ge when this connection has limited at no connectivity OK Cancel

Type in the IP address and Subnet mask, then press "OK".6.

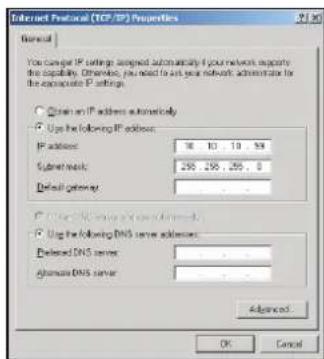

Internet Protocol (TCP/IP) Properties General To consider IP settings designed automatically for your network supports this capability. Otherwise, you need to set your network, administrate for the approximate IP settings. ○ Obtain an IP address automatically ○ Use the following IP address: IP address: 10 10 10 59 Subnetwork: 250 250 250 0 Default gateway: ○ Use TCP Server or other networks ○ Use the following DNS server addresses: Deleted DNS server: Alternate DNS server: Advanced: OK Cancel

Press the "Menu" button on the projector.7.

1. Use the ◀▶ keys to select SETUP > Network > LAN Settings.

Enter the following connection parameters:9.

DHCP: Off –

IP Address: 10.10.10.10 –

Subnet Mask: 255.255.255.255 –

Gateway: 0.0.0.0 -

DNS: 0.0.0.0 -

Press "Enter" to confirm settings.10.

Open a web browser, for example Microsoft Internet Explorer with Adobe Flash Player 9.0 or higher 11. installed.

1. In the Address bar, input the projector's IP address: 10.10.10.10.

1. Press "Enter".

USING THE PROJECTOR

The projector is setup for remote management. The LAN / RJ45 function displays as follows:

Information page

Model Optoma Legend Tools Info Help Optoma Projector information Projector Status Projector Name: E3510571 Location: Room Power Status On Source HDMI Firmware B92 2011-09-21 Mac Address 00 50-41.77.31.24 Resolution 0 x 0 Hz Lamp Hours 10 Lamp Mode STD Assigned To Sir Error Status exit

Main page

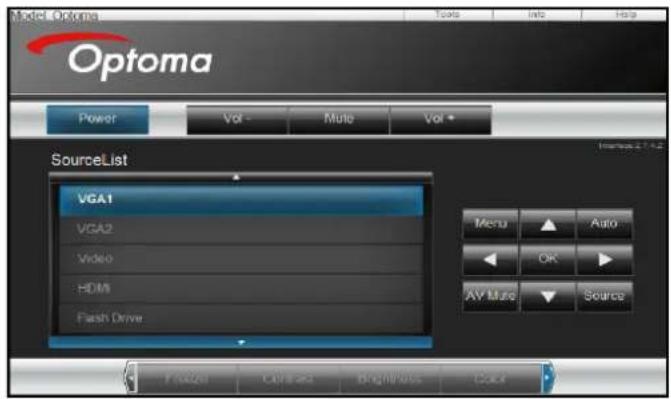

Model Optoma Optoma Power Vol - Multi Vol * SourceList VGA1 VGA2 Video HDMI Flash Drive Menu Auto OK AV Mute Source

Tool page

Model Options Optoma Creation Control IP Address: 182.168.0.2 IP ID: 5 Port: 41794 Send Default Language Automatic Send Projector Precenter Name: EX510STI Location: Room Name: Sir Send DHCP IP Address: 182.168.0.100 Submit Mask: 255.255.255.0 Default Gateway: 182.168.0.254 DNS Server: 182.168.0.1 Host Name: Send User Password Enabled New Password Confirm Send Admin Password Enabled New Password Confirm Send Exit

Contact IT helpdesk

HELP DESK Send

USING THE PROJECTOR

RS232 by Telnet Function

There is alternative RS232 command control way, in projector so called "RS232 by TELNET" for LAN / RJ45 interface.

Quick Start-Guide for "RS232 by Telnet"

Check and get the IP address on OSD of the projector.

• Make sure that the PC / laptop can access the web-page of the projector.
• Make sure that "Windows Firewall" setting is set disabled in case of "TELNET" function filtering out by PC / laptop.

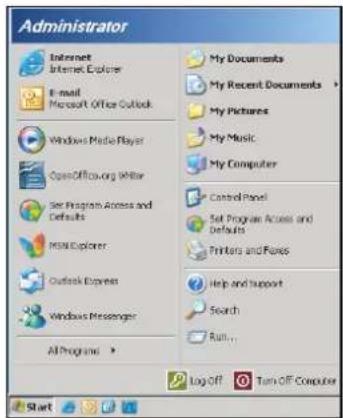

Administrator Internet Internet Explorer E-mail Microsoft Office Outlook Windows Media Player OpenOfficow.org writer Set Program Access and Defaults MSN Explorer Outlook Express Windows Messenger All Programs My Documents My Recent Documents My Pictures My Music My Computer Control Panel Set Program Access and Defaults Printers and Files Help and Support Search Run... Log Off Turn Off Computer Start

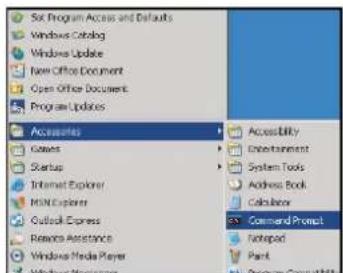

1. Select Start > All Programs.> Accessories > Command Prompt.

Set Program Access and Defaults Windows Catalog Windows Update New Office Document Open Office Document Program Updates Accessories Gooset Startup Internet Explorer MSN Explorer Outlook Express Resource Assistance Windows Media Player Windows Management Accessibility Entertainment System Tools Address Book Calculator Command Prompt Anotepad Paint Program Copyright

Input the command format as follows: 2.

telnet ttt.xxx.yyy.zzz 23 ("Enter" key pressed) –

(ttt.xxx.yyy.zzz: IP-Address of the projector) –

If Telnet-Connection ready, and user can have RS232 command input, then "Enter" key pressed, the 3. RS232 command will be workable.

Specification for "RS232 by TELNET":

Telnet: TCP.1.

Telnet port: 23 (for more detail, kindly please get contact with the service agent or team).2.

1. Telnet utility: Windows "TELNET.exe" (console mode).
2. Disconnection for RS232-by-Telnet control normally: Close

3. Windows Telnet utility directly after TELNET connection ready.

4. Limitation 1 for Telnet-Control: there is less than 50 bytes for successive network payload for Telnet-Control application.

5. Limitation 2 for Telnet-Control: there is less than 26 bytes for one complete RS232 command for Telnet-Control.
6. Limitation 3 for Telnet-Control: Minimum delay for next RS232 command must be more than 200 (ms).

USING THE PROJECTOR

Setup advanced menu

SETUP Advanced Logo Default Logo Capture Closed Captioning Off Exit

Logo

Use this function to set the desired startup screen. If changes are made, they will take effect the next time the projector is powered on.

Default: The default startup screen.

Neutral: Logo is not displayed on startup screen.

User: Use stored picture from "Logo Capture" function.

Logo Capture

Press ▶ to capture an image of the picture currently displayed on the screen.

Note:

• For a successful logo capture, ensure that the image does not exceed the projectors native resolution. If logo capture is still unsuccessful please try using a less detailed image.
• This feature is exclusively for capturing logos and not for capturing large-scale images.

Closed Captioning

Closed Captioning is a text version of the program sound or other information displayed on the screen. If the input signal contains closed captions, you can turn on the feature and watch the channels. Press ◀r to select Off, CC1, or CC2.

Exit

Choose "Exit" to exit the menu.

USING THE PROJECTOR

Options menu

OPTIONS Input Source Source Lock High Altitude Information Hide Keypad Lock Display Mode Lock Test Pattern None

Input Source

Use this option to enable / disable input sources. Press ▶ to enter the sub menu and select which sources you require. Press "Enter" to finalize the selection. The projector will only search for inputs that are enabled.

1080P / WXGA XGA

Input Source VGA □ HDMI 1 □ Video □ HDMI 2 □ HDMI 3 □ Exit

Input Source VGA 1 □ HDMI 1 □ VGA 2 □ HDMI 2 □ Video S-Video □ □ │ │ │ HDMI 3 □ Exit

Source Lock

Use this function to let the projector to search for current input only or any input signals.

On: • The projector will only search current input connection.

• Off: The projector will search for other signals if the current input signal is lost.

High Altitude

When "On" is selected, the fans will spin faster. This feature is useful in high altitude areas where the air is thin.

Information Hide

Enable this function to hide the information message.

On: Choose "On" to hide the info message.

• Off: Choose "Off" to show the "searching" message.

Keypad Lock

When the keypad lock function is "On", the Keypad will be locked. However, the projector can be operated by the remote control. By selecting "Off", you will be able to reuse the Keypad.

Display Mode Lock

Choose "On" or "Off" to lock or unlock adjusting display mode settings.

Test Pattern

Display a test pattern. The available options are Grid, White Pattern, and None.

USING THE PROJECTOR

Options menu

OPTIONS Background Color Blue Wall Color Remote Settings 12V Trigger Off Beep Off Advanced Lamp Settings

Background Color

Use this feature to display a "Black", "Red", "Blue", "Green", or "White", screen when no signal is available.

Wall Color

Use this function to obtain an optimized screen image according to the wall color. The available options: "Off", "Light Yellow", "Light Green", "Light Blue", "Pink", and "Gray".

12V Trigger

Use this function to enable or disable the trigger.

Reserved IR_IN & detect GND

Off: Choose "Off" to disable the trigger.

On: Choose "On" to enable the trigger.

Beep

Use this function to enable or disable the beep sound.

• Off: No beep sound is audible when power on / off the projector or in an error event.
• On: Beep sound is audible when power on / off the projector or in an error event.

USING THE PROJECTOR

Options menu

OPTIONS Optional Filter Settings Information Reset Exit

Information

Display the projector information.

Information S/N Number XXXXXXXXXXXXX F/W Version DDP C01 MCU M01 LAN L01 Current Input Source VGA 1 Resolution 1920x1000 Refresh Rate 58.07 Hz Lamp Hours Bright 0000 H Eco 0000 H Dynamic 0000 H Eco+ 0000 H Filter Hour 0000 H Projector ID 00 IP Address 182.188.0.100 Network Status Connected Exit

Exit

Choose "Exit" to exit the menu.

Reset

Choose "Yes" to return the factory default settings for "OPTIONAL FILTER".

USING THE PROJECTOR

Options lamp settings menu

OPTIONS Lamp Settings Lamp Hour 0 Lamp Reminder On Lamp Mode Bright Lamp Reset Exit

Lamp Hour

Display the projection time.

Lamp Reminder

Choose this function to show or to hide the warning message when the changing lamp message is displayed. The message will appear 30 hours before suggested replacement of lamp.

Lamp Mode

Set the lamp mode setting.

Bright: • Choose "Bright" to increase the brightness.

• Eco: Choose "Eco" to dim the projector lamp which will lower power consumption and extend the lamp life.
• Dynamic: Choose "Dynamic" to dim the lamp power which will be based on brightness level of the content and adjust lamp power consumption between 100% and 30% dynamically. The lamp life will be extended.
• Eco+: When Eco+ mode is activated, the brightness level of the content is automatically detected to significantly reduced lamp power consumption (up to 70%) during periods of inactivity.

Note:

- When ambient temperature is over 40^ during operation, the projector will switch to Eco mode automatically.

The "Lamp Mode" can be independently set for 2D and 3D.

Lamp Reset

Resets the lamp hour counter after replacing the lamp.

Exit

Choose "Exit" to exit the menu.

USING THE PROJECTOR

Options remote settings menu

OPTIONS Remote Settings User 1 Test Pattern ▶ User 2 Zoom ▶ User 3 Info. ▶ IR Function On ▶ Exit

USER 1

Assign the default function for USER1. The default value is "Test Pattern".

User 1 ← Test Pattern ►

- Press ▶ into the next menu and then use ◀ or ▶ to select "HDMI2", "VGA2" (XGA only), "S-Video (XGA only)", "Test Pattern", "Zoom", or "Info" item.

USER 2

Assign the default function for USER 2. The default value is "Zoom".

User 2 Zoom

- Press ▶ into the next menu and then use ◀ or ▶ to select "HDMI2", "VGA2" (XGA only), "S-Video (XGA only)", "Test Pattern", "Zoom", or "Info" item.

USER 3

Assign the default function for USER 3. The The default value is "Info.".

User 3 Info.

- Press ▶ into the next menu and then use ◀ or ▶ to select "HDMI2", "VGA2" (XGA only), "S-Video (XGA only)", "Test Pattern", "Zoom", or "Info" item.

IR Function

Set the IR function setting.

• On: Choose "On", the projector can be operated by the remote control from front or top IR receiver.
• Front: Choose "Front", the projector can be operated by the remote control from front IR receiver.
  • Top: Choose "Top", the projector can be operated by the remote control from top IR receiver.
• Off: Choose "Off", the projector can't be operated by the remote control from front or top IR receiver. By selecting "Off", you will be able to use the Keypad keys.

Note:

"Front" and "Top" cannot be selected in standby mode.

- IR mode can be switched to "NVIDIA 3D Vision" once implemented and verified by NVIDIA.

USING THE PROJECTOR

Options advanced menu

OPTIONS Advanced Direct Power On Off ▶ Signal Power On Off ▶ Auto Power Off (min.) 20 ▶ Sleep Timer (min.) 0 ▶ Quick Resume Off ▶ Power Mode (Standby) Eco. ▶ Exit

Direct Power On

Choose "On" to activate Direct Power mode. The projector will automatically power on when AC power is supplied, without pressing the "☐key on the projector Keypad or on the remote control.

Signal Power On

Choose "On" to activate Signal Power mode. The projector will automatically power on when a signal is detected, without pressing the "key" on the projector Keypad or on the remote control.

Note: If the "Signal Power On" option is turned "On", the power consumption of the projector in standby mode will be over 3W.

Auto Power Off (min)

Sets the countdown timer interval. The countdown timer will start, when there is no signal being sent to the projector. The projector will automatically power off when the countdown has finished (in minutes).

Press the ◀ to decrease the timer interval.

• Press the ▶ to increase the timer interval.

Note: The projector will automatically power off when the countdown has finished. The default setting is 20 minutes.

Sleep Timer (min)

Sets the countdown timer interval. The countdown timer will start, with or without a signal being sent to the projector. The projector will automatically power off when the countdown has finished (in minutes).

Press the ◀ to decrease the timer interval.

- Press the ▶ to increase the timer interval.

Note: The Sleep Timer is reset every time when the projector is powered off.

Quick Resume

Set the quick resume setting.

- On: If the projector is accidentally turned off, this feature allows the projector to be instantly powered on again, if selected within a period of 100 seconds.

• Off: The fan will start cooling the system after 10 seconds when user turns off the projector.

USING THE PROJECTOR

Power Mode (Standby)

Set the power mode setting.

Active: Choose "Active" to return to normal standby.

Eco.: Choose "Eco." to save power dissipation further < 0.5W.

Note:

- If the "Signal Power On" option is turned "On" or the "Audio Out (Standby)" option is turned "On", the power consumption of the projector in standby mode will be over 3W.

The fans will still run in active standby if audio loop through / signal power on is enabled.

Exit

Choose "Exit" to exit the menu.

USING THE PROJECTOR

Options optional filter settings menu

OPTIONS Optional Filter Settings Filter usage Hours 0 Optional Filter Installed Yes ▶ Filter Reminer 500 hr ▶ Filter Reset ▶ Exit

Filter Usage Hours

Display the filter time.

Optional Filter Installed

Choose this function to show or hide the warning message after 500 hours of use.

Yes: Display warning message after 500 hours of use.

No: Turn off warning message.

Note: "Filter Usage Hours / Filter Reminder / Filter Reset" will only appear when "Optional Filter Installed" is "Yes".

Filter Reminder

Choose this function to show or hide the warning message when the changing filter message is displayed. (Factory default setting: 500 hours).

Filter Reset

Reset the dust filter counter after replacing or cleaning the dust filter.

Exit

Choose "Exit" to exit the menu.

USING THE PROJECTOR

3D Setup

Turn on your projector.1.

Connect your 3D source. For example, 3D Blu ray, Games console, PC, Set top box, etc.2.

Ensure you have inserted 3D content or selected the 3D channel.3.

Turn on your 3D glasses. Please refer to the 3D glasses user manual on how to operate the 3D 4.glasses.

Your projector will automatically display 3D from a 3D Blu-ray. For 3D via a set top box or PC, you will 5. be required to adjust the settings in the 3D menu.

For 3D via Blu ray

3D will automatically be displayed. Depending on the 3D glasses you have you will either need to select DLP Link or VESA in the menu. VESA glasses come with an emitter that must be connected to the 3D Sync port of the projector. Please refer to pages 15-16.

• Menu > "Display" > "3D" > "3D Mode" > "DLP Link"
• Menu > "Display" > "3D" > "3D Mode" > "VESA"

For 3D via a PC or Set top box

3D will not be displayed automatically. Depending on the 3D content the image will either be displayed side by side or top and bottom. Please refer to the following table.

SBS SBS

Top and bottom

Top and bottom

• For side by side images, select "SBS" in the menu. Menu > "Display" > "3D" > "3D Format" > "SBS".
• For top and bottom images, select "top and bottom" in the menu. Menu > "Display" > "3D" > "3D Format" > "Top and bottom".

If the 3D image does not look correct, you may also be required to adjust the 3D sync invert. Turn this on if the image looks odd. Menu > "Display" > "3D" > "3D Sync Invert" > "On".

Note: If input video is normal 2D, please press "3D" and switch to "Auto". If "SBS" mode is active, 2D video content will not be displayed correctly. Please change back to "Auto" when 3D via a PC only works with certain resolutions. Please check the compatibility on page 69.

MAINTENANCE

Replacing the lamp

The projector automatically detects the lamp life. When the lamp life is nearing the end of use, a warning message will appear on the screen.

Lamp Warning Lamp life exceeded.

When you see this message, please contact your local reseller or service center to change the lamp as soon as possible. Make sure the projector has been cooled down for at least 30 minutes before changing the lamp.

CAUTION! HIGH TEMPERATURE COOL FOR 30 MINUTES. HIGH PRESSURE LAMP MAY EXPLODE IF IMPROPERLY HANDED. REFER TO LAMP REPLACEMENT INSTRUCTIONS DISCONNECT POWER BEFORE CHANGING LAMP. ATTENTION: A HAUTES TEMPERATURES REFROIDISSEZ PENDANT 30 MINUTES. Les lampes à haute pression peuvent exploser si elles sont mal utilisées. Confier l'entretien à une personne qualifiée. COUPERLE COURANT AVANT DEREMPLACERLE LAMPES.

Warning: If ceiling mounted, please use caution when opening the lamp access panel. It is recommended to wear safety glasses if changing the bulb when ceiling mounted. Caution must be used to prevent any loose parts from falling out of projector.

Warning: Lamp compartment is hot! Allow it to cool down before changing lamp!

Warning: To reduce the risk of personal injury, do not drop the lamp module or touch the lamp bulb. The bulb may shatter and cause injury if it is dropped.

MAINTENANCE

Replacing the lamp (continued)

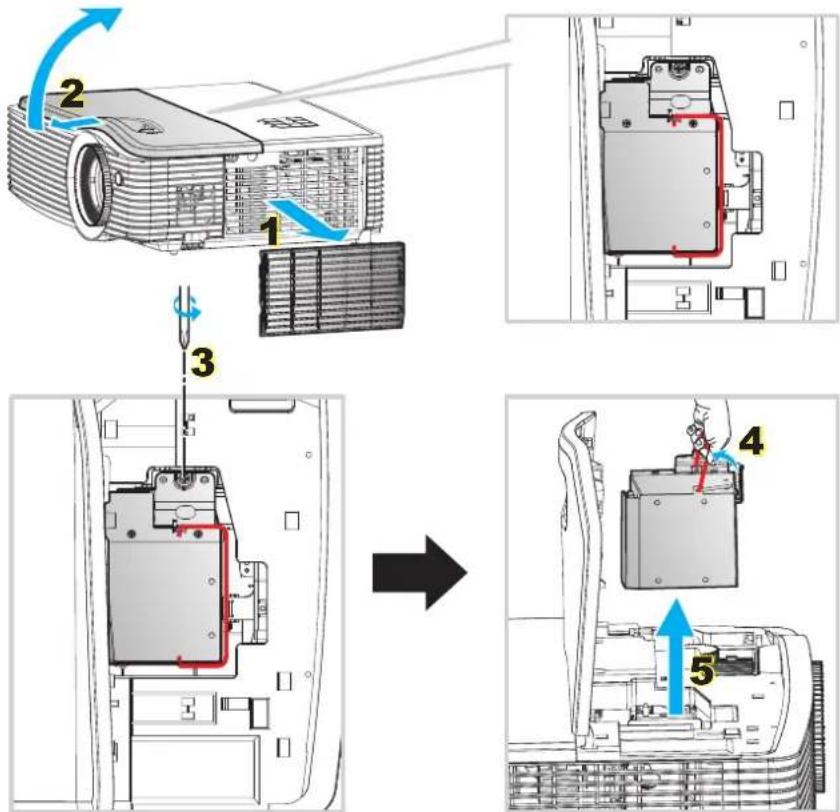

Technical diagram showing exploded view of a projector with labeled parts and directional arrows indicating assembly steps.

Procedure:

Switch off the power to the projector by pressing the "☐" button on the remote control or the projector Keypad.

Allow the projector to cool down for at least 30 minutes.2.

Disconnect the power cord.3.

Remove the dust filter. 4. 1

First slide and then lift the top cover. 5. 2

Unscrew the screw on the side panel. 6. 3

Lift up the lamp handle. 7. 4

Remove the lamp module carefully. 8. 5

1. To replace the lamp module, reverse the previous steps.
2. Turn on the projector and reset the lamp timer.
3. Lamp Reset: (i) Press "Menu" → (ii) Select "OPTIONS" → (iii) Select "Lamp Settings" → (iv) Select "Lamp Reset" → (v) Select "Yes".

Note:

• The projector cannot be turned on if the lamp cover has not been placed back on the projector.
- Do not touch the glass area of the lamp. Hand oil can cause the lamp shatter. Use a dry cloth to clean the lamp module if it was accidentally touched.

MAINTENANCE

Installing and cleaning the dust filter

Installing the dust filter

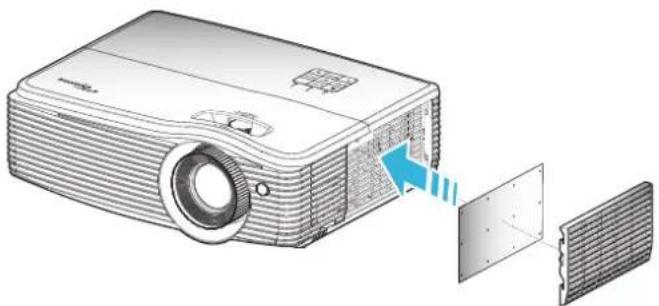

Illustration of a projector with internal components and a magnified inset showing the exterior panel (no text or symbols)

Note: Dust filters are only required / supplied in the selected regions with excessive dust.

Cleaning the dust filter

We recommend you to clean the dust filter every three months. Clean it more often if the projector is used in a dusty environment.

Procedure:

Switch off the power to the projector by pressing 1. the "button on the remote control or the projector Keypad.

Disconnect the power cord.2.

Remove the dust filter carefully. 3. 1

Clean or replace the dust filter. 4. 2

To install the dust filter, reverse the previous steps.5.

Diagram showing a projector with labeled parts and a close-up of its internal structure, illustrating the process from slide to screen.

ADDITIONAL INFORMATION

Compatible resolutions

Digital compatibility

B0/Established Timing	B0/Standard Timing B0/Detail Timing B1/Video Mode B1/Detail Timing
720 x 400 @ 70Hz XGA / WXGA: Native timing: 640 x 480p @ 60Hz 720 x 480p @ 60Hz
640 x 480 @ 60Hz 1440 x 900 @ 60Hz XGA: 1024 x 768 @ 60Hz 720 x 480p @ 60Hz 1280 x 720p @ 60Hz
640 x 480 @ 67Hz	1024 x 768 @ 120Hz	WXGA: 1280 x 800 @ 60Hz	1280 x 720p @ 60Hz	1366 x 768 @ 60Hz
640 x 480 @ 72Hz	1280 x 800 @ 60Hz	1080P: 1920 x 1080 @ 60Hz	1920 x 1080i @ 60Hz	1920 x 1080i @ 50Hz
640 x 480 @ 75Hz	1280 x 1024 @ 60Hz	WUXGA:1920 x 1200 @ 60Hz	720(1440) x 480i @ 60Hz	1920 x 1080p @ 60Hz
800 x 600 @ 56Hz 1680 x 1050 @ 60Hz		1920 x 1080p @ 60Hz
800 x 600 @ 60Hz 1280 x 720 @ 60Hz		720 x 576p @ 50Hz
800 x 600 @ 72Hz 1280 x 720 @ 120Hz		1280 x 720p @ 50Hz
800 x 600 @ 75Hz 1600 x 1200 @ 60Hz		1920 x 1080i @ 50Hz
832 x 624 @ 75Hz			720(1440) x 576i @ 50Hz
1024 x 768 @ 60Hz 1080P / WUXGA:		1920 x 1080p @ 50Hz
1024 x 768 @ 70Hz 1280 x 720 @ 60Hz		1920 x 1080p @ 24Hz
1024 x 768 @ 75Hz 1280 x 800 @ 60Hz		1920 x 1080p @ 30Hz
1280 x 1024 @ 75Hz 1280 x 1024 @ 60Hz
1152 x 870 @ 75Hz 1400 x 1050 @ 60Hz
	1600 x 1200 @ 60Hz
	1440 x 900 @ 60Hz
	1280 x 720 @ 120Hz
	1024 x 768 @ 120Hz

VGA analog compatibility

B0/Established Timing	B0/Standard Timing	B0/Detail Timing	B1/Video Mode	B1/Detail Timing
720 x 400 @ 70Hz XGA / WXGA:	Native timing:		1366 x 768 @ 60Hz
640 x 480 @ 60Hz 1440 x 900 @ 60Hz XGA: 1024 x 768 @ 60Hz
640 x 480 @ 67Hz 1024 x 768 @ 120Hz WXGA: 1280 x 800 @ 60Hz
640 x 480 @ 72Hz 1280 x 800 @ 60Hz 1080P: 1920 x 1080 @ 60Hz
640 x 480 @ 75Hz 1280 x 1024 @ 60Hz WUXGA:1920 x 1200 @ 60Hz
800 x 600 @ 56Hz 1680 x 1050 @ 60Hz
800 x 600 @ 60Hz 1280 x 720 @ 60Hz
800 x 600 @ 72Hz 1280 x 720 @120Hz
800 x 600 @ 75Hz 1600 x 1200 @ 60Hz
832 x 624 @ 75Hz
1024 x 768 @ 60Hz	1080P / WUXGA:
1024 x 768 @ 70Hz	1280 x 720 @ 60Hz
1024 x 768 @ 75Hz	1280 x 800 @ 60Hz
1280 x 1024 @ 75Hz	1280 x 1024 @ 60Hz
1152 x 870 @ 75Hz	1400 x 1050 @ 60Hz
	1600 x 1200 @ 60Hz
	1440 x 900 @ 60Hz
	1280 x 720 @ 120Hz
	1024 x 768 @ 120Hz

ADDITIONAL INFORMATION

True 3D video compatibility

Input resolution	HDMI 1.4a 3D Input	Input timing
		1280 x 720P @ 50Hz Top - and - Bottom
		1280 x 720P @ 60Hz Top - and - Bottom
		1280 x 720P @ 50Hz Frame packing
		1280 x 720P @ 60Hz Frame packing
		1920 x 1080i @ 50 Hz Side- by-Side (Half)
		1920 x 1080i @ 60 Hz Side- by-Side (Half)
		1920 x 1080P @ 24 Hz Top - and- Bottom
		1920 x 1080P @ 24 Hz Frame packing
	HDMI 1.3	1920 x 1080i @ 50Hz	Side-by-Side(Half) SBS mode is on
		1920 x1080i @ 60Hz
		1280 x 720P @ 50Hz
		1280 x 720P @ 60Hz
		1920 x 1080i @ 50Hz	Top-and-Bottom TAB mode is on
		1920 x1080i @ 60Hz
		1280 x 720P @ 50Hz
		1280 x 720P @ 60Hz
		480i HQFS 3D format is Frame sequential

Image size and projection distance

(XGA)

Desired Image Size Projection Distance (C)
Diagonal Width Height Wide Tele
m inch	m inch	m inch	m feet	m feet
0.76	30	0.61	24	0.46	18	/	/	1.8	5.91
1.02	40	0.81	32	0.61	24	1.5	4.92	2.4	7.87
1.27	50	1.02	40	0.76	30	1.9	6.23	3.0	9.84
1.52	60	1.22	48	0.91	36	2.3	7.55	3.6	11.81
1.78	70	1.42	56	1.07	42	2.6	8.53	4.2	13.78
2.03	80	1.63	64	1.22	48	3.0	9.84	4.8	15.75
2.29	90	1.83	72	1.37	54	3.4	11.15	5.4	17.72
2.54	100	2.03	80	1.52	60	3.8	12.47	6.0	19.69
3.05	120	2.44	96	1.83	72	4.5	14.76	7.2	23.62
3.81	150	3.05	120	2.29	90	5.6	18.37	9.0	29.53
4.57	180	3.66	144	2.74	108	6.8	22.31	10.8	35.43
5.08	200	4.06	160	3.05	120	7.5	24.61	12.0	39.37
6.35	250	5.08	200	3.81	150	9.4	30.84	15.0	49.21
7.62	300	6.10	240	4.57	180	11.3	37.07	18.0	59.06

ADDITIONAL INFORMATION

Lens Shift Range
PJ lens Center to top of image Image Shift Range
Vertical + (Max) (A)	Vertical - (Min) (B)	(D) = (A) - (B)	Vertical range at any Horizontal position	Horizontal + (Right)	Horizontal - (Left)
cm cm cm cm cm
52.6 44.9 7.7 N/A 0.0 0.0
70.1 59.8 10.3 N/A 0.0 0.0
87.6 74.8 12.9 N/A 0.0 0.0
105.2 89.7 15.5 N/A 0.0 0.0
122.7 104.7 18.0 N/A 0.0 0.0
140.2 119.6 20.6 N/A 0.0 0.0
157.7 134.6 23.2 N/A 0.0 0.0
175.3 149.5 25.8 N/A 0.0 0.0
210.3 179.4 30.9 N/A 0.0 0.0
262.9 224.3 38.6 N/A 0.0 0.0
315.5 269.1 46.4 N/A 0.0 0.0
350.5 299.0 51.5 N/A 0.0 0.0
438.2 373.8 64.4 N/A 0.0 0.0
525.8 448.5 77.3 N/A 0.0 0.0

Note:

• Vertical Lens Shift values are always calculated from the Center of Projection Lens. Therefore the distance 6.8 cm (2.68 inch) from the Base to the Center of Projection Lens needs to be added to each Vertical Lens Shift value.
• Zoom ratio is 1.6x.

(1080P)

Diagonal Length Size of (16:9) Screen	Screen Size W x H				Projection Dsitance (D)
	(m)		(inch)		(m)		(feet)
	Width	Height	Width	Height	Wide	Tele	Wide	Tele
36	0.80	0.45	31.38	17.65	1.1	1.8	3.61	5.91
40	0.89	0.5	34.86	19.6	1.2	2.0	3.94	6.56
50	1.11	0.62	43.58	24.5	1.5	2.5	4.92	8.20
60	1.33	0.75	52.29	29.4	1.9	3.0	6.23	9.84
70	1.55	0.87	61.01	34.3	2.2	3.5	7.22	11.48
80	1.77	1	69.73	39.2	2.5	4.0	8.20	13.12
90	1.99	1.12	78.44	44.1	2.8	4.5	9.19	14.76
100	2.21	1.25	87.16	49	3.1	5.0	10.17	16.40
120	2.66	1.49	104.59	58.8	3.7	6.0	12.14	19.69
150	3.32	1.87	130.74	73.5	4.6	7.4	15.09	24.28
180	3.98	2.24	156.88	88.2	5.6	8.9	18.37	29.20
200	4.43	2.49	174.32	98.1	6.2	9.9	20.34	32.48
250	5.53	3.11	217.89	122.6	7.7	12.4	25.26	40.68
300	6.64	3.74	261.47	147.1	9.3	14.9	30.51	48.88

ADDITIONAL INFORMATION

Lens Shift Range						Offset (Hd)
PJ lens Center to top of image Image Shift Range
Vertical + (Max) (A)	Vertical - (Min) (B) (D) = (A) - (B)		Vertical range at any Horizontal position	Horizontal + (Right)	Horizontal - (Left)
cm cm cm	cm cm cm m inch
52.0 44.3	7.7 N/A 0.0 0.0	0.07 2.76
57.8 49.3	8.5 N/A 0.0 0.0	0.08 3.15
72.2 61.6	10.7 N/A 0.0 0.0	0.10 3.94
86.7 73.9	12.8 N/A 0.0 0.0	0.12 4.72
101.1 86.2	14.9 N/A 0.0 0.0	0.14 5.51
115.6 98.5	17.0 N/A 0.0 0.0	0.16 6.30
130.0 110.8	19.2 N/A 0.0 0.0	0.18 7.09
144.5 123.2	21.3 N/A 0.0 0.0	0.19 7.48
173.3 147.8	25.6 N/A 0.0 0.0	0.24 9.45
216.7 184.7	32.0 N/A 0.0 0.0	0.30 11.81
260.0 221.7	38.3 N/A 0.0 0.0	0.36 14.17
288.9 246.3	42.6 N/A 0.0 0.0	0.40 15.75
361.1 307.9	53.2 N/A 0.0 0.0	0.50 19.69
433.4 369.5	63.9 N/A 0.0 0.0	0.59 23.23

Note:

• Vertical Lens Shift values are always calculated from the Center of Projection Lens. Therefore the distance 6.8 cm (2.68 inch) from the Base to the Center of Projection Lens needs to be added to each Vertical Lens Shift value.
- Zoom ratio is 1.6x.

(WXGA)

Desired Image Size						Projection Distance (C)
Diagonal		Width		Height		Wide		Tele
m	inch	m	inch	m	inch	m	feet	m	feet
0.91	36	0.78	30.53	0.48	19.08	1.1	3.61	1.8	5.91
1.02	40	0.86	33.92	0.54	21.2	1.3	4.27	2.0	6.56
1.27	50	1.08	42.4	0.67	26.5	1.6	5.25	2.6	8.53
1.52	60	1.29	50.88	0.81	31.8	1.9	6.23	3.1	10.17
1.78	70	1.51	59.36	0.94	37.1	2.2	7.22	3.6	11.81
2.03	80	1.72	67.84	1.08	42.4	2.6	8.53	4.1	13.45
2.29	90	1.94	76.32	1.21	47.7	2.9	9.51	4.6	15.09
2.54	100	2.15	84.8	1.35	53	3.2	10.50	5.1	16.73
3.05	120	2.58	101.76	1.62	63.6	3.8	12.47	6.1	20.01
3.81	150	3.23	127.2	2.02	79.5	4.8	15.75	7.7	25.26
4.57	180	3.88	152.64	2.42	95.4	5.7	18.70	9.2	30.18
5.08	200	4.31	169.6	2.69	106	6.4	21.00	10.2	33.46
6.35	250	5.38	212	3.37	132.5	8.0	26.25	/	/
7.62	300	6.46	254.4	4.04	159	9.6	31.50	/	/

ADDITIONAL INFORMATION

Lens Shift Range
PJ lens Center to top of image Image Shift Range
Vertical + (Max) (A)	Vertical - (Min) (B)	Vertical Shift Range	Vertical range at any Horizontal position	Horizontal + (Right)	Horizontal - (Left)
cm cm cm cm	cm cm
54.5 46.6 7.9	N/A 0.0 0.0
60.5 51.8 8.7	N/A 0.0 0.0
75.7 64.8 10.9	N/A 0.0 0.0
90.8 77.7 13.1	N/A 0.0 0.0
105.9 90.7 15.3	N/A 0.0 0.0
121.1 103.6	17.5 N/A 0.0 0.0
136.2 116.6	19.6 N/A 0.0 0.0
151.3 129.5	21.8 N/A 0.0 0.0
181.6 155.4	26.2 N/A 0.0 0.0
227.0 194.3	32.7 N/A 0.0 0.0
272.4 233.1	39.3 N/A 0.0 0.0
302.6 259.0	43.6 N/A 0.0 0.0
378.3 323.8	54.5 N/A 0.0 0.0
453.9 388.5	65.4 N/A 0.0 0.0

Note:

• Vertical Lens Shift values are always calculated from the Center of Projection Lens. Therefore the distance 6.8 cm (2.68 inch) from the Base to the Center of Projection Lens needs to be added to each Vertical Lens Shift value.

• Zoom ratio is 1.6x.

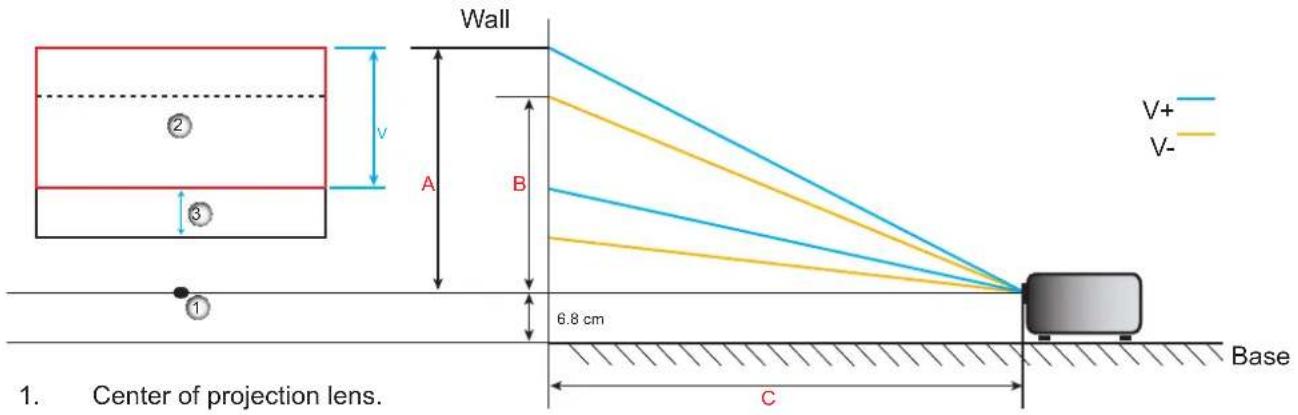

Wall V+ A B 6.8 cm C 1. Center of projection lens. 2. Projection lens diffraction shift V- Base

1. Center of projection lens.

2. Projection image while lens shift at the highest position.

3. Vertical shift range: 10% V.

ADDITIONAL INFORMATION

Determining the lens shift center position

Vertical Lens Shift Center

Image must be at the center of its Horizontal shift before adjusting the image to the center of its 1. Vertical shift.

Solid blue rectangle with light gray side borders (no text or symbols)

Adjust the V. Shift until the image reaches the maximum shift range towards the bottom.2.

Mark A here Maximum shift to the bottom

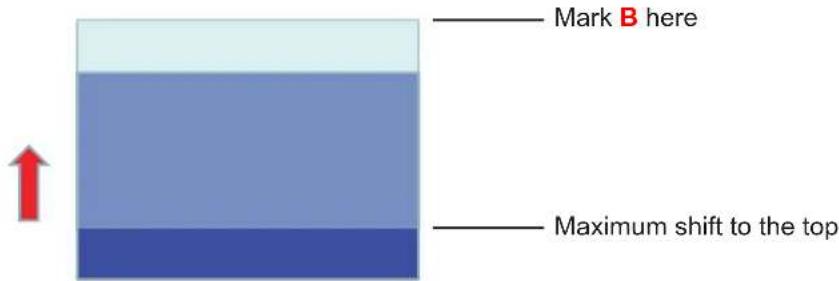

Adjust the V. Shift until the image reaches the maximum shift range to the top.3.

Mark B here Maximum shift to the top

1. Measure the distance between Mark A and Mark B, then divide it by 2 and position the image back to Mark A / B to the bottom. The image will be at the center of its Vertical shift.

Center = A/B B Total shift = Distance between A to B A

ADDITIONAL INFORMATION

Projector dimensions and ceiling mount installation

To prevent damage to your projector, please use the Optoma ceiling mount.1.

If you wish to use a third party ceiling mount kit, please ensure the screws used to attach a mount to 2. the projector meet the following specifications:

- Screw type: M4*3

Minimum screw length: 10mm

Lens 66.5856.9911.51 263.18105.70 369.00 246.35 106.35 140.00 0.65 104.01 294.17 186.31 85.65 191.35 Unit: mm

Note: Please note that damage resulting from incorrect installation will void the warranty.

Warning:

• If you buy a ceiling mount from another company, please be sure to use the correct screw size. Screw size will vary depending on the thickness of the mounting plate.
- Be sure to keep at least 10 cm gap between the ceiling and the bottom of the projector.
- Avoid installing the projector near a heat source.

ADDITIONAL INFORMATION

RS232 protocol function list

Baud Rate : 9600

Data Bits: 8

Parity: None

Stop Bits: 1

Flow Control: None

UART16550 FIFO: Disable

Projector Return (Pass): P

Projector Return (Fail): F

XX=01-99, projector's ID, XX=00 is for all projectors

Note: There is a after all ASCII commands 0D is the HEX code for in ASCII code.

SEND to projector
232 ASCII Code HEX Code		Function	Description
~XX00 1 7E 30 30 30 30 20 31 0D Power ON
~XX00 0 7E 30 30 30 30 20 30 0D Power OFF (0/2 for backward compatible)
~XX00 1 ~nnnn	7E 30 30 30 30 20 31 20 a 0D	Power ON with Password	~nnnn = ~0000 (a=7E 30 30 30 30)~9999 (a=7E 39 39 39 39)
~XX01 1 7E 30 30 30 31 20 31 0D Resync
~XX02 1 7E 30 30 30 32 20 31 0D AV Mute		On
~XX02 0 7E 30 30 30 32 20 30 0D		Off (0/2 for backward compatible)
~XX03 1 7E 30 30 30 33 20 31 0D Mute		On
~XX03 0 7E 30 30 30 33 20 30 0D		Off (0/2 for backward compatible)
~XX04 1 7E 30 30 30 34 20 31 0D Freeze
~XX04 0 7E 30 30 30 34 20 30 0D Unfreeze		(0/2 for backward compatible)
~XX05 1 7E 30 30 30 35 20 31 0D Zoom Plus
~XX06 1 7E 30 30 30 36 20 31 0D Zoom Minus
~XX12 1 7E 30 30 31 32 20 31 0D Direct Source Commands		HDMI1
~XX12 15	7E 30 30 31 32 20 31 35 0D		HDMI2
~XX12 16	7E 30 30 31 32 20 31 36 0D		HDMI3
~XX12 5 7E 30 30 31 32 20 35 0D		VGA1
~XX12 8 7E 30 30 31 32 20 38 0D		VGA1 Component
~XX12 6 7E 30 30 31 32 20 36 0D		VGA 2 (XGA only)
~XX12 13	7E 30 30 31 32 20 31 33 0D		VGA2 Component (XGA only)
~XX12 9 7E 30 30 31 32 20 39 0D		S-Video (XGA only)
~XX12 10	7E 30 30 31 32 20 31 30 0D		Video
~XX20 1 7E 30 30 32 30 20 31 0D Display Mode		Presentation
~XX20 2 7E 30 30 32 30 20 32 0D		Bright
~XX20 3 7E 30 30 32 30 20 33 0D		Movie
~XX20 4 7E 30 30 32 30 20 34 0D		sRGB
~XX20 5 7E 30 30 32 30 20 35 0D		User
~XX20 7 7E 30 30 32 30 20 37 0D		Blackboard
~XX20 13	7E 30 30 32 30 21 33 0D		DICOM SIM.
~XX20 9 7E 30 30 32 30 20 39 0D		3D
~XX21 n	7E 30 30 32 31 20 a 0D	Brightness	n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX22 n	7E 30 30 32 32 20 a 0D	Contrast	n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX23 n	7E 30 30 32 33 20 a 0D	Sharpness	n = 1 (a=31) ~ 15 (a=31 35)
~XX45 n	7E 30 30 34 34 20 a 0D	Color (Saturation)	n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX44 n	7E 30 30 34 35 20 a 0D	Tint	n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX196 n	7E 30 30 31 39 36 20 a 0D	Noise Reduction	n = 1 (a=31) ~ 10 (a=31 30)
~XX34 n 7E 30 30 33 34 20 a 0D	BrilliantColor	TM	n = 1 (a=31) ~ 10 (a=31 30)
~XX191 1	7E 30 30 31 39 31 20 31 0D	DynamicBlack	On
~XX191 0	7E 30 30 31 39 31 20 30 0D		Off(0/2 for backward compatible)
~XX35 1 7E 30 30 33 35 20 31 0D Gamma		Film
~XX35 3 7E 30 30 33 35 20 33 0D		Graphics
~XX35 7 7E 30 30 33 35 20 37 0D		2.2
~XX35 5 7E 30 30 33 35 20 35 0D		1.8
~XX35 6 7E 30 30 33 35 20 36 0D		2.0

ADDITIONAL INFORMATION

232 ASCII Code HEX Code Function Description
~XX35 8 7E 30 30 33 35 20 38 0D 2.6
~XX35 10 7E 30 30 33 35 20 31 30 0D Blackboard
~XX35 11 7E 30 30 33 35 20 31 31 0D DICOM
~XX36 4 7E 30 30 33 36 20 34 0D Color Temp. Warm
~XX36 1 7E 30 30 33 36 20 31 0D Standard
~XX36 2 7E 30 30 33 36 20 32 0D Cool
~XX36 3 7E 30 30 33 36 20 33 0D Cold
~XX37 1 7E 30 30 33 37 20 31 0D Color Space Auto
~XX37 2 7E 30 30 33 37 20 32 0D RGB\RGB(0-255)
~XX37 3 7E 30 30 33 37 20 33 0D YUV
~XX37 4 7E 30 30 33 37 20 34 0D RGB(16 - 235)
~XX24 n 7E 30 30 32 34 20 a 0D RGB Gain/Bias Red Gain	n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX25 n	7E 30 30 32 35 20 a 0D	Green Gain	n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX26 n	7E 30 30 32 36 20 a 0D	Blue Gain	n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX27 n	7E 30 30 32 37 20 a 0D	Red Bias	n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX28 n	7E 30 30 32 38 20 a 0D	Green Bias	n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX29 n	7E 30 30 32 39 20 a 0D	Blue Bias	n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX517 1 7E 30 30 35 31 37 20 31 0D RGB Gain/Bias Reset Reset
~XX509	7E 30 30 35 30 39 20 0D Image Settings Reset Rese
~XX327 n	7E 30 30 33 32 37 20 a 0D Color Matching	Red Hue	n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX333 n	7E 30 30 33 33 33 20 a 0D	Red Saturation	n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX339 n	7E 30 30 33 33 39 20 a 0D	Red Gain	n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX328 n	7E 30 30 33 32 38 20 a 0D	Green Hue	n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX334 n 7E 30 30 33 33 34 20 a 0D	Green	n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX340 n	7E 30 30 33 34 30 20 a 0D	Green Gain	n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX329 n	7E 30 30 33 32 39 20 a 0D	Blue Hue	n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX335 n	7E 30 30 33 33 35 20 a 0D	Blue Saturation	n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX341 n	7E 30 30 33 34 31 20 a 0D	Blue Gain	n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX330 n	7E 30 30 33 33 30 20 a 0D	Cyan Hue	n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX336 n 7E 30 30 33 33 36 20 a 0D	Cyan	n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX342 n 7E 30 30 33 34 32 20 a 0D	Cyan Gain n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX331 n	7E 30 30 33 33 31 20 a 0D	Yellow Hue	n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX337 n	7E 30 30 33 33 37 20 a 0D	Yellow	n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX343 n	7E 30 30 33 34 33 20 a 0D	Yellow Gain	n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX332 n	7E 30 30 33 33 32 20 a 0D	Magenta Hue	n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX338 n 7E 30 30 33 33 38 20 a 0D	Magenta	n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX344 n	7E 30 30 33 34 34 20 a 0D	Magenta Gain	n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX345 n	7E 30 30 33 34 35 20 a 0D White	Red	n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX346 n	7E 30 30 33 34 36 20 a 0D	Green	n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX347 n	7E 30 30 33 34 37 20 a 0D	Blue	n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX215 1 7E 30 30 32 31 35 20 31 0D Reset
~XX73 n 7E 30 30 37 33 20 a 0D Signal (RGB) Frequency n = -5 (a=2D 35) ~ 5 (a=35) By signal
~XX91 1 7E 30 30 39 31 20 31 0D Automatic On
~XX91 0 7E 30 39 31 20 30 0D Off
~XX74 n	7E 30 30 37 34 20 a 0D	Phase	n = 0 (a=30) ~ 31 (a=33 31) By signal
~XX75 n	7E 30 30 37 35 20 a 0D	H. Position	n = -5 (a=2D 35) ~ 5 (a=35) By timing
~XX76 n	7E 30 30 37 36 20 a 0D	V. Position	n = -5 (a=2D 35) ~ 5 (a=35) By timing
~XX200 n	7E 30 30 32 30 30 20 a 0D Signal(Video)	White Level	n = 0 (a=30) ~ 31 (a=33 31)
~XX201 n	7E 30 30 32 30 31 20 a 0D	Black Level	n = -5 (a=2D 35) ~ 5 (a=35)
~XX204 1 7E 30 30 32 30 30 24 20 31 0D	0 IRE
~XX204 0 7E 30 30 32 30 30 24 20 30 0D	7.5 IRE
~XX60 1 7E 30 30 36 30 20 31 0D Format	4:3
~XX60 2 7E 30 30 36 30 20 32 0D 16:9

ADDITIONAL INFORMATION

232 ASCII Code HEX Code Function Description
~XX60 3 7E 30 30 36 30 20 33 0D 16:10(WXGA only)
~XX60 5 7E 30 30 36 30 20 35 0D LBX (WXGA and 1080p only)
~XX60 6 7E 30 30 36 30 20 36 0D Native
~XX60 7 7E 30 30 36 30 20 37 0D Auto
~XX61 n 7E 30 30 36 31 20 a 0D Edge mask n = 0 (a=30) ~ 10 (a=31 30)
~XX62 n 7E 30 30 36 32 20 a 0D Zoom n = -5 (a=2D 35) ~ 25 (a=32 35)
~XX63 n 7E 30 30 36 33 20 a 0D H Image Shift n = -100 (a=2D 31 30 30) ~ 100 (a=31 30 30)
~XX64 n 7E 30 30 36 34 20 a 0D V Image Shift n = -100 (a=2D 31 30 30) ~ 100 (a=31 30 30)
~XX65 n 7E 30 30 36 35 20 a 0D H Keystone n = -30 (a=2D 33 30) ~ 30 (a=33 30)
~XX66 n 7E 30 30 36 36 20 a 0D V Keystone n = -30 (a=2D 33 30) ~ 30 (a=33 30)
~XX69 1 7E 30 30 36 39 20 31 0D Auto V.Keystone	On
~XX69 0 7E 30 30 36 39 20 30 0D Auto V. Keystone	Off
~XX59 1 7E 30 30 35 39 20 31 0D Four corner (Top-Left)	Right+
~XX59 2 7E 30 30 35 39 20 32 0D Left+
~XX59 3 7E 30 30 35 39 20 33 0D Up+
~XX59 4 7E 30 30 35 39 20 34 0D Down+
~XX59 5 7E 30 30 35 39 20 35 0D (Top-Right)	Right+
~XX59 6 7E 30 30 35 39 20 36 0D Left+
~XX59 7 7E 30 30 35 39 20 37 0D Up+
~XX59 8 7E 30 30 35 39 20 38 0D Down+
~XX59 9 7E 30 30 35 39 20 39 0D (Bottom-Left)	Right+
~XX59 10	7E 30 30 35 39 20 31 30 0D	Left+
~XX59 11	7E 30 30 35 39 20 31 31 0D	Up+
~XX59 12	7E 30 30 35 39 20 31 32 0D	Down+
~XX59 13	7E 30 30 35 39 20 31 33 0D (Bottom-Right)	Right+
~XX59 14	7E 30 30 35 39 20 31 34 0D	Left+
~XX59 15	7E 30 30 35 39 20 31 35 0D	Up+
~XX59 16	7E 30 30 35 39 20 31 36 0D	Down+
~XX516	7E 30 30 35 31 36 20 0D Four corners reset	Reset
~XX506 0	7E 30 30 35 30 36 20 30 0D Wall Color	Off
~XX506 2	7E 30 30 35 30 36 20 32 0D Wall Color	Light Yellow
~XX506 3	7E 30 30 35 30 36 20 33 0D Wall Color	Light Green
~XX506 4	7E 30 30 35 30 36 20 34 0D Wall Color	Light Blue
~XX506 5	7E 30 30 35 30 36 20 35 0D Wall Color	Pink
~XX506 6	7E 30 30 35 30 36 20 36 0D Wall Color	Gray
~XX230 1	7E 30 30 32 33 30 20 31 0D 3D Mode	DLP-Link
~XX230 3	7E 30 30 32 33 30 20 31 0D	VESA 3D
~XX230 0	7E 30 30 32 33 30 20 30 0D	Off (0/2 for backward compatible)
~XX400 0	7E 30 30 34 30 30 20 30 0D 3D->2D	3D
~XX400 1	7E 30 30 34 30 30 20 31 0D	L
~XX400 2	7E 30 30 34 30 30 20 32 0D	R
~XX405 0	7E 30 30 34 30 35 20 30 0D 3D Format	Auto
~XX405 1	7E 30 30 34 30 35 20 31 0D	SBS
~XX405 2	7E 30 30 34 30 35 20 32 0D	Top and Bottom
~XX405 3	7E 30 30 34 30 35 20 33 0D	Frame sequential
~XX231 0	7E 30 30 32 33 31 20 30 0D 3D Sync Invert	On
~XX231 1	7E 30 30 32 33 31 20 31 0D 3D Sync Invert	Off
~XX70 1 7E 30 30 37 30 20 31 0D Language English
~XX70 2 7E 30 30 37 30 20 32 0D German
~XX70 3 7E 30 30 37 30 20 33 0D French
~XX70 4 7E 30 30 37 30 20 34 0D Italian
~XX70 5 7E 30 30 37 30 20 35 0D Spanish
~XX70 6 7E 30 30 37 30 20 36 0D Portuguese
~XX70 7 7E 30 30 37 30 20 37 0D Polish
~XX70 8 7E 30 30 37 30 20 38 0D Dutch
~XX70 9 7E 30 30 37 30 20 39 0D Swedish

ADDITIONAL INFORMATION

232 ASCII Code HEX Code Function Description
~XX70 10 7E 30 30 37 30 20 31 30 0D Norwegian/Danish
~XX70 11 7E 30 30 37 30 20 31 31 0D Finnish
~XX70 12 7E 30 30 37 30 20 31 32 0D Greek
~XX70 13 7E 30 30 37 30 20 31 33 0D Traditional Chinese
~XX70 14 7E 30 30 37 30 20 31 34 0D Simplified Chinese
~XX70 15 7E 30 30 37 30 20 31 35 0D Japanese
~XX70 16 7E 30 30 37 30 20 31 36 0D Korean
~XX70 17 7E 30 30 37 30 20 31 37 0D Russian
~XX70 18 7E 30 30 37 30 20 31 38 0D Hungarian
~XX70 19 7E 30 30 37 30 20 31 39 0D Czechoslovak
~XX70 20 7E 30 30 37 30 20 32 30 0D Arabic
~XX70 21 7E 30 30 37 30 20 32 31 0D Thai
~XX70 22 7E 30 30 37 30 20 32 32 0D Turkish
~XX70 23 7E 30 30 37 30 20 32 33 0D Farsi
~XX70 25 7E 30 30 37 30 20 32 33 0D Vietnamese
~XX70 26 7E 30 30 37 30 20 32 33 0D Indonesian
~XX70 27 7E 30 30 37 30 20 32 33 0D Romanian
~XX71 1 7E 30 30 37 31 20 31 0D Projection Front-Desktop
~XX71 2 7E 30 30 37 31 20 32 0D Rear-Desktop
~XX71 3 7E 30 30 37 31 20 33 0D Front-Ceiling
~XX71 4 7E 30 30 37 31 20 34 0D Rear-Ceiling
~XX90 1 7E 30 30 39 30 20 31 0D Screen Type (WXGA/WUXGA) 16:10
~XX90 0 7E 30 30 39 30 20 30 0D 16:9
~XX72 1 7E 30 30 37 32 20 31 0D Menu Location Top Left
~XX72 2 7E 30 30 37 32 20 32 0D Top Right
~XX72 3 7E 30 30 37 32 20 33 0D Centre
~XX72 4 7E 30 30 37 32 20 34 0D Bottom Left
~XX72 5 7E 30 30 37 32 20 35 0D Bottom Right
~XX77 n 7E 30 30 37 37 20 aabbcc	Security Security Timer	Month/Day/Hour n = mm/dd/hh
0D			mm= 00 (aa=30 30) ~ 12 (aa=31 32)
			dd = 00 (bb=30 30) ~ 30 (bb=33 30)
			hh= 00 (cc=30 30) ~ 24 (cc=32 34)
~XX78 1 7E 30 30 37 38 20 31 0D Security On
~XX78 0 ~nnnn	7E 30 30 37 38 20 30 20 a	Off (0/2 for backward compatible)
	0D	~nnnn = ~0000 (a=7E 30 30 30)
		~9999 (a=7E 39 39 39)
~XX79 n	7E 30 30 37 39 20 a 0D	Projector ID	n = 00 (a=30 30) ~ 99 (a=39 39)
~XX310 0	7E 30 30 33 31 30 20 30 0D	Internal Speaker	Off
~XX310 1	7E 30 30 33 31 30 20 31 0D On
~XX80 1 7E 30 30 38 30 20 31 0D Mute	On
~XX80 0	7E 30 30 38 30 20 30 0D Off (0/2 for backward compatible)
~XX81 n	7E 30 30 38 31 20 a 0D	Volume(Audio)	n = 0 (a=30) ~ 10 (a=31 30)
~XX93 n	7E 30 30 39 33 20 a 0D	Volume(Mic)	n = 0 (a=30) ~ 10 (a=31 30)
~XX89 0	7E 30 30 38 39 20 30 0D	Audio Input	Default
~XX89 1	7E 30 30 38 39 20 31 0D		Audio1
~XX89 3	7E 30 30 38 39 20 33 0D		Audio2
~XX82 1 7E 30 30 38 32 20 31 0D	Logo	Default
~XX82 2 7E 30 30 38 32 20 32 0D User
~XX82 3 7E 30 30 38 32 20 33 0D Neutral
~XX83 1 7E 30 30 38 33 20 31 0D Logo Capture
~XX88 0 7E 30 30 38 38 20 30 0D Closed Captioning	Off
~XX88 1 7E 30 30 38 38 20 31 0D cc1
~XX88 2 7E 30 30 38 38 20 32 0D cc2
~XX454 0 7E 30 30 34 35 34 20 30 0D Crestron	Off
~XX454 1 7E 30 30 34 35 34 20 31 0D On
~XX455 0 7E 30 30 34 35 35 20 30 0D Extron	Off
~XX455 1 7E 30 30 34 35 35 20 31 0D On
~XX456 0 7E 30 30 34 35 36 20 30 0D PJLink	Off
~XX456 1 7E 30 30 34 35 36 20 31 0D On
~XX457 0 7E 30 30 34 35 37 20 30 0D AMX Device Discovery	Off

ADDITIONAL INFORMATION

232 ASCII Code HEX Code Function Description

~XX457 1 7E 30 30 34 35 37 20 31 0D On

~XX458 0 7E 30 30 34 35 38 20 30 0D Telnet Off

~XX458 1 7E 30 30 34 35 38 20 31 0D On

~XX459 0 7E 30 30 34 35 38 20 30 0D HTTP Off

~XX459 1 7E 30 30 34 35 38 20 31 0D On

~XX39 1 7E 30 30 33 39 20 31 0D Input Source HDMI1

~XX39 7 7E 30 30 33 39 20 37 0D HDMI2

~XX39 16 7E 30 30 33 39 20 31 36 0D HDMI3

~XX39 5 7E 30 30 33 39 20 35 0D VGA1

~XX39 6 7E 30 30 33 39 20 36 0D VGA2 (XGA only)

~XX39 9 7E 30 30 33 39 20 39 0D S-Video (XGA only)

~XX39 10 7E 30 30 33 39 20 31 30 0D Video

~XX100 1 7E 30 30 31 30 30 20 31 0D Source Lock On

~XX100 0 7E 30 30 31 30 30 20 30 0D Off (0/2 for backward compatible)

~XX101 1 7E 30 30 31 30 31 20 31 0D High Altitude On

~XX101 0 7E 30 30 31 30 31 20 30 0D Off (0/2 for backward compatible)

~XX102 1 7E 30 30 31 30 32 20 31 0D Information Hide On

~XX102 0 7E 30 30 31 30 32 20 30 0D Off (0/2 for backward compatible)

~XX103 1 7E 30 30 31 30 33 20 31 0D Keypad Lock On

~XX103 0 7E 30 30 31 30 33 20 30 0D Off (0/2 for backward compatible)

~XX195 0 7E 30 30 31 39 35 20 30 0D Test Pattern None

~XX195 1 7E 30 30 31 39 35 20 31 0D Grid

~XX195 2 7E 30 30 31 39 35 20 32 0D White Pattern

~XX104 1 7E 30 30 31 30 34 20 31 0D Background Color Blue

~XX104 2 7E 30 30 31 30 34 20 32 0D Black

~XX104 3 7E 30 30 31 30 34 20 33 0D Red

~XX104 4 7E 30 30 31 30 34 20 34 0D Green

~XX104 5 7E 30 30 31 30 34 20 35 0D White

~XX11 0 7E 30 30 31 31 20 30 0D IR Function Off

~XX11 1 7E 30 30 31 31 20 31 0D On

~XX11 2 7E 30 30 31 31 20 32 0D Front

~XX11 3 7E 30 30 31 31 20 33 0D Top

~XX192 0 7E 30 30 31 39 32 20 30 0D 12V Trigger Off (XGA only)

~XX192 1 7E 30 30 31 39 32 20 31 0D On (XGA only)

~XX503 0 7E 30 30 35 30 33 20 30 0D Beep Off

~XX503 1 7E 30 30 35 30 33 20 31 0D Beep On

~XX105 1 7E 30 30 31 30 35 20 31 0D Advanced Direct Power On On

~XX105 0 7E 30 30 31 30 35 20 30 0D Off (0/2 for backward compatible)

~XX113 0 7E 30 30 31 31 33 20 30 0D Signal Power On Off

~XX113 1 7E 30 30 31 31 33 20 31 0D On

~XX106 n 7E 30 30 31 30 36 20 a 0D Auto Power Off (min) n = 0 (a=30) ~ 180 (a=31 38 30) (5 minutes for each step).

~XX107 n 7E 30 30 31 30 37 20 a 0D Sleep Timer (min) n = 0 (a=30) ~ 990 (a=39 39 30) (10 minutes for each step).

~XX507 1 7E 30 30 35 30 37 20 31 0D Sleep Timer On

~XX507 0 7E 30 30 35 30 37 20 30 0D Repeat Off

~XX115 1 7E 30 30 31 31 35 20 31 0D Quick Resume On

~XX115 0 7E 30 30 31 31 35 20 30 0D Off (0/2 for backward compatible)

~XX114 1 7E 30 30 31 31 34 20 31 0D Power Eco.(<=0.5W)

Mode(Standby) Active (0/2 for backward compatible)

~XX114 0 7E 30 30 31 31 34 20 30 0D

~XX109 1 7E 30 30 31 30 39 20 31 0D Lamp Reminder On

~XX109 0 7E 30 30 31 30 39 20 30 0D Off (0/2 for backward compatible)

~XX110 1 7E 30 30 31 31 30 20 31 0D Lamp Mode Bright

~XX110 2 7E 30 30 31 31 30 20 32 0D Eco+

~XX110 3 7E 30 30 31 31 30 20 33 0D Eco+

~XX110 4 7E 30 30 31 31 30 20 34 0D Dynamic

ADDITIONAL INFORMATION

232 ASCII Code HEX Code Function Description
~XX111 1 7E 30 30 31 31 31 20 31 0D Lamp Reset Yes
~XX320 1	7E 30 30 33 32 30 20 31 0D	Optional Filter Installed Yes
~XX320 0	7E 30 30 33 32 30 20 30 0D		No (0/2 for backward compatible)
~XX322 0 7E 30 30 33 32 32 20 30 0D Filter Reminder Off
~XX322 1 7E 30 30 33 32 32 20 31 0D		300 hrs
~XX322 2 7E 30 30 33 32 32 20 32 0D		500 hrs
~XX322 3 7E 30 30 33 32 32 20 33 0D		800 hrs
~XX322 4	7E 30 30 33 32 32 20 34 0D		1000 hrs
~XX323 1	7E 30 30 33 32 33 20 31 0D	Filter Reset	Yes
~XX323 0	7E 30 30 33 32 33 20 30 0D		No (0/2 for backward compatible)
~XX313 1	7E 30 30 33 31 33 20 31 0D	Information menu	On
~XX313 0	7E 30 30 33 31 33 20 30 0D		Off(0/2 for backward compatible)
~XX112 1	7E 30 30 31 31 32 20 31 0D Reset		Yes
~XX210 n	7E 30 30 32 30 30 20 n 0D	Display message on the OSD	n: 1-30 characters
SEND to emulate Remote
~XX140 10	7E 30 30 31 34 30 20 31 30 0D		Up
~XX140 11	7E 30 30 31 34 30 20 31 31 0D		Left
~XX140 12	7E 30 30 31 34 30 20 31 32 0D		Enter (for projection MENU)
~XX140 13	7E 30 30 31 34 30 20 31 33 0D		Right
~XX140 14	7E 30 30 31 34 30 20 31 34 0D		Down
~XX140 15	7E 30 30 31 34 30 20 31 35 0D		V Keystone +
~XX140 16	7E 30 30 31 34 30 20 31 36 0D		V Keystone -
~XX140 17	7E 30 30 31 34 30 20 31 37 0D		Volume -
~XX140 18	7E 30 30 31 34 30 20 31 38 0D		Volume +
~XX140 20	7E 30 30 31 34 30 20 32 30 0D		Menu
~XX140 47	7E 30 30 31 34 30 20 34 37 0D		Source
SEND from projector automatically
232 ASCII Code HEX Code Function Projector Return Description
when Standby/Warming/Cooling/Out of Range/Lamp fail/Fan Lock/Over Temperature/Lamp Hours Running Out/Cover Open			INFOn	n : 0/1/2/3/4/6/7/8/9 =Standby/Warming/Cooling/Out of Range/Lamp fail/FanLock/Over Temperature/Lamp Hours Running Out/Cover Open
READ from projector
232 ASCII Code HEX Code Function Projector Return Description
~XX121 1	7E 30 30 31 32 31 20 31 0D	Input Source Commands	Okn	n = 0 Nonen = 7 HDMI1n = 8 HDMI2n = 9 HDMI3n = 2 VGA1n = 3 VGA2 (XGA only)n = 5 Videon = 4 S-Video (XGA only)

ADDITIONAL INFORMATION

232 ASCII Code HEX Code Function				Projector Return	Description
~XX122 1 7E 30 30 31 32 32 20 31 0D Software Version OKdddd dddd: FW version
~XX357 1 7E 30 30 33 35 34 20 31 0D LAN FW version Okeeeee eeeee: LAN FW version
~XX123 1 7E 30 30 31 32 33 20 31 0D Display Mode Okn n = 0 None
				n = 1 Presentationn = 2 Brightn = 3 Movien = 4 sRGBn = 5 Usern= 7 Blackboardn = 12 DICOM SIM.n = 9 3D
~XX124 1 7E 30 30 31 32 34 20 31 0D Power State OKn n : 0/1 = Off/On
~XX125 1 7E 30 30 31 32 35 20 31 0D Brightness OKn
~XX126 1 7E 30 30 31 32 36 20 31 0D Contrast OKn
~XX127 1 7E 30 30 31 32 37 20 31 0D Format OKn n = 1 4:3
				n = 2 16:9n = 3 16:10n = 5 LBXn = 6 Nativen = 7 Auto
*16:9 or 16:10 depend on Screen Type setting
~XX128 1	7E 30 30 31 32 38 20 31 0D	Color Temperature	Okn	n = 3 Warmn = 0 Standardn = 1 Cooln = 2 Cold
~XX129 1 7E 30 30 31 32 39 20 31 0D Projection Mode			OKn n = 0 Front-Desktop
				n = 1 Rear-Desktopn = 2 Front-Ceilingn = 3 Rear-Ceiling
~XX150 1 7E 30 30 31 35 30 20 31 1D Information			Okabbbbbbccdddde	a = 0 Offa = 1 Onbbbb: Lamp Hourcc = Sourcecc = 00 Nonecc = 02 VGA1cc = 03 VGA2 (XGA only)cc = 04 S-Video (XGA only)cc = 05 Videoccc = 07 HDMI1cc = 08 HDMI2cc = 14 HDMI3dddd: Firmware Versione = Display modeee=0 Noneee=1 Presentationee=2 Brightee=3 Movieee=4 sRGBee=5 Useree=7 Blackboardee=9 3Dee=12 DICOM SIM.

ADDITIONAL INFORMATION

232 ASCII Code HEX Code Function			Projector Return	Description
~XX151 1 7E 30 30 31 35 31 20 31 0D Model name OKn n = 2 XGA
				n = 3 WXGA
				n = 4 1080p
~XX108 1 7E 30 30 31 30 38 20 31 0D Lamp Hours OKbbbb bbbb: LampHour
~XX108 2 7E 30 30 31 30 38 20 31 0D Cumulative Lamp Hours OKbbbb bbbbb: (5 digits) Total Lamp Hours
~XX321 1 7E 30 30 33 32 31 20 31 0D Filter Usage Hours OKbbbb bbbb: Filter Usage Hours
~XX87 1	7E 30 30 38 37 20 31 0D	Network Status	Okn	n=0/1 Disconnected/Connected
~XX87 3	7E 30 30 38 37 20 33 0D	IP Address	Okaaa_bbb_ccc_ddd
~XX351 0	7E 30 30 33 35 31 20 30 0D	Fan1 Speed(blower)	Okaaaa	a=0000~9999
~XX351 1	7E 30 30 33 35 31 20 31 0D	Fan2 Speed (blower)	Okaaaa	a=0000~9999
~XX351 2	7E 30 30 33 35 31 20 32 0D	Fan3 Speed	Okaaaa	a=0000~9999
~XX351 3	7E 30 30 33 35 31 20 33 0D	Fan4 Speed	Okaaaa	a=0000~9999
~XX352 1	7E 30 30 33 35 32 20 31 0D	System temperature	Okaaa	a=000~999
~XX353 1	7E 30 30 33 35 33 20 31 0D	Serial number	Okaaaaaaaaaaaa aaaaaaaa	a=serial number string
~XX354 1	7E 30 30 33 35 34 20 31 0D	Closed Captioning	Oka	a: 0/1/2 = off/cc1/cc2
~XX355 1	7E 30 30 33 35 35 20 31 0D	AV Mute	Oka	a : 0/1 = Off/On
~XX356 1	7E 30 30 33 35 36 20 31 0D	Mute	Oka	a : 0/1 = Off/On
~XX358 1	7E 30 30 33 35 38 20 31 0D	Current Lamp Watt	Okaaaa	aaaa=0000~9999

ADDITIONAL INFORMATION

IR remote codes

PowerSwitch Freeze L R Enter Page- KeystoneVolume Page+Laser 1 2 3 4 5 6 HDMI VGA Video 7 8 9 User1 User2 User3 0 Source Resync

Key		Key code	Printing-key definition	Description
Power 81 Power on / off Press to turn on / off the projector.
Switch		3E	Switch	Press to switch the USB mouse on / off.
Display blank / audio mute		8A		Press to hide / unhide the screen picture and turn off / on audio.
Freeze 8B Freeze Press to freeze the projector image.
Mute		92		Press to momentarily turn off / on the audio.
Mouse left click	L	CB	L	Use as mouse left click.
Mouse right click	R	CC	R	Use as mouse right click.
Four directional select keys		C6	Up arrow	Use ▲ ▼ ◀ ▶ to select items or make adjustments to your selection.
		C8	Left arrow
		C9	Right arrow
		C7 Down arrow
Enter		C5	Enter	Confirm your item selection.
		CA	Enter
Page - C2 Page-		Press to page down.
Laser		N/A Laser Use as laser pointer.
Page +		C1	Page+	Press to page up.
Keystone		85	Keystone+	Press to adjust image distortion caused by tilting the projector.
		84	Keystone-

ADDITIONAL INFORMATION

Key		Key code	Printing-key definition	Description
Volume	- +	8C Volume +		Press to adjust to increase / decrease the volume.
		8F Volume -
Aspect ratio / 1 98			/ 1	Press to change aspect ratio of a displayed image. Use as numeric keypad number "1". •
Menu / 2 88 Menu / 2				Press to display or exit the on-screen display menus for projector.Use as numeric keypad number "2". •
3D / 3 93 3D/3				Press to manually select a 3D mode that matches your 3D content.Use as numeric keypad number "3". •
HDMI / 4 86 HDMI/4				• Press to choose HDMI source.Use as numeric keypad number "4". •
VGA / 5		D0	VGA/5	• Press to choose VGA source.Use as numeric keypad number "5". •
Video / 6		D1	Video/6	• Press to choose composite video source.Use as numeric keypad number "6". •
User1 / 7; User2 / 8;User3 / 9		D2	User 1/7	• User defined keys. Please see page 60 to setup.
		D3	User 2/8	• Use as numeric keypad numbers "7", "8", and "9" accordingly.
		D4	User 3/9
Source		C3	Source	Press to select an input signal.
Brightness mode / 0		96	/ 0	• Press to automatically adjust the picture brightness to give an optimum contrast performance.• Use as numeric keypad number "0".
Re-sync		C4 Re-Sync		Press to automatically synchronize the projector to the input source.

Note:

- If the projector supports Dynamic Eco / Image Care features and AV Mute is pressed, the power consumption of the lamp becomes 30%.

Remote mouse feature simulation specification

• The remote mouse feature is supported only when a computer source is selected, for example VGA or HDMI.
• If you press the "Switch" key on the remote control, you will see the cursor being displayed on the right top corner of the screen for 15 seconds.
  • In remote mouse mode the cursor should move smoothly and continuously on the screen.

ADDITIONAL INFORMATION

Using the Information button

The Information function ensures easy setup and operation. Press the "i" button on the keypad to open the Information menu.

Diagram showing a projector with labeled buttons and a hand pointing to the screen, illustrating the function of viewing or display.

Information • button functions only when no input source is detected.

Information
S/N Number		XXXXXXXXXX
F/W Version	DDP	C01
	MCU	M01
	LAN	L01
Current Input Source		VGA 1
Resolution		1920x1000
Refresh Rate		59.97 Hz
Lamp Hours
Bright		0000 H
Eco		0000 H
Dynamic		0000 H
Eco+		0000 H
Filter Hour		0000 H
Projector ID		00
IP Address		192.160.0.100
Network Status		Connected

ADDITIONAL INFORMATION

Troubleshooting

If you experience a problem with your projector, please refer to the following information. If a problem persists, please contact your local reseller or service center.

Image problems

?

No image appears on-screen

• Ensure all the cables and power connections are correctly and securely connected as described in the "Installation" section. Ensure the pins of connectors are not crooked or broken.
• Check if the projection lamp has been securely installed. Please refer to the "Replacing the Lamp" section. Make sure the projector is switched on. • Ensure that the "AV Mute" feature is not turned on. •

?

Image is out of focus

Make sure the Lens cap is removed.

Adjust the Focus Ring on the projector lens.

• Make sure the projection screen is between the required distance from the projector. (Please refer to pages 69-72).

?

The image is stretched when displaying 16:9 DVD title

• When you play anamorphic DVD or 16:9 DVD, the projector will show the best image in 16: 9 format on projector side.
  • If you play the LBX format DVD title, please change the format as LBX in projector OSD.
  • If you play 4:3 format DVD title, please change the format as 4:3 in projector OSD.
  • Please setup the display format as 16:9 (wide) aspect ratio type on your DVD player.

?

Image is too small or too large

• Adjust the zoom lever on the top of the projector.
• Move the projector closer to or further from the screen.
• Press "Menu" on the projector panel, go to "Display-->Format". Try the different settings.

?

Image has slanted sides:

• If possible, reposition the projector so that it is centered on the screen and below the bottom of the screen.
• Use "Display-->V Keystone" from the OSD to make an adjustment.

?

Image is reversed

- Select "Setup-->Projection" from the OSD and adjust the projection direction.

ADDITIONAL INFORMATION

Blurry double image

- Press "3D" button and switch to "Off" to avoid normal 2D image is blurry double image.

Two images, side-by-side format

- Press "3D" button and switch to "SBS" for input signal is HDMI 1.3 2D 1080i side-by-side.

? Image does not display in 3D

Check if the battery of 3D glasses is drained.

Check if the 3D glasses is turned on.

- When the input signal is HDMI 1.3 2D (1080i side-by-side half), press "3D" button and switch to "SBS".

Other problems

The projector stops responding to all controls

- If possible, turn off the projector, then unplug the power cord and wait at least 20 seconds before reconnecting power.

Lamp burns out or makes a popping sound

- When the lamp reaches its end of life, it will burn out and may make a loud popping sound. If this happens, the projector will not turn on until the lamp module has been replaced. To replace the lamp, follow the procedures in the "Replacing the Lamp" section on pages 65-66.

Remote control problems

If the remote control does not work

• Check the operating angle of the remote control is pointed within ± 15^ both horizontally and vertically to the IR receivers on the projector.
  • Make sure there are not any obstructions between the remote control and the projector. Move to within 5 m (16 ft) of the projector.
  • Make sure batteries are inserted correctly.
• Replace batteries if they are exhausted.

ADDITIONAL INFORMATION

Warning indicators

When the warning indicators (see below) light up or flash, the projector will automatically shutdown:

• "LAMP" LED indicator is lit red and if "On / Standby" indicator flashes red.
- "TEMP" LED indicator is lit red and if "On / Standby" indicator flashes red. This indicates the projector has overheated. Under normal conditions, the project can be switched back on.
• "TEMP" LED indicator flashes red and if "On / Standby" indicator flashes red.

Unplug the power cord from the projector, wait for 30 seconds and try again. If the warning indicator lights up again, please contact your nearest service center for assistance.

LED lightning messages

Message	Power LED Power LED		Temp-LED	Lamp-LED
	(Red) (Blue) (Red) (Red)
Standby state (Input power cord)	Steady light		○	○
Power on (Warming)		Flashing(0.5 sec off /0.5 sec on)	○	○
Power on and Lamp lighting		Steady light	○	○
Power off (Cooling)		Flashing(0.5 sec off /0.5 sec light). Back to red steady light when cooling fan turns off.	○	○
Quick Resume (100 secs)		Flashing(0.25 sec off /0.25 sec light)	○	○
Error (Over temp.) Flashing			☀	○
Error (Fan failure) Flashing		Flashing
Error (Lamp failure)	Flashing			☀

• Power off:

Power Off? Press Power key again

• Lamp warning:


Lamp Warning Lamp life exceeded.

ADDITIONAL INFORMATION

Temperature warning: •

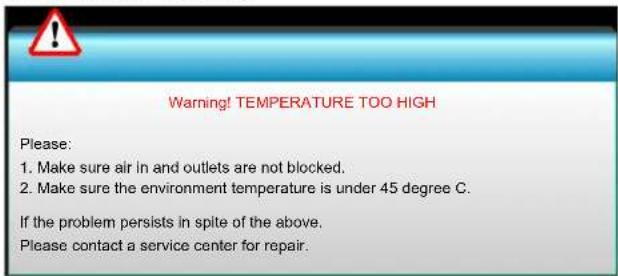

Warning! TEMPERATURE TOO HIGH Please: 1. Make sure air in and outlets are not blocked. 2. Make sure the environment temperature is under 45 degree C. If the problem persists in spite of the above. Please contact a service center for repair.

Fan failed: •

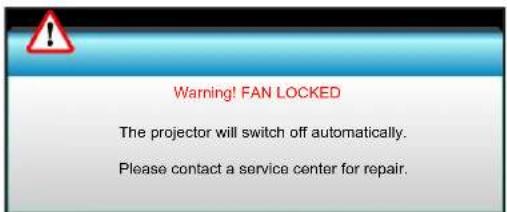

Warning! FAN LOCKED The projector will switch off automatically. Please contact a service center for repair.

Power down timer active: •

Power Down Timer Active Power down in 60 sec

Security timer alarm: •

Security Timer Alarm Time out in 60 sec

ADDITIONAL INFORMATION

Specifications

Optical Description
Native resolution XGA / WXGA / 1080p
Maximum resolution 1080p / 75Hz (max bandwidth: 225MHz) for HDMI
Lens 2.5(wide)~3.26(tele)@ 60"
Image size (diagonal)	- XGA: 21.76"~300.6"- WXGA: 25.66"~301.15"- 1080P: 26.2"~301.1"
Projection distance	- XGA: 1.85~2.94 (D / W)@60"- WXGA: 1.48~2.352 (D / W)@60"- 1080p: 1.41~2.24 (D / W)@60"

Electrical Description
Inputs	- HDMI 1.4a- HDMI 1.4a + MHL (v2.2)- VGA (YPbPr / RGB)- VGA (YPbPr / RGB / wireless)- S-Video (XGA only)- Composite video-Audio 3.5mm-Audio RCA L & R (XGA only)- Mic 3.5mm (XGA only)
Outputs	- VGA-Audio 3.5mm- USB-A power- 12V trigger (XGA only)
Control	- RS232-RJ45- 3D Sync VESA- USB mouse / service
Color reproduction 1073.4 Million color
Scan rate	- Horizontal Scan rate: 15.375 ~ 91.146 KHz- Vertical Scan rate: 24~ 85 Hz (120Hz for 3D feature)
Sync compatibility Separate Sync
Built-in speaker Yes, 16W
Power requirement 100 - 240V AC 50 / 60Hz
Input current 4.5 A
Power consumption (typical value)
ECO mode off	- Typical 383W MAX 421W @ 110VAC- Typical 365W MAX 402W @ 220VAC
ECO mode	- Typical 299W MAX 329W @ 110VAC- Typical 287W MAX 316W @ 220VAC

ADDITIONAL INFORMATION

Mechanical Description
Installation orientation	Front, Rear, Front-Ceiling, Rear-Ceiling
Dimensions 369 mm (W) x 294.5 mm (D) x 123.26 mm (H)
Weight 4.6 Kg
Environmental conditions	Operating: 5 ~ 40°C in Bright mode (normal mode) 10% to 85% humidity (non-condensing)
	Operating: 5 ~ 45°C in ECO mode 10% to 85% humidity (non-condensing)

All specifications are subject to change without notice. Note:

ADDITIONAL INFORMATION

Optoma global offices

For service or support, please contact your local office.

USA

3178 Laurelview Ct. 888-289-6786

Fremont, CA 94538, USA 510-897-8601

www.optomausa.com [e-mail]

Canada

3178 Laurelview Ct. 888-289-6786

Fremont, CA 94538, USA 510-897-8601

www.optomausa.com [e-mail]

Latin America

3178 Laurelview Ct. 888-289-6786

Fremont, CA 94538, USA 510-897-8601

www.optomausa.com [e-mail]

Europe

42 Caxton Way, The Watford Business Park

Watford, Hertfordshire,

WD18 8QZ, UK [phone]

www.optoma.eu [phone]

Service Tel: [phone] [e-mail]

Benelux BV

Randstad 22-123 [phone]

1316 BW Almere [phone]

The Netherlands

www.optoma.nl

France

[e-mail]

www.os-worldwide.com

Taiwan

12F., No.213, Sec. 3, Beixin Rd.,

Xindian Dist., New Taipei City 231,

Taiwan, R.O.C. [e-mail]

www.optoma.com.tw

[phone]

[phone]

m.tw

asia.optoma.com

Hong Kong

Unit A, 27/F Dragon Centre,

79 Wing Hong Street,

Cheung Sha Wan,

Kowloon, Hong Kong

[phone]

[phone]

www.optoma.com.hk

China

5F, No. 1205, Kaixuan Rd.,

Changning District

Shanghai, 200052, China

[phone]

[phone]

www.optoma.com.cn
