ZSB4707 - Kitchen appliance Zelmer - Free user manual and instructions

Product Type	Jar Blender
Brand	Zelmer
Model	ZSB4707
Jar Material	Plastic (clear)
Jar Capacity	1.5 L (estimated)
Motor Unit Material	Plastic with rubber feet
Speed Control	Rotary knob with multiple speeds and Turbo (T) function
Blade Material	Stainless steel (removable)
Power Supply	220-240 V ~ 50/60 Hz (estimated)
Power Consumption	~600 W (estimated)
Cord Length	~1 m (estimated)
Weight	~2 kg (estimated)
Dimensions (HxWxD)	~40 x 20 x 20 cm (estimated)
Functions	Blending, ice crushing, fruit preserve mixing, Turbo pulse
Safety Features	Overload protection (estimated), non-slip feet, locking jar detection
Cleaning	Jar, lid, measuring cup dishwasher safe; self-cleaning with Turbo; removable blades for thorough cleaning
Warranty	2 years (EUROGAMA Sp. Z o.o.)
Spare Parts Available	Blade assembly, jar, lid, sealing ring
Country of Origin	Poland (estimated)

Frequently Asked Questions - ZSB4707 Zelmer

What is the capacity of the Zelmer ZSB4707 jar?

The jar has an estimated capacity of 1.5 liters, suitable for blending fruits, ice, and other ingredients.

Can I blend hot liquids in this blender?

Be careful if pouring hot liquid into the blender as it can be ejected due to sudden steaming. Allow liquids to cool before blending.

How do I use the Turbo function?

Turn the speed knob to the 'T' (Turbo) position for maximum speed. It is ideal for ice crushing or quick blending. Use in pulses to avoid overloading.

Is the blender jar dishwasher safe?

Yes, the jar, lid, and measuring cup are dishwasher safe. The motor unit and blade base must be wiped with a damp cloth only.

How do I remove the blades for cleaning?

Loosen the fixing ring by turning it clockwise, then remove the ring and blade assembly. Clean parts separately and reassemble by turning the ring anticlockwise. Handle blades carefully as they are sharp.

What should I do if the blender stops working during use?

Unplug the appliance and wait for the blades to stop. Check if the jar is properly locked and not overloaded. If the problem persists, contact an authorized service center.

Can children use this blender?

No, this appliance is not intended for use by children. Keep it out of reach of children and ensure they do not play with it.

What is the warranty period for the ZSB4707?

EUROGAMA Sp. Z o.o. offers a 2-year warranty for domestic use, covering repair or replacement of defective parts under normal usage conditions.

How do I know if the jar is properly locked?

Place the jar onto the motor unit and turn clockwise until it clicks. Lift the jar slightly to check if it is securely locked before starting the blender.

What type of power supply does the blender need?

The blender is designed for household use with a mains voltage of 220-240 V ~ 50/60 Hz. Always check the product label before plugging in.

USER MANUAL ZSB4707 Zelmer

White plastic blender with a handle and control panel labeled 'zelmer' (no visible text or symbols on the device itself)

PL INSTRUKCJE UŻYTKOWANIA Blender kielichowy
EN USER MANUAL Jar blender
DE BENUTZERHANDBUCH Mixer
CZ NÁVOD K POUŽITÍ Stolní mixér
SK NAVODILA ZA UPORABO Stolový mixér

HU HASZNÁLATI UTASÍTÁS Turmixgép
RO INSTRUCTIUNI DE UTILIZARE Blender vas
RU ИНСТРУКЦИЯ ПО ПРИМЕНЕНИЮ Блендер со стеклянным сосудом
BG ИНСТРУКЦИИ ЗА УПОТРЕБА Буркан блендер
UA ІНСТРУКЦІЯ ПО ЗАСТОСУВАННЮ Блендер з чашею

Clear plastic blender with black base and lid, showing internal blades and a lid (no text or symbols visible)

White blender with black handle and control panel, labeled 'zeimer' (no text or symbols on the device itself)

White blender with clear glass body and control knob, labeled 'zelmer' (no additional text or symbols visible)

DZIEKUJEMY ZA WYBÓR MARKI ZELMER. DOKŁADAMY STARAŃ, ABY PRODUKT DZIAŁAŁ W SPOSÓB ZADOWALAJĄCY I PRZYJEMNY.

OSTRZEŻENIE

WE WOULD LIKE TO THANK YOU FOR CHOOSING ZELMER. WE WISH THE PRODUCT PERFORMS TO YOUR SATISFACTION AND PLEASURE.

WARNING

Please read the instructions for use carefully prior to using the product. store these in a safe place for future reference.

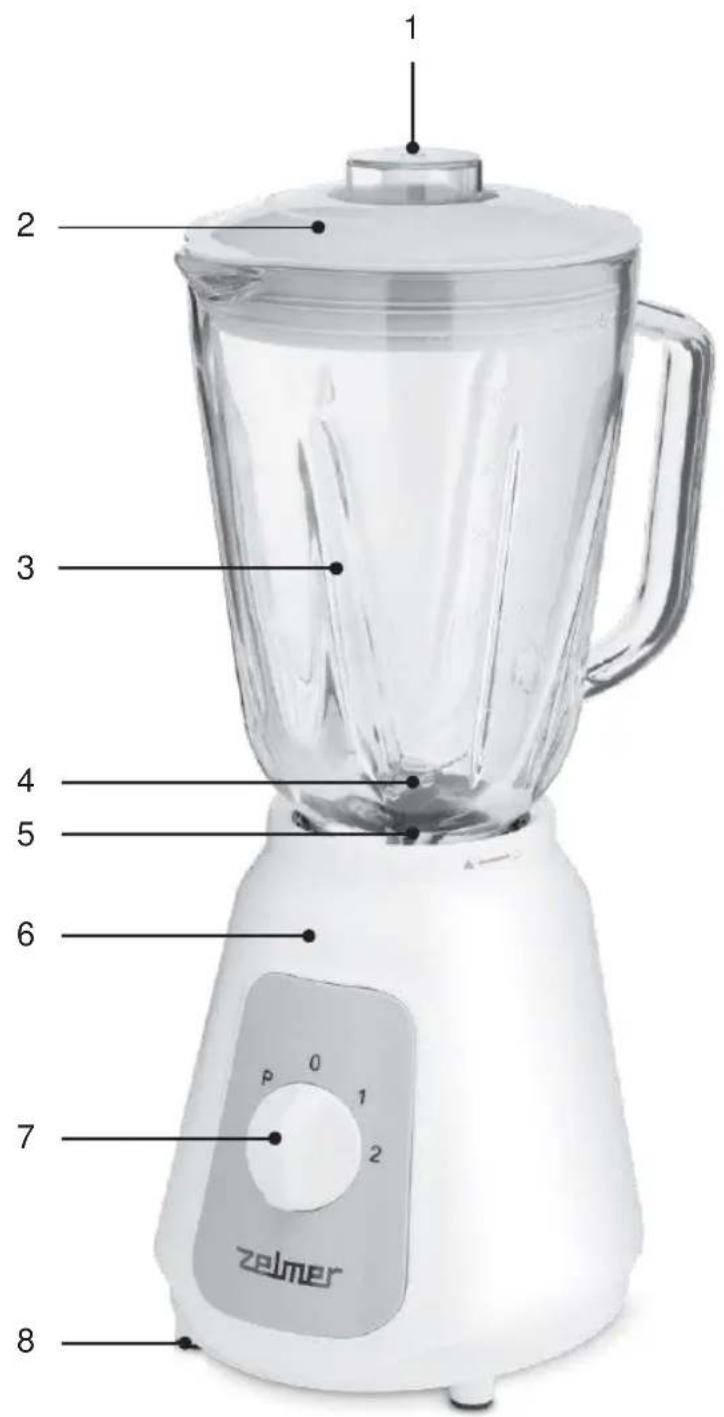

DESCRIPTION

1. Measuring Cup
2. Lid
3. Plastic jar
4. Sealing ring
5. Blade base
6. Motor unit
7. Speed control
8. Rubber feet

SAFETY INSTRUCTIONS

If the supply cord is damaged it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Respect the operating times of the accessories indicated in their specific sections of the manual. Proceed according to maintenance and cleaning section of this manual for cleaning.

Warning: potential injury from misuse!

Care shall be taken when handling the sharp cutting blades, emptying the glass jar and during cleaning.

Be careful if hot liquid is poured into the blender as it can be ejected out of the appliance due to a sudden steaming.

Always disconnect the blender from the supply if it is left unattended and before assembling, disassembling or cleaning.

Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.

This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.

Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

Children shall not play with the appliance.

IMPORTANT WARNINGS

This appliance is designed for home use and should never be used for commercial or industrial use under any circumstances. Any incorrect use or improper handling of the product shall render the warranty null and void.

Prior to plugging in the product, check that your mains voltage is the same as the one indicated on the product label.

The mains connection cable must not be tangled or wrapped around the product during use.

Do not use the device, or connect and disconnect to the supply mains with the hands and / or feet wet.

In order to ensure the sealing effect of blending blade, please do not allow the blending blade to work without load.

Do not pull on the connection cord in order to unplug it or use it as a handle

Unplug the product immediately from the mains in the event of any breakdown or damage and contact an official technical support service. In order to prevent any risk of danger, do not open the device. Only qualified technical personnel from the brand's Official technical support service may carry out repairs or procedures on the device.

B&B TRENDS SL. disclaims all liability for damages that may occur to people, animals or objects, for the non-observance of these warnings.

INSTRUCTIONS FOR USE

Blending with Speed Knob

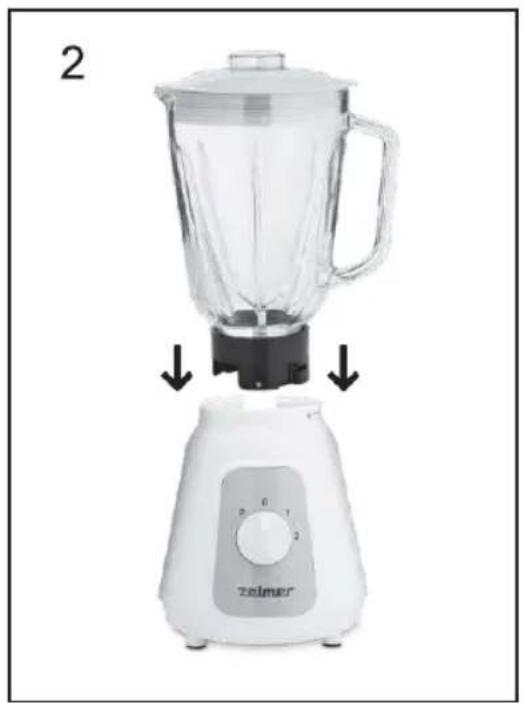

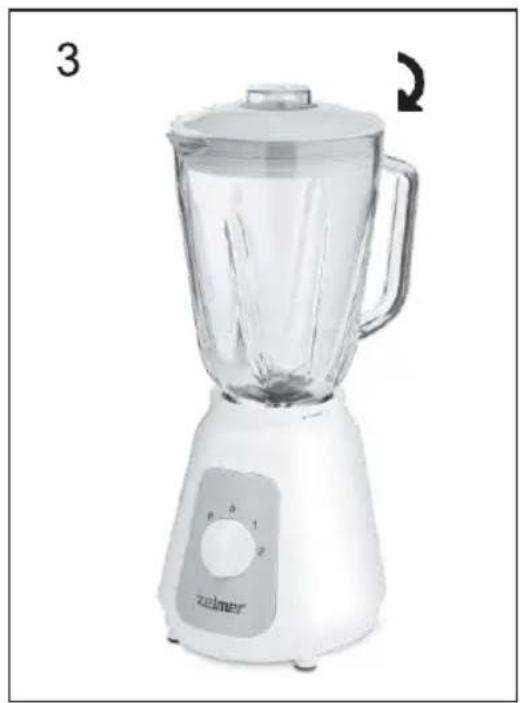

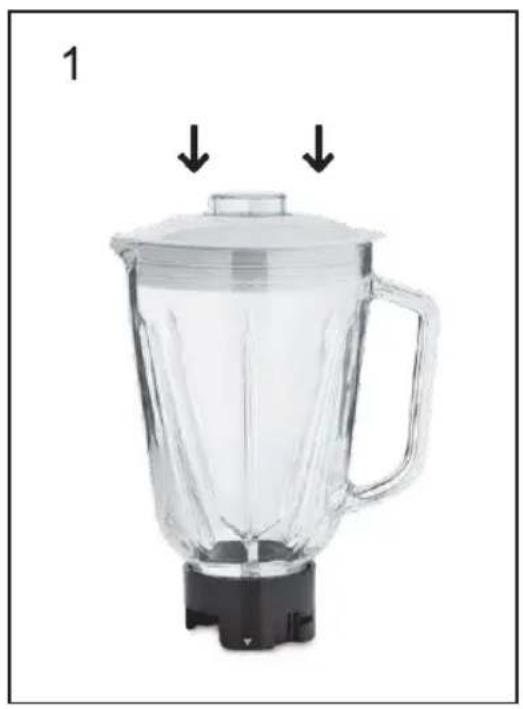

Pour in the ingredients and cover the jar, and then place the jar into the motor unit and turn clockwise. Lift the jar to check whether it is locking or not.

Plug in the appliance and rotate the start knob to which speed you need.

At the end of preparation, rotate the start knob to position 0, unplug the appliance and wait until the blades come to a complete stop.

Remove the jar and take off the lid, then pour out the ingredients.

For fruit preserves

Chop the fruits into small pieces, add some milk, water or juice and mix the ingredients with pulses of the Turbo function. To blend the fruits, rotate the start knob till you reach the desired result.

For ice crushing

As It is recommended to use the Turbo function and add some water with the ice.

MANITENANCE AND CLEANING

Before cleaning, always turn off the appliance and unplug it from the power supply.

Do not immerse the appliance and power cord in water or other liquids or wash them in the dishwasher.

Wipe off the toaster with a damp cloth and a little dish washing detergent. Do not use any abrasive scouring agents, steel wool, metal objects, hot cleaning agents or disinfectants, since they can damage the appliance.

During the cleaning process, special care must be taken with the blades and they are very sharp.

It is recommended to clean the appliance regularly and remove all traces of food.

If the appliance is not maintained in good cleaning condition, its surface can degrade and inexorably affect the life of the appliance and lead to a dangerous situation.

The following parts are suitable for cleaning in the dishwasher: jar, jar lid, measuring cup.

Self-cleaning function

Introduce water and a small amount of detergent into the jar.

Select the "T" position "Turbo"

Removable blades for effective cleaning

Loosen the fixing ring of the blades by turning it clockwise.

Remove the fixing ring from the blades and clean all the parts.

Once clean, replace the blade assembly and turn the blade fixing ring in the opposite direction.

Table of recipes

Load	Time	Speed
Soaked carrot: 600gWater: 900g	2'	MÁX.

PRODUCT DISPOSAL

This product complies with European Directive 2012/19/EU on electrical and electronic devices, known as WEEE (Waste Electrical and Electronic Equipment), provides the legal framework applicable in the European Union for the disposal and reuse of waste electronic and electrical devices. Do not dispose of this product in the bin, instead going to the electrical and electronic waste collection centre closest to your home.

We hope that you will be satisfied with this product.

WIR MÖCHTEN UNS BEI IHNEN BEDANKEN, DASS SIE SICH FÜR ZELMER ENTSCHIEDEN HABEN. WIR HOFFEN, DASS DAS PRODUKT ZU IHRER ZUFRIEDENHEIT FUNKTIONIERT.

ACHTUNG

ELIMINAREA PRODUSULUI

EUROGAMA Sp. Z o.o. guarantees compliance of this product for the use for which it is intended for a period of two years. In the case of breakdown during the term of this warranty, users are entitled to repair or else the replacement of the product at no charge if the former is unavailable, unless one of these options proves impossible to fulfill or is disproportionate. In this case, you can then opt for a reduction in price or cancellation of the sale, which must be dealt with directly with the sales vendor. This also covers replacement of spare parts provided that the product has been used according to the recommendations specified in this manual for both cases, and has not been tampered with by any third party that is not authorised by EUROGAMA Sp. Z o.o.. The warranty will not cover any parts subject to wear and tear. This warranty does not affect your rights as a consumer in accordance with the provisions in Directive 1999/44/EC for member states of the European Union.

USE OF WARRANTY

Customers must contact a EUROGAMA Sp. Z o.o. authorised Technical Service for repair of the product. Since any tampering of the same by anyone not authorised by EUROGAMA Sp. Z o.o., or the careless or improper use of the same shall render this warranty null and void. The warranty must be fully completed and delivered along with the receipt or delivery docket for the effective exercise of rights under this warranty. This warranty should be retained by the user as well as the invoice, receipt or the delivery docket to facilitate the exercise of these rights. For technical service and after-sales care outside the Polish territory, please submit your query to the point of sale where you purchased the item or check for further aftersales information at www.zelmer.com

GARANTIE-ERKLÄRUNG
