USER MANUAL 225 NOKIA

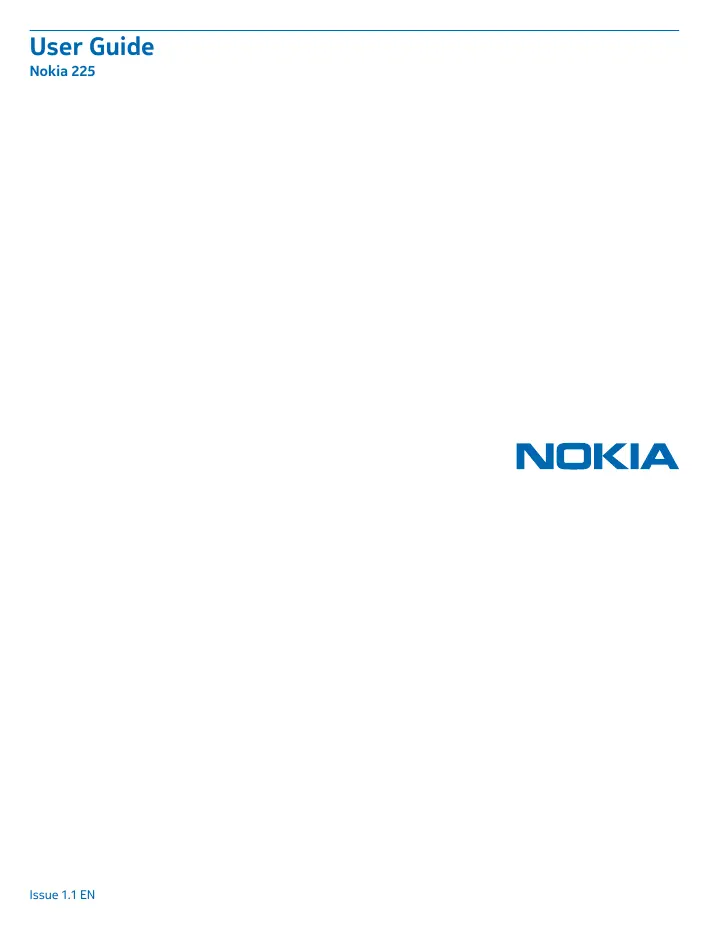

User Guide Nokia 225 NOKIA Issue 1.1 EN

User Guide Nokia 225 Contents Safety Get started Keys and parts Insert SIM, battery, and memory card Charge the battery Lock or unlock the keys Change the volume Basics Explore your phone Write text Use predictive text Set the ringtone People & messaging Make a call Save a name and phone number Send and receive messages Get social Internet Browse the web Camera Take a photo Record a video Share a photo or video Entertainment Listen to music Listen to the radio Phone management & connectivity Copy content between your phone and computer Remove private content from your phone © 2014 Microsoft Mobile. Al rights reserved. Use your phone in flight mode Access codes Product and safety information

Safety Read these simple guidelines. Not following them may be dangerous or illegal.

SWITCH OFF IN RESTRICTED AREAS

Switch the device off when mobile phone use is not allowed or when it may cause interference or danger, for example, in aircraft, in hospitals or near medical equipment, fuel, chemicals, or blasting areas. Obey all instructions in restricted areas.

ROAD SAFETY COMES FIRST

Obey all local laws. Always keep your hands free to operate the vehicle while driving. Your first consideration while driving should be road safety. INTERFERENCE Allwireless devices may be susceptible to interference, which could affect performance. QUALIFIED SERVICE Only qualified personnel may install or repair this product.

BATTERIES, CHARGERS, AND OTHER ACCESSORIES

Use only batteries, chargers, and other accessories approved by Microsoft Mobile for use with this device. Do not connect incompatible products.

KEEP YOUR DEVICE DRY

Your device is not water-resistant. Keep it dry.

PROTECT YOUR HEARING

To prevent possible hearing damage, do not listen at high volume levels for long periods. Exercise caution when holding your device near your ear while the loudspeaker is in use. © 2014 Microsoft Mobile. Al rights reserved. 3

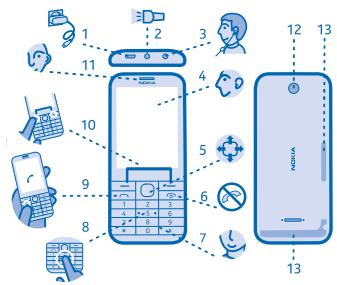

Get started Get to grips with the basics, and have your phone up and running in no time. Keys and parts Explore the keys and parts of your new phone. 1 Charger connector 2 Flashlight 3 Headset connector (3.5 mm) 4 Screen 5 Scrollkey 6 End/Power key

remove the protective tape from the lens. 13 Antenna area You can set your phone to ask for the security code that you define. The default security code is

Avoid touching the antenna area while the antenna is in use. Contact with antennas affects the communication quality and may reduce battery life due to higher power level during operation. Do not connect products that create an output signal, as this may damage the device. Do not connect any voltage source to the audio connector. If you connect an external device or headset, other than those approved for use with this device, to the audio connector, pay special attention to volume levels. Some of the accessories mentioned in this user guide, such as charger, headset, or data cable, may be sold separately. Insert SIM, battery, and memory card Learn how to insert the battery and SIM and memory cards. @ Important: This device is designed to be used with a standard SIM card (see figure) only. Use of incompatible SIM cards may damage the card or the device, and may corrupt data stored on the card. Please consult your mobile operator for the use of a SIM card that has a mini-UICC cutout. © 2014 Microsoft Mobile. Al rights reserved. 4

Use only compatible memory cards approved for use with this device. incompatible cards may damage the card and the device and corrupt data stored on the card. Bots: Suitch the device off and disconnect the charger and any other device before removing any covers. Avoid touching electronic components while changing any covers. Always store and use the device with any covers attached.

1. Hold your phone by the top corners, and with the thumb of your other hand, press the middle of

the back cover, and carefully remove the cover. Frs

2. ifthe battery is in the phone, lift it out.

3. Push the SIM in with the contact area face down.

4. Line up the battery contacts, and put the battery in.

5. Push the memory card into the memory card slot unti

@_ important: Do not remove the memory card when an app is using it. Doing so may damage the memory card and the device and corrupt data stored on the card. 2014 Microsoft Mobile. All rights reserved. 5

Remove the memory card Open the back cover, and push the memory card in until it's released. Switch your phone on Press and hold the power key. Charge the battery Your battery has been partially charged at the factory, but you may need to recharge it before you can use your phone.

1. Plug the charger into a wall outlet.

2. Connect the charger to the phone. When done, unplug the charger from the phone, then from the

wall outlet. LeN If the battery is completely discharged, it may take several minutes before the charging indicator is displayed or before any calls can be made. R Tip: You can use USB charging when a wall outlet is not available. Data can be transferred while charging the device. The efficiency of USB charging power varies significantly, and it may take a long time for charging to start and the device to start functioning. Make sure your computer is switched on. Lock or unlock the keys To avoid accidentally pressing the keys, use keypad lock.

1. Quickly press G\.

© 2014 Microsoft Mobile. Al rights reserved. 6

> 1 all Unlock the keypad Press @Y, and select Unlock. Change the volume Trouble hearing your phone ringing in noisy environments, or calls too loud? You can change the volume to your liking. Scroll up or down to change the volume during a call or when listening to the radio.

© 2014 Microsoft Mobile. Al rights reserved.

Basics Learn how to get the most out of your new phone. Explore your phone Explore your phone with a simple key press. See the apps and features of your phone Press Menu. Go to an app or feature Press the scroll key up, down, left, or right.

Open an app or select a feature Press Choose.

Go back to the previous view Press Back. © 2014 Microsoft Mobile. Al rights reserved.

Go back to the home screen Press Œ\. On the home screen, quickly press the s To switch the flashlight off, press up once. Do not shine the light in anyone's eyes. Write text Writing with the keypad is easy and fun. Press a key repeatedly until the letter is shown. Type in a space Press 0. Type in a special character or punctuation mark Press *. Switch between character cases Press # repeatedly. Type in a number Press and hold a number key. Use predictive text To speed up your writing, your phone can guess what you are startingto write. Predictive text is based on a built-in dictionary. This feature is not available for all languages. nary and the language.

2. Start writing a word. When the word you want is shown, press 0.

Change a word Press * repeatedly until the word you want is shown. © 2014 Microsoft Mobile. Al rights reserved. 9

Add a new word to the dictionary If the word you want isn't in the dictionary, write the word, press * repeatedly to skip all unwanted words, select Spell, and write the word. Switch between predictive and traditional text Press # repeatedly. Select Options > Dictionary > Dictionary off. Set the ringtone Set a ringtone for your phone.

1. Select Menu > Settings > Tone settings.

3. Pick a ringtone, and select OK.

© 2014 Microsoft Mobile. Al rights reserved. 10

People & messaging Contact your friends and family using your phone. Stay tuned with the latest updates to your social networking services even when on the go. Make a call Learn how to make a call with your new phone.

1. Type in the phone number.

To type in the + character, used for international call, press * twice.

Answer a call Press Save a name and phone number Save and organise your friends’ phone numbers. Or why not spice up your contacts list by assigning photos or other info to your contacts?

1. Select Menu > Contacts > Options > Add new contact.

2: Write the name, type in the number, and select Save. Send and receive messages Keep in touch with your friends and family through text messages.

3. Type in a phone number, or select a recipient from our contacts list.

4. Write your message.

*k sert special characters, such as a smiley or symbol, select Options > Insert options.

You can send text messages that are longer than the character limit for a single message. Longer messages are sent as two or more messages. Your service provider may charge accordingly. Characters with accents, other marks, or some language options, take more space, and limit the number of characters that can be sent in a single message. Read a message On the home screen, select Read. To read the rest of the message, select Open. Get social Want to connect and share stuff with the people in your life? With social apps, you can stay up to date with what's happening with your friends. © 2014 Microsoft Mobile. Al rights reserved. 11

To keep in touch with your friends and family, sign in to your instant messaging, sharing, and social networking services. Select Menu and the service you want to use, The available services may vary. © 2014 Microsoft Mobile. Al rights reserved. 12

Internet Learn how to browse the web. Browse the web Catch up on the news, and visit your favourite websites on the go.

1. Select Menu > Internet.

2. Select the address bar.

3. Write a web address, and select OK.

k Tip: Tosearchthe interet, write a searchwordin the address bar. You can also use the available links. Using services or downloading content may cause the transfer of large amounts of data, which may result in data costs. © 2014 Microsoft Mobile. Al rights reserved. 13

Camera With your phone camera, you can easily take photos or record videos. Take a photo Capture the best moments with your phone camera

1. To switch the camera on, select Camera.

2. To zoom in or out, press the scroll key up or down.

3. To take a photo, press the scroll key

View the photos you've taken To view the photo right after taking it, select New > Æ > Photos > Captured. To view the photo later, in the camera, select Æ > Photos > Captured. Record a video Besides taking photos, you can also record videos with your phone.

3. To start recording, select

4. To stop recording, select I.

View the video you've recorded To view the video right after recording, selectB>. To view the video later, in the video camera, select Æ > Videos > Recorded. Share a photo or video Use Slam to quickly share your photos and videos with a friend close by.

1. if needed, switch Bluetooth on in the other phone.

2. Select Photos and a photo or Videos and a video.

3. Select Options and Share photo or Share video.

4. Select Slam via Bluetooth,

5. Move your phone close to the other phone, and let Slam share the photo or video.

Operating the device in hidden mode is a safer way to avoid malicious software. Do not accept Bluetooth connection requests from sources you do not trust. You can also switch the Bluetooth function off when you are not using it. © 2014 Microsoft Mobile. Al rights reserved. 14

Entertainment Listen to music You can listen to your MP3 music files with the music player. To play musie, you need to store the music files on a memory card.

1. Select Menu > Music > Music player.

2. Select Options > All songs.

Listen to the radio Enjoy your favourite FM radio stations on the go. To listen to the ra an antenna you need to connect a compatible headset to the device. The headset acts as

1. Connect a headset, and select Menu > Radio.

2. To go to the previous or next channel, scroll left or right.

3. To close the radio, select Options > Switch off.

© 2014 Microsoft Mobile. Al rights reserved. 15

Phone management & connectivity Take care of your phone andits contents. Learnhow to connect to accessories andnetworks, transfer files, create backups, lock your phone, and keep the software up to date. Copy content between your phone and computer Copy photos, videos, music, and other content created by you (and stored on the memory card) between your phone and computer. To copy content from the phone memory, you need to have a memory card inserted in your phone.

1. Connect your phone to a compatible computer with a compatible USB cable.

2. Select Mass storage.

3. On your computer, open a file manager, such as Windows Explorer, and browse to your phone. You

can see the content stored on the memory card.

4. Drag and drop items between your phone and computer.

Remove private content from your phone If you buy a new phone, or otherwise want to dispose of or recycle your phone, here's how you can remove your personal info and content. When removing private content from your phone, pay attention to whether you are removing content from the phone memory or the SIM card.

2. To remove all your contacts, select Menu > Contacts > Options > Delete contacts > Op

4. Check that all your personal content has been removed.

The content and info stored on the memory card is not removed. Remove all content from your phone and restore the original settings To reset your phone to its original settings and to remove all your data, on the home screen, type in *#7370#. Use your phone in flight mode In places where you're not allowed to make call or connect to the internet with your phone, you can still access your music, videos, and offline games if you switch flight mode on.

1. Tap Connectivity.

2. Switch Flight mode to On.

À Warning: When the flight profile is activated, you cannot make or receive any calls, or use other features that require network coverage. To make a call, switch to another profile. Switch the device off when mobile phone use is not allowed or when it may cause interference or danger, for example, in aircraft, near medical equipment, fuel, chemicals, or blasting areas. © 2014 Microsoft Mobile. Al rights reserved. 16

Access codes Ever wondered what the different codes on your phone are for? PIN or PIN2 code (4-8 digits) These protect your SIM card against unauthorised use or are required to access some features. You can set your phone to ask for the PIN code when you switch it on. If you forget the codes or they aren't supplied with your card, contact your network service provider If you type in the code incorrectly 3 times in a row, you need to unblock the code with the PUK or PUK2 code. PUK or PUK2 These are required to unblock a PIN or PIN2 code. If not supplied with your SIM card, contact your network service provider. Security code (lock code, password) This helps you protect your phone against unauthorised use. You can set your phone to ask for the lock code that you define. Keep the code secret and in a safe place, separate from your phone. If you forget the code and your phone is locked, your phone will require service. Additional charges may apply, and all the personal data on your phone may be deleted. For more information, contact Nokia Care or your phone dealer. IMEI This is used to identify phones in the network. You may also need to give the number to Nokia Care services. To view your IMEI number, dial *#064#. © 2014 Microsoft Mobile. Al rights reserved.

Product and safety information Network services and costs You can only use your device on the GSM 900, 1800 MHz networks. You need a subscription with a service provider. Using some features and downloading content require a network connection and may result in data costs, You may also need 0 subseribe to some features. Emergency calls

1. Make sure the device is suitched on.

2. Check for adequate signal strength

You may also need to da the following: + Puta SM card'in the device. + Suitch the call restrictions of in your device, such as call barring, fixed dialing, er closed user group. + Ifthe device keys are locked, unlock them. 3.Press the end key repeatedl, until the home screen is shoun. 4: Type in the official emergency number for your present location. Emergency call numbers vary by location

5. Press the call ke

6. Give the necessary info as accurately as possible. Do not end the call until given permission to do 50.

Q_mporant actnate both celuiarandinternet call if your phone supports internet call, The phone may attempt to make ‘emergency calls both through cellular networks and through yeur internet call service provider, Connections in all conditions cannot be guaranteed. Never rely solely on any wireless phone for essential communications like medical emergencies. Take care of your device Handle your device, battery, charger and accessories with care. The following suggestions help youkeep your device operational. + Kecpthe device dry.Precipitation, humidity, andall types ofliquiés or moisture can contain minerals that corrode electronic drcuits. 1 your device gets wet, remove the battery, and let the device dry. + Do not use or store the device in dusty or dirty areas. + Do not store the device in high temperatures. High temperatures may damage the device or battery. + Do not store the device in cold temperatures. When the device warms toits normal temperature, moisture can form inside the device and damage it. Do not open the device other than as instructedin the user guide. Unauthorised modifications may damage the device and violate regulations governing radio devices Do nat drop, knock, or hake the device or the battery. Rough handling can break it. Only use a soft, clean, dry cloth to clean the surface of the device. Do not paint the device. Paint can prevent proper operation. For optimal performance, suitch the device off and remove the battery from time to time. Keep the device away from magnets or magnetic fields. ‘To Keep your important data safe, store tin at least two separate places, such as your device, memory card, or computer,

Always return your used electronic products, batteries, and packaging materials to dedicated collection points. This way you help prevent uncontrlld waste isposal and gromote Ehe recyclng 6 materials AÏ material oh device cn be recotered as materials and energy. Check how to recycle your Microsoft Mobile products at www.nokia.com/recycle. Recycle © 2014 Microsoft Mobile. Al rights reserved. 18

Crossed-out wheeled-bin symbol

The crossed-out wheeled-bin symbol on your product, battery, iterature, or packaging reminds you that all electrical and electronic products and batteries must be taken to separate collection at the end of their working life. Do not dispose of these products as unsorted municipal waste: take them for recycling. For info on your nearest recycling point, check with your local waste authority, or g0 to www.nokia.com/support. For mare info on the environmental attributes of your device, see om/ecoprofile Battery and charger info Use your device only with an original BL-AUL rechargeable battery. Charge your device with AC-18 charger. Charger plug type may vary. Microsoft Mobile may make additional battery or charger models available for this device. Battery and charger safety Always switch the device off and unplug the charger before removing the battery. To unplug a charger or an accessory, hold and pul the plug, not the cord. When your charger is notin use, unplug it. left unused, a fully charged battery will lose its charge over time. Always keep the battery between 15°C and 25°C (59°F and 77-F1 for optimal performance. Extreme temperatures reduce the capacity and lfetime of the battery. A device with a hot or cold battery may not work temporal. Accidental short-cireuiting can happen when a metallic object touches the metal strips on the battery. This may damage the battery or the other object. Do not dispose of batteries in fire as they may explode. Obey local regulations. Recycle when possible. Do not dispose as household waste. Do not dismantle, eut, crush, bend, puncture, or otherwise damage the battery in any way. I a battery leaks, do not let liquid touch skinor eyes. IFthis happens, immediately flush the affected areas with water, or seek medical help. Do not modify, attempt to insert foreign objects into the battery or immerse or expose it to water or other lquids. Batteries may explode if damaged. Use the battery and charger for their intended purposes only. Improper use, or use of unapproved or incompatible batteries or chargers may present a risk of fire, explosion, or other hazard, and may invalidate any approval or warranty. f you believe the battery or charger is damaged, take it to a service centre before continuing to use it. Never use a damaged battery or charger. Do not charge Your device during a lightning storm. Only use the charger indoors. Additional safety information Small children Your device and its accessories are not toys. They may contain small parts. Keep them out of the reach of small children. Medical devices Operation ofradio transmitting equipment, including wireless phones, may interferewithinadequately shielded medical devices" function. Consult a physician or the medical device"s manufacturer to determine iitis adequately shielded from external radio energy. Implanted medical devices To avoid potential interference, manufacturers of implanted medical devices recommend a minimum separation of 15.3 centimetres (6 inches) between a wireless device and the medical device. Persons who have such devices should + Always keep the wireless device mare than 15.3 centimetres (8 inches] from the medical device. + Not carry the wireless device in a breast pocket. © 2014 Microsoft Mobile. Al rights reserved. 19

+ Holdthe wireless device to the ear opposite the medical device. + Suitch the wireless device off if there is any reason to suspect that interference is taking place. + Follow the manufacturer directions for the implanted medical device. If you have any questions about using your wireless device vith an implanted medical device, consult your health care provider. Hearing À Marins Men you use the header, your ability to hear outside sound may be affected. Do not use the headset here it can endanger your safety. Some wireless devices may interfere with some hearing aids. Nickel The surface of this device is nickel-free. Protect your device from harmful content Your device may be exposed to viruses and other harmful content. Take the following precautions: + Be cautious when opening messages. They may contain malicious software or otherwise be harmful to your device or computer. + Be cautious when accepting connectivityrequests, brousing the internet, or dounloading content. Do not accept Bluetooth connections from sources you do not trust. + Onlyinstall and use services and softuare from sources that you trust and that offer adequate security and protection. + Install antivirus and other security software on your device and any connected computer. Only use one antivirus app at a time. Using more may affect performance and operation of the device and/or computer. +? Ifyou access preinstalled bookmarks and links to third party internet sites, take the appropriate precautions. Microsoft Mobile does not endorse or assume liability for such sites, Vehicles Radio signals may affect impropery installed or inadequately shielded electronic systems in vehicles. For more info, check with the manufacturer of your vehicle or its equipment. Oniy qualified personnel should install the device in a vehicle. Faulty installation may be dangerous andinvalidate your warranty. Check regularly that all wireless device equipment in your vehicle is mounted and operating propery. Do not store or carry flammable or explosive materials in the same compartment as the device, its parts, or accessories, Do not place your device or accessories in the air bag deployment area. Potentially explosive environments Suitch your device off in potentially explosive ervironments, such as near petrol pumps. Sparks may cause an explosion or fre resulgin injury or desihNotereuiitions in areas in fu; chemical plants o mère bis operations are in progrezz Areas with a potentiall explosive environment may not be clearly marked. These usually are areas where you are advised to switch your engine off, below deck on boats, chemical transfer or storage facilities, and where the air contains chemicals or gardes. Check th the manufaturers o vehicles using iqufiedpeiroleum gas (such s propane or butanel this device can safelÿ used in their vcinity. Certification information (SAR) This mobile device meets guidelines for exposure to radio waves. For information on SAR, see the printed user guide, or go to www.nokia.com/sar. © 2014 Microsoft Mobile. Al rights reserved. 20

Copyrights and other notices

DECLARATION OF CONFORMITY

C€0168 Hereby, Microsoft Mobile Oy declares that this RM-1012 product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. À copy of the Declaration of Conformity can be found at www.nokia.com/global/ declaration/declaration-of-conformity. The avaïlabilty of products, features, apps and services may vary by region. Microsoft Mobile may, inits sole discretion, change, correct or discontinue any of is services in whole or in part, For more infa, contact your dealer or your service provider. This device may contain commodites, technology or software subject to export laws and regulations from the US and other countries. Diversion contrary to law is prohibited The contents of this document are provided "as is". Except as required by applicable law, no warranties of anykind, either express or implied, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose, are made in relation ta the accuracy, eliablity or contents of this document. Microsoft Mobile reserves the right to revise this document or withdraw it at any time without prior notice To the maximum extent permitted by applicable law, under no cirumstances shall Microsoft Mobile or any of its licensors be responsible for any loss of data or income or any special incidental, consequential or indirect damages howsoever caused Reproduction, transfer or distribution of part or all of the contents in this document in any form without the prior written permission of Microsoft Mob Is prohbied. Microsoft Mobil oprates a poli of continuous development Microsoft Mobile reserves the right to make changes and improvements to any of the products described in this document without prior notice. Microsoft Mobile does not make any representations, provide a warranty, or take any responsibility for the functionalty, content, or end-user support of third-party apps provided with your device. By using an app, you acknowledge that the app is provided Downloading of maps, games, music and videos and uploading of images and videos may involve transferring large amounts of data. Your service provider may charge for the data transmission. The availability of particular products, services and features may vary by region. Please check with your local dealer for further details and availabiity of language options. TM & © 2014 Microsoft Mobile. AI rights reserved. Nokia is a TM of Nokia Corporation. Third party products/names may be TMs of their respective owners, The Bluetooth word mark and logos are ouned by the Bluetooth SIG, Inc. and any use of such marks by Microsoft Mobile is under license. This product licensed under the MPEG-4 Visual Patent Portfolio License for personal and noncommercil use in connection with information which has been encoded in compliance with the MPEG-4 Visual Standard by a consumer engaged in a personal and noncommercial activity and [i for use in connection with MPEG-4 video provided by a licensed video provider. No license is granted or shall be implied for any other use, Additional information, including that related to promotional, internal, and Commercial uses, may be obtained from MPEG LA, LLC. See wuw.mpegla.com. © 2014 Microsoft Mobile. Al rights reserved. 21
