Product Type	Portable Air Conditioner
Brand	Royal Sovereign
Model	ARP-1106EC
Cooling Capacity (BTU)	11,000 BTU
Room Coverage	Up to 400 sq. ft.
Power Supply	115V ~ 60Hz
Rated Current	10.5 A
Refrigerant	R410A
Noise Level	Approx. 55 dB
Dimensions (W x D x H)	17.5" x 17.5" x 29"
Net Weight	70 lbs
Fan Speeds	3 (Low, Medium, High)
Modes	Cool, Fan, Dry (Dehumidify)
Thermostat Control	Digital, 62°F – 86°F
Remote Control	Included
Timer	24-hour on/off timer
Auto Restart	Yes (after power failure)
Air Direction	Manual horizontal louvers
Condensation Removal	Continuous drain or self-evaporating
Filter	Washable mesh filter
Filter Cleaning	Every 2 weeks under normal use
Safety Features	Auto shut-off (overheat), tip-over switch
Exhaust Hose Length	5 ft (included)
Window Kit Included	Yes (adjustable up to 48")
Energy Star Rated	Yes

Frequently Asked Questions - ARP-1106EC Royal Sovereign

How do I set the temperature on my Royal Sovereign ARP-1106EC?

Press the Temp + or Temp - buttons on the control panel or remote to adjust the desired temperature between 62°F and 86°F.

How often should I clean the air filter?

Clean the washable mesh filter every two weeks under normal use. More frequent cleaning may be needed if the unit is used in dusty conditions.

Why is water collecting in the unit?

In humid conditions, the unit may collect condensate. The ARP-1106EC can operate in self-evaporating mode, but if water accumulates, connect a drain hose to the continuous drain outlet.

Can I use an extension cord with this air conditioner?

No, extension cords are not recommended. Plug the unit directly into a grounded wall outlet rated for the required amperage (10.5A). Using an extension cord may cause overheating.

How do I use the timer function?

Press the Timer button on the remote or control panel. Use the +/- buttons to set the desired time (0-24 hours) for auto-on or auto-off. Press Timer again to confirm.

What does the 'E2' error code mean?

The E2 error indicates a problem with the room temperature sensor. Unplug the unit for 10 minutes and restart. If the error persists, contact customer support.

How do I switch between cooling, fan, and dehumidifier modes?

Press the Mode button repeatedly to cycle through Cool, Fan, and Dry modes. The corresponding indicator light will illuminate.

Does the unit include a remote control?

Yes, the ARP-1106EC comes with a remote control that requires two AAA batteries (not included).

Can I vent the exhaust hose out a sliding window?

Yes, the included window kit is adjustable for vertical or horizontal sliding windows up to 48 inches wide. Follow the installation guide for proper setup.

What is the recommended maintenance before storing the unit?

Run the unit in Fan mode for a few hours to dry the interior. Clean the filter, drain any residual water, and store the unit in a dry, clean place.

USER MANUAL ARP-1106EC Royal Sovereign

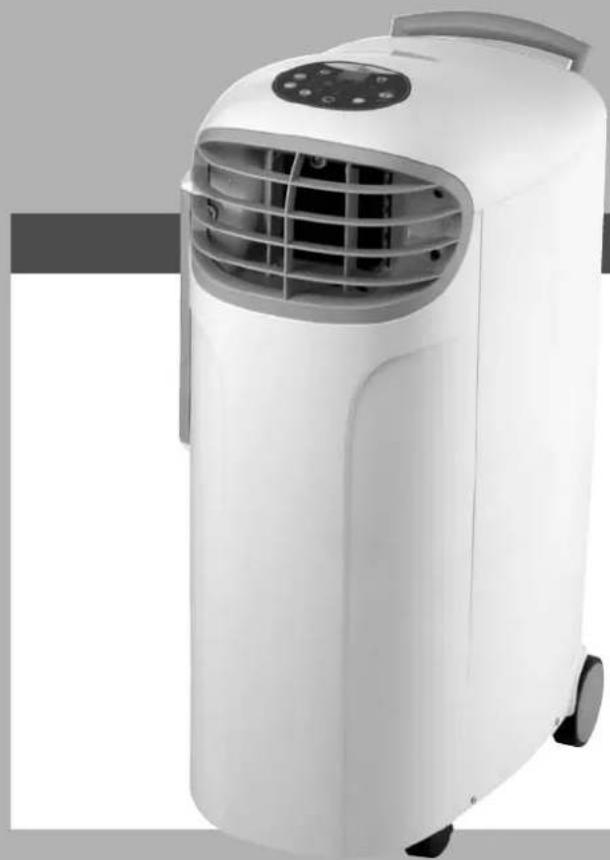

White modular air conditioner unit with control panel and wheels (no visible text or symbols)

OWNER'S MANUAL

MANUAL DEL PROPIETARIO

ARP-906EC / 1106EC

Read and retain these instructions for future reference

For any Customer Support needs, please choose the Support tab on www.royalsovereign.com

Royal Centurian Inc.

PORTABLE AIR CONDITIONER

Model ARP-906EC / 1106EC

TABLE OF CONTENTS

Parts 3

Safety Precautions 4

Installation 5

Operation/Functions 6

Maintenance 9

Troubleshooting 10

Specifications 11

Warranty 12

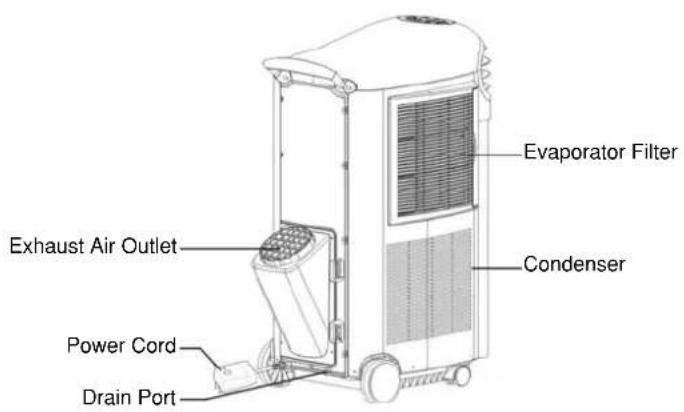

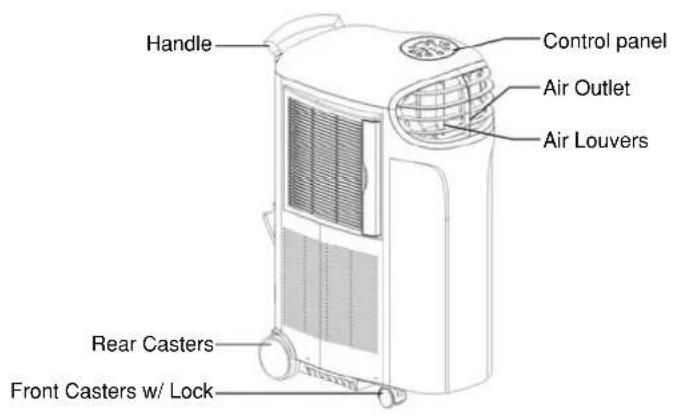

PARTS

BEFORE USE

SAFETY PRECAUTIONS

If unit has been transported on its side, set the machine upright for 2 hrs. before use.

1. Only use in the upright position on a flat, level surface at least 20" (50cm) from any object or water leak may occur.
2. Do not place objects on top or in front of the unit.
3. Closely supervise children and pets while unit is in use.
4. For indoor use only.
5. Turn off and unplug the unit when it is not in use.
6. Do not use in wet environments.
7. Do not pull the unit by the cord.
8. If the power cord is damaged, it must be replaced by an electrician to avoid hazard or injury.
   Make sure there is a green light on the plug when unit is plugged into power source. If not press reset button on plug until the green LED light on the plug illuminates.

FOR MAXIMUM EFFICIENCY

1. Do not exceed the recommended room size of 300 sq. feet (ARP-906EC) & 400 sq. feet (ARP-1106EC).
2. Keep doors and windows closed.
3. Keep curtains or blinds closed during the sunniest part of the day.
4. Keep filters clean.
5. Once room has reached the desired conditions, reduce the temperature

INSTALLATION

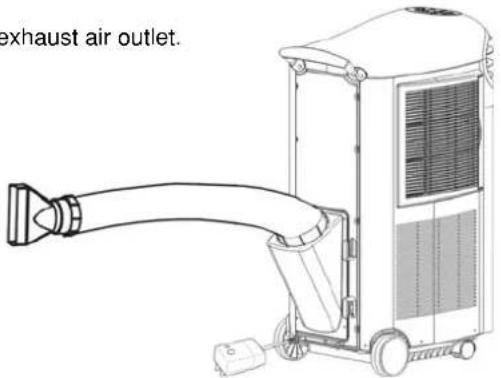

1. Connect the hose to the exhaust air outlet.

1. Insert the exhaust hose into the window spacer.

NOTE: The hose may be extended from 1-5 ft (300-1500mm) but for maximum efficiency use the shortest length possible. For best results do not let the exhaust hose exceed a 45° angle.

OPERATION/FUNCTIONS

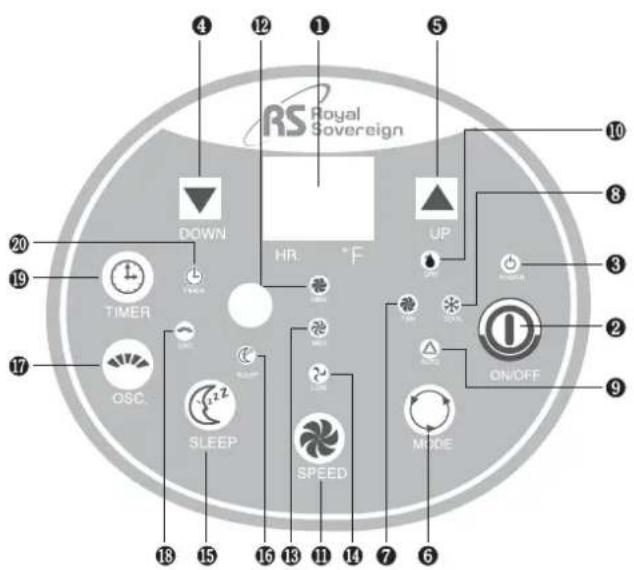

CONTROL PANEL

1. Temperature/Hour LED Display
2. Power button
3. Power light
4. Temperature DOWN button
5. Temperature UP button
6. Mode button (Fan, Cool, Auto, Dry)
7. Fan indicator light
8. Cool indicator light
9. Auto indicator light
10. Dry indicator light (Dehumidifier)
11. Speed button (High, Medium, Low)
12. High indicator light
13. Medium indicator light
14. Low indicator light
15. Sleep button
16. Sleep indicator light
17. Oscillating button
18. Oscillating indicator light
19. Timer button (1-24 hours)
20. Timer indicator light

ARP-906EC / 1106EC

ON/OFF

Press this button to start and stop the unit.

MODE

Press this button to select the Fan, Cool, Auto or Dry (Dehumidifier) mode.

The Fan mode will allow you to select a Speed of High, Medium or Low.

The Cool mode will allow you to select a Speed of High, Medium or Low or a specific temperature by using the UP/DOWN buttons.

The Auto mode will automatically adjust the settings between Fan (High, Low and Medium) and Cool (High, Low and Medium) depending on the current temperature in the room. Press the Auto button and then use the UP/DOWN button to select your desired temperature. If the temperature in the room is at 76°F or above the COOL mode and SPEED will automatically be selected to keep the room at the desired temperature. If the temperature in the room is 75°F or below FAN mode and SPEED will automatically be selected to keep the room at the desired temperature.

The Dry mode will allow you to dehumidify the room and remove excess moisture.

SPEED

Press the SPEED button to select a High, Medium or Low setting.

TIMER (1-24 Hours)

The timer button will allow you to turn the unit ON or OFF without being in the room.

If the unit is off- Press the TIMER button (Timer indicator light will be lit). Continue pressing the TIMER button until you select the quantity of hours (1-24) in which you want the unit to turned on. Example- If you want the unit to turn on in 3 hours then Press the button until it shows 3, the unit will automatically turn on in 3 hours.

If the unit is on- Press the TIMER button (Timer indicator light will be lit). Continue pressing the TIMER button until you select the quantity of hours (1-24) in which you want the unit to turned off. Example- If you want the unit to turn off after 4 hours then press the button until it shows 4, the unit will automatically turn off in 4 hours.

SLEEP

By pressing the SLEEP button, the set temperature will increase 2°F (1°C)

in the first hour, another 2°F (1°C) in the second hour, and then remains at that temperature.

TANK FULL

When the water tank is full you will hear a beeping noise. At this point you must empty it out by placing a container underneath the drain port, remove the rubber drain plug, and then water will flow out until it is empty.

OSC (OSCILLATING) FEATURE

This feature allows the air to flow in all directions. Press the Oscillating button (OSC indicator will be lit). The air louvers will begin oscillating. Press the OSC button again to turn it off.

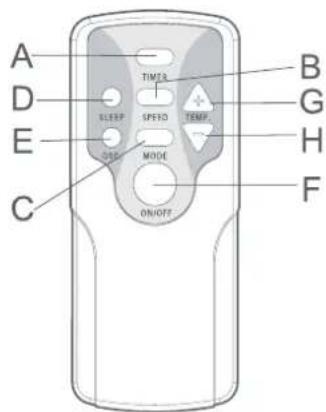

REMOTE CONTROL

A - Timer button

B - Fan button

C - Mode button

D - Sleep button

E - Oscillating button

F - ON/OFF button

G - Temperature UP button

H - Temperature DOWN button

ARP-906EC / 1106EC

MAINTENANCE

Always unplug the air conditioner from the outlet before cleaning. To maximize the efficiency of the air conditioner, clean regularly.

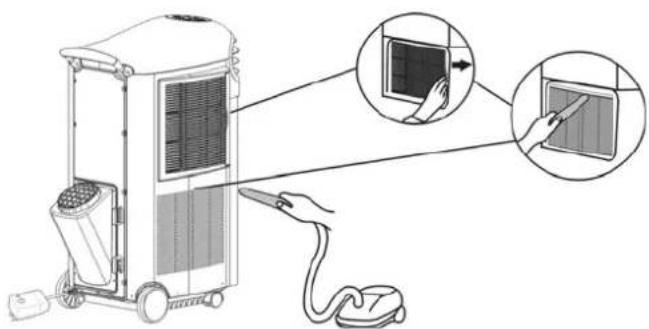

Cleaning the Filter

Remove the filter from the side of housing. Use a vacuum cleaner or gently tap the filter to remove loose dust and dirt, then rinse thoroughly under warm running water. Dry thoroughly before returning the filter to the correct position.

NOTE: Never operate the unit without a filter

Cleaning the Housing

Use a soft, damp cloth to wipe the body clean.

Never use chemicals, gasoline, detergents, chemically treated cloths, or other cleansing solutions as this could possibly damage the housing.

Storage

• Drain any water from the unit by emptying the water through the drain port into the water tray (see the PARTS section).
• Clean the filter
• Unplug and wrap the power cord around the cord holders on the back of the unit.
• If possible, place back in its original carton or cover for storage.
  • Always keep the unit in the upright position

TROUBLESHOOTING

Problem Possible Cause/Solution
The air conditioner does not run	Press reset button on the plug until the green LED light on the plug illuminates.Check to see if it is plugged in.Check to see if the power is on.
The machine is not cooling very well	Is there direct sunlight? Close all curtains and blinds.Check to make sure there are no doors/windows open.Check to make sure nothing that produces heat is on.
The unit is vibrating	The unit may be on an uneven surface. Make sure it is on a flat surface.
Sudden noise	The compressor may have turned on. This is normal.

NOTE: Never try to repair or dismantle the unit yourself.

ARP-906EC / 1106EC

SPECIFICATIONS

Model ARP-906EC ARP-1106EC
Cooling capacity 9000 BTUs 11000 BTUs
Power supply 115V/60Hz
Power/Ampere 10.5A
Refrigerant R22 / 470g
Timer 1 - 24 hours
Recommended room size 300 sq. ft 400 sq. ft

WARRANTY

FULL ONE YEAR WARRANTY

Royal Sovereign warrants each Portable Air Conditioner to be free from defects in material and workmanship. Our obligation under this warranty is limited to the repair or replacement, free of charge, when delivered to an authorized Royal Sovereign service center, of any defective part(s) thereof, other than parts damaged in transit. This warranty is in effect to the original purchaser, for a period of one year from the date of purchase and is not transferable. This warranty shall apply only if the air conditioner is used on Alternating Current (AC) circuit, in accordance with the factory provided instructions which accompany it.

LIMITED FIVE YEAR WARRANTY (COMPRESSOR)

For a period of five years from the date of purchase, when this Royal Sovereign Portable Air Conditioner is operated and maintained according to the instruction manual provided with the product, Royal Sovereign will supply a replacement compressor (part only), free of charge, if the original compressor is determined to be defective in workmanship or material. If repair becomes necessary, please contact our customer service center. You will be responsible for all freight, insurance, and any other transportation charges to get the unit to our factory or service center. If shipping is required, be sure to pack the unit properly to avoid shipping damages, as we will not be responsible for such damages.

THIS WARRANTY IS VALID THROUGHOUT THE UNITED STATES AND PUERTO RICO ONLY

EXCLUSIONS

This warranty excludes and does not cover defects, malfunctions or failures of your Royal Sovereign Portable Air Conditioner, caused by repairs by unauthorized persons or service centers, mishandling, improper installation, modification or unreasonable use including incorrect voltage, acts of god, or failure to provide reasonable and necessary maintenance. This warranty is in lieu of any and all expressed warranties. In no event shall Royal Sovereign be liable for consequential or incidental damages. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state.

ROYAL SOVEREIGN INTERNATIONAL, INC.

Royal Centurian Inc.

2 Volvo Drive Rockleigh, NJ 07647 USA

TEL: [phone] FAX: [phone]

RS International Australia PTY. LTD. Royal Sovereign Canada

30 Prime Drive, Seven Hills, NSW 2147, AUSTRALIA 164 Oakdale Road, Toronto, Ontario M3N 2S5 CANADA

TEL : [phone] FAX : [phone] TEL: [phone] FAX: [phone]

www.royalsovereign.com / [e-mail]
