Chapter 1: Product Description

1.1 Package Contents 9

1.2 Wall Mounting Installation Preparation.... 10

1.2.2 Removing the Base Stand.... 10

1.2.1 Wall Mounting.... 10

1.3 LCD Display Overview 11

1.3.1 Front View and Keypad Buttons.... 11

1.3.2 Rear View....12

Chapter 2: Making Connections

2.1 Connecting the Power 13

2.2 Connecting Input Source Signals 14

2.2.1 Connecting a Computer 14

Using VGA Cables 14

Using DVI Cables....14

Connecting an Audio Device 15

2.2.2 Connecting a Camera or Video Device....15

Using CVBS Cables 15

Using S-Video Cables 16

Using HDMI Cables....16

2.3 Connecting the DC Power Output 17

2.4 Connecting a Stereo Amplifier....17

Chapter 3: Using the LCD Display

3.1 Turning on the Power 18

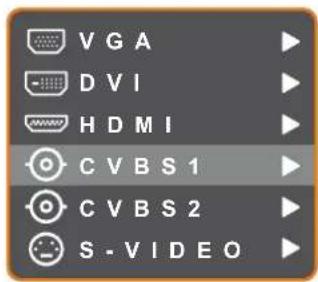

3.2 Selecting the Input Source Signal 18

3.3 Adjusting the Volume 19

3.4 Locking the OSD Menu 19

3.5 Setting the Aspect Ratio 20

3.5.1 Aspect Ratio Options....20

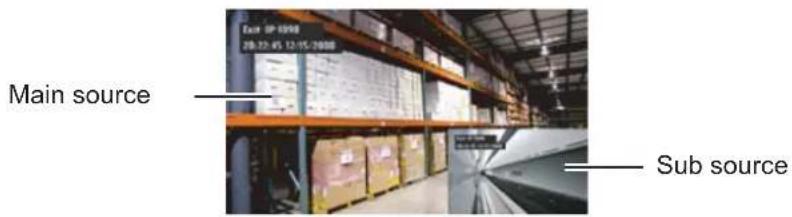

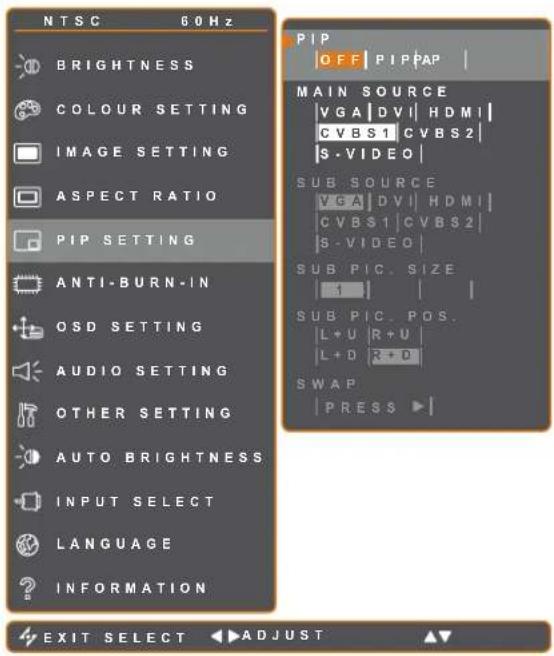

3.6 Using Picture-in-Picture (PIP) 21

3.6.1 PIP Options 21

3.6.2 PIP Swap....22

3.7 Using ROTATE Function 22

3.8 Using FREEZE Function 23

3.9 Using Auto Adjustment Function 23

TABLE OF CONTENTS

Chapter 4: On Screen Display Menu

4.1 Using the OSD Menu 24
4.2 OSD Menu Tree 26

Chapter 5: Adjusting the Settings

5.1 Brightness Setting 29
5.2 Colour Setting....31

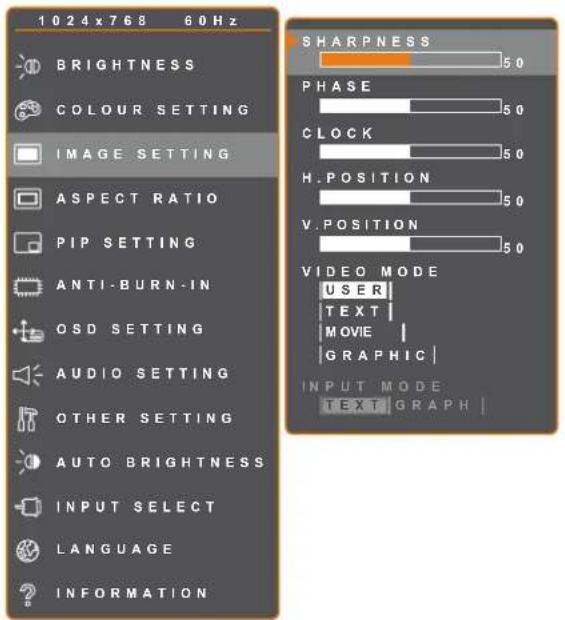

5.3 Image Setting (PC Source only).... 32
5.4 Image Setting (Video signals) 33
5.5 Aspect Ratio Setting....36
5.6 PIP Setting 38
5.7 Anti-Burn-In 40
5.8 OSD Setting 41
5.9 Audio Setting 42

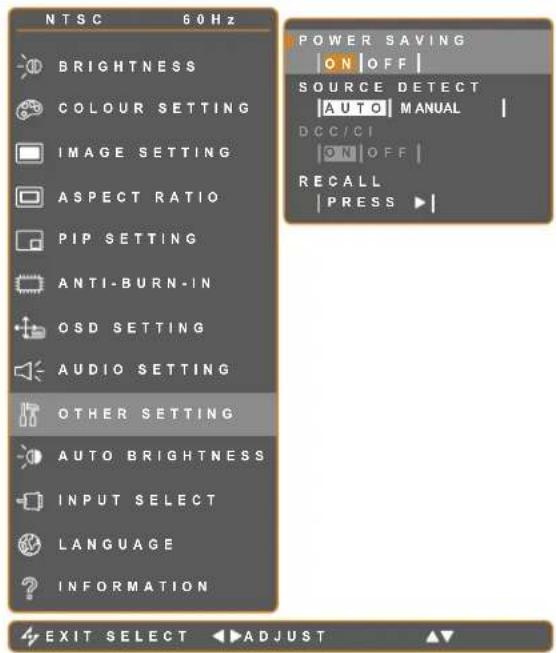

5.10 Other Setting 43
5.11 Auto Brightness 45

5.11.1 EcoSmart Sensor 45

5.12 Input Select 46

Chapter 6: Appendix

6.1 Warning Messages....47
6.2 Troubleshooting....48
6.3 Transporting the LCD Display 50

Chapter 7: Specifications

7.1 Display Specifications 51
7.2 Display Dimensions....52

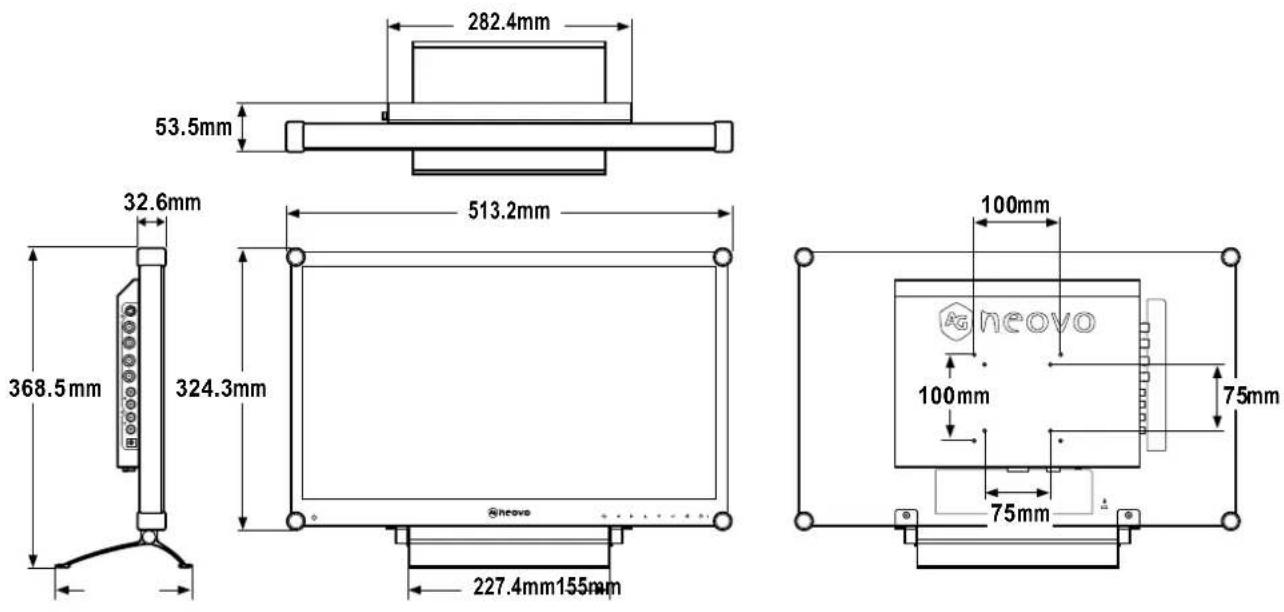

7.2.1 RX-22 Dimensions 52

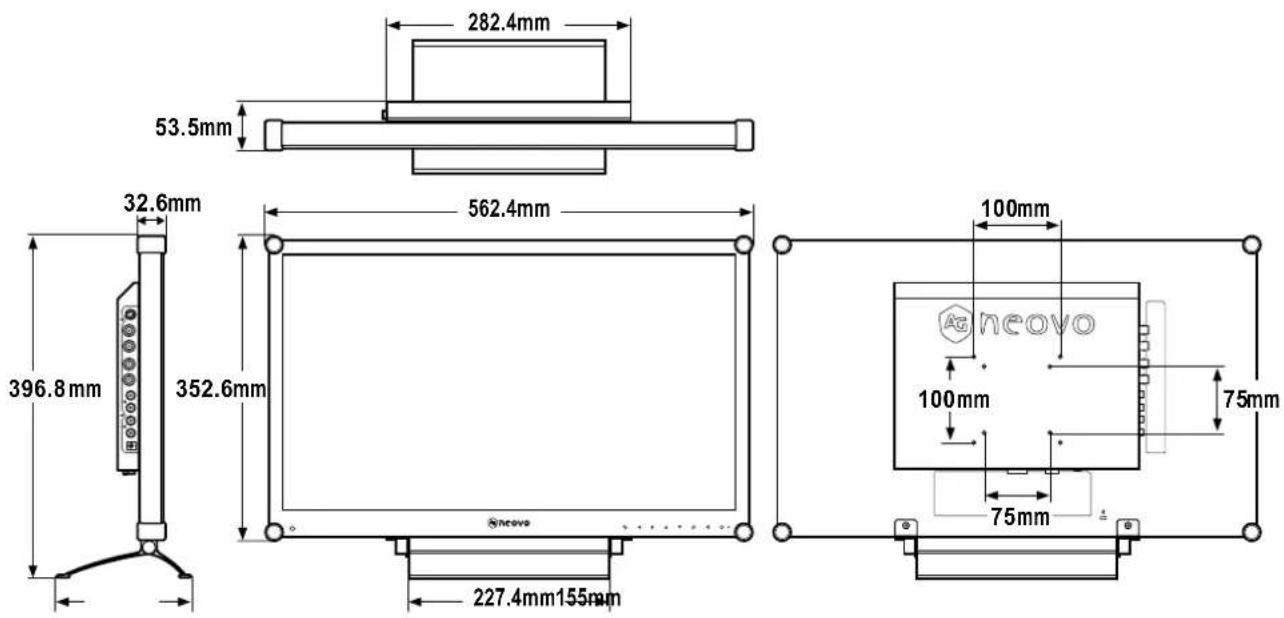

7.2.2 RX-24 Dimensions 52

SAFETY INFORMATION

FC

This FCC Class-B compliant digital device complies with the Interference-Causing Equipment Regulations of Canada.

FCC Declaimers

This device complies with Section 15 of the FCC listing. The operation procedures must meet the following conditions: (1) the device must not cause any damaging interference; and (2) this device must accept any received interference, including any unpredictable interference that may possibly occur.

Dear users,

This device has passed the Class B digital service regulations and complies with Section 15 of the FCC listing; these are intended to provide reasonable warranty against damaging interference for home use. This device will produce, use, and emit radio frequency energy; therefore, installation or use without following the instructions given may cause damaging interference to radio communication. Nonetheless, it is not possible to state with certainty that interference will occur from specific installations. If this device has caused damaging interference to radio or TV signals (simply turn the device on and off to check if such interference is caused by the device), we recommend that you fix the interference using the following methods:

Readjust the direction or location of the antenna.

Increase the distance between this device and the receiver.

Consult your local dealer or an experienced radio/TV technician.

Warning:

Making changes or modifications to the device without the permission from an authorized dealer may void the warranty of this device.

SAFETY INFORMATION

WEEE

Information for users applicable in European Union countries.

Symbol of a waste bin with no text or numbers present

The symbol on the product or its packaging signifies that this product has to be disposed separately from ordinary household wastes at its end of life. Please kindly be aware that this is your responsibility to dispose electronic equipment at recycling centers so as to help conserve natural resources. Each country in the European Union should have its collection centers for electrical and electronic equipment recycling. For information about your recycling drop off area, please contact your local related electrical and electronic equipment waste management authority or the retailer where you bought the product.

PRECAUTIONS

Symbols used in this manual

	This icon indicates the existence of a potential hazard that could result in personal injury or damage to the product.
	This icon indicates important operating and servicing information.

Notice

• Read this User Manual carefully before using the LCD display and keep it for future reference.
  The product specifications and other information provided in this User Manual are for reference only. All • information is subject to change without notice. Updated content can be downloaded from our web site at http://www.agneovo.com.
  • To register online, go to http://www.agneovo.com.
• To protect your rights as a consumer, do not remove any stickers from the LCD display. Doing so may affect the determination of the warranty period.

Cautions When Setting Up

	Do not place the LCD display near heat sources, such as a heater, exhaust vent, or in direct sunlight.
[CK54]	Do not cover or block the ventilation holes in the housing.
	Place the LCD display on a stable area. Do not place the LCD display where it may subject to vibration or shock.
	Place the LCD display in a well-ventilated area.
	Do not place the LCD display outdoors.
	Do not place the LCD display in a dusty or humid environment.
	Do not spill liquid or insert sharp objects into the LCD display through the ventilation holes. Doing so may cause accidental fire, electric shock or damage the LCD display.

PRECAUTIONS

Cautions When Using

	Use only the power cord supplied with the LCD display.
	The power outlet should be installed near the LCD display and be easily accessible.
	If an extension cord is used with the LCD display, ensure that the total current consumption plugged into the power outlet does not exceed the ampere rating.
	Do not allow anything to rest on the power cord. Do not place the LCD display where the power cord may be stepped on.
	If the LCD display will not be used for an indefinite period of time, unplug the power cord from the power outlet.
	To disconnect the power cord, grasp and pull by the plug head. Do not tug on the cord; doing so may cause fire or electric shock.
	Do not unplug or touch the power cord with wet hands.

Cleaning and Maintenance

	The LCD display comes with NeoVTM Optical Glass. Use a soft cloth lightly moistened with a mild detergent solution to clean the glass surface and the housing.
	Do not rub or tap the surface of the glass with sharp or abrasive items such as a pen or screwdriver. This may result in scratching the surface of the glass.
	Do not attempt to service the LCD display yourself, refer to qualified service personnel. Opening or removing the covers may expose you to dangerous voltage or other risks.

Warning:

Unplug the power cord from the power outlet and refer to qualified service

personnel under the following conditions:

When the power cord is ♦ damaged.

If the LCD display has been ♦ dropped or the housing has been damaged.

If the LCD display emits smoke ♦ or a distinct odor.

Notice for the LCD Display

In order to maintain the stable luminous performance, it is recommended to use low brightness setting.

Due to the lifespan of the lamp, it is normal that the brightness quality of the LCD display may decrease with time.

When static images are displayed for long periods of time, the image may cause an imprint on the LCD display. This is called image retention or burn-in.

To prevent image retention, do any of the following:

Set the LCD display to turn off after a few minutes of being idle.

Use a screen saver that has moving graphics or a blank white image.

Execute the Anti-Burn-In function of the LCD display. See "Settings, Anti-Burn-In" section.

Switch desktop backgrounds regularly.

Adjust the LCD display to low brightness settings.

Turn off the LCD display when the system is not in use.

Things to do when the LCD display shows image retention:

Turn off the LCD display for extended periods of time. It can be several hours or several days.

Use a screen saver and run it for extended periods of time.

Use a black and white image and run it for extended periods of time.

When the LCD display is moved from one room to another or there is a sudden change from low to high ambient temperature, dew condensation may form on or inside the glass surface. When this happens, do not turn on the LCD display until the dew disappears.

Due to humid weather conditions, it is normal for mist to form inside the glass surface of the LCD display. The mist will disappear after a few days or as soon as the weather stabilizes.

There are millions of micro transistors inside the LCD display. It is normal for a few transistors to be damaged and to produce spots. This is acceptable and is not considered a failure.

CHAPTER 1: PRODUCT DESCRIPTION

1.1 Package Contents

When unpacking, check if the following items are included in the package. If any of them is missing or damaged, contact your dealer.

LCD Display

Simple line drawing of a blank rectangular frame with no text, numbers, or symbols

User Manual

Power adapter

Line drawing of a rectangular electronic device with attached cable and power plug (no text or symbols)

Power cord

Line drawing of a cord with two connected power plugs (no text or symbols)

VGA cable

Audio cable

Note:

Must use only the supplied power adapter:

Lite-on Technology Corporation ♦ Model no. :PA-1051-0 Rating: 12V/4.16A

Note:

The pictures are for reference ♦ only. Actual items may vary upon shipment.

PRODUCT DESCRIPTION

1.2 Wall Mounting Installation Preparation

1.2.1 Wall Mounting

1 Remove the base stand.

See procedures below.

2 Wall mount the LCD display.

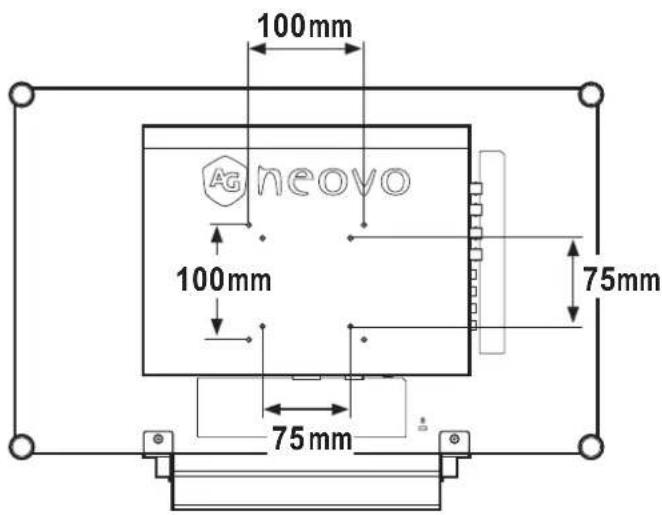

Screw the mounting bracket to the VESA holes at the rear of the LCD display.

100mm 100mm 75mm 75mm AG neovo

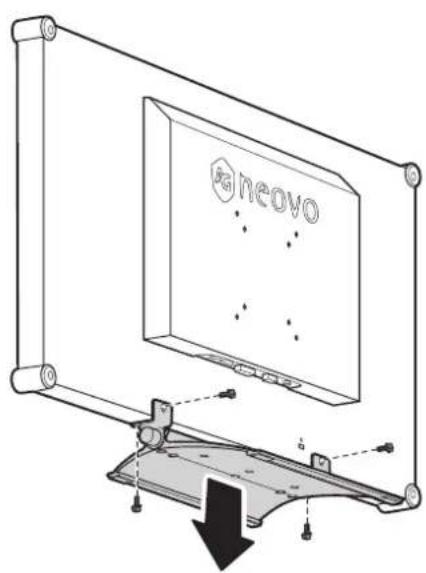

1.2.2 Removing the Base Stand

1 Lay the LCD display face down on a flat even surface.

2 Remove the four screws securing the base stand from the LCD display.

3 Detach the base stand.

neovo

Note:

To protect the glass panel, place a towel or soft cloth before laying the LCD display down.

Note:

Take measures to prevent the LCD display from falling down and lessen possible injury and damage to the display in case of earthquakes or other disasters.

Use only the 75 x 75 mm and 100 x 100 mm wall mount kit recommended by AG Neovo.

Secure the LCD display on a ♦ solid wall strong enough to bear its weight.

1.3 LCD Display Overview

1.3.1 Front View and Keypad Buttons

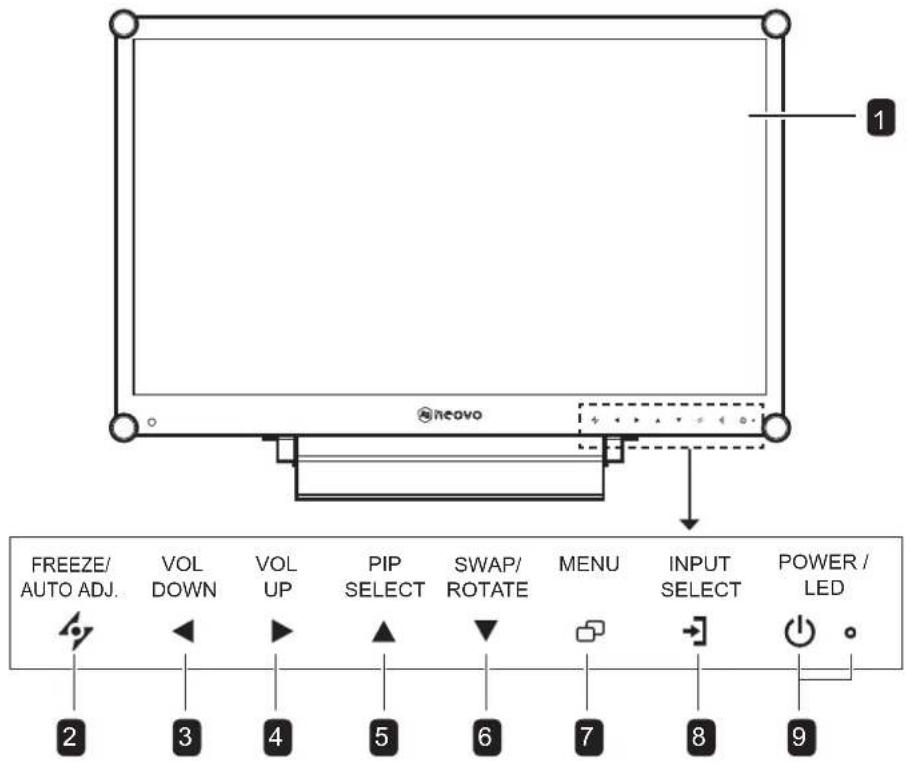

1 NEovo FREEZE/ AUTO ADJ. VOL DOWN VOL UP PIP SELECT SWAP/ROTATE MENU INPUT SELECT POWER/ LED 2 3 4 5 6 7 8 9

1 Display screen

The LCD display screen is protected by NeoV™ Optical Glass.

2 AUTO

For VGA input signal source, press to perform auto adjustment.

For video input signals, press to perform screen freeze.

During OSD menu selection, press to close the OSD menu or exit a submenu.

3 LEFT

Press to display the volume screen. Then press again to decrease the volume.

During OSD menu selection, press to adjust the settings.

4 RIGHT

Press repeatedly to select the aspect ratio. In volume screen, press to increase the volume.

During OSD menu selection, press to select an option and adjust the settings.

5 UP

Press repeatedly to select PIP option. During OSD menu selection, press to move up a menu or submenu.

6 DOWN

When PIP is on, p• ress to SWAP the PIP main and sub picture.

When PIP is off, press to rotate the image · 180^ .

During OSD menu selection, press to move up a menu or submenu.

7 MENU

Press to display the OSD menu. Press again to hide the OSD menu.

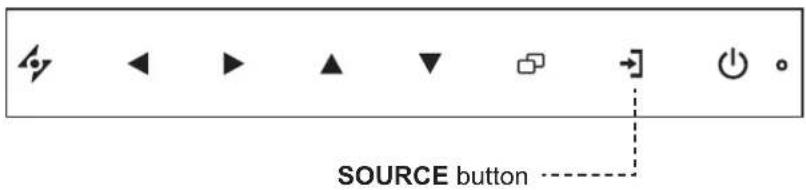

8 SOURCE

Press to select the input signal source.

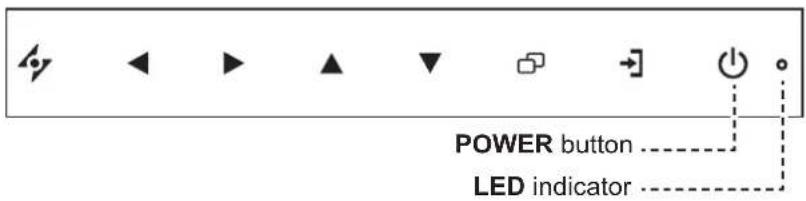

9 POWER / LED indicator

- Press to turn the power on or off.

Green - Power on

Amber - Standby mode

Off - Power off

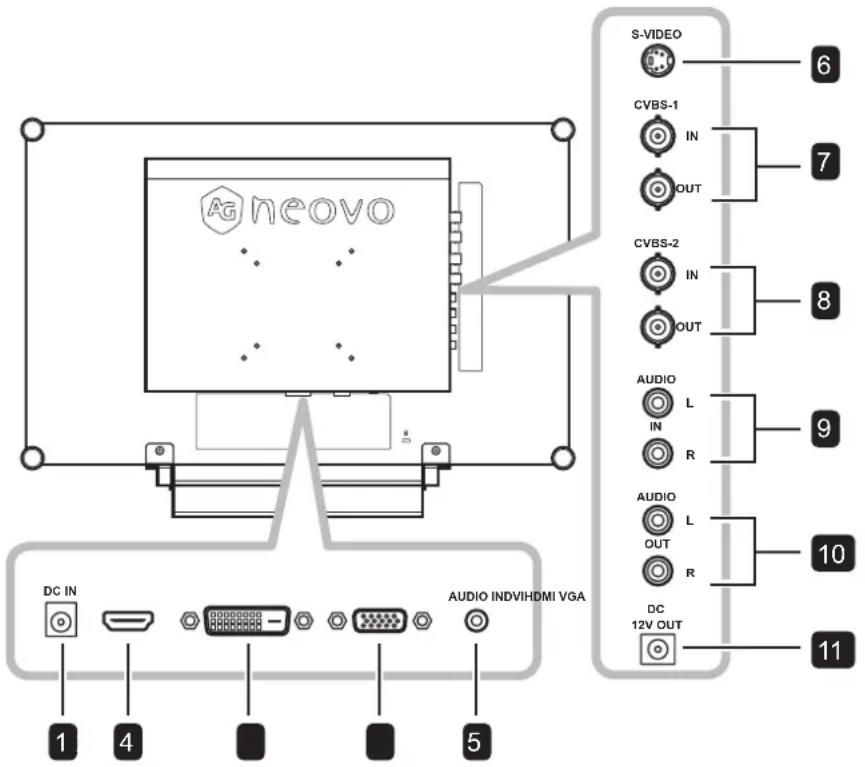

1.3.2 Rear View

Ag neovo DC IN 1 4 AUDIO INDVIHDMI VGA S-VIDEO 6 CVBS-1 IN 7 OUT CVBS-2 IN 8 OUT AUDIO L IN 9 R AUDIO L OUT 10 R DC 12V OUT 11

1 DC power input

Use to connect the power cord.

2 HDMI connector

Use to connect an input device using HDMI cable for digital input signal.

3 DVI connector

Use to connect a PC using DVI cable for digital input signal.

4 VGA connector

Use to connect a PC using a VGA cable for analogue input signal.

5 Audio port

Use to connect an audio cable for the PC's audio input.

6 S-Video connector

Use to connect AV cables for the S-Video signal.

7 COMPOSITE Video input/output connectors (1)

Use to connect composite cables for CVBS input/output signal.

8 COMPOSITE Video input/output connectors (2)

Use to connect composite cables for CVBS input/output signal.

9 COMPOSITE Audio input connectors

Use to connect RCA cables for CVBS / S-Video audio signal.

10 COMPOSITE Audio output connectors

Use to connect RCA cables for CVBS / S-Video audio signal.

11 DC power output

Use for DC power output.

CHAPTER 2: MAKING CONNECTIONS

2.1 Connecting the Power

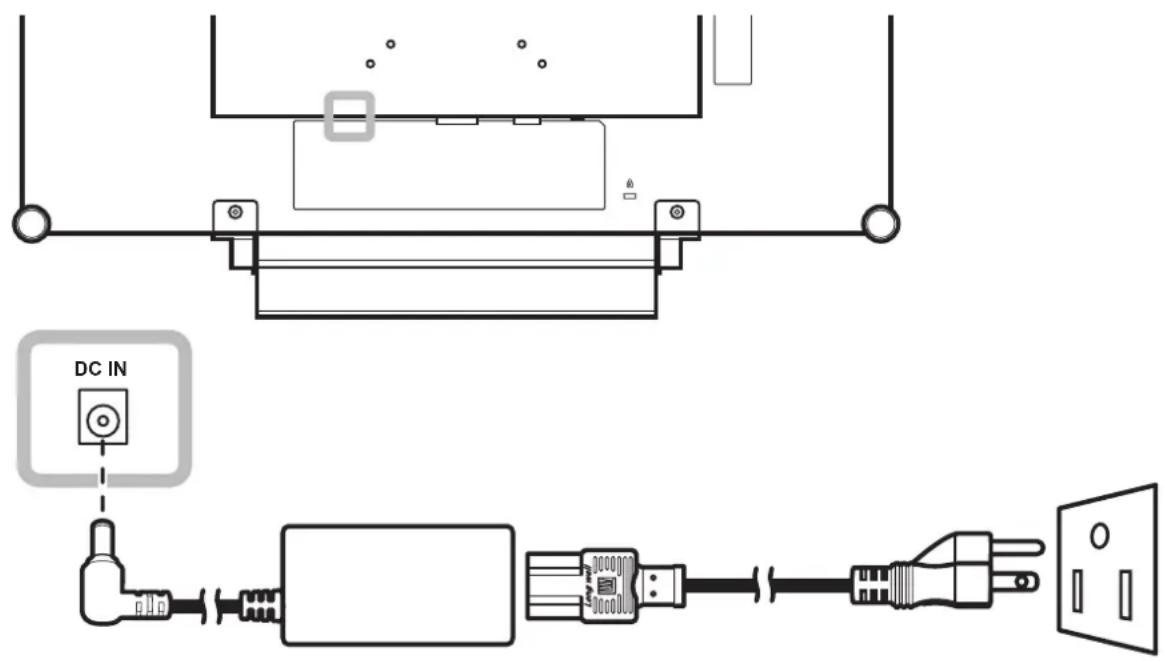

1 Connect the power cord to the power adapter.
2 Connect the power adapter to the DC power input at the rear of the LCD display.
3 Connect the power cord plug to a power outlet or a power supply.

DC IN

Caution:

Make sure that the LCD display is ♦ not connected to the power outlet before making any connections. Connecting cables while the power is ON may cause electric shock or personal injury.

Caution:

When unplugging the power cord, ♦ hold the power cord by the plug head. Never pull by the cord.

MAKING CONNECTIONS

2.2 Connecting Input Source Signals

2.2.1 Connecting a Computer

Using VGA Cables

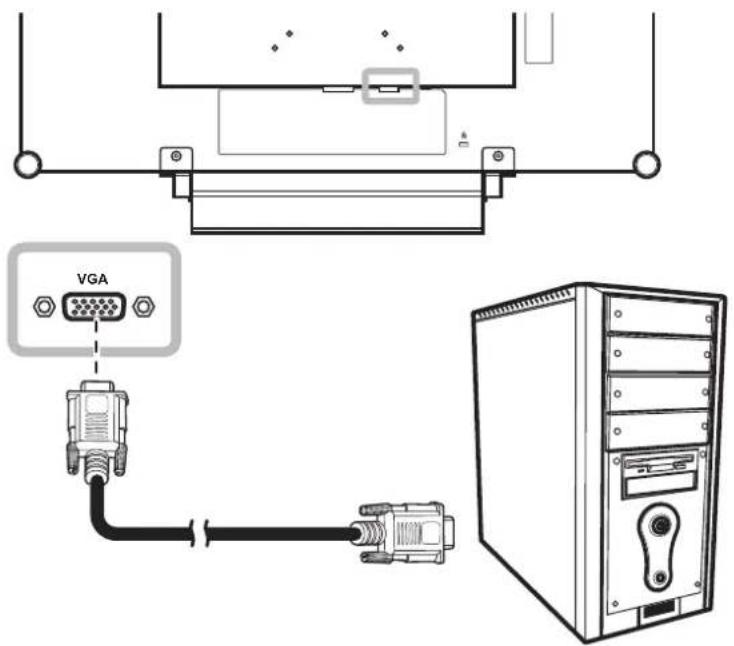

Connect one end of a D-sub cable to the VGA connector of the LCD display and the other end to the D-sub connector of the computer.

VGA

Using DVI Cables

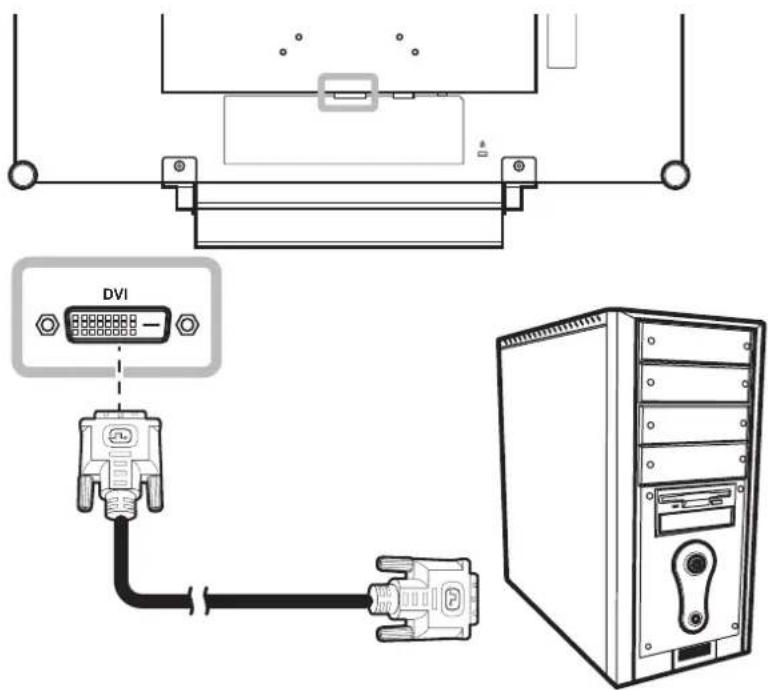

Connect one end of a DVI cable to the DVI connector of the LCD display and the other end to the DVI connector of the computer.

DVI

MAKING CONNECTIONS

Connecting an Audio Device

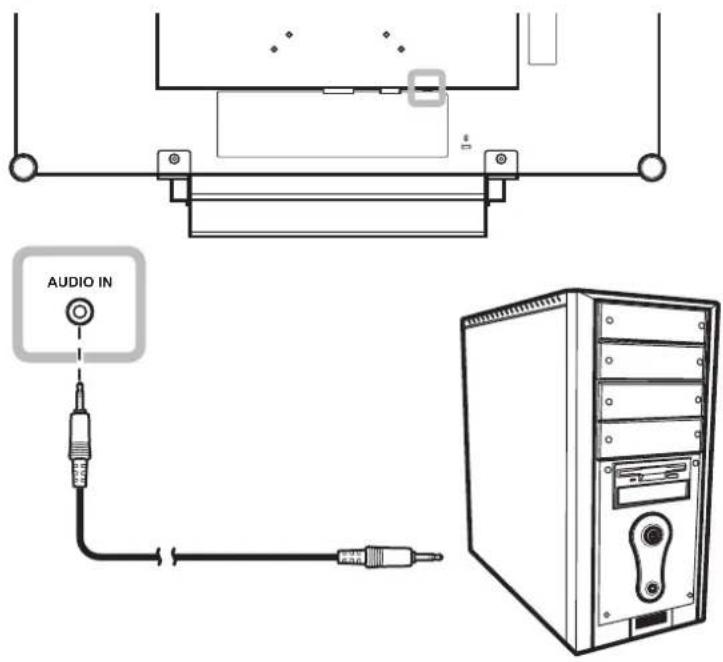

Connect one end of an audio cable to the audio port at the rear of the LCD display and the other end to the audio out port of the computer.

AUDIO IN

2.2.2 Connecting a Camera or Video Device

Using CVBS Cables

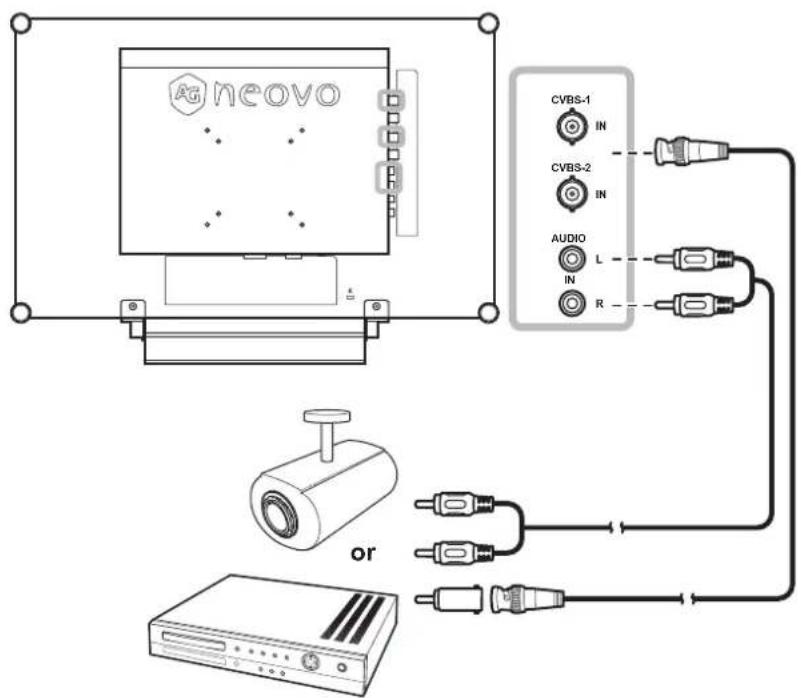

Connect one end of a CVBS cable to the COMPOSITE connectors of the LCD display and the other end to the COMPOSITE connectors of your device.

For audio input, connect an RCA cable to the audio in connector of the LCD display and the audio out connector of your device.

neovo CVBS-1 IN CVBS-2 IN AUDIO L IN R or

MAKING CONNECTIONS

Using S-Video Cables

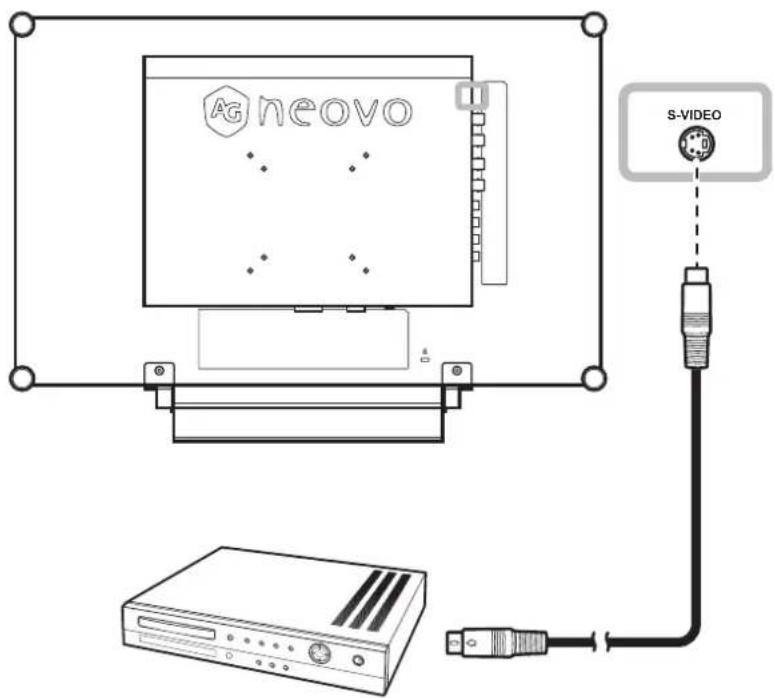

Connect one end of an S-Video cable to the S-VIDEO connector of the LCD display and the other end to the S-VIDEO connector of your device.

For audio input, connect an RCA cable to the audio in connector of the LCD display and the audio out connector of your device.

AG neovo S-VIDEO

Using HDMI Cables

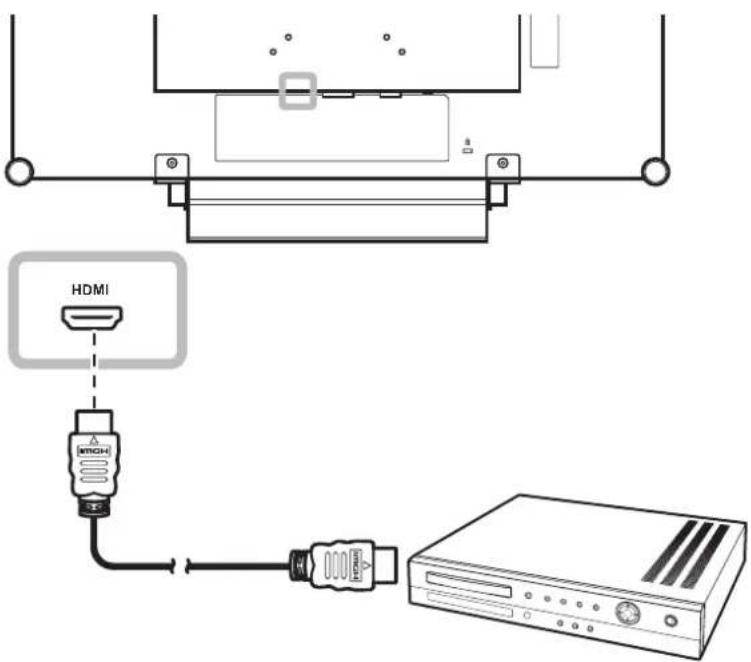

Connect one end of an HDMI cable to the HDMI connector of the LCD display and the other end to the HDMI connector of your device.

HDMI

MAKING CONNECTIONS

2.3 Connecting the DC Power Output

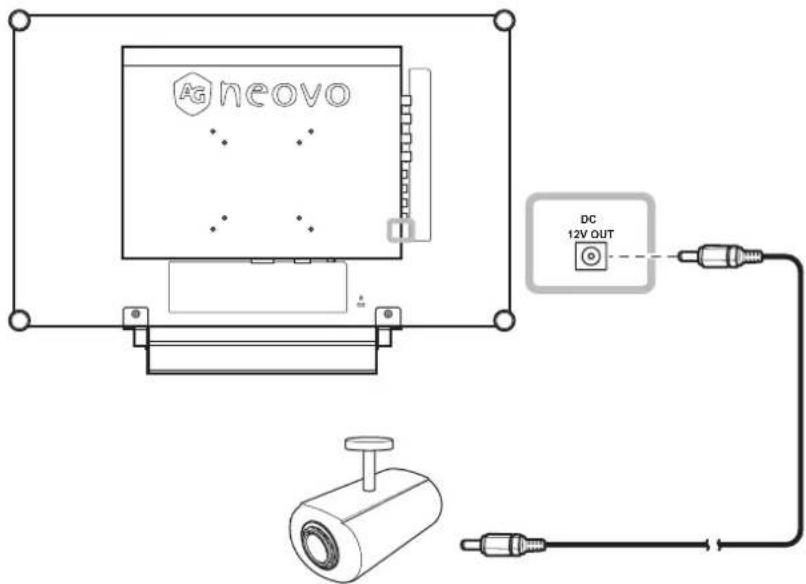

The DC power output connector provides DC power to other devices using a 2.5 mm DC jack cable.

Ag neovo DC 12V OUT

Warning:

Ensure that the device you are ♦ connecting to conforms to the specifications before making any connections.

Note:

If the connected device exceeds ♦ the power current, the display automatically cuts off power as a security measure.

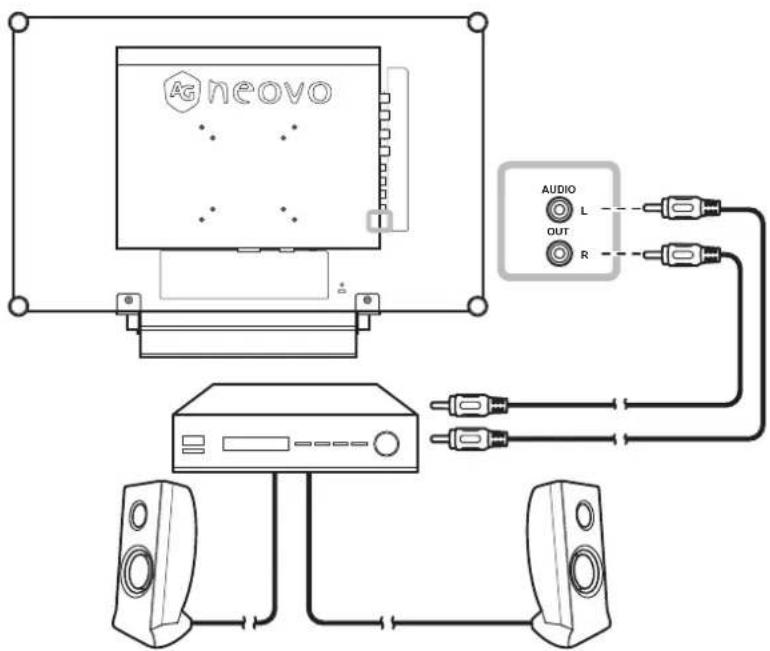

2.4 Connecting a Stereo Amplifier

To amplify the sound output, connect a stereo amplifier to the LCD display.

Connect an RCA cable to the audio out connector of the LCD display and to the audio in connector of a stereo amplifier.

Ag neovo AUDIO L OUT R

CHAPTER 3: USING THE LCD DISPLAY

3.1 Turning on the Power

POWER button LED indicator

1 Plug the power cord to a power outlet or power supply.
2 Touch the POWER button to turn the LCD display on.

The LED indicator turns GREEN.

When the LCD display is turned on, touch the POWER button to turn off the LCD display.

The LED indicator turns off.

3.2 Selecting the Input Source Signal

SOURCE button

1 Touch the button to call out the input source menu.

VGA DVI HDMI CVBS1 CVBS2 S-VIDEO

2 Touch the and buttons to highlight an input source.
3 Touch the button to select the input source.

If Source Detect is set to Auto, the above screen will not be displayed when you press the button. In this case, you must select the input source in the Input Source menu (see page 46) or change the Source Detect setting to Manual (see page 41).

Note:

The LCD display still consumes ♦ power as long as the power cord is connected to the power outlet. Disconnect the power cord to completely cut off power.

Notes:

This function works only if ♦ Source Detect is set to Manual. See page 43.

After selecting an input source signal, the input source signal message appears on the screen briefly.

For example, CVBS1 is selected the following message is displayed.

If the selected input source ♦ signal is not connected to the LCD display or is turned off, the no signal message is displayed on the screen.

If the resolution or the graphics ♦ card of the connected computer is set too high, the input out of range message is displayed.

3.3 Adjusting the Volume

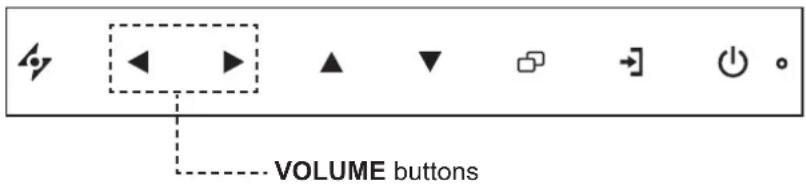

VOLUME buttons

1 Touch the button to call out the volume bar.

2 Touch the button to increase volume or the button to decrease volume.

To mute the audio, set the volume to 0. Or, press the ◀ and ▶ buttons at the same time.

To unmute the audio, press the ◀ and ▶ buttons. Alternatively, press to call out the volume bar and adjust the volume.

3.4 Locking the OSD Menu

Lock the OSD menu to protect the LCD display from unauthorised users or from accidentally pressing the keypad.

To lock the OSD, press and hold the keypad buttons listed below for at least 5 seconds or until the

OSD LOCK OUT

message appears.

When the OSD is locked, all keypad buttons are inactivated.

Type of OSD Lock Lock Operation Unlock Operation
Lock all buttons	Touch and hold the ▶, ▲nd the▼buttons for 5 seconds.	Touch and hold the ▶, ▲nd the▼buttons for 5 seconds or until the OSD menu appears.
Lock all buttons except the POWER button.	Touch and hold the ◀, ▲nd the▼buttons for 5 seconds.	Touch and hold the ◀, ▲nd the▼buttons for 5 seconds or until the OSD menu appears.

3.5 Setting the Aspect Ratio

3.5.1 Aspect Ratio Options

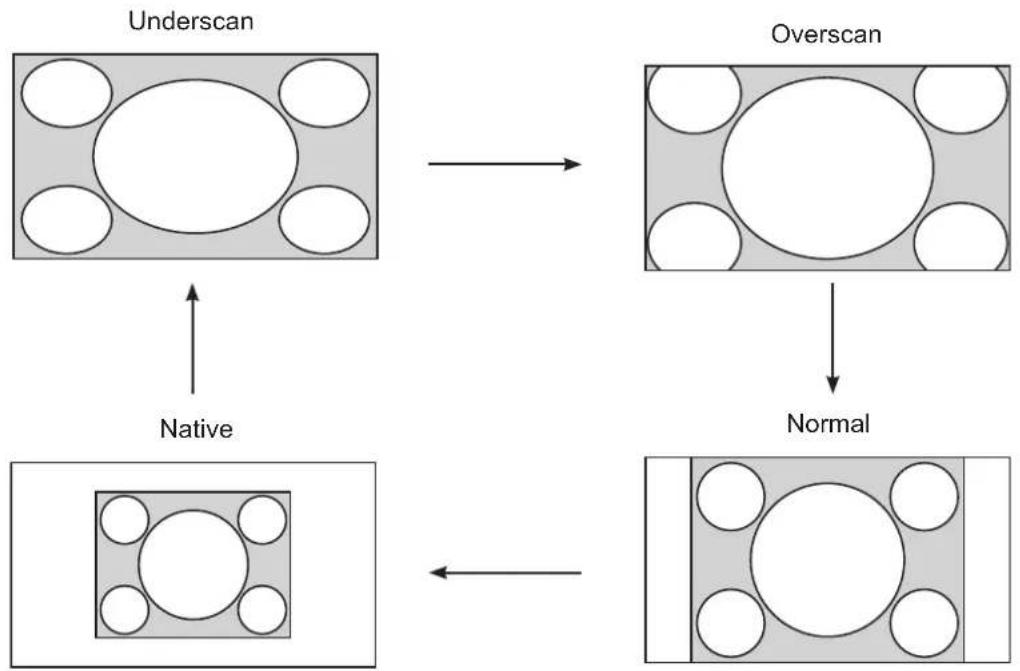

Touch the button repeatedly to scroll among the aspect ratio options. Options are as follows:

Underscan: The picture is displayed in full screen.

- Overscan: The picture is displayed in full screen while retaining the original aspect ratio. This results in a zoomed image and some part of the picture may appear cut-off.

Normal: The picture is displayed based on the current monitor resolution.

Native: The picture is displayed based on its actual resolution.

Note:

Aspect ratio options vary ♦ depending on the input source signal.

Overscan option is only ♦ available in CVBS and HDMI input source.

For more aspect ratio settings, ♦ see page 36.

USING THE LCD DISPLAY

3.6 Using Picture-in-Picture (PIP)

The Picture-in-Picture (PIP) feature allows viewing of more than one input source signal on the LCD display.

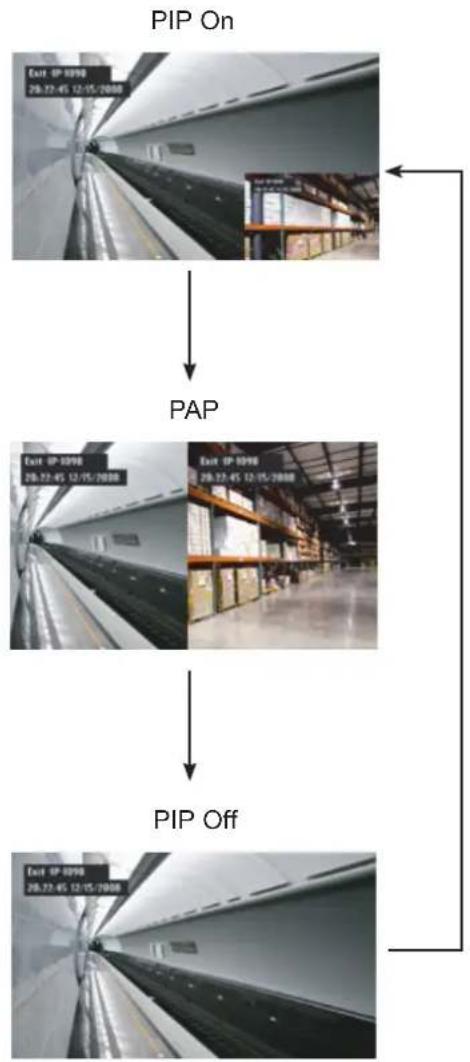

3.6.1 PIP Options

Touch the ▲button repeatedly to enable and scroll among the PIP options. Options are as follows:

PIP On: The sub source signal is displayed within the main source signal.

- PAP (Picture-and-Picture): The main source and the sub source signals are displayed side by side with equal display size.

PIP Off: PIP function is disabled, only the main source signal is displayed.

Note:

The main source and sub ♦ source signals can be set in PIP Settings, see page 38.

Some input source signal ♦ combinations do not support PIP. See PIP Compatibility table on page 39.

USING THE LCD DISPLAY

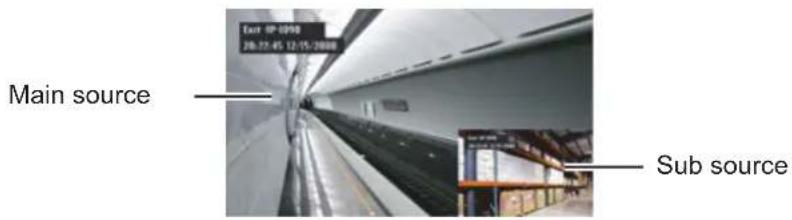

3.6.2 PIP Swap

The main and the sub source signals set in PIP Setting can be easily swapped using the keypad.

Main source Sub source

Touch the ▼button to swap the main source and the sub source signals. See illustration below.

Main source Sub source

3.7 Using ROTATE Function

The ROTATE function allows you to rotate the screen image at 180^ .

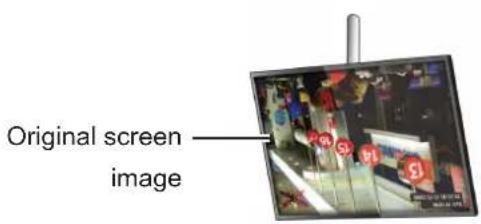

Original screen image

Touch the ▼button to rotate the picture 180°. See illustration below.

After ROTATE image

After executing ROTATE, touch the ▼button again to rotate the picture back to its normal state.

Back to original state

Note:

PIP Swap can only be executed ◆ if PIP is enabled, see page 38.

Note:

ROTATE function can only be ♦ executed if PIP is off, see page 38.

USING THE LCD DISPLAY

3.8 Using FREEZE Function

The FREEZE function allows you to freeze the screen image but still continues real-time playback until the image is unfreeze.

Touch the 4 button to activate screen freeze, the screen freeze message is displayed on the screen.

Three deer grazing on a green grassy field with trees in the background (no visible text or symbols)

Touch the 4 button again to deactivate screen freeze.

The screen image displays the elapsed real-time playback image when screen freeze is deactivated.

Two deer grazing on a green grassy field with trees in the background (no visible text or symbols)

3.9 Using Auto Adjustment Function

Auto Adjustment function automatically tunes the LCD display to its optimal setting, including horizontal position, vertical position, clock, and phase.

Touch the 4 button to perform auto adjustment.

The message auto adjusting is displayed on the screen.

AUTO ADJUSTING

During auto adjustment, the screen will slightly shake for a few seconds.

When the message disappears, auto adjustment is completed.

Note:

The FREEZE function is available only during video input signals.

Note:

Auto Adjustment function is ♦ available only during VGA input signals.

It is recommended to use the auto adjustment function when using the LCD display for the first time or after a resolution or frequency change.

CHAPTER 4: ON SCREEN DISPLAY MENU

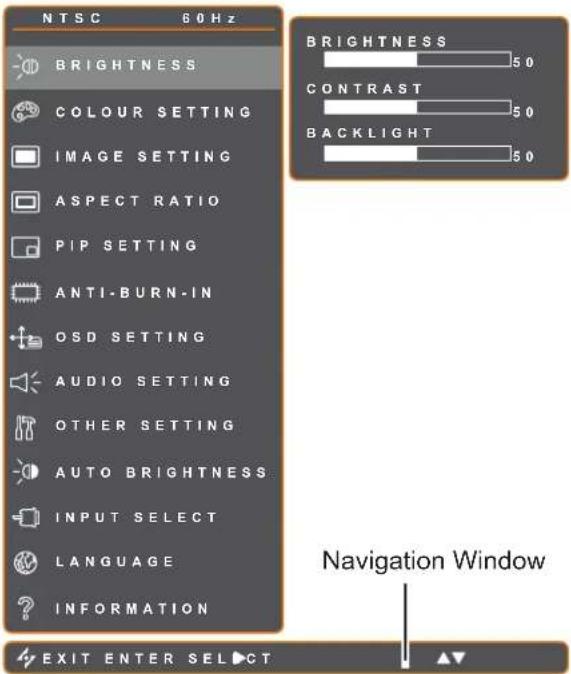

4.1 Using the OSD Menu

Operation
1 Display the main menu screen.	Touch

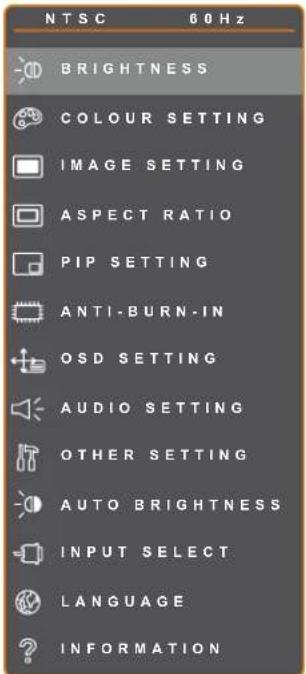

2 Select the menu.	1 Touch the ▲ar buttons.2 Touch the ▶button to enter the submenu.

ON SCREEN DISPLAY MENU

Operation
3 Select the submenu item.The highlighted item with an orange arrow indicates the active submenu.	Touch the ▲ar buttons.
4 Adjust the settings.	Touch the ◀or ▶buttons.
5 Exit the submenu.	Touch for to return to the previous menu.
6 Close the OSD window.	Touch for again.

When settings are modified, all changes are saved when the user does the following:

Proceeds to the another menu.

Exits the OSD menu.

Waits for the OSD menu to disappear.

Note: Availability of some menu items depend on the input source signal. If the menu is not available, it is disabled and grayed out.

ON SCREEN DISPLAY MENU

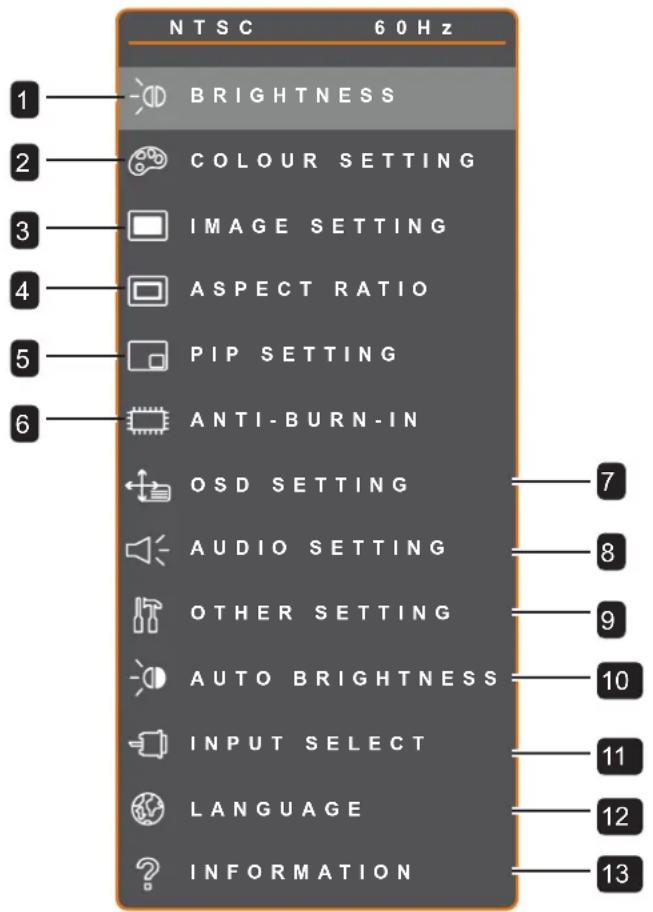

4.2 OSD Menu Tree

NTSC 60Hz 1 BRIGHTNESS 2 COLOUR SETTING 3 IMAGE SETTING 4 ASPECT RATIO 5 PIP SETTING 6 ANTI-BURN-IN OSD SETTING AUDIO SETTING OTHER SETTING AUTO BRIGHTNESS INPUT SELECT LANGUAGE INFORMATION 7 8 9 10 11 12 13

Main Menu Submenu Remarks
1. Brightness Brightness•	Contrast•Backlight•	See page 29.
2. Colour Setting Colour Temperature•	See page 31.
3. Image Setting During PC input signal:	Sharpness•Phase•Clock•H. Position•V. Position•Input ModeVideo Mode	See page 32.

ON SCREEN DISPLAY MENU

Main Menu Submenu Remarks
Image Setting During Video input signal:	Sharpness•Saturation•Tint•3D Comb Filter•Noise Reduction•3D De-interlace•Motion•Video Mode•H. Position•V. Position•	See page 33.
4. Aspect Ratio Aspect Ratio	• H. Zoom• V. Zoom	See page 36.
5. PIP Setting	PIP•• Main Source• Sub Source• Sub Picture Size• Sub Pic. Pos.• Swap	See page 38.

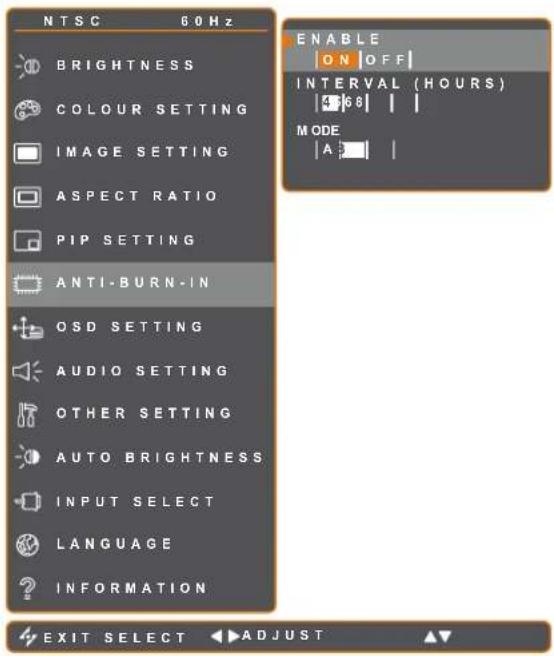

6. Anti-Burn-In	• Enable• Interval• Mode	See page 40.

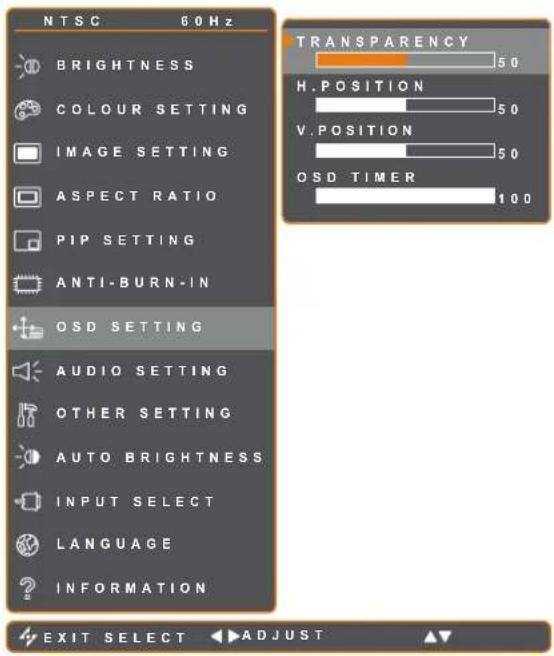

7. OSD Setting	• TransparencyH. Position•V. Position•• OSD Timer	See page 41.

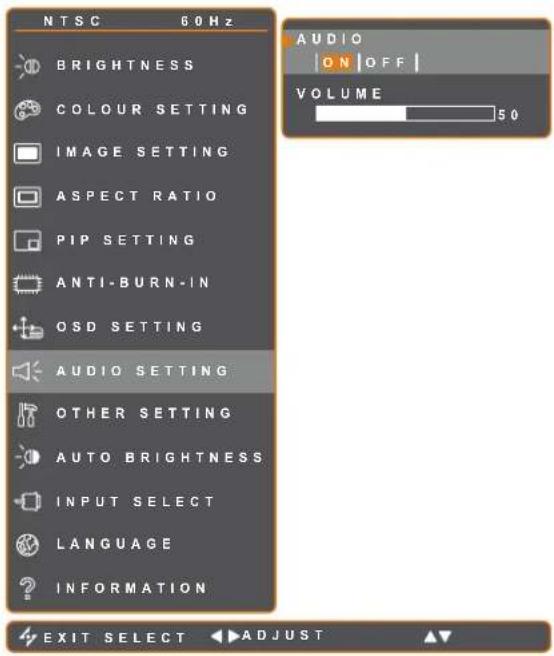

8. Audio Setting	• Volume• Audio	See page 42.
9. Other Setting	• Power Saving• Source Detect• DDC/CI• Recall	See page 43.

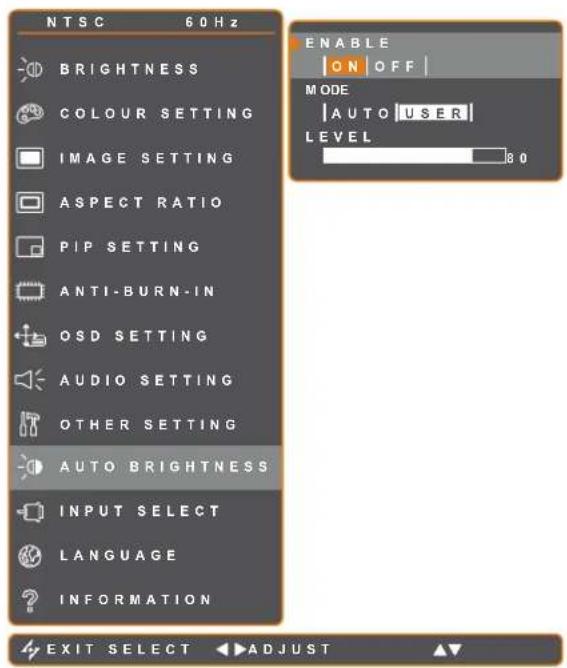

10. Auto Brightness	• Enable• Mode• Level	See page 45.

ON SCREEN DISPLAY MENU

Main Menu Submenu Remarks

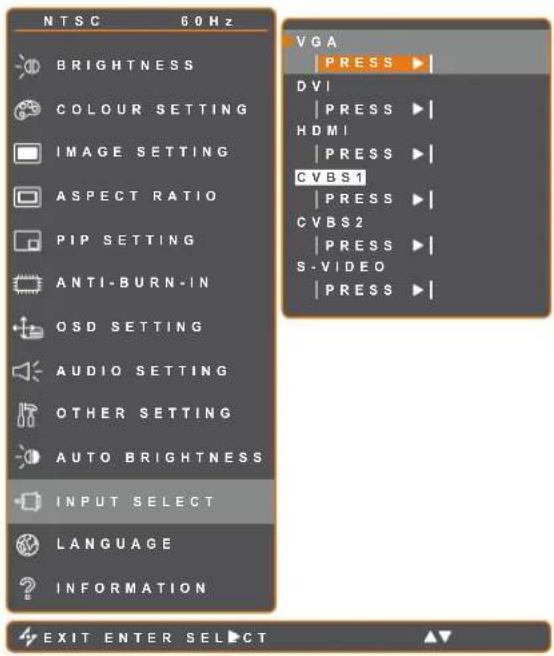

11. Input Select VGA•	DVI•HDMI•CVBS1•CVBS2•S-Video•	See page 46.
12. Language Select the OSD language:	EN / FR / DE / ES / IT / PY / RO / PL / CS / NL / 簡中 / 繁中
13. Information Displays settings information such as Input, Resolution, Horizontal and Vertical Frequency, Time mode, and Firmware version.

CHAPTER 5: ADJUSTING THE LCD DISPLAY

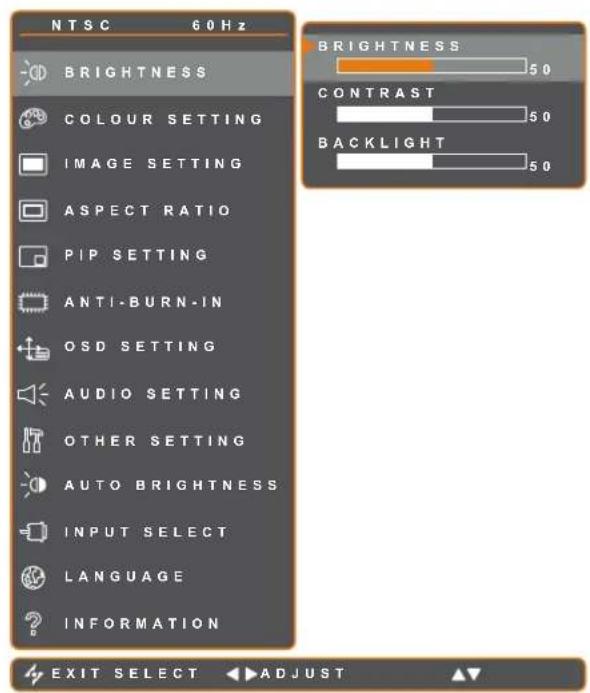

5.1 Brightness Setting

NTSC 60Hz BRIGHTNESS COLOUR SETTING IMAGE SETTING ASPECT RATIO PIP SETTING ANTI-BURN-IN OSD SETTING AUDIO SETTING OTHER SETTING AUTO BRIGHTNESS INPUT SELECT LANGUAGE INFORMATION BRIGHTNESS 50 CONTRAST 50 BACKLIGHT 50 EXIT SELECT ▶ADJUST

1. Touch to call out the OSD window.
2. Select BRIGHTNESS menu, then touch the ▶ button.
3. Touch the ▲ar buttons to select an option.

Item Function Operation Range
Brightness	Adjusts the black level of the screen image. Low brightness setting makes black colour darker.	Touch the◀or▶buttons to adjust the value.	0 to 100
Contrast	Adjusts the difference between the black level and the white level.	Touch the◀or▶buttons to adjust the value.	0 to 100
Backlight	Adjusts the luminance of the screen image.Note:Backlight setting is disabled if Auto Brightness is On.	Touch the◀or▶buttons to adjust the value.	0 to 100

See comparison illustrations on page 29.

ADJUSTING THE LCD DISPLAY

Original Setting High Setting Low Setting
Brightness
Contrast
Backlight

ADJUSTING THE LCD DISPLAY

5.2 Colour Setting

NTSC 60Hz BRIGHTNESS COLOUR SETTING IMAGE SETTING ASPECT RATIO PIP SETTING ANTI-BURN-IN OSD SETTING AUDIO SETTING OTHER SETTING AUTO BRIGHTNESS INPUT SELECT LANGUAGE INFORMATION COLOUR TEMP.. 6500K 5400K 9300K sRGB AUTO COLOUR USER R 128 G 127 B 106 EXIT ENTER SELECT

1. Touch to call out the OSD window.
2. Select COLOUR SETTING menu, then touch the ▶ button.
3. Touch the ▲ or ▼ buttons to select an option.

Item Function Operation Value
Colour Temperature	Provides several colour adjustment settings.	Touch the◀or▶buttons to select the setting.	6500K, 5400K, 9300K, sRGB, USER

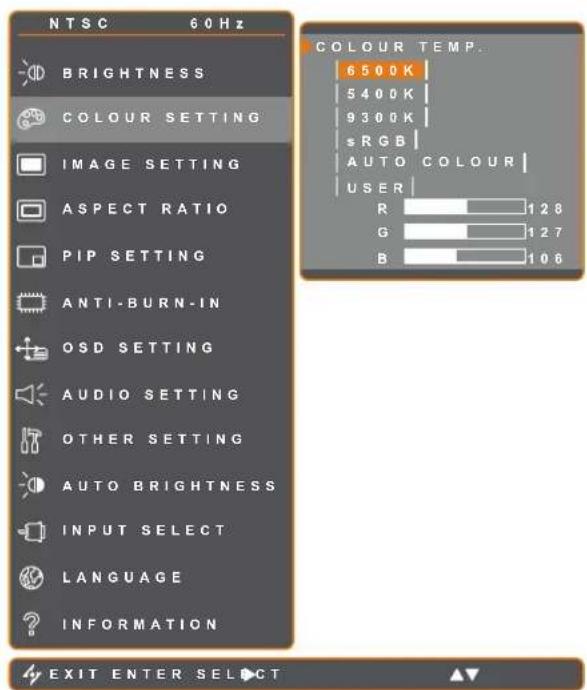

	Colour temperature can be set to:6500K- This is the default colour temperature commonly used for normal lighting conditions.5400K•- Applies a reddish tint for warmer colours.9300K•- Applies a bluish tint for cooler colours.sRGB- This is the Red, Green, Blue (RGB) colour standard which is used for colour management in most industries. This setting displays accurate colours and suitable for viewing images on the Internet.AUTO COLOUR- Operates the white balance and automatically adjusts the colour settings. Available only during VGA input source signal1 Select AUTO COLOUR.2 Touch the▶button to activate auto colour.USER- This allows users to set the colour temperature by adjusting the R, G, B settings according to one's preference.1 Select USER, then touch the▶button2 Touch the▲or▶buttons to select among R, G, B option.3 Touch the◀or▶buttons to adjust the values between 0 ~ 255.Note:Activate Recall to return the colour to its default setting.

ADJUSTING THE LCD DISPLAY

5.3 Image Setting (PC Source only)

Note: Some submenu items are not available in DVI input source signal.

1024x768 60Hz BRIGHTNESS COLOUR SETTING IMAGE SETTING ASPECT RATIO PIP SETTING ANTI-BURN-IN OSD SETTING AUDIO SETTING OTHER SETTING AUTO BRIGHTNESS INPUT SELECT LANGUAGE INFORMATION SHARPNESS 5.0 PHASE 5.0 CLOCK 5.0 H POSITION 5.0 V POSITION 5.0 VIDEO MODE USER TEXT MOVIE | GRAPHIC INPUT MODE TEXT GRAPH

1. Touch to call out the OSD window.
2. Select IMAGE SETTING menu, then touch the ▶ button.
3. Touch the ▲ or buttons to select an option.

Item Function Operation Range
Sharpness	Adjusts the clarity and focus of the screen image.	Touch the◀or▼buttons to adjust the value.	0 to 100
Phase	Adjusts the phase timing to synchronise with the video signal.Note: Phase is only available when receiving VGA input signal.
Clock	Adjusts the frequency timing to synchronise with the video signal.Note: Clock is only available when receiving VGA input signal.
H. Position (Horizontal Position)	Moves the screen image to the left or right.
V. Position (Vertical Position)	Moves the screen image up or down.
Input Mode	Availability of this submenu item varies depending on the timing.Note: Not available during DVI signal.
Video Mode	Depending on the content of your PC, select the video mode for better display.	Touch the◀or▼buttons to select the value.	UserTextMovieGraphic

ADJUSTING THE LCD DISPLAY

5.4 Image Setting (Video signals)

NTSC 60Hz BRIGHTNESS COLOUR SETTING IMAGE SETTING ASPECT RATIO PIP SETTING ANTI-BURN-IN OSD SETTING AUDIO SETTING OTHER SETTING AUTO BRIGHTNESS INPUT SELECT LANGUAGE INFORMATION SHARPNESS SATURATION TINT 3D COMB FILTER ON OFF | NOISE REDUCTION OFF LOW MID IGH 3D DE-INTERLACE ON OFF | MOTION ON OFF | VIDEO MODE USER TEXT MOVIE GRAPHIC H. POSITION V. POSITION EXIT SELECT ▶ ADJUST ▲

1. Touch to call out the OSD window.
2. Select IMAGE SETTING menu, then touch the ▶ button.
3. Touch the ▲ or buttons to select an option.

Item Function Operation			Range / Value
Sharpness	Adjusts the clarity and focus of the screen image.	Touch theorbuttons to adjust the value.	0 to 100
Saturation Adjusts the colour saturation.
Tint	Adjusts the colour tint.Note:Available only during NTSC system under S-Video or CVBS signals.

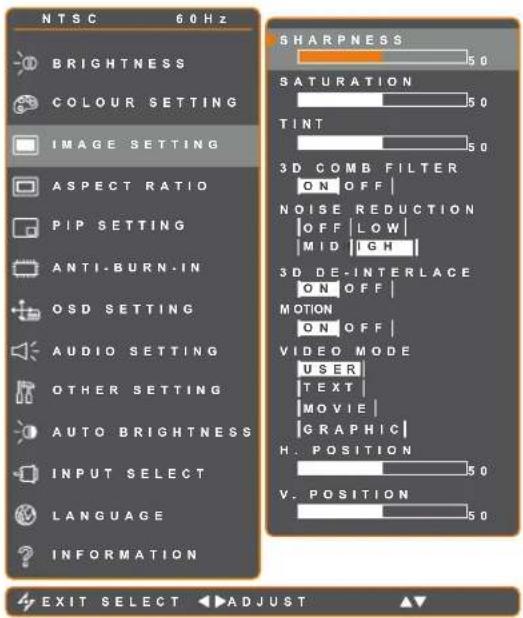

3D Comb Filter	Enables the 3D Comb Filter feature, which eliminates cross-colouring or rainbow swirl on pictures.Note:Available only during CVBS signal.	Touch theorbuttons to select the value.	OnOff
3D Comb Filter Off		3D Comb Filter On

ADJUSTING THE LCD DISPLAY

Item Function Operation			Range / Value
Noise Reduction	Adjusts the noise reduction to help remove noise from images. This helps produce clearer and crisper images.	Touch the or buttons to select the value.	OffLowHigh
Noise Reduction Off Noise Reduction On
3D De-Interlace	Enables the 3D De-interlace feature which prevents blurring and flickering of images.	Touch the or buttons to select the value.	OnOff
3D De-interlace Off 3D De-interlace On
Motion	Enables the Motion feature which produces clear and shake-free pictures of moving objects.	Touch the or buttons to select the value.	OnOff
Motion Off Motion On

ADJUSTING THE LCD DISPLAY

Item Function Operation			Range / Value
Video Mode	Depending on the content of your PC, select the video mode for better display.	Touch the◀or▶buttons to select the value.	StandardTextMovieGraphic
H. Position (Horizontal Position)	Moves the screen image to the left or right.	Touch the◀or▶buttons to adjust the value.	0 to 100
V. Position (Vertical Position)	Moves the screen image up or down.

ADJUSTING THE LCD DISPLAY

5.5 Aspect Ratio Setting

Note: Overscan is available only in VGA and HDMI input source signals.

NTSC 60Hz BRIGHTNESS COLOUR SETTING IMAGE SETTING ASPECT RATIO PIP SETTING ANTI-BURN-IN OSD SETTING AUDIO SETTING OTHER SETTING AUTO BRIGHTNESS INPUT SELECT LANGUAGE INFORMATION ASPECT RATIO UNDERSCAN OVERSCAN NORMAL NATIVE H. ZOOM 50 V. ZOOM 50 EXIT SELECT ▶ADJUST ▼

1. Touch to call out the OSD window.
2. Select ASPECT RATIO menu, then touch the ▶ button.
3. Touch the ▲ or buttons to select an option.

Item Function Operation			Range / Value
Aspect Ratio	Adjusts the aspect ratio of the screen image. Note: Overscan is only available when receiving video (CVBS/S-Video) and HDMI input source signals.	Touch the <or > buttons to select the value.	Underscan Overscan Normal Native
	Aspect ratio can be set to: Underscan• : The picture is displayed in full screen. • Overscan: The picture is displayed in full screen while retaining the original aspect ratio. This results in a zoomed image and some part of the picture may appear cut-off. Normal: The picture is displayed based on the current monitor resolution. • Native: The picture is displayed based on its actual resolution.

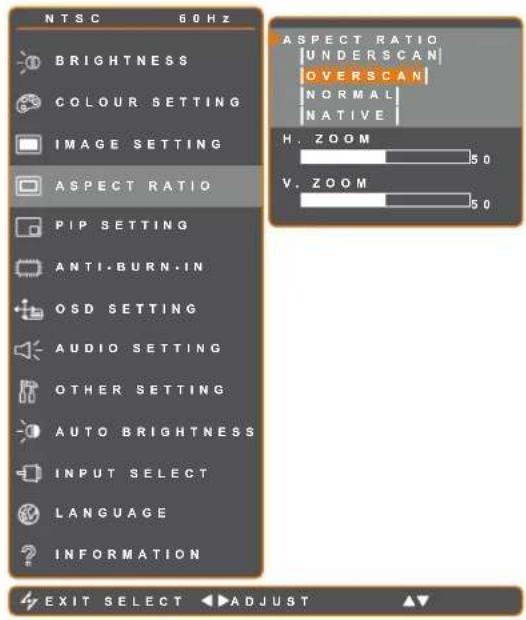

Underscan Overscan Native Normal

ADJUSTING THE LCD DISPLAY

Item Function Operation			Range / Value
H. Zoom(Horizontal Zoom)	Adjusts the horizontal zoom.	Touch the ▶ or ▶ buttons to adjust the value.	0 to 100
V. Zoom(Vertical Zoom)	Adjusts the vertical zoom.

ADJUSTING THE LCD DISPLAY

5.6 PIP Setting

NTSC 60 Hz BRIGHTNESS COLOUR SETTING IMAGE SETTING ASPECT RATIO PIP SETTING ANTI-BURN-IN OSD SETTING AUDIO SETTING OTHER SETTING AUTO BRIGHTNESS INPUT SELECT LANGUAGE INFORMATION PIP OFF PIPPAP | MAIN SOURCE VGA DV | HDMI | CVBS1 CVBS2 | S VIDEO | SUB SOURCE VGA DV | HDMI | CVBS1 CVBS2 | S VIDEO | SUB PIC. SIZE 1 | SUB PIC. POS. L+U R+U L+D R+D SWAP PRESS ▶ EXIT SELECT ▶ ADJUST ▲

1. Touch to call out the OSD window.
2. Select PIP SETTING menu, then touch the ▶ button.
3. Touch the ▲ or buttons to select an option.

Item Function Operation			Range / Value
PIP	Allows you to select the PIP setting or disable PIP.	Touch the ◄or ▶buttons to select the value.	OffPIPPAP
	PIP can be set to:Off - Disables PIP.PIP - The sub source image is within the main source image.PAP - The main source and sub source images are displayed side by side.
Main Source	Allows you to select the main source signal.	Touch the ◄or ▶buttons to select the value.	VGA / DVI / HDMI /CVBS1 /CVBS2 /S-VIDE0
Sub Source	Allows you to select the sub source signal.	Touch the ◄or ▶buttons to select the value.	VGA / DVI / HDMI /CVBS1 /CVBS2 /S-VIDE0

ADJUSTING THE LCD DISPLAY

Note: Any input signal may be set as the main or the sub source signal. However, some input signals are not supported to be paired together as the main and the sub source signals.

Refer to the following table for compatibility options.

Table 5.1 PIP Compatibility Table

Main Sub	VGA DVI HDMI CVBS1 CVBS2 S-VIDEO
VGA	X	X	X	O	O	O
DVI	X	X	X	O	O	O
CVBS1	O	O	O	X	X	X
CVBS2	O	O	O	X	X	X
S-VIDEO	O	O	O	X	X	X

Item Function Operation			Range / Value
Sub Pic. Size(Sub Picture Size)	Allows you to select the size of the sub source image. Available only in PIP mode.1• - Small image size.2• - Medium image size.3• - Large image size.	Touch the ▶or ▶buttons to select the value.	123
Sub Pic. Pos.(Sub Picture Position)	Allows you to select the position of the sub source image. Available only in PIP mode.	Touch the ▶or ▶buttons to adjust the value.	L+UR+UL+DR+D
	L+U• - Sets the image on the upper left corner of the screen.R+U• - Sets the image on the upper right corner of the screen.L+D• - Sets the image on the lower left corner of the screen.R+D• - Sets the image on the lower right corner of the screen.
Swap	Swaps the main source and sub source signals.	Touch the ▶button to swap the image sources.

ADJUSTING THE LCD DISPLAY

5.7 Anti-Burn-In

NTSC 60 Hz BRIGHTNESS COLOUR SETTING IMAGE SETTING ASPECT RATIO PIP SETTING ANTI-BURN-IN OSD SETTING AUDIO SETTING OTHER SETTING AUTO BRIGHTNESS INPUT SELECT LANGUAGE INFORMATION ENABLE ON OFF INTERVAL (HOURS) 68 MODE A EXIT SELECT ADJUST

1. Touch to call out the OSD window.
2. Select ANTI-BURN-IN menu, then touch the ▶ button.
3. Touch the ▲ or buttons to select an option.

Item Function Operation Value
Enable	Enables or disables Anti-Burn-In function.	Touch the◀or▶buttons to select the value.	On (default)Off
Interval	Sets the interval time (hour) between activating the Anti-Burn-In function.		68 (default)101214
Mode	Selects the Anti-Burn-In mode.A•-Executes fast.BSlower but more precise than mode A.CSlowest but the most precise anti-burn-in mode.	Touch the◀or▶buttons to select the value.	ABC (default)

ADJUSTING THE LCD DISPLAY

5.8 OSD Setting

NTSC 60Hz BRIGHTNESS COLOUR SETTING IMAGE SETTING ASPECT RATIO PIP SETTING ANTI-BURN-IN OSD SETTING AUDIO SETTING OTHER SETTING AUTO BRIGHTNESS INPUT SELECT LANGUAGE INFORMATION TRANSPARENCY 50 H POSITION 50 V POSITION 50 OSD TIMER 100 EXIT SELECT ADJUST

1. Touch to call out the OSD window.
2. Select OSD SETTING menu, then touch the ▶ button.
3. Touch the ▲ or buttons to select an option.

Item Function Operation Range
Transparency	Adjusts the transparency level of the OSD screen.	Touch the or buttons to adjust the value.	0 to 100
H. Position (Horizontal Position)	Moves the OSD window to the left or right of the screen.
V. Position (Vertical Position)	Moves the OSD window up or down the screen.
OSD Timer	Sets the length of time (in seconds) the OSD screen is displayed. When the time elapses, the OSD screen is automatically inactivated.		5 to 100

ADJUSTING THE LCD DISPLAY

5.9 Audio Setting

NTSC 60Hz BRIGHTNESS COLOUR SETTING IMAGE SETTING ASPECT RATIO PIP SETTING ANTI-BURN-IN OSD SETTING AUDIO SETTING OTHER SETTING AUTO BRIGHTNESS INPUT SELECT LANGUAGE INFORMATION AUDIO ON OFF VOLUME 50 EXIT SELECT ADJUST

1. Touch to call out the OSD window.
2. Select AUDIO SETTING menu, then touch the ▶ button.
3. Touch the ▲ or buttons to select an option.

Item Function Operation			Range / Value
Volume	Adjusts the volume level of the built-in speaker.Note: If volume is adjusted but Audio is set to “Off”, no sound comes out from the speaker.	Touch the◀or▶buttons to adjust the value.	0 to 100
Audio Turns the audio speaker ON or OFF.		Touch the◀or▶buttons to select the value.	On Off

ADJUSTING THE LCD DISPLAY

5.10 Other Setting

NTSC 60Hz BRIGHTNESS COLOUR SETTING IMAGE SETTING ASPECT RATIO PIP SETTING ANTI-BURN-IN OSD SETTING AUDIO SETTING OTHER SETTING AUTO BRIGHTNESS INPUT SELECT LANGUAGE INFORMATION POWER SAVING ON OFF | SOURCE DETECT AUTO MANUAL | DCC/CI ON OFF | RECALL PRESS ▶ EXIT SELECT ▶ADJUST ▲

1. Touch to call out the OSD window.
2. Select OTHER SETTING menu, then touch the ▶ button.
3. Touch the ▲ar buttons to select an option.

Item Function Operation			Range / Value
Power Saving	Enables or disables power saving mode.When the LCD display turns into power saving mode, the screen turns black and the LED indicator lights AMBER.Note: The amount of time for the display to enter power saving varies depending on the Source Detect setting. If Source Detect is Auto, the display checks all input source signals before entering power saving mode if no signal is detected; this takes up more time. If Source Detect is Manual, the display enters power saving mode right away.	Touch theorbuttons to select the value.	OnOff
Source Detect	Sets the display to automatically detect the input source signal.	Touch theorbuttons to select the value.	AutoManual
	• Auto - If Auto is selected, the display automatically detects the input source signal. The speed to detection varies depending on the number and type of connected devices. If more than one devices are connected, the display scrolls the input source signals according to the following sequence:VGA DV+HDMI CVBS1-CVBS2→S-Video→→↑• Manual - Allows users to manually select the input source signal by pressing→on the control panel (see page 17).

ADJUSTING THE LCD DISPLAY

Item Function Operation			Range / Value
DDC/CI	Activates the DDC/CI protocol to allow users to configure the monitor by a software using two wires on the VGA or DVI cables.	Touch the ▶or ▶buttons to select the value.	On Off
Recall	Use to recall all to default settings, except Language, PIP, and the input source.	Touch the ▶button.	-

ADJUSTING THE LCD DISPLAY

5.11 Auto Brightness

5.11.1 EcoSmart Sensor

With the built-in EcoSmart sensor, users can enable the Auto Brightness feature to automatically adjust the LCD screen brightness according to the ambient light. This feature comforts the eyes and helps optimise energy efficiency.

NTSC 60 Hz BRIGHTNESS COLOUR SETTING IMAGE SETTING ASPECT RATIO PIP SETTING ANTI-BURN-IN OSD SETTING AUDIO SETTING OTHER SETTING AUTO BRIGHTNESS INPUT SELECT LANGUAGE INFORMATION ENABLE ON OFF MODE AUTO USER LEVEL 80 EXIT SELECT ADJUST

1. Touch to call out the OSD window.
2. Select AUTO BRIGHTNESS menu, then touch the ▶ button.
3. Touch the ▲ or ▼ buttons to select an option.

Item Function Operation Value
Enable Enables or disables auto brightness.	Touch the◀or▶buttons to select the value.	OnOff
Mode	Sets the auto brightness mode.	Touch the◀or▶buttons to select the value.	AutoUser
	The mode can be set to:•Auto- This mode is the default mode. The LCD brightness automatically adjusts to the ambient brightness.•User- Allows you to manually adjust the LCD brightness.
Level	Allows you to set the level of LCD brightness. Available only in USER mode.	Touch the◀or▶buttons to adjust the value.	0 to 100

ADJUSTING THE LCD DISPLAY

5.12 Input Select

NTSC 60Hz BRIGHTNESS COLOUR SETTING IMAGE SETTING ASPECT RATIO PIP SETTING ANTI-BURN-IN OSD SETTING AUDIO SETTING OTHER SETTING AUTO BRIGHTNESS INPUT SELECT LANGUAGE INFORMATION VGA PRESS DVI PRESS HDMI PRESS CVBS1 PRESS CVBS2 PRESS S-VIDEO PRESS EXIT ENTER SELECT

1. Touch to call out the OSD window.
2. Select INPUT SELECT menu, then touch the button.
3. Touch the ▲ or buttons to select an option.

Item Function Operation Value
VGA Sets VGA as the input source signal.		Touch the ▶ button to select.	-
DVI Sets DVI as the input source signal.
HDMI	Sets HDMI as the input source signal.
CVBS1	Sets CVBS1 as the input source signal.
CVBS2	Sets CVBS2 as the input source signal.
S-VIDEO	Sets S-Video as the input source signal.

CHAPTER 6: APPENDIX

6.1 Warning Messages

Warning Messages Cause Solution
	The resolution or the refresh rate of the graphics card of the computer is set too high.	Change the resolution or the • refresh rate of the graphics card.
	The LCD display cannot detect the input source signal.	Check if the input source is • turned ON.Check if the signal cable is • properly connected.Check if any pin inside the • cable connector is twisted or broken.
	The OSD has been locked by the user.	Unlock the OSD. Refer to page • 19.
	The audio has been muted by the user.	Unmute the audio or increase • the volume. Refer to page 18 or 42.
	The Anti-Burn-In function has been enabled by the user.	Disable Anti-Burn-In function. • Refer to page 40.
	The Anti-Burn-In function has been disabled by the user.	Enable Anti-Burn-In function. • Refer to page 40.

6.2 Troubleshooting

Problem Possible Cause and Solution
No picture.LED indicator is OFF.	Check if the LCD display is turned ON.•Check if the power cord is properly connected to the LCD display.•Check if the power cord is plugged into the power outlet.
LED indicator is •AMBER.	Check if the computer is turned ON.•Check if the computer is in standby mode, move the mouse or press •any key to wake up the computer.
Image position is incorrect. Adjust the H. POSITION and V. POSITION values. See IMAGE •SETTING on page 32 (for VGA source) or page 33 (for video signals).
The displayed texts are blurry.	For VGA input, touch ▼on the keypad to auto-adjust the display.Adjust the IMAGE SETTING (see page 33).•
The OSD menu can’t be called out.	The OSD is locked; unlock the OSD (see page 19).•
Red, blue, green, white dots appear on screen.	• There are millions of micro transistors inside the LCD display. It is normal for a few transistors to be damaged and to produce spots. This is acceptable and is not considered a failure.
No audio output.	• Check if the volume is set to 0 (see page 19 or 42).• Check if AUDIO is set to OFF (see page 42).• For VGA or DVI input, check the audio setting of the computer.
Nothing happens when I press ➤.	• SOURCE DETECT setting is set to AUTO. To manually select the input source signal, set SOURCE DETECT to MANUAL (see page 43).
PIP mode does not work.	• The main and sub input source signals are not compatible to be displayed together in PIP mode. Check the PIP Compatibility Table for details (see page 39).
Cannot adjust Backlight setting.	• AUTO BRIGHTNESS setting is ON, disable AUTO BRIGHTNESS (see page 45).
The displayed picture looks distorted.	• Adjust the aspect ratio (see page 20 or 36).
Dew formed on or inside the LCD display.	• This normally happens when the LCD display is moved a cold room to a hot room temperature. Do not turn ON the LCD display, wait for the dew condensation to disappear.

APPENDIX

Problem Possible Cause and Solution
Mist formed inside the glass surface.	This happens due to humid weather conditions. This is a normal • occurrence. The mist will disappear after a few days or as soon as the weather stabilizes.
Faint shadows from a static image appear on the screen.	Turn off the LCD display for extended periods of time.• Use a screen saver or a black and white image and run it for extended • periods of time.

APPENDIX

6.3 Transporting the LCD Display

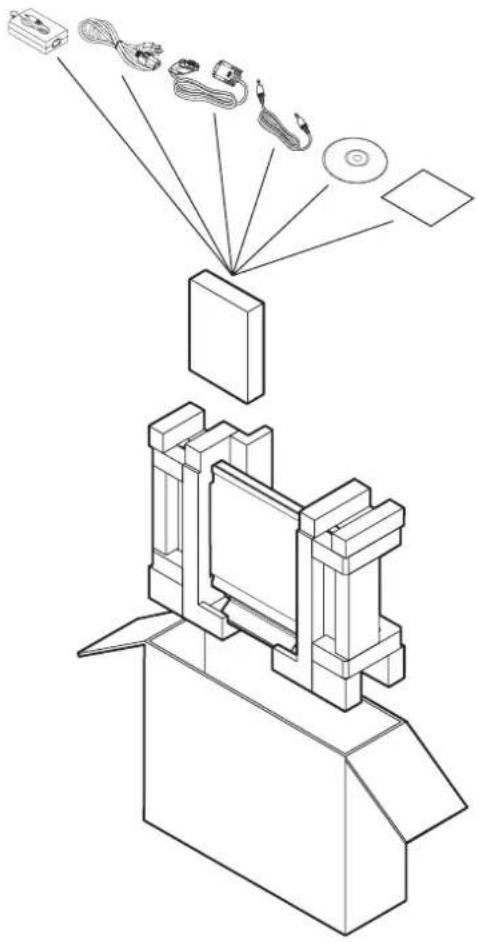

To transport the LCD display for repair or shipment, place the display in its original packaging carton.

1 Put all the accessories in the box (if necessary). Place the two foam cushions on each side of the LCD display for protection.
2 Place the LCD display down in the box.
3 Place the accessories box on the designated area (if necessary).
4 Close and tape the box.

Isometric line drawing of a mechanical assembly with components and rays, no text or symbols present

CHAPTER 7: SPECIFICATIONS

7.1 Display Specifications

RX-22 RX-24
Panel Panel Size 2	1.5" 23.6"
	Max. Resolution FHD 1920 x 1080
	Pixel Pitch 0.2482 mm 0.2715 mm
	Brightness 250cd/m	2	300cd/ m^2
	Contrast Ratio 1,000 (Typical)
	Viewing Angle (H/V) 170°/160° (Typical)
	Display Colour 16.7M
	Response Time 3ms (GTG)
	Frequency (H/V) H: 24 kHz - 82 kHzV: 50 Hz - 85 Hz		H: 24 kHz - 82 kHzV: 50 Hz - 85 Hz
Input VGA	15-Pin D-Sub	15-Pin D-Sub
	DVI	24-Pin DVI-D	24-Pin DVI-D
	CVBS	BNC x 2	BNC x 2
	S-Video	4-Pin mini DIN	4-Pin mini DIN
	HDMI	HDMI x 1	HDMI x 1
Output	CVBS	BNC x 2	BNC x 2
	DC Output	12V/50mA, DC jack 2.5Φ
Audio Audio Input	1 x stereo audio in for PC (audio jack, 3.5 Ø)1 x stereo audio in for CVBS and S-VIDEO
	Audio Output	1 x stereo audio out for CVBS and S-VIDEO
	Speaker Out	2W x 2
	External Adaptor	AC 100~240V, 50~60Hz
	DC Jack F2.1	DC 12V
	Consumption	< 30W (On)	< 32W (On)
		< 0.5W (Stand-by)	< 0.5W (Stand-by)
		< 0.5W (Off)	< 0.5W (Off)
Operating Conditions	Temperature	0 °C ~ 40 °C (32 °F ~ 104 °F)
	Humidity	10% ~ 90%
Storage Conditions	Temperature	-20 °C ~ 60 °C (-4 °F ~ 140 °F)
	Humidity	5% ~ 95%
Weight	Without Base	6.2 kg (13.7 lbs)	7.2 kg (15.9 lbs)
	With Base	6.9 kg (15.2 lbs)	7.9 kg (17.4 lbs)

Note: All specifications are subject to change without prior notice.

7.2 Display Dimensions

7.2.1 RX-22 Dimensions

7.2.2 RX-24 Dimensions
