Product Type	Fitness inline skates (soft boot)
Model Number	IAN 103852
Available Sizes	38–39 (EU)
Maximum User Weight	100 kg (220 lb)
Roller Size	84 mm diameter, 22 mm width
Ball Bearings	ABEC 7
Brake Type	Heel brake with replaceable stopper
Closure System	Fast lacing system, ratchet buckle, quick-release fastener, Velcro straps
Intended Use	Fitness skating on smooth, clean, dry surfaces
Safety Features	Reflective elements recommended; protective gear required
Maintenance	Regular cleaning, bearing lubrication, brake and roller replacement

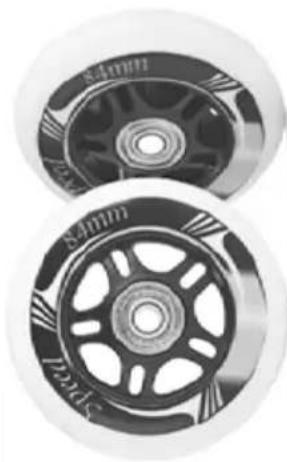

Spare Parts Available	Brake stopper (Article No. 0100), 84 mm rollers (Article No. 01002)
Warranty	3 years (material and workmanship)
Material	Soft boot with synthetic components
Weight per Skate (approx.)	1.2 kg (2.6 lb)

Frequently Asked Questions - IAN 103852 CRIVIT

What size inline skates should I choose?

This model comes in EU sizes 38–39. Ensure the outer boot does not deform when closing the quick-release fastener. If it does, the size may be incorrect.

How do I adjust the fit of the skates?

Use the fast lacing system, ratchet buckle, and Velcro straps. Pull the laces tight, close the slider to 'CLOSE', and secure the hook-and-loop tongue. Adjust the ratchet strap tension by pulling the rocker stopper upward.

When should I replace the brake?

Replace the brake block when the angle between the frame and ground exceeds 40° or the distance between the block and ground is more than 17 mm.

How do I change the rollers?

Unscrew the axle bolts with the supplied Allen keys, remove the worn roller, and install a new 84 mm roller. After installation, ensure the roller spins freely and does not scrape the frame.

Can I use larger rollers than 84 mm?

No, using larger rollers can alter handling and braking characteristics, posing a safety risk. Only use rollers of the specified size (84 mm diameter).

How do I clean and maintain the ball bearings?

After skating, wipe the bearings with a dry cloth. If wet, dry thoroughly and lubricate externally with bearing grease. Do not open sealed bearings; replace if worn.

What safety gear should I wear?

Always wear a helmet, knee pads, elbow pads, wrist guards, and reflective clothing. Never skate barefoot.

How do I brake using the heel brake?

Lift the heel of the skate with the brake, push the brake into the ground, shift weight forward, and bend your knee. Increase pressure by bending more and leaning forward.

Why do my skates pull to one side?

Uneven roller wear can cause pulling. Check for one-sided wear and rotate or replace rollers as needed.

Where can I purchase spare parts?

Spare parts like brake stoppers (Article No. 0100) and 84 mm rollers (Article No. 01002) are available at www.delta-sport.info or via bank transfer/Paypal to the service address.

USER MANUAL IAN 103852 CRIVIT

KolečKové brusle

CZ

KolečKové brusle

Návod k obsluze

DE AT CH

softboot-InInesKates

Bedienungsanleitung

GB

soft boot Inline sKates

Instructions for use

Line drawing of a speed skater in motion, no text or symbols present

Line drawing of a roller skates with wheels and seat, no text or symbols present

Line drawing of a roller skates with no text or symbols

Diagram of a car interior showing airflow or flow direction with arrows indicating movement (no text or symbols)

Diagram of a mechanical or electrical component with directional arrows indicating movement or force (no text or symbols present)

Technical diagram showing a mechanical component with dashed lines and arrows indicating motion or force (no text or symbols)

Diagram of a mechanical component with arrows indicating direction (no text or symbols)

Diagram of a car's seatbelt mechanism showing a directional arrow (no text or symbols present)

Technical illustration showing two mechanical components with circular features and a tool inserted, no text or symbols present.

CZ

Scope of delivery/names of parts 10

Technical data 10

Correct use ....10

HeiQ® Pure dynamiq 10

Safety notes 10

Skating tips 11

Putting the skates on 11 - 12

Removing the skates 12

Maintenance 12-13

Care, storage 13

Trouble-shooting 13-14

Disposal information ....14

3-Year Warranty 14

Patní brzda (obr. C):

With your purchase you have decided on a high-quality product. Get to know the product before you start to use it. Carefully read the following instructions for use. Use the product only as described and only for the given areas of application. Keep these instructions safe. When passing the product on to a third party, always make sure that the documentation is included.

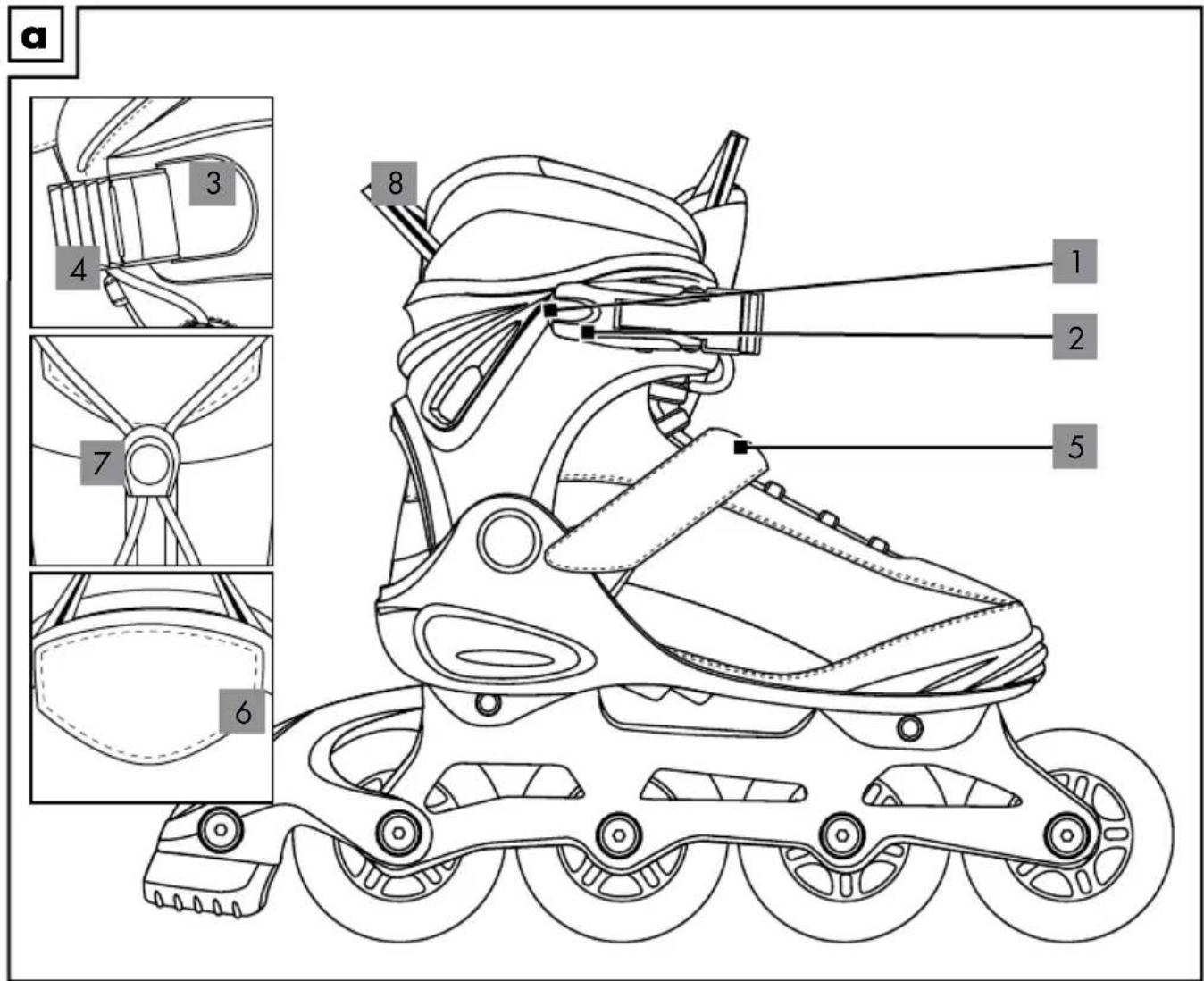

Scope of delivery/ names of parts (figure A)

1 x Instructions for use
1 x Soft Boot Inline Skates
1 x Replacement stopper
2 x Allen key
(1) Pressure sliders
(2) Quick-release fastener
(3) Rocker fastener
(4) Ratchet strip
(5) Velcro fastener
(6) Tongue Velcro fastener
(7) Slide on the fast lacing closure
(8) Pulling aid

Technical data

Sizes: 38–39

Class A, 20-100 kg

Rollers: 84 x 22 mm

Ball bearings: ABEC 7

Correct use

These inline skates are designed as fitness skates for private use and are not suitable for street hockey or aggressive skating.

HeiQ® Pure dynamiq

PURE Textile freshness

Experience the feeling of lasting freshness through the power of silver, keeping you odour-free all day long.

ADAPTIVE Thermal control

Feel good all over. The textile will cool you down when you're hot, and keep you dry longer in cold weather. Cools and minimises perspiration.

Safety notes

Risk of injury!

• Always pay attention to other road users and follow the road traffic regulations.
- Choose the right surface for inline skating. Surfaces should be smooth, clean, and dry.
- Make sure that screws and bolts are secure before skating.
- Ensure that screws and bolts retain their self-locking properties.
- Do not modify the inline skates in such a way that poses risk to your safety.
- Remove sharp edges that may form during skating.
- Always wear appropriate protective equipment (helmet, protectors for palms, wrists, elbows and knees).
- Avoid areas with heavy traffic.
- Remain vigilant at all times and be careful.
- Avoid excessive speeds. As a rule of thumb: never skate faster than you can run.
- Exchange the brakes, rollers, and ball bearings regularly if they are worn.
• Always wear reflective clothing so that you are visible to others.
- Do not use this article barefoot.

Risk of injury!

• Look after your inline skates.
• Avoid water, oil, potholes, and very rough surfaces.

Skating tips

Note:

We recommend skating in skate parks and taking a skating course with an instructor.

First attempts

Initial position:

Keep your feet shoulder-width apart and bend your knees slightly to avoid falling backwards.

Accelerating:

As a beginner, start by taking small steps forwards with your toes pointing outwards at an angle.

Rolling:

If you take a few steps in succession you will then have enough momentum to place your skates next to one another and roll.

Bend your knees slightly while doing this.

How to fall

Important! Practise falling initially onto a soft surface using protective equipment without your inline skates. Always try to fall forwards, and never backwards! Fall onto your protective knee pads. Then catch yourself using the elbow and wrist protectors. Spread your fingers in order to avoid injury.

Mastering curves

At low speeds:

Shift your weight as in riding a bicycle.

Move your weight onto your left foot for a left curve and onto your right foot for a right curve.

At high speeds:

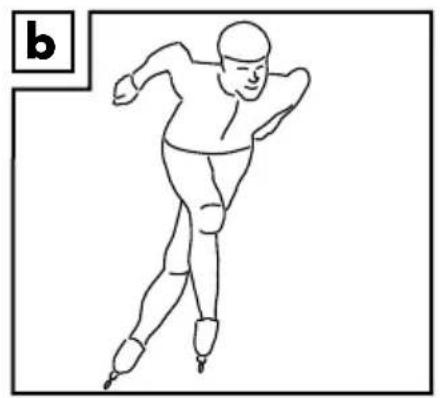

Cross your feet as in ice-skating (figure B).

Braking techniques

Note:

Practise various braking techniques on a smooth surface without traffic or pedestrians. Avoid slopes until you are confident about braking.

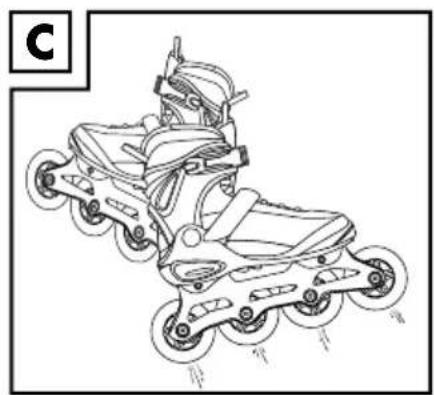

Heel brake (figure C):

If your inline skates are fitted with brakes then remember to use them. Lift the point of the skate where the brake is mounted and push the brake into the ground. Shift your weight forwards slightly and bend your knee. The braking effect can be intensified if you bend your knee more and shift your weight further forwards, while increasing at the same time the pressure on the skate you are braking with.

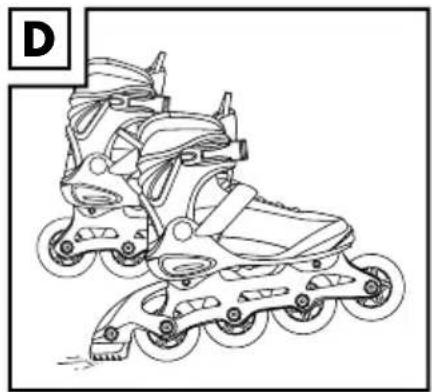

T-stopping (figure D):

If your inline skates are not fitted with a brake or if you have removed the brake, then we recommend using the 'T-stop' technique.

However this is only suitable for advanced skaters! To brake using the 'T-stop' technique, shift your entire weight onto one foot. Now move the other skate behind the front skate at a right angle. Then shift your weight from the front to the inside of the rollers of your back skate and brake with increasing pressure.

Putting the skates on

Preparation from unpacking to putting the skates on Important!

Ensure that your inline skates fit properly. The outer boot should not deform when the quick acting-fastener is closed. Do not use force to close the quick-acting fastener.

If your outer boot is deformed, this is either a sign that the tension is incorrect or that you may have purchased your inline skates in the wrong size.

1. Put on the inline skates using the aids (8) (figure 1).
2. Pull the fast lacing system tight and push the fast lacing system closure back (figure J).

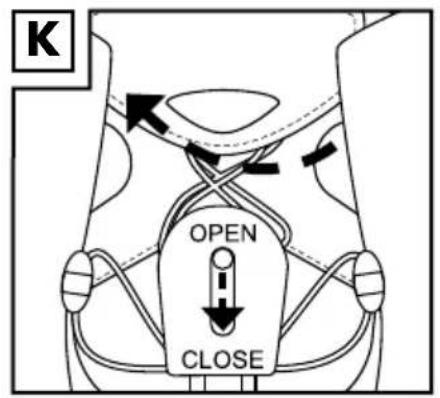

3. Switch the slider on the fast lacing system closure to CLOSE, place the bands from the fast lacing system under the hook-and-loop tongue fastener and then close it (figure K).
4. Close the hook-and-loop fastener.
5. Insert the ratchet buckle into the correct opening under the rocker stopper and set it to the correct tension (figure L).

Note! To find the right tension for your foot, pull the rocker stopper upwards at an angle and move the ratchet buckle to the correct position for you.

1. Close the quick-acting fastener ('CLICK').

Removing the skates

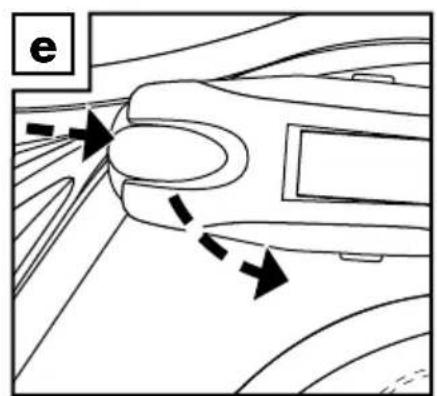

1. Press the stopper (1) on the quick-acting fastener (2) in the direction of the arrow and open the quick-acting fastener (see figure E).

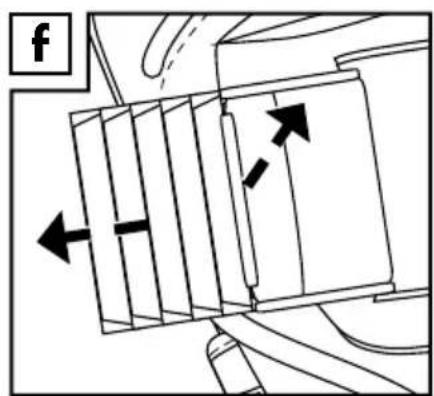

2. Pull the rocker stopper (3) upwards at an angle and pull the ratchet strip (4) out of the opening on the rocker stopper (figure F).

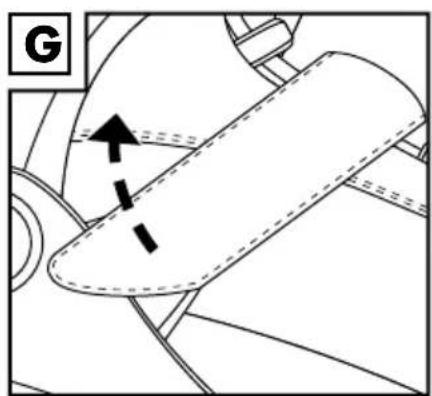

3. Open the hook-and-loop closure (5) (figure G).

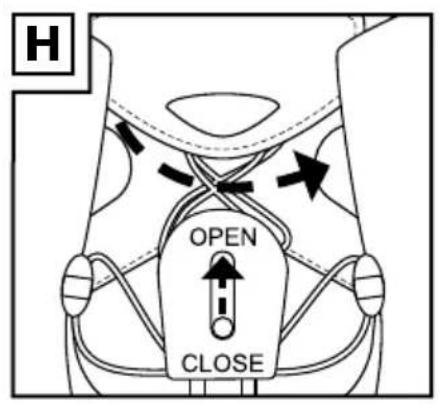

4. Open the hook-and-loop fastener on the tongue (6) (figure H).
5. Switch the slider on the fast lacing system closure (7) to OPEN and loosen the fast lacing system (figure H).

Maintenance

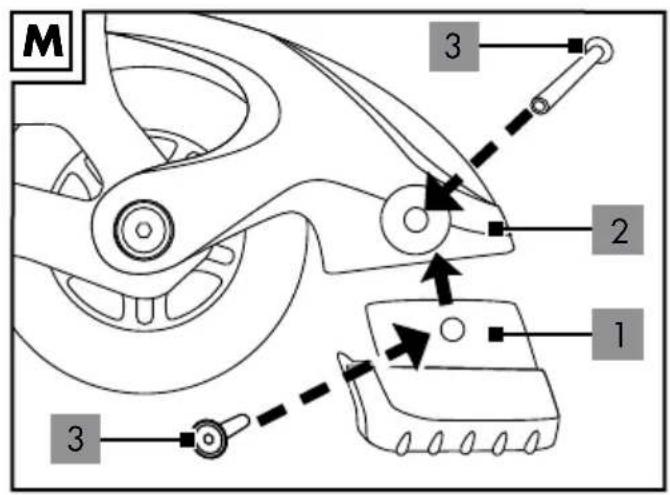

Changing the brake (figure M) Note:

Worn brakes do not function correctly. An angle of more than 40 degrees between the frame and the surface is a sign of worn brakes. If the distance between the brake block and the ground becomes too large (more than 17mm), then the brake block must be exchanged.

• Unscrew the brake block (3) on the inline skate with the enclosed Allen key.
• Pull the brake block screws out and remove the brake block (1) from the brake block mounting (2).
• Attach the new brake block back onto the brake block mounting securely using the brake block screws.

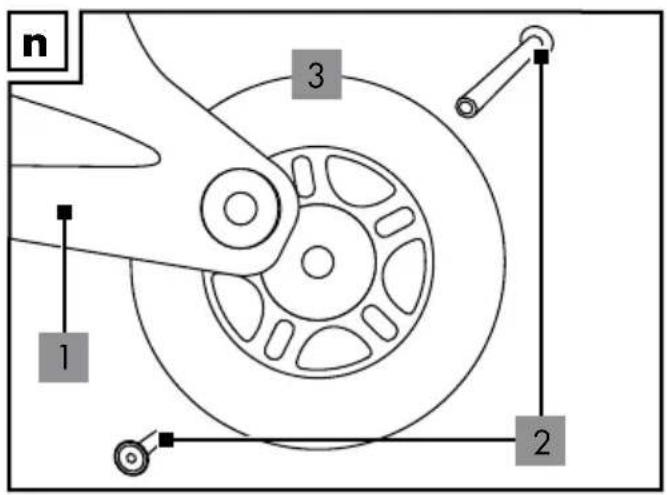

Changing the rollers (figure N) Important!

• Please observe the chapter on technical data:
  Rollers with a different diameter could change the handling characteristics and could mean a risk to the user in some circumstances. You should therefore not use the skates if the rollers cannot be fitted perfectly. Never install larger rollers then those originally used in the inline skates.

• Please observe the following with regard to the axle bolts:
  Self-sealing lacquer must be re-applied to the screw thread after the screw connection has been released. We recommend always doing this step as a precautionary measure. Self-sealing lacquer is available from DIY stores or specialist retailers.

Rollers become worn. The wear depends on many factors such as skating style, surfaces, the size and weight of the user, weather conditions, the roller material and its degree of hardness. It is therefore necessary to exchange them every so often.

• Unscrew the axle bolts (2) on the inline skate from the frame (1) using the two Allen keys supplied.
• Remove the axle bolts and remove the roller (3).
• Install the new roller into the frame and fix it with the axle bolts.

After changing the rollers:

If the roller scrapes on the side after the exchange, or if it touches the edge of the frame, please do not use the roller! Please ensure that all screws are still secure after the first few minutes of use and that nothing has become detached or loosened.

Re-install the rollers in order to ensure that they are running smoothly and no sounds are emitted from the bearings.

Important!

New rollers make the inline skates taller. This changes the distance to the ground therefore also the braking characteristics. For this reason, you must adjust or exchange the brake block.

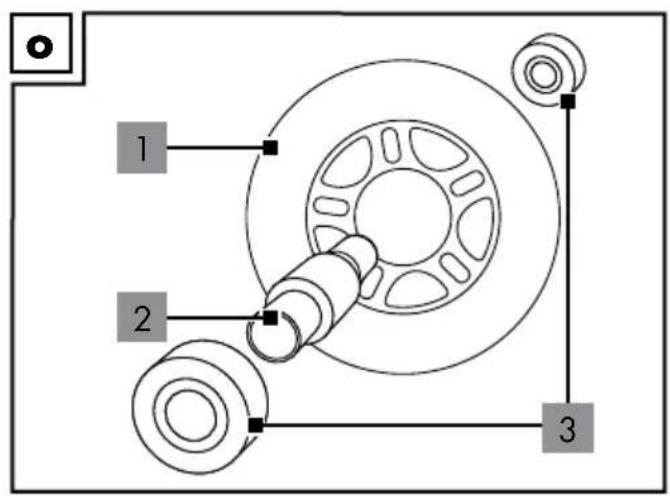

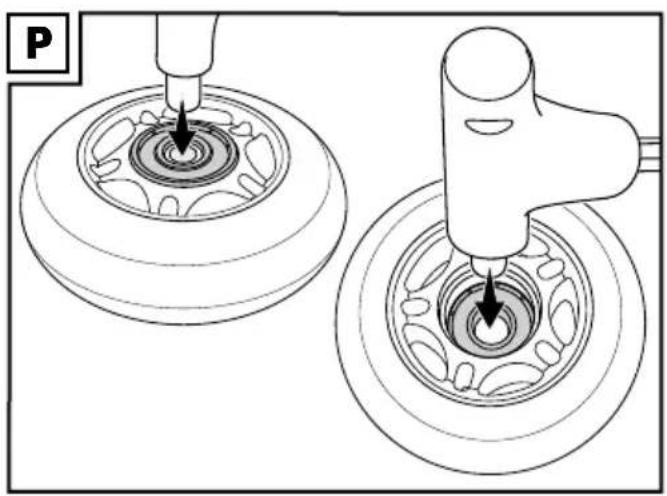

Changing the ball bearing (figure O / P)

Note:

The quality of the ball bearing and its maintenance are extremely important for the smooth running of the inline skates.

• Dismantle the roller (1), as described in the section 'changing rollers'.
• Position the Allen key (with handle) using the extra appliance above the spacer (2) and push the spacer out. Remove the bearing (3).

• Push the other bearing out by pressing on it with an Allen key.

• Push in a new bearing. Turn the roller around, insert the spacer, and then push in a second new bearing.

• Re-attach the roller to the frame, as described in the paragraph 'exchanging the rollers'.

Care, storage

Inline skates are pieces of technical sports and leisure equipment and they therefore become worn depending on the skill and style of each skater. We recommend that you clean and dry the inline skates thoroughly after use. Remove any small stones and other objects that may have become trapped in your rollers. Remove any sharp edges that may have formed during skating. Always keep the inline skates in a dry place.

• Clean your ball bearings with a dry cloth after skating. Wet or damp ball bearings must be dried using a clean cloth. Lubricate the bearings from the outside with a suitable bearing grease to prevent the formation of external rust.
• Bearings are usually closed and cannot be lubricated inside. Worn ball bearings must be replaced.

Trouble-shooting

- Rollers or ball bearings are noisy

Dismantle the roller from the frame, remove it, and clean the ball bearing with a clean cloth.

- Rollers wear quickly

Smooth surfaces extend the life of the rollers. Try harder rollers for harder surfaces and for use in difficult conditions.

- Rollers block

Do not fasten the axle bolts too tightly.

- Skate pulls to the left or right

This can depend on the user. Exchange the rollers that show signs of one-sided wear.

• The brake is not working properly

Change the brake if the angle between the brake and the ground is greater than 40 degrees, i.e. if the distance between the brake block and the ground becomes too great (more than 17mm). Rounded brakes need to be changes for new blocks.

- Brake problems

Always keep sufficient distance. The faster you skate the longer your braking distance. Ensure that you understand the braking techniques and practise them on a level ground.

- Ankles get twisted frequently

Make sure the laces are tight enough.

- Problems with the foot bed

You may not be accustomed this kind of movement. Check the areas that are causing you problems and re-adjust the inline skates. Try wearing thick socks.

Disposal information

Please dispose of the product and packaging in an environmentally friendly manner, separating different materials for recycling as required! Dispose of this item through an authorised disposal company or through your local waste disposal facilities - ask your local authority for information if further guidance is required. Ensure that you comply with all regulations currently in force.

3-Year Warranty

The product was produced with great care and under constant supervision. You receive a three-year warranty for this product from the date of purchase. Please retain your receipt.

The warranty applies only to material and workmanship and does not apply to misuse or improper handling. Your statutory rights, especially the warranty rights, are not affected by this warranty.

With regard to complaints, please contact the following service hotline or contact us by e-mail.

Our service employees will advise as to the subsequent procedure as quickly as possible.

We will be personally available to discuss the situation with you.

Any repairs under the warranty, statutory guarantees or through goodwill do not extend the warranty period. This also applies to replaced and repaired parts. Repairs after the warranty are subject to a charge.

IAN: 103852

GB Service Great Britain

Tel.: [phone]

(£ 0.10/Min.)

E-Mail: [e-mail]

All items are also available for purchase directly from our online shop: www.delta-sport.info

Fersenbremse (Abb. C):

Close-up of a black plastic mechanical component with grooves and holes (no text or symbols visible)

Close-up of a black plastic mechanical component with grooves and a central hole (no text or symbols visible)

Two identical mechanical pulley wheels with visible 84mm markings, no text or symbols present.

Close-up of two circular mechanical components with visible teeth and central hub (no text or symbols)

www.delta-sport.info

Additional parts for our products are delivered against advance payment by bank transfer or Paypal. Please be sure to state the article number together with your name and postcode in the reference fi eld when sending a payment.

Bank transfer:

Please send your Paypal payment to: [e-mail]

Our postal address:

SERVICE.DELTA-SPORT.COM

HÜTTMANNSWEG 11 • 24641 HÜTTBLEK GERMANY

Here is how you order: Under "sender/purchaser", enter in capital letters your name, address, and telephone number (in case of any queries).

Sender/purchaser

(please fi ll out completely in capital letters)

Surname, given name

House number, street

Town, postcode

Telephone number

Order form

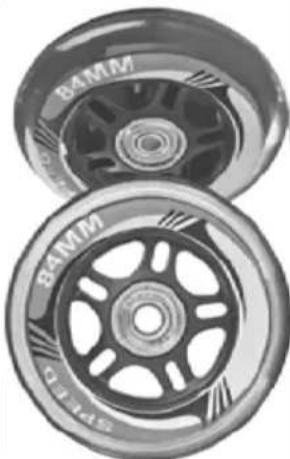

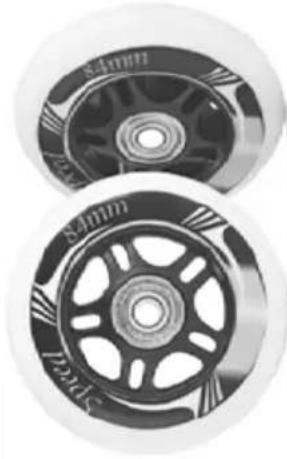

103852, Soft Boot Inline Skates Delta-Sport Nr. DI-1736

QuantityArticle NUnit price			Total
	x	2,45 €01€01	€
01002	x	2,50 € =	€
Post and packaging
5,00 €The fl at shipping rate applies to Germany only.Please enquire at the Online Shop regarding the shipping rate outside Germany.
Total
			€
SignatureDate and place

Close-up of a black plastic mechanical component with grooves and holes (no text or symbols visible)

Close-up of a black mechanical component with grooves and a central hole (no text or symbols visible)

103852_stopper Article No. 0100

103852_rollers 84mm Article No. 01002

Close-up of two circular mechanical components with visible branding and lettering (no readable text or symbols)

Two identical mechanical pulley wheels with visible speed markings (84MM) and no text or symbols on the wheels themselves.

All items are also available for purchase directly from our online shop: www.delta-sport.info

Bestellkarte

103852, Softboot-Inlineskates Delta-Sport Nr. DI-1736

Close-up of a black plastic mechanical component with grooves and holes (no text or symbols visible)

Close-up of a black plastic mechanical component with grooves and a central hole (no text or symbols visible)

Close-up of two circular mechanical components with visible branding and lettering (no readable text or symbols)

Two identical mechanical pulley wheels with visible speed markings (84MM) and no text or symbols on the wheels themselves.

DELTA-SPORT HANDELSKONTOR GMBH

Wragekamp 6 • D-22397 Hamburg

Version: 02/2015
