Product Type	Inline Skates
Brand	Crivit
Model	IAN 103854
Size Range	EU 39 – 46 (adjustable)
Wheel Size	80 mm
Wheel Material	Polyurethane
Bearing Rating	ABEC 5
Brake Type	Rear brake with replaceable pad
Frame Material	Aluminum
Closure System	Lace and buckle
Maximum User Weight	100 kg
Recommended Age	8 years and up
Weight (per pair)	Approx. 2.5 kg
Price Category	Entry-level recreational
Intended Use	Recreational skating on paved surfaces
Maintenance	Clean wheels and bearings after use; check brake pad wear
Safety	Always wear helmet, knee, elbow, and wrist guards
Spare Parts Availability	Wheels, bearings, brake pads available from Crivit
Assembly Required	No, delivered fully assembled
Color	Black/Blue (typical)

Frequently Asked Questions - IAN 103854 CRIVIT

How do I adjust the size of the Crivit inline skates IAN 103854?

The skates feature an adjustable sizing mechanism. Loosen the buckle and laces, then press the sizing button (usually at the heel) and slide the front part to the desired length. Tighten all closures securely.

How often should I replace the wheels?

Replace wheels when the diameter wears down to about 70 mm or if they become unevenly worn. Depending on usage, this may be every 3-6 months for regular skaters.

Can I use these skates indoors?

Yes, but they are designed for outdoor use. Indoors, the 80 mm wheels may be less maneuverable than smaller wheels. Ensure the floor is smooth and clean to avoid damage to the wheels.

How do I clean the bearings?

Remove the wheels and bearings. Soak bearings in a solvent (e.g., isopropyl alcohol), dry thoroughly, then apply a light lubricant like speed cream. Reassemble and spin to distribute.

What is the correct way to brake?

The skates have a rear brake. To stop, shift your weight onto one foot, lift the toes of the other foot, and press the brake pad against the ground. Practice in a safe area first.

What protective gear is recommended?

Always wear a helmet, knee pads, elbow pads, and wrist guards. Wrist guards are especially important for beginners to prevent fractures.

How do I replace the brake pad?

Use a screwdriver to remove the old brake pad from the holder. Insert a new CRIVIT compatible pad and tighten the screws. Check alignment before skating.

What is the maximum weight limit?

The maximum user weight is 100 kg (220 lbs). Exceeding this may damage the frame or wheels and increase injury risk.

How should I store the skates?

Store them in a dry place at room temperature. Avoid direct sunlight and extreme heat, which can warp the plastic components. Loosen the laces and buckles to relieve stress.

Where can I find spare parts?

Spare parts such as wheels, bearings, and brake pads are available through Crivit's website or at Lidl stores (where Crivit is sold). Use the model number IAN 103854 for compatibility.

USER MANUAL IAN 103854 CRIVIT

Instructions for use

IAN 103853

SI GB

DE AT CH

Line drawing of a speed skater in motion, no text or symbols present

Line drawing of a rollerblading skates with no text or symbols

Line drawing of a roller skates with wheels and seat (no text or symbols)

Diagram of a car interior showing airflow direction with arrows indicating movement (no text or symbols)

Diagram of a mechanical or electrical component with directional arrows indicating movement or force (no text or symbols present)

Technical diagram showing a mechanical component with dashed lines and arrows indicating motion or force (no text or symbols)

Diagram of a mechanical device with arrows indicating motion or force direction (no text or symbols)

Technical illustration showing two mechanical components with circular features and a tool inserted, no text or symbols present.

SI

Obseg dobave / Opis delov 5

Tehnični podatki 5

Scope of delivery/names of parts ....10

Technical Data 10

Correct use 10

HeiQ® Pure dynamiq 10

Safety notes 10

Skating tips 11

Putting the skates on 11 - 12

Removing the skates 12

Maintenance 12-13

Care, Storage 13

Trouble-shooting 13-14

Disposal Information ....14

3-Year Warranty 14

Prisrčne čestitke!

Zavora na peti (sl. C):

With your purchase you have decided on a high-quality product. Get to know the product before you start to use it. Carefully read the following instructions for use. Use the product only as described and only for the given areas of application. Keep these instructions safe. When passing the product on to a third party, always make sure that the documentation is included.

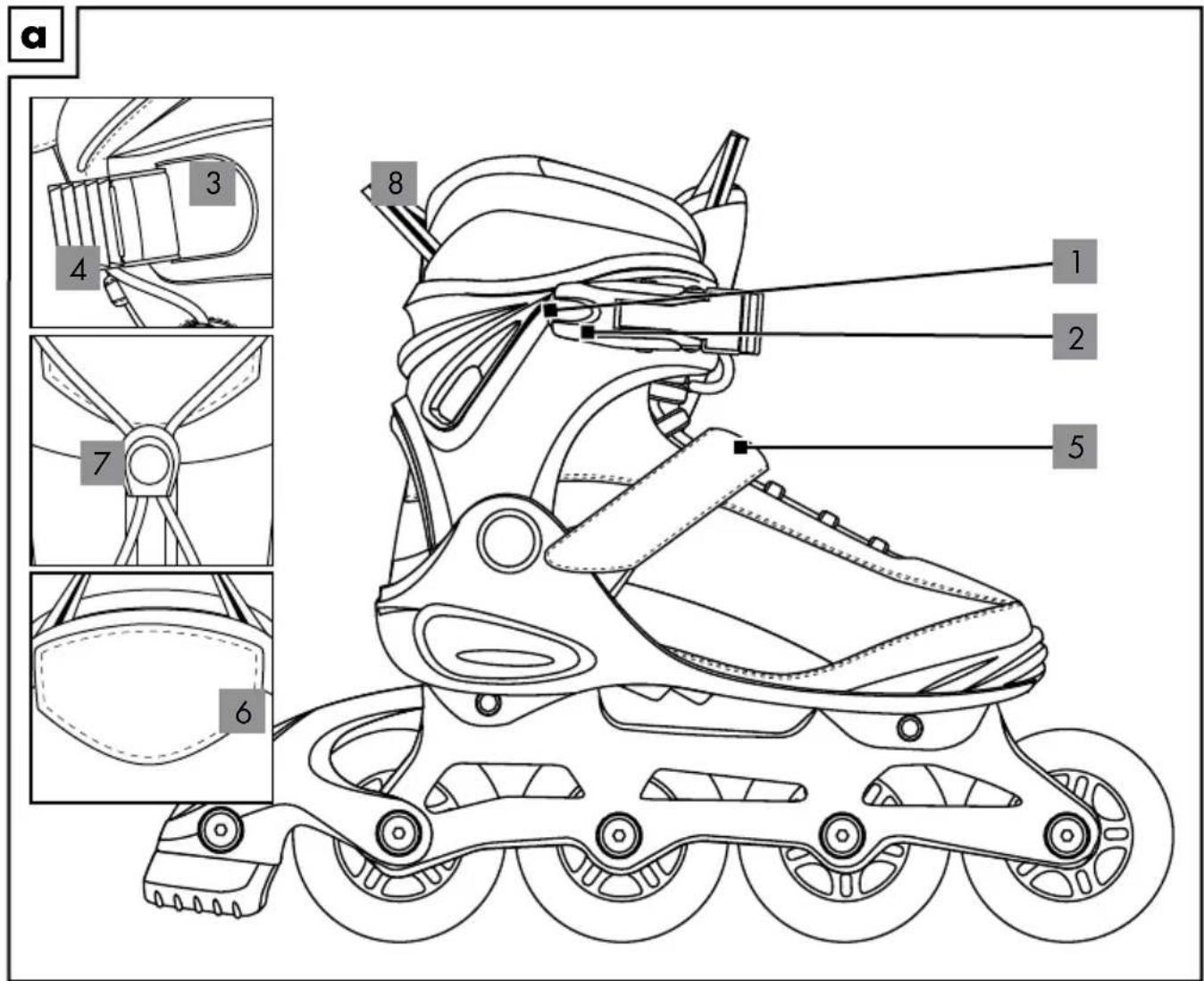

Scope of delivery/ names of parts (figure A)

1 x Instructions for use
1 x Soft Boot Inline Skates
1 x Replacement stopper
2 x Allen key
(1) Pressure sliders
(2) Quick-release fastener
(3) Rocker fastener
(4) Ratchet strip
(5) Velcro fastener
(6) Tongue Velcro fastener
(7) Slide on the fast lacing closure
(8) Pulling aid

Technical data

Sizes: 44-45

Class A, 20-100kg

Rollers: 84 x 22mm

Ball bearings: ABEC 7

Correct use

These inline skates are designed as fitness skates for private use and are not suitable for street hockey or aggressive skating.

HeiQ® Pure dynamiq

PURE Textile freshness

Experience the feeling of lasting freshness through the power of silver, keeping you odour-free all day long.

ADAPTIVE Thermal control

Feel good all over. The textile will cool you down when you're hot, and keep you dry longer in cold weather. Cools and minimises perspiration.

Safety notes

Risk of injury!

• Always pay attention to other road users and follow the road traffic regulations.
- Choose the right surface for inline skating. Surfaces should be smooth, clean, and dry.
- Make sure that screws and bolts are secure before skating.
- Ensure that screws and bolts retain their self-locking properties.
- Do not modify the inline skates in such a way that poses risk to your safety.
- Remove sharp edges that may form during skating.
• Always wear appropriate protective equipment (helmet, protectors for palms, wrists, elbows and knees).
- Avoid areas with heavy traffic.
- Remain vigilant at all times and be careful.
- Avoid excessive speeds. As a rule of thumb: never skate faster than you can run.
- Exchange the brakes, rollers, and ball bearings regularly if they are worn.
• Always wear reflective clothing so that you are visible to others.
- Do not use this article barefoot.

Risk of injury!

• Look after your inline skates.
• Avoid water, oil, potholes, and very rough surfaces.

Skating tips

Note:

We recommend skating in skate parks and taking a skating course with an instructor.

First attempts

Initial position:

Keep your feet shoulder-width apart and bend your knees slightly to avoid falling backwards.

Accelerating:

As a beginner, start by taking small steps forwards with your toes pointing outwards at an angle.

Rolling:

If you take a few steps in succession you will then have enough momentum to place your skates next to one another and roll.

Bend your knees slightly while doing this.

How to fall

Important! Practise falling initially onto a soft surface using protective equipment without your inline skates. Always try to fall forwards, and never backwards! Fall onto your protective knee pads. Then catch yourself using the elbow and wrist protectors. Spread your fingers in order to avoid injury.

Mastering curves

At low speeds:

Shift your weight as in riding a bicycle.

Move your weight onto your left foot for a left curve and onto your right foot for a right curve.

At high speeds:

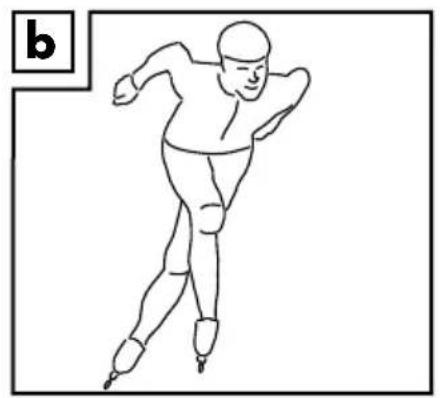

Cross your feet as in ice-skating (figure B).

Braking techniques

Note:

Practise various braking techniques on a smooth surface without traffic or pedestrians. Avoid slopes until you are confident about braking.

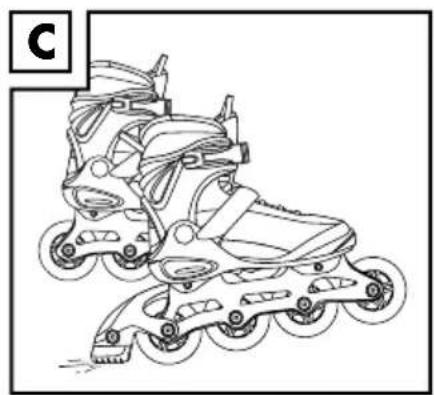

Heel brake (figure C):

If your inline skates are fitted with brakes then remember to use them. Lift the point of the skate where the brake is mounted and push the brake into the ground. Shift your weight forwards slightly and bend your knee. The braking effect can be intensified if you bend your knee more and shift your weight further forwards, while increasing at the same time the pressure on the skate you are braking with.

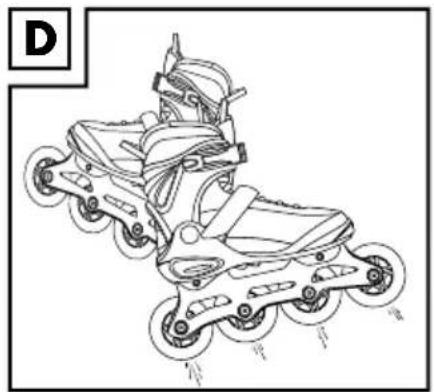

T-stopping (figure D):

If your inline skates are not fitted with a brake or if you have removed the brake, then we recommend using the 'T-stop' technique.

However this is only suitable for advanced skaters! To brake using the 'T-stop' technique, shift your entire weight onto one foot. Now move the other skate behind the front skate at a right angle. Then shift your weight from the front to the inside of the rollers of your back skate and brake with increasing pressure.

Putting the skates on

Preparation from unpacking to putting the skates on Important!

Ensure that your inline skates fit properly. The outer boot should not deform when the quick acting-fastener is closed. Do not use force to close the quick-acting fastener.

If your outer boot is deformed, this is either a sign that the tension is incorrect or that you may have purchased your inline skates in the wrong size.

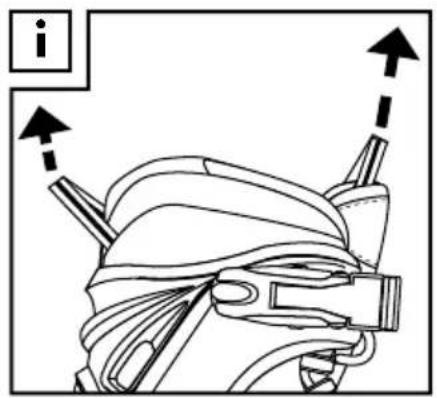

1. Put on the inline skates using the aids (8) (figure 1).
2. Pull the fast lacing system tight and push the fast lacing system closure back (figure J).
3. Switch the slider on the fast lacing system closure to CLOSE, place the bands from the fast lacing system under the hook-and-loop tongue fastener and then close it (figure K).
4. Close the hook-and-loop fastener.

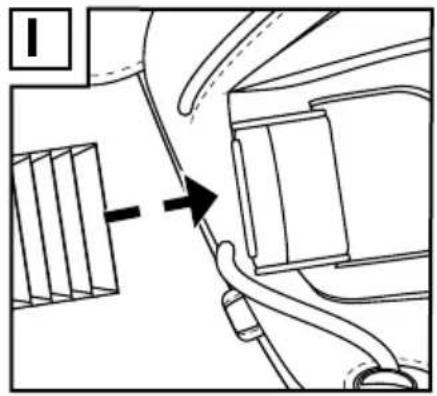

5. Insert the ratchet buckle into the correct opening under the rocker stopper and set it to the correct tension (figure L).

Note! To find the right tension for your foot, pull the rocker stopper upwards at an angle and move the ratchet buckle to the correct position for you.

1. Close the quick-acting fastener ('CLICK').

Removing the skates

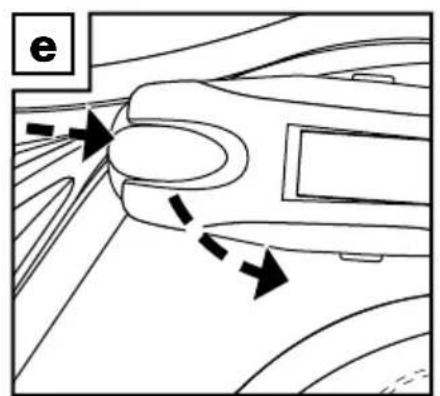

1. Press the stopper (1) on the quick-acting fastener (2) in the direction of the arrow and open the quick-acting fastener (see figure E).

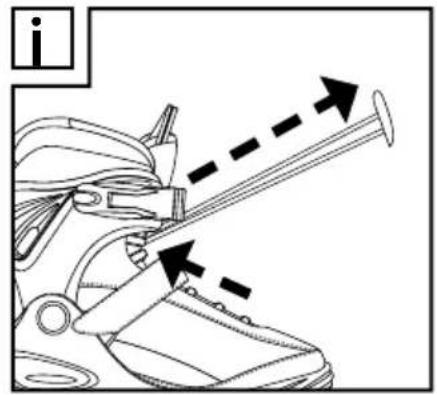

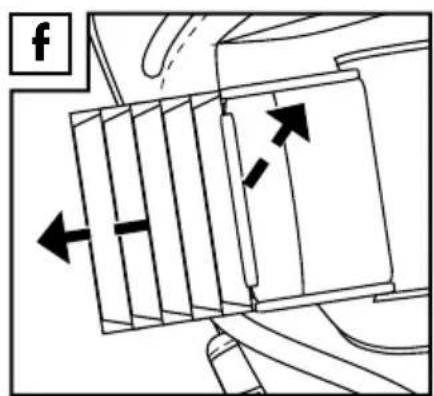

2. Pull the rocker stopper (3) upwards at an angle and pull the ratchet strip (4) out of the opening on the rocker stopper (figure F).

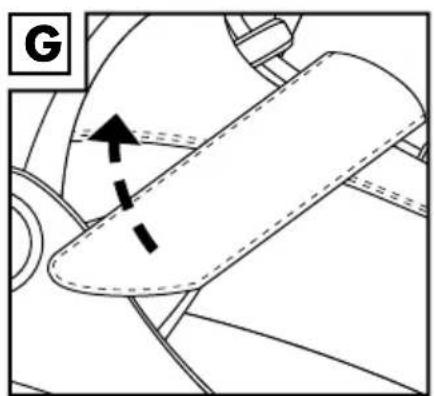

3. Open the hook-and-loop closure (5) (figure G).
4. Open the hook-and-loop fastener on the tongue (6) (figure H).

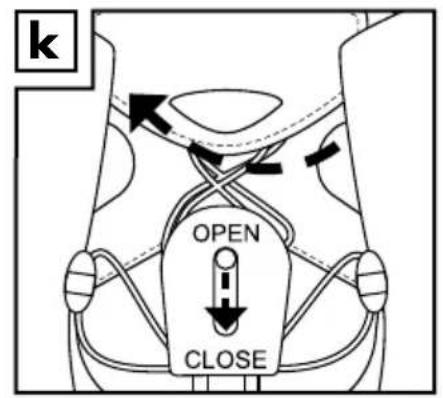

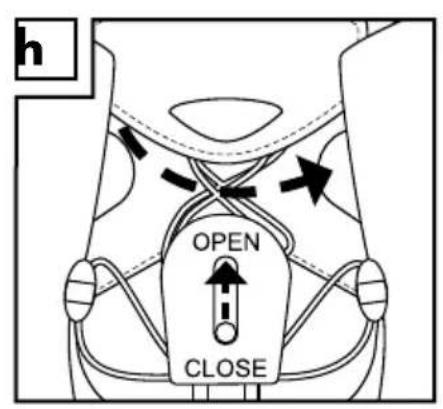

5. Switch the slider on the fast lacing system closure (7) to OPEN and loosen the fast lacing system (figure H).

Maintenance

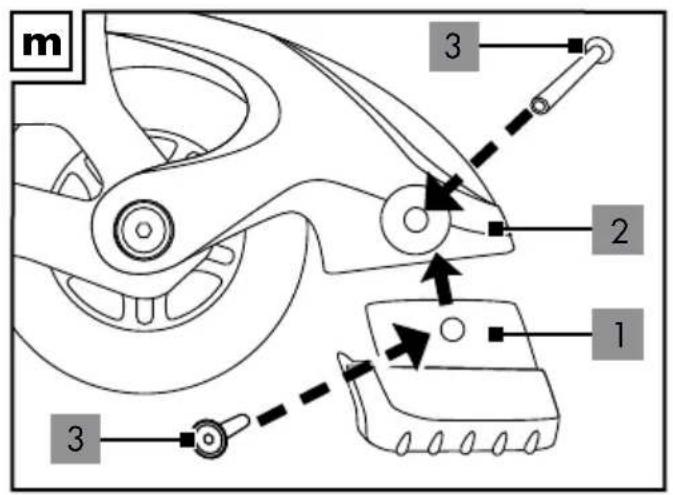

Changing the brake (figure M) Note:

Worn brakes do not function correctly. An angle of more than 40 degrees between the frame and the surface is a sign of worn brakes. If the distance between the brake block and the ground becomes too large (more than 17mm), then the brake block must be exchanged.

• Unscrew the brake block (3) on the inline skate with the enclosed Allen key.
• Pull the brake block screws out and remove the brake block (1) from the brake block mounting (2).
• Attach the new brake block back onto the brake block mounting securely using the brake block screws.

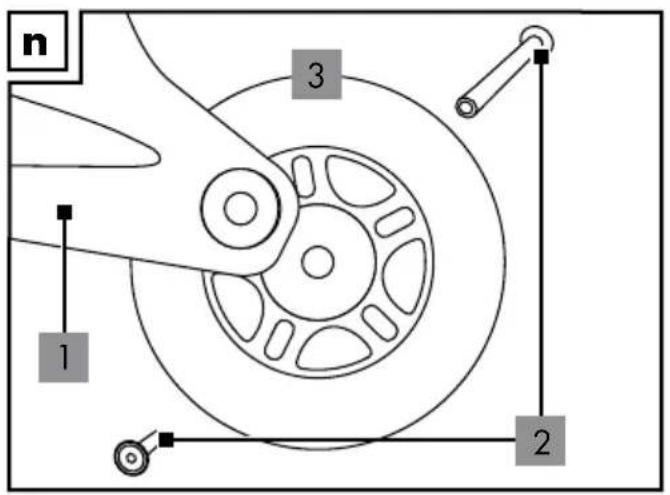

Changing the rollers (figure N) Important!

• Please observe the chapter on technical data:
  Rollers with a different diameter could change the handling characteristics and could mean a risk to the user in some circumstances. You should therefore not use the skates if the rollers cannot be fitted perfectly. Never install larger rollers then those originally used in the inline skates.

• Please observe the following with regard to the axle bolts: Self-sealing lacquer must be re-applied to the screw thread after the screw connection has been released. We recommend always doing this step as a precautionary measure. Self-sealing lacquer is available from DIY stores or specialist retailers.

Rollers become worn. The wear depends on many factors such as skating style, surfaces, the size and weight of the user, weather conditions, the roller material and its degree of hardness. It is therefore necessary to exchange them every so often.

• Unscrew the axle bolts (2) on the inline skate from the frame (1) using the two Allen keys supplied.
• Remove the axle bolts and remove the roller (3).
• Install the new roller into the frame and fix it with the axle bolts.

After changing the rollers:

If the roller scrapes on the side after the exchange, or if it touches the edge of the frame, please do not use the roller! Please ensure that all screws are still secure after the first few minutes of use and that nothing has become detached or loosened.

Re-install the rollers in order to ensure that they are running smoothly and no sounds are emitted from the bearings.

Important!

New rollers make the inline skates taller. This changes the distance to the ground therefore also the braking characteristics. For this reason, you must adjust or exchange the brake block.

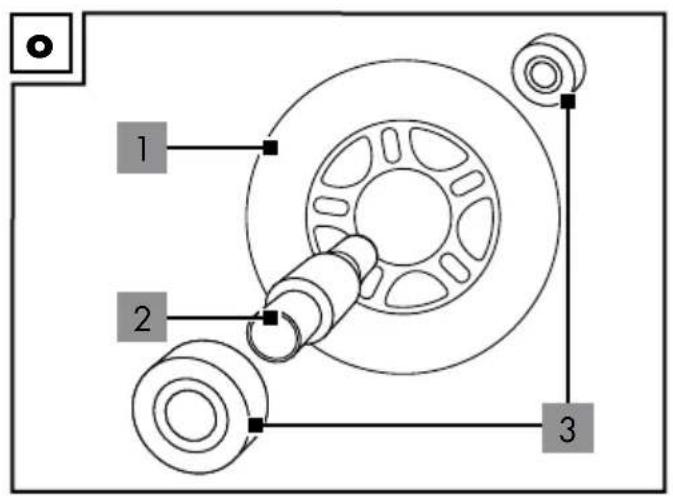

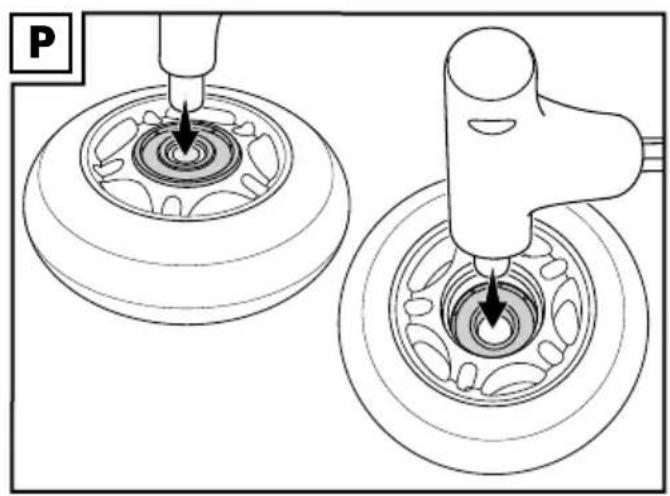

Changing the ball bearing (figure O / P)

Note:

The quality of the ball bearing and its maintenance are extremely important for the smooth running of the inline skates.

• Dismantle the roller (1), as described in the section 'changing rollers'.
• Position the Allen key (with handle) using the extra appliance above the spacer (2) and push the spacer out. Remove the bearing (3).

• Push the other bearing out by pressing on it with an Allen key.

• Push in a new bearing. Turn the roller around, insert the spacer, and then push in a second new bearing.

• Re-attach the roller to the frame, as described in the paragraph 'exchanging the rollers'.

Care, storage

Inline skates are pieces of technical sports and leisure equipment and they therefore become worn depending on the skill and style of each skater. We recommend that you clean and dry the inline skates thoroughly after use. Remove any small stones and other objects that may have become trapped in your rollers. Remove any sharp edges that may have formed during skating. Always keep the inline skates in a dry place.

• Clean your ball bearings with a dry cloth after skating. Wet or damp ball bearings must be dried using a clean cloth. Lubricate the bearings from the outside with a suitable bearing grease to prevent the formation of external rust.
• Bearings are usually closed and cannot be lubricated inside. Worn ball bearings must be replaced.

Trouble-shooting

- Rollers or ball bearings are noisy

Dismantle the roller from the frame, remove it, and clean the ball bearing with a clean cloth.

- Rollers wear quickly

Smooth surfaces extend the life of the rollers. Try harder rollers for harder surfaces and for use in difficult conditions.

- Rollers block

Do not fasten the axle bolts too tightly.

- Skate pulls to the left or right

This can depend on the user. Exchange the rollers that show signs of one-sided wear.

• The brake is not working properly

Change the brake if the angle between the brake and the ground is greater than 40 degrees, i.e. if the distance between the brake block and the ground becomes too great (more than 17mm). Rounded brakes need to be changes for new blocks.

- Brake problems

Always keep sufficient distance. The faster you skate the longer your braking distance. Ensure that you understand the braking techniques and practise them on a level ground.

- Ankles get twisted frequently

Make sure the laces are tight enough.

- Problems with the foot bed

You may not be accustomed this kind of movement. Check the areas that are causing you problems and re-adjust the inline skates. Try wearing thick socks.

Disposal information

Please dispose of the product and packaging in an environmentally friendly manner, separating different materials for recycling as required! Dispose of this item through an authorised disposal company or through your local waste disposal facilities - ask your local authority for information if further guidance is required. Ensure that you comply with all regulations currently in force.

3-Year Warranty

The product was produced with great care and under constant supervision. You receive a three-year warranty for this product from the date of purchase. Please retain your receipt.

The warranty applies only to material and workmanship and does not apply to misuse or improper handling. Your statutory rights, especially the warranty rights, are not affected by this warranty.

With regard to complaints, please contact the following service hotline or contact us by e-mail.

Our service employees will advise as to the subsequent procedure as quickly as possible. We will be personally available to discuss the situation with you.

Any repairs under the warranty, statutory guarantees or through goodwill do not extend the warranty period. This also applies to replaced and repaired parts. Repairs after the warranty are subject to a charge.

IAN: 103853

GB Service Great Britain

Tel.: [phone]

(£ 0.10/Min.)

E-Mail: [e-mail]

All items are also available for purchase directly from our online shop: www.delta-sport.info

Fersenbremse (Abb. C):

Close-up of a dark, cube-shaped mechanical component with grooves and holes (no text or symbols visible)

Close-up of a black 3D-printed mechanical component with grooves and a small hole (no text or symbols visible)

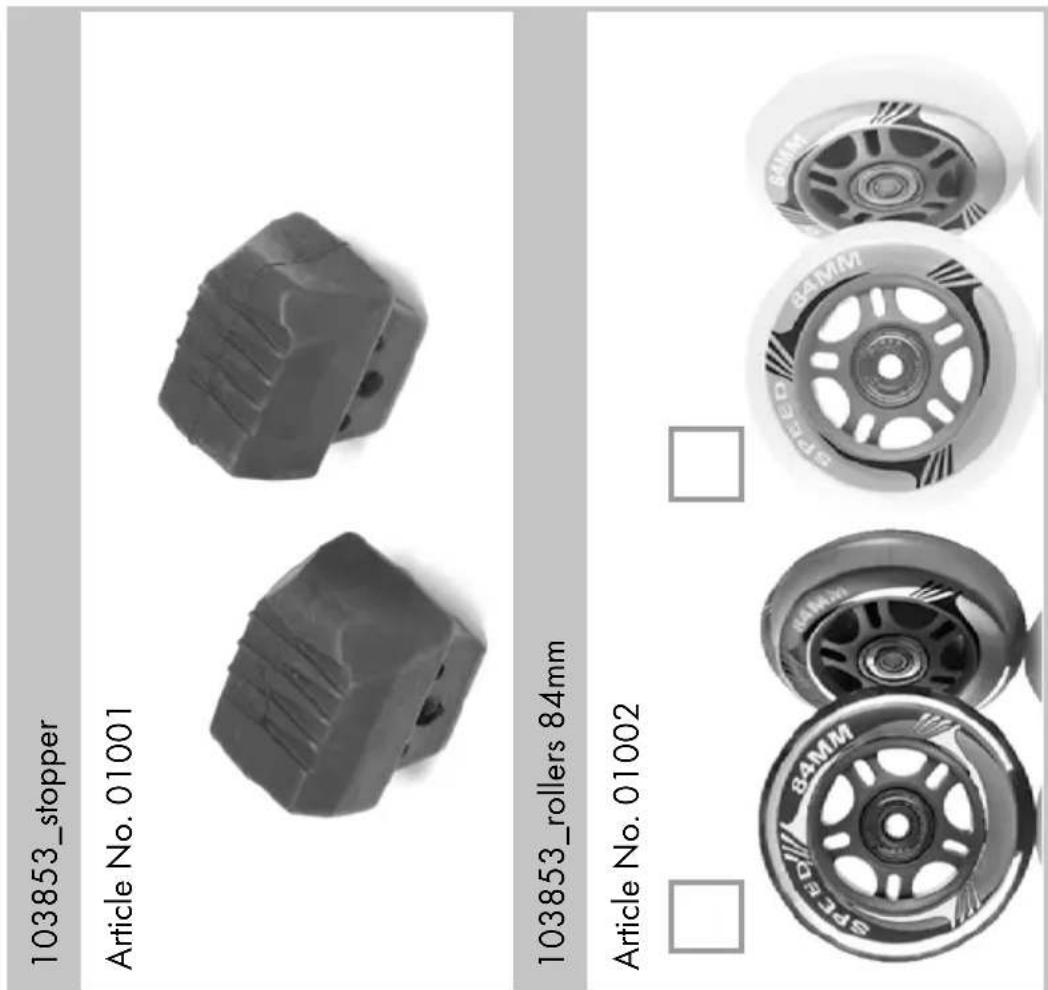

103853_Zavornjak Št. artikla 01001

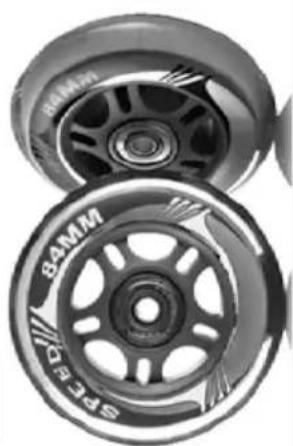

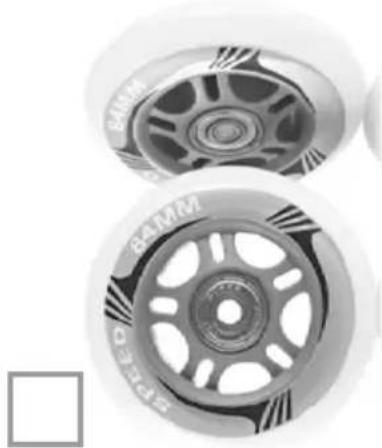

103853_Kolesa 84 mm Št. artikla 01002

Two identical circular roller skates with visible branding and lettering, no text or symbols on the main body.

Two black and white industrial rollers with visible branding and specifications (no text or symbols on the rollers themselves)

Additional parts for our products are delivered against advance payment by bank transfer or Paypal. Please be sure to state the article number together with your name and postcode in the reference fi eld when sending a payment.

Bank transfer:

Please send your Paypal payment to: [e-mail]

Our postal address:

SERVICE.DELTA-SPORT.COM

HÜTTMANNSWEG 11 • 24641 HÜTTBLEK GERMANY

Here is how you order: Under "sender/purchaser", enter in capital letters your name, address, and telephone number (in case of any queries).

Sender/purchaser

(please fi ll out completely in capital letters)

Surname, given name

House number, street

Town, postcode

Telephone number

All items are also available for purchase directly from our online shop: www.delta-sport.info

Order form

103853, Softboot Inline Skates Delta-Sport Nr. HI-1738

QuantityArticle NUnit price			Total
	x	2,45 €01€01	€
01002	x	2,50 € =	€
Post and packaging
5,00 €The fl at shipping rate applies to Germany only.Please enquire at the Online Shop regarding the shipping rate outside Germany.
Total
			€
SignatureDate and place

All items are also available for purchase directly from our online shop:
www.delta-sport.info

Bestellkarte

103853, Softboot-Inlineskates Delta-Sport Nr. HI-1738

Close-up of a black plastic mechanical component with grooves and mounting holes (no text or symbols visible)

Close-up of a black plastic mechanical component with grooves and a central hole (no text or symbols visible)

Two circular mechanical components with 'SPEED BANIMI' branding, shown from different angles (no text or symbols on the main body)

Two black and white industrial rollers with visible branding and branding (no text or symbols on the rollers themselves)

DELTA-SPORT HANDELSKONTOR GMBH

Wragekamp 6 • D-22397 Hamburg

Version: 02/2015
